IBM Infoprint 1850 1860 1870 1880 MFP Parts (4548, 4566, 4567, 4568)

Printer overview: IBM Infoprint 1850 MFP 4548, IBM Infoprint 1860 MFP 4566, IBM Infoprint 1870 MFP 4567.

Please call for parts assistance

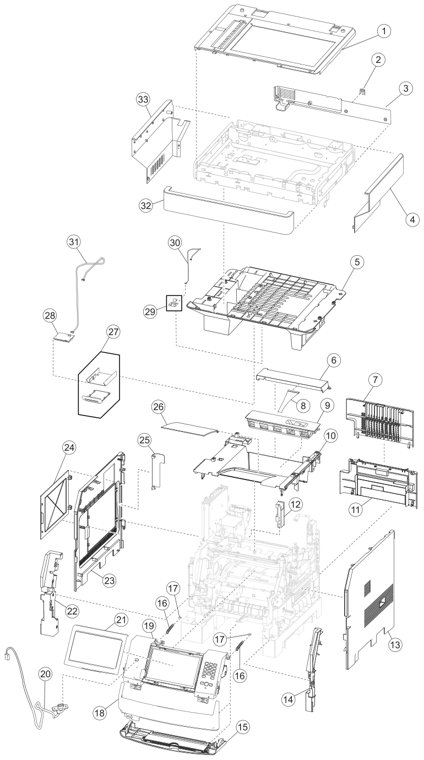

Assembly 1: Covers (InfoPrint 1850, 1860, and 1870) 1 40X2642 Scanner platen glass cover assembly Lexmark 40X2642 Scanner Platen Glass Cover Assembly New 40X2642 (New) $94.00 SaleLexmark 40X2642 Scanner platen glass cover assembly Fully refurbished with 90-day warranty 40X2642 ~~$61.00~~ $51.85 2 40X2169 Scanner cover plug, rear (InfoPrint 1850) 3 40X4506 Scanner cover, rear Lexmark 40X4506 Rear scanner cover New 40X4506 (New) $30.00 Lexmark 40X4506 Rear scanner cover Fully refurbished with 90-day warranty 40X4506 $19.00 Lexmark 40X4506 I Rear scanner cover Fully refurbished with 90-day warranty 40X4506 I $19.00 4 40X4508 Scanner cover, right (InfoPrint 1850, 1860, and 1870) Lexmark 40X4508 Right scanner cover New 40X4508 (New) $18.74 Lexmark 40X4508 Right scanner cover Fully refurbished with 90-day warranty 40X4508 I Contact for Details 5 40X4509 Scanner support platform (InfoPrint 1850, 1860, and 1870) Lexmark 40X4509 Scanner support platform New 40X4509 (New) $24.71 Lexmark 40X4509 Scanner support platform Fully refurbished with 90-day warranty 40X4509 $25.00 6 40X1919 Output cover assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X1919 Output cover assembly New 40X1919 I (New) $18.55 7 40X5896 Door assembly, rear Lexmark 40X5896 Door Assembly Rear (Infoprint 1850 1860 1872 1880) Fully refurbished with 90-day warranty 40X5896 Contact for Details 8 40X4470 Output bail 9 40X4417 Fuser wiper cover Lexmark 40X4417 Fuser Wiper Cover Fully refurbished with 90-day warranty 40X4417 41X4417 $33.00 10 40X1918 Laser cover assembly, 250 sheet(InfoPrint 1850, 1860, and 1870) Lexmark 40X1918 Laser Cover Assembly 250-Sheet New 40X1918 (New) $24.71 Lexmark 40X1918 Laser cover assembly 250-sheet Fully refurbished with 90-day warranty 40X1918 $43.71 11 40X4335 Cover assembly, rear lower Lexmark 40X4335 Rear Lower Cover Assembly New 40X4335 (New) $26.00 12 40X4629 Connection bezel assembly, rear Lexmark 40X4629 Rear connection bezel assembly New 40X4629 I (New) $12.98 13 40X1917 Side cover, right (InfoPrint 1850, 1860, and 1870) Lexmark 40X1917 Right Side Cover New 40X1917 (New) $24.71 14 40X1972 Inner cover, right (InfoPrint 1850, 1860, and 1870) Lexmark 40X1972 Right Inner Cover New 40X1972 (New) $12.23 15 40X2089 MPF tray door assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X2089 MPF Tray Door Assembly New 40X2089 (New) $31.28 16 40X2077 Counter balance spring (InfoPrint 1850, 1860, and 1870) Lexmark 40X2077 Counter balance spring Fully refurbished with 90-day warranty 40X2077 I Contact for Details Lexmark 40X2077 Counter balance spring New 40X2077 I (New) Contact for Details 17 40X2078 Spring connector (InfoPrint 1850, 1860, and 1870) Lexmark 40X2078 Spring connector Fully refurbished with 90-day warranty 40X2078 I Contact for Details Lexmark 40X2078 Spring connector New 40X2078 I (New) Contact for Details 18 40X5897 Operator panel door latch assembly (InfoPrint 1850) 18 40X5898 Operator panel door latch assembly (InfoPrint 1860) Lexmark 40X5898 Latch New 40X5898 (New) Contact for Details 18 40X5899 Operator panel door latch assembly (InfoPrint 1870) 19 40X4503 Operator panel door assembly with hinges (InfoPrint 1870) Lexmark 40X4503 Operator Panel Door Assembly With Hinges x654 x656 1870 1880 New 40X4503 40x6918 (New) Contact for Details Lexmark 40X4503 Operator Panel Door Assembly With Hinges x654 x656 1870 1880 Fully refurbished with 90-day warranty 40X4503 40X6918 Contact for Details 19 40X2149 Operator panel door assembly with hinges (InfoPrint 1850) Lexmark 40X2149 New Operator Panel Door Assembly With Hinges x651 x652 1850 1860 New 40X2149 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $485.13 Lexmark 40X2149 Operator Panel Door Assembly With Hinges x651 x652 1850 1860 Fully refurbished with 90-day warranty 40X2149 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 20 40X4377 USB cable assembly (InfoPrint 1850, 1860, and 1870) 21 40X4490 Touch screen bezel Lexmark 40X4490 LCD Screen Bezel Fully refurbished with 90-day warranty 40X4490 Contact for Details 22 40X1971 Inner cover, left (InfoPrint 1850, 1860, and 1870) Lexmark 40X1971 Left Inner Cover New 40X1971 (New) $15.61 23 40X1916 Side cover, left (InfoPrint 1850, 1860, and 1870) Lexmark 40X1916 Left Side Cover New 40X1916 (New) $56.39 24 40X4481 Access door (InfoPrint 1850, 1860, and 1870) Lexmark 40X4481 Access door New 40X4481 I (New) $16.62 25 40X4314 Connection access cover, rear Lexmark 40X4314 Connection access cover rear Fully refurbished with 90-day warranty 40X4314 Contact for Details 26 40X1973 Media support (InfoPrint 1850, 1860, and 1870) Lexmark 40X1973 Media Support New 40X1973 (New) $11.78 27 40X4598 Card reader cover assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X4598 Card reader cover assembly New 40X4598 I (New) $18.11 28 40X4604 Card reader assembly (5125 contact/HID) Lexmark 40X4604 Card reader assembly (5125 contact/HID) New 40X4604 (New) $196.81 28 40X4602 Card reader assembly (3121 contact) Lexmark 40X4602 Card reader assembly (3121 contact) New 40X4602 (New) $194.72 28 40X4603 Card reader assembly (5121 contact/RFID) Lexmark 40X4603 Card reader assembly (5121 contact/RFID) New 40X4603 (New) $190.29 29 40X2638 Standard output bin LED assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X2638 Standard Output Bin LED Assembly New 40X2638 (New) $12.78 30 40X2643 Standard output bin LED cable assembly Lexmark 40X2643 Standard output bin LED cable assembly New 40X2643 I (New) $10.29 31 40X4601 Card reader cable assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X4601 Card reader cable assembly New 40X4601 I (New) $14.90 32 40X4505 Scanner cover, front (InfoPrint 1850, 1860, and 1870) Lexmark 40X4505 Front scanner cover New 40X4505 (New) $24.71 33 40X4507 Scanner cover, left (InfoPrint 1850, 1860, and 1870) Parts catalog 7-3 Lexmark 40X4507 Left scanner cover New 40X4507 (New) $24.71

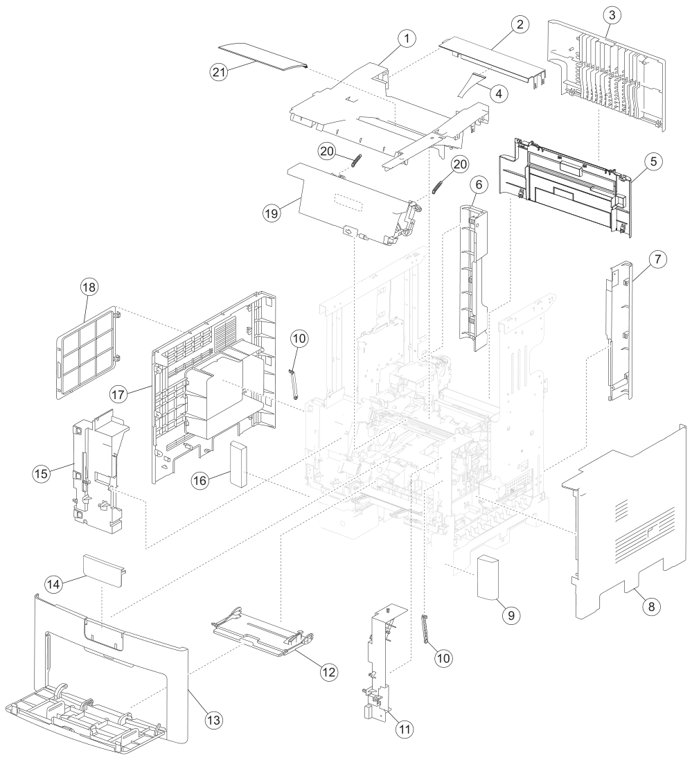

Assembly 2: Covers 1 (InfoPrint 1880) 1 40X1970 Laser cover assembly, 550 sheet (InfoPrint 1880) Lexmark 40X1970 Laser Cover Assembly 550-Sheet New 40X1970 (New) $24.71 Lexmark 40X1970 Laser cover assembly 550-sheet Fully refurbished with 90-day warranty 40X1970 I $24.71 2 40X4480 Output cover assembly (InfoPrint 1880) Lexmark 40X4480 Output cover assembly New 40X4480 (New) $28.54 3 40X5896 Door assembly, rear Lexmark 40X5896 Door Assembly Rear (Infoprint 1850 1860 1872 1880) Fully refurbished with 90-day warranty 40X5896 Contact for Details 4 40X4470 Output bail 5 40X4335 Cover assembly, rear lower Lexmark 40X4335 Rear Lower Cover Assembly New 40X4335 (New) $26.00 6 40X4477 Corner cover, left rear (InfoPrint 1880) Lexmark 40X4477 Left rear corner cover New 40X4477 I (New) $29.93 7 40X4479 Corner cover, right rear (InfoPrint 1880) Lexmark 40X4479 Right rear corner cover New 40X4479 I (New) $23.43 8 40X4478 Side cover, right (InfoPrint 1880) Lexmark 40X4478 Right side cover New 40X4478 (New) $24.71 Lexmark 40X4478 Right side cover Fully refurbished with 90-day warranty 40X4478 I $41.57 9 40X1976 Tray cover, right (InfoPrint 1880) Lexmark 40X1976 Right tray cover 550-sheet Fully refurbished with 90-day warranty 40X1976 I Contact for Details Lexmark 40X1976 Right tray cover 550-sheet New 40X1976 I (New) Contact for Details 10 40X4483 MPF tray cover support strap (InfoPrint 1880) Lexmark 40X4483 MPF tray cover support strap New 40X4483 I (New) $14.95 11 40X4485 Inner cover, right (InfoPrint 1880) Lexmark 40X4485 Right inner cover New 40X4485 (New) $19.71 12 40X4482 MPF media guide assembly (InfoPrint 1880) Lexmark 40X4482 MPF media guide assembly New 40X4482 (New) $22.60 13 40X2016 MPF tray cover assembly (InfoPrint 1880) Lexmark 40X2016 MPF Tray Cover Assembly New 40X2016 (New) $124.43 Lexmark 40X2016 MPF tray cover assembly Fully refurbished with 90-day warranty 40X2016 I $24.71 14 40X5901 Model door bezel (InfoPrint 1880) 15 40X4484 Inner cover, left (InfoPrint 1880) Lexmark 40X4484 Left inner cover New 40X4484 (New) $35.10 16 40X1975 Tray cover, left (InfoPrint 1880) Lexmark 40X1975 Left tray cover 550-sheet New 40X1975 I (New) Contact for Details 17 40X4476 Side cover, left (InfoPrint 1880) Lexmark 40X4476 Left side cover New 40X4476 (New) $24.71 Lexmark 40X4476 Left side cover Fully refurbished with 90-day warranty 40X4476 $43.64 18 40X4475 Access door (InfoPrint 1880) Lexmark 40X4475 Access door New 40X4475 (New) $20.54 Lexmark 40X4475 Access door Fully refurbished with 90-day warranty 40X4475 I $20.96 19 40X1977 Print cartridge cover assembly (InfoPrint 1880) Lexmark 40X1977 Print Cartridge Cover Assembly New 40X1977 (New) $37.71 Lexmark 40X1977 Print cartridge cover assembly Fully refurbished with 90-day warranty 40X1977 I $19.71 20 40X4489 Print cartridge recoil spring (InfoPrint 1880) Lexmark 40X4489 Print cartridge recoil spring New 40X4489 I (New) Contact for Details 21 40X2017 Media support (InfoPrint 1880) Parts catalog 7-5 Lexmark 40X2017 Media support New 40X2017 (New) $23.44

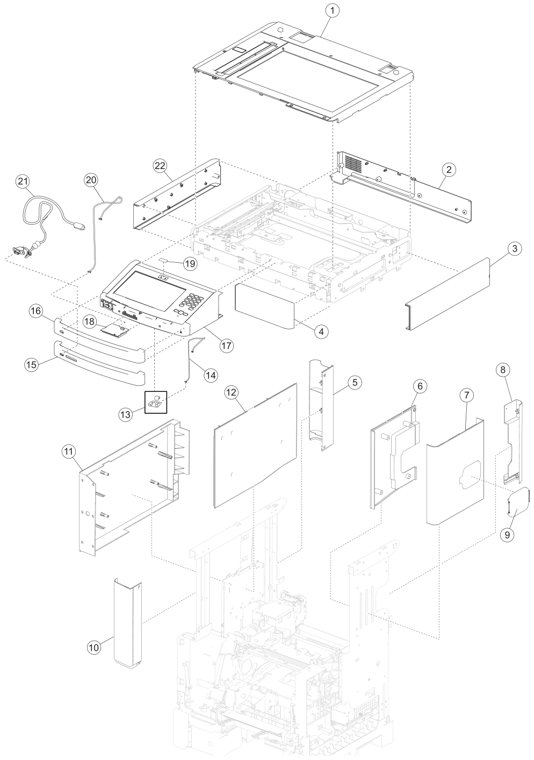

Assembly 3: Covers 2 (InfoPrint 1880) 1 40X2642 Platen glass cover assembly Lexmark 40X2642 Scanner Platen Glass Cover Assembly New 40X2642 (New) $94.00 SaleLexmark 40X2642 Scanner platen glass cover assembly Fully refurbished with 90-day warranty 40X2642 ~~$61.00~~ $51.85 2 40X4510 Scanner cover, rear (InfoPrint 1880) Lexmark 40X4510 Rear scanner cover New 40X4510 (New) $23.33 Lexmark 40X4510 Rear scanner cover Fully refurbished with 90-day warranty 40X4510 I $23.81 3 40X4511 Scanner cover, right (InfoPrint 1880) Lexmark 40X4511 Right scanner cover New 40X4511 (New) $18.36 4 40X4513 Scanner cover, front (InfoPrint 1880) Lexmark 40X4513 Front scanner cover New 40X4513 I (New) $14.39 5 40X4516 Scanner support cover, left rear (InfoPrint 1880) Lexmark 40X4516 Left rear scanner support cover New 40X4516 I (New) $14.90 6 40X4520 Scanner support inner cover, right (InfoPrint 1880) Lexmark 40X4520 Right scanner support inner cover New 40X4520 (New) $19.71 7 40X4517 Scanner support cover, right (InfoPrint 1880) Lexmark 40X4517 Right scanner support cover New 40X4517 (New) $21.81 8 40X4518 Scanner support cover, right rear (InfoPrint 1880) Lexmark 40X4518 Right rear scanner support cover New 40X4518 (New) $12.37 9 40X1974 Stapler access cover (InfoPrint 1880) Lexmark 40X1974 Stapler access cover New 40X1974 I (New) Contact for Details 10 40X4514 Scanner support cover, left front (InfoPrint 1880) 11 40X4515 Scanner support cover, left (InfoPrint 1880) Lexmark 40X4515 Left scanner support cover New 40X4515 (New) $24.71 Lexmark 40X4515 Left scanner support cover Fully refurbished with 90-day warranty 40X4515 I $36.78 12 40X4519 Scanner support inner cover, left (InfoPrint 1880) Lexmark 40X4519 Left scanner support inner cover New 40X4519 (New) $51.59 13 40X4525 Standard output bin LED assembly Lexmark 40X4525 Standard output bin LED assembly New 40X4525 I (New) $20.42 14 40X4499 Standard output bin LED cable assembly (InfoPrint 1870 w/hard drive & 550-sheet tray)) Lexmark 40X4499 Standard output bin LED cable assembly New 40X4499 I (New) $13.61 15 40X4599 Operator panel cover with card reader slot (InfoPrint 1880) Lexmark 40X4599 Operator panel cover with card reader slot New 40X4599 I (New) $14.06 16 40X2018 Operator panel front cover Lexmark 40X2018 Operator Panel Front Cover New 40X2018 (New) $14.48 17 40X4504 Operator panel assembly (InfoPrint 1880) Lexmark 40X4504 Operator panel assembly s/n below 79G0000 New 40X4504 40X7044 (New) $749.00 18 40X4602 Card reader assembly (3121 contact) Lexmark 40X4602 Card reader assembly (3121 contact) New 40X4602 (New) $194.72 18 40X4603 Card reader assembly (5121 contact/RFID) Lexmark 40X4603 Card reader assembly (5121 contact/RFID) New 40X4603 (New) $190.29 18 40X4604 Card reader assembly (5125 contact/HID) Lexmark 40X4604 Card reader assembly (5125 contact/HID) New 40X4604 (New) $196.81 19 40X5900 Operator panel bezel (InfoPrint 1880) 20 40X4600 Card reader cable assembly (InfoPrint 1880) Lexmark 40X4600 Card reader cable assembly New 40X4600 I (New) $14.29 21 40X4500 USB cable assembly (InfoPrint 1880) Lexmark 40X4500 USB cable assembly New 40X4500 (New) Contact for Details 22 40X4512 Scanner cover, left (InfoPrint 1880) Parts catalog 7-7 Lexmark 40X4512 Left scanner cover New 40X4512 I (New) $18.36

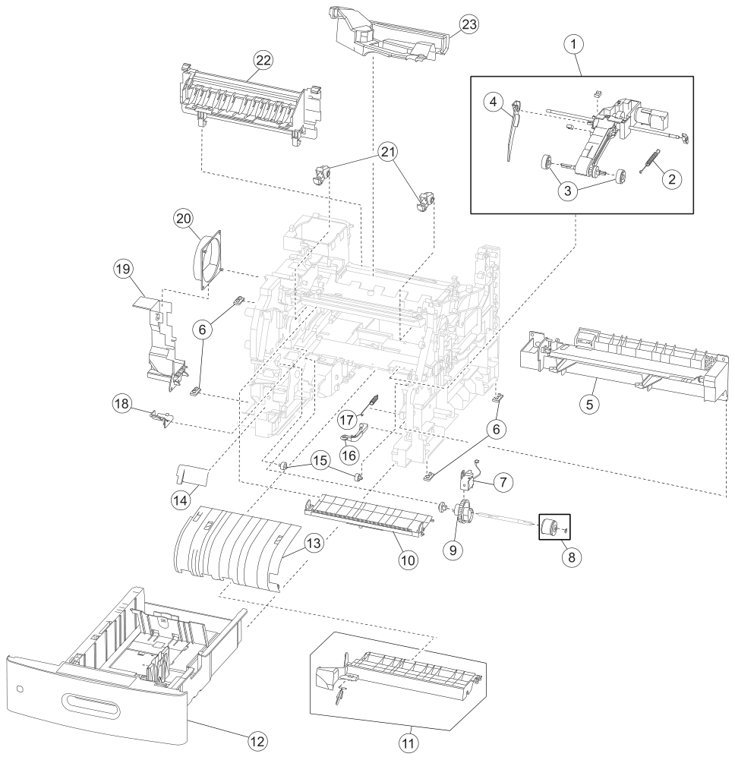

Assembly 4: Media path, pick arm and ducts 1 40X4305 550 Sheet pick arm assembly with spring Lexmark 40X4305 Pick Arm Assembly With Spring 550 Sheet New 40X4305 (New) $50.03 Lexmark 40X4305 Pick Arm Assembly With Spring 550-Sheet Fully refurbished with 90-day warranty 40X4305 Contact for Details 2 40X4307 Pick arm spring Lexmark 40X4307 550 Sheet bellcrank recoil spring Fully refurbished with 90-day warranty 40X4307 Contact for Details Lexmark 40X4307 Pick arm (bellcrank recoil) spring 550-sheet New 40X4307 I (New) $18.32 3 40X4308 Pick roll assembly (2) 4 40X4310 550 Sheet media out actuator Lexmark 40X4310 550 Sheet media out actuator New 40X4310 (New) $12.77 5 40X4459 MPF lift plate assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X4459 MPF lift plate assembly New 40X4459 I (New) $26.50 5 40X4425 MPF lift plate assembly with spring (InfoPrint 1880) Lexmark 40X4425 MPF lift plate assembly with spring New 40X4425 (New) Retired, no longer available: Contact for alternatives Contact for Details 6 40X4390 Machine pad Lexmark 40X4390 Machine pad New 40X4390 (New) Contact for Details Lexmark 40X4390 Machine pad Fully refurbished with 90-day warranty 40X4390 I $32.50 Lexmark 40X4390 Machine pad Fully refurbished with 90-day warranty 40X4390 Contact for Details 7 40X4365 MPF pick solenoid assembly Lexmark 40X4365 MPF pick solenoid assembly New 40X4365 40X6994 JWYNN (New) $12.70 Lexmark 40X4365 MPF pick solenoid assembly Fully refurbished with 90-day warranty 40X4365 I Contact for Details 8 40X1883 MPF pick roll assembly with flange and clip 9 40X4457 MPF cam gear 10 40X1869 Transfer deflector with static brush 11 40X1900 Media turn guide with actuator Lexmark 40X1900 Media turn guide with actuator New 40X1900 68Y37 (New) $20.34 Lexmark 40X1900 Media turn guide with actuator Fully refurbished with 90-day warranty 40X1900 Contact for Details 12 40X4469 Media tray assembly, 550 sheet (InfoPrint 1850, 1860, and 1870) Lexmark 40X4469 Media Tray Assembly 550 Sheet Fully refurbished with 90-day warranty 40X4469 40X5786 (Not for x658) $45.00 Lexmark 40X4469 Media Tray Assembly 550 Sheet New 40X4469 40X5786 NOT for x658 (New) $69.00 12 40X2164 Media tray assembly (InfoPrint 1880) Lexmark 40X2164 Media Tray Assembly 550-Sheet New 40X2164 X658 only (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X2164 Media tray assembly 550-sheet Fully refurbished with 90-day warranty 40X2164 $53.00 13 40X4388 Inner deflector Lexmark 40X4388 Inner deflector New 40X4388 I (New) $19.54 14 40X4385 Envelope feeder interface cover 15 40X4406 Print cartridge support roller 16 40X4395 Tray roller catch assembly Lexmark 40X4395 Tray roller catch assembly New 40X4395 V41JC (New) $12.35 17 40X4394 Tray catch spring 18 40X1876 MPF gear shield Lexmark 40X1876 MPF Gear Shield New 40X1876 XHDWG (New) $12.82 19 40X4389 LVPS cooling duct 20 40X4392 Main cooling duct (InfoPrint 1850, 1860, and 1870) 21 40X1868 Print cartridge clamp assembly Lexmark 40X1868 Print cartridge clamp assembly New 40X1868 (New) $15.29 22 40X4318 Fuser access door assembly Lexmark 40X4318 Fuser Access Door Assembly 550 Fully refurbished with 90-day warranty 40X4318 $19.00 23 40X4384 EP cooling fan duct Parts catalog 7-9 Lexmark 40X4384 EP cooling fan duct New 40X4384 (New) $15.00

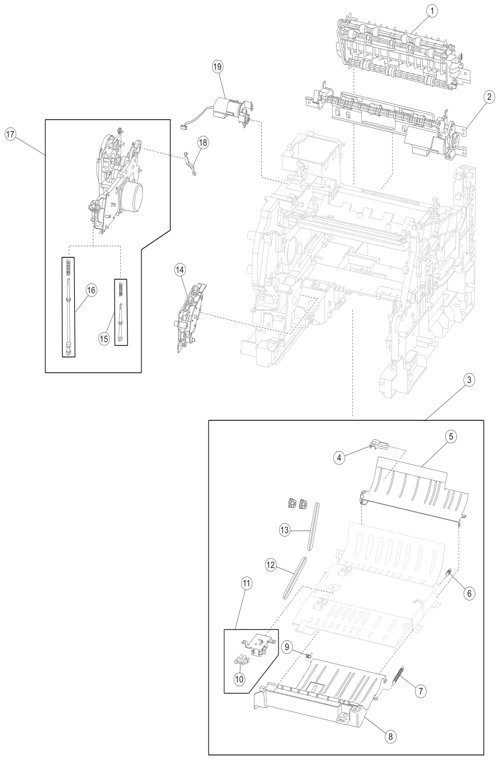

Assembly 5: Drive motor assemblies 1 40X4467 Redrive assembly Lexmark 40X4467 Redrive assembly New 40X4467 (New) $53.00 Lexmark 40X4467 Redrive assembly Fully refurbished with 90-day warranty 40X4467 $40.00 2 40X5851 Duplex drive motor assembly Lexmark 40X5851 Duplex drive motor assembly New 40X5851 (New) $27.00 Lexmark 40X5851 Duplex drive motor assembly Fully refurbished with 90-day warranty 40X5851 $20.00 3 40X4346 Duplex assembly with 2 belts and 2 pulleys Lexmark 40X4346 Duplex assembly with 2 belts and 2 pulleys New 40X4346 I (New) $57.75 4 40X4351 Duplex guide handle Lexmark 40X4351 Duplex guide handle New 40X4351 (New) Contact for Details Lexmark 40X4351 Duplex guide handle Fully refurbished with 90-day warranty 40X4351 Contact for Details 5 40X4352 Duplex guide, rear Lexmark 40X4352 Duplex guide rear New 40X4352 (New) $20.19 Lexmark 40X4352 Duplex guide rear (InfoPrint 1852 and InfoPrint 1872) Fully refurbished with 90-day warranty 40X4352 Contact for Details 6 40X4353 Duplex guide spring, rear 7 40X4349 Duplex guide spring, right 8 40X4348 Duplex guide assembly, front Lexmark 40X4348 Front duplex guide assembly New 40X4348 (New) $27.37 Lexmark 40X4348 Front duplex guide assembly Fully refurbished with 90-day warranty 40X4348 I $14.24 9 40X5551 Duplex guide spring, left 10 40X4369 Sensor (duplex input) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 11 40X4345 Duplex input sensor assembly 12 40X4350 Duplex drive belt, lower Lexmark 40X4350 Duplex drive belt lower New 40X4350 (New) $14.00 13 40X4354 Duplex drive belt, upper Lexmark 40X4354 Duplex drive belt upper New 40X4354 (New) $14.00 14 40X4303 Alignment assembly with ground strap and adj. screw Lexmark 40X4303 New Aligner assembly with ground strap and adj. screw New 40X4303 (New) Contact for Details 15 40X1863 Option drive shaft with spring Lexmark 40X1863 250 Option drive shaft with spring New 40X1863 (New) $62.97 16 40X4473 Option drive shaft with spring Lexmark 40X4473 550 Option drive shaft with spring New 40X4473 (New) $12.62 17 40X5749 Main drive motor assembly with option drive shaft Lexmark 40X5749 Main Drive Motor Assembly With Option Drive Shaft New 40X5749 (New) $129.00 Lexmark 40X5749 Main Drive Motor Assembly With Option Drive Shaft Fully refurbished with 90-day warranty 40X5749 $68.00 18 40X4386 Fuser drive release linkage Lexmark 40X4386 Fuser drive release linkage New 40X4386 (New) Contact for Details 19 40X5850 Redrive motor assembly Parts catalog 7-11 Lexmark 40X5850 Redrive motor assembly New 40X5850 (New) $32.72

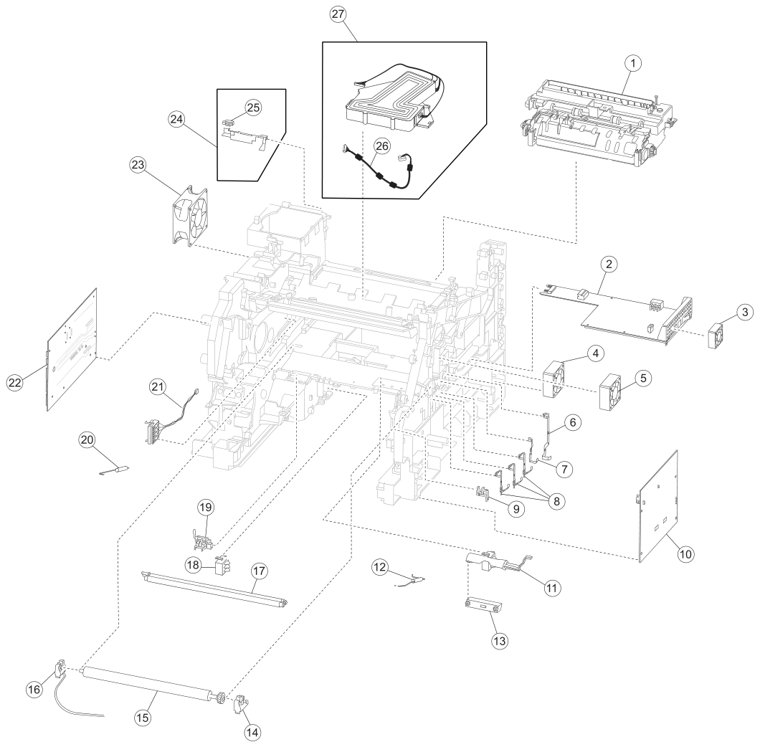

Assembly 6: Printhead, fuser assembly, and electronics 1 40X1870 Fuser assembly 100V, type 1 1 40X4418 Fuser assembly 110V, type 1 IBM 40X4418 Fuser assembly 110V type 1 New 40X4418 I (New) ~~$314.00~~ $299.00 1 40X1871 Fuser assembly 220V, type 1 1 40X5853 Fuser assembly 100V, type 2 1 40X5854 Fuser assembly 110V, type 2 Lexmark 40X5854 Fuser assembly 110V type 2 New 40X5854 (New) $329.00 1 40X5855 Fuser assembly 220V, type 2 2 40X2062 LVPS card assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X2062 LVPS Card Assembly New 40X2062 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X2062 LVPS Card Assembly Fully refurbished with 90-day warranty 40X2062 $219.00 2 40X2072 LVPS card assembly (InfoPrint 1880) Lexmark 40X2072 LVPS card assembly X658 1880 New 40X2072 (New) Retired, no longer available: Contact for alternatives Contact for Details 3 40X4137 LVPS cooling fan (InfoPrint 1880) Lexmark 40X4137 LVPS cooling fan New 40X4137 (New) $144.72 4 40X4359 Duplex cooling fan Lexmark 40X4359 Fan Fully refurbished with 90-day warranty 40X4359 Contact for Details Lexmark 40X4359 Fan New 40X4359 (New) $20.79 5 40X4356 Print cartridge cooling fan 6 40X4383 Cleaning blade contact Lexmark 40X4383 Cleaning blade contact New 40X4383 (New) $13.12 Lexmark 40X4383 Cleaning blade contact Fully refurbished with 90-day warranty 40X4383 I Contact for Details 7 40X4381 Drum grounding contact Lexmark 40X4381 Drum grounding contact New 40X4381 (New) Contact for Details Lexmark 40X4381 Drum grounding contact Fully refurbished with 90-day warranty 40X4381 I Contact for Details 8 40X4382 Print cartridge HV contact Lexmark 40X4382 Print cartridge HV contact New 40X4382 8NJTP (New) Contact for Details Lexmark 40X4382 Print cartridge HV contact Fully refurbished with 90-day warranty 40X4382 I Contact for Details 9 40X4370 Sensor (toner empty) Lexmark 40X4370 Sensor (Toner Empty) New 40X4370 (New) $16.70 10 40X4362 HVPS card assembly Lexmark 40X4362 HVPS card assembly New 40X4362 (New) $69.20 Lexmark 40X4362 HVPS card assembly Fully refurbished with 90-day warranty 40X4362 $33.00 11 40X1866 Sensor shield assembly 12 40X4317 Charge roll link spring, right 13 40X4378 Sensor (toner density) Lexmark 40X4378 Sensor (toner density) New 40X4378 (New) $22.01 14 40X1888 Transfer roll bracket assembly, right Lexmark 40X1888 Right transfer roll bracket assembly New 40X1888 (New) $18.95 15 40X1886 Transfer roll assembly with tool 16 40X1887 Transfer roll bracket with cable assembly, left Lexmark 40X1887 Transfer Roll Bracket With Cable Assembly Left New 40X1887 JF65G (New) $15.81 17 40X5852 Charge roll assembly with tool 18 40X4472 Switch (media size) assembly 19 40X4368 Sensor (input) Lexmark 40X4368 Sensor (input) New 40X4368 40X8673 (New) $29.00 20 40X4316 Charge roll link spring, left 21 40X1864 Print cartridge ID connector assembly 22 40X4501 System card assembly Lexmark 40X4501 System Card Assembly New 40X4501 40X6392 I (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X4501 L Advanced Exchange This part is System Card Assembly New 40X4501 40X6392 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $269.71 23 40X4364 Main cooling fan Lexmark 40X4364 Main Cooling Fan New 40X4364 (New) $30.11 24 40X4372 Sensor (standard bin exit) actuator assembly Lexmark 40X4372 New Sensor (standard bin exit) actuator assembly New 40X4372 (New) $15.43 25 40X4369 Sensor (standard bin exit) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 26 40X1865 Printhead cable assembly Lexmark 40X1865 Printhead Cable New 40X1865 (New) $24.89 27 40X4464 Printhead with cable assembly Parts catalog 7-13 Lexmark 40X4464 Printhead with cable assembly New 40X4464 (New) Contact for Details IBM 40X4464 Printhead with cable assembly Fully refurbished with 90-day warranty 40X4464 I $54.00

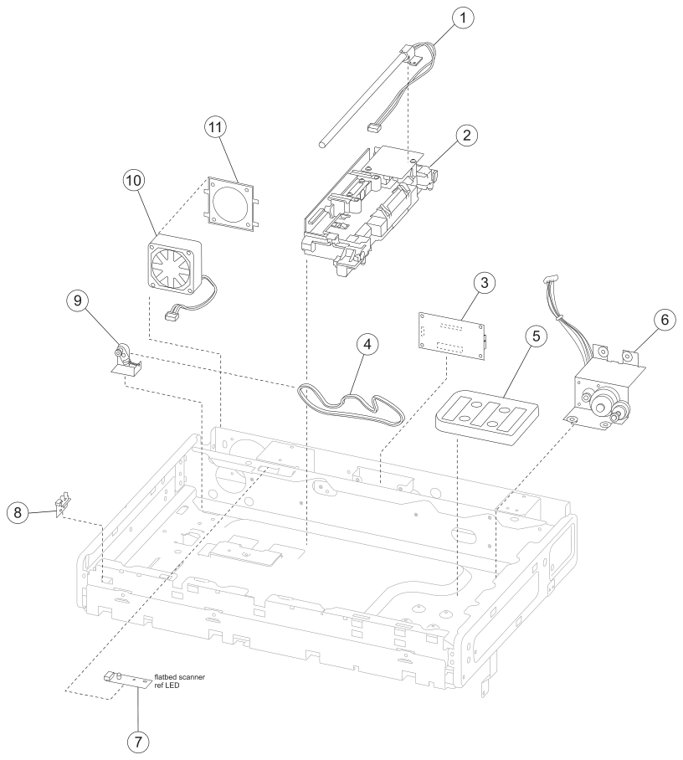

Assembly 7: Flatbed scanner 1 40X2165 Scanner unit assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X2165 Scanner Unit Assembly New 40X2165 (New) $429.71 Lexmark 40X2165 Scanner unit assembly Fully refurbished with 90-day warranty 40X2165 $209.72 1 40X2166 Scanner unit assembly (InfoPrint 1880) Lexmark 40X2166 Scanner Unit Assembly Fully refurbished with 90-day warranty 40X2166 $219.72 2 40X4527 Scanner exposure lamp Lexmark 40X4527 Scanner Exposure Lamp New 40X4527 Part of 40x6396 (New) $114.80 3 40X4526 Scanner CCD assembly Lexmark 40X4526 Scanner CCD assembly New 40X4526 (New) Contact for Details Lexmark 40X4526 Scanner CCD assembly Fully refurbished with 90-day warranty 40X4526 $84.21 4 40X2171 Scanner interface card assembly Lexmark 40X2171 Scanner Interface Card Assembly New 40X2171 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X2171 Scanner interface card assembly Fully refurbished with 90-day warranty 40X2171 $29.00 5 40X4523 Carriage belt Lexmark 40X4523 Carriage belt New 40X4523 (New) $17.50 SaleLexmark 40X4523 Carriage belt Fully refurbished with 90-day warranty 40X4523 ~~$13.25~~ $11.26 6 40X4534 Sensor (platen glass length) assembly Lexmark 40X4534 Sensor (platen glass length) assembly New 40X4534 (New) $62.00 Lexmark 40X4534 Sensor (platen glass length) assembly Fully refurbished with 90-day warranty 40X4534 I $42.00 7 40X4521 Carriage drive motor assembly with cable Lexmark 40X4521 Carriage drive motor assembly with cable New 40X4521 (New) $58.75 Lexmark 40X4521 Carriage drive motor assembly with cable Fully refurbished with 90-day warranty 40X4521 $41.50 8 40X2074 Scanner controller card assembly (InfoPrint 1850 and 1860) Lexmark 40X2074 Scanner Controller Card Assembly New 40X2074 (New) $238.10 Lexmark 40X2074 Scanner Controller Card Assembly Fully refurbished with 90-day warranty 40X2074 $61.46 8 40X2075 Scanner controller card assembly (InfoPrint 1870 and 1880) Lexmark 40X2075 Scanner Controller Card Assembly New 40X2075 16M1224 (New) $252.00 Lexmark 40X2075 Scanner controller card assembly Fully refurbished with 90-day warranty 40X2075 16M1224 $64.00 9 40X4532 Scanner reference LED assembly Lexmark 40X4532 Scanner reference LED cable assembly New 40X4532 I (New) $14.00 10 40X4524 Sensor (scanner HP) with bracket Lexmark 40x4524 Sensor (Scanner Hp) With Bracket New 40x4524 (New) $15.50 SaleLexmark 40X4524 Sensor (scanner HP) with bracket Fully refurbished with 90-day warranty 40X4524 Contact for Details 11 40X4522 Carriage belt tensioner assembly Lexmark 40X4522 Carriage belt tensioner assembly New 40X4522 I (New) $20.29 Lexmark 40X4522 Carriage belt tensioner assembly Fully refurbished with 90-day warranty 40X4522 I Contact for Details 12 40X4535 Scanner cooling fan Lexmark 40X4535 Scanner cooling fan New 40X4535 (New) $17.50 13 40X4536 Scanner cooling fan filter Lexmark 40X4536 Scanner cooling fan filter New 40X4536 I (New) $14.20 14 40X2737 Scanner filer cover Parts catalog 7-15

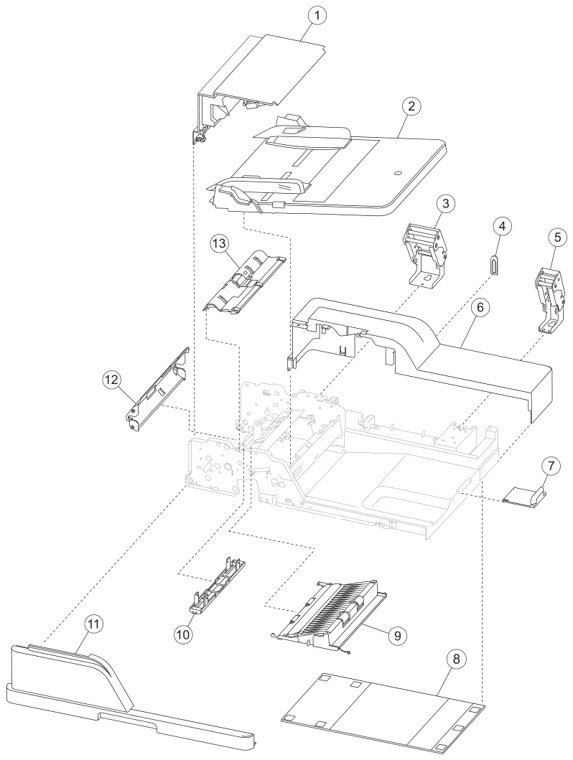

Assembly 8: ADF covers 1 40X4537 ADF top door assembly Lexmark 40X4537 ADF top door assembly New 40X4537 (New) $82.78 Lexmark 40X4537 ADF top door assembly Fully refurbished with 90-day warranty 40X4537 I $29.71 2 40X4561 ADF document tray assembly Lexmark 40X4561 ADF document tray assembly New 40X4561 (New) $35.94 Lexmark 40X4561 ADF document tray assembly Fully refurbished with 90-day warranty 40X4561 $45.21 3 40X3439 Left hinge assembly Lexmark 40X3439 Left hinge assembly New 40X3439 (New) $20.00 Lexmark 40X3439 Left hinge assembly Fully refurbished with 90-day warranty 40X3439 $19.00 4 40X2746 ADF cover cap, rear left (InfoPrint 1850 and 1860) 5 40X4563 Right hinge assembly Lexmark 40X4563 Right hinge assembly New 40X4563 (New) $28.41 Lexmark 40X4563 Right hinge assembly Fully refurbished with 90-day warranty 40X4563 $28.99 6 40X4539 ADF cover, rear Lexmark 40X4539 ADF rear cover New 40X4539 (New) $24.13 Lexmark 40X4539 ADF rear cover Fully refurbished with 90-day warranty 40X4539 $19.63 7 40X4564 Document tray extension Lexmark 40X4564 Document tray extension New 40X4564 I (New) $12.60 8 40X3444 ADF platen cushion Lexmark 40X3444 ADF platen cushion New 40X3444 (New) $42.86 9 40X3392 ADF lower door assembly (InfoPrint 1850 and 1860) Lexmark 40X3392 ADF lower door assembly New 40X3392 (New) Contact for Details 9 40X3438 ADF lower door assembly (InfoPrint 1870 and 1880) Lexmark 40X3438 ADF lower door assembly New 40X3438 (New) $42.62 Lexmark 40X3438 ADF lower door assembly Fully refurbished with 90-day warranty 40X3438 $24.71 10 40X3445 Media pinch pad assembly SaleLexmark 40X3445 Media pinch pad assembly Fully refurbished with 90-day warranty 40X3445 Contact for Details Lexmark 40X3445 Media pinch pad assembly New 40X3445 (New) Retired, no longer available: Contact for alternatives Contact for Details 11 40X4538 ADF cover, front Lexmark 40X4538 ADF front cover New 40X4538 (New) $21.58 12 40X4566 ADF turn guide Lexmark 40X4566 ADF turn guide New 40X4566 I (New) $25.58 Lexmark 40X4566 ADF turn guide Fully refurbished with 90-day warranty 40X4566 I $12.74 13 40X4562 Pick pad cover assembly Parts catalog 7-17 Lexmark 40X4562 Pick pad cover assembly New 40X4562 (New) $49.39

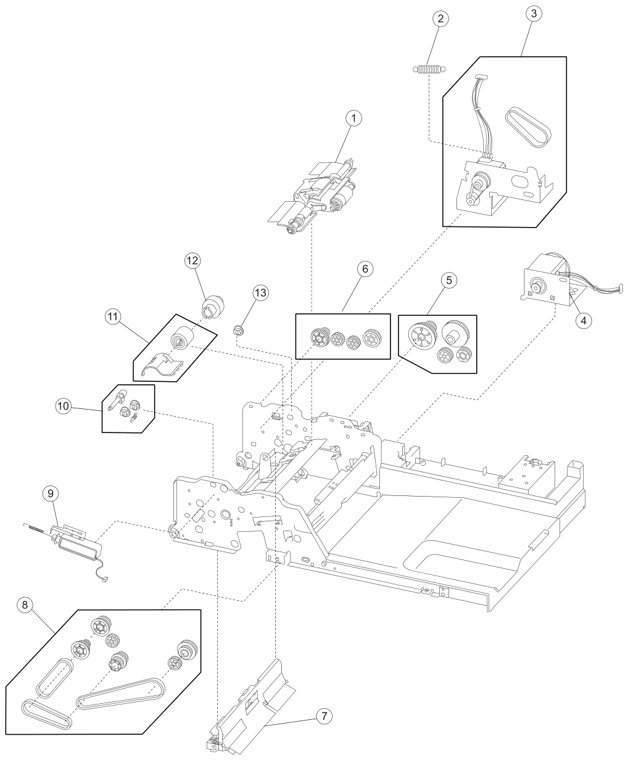

Assembly 9: ADF feed and drive 1 40X4540 ADF feed / pick roll assembly Lexmark 40X4540 ADF feed / pick roll assembly New 40X4540 (New) $125.00 Lexmark 40X4540 ADF feed / pick roll assembly Fully refurbished with 90-day warranty 40X4540 Contact for Details 2 40X4545 Spring SaleLexmark 40X4545 Tension spring Fully refurbished with 90-day warranty 40X4545 Contact for Details Lexmark 40X4545 Tension spring New 40X4545 I(New) Contact for Details 3 40X4543 Feed motor assembly with belt and cable Lexmark 40X4543 Feed motor assembly with belt and cable New 40X4543 (New) $32.21 Lexmark 40X4543 Feed motor assembly with belt and cable Fully refurbished with 90-day warranty 40X4543 $25.71 4 40X4544 Transport motor bracket assembly with cable Lexmark 40X4544 Transport motor bracket assembly with cable New 40X4544 (New) $57.80 Lexmark 40X4544 Transport motor bracket assembly with cable Fully refurbished with 90-day warranty 40X4544 $21.04 5 40X2759 Transport drive gear and pulley kit, rear 40X2759 Rear transport drive gear and pulley kit Fully refurbished with 90-day warranty 40X2759 I $5.25 6 40X2749 Feed one-way bearing and gear kit Lexmark 40X2749 Feed One-Way Bearing And Gear Kit New 40X2749 (New) $29.75 Lexmark 40X2749 Feed one-way bearing and gear kit Fully refurbished with 90-day warranty 40X2749 Contact for Details 7 40X4542 Pinch roll assembly Lexmark 40X4542 Pinch roll assembly New 40X4542 (New) $27.00 8 40X2760 Transport drive gear, pulley, and belt kit, front Lexmark 40X2760 New Front transport drive gear pulley and belt kit New 40X2760 (New) $18.10 Lexmark 40X2760 Front transport drive gear pulley and belt kit Fully refurbished with 90-day warranty 40X2760 I Contact for Details 9 40X4548 ADF solenoid assembly Lexmark 40X4548 ADF solenoid assembly New 40X4548 (New) $34.53 10 40X2761 Pick roll position cam assembly Lexmark 40X2761 Pick roll position cam assembly New 40X2761 (New) $14.32 11 40X4605 ADF separator roll and guide Lexmark 40X4605 ADF Separator Roll and Guide New 40X4605 (New) $39.00 12 40X2747 Torque limiter Lexmark 40X2747 Torque Limiter New 40X2747 40X5977 40X7214 (New) $28.88 Lexmark 40X2747 Torque limiter Fully refurbished with 90-day warranty 40X2747 $19.68 13 40X2750 Bushing 6 mm Parts catalog 7-19

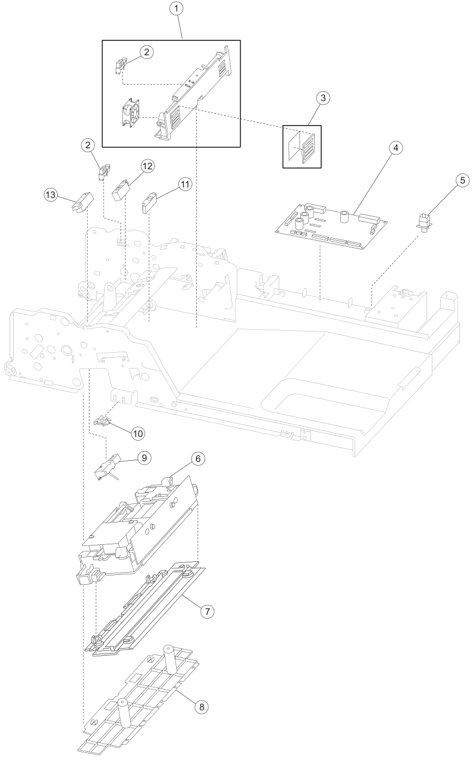

Assembly 10: ADF electronics 1 40X4606 Sensor (ADF media exit) bracket assembly (InfoPrint 1850 and 1860) 1 40X4607 Sensor (ADF media exit) bracket assembly with fan (InfoPrint 1870 and Lexmark 40X4607 Sensor (ADF media exit) bracket assembly with fan New 40X4607 (New) $63.54 Lexmark 40X4607 Sensor (ADF media exit) bracket assembly with fan Fully refurbished with 90-day warranty 40X4607 $23.61 2 40X4549 Sensor (ADF top door interlock) Lexmark 40X4549 Sensor (ADF top door lower door interlock media exit) Fully refurbished with 90-day warranty 40X4549 I Contact for Details Lexmark 40X4549 Sensor (ADF top door lower door interlock media exit) New 40X4549 I (New) Contact for Details 3 40X4608 ADF filter and cover (InfoPrint 1870 and 1880) Lexmark 40X4608 ADF filter and cover New 40X4608 I (New) $14.83 4 40X3142 ADF controller card assembly Lexmark 40X3142 ADF controller card assembly New 40X3142 L (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3142 ADF controller card assembly New 40X3142 L Exchange (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3142 ADF controller card assembly Fully refurbished with 90-day warranty 40X3142 $99.00 5 40X4554 Switch (ADF closed interlock) Lexmark 40X4554 Switch (ADF closed interlock) New 40X4554 I (New) Contact for Details 6 40X4547 ADF duplex CCD assembly (InfoPrint 1870 and 1880) Lexmark 40X4547 ADF Duplex CCD Assembly New 40X4547 40X6397 (New) $291.00 Lexmark 40X4547 ADF duplex CCD assembly Fully refurbished with 90-day warranty 40X4547 40X6397 Contact for Details 7 40X4565 ADF duplex CCD scan glass assembly (InfoPrint 1870 and 1880) Lexmark 40X4565 ADF duplex CCD scan glass assembly New 40X4565 I (New) $20.69 8 40X3272 ADF duplex deletion insert (InfoPrint 1850 and 1860) 9 40X2762 Sensor (ADF 2nd scan) Lexmark 40X2762 Sensor (ADF 2nd scan) New 40X2762 (New) $16.89 10 40X4549 Sensor (ADF lower door interlock) Lexmark 40X4549 Sensor (ADF top door lower door interlock media exit) Fully refurbished with 90-day warranty 40X4549 I Contact for Details Lexmark 40X4549 Sensor (ADF top door lower door interlock media exit) New 40X4549 I (New) Contact for Details 11 40X4551 Sensor (ADF document set) Lexmark 40X4551 Sensor (ADF document set) New 40X4551 (New) $26.74 12 40X4550 Sensor (ADF sheet through) Lexmark 40X4550 Sensor (ADF sheet through ADF 1st scan) New 40X4550 (New) $24.34 SaleLexmark 40X4550 Sensor (ADF sheet through ADF 1st scan) Fully refurbished with 90-day warranty 40X4550 ~~$11.72~~ $9.96 13 40X4550 Sensor (ADF 1st scan) Parts catalog 7-21 Lexmark 40X4550 Sensor (ADF sheet through ADF 1st scan) New 40X4550 (New) $24.34 SaleLexmark 40X4550 Sensor (ADF sheet through ADF 1st scan) Fully refurbished with 90-day warranty 40X4550 ~~$11.72~~ $9.96

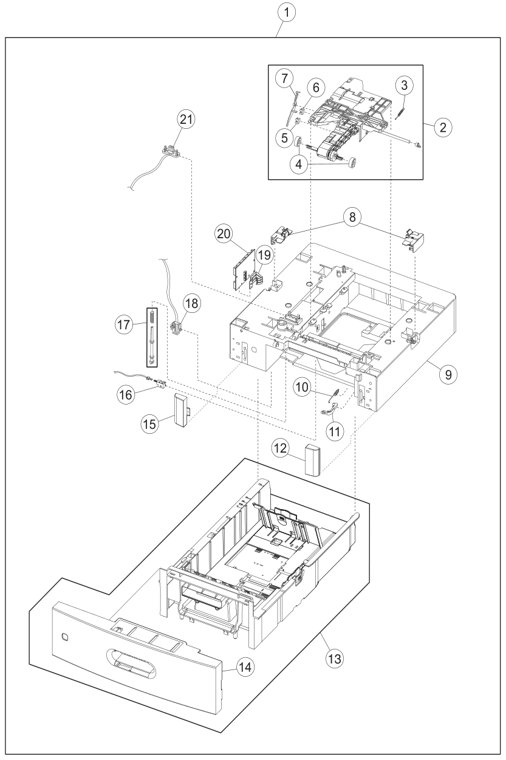

Assembly 11: 550 Sheet option tray assembly (InfoPrint 1880) 1 40X3967 Complete 550 sheet option tray assembly (InfoPrint 1880) Lexmark 40X3967 550-Sheet Drawer complete assembly New 40X3967 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X3967 550-Sheet Drawer complete assembly Fully refurbished with 90-day warranty 40X3967 $176.00 2 40X3454 550 Sheet pick arm bracket assembly Lexmark 40X3454 550 Sheet Pick Arm Bracket Assembly New 40X3454 (New) $73.00 Lexmark 40X3454 550 Sheet Pick Arm Bracket Assembly Fully refurbished with 90-day warranty 40X3454 $53.00 3 40X4307 550 Sheet bellcrank recoil spring Lexmark 40X4307 550 Sheet bellcrank recoil spring Fully refurbished with 90-day warranty 40X4307 Contact for Details Lexmark 40X4307 Pick arm (bellcrank recoil) spring 550-sheet New 40X4307 I (New) $18.32 4 40X4308 Pick roll assembly (2) 5 40X4369 Sensor (media low) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 6 40X4369 Sensor (media empty) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 7 40X4310 550 Sheet media out actuator Lexmark 40X4310 550 Sheet media out actuator New 40X4310 (New) $12.77 8 40X4570 Anti-tip latch assembly Lexmark 40X4570 Anti-tip latch assembly New 40X4570 (New) $16.39 9 40X5843 550 Sheet option drawer assembly Lexmark 40X5843 550-Sheet Drawer New 40X5843 (New) $175.00 10 40X3822 Media tray catch spring 11 40X4395 Media tray roller catch assembly Lexmark 40X4395 Tray roller catch assembly New 40X4395 V41JC (New) $12.35 12 40X1976 550 Sheet tray right cover Lexmark 40X1976 Right tray cover 550-sheet Fully refurbished with 90-day warranty 40X1976 I Contact for Details Lexmark 40X1976 Right tray cover 550-sheet New 40X1976 I (New) Contact for Details 13 40X2164 Media tray assembly, 550 sheet Lexmark 40X2164 Media Tray Assembly 550-Sheet New 40X2164 X658 only (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X2164 Media tray assembly 550-sheet Fully refurbished with 90-day warranty 40X2164 $53.00 14 40X4130 Cover, 550 sheet tray front Lexmark 40X4130 Front tray cover 550-sheet New 40X4130 I (New) $188.92 Lexmark 40X4130 Front tray cover 550-sheet Fully refurbished with 90-day warranty 40X4130 I $137.67 15 40X1975 550 Sheet tray left cover Lexmark 40X1975 Left tray cover 550-sheet New 40X1975 I (New) Contact for Details 16 40X4575 Sensor (pass through) with cable Lexmark 40X4575 Sensor (pass through) with cable New 40X4575 (New) $18.55 17 40X4473 550 Option drive shaft with spring Lexmark 40X4473 550 Option drive shaft with spring New 40X4473 (New) $12.62 18 40X4572 Lower interface cable assembly Lexmark 40X4572 Lower interface cable assembly New 40X4572 (New) $19.45 Lexmark 40X4572 Lower interface cable assembly Fully refurbished with 90-day warranty 40X4572 $17.47 19 40X3854 Media size actuator Lexmark 40X3854 Media size actuator New 40X3854 (New) $19.64 Lexmark 40X3854 Media size actuator Fully refurbished with 90-day warranty 40X3854 $19.94 20 40X4578 550 Sheet tray controller card assembly Lexmark 40X4578 Controller Card Assembly 550 Sheet New 40X4578 (New) $28.96 Lexmark 40X4578 550 Sheet controller card assembly Fully refurbished with 90-day warranty 40X4578 $29.25 21 40X4571 Upper interface cable assembly Parts catalog 7-23 Lexmark 40X4571 Upper interface cable assembly New 40X4571 (New) $17.11 Lexmark 40X4571 Upper interface cable assembly Fully refurbished with 90-day warranty 40X4571 $20.58

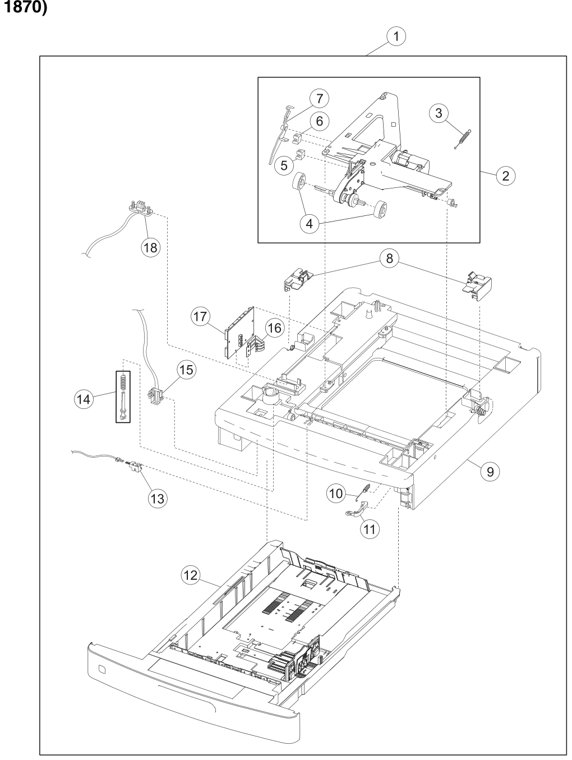

Assembly 12: 250 Sheet option tray assembly (InfoPrint 1850, 1860, and 1 40X4569 Complete 250 sheet option tray assembly Lexmark 40X4569 250-sheet Drawer complete assembly Fully refurbished with 90-day warranty 40X4569 $110.00 2 40X3447 250 Sheet pick arm bracket assembly Lexmark 40X3447 250-Sheet pick arm bracket assembly New 40X3447 (New) Contact for Details Lexmark 40X3447 250 Sheet pick arm bracket assembly Fully refurbished with 90-day warranty 40X3447 $37.00 3 40X3448 250 Sheet bellcrank recoil spring Lexmark 40X3448 250 Sheet bellcrank recoil spring Fully refurbished with 90-day warranty 40X3448 $13.49 Lexmark 40X3448 250 Sheet bellcrank recoil spring New 40X3448 (New) $15.03 4 40X4308 Pick roll assembly (2) 5 40X4369 Sensor (media low) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 6 40X4369 Sensor (media empty) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 7 40X4309 250 Sheet media out actuator (InfoPrint 1850 and 1860) 8 40X4570 Anti-tip latch assembly Lexmark 40X4570 Anti-tip latch assembly New 40X4570 (New) $16.39 9 40X3453 250 Sheet option drawer assembly 10 40X3822 Media tray catch spring 11 40X4395 Media tray roller catch assembly Lexmark 40X4395 Tray roller catch assembly New 40X4395 V41JC (New) $12.35 12 40X3449 Media tray assembly, 250 sheet Lexmark 40X3449 Media tray assembly 250 sheet New 40X3449 40X4468 40x6391 (New) $129.00 Lexmark 40X3449 40X4468 40x6391 Media tray assembly 250 sheet Fully refurbished with 90-day warranty 40X3449 40X4468 40x6391 $82.00 13 40X4575 Sensor (pass through) with cable Lexmark 40X4575 Sensor (pass through) with cable New 40X4575 (New) $18.55 14 40X1863 250 Option drive shaft with spring Lexmark 40X1863 250 Option drive shaft with spring New 40X1863 (New) $62.97 15 40X4572 Lower interface cable assembly Lexmark 40X4572 Lower interface cable assembly New 40X4572 (New) $19.45 Lexmark 40X4572 Lower interface cable assembly Fully refurbished with 90-day warranty 40X4572 $17.47 16 40X3854 Media size actuator Lexmark 40X3854 Media size actuator New 40X3854 (New) $19.64 Lexmark 40X3854 Media size actuator Fully refurbished with 90-day warranty 40X3854 $19.94 17 40X4574 250 Sheet controller card assembly Lexmark 40X4574 Controller card assembly 250 Sheet New 40X4574 (New) $56.66 Lexmark 40X4574 250 Sheet controller card assembly Fully refurbished with 90-day warranty 40X4574 $46.19 18 40X4571 Upper interface cable assembly Parts catalog 7-25 Lexmark 40X4571 Upper interface cable assembly New 40X4571 (New) $17.11 Lexmark 40X4571 Upper interface cable assembly Fully refurbished with 90-day warranty 40X4571 $20.58

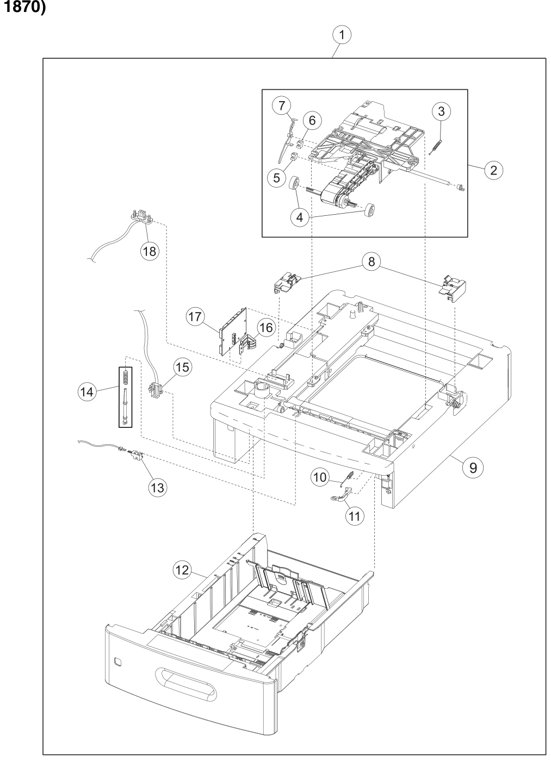

Assembly 13: 550 Sheet option tray assembly (InfoPrint 1850, 1860, and 1 40X4576 Complete 550 sheet option tray assembly Lexmark 40X4576 550-sheet Drawer complete assembly New 40X4576 (New) $179.50 Lexmark 40X4576 550-sheet Drawer complete assembly Fully refurbished with 90-day warranty 40X4576 $119.00 2 40X3454 550 Sheet pick arm bracket assembly Lexmark 40X3454 550 Sheet Pick Arm Bracket Assembly New 40X3454 (New) $73.00 Lexmark 40X3454 550 Sheet Pick Arm Bracket Assembly Fully refurbished with 90-day warranty 40X3454 $53.00 3 40X4307 550 Sheet bellcrank recoil spring Lexmark 40X4307 550 Sheet bellcrank recoil spring Fully refurbished with 90-day warranty 40X4307 Contact for Details Lexmark 40X4307 Pick arm (bellcrank recoil) spring 550-sheet New 40X4307 I (New) $18.32 4 40X4308 Pick roll assembly (2) 5 40X4369 Sensor (media low) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 6 40X4369 Sensor (media empty) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 7 40X4310 550 Sheet media out actuator (T652 and T654) Lexmark 40X4310 550 Sheet media out actuator New 40X4310 (New) $12.77 8 40X4570 Anti-tip latch assembly Lexmark 40X4570 Anti-tip latch assembly New 40X4570 (New) $16.39 9 40X3957 550 Sheet option drawer assembly Lexmark 40X3957 550-Sheet Option Drawer Assembly (No Tray) New 40X3957 (New) $185.09 10 40X3822 Media tray catch spring 11 40X4395 Media tray roller catch assembly Lexmark 40X4395 Tray roller catch assembly New 40X4395 V41JC (New) $12.35 12 40X4469 Media tray assembly, 550 sheet Lexmark 40X4469 Media Tray Assembly 550 Sheet Fully refurbished with 90-day warranty 40X4469 40X5786 (Not for x658) $45.00 Lexmark 40X4469 Media Tray Assembly 550 Sheet New 40X4469 40X5786 NOT for x658 (New) $69.00 13 40X4575 Sensor (pass through) with cable Lexmark 40X4575 Sensor (pass through) with cable New 40X4575 (New) $18.55 14 40X4473 550 Option drive shaft with spring Lexmark 40X4473 550 Option drive shaft with spring New 40X4473 (New) $12.62 15 40X4572 Lower interface cable assembly Lexmark 40X4572 Lower interface cable assembly New 40X4572 (New) $19.45 Lexmark 40X4572 Lower interface cable assembly Fully refurbished with 90-day warranty 40X4572 $17.47 16 40X3854 Media size actuator Lexmark 40X3854 Media size actuator New 40X3854 (New) $19.64 Lexmark 40X3854 Media size actuator Fully refurbished with 90-day warranty 40X3854 $19.94 17 40X4578 550 Sheet controller card assembly Lexmark 40X4578 Controller Card Assembly 550 Sheet New 40X4578 (New) $28.96 Lexmark 40X4578 550 Sheet controller card assembly Fully refurbished with 90-day warranty 40X4578 $29.25 18 40X4571 Upper interface cable assembly Parts catalog 7-27 Lexmark 40X4571 Upper interface cable assembly New 40X4571 (New) $17.11 Lexmark 40X4571 Upper interface cable assembly Fully refurbished with 90-day warranty 40X4571 $20.58

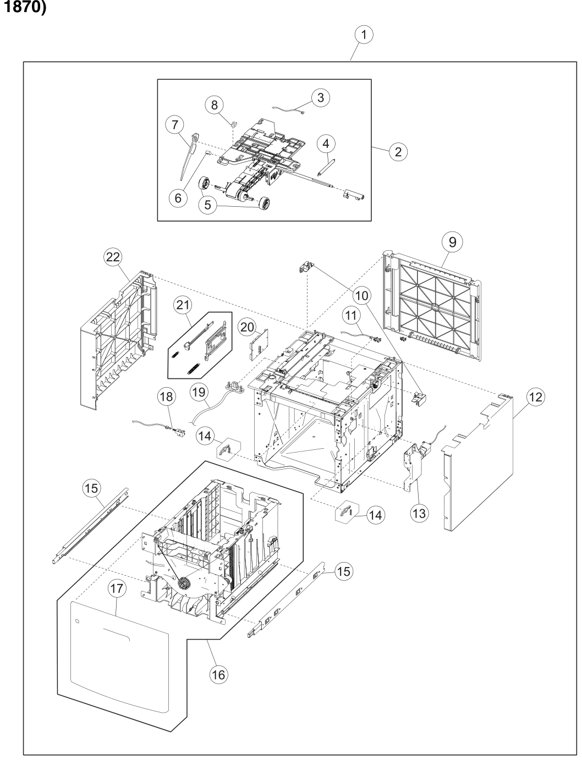

Assembly 14: HCIT Sheet option tray assembly (InfoPrint 1850, 1860, and 1 40X4579 Complete HCIT option tray assembly Lexmark 40X4579 New 2000-Sheet High Capacity Feeder, Complete Assembly New 40X4579 (New) $295.00 Lexmark 40X4579 2000-Sheet High Capacity Feeder, Complete Assembly Fully refurbished with 90-day warranty 40X4579 Contact for Details 2 40X4590 HCIT pick arm bracket assembly Lexmark 40X4590 Pick Arm Bracket Assembly New 40X4590 (New) $64.71 3 40X4591 HCIT bellcrank recoil Lexmark 40X4591 Bellcrank recoil spring New 40X4591 (New) $15.48 4 40X4591 HCIT bellcrank recoil spring Lexmark 40X4591 Bellcrank recoil spring New 40X4591 (New) $15.48 5 40X4308 Pick roll assembly (2) 6 40X4369 Sensor (media low) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 7 40X4310 550 Sheet media out actuator Lexmark 40X4310 550 Sheet media out actuator New 40X4310 (New) $12.77 8 40X4369 Sensor (media empty) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 9 40X4581 HCIT cover, rear Lexmark 40X4581 Rear cover New 40X4581 (New) $42.10 10 40X4570 Anti-tip latch assembly Lexmark 40X4570 Anti-tip latch assembly New 40X4570 (New) $16.39 11 40X4588 Sensor (HCIT tray raised HP) with cable assembly Lexmark 40X4588 New Sensor (tray raised HP) with cable assembly New 40X4588 (New) $21.80 12 40X4582 HCIT cover, right Lexmark 40X4582 Right cover New 40X4582 (New) $43.53 13 40X4586 HCIT tray lift drive motor assembly Lexmark 40X4586 Tray lift drive motor assembly New 40X4586 (New) $23.58 14 40X4585 HCIT tray closed latch with spring Lexmark 40X4585 Tray closed latch with spring New 40X4585 (New) $31.25 15 40X4593 HCIT drawer slide assembly Lexmark 40X4593 Drawer slide assembly Fully refurbished with 90-day warranty 40X4593 Contact for Details 16 40X4580 HCIT media tray assembly Lexmark 40X4580 Media tray assembly New 40X4580 (New) Contact for Details 17 40X4584 HCIT tray cover, front Lexmark 40X4584 Front tray cover New 40X4584 (New) $39.32 18 40X4589 Sensor (HCIT pass through) with cable Lexmark 40X4589 Sensor (pass through) with cable New 40X4589 (New) $19.13 19 40X4594 HCIT interface cable assembly Lexmark 40X4594 Interface cable assembly New 40X4594 (New) $15.87 20 40X4592 HCIT controller card assembly Lexmark 40X4592 Controller card assembly New 40X4592 (New) $25.79 Lexmark 40X4592 Controller card assembly Fully refurbished with 90-day warranty 40X4592 Contact for Details 21 40X4587 HCIT media size actuator assembly Lexmark 40X4587 Media size actuator assembly New 40X4587 (New) $23.32 22 40X4583 HCIT cover, left Parts catalog 7-29 Lexmark 40X4583 Left cover New 40X4583 (New) $44.92

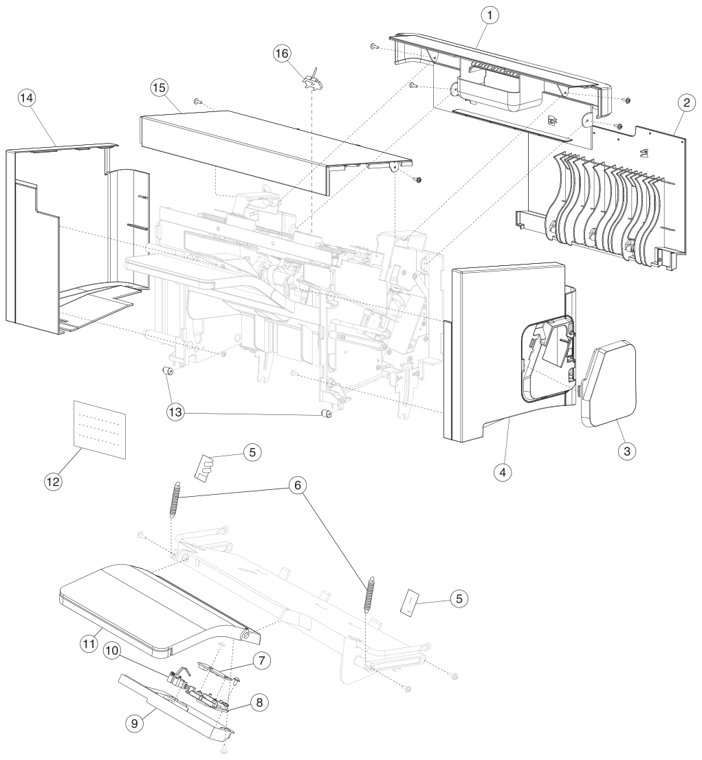

Assembly 15: Finisher assembly #1 1 40X4612 Handle cover Lexmark 40X4612 Handle cover New 40X4612 (New) $20.35 2 40X4613 Rear door assembly Lexmark 40X4613 Rear door assembly New 40X4613 (New) $36.66 3 40X4730 Stapler cover 4 40X4610 Right cover Lexmark 40X4610 Right cover New 40X4610 (New) $28.55 5 40X5544 Sensor (bin full receive) Lexmark 40X5544 Sensor (bin full receive) New 40X5544 (New) $12.47 SaleLexmark 40X5544 Sensor (bin full receive) Fully refurbished with 90-day warranty 40X5544 Contact for Details 6 40X4617 Finisher bin spring 7 40X5545 Standard output bin LED Lexmark 40X5545 Standard output bin LED New 40X5545 (New) $15.62 SaleLexmark 40X5545 Standard output bin LED Fully refurbished with 90-day warranty 40X5545 ~~$18.80~~ $15.98 8 40X5727 LED clear lens Lexmark 40X5727 LED clear lens New 40X5727 I (New) $13.11 9 40X5720 LED sensor cover 10 40X4618 Sensor (finisher bin media present) SaleLexmark 40X4618 Sensor (finisher bin media present) Fully refurbished with 90-day warranty 40X4618 Contact for Details 11 40X4619 Media output bin extension Lexmark 40X4619 Media output bin extension New 40X4619 (New) $11.75 12 40X4626 Sensor (bin full send) SaleLexmark 40X4626 Sensor (bin full send) Fully refurbished with 90-day warranty 40X4626 Contact for Details 13 40X4625 Stapler controller card assembly Lexmark 40X4625 Finisher/Stacker controller card assembly New 40X4625 (New) $84.71 Lexmark 40X4625 Finisher/Stacker controller card assembly Fully refurbished with 90-day warranty 40X4625 Contact for Details 14 40X5751 Attach roller Lexmark 40X5751 Attach roller New 40X5751 I (New) $14.14 15 40X4609 Left cover Lexmark 40X4609 Left cover New 40X4609 (New) $37.07 16 40X4611 Top cover Lexmark 40X4611 Top cover New 40X4611 (New) $24.40 17 40X5906 Sensor (stapler pass through) Parts catalog 7-31 Lexmark 40X5906 Sensor (stapler pass through) New 40X5906 (New) $25.36

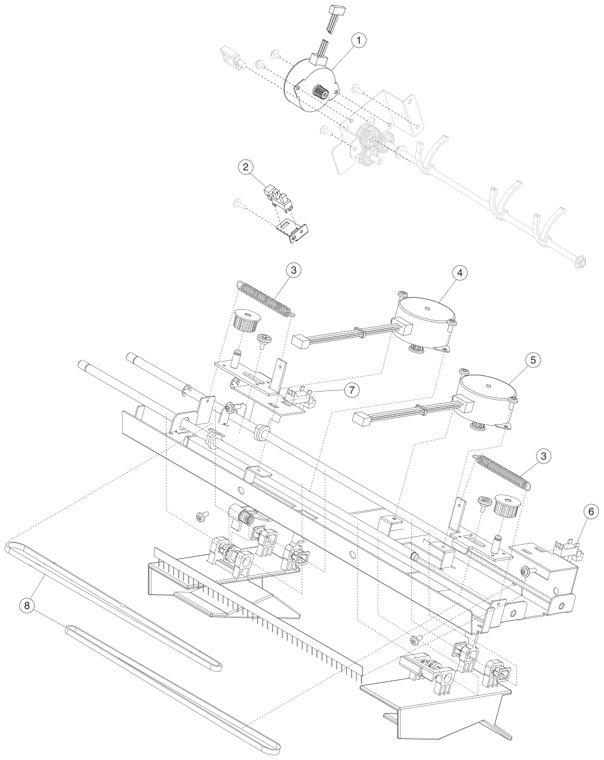

Assembly 16: Finisher assembly #2 1 40X4615 Paddle drive motor Lexmark 40X4615 Paddle drive motor New 40X4615 (New) $15.10 2 40X4369 Sensor (paddle HP) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 3 40X4624 Tamper recoil spring 4 40X4621 Left tamper motor assembly Lexmark 40X4621 Left tamper motor assembly New 40X4621 (New) $15.28 5 40X4622 Right tamper motor assembly Lexmark 40X4622 Right tamper motor assembly New 40X4622 (New) $15.23 6 40X4369 Sensor (tamper HP right) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 7 40X4369 Sensor (tamper HP left) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 8 40X4623 Tamper drive belt NS 40X4645 Media stack flap actuator NS 40X4641 Stapler assembly Lexmark 40X4641 Stapler assembly New 40X4641 (New) $295.15 Lexmark 40X4641 Stapler assembly Fully refurbished with 90-day warranty 40X4641 Contact for Details NS 40X5541 Media output bin Lexmark 40X5541 Media output bin New 40X5541 (New) $13.69 NS 40X4646 Media stack flap NS 40X5909 Sensor (media in stapler) Parts catalog 7-33

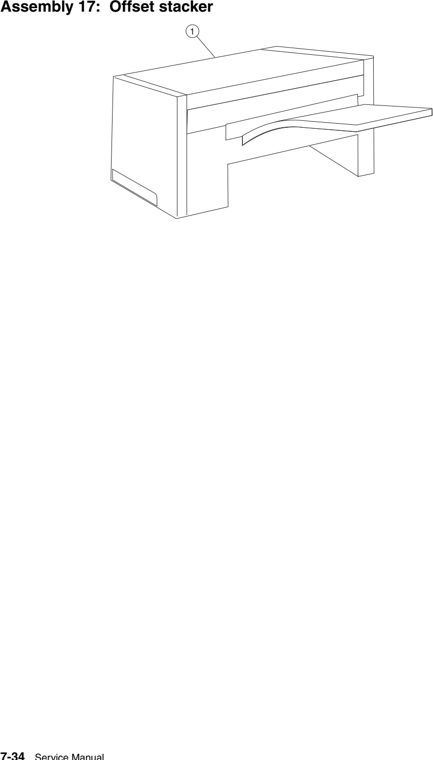

Assembly 17: Offset stacker 1 40X5543 Offset stacker finisher assembly 2 40X4369 Sensor (media stack) Sensor (paddle HP) Sensor (stapler access door interlock) Sensor (tamper HP left) Sensor (tamper HP right) Lexmark 40X4369 Sensor only New 40X4369 (New) $13.81 3 40X4645 Media stack flap actuator 4 40X4646 Media stack flap 5 40X4609 Left cover Lexmark 40X4609 Left cover New 40X4609 (New) $37.07 6 40X4610 Right cover Lexmark 40X4610 Right cover New 40X4610 (New) $28.55 7 40X4611 Top cover Lexmark 40X4611 Top cover New 40X4611 (New) $24.40 8 40X4612 Handle cover Lexmark 40X4612 Handle cover New 40X4612 (New) $20.35 9 40X4613 Rear door assembly Lexmark 40X4613 Rear door assembly New 40X4613 (New) $36.66 10 40X4617 Finisher bin spring 11 40X4618 Sensor (finisher bin media present) SaleLexmark 40X4618 Sensor (finisher bin media present) Fully refurbished with 90-day warranty 40X4618 Contact for Details 12 40X4619 Media output bin Lexmark 40X4619 Media output bin extension New 40X4619 (New) $11.75 13 40X5541 Media output bin Lexmark 40X5541 Media output bin New 40X5541 (New) $13.69 14 40X4621 Left tamper motor assembly Lexmark 40X4621 Left tamper motor assembly New 40X4621 (New) $15.28 15 40X4622 Right tamper motor assembly Lexmark 40X4622 Right tamper motor assembly New 40X4622 (New) $15.23 16 40X4623 Tamper drive belt 17 40X4624 Tamper recoil spring 18 40X4625 Offset stacker controller card assembly Lexmark 40X4625 Finisher/Stacker controller card assembly New 40X4625 (New) $84.71 Lexmark 40X4625 Finisher/Stacker controller card assembly Fully refurbished with 90-day warranty 40X4625 Contact for Details 19 40X4626 Sensor (bin full send) SaleLexmark 40X4626 Sensor (bin full send) Fully refurbished with 90-day warranty 40X4626 Contact for Details 20 40X5544 Sensor (bin full receive) Lexmark 40X5544 Sensor (bin full receive) New 40X5544 (New) $12.47 SaleLexmark 40X5544 Sensor (bin full receive) Fully refurbished with 90-day warranty 40X5544 Contact for Details 21 40X5545 Standard output bin LED Lexmark 40X5545 Standard output bin LED New 40X5545 (New) $15.62 SaleLexmark 40X5545 Standard output bin LED Fully refurbished with 90-day warranty 40X5545 ~~$18.80~~ $15.98 22 40X5727 LED clear lens Lexmark 40X5727 LED clear lens New 40X5727 I (New) $13.11 23 40X5720 LED sensor cover 24 40X5751 Attach roller Lexmark 40X5751 Attach roller New 40X5751 I (New) $14.14 25 40X5906 Sensor (stapler pass-through) Lexmark 40X5906 Sensor (stapler pass through) New 40X5906 (New) $25.36 26 40X4615 Paddle drive motor Parts catalog 7-35 Lexmark 40X4615 Paddle drive motor New 40X4615 (New) $15.10

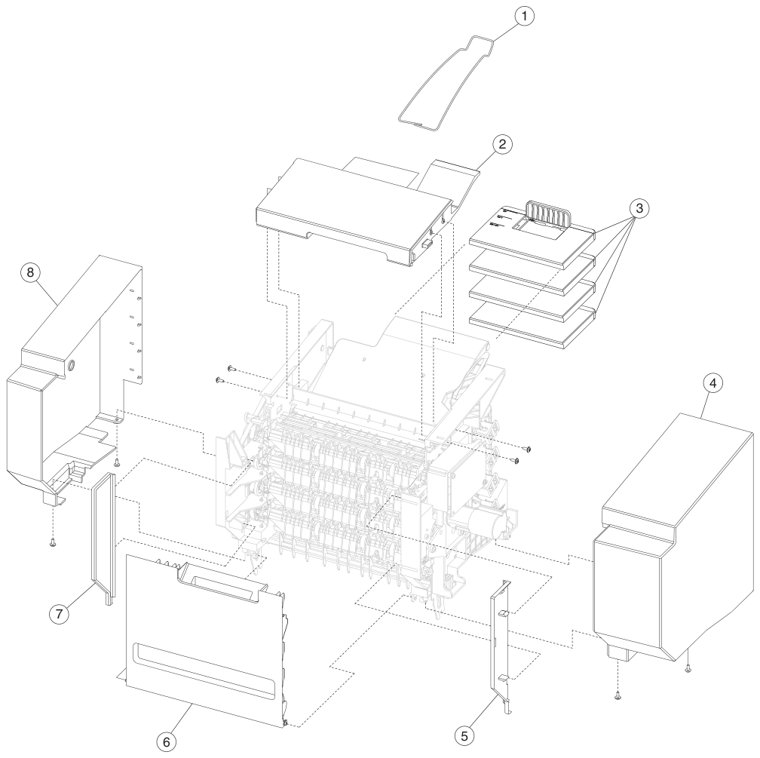

Assembly 18: 4-bin mailbox assembly #1 1 40X4644 Top media bin bail Lexmark 40X4644 Top media bin bail New 40X4644 I (New) $11.89 2 40X4642 Top cover Lexmark 40X4642 Top cover New 40X4642 (New) $23.27 4 40X4636 LED card assembly Lexmark 40X4636 LED card assembly New 40X4636 (New) $19.96 4 40X4640 Left cover Lexmark 40X4640 Left cover New 40X4640 (New) $36.78 5 40X4638 Left rear inner cover Lexmark 40X4638 Left rear inner cover New 40X4638 I (New) $13.70 6 40X4632 Rear door assembly Lexmark 40X4632 Rear door assembly New 40X4632 (New) $60.03 7 40X4637 Right rear inner cover Lexmark 40X4637 Right rear inner cover New 40X4637 I (New) $13.61 8 40X4639 Right cover Lexmark 40X4639 Right cover New 40X4639 (New) $28.85 9 40X4139 Media output bin light pipe Parts catalog 7-37

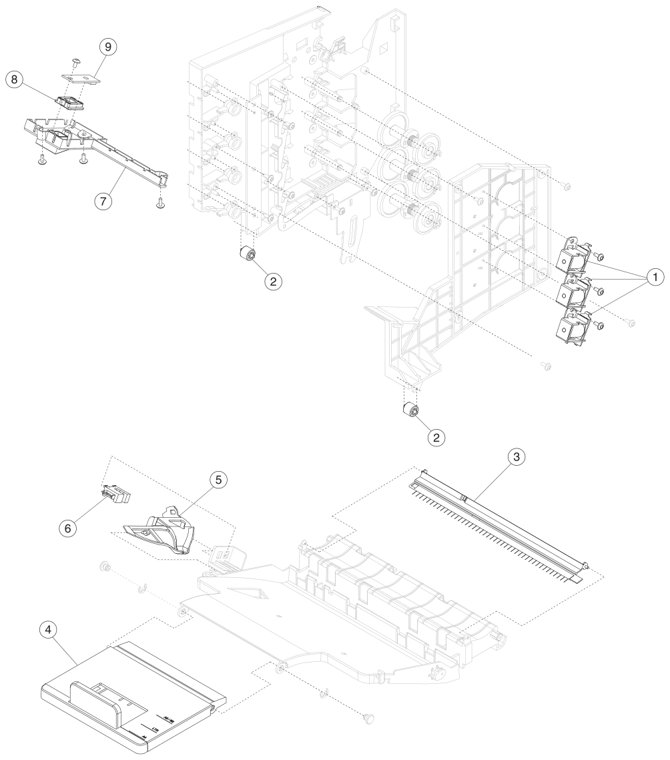

Assembly 19: 4-bin mailbox assembly #2 1 40X5542 4 bin mailbox 1 40X4635 Diverter gate solenoid 2 40X5751 Attach roller Lexmark 40X5751 Attach roller New 40X5751 I (New) $14.14 3 40X4135 1st - 3rd media bin bail Lexmark 40X4135 1st - 3rd media bin bail New 40X4135 I (New) $12.65 5 40X4136 Media bin full actuator 6 40X4633 Sensor (media bin full) 6 40X4634 4 bin mailbox controller card assembly Lexmark 40X4634 4-Bin mailbox controller card assembly New 40X4634 (New) $62.62 7 40X4647 Output bin LED bracket Lexmark 40X4647 Output bin LED bracket New 40X4647 (New) $23.05 8 40X5727 LED clear lens Lexmark 40X5727 LED clear lens New 40X5727 I (New) $13.11 9 40X5545 Standard output bin LED Lexmark 40X5545 Standard output bin LED New 40X5545 (New) $15.62 SaleLexmark 40X5545 Standard output bin LED Fully refurbished with 90-day warranty 40X5545 ~~$18.80~~ $15.98 15 40X4643 Transport solenoid Parts catalog 7-39 Lexmark 40X4643 Transport solenoid New 40X4643 I (New) $12.15

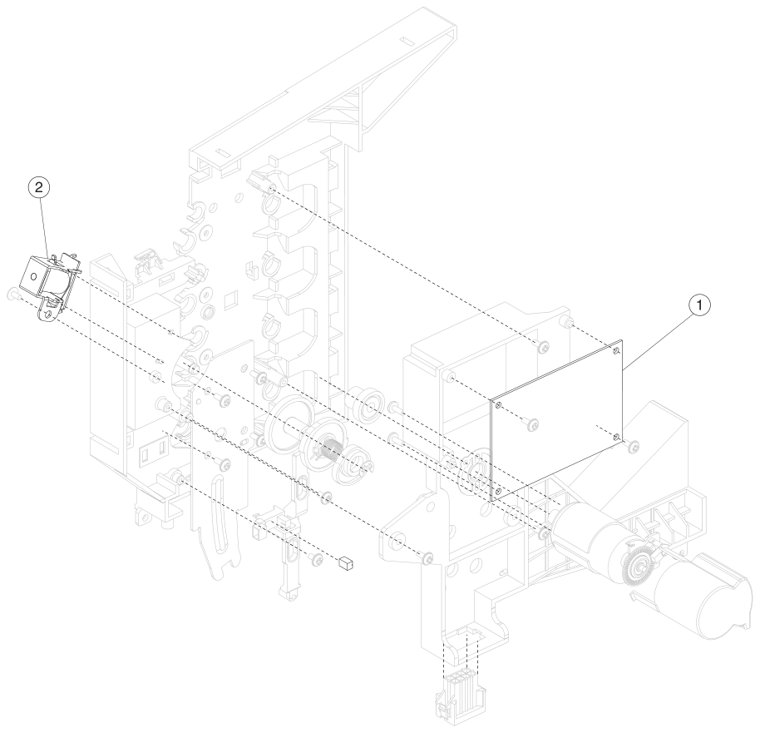

Assembly 20: 4-bin mailbox assembly #3 1 40X4634 4 bin mailbox controller card assembly Lexmark 40X4634 4-Bin mailbox controller card assembly New 40X4634 (New) $62.62 2 40X4643 Transport solenoid Parts catalog 7-41 Lexmark 40X4643 Transport solenoid New 40X4643 I (New) $12.15

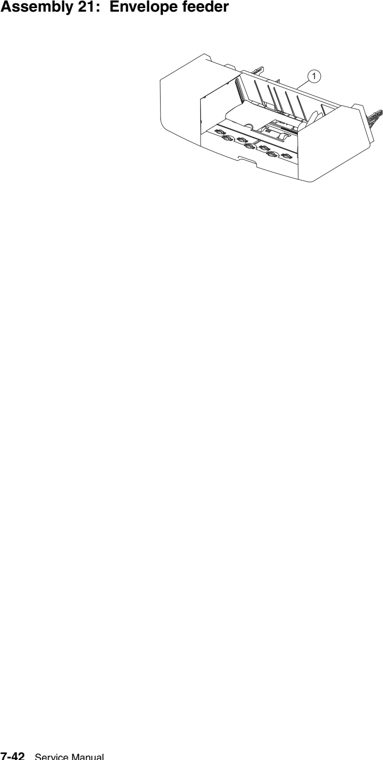

Assembly 21: Envelope feeder 1 40X5739 Envelope feeder Parts catalog 7-43 Lexmark 40X5739 Envelope feeder complete assembly New 40X5739 (New) $289.00 Lexmark 40X5739 Envelope feeder complete assembly Fully refurbished with 90-day warranty 40X5739 I Contact for Details
Assembly 22: Electrical cables NS 40X4357 Duplex cooling fan cable assembly NS 40X4360 Print cartridge cooling fan cable assembly NS 40X4361 HVPS/sensor cable assembly NS 40X4379 Toner density sensor cable assembly NS 40X4419 Fuser interface cable assembly NS 40X2019 Envelope/input option tray cable assembly (InfoPrint 1880) NS 40X4492 Operator panel cable assembly (InfoPrint 1880) NS 40X2045 Operator panel cable assembly (InfoPrint 1850, 1860, and 1870) NS 40X4493 Scanner controller card interface cable assembly NS 40X4495 CCD to inverter cable assembly NS 40X4496 Scanner controller card power cable assembly NS 40X4498 LVPS cooling fan cable assembly NS 40X2171 Scanner interface card assembly Lexmark 40X2171 Scanner Interface Card Assembly New 40X2171 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X2171 Scanner interface card assembly Fully refurbished with 90-day warranty 40X2171 $29.00 NS 40X4528 Scanner reference LED cable assembly NS 40X4529 Scanner HP sensor cable assembly NS 40X4530 Scanner FB length sensor cable assembly NS 40X4531 Scanner CCD ribbon cable (InfoPrint 1880) NS 40X2172 Scanner CCD ribbon (InfoPrint 1850, 1860, and 1870) NS 40X4532 Scanner reference LED assembly Lexmark 40X4532 Scanner reference LED cable assembly New 40X4532 I (New) $14.00 NS 40X4533 Scanner interface card cable assembly (InfoPrint 1880) NS 40X2641 Scanner interface card cable assembly (InfoPrint 1850, 1860, and 1870) Parts catalog 7-45
Assembly 23: Miscellaneous NS 40X5907 Relocation kit NS 40X4723 Printer maintenance kit (100 V type 1 fuser) NS 40X4724 Printer maintenance kit (110 V type 1 fuser) NS 40X4765 Printer maintenance kit (220 V type 1 fuser) NS 40X4766 Printer maintenance kit (100 V type 2 fuser) NS 40X4767 Printer maintenance kit (110 V type 2 fuser) NS 40X4768 Printer maintenance kit (220 V type 2 fuser) NS 40X4769 ADF maintenance kit NS 40X5301 256 MB SO-DIMM, DDR2 for T654 NS 40X5302 12MB SO-DIMM, DDR2 for T654 NS 40X5303 1GB (1024MB) SO-DIMM, DDR2 for T654 NS 40X5704 256MB user flash memory card for T65X NS 40X4822 Hard disk drive for T65X NS 40X5057 TAA hard drive assembly with connector NS 40X5952 Lexmark PrintCryption card NS 40X5969 Korean font card NS 40X5970 Simplified Chinese font card NS 40X5971 Traditional Chines font card NS 40X5972 Japanese font card NS 40X5953 Bar code/forms card NS 40X5958 IPDS card (available w/EMEA, AP, LAD NS 40X6200 Forms card with P269UBC code for UBOC NS 40X5315 Ship with thumbscrew for ISP (2) NS 40X5316 14 pin jst cable for ISP interface card NS 40X5317 Standoff “TEE” for ISPs, includes 1 thumbscrew NS 40X4826 MarkNet N8120 gigabit ethernet print server NS 40X4827 MarkNet N8130 fiber ethernet print server NS 40X5038 MarkNet N8150 802.11n wireless print server (US/Americas) NS 40X5039 MarkNet N8150 802.11n wireless print server (WW, except US/Americas) NS 56P2129 Lexmark N4000e print server NS 56P2744 Lexmark N4050e (1 port USB) wireless 802.11g (US/Americas) NS 40X1593 Lexmark MarkNet N7002e (1 port parallel) ethernet 10baseT/100BaseTX NS 40X1594 Lexmark MarkNet N7002e (1 port parallel) ethernet 10base T/100Base TX NS 40X1592 Lexmark MarkNet N7020e (4 port USB) ethernet 10base T/100Base NS 40X4819 RS-232C serial interface card NS 40X4823 Parallel 1284-B interface card NS 40X1367 10-Foot parallel printer cable NS 40X1368 2-Meter USB printer cable NS 40X4821 MarkNet N8110-v.34 fax card NS 40X5606 FRU for 14 pin fax cable
Assembly 24: Miscellaneous (continued) NS 40X0269 Power cord LV, USA & Canada, Latin America NS 40X0288 Power cord HV, Argentina NS 40X0273 Power cord HV, Chile, Uruguay NS 40X3141 Power cord HV, Paraguay, Austria, Belgium, France, Germany, Italy, Netherlands, Bluemark, Czech & Solvic countries, Greece, Hungary, Medmark 1, Medmark 2, Arabic, Poland, Russia, CIS, Spain, Portugal, & Ireland NS 40X0277 Power cord LV, Brazil PPB kits NS 40X0271 Power cord HV, Asian, Brunei, Cambodia, Indonesia, Laos, Malaysia, Myanmar, Philippines, Singapore, Thailand, Vietnam, Afghanistan, Bangladesh, Bhutan, India, Nepal, Pakistan, Sri Lanka, Tibet, & Hong Kong NS 40X0301 Power cord HV, Australia & New Zealand NS 40X3609 Power cord 100 V, Japan NS 40X1792 Power cord, HV, Korea NS 40X0303 Power cord, HV PRC NS 40X1791 Power cord LV, Taiwan NS 40X1774 Power cord HV, Denmark, Finland, Norway, Sweden NS 40X0275 Power cord, HV, Israel NS 40X1773 Power cord HV, South Africa, Namibia, Lesotho, Botswana & Pakistan NS 40X1772 Power cord HV, Switzerland NS 40X2165 Scanner unit assembly (InfoPrint 1850, 1860, and 1870) Lexmark 40X2165 Scanner Unit Assembly New 40X2165 (New) $429.71 Lexmark 40X2165 Scanner unit assembly Fully refurbished with 90-day warranty 40X2165 $209.72 NS 40X2166 Scanner unit assembly (InfoPrint 1880) Lexmark 40X2166 Scanner Unit Assembly Fully refurbished with 90-day warranty 40X2166 $219.72 NS 40X2738 ADF unit (InfoPrint 1850 and 1860) NS 40X2745 ADF unit assembly (InfoPrint 1870 and 1880) Parts catalog 7-47 Lexmark 40X2745 ADF Unit New 40X2745 40X6395 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X2745 ADF Unit Fully refurbished with 90-day warranty 40X2745 40X6395 ~~$519.72~~ $250.00

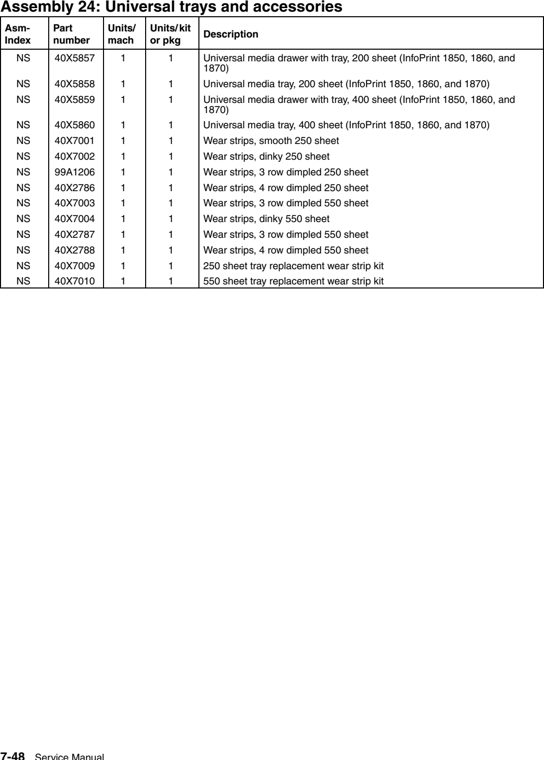

Assembly 24: Universal trays and accessories NS 40X5857 Universal media drawer with tray, 200 sheet (InfoPrint 1850, 1860, and 1870) NS 40X5858 Universal media tray, 200 sheet (InfoPrint 1850, 1860, and 1870) NS 40X5859 Universal media drawer with tray, 400 sheet (InfoPrint 1850, 1860, and 1870) NS 40X5860 Universal media tray, 400 sheet (InfoPrint 1850, 1860, and 1870) NS 40X7001 Wear strips, smooth 250 sheet NS 40X7002 Wear strips, dinky 250 sheet NS 99A1206 Wear strips, 3 row dimpled 250 sheet NS 40X2786 Wear strips, 4 row dimpled 250 sheet NS 40X7003 Wear strips, 3 row dimpled 550 sheet NS 40X7004 Wear strips, dinky 550 sheet NS 40X2787 Wear strips, 3 row dimpled 550 sheet NS 40X2788 Wear strips, 4 row dimpled 550 sheet NS 40X7009 250 sheet tray replacement wear strip kit NS 40X7010 550 sheet tray replacement wear strip kit
Assembly 49: I-4 Service Manual NS 40X0269 Power cord LV, USA & Canada, Latin America - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X0271 Power cord HV, Asian, Brunei, Cambodia, Indonesia, Laos, Malaysia, Myanmar, Philippines, Singapore, NS 40X0273 Power cord HV, Chile, Uruguay - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X0275 Power cord, HV, Israel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X0277 Power cord LV, Brazil PPB kits - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X0288 Power cord HV, Argentina - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X0301 Power cord HV, Australia & New Zealand - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X0303 Power cord, HV PRC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X1367 10-Foot parallel printer cable - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-46 NS 40X1368 2-Meter USB printer cable - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-46 NS 40X1592 Lexmark MarkNet N7020e (4 port USB) ethernet 10base T/100Base TX/1000BaseT - - - - - - - - - - - - - 7-46 NS 40X1593 Lexmark MarkNet N7002e (1 port parallel) ethernet 10baseT/100BaseTX - - - - - - - - - - - - - - - - - - - - - 7-46 NS 40X1594 Lexmark MarkNet N7002e (1 port parallel) ethernet 10base T/100Base TX - - - - - - - - - - - - - - - - - - - - 7-46 NS 40X1772 Power cord HV, Switzerland - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X1773 Power cord HV, South Africa, Namibia, Lesotho, Botswana & Pakista - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X1774 Power cord HV, Denmark, Finland, Norway, Sweden - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X1791 Power cord LV, Taiwan - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X1792 Power cord, HV, Korea - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-47 NS 40X1863 250 Option drive shaft with spring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-25 Option drive shaft with spring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-11 Lexmark 40X1863 250 Option drive shaft with spring New 40X1863 (New) $62.97 NS 40X1864 Print cartridge ID connector assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13 NS 40X1865 Printhead cable assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13 Lexmark 40X1865 Printhead Cable New 40X1865 (New) $24.89 NS 40X1866 Sensor shield assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13 NS 40X1868 Print cartridge clamp assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-9 Lexmark 40X1868 Print cartridge clamp assembly New 40X1868 (New) $15.29 NS 40X1869 Transfer deflector with static brush - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-9 NS 40X1870 Fuser assembly 100V, type 1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13 NS 40X1871 Fuser assembly 220V, type 1 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13 NS 40X1876 MPF gear shield - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-9 Lexmark 40X1876 MPF Gear Shield New 40X1876 XHDWG (New) $12.82 NS 40X1883 MPF pick roll assembly with flange and clip - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-9 NS 40X1886 Transfer roll assembly with tool - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13 NS 40X1887 Transfer roll bracket with cable assembly, left - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13 Lexmark 40X1887 Transfer Roll Bracket With Cable Assembly Left New 40X1887 JF65G (New) $15.81 NS 40X1888 Transfer roll bracket assembly, right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-13 Lexmark 40X1888 Right transfer roll bracket assembly New 40X1888 (New) $18.95 NS 40X1900 Media turn guide with actuator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-9 Lexmark 40X1900 Media turn guide with actuator New 40X1900 68Y37 (New) $20.34 Lexmark 40X1900 Media turn guide with actuator Fully refurbished with 90-day warranty 40X1900 Contact for Details NS 40X5901 Model door bezel (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5 NS 40X1916 Side cover, left (InfoPrint 1850, 1860, 1870) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-3 Lexmark 40X1916 Left Side Cover New 40X1916 (New) $56.39 NS 40X1917 Side cover, right (InfoPrint 1850, 1860, 1870) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-3 Lexmark 40X1917 Right Side Cover New 40X1917 (New) $24.71 NS 40X1918 Laser cover assembly, 250 sheet(InfoPrint 1850, 1860, 1870) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-3 Lexmark 40X1918 Laser Cover Assembly 250-Sheet New 40X1918 (New) $24.71 Lexmark 40X1918 Laser cover assembly 250-sheet Fully refurbished with 90-day warranty 40X1918 $43.71 NS 40X1919 Output cover assembly (InfoPrint 1850, 1860, 1870) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-3 Lexmark 40X1919 Output cover assembly New 40X1919 I (New) $18.55 NS 40X1970 Laser cover assembly, 550 sheet (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5 Lexmark 40X1970 Laser Cover Assembly 550-Sheet New 40X1970 (New) $24.71 Lexmark 40X1970 Laser cover assembly 550-sheet Fully refurbished with 90-day warranty 40X1970 I $24.71 NS 40X1971 Inner cover, left (InfoPrint 1850, 1860, 1870) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-3 Lexmark 40X1971 Left Inner Cover New 40X1971 (New) $15.61 NS 40X1972 Inner cover, right (InfoPrint 1850, 1860, 1870) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-3 Lexmark 40X1972 Right Inner Cover New 40X1972 (New) $12.23 NS 40X1973 Media support (InfoPrint 1850, 1860, 1870) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-3 Lexmark 40X1973 Media Support New 40X1973 (New) $11.78 NS 40X1974 Stapler access cover (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-7 Lexmark 40X1974 Stapler access cover New 40X1974 I (New) Contact for Details NS 40X1975 550 Sheet tray left cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-23 Tray cover, left (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5 Lexmark 40X1975 Left tray cover 550-sheet New 40X1975 I (New) Contact for Details NS 40X1976 550 Sheet tray right cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-23 Tray cover, right (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5 Lexmark 40X1976 Right tray cover 550-sheet Fully refurbished with 90-day warranty 40X1976 I Contact for Details Lexmark 40X1976 Right tray cover 550-sheet New 40X1976 I (New) Contact for Details NS 40X1977 Print cartridge cover assembly (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5 Lexmark 40X1977 Print Cartridge Cover Assembly New 40X1977 (New) $37.71 Lexmark 40X1977 Print cartridge cover assembly Fully refurbished with 90-day warranty 40X1977 I $19.71 NS 40X2016 MPF tray cover assembly (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5 Lexmark 40X2016 MPF Tray Cover Assembly New 40X2016 (New) $124.43 Lexmark 40X2016 MPF tray cover assembly Fully refurbished with 90-day warranty 40X2016 I $24.71 NS 40X2017 Media support (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-5 Lexmark 40X2017 Media support New 40X2017 (New) $23.44 NS 40X2018 Operator panel front cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-7 Lexmark 40X2018 Operator Panel Front Cover New 40X2018 (New) $14.48 NS 40X2019 Envelope/input option tray cable assembly (InfoPrint 1880) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7-45 Part number index I-5
Other listed parts 40X6395 ADF Unit Lexmark 40X6395 ADF Unit New 40X6395 40x2745 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 40X6395 ADF Unit Fully refurbished with 90-day warranty 40X6395 40x2745 ~~$519.72~~ $250.00 40X6396 Scanner LED Assembly Lexmark 40X6396 Scanner LED Assembly Fully refurbished with 90-day warranty 40X6396 $84.21 Lexmark 40X6396 Scanner LED assembly New 40X6396 (New) Retired, no longer available: Contact for alternatives Contact for Details 40X7024 4-Bin Mailbox (Assembled) Lexmark 40X7024 4-Bin Mailbox (Assembled) New 40X7024 40x5542 (New) $398.00 Lexmark 40X7024 4-Bin Mailbox (Assembled) Fully refurbished with 90-day warranty 40X7024 40x5542 $289.00 40X7044 Operator panel assembly Lexmark 40X7044 Operator panel assembly Fully refurbished with 90-day warranty 40X7044 40X4504 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $825.00 Lexmark 40X7044 Operator Panel Assembly New 40X7044 40X4504 L Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 79G0000
