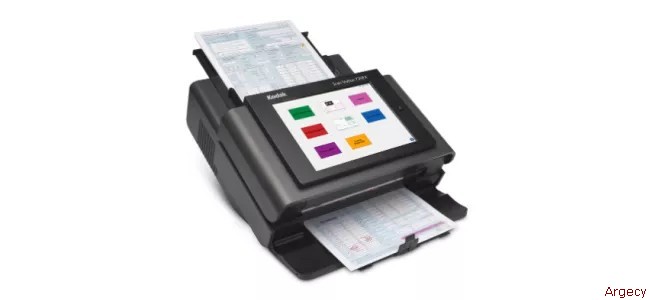

Kodak Scan Station 730EX Plus Scanner
Kodak Scan Station 730EX Plus
Fully Integrated Network Scanning Solution
70 ppm / 140 ipm Duplex | 75-Sheet ADF | Stand-Alone Operation | Up to 6,000 Pages Per Day
Add to Cart - Contact for Pricing70 ppm / 140 ipm Duplex | 75-Sheet ADF | Stand-Alone Operation | Up to 6,000 Pages Per Day
Product Overview
The KODAK Scan Station 730EX Plus Scanner is a powerful, fully integrated network scanner with an internal controller - no need for additional hardware or software to run. Designed as a walk-up scanning solution, it connects directly to your network allowing users to scan documents to email, folders, FTP sites, SharePoint, and more - all from an intuitive touchscreen interface. Perfect for shared work environments, the 730EX Plus delivers enterprise-level features in a compact, standalone package.
Key Features
| Feature | Description |
|---|---|
| Scan Speed | 70 pages per minute (simplex) / 140 images per minute (duplex) at 300 dpi |
| Recommended Daily Volume | Up to 6,000 pages per day |
| ADF Capacity | 75 sheets |
| Maximum Scan Size | 216 x 863 mm (8.5" x 34") |
| Display | Large bright touchscreen (15-degree viewing angle) |
| Stand-Alone Operation | No PC required - fully integrated internal controller |
| Connectivity | Gigabit Ethernet (10/100/1000) |
Technical Specifications
| Scanning Specifications | |
|---|---|
| Optical Resolution | 600 x 600 dpi |
| Scanning Technology | Duplex scanning with dual color quadlinear CCD cameras |
| Color Depth | 30-bit color capture (10 x 3) 24-bit color output (8 x 3) |
| Grayscale | 256 levels (8-bit) |
| Document Size Range | Min: 50.8 x 63.5 mm (2" x 2.5") Max: 216 x 863 mm (8.5" x 34") |
| Card Thickness | Up to 1.2 mm |
| Image Processing Features | |
|---|---|
| Perfect Page Scanning | Automatic image enhancement |
| Auto Features | Deskew, auto-crop, content-based blank page removal, automatic orientation |
| Advanced Features | Hole fill, edge fill, streak filter, color dropout |
| OCR Engine | Integrated OCR for text-searchable PDFs |
| Barcode Reader | Built-in barcode recognition for document organization |
Network & Security Features
| Feature | Details |
|---|---|
| Network Integration | Connects directly to network - no PC needed Standard network and security protocols TCP/IP, SMB, authenticated SMTP, DHCP |
| Security Features | Password-protected PDF output Secure FTP private key encryption Optional password access Secure LDAP login MS Active Directory integration Activity logging by Login ID IP port blocking |
| Administration | Administration-level password protection Remote management capability Group device management Remote firmware updates |
| Windows 10 Integration | Easy integration into Microsoft ecosystem Automatic security updates Custom application porting capability |
Scanning Destinations
| Destination Type | Options |
|---|---|
| Network | Network share folders FTP, sFTP, FTPS (anonymous, authenticated, with proxy support) |
| Cloud & Enterprise | Microsoft SharePoint On-Premise KOFAX Front Office Server |
| Communication | Email (authenticated SMTP) Fax server |
| Output | Print directly Portable USB drives (with security option) |
Output File Formats
- Single and multipage TIFF
- JPEG
- Text-searchable PDF
- PDF/A
- Microsoft Word
- Microsoft Excel
- RTF
- Encrypted PDF
- Optional JPEG compressed TIFF
- WAV audio files (audio memo capability)
User Interface
| Feature | Description |
|---|---|
| Touchscreen | Large, bright, easy-to-navigate color display Ergonomic 15-degree viewing angle |
| Document Viewer | Built-in viewer to preview scans before sending |
| Audio Memos | Add audio notes to files directly from scanner |
| Multi-Destination | Send documents to multiple destinations simultaneously |
| Customizable Interface | Color-coded workflow options Job-based buttons for quick access |
Remote Management
- Centralized Control:Manage multiple Scan Stations from single PC
- Group Management:Classify and organize devices into groups
- Remote Updates:Update configuration and firmware remotely
- Status Monitoring:View status of all managed devices
- Log Access:Remotely access and manage device logs
- Remote Control:Restart or power off devices remotely
- SAT Tool:Scanner Administration Tool (version 1.04.62) for management
Environmental Specifications
| EPEAT Registered | Yes |
| ENERGY STAR Qualified | Yes |
| Operating Temperature | 10-35°C (50-95°F) |
| Operating Humidity | 10-85% RH |
| Dimensions (W x D x H) | 356 x 382 x 206 mm (14" x 15" x 8.1") |
| Weight | 10.5 kg (23.1 lbs) |
Optional Accessories
| Accessory | Description |
|---|---|
| Keyboard and Stand | Physical keyboard and stand accessory for easier data entry |
| Legal Size Flatbed | For scanning bound documents, books, fragile items |
| A3 Size Flatbed | Larger flatbed for oversized exception documents |
| Portable USB Drives | Scan directly to USB (can be disabled for security) |
Consumables & Maintenance
| Component | Life Expectancy |
|---|---|
| Feed Module | Up to 500,000 pages |
| Separation Module | Up to 200,000 pages |
| Feed Rollers & Pads Kit | 12 feed rollers + 1 pre-separation pad included |
Warranty & Support
Standard Warranty:Send & Exchange (RTB - Return to Base)
Extended Service:Care Kits available:
- 1-Year: Upgrades to 48-hour Advanced Unit Replacement for 90 days + 9 months coverage
- 3-Year: Upgrades to 48-hour Advanced Unit Replacement for 90 days + 33 months coverage
What's Included
- KODAK Scan Station 730EX Plus Scanner
- Power cords
- User's Guide
- Setup & Documentation CD-ROMs
- Installation Guide
- Scanner administration software
Ideal Applications
- Shared office environments and departments
- Customer service counters
- Mailrooms and copy centers
- Healthcare facilities (patient intake, records)
- Legal offices (document intake)
- Government agencies
- Educational institutions
- Any location requiring walk-up scanning without dedicated PC
Why Choose the 730EX Plus?
- True Stand-Alone:No PC required - internal controller handles everything
- Network Ready:Direct network connection for shared access
- Intuitive Interface:Touchscreen makes scanning easy for any user
- Enterprise Security:LDAP, Active Directory, encryption, audit logging
- Remote Management:Control multiple units from central location
- Custom Integration:Windows 10 platform allows custom applications
- Space Efficient:Compact design fits anywhere
- Multiple Destinations:Scan to email, folders, cloud, print, USB
System Requirements (for Administration PC)
| Processor | Intel Core2 Duo 6600 @ 2.4 GHz or equivalent |
| RAM | 4 GB minimum |
| Interface | USB 2.0 |
| Operating Systems | Windows 10, 8.1, 8, 7, Vista, XP (SP3) - 32/64-bit |
Note:Specifications subject to change without notice. Throughput speeds may vary depending on application software, operating system, and selected image processing features. Contact us for current pricing, availability, demonstrations, and custom integration options.
