Lexmark Optra S Parts

Please call for parts assistance

Looking for whole machines? View Printer Info

Optra S Family (S1250, S1255, S1620, S1625, S1650, S1855, S2450, S2455, Se3455) Parts:

Assembly 1: Covers 1 99A0553 Support, Paper Lexmark 99A0553 Paper Support Fully refurbished with 90-day warranty 99A0553 $5.00 2 99A0463 Spacer, Front 2450/2455/3455 2 99A0464 Spacer, Front 3 99A0016 Cover, Fuser Wick Assembly Lexmark 99A0016 Fuser Cover Fully refurbished with 90-day warranty 99A0016 Contact for Details 4 99A0004 Spring, Latch 5 99A0011 Cover, RIght Side Lexmark 99A0011 Right Side Cover Fully refurbished with 90-day warranty 99A0011 Contact for Details 5 99A0012 Cover, Right Side 2450/2455/3455 Lexmark 99A0012 Right Side Cover Optra s245 Fully refurbished with 90-day warranty 99A0012 Retired, no longer available: Contact for alternatives Contact for Details 6 99A0008 Hinge, Upper Front Cover Lexmark 99A0008 Upper Front Cover Hinge Fully refurbished with 90-day warranty 99A0008 Contact for Details 7 99A0007 Label, TLI/ID/Serial No. - Blank 8 99A0023 Cover Assembly, Lower Front Lexmark 99A0023 Lower Front Cover Assembly 4059 Fully refurbished with 90-day warranty 99A0023 Retired, no longer available: Contact for alternatives Contact for Details 8 99A0020 Cover Assembly, Lower Front Lexmark 99a0020 Lower Front Cover Assembly 2450/2455/3455 Fully refurbished with 90-day warranty 99a0020 Contact for Details 8A 99A0022 Cap, MPT 2450/2455/3455 9 99A0021 O-Ring, Lower Front Door 10 99A0917 Kit, Upper Front Cover with Labels Lexmark 99A0917 Upper Front Cover Fully refurbished with 90-day warranty 99A0917 $67.81 11 99A0630 Bezel, Operator Panel, English Lexmark 99A0630 Optra S Bezel Fully refurbished with 90-day warranty 99A0630 Retired, no longer available: Contact for alternatives Contact for Details 11 99A0631 Bezel, Operator Panel, France 11 99A0632 Bezel, Operator Panel, Italy 11 99A0633 Bezel, Operator Panel, Germany 11 99A0634 Bezel, Operator Panel, Spain 11 99A0535 Bezel, Operator Panel, Denmark 11 99A0536 Bezel, Operator Panel, Netherlands 11 99A0537 Bezel, Operator Panel, Norway 11 99A0538 Bezel, Operator Panel, Sweden 11 99A0539 Bezel, Operator Panel, Brazil/Portugal 11 99A0540 Bezel, Operator Panel, Finland 11 99A0541 Bezel, Operator Panel, Japan Parts Catalog 7-3 NS 99A0458 Labels, Upper Front Cover

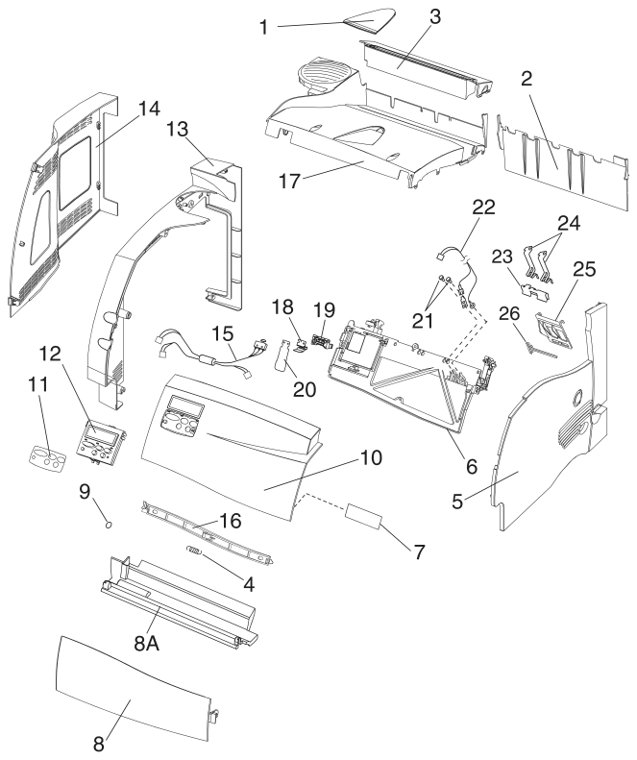

Assembly 1: Covers (continued) 12 99A0001 Operator Panel Assembly Lexmark 99A0001 Display Panel (Control Panel) Fully refurbished with 90-day warranty 99A0001 Contact for Details 13 99A0009 Cover, Left Side Lexmark 99A0009 Left Side Cover 245x Fully refurbished with 90-day warranty 99A0009 Contact for Details 13 99A0010 Cover, Left Side 2450/2455/3455 Lexmark 99A0010 Left Side Cover 245x Fully refurbished with 90-day warranty 99A0010 Contact for Details 14 99A0017 Door, Left Panel 1650/1855/2420 Lexmark 99A0017 Left Panel Door Fully refurbished with 90-day warranty 99A0017 Contact for Details 14 99A0019 Door, Left Panel 1250/1255/1620/1625 Lexmark 99A0019 Left Side Door Fully refurbished with 90-day warranty 99A0019 Contact for Details 14 99A0018 Door, Left Panel 2450/2455/3455 Lexmark 99A0018 Left Door Panel 2450/2455/3455 Fully refurbished with 90-day warranty 99A0018 Contact for Details 15 99A0296 Switch, Cover Open w/Operator Panel Cable 16 99A0003 Latch, Upper Cover 17 99A0013 Cover, Laser Assembly Lexmark 99A0013 Laser Assembly Cover Fully refurbished with 90-day warranty 99A0013 $35.82 18 99A0550 Shield, ESD Cover Open 19 99A0031 Bracket, Cover Open Switch 20 99A0036 Spring, Cover Open Switch 22 99A0814 Cable, Smart Cartridge 3455 23 99A0816 Contact, Smart Cartridge Ground 3455 24 99A0815 Contact, Smart Cartridge 3455 Lexmark 99A0815 Smart Cartridge Fully refurbished with 90-day warranty 99A0815 Contact for Details 25 99A0817 Cover, Smart Cartridge Contact 3455 26 99A0834 Plunger, Overstress Smart Cartridge 3455 NS 99A0552 Cover Assembly, Redrive Cap Lexmark 99A0552 Redrive Cap Optra S (Cover) Fully refurbished with 90-day warranty 99A0552 $10.00 NS 99A0573 Nut, Front Spacer Mounting 2450/2455/3455 NS 99A0577 Cable Tie Parts Catalog 7-5
Assembly 2: Frame 1 99A0425 Support, Cross Brace 2 99A0463 Spacer, Front 2450/2455/3455 2 99A0464 Spacer, Front 3 99A0033 Duct, Left Stacker 2450/2455/3455 3 99A0034 Duct, Left Stacker 4 99A0867 Duct, Main Body 5 99A0551 Support, Left Lower Stacker 6 99A0114 Duct, LVPS Left Side 7 99A0113 Pan, Drip ITC 8 99A0045 Latch, Cartridge Assembly 9 99A0039 Roller, Developer Support 10 99A0058 Pad, Machine Mounting Lexmark 99A0058 Mounting Pads Fully refurbished with 90-day warranty 99A0058 Contact for Details 11 99A0558 Transfer Plate Assembly 11 99A0828 Transfer Plate Assembly 3455 12 99A0904 Plate Assembly, Stacker Ground 12 99A0561 Support, Right Stacker 13 99A0111 Right Sideframe 14 99A0043 Track, Cartridge Guide RH Lexmark 99a0043 Paper out arm Fully refurbished with 90-day warranty 99A0043 Contact for Details 15 99A0049 Fan, Auxiliary 2420/2450/3455 Lexmark 99A0049 Aux Fan Fully refurbished with 90-day warranty 99A0049 Contact for Details 16A 99A0805 Contact, Charge Brush 3455 17 99A0466 Sensor, Toner Cartridge Level Lexmark 99A0466 Sensor Toner Low Fully refurbished with 90-day warranty 99A0466 Contact for Details 18 99A0026 Tray Bias Arm Assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 19 99A0028 Spring, Tray Bias 20 99A0038 Pan, Center Assembly Parts Catalog 7-7

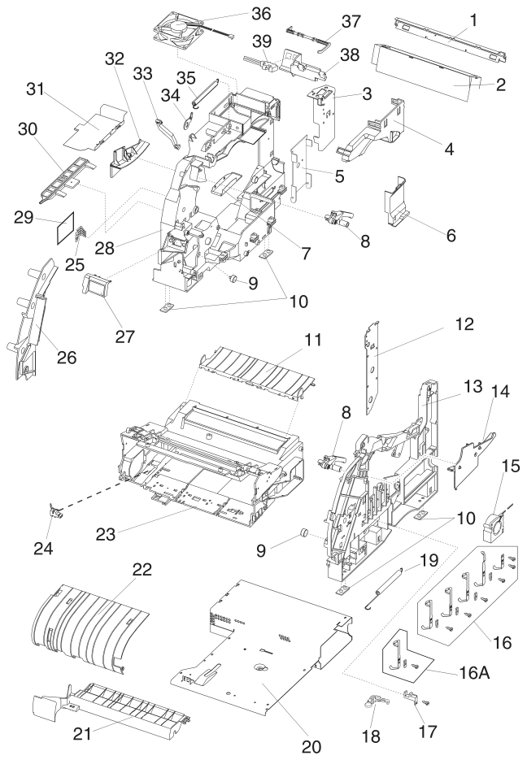

Assembly 2: Frame (continued) 21 99A0056 Deflector, Upper PF Lexmark 99A0056 Deflector Paper Feed Fully refurbished with 90-day warranty 99A0056 Contact for Details 22 99A0055 Deflector, Inner Lexmark 99A0055 Deflector Inner Fully refurbished with 90-day warranty 99A0055 Contact for Details 23 99A0042 Frame, EP Module 24 99A0053 Sensor, Input Lexmark 99A0053 Input Sensor Fully refurbished with 90-day warranty 99A0053 $15.77 25 99A0063 Spring, PA Out Activate Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 26 99A0046 Cover, Gap 26 99A0804 Cover, Gap 3455 27 99A0549 Shield, ESD Assembly with label Lexmark 99A0549 EDS shield 4069 Fully refurbished with 90-day warranty 99A0549 Contact for Details 28 99A0029 Left Side Frame 29 99A0128 Board, Input Tray (ITC) Lexmark 99A0128 Board Input Tray (ITC) Fully refurbished with 90-day warranty 99A0128 $29.00 30 99A0189 Frame Extension 1650/2420/1855 30 99A0037 Frame Extension 2450/2455/3455 31 99A0899 Pan, Motor Drip 32 99A0044 Track, Cartridge Guide LH 33 99A0567 Link, Gear Release 34 99A0555 Bracket, Counterbalance Hinge Spring 35 99A0556 Spring, Counterbalance Lexmark 99A0556 Counter Balance Spring Fully refurbished with 90-day warranty 99A0556 $12.16 36 99A0030 Fan, Main Lexmark 99A0030 Main Fan Fully refurbished with 90-day warranty 99A0030 Contact for Details 36 99A0803 Fan, Main 3455 Lexmark 99A0803 Fan Fully refurbished with 90-day warranty 99A0803 $9.00 37 99A0377 Flag Kit, Standard Bin Level Lexmark 99A0377 Optra S Flag kit Fully refurbished with 90-day warranty 99A0377 Retired, no longer available: Contact for alternatives Contact for Details 37 99A0378 Flag Kit, Standard Bin Level 2450/2455/3455 37 99A0794 Flag, Standard Bin Level 1855-C01 38 99A0062 Bracket, Level Sensor 1650/2420/2450/3455 Lexmark 99A0062 Sensor Bracket Assembly Fully refurbished with 90-day warranty 99A0062 $12.00 39 99A0138 Sensor, Standard Bin Level NS 99A0499 Flap, 250 Paper Output Bin 1855-C01
Assembly 3: Printhead 1 99A0065 Printhead Assembly, Lexmark 99A0065 Printhead Assembly 12xx, 16xx Fully refurbished with 90-day warranty 99A0065 $146.72 1 99A0398 Printhead Assembly, 1855 Lexmark 99A0398 S1855 Printhead Fully refurbished with 90-day warranty 99A0398 Retired, no longer available: Contact for alternatives Contact for Details 1 99A0066 Printhead Assembly, 2420/2450/2455 Lexmark 99A0066 Printhead Assembly 2420/2450/2455 Fully refurbished with 90-day warranty 99A0066 $79.71 1 99A0829 Printhead Assembly, 3455 Lexmark 99A0829 Printhead for Optra SE3455 Fully refurbished with 90-day warranty 99A0829 Retired, no longer available: Contact for alternatives Contact for Details

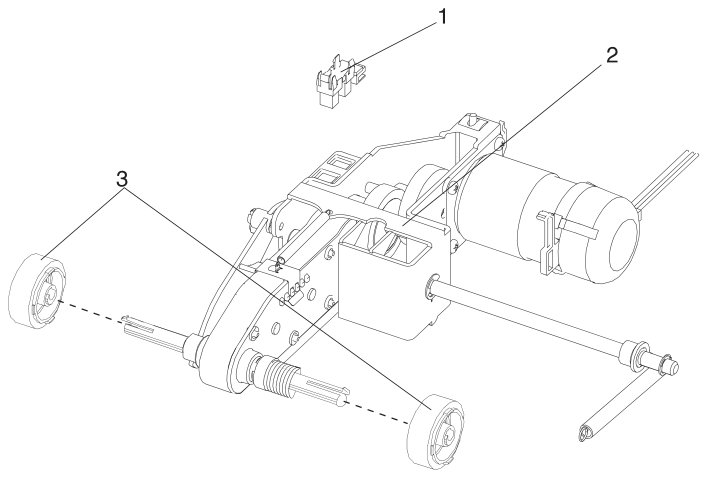

Assembly 4: Paper Feed (Autocompensator) 1 99A0060 Sensor, Paper Out Internal Tray 2 99A0067 Pick Arm Assembly (250) Lexmark 99A0067 Pick Arm Assembly Fully refurbished with 90-day warranty 99A0067 Retired, no longer available: Contact for alternatives Contact for Details 3 99A0070 Pick Rolls Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details

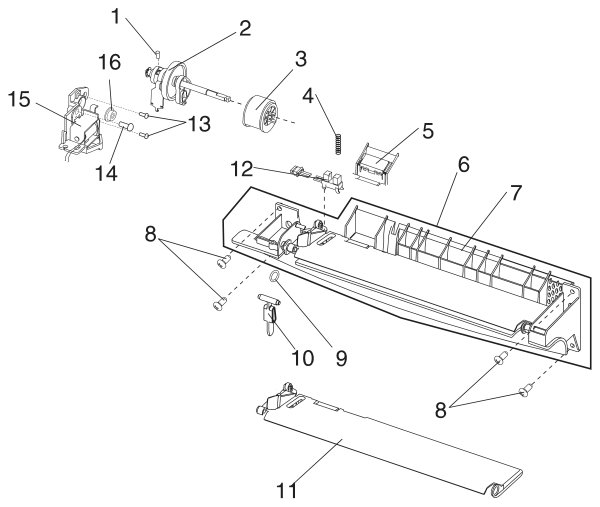

Assembly 5: Paper Feed - Multipurpose Unit 1 99A0075 Screw, Socket Set M4X5 mm 2 99A0071 Arm Assembly, MPT Lexmark 99A0071 Multipurpose Arm Assembly Fully refurbished with 90-day warranty 99A0071 $20.96 3 99A0076 Pick Roll Assembly Lexmark 99A0076 Pick Roll New 99A0076 (New) Contact for Details 4 99A0081 Spring Assembly, Separator 5 99A0083 MPT Pad Assembly Kit 6 99A0077 Deflector Assembly, MPT Lexmark 99A0077 Deflector Assembly Fully refurbished with 90-day warranty 99A0077 Contact for Details 7 99A0080 Deflector, Lower Lexmark 99A0080 Lower Deflector Fully refurbished with 90-day warranty 99A0080 Contact for Details 9 99A0021 O-Ring, Lower Front Door 10 99A0084 Flag, MPT Paper Out 11 99A0082 Plate Assembly, MPT Lexmark 99A0082 Plate Assembly MPT Fully refurbished with 90-day warranty 99A0082 Contact for Details 12 99A0078 Sensor, MPT Paper Out 13 99A0073 Screw, Damper 15 99A0072 Solenoid, MPT (Frame) 16 99A0074 Bushing, Pick Roll Shaft

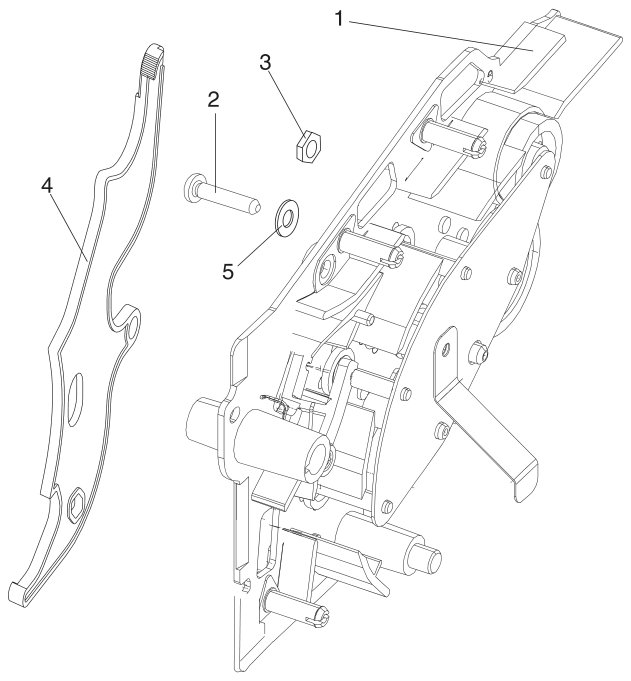

Assembly 6: Paper Feed - Alignment 1 99A0089 Alignment Assembly Paper Feed Lexmark 99A0089 Alignment Assembly Paper Feed Fully refurbished with 90-day warranty 99A0089 Contact for Details 2 99A0492 Screw, Paper Reference Adjustment 3 99A0566 Nut 4 99A0559 Lever, Bellcrank Release 5 99A0565 Washer, Reference Adjustment NS 99A0490 Clip, Reference Ground

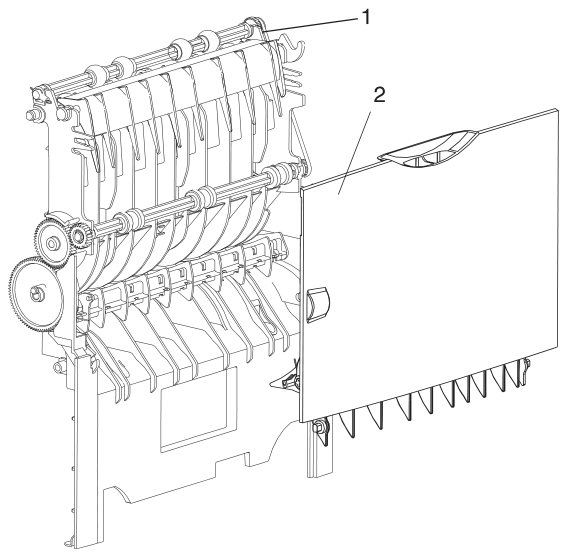

Assembly 7: Paper Feed - Output 1 99A0090 Deflector Assembly, Inner 500 2450/2455 Lexmark 99a0090 Deflector Assembly Inner (Redrive) 500 2450/2455 Fully refurbished with 90-day warranty 99a0090 Contact for Details 1 99A0091 Deflector Assembly, Inner 250 Lexmark 99A0091 Deflector Assembly Inner (Redrive) S1250 S1255 S1620 S1625 S1855 S2420 Fully refurbished with 90-day warranty 99A0091 Retired, no longer available: Contact for alternatives Contact for Details 1 99A0502 Deflector Assembly, Inner 250 1855-C01 2 99A0109 Deflector Assembly Outer 500 2450/2455 Lexmark 99a0109 Deflector Assembly Outer 500 2450/2455 Fully refurbished with 90-day warranty 99a0109 $26.08 2 99A0110 Deflector Assembly Outer 250 Lexmark 99A0110 Deflector assembly Fully refurbished with 90-day warranty 99A0110 Contact for Details NS 99A0104 Spring, Upper Diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 NS 99A0107 Separator, Upper Lexmark 99A0107 Upper Diverter Fully refurbished with 90-day warranty 99A0107 $18.35 NS 99A0891 Deflector Assembly, Inner 500 3455 Lexmark 99A0891 Inner Redrive S2420, S2450, S2455, Se3455 Fully refurbished with 90-day warranty 99A0891 Retired, no longer available: Contact for alternatives Contact for Details NS 99A0921 Restraint, Door Hinge Parts Catalog 7-19 Lexmark 99A0921 Door Hinge Restraint Fully refurbished with 90-day warranty 99A0921 Contact for Details

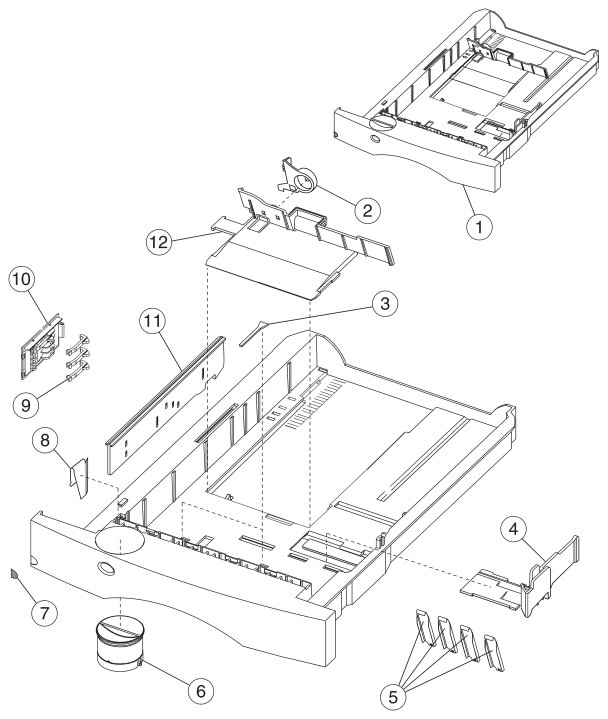

Assembly 8: Integrated Paper Tray - 250 Sheet 1 99A0115 Tray, Integrated 250 Sheet Lexmark 99a0115 Paper Tray Fully refurbished with 90-day warranty 99A0115 Contact for Details 1 99A0504 Tray, Integrated 250 Sheet 1855-C01 2 99A0894 Latch, Back Restraint 3 99A0120 Restraint Pad 4 99A0892 Restraint, Side 250 Sheet Tray 5 99A0119 Wear Strips 6 99A0123 Indicator Assembly, Paper Size 7 99A0461 Label, Tray Number 8 99A0121 Clip, 250 Tray Wear 9 99A0126 Finger, Autosize 10 99A0124 Plate, Snap-In 11 99A0127 Slider, Autosize 250 Lexmark 99A0127 Slider Autosize 250-Sheet Tray New 99A0127 (New) Contact for Details 12 99A0893 Restraint, Back 250 Sheet Tray Lexmark 99A0893 Restraint back 250-sheet tray New 99A0893 (New) Contact for Details NS 99A0452 Washer, Latch Mounting NS 99A0501 Strip Assembly, Paper Tray Insert 1855-C01 Parts Catalog 7-21

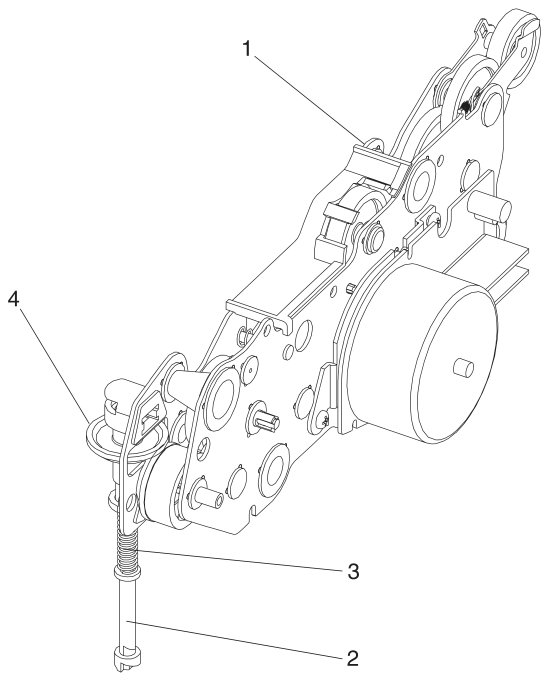

Assembly 9: Main Drive 1 99A0129 Gearbox, w/Motor 2420/2450/2455 Lexmark 99A0129 Main Drive Assembly Fully refurbished with 90-day warranty 99A0129 Contact for Details 1 99A0130 Gearbox, w/Motor Lexmark 99A0130 Drive Assembly with Gear Fully refurbished with 90-day warranty 99A0130 Contact for Details 1 99A0801 Gearbox, w/Motor 3455 Lexmark 99A0801 Gear Box Fully refurbished with 90-day warranty 99A0801 $10.00 2 99A0134 Shaft, Power Takeoff 3 99A0275 Spring, Power Takeoff Shaft 4 99A0954 Gear, Bevel Lexmark 99A0954 Bevel Gear with grease packet, washer New 99A0954 (New) $12.31 NS 99A0260 Clip, Cable Parts Catalog 7-23

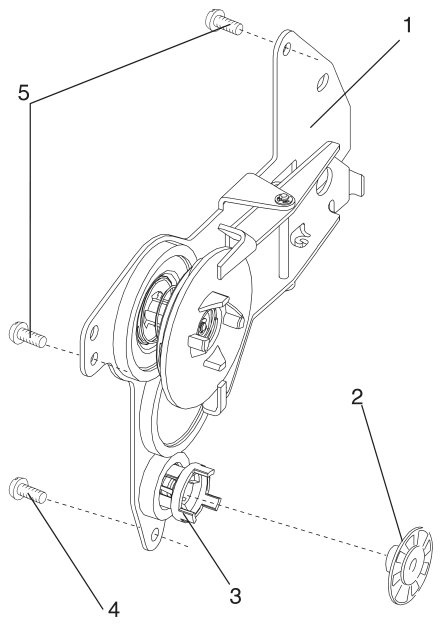

Assembly 10: Developer Drive 1 99A0135 Developer Drive Assembly 2 99A0564 Coupler, Gear #55 3 99A0136 Shaft, Developer Drive
Assembly 11: Fuser 1 99A0589 Fuser Assembly w/100V 750W Lamp 1 99A0580 Fuser Assembly w/115V 750W Lamp 1 99A0591 Fuser Assembly w/220V 750W Lamp 1 99A0586 Fuser Assembly w/100V 500W Lamp 1 99A0587 Fuser Assembly w/115V 500W Lamp Lexmark 99a0587 (99a0966) Fuser Fully refurbished with 90-day warranty 99a0587 Advanced Exchange $79.71 1 99A0588 Fuser Assembly w/220V 500W Lamp 1 99A0524 Fuser Assembly w/100V 500W Lamp 1 99A0525 Fuser Assembly w/115V 500W Lamp Lexmark 99A0525 Fuser for Optra S1250 S1255 New 99A0525 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 99A0525 Fuser 115v 500w lamp S1250 Fully refurbished with 90-day warranty 99A0525 Retired, no longer available: Contact for alternatives Contact for Details 1 99A0526 Fuser Assembly w/220V 500W Lamp 1 99A0592 Fuser Assembly w/115V 750W Lamp 3455 Lexmark 99A0592 Optra Se3455 Fuser W/ 115V 750W Lamp Fully refurbished with 90-day warranty 99A0592 Retired, no longer available: Contact for alternatives Contact for Details 1 99A0593 Fuser Assembly w/220V 750W Lamp 3455 2 99A0146 Wiper Assembly, Dry SaleLexmark 99A0146 Felt Fuser wand (wick) non-oiled (dry) wiper New 99A0146 (New) ~~$14.32~~ $8.00 Lexmark 99A0146 Fuser wiper blades Fully refurbished with 90-day warranty 99A0146 Contact for Details 2 99A0725 Wiper Assembly, Wet Lexmark 99a0725 Wet Felt Fuser Wand (Wick) Wiper New 99a0725 (New) $11.00 3 99A0918 Cover, Fuser Assembly with Thermistor, 5 99A0147 Exit Roll Assembly 6 99A0156 Detack Assembly 1250/1255/1620/16251650/ 6 99A0833 Detack Assembly 3455 Lexmark 99A0833 Detack Assembly New 99A0833 (New) $6.00 7 99A0562 Hot Roll Assembly 1250/1255 7 99A0563 Hot Roll Assembly 1620/1650/1855 7 99A0149 Hot Roll Assembly 2420/2450/2455 7 99A0832 Hot Roll Assembly 3455 8 99A0144 Retainer, Backup Roll Bearing Parts Catalog 7-27

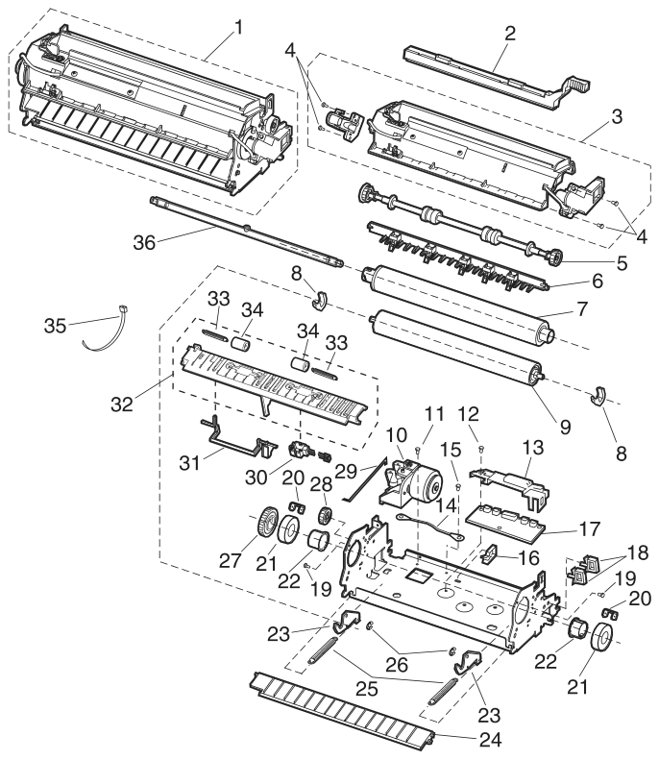

Assembly 11: Fuser (continued) 9 99A0158 Backup Roll, CBM 30 mm 2420/2450/3455 9 99A0160 Backup Roll, CBM 22 mm Lexmark 99a0160 Pressure Roller New 99A0160 (New) ~~$94.81~~ $25.00 10 99A0173 Solenoid Assembly, Envelope Conditioner 13 99A0557 Cover, Fuser Board 14 99A0547 Wire, Ground 16 99A0196 Clamp, DC Fuser Cable 17 99A0170 Board Assembly, Fuser w/o Driver 1250/1255 17 99A0171 Board Assembly, Fuser w/Driver 17 99A0826 Board Assembly, Fuser 3455 18 99A0546 Clamp, AC Fuser Cable 20 99A0142 Retainer, Hot Roll Bearing 21 99A0143 Bearing, Hot Roll 22 99A0150 Bushing, Hot Roll 23 99A0163 Bellcrank, Backup Roll 1250/1255 23 99A0162 Bellcrank, Backup Roll 1620/1650/1855/1625 23 99A0161 Bellcrank, Backup Roll 2420/2450/2455 23 99A0890 Bellcrank, Backup Roll 3455 24 99A0164 Guide, Fuser Entry 24 99A0713 Guide, Fuser Entry 1250/1255 25 99A0412 Spring, Backup Roll Bellcrank 1250/1255 25 99A0410 Spring, Backup Roll Bellcrank 27 99A0157 Gear, Hot Roll 28 99A0148 Gear, Idler Parts Catalog 7-29 NS 99A0159 Spacer, Backup Roll
Assembly 11: Fuser (continued) 29 99A0297 Link, Solenoid 30 99A0169 Sensor, Narrow Media 31 99A0172 Flag, Exit Sensor 32 99A0166 Guide Assembly, Lower Exit 33 99A0897 Spring, Redrive Idler 34 99A0167 Roller, Redrive Idler 36 99A0140 Lamp, 115V 750W CC Red 36 99A0141 Lamp, 115V 500W CC White 36 99A0177 Lamp, 100V 500W CC Yellow 36 99A0178 Lamp, 100V 750W CC Purple 36 99A0175 Lamp, 220V 750W CC Orange 36 99A0176 Lamp, 220V 500W CC Black NS 99A0145 Clip, Fuse Mounting NS 99A0919 Standoff, Fuser Control Board Parts Catalog 7-31

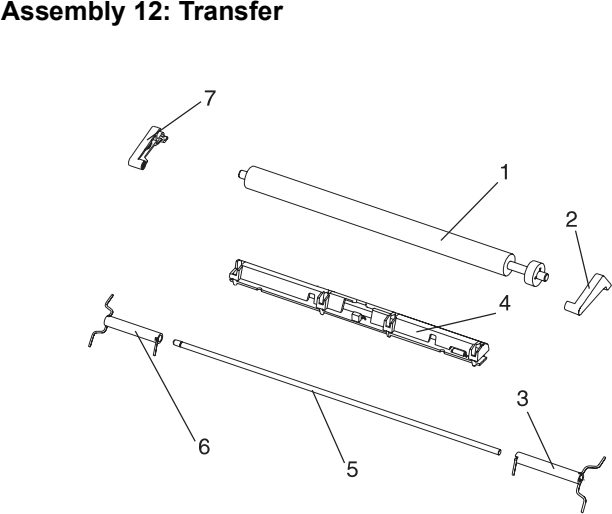

Assembly 12: Transfer 1 99A0179 Transfer Roll Assembly Lexmark 99A0179 Transfer Roll Assembly New 99A0179 (New) $28.00 1 99A0498 Transfer Roll Assembly 1855-C01 PRC 2 99A0349 Arm, Transfer Roll Assembly Right 3 99A0184 Spring, Transfer Roll Right 4 99A0186 Erase Lamp Assembly Kit Lexmark 99A0186 Erase Lamp Assembly Fully refurbished with 90-day warranty 99A0186 Contact for Details 5 99A0185 Shaft, Transfer Pivot 6 99A0181 Spring, Transfer Roll Left 7 99A0354 Arm, Transfer Roll Left

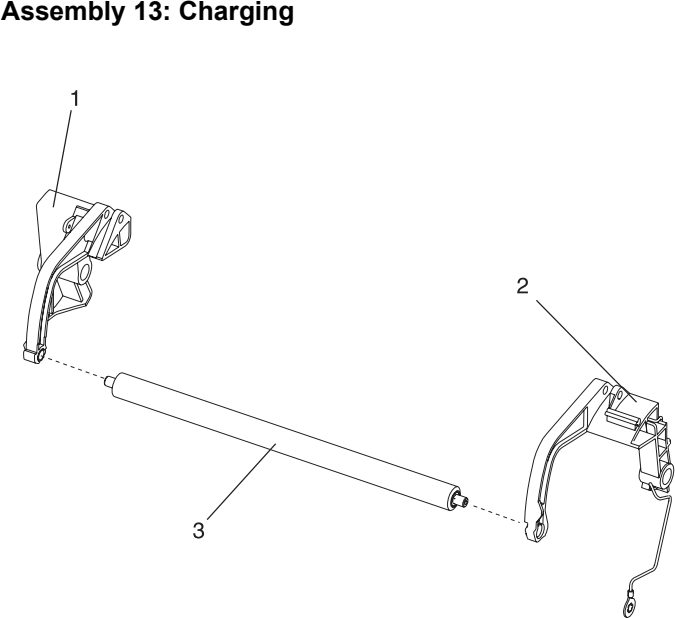

Assembly 13: Charging 1 99A0512 Link Assembly, Charge Left Kit 2 99A0513 Link Assembly, Charge Right Kit 3 99A0929 Roll Assembly, Charge Lexmark 99A0929 Charge Roller New 99A0929 (New) $39.84
Assembly 14: Electronics 1 99A0900 Engine Board Assembly with laser cable Lexmark 99a0900 Engine Board Assembly 1250/1255 Fully refurbished with 90-day warranty 99a0900 $74.71 1 99A0901 Engine Board Assembly with laser cable Lexmark 99a0901 Engine Board 16xx Fully refurbished with 90-day warranty 99a0901 $94.71 1 99A0902 Engine Board Assembly with laser cable Lexmark 99A0902 Engine Board Assembly 1855 Fully refurbished with 90-day warranty 99A0902 $144.72 1 99A0903 Engine Board Assembly with laser cable Lexmark 99A0903 Engine Board 24xx Fully refurbished with 90-day warranty 99a0903 $95.00 1 99A0946 Engine Board Assembly with jumpers 3455 Lexmark 99A0946 Optra SE3455 Engine Board Fully refurbished with 90-day warranty 99A0946 Retired, no longer available: Contact for alternatives Contact for Details 2 1342514 Power Cord Set, 8 ft. - U.S., Canada (LV), 2 1339538 Europe, 6 ft. 2 1342536 Power Cord Set, 6 ft. - Argentina (HV), 2 1342537 Power Cord Set, 8 ft. - U.K., Ireland 2 1339539 Power Cord Set, 6 ft. - Israel 2 1339540 Power Cord Set, 6 ft. - Switzerland 2 1339541 Power Cord Set, 6 ft. - South Africa 2 1342534 Power Cord Set, 8 ft. - Chile (HV) 2 1339543 Power Cord Set, 8 ft. - Denmark 2 1339542 Power Cord Set, 6 ft. - Italy 2 1374067 Power Cord Set, 8 ft. - Peru (HV) 2 99A0471 Power Cord Set, 8 ft. straight 1855-C01 2 99A0493 Power Cord Set, 6 ft. straight 1855-C01 2 99A0496 Power Cord Set, 8 ft. right angle 1855-C01 2 99A0497 Power Cord Set, 6 ft. right angle 1855-C01 3 99A0215 Fuse, 110 V ac LVPS 3 99A0205 Fuse, 220 V ac 4 99A0214 LVPS, 110 V ac 2420/2450/2455/3455 Lexmark 99A0214 LVPS Low Voltage Power Supply Fully refurbished with 90-day warranty 99A0214 $64.71 4 99A0216 LVPS, 110 V ac 1620/1650/1625/1855 Lexmark 99A0216 LVPS Low Voltage Power Supply Fully refurbished with 90-day warranty 99A0216 $44.71 4 99A0218 LVPS, 110 V ac 1250/1255 4 99A0199 LVPS, 220 V ac 2420/2450/2455/3455 4 99A0201 LVPS, 220 V ac 1620/1650/1855/1625 4 99A0203 LVPS, 220 V ac 1250/1255 Parts Catalog 7-37

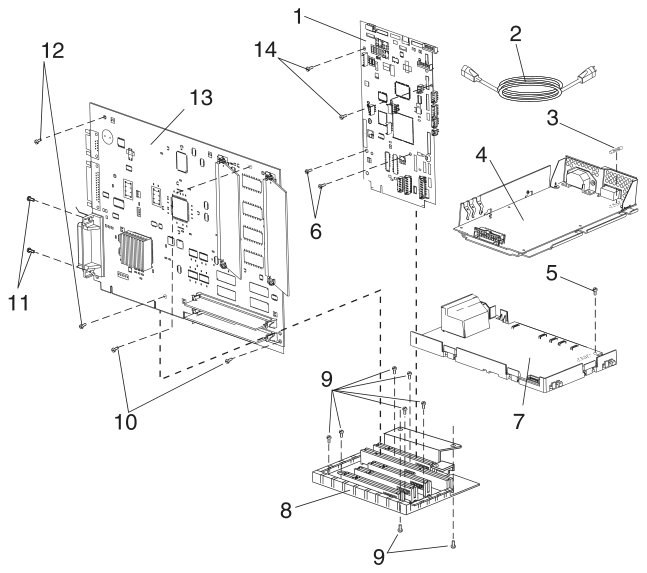

Assembly 14: Electronics (continued) 7 99A0220 High Voltage Power Supply Lexmark 99A0220 High Volt Power Supply HVPS Fully refurbished with 90-day warranty 99A0220 $44.71 7 99A0827 High Voltage Power Supply 3455 Lexmark 99A0827 4059-3455 HV Power Supply Fully refurbished with 90-day warranty 99A0827 Retired, no longer available: Contact for alternatives Contact for Details 8 99A0376 Interconnect Board Assembly 8 99A0930 Interconnect Board Assembly 8 99A0960 Interconnect Board Assembly 11 99A0426 Screw, Parallel Connector Mounting 13 99A0187 Controller Board Assembly 1250/1620 Lexmark 99A0187 RIP Controller Board Assembly 1250/1620 Fully refurbished with 90-day warranty 99A0187 $149.72 13 99A0840 Controller Board Assembly 1255 Lexmark 99A0840 RIP Controller Board Assembly S1255 Fully refurbished with 90-day warranty 99A0840 Retired, no longer available: Contact for alternatives Contact for Details 13 99A0841 Controller Board Assembly 1625 Lexmark 99A0841 RIP Controller Board Assembly S1625 Fully refurbished with 90-day warranty 99A0841 Retired, no longer available: Contact for alternatives Contact for Details 13 99A0183 Controller Board Assembly 1650/2420 Lexmark 99A0183 Optra S1650 Control RIP board Fully refurbished with 90-day warranty 99A0183 Retired, no longer available: Contact for alternatives Contact for Details 13 99A0842 Controller Board Assembly 1855 Lexmark 99A0842 RIP Controller Board Assembly S1855 Fully refurbished with 90-day warranty 99A0842 Retired, no longer available: Contact for alternatives Contact for Details 13 99A0139 Controller Board Assembly 2450 Lexmark 99A0139 Controller Board Assembly 2450 Fully refurbished with 90-day warranty 99A0139 $79.71 13 99A0844 Controller Board Assembly 2455 Lexmark 99A0844 RIP Controller Board Assembly S2455 Fully refurbished with 90-day warranty 99A0844 Retired, no longer available: Contact for alternatives Contact for Details 13 99A0845 Controller Board Assembly 3455 Lexmark 99A0845 RIP Controller Board Assembly Se3455 Fully refurbished with 90-day warranty 99A0845 Retired, no longer available: Contact for alternatives Contact for Details NS 99A0575 Cable, Deflector NS 99A0346 Clip, EMC Six Finger Parts Catalog 7-39
Assembly 14: Electronics (continued) 15 99A0236 Cover, INA Blank 17 99A0213 Engine Board Shield Assembly 18 99A0239 Shield, Inner Assembly 1250/1620/1625 18 99A0238 Shield, Inner Assembly 1650/2420/1855 18 99A0235 Shield, Inner Assembly 2450/2455/3455 19 99A0207 Shield, Outer 1250/1255/1620/1625 Lexmark 99A0207 125x Outer Shield Fully refurbished with 90-day warranty 99A0207 Contact for Details 19 99A0206 Shield, Outer 1650/2420/1855 Lexmark 99A0206 Outer Shield Fully refurbished with 90-day warranty 99A0206 Contact for Details 19 99A0204 Shield, Outer 2450/2455 NS 99A0408 Cover, INA Flat (Blank) NS 99A0224 Shield, Interconnect Board 2450/2455/3455 NS 99A0229 Shield, Interconnect Board NS 99A0230 Shield, Interconnect Board 1250/1255 NS 99A0243 Shield, Interconnect Board Mylar NS 99A0244 Shield, Interconnect Board Mylar NS 99A0245 Shield, Interconnect Board Mylar 1250/1255 NS 99A0260 Clip, Cable
Assembly 14: Electronics (continued) 22 99A0138 Sensor, Standard Bin Level 23 99A0030 Fan, Main Lexmark 99A0030 Main Fan Fully refurbished with 90-day warranty 99A0030 Contact for Details 23 99A0803 Fan, Main 3455 Lexmark 99A0803 Fan Fully refurbished with 90-day warranty 99A0803 $9.00 24 99A0255 Cable, Main Drive Motor 25 99A0129 Gearbox, w/Motor 2450/2420/2455 Lexmark 99A0129 Main Drive Assembly Fully refurbished with 90-day warranty 99A0129 Contact for Details 25 99A0130 Gearbox, w/Motor Lexmark 99A0130 Drive Assembly with Gear Fully refurbished with 90-day warranty 99A0130 Contact for Details 25 99A0801 Gearbox, w/Motor 3455 Lexmark 99A0801 Gear Box Fully refurbished with 90-day warranty 99A0801 $10.00 26 99A0256 Cable, Integrated Tray 27 99A0128 Board, Input Tray (ITC) Lexmark 99A0128 Board Input Tray (ITC) Fully refurbished with 90-day warranty 99A0128 $29.00 28 99A0254 Cable, Auto Connect Bottom 29 99A0257 Cable, Auto Connect Top

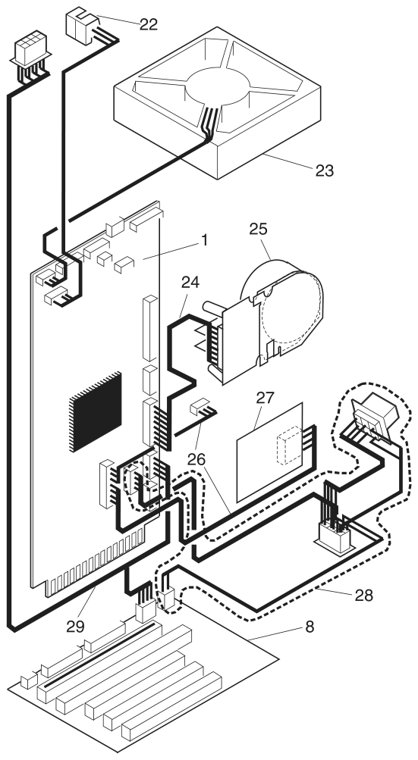

Assembly 14: Electronics (continued) 30 99A0049 Fan, Auxiliary 2450/2455/3455 Lexmark 99A0049 Aux Fan Fully refurbished with 90-day warranty 99A0049 Contact for Details 31 99A0466 Sensor, Toner Cartridge Level Lexmark 99A0466 Sensor Toner Low Fully refurbished with 90-day warranty 99A0466 Contact for Details 32 99A0296 Switch, Cover Open w/Operator Panel 33 99A0001 Operator Panel Assembly Lexmark 99A0001 Display Panel (Control Panel) Fully refurbished with 90-day warranty 99A0001 Contact for Details 34 99A0576 Cable, Front Harness 34A 99A0815 Contacts, Smart Cartridge Lexmark 99A0815 Smart Cartridge Fully refurbished with 90-day warranty 99A0815 Contact for Details 34B 99A0814 Cable, Smart Cartridge 3455 Parts Catalog 7-45

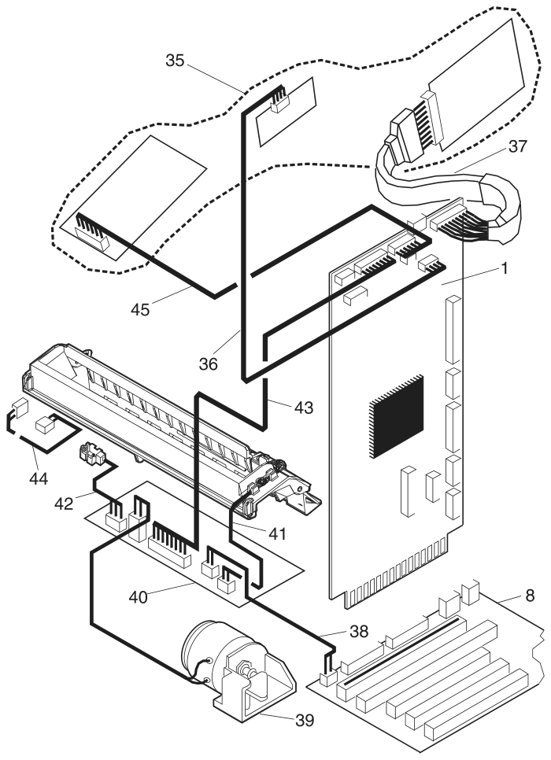

Assembly 14: Electronics (continued) 35 99A0065 Printhead Assembly, Lexmark 99A0065 Printhead Assembly 12xx, 16xx Fully refurbished with 90-day warranty 99A0065 $146.72 35 99A0398 Printhead Assembly, 1855/1855-C01 Lexmark 99A0398 S1855 Printhead Fully refurbished with 90-day warranty 99A0398 Retired, no longer available: Contact for alternatives Contact for Details 35 99A0066 Printhead Assembly, 2420/2450/2455 Lexmark 99A0066 Printhead Assembly 2420/2450/2455 Fully refurbished with 90-day warranty 99A0066 $79.71 35 99A0829 Printhead Assembly, 3455 Lexmark 99A0829 Printhead for Optra SE3455 Fully refurbished with 90-day warranty 99A0829 Retired, no longer available: Contact for alternatives Contact for Details 36 99A0247 Cable, Hysnc 37 99A0251 Cable, Laser 37 99A0889 Cable, Laser 3455 Lexmark 99A0889 Laser Cable Fully refurbished with 90-day warranty 99A0889 $11.23 37 99A0888 Cable, Laser 1855/1855-C01 38 99A0249 Cable, Envelope Conditioner 39 99A0173 Solenoid Assembly, Envelope Conditioner 40 99A0170 Board Assembly, Fuser w/o Driver 1250/1255 40 99A0171 Board Assembly, Fuser with Driver 40 99A0826 Board Assembly, Fuser 3455 41 99A0027 Cover, Fuser Assembly with Thermistor, 42 99A0169 Sensor, Narrow Media 43 99A0252 Cable, Fuser D.C. 44 99A0258 Cable, Fuser A.C. 45 99A0250 Cable, Mirror Motor Parts Catalog 7-47

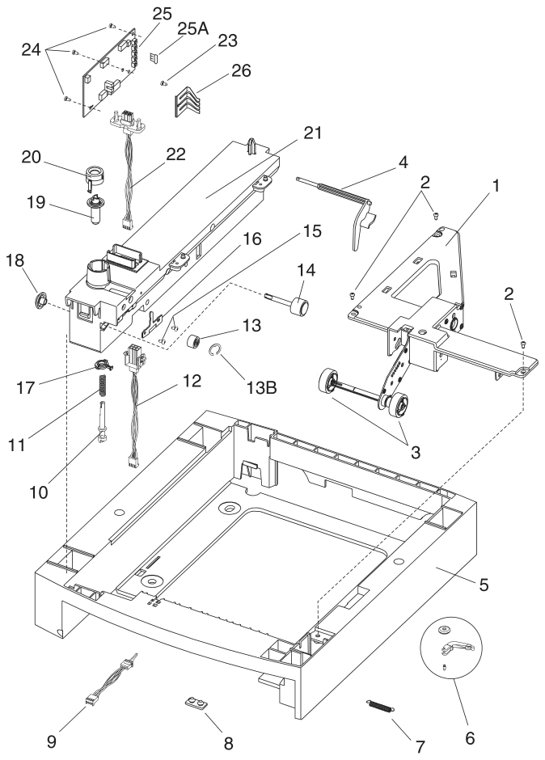

Assembly 15: 250 Sheet Tray 1 99A0287 Pick Arm Assembly 3 99A0070 Roll Assembly, Pick Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 4 99A0448 Arm, Paper Out 250 Lexmark 99A0448 Arm paper out 250-sheet New 99A0448 (New) $22.24 Lexmark 99A0448 250-Sheet Drawer Paper Out Arm Fully refurbished with 90-day warranty 99A0448 $19.99 5 99A0266 Base, 250 Option 6 99A0026 Tray Bias Arm Assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 7 99A0419 Spring, Tray Bias Lexmark 99A0419 Tray Bias Spring Fully refurbished with 90-day warranty 99A0419 Contact for Details 8 99A0058 Pad, Machine Mounting Lexmark 99A0058 Mounting Pads Fully refurbished with 90-day warranty 99A0058 Contact for Details 9 99A0288 Sensor, Option Pass Thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 10 99A0272 Shaft, 250 Drive 11 99A0275 Spring, Power Takeoff 12 99A0282 Cable, 250 Tray Option 13 99A0451 Roller, Skewed Backup 13B 99A0450 Retainer, Roller 14 99A0276 Roll Assembly, Drive 500 Dual 16 99A0277 Wear Plate, Pass Thru 250 Tray 17 99A0280 Bearing, Drive Shaft Low 18 99A0274 Gear, Feed Roll 19 99A0273 Gear, Bevel 20 99A0279 Bearing, Drive Shaft 21 99A0445 Stud Assembly, 250 Frame Lexmark 99A0445 Stud Assembly 250-Sheet Frame New 99A0445 (New) Contact for Details 22 99A0281 Cable, 250 Auto Connect Option 25 99A0284 Board, Option Tray Lexmark 99a0284 ITC Board Fully refurbished with 90-day warranty 99a0284 $24.71 25 99A0397 Board, Option Tray Lexmark 99a0397 ITC Board Fully refurbished with 90-day warranty 99a0397 $24.71 25A 99A0627 Jumper, 2-pin 26 99A0063 Spring, Switch Activate Parts Catalog 7-49 Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 NS 99A0438 Bearing, Drive Roll NS 99A0278 Bellcrank, Roller Release

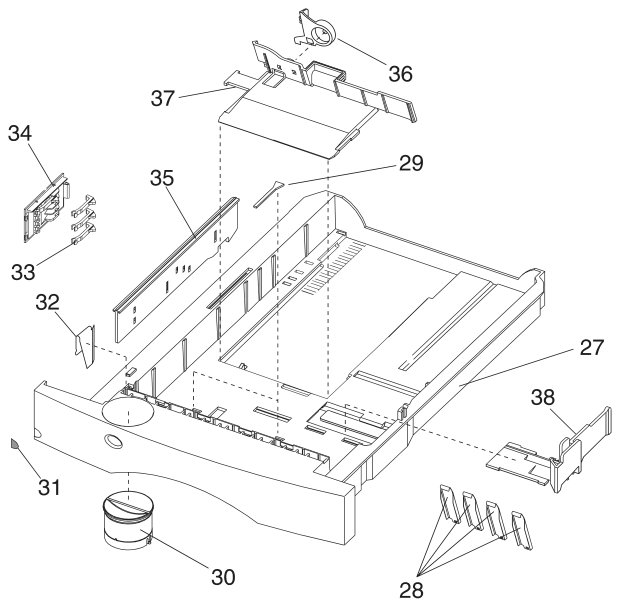

Assembly 15: 250 Sheet Tray (continued) 27 99A0115 Tray Assembly, 250 Sheet Option Lexmark 99a0115 Paper Tray Fully refurbished with 90-day warranty 99A0115 Contact for Details 27 99A0504 Tray Assembly, 250 Sheet 1855-C01 28 99A0119 Wear Strips 29 99A0120 Restraint Pad 30 99A0123 Indicator Assembly, Paper Size 31 99A0461 Label, Tray Number (2-5) 32 99A0121 Clip, 250 Tray Wear 33 99A0126 Finger, Autosize 34 99A0124 Plate, Snap-In 35 99A0127 Slider, Autosize 250 Lexmark 99A0127 Slider Autosize 250-Sheet Tray New 99A0127 (New) Contact for Details 36 99A0894 Latch, Back Restraint 37 99A0893 Restraint, Back 250 Sheet Tray Lexmark 99A0893 Restraint back 250-sheet tray New 99A0893 (New) Contact for Details 38 99A0892 Restraint, Side 250 Sheet Tray NS 99A0429 Label, Options Circle 1255/1625/1855/2455 NS 99A0286 Spring, Backup Roller NS 99A0446 Aligner Assembly, Paper NS 99A0501 Strip Assembly, Paper Tray Insert 1855-C01 Parts Catalog 7-51

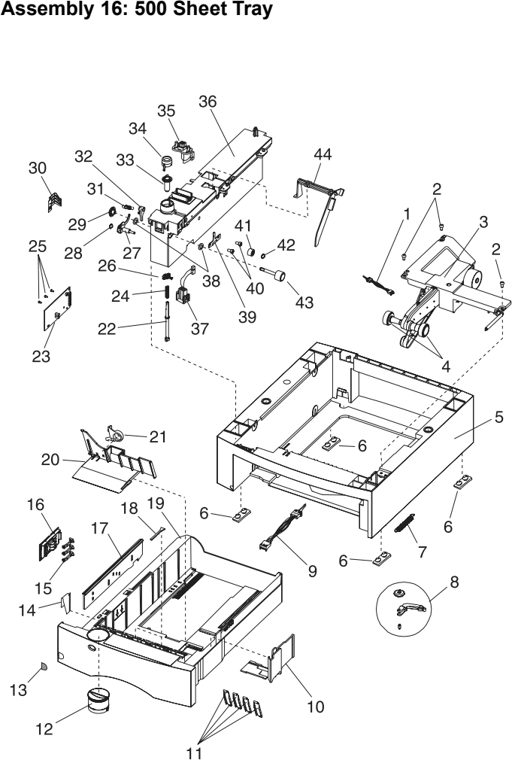

Assembly 16: 500 Sheet Tray 1 99A0350 Sensor, Paper Low Lexmark 99A0350 Sensor Paper Level New 99A0350 (New) Contact for Details 3 99A0405 Pick Arm Assembly Lexmark 99A0405 Pickup Arm Assembly 500-Sheet Drawer Fully refurbished with 90-day warranty 99A0405 Contact for Details 4 99A0070 Pick Roll Assembly Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 5 99A0298 Base, 500 Bottom Lexmark 99A0298 Base Assembly Bottom 500 Sheet Fully refurbished with 90-day warranty 99A0298 Contact for Details 6 99A0058 Pad, Base 500 Lexmark 99A0058 Mounting Pads Fully refurbished with 90-day warranty 99A0058 Contact for Details 7 99A0419 Spring, Tray Bias Lexmark 99A0419 Tray Bias Spring Fully refurbished with 90-day warranty 99A0419 Contact for Details 8 99A0026 Tray Bias Arm Assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 9 99A0288 Sensor, Option Pass Thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 10 99A0895 Restraint, Side 500 Sheet Tray 11 99A0292 Wear Strips 12 99A0123 Indicator Assembly, Paper Size 13 99A0461 Label, Tray Number (2-5) 14 99A0457 Clip, 500 Tray Wear 15 99A0126 Finger, Autosize 16 99A0124 Plate, Snap-In 17 99A0418 Slider, Autosize 500 18 99A0120 Restraint Pad 19 99A0289 Tray, 500 Sheet Lexmark 99A0289 Tray, 500 Sheet Fully refurbished with 90-day warranty 99A0289 $32.48 20 99A0896 Restraint, Back 500 Sheet Tray Lexmark 99a0896 Paper Tray Restraint Fully refurbished with 90-day warranty 99a0896 Contact for Details 21 99A0894 Latch, Back Restraint 22 99A0447 Shaft, 500 Drive 23 99A0284 Board, Tray 1250/1620/1650/2420/2450 Lexmark 99a0284 ITC Board Fully refurbished with 90-day warranty 99a0284 $24.71 23 99A0397 Board, Tray 1255/1625/1855/2455/3455 Lexmark 99a0397 ITC Board Fully refurbished with 90-day warranty 99a0397 $24.71 24 99A0275 Spring, Power Takeoff 26 99A0280 Bearing, Drive Shaft Low 27 99A0446 Aligner Assembly, Paper 29 99A0274 Gear, Feed Roll 30 99A0063 Spring, Switch Activate Parts Catalog 7-53 Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62

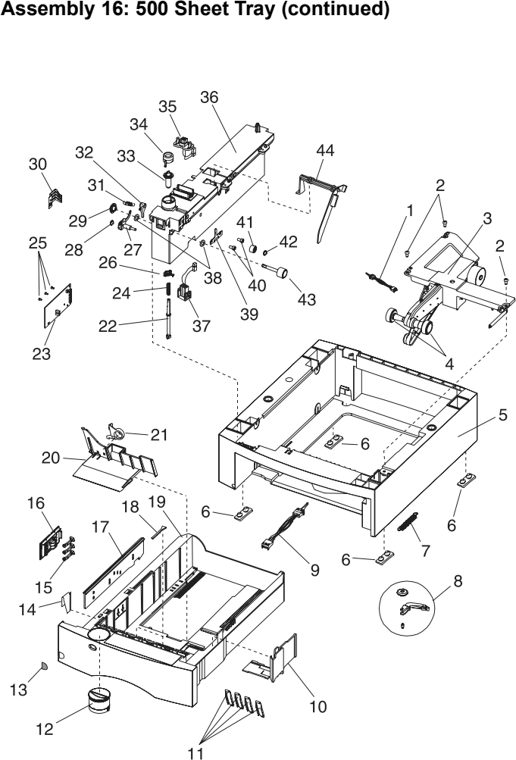

Assembly 16: 500 Sheet Tray (continued) 31 99A0286 Spring, Backup Roller 32 99A0278 Bellcrank, Roller Release 33 99A0273 Gear, Bevel 34 99A0279 Bearing, Drive Shaft 35 99A0281 Cable, 500 Auto Connect Top 36 99A0444 Stud Assembly, 500 Frame 37 99A0282 Cable, 500 Auto Connect Bottom 38 99A0438 Bearing, Drive Roll 39 99A0277 Wear Plate, Pass Thru 41 99A0451 Roller, Skewed Backup 42 99A0450 Retainer, Roller 43 99A0276 Roll Assembly, Drive 500 44 99A0443 Arm, Paper Out 500 Lexmark 99A0443 Optra S Paper Out Arm 500 Sheet Fully refurbished with 90-day warranty 99A0443 Retired, no longer available: Contact for alternatives Contact for Details NS 99A0429 Label, Options Circle 1255/1625/1855/2455 Parts Catalog 7-55

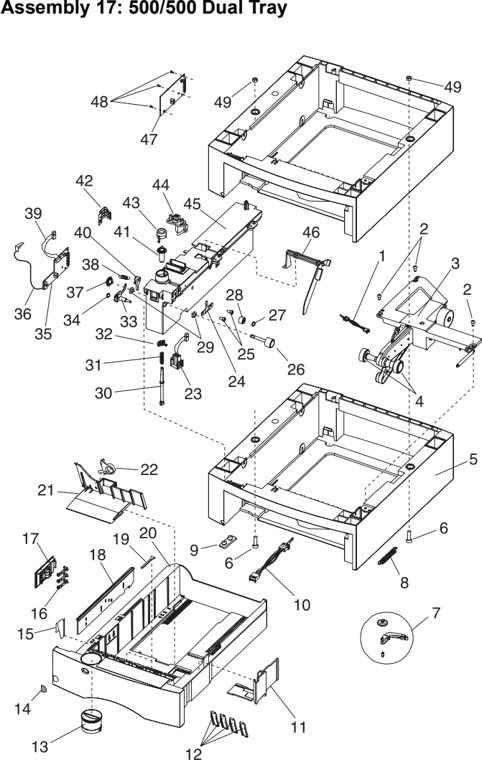

Assembly 17: 500/500 Dual Tray 1 99A0350 Sensor, Paper Low Lexmark 99A0350 Sensor Paper Level New 99A0350 (New) Contact for Details 3 99A0405 Pick Arm Assembly Lexmark 99A0405 Pickup Arm Assembly 500-Sheet Drawer Fully refurbished with 90-day warranty 99A0405 Contact for Details 4 99A0070 Pick Roll Assembly Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 5 99A0293 Base, 500 Top 5 99A0298 Base, 500 Bottom Lexmark 99A0298 Base Assembly Bottom 500 Sheet Fully refurbished with 90-day warranty 99A0298 Contact for Details 6 99A0514 Screw, Dual 500 Mounting 7 99A0026 Tray Bias Arm Assembly Lexmark 99A0026 Tray Bias Arm Assembly Fully refurbished with 90-day warranty 99A0026 $10.93 8 99A0419 Spring, Tray Bias Lexmark 99A0419 Tray Bias Spring Fully refurbished with 90-day warranty 99A0419 Contact for Details 9 99A0058 Pad, Base 500 Lexmark 99A0058 Mounting Pads Fully refurbished with 90-day warranty 99A0058 Contact for Details 10 99A0288 Sensor, Option Pass Thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 11 99A0895 Restraint, Side 500 Sheet Tray 12 99A0292 Wear Strips 13 99A0123 Indicator Assembly, Paper Size 14 99A0461 Label, Tray Number (2-5) 15 99A0457 Clip, 500 Tray Wear 16 99A0126 Finger, Autosize 17 99A0124 Plate, Snap-In 18 99A0418 Slider, Autosize 500 19 99A0120 Restraint Pad 20 99A0289 Tray, 500 Sheet Lexmark 99A0289 Tray, 500 Sheet Fully refurbished with 90-day warranty 99A0289 $32.48 21 99A0896 Restraint, Back 500 Sheet Tray Lexmark 99a0896 Paper Tray Restraint Fully refurbished with 90-day warranty 99a0896 Contact for Details 22 99A0894 Latch, Back Restraint 23 99A0569 Cable Assembly Dual Tray Auto Connect 24 99A0277 Wear Plate, Pass Thru 500 Tray 26 99A0276 Roll Assembly, Drive 500 Dual 27 99A0450 Retainer, Roller 28 99A0451 Roller, Skewed Backup 29 99A0438 Bearing, Drive Roll 30 99A0447 Shaft, 500 Drive Parts Catalog 7-57

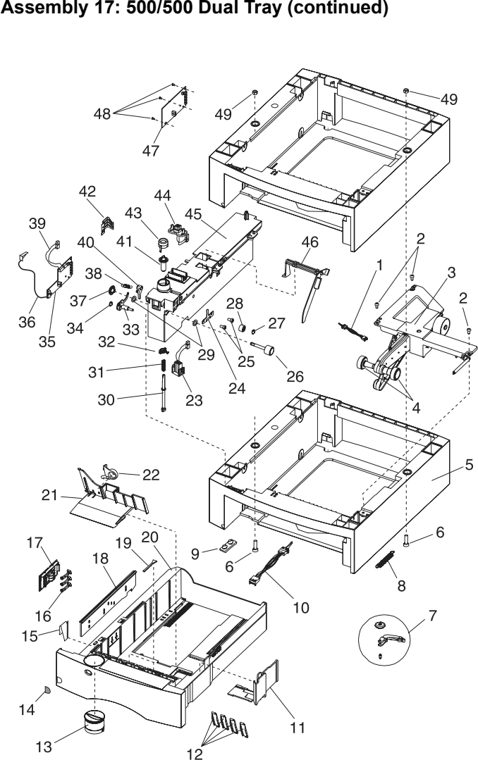

Assembly 17: 500/500 Dual Tray (continued) 31 99A0275 Spring, Power Takeoff 32 99A0280 Bearing, Drive Shaft Low 33 99A0446 Aligner Assembly, Paper 35 99A0300 Board, Tray (Bottom) 36 99A0898 Cable, 500 Tray Board to Board Power 37 99A0274 Gear, Feed Roll 38 99A0286 Spring, Backup Roller 39 99A0472 Cable Assembly, 500/500 Dual 40 99A0278 Bellcrank, Roller Release 41 99A0273 Gear, Bevel 42 99A0063 Spring, Switch Activate Lexmark 99A0063 Switch Activate Spring Fully refurbished with 90-day warranty 99A0063 $14.62 43 99A0279 Bearing, Drive Shaft 44 99A0281 Cable, 500 Auto Connect Top 45 99A0444 Stud Assembly, 500 Frame 46 99A0443 Arm, Paper Out 500 Lexmark 99A0443 Optra S Paper Out Arm 500 Sheet Fully refurbished with 90-day warranty 99A0443 Retired, no longer available: Contact for alternatives Contact for Details 47 99A0284 Board, Tray (Top) Lexmark 99a0284 ITC Board Fully refurbished with 90-day warranty 99a0284 $24.71 47 99A0397 Board, Tray (Top) Lexmark 99a0397 ITC Board Fully refurbished with 90-day warranty 99a0397 $24.71 49 99A0460 Nut, Dual 500 Mounting NS 99A0429 Label, Options Circle 1255/1625/1855/2455 Parts Catalog 7-59

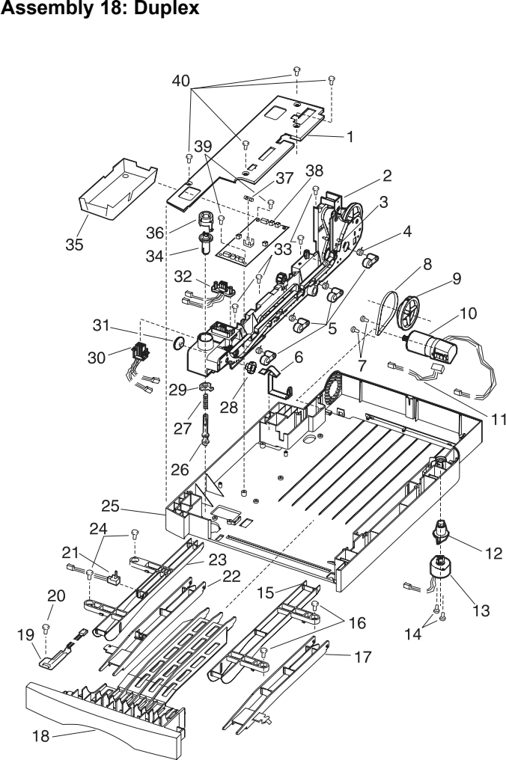

Assembly 18: Duplex 1 99A0344 Cover, System Board 2 99A0322 Main Frame Assembly Lexmark 99A0322 Main Frame Assembly 250 duplex New 99A0322 (New) Contact for Details Lexmark 99A0322 Optra S Duplex Frame Assembly Fully refurbished with 90-day warranty 99A0322 Retired, no longer available: Contact for alternatives Contact for Details 3 99A0324 Idler Assembly, Belt Tension 4 99A0326 Spring, Aligner 5 99A0323 Guide Assembly, Paper 6 99A0314 Spring, Chassis Ground 8 99A0328 Belt, Motor 114 Gear 9 99A0329 Pulley, Main Drive 96/54 10 99A0321 Motor Assembly Lexmark 99A0321 Motor Assembly DC Drive Fully refurbished with 90-day warranty 99A0321 Contact for Details 11 99A0320 Cable, D.C. Motor Tach 13 99A0312 Actuator Assembly, Deflector 15 99A0339 Guide, Return RH Upper 17 99A0340 Guide, Return RH Lower 18 99A0345 Tray Assembly, Jam 19 99A0261 Switch Assembly, Front NS 99A0432 Roll, Debuckle NS 99A0428 Shaft, Debuckle

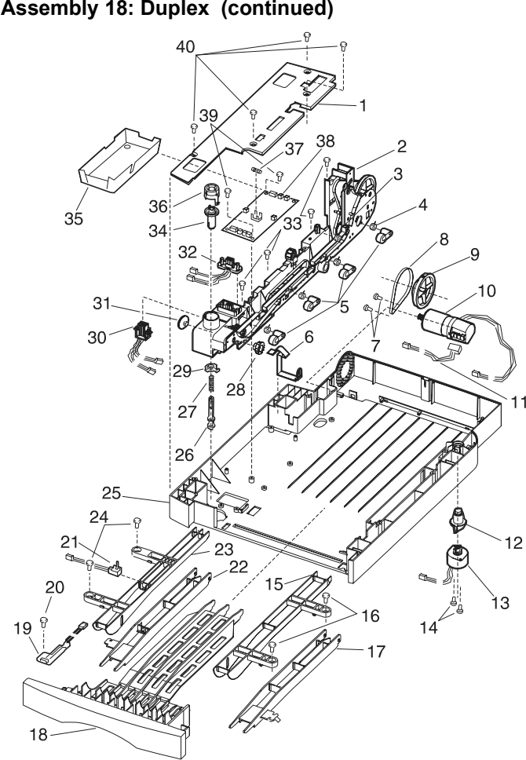

Assembly 18: Duplex (continued) 21 99A0341 Sensor, Exit - Optical 22 99A0342 Guide, LH Lower 23 99A0343 Guide, Return LH Upper 25 99A0306 Base Assembly, w/Tray Bias 26 99A0316 Shaft, Duplex Drive 27 99A0315 Spring, Duplex Shaft 28 99A0325 Gear, Pass Thru Idler 29 99A0280 Bearing, Drive Shaft Low 30 99A0311 Cable, Auto Connect Bottom 31 99A0274 Gear, Pass Thru Drive Roll 32 99A0310 Cable, Auto Connect Top 34 99A0317 Gear, Duplex Bevel 35 99A0434 Pan, System Board Drip 36 99A0279 Bearing, Drive Shaft 37 99A0191 Fuse, .8A SB 38 99A0403 Board, System Level 1 38 99A0916 Board, System Level 2 NS 99A0956 Kit, Duplex Option Card Jumper
Assembly 18: Duplex (continued) 41 99A0305 Top Cover Assembly, Movable 42 99A0303 Top Cover Assembly, Fixed 43 99A0435 Guide, Lower Entry 44 99A0338 Guide Assembly, Paper Decurl 45 99A0332 Guide, Center Drive Upper 46 99A0307 Air Plenum 47 99A0335 Spring, Decurl Shaft 48 99A0334 Bushing 49 99A0327 Frame, Outer 51 99A0330 Guide Assembly, Center Drive 53 99A0308 Fan, Cooling Duplex 55 99A0337 Main Drive Assembly 56 99A0319 Sensor, Input Optical 57 99A0433 Spring, Decurl Shaft 58 99A0304 Switch Assembly, Top Cover Open 60 99A0336 Shaft Assembly, Drive 61 99A0333 Shaft Assembly, Decurl NS 99A0058 Feet, Duplex Base Lexmark 99A0058 Mounting Pads Fully refurbished with 90-day warranty 99A0058 Contact for Details NS 99A0429 Label, Options Circle 1255/1625/1855/2455 Parts Catalog 7-65

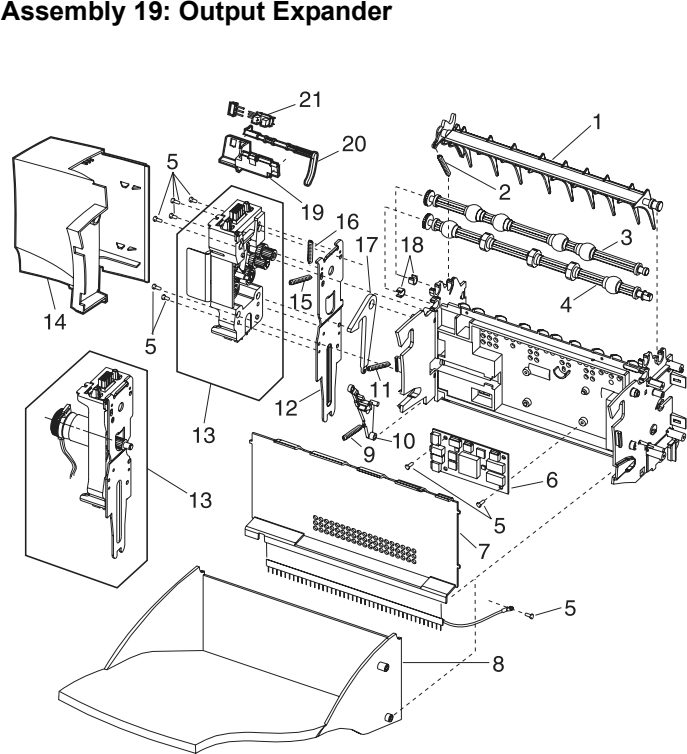

Assembly 19: Output Expander 1 99A0107 Diverter, Upper Lexmark 99A0107 Upper Diverter Fully refurbished with 90-day warranty 99A0107 $18.35 2 99A0104 Spring, Upper Diverter Lexmark 99A0104 Spring, Upper Diverter New 99A0104 (New) $25.00 3 99A0369 Shaft Assembly, Exit 4 99A0052 Shaft Assembly, Lower Exit 6 99A0347 Board, Output Expander Level 1 6 99A0406 Board, Output Expander Level 2 Lexmark 99A0406 Board Output Expander New 99A0406 (New) $208.64 6 99A0915 Board, Output Expander DC motor 7 99A0571 Cover, Front Control Board with ESD Brush 8 99A0483 Tray, Output Expander 9 99A0924 Spring, Diverter 10 99A0925 Diverter, Actuator Arm 11 99A0482 Spring, Output Tray 12 99A0366 Bracket, Attach 13 99A0480 Output Expander Assembly, Mechanical 13 99A0914 Output Expander Assembly, Mechanical 14 99A0372 Cover, Left Side 15 99A0415 Spring, Diverter 16 99A0416 Spring, Sector Bias 17 99A0481 Latch, Output Tray 19 99A0350 Sensor, Bin Full Level 1 1650/2420/2450 Lexmark 99A0350 Sensor Paper Level New 99A0350 (New) Contact for Details 19 99A0414 Sensor, Dual Bin Full Level 2 1855/2455/3455 20 99A0378 Flag Kit, Output Paper Level 21 99A0062 Level Sensor Bracket Level 1 1650/2420/2450 Lexmark 99A0062 Sensor Bracket Assembly Fully refurbished with 90-day warranty 99A0062 $12.00 21 99A0409 Level Sensor Bracket Level 2 1855/2455/3455 Parts Catalog 7-67

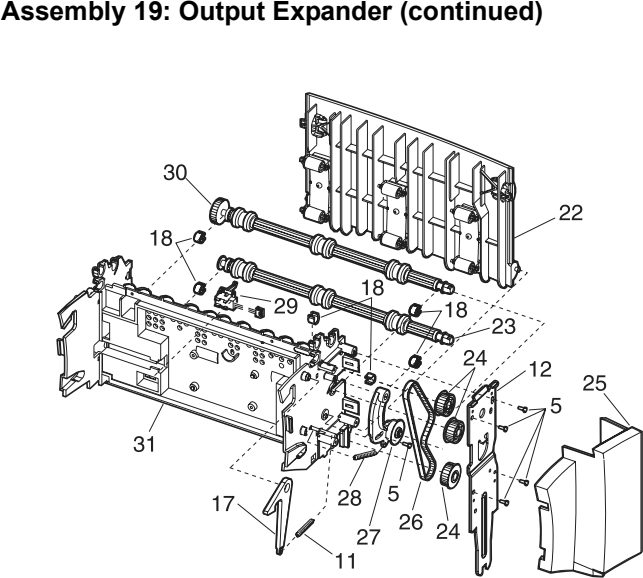

Assembly 19: Output Expander (continued) 22 99A0374 Door Assembly, Rear Access 23 99A0368 Shaft Assembly, Lower 24 99A0363 Pulley, Drive 25 99A0371 Cover, Right Side 26 99A0361 Belt, 160 Gear 27 99A0362 Arm Assembly, Belt Idler 28 99A0364 Spring, Belt Tensioner 29 99A0351 Sensor, Output Expander Pass Thru 30 99A0370 Shaft Assembly, Middle Level 1 30 99A0913 Shaft Assembly, Middle 40T Level 2 3455 31 99A0912 Frame Assembly, Output Expander Level 2 NS 99A0429 Label, Options Circle 1855/2455/3455 Parts Catalog 7-69

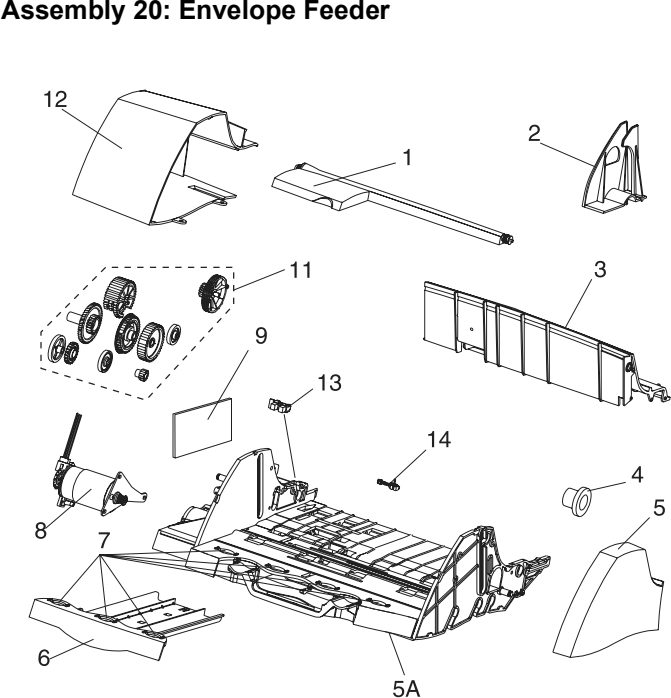

Assembly 20: Envelope Feeder 1 99A0389 Paper Weight Assembly 2 99A0391 Guide, Edge 3 99A0379 Cover, Top 4 99A0393 Clutch, Restraint/Gear 5 99A0380 Cover, Right Side 5A 99A0407 Base Assembly 6 99A0390 Support, Slide Out 7 99A0488 Roller, Support 8 99A0382 Motor, Stepper D.C. Lexmark 99A0382 Motor Stepper DC New 99A0382 (New) $62.14 9 99A0383 Board Assembly, Electronic Control 9 99A0402 Board Assembly, Electronic Control NS 99A0484 Belt, Gear Drive NS 99A0491 Bracket, Stack Limiter NS 99A0400 Spring, Restraint Roll Shaft NS 99A0489 Spring, Latch Return NS 99A0487 Flag, Envelope Out Sensor Parts Catalog 7-71

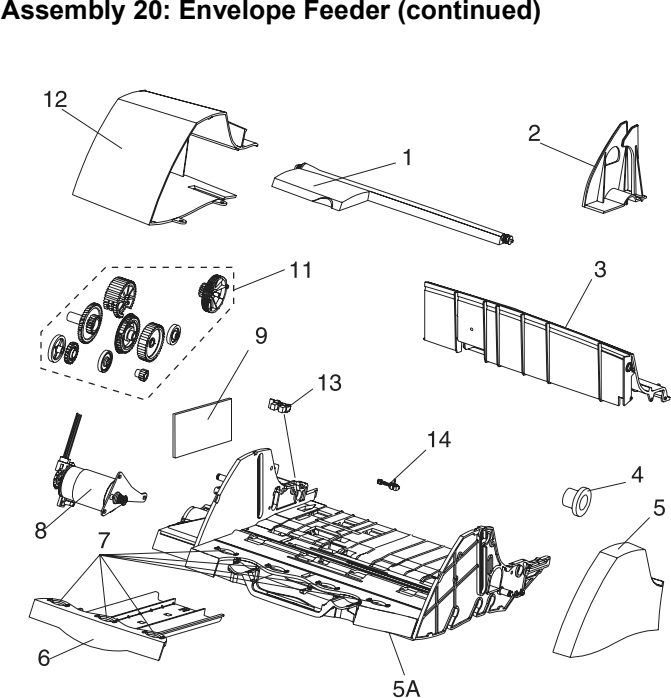

Assembly 20: Envelope Feeder (continued) 12 99A0381 Cover, Left Side 13 99A0388 Switch, Envelope Out 14 99A0485 Sensor, Envelope Pass Thru NS 99A0384 Shaft, Drive Pressure Roller Lexmark 99A0384 Shaft Drive Pressure Roller New 99A0384 53P8305 (New) $29.71 NS 99A0385 Cable, Auto Connect Front NS 99A0494 Spring, Cam Clutch NS 99A0429 Label, Options Circle 1255/1625/1855/2455 NS 99A0427 Label, Envelope Orientation Icon NS 99A0469 Deflector Guide Parts Catalog 7-73

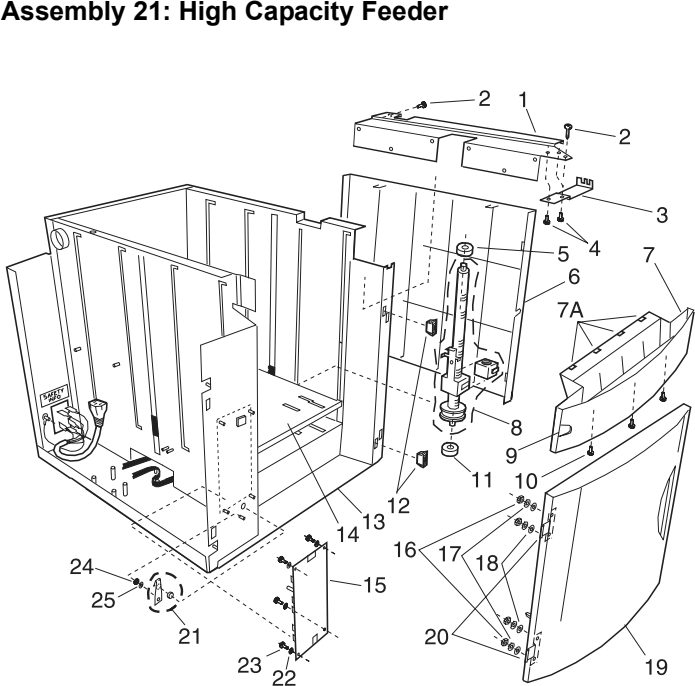

Assembly 21: High Capacity Feeder 1 99A0660 Frame, Printer Support Frame 2 3 99A0698 Clamp, Feed Frame 5 99A0691 Bearing, Nyliner Leadscrew Top 6 99A0656 Cover, Side 7 99A0680 Deflector Assembly Front 7A 99A0681 Strip, Wear 8 99A0662 Transfer Lead Screw Assembly 9 99A0461 Label, Tray Option Numbers 11 99A0716 Bearing, Leadscrew Bottom 12 99A0658 Magnet, Door 13 99A0650 Frame Assembly 14 99A0661 Tray Assembly, Elevator 15 99A0671 Card Assembly, 2000 Option Control 19 99A0655 Door Assembly, Front 20 99A0657 Hinge, Door NS 99A0690 Cable, Optical Sensor

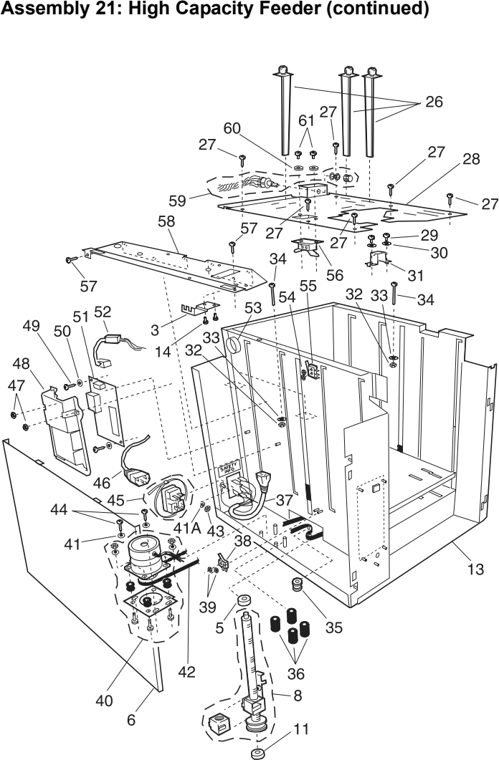

Assembly 21: High Capacity Feeder (continued) 26 99A0686 Guide, Rear Paper with thumb screws 26 99A0188 Guide, Rear Paper with retainer arm 28 99A0696 Frame Assembly, Top with labels 28 99A0219 Frame Assembly, Top with labels 31 99A0719 Clamp, Top Frame Mounting 35 99A0663 Pulley, Idler 36 99A0697 Spacer, Motor Mounting 37 99A0699 Cable, PS Internal Wiring 38 99A0653 Switch, Lower Limit Microswitch 40 99A0665 Motor Assembly 42 99A0664 Belt, Drive 45 99A0669 Connector, Appliance Inlet with Tye Wrap 46 99A0670 Cord, AC External Jumper 48 99A0714 Cover, Power Supply NS 99A0677 99A0677
Assembly 21: High Capacity Feeder (continued) 51 99A0667 Power Supply Board Lexmark 99A0667 PCBA Power Supply 100-240V 4069-F12 Fully refurbished with 90-day warranty 99A0667 $79.00 52 99A0715 Cable, Low Voltage Power Supply 53 99A0685 Bushing 55 99A0654 Switch, Paper Low 56 99A0651 Sensor Assembly, Paper Out/Upper Limit 58 99A0659 Frame, Printer Support 1 59 99A0695 Parts Kit, Paper Size Switch Assembly NS 99A0682 Cable, HCIT-TOC Power NS 99A0683 Cable, HCIT Power Passthru NS 99A0684 Cable, HCIT-14Pin Flex Lexmark 99A0684 Cable HCIT-14 pin flex New 99A0684 (New) $26.96

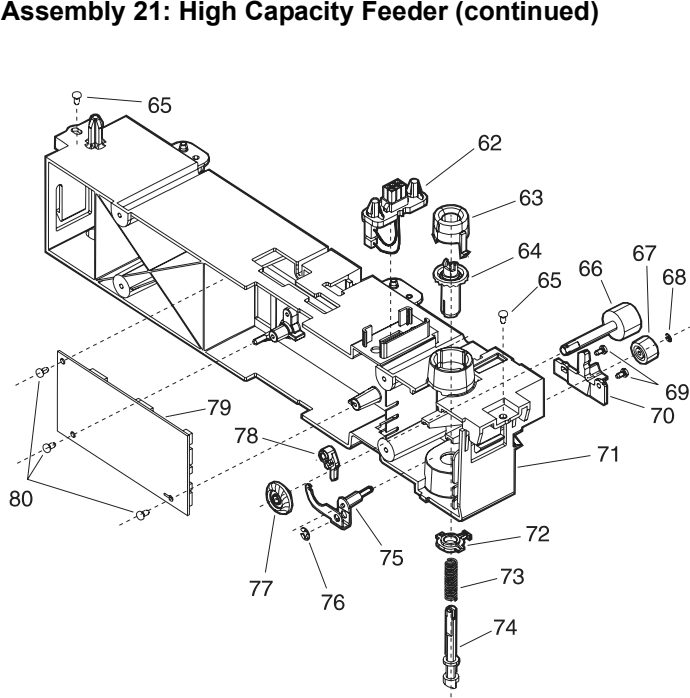

Assembly 21: High Capacity Feeder (continued) 62 99A0281 Cable, 250 Auto Connect 63 99A0279 Bearing, Drive Shaft 64 99A0273 Gear, Bevel 66 99A0276 Roll Assembly, Drive 250 Option 67 99A0451 Roll, Skew Backup 70 99A0277 Plate Wear, Pass Thru 71 99A0445 Stud Assembly, 250 Frame Lexmark 99A0445 Stud Assembly 250-Sheet Frame New 99A0445 (New) Contact for Details 72 99A0280 Bearing, Drive Shaft Low 73 99A0275 Spring, Power Takeoff 74 99A0272 Shaft, 250 Drive 75 99A0446 Aligner Assembly, Paper 77 99A0274 Gear, Feed Roll 78 99A0278 Bellcrank, Roller Release 79 99A0688 Card Assembly, 2000 Tray Option 79 99A0401 Card Assembly, 2000 Tray Option NS 99A0286 Spring, Backup Roller

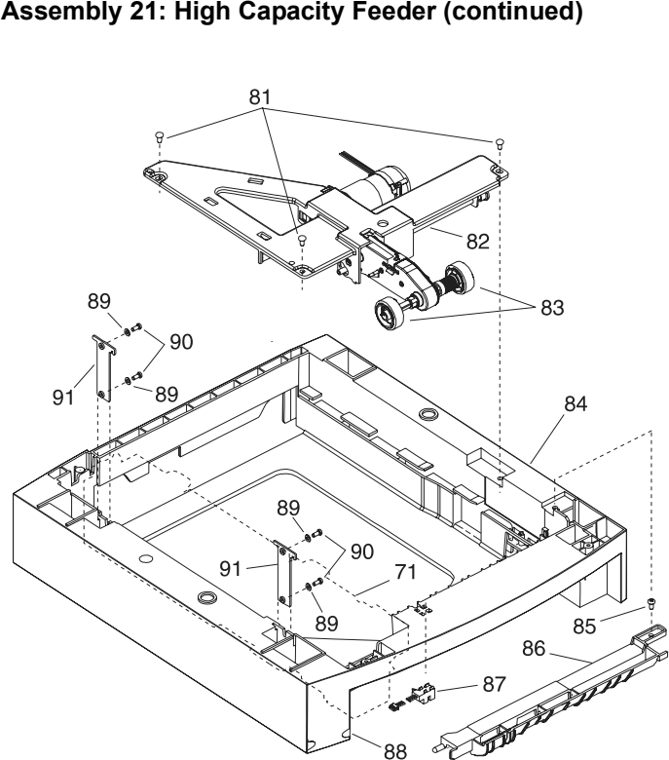

Assembly 21: High Capacity Feeder (continued) 82 99A0674 Arm Assembly, Pick 2000 83 99A0070 Roll Assembly, Pick Lexmark 99A0070 Pick Rolls (Set Of Two) New 99A0070 (New) Contact for Details 84 99A0692 Base, 2000 Option 86 99A0678 Deflector, Base 87 99A0288 Sensor, Pass Thru Lexmark 99A0288 Pass Thru Sensor Fully refurbished with 90-day warranty 99A0288 $19.71 88 99A0461 Label, Tray Option Numbers 91 99A0679 Bracket, 250 Frame Retention NS 99A0448 Arm, Paper Out 250 Sheet Lexmark 99A0448 Arm paper out 250-sheet New 99A0448 (New) $22.24 Lexmark 99A0448 250-Sheet Drawer Paper Out Arm Fully refurbished with 90-day warranty 99A0448 $19.99 NS 99A0429 Label, Options Circle 1255/1625/1855/2455 Parts Catalog 7-83

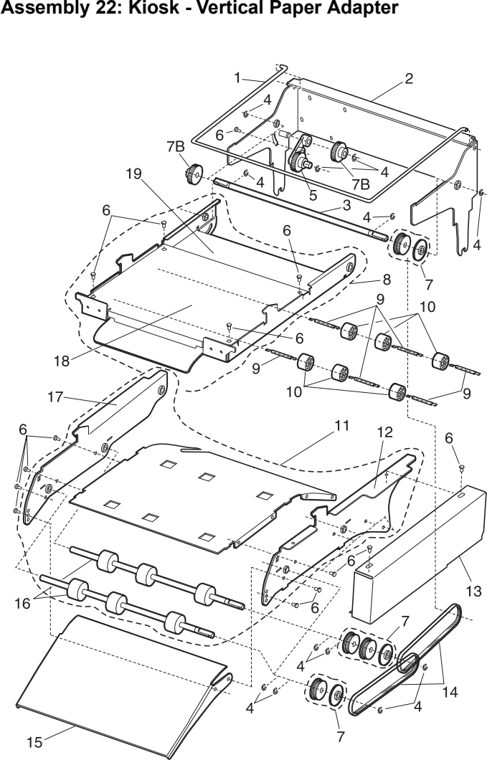

Assembly 22: Kiosk - Vertical Paper Adapter 1 99A0231 Bail, Support 2 99A0112 Mounting, Frame Assembly 3 99A0197 Shaft, Drive Rear 5 99A0209 Arm Assembly, Pivot 8 99A0079 Tray Assembly, Backup Roller 9 99A0087 Spring, Backup Roller 10 99A0086 Roller, Backup Lexmark 99A0086 Roller backup New 99A0086 (New) $24.71 11 99A0116 Tray Assembly, Drive Roller 12 99A0125 Frame Assembly, Right Side 13 99A0232 Cover, Right 14 99A0217 Belt, 160G 15 99A0226 Guide, Paper Exit 16 99A0122 Shaft Assembly, Drive Roller 17 99A0137 Frame Assembly, Left Side 18 99A0088 Cover, Backup Tray 19 99A0085 Tray, Backup Roller Parts Catalog 7-85

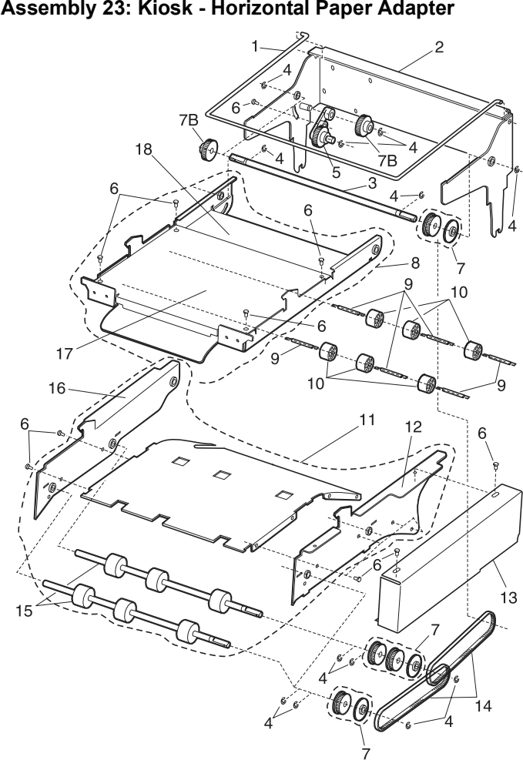

Assembly 23: Kiosk - Horizontal Paper Adapter 1 99A0231 Bail, Support 2 99A0112 Mounting, Frame Assembly 3 99A0197 Shaft, Drive Rear 5 99A0209 Arm Assembly, Pivot 8 99A0079 Tray Assembly, Backup Roller 9 99A0087 Spring, Backup Roller 10 99A0086 Roller, Backup Lexmark 99A0086 Roller backup New 99A0086 (New) $24.71 11 99A0905 Tray Assembly, Drive Roller 12 99A0907 Frame Assembly, Right Side 13 99A0232 Cover, Right 14 99A0217 Belt, 160G 15 99A0122 Shaft Assembly, Drive Roller 16 99A0906 Frame Assembly, Left Side 17 99A0088 Cover, Backup Tray 18 99A0085 Tray, Backup Roller Parts Catalog 7-87

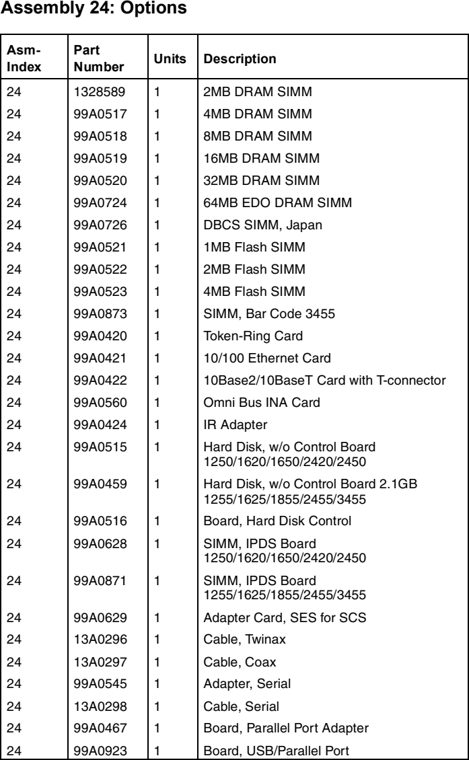

Assembly 24: Options 24 1328589 2MB DRAM SIMM 24 99A0517 4MB DRAM SIMM 24 99A0518 8MB DRAM SIMM 24 99A0519 16MB DRAM SIMM 24 99A0520 32MB DRAM SIMM Lexmark 99A0520 32MB Fully refurbished with 90-day warranty 99A0520 $43.37 24 99A0724 64MB EDO DRAM SIMM 24 99A0726 DBCS SIMM, Japan 24 99A0521 1MB Flash SIMM 24 99A0522 2MB Flash SIMM Lexmark 99A0522 2MB Flash Memory Fully refurbished with 90-day warranty 99A0522 $15.00 24 99A0523 4MB Flash SIMM 24 99A0873 SIMM, Bar Code 3455 24 99A0420 Token-Ring Card Lexmark 99A0420 Token Ring Card Fully refurbished with 90-day warranty 99A0420 Retired, no longer available: Contact for alternatives Contact for Details 24 99A0421 10/100 Ethernet Card Lexmark 99A0421 Ethernet 10/100 RJ45 Fully refurbished with 90-day warranty 99A0421 $32.21 24 99A0422 10Base2/10BaseT Card with T-connector Lexmark 99A0422 10Bt/Bnc Ethernet Combo Fully refurbished with 90-day warranty 99A0422 $159.72 24 99A0560 Omni Bus INA Card Lexmark 99A0560 Tri-Port Adapter (Serial, LocalTalk and Infrared) New 99A0560 (New) Contact for Details 24 99A0424 IR Adapter Lexmark 99a0424 IR (Infrared) Dongle Fully refurbished with 90-day warranty 99a0424 $174.03 24 99A0515 Hard Disk, w/o Control Board 24 99A0459 Hard Disk, w/o Control Board 2.1GB Lexmark 99A0459 2.1gb HDD for Optra S Fully refurbished with 90-day warranty 99A0459 $29.00 24 99A0516 Board, Hard Disk Control Lexmark 99A0516 HDD Drive w/ Adapter 2.1Gb Fully refurbished with 90-day warranty 99A0516 $10.00 24 99A0628 SIMM, IPDS Board Lexmark 99A0628 IPDS/SCS/TNE x50 Fully refurbished with 90-day warranty 99A0628 $224.72 24 99A0871 SIMM, IPDS Board 24 99A0629 Adapter Card, SES for SCS Lexmark 99A0629 Coax/Twinax Interface Fully refurbished with 90-day warranty 99A0629 $61.46 24 13A0296 Cable, Twinax 24 13A0297 Cable, Coax 24 99A0545 Adapter, Serial 24 13A0298 Cable, Serial 24 99A0467 Board, Parallel Port Adapter 24 99A0923 Board, USB/Parallel Port

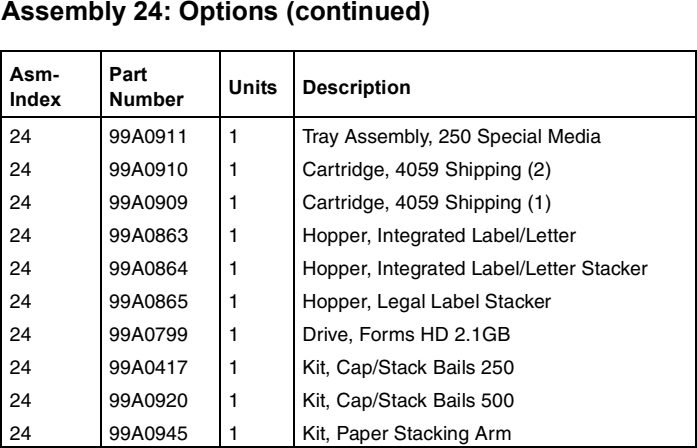

Assembly 24: Options (continued) 24 99A0911 Tray Assembly, 250 Special Media 24 99A0910 Cartridge, 4059 Shipping (2) 24 99A0909 Cartridge, 4059 Shipping (1) 24 99A0863 Hopper, Integrated Label/Letter 24 99A0864 Hopper, Integrated Label/Letter Stacker 24 99A0865 Hopper, Legal Label Stacker 24 99A0799 Drive, Forms HD 2.1GB 24 99A0417 Kit, Cap/Stack Bails 250 24 99A0920 Kit, Cap/Stack Bails 500 24 99A0945 Kit, Paper Stacking Arm Parts Catalog 7-89

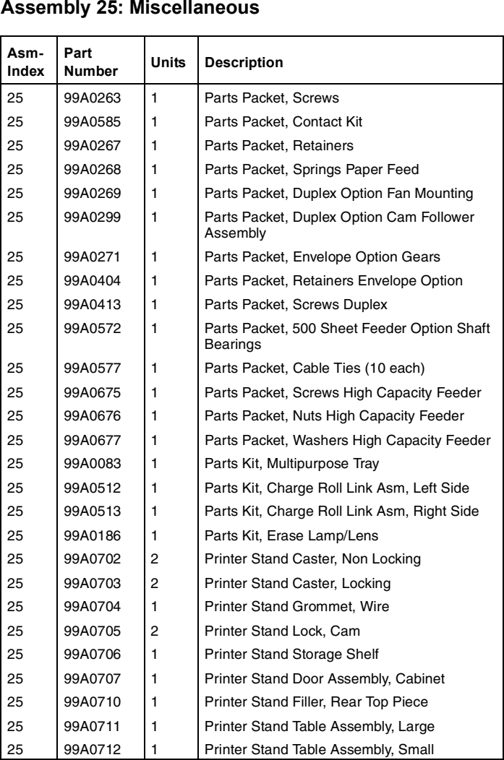

Assembly 25: Miscellaneous 25 99A0263 Parts Packet, Screws 25 99A0585 Parts Packet, Contact Kit 25 99A0267 Parts Packet, Retainers 25 99A0268 Parts Packet, Springs Paper Feed 25 99A0269 Parts Packet, Duplex Option Fan Mounting 25 99A0299 Parts Packet, Duplex Option Cam Follower 25 99A0271 Parts Packet, Envelope Option Gears 25 99A0404 Parts Packet, Retainers Envelope Option 25 99A0413 Parts Packet, Screws Duplex 25 99A0572 Parts Packet, 500 Sheet Feeder Option Shaft 25 99A0577 Parts Packet, Cable Ties (10 each) 25 99A0675 Parts Packet, Screws High Capacity Feeder 25 99A0676 Parts Packet, Nuts High Capacity Feeder 25 99A0677 Parts Packet, Washers High Capacity Feeder 25 99A0083 Parts Kit, Multipurpose Tray 25 99A0512 Parts Kit, Charge Roll Link Asm, Left Side 25 99A0513 Parts Kit, Charge Roll Link Asm, Right Side 25 99A0186 Parts Kit, Erase Lamp/Lens Lexmark 99A0186 Erase Lamp Assembly Fully refurbished with 90-day warranty 99A0186 Contact for Details 25 99A0702 Printer Stand Caster, Non Locking Lexmark 99A0702 Stand Caster Non-Locking New 99A0702 (New) $33.21 25 99A0703 Printer Stand Caster, Locking Lexmark 99A0703 Printer Stand Caster Locking New 99A0703 (New) Contact for Details 25 99A0704 Printer Stand Grommet, Wire 25 99A0705 Printer Stand Lock, Cam 25 99A0706 Printer Stand Storage Shelf Lexmark 99A0706 Printer Stand Storage Shelf New 99A0706 (New) Contact for Details 25 99A0707 Printer Stand Door Assembly, Cabinet 25 99A0710 Printer Stand Filler, Rear Top Piece Lexmark 99A0710 Printer Stand Filler Rear Top Piece New 99A0710 (New) Contact for Details 25 99A0711 Printer Stand Table Assembly, Large Lexmark 99A0711 Printer Stand Table Assembly Large New 99A0711 (New) Contact for Details 25 99A0712 Printer Stand Table Assembly, Small Lexmark 99A0712 Printer Stand Table Assembly Small New 99A0712 (New) Contact for Details

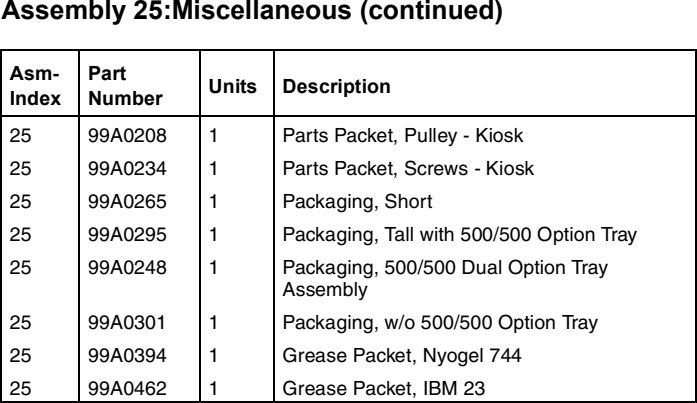

Assembly 25: Miscellaneous (continued) 25 99A0208 Parts Packet, Pulley - Kiosk 25 99A0234 Parts Packet, Screws - Kiosk 25 99A0265 Packaging, Short 25 99A0295 Packaging, Tall with 500/500 Option Tray 25 99A0248 Packaging, 500/500 Dual Option Tray 25 99A0301 Packaging, w/o 500/500 Option Tray 25 99A0394 Grease Packet, Nyogel 744 99A0394 Grease packet, Nyogel 744 Fully refurbished with 90-day warranty 99A0394 Contact for Details 25 99A0462 Grease Packet, IBM 23 Parts Catalog 7-91 Lexmark 99A0462 #23 Nyogel Grease New 99A0462 (New) $14.72
Other listed parts 40X0306 High Voltage Contact Kit Lexmark 40X0306 High Voltage Contact Kit New 40X0306 99a0585 (New) $34.71 43H0410 500-Sheet Tray Optra S Lexmark 43h0410 500-Sheet Tray Optra S Fully refurbished with 90-day warranty 43H0410 $111.00 43H0904 4059-1250/1620 RIP Board Lexmark 43H0904 4059-1250/1620 RIP Board Fully refurbished with 90-day warranty 43H0904 Retired, no longer available: Contact for alternatives Contact for Details 43H5631 Board Controller Optra S 1855 Lexmark 43H5631 Board Controller Optra S 1855 Fully refurbished with 90-day warranty 43H5631 Retired, no longer available: Contact for alternatives Contact for Details 43H5657 se3455 RIP System Board Lexmark 43H5657 se3455 RIP System Board Fully refurbished with 90-day warranty 43H5657 Retired, no longer available: Contact for alternatives Contact for Details 53P8331 Roller Skewed Backup Sale53P8331 Roller Skewed Backup New 53P8331 99a0451 (New) ~~$12.00~~ $8.00 56P1352 MPF Pad/Separator Arm Asm 56p1352 MPF Pad/Separator Arm Asm Fully refurbished with 90-day warranty 99a0083 53p8219 56p1352 Contact for Details 99A0093 99A1033 Charge Roll Assembly Lexmark 99A1033 Charge Roll Assembly New 99A1033 (New) $12.00 99A1054 250 Sheet Pick Arm Assembly Lexmark 99A1054 250 Sheet Pick Arm Assembly Fully refurbished with 90-day warranty 99A1054 $29.00 99A1056 Pick Arm Assembly (250) 4069 Lexmark 99A1056 Pick Arm Assembly (250) 4069 Fully refurbished with 90-day warranty 99A1056 $40.00 Lexmark 99A1056 Pick Arm Assembly (250) 4069 New 99A1056 (New) $39.71
