IBM Infoprint 1145 & 1145n (4545) Parts

Please call for parts assistance

Looking for whole machines? View Printer Info

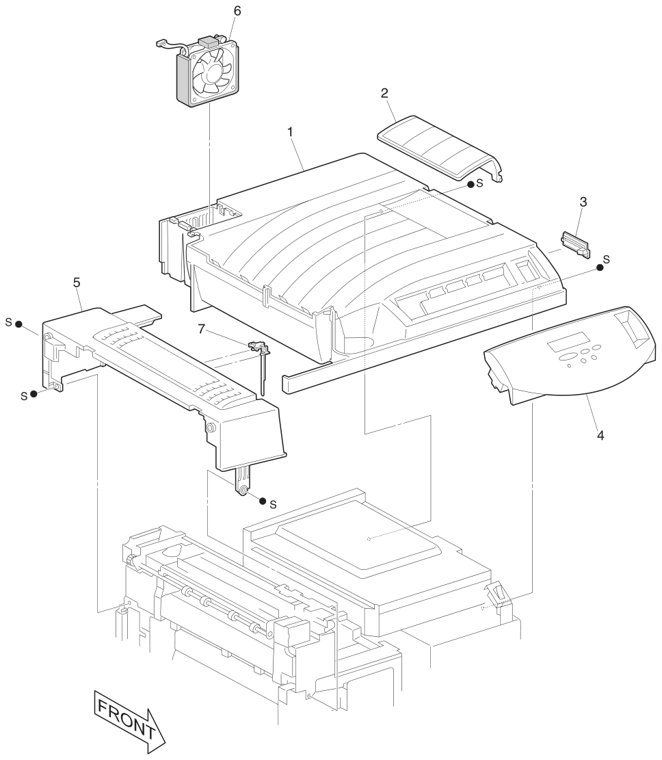

Assembly 1: Top Cover Assembly 1 01P8608 COVER PRINTER, TOP 01P8608 Cover Printer Top 1145 Fully refurbished with 90-day warranty 01P8608 $95.00 -2 01P8612 STOP, PAPER 01P8612 Stop Paper Fully refurbished with 90-day warranty 01P8612 $19.00 -3 01P8664 COVER, CONNECTOR 01P8664 Cover Connector Fully refurbished with 90-day warranty 01P8664 $11.00 -4 01P8665 OP PANEL ASSEMBLY 01P8665 Operator Panel Assembly Fully refurbished with 90-day warranty 01P8665 $190.00 -5 01P8666 COVER, FUSER 01P8666 Cover Fuser Fully refurbished with 90-day warranty 01P8666 $59.00 -6 01P8667 FAN, FUSER 01P8667 Fan Fuser Fully refurbished with 90-day warranty 01P8667 $38.00 -7 53P7024 DAMPER ASM, PAPER 7-3 Parts Catalog 53P7024 Damper Assembly Paper Fully refurbished with 90-day warranty 53P7024 $28.00

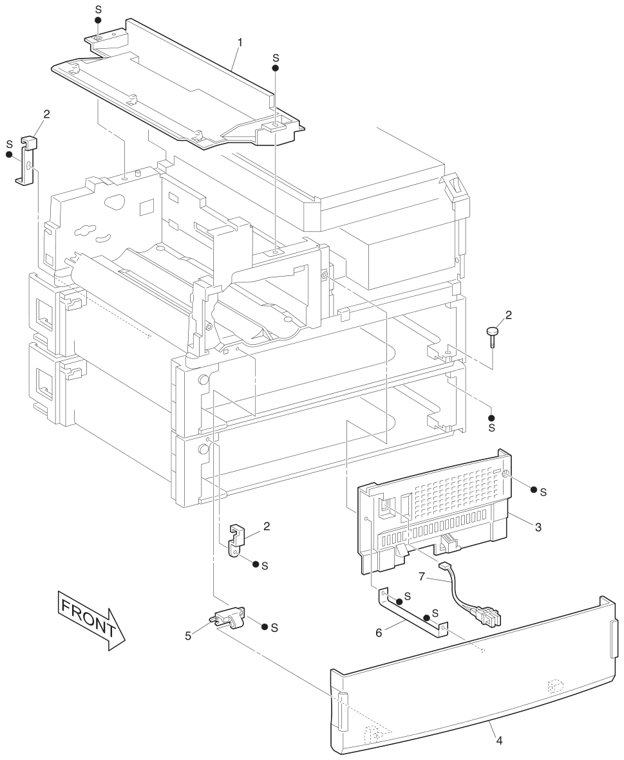

Assembly 2: Front Cover 1 01P8671 DUCT, AIR -2 01P8674 KIT,TRAY 2 MOUNTING -3 01P8670 COVER, PRINTER INNER FRONT -4 53P7000 COVER PRINTER, FRONT - 1145 53P7000 Cover Front - 1145 Fully refurbished with 90-day warranty 53P7000 $53.00 -4 56P2743 COVER PRINTER, FRONT - 1145 MFP 56P2743 Front Cover New 56P2743 (New) $114.00 -5 01P8669 HINGE, COVER -6 01P8673 STRAP, COVER SUPPORT -7 01P8672 SWITCH, INTERLOCK ASSEMBLY 7-5 Parts Catalog

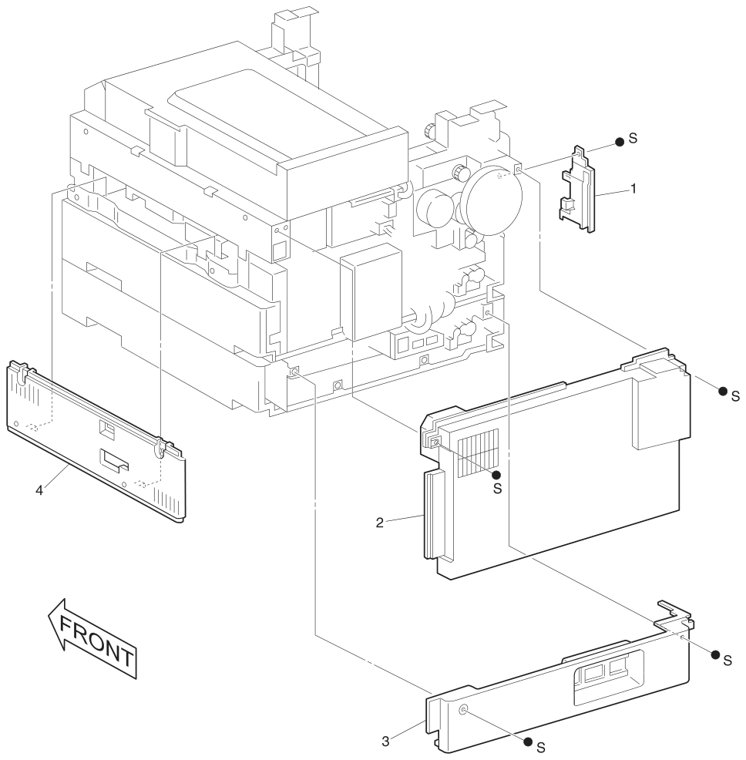

Assembly 3: Rear, Left, and Right Covers 1 01P8675 COVER, PRINTER INNER LH 01P8675 Cover Printer Inner Lh Fully refurbished with 90-day warranty 01P8675 $47.00 -2 01P8677 COVER ASM, PRINTER REAR UPPER 01P8677 Cover Assembly Printer Rear Upper Fully refurbished with 90-day warranty 01P8677 $39.00 -3 01P8678 COVER PRINTER, REAR LOWER 01P8678 Cover Printer Rear Lower Fully refurbished with 90-day warranty 01P8678 $38.00 -4 01P8676 COVER, PRINTER RH 7-7 Parts Catalog 01P8676 Cover Printer Rh Fully refurbished with 90-day warranty 01P8676 $28.00

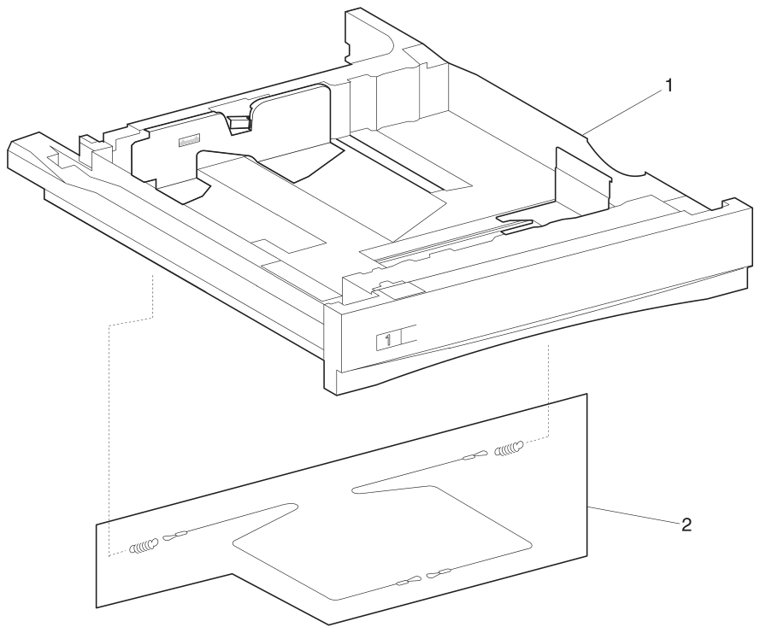

Assembly 4: Tray Unit - Paper Stack 1 01P8679 TRAY ASM, PAPER 01P8679 500 Sheet Tray Fully refurbished with 90-day warranty 01P8679 $76.00 2 01P8680 KIT, PAPER TRAY CABLES 7-9 Parts Catalog 01P8680 Kit, Paper Tray Cables Fully refurbished with 90-day warranty 01P8680 $45.00

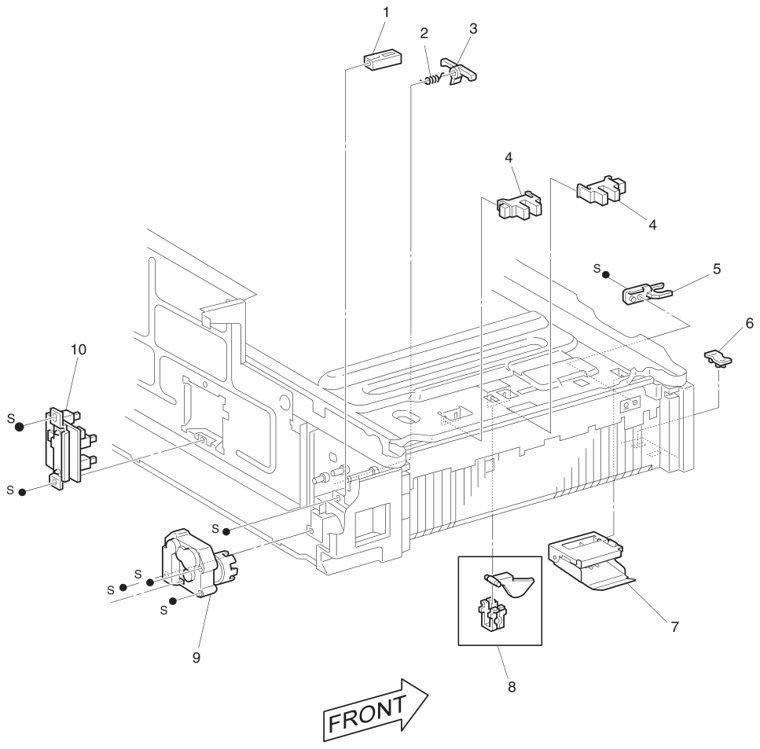

Assembly 5: Tray Interface 1 01P8687 STOP, TRAY R -2 01P8690 SPRING, TORSION -3 01P8689 LINK STOP, TRAY 1 -3 01P8701 LINK STOP, TRAY 2 -4 01P8684 SENSOR, PHOTO 01P8684 IBM IP1145 Sensor Fully refurbished with 90-day warranty 01P8684 $22.00 -5 01P8686 STOP, TRAY F -6 01P8688 SPACER, L -7 01P8685 GUIDE, TRAY 1 -7 01P8700 GUIDE, TRAY 2 -8 01P8691 KIT, SENSOR ACTUATOR 01P8691 Sensor actuator Fully refurbished with 90-day warranty 01P8691 $38.00 -9 01P8683 MOTOR ASM, PAPER TRAY 01P8683 Paper Tray Motor Fully refurbished with 90-day warranty 01P8683 $29.00 -10 01P8682 SWITCH ASM, PAPER SIZE 7-11 Parts Catalog 01P8682 IBM IP1145 Size Switch Fully refurbished with 90-day warranty 01P8682 $22.00

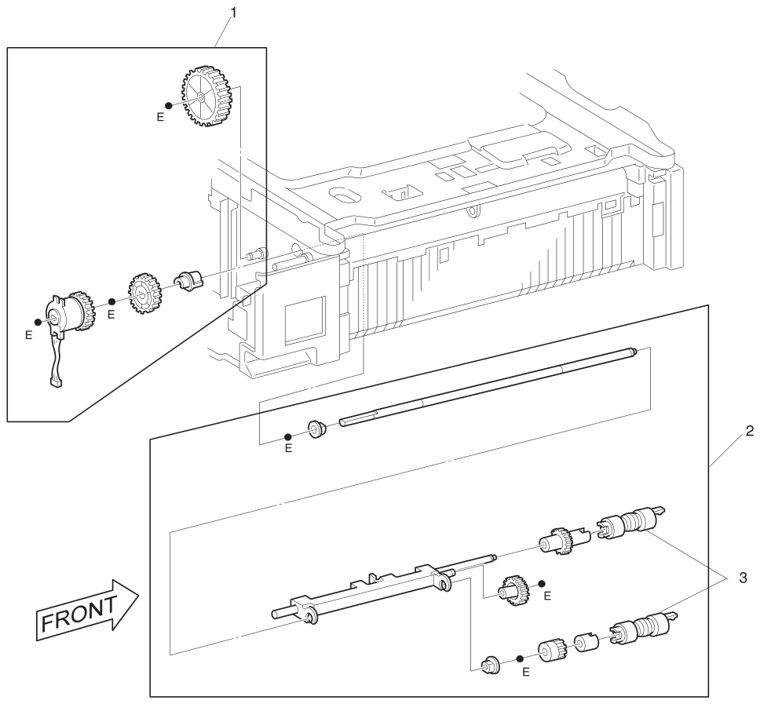

Assembly 6: Paper Pick Up 1 01P8693 KIT, TRAY 1 CLUTCH 01P8693 Kit Tray 1 Clutch Fully refurbished with 90-day warranty 01P8693 $28.00 -1 01P8702 KIT, TRAY 2 CLUTCH 01P8702 Kit Tray 2 Clutch Fully refurbished with 90-day warranty 01P8702 $30.00 -2 01P8692 FEEDER ASM PAPER 01P8692 Paper Feed Assembly Fully refurbished with 90-day warranty 01P8692 $190.00 -3 01P8694 KIT, FEED ROLL (Qty 6) 7-13 Parts Catalog 01P8694 Kit Feed Roll (Qty 6) New 01P8694 (New) $85.00

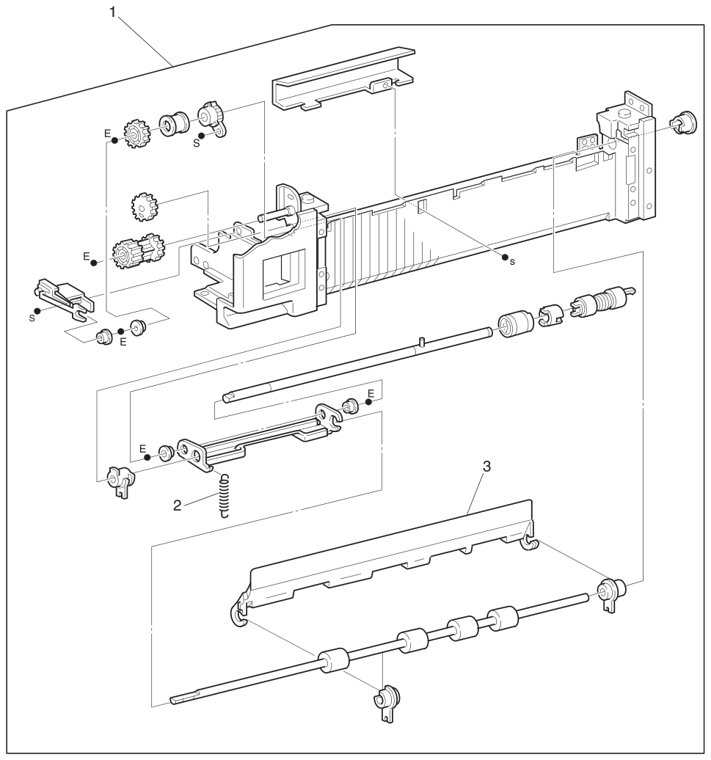

Assembly 7: Retard and Take Away - Tray 1 1 01P8698 EXIT ASM, HIGH PAPER RETARD 01P8698 Exit Assembly High Paper Retard Fully refurbished with 90-day warranty 01P8698 $125.00 -2 53P7004 SPRING, EXTENSION 53P7004 Spring Fully refurbished with 90-day warranty 53P7004 $16.00 -3 01P8695 GUIDE, PAPER FEED OUT 7-15 Parts Catalog 01P8695 Guide Paper Feed Out Fully refurbished with 90-day warranty 01P8695 $38.00

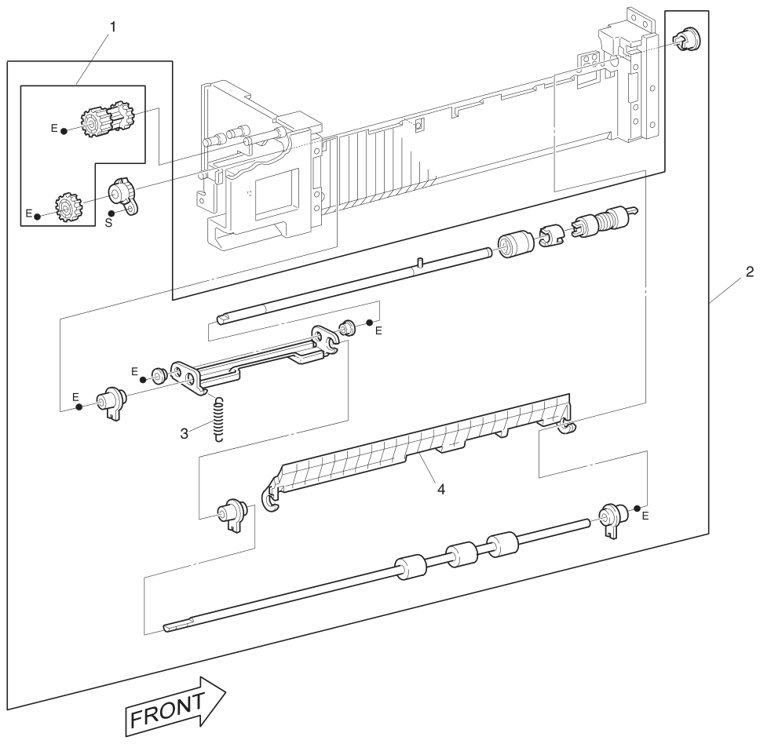

Assembly 8: Retard and Take Away - Tray 2 1 01P8706 KIT, TRAY 2 EXIT GEAR 01P8706 Kit Tray 2 Exit Gear Fully refurbished with 90-day warranty 01P8706 Contact for Details -2 01P8705 EXIT ASM, TRAY 2 PAPER 01P8705 Exit Assembly Tray 2 Paper Fully refurbished with 90-day warranty 01P8705 $75.00 -3 53P7004 SPRING 53P7004 Spring Fully refurbished with 90-day warranty 53P7004 $16.00 -4 01P8704 GUIDE, PAPER EXIT 7-17 Parts Catalog 01P8704 Guide Paper Exit Fully refurbished with 90-day warranty 01P8704 $28.00

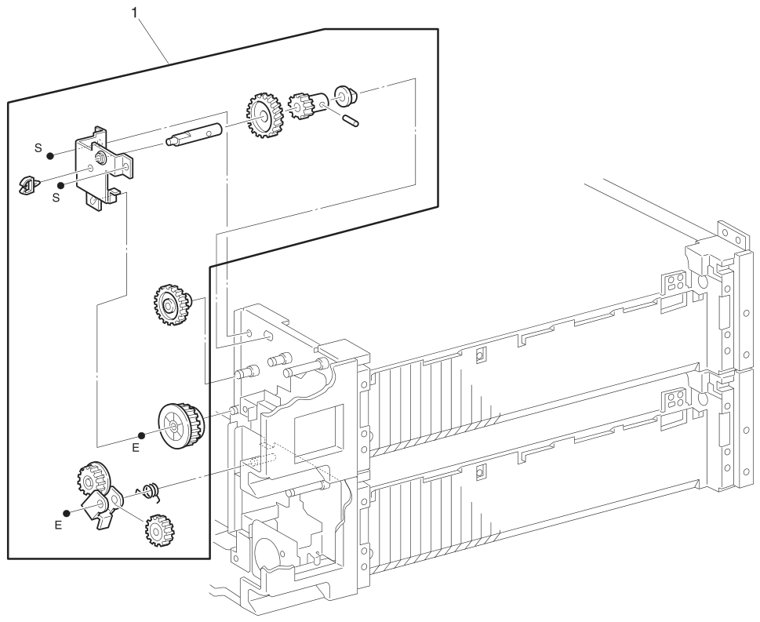

Assembly 9: Feed Drive Transmission 1 01P8707 KIT, FEED DRIVE REPAIR 7-19 Parts Catalog 01P8707 Kit Feed Drive Repair Fully refurbished with 90-day warranty 01P8707 $30.00

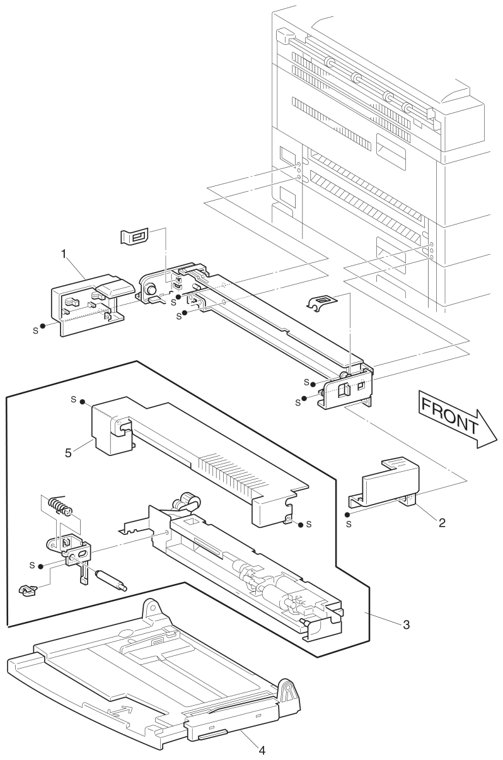

Assembly 10: Multi Purpose Feeder and MPF/Duplex Support 1 01P8709 COVER, MP FEEDER REAR -2 01P8708 COVER, MP FEEDER FRONT -3 01P8712 FEEDER, MP FEEDER 01P8712 Multi Sheet Feeder Fully refurbished with 90-day warranty 01P8712 Contact for Details -4 01P8717 TRAY ASM, MP FEEDER 01P8717 Tray Assembly, MP Feeder Fully refurbished with 90-day warranty 01P8717 $157.00 -5 01P8713 COVER, MP FEEDER TOP 7-21 Parts Catalog

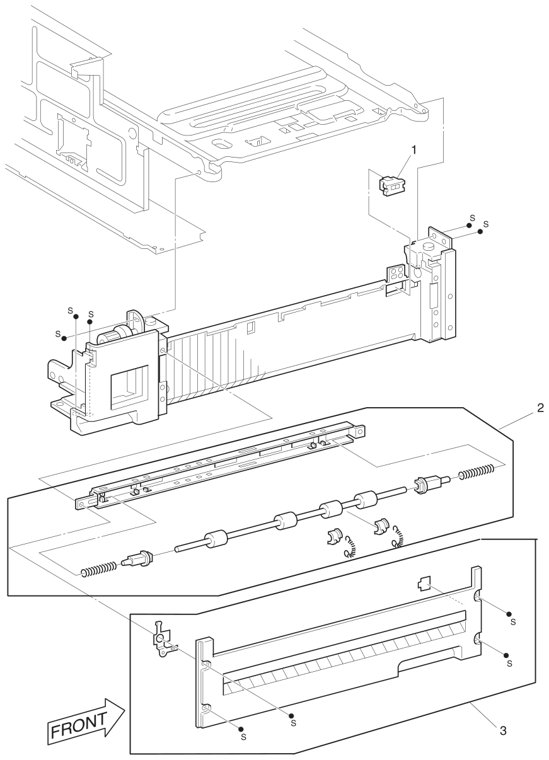

Assembly 11: Tray 1 Frame and Left Cover 1 01P8731 SENSOR, PHOTO 01P8731 Sensor Fully refurbished with 90-day warranty 01P8731 $30.00 -2 01P8719 ROLLER ASM, PINCH 01P8719 Pinch Roller Asm Fully refurbished with 90-day warranty 01P8719 $30.00 -3 01P8720 COVER ASM, PRINTER LOWER LEFT 7-23 Parts Catalog 01P8720 Cover Assembly Printer Lower Left Fully refurbished with 90-day warranty 01P8720 $30.00

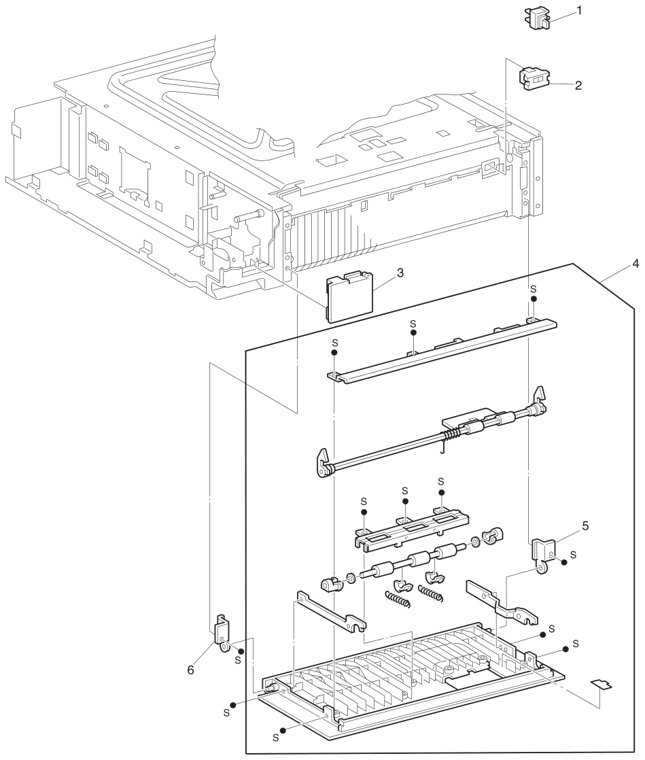

Assembly 12: Tray 2 Frame and Left Cover 1 56P0947 SWITCH, INTERLOCK 56P0947 Switch, Interlock New 56P0947 (New) Contact for Details -2 01P8731 SENSOR 01P8731 Sensor Fully refurbished with 90-day warranty 01P8731 $30.00 -3 01P8727 COVER, CAP 01P8727 Cover Cap Fully refurbished with 90-day warranty 01P8727 Contact for Details -4 01P8722 COVER ASM, PRINTER LEFT 01P8722 Cover Assembly Printer Left Fully refurbished with 90-day warranty 01P8722 $49.00 -5 01P8724 HINGE, COVER RH 01P8724 Hinge Cover Rh Fully refurbished with 90-day warranty 01P8724 Contact for Details -6 01P8725 HINGE, COVER LH 7-25 Parts Catalog 01P8725 Hinge Cover Lh Fully refurbished with 90-day warranty 01P8725 Contact for Details

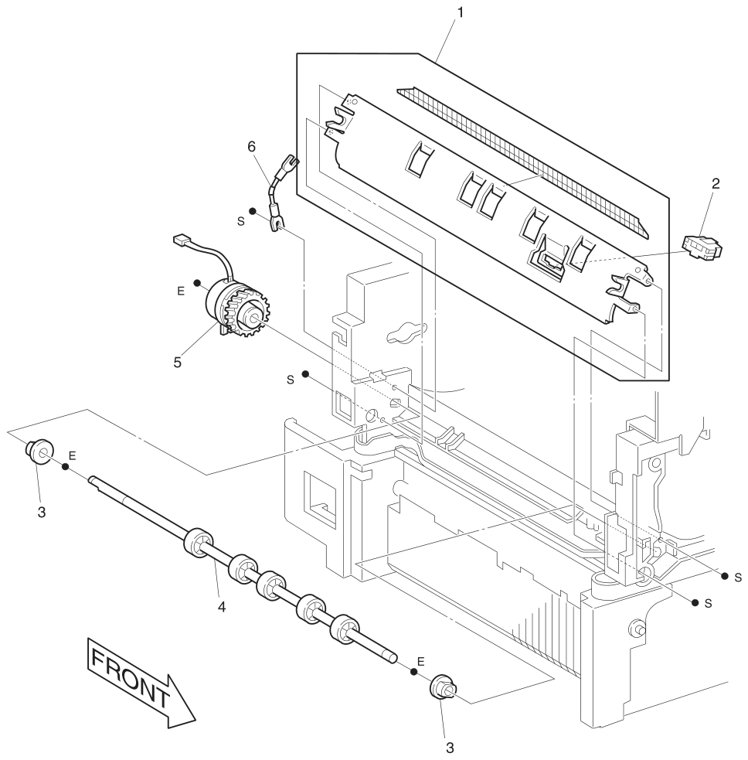

Assembly 13: Registration 1 01P8730 GUIDE, REGISTRATION 01P8730 Guide Registration Fully refurbished with 90-day warranty 01P8730 $55.00 -2 01P8731 SENSOR 01P8731 Sensor Fully refurbished with 90-day warranty 01P8731 $30.00 -3 01P8733 KIT, BEARING -4 01P8729 ROLLER ASM, REGISTRATION 01P8729 Roller Assembly Registration Fully refurbished with 90-day warranty 01P8729 $19.00 01P8729 Roller Assembly Registration New 01P8729 (New) $54.00 -5 01P8728 CLUTCH ASM, REGISTRATION 01P8728 Clutch Assembly Registration Fully refurbished with 90-day warranty 01P8728 $24.00 01P8728 Clutch Assembly Registration New 01P8728 (New) Contact for Details -6 01P8732 CABLE, REGISTRATION 7-27 Parts Catalog 01P8732 Cable Registration Fully refurbished with 90-day warranty 01P8732 Contact for Details

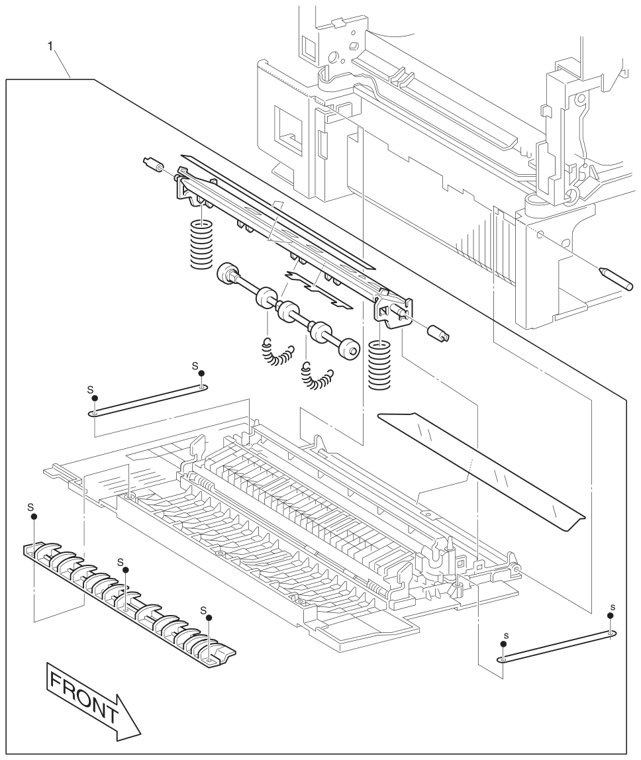

Assembly 14: Left Upper Cover Assembly 1 01P8734 COVER ASM, PRINTER UPPER LEFT 7-29 Parts Catalog 01P8734 Cover Assembly Printer Upper Left (Door A) Fully refurbished with 90-day warranty 01P8734 $249.00

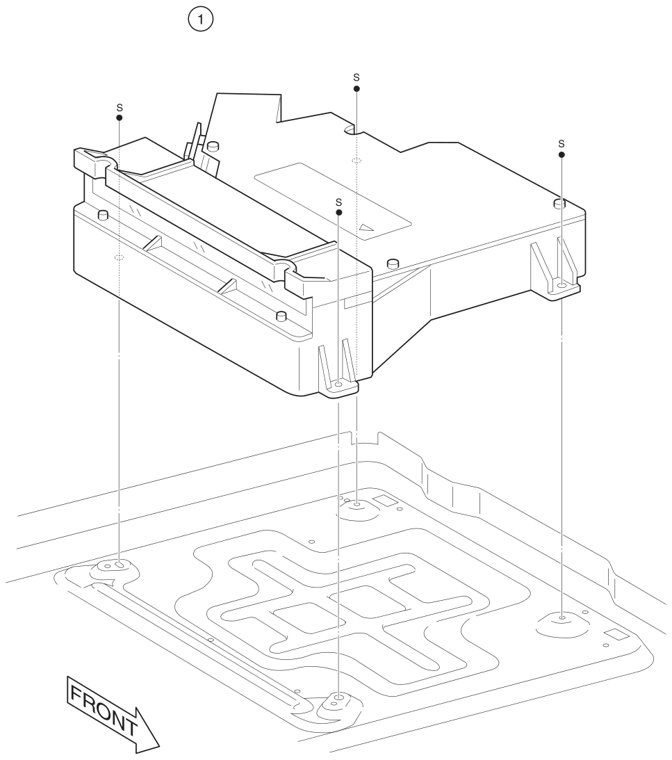

Assembly 15: Printhead Assembly 1 01P8737 PRINTHEAD 7-31 Parts Catalog 01P8737 Printhead Assembly 1145 (4545) Fully refurbished with 90-day warranty 01p8737 $70.00

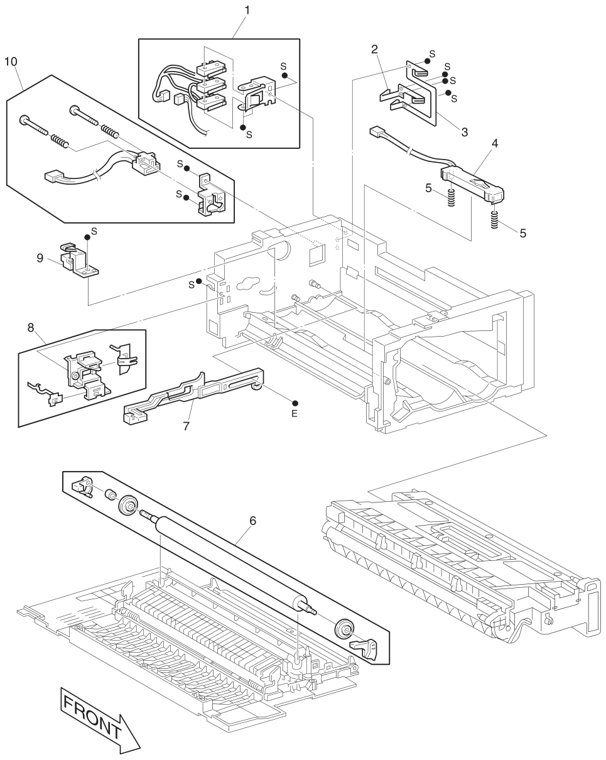

Assembly 16: Xerography and Development 1 01P8745 SWITCH ASM, INTERLOCK 01P8745 Switch Assembly Interlock Fully refurbished with 90-day warranty 01P8745 $27.00 -2 01P8747 PLATE, CONTACT D -3 01P8746 PLATE, CONTACT C -4 01P8741 SENSOR ASM, TONER 01P8741 Sensor Assembly Toner Fully refurbished with 90-day warranty 01P8741 $47.00 -5 01P8742 SPRING, SENSOR -6 01P8738 ROLLER, TRANSFER 01P8738 Transfer Roller Fully refurbished with 90-day warranty 01P8738 $47.00 01P8738 Transfer Roller New 01P8738 (New) $119.00 -7 01P8740 SLIDER, EXIT -8 01P8739 CONTACT ASM, TRANSFER ROLLER 01P8739 Contact Assembly Transfer Roller Fully refurbished with 90-day warranty 01P8739 $24.00 -9 01P8744 BRACKET, CABLE -10 01P8743 HARNESS, ASM 7-33 Parts Catalog

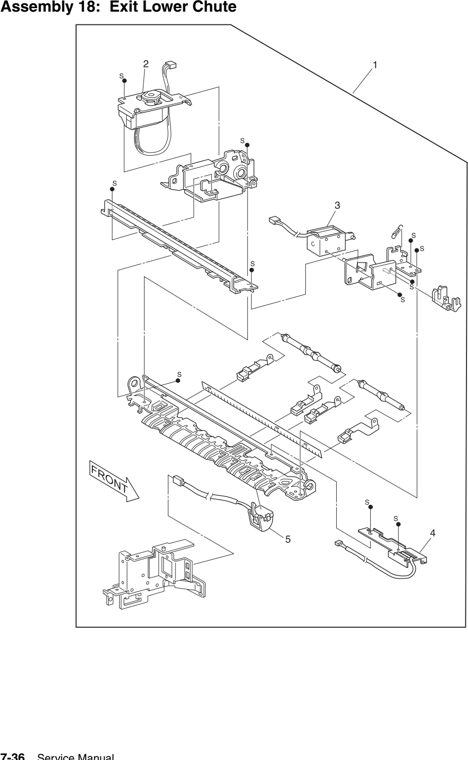

Assembly 18: Exit Lower Chute 1 01P8750 TRANSPORT ASSEMBLY 01P8750 Transport Assembly Fully refurbished with 90-day warranty 01P8750 $195.00 -2 01P8752 MOTOR ASM, OFFSET 01P8752 Motor Assembly Offset Fully refurbished with 90-day warranty 01P8752 $95.00 -3 01P8751 SOLENOID ASM, EXIT LOWER 01P8751 Solenoid Assembly Exit Lower Fully refurbished with 90-day warranty 01P8751 $19.00 -4 01P8756 SENSOR ASM, EXIT LOWER 01P8756 Sensor Assembly Exit Lower Fully refurbished with 90-day warranty 01P8756 $39.00 -5 01P8753 SWITCH ASM, EXIT LOWER 7-37 Parts Catalog 01P8753 Switch Assembly Exit Lower Fully refurbished with 90-day warranty 01P8753 $19.00

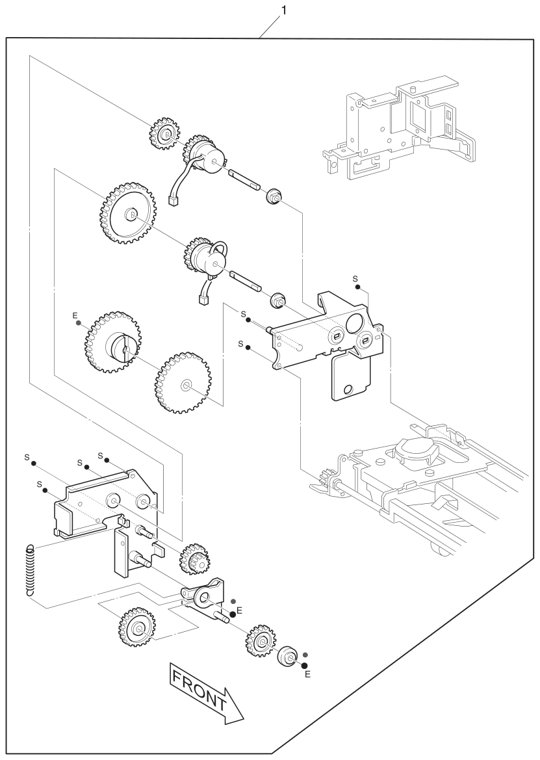

Assembly 19: Exit Drive Assembly 1 01P8761 DRIVE ASM, EXIT 7-39 Parts Catalog 01P8761 Drive Assembly Exit Fully refurbished with 90-day warranty 01P8761 $148.00

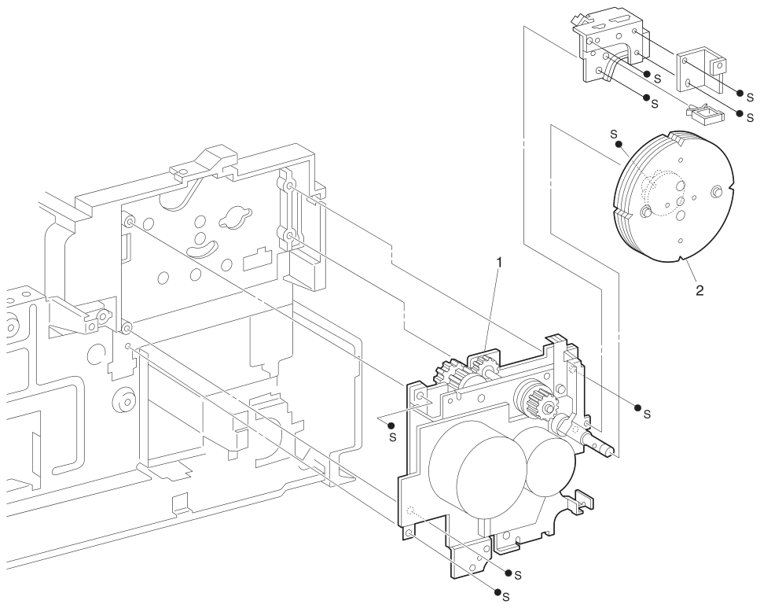

Assembly 20: Main Drive Assembly 1 01P8763 DRIVE ASM, MAIN 01P8763 Main Drive Assembly Fully refurbished with 90-day warranty 01P8763 $85.00 -2 01P8764 FLYWHEEL, MAIN DRIVE ASM 7-41 Parts Catalog 01P8764 Flywheel Main Drive Assembly Fully refurbished with 90-day warranty 01P8764 $30.00

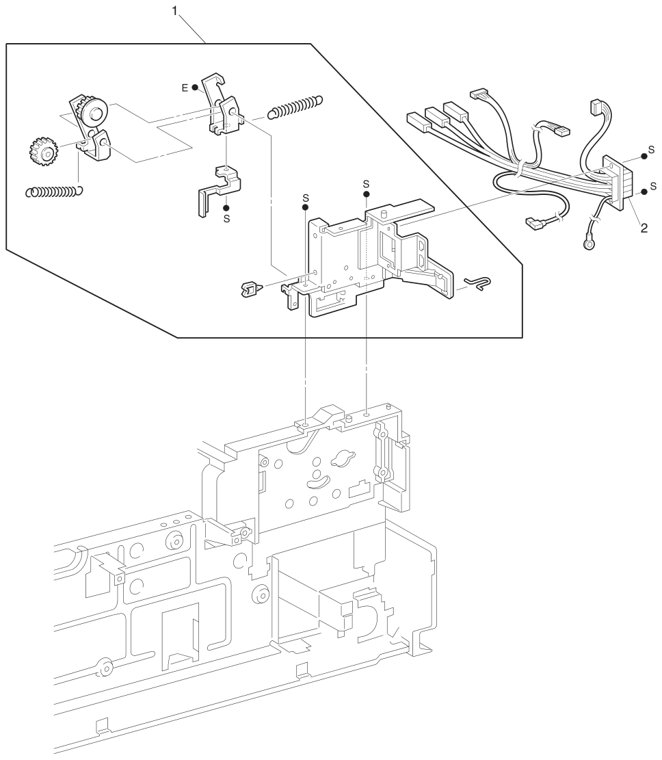

Assembly 21: Fuser Drive Assembly 1 01P8765 FRAME ASM, FUSER EXIT 01P8765 Frame Assembly Fuser Exit Fully refurbished with 90-day warranty 01P8765 $30.00 -2 01P8766 CONNECTOR, FUSER DRIVE 7-43 Parts Catalog 01P8766 Connector Fuser Drive Fully refurbished with 90-day warranty 01P8766 $30.00

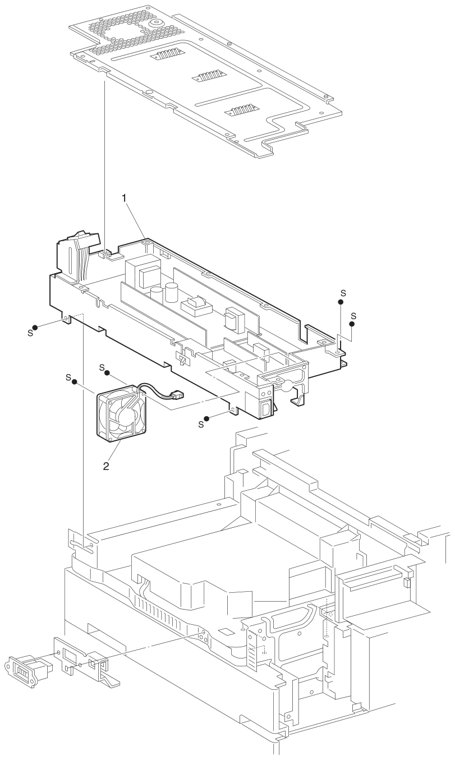

Assembly 22: Power Unit 1 01P8767 PWR SUPPLY, 110V 01P8767 Power Supply 110V Fully refurbished with 90-day warranty 01P8767 $45.00 -1 01P8768 PWR SUPPLY, 220V -2 01P8770 FAN, POWER UNIT 01P8770 Fan Power Unit Fully refurbished with 90-day warranty 01P8770 $19.00 NS 11A9095 POWER CORD LV, U.S., Canada, Australia/New Zealand, Columbia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Mexico, Nicaragua, Panama, Peru, Venezuela, Puerto Rico, US Virgin Islands, Caribbean countries other than Dominican Republic 11A9095 Power cord; 2.5 m 8 ft. Straight US Canada Latin America (LV) Fully refurbished with 90-day warranty 11A9095 Contact for Details NS 1339518 POWER CORD HV, Argentina NS 1339517 POWER CORD HV, Peru, Bolivia NS 1339524 POWER CORD HV, Chile NS 1339528 POWER CORD HV, UK, Ireland, Gulf Countries NS 1339529 POWER CORD HV, Austria, Germany, Belgium, Cyprus, Euro English, Finland, Greece, France, Hungary, Czech, Slovak, Netherlands, Norway, Portugal, Turkey, Russia, Poland, Spain, Catalan, Sweden, NS 1339530 POWER CORD HV, Israel NS 1339531 POWER CORD HV, Switzerland-French, Switzerland-German, Switzerland-Italian NS 1339532 POWER CORD HV, Africa NS 1339520 POWER CORD HV, Brazil NS 1339533 POWER CORD HV, Italy NS 1339534 POWER CORD HV, Denmark 7-45 Parts Catalog

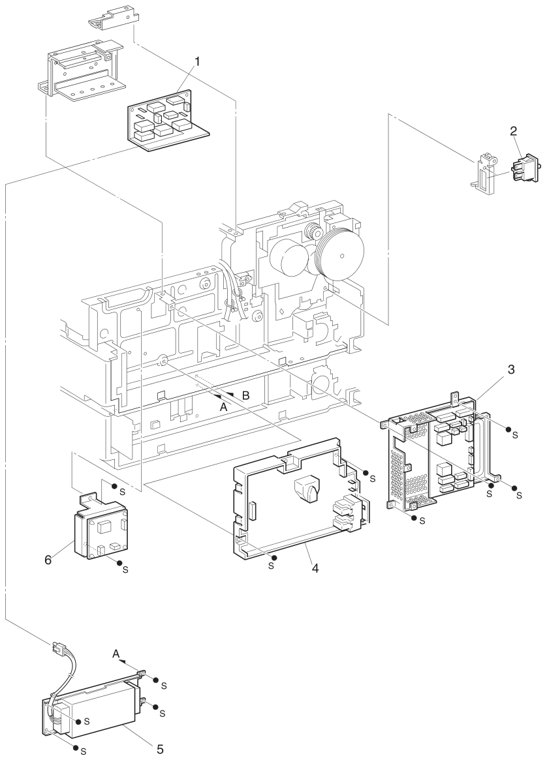

Assembly 23: HVPS and I/O PWB 1 01P8771 CARD ASM, AC DRIVER, 110V 01P8771 Card Assembly Ac Driver 110V Fully refurbished with 90-day warranty 01P8771 $95.00 -1 01P8772 CARD ASM, AC DRIVER, 220V -2 01P8775 SWITCH, INTERLOCK 01P8775 Switch Interlock Fully refurbished with 90-day warranty 01P8775 $24.00 -3 01P8774 CARD ASM, I/O 01P8774 Card Assembly I/O Fully refurbished with 90-day warranty 01P8774 $29.00 -4 01P8773 HVPS 01P8773 HVPS High Volt Power Supply HVPS Fully refurbished with 90-day warranty 01P8773 $125.00 -5 01P8776 TRANSFORMER, 220 V MACHINE ONLY -6 01P8777 PSLV-R2 POWER SUPPLY 7-47 Parts Catalog 01P8777 PSLV-R2 Power Supply Fully refurbished with 90-day warranty 01P8777 $25.00

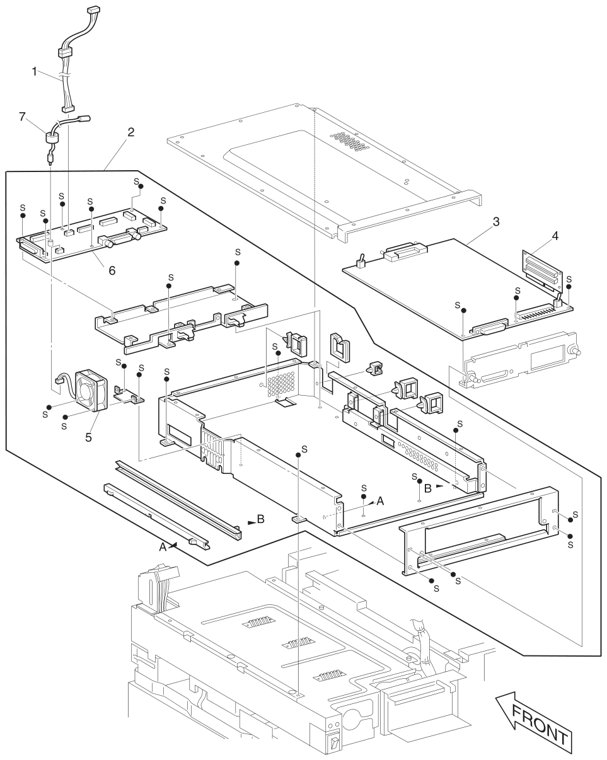

Assembly 24: ESS Assembly 1 53P7006 CABLE ASM, OP PANEL 53P7006 Cable Assembly Op Panel Fully refurbished with 90-day warranty 53P7006 $47.00 -2 01P8778 CONTROLLER, BOX ASSEMBLY Note: Factory defaults must be reset after you replace the engine board (MCU PWB) contained in this B/M. Go to "PRINTER SETUP" on page 3-5 01P8778 Controller Box Assembly Fully refurbished with 90-day warranty 01P8778 $285.00 -3 56P2713 BOARD ASM, CONTROLLER (ESS PWB), NETWORK - 1145 56P2713 Board Assembly, Controller (ESS PWB), Network - 1145n Fully refurbished with 90-day warranty 56P2713 $225.00 -3 56P2741 BOARD ASM, CONTROLLER (ESS PWB) - 1145 MFP 56P2741 Board Assembly, Controller RIP (ESS PWB) - 1145 MFP New 56P2741 (New) $1022.00 -3 56P2712 BOARD ASM CONTROLLER (ESS PWB), NON NETWORK - 1145 56P2712 Board Assembly Controller (ESS PWB), Non-Network 1145 Fully refurbished with 90-day warranty 56P2712 $225.00 -4 53P7025 CARD ASM, RISER CARD 53P7025 Card Assembly Riser Card Fully refurbished with 90-day warranty 53P7025 $124.00 -5 01P8781 FAN, ESS COOLING 01P8781 Fan ESS Cooling Fully refurbished with 90-day warranty 01P8781 $15.00 -6 53P7002 BOARD ASM, ENGINE (MCU PWB) 120V - 1145 53P7002 Engine Board Assembly (MCU PWB) 120V - 1145 Fully refurbished with 90-day warranty 53P7002 $119.00 -6 53P7003 BOARD ASM, ENGINE (MCU PWB) 220V - 1145 -6 56P2739 BOARD ASM, ENGINE (MCU PWB) 120V - 1145 MFP 56P2739 Board Assembly Engine (MCU PWB) 120V - 1145 MFP Fully refurbished with 90-day warranty 56P2739 $79.00 -6 56P2738 BOARD ASM, ENGINE (MCU PWB) 220V - 1145 MFP 7-49 Parts Catalog

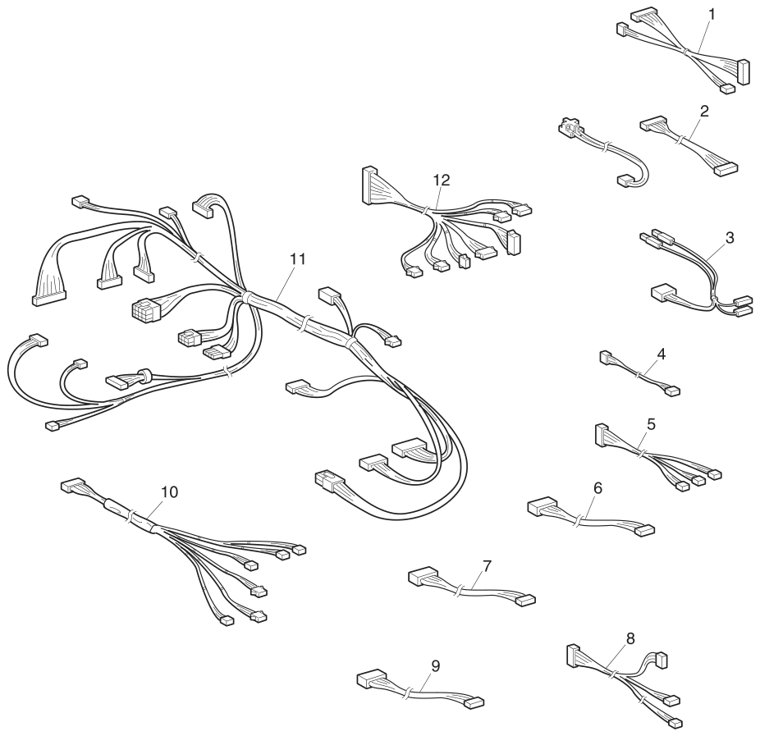

Assembly 25: Harness 1 53P7018 CABLE ASM, HVPS -2 53P7017 CABLE ASM, MOTOR -3 53P7015 CABLE ASM, INTERLOCK -4 53P7014 CABLE ASM, PAPER SIZE -5 53P7013 CABLE ASM, REGISTRATION -6 53P7012 CABLE ASM, OUTPUT -7 53P7011 CABLE ASM, DUPLEX -8 53P7010 CABLE ASM, BOTTOM -9 53P7009 CABLE ASM, TRAY -10 53P7008 CABLE ASM, TRAY 1 REAR -11 53P7007 CABLE ASM, MAIN -12 53P7016 CABLE ASM, DC REAR 7-51 Parts Catalog

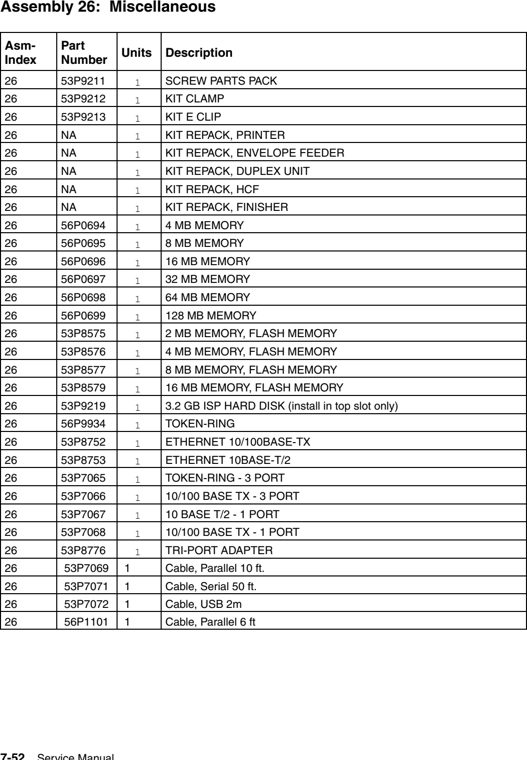

Assembly 26: Miscellaneous 26 53P9211 SCREW PARTS PACK 26 53P9212 KIT CLAMP 26 53P9213 KIT E CLIP 26 56P0694 4 MB MEMORY 26 56P0695 8 MB MEMORY 26 56P0696 16 MB MEMORY 26 56P0697 32 MB MEMORY 56P0697 32MB SDRAM Fully refurbished with 90-day warranty 56P0697 $20.00 26 56P0698 64 MB MEMORY 56P0698 64MB SDRAM New 56P0698 (New) Contact for Details 56P0698 64MB SDRAM Fully refurbished with 90-day warranty 56P0698 $59.00 26 56P0699 128 MB MEMORY 56P0699 Infoprint Brand 128MB Memory New 56P0699 (New) $139.00 56P0699 Infoprint Brand 128MB Memory Fully refurbished with 90-day warranty 56P0699 $44.00 26 53P8575 2 MB MEMORY, FLASH MEMORY 26 53P8576 4 MB MEMORY, FLASH MEMORY 26 53P8577 8 MB MEMORY, FLASH MEMORY 26 53P8579 16 MB MEMORY, FLASH MEMORY 26 53P9219 3.2 GB ISP HARD DISK (install in top slot only) 26 56P9934 TOKEN-RING 26 53P8752 ETHERNET 10/100BASE-TX 53P8752 N2001e 10/100BaseTX Card New 53P8752 (New) Contact for Details 53P8752 10/100 Ethernet adapter Fully refurbished with 90-day warranty 53P8752 Contact for Details 26 53P8753 ETHERNET 10BASE-T/2 26 53P7065 TOKEN-RING - 3 PORT 26 53P7066 10/100 BASE TX - 3 PORT 26 53P7067 10 BASE T/2 - 1 PORT 26 53P7068 10/100 BASE TX - 1 PORT 26 53P8776 TRI-PORT ADAPTER 26 53P7069 Cable, Parallel 10 ft. 26 53P7071 Cable, Serial 50 ft. 26 53P7072 Cable, USB 2m 26 56P1101 Cable, Parallel 6 ft
Assembly 26: Miscellaneous 26 53P9966 INFRARED ADAPTER - 1145 only 26 53P8820 PARALLEL 1284-C ADAPTER 26 53P9085 EXTERNAL SERIAL TO PARALLEL ADAPTER 26 53P9095 USB ADAPTER 26 56P0159 COAX/TWINAX ADAPTER FOR SCS 56P0159 Coax/Twinax Adapter New 56P0159 (New) Contact for Details 56P0159 Coax/Twinax Adapter Fully refurbished with 90-day warranty 56P0159 $245.00 26 53P8507 OPTRA FORMSTM 2MB FLASH DIMM - 1145 only 26 53P8508 OPTRA FORMSTM 4MB FLASH DIMM - 1145 only 26 53P8509 OPTRA FORMSTM 8MB FLASH DIMM - 1145 only 26 53P8510 OPTRA FORMSTM 16MB FLASH DIMM 26 56P3836 IPDS & SCS/TNE 56p3836 IPDS/SCS/TNE Option Fully refurbished with 90-day warranty 56p3836 $89.00 26 56P3301 IMAGEQUICKTM 26 53P8853 HARD DISK, OPTRA FORMS 26 56P0161 CABLE ASSEMBLY, SERIAL/PARALLEL 1284C INA 56P0161 INA, Serial & Parallel Internal Adapter Card New 56P0161 (New) Retired, no longer available: Contact for alternatives Contact for Details 56P0161 INA, Serial & Parallel Internal Adapter Card Fully refurbished with 90-day warranty 56P0161 Contact for Details 26 56P1119 BAR CODE 26 56P1232 WIRELESS ETHERNET ADAPTER, USA AND CANADA - 1145 ONLY 56P1232 802.11b Wireless Adapter New 56P1232 (New) Contact for Details 56P1232 802.11b Wireless Adapter Fully refurbished with 90-day warranty 56P1232 Contact for Details 26 56P1233 WIRELESS ETHERNET ADAPTER, INTERNATIONAL - 1145 ONLY 26 56P2129 ETHERNET TO USB ADAPTER 26 56P9910 128 MB MEMORY - 1145 MFP ONLY 7-53 Parts Catalog 56P9910 128MB SDRAM card assembly New 56P9910 (New) $16.56 56P9910 128MB SDRAM card assembly Fully refurbished with 90-day warranty 56P9910 $45.00
Other listed parts 28P1800 IBM 4545-001 Infoprint 1145 Printer IBM 4545-001 Infoprint 1145 Printer Fully refurbished with 90-day warranty 4545-001 28p1800 $695.00 28P1802 IBM 4545-N01 Infoprint 1145n Printer with 10/100 Ethernet IBM 4545-N01 Infoprint 1145n Printer with 10/100 Ethernet Fully refurbished with 90-day warranty 4545-N01 28P1802 $695.00 28P1808 IBM 4545-DN1 InfoPrint 1145dn With Duplex And 10/100 Ethernet IBM 4545-DN1 InfoPrint 1145dn With Duplex And 10/100 Ethernet Fully refurbished with 90-day warranty 4545-DN1 28p1808 28P1804 $725.00 28P1830 28P1830 Duplexer for IBM 4545 (1145) Fully refurbished with 90-day warranty 28P1830 $95.00 28P1832 28P1832 2500 Sheet Input Feeder For IBM IP 1145 New 28P1832 (New) $425.00 28P1832 2500 Sheet Input Feeder IBM IP 1145 (4545) Fully refurbished with 90-day warranty 28P1832 $248.00 28P1883 IBM Fuser Usage Kit 1145 28P1883 IBM Fuser Usage Kit 1145 New 28p1883 (New) $899.00 28P1883 Fuser Usage Kit IBM 1145 Fully refurbished with 90-day warranty 28P1883 Contact for Details 28p1883 IBM Fuser Usage Kit 1145 Fully refurbished with 90-day warranty 28p1883 Advanced Exchange Contact for Details
