Assembly 1: Covers 1 56P2189 Top Cover Assembly 56p2189 Top Cover Assembly New 56p2189 (New) $42.00 1.1-1 53P9838 Left Upper Cover Assembly 53P9838 Left Upper Cover Assembly New 53P9838 (New) $22.00 2 53P9922 250 Output Flag 53P9922 250 output flag and retainer Fully refurbished with 90-day warranty 53P9922 Contact for Details 3 53P9921 Bin Full Sensor 3 53P9824 Left Upper Pivot Cover 53P9824 Left upper pivot cover Fully refurbished with 90-day warranty 53P9824 Contact for Details 4 53P9754 Cable, Options - Stacker 4 53P9830 Left Lower Pivot Cover 53P9830 Left lower pivot cover Fully refurbished with 90-day warranty 53P9830 Contact for Details 5 53P9839 Redrive Cap Cover Assembly 53P9839 Redrive cap cover assembly New 53P9839 (New) $32.00 5 53P9827 Lower Jam Access Door Assembly 53P9827 Cover left lower Fully refurbished with 90-day warranty 53P9827 Contact for Details 6 53P9821 Top Front Support Bracket 53P9821 Top front support bracket Fully refurbished with 90-day warranty 53P9821 Contact for Details 6 53P9832 Waste Container Door 53P9832 Waste container door New 53P9832 (New) $14.00 7 53P9828 Right Rear Cover 53P9828 Right rear cover Fully refurbished with 90-day warranty 53P9828 Contact for Details 7 53P9822 Rear Cover 8 53P9833 Rear Fan Cover 53p9833 Rear fan cover New 53P9833 (New) $20.00 9 53P9789 Lower Right Door Assembly 9 53P9775 Fuser Top Duct 53P9775 Fuser top duct Fully refurbished with 90-day warranty 53P9775 Contact for Details 10 53P9825 Right Front Cover 53P9825 Right front cover Fully refurbished with 90-day warranty 53P9825 Contact for Details 10 53P9791 Fuser Bottom Duct 53P9791 Fuser Bottom Duct Fully refurbished with 90-day warranty 53P9791 $28.00 11 53P9792 Fuser Wall Duct 53P9792 Fuser wall duct Fully refurbished with 90-day warranty 53P9792 Contact for Details 12 53P9837 Front Right Light Shield Cover 53P9837 Front Right Light Shield Cover New 53P9837 (New) $24.00 14 53P9841 Front Right Handle Cover Assembly 53P9841 Front right handle cover assembly Fully refurbished with 90-day warranty 53P9841 Contact for Details 15 53P9826 Front Lower Right Cover 53P9826 Front lower right cover Fully refurbished with 90-day warranty 53P9826 Contact for Details 16 56P0580 Front Cover Assembly 56P0580 Front Cover Assembly New 56P0580 (New) Contact for Details 17 53P9823 Paper Path Access Door 53P9823 Paper path access door Fully refurbished with 90-day warranty 53P9823 Contact for Details 19 53P9820 Front Lower Left Cover 53P9820 Front Lower Left Cover New 53P9820 (New) $32.00 20 53P9842 Front Left Handle Cover Assembly 53P9842 Front left Handle Cover Assembly New 53P9842 (New) $19.00 21 53P9836 Left Front Light Shield Cover 53P9836 Left front light shield cover Fully refurbished with 90-day warranty 53P9836 Contact for Details 22 53P9834 Operator Panel Bezel with Logos 53P9834 Operator panel bezel with overlays Fully refurbished with 90-day warranty 53P9834 Contact for Details 23 53P9779 Operator Panel Assembly, Low Volt 23 53P9780 Operator Panel Assembly, High Volt 53P9780 Operator panel assembly Fully refurbished with 90-day warranty 53P9780 Contact for Details 24 53P9831 Front Upper Pivot Cover 53P9831 Front upper pivot cover Fully refurbished with 90-day warranty 53P9831 Contact for Details 26 53P9829 Front Access Door Support 53P9829 Front access door support Fully refurbished with 90-day warranty 53P9829 Contact for Details NS 56P1277 Paper Tray Guide 56P1277 Paper tray guide New 56P1277 (New) $116.00 NS 53P9812 Machine Pad 53P9812 Machine pad Fully refurbished with 90-day warranty 53P9812 Contact for Details NS 53P9913 Jam Access Door Spring 53P9913 Jam Access Spring New 53P9913 (New) $24.00 NS 53P9782 Front Hold Down Bellcrank Parts Catalog 7-3 53P9782 4 Bellcrank front hold down Fully refurbished with 90-day warranty 53P9782 Contact for Details NS 53P9774 Blank, TLI/SN Label 53P9774 Blank TLI/SN label Fully refurbished with 90-day warranty 53P9774 Contact for Details NS 53P9925 Cable Tie NS 53P9926 Cable Mount 53P9926 IBM 1220 Bracket Fully refurbished with 90-day warranty 53P9926 Contact for Details NS 53P9907 Lower Access Jam Door Assembly 53P9907 Lower access jam door assembly New 53P9907 (New) $15.00 NS 53P9818 Duplex Actuator Arm 53P9818 Duplex actuator arm assembly Fully refurbished with 90-day warranty 53P9818 Contact for Details NS 53P9819 Ground Cable 53P9819 Ground cable Fully refurbished with 90-day warranty 53P9819 Contact for Details NS 53P9815 Fuser Latch Slide 53P9815 2 Fuser latch slide Fully refurbished with 90-day warranty 53P9815 Contact for Details NS 53P9816 Fuser Latch Slide Spring 53P9816 2 Fuser latch slide spring Fully refurbished with 90-day warranty 53P9816 Contact for Details NS 53P9817 #58 Gear NS 56P0560 Rear Upper Guide Assembly 56P0560 Rear ITU guide New 56P0560 (New) $94.00 NS 53P9835 Spring, Access Door 53P9835 Spring paper path access door Fully refurbished with 90-day warranty 53P9835 Contact for Details NS 53P9813 Duct, Vacuum Top Parts Catalog 7-5

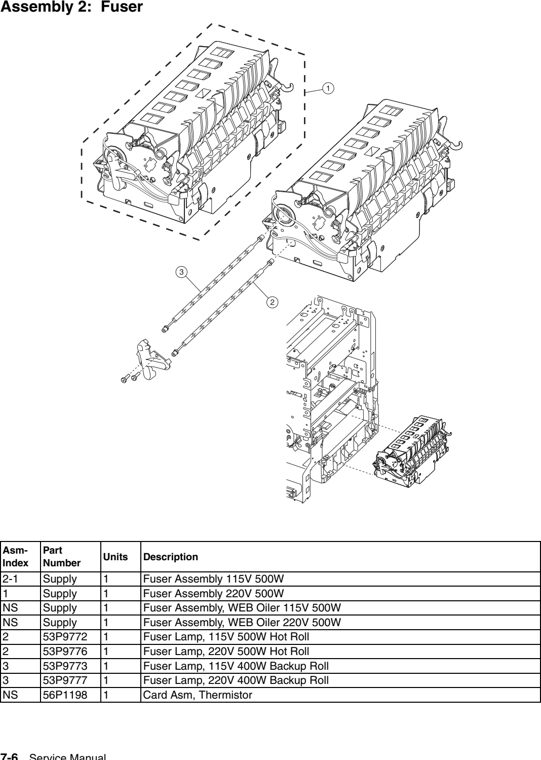

Assembly 2: Fuser 2 53P9772 Fuser Lamp, 115V 500W Hot Roll 2 53P9776 Fuser Lamp, 220V 500W Hot Roll 2.1-1 53P9844 Fuser Drive Assembly 53P9844 Fuser Drive Assembly New 53P9844 (New) $114.00 3 53P9773 Fuser Lamp, 115V 400W Backup Roll 3 53P9777 Fuser Lamp, 220V 400W Backup Roll NS 56P1198 Card Asm, Thermistor 56P1198 Thermistor card New 56P1198 (New) $18.00 NS 53P9945 WEB Oiler Assembly Parts Catalog 7-7

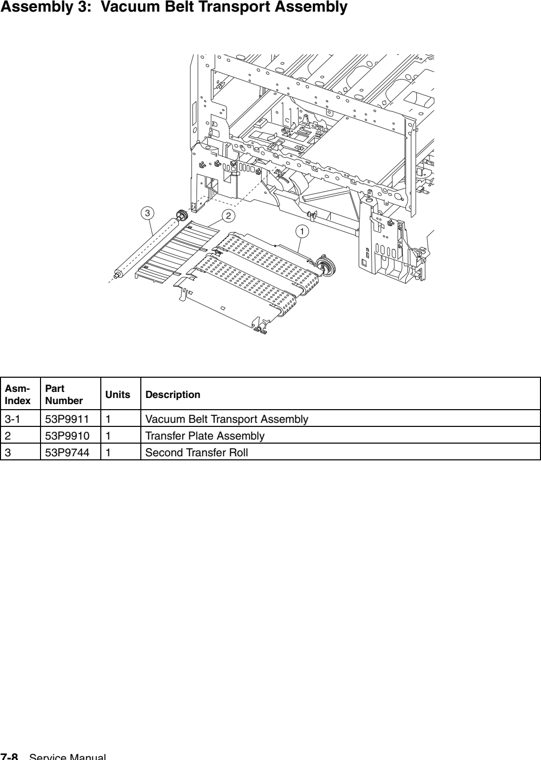

Assembly 3: Vacuum Belt Transport Assembly 1 53P9911 Vacuum Belt Transport Assembly 53P9911 Vacuum Transport Belt Assembly New 53P9911 (New) $75.00 2 53P9910 Transfer Plate Assembly 53P9910 Transfer Plate Assembly New 53P9910 (New) $19.00 3 53P9744 Second Transfer Roll 53P9744 Second Transfer Roll New 53P9744 (New) $99.00

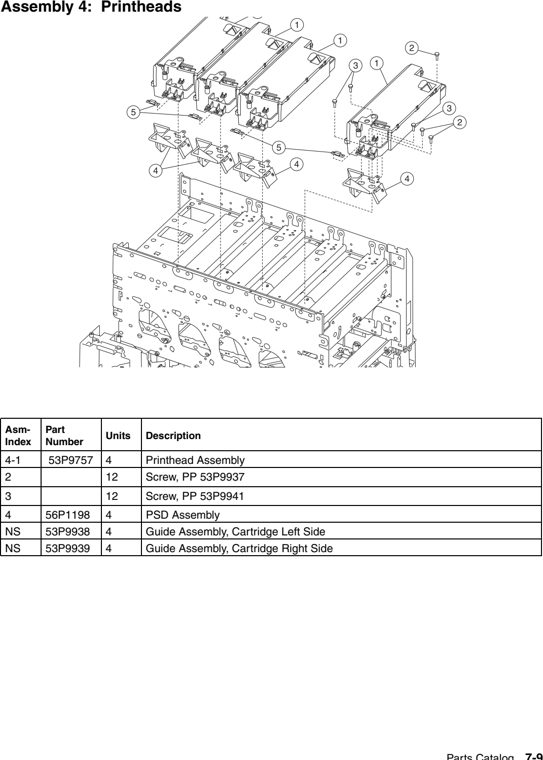

Assembly 4: Printheads 1 53P9757 Printhead Assembly 4 56P1198 PSD Assembly 56P1198 Thermistor card New 56P1198 (New) $18.00 NS 53P9938 Guide Assembly, Cartridge Left Side 53P9938 Guide Assembly Left Side New 53P9938 (New) $12.00 NS 53P9939 Guide Assembly, Cartridge Right Side Parts Catalog 7-9 53P9939 Guide Assembly Right Side New 53P9939 (New) $16.00

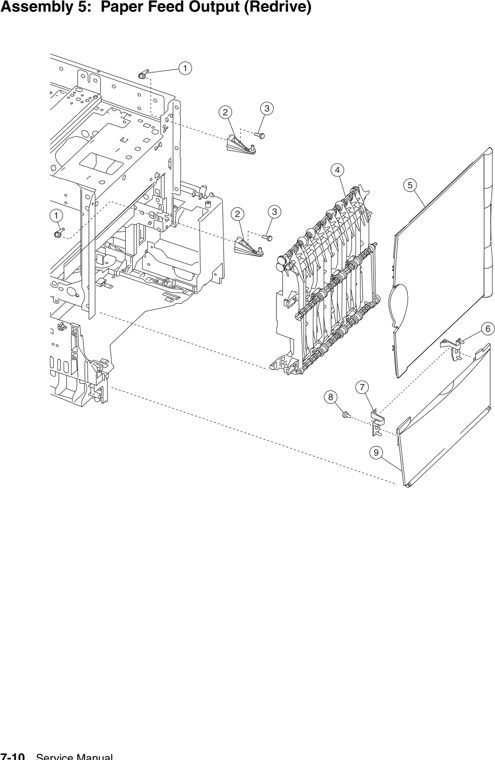

Assembly 5: Paper Feed Output (Redrive) 1 56P0167 Anchor, Bracket Mounting 2 53P9915 Upper Door Hinge 53P9915 2 Upper door hinge Fully refurbished with 90-day warranty 53P9915 Contact for Details 4 53P9914 Redrive Assembly 53P9914 Redrive Assembly New 53P9914 (New) $63.00 5 53P9788 Redrive Door 53P9788 Redrive Door Assembly New 53P9788 (New) Contact for Details 6 53P9928 Lower Rear Door Latch 7 53P9927 Lower Front Door Latch 9 53P9907 Door Assembly, Jam Access Parts Catalog 7-11 53P9907 Lower access jam door assembly New 53P9907 (New) $15.00

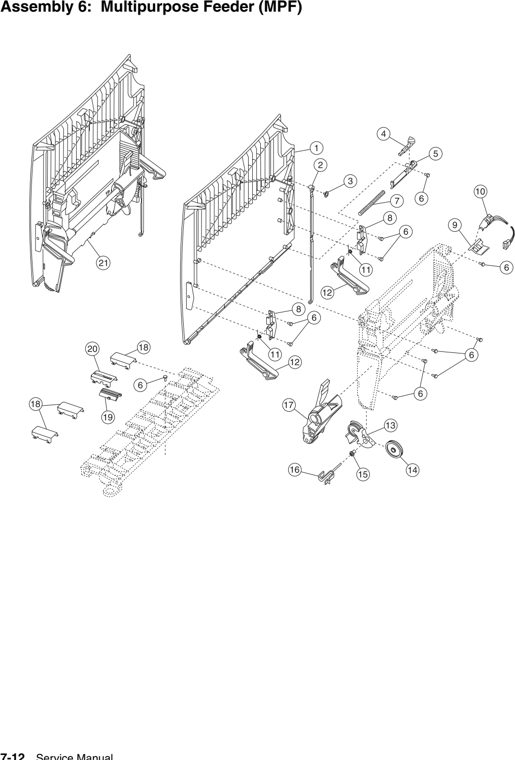

Assembly 6: Multipurpose Feeder (MPF) 1 53P9875 MP Feeder Door Cover 53P9875 MP feeder door cover Fully refurbished with 90-day warranty 53P9875 Contact for Details 2 53P9883 Door Hinge Restraint 53P9883 Door hinge restraint Fully refurbished with 90-day warranty 53P9883 Contact for Details 4 53P9876 Frame Bias Latch 53P9876 Frame bias latch Fully refurbished with 90-day warranty 53P9876 Contact for Details 5 53P9878 Frame Bias Latch Cover 53P9878 Frame bias latch cover Fully refurbished with 90-day warranty 53P9878 Contact for Details 7 53P9877 Frame Bias Spring 53P9877 Frame bias spring Fully refurbished with 90-day warranty 53P9877 Contact for Details 8 53P9880 MPF Support Bracket Cover 53P9880 MPF support bracket cover Fully refurbished with 90-day warranty 53P9880 Contact for Details 9 53P9879 Sensor Mount Bracket 10 53P9884 Paper Out/Low Sensor 53P9884 Sensor paper out/low Fully refurbished with 90-day warranty 53P9884 Contact for Details 11 53P9881 MPF Support Bracket Spring 53P9881 2 MPF support bracket spring Fully refurbished with 90-day warranty 53P9881 Contact for Details 12 53P9882 MPF Support Bracket 53P9882 MPF support bracket Fully refurbished with 90-day warranty 53P9882 Contact for Details 13 53P9885 MPF Bracket Assembly 53P9885 MPF bracket assembly Fully refurbished with 90-day warranty 53P9885 Contact for Details 14 53P9886 MPF Drive Gear 53P9886 MPF drive gear Fully refurbished with 90-day warranty 53P9886 Contact for Details 15 53P9888 MPF Drive Gear Bushing 53P9888 MPF drive gear bushing Fully refurbished with 90-day warranty 53P9888 Contact for Details 16 53P9887 MPF Drive Gear Shaft 53P9887 MPF drive gear shaft Fully refurbished with 90-day warranty 53P9887 Contact for Details 17 53P9874 MPF Autocompensator Pick Assembly 18 53P9787 Rib Housing 53P9787 3 Rib housing Fully refurbished with 90-day warranty 53P9787 Contact for Details 19 53P9870 Friction Buckler 53P9870 Friction buckler Fully refurbished with 90-day warranty 53P9870 Contact for Details 20 53P9781 Buckler Housing 53P9781 Buckler housing Fully refurbished with 90-day warranty 53P9781 Contact for Details 21 53P9873 MPF Door Assembly 53P9873 MPF Door Assembly New 53p9873 (New) $63.00 NS 53P9872 MPF Cable Cover 53P9872 MPF cable cover Fully refurbished with 90-day warranty 53P9872 Contact for Details NS 53P9871 MPF Cable Parts Catalog 7-13

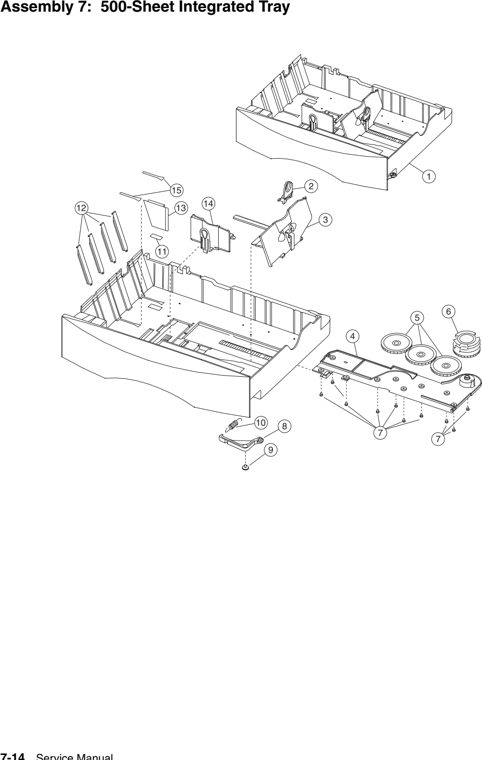

Assembly 7: 500-Sheet Integrated Tray 1 53P9845 500-Sheet Tray Assembly 53P9845 500 Sheet Tray Assembly New 53p9845 (New) $47.00 2 53P9848 Back Restraint Latch 3 53P9847 Back Restraint 4 53P9853 Size Sensing Gear Cover 5 53P9852 Size Sensing Gear 6 53P9851 Size Sensing Barrel Cam 7 53P9940 Screw, M 3x5mm 8 53P9854 Tray Bias Bellcrank Assembly 10 53P9855 Tray Bias Spring 11 53P9965 Reflector Label 12 53P9850 Wear Strip 13 53P9849 Tray Wear Clip 14 53P9846 Side Restraint 15 53P8226 Restraint Pad Parts Catalog 7-15 53P8226 Restraint Pad Fully refurbished with 90-day warranty 53P8226 $20.00

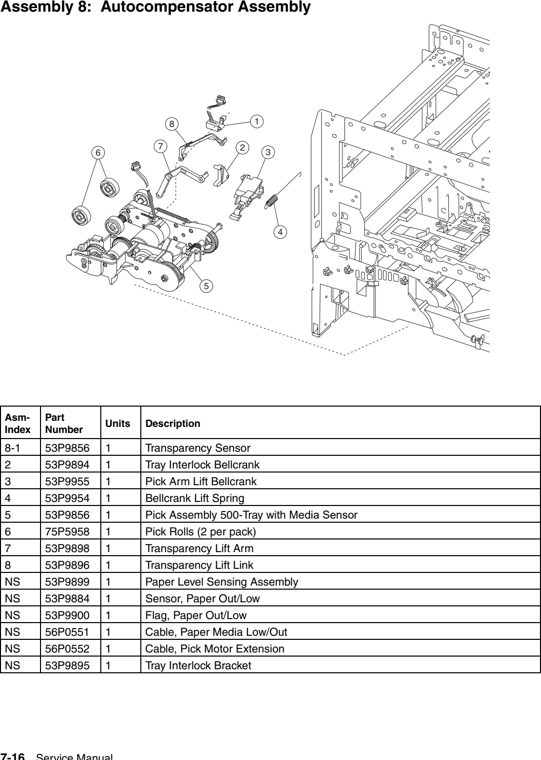

Assembly 8: Autocompensator Assembly 1 53P9856 Transparency Sensor 53P9856 IBM 1220 Mech Assembly New 53P9856 (New) $105.00 2 53P9894 Tray Interlock Bellcrank 53P9894 Tray interlock bellcrank Fully refurbished with 90-day warranty 53P9894 Contact for Details 3 53P9955 Pick Arm Lift Bellcrank 53P9955 Pick arm lift bellcrank Fully refurbished with 90-day warranty 53P9955 Contact for Details 4 53P9954 Bellcrank Lift Spring 53P9954 Bellcrank lift spring New 53P9954 (New) $95.00 5 53P9856 Pick Assembly 500-Tray with Media Sensor 53P9856 IBM 1220 Mech Assembly New 53P9856 (New) $105.00 6 75P5958 Pick Rolls (2 per pack) 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 7 53P9898 Transparency Lift Arm 8 53P9896 Transparency Lift Link NS 53P9899 Paper Level Sensing Assembly 53P9899 Paper level sensing assembly Fully refurbished with 90-day warranty 53P9899 Contact for Details NS 53P9884 Sensor, Paper Out/Low 53P9884 Sensor paper out/low Fully refurbished with 90-day warranty 53P9884 Contact for Details NS 53P9900 Flag, Paper Out/Low NS 56P0551 Cable, Paper Media Low/Out NS 56P0552 Cable, Pick Motor Extension NS 53P9895 Tray Interlock Bracket 53P9895 Tray interlock bracket Fully refurbished with 90-day warranty 53P9895 Contact for Details

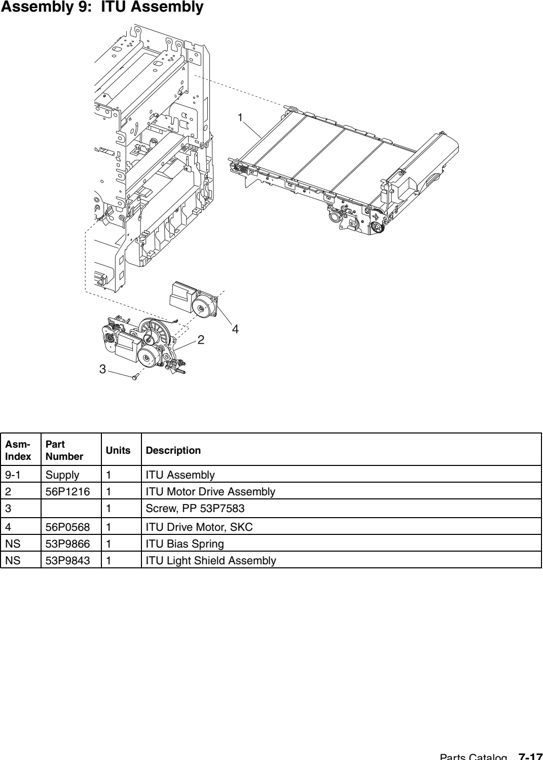

Assembly 9: ITU Assembly 2 56P1216 ITU Motor Drive Assembly 56P1216 ITU motor drive assembly with SKC motor New 56P1216 (New) Contact for Details 2 53P9865 Terminal, Contact Spring 53P9865 Terminal contact spring Fully refurbished with 90-day warranty 53P9865 Contact for Details 4 56P0568 ITU Drive Motor, SKC 56P0568 ITU drive motor assembly Fully refurbished with 90-day warranty 56P0568 $228.00 4 56P0180 FTR Spring 56P0180 FTR Spring Fully refurbished with 90-day warranty 56P0180 Contact for Details 5 53P9786 Cartridge Support Roller 53P9786 8 Cartridge support roller Fully refurbished with 90-day warranty 53P9786 Contact for Details 6 53P9857 Rear V Block Guide 53P9857 Rear V Block Fully refurbished with 90-day warranty 53P9857 Contact for Details 7 53P9867 Rear Transfer Bellcrank 8 53P9861 BOR Spring, Yellow 53P9861 BOR Spring Yellow Fully refurbished with 90-day warranty 53P9861 Contact for Details 9 53P9860 Front Transfer Bellcrank 53P9860 Front Transfer Bell Crank Fully refurbished with 90-day warranty 53P9860 Contact for Details 9.1-1 53P9946 Yellow Terminal Contact Assembly 10 53P9858 Front V Block Guide 53P9858 Front U Block Guide Fully refurbished with 90-day warranty 53P9858 Contact for Details 11 56P0172 BOR Spring, Cyan 56P0172 Box Spring Cyan Fully refurbished with 90-day warranty 56P0172 Contact for Details 12 56P0171 BOR Spring, Magenta 56P0171 Box Spring Magenta Fully refurbished with 90-day warranty 56P0171 Contact for Details 13 56P0173 BOR Spring, Black 14 56P0182 Front V Block Guide, Black 15 53P9859 ITU Black Transfer Front Bellcrank 53P9859 ITV Black Transfer Fully refurbished with 90-day warranty 53P9859 Contact for Details 16 53P9868 TFR Rear Bellcrank, Black 53P9868 Ter- Rear Bellcrank- Black Fully refurbished with 90-day warranty 53P9868 Contact for Details 17 56P0181 Rear V Block Guide, Black 56P0181 Bracket Fully refurbished with 90-day warranty 56P0181 Contact for Details 18 53P9862 Black Terminal Contact Assembly 19 53P9863 Magenta Terminal Contact Assembly 20 53P9864 Cyan Terminal Contact Assembly Parts Catalog 7-19 NS 53P9866 ITU Bias Spring 53P9866 ITU bias spring Fully refurbished with 90-day warranty 53P9866 Contact for Details NS 53P9843 ITU Light Shield Assembly Parts Catalog 7-17 53P9843 ITU Light Shield Assembly New 53p9843 (New) $71.00

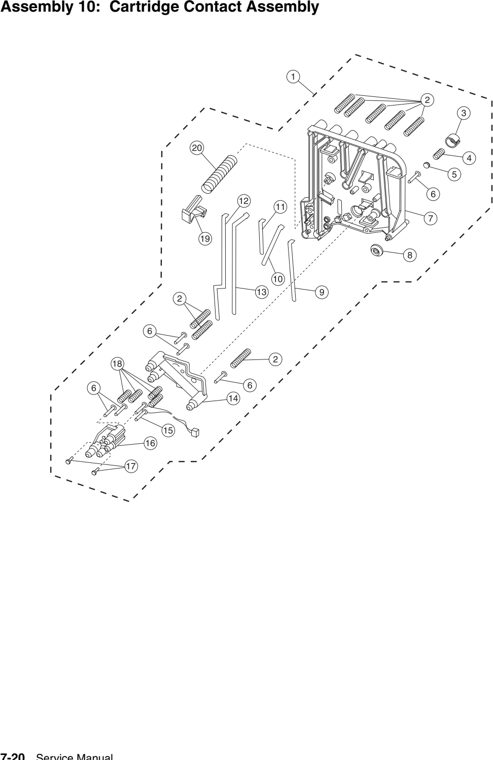

Assembly 10: Cartridge Contact Assembly 1 56P0310 Cartridge Contact Assembly, Complete 56P0310 Cartridge contact assembly complete cyan/magenta/yellow New 56P0310 (New) $22.00 2 53P9806 Developer Pin Spring 3 53P9804 Cap, Toner Level Spring 4 53P9807 Toner Level Spring 5 53P9794 Plug, Toner Level Spring 6 53P9803 Contact Pin 7 53P9795 Housing, Cartridge Contacts 8 53P9810 Cartridge Support Roller 9 53P9799 TAR Contact 10 53P9798 Developer Roll Contact 11 53P9800 Doctor Blade Contact 12 53P9802 Charge Roll Contact 13 53P9801 PC Drum Contact 14 53P9797 Cap, Developer Contacts 15 53P9811 Smart Chip Cable Assembly 16 53P9796 Cleaner Contacts Cap 18 53P9805 Cleaner Pin Spring 19 53P9809 Rear Hold Down Bellcrank 53P9809 Rear hold down bellcrank Fully refurbished with 90-day warranty 53P9809 Contact for Details 20 53P9808 Rear Hold Down Spring Parts Catalog 7-21 53P9808 4 Spring rear hold down Fully refurbished with 90-day warranty 53P9808 Contact for Details

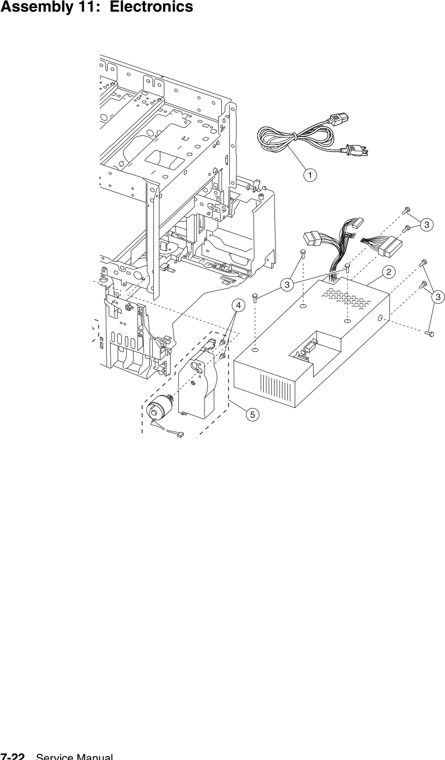

Assembly 11: Electronics 1 11A9095 Power Cord Set U.S., Canada (LV), Brazil (LV), Colombia (LV), Costa Rica (LV), Dominican Republic (LV), Equador (LV), El Salvador (LV), Guatemala (LV), Honduras (LV), Nicaragua (LV), Panama (LV), Venezuela (LV), Puerto Rico (LV), Virgin Islands (LV) Mexico (LV), Asia Pacific (english) LV, Japan (LV), Taiwan (LV), Saudi Arabia (LV), 11A9095 Power cord; 2.5 m 8 ft. Straight US Canada Latin America (LV) Fully refurbished with 90-day warranty 11A9095 Contact for Details 1 43H5544 Power Cord Set PRC (HV) 1 1339517 Power Cord Set Bolivia (HV), Peru (HV) 1 1339519 Power Cord Set Kuwait (HV), Bahrein (HV), Qatar (HV), UAE (HV), OMAN (HV) Pakistan (HV), Yemen (HV), Iraq (HV), Libya (HV), Cyprus (HV), UK (HV), Ireland (HV) 1 1339520 Power Cord Set Brazil (HV), Paraguay (HV), Uruguay (HV), African Countries Denmark (HV), Austria (HV), Czech (HV) Slovak countries (HV), Greece (HV), Hungary (HV), Finland (HV), Norway (HV), Sweden (HV), France (HV), Belgium (HV), Netherlands (HV), Germany (HV), Italy (HV), Lebanon (HV), Syria (HV), Egypt (HV), Jordan (HV), Iran (HV), Euro English (HV), Albania (HV), Bosnia (HV), Bulgaria (HV), Croatia (HV), Slovenia (HV), Macedonia (HV), Yugoslavia (Serbia and Montenegro) (HV), Romania (HV), Iceland (HV) Poland (HV), Russia (HV), Turkey (HV), CIS (HV), Spain (HV), Catalan (HV), Portugal (HV), 1 1339521 Power Cord Set Israel (HV) 1 1339522 Power Cord Set Switzerland HV (French/German and Italian) 1 1339523 Power Cord Set South Africa (HV), Namibia (HV), Lesotho (HV), Botswana (HV) 1 1339524 Power Cord Set Chile (HV) 1 1339525 Power Cord Set Denmark, (HV) 1 1339544 Power Cord Set Argentina (HV) 2 53P9764 LVPS, 115V 53P9764 Low Voltage Power Supply LVPS New 53p9764 (New) $317.00 53P9764 Low Voltage Power Supply LVPS Fully refurbished with 90-day warranty 53p9764 $186.00 2 53P9765 LVPS, 220V 2 53P9766 RIP Board Ground Shield 2 53P9793 RIP Fan 2 53P9893 Waste Container Latch Spring 3 56P0101 RIP Board Assembly - Non Network, Models 3 56P1189 Engine Board 56P1189 IBM Card Assembly Engine Card Fully refurbished with 90-day warranty 56P1189 12g6323 I Retired, no longer available: Contact for alternatives Contact for Details 3 53P9892 Waste Container Latch 4 53P9769 INA Riser Support Bracket 53P9769 INA Riser Sensor Bracket Fully refurbished with 90-day warranty 53P9769 Contact for Details 4 53P9942 Standoff, High Voltage Power Supply - Developer 4 53P9819 Ground Strap 53P9819 Ground cable Fully refurbished with 90-day warranty 53P9819 Contact for Details 4 53P9901 VTB Fan 4 53P9890 Paper Size Sensing Spring 4 56P1214 Cartridge Drive Assembly, Cyan/Magenta/Black 56P1214 Cartridge drive assembly cyan/magenta/black New 56P1214 (New) $168.00 5 53P9869 BOR Housing Assembly with motor 53p9869 BOR Housing Assembly with Motor New 53p9869 (New) $26.00 5 53P9761 Riser Card Assembly w/o Support Brackets 5 53P9814 Fuser Fan 5 53P9891 Paper Size Sensing Bracket 5 56P1215 Cartridge Drive Assembly, Yellow 56P1215 Cartridge drive assembly yellow Fully refurbished with 90-day warranty 56P1215 Contact for Details 6 53P9943 Web Oiler Index Drive Assembly Parts Catalog 7-23 6 53P9770 Standoff, INA RIP Spacer 53P9770 Stand off Fully refurbished with 90-day warranty 53P9770 Contact for Details 6 56P2469 HVPS Developer Board Parts Catalog 7-27 56P2469 Developer HVPS board Fully refurbished with 90-day warranty 56P2469 Contact for Details 6 53P7584 Screws, Fuser Fan Mounting 7 56P9910 SDRAM DIMM 128MB 56P9910 128MB SDRAM card assembly New 56P9910 (New) $16.56 56P9910 128MB SDRAM card assembly Fully refurbished with 90-day warranty 56P9910 $45.00 7 53P9924 SDRAM DIMM 64MB 53P9924 64MB SDRAM Fully refurbished with 90-day warranty 53P9924 Contact for Details 7 53P9889 Paper Size Sensing Link 53P9889 Paper Size Sensing Link Fully refurbished with 90-day warranty 53P9889 $23.00 8 56P0102 RIP Board Assembly, Network, Models 56P0102 RIP Board Assembly Network 1220n Fully refurbished with 90-day warranty 56P0102 Contact for Details 9 53P8477 Ethernet Blank Shield, use with Non-Network RIP Boards 53P8477 Ethernet blank shield use with nonnetwork system boards Fully refurbished with 90-day warranty 53P8477 Contact for Details 10 53P8317 INA Blank Flat Shield, use when options are not installed 11 53P8630 Blank Parallel Shield, use with network RIP Boards 11.2-1 53P9762 HVPS Transfer Board 53P9762 Transfer HVPS Board New 53P9762 (New) $129.00 11.3-1 53P9771 Engine Board Shield 11.4-1 53P9778 RIP Fan Duct 11.5-1 53P9916 Waste Toner Container 53P9916 Waste Toner Container New 53P9916 (New) $20.00 11.6-1 53P9902 Staging Motor Assembly 53P9902 Motor Assembly New 53p9902 (New) $38.00 12 53P9768 RIP Board Shield Assembly 53p9768 RIP board shield New 53P9678 (New) $37.00 13 53P9767 RIP Board Cover Shield NS 53P9113 Screw, Parallel Connector Mounting NS 53P9745 Cable, Video Printhead - Y NS 53P9746 Cable, Video Printhead - C NS 53P9747 Cable, Video Printhead - M NS 53P9748 Cable, Video Printhead - K NS 53P9749 Cable, LEXPSD -YC NS 53P9750 Cable, LEXPSD - MK NS 53P9751 Cable, HVPS Control - Developer NS 53P9752 Cable, HVPS Control - Transfer NS 53P9753 Cable, RIP-Engine, Comm and CT. NS 53P9754 Cable, Options - Stacker NS 53P9755 Cable, Options - Bottom NS 53P9756 Cable, Operator Panel NS 53P9783 Cable, Fuser and Y Cartridge Motor NS 53P9784 Cable, C and M Cartridge Motor NS 53P9785 Cable, ITU and K Cartridge Motor NS 53P9811 Cable, Smart Chip NS 53P9819 Cable, Ground 53P9819 Ground cable Fully refurbished with 90-day warranty 53P9819 Contact for Details NS 53P9871 Cable, MPF Paper Level NS 53P9918 Cable, Printhead Interlock/Cover Open NS 53P9919 Cable, HVPS Interlock/Cover Open NS 56P0311 Cable, ITU/Machine Autoconnect Parts Catalog 7-25 NS 53P9912 VTB Fan Gap Cover Parts Catalog 7-29 53P9912 VTB fan gap cover Fully refurbished with 90-day warranty 53P9912 Contact for Details NS 53P9895 Bracket Tray Interlock 53P9895 Tray interlock bracket Fully refurbished with 90-day warranty 53P9895 Contact for Details NS 53P9920 Waste Toner Full Sensor NS 53P9903 Plate Asm, Registration Gearbox NS 53P9904 Gear, Stage Reduction #1 NS 53P9905 Gear, Staging Idler NS 53P9906 Gear, Registration Plate Drive NS 56P1238 Motor Asm, Fuser Drive Parts Catalog 7-31 56P1238 Fuser drive motor New 56P1238 (New) $149.00

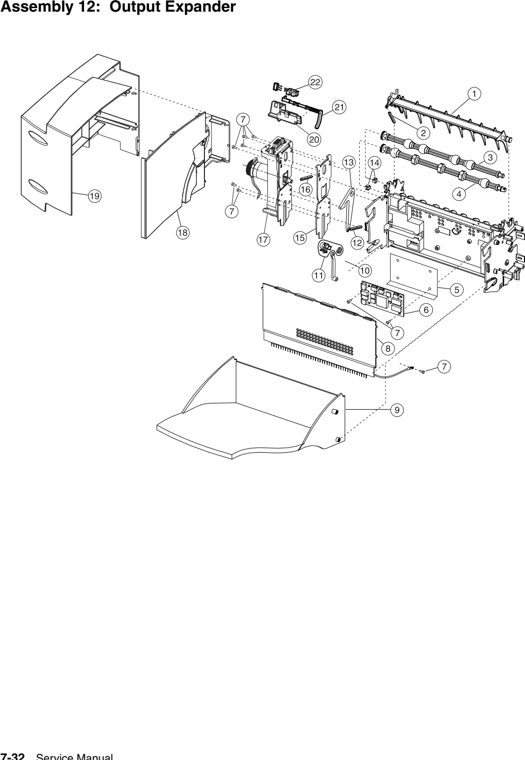

Assembly 12: Output Expander 1 53P8223 Deflector, Upper Redrive (Also order 53P8222) 53P8223 Upper Diverter New 53P8223 (New) $17.00 2 53P8222 Spring, Upper Diverter 53P8222 Spring, Upper Diverter Fully refurbished with 90-day warranty 53P8222 Contact for Details 2 53P8300 Shaft Assembly, Lower (Also order 53P8359) 53P8300 Shaft Assembly Lower New 53P8300 (NEW) $24.00 3 53P8301 Shaft Assembly, Exit (Also order 53P8359) 53P8206 Shaft Assembly, Stacker Lower Exit Upper Stacker Assembly New 53P8301 (New) $31.00 3 53P8298 Pulley, Drive 53P8298 Pulley, Drive New 53P8298 (NEW) $12.00 4 53P8206 Shaft Assembly, Lower Exit (Also order 53P8359) 4 56P0406 Bracket, Front Attach 5 56P0407 Shield, Output Option Card 6 53P8413 Board, Output Expander DC motor 53P8413 Output Expander DC Motor Board New 53P8413 (NEW) $157.00 6 56P0400 Cover, Front 7 53P8296 Belt, 160 Tooth 53P8296 Belt, 160G Upper Stacker Assembly New 53P8296 (New) $21.00 8 56P0409 Cover, Front Control Board 8 53P8297 Arm Assembly, Belt Idler 53P8297 Arm Asm, Belt Idler New 53P8297 (New) $19.00 9 53P8606 Tray, Output Expander 53P8606 Tray, Output Expander New 53P8606 (NEW) $48.00 9 53P8299 Spring, Belt Tensioner 53P8299 Spring, Belt Tensioner New 53P8299 (NEW) $13.50 10 53P8512 Diverter Arm 10 53P8338 Spring, Output Tray 11 53P8513 Spring Clutch Assembly 53P8513 Spring Clutch Assembly New 53P8513 (NEW) $26.00 11 53P8337 Latch, Output Tray 53P8337 Output Bin / Tray Latch New 53P8337 (New) $30.00 12 53P8338 Spring, Output Tray 12 53P9083 Frame Assembly 53P9083 Frame Assembly New 53P9083 (New) $100.00 12.1-1 56P0405 Door Assembly, Right Jam Access 56P0405 Door assembly, right jam access New 56P0405 (New) $35.00 56P0405 Door assembly right jam access Fully refurbished with 90-day warranty 56P0405 $35.00 13 53P8337 Latch, Output Tray 53P8337 Output Bin / Tray Latch New 53P8337 (New) $30.00 13 53P8295 Sensor, Output Expander Pass Thru 53P8295 Sensor, Stacker Pass thru New 53P8295 (New) $21.00 15 53P8587 Bracket, Attach 53P8587 Bracket, Attach New 53P8587 (NEW) $12.00 15 53P8411 Shaft Assembly, Middle 40T (Also order 53P8359) 53P8411 Shaft Assembly Middle 40T New 53P8411 (NEW) $26.00 16 53P8321 Spring, Swing Arm 17 56P0408 Output Expander Assembly, Mechanical Linkage 18 56P0402 Cover, Rear Support 19 56P0401 Rear Cover 56P0401 Cover, Rear New 56P0401 (New) $25.00 56P0401 Cover Rear Fully refurbished with 90-day warranty 56P0401 $19.00 20 53P8318 Level Sensor Bracket 53P8318 Bracket, Dual Sensor Mounting Upper Stacker Assembly New 53P8318 (New) $39.00 21 53P8462 Flag, Output Paper Level 53P8462 Flag, Output Paper Level New 53P8462 (New) $15.00 22 53P8320 Sensor, Dual Bin Full Parts Catalog 7-33 53P8320 Bin full sensor New 53P8320 (NEW) $38.00 NS 53P8562 Kit, Stacker Assembly 53P8562 Kit, High- Capacity Output Stacker New 53P8562 (NEW) $25.00 NS 56P0403 Cover, Right NS 56P0404 Cover, ESD Brush NS 56P0410 Bracket, Rear Attach Parts Catalog 7-35

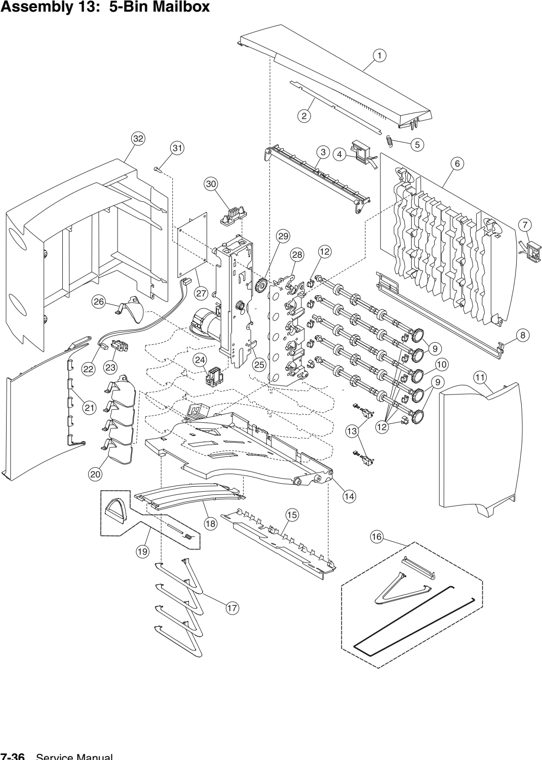

Assembly 13: 5-Bin Mailbox 1 53P8434 Cover, Redrive Cap 53P8434 Cover Assembly Redrive Cap Fully refurbished with 90-day warranty 53P8434 $39.00 2 53P8529 Cover, Wire 53P8529 Cover, Wire New 53P8529 (NEW) Contact for Details 2 53P8546 Frame Asm, Right Side 53P8546 Frame Assembly, Right Side New 53P8546 (New) $35.00 3 56P0416 Cover, Top Bin 4 56P0423 Latch, Rear Access Door 4 53P8547 Cam, Diverter Actuator 53P8547 Cam, Diverter Actuator New 53P8547 (NEW) $16.00 5 53P8222 Spring, Upper Diverter 53P8222 Spring, Upper Diverter Fully refurbished with 90-day warranty 53P8222 Contact for Details 5 53P8550 Spring, Diverter Actuator 6 56P0411 Door, Front 6 53P8548 Latch, Diverter Actuator 53P8548 Latch, Diverter Actuator New 53P8548 (NEW) $11.00 7 56P0422 Latch, Access Door Front 7 53P8549 Arbor, Diverter Actuator 53P8549 Arbor, Diverter Actuator New 53P8549 (NEW) $15.00 8 56P0415 Cover, Right 8 53P8592 C-clip 9 53P8542 Shaft Asm, Drive 53P8542 Shaft Assembly, Drive New 53P8542 (New) $19.00 9 56P0418 Bracket, Attach Front 10 53P8543 Shaft Asm, Drive with Gear 53P8543 Shaft Assembly, Drive W/Gear New 53P8543 (New) $26.00 10 53P8551 Solenoid, Diverter 53P8551 Solenoid, Diverter New 53P8551 (New) $23.00 11 53P8527 Cover, Right Side 53P8527 Cover, Right Side New 53P8527 (New) $39.00 11 53P8556 Deflector, Paper Exit w/Brush 53P8556 Deflector, Paper Exit w/Brush New 53P8556 (NEW) $12.00 12 53P8544 Packet, Drive Shaft Bushing 53P8544 Packet, Drive Shaft Bushing New 53P8544 (NEW) $16.00 12 53P8541 Deflector, Paper 53P8541 Deflector, Paper New 53P8541 (NEW) $29.00 13 53P8560 Sensor, 5-Bin Mailbox Pass thru 53P8560 Packet, Drive Shaft Bushing New 53P8560 (NEW) $16.00 13 53P8590 Deflector 53P8590 Deflector New 53P8590 (New) Contact for Details 13.1-1 53P8559 Spring, Diverter 53P8559 Spring, Diverter New 53P8559 (NEW) $25.00 14 53P8531 Tray, Paper Cap 53P8531 Tray, Paper Cap New 53P8531 (NEW) $29.00 14 53P8540 Deflector, Paper Top Bin 53P8540 Deflector, Paper Top Bin New 53P8540 (NEW) $13.00 15 56P0420 Bracket Asm, Bail Attach 16 53P8561 Kit, 5-Bin Mailbox Asm 53P8561 Kit, 5-Bin Mailbox Assembly New 53P8561 (New) $30.00 18 53P8532 Support, Paper Tray 53P8532 Support, Paper Tray New 53P8532 (NEW) $13.00 19 53P8511 Stop Asm, Paper Tray 53P8511 Stop Assembly, Paper Tray New 53P8511 (New) $45.00 20 53P8553 Flag, Bin Full 53P8553 Flag, Bin Full Fully refurbished with 90-day warranty 53P8553 Contact for Details 21 56P0412 Rear Structural Cover 22 53P8554 Cable, Dual Sensor 53P8554 Cable, Dual Sensor New 53P8554 (NEW) $21.00 23 53P8555 Sensor, Dual Paper Height 53P8555 Sensor, Dual Paper Height New 53P8555 (NEW) $26.00 24 53P8537 Cable Asm, Lower Auto Connect 53P8537 Cable Assembly, Lower Auto Connect New 53P8537 (New) $23.00 25 53P8535 Drive Asm, Main DC Drive 53P8535 Drive Assembly, Main DC Driver New 53P8535 (New) $99.00 26 56P0417 Flag, Bin Full 27 53P8558 Board Asm, 5-Bin Mailbox System 53P8558 Board Assembly, 5-Bin Mailbox System New 53P8558 (New) $154.00 28 53P8545 Frame Asm, Left w/Clutch Asm 53P8545 Frame Assembly, Left w/Clutch Assembly New 53P8545 (New) $46.00 29 53P8589 Gear, Drive 53P8589 Gear, Drive New 53P8589 (NEW) $29.00 30 53P8538 Cable Asm, Upper Auto Connect 53P8538 Cable Assembly, Upper Auto Connect New 53P8538 (New) $33.00 32 56P0413 Cover, Left Side 56P0413 Cover left side New 56P0413 (New) $32.00 56P0413 Cover left side Fully refurbished with 90-day warranty 56P0413 $23.00 NS 56P0414 Door, Jam Access Parts Catalog 7-37 56P0414 Access Door New 56P0414 (New) $22.00 56P0414 Access Door Fully refurbished with 90-day warranty 56P0414 $19.00 NS 53P8534 Roller Asm, Rear Access Door 53P8534 Roller Assembly, Rear Access Door New 53P8534 (New) $19.00 NS 53P8536 Gear, Drive 53P8536 Gear Drive New 53P8536 (NEW) $14.00 NS 53P8591 Retainer, R-Ring NS 53P8330 Retainer NS 56P0550 Cable, Tray Media Level Sensor NS 56P0419 Bracket, Attach Rear NS 56P0421 Contact, Brush Ground Parts Catalog 7-39

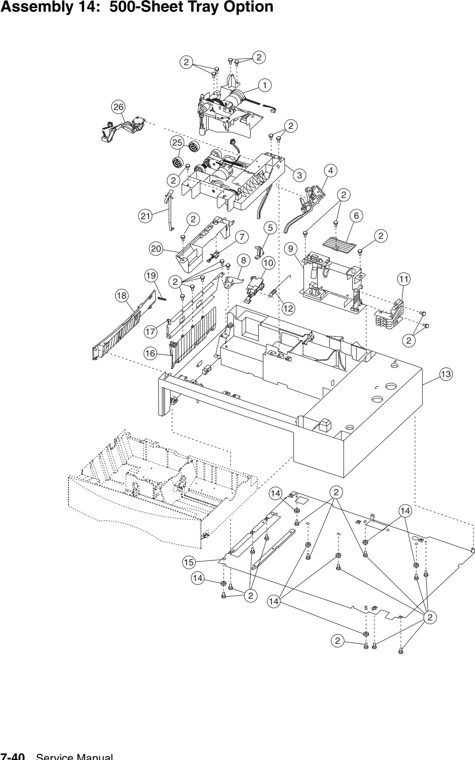

Assembly 14: 500-Sheet Tray Option 1 56P0168 Drive Assembly, 500 Option 2 56P0168 Drive assembly, 500 option 2 New 56P0168 (New) $448.00 56P0168 Drive assembly 500 option 2 Fully refurbished with 90-day warranty 56P0168 $448.00 2 53P9848 Back Restraint Latch 3 53P9947 500 Option Tray Pick Assembly 3 53P9847 Back Restraint 4 53P9962 Paper Level Sensing Assembly 4 53P9853 Size Sensing Gear Cover 5 53P9894 Tray Interlock Bellcrank 53P9894 Tray interlock bellcrank Fully refurbished with 90-day warranty 53P9894 Contact for Details 5 53P9852 Size Sensing Gear 6 53P9953 Cover, Frame 6 53P9851 Size Sensing Barrel Cam 7 53P9950 Pass Thru Sensor 8 53P9959 Hinge 8 53P9854 Tray Bias Bellcrank Assembly 9 53P9956 Electronics/Size Sensing Assembly with System Board 10 53P9955 Pick Arm Lift Bellcrank 53P9955 Pick arm lift bellcrank Fully refurbished with 90-day warranty 53P9955 Contact for Details 10 53P9855 Tray Bias Spring 11 53P9963 Paper Size Sensing Assembly 11 53P9965 Reflector Label 12 53P9954 Bellcrank Lift Spring 53P9954 Bellcrank lift spring New 53P9954 (New) $95.00 12 53P9850 Wear Strip 13 53P9957 500 Base Assembly 13 53P9849 Tray Wear Clip 14 53P9812 Machine Pad 53P9812 Machine pad Fully refurbished with 90-day warranty 53P9812 Contact for Details 14 53P9846 Side Restraint 14.1-1 53P9845 500-Sheet Tray Assembly 53P9845 500 Sheet Tray Assembly New 53p9845 (New) $47.00 15 56P1571 Plate, 500 Support Assembly 56P1571 Plate, 500 support assembly New 56P1571 (New) $56.00 56P1571 Plate 500 support assembly Fully refurbished with 90-day warranty 56P1571 $56.00 15 53P8226 Restraint Pad Parts Catalog 7-43 53P8226 Restraint Pad Fully refurbished with 90-day warranty 53P8226 $20.00 16 53P9951 Paper Guide 17 53P9960 Wall Support plate 18 53P9949 Base Door Assembly 19 53P9958 Spring 20 53P9952 500 Option Deflector 21 53P9964 Grounding Spring 25 75P5958 Pick Arm Roll Assembly (2 per pack) 75P5958 Pick roll tires (2 per pack) New 75P5958 (New) $16.00 26 53P9961 Transparency Sensing Assembly NS 53P9925 Cable Tie Parts Catalog 7-41

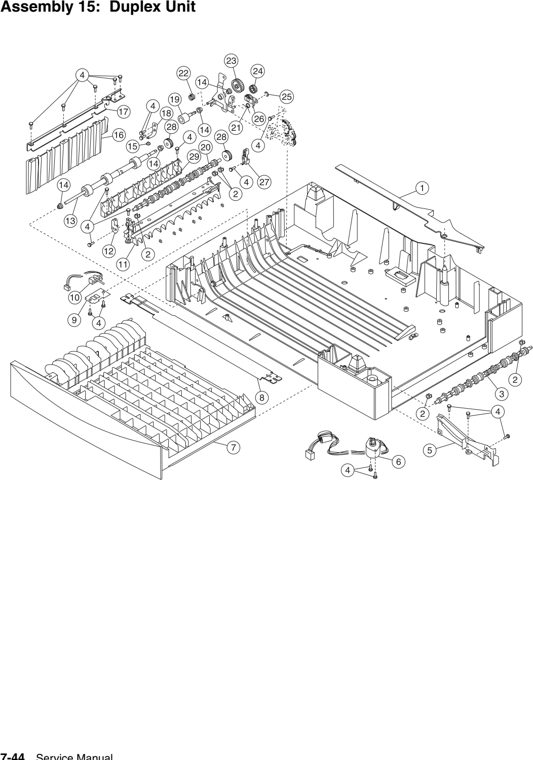

Assembly 15: Duplex Unit 1 56P0480 Back Cover 56P0480 Back cover New 56P0480 (New) $142.00 56P0480 Back cover Fully refurbished with 90-day warranty 56P0480 $117.00 2 53P8711 Redrive Bearing 53P8711 Redrive Bearing New 53P8711 (NEW) $41.00 2 56P0462 Autoconnect Cable Assembly 56P0462 Autoconnect cable assembly New 56P0462 (New) Contact for Details 56P0462 Autoconnect cable assembly Fully refurbished with 90-day warranty 56P0462 $77.00 3 56P0447 Duplex Entry Shaft Assembly 3 56P0463 DC Forward/Reverse Motor Assembly 4 56P0464 DC Duplex Feed Motor 5 56P0434 Right Side Front Tray Guide 56P0434 Right side front tray guide New 56P0434 (New) Contact for Details 56P0434 Right side front tray guide Fully refurbished with 90-day warranty 56P0434 $69.00 6 56P0483 Deflector Actuator Assembly 56P0483 Deflector actuator assembly New 56P0483 (New) $78.00 56P0483 Deflector actuator assembly Fully refurbished with 90-day warranty 56P0483 $78.00 6 56P0459 Back Support 56P0459 Back support New 56P0459 (New) Contact for Details 56P0459 Back support Fully refurbished with 90-day warranty 56P0459 $75.00 7 56P0432 Duplex Front Jam Tray Assembly 7 56P0430 Duplex Card Assembly 56P0430 Duplex Card Assembly New 56P0430 (New) $342.00 56P0430 Duplex Card Assembly Fully refurbished with 90-day warranty 56P0430 $91.00 8 56P0457 Duplex Support Bracket 8 56P0458 Chassis Ground Spring 56P0458 Chassis ground spring New 56P0458 (New) Contact for Details 56P0458 Chassis ground spring Fully refurbished with 90-day warranty 56P0458 $77.00 9 56P0455 Sensor Mount Plate 56P0455 Sensor mount plate New 56P0455 (New) $67.00 56P0455 Sensor mount plate Fully refurbished with 90-day warranty 56P0455 $53.00 9 56P0433 Right Jam Clearance Tray Assembly 56P0433 Right jam clearance tray assembly New 56P0433 (New) Contact for Details 56P0433 Right jam clearance tray assembly Fully refurbished with 90-day warranty 56P0433 $59.00 10 56P0442 Duplex Exit Sensor 10 53P8592 Retainer, C - Clip 11 56P0435 Duplex Shaft Mount 11 56P0478 Aligner Spring 12 56P0479 Front Decurl Assembly 12 53P8279 Paper Guide Assembly 13 56P0444 F/R Backup Shaft Assembly 56P0444 F/R Backup Shaft Assembly New 56P0444 (New) Contact for Details 56P0444 F/R backup shaft assembly Fully refurbished with 90-day warranty 56P0444 $106.00 13 56P0465 Drive Alignment Shaft Assembly 56P0465 Drive alignment shaft assembly New 56P0465 (New) Contact for Details 56P0465 Drive alignment shaft assembly Fully refurbished with 90-day warranty 56P0465 $74.00 14 56P0476 5mm Bushing 14 56P0477 Reduction Gear Shaft 15 56P0473 Brake Pad 56P0473 Brake pad New 56P0473 (New) Contact for Details 56P0473 Brake pad Fully refurbished with 90-day warranty 56P0473 $58.00 15 56P0451 Backup Spring Assembly 56P0451 Right Backup spring assembly New 56P0451 (New) Contact for Details 56P0451 Right Backup spring assembly Fully refurbished with 90-day warranty 56P0451 $65.00 15.1-1 56P0456 Duplex Support Plate 16 56P0439 Duplex Paper Guide 16 53P8536 32PPM Drive Gear 53P8536 Gear Drive New 53P8536 (NEW) $14.00 17 56P0454 Wall Support 56P0454 Wall support New 56P0454 (New) Contact for Details 56P0454 Wall support Fully refurbished with 90-day warranty 56P0454 $80.00 17 56P0452 Backup Spring Assembly 56P0452 Left backup spring assembly New 56P0452 (New) Contact for Details 56P0452 Left backup spring assembly Fully refurbished with 90-day warranty 56P0452 $115.00 18 56P0475 Brake Spring 56P0475 Brake spring New 56P0475 (New) Contact for Details 56P0475 Brake spring Fully refurbished with 90-day warranty 56P0475 $73.00 18 56P0436 Upper RIB Assembly 19 56P0472 Pass Thru Shaft Assembly 56P0472 Pass thru shaft assembly New 56P0472 (New) Contact for Details 56P0472 Pass thru shaft assembly Fully refurbished with 90-day warranty 56P0472 $71.00 19 56P0437 Duplex Output Sensor Parts Catalog 7-47 20 56P0441 Duplex Shaft Assembly 21 56P0468 Pass Thru Spring 56P0468 Pass thru spring New 56P0468 (New) Contact for Details 56P0468 Pass thru spring Fully refurbished with 90-day warranty 56P0468 $47.00 22 56P0470 Aligner Arm Spring 56P0470 Aligner arm spring New 56P0470 (New) Contact for Details 56P0470 Aligner arm spring Fully refurbished with 90-day warranty 56P0470 $66.00 23 56P0466 Spur Drive Gear 56P0466 Spur drive gear New 56P0466 (New) Contact for Details 56P0466 Spur drive gear Fully refurbished with 90-day warranty 56P0466 $57.00 24 56P0467 26T Duplex Gear 26 56P0471 Bellcrank Assembly 27 56P0474 Decurl BAC Assembly 56P0474 Decurl BAC assembly New 56P0474 (New) Contact for Details 56P0474 Decurl BAC assembly Fully refurbished with 90-day warranty 56P0474 $70.00 28 56P0445 40T Shaft Drive F/R Gear 56P0445 40T shaft drive F/R gear New 56P0445 (New) Contact for Details 56P0445 40T shaft drive F/R gear Fully refurbished with 90-day warranty 56P0445 $70.00 29 56P0449 Support Decurl Guide 56P0449 Support decurl guide New 56P0449 (New) Contact for Details 56P0449 Support decurl guide Fully refurbished with 90-day warranty 56P0449 $86.00 NS 56P0482 Pulley Washer NS 56P0481 Spring Asm, Backup Parts Catalog 7-45

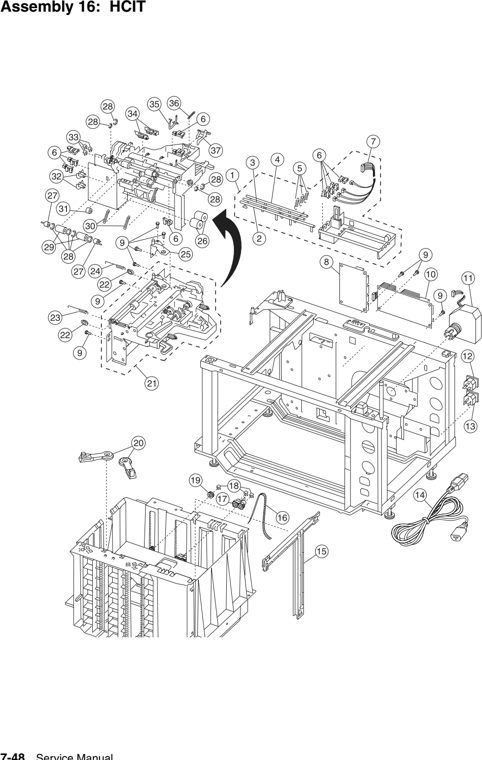

Assembly 16: HCIT 1 56P0561 Paper Size Sensor Box Assembly 56P0561 Paper size sensor box assembly New 56P0561 (New) Contact for Details 56P0561 Paper size sensor box assembly Fully refurbished with 90-day warranty 56P0561 $26.00 2 56P0519 Flag, Paper Size R 2 56P0503 Right Side Cover 56P0503 Right side cover New 56P0503 (New) $28.00 56P0503 Right side cover Fully refurbished with 90-day warranty 56P0503 $22.00 3 56P0520 Flag, Paper Size F 3 56P0491 Caster, Movable 4 56P0518 Flag, Paper Size C 5 56P0522 Spring, Paper Size Flag 5 56P0493 F Adjuster 6 56P0516 Sensor, Photo Interrupter 6 56P0500 Front Cover 56P0500 Front cover New 56P0500 (New) $37.00 56P0500 Front cover Fully refurbished with 90-day warranty 56P0500 $27.00 7 56P0511 Paper Size Sensors Cable 7 56P0501 Cover, Main CA 56P0501 Cover main CA New 56P0501 (New) $37.00 56P0501 Cover main CA Fully refurbished with 90-day warranty 56P0501 $27.00 8 56P0494 System Control Board 56P0494 System Control Board New 56P0494 (New) $217.00 56P0494 System Control Board Fully refurbished with 90-day warranty 56P0494 Contact for Details 8 56P0492 Caster, Fixed 9 56P0504 Left Side Cover 10 56P0495 LVPS 56P0495 LVPS Low Voltage Power Supply New 56P0495 (New) $247.00 56P0495 LVPS Low Voltage Power Supply Fully refurbished with 90-day warranty 56P0495 $167.00 10 56P0508 Upper Left Side Jam Cover 11 56P0513 Elevator Motor Assembly 56P0513 Elevator motor assembly New 56P0513 (New) $63.00 56P0513 Elevator motor assembly Fully refurbished with 90-day warranty 56P0513 $43.00 11 56P0507 Locating Pin, Options Front Right 12 56P0497 AC Power Outlet 12 56P0506 Locating Pin, Options Rear Left 13 56P0498 AC Power Inlet 13 56P0514 Options Autoconnect Cable Assembly 14 56P0490 Jumper, AC Power Cord 14 56P0517 Options Cable Mounting Plate 15 56P0524 Paper Tray Guide 16 56P0547 Elevator Lift Belt 16.1-1 56P0505 Rear Cover 56P0505 Rear cover New 56P0505 (New) $55.00 56P0505 Rear cover Fully refurbished with 90-day warranty 56P0505 $55.00 17 56P0549 Elevator Lift 18 56P0563 Ring 7, Elevator Lift Gear/Elevator Lift 19 56P0548 Elevator Lift Gear 20 56P0523 Paper Tray Arms 21 56P0525 Feed Unit, Complete Assembly 22 56P0527 Bushing 23 56P0533 Spring, Feed Unit Front 24 56P0534 Spring, Feed Unit Rear 25 56P0562 Feed Cover 26 56P0542 Separation/Torque Roller 27 56P0529 Feed Cam 29 56P0528 Feed Roller 30 56P0530 Spring, Feed Unit 31 56P0532 Bushing, 060 32 56P0544 Emitter Timing Wheel 33 56P0535 Clip, Plastic 5W 34 56P0526 Sensors, Special Optical 35 56P0536 Level Sensor Flag 36 56P0540 Spring, Extension 37 56P0539 Near Empty Sensor Flag NS 56P0521 Flag, Near Full NS 56P0538 Roller, Pick NS 56P0461 Spring, Belt Tensioner Parts Catalog 7-49 NS 56P0509 Cable, Feed Unit Special Sensors NS 56P0510 Cable, Feed Unit Sensors NS 56P0512 Cable, Elevator Motor NS 56P0515 Magentic Latch NS 56P0541 Tray Present Lever NS 56P0543 Cable Clamp Parts Catalog 7-51

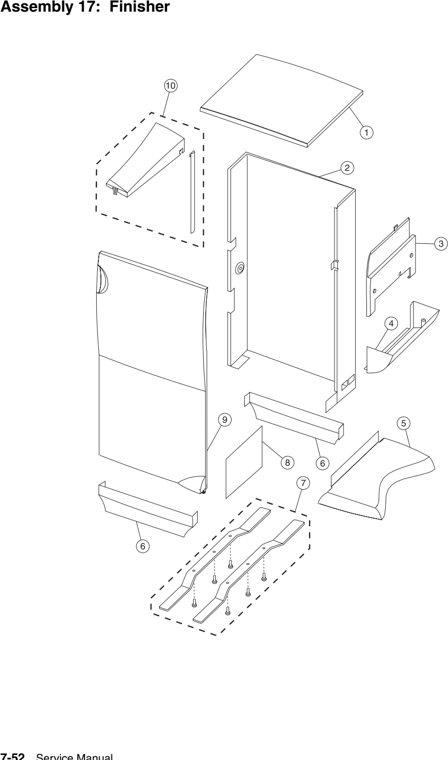

Assembly 17: Finisher 1 56P0321 Top Cover 2 56P0569 Rear Cover 2 56P0357 Actuation Assembly 2 56P0385 Solenoid, Drop Assembly 56P0385 Solenoid drop assembly New 56P0385 (New) $114.00 56P0385 Solenoid drop assembly Fully refurbished with 90-day warranty 56P0385 $114.00 3 56P0573 Upper Right Side Cover 3 56P1471 HCOF Control Board Assembly 56P1471 HCOF Control Board Assembly New 56P1471 (New) $332.00 56P1471 HCOF Control Board Assembly Fully refurbished with 90-day warranty 56P1471 $332.00 3 56P0347 Sensor, EE-SX460-P1-CHN, Jogger 4 56P0574 Lower Tray Cover 4 56P0325 Motor Assembly, Paper Feed 56P0325 Motor assembly paper feed New 56P0325 (New) Contact for Details 56p0325 Motor assembly paper feed Fully refurbished with 90-day warranty 56p0325 Contact for Details 4 56P0384 Belt, Staple Assembly 56P0384 Accumulator belt (hook) New 56P0384 (New) $111.00 56P0384 Accumulator belt (hook) Fully refurbished with 90-day warranty 56P0384 $111.00 5 56P0575 Bottom Kick Cover 56P0575 Front/rear lower cover New 56P0575 (New) Contact for Details 56P0575 Front/rear lower cover Fully refurbished with 90-day warranty 56P0575 $81.00 5 56P0334 Belt, 170P2M4 5 56P0332 Accumulator Belt 6 56P0576 Front/Rear Lower Cover 6 56P0332 Belt, 40S3M900 6 56P0319 Accumulator w/o Stapler 7 56P0387 Bar Tip Unit 56P0387 Bar tip unit New 56P0387 (New) $174.00 56P0387 Bar tip unit Fully refurbished with 90-day warranty 56P0387 $174.00 7 56P0315 Punch Assembly 7 56P0348 Sensor, OS-535223-601 8 56P0577 Lower Right Side Cover 56P0577 Lower right side cover New 56P0577 (New) Contact for Details 56P0577 Lower right side cover Fully refurbished with 90-day warranty 56P0577 $73.00 8 56P0345 Sensor, GP1A73A 8 56P0349 Sensor, OS-311D-A5 9 56P0320 Cover Front Door 56P0320 Cover front door New 56P0320 (New) $277.00 56P0320 Cover front door Fully refurbished with 90-day warranty 56P0320 $277.00 9 56P0318 Box, Chad 9 56P0316 Staple Assembly 10 56P0566 Finisher Install Kit 10 56P0328 Belt, 40S3M198 10 56P0358 Accumulator Slides 11 56P0383 Solenoid, Inverter 56P0383 Solenoid inverter New 56P0383 (New) $38.00 56P0383 Solenoid inverter Fully refurbished with 90-day warranty 56P0383 $38.00 11 53P8862 Staple Cartridge 53P8862 Stapler Cartridge Holder 321-C New 53P8862 (New) Contact for Details 12 56P0347 Sensor, EE-SX1235A-P2 12 56P0346 Sensor, EE-SPY415, Chad Box Full 13 56P0342 Caster 13 56P0344 Sensor, OJ511K-A5 14 56P0338 Low Voltage Power Supply 56P0338 Low voltage power supply New 56P0338 (New) $270.00 56P0338 Low Voltage Power Supply LVPS Fully refurbished with 90-day warranty 56P0338 Contact for Details 14 56P0330 Paper Feed-Input Belt 15 56P0333 Belt, 60S6M1420 16 56P0323 Gear Assembly, Offset Motor and Gear 56P0323 Output tray offset motor and gear assembly New 56P0323 (New) $122.00 56P0323 Output tray offset motor and gear assembly Fully refurbished with 90-day warranty 56P0323 $122.00 17 56P0386 Fan Assembly, DC Motor 17.1-1 56P0324 Motor Assembly, Elevator Tray 17.2-1 56P0355 Guide, Vertical Paper 56P0355 Guide vertical paper New 56P0355 (New) $95.00 56P0355 Guide vertical paper Fully refurbished with 90-day warranty 56P0355 $95.00 18 56P0322 Tray, Paper 56P0322 Tray Paper New 56P0322 (New) $95.00 56P0322 Tray Paper Fully refurbished with 90-day warranty 56P0322 $95.00 19 56P0326 Flag, Paper Full 56P0326 Flag paper full New 56P0326 (New) $47.00 56P0326 Flag paper full Fully refurbished with 90-day warranty 56P0326 $47.00 NS 56P0317 Cartridge Staple Parts Catalog 7-53 NS 56P0327 Belt, 40S3M888 NS 56P0329 Belt, 40S3M225 NS 56P0330 Belt, 40S3M279 NS 56P0331 Belt, 40S3M80 NS 56P0335 Belt, 40S2M264 NS 56P0336 Belt, 40S2M134 NS 56P0337 Belt, 40S2M176 NS 56P0340 Cable, Communication NS 56P0341 Power Cord NS 56P0343 Sensor, OJ-541-A5 NS 56P0350 Sensor EE-SX460-P1-CHN NS 56P0351 Switch, Cover Open NS 56P0352 Switch, Micro, SS-5FL-3T(10E) NS 56P0353 Switch, Micro, K3-3 NS 56P0354 Bracket, Finisher Alignment NS 56P0356 Parts Pack, Magnet, Strong and Weak and Door Latch NS 56P0359 Harness, Cable Assembly H2 - Engine Board to Drop Solenoid NS 56P0360 Harness, Cable Assembly H3 - Engine Board to Harness Cable Assembly H4/ Drop Timing Sensor/Punch Home Position Sensor/Inverter Timing Sensor NS 56P0361 Harness, Cable Assembly H4 - Harness Cable H3 to Punch Timing Sensor NS 56P0362 Harness, Cable Assembly H5 - Engine Board to Printer Docking Switch NS 56P0596 ESD Enter Brush NS 56P0597 ESD Accumulator Brush NS 56P1111 Drive Roller NS 56P1237 Shaft, Pickup Arm Asm Parts Catalog 7-55 NS 56P0388 Switch Assembly 56P0388 Tray limit switches (includes two) New 56P0388 (New) $46.00 56P0388 Tray limit switches (includes two) Fully refurbished with 90-day warranty 56P0388 $46.00 NS 56P0363 Harness, Cable Assembly H6 - Engine Board to Fan NS 56P0364 Harness, Cable Assembly S1 - Cable S2 to Stapler Assembly NS 56P0365 Harness, Cable Assembly S2 - Engine Board to Cable S1 NS 56P0366 Harness, Cable Assembly S3 - Engine Board to Jogger Home Position Sensor/ Bundle Belt Home Position Sensor NS 56P0367 Harness, Cable Assembly S4 - Engine Board to Jogger Motor/Bundle Motor NS 56P0368 Harness, Cable Assembly S5 - Engine Board to Chad Box Full Sensor NS 56P0369 Harness, Cable Assembly E2 - Cable E5 to Exit Timing Sensor NS 56P0370 Harness, Cable Assembly E3 - Cable E5 to Paper Surface Upper Sensor/Paper Surface Lower Sensor NS 56P0371 Harness, Cable Assembly E5 - Engine Board to Cable E2/E3 NS 56P0372 Harness, Cable Assembly E6 - Cable E8 to Upper Tray Limit Switch 1/Upper Tray Limit Switch 2 NS 56P0373 Harness, Cable Assembly E7 - Cable E8 to Tray Offset Position Sensor NS 56P0374 Harness, Cable Assembly E8 - Engine Board to E6/E7 NS 56P0375 Harness, Cable Assembly E9 - Cable E10 to Tray Offset Motor NS 56P0376 Harness, Cable Assembly E10 - Engine Board to Cable E9 NS 56P0377 Harness, Cable Assembly E12 - Ground NS 56P0378 Harness, Cable Assembly R1 - Engine Board to Inverter Solenoid/Inverter Jam Sensor NS 56P0379 Harness, Cable Assembly D1 - Engine Board to Front Door Switch NS 56P0380 Harness, Cable Assembly D2 - Engine Board to Low Voltage Power Supply NS 56P0381 Harness, Cable Assembly D3 - Low Voltage Power Supply Relay Board to AC Input/Output NS 56P0382 Harness, Cable Assembly D5 - Low Voltage Power Supply to Low Voltage Power Relay Board NS 56P0578 Wall Cover 56P0578 Tray wall cover New 56P0578 (New) Contact for Details 56P0578 Tray wall cover Fully refurbished with 90-day warranty 56P0578 $59.00 NS 56P0593 Wire Bail Cover NS 56P0594 Cam, Bor Front NS 56P0595 Cam, Bor Rear Parts Catalog 7-57

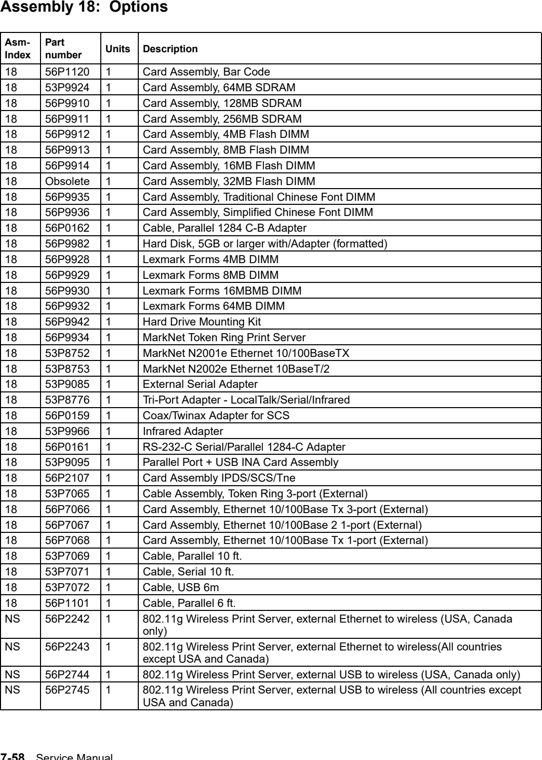

Assembly 18: Options 18 56P1120 Card Assembly, Bar Code 18 53P9924 Card Assembly, 64MB SDRAM 53P9924 64MB SDRAM Fully refurbished with 90-day warranty 53P9924 Contact for Details 18 56P9910 Card Assembly, 128MB SDRAM 56P9910 128MB SDRAM card assembly New 56P9910 (New) $16.56 56P9910 128MB SDRAM card assembly Fully refurbished with 90-day warranty 56P9910 $45.00 18 56P9911 Card Assembly, 256MB SDRAM 18 56P9912 Card Assembly, 4MB Flash DIMM 18 56P9913 Card Assembly, 8MB Flash DIMM 18 56P9914 Card Assembly, 16MB Flash DIMM 18 56P9935 Card Assembly, Traditional Chinese Font DIMM 18 56P9936 Card Assembly, Simplified Chinese Font DIMM 18 56P0162 Cable, Parallel 1284 C-B Adapter 56P0162 Cable parallel 1284 C-B adapter New 56P0162 (New) Contact for Details 56P0162 Cable parallel 1284 C-B adapter Fully refurbished with 90-day warranty 56P0162 Contact for Details 18 56P9982 Hard Disk, 5GB or larger with/Adapter (formatted) 56P9982 20+ GB Hard Drive With Adapter New 56p9982 (New) $570.00 56P9982 20+ GB Hard Drive With Adapter Fully refurbished with 90-day warranty 56p9982 Contact for Details 18 56P9928 Lexmark Forms 4MB DIMM 18 56P9929 Lexmark Forms 8MB DIMM 18 56P9930 Lexmark Forms 16MBMB DIMM 18 56P9932 Lexmark Forms 64MB DIMM 18 56P9942 Hard Drive Mounting Kit 18 56P9934 MarkNet Token Ring Print Server 18 53P8752 MarkNet N2001e Ethernet 10/100BaseTX 53P8752 N2001e 10/100BaseTX Card New 53P8752 (New) Contact for Details 53P8752 10/100 Ethernet adapter Fully refurbished with 90-day warranty 53P8752 Contact for Details 18 53P8753 MarkNet N2002e Ethernet 10BaseT/2 18 53P9085 External Serial Adapter 18 53P8776 Tri-Port Adapter - LocalTalk/Serial/Infrared 18 56P0159 Coax/Twinax Adapter for SCS 56P0159 Coax/Twinax Adapter New 56P0159 (New) Contact for Details 56P0159 Coax/Twinax Adapter Fully refurbished with 90-day warranty 56P0159 $245.00 18 53P9966 Infrared Adapter 18 56P0161 RS-232-C Serial/Parallel 1284-C Adapter 56P0161 INA, Serial & Parallel Internal Adapter Card New 56P0161 (New) Retired, no longer available: Contact for alternatives Contact for Details 56P0161 INA, Serial & Parallel Internal Adapter Card Fully refurbished with 90-day warranty 56P0161 Contact for Details 18 53P9095 Parallel Port + USB INA Card Assembly 18 56P2107 Card Assembly IPDS/SCS/Tne 56P2107 Card Asm Ipds Scs EC3 (X750E MFP) Fully refurbished with 90-day warranty 56P2107 Contact for Details 18 53P7065 Cable Assembly, Token Ring 3-port (External) 18 56P7066 Card Assembly, Ethernet 10/100Base Tx 3-port (External) 18 56P7067 Card Assembly, Ethernet 10/100Base 2 1-port (External) 18 56P7068 Card Assembly, Ethernet 10/100Base Tx 1-port (External) 18 53P7069 Cable, Parallel 10 ft. 18 53P7071 Cable, Serial 10 ft. 18 53P7072 Cable, USB 6m 18 56P1101 Cable, Parallel 6 ft. NS 56P2242 802.11g Wireless Print Server, external Ethernet to wireless (USA, Canada NS 56P2243 802.11g Wireless Print Server, external Ethernet to wireless(All countries NS 56P2744 802.11g Wireless Print Server, external USB to wireless (USA, Canada only) NS 56P2745 802.11g Wireless Print Server, external USB to wireless (All countries except
Other listed parts 12G6496 Maintenance Kit Lexmark 12G6496 Maintenance Kit New 12G6496 (New) Contact for Details 28P1991 28p1991 StapleSmart Finisher New 28P1991 (New) $195.00 28P1991 Staplesmart Finisher Fully refurbished with 90-day warranty 28P1991 $145.00 53P7583 53P9933 53P9934 53P9935 53P9936 53P9937 53P9941 56P1295 ITU Belt Assembly 56P1295 ITU Belt Assembly Fully refurbished with 90-day warranty 56P1295 Contact for Details 56P4331 Printhead assembly includes HSYNC and mirror motor cables 56P4331 Printhead assembly includes HSYNC and mirror motor cables New 56P4331 (New) Retired, no longer available: Contact for alternatives Contact for Details
