IBM Infoprint 1222 (4922) Parts






Looking for whole machines? Click here

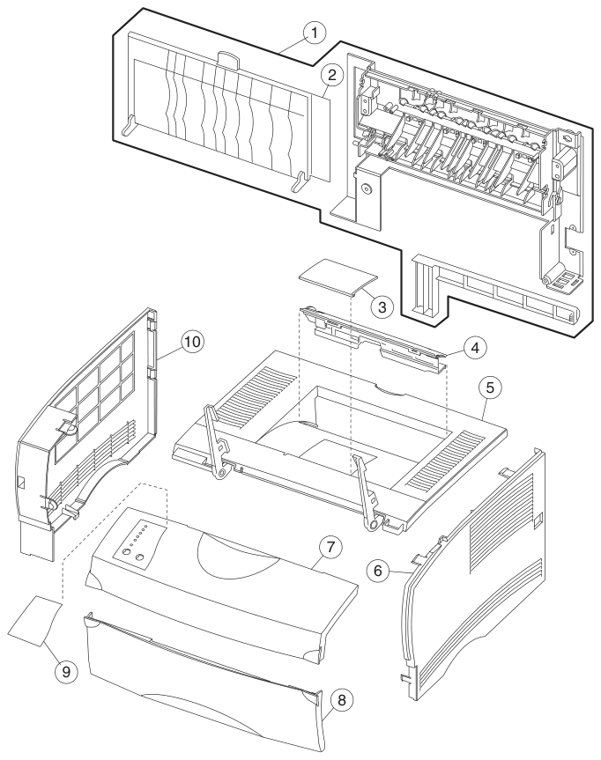

1
56P2508 Cover Assembly Rear
Fully refurbished with 90-day warranty
56P2508
$51.00





2

3

4

5
56P0604 Cover Assembly, Top
Fully refurbished with 90-day warranty
56P0604
$30.00





6

7
56P0602 Cover Assembly, Front with Display
Fully refurbished with 90-day warranty
56P0602
$19.00





8
56P0610 Cover Assembly, MPF Door
Fully refurbished with 90-day warranty
56P0610
$24.00





9 56P0679 Overlays, Language

10
56P0600 Left cover assembly
Fully refurbished with 90-day warranty
56P0600
$24.00




1

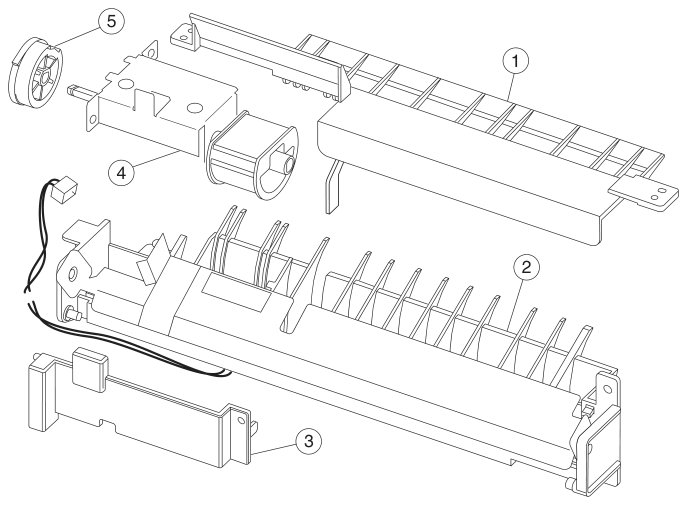

56P0612 Housing Assembly, Upper (MPF)
Fully refurbished with 90-day warranty
56P0612
$24.00



2
56P0611 Housing Assembly, Lower (MPF)
Fully refurbished with 90-day warranty
56P0611
$24.00





3

4
56P0613 MFP Pick Roller Arm Assembly
New
56P0613 (New)
$24.00



5
1

2 56P0668 Parts Pack, (Screws and E Rings)

3
56P0669 Hinge Pivot (quantity 2)
Fully refurbished with 90-day warranty
56P0669



4
56P0642 Guide Assembly Right
Fully refurbished with 90-day warranty
56P0642
$24.00



5

6

7
56P0641 Guide Assembly Left
Fully refurbished with 90-day warranty
56P0641
$24.00

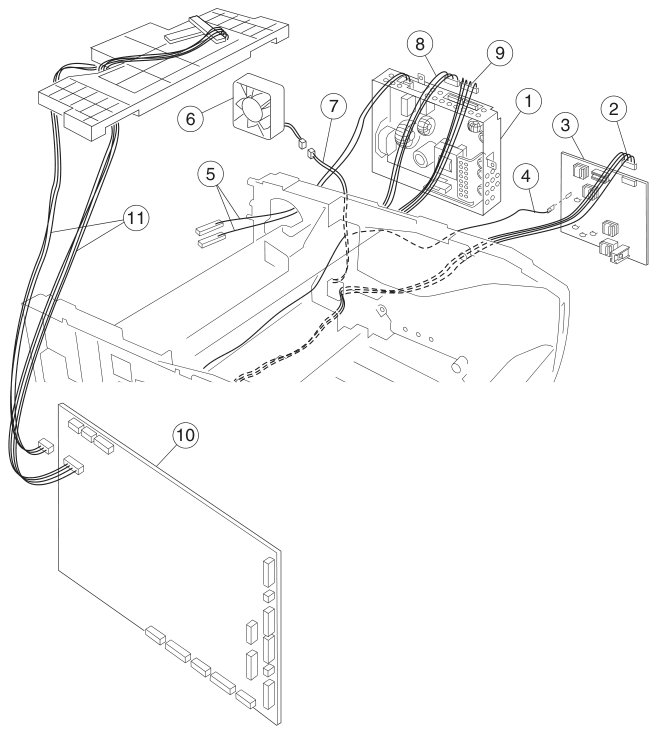

1
56P0626 Power Supply 110 V
Fully refurbished with 90-day warranty
56P0626
$39.00





2, 7, 8, 9 56P0663 Cable Assembly, Main Harness
Locations:
2. HVPS
7. Fan
8. LVPS Power
9. LVPS Control

NS Paper In, Duplex

3

4
56P0641 Guide Assembly Left
Fully refurbished with 90-day warranty
56P0641
$24.00



5 56P0650 Cable Assembly, LVPS to Fuser

6

10

10
56P1030 RIP Card Assembly Network
New
56P1030 (New)

Retired, no longer available: Contact for alternatives



11
56P0622 Printhead Assembly Cable
Fully refurbished with 90-day warranty
56P0622
$24.00


1 56P0624 Cable Assembly, Cover Switch

2 56P0621 Cable Assembly, Operator Panel

3 Display included with P/N 56P0602

4
56P0625 Interlock cover switch
Fully refurbished with 90-day warranty
56P0625
$24.00



5 and 6 Sensor and Cable Included with
56P0611 Housing Assembly, Lower (MPF)
Fully refurbished with 90-day warranty
56P0611
$24.00





8 56P0653 Sensor, Toner Level

10 56P0631 Cable Assembly, Drawer

11

11
56P1030 RIP Card Assembly Network
New
56P1030 (New)

Retired, no longer available: Contact for alternatives




12 56P0664 Cable Assembly, Output Full (and Fuser Exit)

13 56P0652 Sensor, Smart Button

14 56P0682 Sensor Cable, Output Full

15 56P0665 Connector, 3 Pin

16 56P0666 Connector, 2 Pin

17 56P0645 Sensor, Photo

NS 56P0649 Cable
Assembly, Fuser Exit

NS 56P0620 Cable Assembly, Motor

NS 53P7923 Power Cord

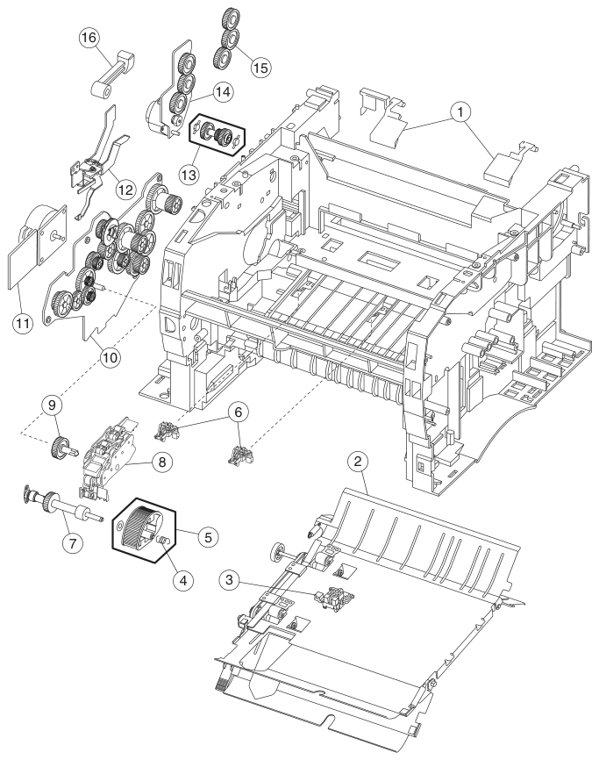

1 56P0677 Flags, Stack Control

2
56P0651 Duplex assembly (101, 102)
Fully refurbished with 90-day warranty
56P0651
$39.00



3 56P0645 Sensor, Photo

4 56P0618 Spring, D Roll

5
56P0656 Roll, Paper Feed
New
56P0656 (New)
$24.00



6 56P0655 2 Bracket, Paper Sensor

7
56P0657 Assembly Paper Feed
Fully refurbished with 90-day warranty
56P0657
$12.00



8
56P0654 Plate Assembly
Fully refurbished with 90-day warranty
56P0654
$24.00





9
56P0634 Gear Paper Feed
Fully refurbished with 90-day warranty
56P0634
$24.00



10
56P0633 Assembly, Drive
Fully refurbished with 90-day warranty
56P0633
$24.00





11
56P0632 Motor Assembly, Main Drive
Fully refurbished with 90-day warranty
56P0632
$34.00





12
56P0638 Cartridge coupling
Fully refurbished with 90-day warranty
56P0638
$24.00



13

14
56P0635 Assembly, Motor
Fully refurbished with 90-day warranty
56P0635
$24.00





15 56P0636 Gears, Spur

16 56P0639 Guide, Link

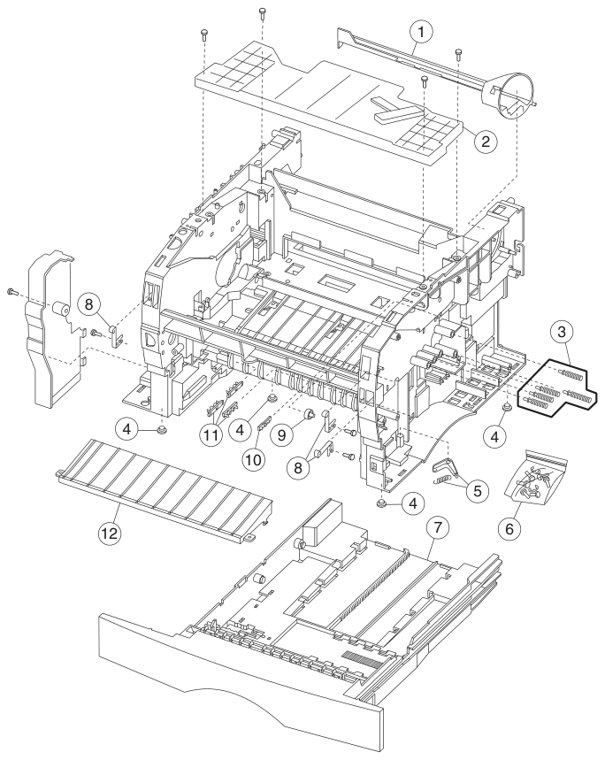

1 56P0606 Duct, Air

2
56P0623 Printhead Assembly
Fully refurbished with 90-day warranty
56P0623
$119.00





3
56P0629 Cartridge contact assembly (includes 5)
Fully refurbished with 90-day warranty
56P0629
$38.00



4 56P0662 Feet, Base

5 56P0661 Damper, Tray

6 56P0668 Parts Pack, (Screws and E Rings)

7
56P0609 Assembly Tray 1
Fully refurbished with 90-day warranty
56P0609
$47.00



8 56P0667 Latch, Door (Qty. 3)

9
56P0660 Paper guide roller
Fully refurbished with 90-day warranty
56P0660




10 56P0659 Bracket, Shutter

11 56P0672 Bracket, Body Tray (qty 3)

12
56P0658 Guide, Entrance
Fully refurbished with 90-day warranty
56P0658
$6.00

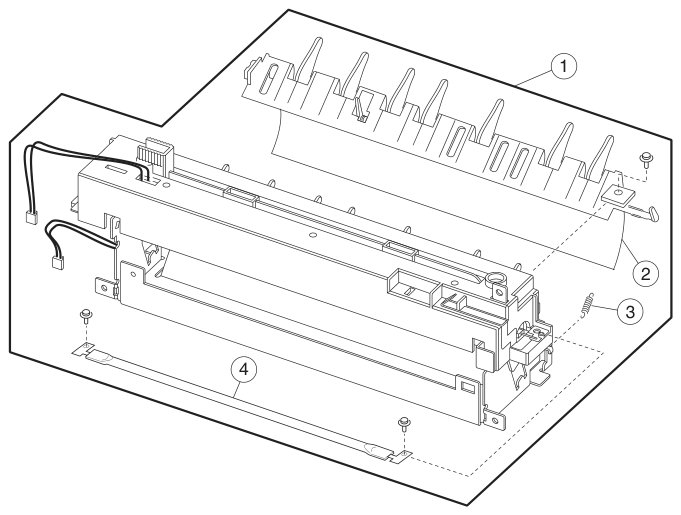

1
56P0648-I IBM Fuser Assembly 1221 1410
Fully refurbished with 90-day warranty
56P0648 Advanced Exchange



56P0648 Fuser Assembly 110V 1222 1410
New
56p0648 Compatible (New)
$95.00



2
56P0673 Fuser Assembly, Paper Guide
Fully refurbished with 90-day warranty
56P0673



3
56P0676 Fuser exit spring
Fully refurbished with 90-day warranty
56P0676



4 56P0646 Lamp, Fuser (110 V)
