IBM Infoprint 1228 (4928) Parts

Please call for parts assistance

Looking for whole machines?
View Printer Info

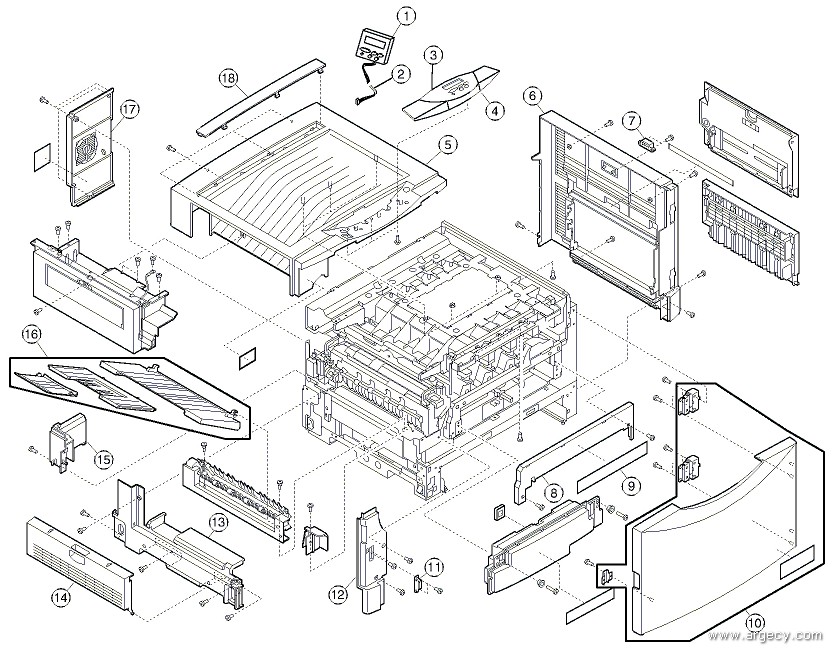

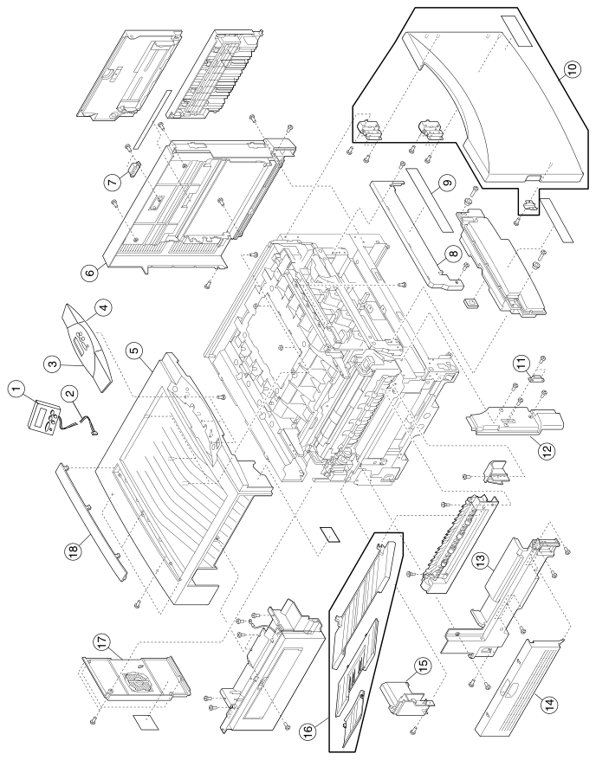

Assembly 1: Covers 1 1 53P9992 Board, Operator Panel 53P9992 Board Operator Panel New 53P9992 (New) $95.00 2 56P9736 Cable, Operator Panel 56P9736 Cable, operator panel Fully refurbished with 90-day warranty 56P9736 Contact for Details 56P9736 Cable operator panel New 56P9736 (New) $43.00 3 56P9555 Housing, Upper Operator Panel 56P9555 Housing Lower Op Panel New 56P9555 (New) Contact for Details 56P9555 Housing Lower Op Panel Fully refurbished with 90-day warranty 56P9555 Contact for Details 4 56P9556 Housing, Lower Operator Panel 56P9556 Housing, lower operator panel Fully refurbished with 90-day warranty 56P9556 Contact for Details 5 56P9539 Cover, Top 56P9539 Cover top New 56P9539 (New) Contact for Details 56P9539 top cover Fully refurbished with 90-day warranty 56P9539 Contact for Details 6 56P9533 Cover Assembly, Right Side 56P9533 Cover assembly right side New 56P9533 (New) Contact for Details 56P9533 Right Side Cover Fully refurbished with 90-day warranty 56P9533 Contact for Details 7 56P9534 Magnet, Right Side Latch 56P9534 right side magnet latch Fully refurbished with 90-day warranty 56P9534 Contact for Details 56P9534 Right Side Magnet Latch New 56P9534 (New) Contact for Details 8 56P9540 Cover, Waste Toner Bottle 56P9540 Waste Toner Bottle New 56P9540 (New) Contact for Details 56P9540 Waste Toner Bottle Fully refurbished with 90-day warranty 56P9540 Contact for Details 9 56P9545 Label, Operator Guide 10 56P0581 Cover Assembly, Front 11 56P9543 Magnet, Front Cover Latch 12 56P9542 Cover, Left Front 56P9542 Cover, left front New 56P9542 (New) Contact for Details 13 56P9536 Cover, Left Side 56P9536 Cover, left side Fully refurbished with 90-day warranty 56P9536 Contact for Details 56P9536 Cover left side New 56P9536 (New) Contact for Details 14 56P9537 Cover, Paper Feed 56P9537 Cover, paper feed Fully refurbished with 90-day warranty 56P9537 Contact for Details 56P9537 Cover paper feed New 56P9537 (New) Contact for Details 15 56P9535 Cover, Solenoid 56P9535 Cover, solenoid Fully refurbished with 90-day warranty 56P9535 Contact for Details 16 56P9531 Tray Assembly, Exit 56P9531 Tray assembly exit New 56P9531 (New) $61.00 56P9531 Tray Assembly, Exit Fully refurbished with 90-day warranty 56P9531 $34.00 17 56P9538 Cover, Rear 56P9538 Cover, rear New 56P9538 (New) Contact for Details 56P9538 Cover rear Fully refurbished with 90-day warranty 56P9538 Contact for Details 18 56P9551 Cover, Adjustment 56P9551 Cover, adjustment New 56P9551 (New) Contact for Details 56P9551 Cover adjustment Fully refurbished with 90-day warranty 56P9551 Contact for Details NS 56P9544 Label, MPT NS 56P9554 Core, Ferrite NS 56P9905 Kit, Operator Panel Overlay NS 56P9945 Parts Packet Parts Catalog 7-3

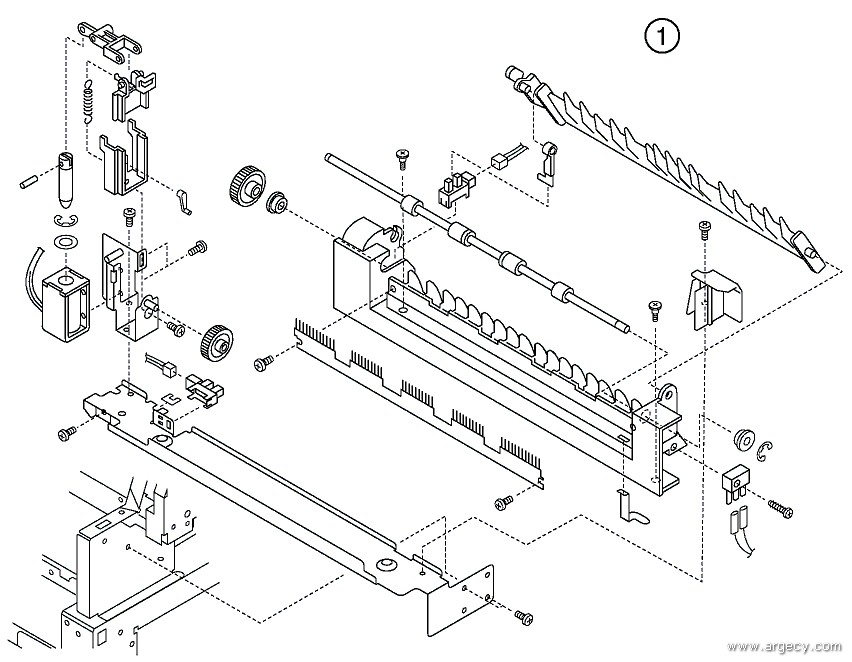

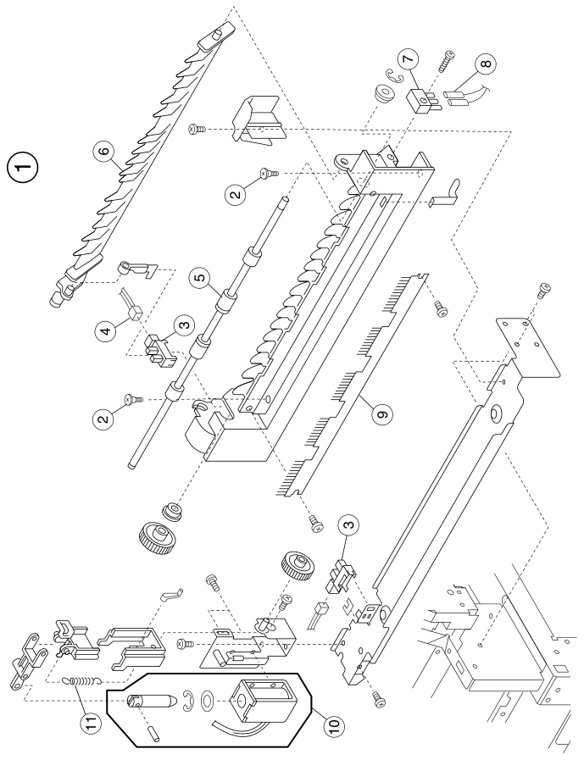

Assembly 2: Covers 2 1 56P9557 Exit Assembly, Face Up Lexmark 56P9557 Face Up Exit Assembly Fully refurbished with 90-day warranty 56P9557 Contact for Details Lexmark 56P9557 Face Up Exit Assembly New 56P9557 (New) Contact for Details 2 53P7053 Screw, Stopper 3 53P9972 Interrupter, Photo 4 56P9564 Cable, Face Up Sensor 5 56P9559 Roller, Paper Exit 6 56P9561 Deflector, Face Up 7 56P9502 Switch, Paper Exit Tray 56P9502 Switch Paper Exit Tray Fully refurbished with 90-day warranty 56P9502 Contact for Details 8 56P9565 Cable, Paper Exit Switch 9 56P9560 Brush, Face Up Static Discharge 10 56P9563 Solenoid Assembly, Face Up Deflector 11 56P9562 Spring, Face Up Deflector Parts Catalog 7-5

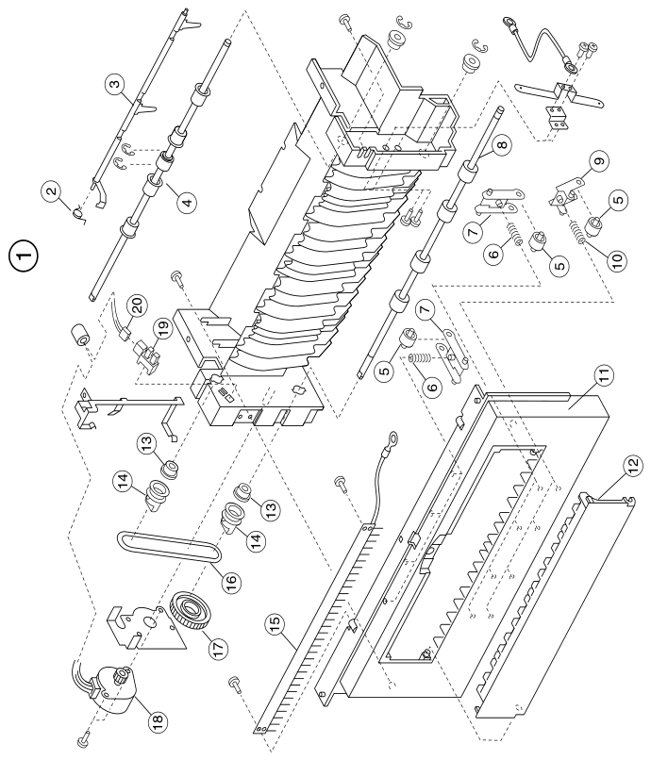

Assembly 3: Covers 3 1 56P9566 Guide Assembly, Face-Down Lexmark 56P9566 Guide assembly, face-down Fully refurbished with 90-day warranty 56P9566 Contact for Details Lexmark 56P9566 Guide assembly face-down New 56P9566 (New) Contact for Details 2 56P9572 Spring, Face Down Paper Full 3 56P9573 Lever, Face Down Paper Full 4 56P9574 Roller, Face Down Upper Feed 5 53P9970 Roller, Face Down Pinch 6 56P9568 Spring, Face Down Pinch Roller 7 56P9569 Arm, Face Down Pinch Roller 8 56P9577 Roller, Face Down Lower Feed 9 56P9571 Arm, Face Down Lower Pinch Roller 10 56P9570 Spring, Face Down Lower Pinch Roller 11 56P9583 Cover, Face Down 12 56P9567 Door, Face Down Jam Access 13 56P9575 Bushing, Face Down Pinch Roller 14 56P9576 Pulley, Face Down Feed Roller 15 56P9582 Brush, Face Down Static Discharge 16 56P9578 Belt, Face Down Roller 17 56P9579 Gear, Face Down Roller Drive 18 56P9580 Motor, Paper Exit 19 53P9971 Interrupter, Photo 20 56P9581 Cable Assembly, Exit Sensor Parts Catalog 7-7

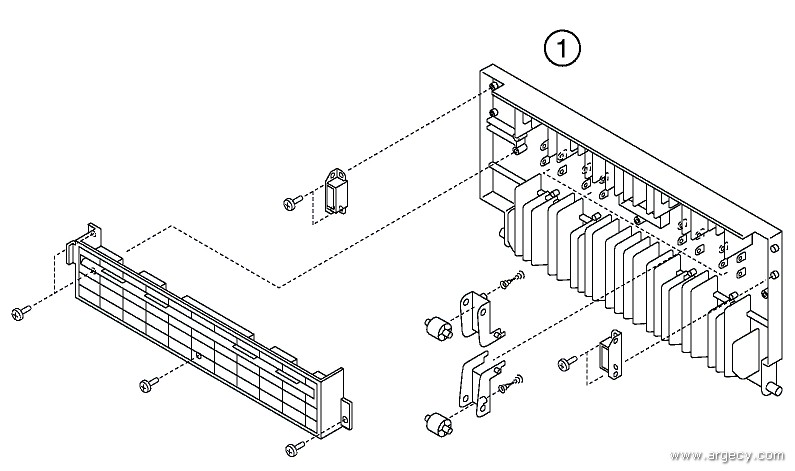

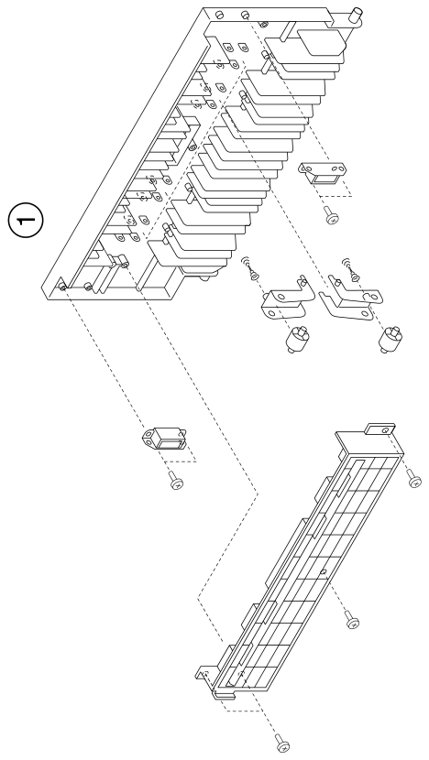

Assembly 4: Covers 4 1 56P9584 Guide Assembly, Turn Parts Catalog 7-9 56P9584 Turn Guide Assembly Fully refurbished with 90-day warranty 56P9584 $47.00 56P9584 Guide assembly, turn New 56P9584 (New) $95.00

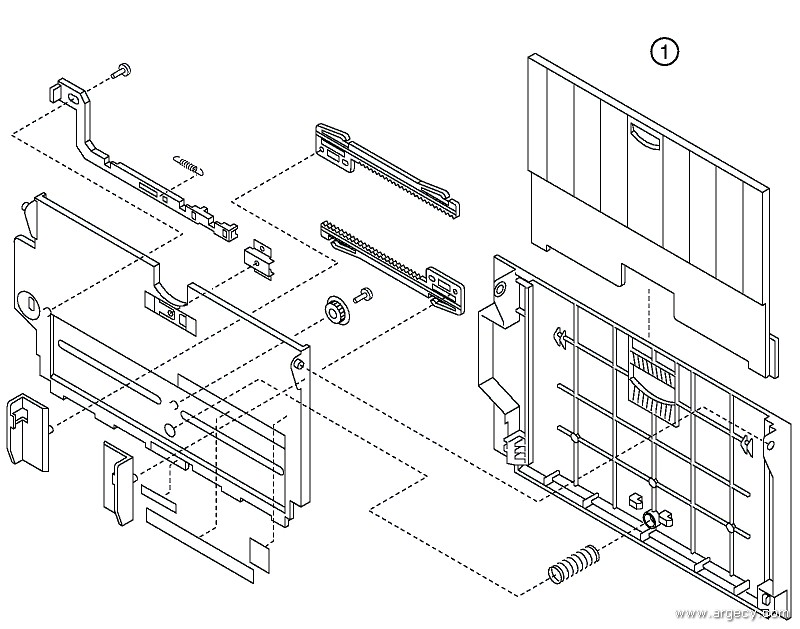

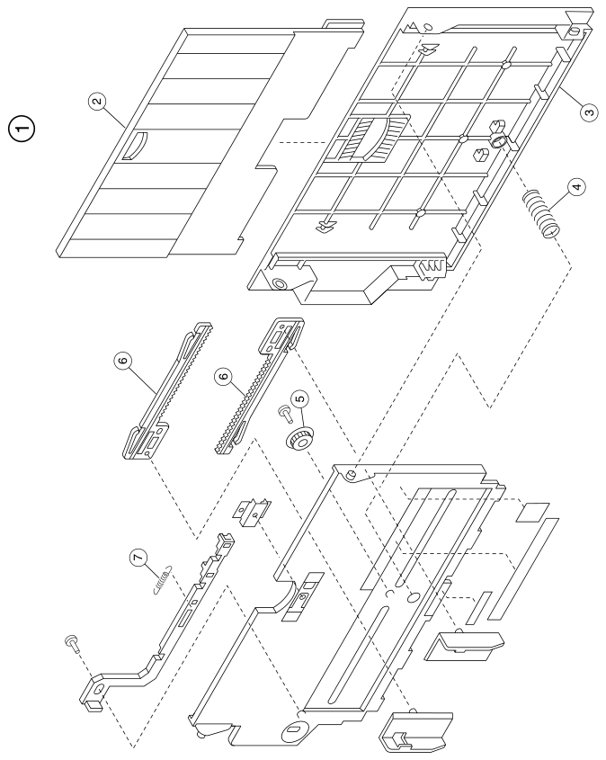

Assembly 5: Covers 5 1 56P9587 Feeder Assembly, Multipurpose 56P9587 Multipurpose feeder New 56P9587 (New) $157.00 56P9587 Multipurpose feeder Fully refurbished with 90-day warranty 56P9587 $59.00 1 56P9591 Frame, Upper 56P9591 Frame upper Fully refurbished with 90-day warranty 56P9591 Contact for Details 56P9591 Frame- upper New 56P9591 (New) Contact for Details 1 56P9664 Frame, Paper Feed 56P9664 Frame paper feed New 56P9664 (New) $288.00 56P9664 Paper Feed Frame Fully refurbished with 90-day warranty 56P9664 $145.00 2 56P9589 Extender, MPF 2 56P9620 Board, Printhead Controller 56P9620 Board, printhead controller New 56P9620 P622-HDCONT (D) (New) Contact for Details 56P9620 Board, Printhead Controller Fully refurbished with 90-day warranty 56P9620 P622-HDCONT (D) Contact for Details 2 56P9508 Bracket, Ground 3 56P9588 Cover, MPF 3 56P9638 Holder, Cable 3 56P9512 Roller Assembly, Paper Carrying 56P9512 Roller Assembly, Paper Carrying New 56P9512 (New) $76.00 4 56P9590 Spring, MPF 4 56P9600 Cable Assembly, K13 4 56P9511 Roller Assembly, Paper Feed 56P9511 C910 C912 Paper Feed Rollers 4 New 56P9511 18A1561 (New) Contact for Details 5 53P9968 Pinion, MPF 5 56P9601 Cable Assembly, K24 5 53P9972 Interrupter, Photo 6 53P9967 Rack, MPF 6 56P9602 Cable Assembly, CL13 6 56P9665 Sensor, Paper Feed 56P9665 Sensor Paper Feed Fully refurbished with 90-day warranty 56P9665 Contact for Details 7 53P9969 Spring, Feeder Lock 7 56P9603 Cable Assembly, CL24 7 56P9507 Actuator, Paper Feed Sensor 56P9507 Actuator Paper Feed Sensor New 56P9507 (New) Contact for Details 8 56P9716 Cable Assembly, 8 Pin PH Controller 8 56P9520 Handle, Waste Bottle Cam 56P9520 Handle Waste Bottle Cam Fully refurbished with 90-day warranty 56P9520 Contact for Details 9 56P9718 Cable Assembly, 30 Pin PH Controller 9 56P9517 Spring, Right Cassette Guide 56P9517 Spring Right Cassette Guide Fully refurbished with 90-day warranty 56P9517 Contact for Details 10 56P9717 Cable Assembly, 18 Pin PH Controller 10 56P9519 Guide, Lower Right Cassette 56P9519 Guide Lower Right Cassette Fully refurbished with 90-day warranty 56P9519 Contact for Details 11 56P9720 Cable Assembly, PH Controller Power 56P9720 Cable assembly- PH controller power New 56P9720 (New) Contact for Details 56P9720 Cable assembly PH controller power Fully refurbished with 90-day warranty 56P9720 Contact for Details 11 56P9516 Spring, Left Cassette Guide 56P9516 Spring Left Cassette Guide Fully refurbished with 90-day warranty 56P9516 Contact for Details 12 56P9637 Frame, Printhead Controller 56P9637 Frame, printhead controller New 56P9637 (New) $57.00 56P9637 Frame printhead controller Fully refurbished with 90-day warranty 56P9637 $38.00 12 56P9518 Guide, Lower Left Cassette 56P9518 Guide Lower Left Cassette Fully refurbished with 90-day warranty 56P9518 Contact for Details 13 56P9625 Hook, Right Link 13 56P9515 Guide, Upper Cassette 56P9515 Guide Upper Cassette Fully refurbished with 90-day warranty 56P9515 Contact for Details 14 56P9626 Cover, Hook 14 56P9503 Foot, Rubber 15 56P9628 Pivot, Color Link 56P9628 Pivot Color Ink Fully refurbished with 90-day warranty 56P9628 Contact for Details 56P9628 Pivot Color Ink New 56P9628 (New) Contact for Details 15 56P9641 Actuator, Front Cover Open Switch 56P9641 Actuator Frt Cover Open Switch Fully refurbished with 90-day warranty 56P9641 Contact for Details 16 56P9614 Spring, Return 16 56P9505 Rail, Base Left Side 56P9505 Right Slide Rail Fully refurbished with 90-day warranty 56P9505 Contact for Details 17 56P9618 Hook, Right 56P9618 Right Hook Fully refurbished with 90-day warranty 56P9618 Contact for Details 56P9618 Right Hook New 56P9618 (New) Contact for Details 17 56P9504 Rail, Base Right Side 56P9504 Rail Left Slide Fully refurbished with 90-day warranty 56P9504 Contact for Details 18 56P9615 Hook, Middle 56P9615 Hook Middle Fully refurbished with 90-day warranty 56P9615 Contact for Details 18 56P9521 Lever, Size Sensor 56P9521 lever size sensor Fully refurbished with 90-day warranty 56P9521 Contact for Details 19 56P9612 Bracket, Front Upper 56P9612 Bracket Front Upper Fully refurbished with 90-day warranty 56P9612 Contact for Details 19 56P9522 Board, Size Sensor 56P9522 Board- size sensor New 56P9522 (New) Contact for Details 20 56P9617 Hook, Left 56P9617 Hook Left Fully refurbished with 90-day warranty 56P9617 Contact for Details 20 56P9523 Cable Assembly, Size Sensor 21 56P9613 Rod, Interlocking 21 56P9642 Unit, Drive 56P9642 Unit drive New 56P9642 (New) Contact for Details 56P9642 Drive Unit Fully refurbished with 90-day warranty 56P9642 Contact for Details 22 56P9624 Link, Frame 56P9624 Link Frame Fully refurbished with 90-day warranty 56P9624 Contact for Details 22 56P9643 Clutch, Drive Unit 56P9643 Clutch drive unit New 56P9643 (New) Contact for Details 56P9643 Clutch Drive Unit Fully refurbished with 90-day warranty 56P9643 Contact for Details 23 56P9627 Bearing, Roller 56P9627 Bearing Roller Fully refurbished with 90-day warranty 56P9627 Contact for Details 23 56P9644 Cable Assembly, Drive Unit Sensor 24 56P9616 Handle, Upper Opening 24 56P9645 Sensor, Drive Unit Gear 56P9645 Sensor Drive Unit Fully refurbished with 90-day warranty 56P9645 $42.00 25 56P9630 Hook, Left Link 56P9630 Hook Left Link Fully refurbished with 90-day warranty 56P9630 Contact for Details 25 56P9663 Clutch, Belt Up/Down 56P9663 Clutch Belt Up Down New 56P9663 (New) Contact for Details 56P9663 Clutch Belt Up Down Fully refurbished with 90-day warranty 56P9663 $60.00 26 56P9611 Holder, Front Printhead 56P9611 printhead holder front Fully refurbished with 90-day warranty 56P9611 Contact for Details 26 56P9659 Sensor Assembly, Y Drum Gear 27 56P9608 Holder, Front HSP 56P9608 front hsp holder Fully refurbished with 90-day warranty 56P9608 Contact for Details 27 56P9660 Sensor Assembly, K Drum Gear 28 56P9609 Spring, Printhead 56P9609 printhead spring Fully refurbished with 90-day warranty 56P9609 Contact for Details 28 56P9654 Contact, Right Drum 29 56P9592 Rail, Left Side 56P9592 Left Slide Rail Fully refurbished with 90-day warranty 56P9592 Contact for Details 29 56P9653 Contact, Left Drum 30 56P9594 Cover, Eraser 30 56P9652 Contact (T) 31 56P9595 Lamp, M Erase 56P9595 Erase lamp M New 56P9595 (New) Contact for Details 31 56P9649 Contac t(G) 32 56P9596 Lamp, C Erase 56P9596 Erase lamp C New 56P9596 (New) Contact for Details 32 56P9648 Contac t (D) 33 56P9597 Lamp, Y Erase 56P9597 Erase lamp Y New 56P9597 (New) Contact for Details 33 56P9651 Contac t (S) 34 56P9598 Lamp, K Erase Parts Catalog 7-13 56P9598 Erase lamp K New 56P9598 (New) Contact for Details 34 56P9650 Contac t (K) Parts Catalog 7-17 35 56P9599 Printhead, LED 56P9599 LED printhead (set of 4) New 56P9599 (New) $399.00 56P9599 LED printhead (set of 4) Fully refurbished with 90-day warranty 56P9599 $299.00 35 56P9658 Sensor Assembly, K Toner Remaining 36 56P9610 Rail, Right Side 56P9610 right slide rail Fully refurbished with 90-day warranty 56P9610 Contact for Details 36 56P9646 Frame, Sub 56P9646 Frame Sub New 56P9646 (New) Contact for Details 56P9646 Sub Frame Fully refurbished with 90-day warranty 56P9646 Contact for Details 37 56P9593 Holder, Rear Printhead 56P9593 rear printhead holder Fully refurbished with 90-day warranty 56P9593 Contact for Details 37 56P9657 Sensor Assembly, Y Toner Remaining 38 56P9619 Bracket, Rear Upper 56P9619 Bracket Rear Upper Fully refurbished with 90-day warranty 56P9619 Contact for Details 56P9619 Bracket Rear Upper New 56P9619 (New) Contact for Details 38 56P9656 Sensor Assembly, C Toner Remaining 39 56P9622 Fan, Upper Right 56P9622 upper right fan Fully refurbished with 90-day warranty 56P9622 Contact for Details 39 56P9655 Sensor Assembly, M Toner Remaining 40 56P9623 Fan, Upper Left 56P9623 upper left fan Fully refurbished with 90-day warranty 56P9623 Contact for Details 40 56P9661 Rod, Lock 41 56P9621 Bracket, Fan Holder 56P9621 Bracket, fan holder New 56P9621 (New) $74.00 56P9621 Fan Holder Bracket Fully refurbished with 90-day warranty 56P9621 $29.00 41 56P9662 Shaft, Changing 42 56P9629 Link 56P9629 Frame Link Fully refurbished with 90-day warranty 56P9629 Contact for Details 42 56P9524 Slide Rail NS 56P9946 Parts Packet Parts Catalog 7-11 NS 56P9639 Connector, Upper 56P9639 Connector Upper Fully refurbished with 90-day warranty 56P9639 Contact for Details NS 56P9604 Core, Ferrite NS 56P9605 Cable Assembly, HDFG NS 56P9606 Cable Assembly, RSPFG NS 56P9607 Cable Assembly, LFG NS 56P9947 Parts Packet Parts Catalog 7-15 NS 56P9948 Parts Packet Parts Catalog 7-19

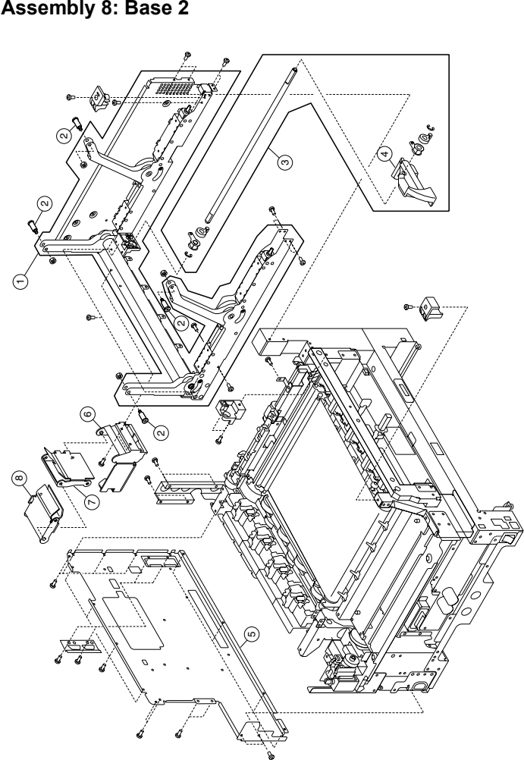

Assembly 8: Base 2 1 56P9666 Support Assembly, Upper Unit 56P9666 Support Assembly Upper Unit New 56P9666 (New) Contact for Details 56P9666 Support Assembly Upper Unit Fully refurbished with 90-day warranty 56P9666 Contact for Details 2 56P9667 Pin, Upper Unit Support 3 56P9668 Handle Assembly, Lock Lexmark 56P9668 Handle Assembly Lock New 56P9668 (New) Contact for Details Lexmark 56P9668 Handle Assembly Lock Fully refurbished with 90-day warranty 56P9668 Contact for Details 4 56P9669 Handle, Lock 56P9669 Handle- lock Fully refurbished with 90-day warranty 56P9669 Contact for Details 56P9669 Handle- lock New 56P9669 (New) Contact for Details 5 56P9673 Cover, Electronic 56P9673 Cover Electronic New 56P9673 (New) Contact for Details 56P9673 Cover Electronic Fully refurbished with 90-day warranty 56P9673 Contact for Details 6 56P9670 Shroud, Cable 7 56P9672 Guide, Cable 8 56P9671 Guide, Cable NS 56P9949 Parts Packet Parts Catalog 7-21

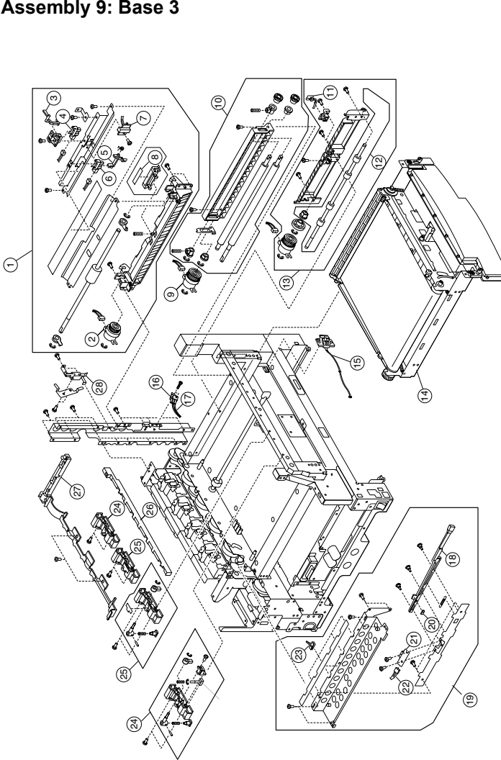

Assembly 9: Base 3 1 56P9688 Frame Assembly, MPF 1 56P9705 Cable Assembly, Feeder 2 56P9689 Clutch, MPF 2 56P9704 Cable Assembly, Paper Remaining Sensor 3 56P9690 Actuator, MPF 3 56P9700 Solenoid Assembly, Paper Feed 56P9700 Solenoid assembly paper feed New 56P9700 (New) Contact for Details 56P9700 paper feed solenoid Assembly Fully refurbished with 90-day warranty 56P9700 Contact for Details 4 53P9972 Interrupter, Photo 5 56P9691 Actuator, Resist 5 56P9702 Cable, Belt Up/Down Sensor 6 53P9971 Interrupter, Photo 6 56P9701 Board, Sensor 56P9701 Board, sensor New 56P9701 (New) $29.00 7 56P9899 Sensor, Upper Transparency 7 56P9703 Cable Assembly, Sensor Board 8 11G0283 Pad, Framing 8 56P9707 Switch, Power 56P9707 Switch Power Fully refurbished with 90-day warranty 56P9707 Contact for Details 9 56P9681 Clutch, Registration 56P9681 registration clutch Fully refurbished with 90-day warranty 56P9681 Contact for Details 9 56P9706 Cable, Power Switch 10 56P9680 Frame Assembly, Registration 56P9680 Frame assembly registration Fully refurbished with 90-day warranty 56P9680 $85.00 56P9680 Registration Frame Assembly New 56P9680 (New) $79.00 10 56P9709 Board, 120 V Motor Driver 56P9709 Motor Driver Card Fully refurbished with 90-day warranty 56P9709 $229.00 56P9709 Board, 120 V motor driver New 56P9709 (New) $456.00 10 56P9710 Board, 230 V Motor Driver 11 56P9898 Sensor, Lower Transparency 11 56P9739 Cable Asm., Conditioning Printer Controller 12 56P9683 Roller Assembly, Upper Carrying 56P9683 Carrying Roller assembly New 56P9683 (New) Contact for Details 12 56P9742 Board, Heater Drive 56P9742 Board, heater drive Fully refurbished with 90-day warranty 56P9742 Contact for Details 56P9742 Board heater drive New 56P9742 (New) Contact for Details 13 56P9682 Frame Assembly, Carrying 56P9682 Frame assembly, carrying New 56P9682 (New) Contact for Details 56P9682 carrying frame Assembly Fully refurbished with 90-day warranty 56P9682 Contact for Details 13 56P9741 Resistor, Conditioning (230 V only) 14 56P9738 Cable Assembly, Conditioning Joint (230 V 15 56P9696 Cable Assembly, Belt Thermistor 15 56P9943 Fuse, Thermal (230 V only) 16 56P9502 Sensor, Turn Guide Door 56P9502 Switch Paper Exit Tray Fully refurbished with 90-day warranty 56P9502 Contact for Details 16 56P9698 Motor Assembly, 120 V 56P9698 Drive Motor Assembly Fully refurbished with 90-day warranty 56P9698 Contact for Details 56P9698 Motor assembly 120 V New 56P9698 (New) Contact for Details 16 56P9699 Motor Assembly, 230 V 17 56P9695 Cable, Turn Guide Door Sensor 17 56P9740 Cable, Conditioning Resistor 18 56P9679 Rod Cleaner 18 56P9713 Fan, Power Supply 56P9713 Power Suppply Fan New 56P9713 (New) $29.00 56P9713 Power Suppply Fan Fully refurbished with 90-day warranty 56P9713 Contact for Details 19 56P9674 Guide Assembly, Fuser Entrance 56P9674 Guide assembly fuser entrance New 56P9674 (New) Contact for Details 56P9674 Fuser Entrance Guide Assembly Fully refurbished with 90-day warranty 56P9674 Contact for Details 19 56P9708 Cable Assembly, Duplex Connector 20 56P9678 Sensor Cleaner 20 56P9722 Power Supply, 120 V (1) 56P9722 120V Power Supply Fully refurbished with 90-day warranty 56P9722 Contact for Details 56P9722 Power supply 120 V New 56P9722 (New) Contact for Details 20 56P9723 Power Supply, 230 V (1) 21 56P9676 Sensor, Density 56P9676 Sensor New 56P9676 (New) $87.00 56P9676 Density Sensor Fully refurbished with 90-day warranty 56P9676 $47.00 21 56P9737 Insulator, Sheet 22 56P9677 Cable, Density Sensor 22 56P9711 Cable, THB Drawer 22 56P9712 Cable, THB Drawer (EMEA) 23 53P7054 Pawl, Separation 23 56P9728 Board, Printer Controller 56P9728 Controller Card New 56P9728 (New) Contact for Details 56P9728 Controller Card Fully refurbished with 90-day warranty 56P9728 Contact for Details 24 56P9684 Frame Assembly, F1 Sub 24 56P9729 EPROM, Printer Controller 56P9729 EPROM, controller New 56P9729 (New) Contact for Details 25 56P9685 Frame Assembly, F2 Sub 56P9685 Frame Assembly- F2 sub New 56P9685 (New) Contact for Details 56P9685 Frame Assembly- F2 sub Fully refurbished with 90-day warranty 56P9685 Contact for Details 25 56P9732 Belt, Power Supply 26 56P9686 Rod, Lock 56P9686 Rod Lock Fully refurbished with 90-day warranty 56P9686 Contact for Details 26 56P9734 HCF/Finisher D-sub Assembly 27 56P9687 Cover, Gear 56P9687 Cover Gear Fully refurbished with 90-day warranty 56P9687 Contact for Details 27 56P9731 Cable Assembly, Finisher 28 56P9693 Stopper, Clutch 56P9693 Stopper Clutch Fully refurbished with 90-day warranty 56P9693 Contact for Details 56P9693 Stopper Clutch New 56P9693 (New) Contact for Details 28 56P9730 Cable Assembly, HCF NS 56P9697 Bushing NS 56P9692 Cable Assembly, Reg MPF Sensor NS 56P9950 Parts Packet Parts Catalog 7-23 56P9950 Screws, E-Rings, Spring Pins Parts Packet New 56P9950 (New) $72.00 56P9950 Screws E-Rings Spring Pins Parts Packet Fully refurbished with 90-day warranty 56P9950 Contact for Details NS 56P9964 Transformer, Power (Japan only) Parts Catalog 7-25

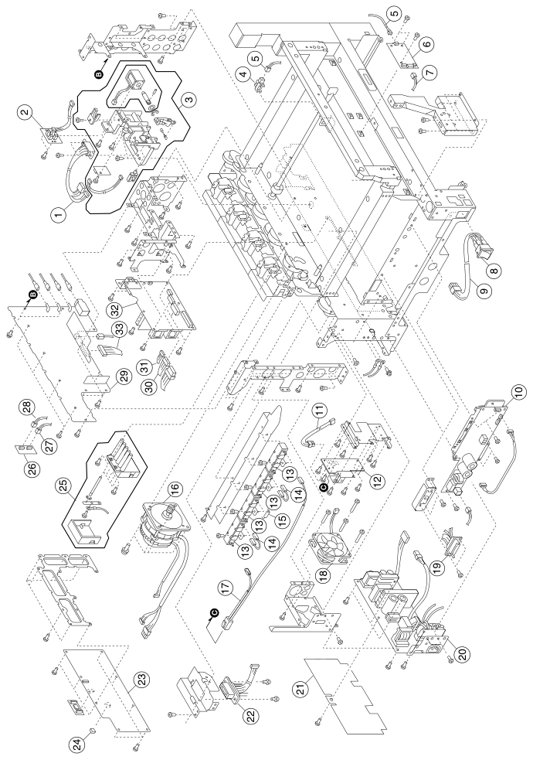

Assembly 10: Electrical (Continued) 29 56P9714 Board, High Voltage Power Supply 56P9714 Board, high voltage power supply HVPS New 56P9714 P621-HVU (New) $364.00 56P9714 High Voltage Power Supply HVPS Fully refurbished with 90-day warranty 56P9714 P621-HVU $165.00 30 56P9727 Cable Assembly, Printer Controller Power 2 31 56P9726 Cable Assembly, Printer Controller Power 1 32 56P9724 Power Supply, 120 V (2) 56P9724 Power Supply Fully refurbished with 90-day warranty 56P9724 $95.00 32 56P9725 Power Supply, 230 V (2) 33 56P9715 Cable High Voltage Power Supply Board NS 53P7101 Power Cord - USA, Canada, APG, LAD 53P7101 Scanner Shelf New 53P7101 (New) Contact for Details NS 53P7102 Power Cord - Peru NS 53P7103 Power Cord - Argentina NS 53P7104 Power Cord - Brazil NS 53P7105 Power Cord - Chile NS 53P7106 Power Cord - Denmark NS 53P7107 Power Cord - Belgium, Europe, England, NS 53P7108 Power Cord - Italy NS 53P7109 Power Cord - Swiss/French, German, Italian NS 53P7110 Power Cord - UK, Israel, South Africa NS 56P9951 Parts Packet Parts Catalog 7-27

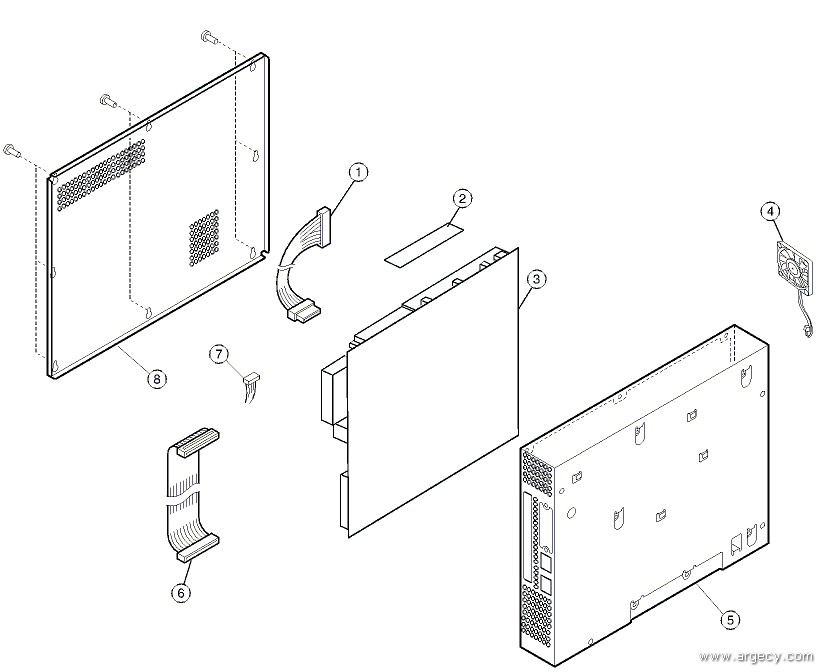

Assembly 11: Rip Board 1 56P9749 Cable Assembly, Power RIP 2 56P9916 Card, Riser 56P9916 Riser Card Fully refurbished with 90-day warranty 56P9916 Contact for Details 3 56P0103 Board, RIP Controller 4 56P9750 Fan, RIP 56P9750 RIP box fan Fully refurbished with 90-day warranty 56P9750 $38.00 56P9750 Fan RIP New 56P9750 (New) $54.00 5 56P9745 Box, RIP 56P9745 Box RIP Fully refurbished with 90-day warranty 56P9745 Contact for Details 56P9745 Box, RIP New 56P9745 (New) Contact for Details 6 56P9719 Cable Assembly, 80 Pin RIP Printer Controller 56P9719 Cable assembly, 80 pin RIP controller New 56P9719 (New) Contact for Details 56P9719 Cable assembly 80 pin RIP controller Fully refurbished with 90-day warranty 56P9719 Contact for Details 7 56P9736 Cable, Operator Panel 56P9736 Cable, operator panel Fully refurbished with 90-day warranty 56P9736 Contact for Details 56P9736 Cable operator panel New 56P9736 (New) $43.00 8 56P9746 Cover, RIP Box NS 56P9747 Cable Assembly, Power MAC NS 56P9748 Cable Assembly, MIF NS 56P0104 Board, RIP Controller (Network) 56P0104 RIP Board for IBM 1228 (4928) Fully refurbished with 90-day warranty 56P0104 $380.00 NS 53P9924 Card, SDRAM DIMM NS 56P9910 Card Assembly, 128MB SDRAM memory 56P9910 128MB SDRAM card assembly New 56P9910 (New) $16.56 56P9910 128MB SDRAM card assembly Fully refurbished with 90-day warranty 56P9910 $45.00 NS 56P9911 Card Assembly, 256MB SDRAM memory NS 56P9912 Card Assembly, 4MB Flash DIMM memory NS 56P9913 Card Assembly, 8MB Flash DIMM memory NS 56P9914 Card Assembly, 16MB Flash DIMM memory NS 53P9938 Hard Disk, 5+ GB w/Mounting Kit (formatted) 53P9938 Guide Assembly Left Side New 53P9938 (New) $12.00 53P9938 Guide Assembly Left Side Fully refurbished with 90-day warranty 53P9938 Contact for Details NS 56P8754 Card, Token-Ring (INA) NS 53P8752 Card, Ethernet 10/100Base-TX (INA) 53P8752 N2001e 10/100BaseTX Card New 53P8752 (New) Contact for Details 53P8752 10/100 Ethernet adapter Fully refurbished with 90-day warranty 53P8752 Contact for Details NS 53P8753 Card, Ethernet 10BaseT/2 (INA) NS 56P0161 Card, RS-232C Serial/Parallel 1284 A-C 56P0161 INA, Serial & Parallel Internal Adapter Card New 56P0161 (New) Retired, no longer available: Contact for alternatives Contact for Details 56P0161 INA, Serial & Parallel Internal Adapter Card Fully refurbished with 90-day warranty 56P0161 Contact for Details NS 53P8776 Card, Tri-Port Adapter NS 53P9966 Card, Infrared Adapter NS 53P9085 Card, External Serial Adapter NS 56P0159 Card, Coax/Twinax Adapter for SCS 56P0159 Coax/Twinax Adapter New 56P0159 (New) Contact for Details 56P0159 Coax/Twinax Adapter Fully refurbished with 90-day warranty 56P0159 $245.00 NS 56P0162 Adapter, Parallel 1284 C-B 56P0162 Cable parallel 1284 C-B adapter New 56P0162 (New) Contact for Details 56P0162 Cable parallel 1284 C-B adapter Fully refurbished with 90-day warranty 56P0162 Contact for Details NS 53P8859 Cable, Twinax 53P8859 Twinax Cable Fully refurbished with 90-day warranty 53P8859 Contact for Details NS 53P8860 Cable, Coax 53P8860 Coax adapter cable Fully refurbished with 90-day warranty 53P8860 Contact for Details NS 56P0598 Card, CGM Parts Catalog 7-29

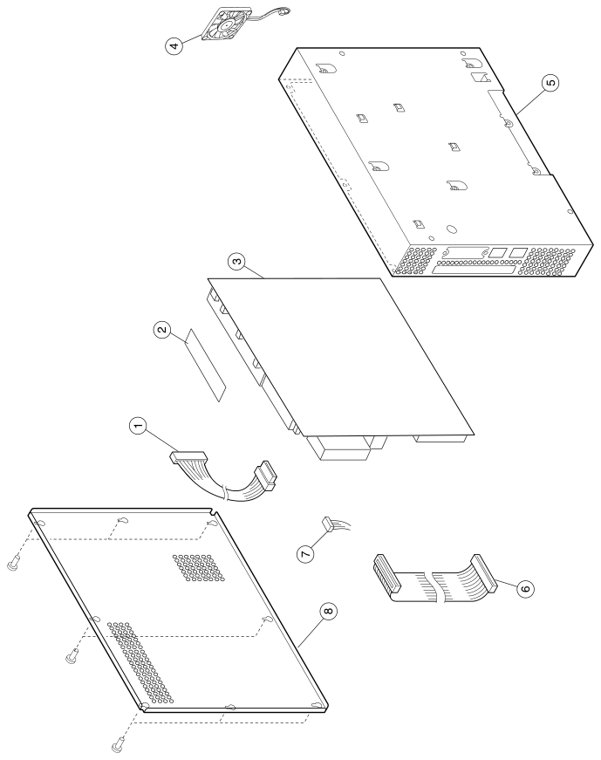

Assembly 11: RIP Board (Continued) NS 56P9922 IPDS/SCSS/TNe NS 56P9923 Card, ImageQuick_ NS 56P9924 Card, Bar Code NS 56P9928 DIMM, Lexmark Forms 4MB Flash NS 56P9929 DIMM, Lexmark Forms 8MB Flash NS 56P9930 DIMM, Lexmark Forms 16MB Flash NS 56P9932 Hard Disk, Lexmark Forms 5+ GB NS 56P9942 Mounting Kit, Hard Drive NS 56P9952 Parts Packet Parts Catalog 7-31

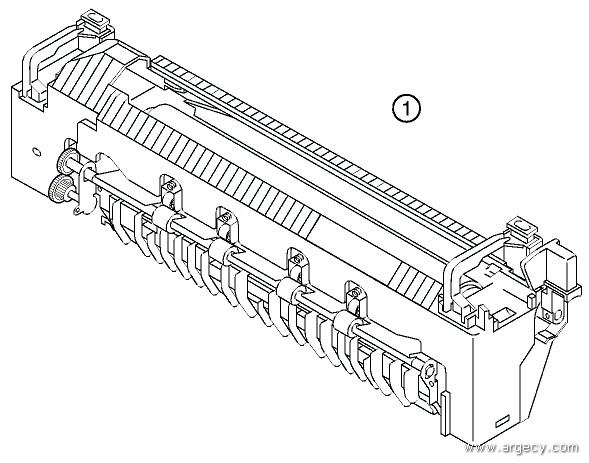

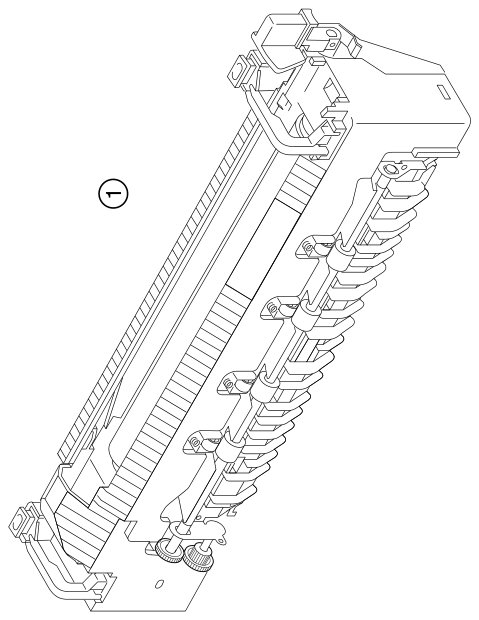

Assembly 12: Fuser Unit NS 56P9953 Parts Packet Parts Catalog 7-33

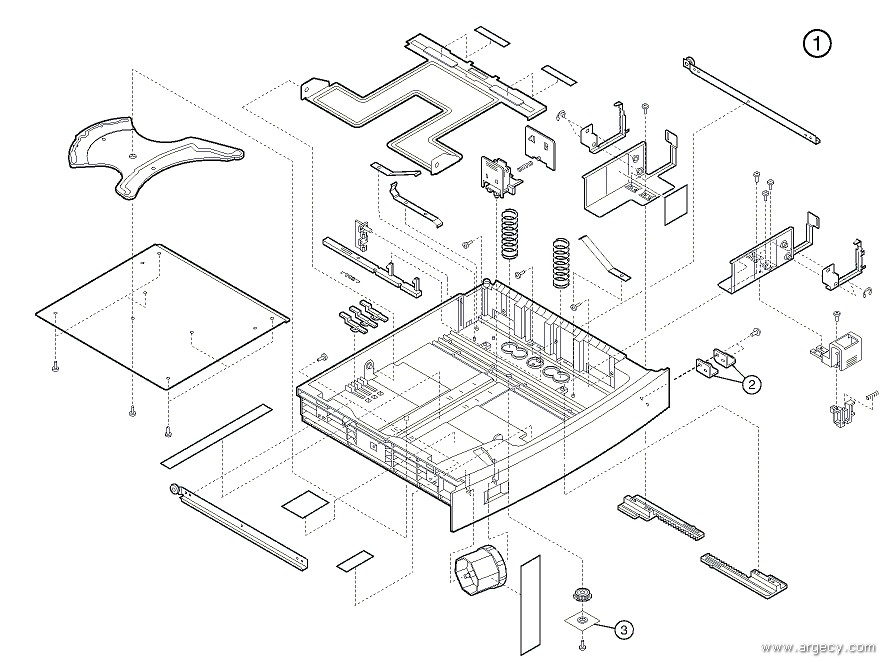

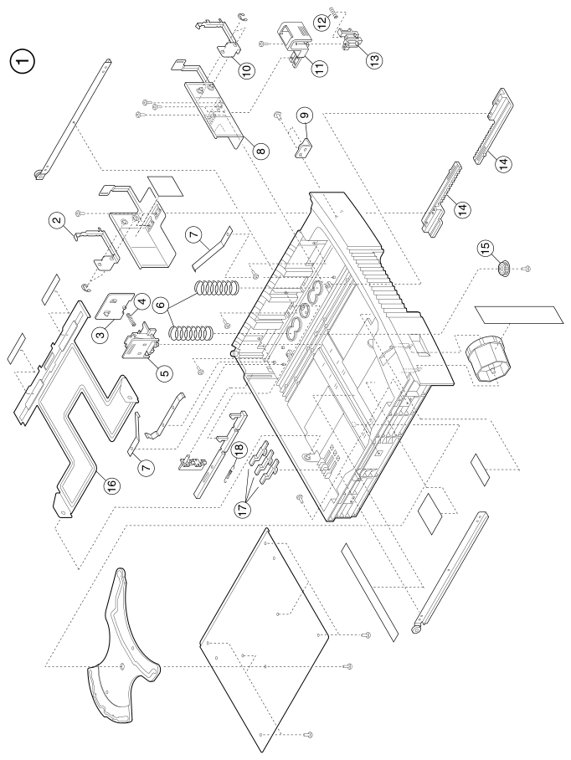

Assembly 13: Cassette 1 56P9500 Cassette, Paper Feed 56P9500 Paper Tray New 56P9500 (New) Contact for Details 1 53P7940 Guide, Wire 1 56P9796 Roller Assembly, Carrying 2 56P9761 Pawl, Rear 2 56P9773 Gear, Feeder E 2 56P9514 Roller, Noise Reduction 3 56P9754 Plate, Right Rear Location 3 56P9771 Gear, Feeder C 3 56P9513 Bushing, Carrying 4 56P9755 Spring, Location Plate 4 53P9978 Gear, Feeder B 4 56P9509 Bushing, Metal 5 56P9753 Plate, Left Rear Location 5 56P9772 Gear, Feeder D 5 56P9790 Roller, Paper Carrying 6 56P9763 Spring, A Push Up 6 53P9979 Gear, Feeder A 6 56P9792 Holder, Roller 7 56P9764 Spring, B Push Up 7 56P9770 Cover, Right Side C 7 56P9791 Spring, Paper Carrying 8 56P9757 Locator, Front Side 8 56P9769 Cover, Right Side B 8 56P9794 Spring, Right Turn Guide 9 56P9944 Guide, Stop 9 56P9767 Cover, Right Side A 9 56P9789 Guide, Turn 10 56P9758 Pawl, Front 10 56P9765 Cover, Front Feeder 10 56P9517 Spring, Right Cassette Guide 56P9517 Spring Right Cassette Guide Fully refurbished with 90-day warranty 56P9517 Contact for Details 11 56P9759 Lock, A Side 11 56P9504 Rail, Left Side 56P9504 Rail Left Slide Fully refurbished with 90-day warranty 56P9504 Contact for Details 11 56P9519 Guide, Lower Right Cassette 56P9519 Guide Lower Right Cassette Fully refurbished with 90-day warranty 56P9519 Contact for Details 12 53P9973 Spring, Lock 12 56P9524 Screw, Slide Rail 12 56P9516 Spring, Left Cassette Guide 56P9516 Spring Left Cassette Guide Fully refurbished with 90-day warranty 56P9516 Contact for Details 13 56P9760 Lock, B Side 13 56P9503 Foot, Rubber 13 56P9518 Guide, Lower Left Cassette 56P9518 Guide Lower Left Cassette Fully refurbished with 90-day warranty 56P9518 Contact for Details 14 56P9756 Rack, PF Cassette 14 56P9505 Rail, Right Side 56P9505 Right Slide Rail Fully refurbished with 90-day warranty 56P9505 Contact for Details 14 56P9515 Guide, Upper Cassette 56P9515 Guide Upper Cassette Fully refurbished with 90-day warranty 56P9515 Contact for Details 15 53P9968 Pinion, PF Cassette 15 53P9977 Plate, Ground 15 53P9983 Interrupter, Photo 16 56P9762 Plate, Lower 16 56P9766 Cover, Left Side 16 56P9786 Spring, Paper Detection Sensor 17 53P9976 Sensor, Actuator 17 56P9522 Board, Size Sensor 56P9522 Board- size sensor New 56P9522 (New) Contact for Details 17 56P9784 Actuator, Paper Detection 18 53P9969 Spring, Tray Lock 18 56P9521 Lever, Size Sensor 56P9521 lever size sensor Fully refurbished with 90-day warranty 56P9521 Contact for Details 18 56P9787 Cable, Paper Present Sensor 19 56P9779 Board, Expansion Feeder Control 19 56P9785 Cover, Paper Present Sensor 20 56P9768 Cover, Rear 20 56P9788 Guide, HCF 56P9788 Guide- HCF New 56P9788 (New) Contact for Details 56P9788 Guide- HCF Fully refurbished with 90-day warranty 56P9788 Contact for Details 21 56P9776 Board, Paper Remaining Sensor 21 56P9795 Cable, Paper Present Sensor 22 56P9778 Cable Assembly, Lower Optional Drawer 56P9778 Cable assembly- lower optional drawer New 56P9778 (New) Contact for Details 56P9778 Cable assembly- lower optional drawer Fully refurbished with 90-day warranty 56P9778 Contact for Details 22 53P9971 Interrupter, Photo 23 56P9777 Cable Assembly, Upper Optional Drawer 56P9777 Cable assembly- upper optional drawer New 56P9777 (New) Contact for Details 56P9777 Cable assembly- upper optional drawer Fully refurbished with 90-day warranty 56P9777 Contact for Details 23 56P9510 Shaft, Paper Feed 24 56P9774 Motor, Feeder Drive 56P9774 Motor, feeder drive New 56P9774 (New) Contact for Details 56P9774 Motor feeder drive Fully refurbished with 90-day warranty 56P9774 Contact for Details 24 56P9782 Spring, Solenoid 25 56P9783 Solenoid, Feeder 26 56P9781 Lever, Clutch 27 56P9511 Roller Assembly, Paper Feed 56P9511 C910 C912 Paper Feed Rollers 4 New 56P9511 18A1561 (New) Contact for Details 28 56P9506 Frame, Paper Feed 29 56P9508 Bracket, Ground 30 53P9974 Clutch, Paper Feed 31 56P9797 Cover, Gear 32 53P9975 Gear, Paper Carrying 33 56P9793 Spring, Left Turn Guide 34 56P9507 Actuator, Paper Feed Sensor 56P9507 Actuator Paper Feed Sensor New 56P9507 (New) Contact for Details NS 56P9954 Parts Packet Parts Catalog 7-35 NS 56P9775 Cable Assembly, Size Sensor NS 56P9955 Parts Packet Parts Catalog 7-37 NS 56P9956 Parts Packet Parts Catalog 7-39

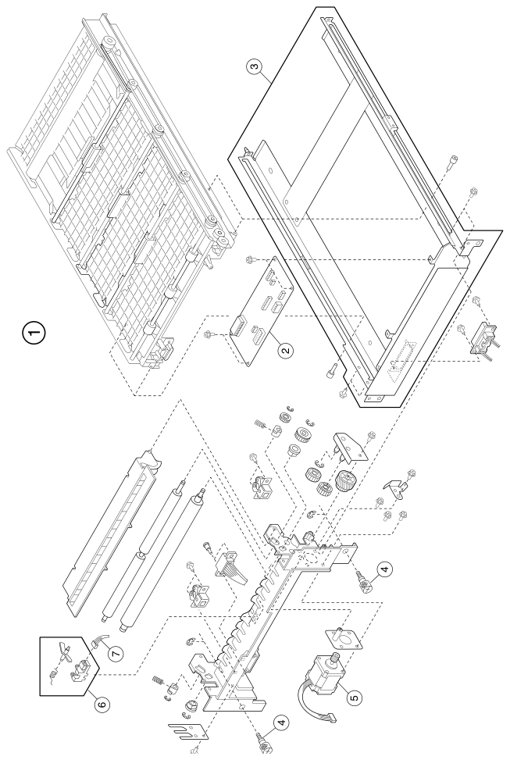

Assembly 16: Duplex Unit 1 1 56P9798 Duplex Assembly 1 56P9825 Plate, Paper Re-Feed Drawer 56P9825 Plate- paper re-feed drawer New 56P9825 (New) Contact for Details 56P9825 Plate- paper re-feed drawer Fully refurbished with 90-day warranty 56P9825 Contact for Details 2 56P9804 Board, Duplex Interface 2 56P9827 Guide, Rear Side 56P9827 Guide- rear side New 56P9827 (New) Contact for Details 56P9827 Guide- rear side Fully refurbished with 90-day warranty 56P9827 Contact for Details 3 56P9799 Frame, Duplex 3 56P9826 Guide, Front Side 56P9826 Guide- front side New 56P9826 (New) Contact for Details 56P9826 Guide- front side Fully refurbished with 90-day warranty 56P9826 Contact for Details 4 56P9800 Screw, Duplex Mounting 4 56P9830 Solenoid Assembly, Paper Re-feed 5 56P9803 Motor, Duplex Stepping 5 56P9814 Bearing, Release 6 56P9525 Interrupter, Photo 6 56P9816 Spring, Re-feed Roller 7 56P9806 Cable Assembly, Paper Detection 7 56P9813 Roll, Release 8 56P9525 Interrupter Assembly, Photo 9 56P9828 Motor Assembly, Paper Guide 56P9828 Motor assembly- paper guide New 56P9828 (New) Contact for Details 56P9828 Motor assembly- paper guide Fully refurbished with 90-day warranty 56P9828 Contact for Details 10 56P9808 Interrupter, Photo 11 56P9526 Spring, Feed Roller 12 56P9815 Spring, Feed Roller 13 56P9829 Solenoid Assembly, Feed Roller 14 56P9831 Cable Assembly, Duplex Drawer 15 56P9810 Roller, Follow-up Feed 16 56P9527 Gear, Idler 17 56P9817 Gear, Carrying Roller 56P9817 Gear- carrying roller New 56P9817 (New) Contact for Details 18 56P9818 Pulley, Carrying Roller Timing 19 56P9819 Pulley, Feed Roller 20 56P9822 Belt, Timing 21 56P9823 Belt, Timing 22 56P9821 Knob, Paper Re-feed 23 56P9820 Pulley, Re-feed Roller 24 56P9809 Roller, Drive Feed 25 56P9824 Plate, Paper Carrying Drawer 56P9824 Plate- paper carrying drawer New 56P9824 (New) Contact for Details 56P9824 Plate- paper carrying drawer Fully refurbished with 90-day warranty 56P9824 Contact for Details 26 56P9811 Roller, Middle Feed 27 56P9812 Roller, Re-feed NS 56P9807 Cable Assembly, Duplex Interface 56P9807 Cable assembly- duplex interface New 56P9807 (New) Contact for Details 56P9807 Cable assembly- duplex interface Fully refurbished with 90-day warranty 56P9807 Contact for Details NS 56P9805 Cable Assembly, Duplex Connection Parts Catalog 7-41 NS 56P9957 Parts Packet Parts Catalog 7-43

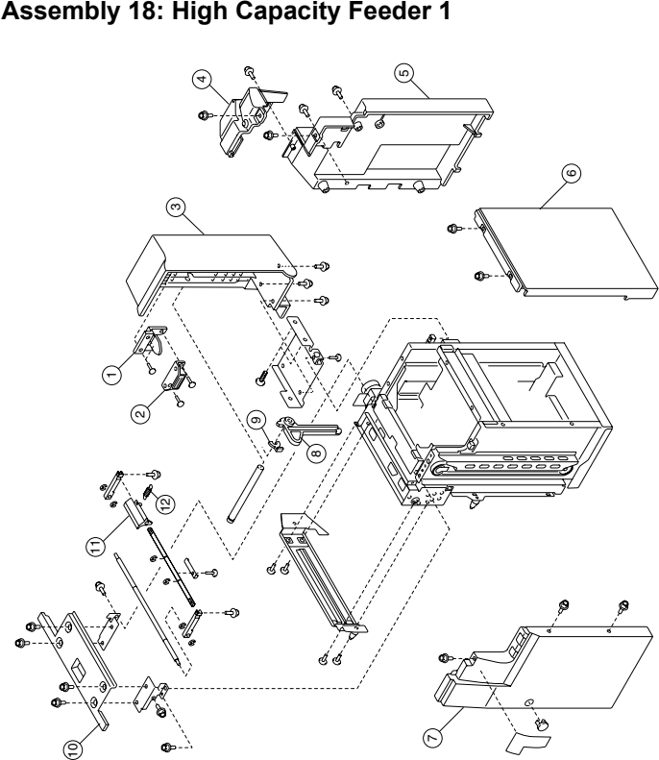

Assembly 18: High Capacity Feeder 1 1 56P9838 Catch, Door 2 56P9835 Magnet, Latch 3 56P9837 Cover, Upper 4 56P9834 Cover, Upper Rear 5 56P9843 Cover, Lower Rear 6 56P9839 Cover, Right 7 56P9833 Cover, Front 8 56P9836 Fence, End 9 56P9940 Ring, Snap 10 56P9841 Cover Assembly, Upper 11 56P9840 Lever, Vertical Transport 12 56P9842 Spring, Tension NS 56P9958 Parts Packet Parts Catalog 7-45

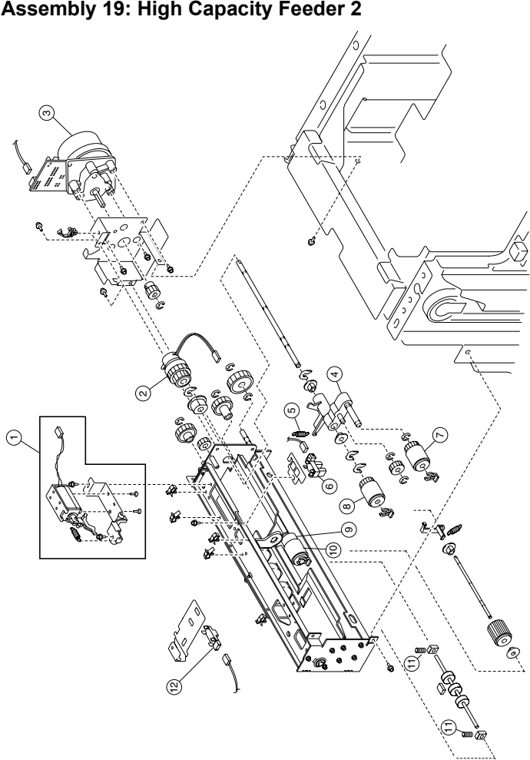

Assembly 19: High Capacity Feeder 2 1 56P9846 Solenoid Assembly, Paper Pickup 2 56P9848 Clutch, Paper Feed 3 56P9844 Motor Assembly, Transport 4 56P9941 Arm, Pick-up 5 56P9501 Spring, Pressure 6 56P9528 Interrupter, Photo 7 56P9849 Roller, Manual Feed Pickup 8 56P9850 Roller, Manual Feed 9 56P9852 Limiter, Torque 10 56P9851 Roller, Manual Feed Separate 11 56P9847 Spring, Compression 12 56P9845 Sensor Assembly, Paper Feed NS 56P9959 Parts Packet Parts Catalog 7-47

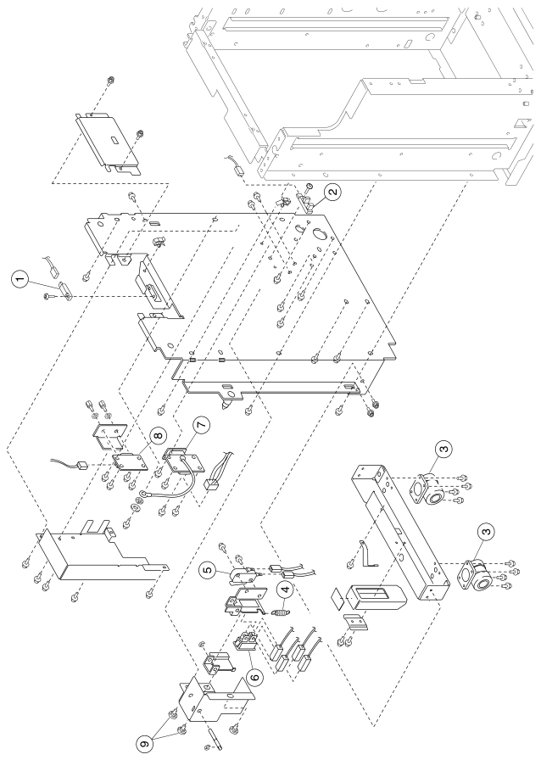

Assembly 20: High Capacity Feeder 3 1 56P9854 Sensor Assembly, Photo 2 56P9855 Interrupter, Photo 3 56P9529 Caster, HCF 4 56P9856 Spring, Tension 5 56P9857 Switch, Micro 6 56P9530 Switch, Push 7 56P9859 Connector, Inlet 8 56P9858 Connector, I/F 9 56P9853 Screw, Shoulder NS 56P9960 Parts Packet Parts Catalog 7-49

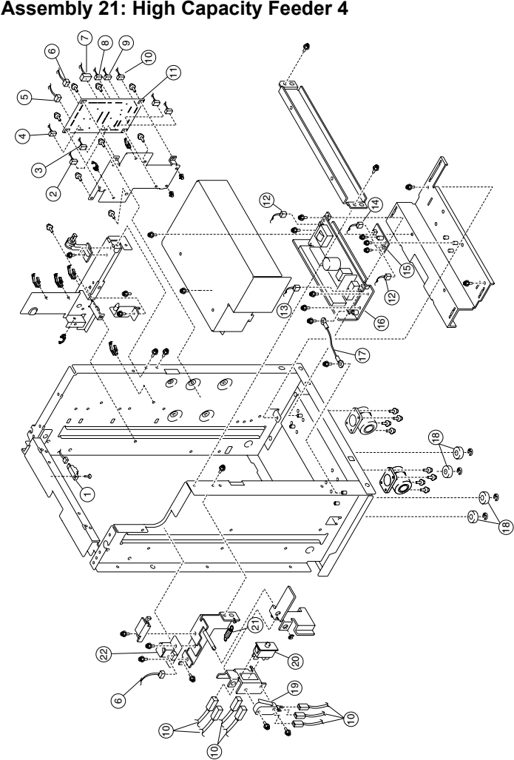

Assembly 21: High Capacity Feeder 4 1 56P9541 Sensor, Resistor 2 56P9875 Cable Assembly, Safety Switch 3 56P9865 Cable Assembly, HCF Motor 4 56P9871 Cable Assembly, I/F 5 56P9866 Cable Assembly, Paper Feed Sensor 6 56P9880 Cable, Up/Down Switch 7 56P9879 Cable, Paper Volume 8 56P9878 Cable Assembly, Sensor 9 56P9877 Cable Assembly, Paper Size Sensor 10 56P9876 Cable Assembly, Lift Motor 11 56P9868 Board, High Capacity Feed 12 56P9873 Cable Assembly, Power Supply Out 13 56P9872 Cable Assembly, Power Supply In 14 56P9874 Cable Assembly, Power Supply 15 56P9870 Converter, DC/DC 16 56P9869 Power Supply, HCF 17 56P9867 Cable Assembly, Drawer Ground 18 56P9861 Roller, Track 19 56P9864 Switch, Micro 20 56P9530 Switch, Push 21 56P9501 Spring, Pressure Pickup 22 56P9863 Switch, HCF Push NS 56P9961 Parts Packet Parts Catalog 7-51

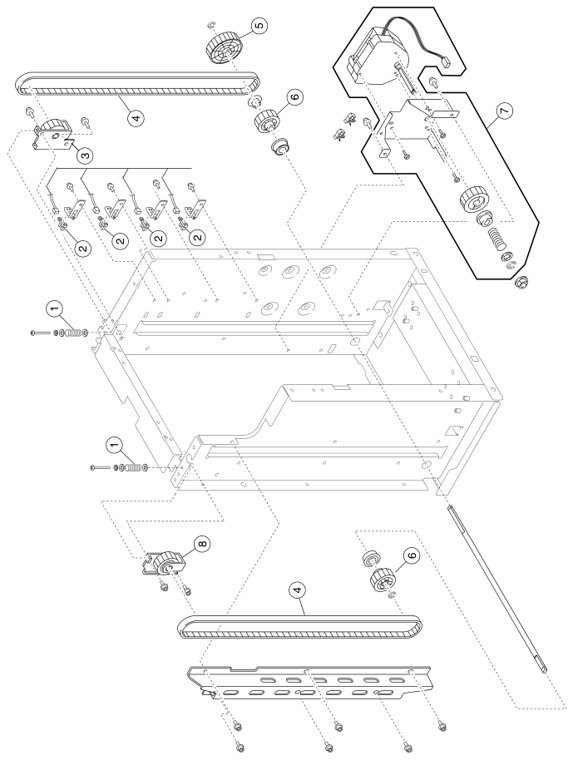

Assembly 22: High Capacity Feeder 5 1 56P9883 Spring, Pressure 2 56P9528 Interrupter, Photo 3 56P9888 Bracket, Rear Idler 4 56P9884 Belt, Timing 5 56P9886 Gear, Drive 6 56P9885 Pulley, Timing 7 56P9882 Motor, HCF DC 8 56P9887 Bracket, Front Idler NS 56P9962 Parts Packet Parts Catalog 7-53

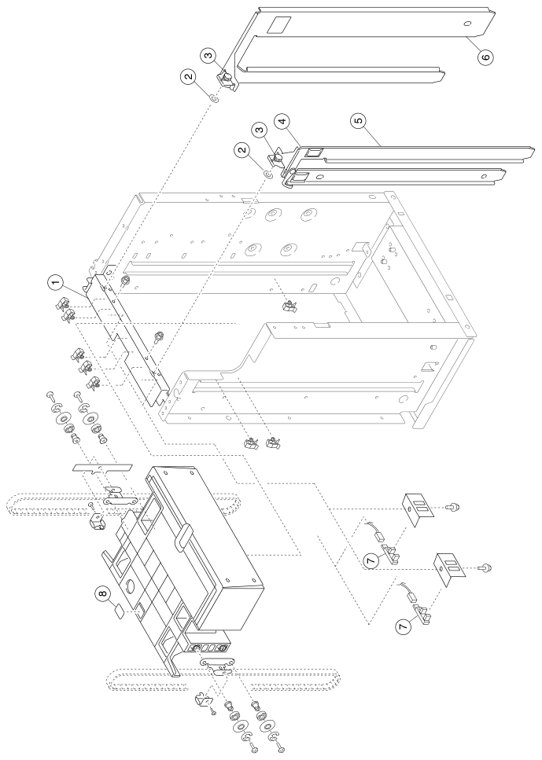

Assembly 23: High Capacity Feeder 6 1 56P9892 Plate, Upper Side Fence 2 56P9893 Knob, Stopper 3 56P9891 Knob, Tray 4 56P9890 Plate, Paper Adhesion 5 56P9915 Fence Assembly, Front Side 6 56P9894 Fence Assembly, Rear Side 7 56P9528 Interrupter, Photo 8 56P9889 Pad, Friction NS 56P9963 Parts Packet Parts Catalog 7-55

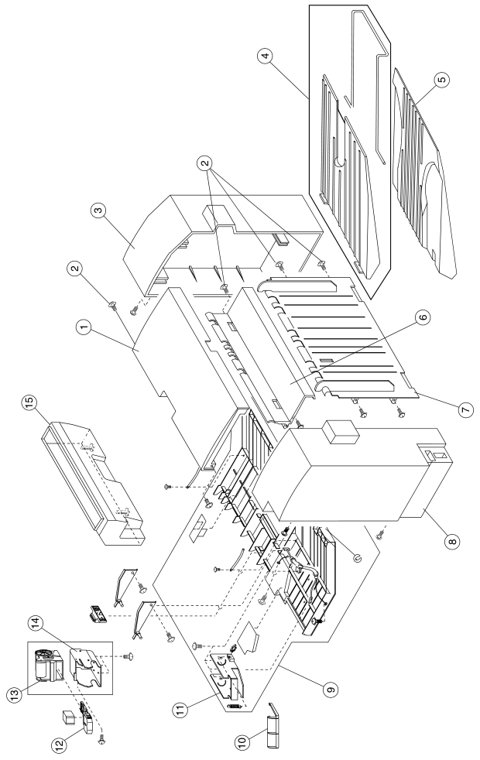

Assembly 24: Finisher Covers 1 56P9353 Cover, Top 1 56P9321 Spring, I 1 56P9395 Assembly, Guide Plate 1 56P9421 Unit, Jogging 2 56P9348 Screw, A 2 56P9324 Cable, Sensor Relay 2 56P9393 Plate, Guide Holder 2 56P9300 Assembly, Jogging Unit 3 56P9355 Cover, Front 3 56P9369 Assembly, Spring Plate C 3 56P9334 Assembly, Solenoid 3 56P9422 Pin, N 4 56P9359 Tray, Upper 4 56P9370 Frame, Guide 4 56P9396 Spring, H 4 56P9423 Pulley, Z19/Z20 5 56P9360 Tray, Lower 5 56P9371 Spring 5 56P9397 Gear, Z20 5 56P9417 Flange 6 56P9347 Panel, Left Upper 6 56P9372 Brush, Static Discharge 6 56P9398 Gear, Z19 6 56P9333 Belt, Timing (60S3M408) 7 56P9352 Assembly, Lower Left Panel 7 56P9373 Screw, M4 7 56P9311 Bushing 7 56P9425 Roller, A 8 56P9356 Cover, Rear 8 56P9374 Frame, C Guide 8 56P9310 Gate 8 56P9316 Bushing, 6 9 56P9350 Assembly, Staple Cover 9 56P9375 Shaft, D 9 56P9400 Roller 9 56P9426 Assembly, Bracket H 10 56P9366 Lever, B 10 56P9376 Bushing 10 56P9361 Roller, Patting 10 56P9427 Spring, E 11 56P9365 Cover, Staple A 11 56P9377 Roller, D 11 56P9401 Roller, I 11 56P9428 Cable 12 56P9367 Cartridge, Staple 12 56P9378 Plate, E Spring 12 56P9402 Bushing 12 56P9336 Pulley, T20 13 56P9363 Stapler 13 56P9379 Brush, Static Discharge 13 56P9403 Spring, A 13 56P9429 Gear 14 56P9364 Cover, Staple B 14 56P9380 Sensor, Photo 14 56P9404 Spring, F 14 56P9430 Bushing, 6 2 15 56P9354 Assembly, Dust Box Parts Catalog 7-57 15 56P9381 Frame, B Guide 15 56P9312 Roller, F 15 56P9431 Shaft 16 56P9418 Guide, Stack 16 56P9405 Roller, G 16 56P9433 Gear, Z18 17 56P9399 Sensor, Photo 17 56P9335 Clutch, Registration 17 56P9434 Pulley, T31 18 56P9382 Sensor, Photo 18 56P9338 Pulley, T56 18 56P9329 Assembly, Tractor Motor 19 56P9383 Cushion 19 56P9406 Pulley, Z24/T42 Gear 19 56P9416 Motor, Tractor Motor 20 56P9309 Assembly, Exit Guide Inverter 20 56P9407 Belt, Timing 60S2M184 20 56P9437 Belt, Timing 21 56P9302 Assembly, Center Guide 21 56P9408 Knob 21 56P9328 Gear, Z16 22 56P9384 Plate, B Spring 22 56P9339 Belt, Timing 60S2M334 22 56P9438 Pin 23 56P9386 Spring 23 56P9305 Assembly, Tension D 23 56P9439 Shaft, B 24 56P9387 Handle, Jam 24 56P9411 Pulley 24 56P9403 Spring, A 25 56P9389 Bracket 25 56P9412 Spacer 25 56P9404 Spring, F 26 56P9345 Cover, Staple Inner B 26 56P9413 Assembly, Motor Bracket 26 56P9336 Pulley, T20 27 56P9344 Cover, Staple Inner A 27 56P9341 Assembly, Feed Motor 27 56P9408 Knob Parts Catalog 7-67 28 56P9327 Cable, Upper Side Panel Parts Catalog 7-59 28 56P9414 Pulley 28 56P9301 Assembly, Guide Stack 29 56P9391 Assembly, Roller 29 56P9315 Assembly, Punch Drive 29 56P9384 Plate 30 56P9390 Plate, Cover 30 56P9318 Spring, B Parts Catalog 7-63 30 56P9444 Motor, Jogging 31 56P9436 Cable 31 56P9316 Bushing 31 56P9445 Cover, Motor 32 56P9313 Unit, 3 Hole Punch (U.S. only) 32 56P9314 Unit, 4 Hole Punch (non U.S.) 32 56P9415 Pulley, GearZ36/T24 32 56P9446 Bracket, O Parts Catalog 7-69 33 56P9388 Sensor, 1 Photo 33 56P9317 Belt 34 56P9320 Screw, B 34 56P9417 Flange Parts Catalog 7-65 35 56P9319 Assembly, Exit Guide Straight NS 56P9394 Knob Parts Catalog 7-61

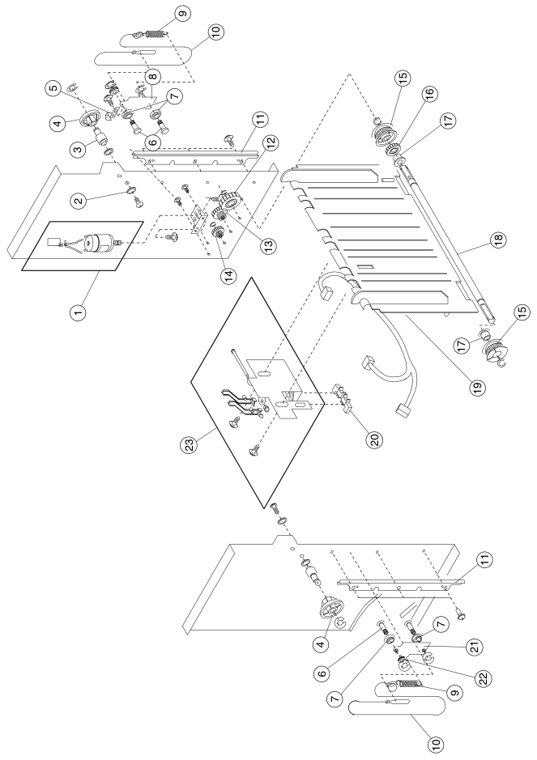

Assembly 28: Finisher Elevator 1 56P9308 Assembly, Elevator Motor 2 56P9448 Washer 3 56P9449 Pin 4 56P9450 Pulley, Wire A 5 56P9451 Shutter 6 56P9452 Pin, O 7 56P9453 Roller, C 8 56P9304 Assembly, Hook Front 9 56P9332 Spring, C 10 56P9331 Wire 11 56P9455 Bracket 12 56P9456 Gear, Z46/Z33 13 56P9457 Gear, Z90/Z14 14 56P9458 Gear, Z25/Z20 15 56P9459 Drum, Wire 16 56P9460 Gear, Z30 17 56P9311 Bushing 18 56P9482 Shaft, A 19 56P9352 Panel, Lower Left 20 56P9382 Sensor 21 56P9307 Assembly, Hook Rear 22 56P9463 Pulley, Wire B 23 56P9465 Assembly, Sensor Parts Catalog 7-71

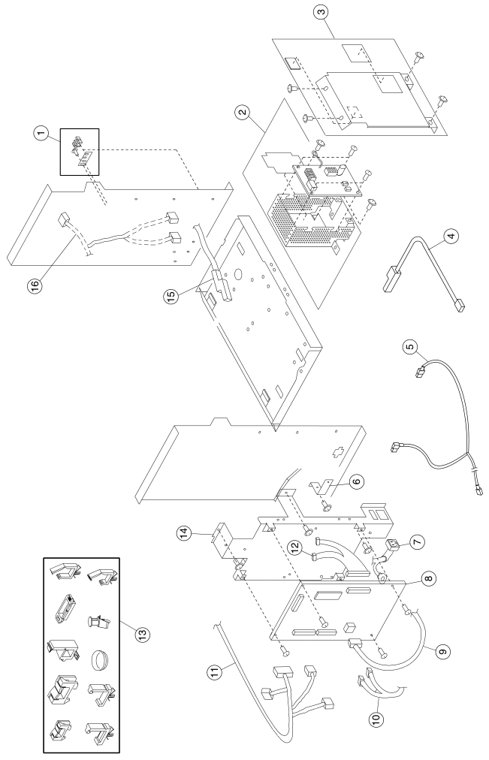

Assembly 29: Finisher Electronics 1 56P9306 Assembly, Upper Limit Sensor 2 56P9303 Supply, Power 3 56P9351 Assembly, Power Supply Plate 4 56P9435 Cable, Set Switch 5 56P9358 Cord, Y Power 5 56P9368 Cord, Y Power (230 V only) 6 56P9342 Assembly, Bridge 7 56P9326 Cable, DC Power Supply 8 56P9349 Board, Finisher Control 9 56P9428 Cable 10 56P9410 Cable 11 56P9325 Cable, Front Side Panel 12 56P9343 Assembly, Sensor Cable 13 56P9340 Packet, Parts 14 56P9420 Bracket, Finisher Control Board 15 56P9409 Cable 16 56P9324 Cable, Sensor Relay NS 56P9357 Cable, Interface Parts Catalog 7-73

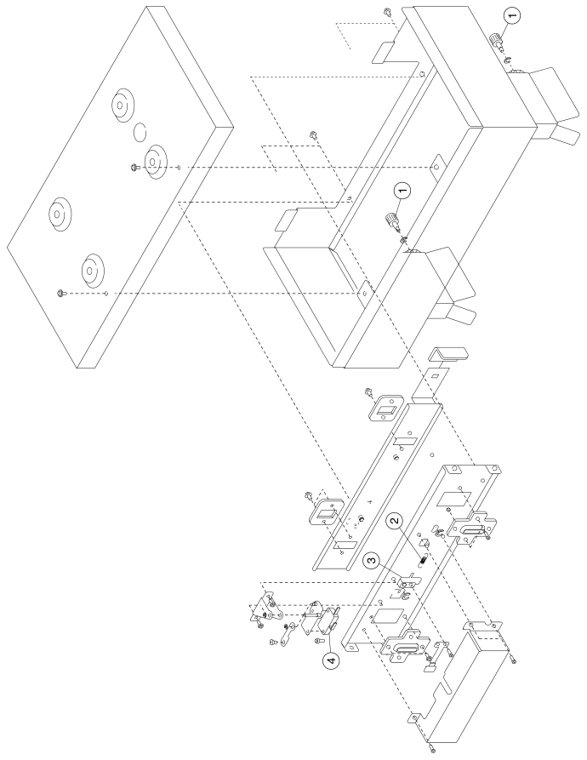

Assembly 30: Finisher Docking 1 1 56P9467 Screw, Thumb 2 56P9468 Spring 3 56P9469 Bracket 4 56P9470 Switch, Set Parts Catalog 7-75

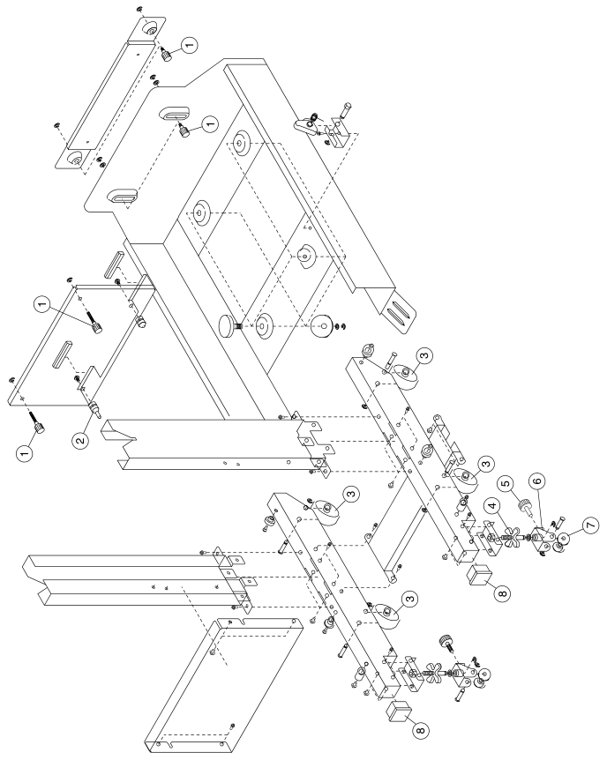

Assembly 31: Finisher Docking 2 1 56P9472 Screw, Lock 2 56P9473 Stud, Lock 3 56P9474 Roller 4 56P9475 Knob, Caster 5 56P9476 Stop, Caster 6 56P9477 Housing, Caster 7 56P9478 Caster 8 56P9479 Cap Parts Catalog 7-77
Other listed parts 11D0328 Power cord USA, Canada, APG, LAD 11G0293 Pad, fanning 56P2178 Board, RIP controller (Infoprint Color 1228) 56P2178 Board, RIP controller (Infoprint Color 1228) New 56P2178 12N0916 (New) $592.00 56P2178 Board RIP controller (Infoprint Color 1228) Fully refurbished with 90-day warranty 56P2178 12N0916 $380.00 56P2179 Board, RIP controller (Infoprint Color 1228) 56P9751 Fuser Assembly 1357 Lexmark 56P9751 Fuser Unit C910 C912 X912 1357 Fully refurbished with 90-day warranty 56P9751 I Advanced Exchange Contact for Details SaleLexmark 56P9751 Fuser Unit C910 C912 X912 1357 New 56P9751 (New) ~~$835.00~~ $499.00 56P9902 Cassette, heavy media 56P9970 Assembly Front Cover 56P9970 Assembly Front Cover New 56P9970 (New) $262.00 56P9970 Assembly Front Cover Fully refurbished with 90-day warranty 56P9970 $142.00 56P9971 Frame Assembly MFP 56P9971 Frame Assembly MFP New 56P9971 (New) Contact for Details 56P9971 Frame Assembly MFP Fully refurbished with 90-day warranty 56P9971 Contact for Details 56P9972 Feed Assembly Multipurpose 56P9972 Feed Assembly Multipurpose Fully refurbished with 90-day warranty 56P9972 $59.00 56P9972 Feeder assembly, multipurpose New 56P9972 (New) $149.00 56P9979 Guide, stop 56P9980 Guard, rack 56P9981 Board Controller 56P9981 Board Controller Fully refurbished with 90-day warranty 56P9981 $199.00 75P6870 Roller assembly, paper feed
