IBM Infoprint 1422 (4523) Parts






Looking for whole machines? Click here

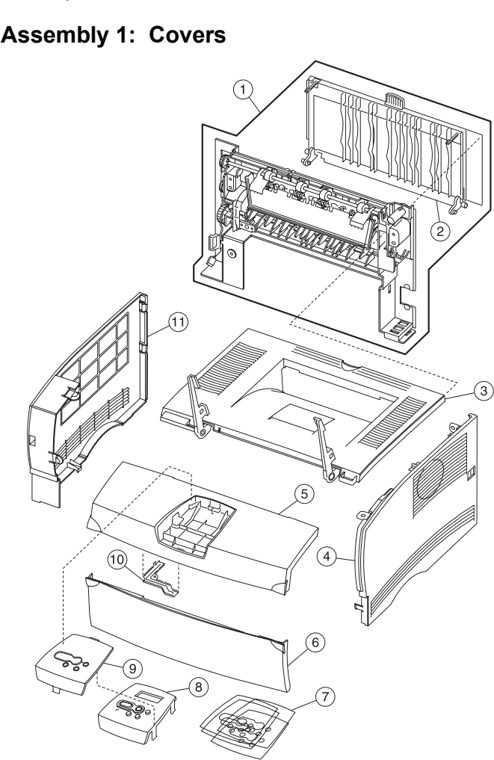

1
56P2302 Rear cover assembly
Fully refurbished with 90-day warranty
56P2302
$39.00





2
56P2301 Rear exit door assembly
Fully refurbished with 90-day warranty
56P2301
$12.00



3
56P2306 Top cover assembly
Fully refurbished with 90-day warranty
56P2306
$36.00





4
56P2307 Right cover assembly
Fully refurbished with 90-day warranty
56P2307
$16.00



5
56P2305 Front cover assembly
Fully refurbished with 90-day warranty
56P2305
$12.00



6
56P2303 MPF door cover assembly
Fully refurbished with 90-day warranty
56P2303
$35.00





7

8
56P2353 Operator panel assembly
Fully refurbished with 90-day warranty
56P2353
$34.00





9
56P2372 Clear Bezel With Logo
Fully refurbished with 90-day warranty
56P2372
$24.00



10
56P2354 Operator panel cable cover
Fully refurbished with 90-day warranty
56P2354



11
56P2300 Left cover assembly
Fully refurbished with 90-day warranty
56P2300
$12.00

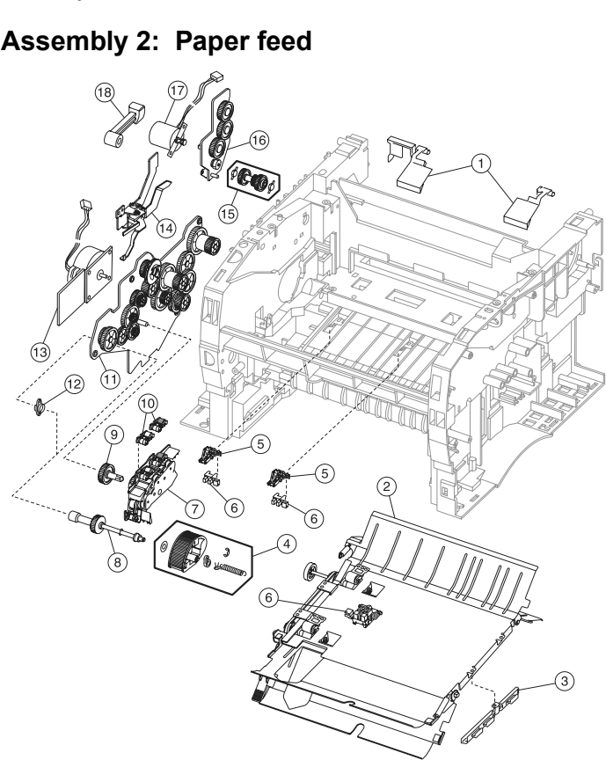

1
56P2304 Stack control flags (output tray full flags)
Fully refurbished with 90-day warranty
56P2304
$11.00



(output tray full flags)

2
56P0651 Duplex assembly (101, 102)
Fully refurbished with 90-day warranty
56P0651
$39.00



3 56P2365 Paper guide bracket

4
56P2352 Paper Feed Roll
New
56P2352 (New)
$20.00



5 56P0655 Paper sensor bracket, one per package

6 56P0645 Photo sensor, one per package

7

56P2309 Reference feed CBM
Fully refurbished with 90-day warranty
56P2309
$38.00



8
56P0657 Assembly Paper Feed
Fully refurbished with 90-day warranty
56P0657
$12.00



9
56P0634 Gear Paper Feed
Fully refurbished with 90-day warranty
56P0634
$24.00



10
56P2308 2 Backup feed roller assembly (top front and rear)
Fully refurbished with 90-day warranty
56P2308
$24.00



(top front and rear)
11
56P2326 Drive assembly
Fully refurbished with 90-day warranty
56P2326
$59.00






12 56P2334 Paper feed/drive bushing

13
56P2325 Main drive motor assembly
Fully refurbished with 90-day warranty
56P2325
$36.00





14
56P0638 Cartridge coupling
Fully refurbished with 90-day warranty
56P0638
$24.00



15
56P2363 Ratchet drive
Fully refurbished with 90-day warranty
56P2363



16


17
56P2360 Exit drive motor
Fully refurbished with 90-day warranty
56P2360
$19.00





18 56P0639 Guide bracket
3
1
56P2319 Printhead Assembly
Fully refurbished with 90-day warranty
56P2319
$89.00





2
56P0629 Cartridge contact assembly (includes 5)
Fully refurbished with 90-day warranty
56P0629
$38.00



(includes 5)
3 56P0662 Base feet

4 56P0661 Tray damper and spring

5 56P0668 Parts packet, screws and E-rings

6
56P2310 Main tray assembly, 250
New
56P2310 (New)

Retired, no longer available: Contact for alternatives



7 56P0667 Door latch (includes 3) and screws

8 56P0660 Paper guide roller

9 56P0672 Tray body bracket (includes 3)

10

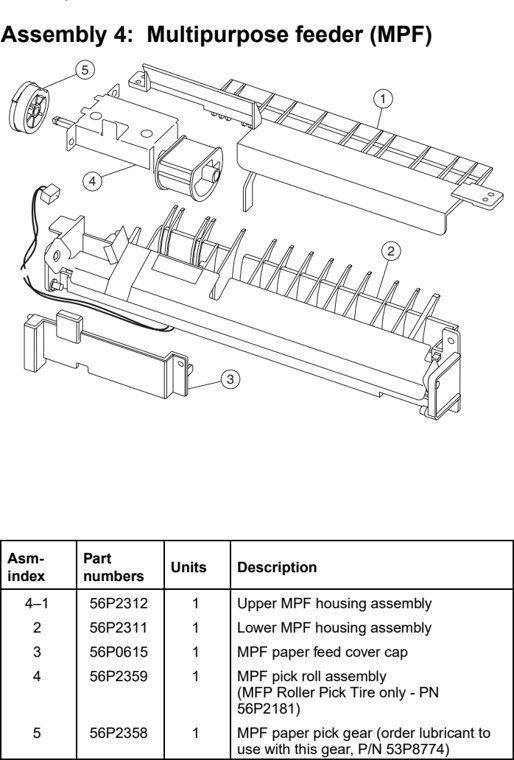

1
56P2312 Upper MPF housing assembly
Fully refurbished with 90-day warranty
56P2312
$24.00



2
56P2311 Lower MPF housing assembly
Fully refurbished with 90-day warranty
56P2311
$24.00





3

4
56P2359 MPF Pick Roll Assembly
Fully refurbished with 90-day warranty
56P2359
$15.00



5

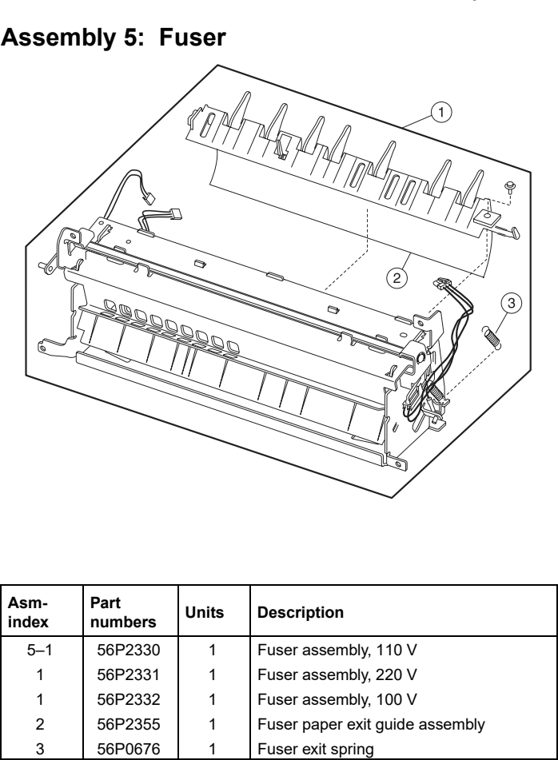

1
56P2330 Fuser Assembly
New
56p2330 Advanced Exchange (New)



56p2330 Fuser Assembly
Fully refurbished with 90-day warranty
56p2330 Advanced Exchange



2
56P2355 Fuser paper exit guide assembly
Fully refurbished with 90-day warranty
56P2355
$11.00



3
56P0676 Fuser exit spring
Fully refurbished with 90-day warranty
56P0676

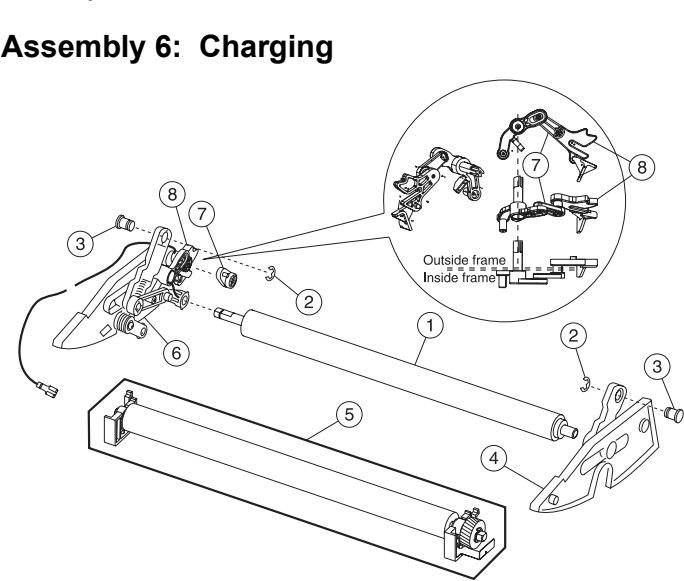

1

2 56P0668 Parts packet, screws and E-rings

3 56P0669 Pivot hinge (quantity 2)

4


5
56P2329 Transfer Roll Assembly
New
56P2329 (New)
$53.00



6

7


8
56P2348 Fuser lift (outer) link assembly
Fully refurbished with 90-day warranty
56P2348
$12.00

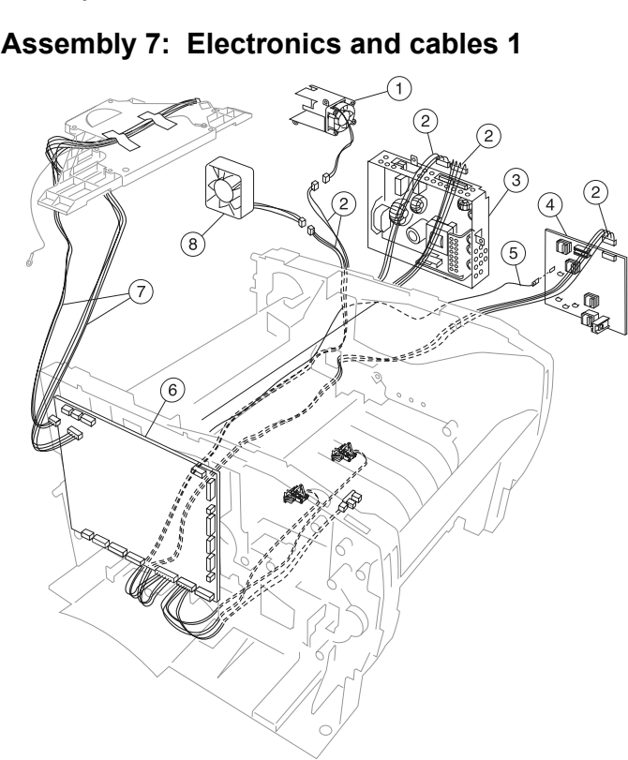

1

2 56P2335 Main harness cable assembly, including
wiring to the following locations:
LVPS fan/fuser fan
HVPS
Main fan
LVPS power
LVPS control
Paper-input sensor/duplex

3
56P2320 Power supply 110 V
Fully refurbished with 90-day warranty
56P2320
$59.00





4
56P2322 High voltage power supply HVPS
Fully refurbished with 90-day warranty
56P2322
$59.00



5

(only the end of the cable shown)
6
56P2314 Controller card assembly, Non-Network
Fully refurbished with 90-day warranty
56P2314 I
$79.00



56p2369 Controller card assembly Non-Network (101 111)
Fully refurbished with 90-day warranty
56p2369 I
$79.00



56P4397 Controller card assembly Non-Network
Fully refurbished with 90-day warranty
56P4397 I
$225.00



6
56P2315 Controller card assembly, network
Fully refurbished with 90-day warranty
56P2315
$190.00



7 56P2318 Printhead cable assembly

8
56P2323 Fuser cooling fan
Fully refurbished with 90-day warranty
56P2323
$17.00

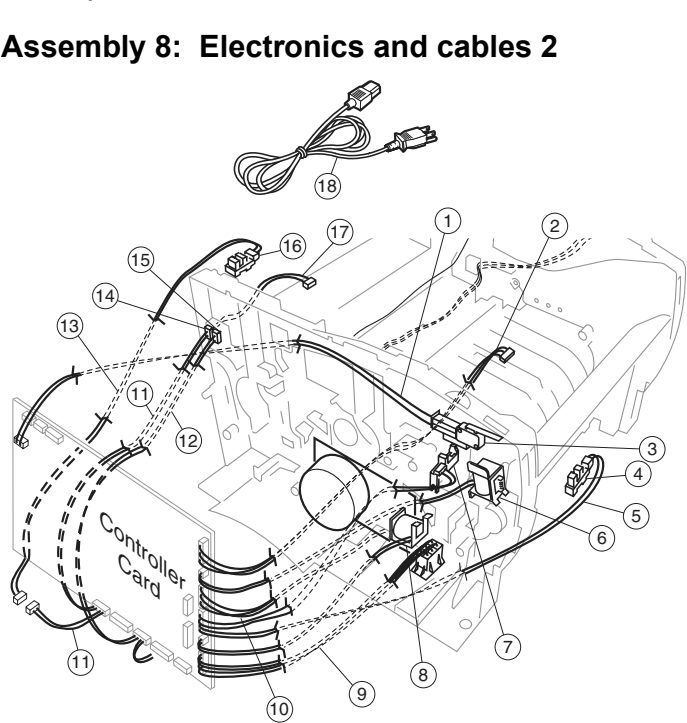

8-1 56P0624 Cover switch cable assembly

2 56P2317 Operator panel cable assembly

3
56P0625 Interlock cover switch
Fully refurbished with 90-day warranty
56P0625



56P0625 Interlock cover switch
Fully refurbished with 90-day warranty
56P0625
$24.00



4 56P0645 Photo sensor, included with P/N 56P2311 (lower MPF housing)

5 Available only with P/N 56P2311

6 and 8
56P2313 Paper Feed Solenoid
Fully refurbished with 90-day warranty
56P2313
$24.00



7


56p0653 Toner level sensor
Fully refurbished with 90-day warranty
56p0653
$24.00



9 56P2324 Drawer cable assembly

10 56P2316 Motor cable assembly

11 56P2336 Output full and fuser exit cable assembly

12 56P2350 Cartridge signature button switch (attached cable shown)

13 56P0682 Output full sensor cable

14 56P0665 3-pin connector

15 56P0666 2-pin connector

16 56P0645 Photo sensor

17 56P0649 Fuser exit cable assembly
