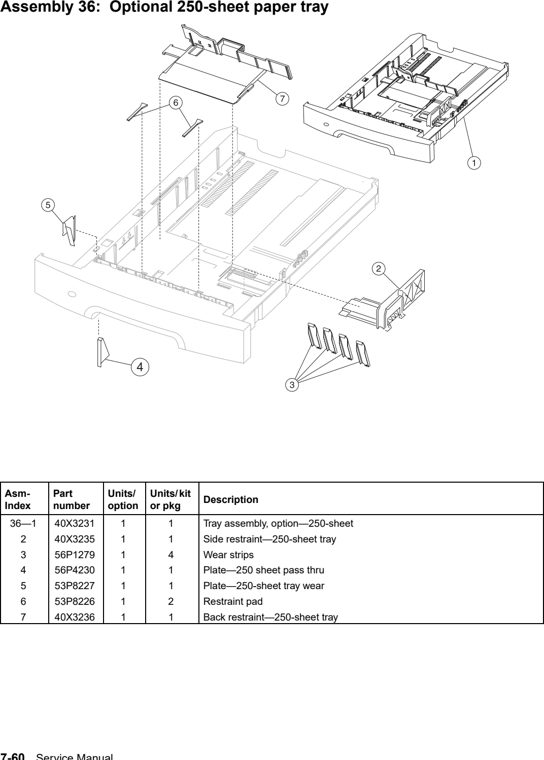

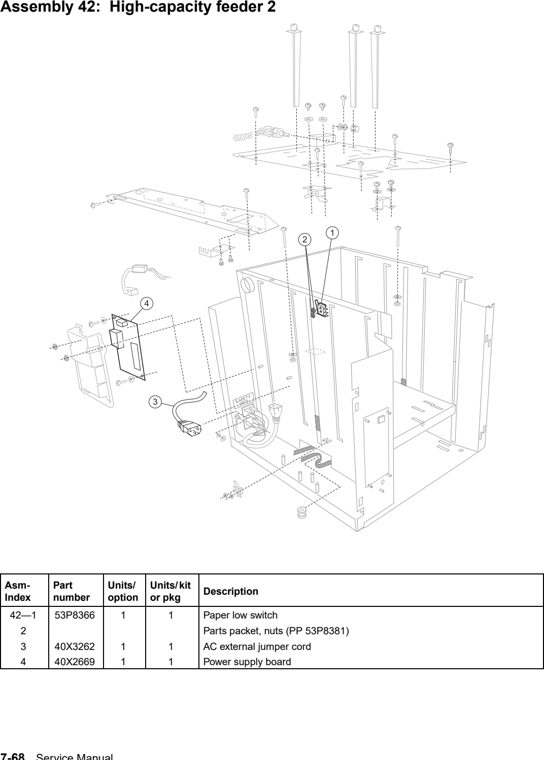

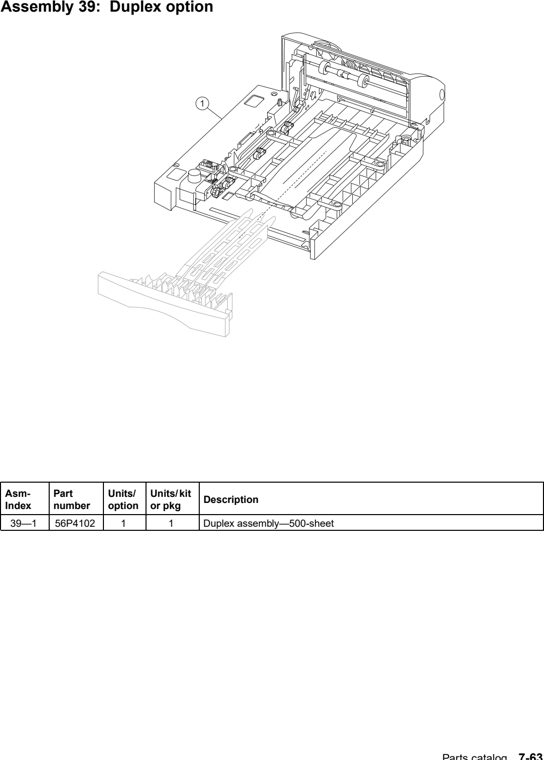

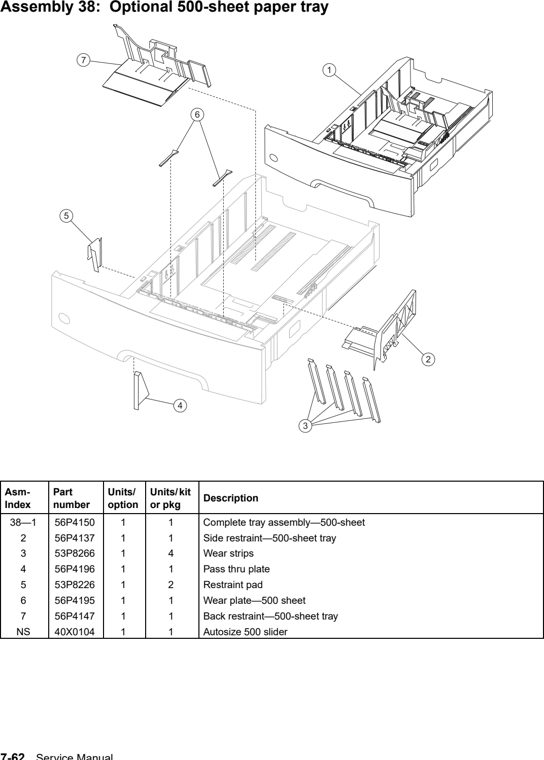

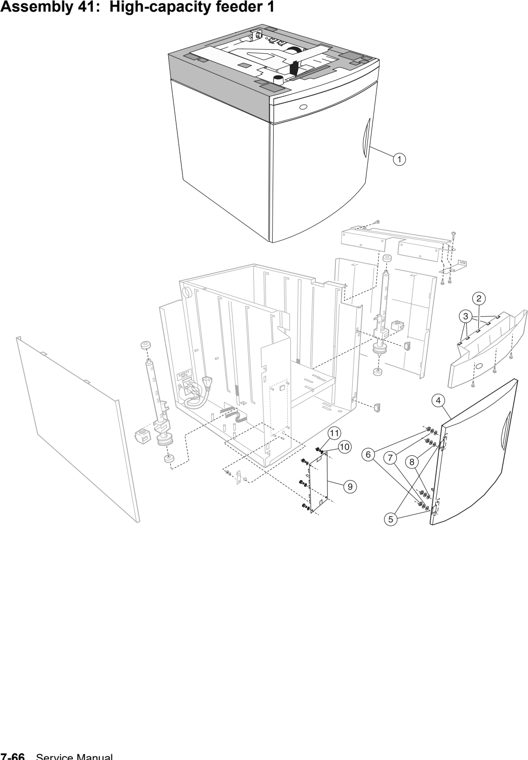

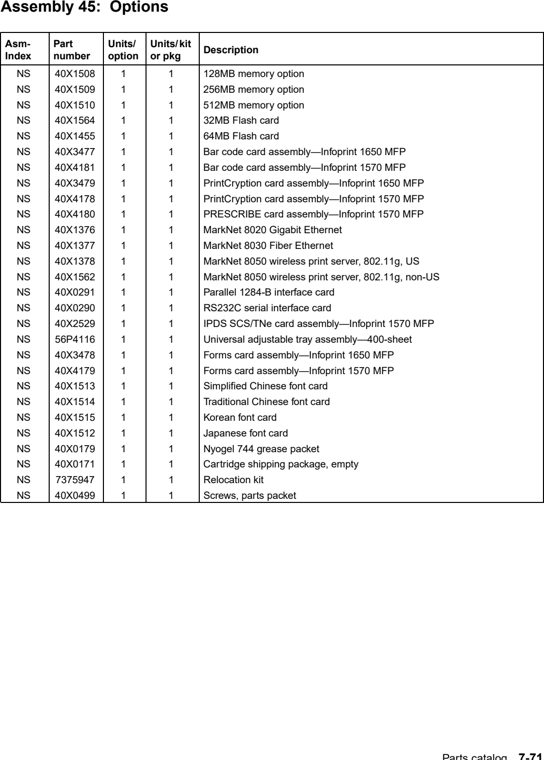

IBM Infoprint 1570 MFP (4542) Parts






Please call for parts assistance

Looking for whole machines? Click here




IBM Infoprint 1570 MFP Printer
Fully refurbished with 90-day warranty
4542-011 39v0669
$595.00


IBM Infoprint 1570 MFP Printer
Fully refurbished with 90-day warranty
4542-001 39V0668


IBM Infoprint 1570 MFP Printer
Fully refurbished with 1-year warranty
4542-111 39V0721 39V0713


IBM Infoprint 1570 MFP Printer
Fully refurbished with 1-year warranty
4542-D11 39v1422


>

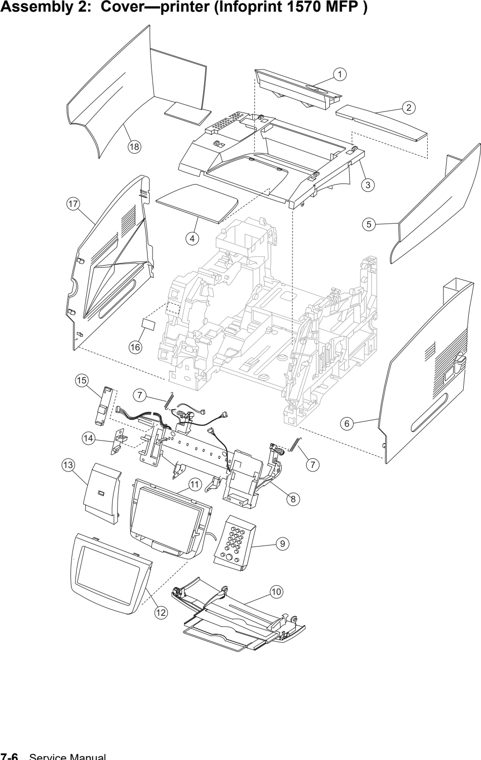

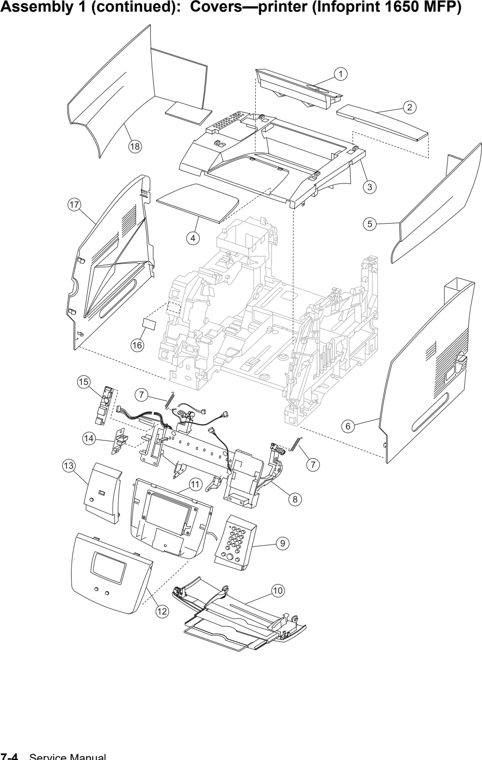

1
1
40X0001 Fuser Wiper Cover Assembly
New
40X0001 41X6400 (New)
$29.00



Not shown:
40X2665 Oil Fuser Wiper (Wick), Black Housing
New
40X2665 VXPFF (New)
$24.25



40x2666 Wax Fuser Wiper (Gray)
New
40x2666 M4G25 (New)
$21.82



2
40X0469 Upper Sub Cover Assembly
New
40X0469 (New)
$18.07



3
40X0467 Upper Cover Assembly
New
40X0467 (New)
$24.71



40X0467 Upper Cover Assembly
Fully refurbished with 90-day warranty
40X0467



4

40X0468 Upper Tray Cover (Paper Support)
Fully refurbished with 90-day warranty
40X0468



5
40X0473 Right Side Cover
Fully refurbished with 90-day warranty
40X0473



40X0473 Right Side Cover
Fully refurbished with 90-day warranty
40X0473



6
40X0471 Right Cover Assembly
New
40X0471 (New)
$49.47



40X0471 Right Cover Assembly
Fully refurbished with 90-day warranty
40X0471



7 40X0516 Counterbalance spring

8

40X0515 Upper Front Cover Hinge Assembly
Fully refurbished with 90-day warranty
40X0515
$31.71



9

40X0496 Operator Panel Right Cover Assembly
Fully refurbished with 90-day warranty
40X0496
$51.71



10
40X0493 Multipurpose Tray Assembly
New
40X0493 (New)
$34.71



40X0493 Multipurpose tray assembly
Fully refurbished with 90-day warranty
40X0493



11
Sale40X0494 LCD Touchscreen Display Assembly
New
40X0494 (New)
$801.74 $645.00



40X0494 LCD Touchscreen Display Assembly
Fully refurbished with 1-year warranty
40X0494
$195.00



12
40x3313 Cover bezel Infoprint 1570 MFP
Fully refurbished with 90-day warranty
40x3313 I
$8.71



13

14
40X0151 USB Board Assembly
Fully refurbished with 90-day warranty
40X0151
$15.69



15
40X0497 LCD Touchscreen Inverter Card
New
40X0497 (New)
$25.71



40X0497 LCD Touchscreen Inverter Card
Fully refurbished with 90-day warranty
40X0497
$22.00



16
40X0009 TLI ID serial number label -blank
Fully refurbished with 90-day warranty
40X0009



17
40X0470 Left Cover Assembly
New
40X0470 (New)
$51.00



40X0470 Left Cover Assembly
Fully refurbished with 90-day warranty
40X0470



18
40X0472 Left side cover
Fully refurbished with 90-day warranty
40X0472



NS Parts packet (cable ties) (PP 40X0174)

NS 40X0050 Counterbalance spring

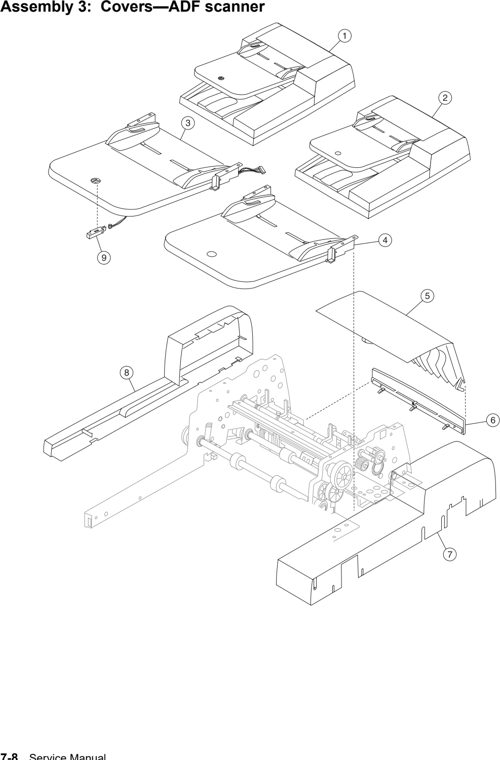

2

1

40X0450 Complete ADF Assembly (High Speed)
Fully refurbished with 90-day warranty
40X0450
$325.00





3
40X0451 Document Tray Assembly
New
40X0451 (New)
$24.71



40X0451 Document Tray Assembly
Fully refurbished with 90-day warranty
40X0451



5



40X0452 ADF Top Cover Assembly
Fully refurbished with 90-day warranty
40X0452



6
40X0463 ADF Scan Cover
New
40X0463 (New)
$26.11





40X0463 ADF Scan Cover
Fully refurbished with 90-day warranty
40X0463



7
40X0465 ADF Rear Cover
New
40X0465 (New)
$23.58



40X0465 ADF Rear Cover
Fully refurbished with 90-day warranty
40X0465



8
40X0464 ADF Front Cover
New
40X0464 (New)

Retired, no longer available: Contact for alternatives



40X0464 ADF Front Cover
Fully refurbished with 90-day warranty
40X0464



9 Parts packet, sensors (PP 40X0481)

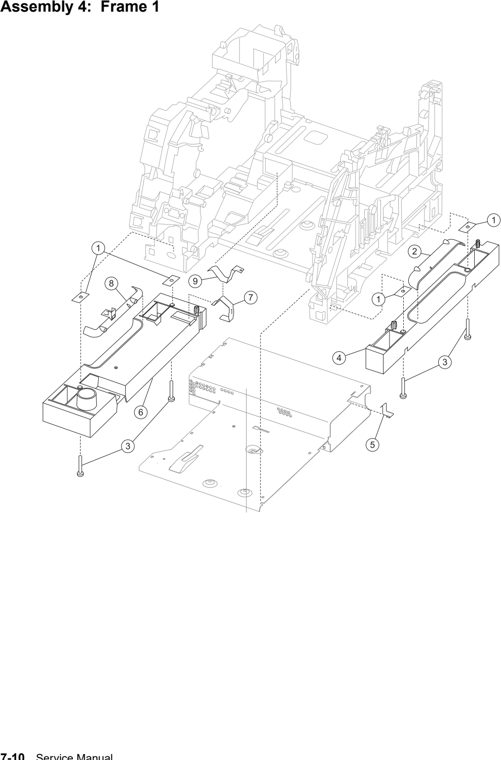

3

1
40X0065 Frame extension nut plate
Fully refurbished with 90-day warranty
40X0065



2
40X0225 Right side hand holder
Fully refurbished with 90-day warranty
40X0225



3 Parts packet (PP 40X0165)

4
40X0024 Right frame extension
Fully refurbished with 90-day warranty
40X0024
$10.66



5
40X0026 Right side frame ground contact
Fully refurbished with 90-day warranty
40X0026



6
40X0025 Left frame extension
Fully refurbished with 90-day warranty
40X0025
$12.91



7
40X0060 External ground clip
Fully refurbished with 90-day warranty
40X0060



8 40X0231 Left side hand holder

9
40X0285 Frame Clip
New
40X0285 (New)

Retired, no longer available: Contact for alternatives



40X0285 Frame clip
Fully refurbished with 90-day warranty
40X0285


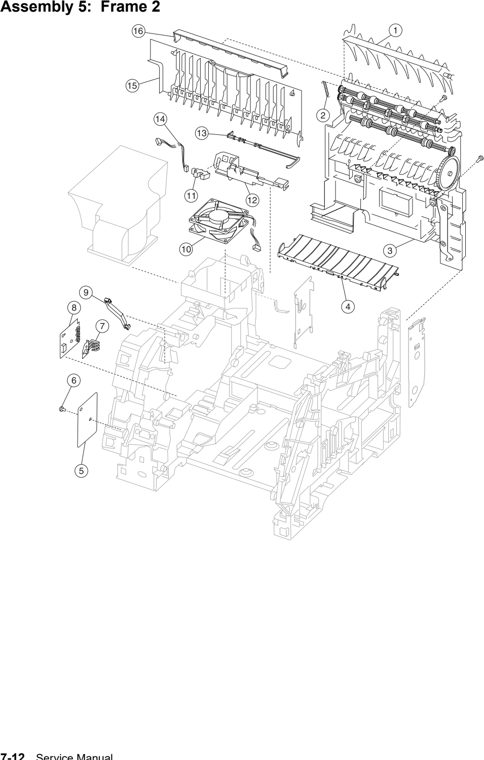

4

1
40X0027 Upper Redrive Deflector
Fully refurbished with 90-day warranty
40X0027
$25.00



2
40X0028 Upper diverter spring
New
40X0028 (New)
$6.06



3
40X0030 Redrive Assembly 500-Sheet In 500 Out
New
40X0030 Includes Spring 40X0028 (New)
$96.00



40X0030 Redrive Assembly 500-Sheet In 500 Out
Fully refurbished with 90-day warranty
40X0030 Includes Spring 40X0028
$79.00



4
40X0032 Transfer deflector
New
40X0032 (New)
$16.82



5
40X0044 Gear guard
Fully refurbished with 90-day warranty
40X0044
$7.50



6 Parts packet (PP 40X0165)

7
40X0048 Paper switch activate spring
Fully refurbished with 90-day warranty
40X0048
$7.21



8

9
40X0049 Gear release link
Fully refurbished with 90-day warranty
40X0049
$26.47



10

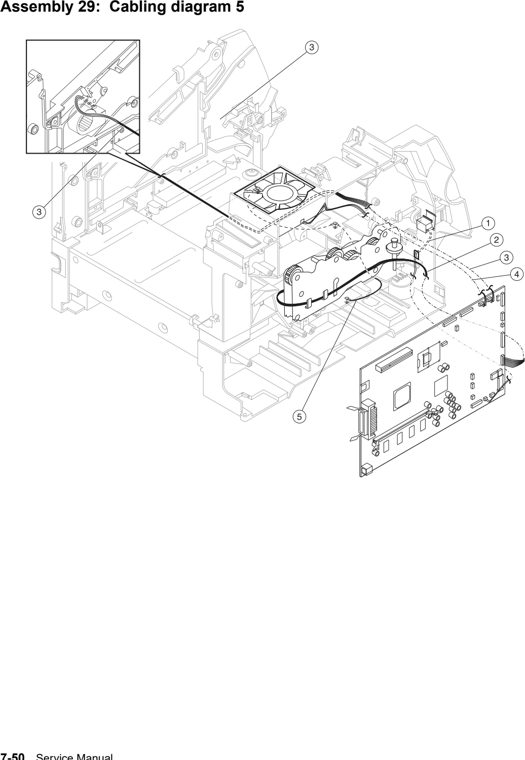

40X0054 Main Fan With Cable 500-Sheet
New
40X0054 (New)
$34.71



40X0054 Main Fan With Cable 500-Sheet Output
Fully refurbished with 90-day warranty
40X0054
$19.71



11
40X0051 Standard bin level sensor
Fully refurbished with 90-day warranty
40X0051



12
40X0052 Standard bin level sensor bracket
Fully refurbished with 90-day warranty
40X0052
$6.54



13
40X0058 Output Paper Level Flag
New
40X0058 (New)
$7.71



14

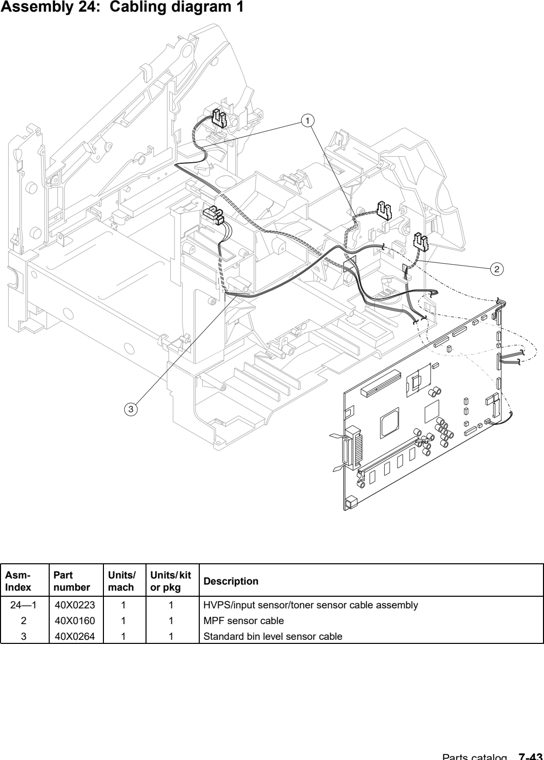

40X0264 Output Bin Level Sensor Cable
Fully refurbished with 90-day warranty
40X0264
$12.00





15
40X0232 Redrive Door Assembly 500 Sheet
New
40X0232 Includes paper guide (New)

Retired, no longer available: Contact for alternatives



40X0232 Redrive Door Assembly 500 Sheet
Fully refurbished with 90-day warranty
40X0232 Includes paper guide
$49.00



16
40X0059 Extension guide
Fully refurbished with 90-day warranty
40X0059
$7.34



NS Parts packet, redrive mounting screws (P/N 40X0254)

NS
40X0210 Main fan cap
Fully refurbished with 90-day warranty
40X0210
$6.69



NS
40X0212 Main Fan Duct
Fully refurbished with 90-day warranty
40X0212



NS 40X0237 Pan access cover

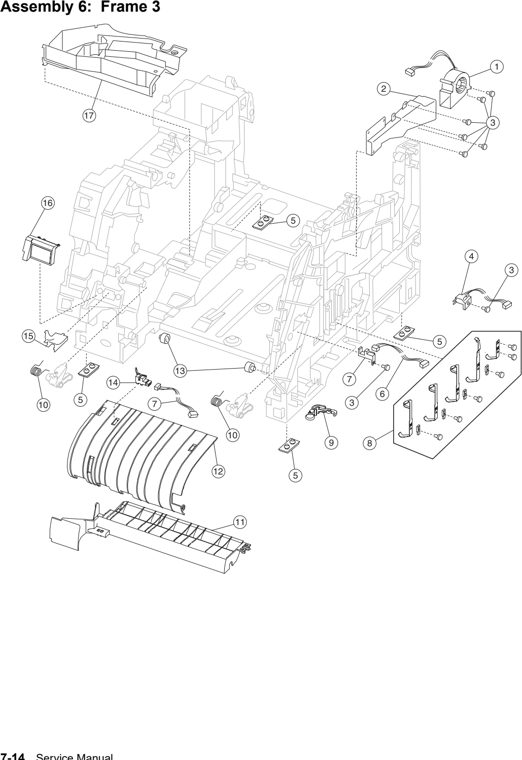

5

1



2
40X0208 Blower duct
Fully refurbished with 90-day warranty
40X0208
$6.64



3 Parts packet (PP 40X0165)

3 Parts packet (PP 40X0165)

4
40X0034 Signature button sensor assembly
Fully refurbished with 90-day warranty
40X0034
$6.71



5
40X0033 Machine mounting pad
Fully refurbished with 90-day warranty
40X0033



6

7
40X0036 Toner Sensor Assembly
New
40X0036 (New)
$16.19



8
40X0306 High Voltage Contact Kit
New
40X0306 99a0585 (New)
$34.71



40X0306 High Voltage Contact Kit
Fully refurbished with 90-day warranty
40X0306
$19.71



9
40X0213 Tray bias assembly
Fully refurbished with 90-day warranty
40X0213



10 40X0021 Cartridge holddown assembly

11
40X0040 Upper Paper Feed Deflector
Fully refurbished with 90-day warranty
40X0040
$9.00



12
40X0042 Inner Paper Feed Deflector
Fully refurbished with 90-day warranty
40X0042



13
40X0039 Developer support roller
Fully refurbished with 90-day warranty
40X0039
$6.56



14 56P4231 Input sensor

15
01P8803 Guide Assembly, Front Tr4
Fully refurbished with 90-day warranty
01P8803
$19.00



16
40X0045 ESD shield with label
Fully refurbished with 90-day warranty
40X0045
$6.57



17
40X0207 EP duct
Fully refurbished with 90-day warranty
40X0207
$7.79



NS 40X0205 Redrive duct

NS 40X0206 Cartridge duct

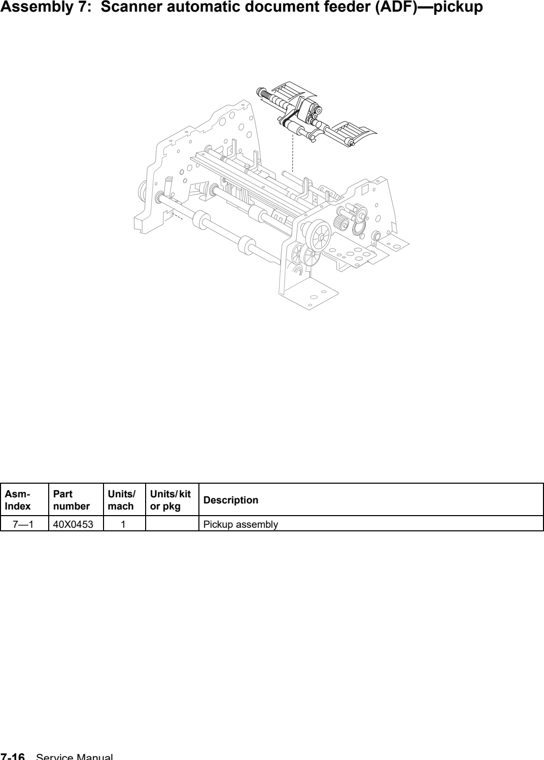

6


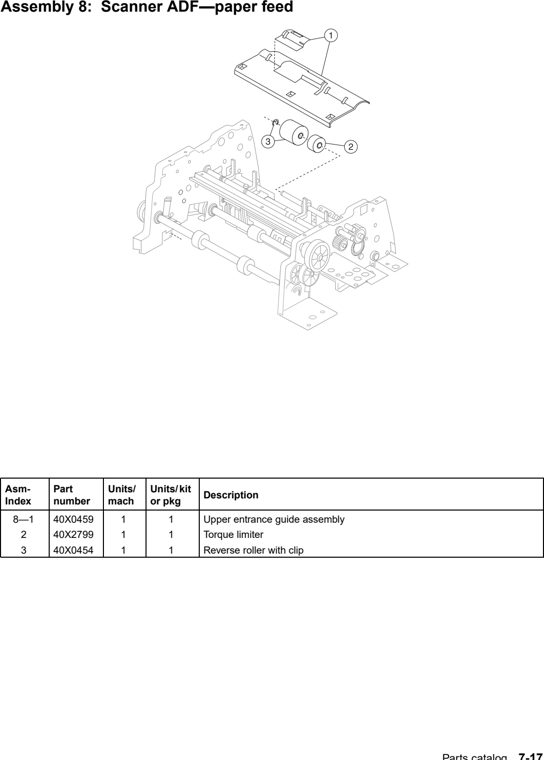

7

1
40X0459 Upper Entrance Guide Assembly
Fully refurbished with 90-day warranty
40X0459



2 40X2799 Torque limiter

3
40X0454 Upper Entrance Guide Kit
New
40X0454 40X4656 40X2799 (New)
$52.00



40X4656 Upper Entrance Guide Kit
Fully refurbished with 90-day warranty
40X4656 40x0454 40X2799
$45.69


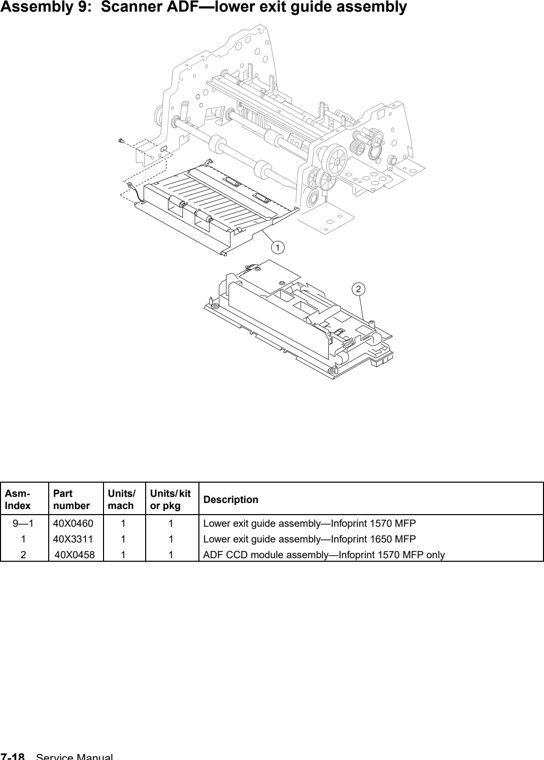

8

1

40X0460 Exit Guide Assembly
Fully refurbished with 90-day warranty
40X0460



2
40X0458 ADF CCD Module Assembly
New
40X0458 (New)
$133.00



40X0458 ADF CCD Module Assembly
Fully refurbished with 90-day warranty
40X0458


1

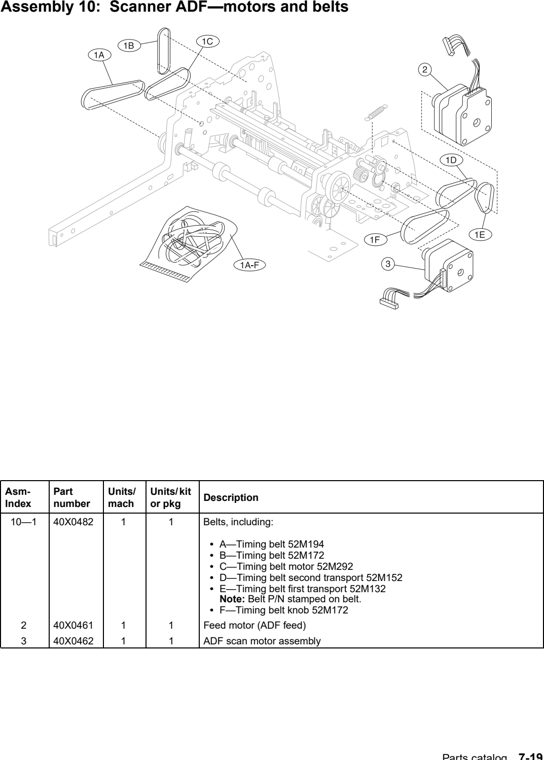

40X0482 Belts
New
40X0482 (New)
$17.24



including:
A Timing belt 52M194
B Timing belt 52M172
C Timing belt motor 52M292
D Timing belt second transport 52M152
E Timing belt first transport 52M132
Note: Belt P/N stamped on belt.
F Timing belt knob 52M172
2

40X0461 Feed Motor (ADF Feed)
Fully refurbished with 90-day warranty
40X0461



3
40X0462 ADF Scan Motor Assembly
New
40X0462 (New)
$31.44



40X0462 ADF Scan Motor Assembly
Fully refurbished with 90-day warranty
40X0462


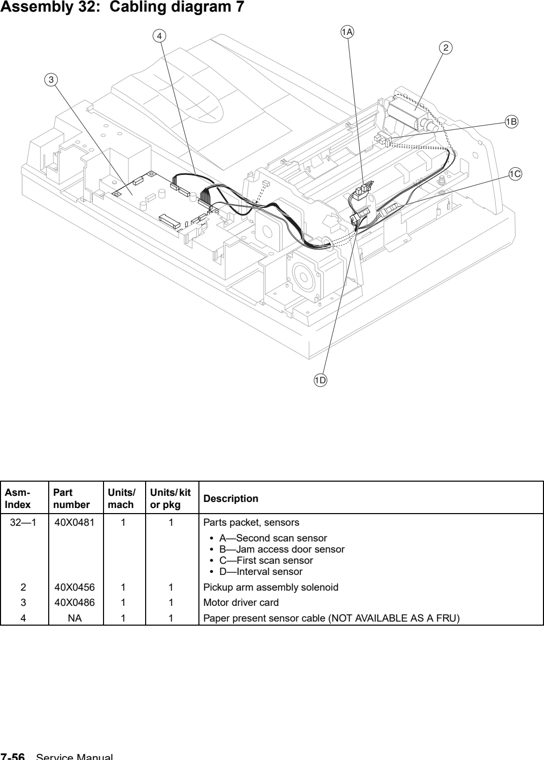

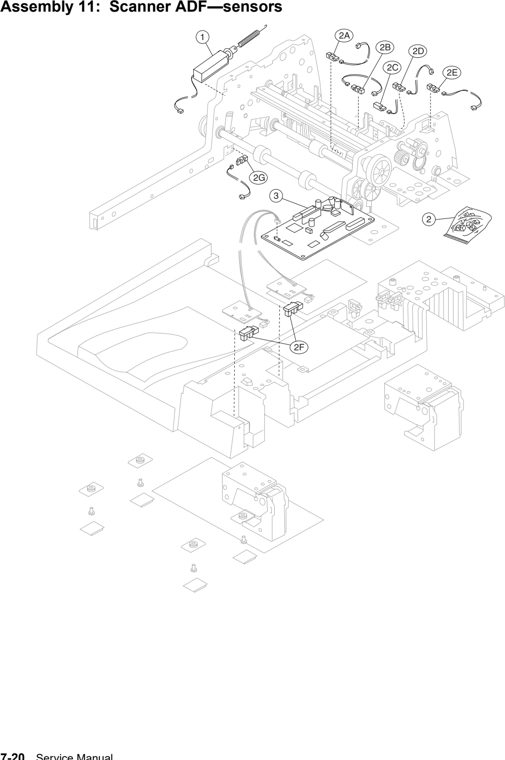

9

1
40X0456 Pickup Arm Solenoid
New
40X0456 (New)
$17.38



2 40X0481 Parts packet, sensors
A Second scan sensor
B Paper present
C Interval sensor
D First scan sensor
E ADF top cover open
F Flatbed cover open
G Jam access door
Note: There are four different sensors in the parts packet, some of the same sensors are used in different locations.

3
40X0486 Motor Driver Card
New
40X0486 (New)
$189.00



40X0486 Motor Driver Card
Fully refurbished with 90-day warranty
40X0486



NS 40X0492 Screw, ADF attachment

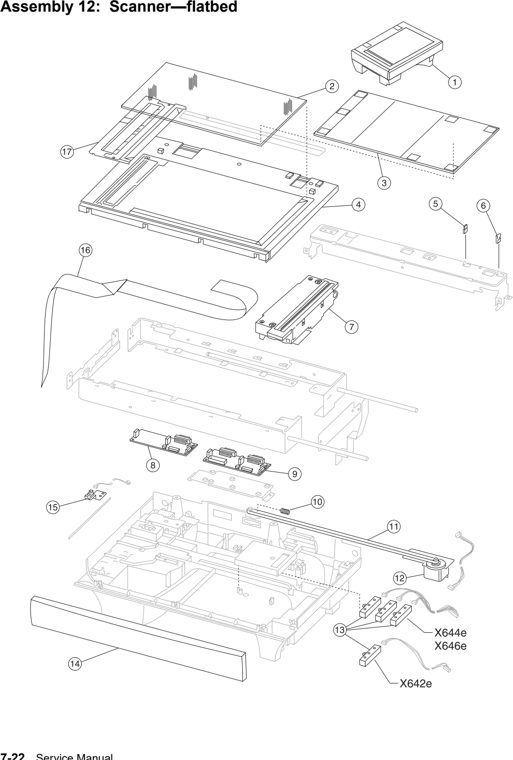

10

1



2
40X0483 Flatbed Contact Glass
New
40X0483 (New)
$25.20



40X0483 Flatbed contact glass
Fully refurbished with 90-day warranty
40X0483



3
40X0466 Cushion White Pressure Pad
New
40X0466 (New)
$24.71



4
40X0475 Scan Cover
New
40X0475 (New)
$17.15



40X0475 Scan Cover
Fully refurbished with 90-day warranty
40X0475



5 40X0513 Flatbed cover closed actuator

6 40X0514 Flatbed cover closing actuator

7

40X0478 Flatbed CCD Module Assembly
Fully refurbished with 90-day warranty
40X0478



9

40X0485 Flatbed Interconnect Card Assembly
Fully refurbished with 90-day warranty
40X0485
$60.00



10 40X0490 Belt tension spring

11
40X0479 Flatbed CCD Drive Belt
Fully refurbished with 90-day warranty
40X0479



12
40X0480 Flatbed Scan Motor Assembly
New
40X0480 (New)
$42.73



40X0480 Flatbed Scan Motor Assembly
Fully refurbished with 90-day warranty
40X0480



13
40X0491 Flatbed Paper Size Sensor Assembly
Fully refurbished with 90-day warranty
40X0491



14
40X0474 Front Cover
New
40X0474 (New)
$20.27



40X0474 Front Cover
Fully refurbished with 90-day warranty
40X0474



15

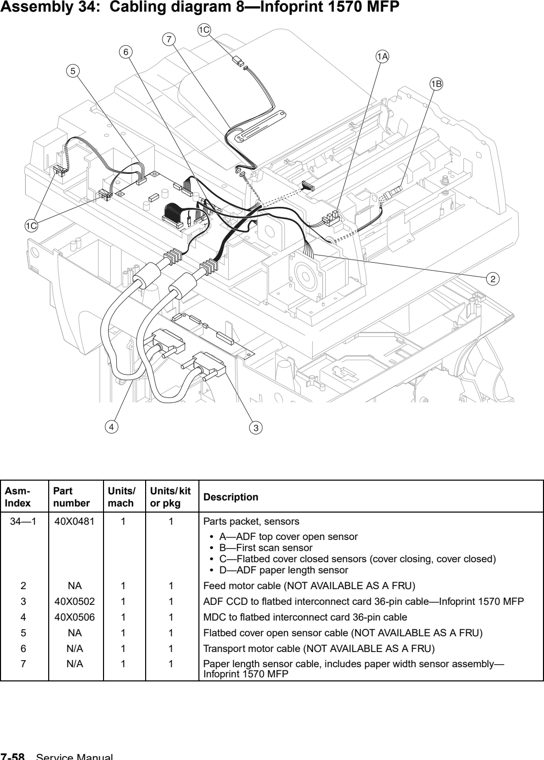

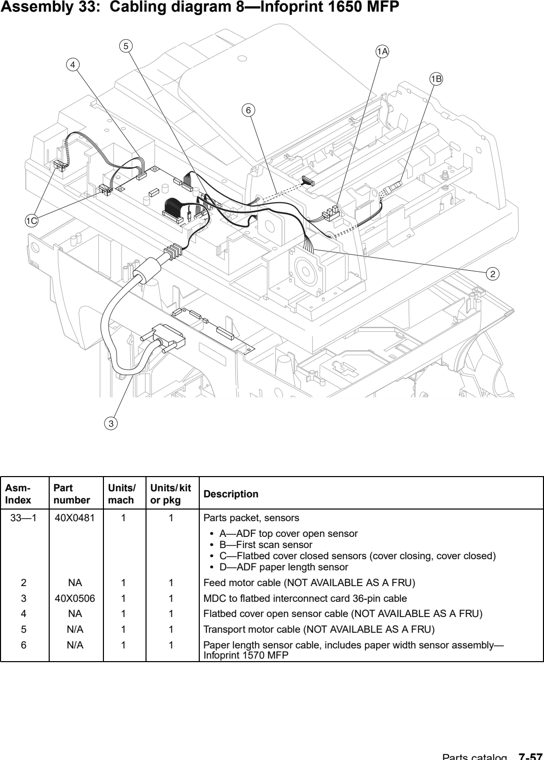

40X0481 Sensors Parts Packet
New
40X0481 (New)
$51.00



16

17
40X0484 Glass Holder Assembly
New
40X0484 (New)
$32.67


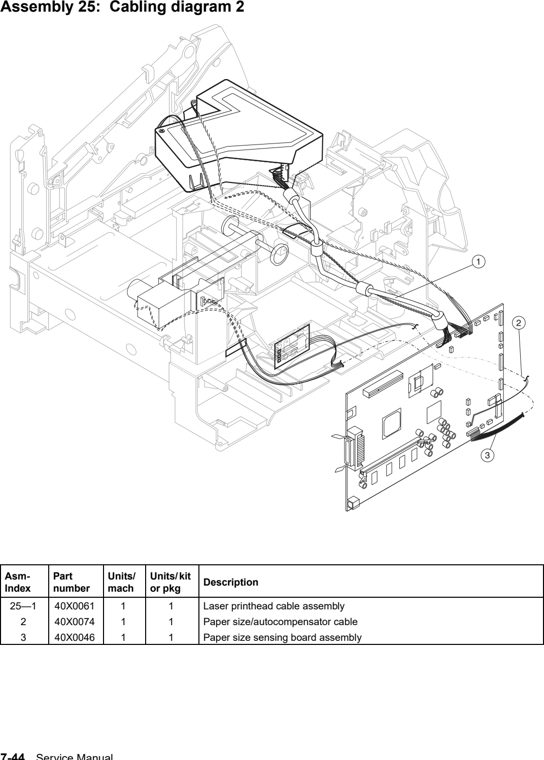

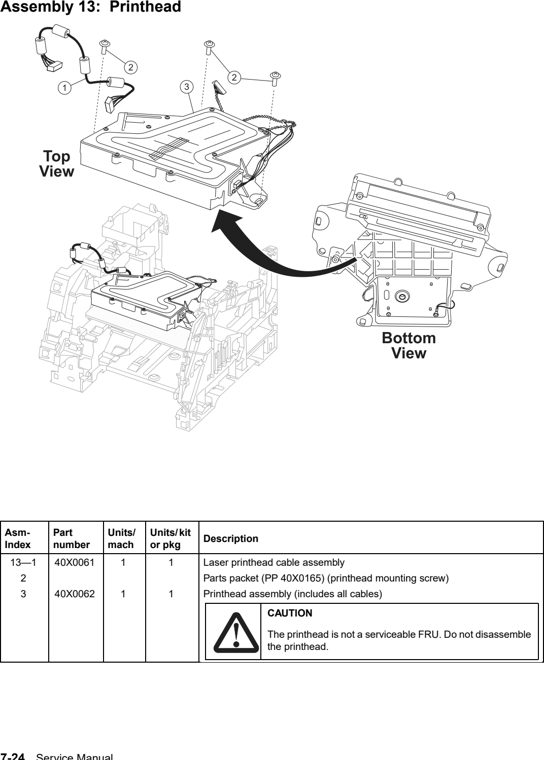

11

1
40X0061 Laser cable assembly
New
40X0061 (New)
$15.97



2 Parts packet (PP 40X0165) (printhead mounting screw)

3
40X0062 Printhead assembly
New
40X0062 20G0990 (New)
$124.71





40X0062 Printhead Assembly
Fully refurbished with 1-year warranty
40X0062 20G0990
$97.00



The printhead is not a serviceable FRU. Do not disassemble the printhead.

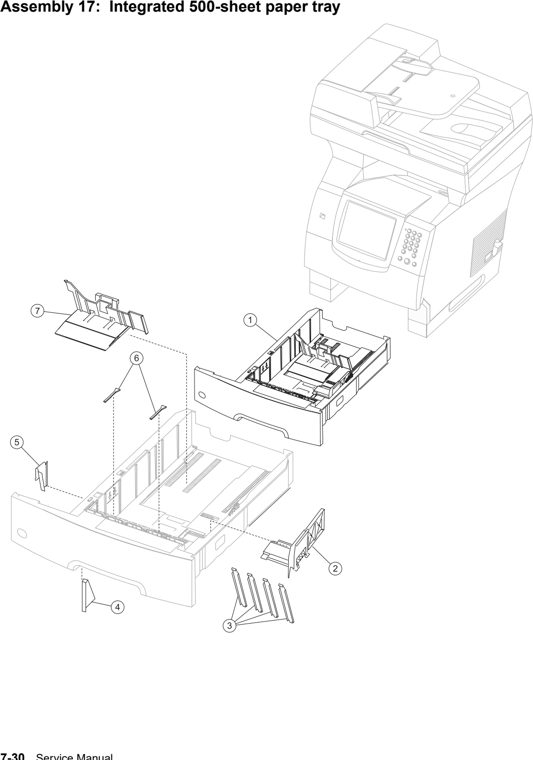

12

1

40X0066 500 Sheet Pick Arm Assembly
Fully refurbished with 90-day warranty
40X0066
$38.71

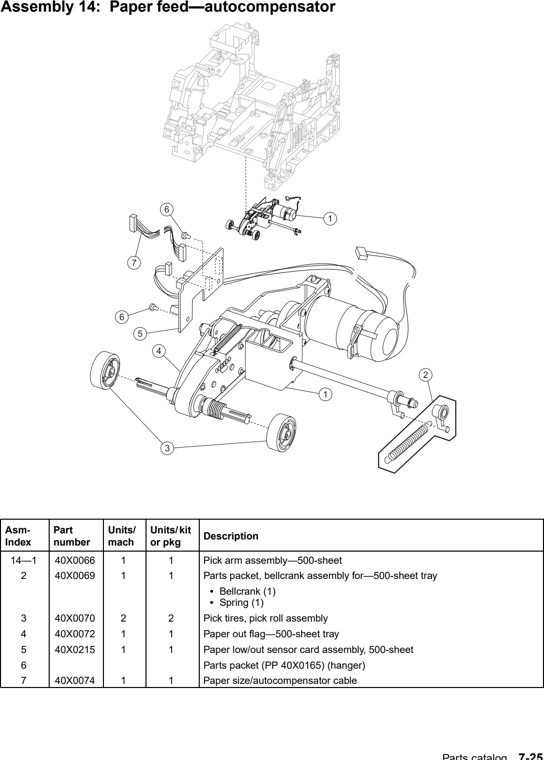

2

3
40X0070 Pick roll assembly - set of two
New
40X0070 40X4308 (New)
$17.71



4
40X0072 Paper Out Flag 500-Sheet Tray
Fully refurbished with 90-day warranty
40X0072
$6.62



5
40X0215 Paper Out/Low Card
Fully refurbished with 90-day warranty
40X0215
$8.23



6 Parts packet (PP 40X0165) (hanger)

7
40X0074 Paper size autocompensator cable
Fully refurbished with 90-day warranty
40X0074
$8.63


13

1

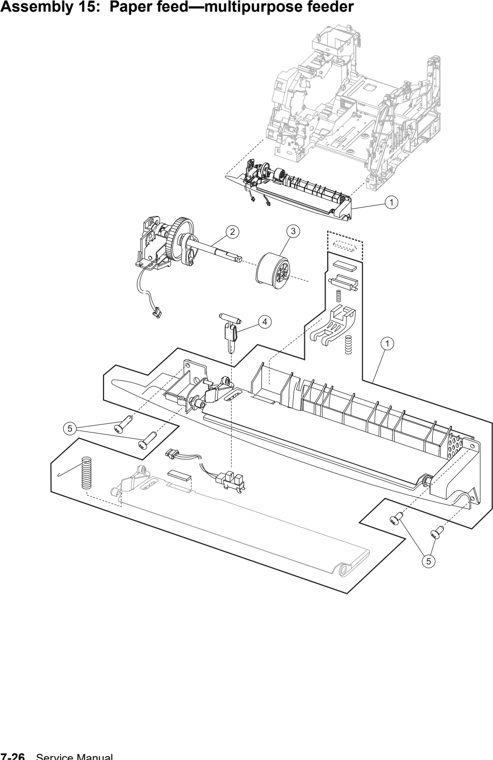

40X0079 Multipurpose Feeder Lower Deflector Assembly
Fully refurbished with 90-day warranty
40X0079
$20.00



2
40X0310 Multipurpose Feeder Pick Arm Assembly With Solenoid
Fully refurbished with 90-day warranty
2040X0310
$20.00



3
40X0076 Pick Roll Assembly
New
40X0076 (New)
$6.00



4
40X0077 Multipurpose feeder paper out flag
Fully refurbished with 90-day warranty
40X0077



5 Parts packet (PP 40X0165) (lower deflector mounting screw, 8 mm)

5 Parts packet (PP 40X0165) (lower deflector mounting screw, 12 mm)

5 Parts packet (PP 40X0165) (frame mounting screw)

NS Parts packet (PP 40X0165) (pick roll shaft clip)
14

1

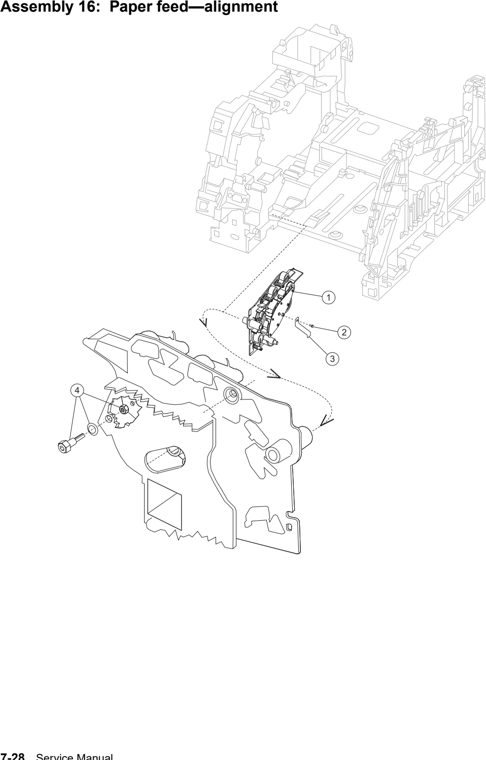

40X0084 Paper Feed Alignment Assembly
Fully refurbished with 90-day warranty
40X0084
$19.71



2 Parts packet (PP 40X0165) (clip ref ground mounting screw)

3
40X0085 Reference ground clip
Fully refurbished with 90-day warranty
40X0085



4 40X0086 Parts packet (reference adjust)
Screw, paper reference adjust (1)
Washer, paper reference adjust (1)
Nut, paper reference adjust (1)
NS Parts packet (PP 40X0165) (alignment asm mounting screw)

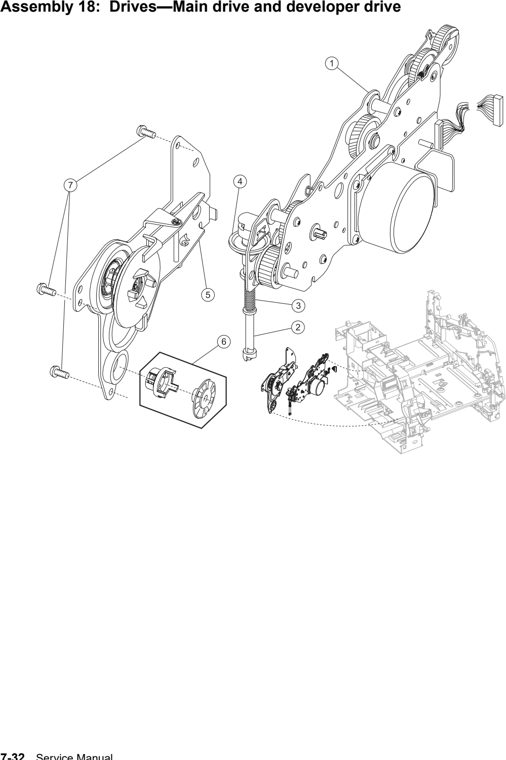

15

1
40X0107 Gearbox With Motor
Fully refurbished with 90-day warranty
40X0107
$79.71



40X0107 Gearbox with motor
New
40X0107 (New)
$145.27



2
40X0111 Power takeoff shaft 500-sheet
Fully refurbished with 90-day warranty
40X0111



3
40X0112 Power Takeoff Shaft Spring
Fully refurbished with 90-day warranty
40X0112
$6.00



4

40X0113 Bevel Gear Kit
Fully refurbished with 90-day warranty
40X0113
$24.47



5
40X0114 Developer drive assembly
Fully refurbished with 90-day warranty
40X0114
$16.71



6


7 Parts packet (PP 40X0165) (developer drive ground screw)

NS Parts packet (PP 40X0165) (gearbox mounting screw)
16

1
40x2592 Fuser Assembly
New
40x2592 45U2820 40X0116 56P4243 Advanced Exchange (New)

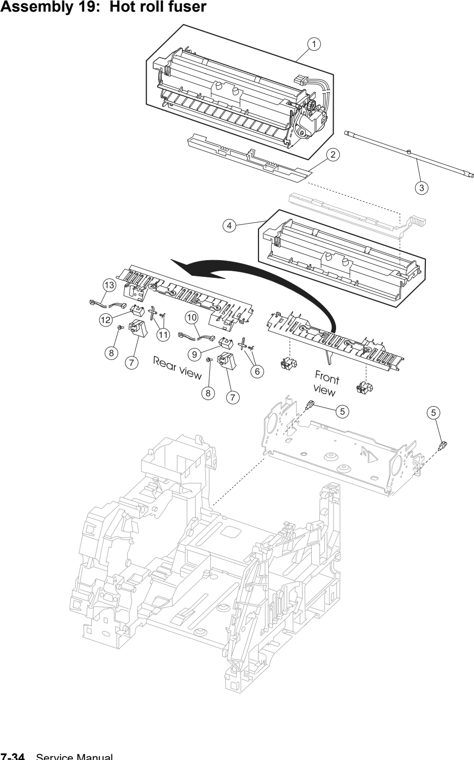

40X0116 Fuser Assembly
Fully refurbished with 90-day warranty
40x2592 45U2820 40X0116 56P4243
$110.00







2


3

4
40X0121 Fuser Cover Assembly
Fully refurbished with 90-day warranty
40X0121
$20.00



5 Parts packet (fuser mounting screw) (PP 40X0254)

6

7

8 Parts packet (PP 40X0165)

9


10
40X0230 Exit Sensor Cable
Fully refurbished with 90-day warranty
40X0230
$31.93



11
40X0238 Narrow Media Flag/Spring Kit
New
40X0238 (New)
$20.08



including:
Spring
Flag
12 40X0124 Narrow media sensor

13
40X0229 Narrow Media Sensor Cable
Fully refurbished with 90-day warranty
40X0229
$31.93



NS 40X0226 Fuser AC to fuser lamp cable

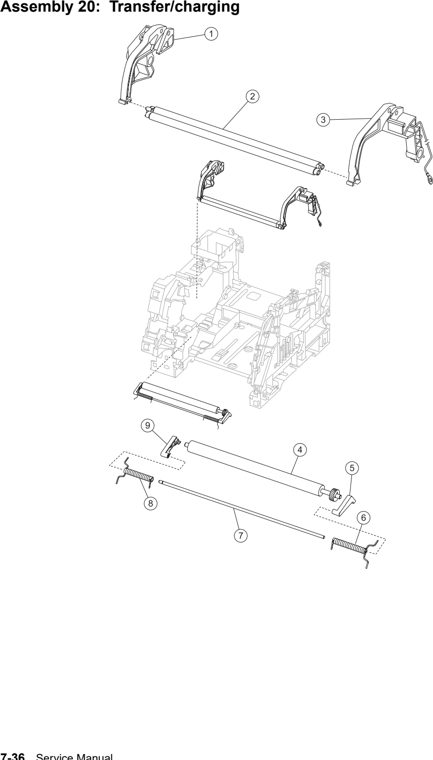

17

1
40X0126 Parts kit charge roll link asm left side
Fully refurbished with 90-day warranty
40X0126
$10.00



2
40X0127 Charge Roll Assembly Dual
New
40X0127 Compatible (New)
$30.00



3
40X0129 Parts Kit Right Side Charge Roll Link Assembly
Fully refurbished with 90-day warranty
40X0129
$10.00



4
40X0130 Transfer Roll
New
40X0130 I (New)
$25.48



5
40X0131 Transfer roll assembly right arm
Fully refurbished with 90-day warranty
40X0131



6
40X0132 Transfer roll right spring
Fully refurbished with 90-day warranty
40X0132



7


8


9
40X0135 Transfer roll left arm
Fully refurbished with 90-day warranty
40X0135
$7.68



NS Parts packet (PP 40X0165) (charge roll screw)

NS Parts packet (PP 40X0165) (C-clip, pivot shaft)

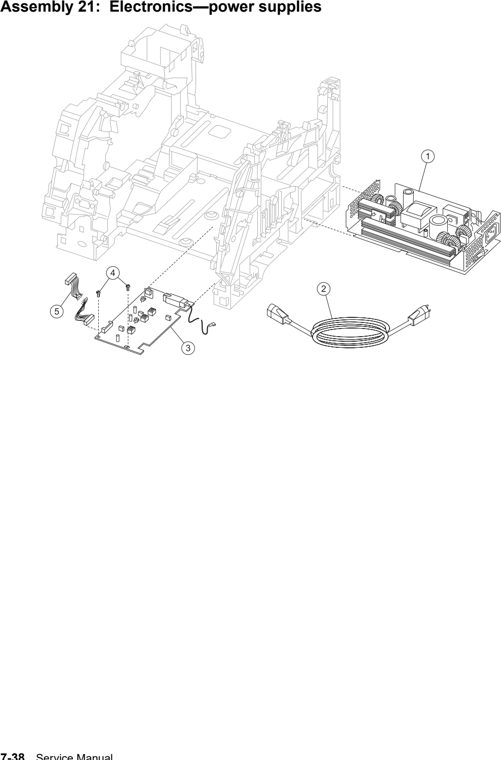

1
40X0517 LVPS/AIO 115 V ac
New
40X0517 (New)
$59.71



40X0517 LVPS/AIO 115 V AC
Fully refurbished with 90-day warranty
40X0517
$29.71



2 40X0260 Power cord set (8 ft right angle, 13 amp)

3
40X0138 High Voltage Power Supply (HVPS)
Fully refurbished with 90-day warranty
40X0138 40x4275 56P4239
$24.71



40X4275 High Voltage Power Supply HVPS
New
40X4275 40X0138 56P4239 (New)
$45.00



4 Parts packet (PP 40X0165)

5

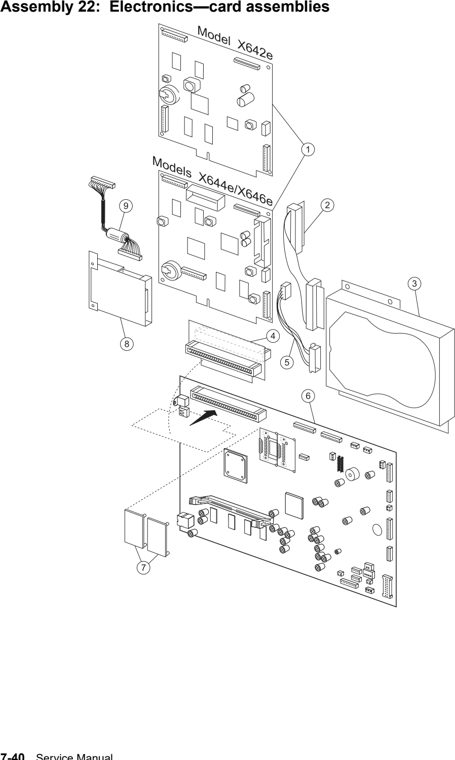

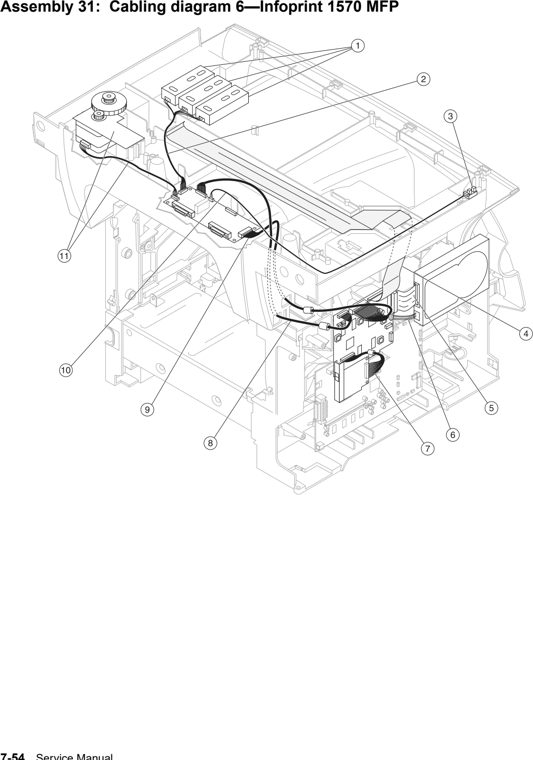

18

Note: The system board has a label with an board ID and barcode. Use the first eight numbers to identify the board with the part number

1
40X0498 Scanner Control Card
New
40X0498 40X4844 (New)
$432.86





40X0498 Scanner Control Card
Fully refurbished with 90-day warranty
40X0498 40X4844



2
40X0509 Hard disk IDE 50-pin cable
Fully refurbished with 90-day warranty
40X0509
$11.00



3
40X0489 Hard Disk Assembly
New
40X0489 (New)
$80.96



40X0489 Hard Disk Assembly
Fully refurbished with 90-day warranty
40X0489



4
40X0520 Interconnect Card Assembly
New
40X0520 (New)
$25.00



40X0520 Interconnect Card Assembly
Fully refurbished with 90-day warranty
40X0520
$20.00



5
40X0510 Hard Disk 4-Pin Power Cable
Fully refurbished with 90-day warranty
40X0510
$11.48



6
40X2722 System Board Assembly (Network) MFP
Fully refurbished with 90-day warranty
40X2722 40X4211 40X2744 40X5033 40X4301 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$169.71



40X2722 System Board Assembly (Network) Infoprint 1570 Mfp
New
40X2722 40X4211 40X2744 40X5033 40X4301 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$284.71



40X2722 System Board Assembly (Network) Infoprint 1570 Mfp
New
40X2722 40X4211 40X2744 40X5033 40X4301 Advanced Exchange (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$284.71



8
40X0519 Modem
New
40X0519 (New)
$144.28



40X0519 Modem
Fully refurbished with 90-day warranty
40X0519
$84.71
