IBM Infoprint 1767 (4960) Parts






Please call for parts assistance

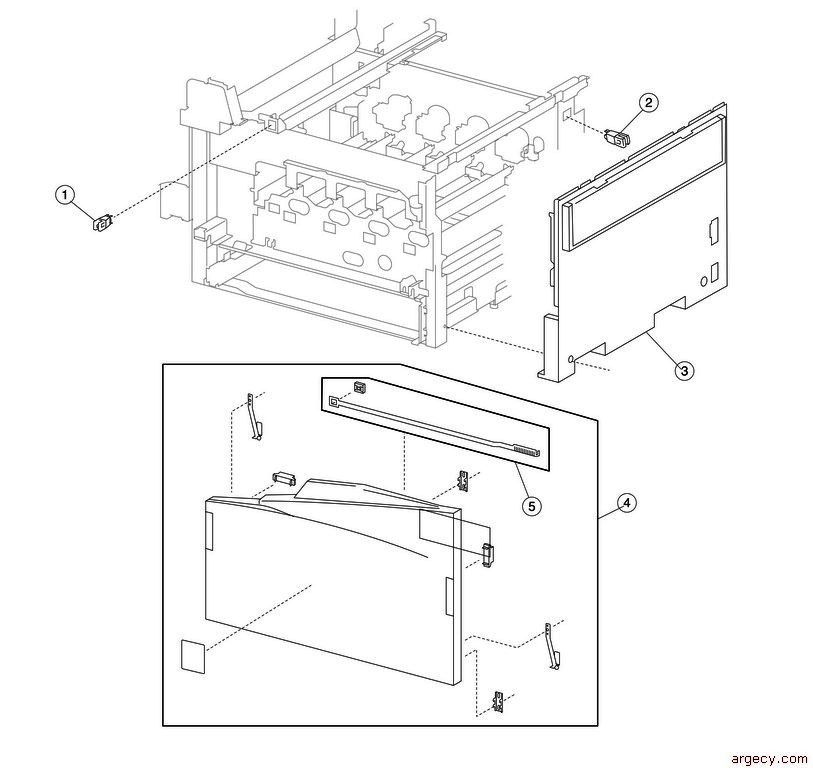

Assembly 1: Covers

1
40X0553 Switch
New
40X0553 (New)
$14.32



40X0553 Switch
Fully refurbished with 90-day warranty
40X0553
$12.85



2
40X0553 Switch
New
40X0553 (New)
$14.32



40X0553 Switch
Fully refurbished with 90-day warranty
40X0553
$12.85



3
40X3780 Right cover assembly
New
40X3780 (New)
$24.71



40X3780 Right cover assembly
Fully refurbished with 90-day warranty
40X3780
$24.71



4 40X4115 Printer front door assembly (this comes assembled)

5 40X3779 Printhead slit glass cleaner assembly
https://argecy.com/images/1767_C935-496_cr.jpg

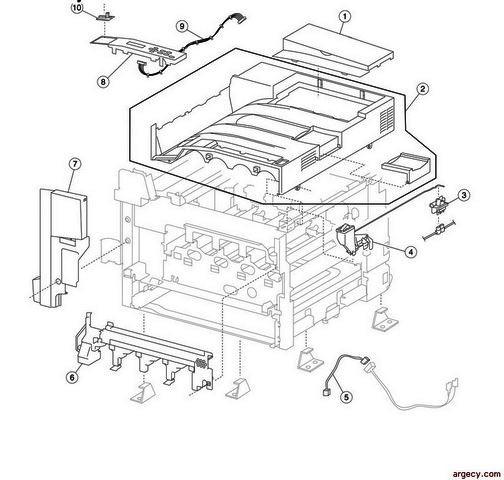

Assembly 2: Covers
Warning: In the event of replacement of any one of the following components:
- Operator panel assembly (universal)
- Operator panel controller card assembly
- RIP card assembly
- Interconnect card assembly
Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above. If this procedure is not followed, the printer will be rendered inoperable. Never replace two or more of the components listed above without a POR after installing each one, or the printer will be rendered inoperable.
Warning: Never install and remove components listed above as a method of troubleshooting components. Once a component has been installed in a machine, it cannot be used in another machine. It must be returned to the manufacturer.

1
40X3782 RIP card access cover
New
40X3782 (New)
$15.61



40X3782 RIP card access cover
Fully refurbished with 90-day warranty
40X3782
$14.02



2
40X3781 Top cover assembly
Fully refurbished with 90-day warranty
40X3781
$24.58



40X3781 Top cover assembly
New
40X3781 (New)
$24.71



3
40X3787 Switch (main power)
Fully refurbished with 90-day warranty
40X3787
$21.52



40X3787 Switch (main power)
New
40X3787 (New)
$24.71



4 40X3786 Main power switch actuator

5
40X3783 Main switch cable assembly
Fully refurbished with 90-day warranty
40X3783
$28.04



40X3783 Main switch cable assembly
New
40X3783 (New)
$34.41



6
40X3785 Inner cover
New
40X3785 (New)
$16.41



40X3785 Inner cover
Fully refurbished with 90-day warranty
40X3785
$16.71



7 40X4111 Front left cover

8
40X4089 Operator Panel Assembly
New
40X4089 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$121.24



9 40X4152 SFP operator cable assembly
https://argecy.com/images/1767_C935-497_cr.jpg

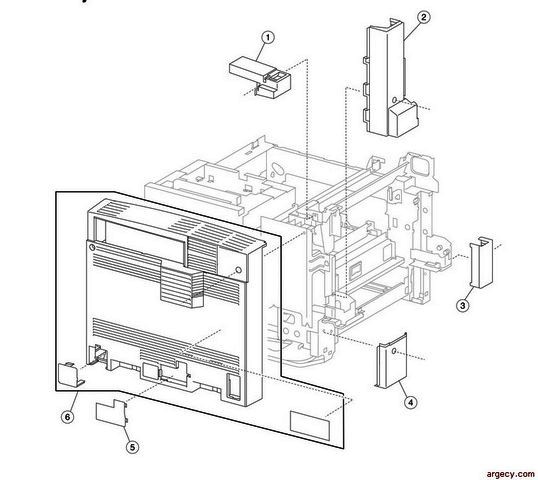

Assembly 3: Covers

1 40X3796 Rear left upper cover

2 40X3793 Rear left middle cover

3 40X3795 Left front cover

4 40X3794 Rear left lower cover

5 40X3788 Rear blind cover

6
40X3791 Rear Cover Assembly 110 V
New
40X3791 (New)
$79.56


https://argecy.com/images/1767_C935-499_cr.jpg

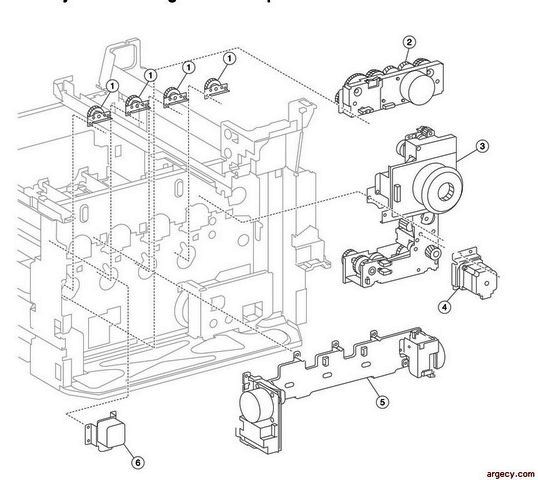

Assembly 4: PC cartridge and developer drive

1 40X3671 Developer idler gear assembly

2

40X3669 CMY developer drive motor assembly
Fully refurbished with 90-day warranty
40X3669
$48.10



3
40X3670 Developer / Transport Drive Motor Assembly
Fully refurbished with 90-day warranty
40X3670
$257.71





4

40X3672 Multipurpose feeder / transport drive motor assembly
Fully refurbished with 90-day warranty
40X3672
$25.00



5
40X3667 CMYK PC cartridge drive motor assembly
Fully refurbished with 90-day warranty
40X3667
$119.71





6
40X3668 Transfer belt drive motor assembly
Fully refurbished with 90-day warranty
40X3668
$30.64



40X3668 Transfer belt drive motor assembly
New
40X3668 (New)
$58.01

Retired, no longer available: Contact for alternatives


https://argecy.com/images/1767_C935-500_cr.jpg

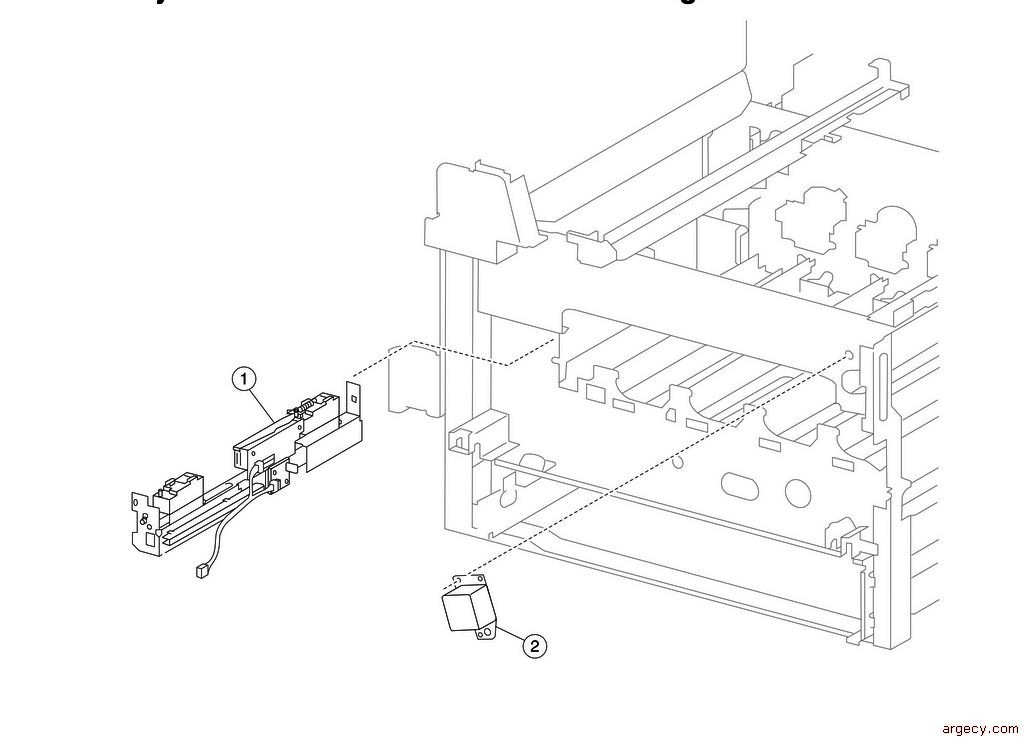

Assembly 5: ID sensor and transfer belt steering

1
40X3674 Image density sensor assembly
New
40X3674 (New)
$82.87



40X3674 Image density sensor assembly
Fully refurbished with 90-day warranty
40X3674
$51.71



2
40X3673 Transfer belt steering motor
Fully refurbished with 90-day warranty
40X3673
$22.46



40X3673 Transfer belt steering motor
New
40X3673 (New)
$24.71


https://argecy.com/images/1767_C935-501_cr.jpg

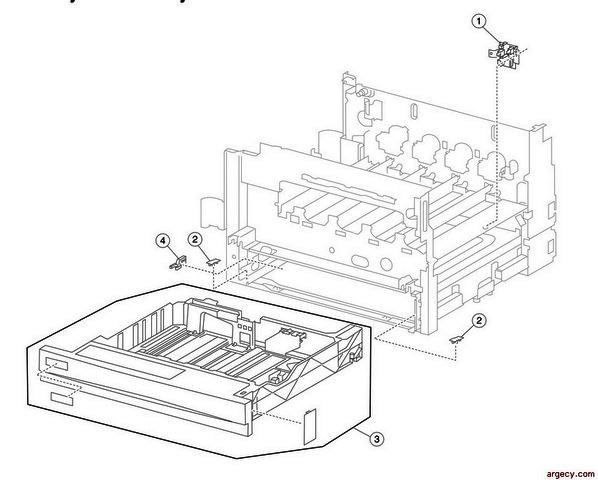

Assembly 6: Media tray

1
40X3677 Switch (media size)
Fully refurbished with 90-day warranty
40X3677
$19.72



40X3677 Switch (media size)
New
40X3677 (New)
$19.44



2 40X3676 Media tray slide

3
40X3678 Media Tray Assembly Kit
New
40X3678 (New)
$61.46



40X3678 Media tray assembly kit
Fully refurbished with 90-day warranty
40X3678
$64.71



- Media tray assembly
- #1 label
- #2 label
- #3 label
- #4 label
- Instruction label
4 40X3675 Media tray catch
https://argecy.com/images/1767_C935-502_cr.jpg

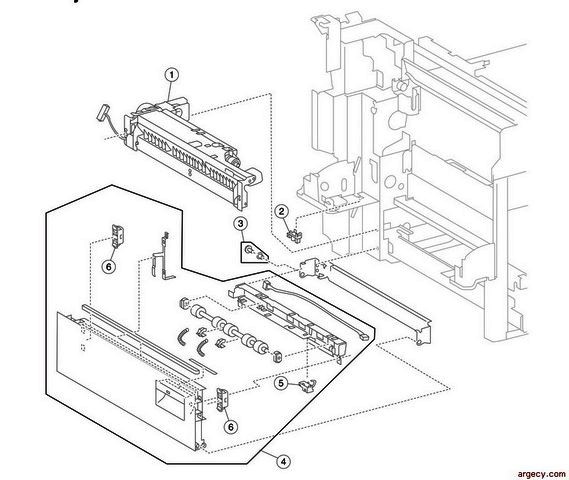

Assembly 7: Printer left lower door and media feed unit

1

40X3679 Media feed unit assembly
Fully refurbished with 90-day warranty
40X3679
$38.71



2 40X3688 Sensor (printer left lower door interlock)

3

4

40X3680 Left lower door assembly (assembled)
Fully refurbished with 90-day warranty
40X3680
$24.71



(this comes assembled)
5 40X3681 Sensor (tray 1 feed-out)

6 40X3682 Magnetic catch
https://argecy.com/images/1767_C935-503_cr.jpg

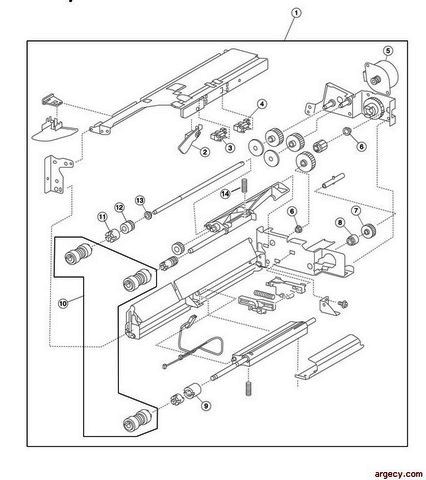

Assembly 8: Media feed unit

1
40X3679 Media feed unit assembly
Fully refurbished with 90-day warranty
40X3679
$38.71





2 40X3687? Media out actuator

3 40X3688 Sensor (tray media out)

4 40X3688 Sensor (tray media level)

5
40X3684 Media feed lift motor
Fully refurbished with 90-day warranty
40X3684
$27.74





6
40X0888 Bushing 6 mm
Fully refurbished with 90-day warranty
40X0888
$10.11



40X0888 Bushing 6 mm
New
40X0888 (New)
$16.28


7 40X3686 Media tray lift one-way gear

8 40X3685 Media tray lift one-way clutch

9 40X4086 Separation roll friction clutch

10
40X3689 Feed unit roll kit
New
40X3689 (New)
$94.71



- Feed roll (2)
- Pick roll (2)
- Separation roll (2)
11 40X3690 Feed roll one-way clutch

12 40X3691 Feed roll one-way gear 22T

13 40X0952 Bushing 6 mm

14
40X0590 Pick Roll Assembly Spring
New
40X0590 (New)
$16.60



40X0590 Pick roll assembly spring
Fully refurbished with 90-day warranty
40X0590
$10.40



https://argecy.com/images/1767_C935-504_cr.jpg

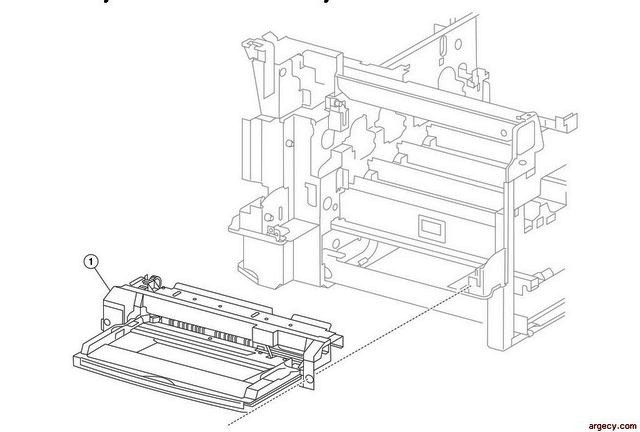

Assembly 9: MPF feed unit assembly 1

1

40X4079 Multipurpose feed unit assembly (assembled)
Fully refurbished with 90-day warranty
40X4079



(this comes assembled)
https://argecy.com/images/1767_C935-506_cr.jpg

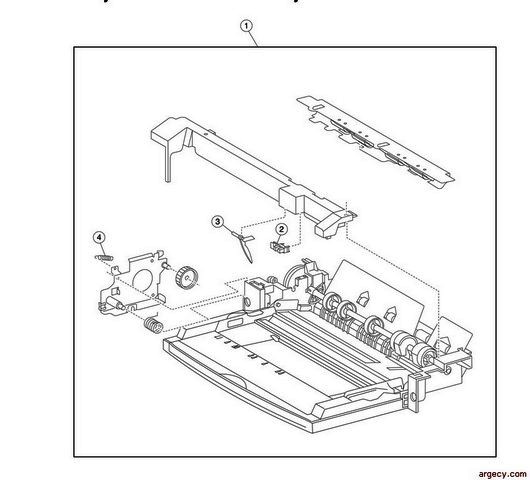

Assembly 10: MPF feed unit assembly 2

1
40X4079 Multipurpose feed unit assembly (assembled)
Fully refurbished with 90-day warranty
40X4079





(this comes assembled)

2 40X3688 Sensor (MPF media out)

3 40X3709 MPF media out actuator

4
40X0755 Multipurpose Feeder Pickup Spring
Fully refurbished with 90-day warranty
40X0755
$56.82





https://argecy.com/images/1767_C935-507_cr.jpg

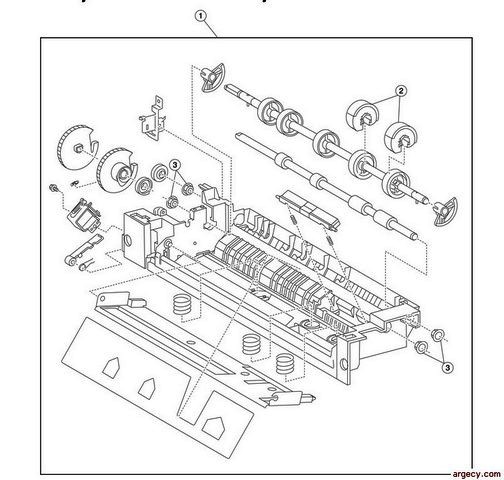

Assembly 11: MPF feed unit assembly 3

1

40X4079 Multipurpose feed unit assembly (assembled)
Fully refurbished with 90-day warranty
40X4079



(this comes assembled)
2 40X3711 MPF pick roll kit
- MPF pick roll (2)

3 40X1381 Bushing 8 mm
https://argecy.com/images/1767_C935-508_cr.jpg

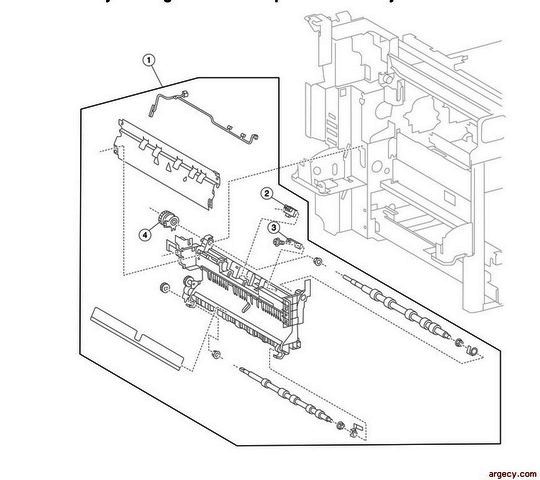

Assembly 12: Registration / transport roll assembly

1
40X3692 Registration/transport roll assembly (assembled)
Fully refurbished with 90-day warranty
40X3692
$87.75





(this comes assembled)
2
40X3695 Sensor (transparency detect)
Fully refurbished with 90-day warranty
40X3695
$36.23



40X3695 Sensor (transparency detect)
New
40X3695 (New)
$44.44



3 40X3694 Sensor (registration)

4
40X3693 Registration clutch
New
40X3693 (New)
$24.37



40X3693 Registration clutch
Fully refurbished with 90-day warranty
40X3693
$23.39


https://argecy.com/images/1767_C935-509_cr.jpg

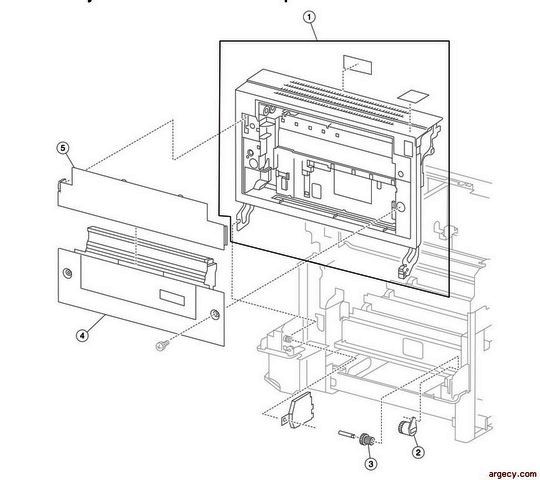

Assembly 13: Printer left door and duplex

1
40X4078 Left door assembly (assembled)
Fully refurbished with 90-day warranty
40X4078
$77.71



40X4078 Left door assembly (assembled)
New
40X4078 (New)
$110.21



(this comes assembled)
2
40X3697 Left door damper assembly
New
40X3697 (New)
$24.71



40X3697 Left door damper assembly
Fully refurbished with 90-day warranty
40X3697
$21.94



3 40X3696 Printer left door damper idler gear

4
40X3799 Duplex unit assembly (assembled)
Fully refurbished with 90-day warranty
40X3799
$62.34





(this comes assembled)
5 40X3798 Printer left door blind cover
https://argecy.com/images/1767_C935-510_cr.jpg

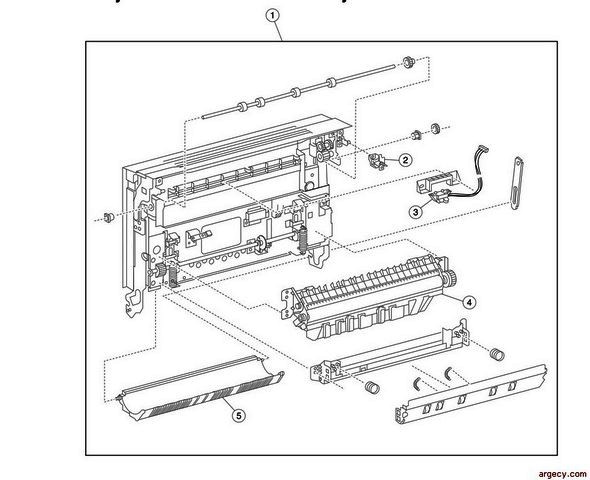

Assembly 14: Printer left door assembly 1

1
40X4078 Left door assembly (assembled)
New
40X4078 (New)
$110.21



40X4078 Left door assembly (assembled)
Fully refurbished with 90-day warranty
40X4078
$77.71



(this comes assembled)
2 40X4098 Printer left door closed actuator

3
40X3699 Sensor (fuser exit)
New
40X3699 (New)
$35.60



40X3699 Sensor (fuser exit)
Fully refurbished with 90-day warranty
40X3699
$29.00



4
40X3698 2nd Transfer Roll Assembly
Fully refurbished with 90-day warranty
40X3698





5 40X3700 Printer left door duplex exit guide
https://argecy.com/images/1767_C935-511_cr.jpg

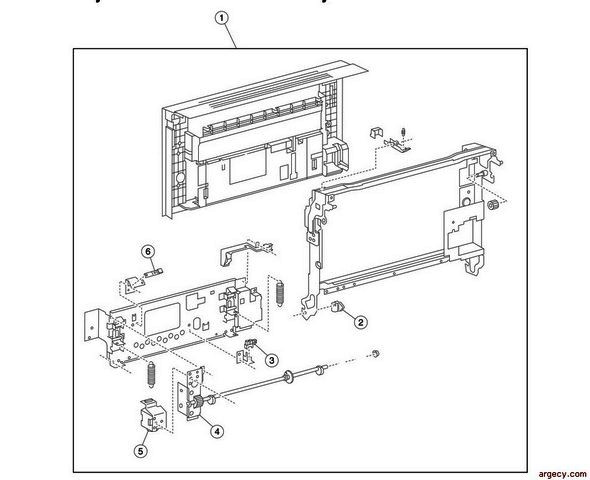

Assembly 15: Printer left door assembly 2

1
40X4078 Left door assembly (assembled)
New
40X4078 (New)
$110.21



40X4078 Left door assembly (assembled)
Fully refurbished with 90-day warranty
40X4078
$77.71



(this comes assembled)
2 40X3704 Printer left door damper sector gear

3 40X3688 Sensor (2nd transfer roll retract HP)

4
40X3701 2nd transfer roll retract cam assembly
Fully refurbished with 90-day warranty
40X3701
$96.80





5

40X3702 2nd transfer retract motor assembly
Fully refurbished with 90-day warranty
40X3702
$32.48



6
40X3703 Sensor (media on belt)
Fully refurbished with 90-day warranty
40X3703
$21.33



40X3703 Sensor (media on belt)
New
40X3703 (New)
$26.20


https://argecy.com/images/1767_C935-512_cr.jpg

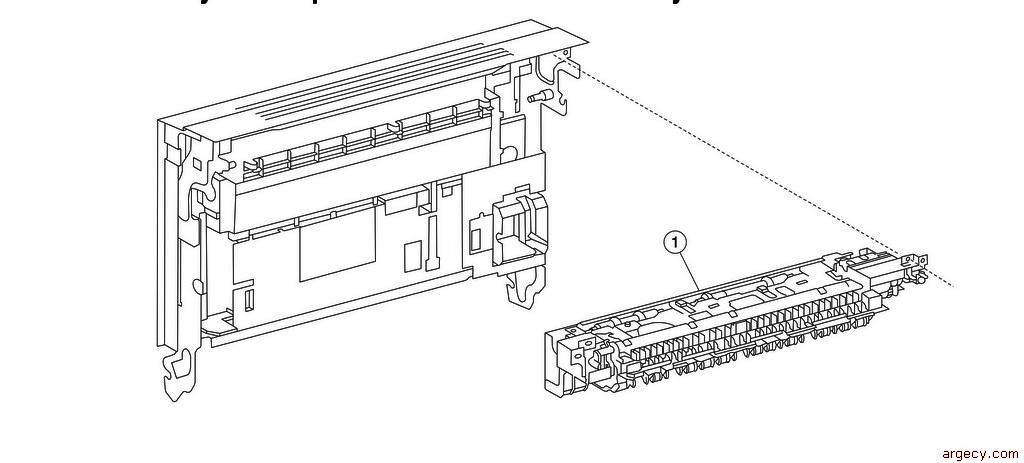

Assembly 16: Duplex media inverter assembly

1
40X3797 Duplex media inverter assembly
New
40X3797 (New) Backordered, no ETA
$204.36



40X3797 Duplex media inverter assembly
Fully refurbished with 90-day warranty
40X3797
$124.71


https://argecy.com/images/1767_C935-513_cr.jpg
Assembly 17: Duplex 1

1
40X3799 Duplex unit assembly (assembled)
Fully refurbished with 90-day warranty
40X3799
$62.34





(this comes assembled)

2 40X3798 Printer left door blind cover
https://argecy.com/images/1767_C935-514_cr.jpg

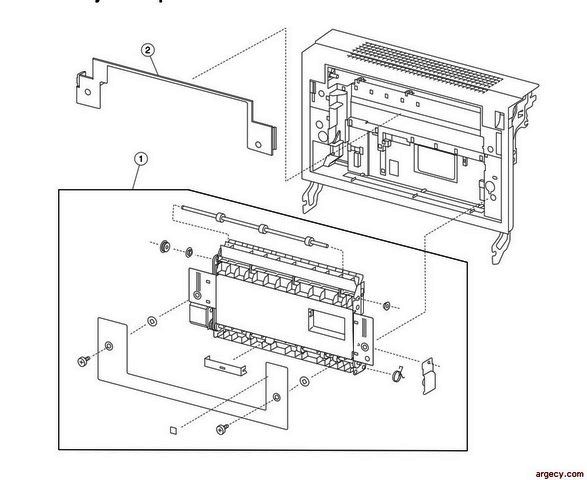

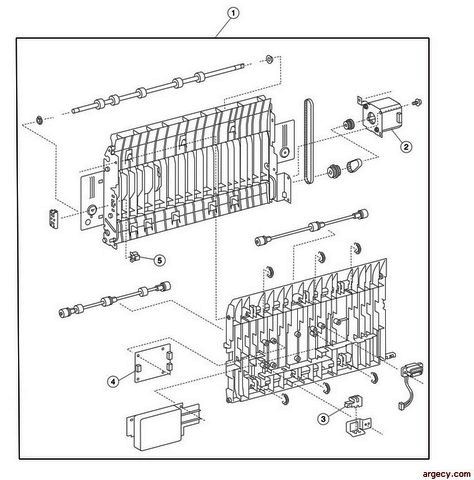

Assembly 18: Duplex 2

1

40X3799 Duplex unit assembly (assembled)
Fully refurbished with 90-day warranty
40X3799
$62.34



(this comes assembled)
2
40X3802 Duplex drive motor
Fully refurbished with 90-day warranty
40X3802
$39.67



40X3802 Duplex drive motor
New
40X3802 (New)
$48.66



3 40X3801 Sensor (duplex wait)

4



5 40X3803 Switch (duplex left door interlock)
https://argecy.com/images/1767_C935-515_cr.jpg

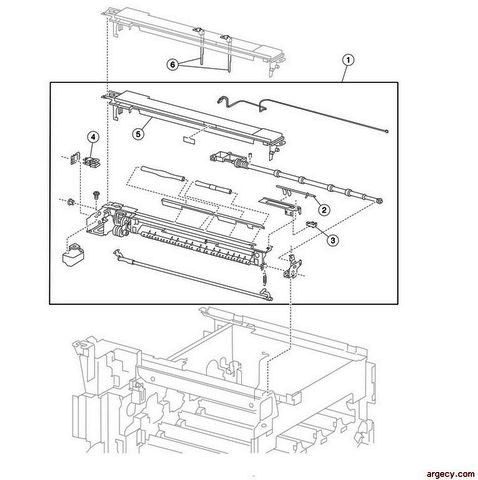

Assembly 19: Standard media exit shift

1

40X3705 Standard media exit shift assembly (assembled)
Fully refurbished with 90-day warranty
40X3705
$103.00



(this comes assembled)
2 40X3707 Standard bin full actuator

3 40X3688 Sensor (standard bin full)

4
40X0553 Switch
New
40X0553 (New)
$14.32



40X0553 Switch
Fully refurbished with 90-day warranty
40X0553
$12.85



5 40X3706 Standard exit top cover

6 40X4080 Standard output bin paper weight
https://argecy.com/images/1767_C935-516_cr.jpg

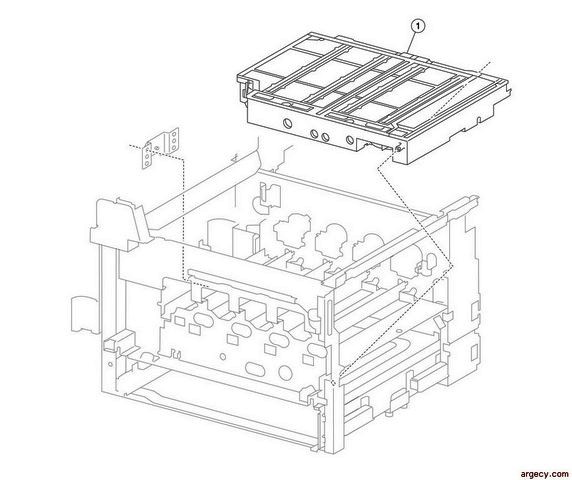

Assembly 20: Printhead assembly

1
40X3712 Printhead Assembly
Fully refurbished with 90-day warranty
40X3712
$168.72




https://argecy.com/images/1767_C935-517_cr.jpg

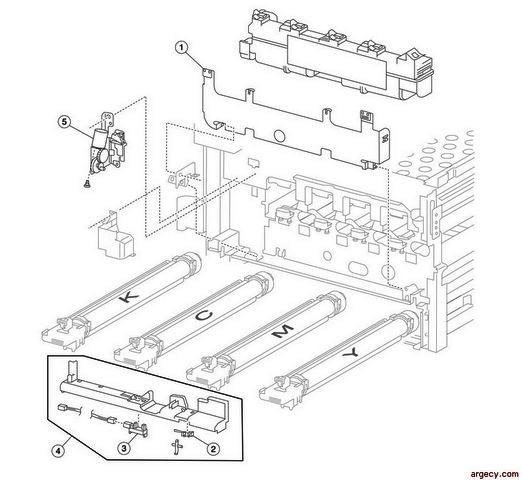

Assembly 21: Xerographic and waste toner

1
40X3713 Waste toner cartridge cover
New
40X3713 (New)
$23.05



40X3713 Waste toner cartridge cover
Fully refurbished with 90-day warranty
40X3713
$18.77



2 40X3715 Switch (waste toner cartridge interlock)

3 40X3717 Sensor (waste toner cartridge full)

4
40X3714 Waste toner cartridge sensor assembly (assembled)
Fully refurbished with 90-day warranty
40X3714
$15.95





(this comes assembled)
5

40X3716 Waste toner agitator motor assembly
Fully refurbished with 90-day warranty
40X3716
$18.77


https://argecy.com/images/1767_C935-518_cr.jpg

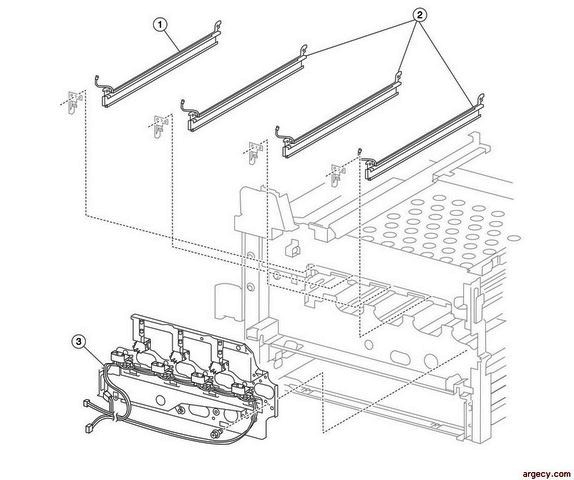

Assembly 22: Erase lamps and developer interlock plate

1
40X3720 K erase lamp assembly
Fully refurbished with 90-day warranty
40X3720
$31.37





2

40X3719 CMY erase lamp assembly
Fully refurbished with 90-day warranty
40X3719
$24.71



3
40X3718 Developer interlock plate assembly
Fully refurbished with 90-day warranty
40X3718
$32.69




https://argecy.com/images/1767_C935-519_cr.jpg
Assembly 23: Transfer belt lift 1

1
40X3722 Right transfer belt lift assembly
Fully refurbished with 90-day warranty
40X3722
$38.71





2



3 40X3723 Transfer belt lift latch assembly with label

4

40X3721 Left transfer belt lift assembly
Fully refurbished with 90-day warranty
40X3721
$32.21


https://argecy.com/images/1767_C935-520_cr.jpg

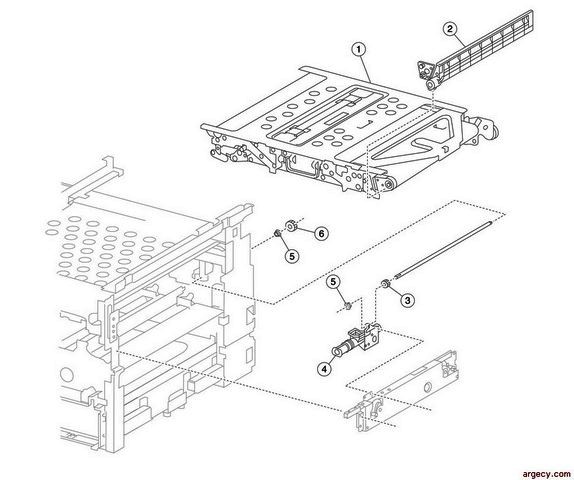

Assembly 24: Transfer belt

1
40X3732 Transfer Belt Unit Assembly
New
40X3732 (New)
$1279.60



2

3 40X3729 Transfer belt auger front gear 14T

4 40X3731 Transfer belt auger assembly

5
40X0880 Bushing 6 mm
New
40X0880 (New)
$15.58



40X0880 Bushing 6 mm
Fully refurbished with 90-day warranty
40X0880



6 40X3730 Transfer belt auger rear gear 18T
https://argecy.com/images/1767_C935-521_cr.jpg

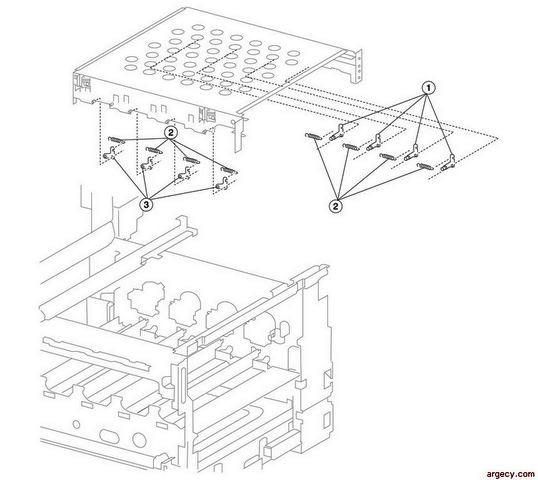

Assembly 25: Transfer belt lift 2

1 40X3735 Transfer belt lift rear plunger assembly

2 40X3734 Transfer belt lift recoil spring

3 40X3736 Transfer belt lift front plunger assembly
https://argecy.com/images/1767_C935-522_cr.jpg

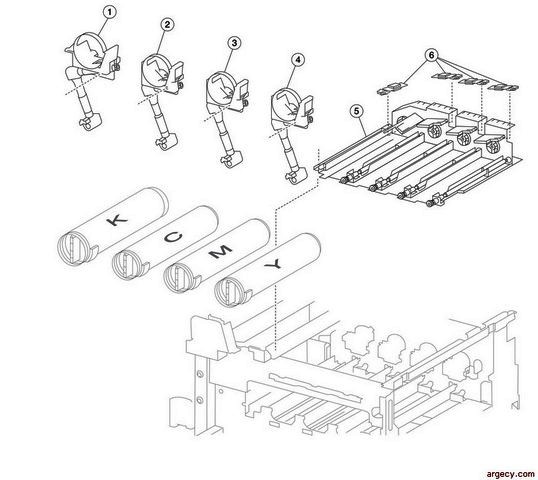

Assembly 26: Toner Dispense

1
40X3740 K Toner Dispense Assembly
New
40X3740 (New)
$24.71



40X3740 K toner dispense assembly
Fully refurbished with 90-day warranty
40X3740
$25.00



2
40X3739 C toner dispense assembly
Fully refurbished with 90-day warranty
40X3739
$25.00



40X3739 C Toner Dispense Assembly
New
40X3739 (New)
$24.71



3
40X3738 M toner dispense assembly
New
40X3738 (New)
$24.71



40X3738 M toner dispense assembly
Fully refurbished with 90-day warranty
40X3738
$25.00



4
40X3737 Y toner dispense assembly
Fully refurbished with 90-day warranty
40X3737
$25.00



40X3737 Y toner dispense assembly
New
40X3737 (New)
$24.71



5
40X3741 CMYK toner add motor assembly
Fully refurbished with 90-day warranty
40X3741
$56.30





6
40X0636 Sensor
Fully refurbished with 90-day warranty
40X0636
$22.00




?
https://argecy.com/images/1767_C935-523_cr.jpg

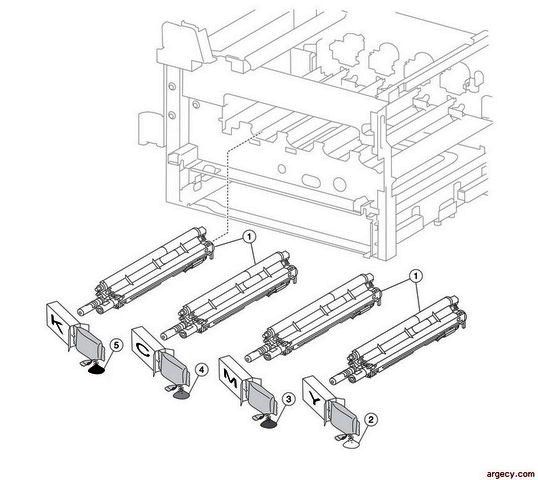

Assembly 27: Developer unit assemblies

1
40X3742 Developer Unit Assembly
New
40X3742 (New)
$229.76



40X3742 Developer unit assembly
Fully refurbished with 90-day warranty
40X3742
$230.06



2

40X3744 Y developer carrier
Fully refurbished with 90-day warranty
40X3744



3
40X3745 M developer carrier
Fully refurbished with 90-day warranty
40X3745



40X3745 M Developer Carrier
New
40X3745 (New)
$293.52



4
40X3746 C Developer Carrier
New
40X3746 (New)
$144.72



40X3746 C developer carrier
Fully refurbished with 90-day warranty
40X3746



5
40X3743 K developer carrier
Fully refurbished with 90-day warranty
40X3743



40X3743 K Developer Carrier
New
40X3743 (New)
$144.72


https://argecy.com/images/1767_C935-524_cr.jpg

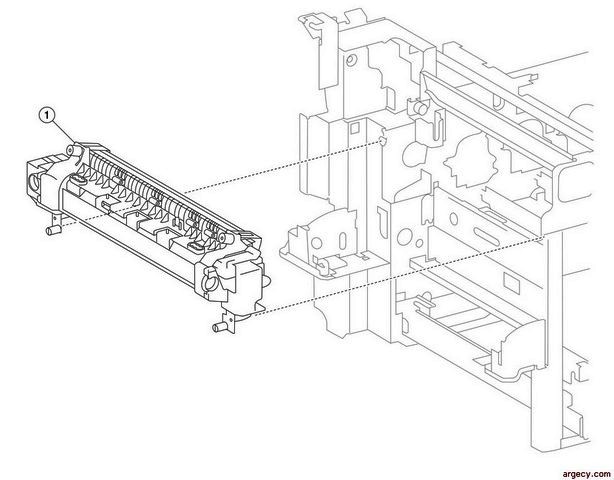

Assembly 28: Fuser assembly

1
40X3747 Fuser Assembly C935 X940 X945 1759 1767 1769
Fully refurbished with 90-day warranty
40X3747
$174.72




https://argecy.com/images/1767_C935-525_cr.jpg

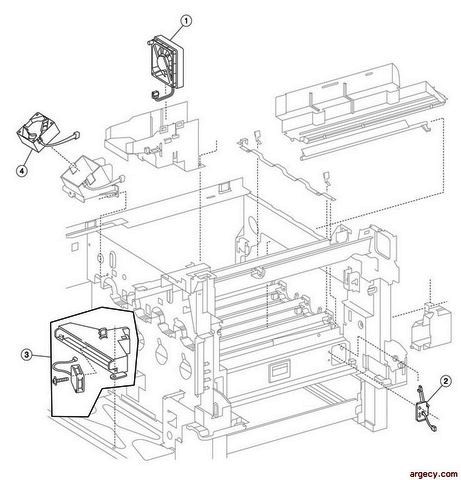

Assembly 29: Cooling fans

1
40X3750 Fuser cooling fan
New
40X3750 (New)
$24.78



40X3750 Fuser cooling fan
Fully refurbished with 90-day warranty
40X3750
$20.18



2
40X3749 Printhead shutter motor assembly
Fully refurbished with 90-day warranty
40X3749
$22.18





3

40X3752 Rear lower cooling fan assembly (assembled)
Fully refurbished with 90-day warranty
40X3752
$24.71



(this comes assembled)
4

40X3751 Transfer belt drive motor cooling fan
Fully refurbished with 90-day warranty
40X3751
$15.07


https://argecy.com/images/1767_C935-526_cr.jpg

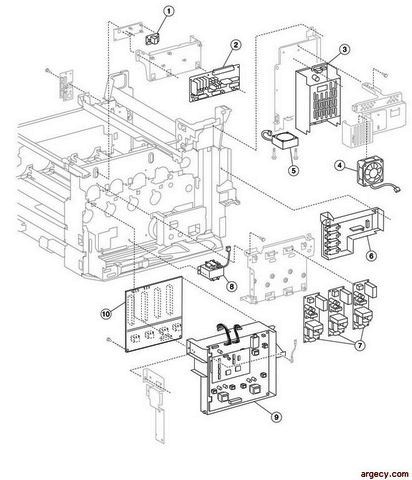

Assembly 30: Electrical 1

1

40X3762 Laser diode power card assembly
Fully refurbished with 90-day warranty
40X3762
$25.00



2

40X3757 Lower print engine card assembly
Fully refurbished with 90-day warranty
40X3757
$28.65



3
40X3758 24V LVPS card assembly
New
40X3758 (New)
$123.00



40X3758 24V LVPS card assembly
Fully refurbished with 90-day warranty
40X3758
$94.56



4
40X3763 Rear upper cooling fan
New
40X3763 (New)
$19.73



40X3763 Rear upper cooling fan
Fully refurbished with 90-day warranty
40X3763
$16.05



5
40X3759 24V LVPS cooling fan
New
40X3759 (New)
$19.79



40X3759 24V LVPS cooling fan
Fully refurbished with 90-day warranty
40X3759
$16.10



6
40X3760 CMYK transfer roll HVPS card assembly
Fully refurbished with 90-day warranty
40X3760
$43.23





7
40X3755 5V LVPS card assembly 110V
Fully refurbished with 90-day warranty
40X3755
$25.99



40X3755 5V LVPS card assembly 110V
New
40X3755 (New)
$31.90



8
40X3761 Noise filter assembly
New
40X3761 (New)
$24.71



40X3761 Noise filter assembly
Fully refurbished with 90-day warranty
40X3761
$21.90



9
40X3753 Developer/transfer roll HVPS card assembly
Fully refurbished with 90-day warranty
40X3753
$179.72





10

40X3754 Charge roll HVPS card assembly
Fully refurbished with 90-day warranty
40X3754
$45.21


https://argecy.com/images/1767_C935-527_cr.jpg

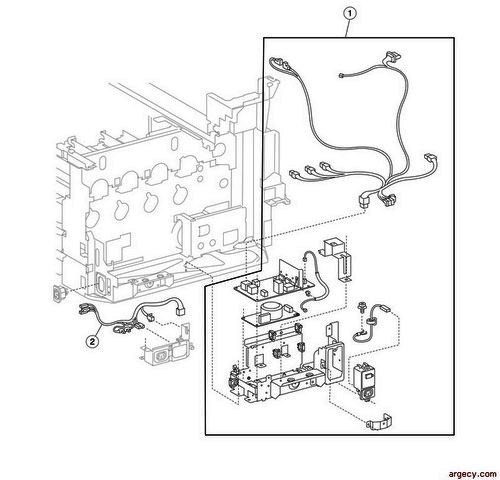

Assembly 31: Electrical 2

1
40X3764 AC drive card bracket assembly 110 V (assembled)
Fully refurbished with 90-day warranty
40X3764
$91.00





(this comes assembled)
2
40X3766 Outlet power panel cable assembly
Fully refurbished with 90-day warranty
40X3766
$14.93




https://argecy.com/images/1767_C935-529_cr.jpg

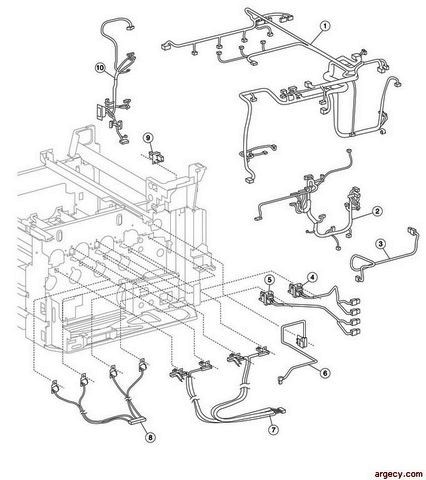

Assembly 32: Electrical 3

1
40X3775 DC main cable assembly
New
40X3775 (New)
$74.46



40X3775 DC main cable assembly
Fully refurbished with 90-day warranty
40X3775
$51.71



2
40X3776 DC rear right cable assembly
Fully refurbished with 90-day warranty
40X3776
$38.71



40X3776 DC rear right cable assembly
New
40X3776 (New)
$58.21



3 40X3774 2nd transfer charge roll cable

4

5

6 40X3772 Transfer belt charge cable

7
40X3769 Charge roll block cable assembly
Fully refurbished with 90-day warranty
40X3769
$38.78





8

40X3768 Developer block cable assembly
Fully refurbished with 90-day warranty
40X3768
$24.46



9 40X3773 2nd transfer roll charge connector

10
40X3777 DC rear left cable assembly
New
40X3777 (New)
$34.48



40X3777 DC rear left cable assembly
Fully refurbished with 90-day warranty
40X3777
$34.76


https://argecy.com/images/1767_C935-530_cr.jpg

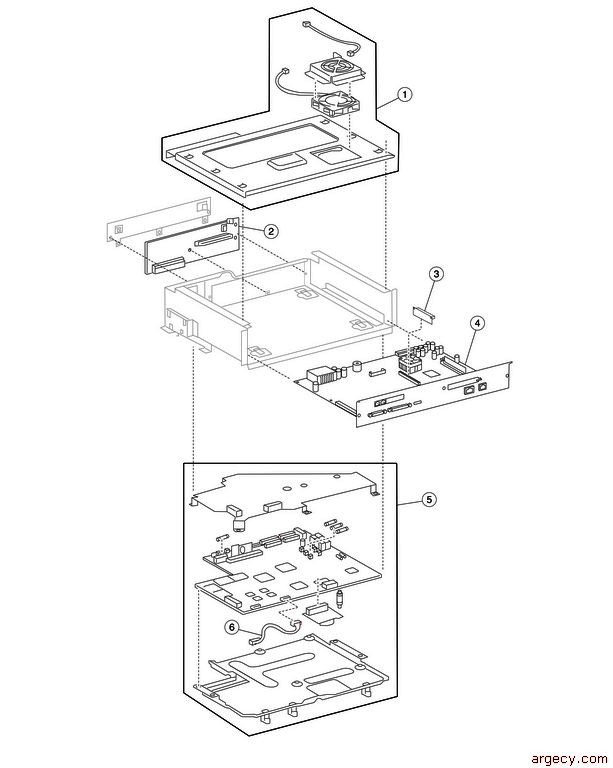

Assembly 33: Electrical 4

WARNING: In the event of replacement of any one of the following components:
- Operator panel assembly
- Operator panel controller card assembly
- RIP card assembly
- Interconnect card assembly
Only replace one component at a time. Replace the required component, and perform a POR before replacing a second component listed above. If this procedure is not followed, the printer will be rendered inoperable. Never replace two or more of the components listed above without a POR after installing each one, or the printer will be rendered inoperable.
WARNING: Never install and remove components listed above as a method of troubleshooting components. Once a component has been installed in a machine, it cannot be used in another machine. It must be returned to the manufacturer.

1

40X3804 RIP card cooling fan cover assembly (assembled)
Fully refurbished with 90-day warranty
40X3804
$35.48



(this comes assembled)
2
40X3807 RIP bridge card assembly
New
40X3807 (New)
$51.10



40X3807 RIP bridge card assembly
Fully refurbished with 90-day warranty
40X3807
$64.71



3
40X2359 Interconnect card assembly
New
40X2359 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$45.42



40X2359 Interconnect card assembly
Fully refurbished with 90-day warranty
40X2359 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$45.42



4
40X4092 1767 Card Assembly
New
40x5864 40X4092 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$1081.84



5
40X3808 Upper Print Engine Card Chassis Assembly
New
40X3808 Advanced Exchange (New)
$114.71





6

https://argecy.com/images/1767_C935-532_cr.jpg
