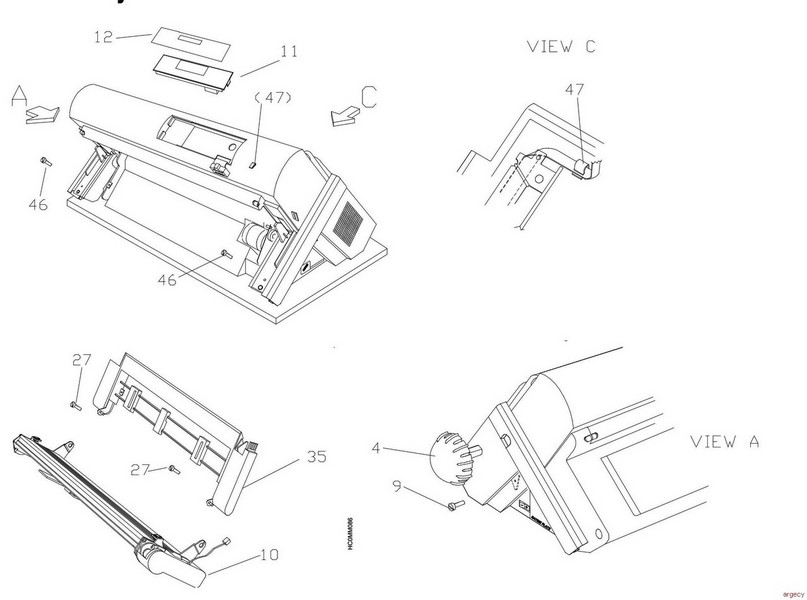

IBM Infoprint 4247-X03 Parts






Please call for parts assistance

Looking for whole machines? Click here


1
4 44D8962 Hand Grip

9 41U2328 Screw 3.9 x 16 (misc. Kit item 15)

10
Sale44D8978 Front Tractor Assembly (6-pin)
New
44D8978 (New)
$450.00 $399.00



44D8978 Front Tractor Assembly (6-pin)
Fully refurbished with 90-day warranty
44D8978
$225.00



11
44D8942 Operator panel assembly
Fully refurbished with 90-day warranty
44D8942
$225.00



44D8942 Operator Panel Assembly
New
44D8942 (New)
$380.00



12
44D8448 O.P. Overlay English
New
44D8448 (New)

Retired, no longer available: Contact for alternatives



27 08H7355 Screw M3 x 8 (misc. Kit item 7)

35
44D8977 Base Lower Tractor
New
44D8977 (New)
$399.00



44D8977 Base Lower Tractor
Fully refurbished with 90-day warranty
44D8977
$299.00



46 41U2328 Screw T.C.I.C. 3.9 x 25 (misc. Kit item 16)

47 41U2290 Clamp for Cable (misc. Kit item 13)
https://argecy.com/images/4247-X03-2.jpg

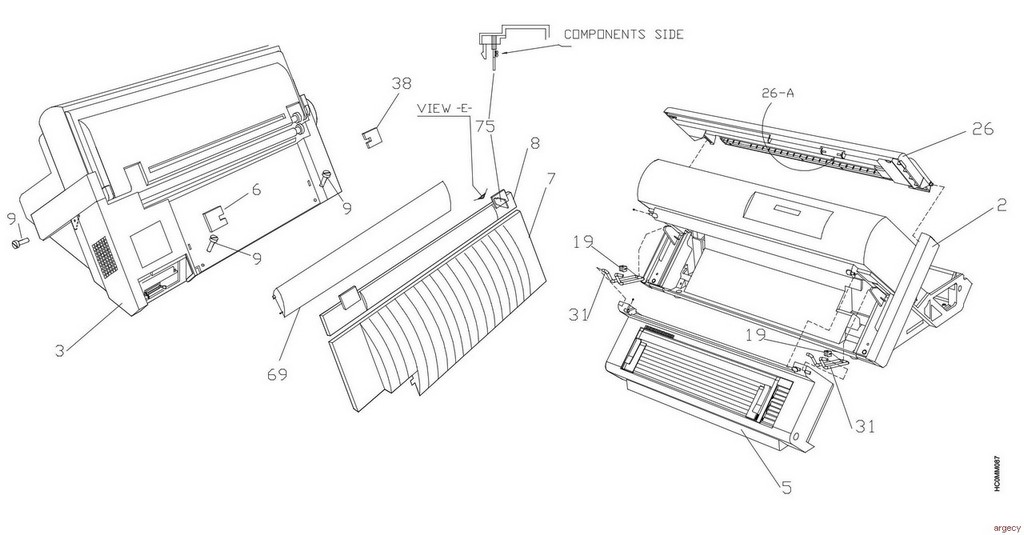

Assembly 2: COVERS ASSEMBLY II

2

44D8963 Main Cover Group
Fully refurbished with 90-day warranty
44D8963
$199.00



3
44D8964 Rear Cover Group
Fully refurbished with 90-day warranty
44D8964
$85.00



44D8964 Rear Cover Group
New
44D8964 (New)
$114.00



5
44D8965 Front Cover Group
Fully refurbished with 90-day warranty
44D8965
$76.00



6
44D8969 Gear Cover Left
Fully refurbished with 90-day warranty
44D8969
$38.00



7
44D8964 Rear Cover Group
Fully refurbished with 90-day warranty
44D8964
$85.00



44D8964 Rear Cover Group
New
44D8964 (New)
$114.00



8
44D8966 Small Rear Cover
Fully refurbished with 90-day warranty
44D8966
$38.00



9 41U2328 Screw 3.9 x 13 (misc. Kit item 15)

19

26
44D8967 Top Cover Group
Fully refurbished with 90-day warranty
44D8967
$55.00



26-A
08H7370 Magnet Interlock
Fully refurbished with 90-day warranty
08H7370
$20.00



31

Printer Data Plate Part of item 3

38 44D8968 Gear Cover Right

69
44D8970 Rear Deflector
New
44D8970 (New)
$43.00



75
41U2468 PWA GX2INT Board
New
41U2468 (New)
$43.00



41U2468 PWA GX2INT Board
Fully refurbished with 90-day warranty
41U2468
$30.00


https://argecy.com/images/4247-X03-3.jpg

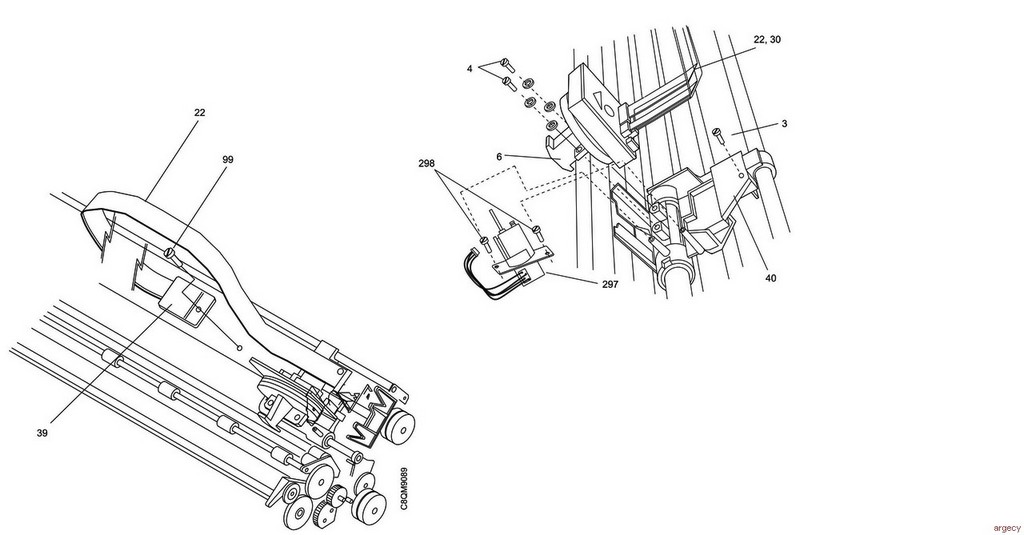

Assembly 3: Printhead and cables

22
41U2466 P.H. Cable 24
Fully refurbished with 90-day warranty
41U2466



41U2466 P.H. Cable 24
New
41U2466 (New)
$47.00



6
44D8948 4247-X03 Printhead
Fully refurbished with 90-day warranty
44D8948
$275.00





44D8948 4247-X03 Printhead
New
44D8948 (New)
$399.00



297
08H7359 Motor assembly Ribbon Lift
New
08H7359 (New)
$99.00



08H7359 Motor Assembly Ribbon Lift
Fully refurbished with 90-day warranty
08H7359
$59.00



103 Washer, star

30
75P0534 Protector printhead cable (Mylar)
Fully refurbished with 90-day warranty
75P0534
$29.00



39 63H6349 Bracket assembly, print head cable with M4 x 6 screw

40 08H7253 Bracket assembly, print head cable

4 02N7555 Screws M4 x 14 and washers, printhead mounting (5 sets)

298 08H7355 Screw M3 x 8 (Misc. kit item 7)

3 08H7355 Screw M4 x 8 (Misc. kit item 19)

99 08H7355 Screw M4 x 6 (Misc. kit item 9)
https://argecy.com/images/4247-X03-4.jpg

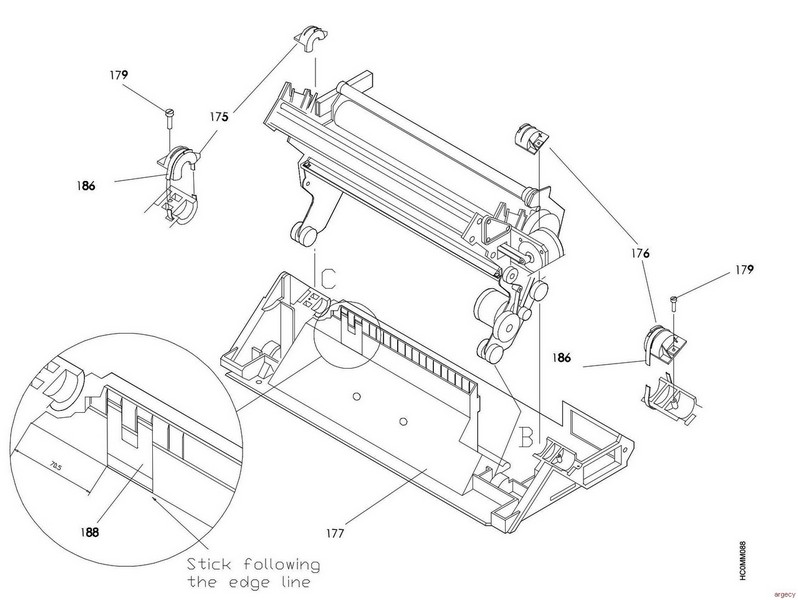

Assembly 4: BASIC ASSEMBLY I

175
08H7353 4247 Mechanical Block (Kit)
New
08H7353 (Set of two) (New)
$33.00


(misc. Kit item 1)

176
08H7353 4247 Mechanical Block (Kit)
New
08H7353 (Set of two) (New)
$33.00



177
41U2426 Base Assembly
Fully refurbished with 90-day warranty
41U2426
$95.00



179 41U2328 Screw 3.9 x 16 (misc. Kit item 15)

186 63H6062 Fastener Loop Self-Lock

188
63H6375 Fingers Mylar
New
63H6375 (New)
$38.00


https://argecy.com/images/4247-X03-5.jpg

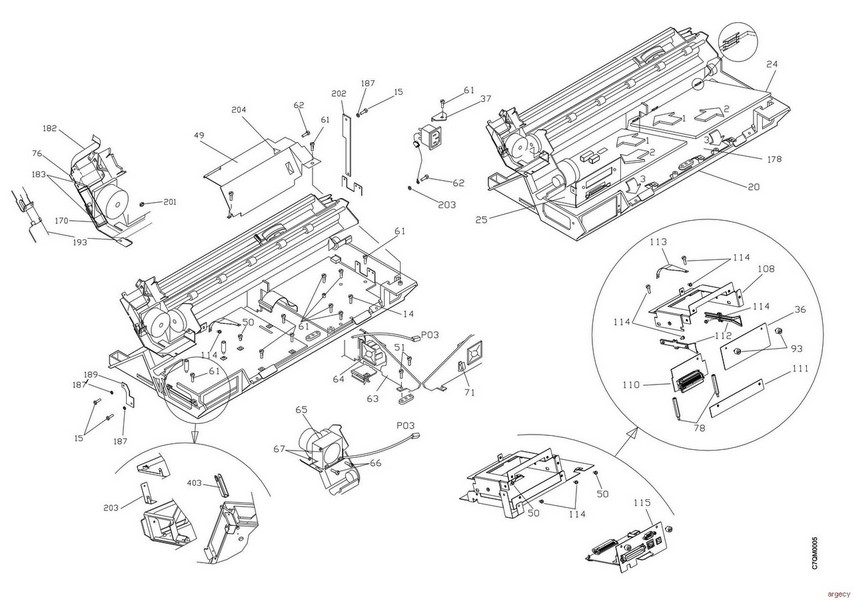

Assembly 5: BASIC ASSEMBLY II (boards and fans)

14 08H7355 Screw M3 x 8 (misc. Kit item 15)

15 08H7355 Screw M3 x (misc. Kit item 3)

20
41U2426 Base Assembly
Fully refurbished with 90-day warranty
41U2426
$95.00



24
44D8947 Power Supply 120-240V
New
44D8947 (New)
$325.00



44D8947 Power Supply 120-240V
Fully refurbished with 90-day warranty
44D8947
$225.00



25
Sale44D8929 Engine Board
Fully refurbished with 90-day warranty
44D8929
$649.00 $350.00



44D8929 Engine Board
New
44D8929 (New)
$649.00



36 NP Slot Plug

37 08H7351 Inlet (misc. Kit item 11)

49
44D9001 Power Supply Cover
New
44D9001 (New)
$69.00



44D9001 Power Supply Cover
Fully refurbished with 90-day warranty
44D9001
$35.00



50 08H7355 Screw M3x8 (misc. Kit item 5)

51 41U2328 Screw 2.2 x 9.5 (misc. Kit item 4)

61 41U2328 10 Screw 2.9 x 9.5 (misc. Kit item 11)

62 08H7355 Screw M4 x 6 (misc. Kit item 11)

63 08H7265 Fan Support

64
08H7258 Fan Assembly, Power Supply
New
08H7258 (New)
$95.00



08H7258 Fan Assembly, Power Supply
Fully refurbished with 90-day warranty
08H7258
$47.00



65
44D8930 Fan Assembly, Carriage
Fully refurbished with 90-day warranty
44D8930
$38.00



66 08H7355 Screw M3 x 30 (misc. Kit item 21)

67 41U2329 Nut M3 (misc. Kit item 17)

71 41U2290 Cable Clamp (misc. Kit item 12)

76 NP Carriage Motor Support

78 NP Spacer Support

93 NP Cap Stud (Installed on Controller)

108 44D8979 Slot Assembly Kit (note 4)

110

41U2610 Back Panel Board
Fully refurbished with 90-day warranty
41U2610
$62.00



113 NP Ground Strip

114 08H7355 Screw M3x6 (misc. Kit item 13)

115
44D8403 4247 SBCS Parallel, Serial, USB
Fully refurbished with 90-day warranty
44D8403
$240.00



115

115
44D8409 SBCS Controller Parallel, Serial, Ethernet 10/100 ASCII-IPDS 4247-X03
Fully refurbished with 90-day warranty
44D8409
$699.00





170 NP Protection Mylar

178

182 08H7249 O. P. Cable

183 08H7264 Fastener Loop Self-Lock (50 per pack)

187 41U2329 Washer Split D 3.2 (misc. Kit Item 25)

189 NP Ground Strip

193 NP Bracket group

201 41U2329 Nut M3 (misc. Kit Item 17)

202 NP Ground Strip

203 NP Ground Strip

204 NP Warning Label

205 41U2329 Washer Lock D4.3 (misc. Kit Item 21)

403 44D8979 Grounding plate (metal insert) (note 4)

1. Item 110 is the Back Panel Board of the Slot Assembly and is plugged into the Engine Board.

2. SBCS=Single Byte Character Set Controller

3. Controller firmware included. There is no need to flash download firmware into the new controller under normal conditions.

4. Item 403 is a grounding plate and is shipped together with the slot assembly item 108.
https://argecy.com/images/4247-X03-6.jpg

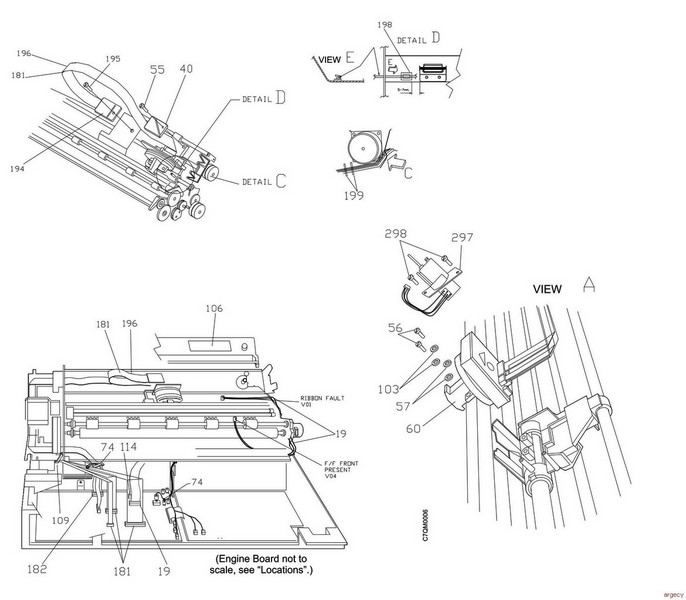

Assembly 6: BASIC ASSEMBLY III

19
44D8949 Sensors Cable Assembly
New
44D8949 (New)
$75.00



40 08H7253 P.H. Bracket

55 08H7355 Screw M4 x 8 (misc. Kit item 19)

56 08H7355 Screw M4 x 14 (misc. Kit item 2)

57 41U2329 Washer (misc. Kit item 8)

60


44D8948 4247-X03 Printhead
New
44D8948 (New)
$399.00



74 08H7264 Fastener Loop Self Lock (50 per pack)

103 41U2329 Washer Internal Teeth (misc. Kit item 24)

109 08H7264 Fastener Loop Self Lock (50 per pack)

114
08H7248 Tractor Cable (Alternance)
New
08H7248 (New)
$119.00



08H7248 Cable Tractor Assembly
Fully refurbished with 90-day warranty
08H7248
$40.00



181
41U2466 P.H. Cable 24
New
41U2466 (New)
$47.00



41U2466 P.H. Cable 24
Fully refurbished with 90-day warranty
41U2466



182
08H7249 Operator Panel Cable
Fully refurbished with 90-day warranty
08H7249
$53.00



08H7249 Operator Panel Cable
New
08H7249 (New)
$86.00



194 63H6349 Frame Bracket with M4x6 screw

195 08H7355 Screw M4x6 (Flat Head) (misc. Kit item 23)

196 75P0534 Protection Mylar for PH Cable

198 41U2290 Cable Clamp (misc. Kit Item 13)

199 NP Fastener Loop-Self-Lock

297
08H7359 Motor assembly Ribbon Lift
New
08H7359 (New)
$99.00



08H7359 Motor Assembly Ribbon Lift
Fully refurbished with 90-day warranty
08H7359
$59.00



298 08H7355 Screw M3 x 6
https://argecy.com/images/4247-X03-7.jpg

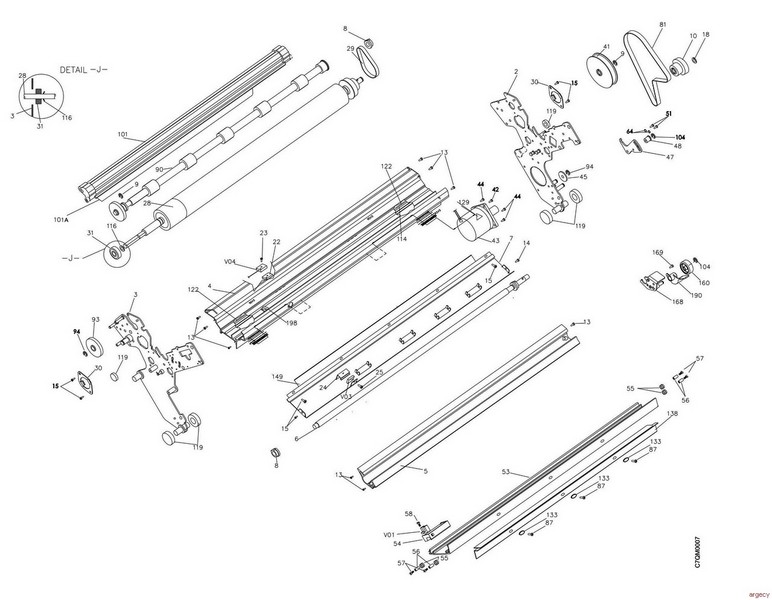

Assembly 7: MECHANICAL ASSEMBLY I

2 NP Right Frame

3 NP Left Frame

4 NP Base Frame

5 NP Guide Assembly

6
41U2392 Lower Feeder Assembly
New
41U2392 (New)
$74.00



7 75P0547 Support Spring

8 08H7351 Bush (misc. Kit item 7)

9 41U2329 Ring Benzing D.7 (misc. Kit item 6)

10
41U2393 Front Pulley
New
41U2393 (New)
$29.00



13 41U2328 9 Screw 3.5 x 13 (misc. Kit item 1)

14 08H7355 Screw M3 x 6 (misc. Kit item 1)

15 08H7355 6 Screw M3 x (misc. Kit item 3)

18 41U2329 Ring Ret. D.8 (misc. Kit item 7)

22 08H7353 Spacer (misc. Kit item 3)

23 41U2328 Screw 2.2 x 9.5 (misc. Kit item 4)

24 41U2290 Sensor Plate (misc. Kit item 4)

25 08H7355 Screw M2 x 8 (misc. Kit item 4)

28
41U2330 Platen Assembly
New
41U2330 (New)
$119.00



29
08H7287 Platen Belt Toothed
New
08H7287 (New)
$39.00



30 41U2290 Bearing Retainer (misc. Kit item 5)

31 08H7351 Bearing (misc. Kit item 8)

41
08H7288 Pulley
New
08H7288 (New)
$51.00



08H7288 Pulley
Fully refurbished with 90-day warranty
08H7288



42 08H7355 Screw M3 x 8 (misc. Kit item 7)

43
41U2469 Paper Motor Assembly
Fully refurbished with 90-day warranty
41U2469
$91.00



44 08H7355 Screw M3 x 10 (misc. Kit item 8)

45
08H7301 Idle Gear- Front Tractor
New
08H7301 (New)
$23.00



08H7301 Idle Gear- Front Tractor
Fully refurbished with 90-day warranty
08H7301



47 08H7311 Paper Feed Belt Tension Lever

48 08H7302 Idler

51 08H7355 Screw M4 x 6 (misc. Kit item 9)

53 NP Cable Profile Assembly

54
08H7353 4247 Mechanical Block (Kit)
New
08H7353 (Set of two) (New)
$33.00



55 41U2290 Damper VGA (misc. Kit item 2)

56 41U2290 Damper Spacer (misc. Kit item 6)

57 41U2328 Screw 3.5 x 19 (misc. Kit item 17)

58 41U2328 Screw 2.9 x 9.5 (misc. Kit item 11)

81
08h7307 Paper Belt Toothed
Fully refurbished with 90-day warranty
08h7307
$32.00



08H7307 Paper Belt Toothed
New
08H7307 (New)
$85.00



87 08H7355 Screw M3 x 6 (misc. Kit item 13)

90
44D8950 Upper Feeder Assembly
New
44D8950 (New)
$76.00



93 08H7309 Double Gear

94 41U2329 Ring Benzing D6 (misc. Kit item 5)

101

01P7165 Bail Assembly for 4247
Fully refurbished with 90-day warranty
01P7165
$75.00



101A
01P7164 Kit Bail Assembly
New
01P7164 (New)
$119.00



01P7164 Kit Bail Assembly
Fully refurbished with 90-day warranty
01P7164
$91.00



104 41U2329 Ring Benzing D4 (misc. Kit item 3)

114
08H7248 Cable Tractor Assembly
Fully refurbished with 90-day warranty
08H7248
$40.00



08H7248 Tractor Cable (Alternance)
New
08H7248 (New)
$119.00



116 41U2329 Thrust Washer (misc. Kit item 11)

119 41U2290 6 Vibrodamp (misc. Kit item 1)

122 41U2290 Cable Clamp (misc. Kit item 10)

133 41U2329 Washer Flat D3.2 (misc. Kit item 20)

138
75P0530 Encoder Strip
New
75P0530 (New)
$95.00



75P0530 Encoder Strip
Fully refurbished with 90-day warranty
75P0530
$34.00



149
24H7729 Lower Mylar Assembly
Fully refurbished with 90-day warranty
24H7729
$39.00



24H7729 Lower Mylar Assembly
New
24H7729 (New)
$69.00



160 41U2611 Dual Tractor Gear (misc. Kit item 1)

168 41U2611 Bracket Pulley Pivot (misc. Kit item 2)

169 41U2328 Screw 3.5 x 19 (misc. Kit item 17)

184 08H7355 Screw M3 x 6 (misc. Kit item 13)

190 41U2611 Gear Protection (misc. Kit item 3)

01 44D8949 V01 Reflective Sensor (note 2)

03
41U2271 Opto Interrupter
New
41U2271 (New)
$132.00



04
41U2271 Opto Interrupter
New
41U2271 (New)
$132.00




Notes:
1. Lower Feeder Assembly (item 6) is for cut sheet and is nonfunctional in this regard. The purpose of the bar is to hold tension between the side frames.

2. Opto Interrupters (V03 and V04) and Reflective Sensors (V01) are included in the Sensor Cable Assembly.

Opto Interrupter sensors can be replaced individually.
https://argecy.com/images/4247-X03-8.jpg

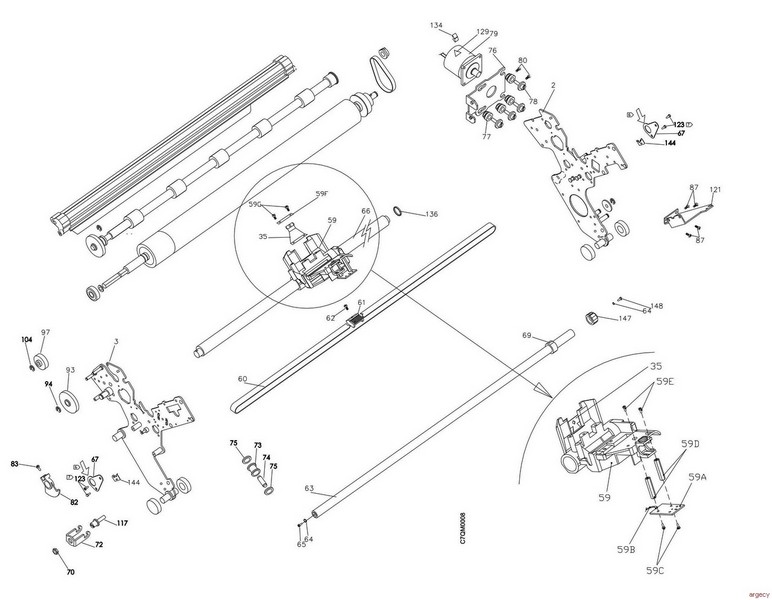

Assembly 8: MECHANICAL ASSEMBLY II

2 NP Right Frame

3 NP Left Frame

35

75P0548 Cover, Hammerbank (Ribbon Mask)
Fully refurbished with 90-day warranty
75P0548
$24.00



59
41U2317 Carriage assembly
New
41U2317 (New)
$157.00



41U2317 Carriage Assembly
Fully refurbished with 90-day warranty
41U2317
$91.00



59A
41U2310 PWA 2EN99 Board
New
41U2310 (New)
$149.00



41U2310 PWA 2EN99 Board
Fully refurbished with 90-day warranty
41U2310
$69.00



59B
75P0532 Cable ENC99
Fully refurbished with 90-day warranty
75P0532
$19.00



75P0532 Cable ENC99
New
75P0532 (New)
$27.00



59C 08H7355 Screw TCIC M3 x 8 (misc. Kit item 7)

59D NP Spacer Sensor (note 1)

59E 08H7355 Screw TSIC M3 x 8 (misc. Kit item 15)

59F NP Mask Plate

59G 41U2328 Screw M2.5 x (note 1, misc. Kit item
 9)

60
08h7304 Carriage Belt
New
08h7304 (New)
$38.00



08H7304 Carriage Belt Toothed
New
08H7304 (New)
$47.00



61 08H7353 Belt Bracket (misc. Kit item 5)

62 41U2328 Screw 2.9 x 13 (misc. Kit item 7)

63
63H6274 Shaft carriage support
Fully refurbished with 90-day warranty
63H6274
$46.00



64 41U2329 Washer (misc. Kit item 8)

65 08H7355 Screw M4 x 8 (misc. Kit item 10)

66
63H6063 Carriage Shaft
New
63H6063 (New)
$75.00



63h6063 Carriage Shaft
Fully refurbished with 90-day warranty
63h6063
$25.00



67 41U2290 Shaft Retainer (misc. Kit item 7)

69 08H7351 Carriage Bush (misc. Kit item 13)

70 41U2329 Nut Hexagonal M5 (misc. Kit item 18)

72 08H7315 Loose Pulley Bracket

73 08H7305 Pulley Assembly

74 08H7351 Pivot (misc Kit item 10)

75 08H7353 Spacer (misc. Kit item 8)

76 NP Carriage Motor Support

77 41U2290 Motor Damp (misc. Kit item 3)

78 41U2290 Stud (misc. Kit item 8)

79
44D8925 Carriage Motor Assembly X03
New
44D8925 (New)
$85.00



80 08H7355 Screw M4 x 6 (misc. Kit item 11)

82
08H7308 AFTA Sector
New
08H7308 (New)
$59.00



08H7308 Gear AFTA sector Assembly
Fully refurbished with 90-day warranty
08H7308
$40.00



83 08H7355 AFTA Stud (misc. Kit item 22)

87 08H7355 Screw M3 x 6 (misc. Kit item 13)

93 08H7309 Double Gear

94 41U2329 Ring.D.6 (misc. Kit item 5)

97 08H7310 Movable Gear (Packaged 5 per pack)

104 41U2329 Ring Benzing D.4 (misc. Kit item 3)

117 08H7314 Loose Pivot (note 3)

121 41U2290 Clamp 79 (misc. Kit item 14)

123 08H7355 Screw M3 x (misc. Kit item 16)

129 NP Thermal Label

134 NP Finger Soft Grounding

136 08H7353 O-Ring (misc. Kit item 11)

144 08H7351 Wear Resistant Spring (misc. Kit item 12)

147 63H6274 Eccentric bushing (note 2)

148 63H6274 Screw M4 x 12 (note 2)

Notes:
1. Carriage Assembly (item 59) includes items 59A, 59B, 59C, 59D, 59E, 59F, and 59G. Also assembled on the carriage, two bushings, two oiled felts, two flanges, and the Ribbon Mask (item 35).

2. Rear Bar Kit includes item 63, 147 and 148.
https://argecy.com/images/4247-X03-9.jpg

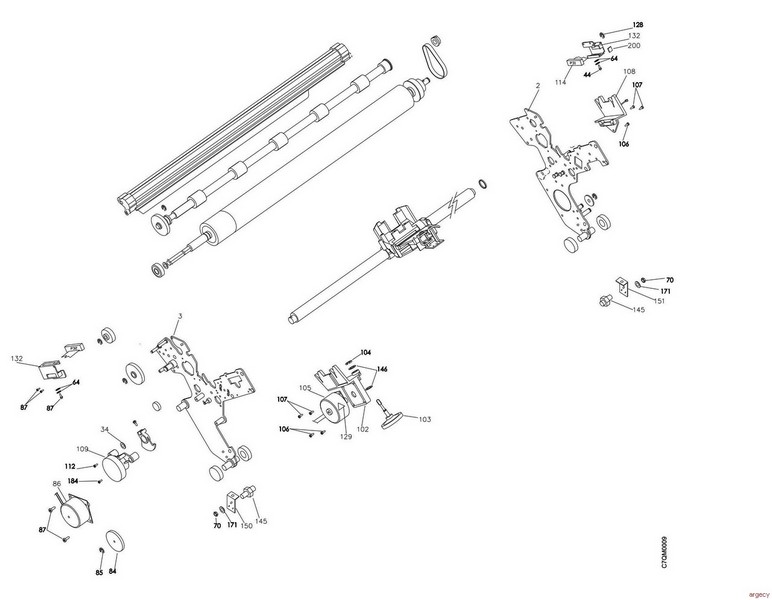

Assembly 9: MECHANICAL ASSEMBLY III

2 NP Right Frame

3 NP Left Frame

34 41U2290 Spacer (misc. Kit item 15)

44 08H7355 Screw M3 x 10 (misc. Kit item 8)

64 41U2329 Washer (misc. Kit item 8)

70 41U2329 Nut Hexagonal M5 (misc. Kit item 18)

84 08H7319 Gear, AFTA Idler (Packaged 10 per pack)

85 41U2329 Ring D.2.3 (misc. Kit item 1)

86

08h7320 AGA (AFTA) Motor Assembly with cable
Fully refurbished with 90-day warranty
08h7320
$39.00



87 08H7355 5 Screw M3 x 6 (misc. Kit item 13)

102
75P0538 Left Cartridge Support
New
75P0538 (New)
$69.00



75P0538 Left Cartridge Support
Fully refurbished with 90-day warranty
75P0538



103
75P0539 Ribbon Drive Assembly
New
75P0539 (New)
$166.00



75P0539 Ribbon drive assembly
Fully refurbished with 90-day warranty
75P0539
$39.00



104 NP Ring Benzing D4 (note 1)

105
08h7324 Ribbon Motor Assembly
Fully refurbished with 90-day warranty
08h7324
$25.00



08H7324 Ribbon Motor Assembly
New
08H7324 (New)
$45.00



106 08H7355 Screw M3 x 14 (misc. Kit item 14)

107 41U2328 Screw 2.9 x 19 (misc. Kit item 8)

108 75P0537 Right Cartridge Support (Packaged 5 per pack)

109 75P0542 AFTA Indicator Group (Packaged 5 per pack)

112 08H7355 Screw M3 x 8 (misc. Kit item 15)

114
08H7248 Cable Tractor Assembly
Fully refurbished with 90-day warranty
08H7248
$40.00



08H7248 Tractor Cable (Alternance)
New
08H7248 (New)
$119.00



128 41U2329 Washer Quick Lock (misc. Kit item 15)

129 NP Warning Label

132 08H7360 Tractor Cable Connector Support

145 41U2329 Pivot Mech (misc. Kit item 26)

146 NP Washer 60D (note 1)

150 NP Tractor Support Bracket Right

151 NP Tractor Support Bracket Left

171 41U2329 Washer Lock D5.3 (misc. Kit item 27)

184 08H7355 Screw M3 x 6 (misc. Kit item 17)

200 NP Foam Strip

Notes:
1. Ribbon Drive Assembly item 103 includes items 102, 104, and 146.
