Rewinders
| T30 Paper Width Max 8.4” (215 mm) Rewind Speed Auto Mode: Auto Mode: 6 IPS (max) Fixed: Coreless 5.4 IPS/1 “ Core: 6.3 IPS Label Roll Diameter Max O.D. 6” (152.5 mm) Core Diameter Coreless I.D. 1” (25.2 - 25.6 mm) I.D. 1.5”x2 (37.4 - 38 & 40 - 40.6 mm) I.D. 3” (76 - 76.6 mm) Label Roll Weight 12 lbs. (5.5 kg) Rewinding Label Inside / Label Outside Motor Hybrid Motor Power 100 - 240VAC 24W, 24V Adapter Environment Storage -4°F to 140°F (-20°C to 60°C) Operation 41°F to 104°F (5°C to 40°C) Humidity 10 - 85% (non-condensing RH) Weight 12.1 lbs (5.5 kg) Dimensions Length: 17” (432 mm) Height: 11.9” (303 mm) Width: 7.1” (180 mm) |  |

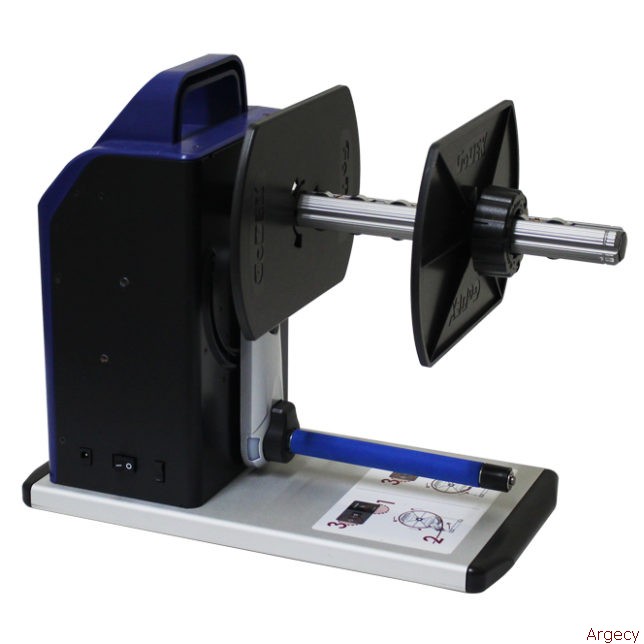

| T-20 Paper Width Max Max 7” (178 mm) Rewind Speed Auto Mode: 12 IPS (max) Fixed: Coreless 5.4 IPS/1 “ Core: 6.3 IPS Label Roll Diameter Max O.D. 6” (152.5 mm) Core Diameter Coreless I.D. 1” (25.2 - 25.6 mm) I.D. 1.5”x2 (37.4 - 38 & 40 - 40.6 mm) I.D. 3” (76 - 76.6 mm) Label Roll Weight 11 lbs (5 kg) Rewinding Label Inside / Label Outside Motor Hybrid Motor Power 100 - 240VAC 24W, 24V Adapter Environment Storage -4°F to 140°F (-20°C to 60°C) Operation 41°F to 104°F (5°C to 40°C) Humidity 10 - 85% (non-condensing RH) Length: 15.51” (394 mm) Height: 11.9” (303 mm) Width: 7.1” (180 mm) |  |
| T-10 Paper Width Max 4.75 (120 mm) Rewind Speed Auto Mode: 12 IPS (max) Fixed: Coreless 5.4 IPS/1 “ Core: 6.3 IPS Label Roll Diameter Max. O.D. 8” (203.2 mm) Core Diameter Coreless I.D. 1” (25.2 - 25.6 mm) I.D. 1.5”x2 (37.4 - 38 & 40 - 40.6 mm) I.D. 3” (76 - 76.6 mm) Label Roll Weight 11 lbs (5 kg) Rewinding Label Inside / Label Outside Motor Hybrid Motor Power 100 - 240VAC 24W, 24V Adapter Environment Storage -4°F to 140°F (-20°C to 60°C) Operation 41°F to 104°F (5°C to 40°C) Humidity 10 - 85% (non-condensing RH) Height: 11.9” (303 mm) Length: 13.7” (349 mm) Width: 7.1” (180 mm) |  |

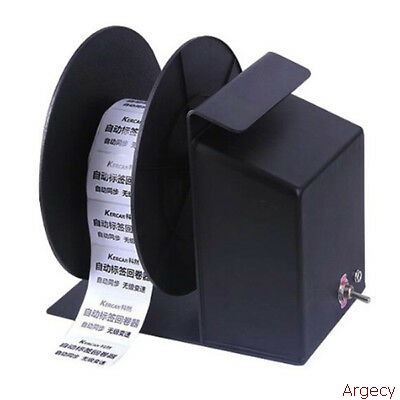

| KR-800 Rewinding speed: 6 inches / sec. Rewind label diameter: maximum 230mm Rollback label width: Max 120mm Core size: 40/76mm Rollback: one-way,automatic rewinding Power specifications: 100v~220v Size: L270*W230*H250mm |  |

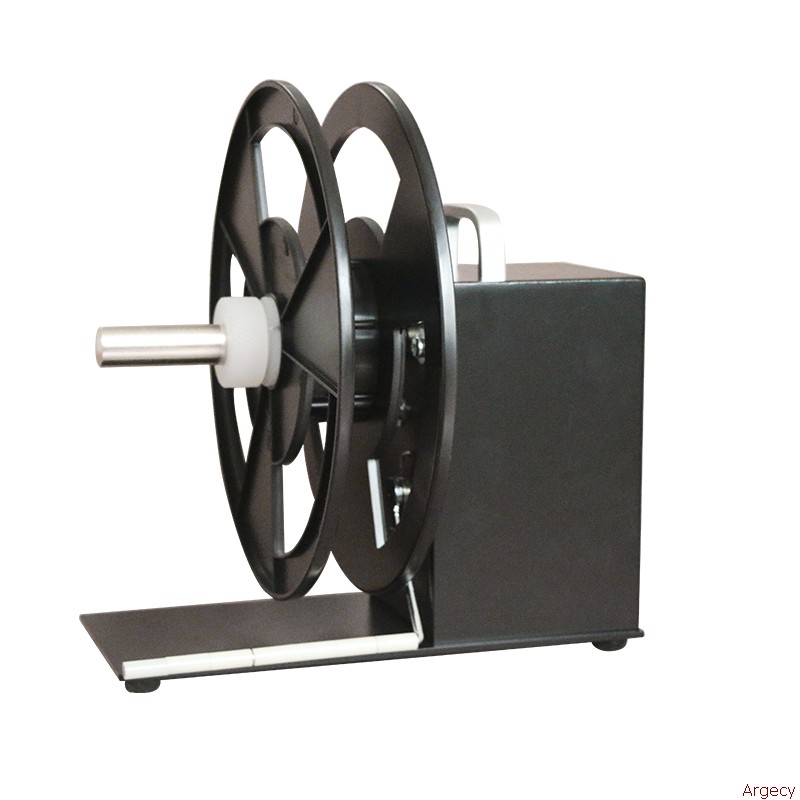

| BSC-A5 (Hanchen, CGOLDENWALL) Rewinding speed: 1-10 inches / sec (IPS) Maximum rewind width: 90MM Maximum rewind outer diameter: 230MM / volume (MAX.O.D.230MM) Paper roll core size: 1 inch core (25MM), 1.5 inch core (40MM), 3 inch core (76MM) (1" (25MM) / 1.5" (40MM) / 3" (76MM)) Rewind type: two-way rewind, automatic synchronous rewind, rewind / paper feed (Two-way Rewind, Auto-Sync Rewind, Rewind/Unrewind) Induction method: lever sensing, paper plucking rod (Rod lnduction) Power specification: input voltage 220V, 50/60Hz, AC output voltage 24V (Input: 220v 50/60Hz AC Output: 24v) Product size: 240MM*230MM*255MM Net weight: about 3.6KG Working environment: Temperature: 0-45C, relative temperature: 25%-85% (Temperature: 0-45C.Relative humidity: 25%*85%) |  |

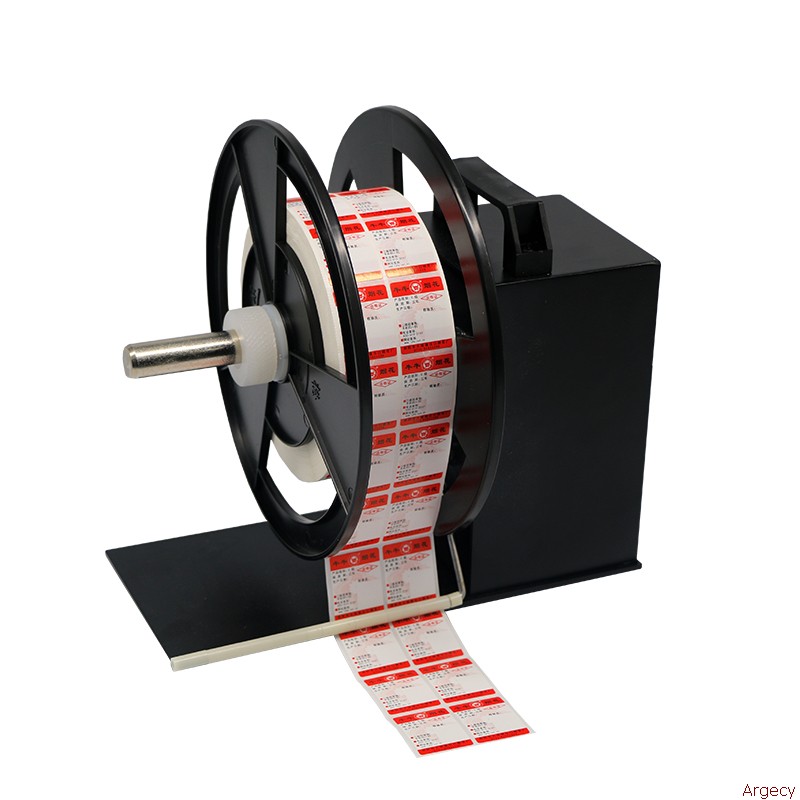

| BSC-A6 (Hanchen, CGOLDENWALL). Rewind speed: 1-8 inches / sec Rewind width: Max.120mm Rewind diameter: Max.200 mm Core size: 1/1.5/3 inch (25.4mm/38.1mm/76.2mm) Input voltage: 100V~240V, 50/60Hz Output voltage: 24V Weight: about 3.5KG Volume size L270mm*W125mm*H255 mm Working environment temperature: 0~45° C Relative Humidity: 25%~85% |  |

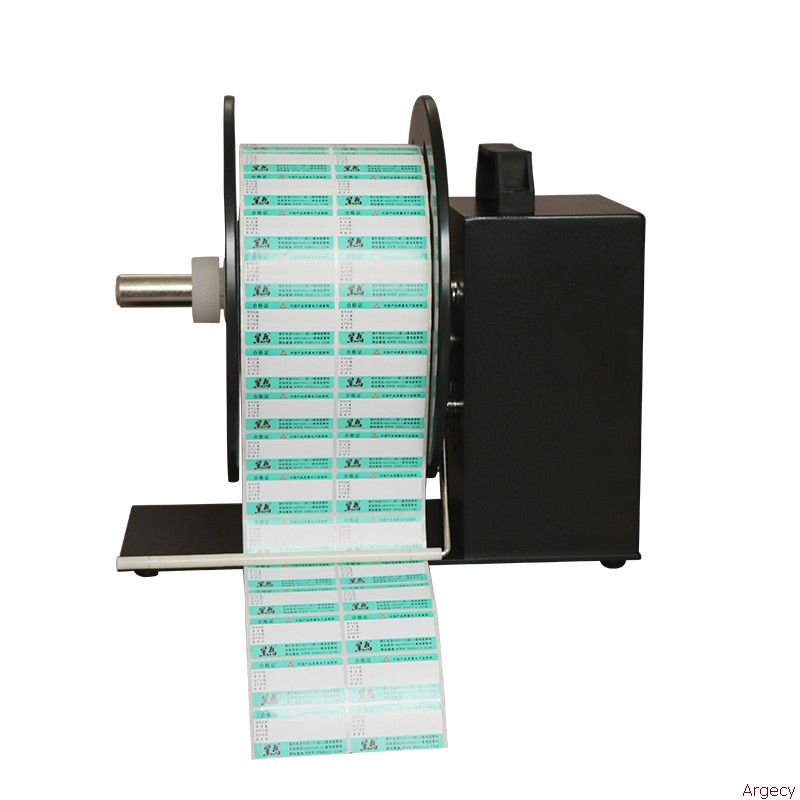

| BSC-A7 (Hanchen, CGOLDENWALL) Rewind speed: 1-12 inches / sec (IPS) Maximum rewind width: 150MM Maximum rewind outer diameter: 230MM / volume (MAX.O.D.230MM) Paper roll core size: 1 inch core (25MM), 1.5 inch core (40MM), 3 inch core (76MM) (1"" (25MM) / 1.5"" (40MM) / 3"" (76MM)) Rewind type: two-way rewind, automatic synchronous rewind, rewind / paper feed (Two-way Rewind, Auto-Sync Rewind, Rewind/Unrewind) Induction method: lever sensing, paper plucking rod (Rod lnduction) Power supply specifications: input voltage 220V, 50/60Hz, AC output voltage 24V (Input: 220v 50/60Hz AC Output: 24v) Product size: 305MM*230MM*275MM Net weight: about 4.6KG Working environment: Temperature: 0-45C, relative temperature: 25%-85% (Temperature: 0-45C.Relative humidity: 25%*85%)ure: 0-45C.Relative humidity: 25%*85%) |  |

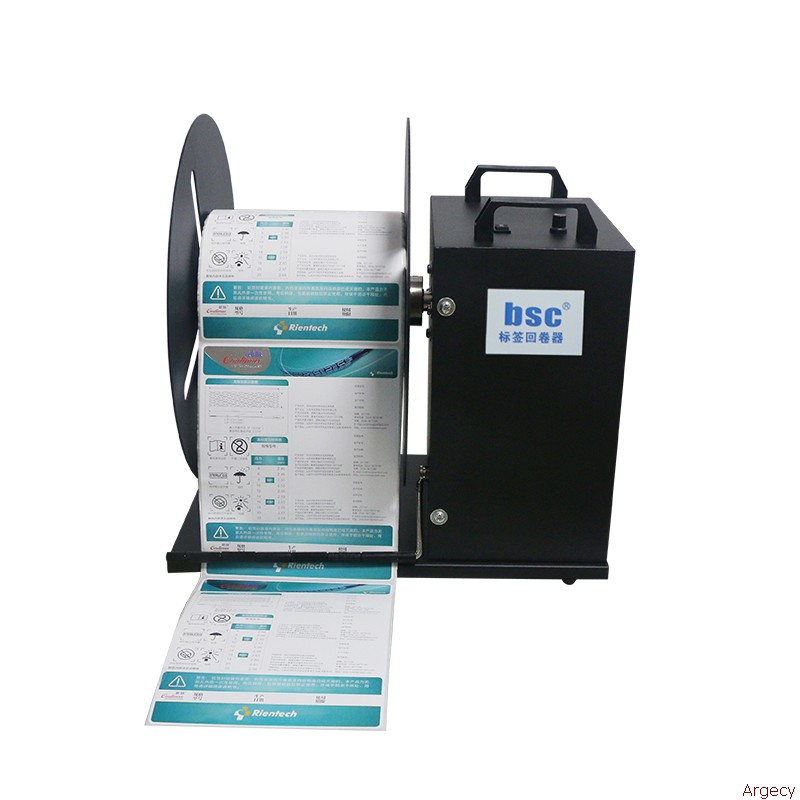

| BSC-A9 (Hanchen, CGOLDENWALL) Rewind speed: 1-10 inches / sec Rewind width: Max.180mm Rewind diameter: Max.230 mm Core size: 1/1.5/3 inch (25.4mm/38.1mm/76.2mm) Input voltage: 100V~240V, 50/60Hz Output voltage: 24V Weight: about 5KG Volume size L330mm*W230mm*H285 mm Working environment temperature: 0~45° C Relative Humidity: 25%~85% |  |

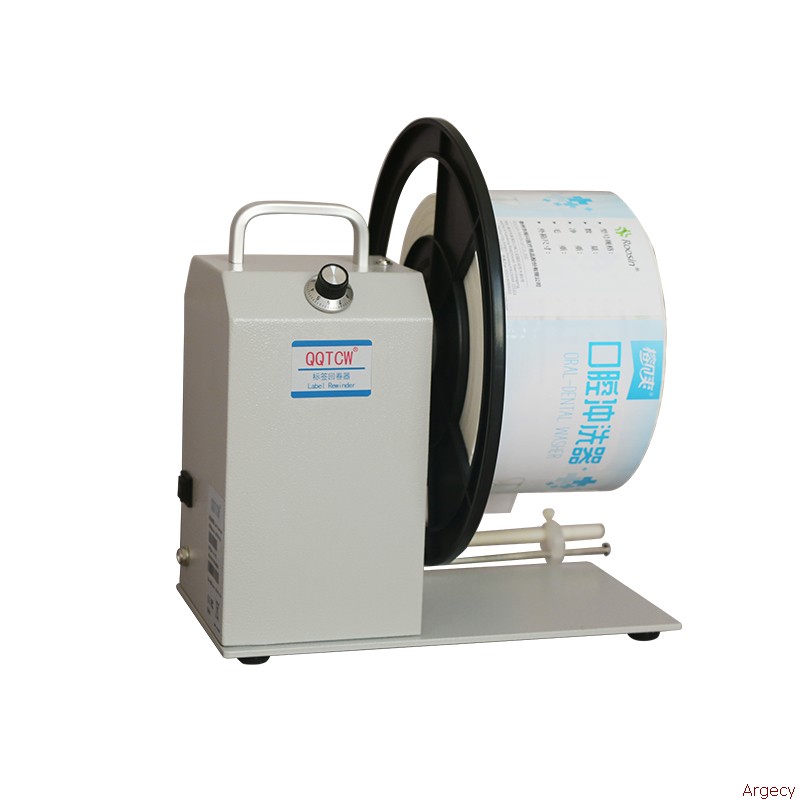

| BSC-Q6 (Hanchen, CGOLDENWALL) Rewinding speed: 1-10 inches / sec Input voltage: AC 100-240V 50HZ/60HZ Working voltage: DC 24V Maximum label width: 90MM/120MM Label roll diameter: 230MM/Roll Paper roll core size: 1" (25MM) / 1.5" (40MM) / 3" (76MM) Rewind type: Two-way rewind / Auto-Sync rewind / Speed regulation rewind Speed controller: stepless speed regulation Induction method: Rod Induction size: 240x230x255MM weight: 5KG |  |

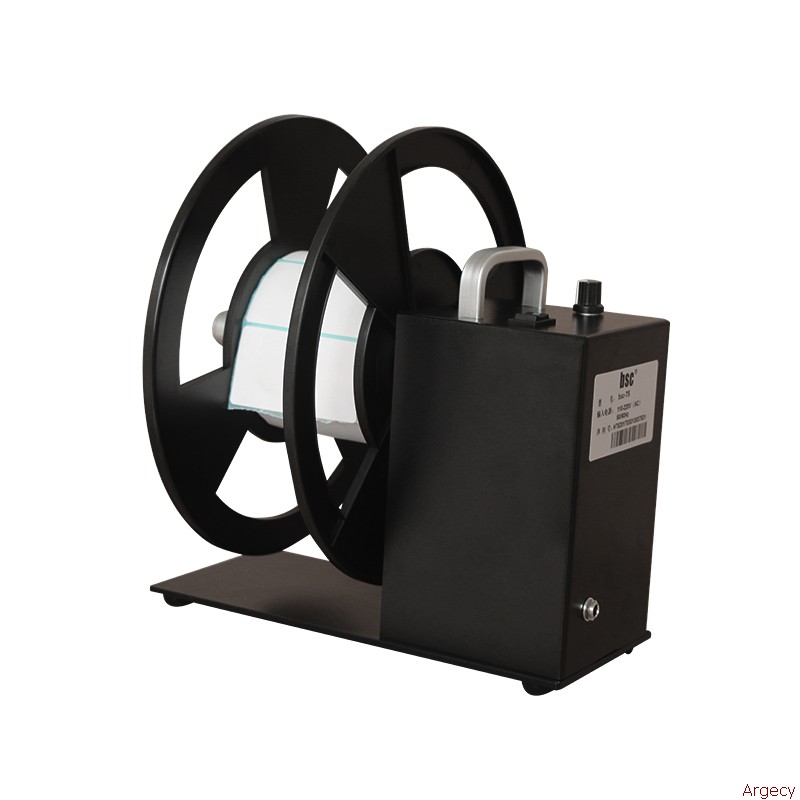

| BSC-T5 (Hanchen, CGOLDENWALL) Rewind speed: 1-8 inches / sec Rewind width: Max.120mm Rewind diameter: Max.200 mm Core size: 1/1.5/3 inch (25.4mm/38.1mm/76.2mm) Input voltage: 100V~240V, 50/60Hz Output voltage: 24V Weight: about 3.5KG Volume size L270mm*W125mm*H255 mm Working environment temperature: 0~45° C Relative Humidity: 25%~85% |  |

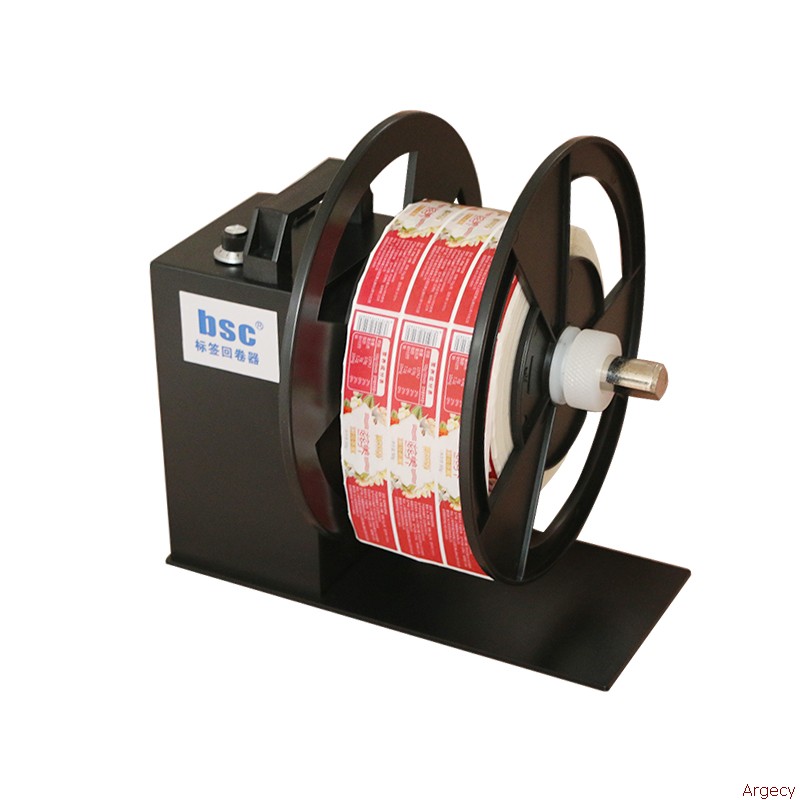

| BSC-T6 (Hanchen, CGOLDENWALL) Rewinding speed: 1-10 inches / sec (IPS) Maximum rewind width: 120MM Maximum rewind outer diameter: 230MM / volume (MAX.O.D.230MM) Paper roll core size: 1 inch core (25MM), 1.5 inch core (40MM), 3 inch core (76MM) (1"" (25MM) / 1.5"" (40MM) / 3"" (76MM)) Rewind type: Two-way Rewind, Auto-Sync Rewind, Speed Regulation Rewind) Governor: stepless speed regulation Induction method: Tension lnduction Power specifications: input voltage 100V-240V, 50/60Hz, AC output voltage 24V Product size: 270MM*125MM*255MM Net weight: about 3.6KG Working environment: Temperature: 0-45C Relative temperature: 25%-85% |  |

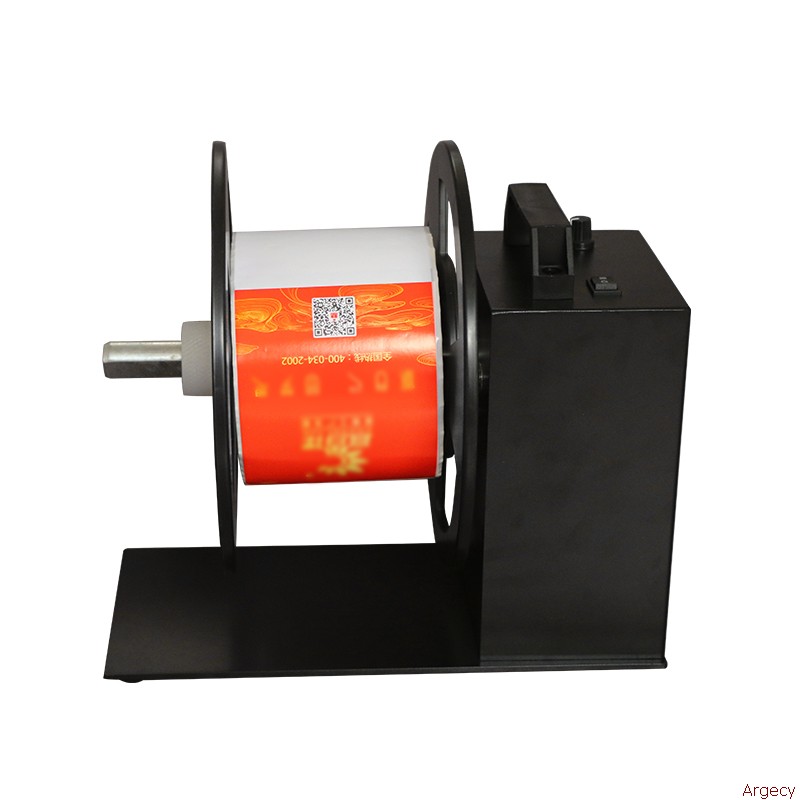

| BSC-T7 (Hanchen, CGOLDENWALL) Rewind speed: 1-10 inches / sec Rewind width: Max.150mm Rewind diameter: Max.230 mm Core size: 1/1.5/3 inch (25.4mm/38.1mm/76.2mm) Input voltage: 100V~240V, 50/60Hz Output voltage: 24V Weight: about 4.5KG Volume size L300mm*W230mm*H270 mm Working environment temperature: 0~45° C Relative Humidity: 25%~85% |  |
| BSC-T8 (Hanchen, CGOLDENWALL) Rewind speed: 1-15 inches / sec Rewind width: Max.210mm Rewind diameter: Max.300 mm Core size: 1/1.5/3 inch (25.4mm/38.1mm/76.2mm) Input voltage: 100V~240V, 50/60Hz Output voltage: 24V Weight: about 10KG Volume size L403mm*W300mm*H390 mm Working environment temperature: 0~45° C Relative Humidity: 25%~85% |  |

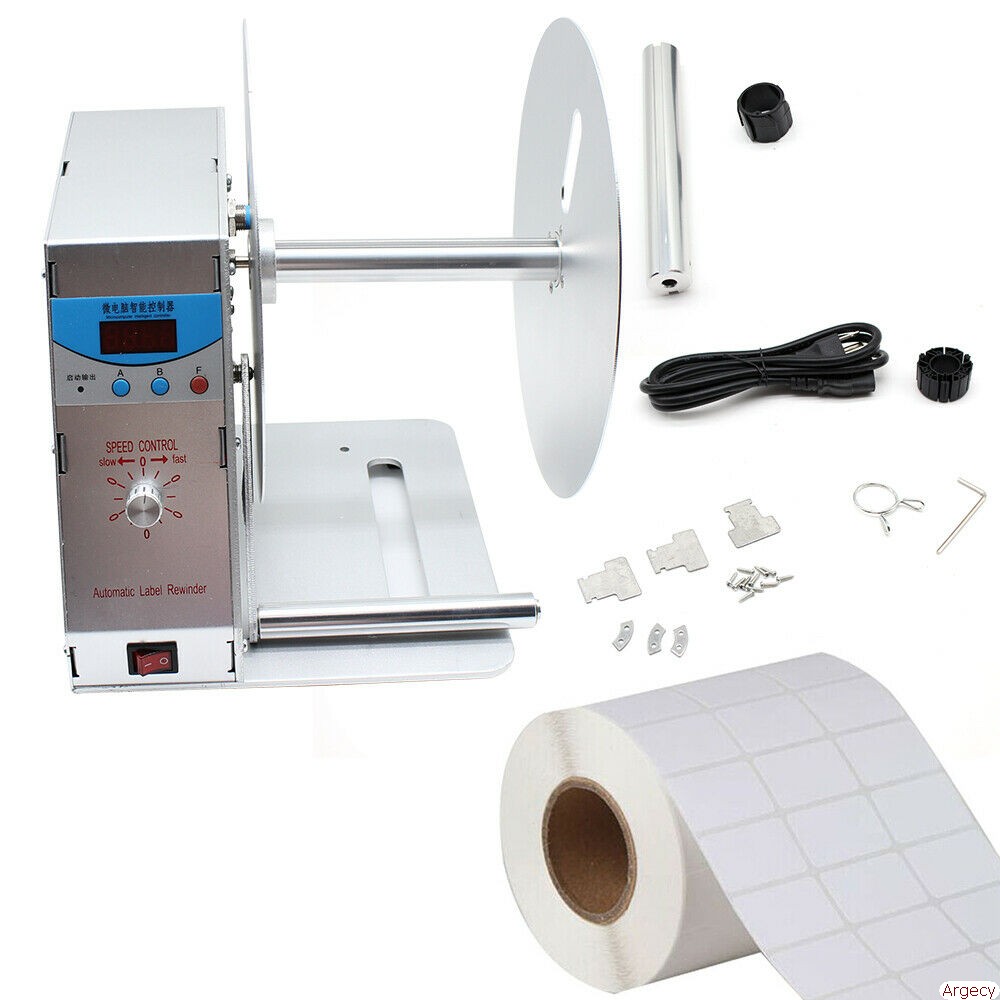

| Automatic_Label_Rewinder |  |

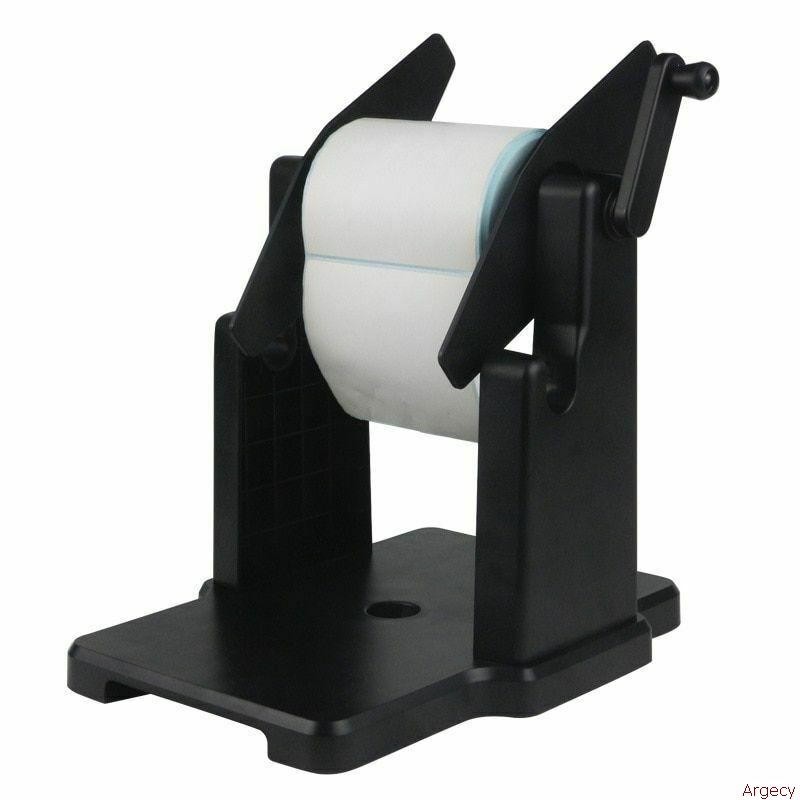

| Handwinder |  |
| Datamax DMXREW1 Label External Rewinder DPO78-2394-02 |  |
| Intermec (GLR-50) | |
| Intermec (GLR-100) | |
| Intermec (GLU-100) | |
| SATO (11S000188) | |
| SATO RWG500 (11S000201) | |
| SATO (WWRW55300) | |
| SATO (PR7773000) | |
| Labelmate (ZCAT-6) | |
| Labelmate (UNI-CAT-CHUCK-220) | |
| Labelmate (UNI-CAT-CHUCK) | |
| Labelmate (UCAT-40-220) | |
| Labelmate (UCAT-3-W10) | |
| Labelmate (UCAT-1-CHUCK | |
| Labelmate (TWIN-CAT-3) | |
| Labelmate (TC-C76-170) | |
| Labelmate (RRC-330-AU) | |
| Labelmate (MC-11) | |
| Labelmate (LD-200-RS) | |
| Labelmate (LD-100-RS-SS) | |
| Labelmate (CAT-3SA-CHUCK-220) | |
| Labelmate (CAT-3L-CHUCK-10) | |
| Labelmate (CAT-3L-CHUCK) | |
| Labelmate (CAT-3DC-CHUCK) | |
| Labelmate (CAT-3-W10) | |
| Tharo (R612) | |
| Tharo (R412V) | |
| Tharo (EWINDU) | |
| Tharo (EWIND4) | |
| Tharo (EWIND) | |
| Datamax-O'Neil H-Class (OPT78-2627-21) | |
| Datamax-O'Neil H-Class (OPT78-2615-11) | |
| Datamax-O'Neil I-Class (OPT78-2302-02) | |
| Datamax-O'Neil (DPO78-2394-02) | |
| Datamax-O'Neil DMXREW1 (DPO78-2394-01) | |
| Datamax-O'Neil H-Class (DPO78-2393-01) | |
| Datamax-O'Neil W-Class (DPO78-2022-01) | |
| Datamax-O'Neil M-Class (78-2735-02) | |
| Datamax-O'Neil H-Class (78-2615-01) | |
| Avery-Dennison 9825 (M0093503) | |
| Wasp WPL205 (633808402099) | |
| Afinia L801 (23125) | |
| ASD1114-S0 | |
| ASD1111-S0 | |
| RP1234-S4 |
