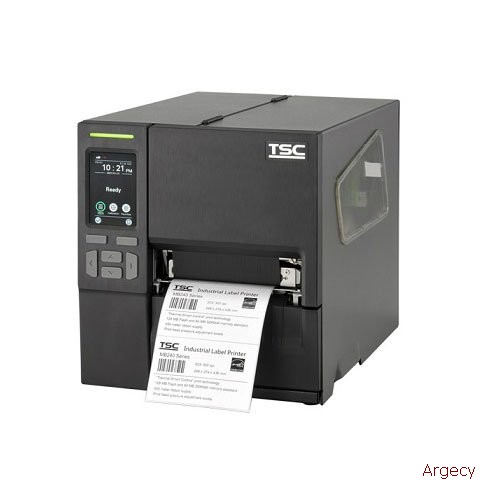

MB240 Series
2-button 5-LED (MB240/MB340)/ 6-button 3.5" HVGA color touch LCD (MB240T/MB340T)
Wide open angle for media handling
450 meter ribbon capacity
Ribbon capacity monitor widget
Support 8" O.D. label roll
Support up to 120mm label width
Die-cast print mechanism for custom applications
TSPL-EZD firmware for plug-n-play ease
Available in 203 dpi and 300 dpi resolutions
Tool-less platen roller exchange
Options include: peel-off kit, 5" OD internal rewinding kit, GPIO, internal Bluetooth module, slot-in 802.11 a/b/g/n wireless module kit, regular cutter
ENERGY STAR® qualified
TSC's Most Versatile Compact Light Industrial Label Printer
TSC MB240 series of industrial thermal label printers is a new value leader for 4" wide light industrial label printing. The MB240 series is designed to fit in alongside TSC's bigger industrial printer models including the MH240 and MX240P Series. The MB240 features a small footprint, easily understood operator interface and a full set of options to meet nearly every printing application.
Its compact design, quiet operation and fast label throughput is equally at home in the office or shop floor. The printer's all-metal construction and die-cast aluminum print mechanism engine is durable enough to withstand the toughest production environments and is designed for years of trouble free use.
Smart Colorful Display Version
The new MB240T comes with an easy to use high-contrast 3.5" color touch LCD panel with 6 buttons. Common tasks such as label calibration are one touch away. Menus can be customized to bring frequently used tasks to the front screen for faster, less complicated operation.
Enhanced Print Quality
The MB240 Series features the best print quality TSC offers thanks to faster processors and upgraded firmware. We call our enhanced print quality "Thermal Smart Control" which tracks and precisely calculates the duration that each pixel needs to be heated to provide accurate, crisp and clear labels every time, whether you are printing one label at a time or thousands of labels in a batch.
Available in both 203 dpi and 300 dpi Resolutions for a wide range of applications
The MB240 Series can print on a wide variety of labels, ranging from healthcare patient safety, electronics and jewelry labeling to shipping and distribution labels, making it ideal for industrial duty printing.
Communications to meet your needs
Connect to any host with a variety of interfaces including Ethernet, USB, USB-Host, Serial RS232 or optional 802.11 a/b/g/n wireless or Bluetooth. There is also an optional General Purpose Input/Output (GPIO) interface for connection to a variety of industrial and label application equipment.
Options including Label Peel, Present Sensor and Internal Rewind
The MB240 series can be equipped with an optional Peel, Present and Internal Rewind that peels the label as it exits the printer and waits for the user to take the label until printing the next label. The backing waste is conveniently taken up inside the printer on an internal rewinder. Other options include cutters, Peel and Present, GPIO and wireless 802.11 a/b/g/n and Bluetooth communications.
Powerful TSPL-EZD printer programming language
The MB240 series features TSPL-EZD firmware that is easy to set up and use. TSPL-EZD offers a fully compatible set of standard industry emulations, including Line Mode, Datamax®, Eltron® and Zebra® languages and will work in many IT environments including Oracle, Unix, AS/400, Windows, Stand Alone, and many more.
The included DiagTool configuration software makes it a snap to replace existing printers with a modern durable MB240 series printer. Other TSPL-EZ features include a file manager and programming language that support stand-alone and down-time programming solutions allowing you to print labels without connection to a host computer, or optionally be able to continue printing labels during times of network failure.
APPLICATIONS
Manufacturing
Work In Process
Product Marking
Compliance Labeling
Industrial-Duty Printing
Warehouse & Logistics
Packing
Order Fulfillment
Shipping/Receiving
Inventory Management
Retail
Product Label
Event Ticketing
| Model | MB240 | MB340 | MB240T | ||
| Product Photos |  |  |  | | |
| Print Specification | Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) |
| Max. print speed | 254 mm (10”)/second | 178 mm (7”)/second | 254 mm (10”)/second | 178 mm (7”)/second | |
| Max. print width | 108 mm (4.25") | 105.7 mm (4.16") | 108 mm (4.25") | 105.7 mm (4.16") | |
| Max. print length | 25,400 mm (1000") | 11,430 mm (450") | 25,400 mm (1000") | 11,430 mm (450") | |
| LCD/LED | LCD/LED | • 4 intuitive icon indicators • 1 status indicator | • 4 intuitive icon indicators • 1 status indicator | • 3.5” touch HVGA color LCD • 1 status indicator | • 3.5” touch HVGA color LCD • 1 status indicator |
| Memory | SDRAM | 128 MB | 128 MB | 128 MB | 128 MB |
| Flash | 128 MB | 128 MB | 128 MB | 128 MB | |
| Ribbon & Media Capacity | Ribbon capacity | 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) | 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) | 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) | 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) |
| Ribbon width | 40 ~ 110 mm (1.6” ~ 4.3”) | 40 ~ 110 mm (1.6” ~ 4.3”) | 40 ~ 110 mm (1.6” ~ 4.3”) | 40 ~ 110 mm (1.6” ~ 4.3”) | |
| Media type | Continuous, die-cut, black mark, fan-fold, notch, perforated, tag, care label (outside wound) | Continuous, die-cut, black mark, fan-fold, notched (outside wound) | Continuous, die-cut, black mark, fan-fold, notched (outside wound) | Continuous, die-cut, black mark, fan-fold, notched (outside wound) | |
| Media width | 20 ~ 120 mm (0.8" ~ 4.7") | 20 ~ 120 mm (0.8" ~ 4.7") | 20 ~ 120 mm (0.8" ~ 4.7") | 20 ~ 120 mm (0.8" ~ 4.7") | |
| Media thickness | 0.06 ~ 0.28 mm (2.36 ~ 11 mil) | 0.06 ~ 0.28 mm (2.36 ~ 11 mil) | 0.06 ~ 0.28 mm (2.36 ~ 11 mil) | 0.06 ~ 0.28 mm (2.36 ~ 11 mil) | |
| Media core diameter | 25.4 ~ 76.2 mm (1” ~ 3”) | 25.4 ~ 76.2 mm (1” ~ 3”) | 25.4 ~ 76.2 mm (1” ~ 3”) | 25.4 ~ 76.2 mm (1” ~ 3”) | |
| Media length | 5 ~ 25,400 mm (0.2" ~ 1000") | 5 ~ 11,430 mm (0.2" ~ 1000") | 5 ~ 25,400 mm (0.2" ~ 1000") | 5 ~ 11,430 mm (0.2" ~ 1000") | |
| Media roll capacity | 203.2 mm (8“) O.D. | 203.2 mm (8“) O.D. | 203.2 mm (8“) O.D. | 203.2 mm (8“) O.D. | |
| Interface | Standard | • RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host, for scanner or PC keyboard | • RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host, for scanner or PC keyboard | • RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host, for scanner or PC keyboard | • RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host, for scanner or PC keyboard |
| Options | • Internal Bluetooth 4.2 MFi (factory option) • GPIO (dealer option) • Slot-in 802.11 a/b/g/n wireless (dealer option) | • Internal Bluetooth 4.2 MFi (factory option) • GPIO (dealer option) • Slot-in 802.11 a/b/g/n wireless (dealer option) | • Internal Bluetooth 4.2 MFi (factory option) • GPIO (dealer option) • Slot-in 802.11 a/b/g/n wireless (dealer option) | • Internal Bluetooth 4.2 MFi (factory option) • GPIO (dealer option) • Slot-in 802.11 a/b/g/n wireless (dealer option) | |
| Software Support | Software support | Oracle, Windows, Linux, Mircosoft SQL Server, Bartender | Oracle, Windows, Linux, Mircosoft SQL Server, Bartender | Oracle, Windows, Linux, Mircosoft SQL Server, Bartender | Oracle, Windows, Linux, Mircosoft SQL Server, Bartender |
| Physical characteristics | Dimension | 248 mm (W) x 274 mm (H) x 436 mm (D) 9.76" (W) x 10.79" (H) x 17.17" (D) | 248 mm (W) x 274 mm (H) x 436 mm (D) 9.76" (W) x 10.79" (H) x 17.17" (D) | 248 mm (W) x 274 mm (H) x 436 mm (D) 9.76" (W) x 10.79" (H) x 17.17" (D) | 248 mm (W) x 274 mm (H) x 436 mm (D) 9.76" (W) x 10.79" (H) x 17.17" (D) |
| Weight | 9 kg (19.84 lbs) | 9 kg (19.84 lbs) | 9.2 kg (20.28 lbs) | 9.2 kg (20.28 lbs) |
