Illustrated parts lists for the AMT Datasouth Accel 6310 (narrow carriage) and Accel 6350 (wide carriage) matrix printers, taken from the factory Field Service Guide. Item numbers match the callout numbers on each exploded drawing.

Where a part differs between models it is listed twice — 6310 for the narrow carriage and 6350 for the wide carriage. Parts we stock show an add-to-cart button; for anything else, contact us with the part number.

Assemblies

• C-1. External components
• C-2. Control panel
• C-3. Top case
• C-4. Power and main printed circuit board
• C-5. Bottom case
• C-6. Chassis, top
• C-7. Chassis, bottom
• C-8. Chassis, left
• C-9. Chassis, left - shafts, tractors and motors

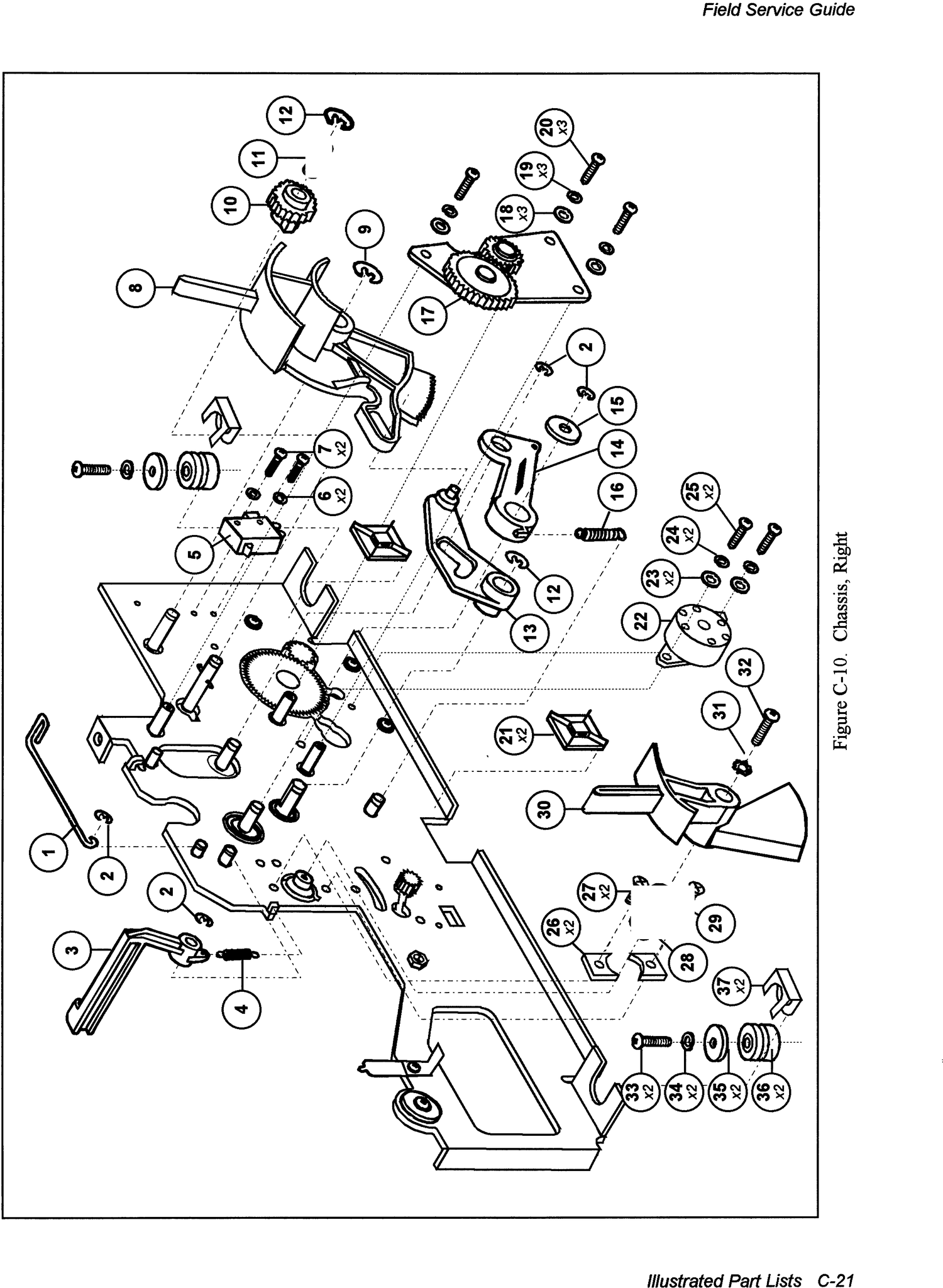

• C-10. Chassis, right

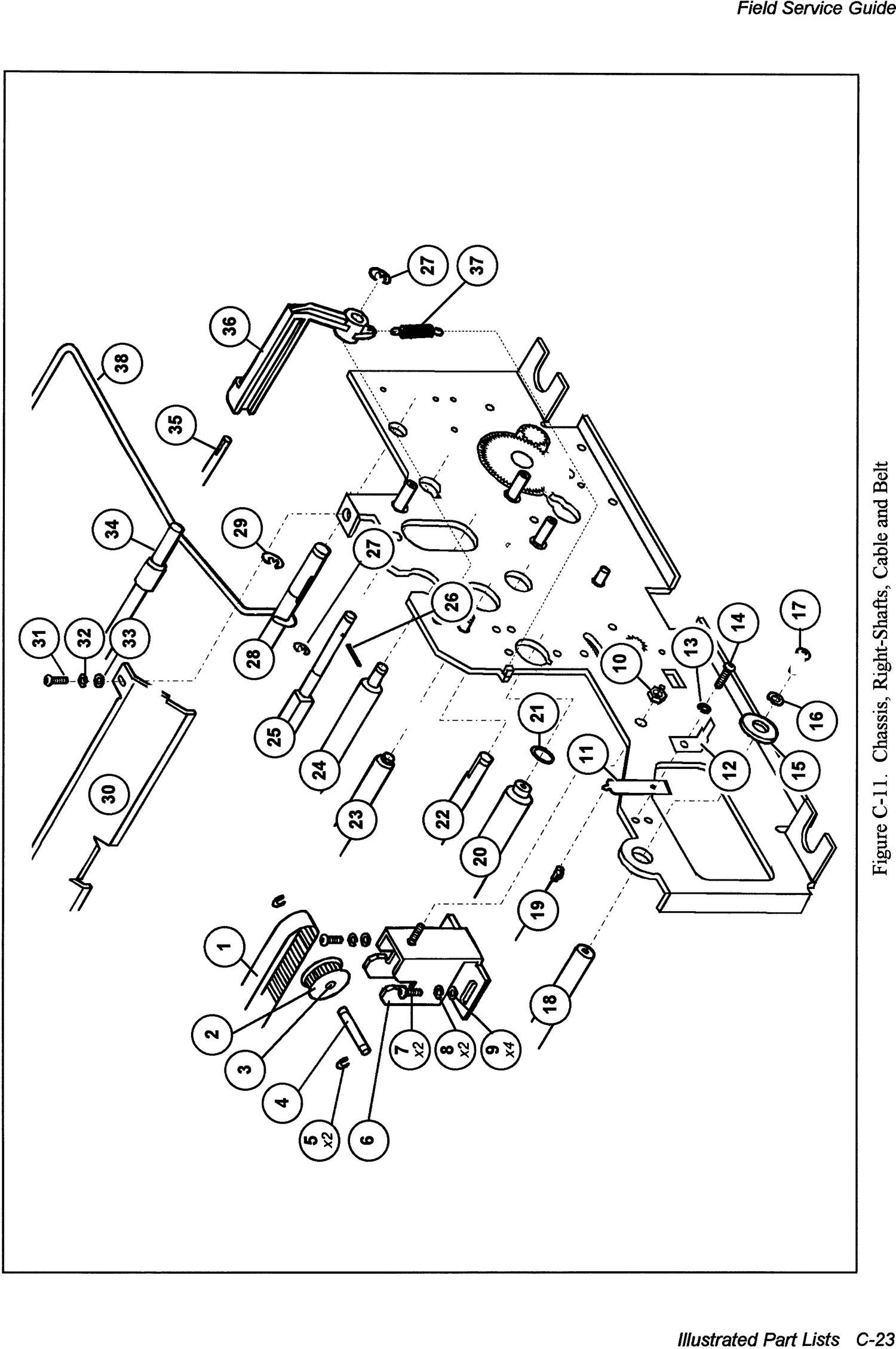

• C-11. Chassis, right - shafts, cable and belt

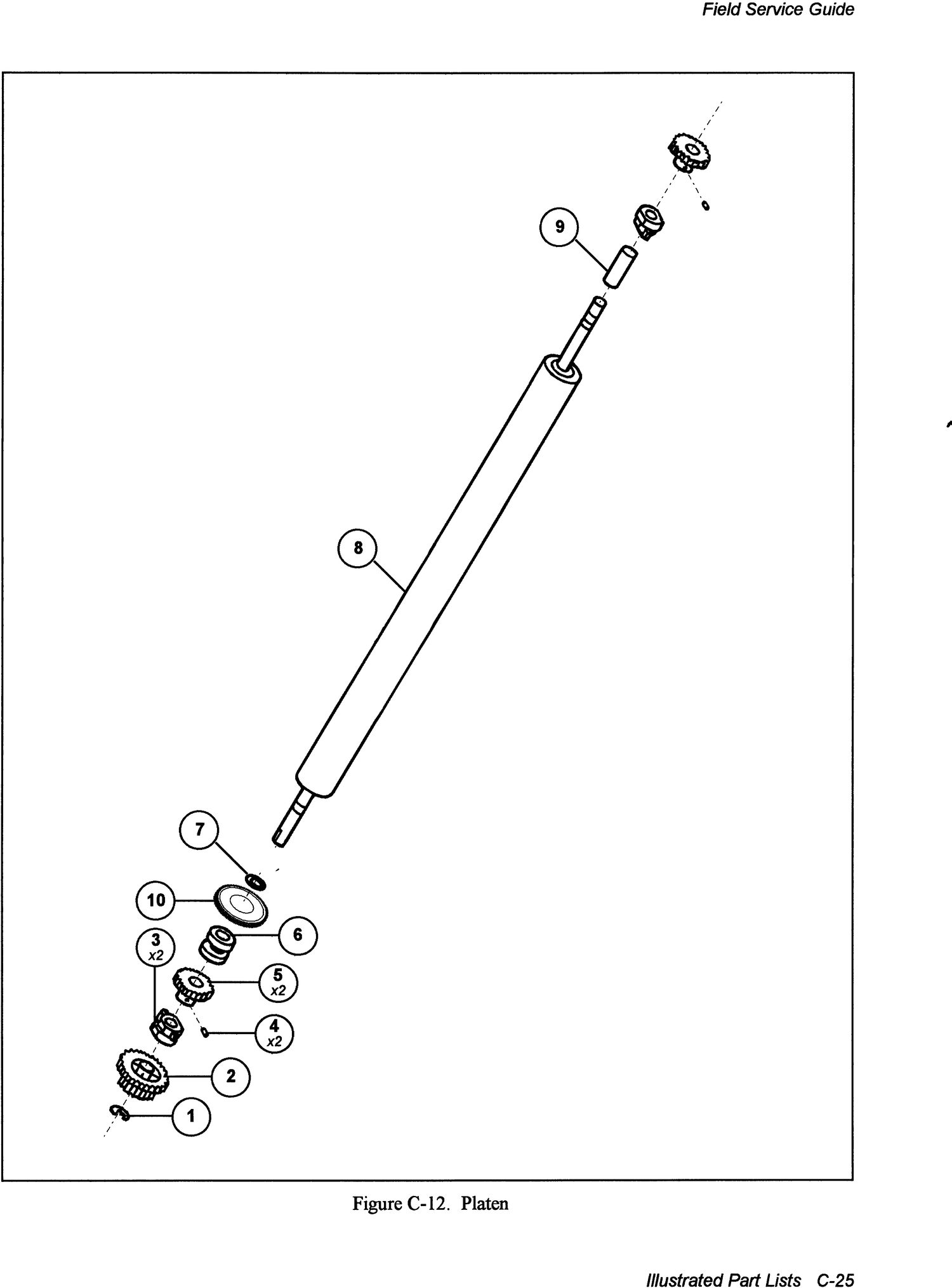

• C-12. Platen

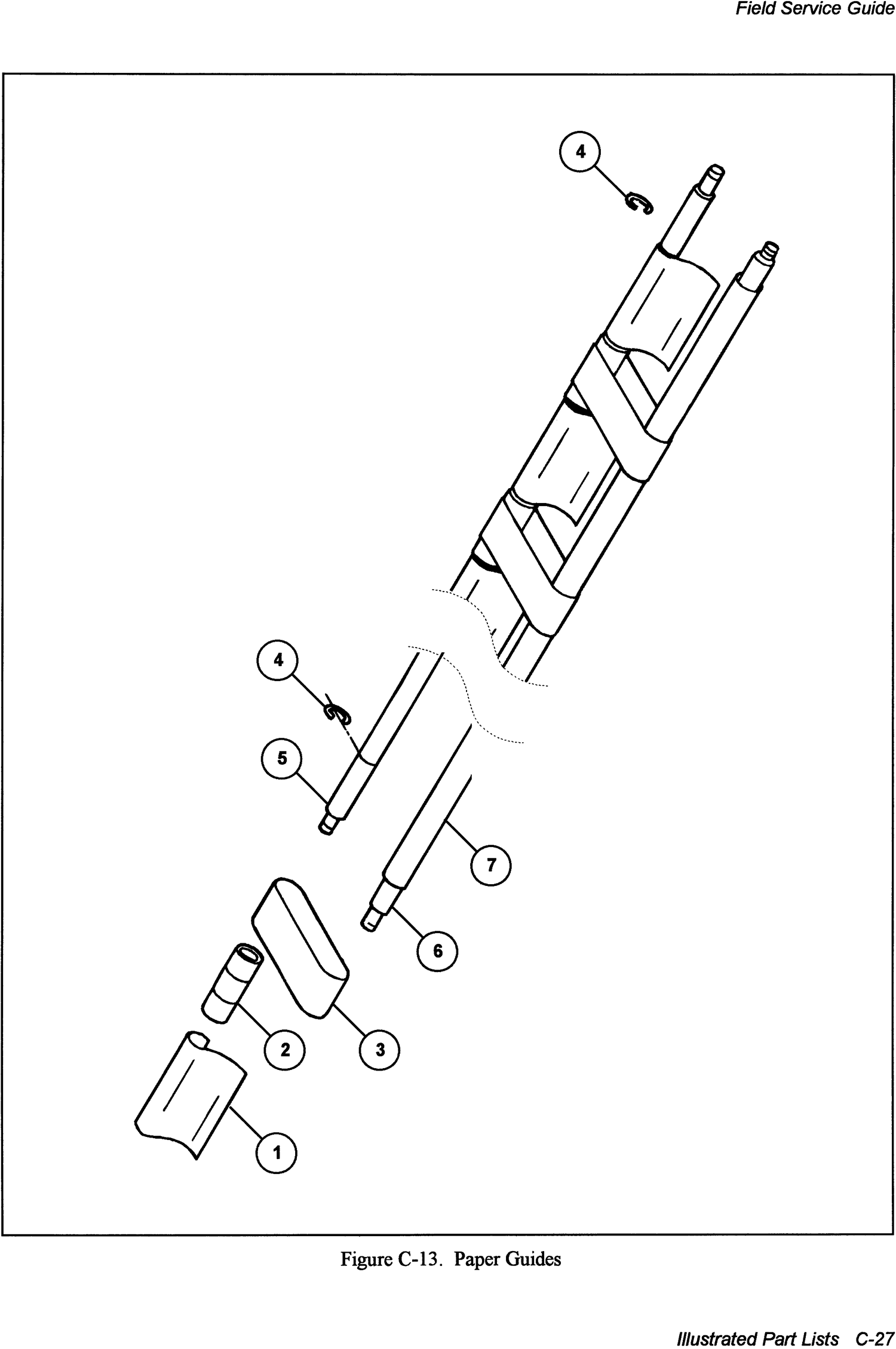

• C-13. Paper guides

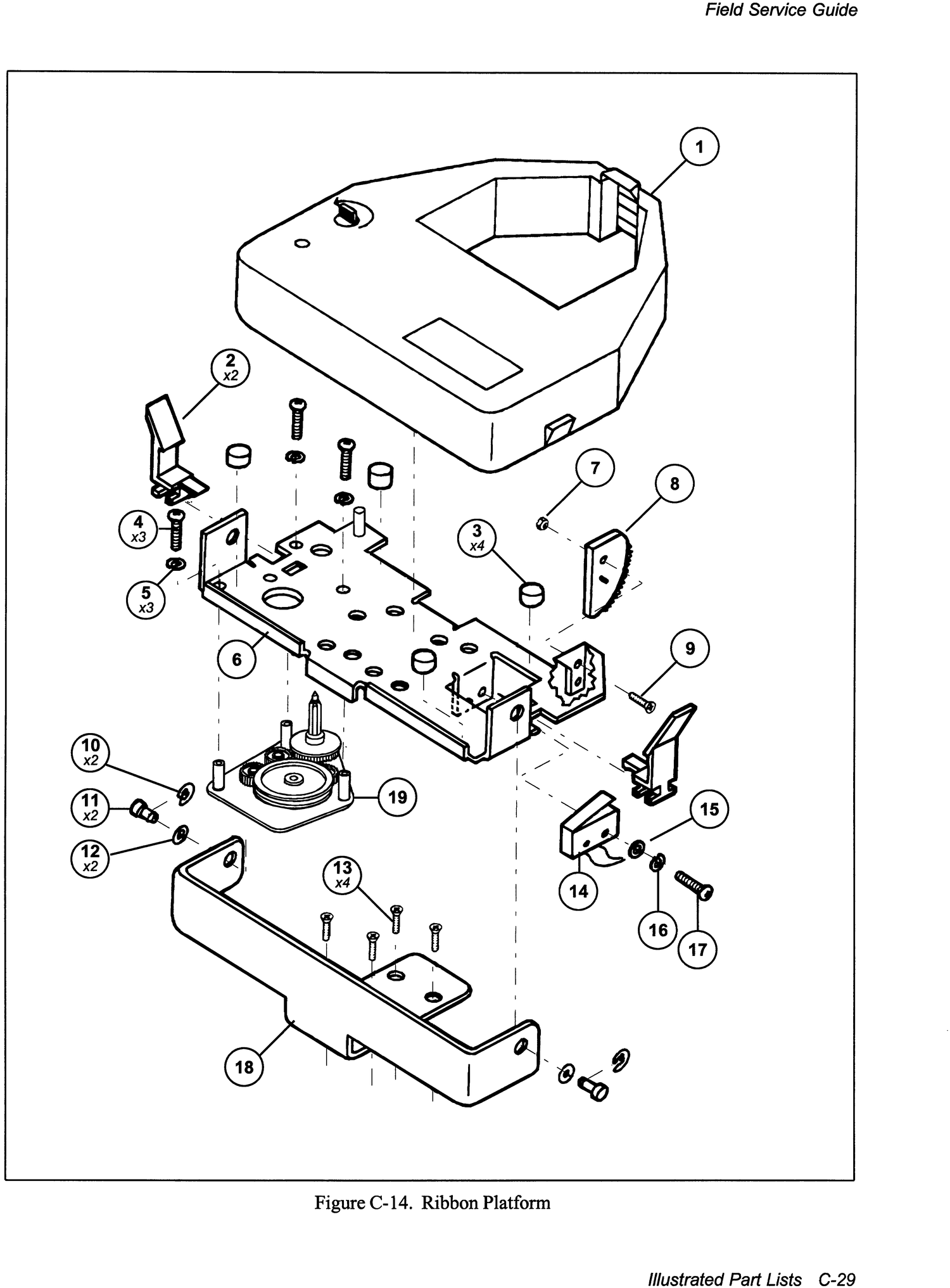

• C-14. Ribbon platform

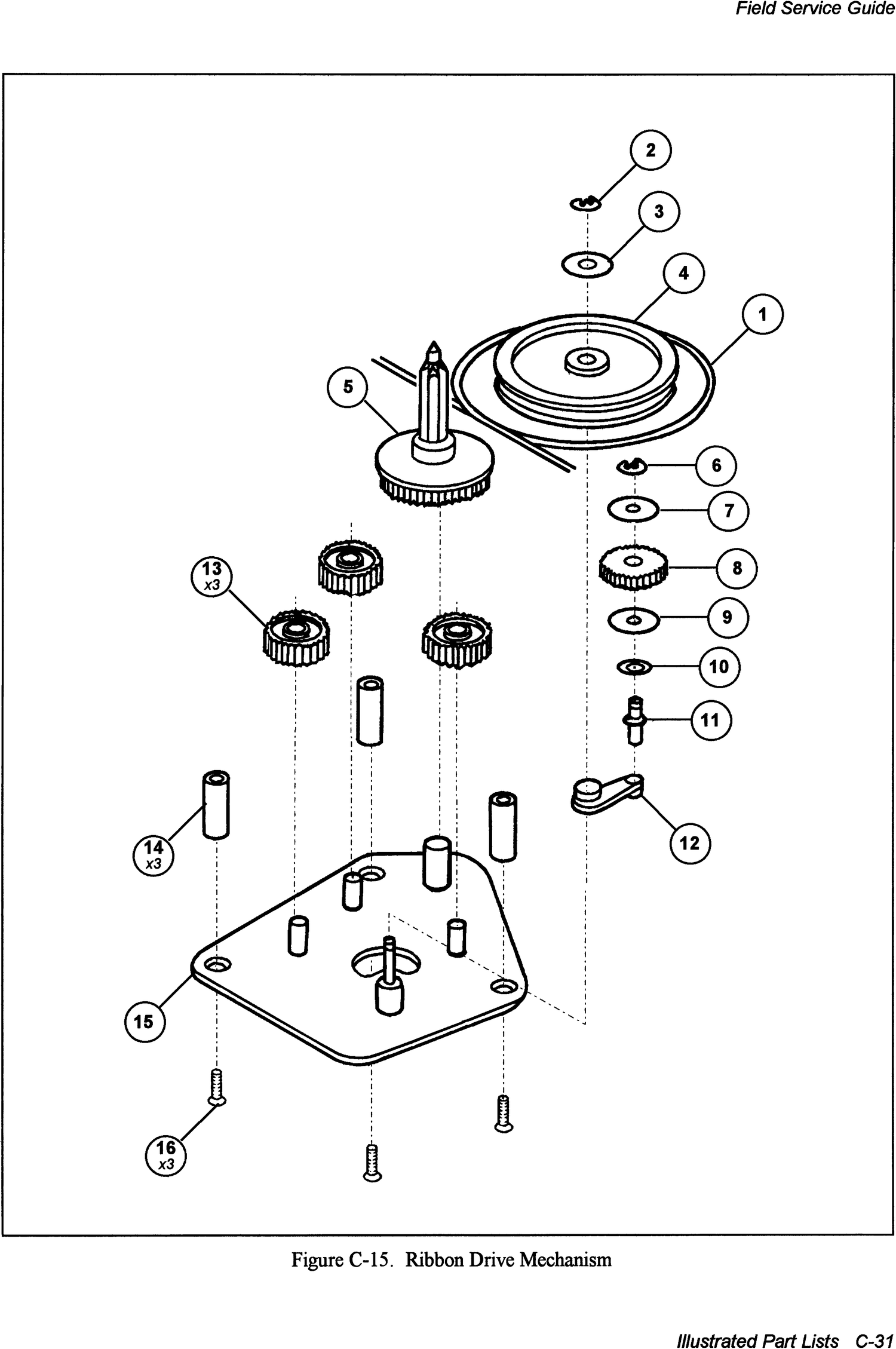

• C-15. Ribbon drive mechanism

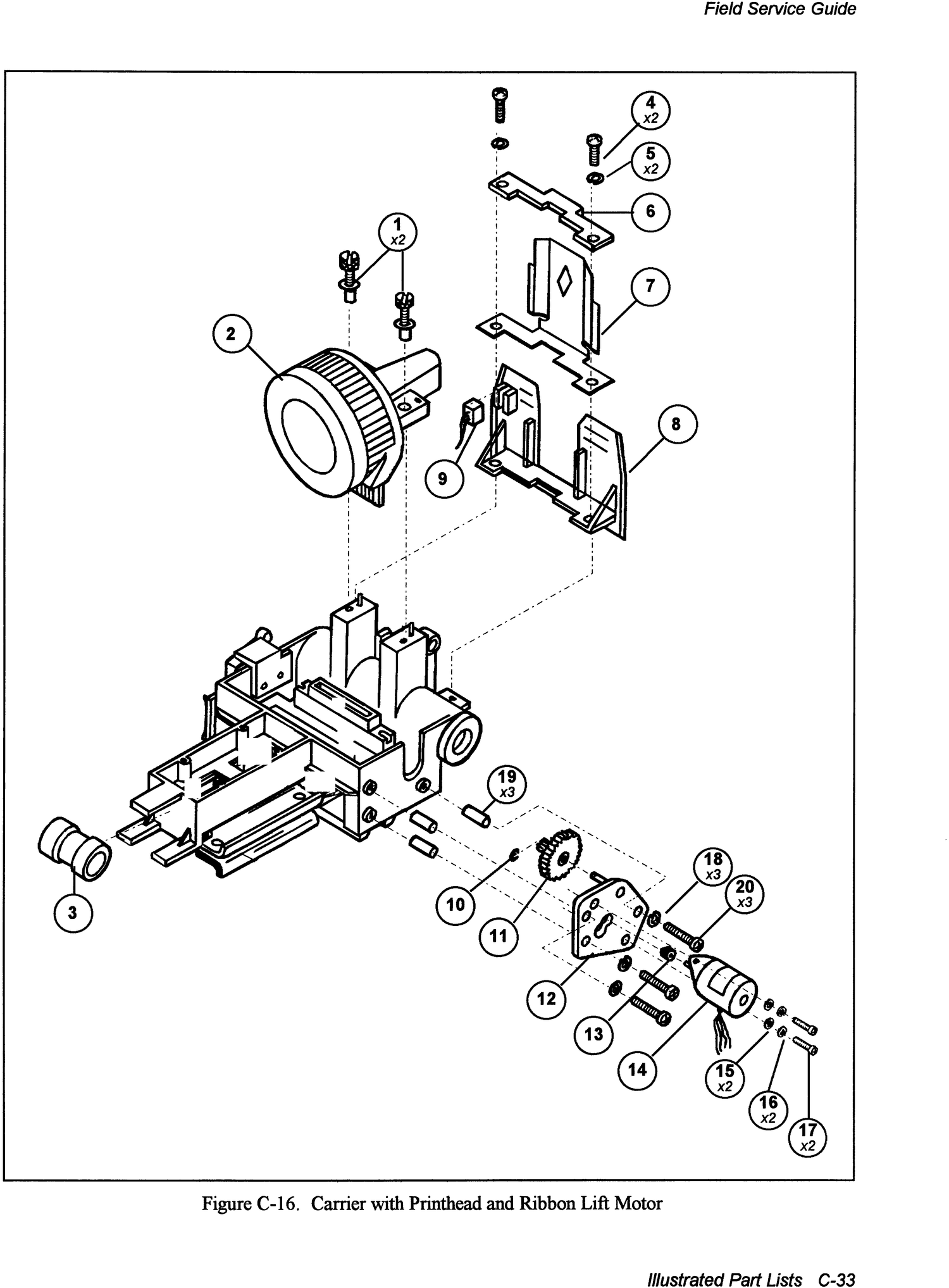

• C-16. Carrier with printhead and ribbon lift motor

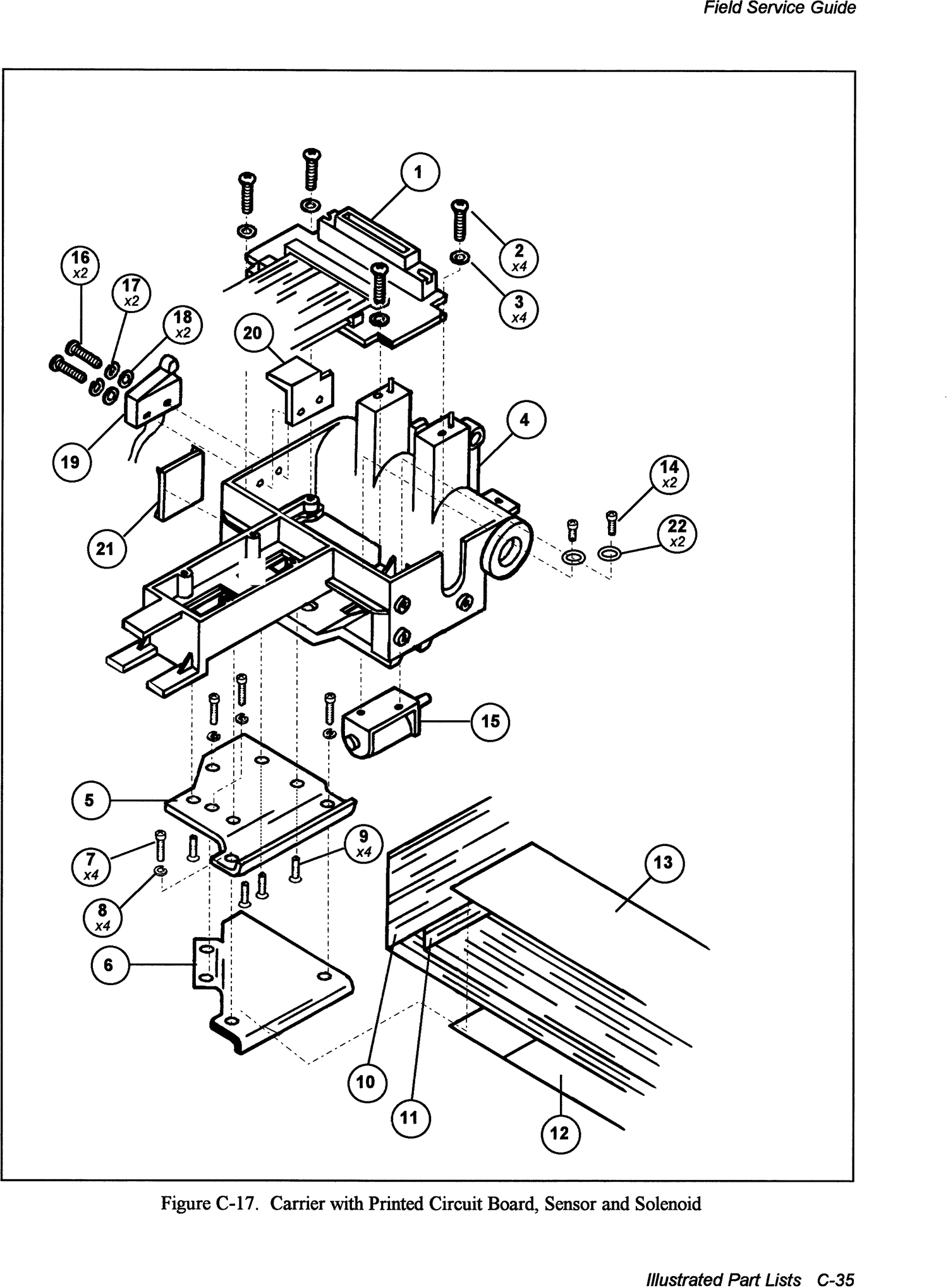

• C-17. Carrier with printed circuit board, sensor and solenoid

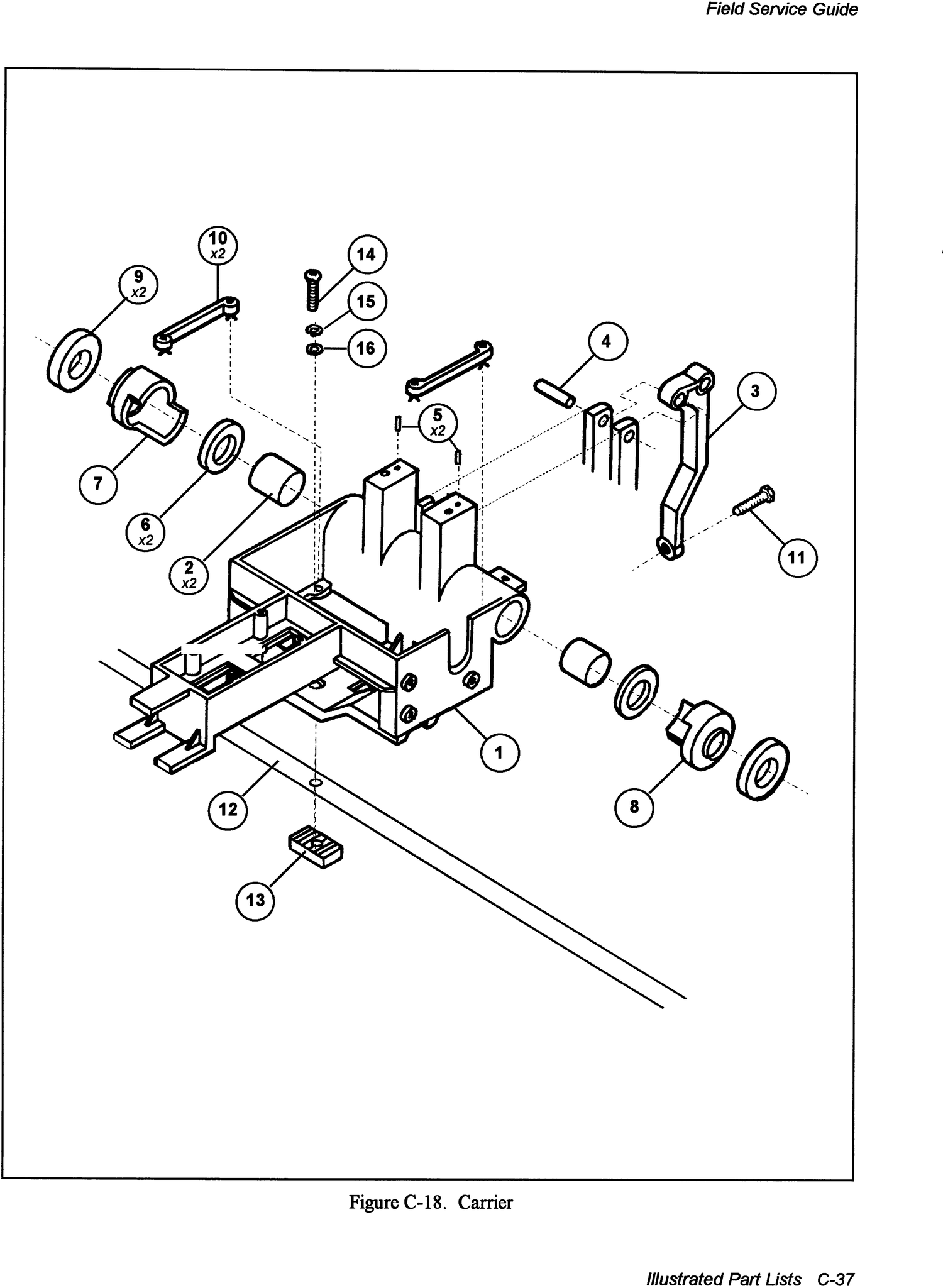

• C-18. Carrier

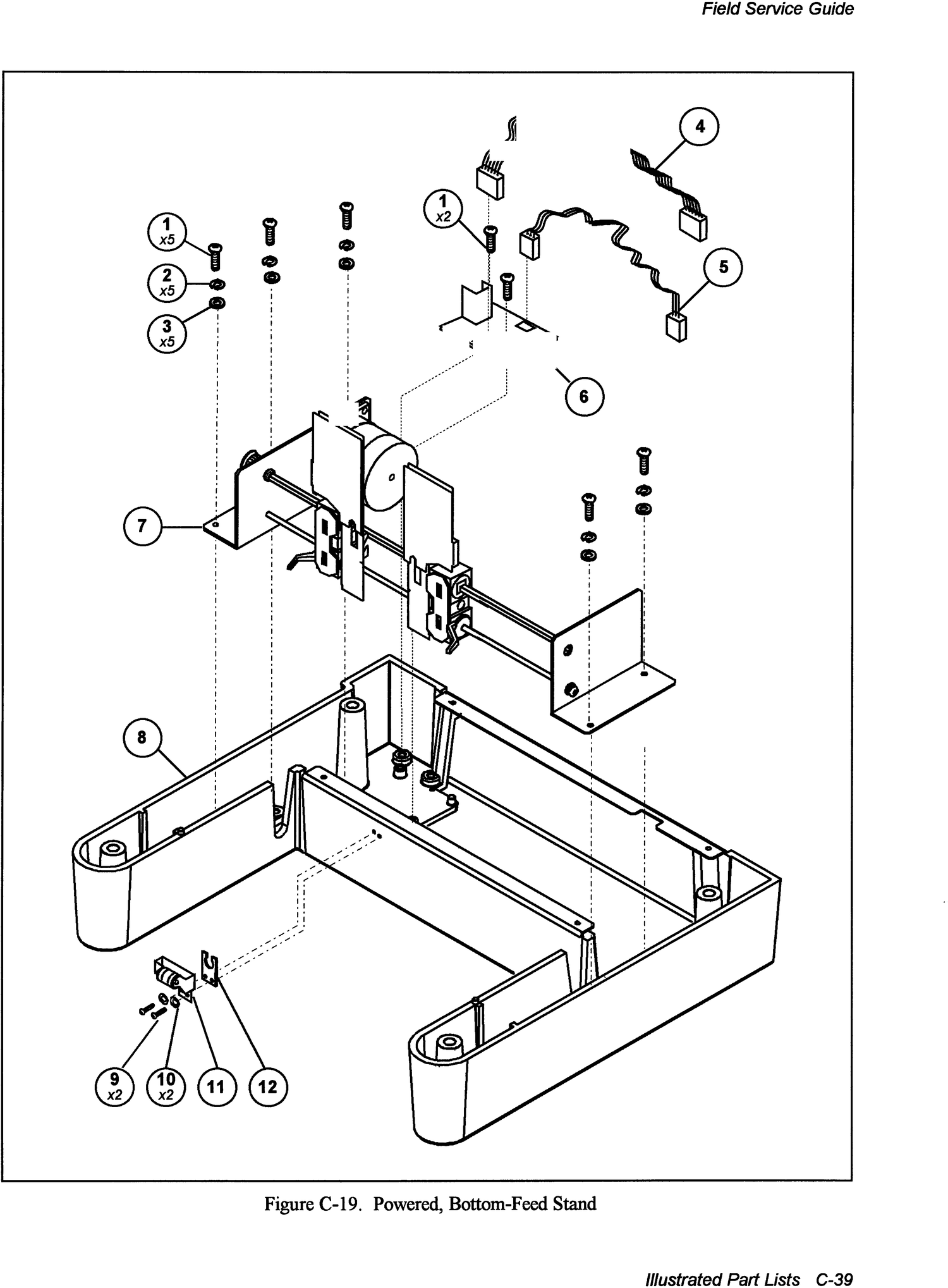

• C-19. Powered, bottom-feed stand

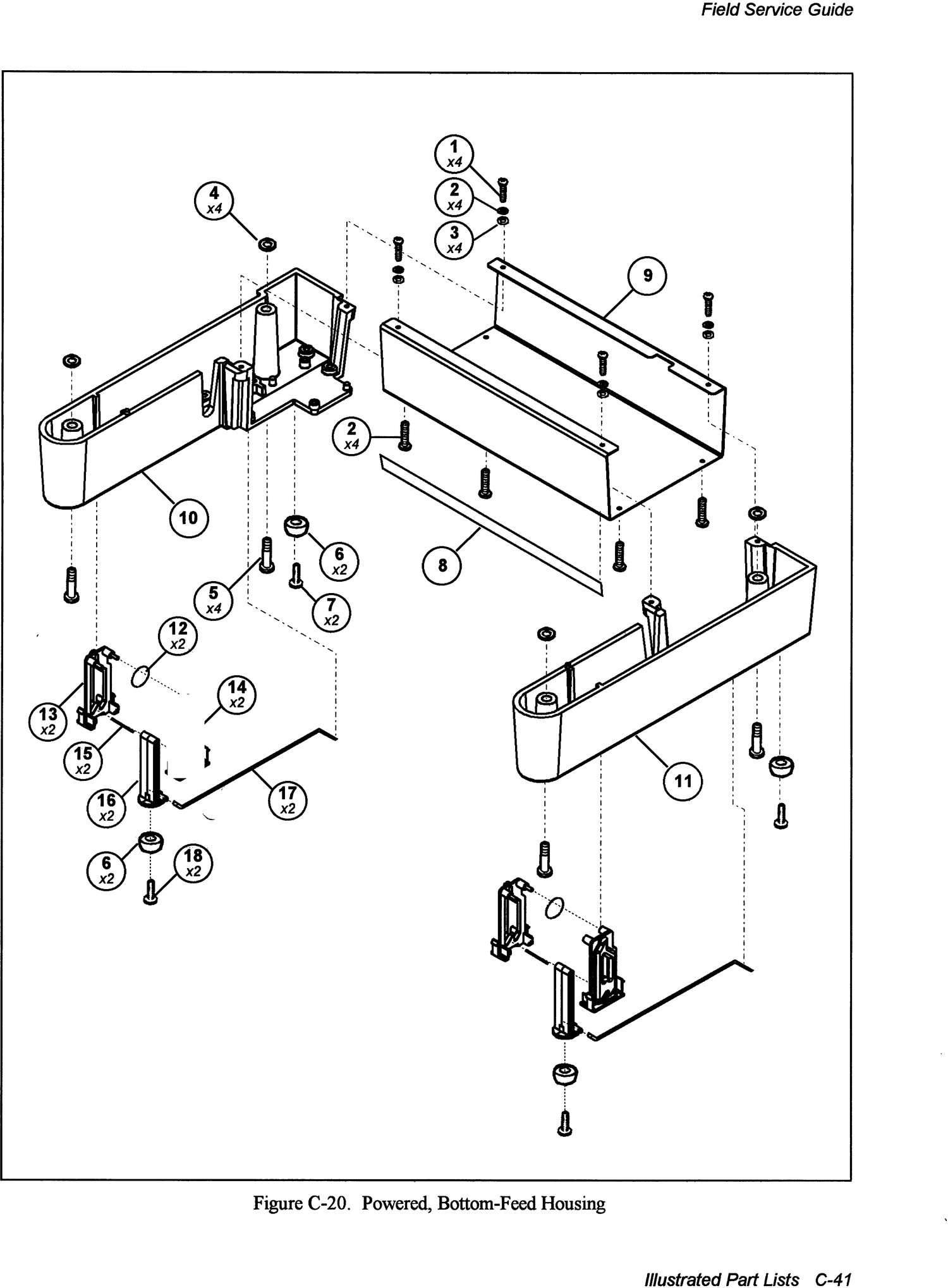

• C-20. Powered, bottom-feed housing

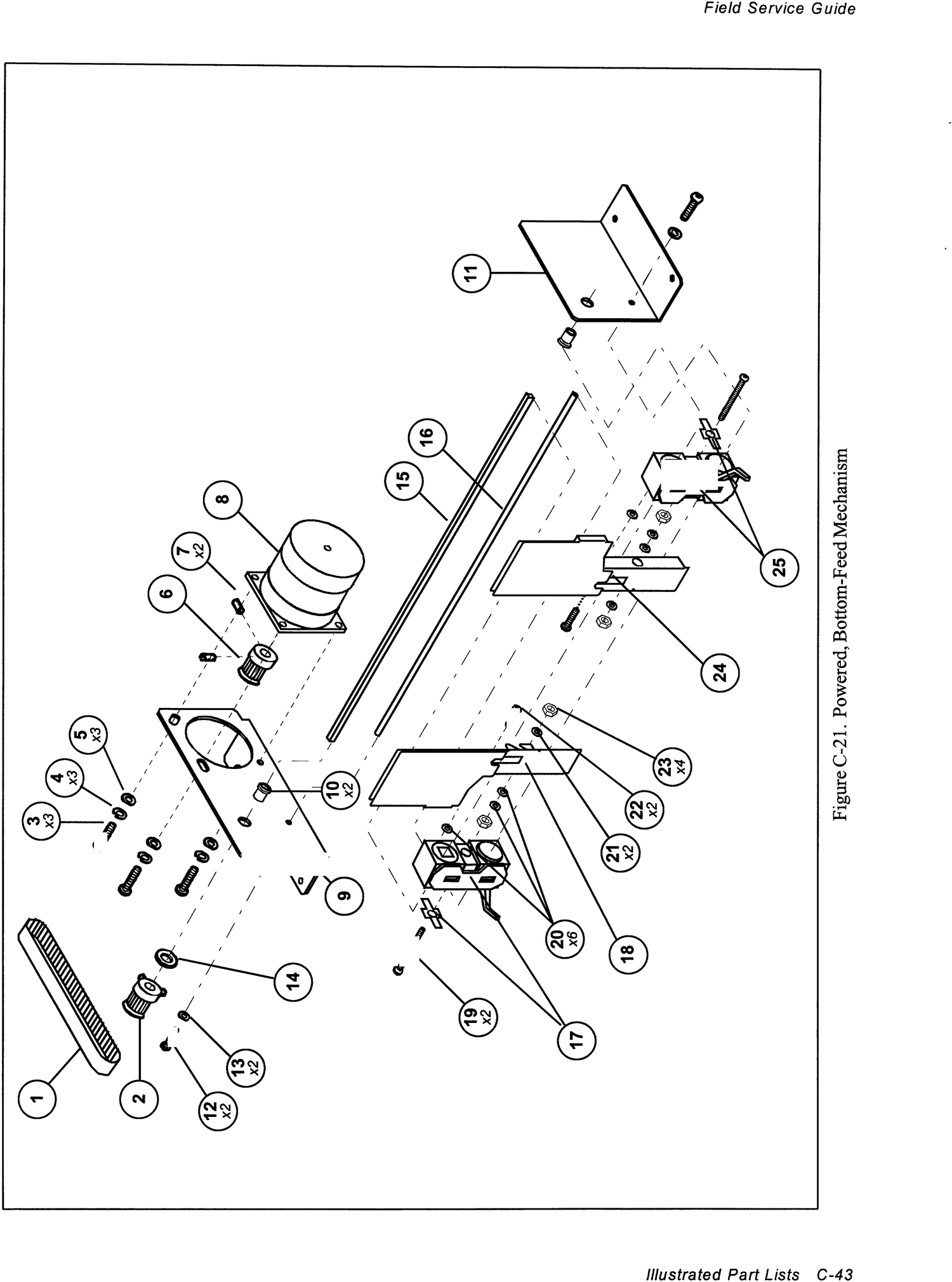

• C-21. Powered, bottom-feed mechanism

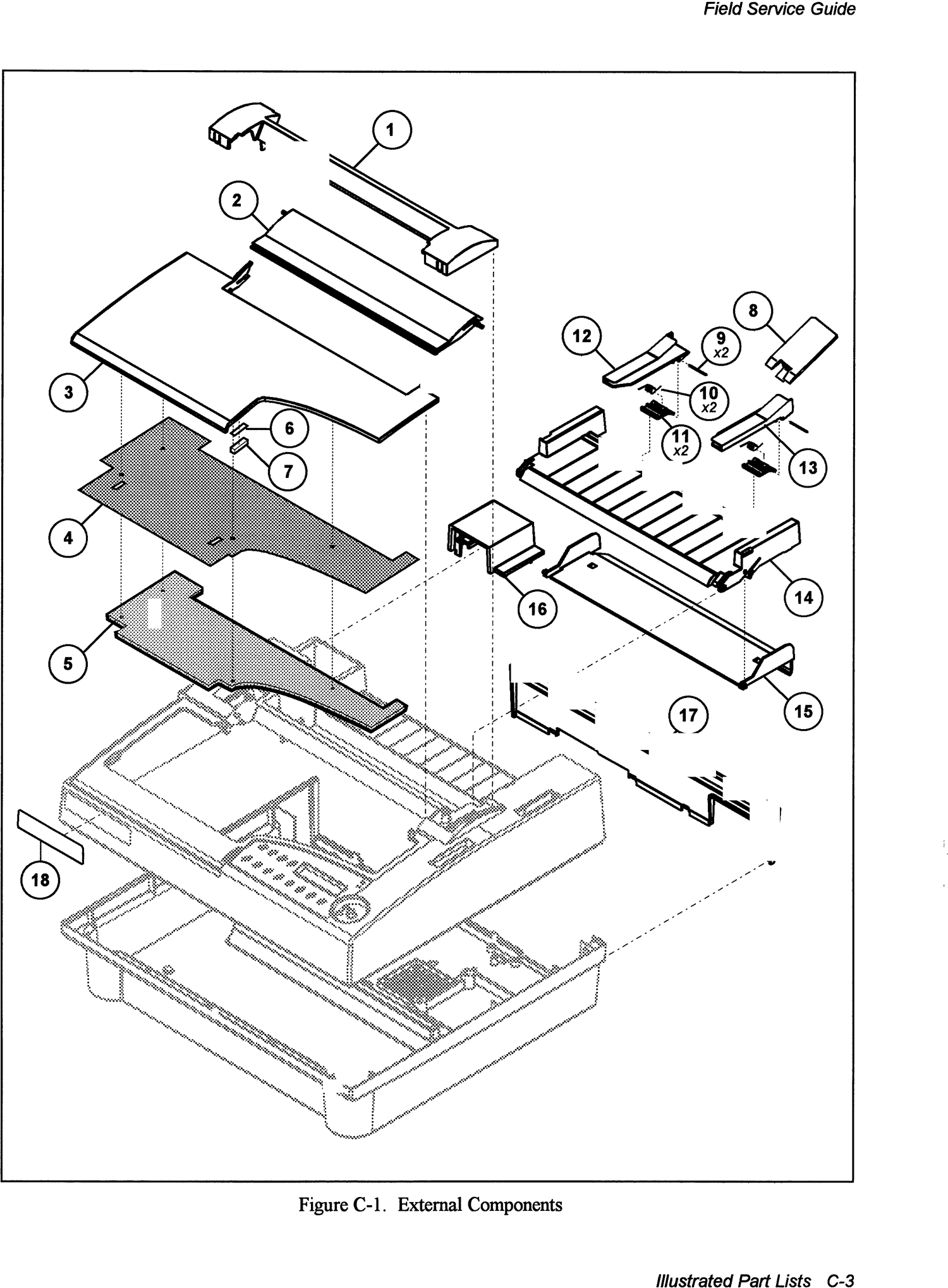

C-1. External components

Item	Part #	Qty	Description
1	384005 (6310 narrow) 384028 (6350 wide)	1	Guide, output
2	384004 (6310 narrow) 384027 (6350 wide)	1	Window, viewing
3	384002 (6310 narrow) 384025 (6350 wide)	1	Cover, top access
4	385019 (6310 narrow) 385020 (6350 wide)	1	Damper, top access
5	385028 (6310 narrow) 385030 (6350 wide)	1	Acoustic foam, top access
6	845107-008	1.13	Tape, 2-sided foam, 0.25 THK, .5W
7	840203-000	1	Magnet
8	384015	1	or 2 Support, cut-sheet (wide-carriage has two)
9	382011	2	Pin, paper guide
10	385016	2	Spring, paper guide
11	384010	2	Clip, paper tray
12	384008	1	Guide, paper-left
13	384009	1	Guide, paper-right
14	384006 (6310 narrow)	1	Tray, paper
	384029	1	6350 (wide carriage)
15	384007 (6310 narrow) 384030 (6350 wide)	1	Panel, sound
16	384012	1	Cover, Intelli-card access
17	384003 (6310 narrow) 384026 (6350 wide)	1	Cover, rear access
18	385002-xxx	1	Decal, model number (e.g., -001 is 6310; -005 is 6350)
assembly	381011-010 (6310 narrow) 381011-020 (6350 wide)		Varies Assembly, top access (items 3 through 7)
assembly	381009-010 (6310 narrow) 381009-020 (6350 wide)		Varies Assembly, paper tray/sound panel (items 9 through 15) s’
assembly	381000		Assembly, paper guide-left (items 9, 10, 11 and 12) f
assembly	381001		Assembly, paper guide-right (items 9, 10, 11 and 13)
assembly	381012		Assembly, magnet/cover open (items 6 and 7)

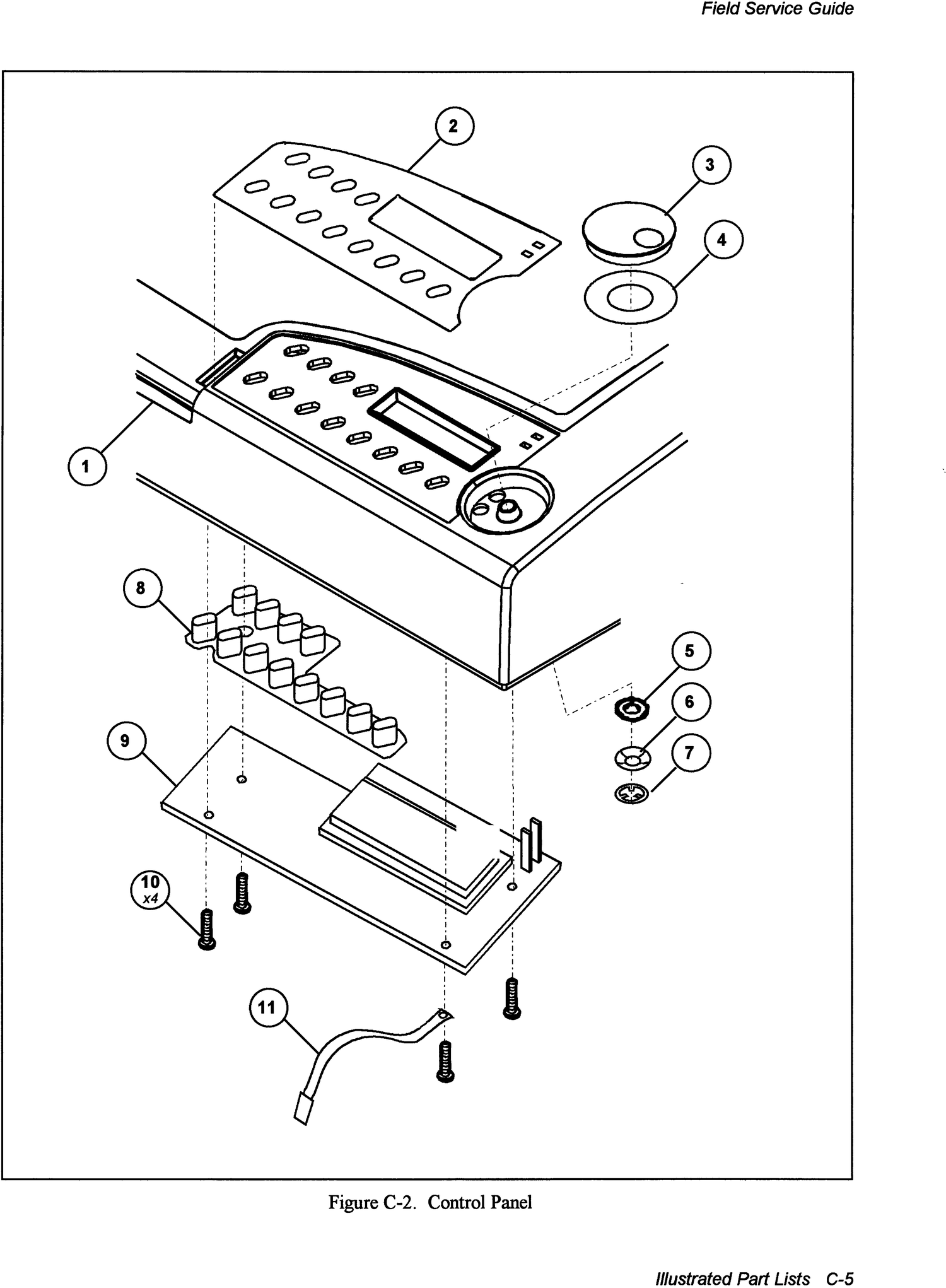

C-2. Control panel

Item	Part #	Qty	Description
1	381003-010 (6310 narrow) 381003-020 (6350 wide)	1	Assembly, top enclosure
2	385001	1	Decal, operator's
3	384011	1	Dial, control panel
4	335040	1	Decal, dial timing
5	865330-009	1	Washer
6	865202-004	1	Washer, crescent spring
7	872110-001	1	Push ring, 3/32
8	384032	1	Keypad, control panel
9	386000	1	Assembly, PCB, control panel
10	857620-005	4	Screw, 6-20x5/l6, Phillips pan-head, self-tapping, ET
11	336141	1	Subassembly, ground strap, control panel
assembly	381015		Assembly, control panel dial (items 3 and 4)

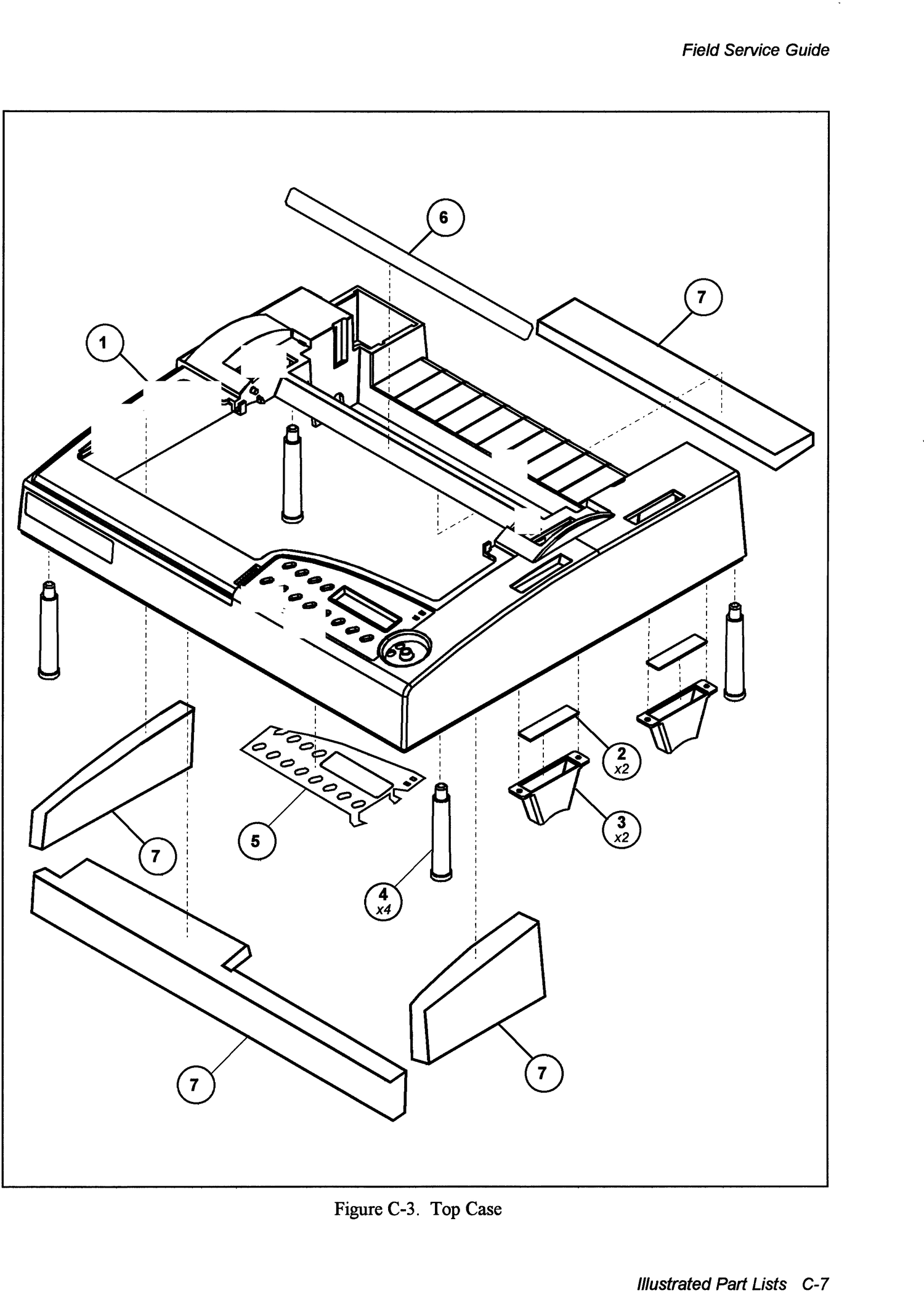

C-3. Top case

Item	Part #	Qty	Description
1	384001 (6310 narrow) 384024 (6350 wide)	1	Enclosure, top
2	384014	2	Window, indicator well
3	382022	2	Well, top enclosure
4	384031	4	Extender, enclosure mating
5	385023	1	Control panel, grounding foil
6	385010 (6310 narrow) 385011 (6350 wide)	1	Scale
7	385017 (6310 narrow) 385018 (6350 wide)	1	Acoustic foam set, top enclosure
assembly	381004-010 (6310 narrow) 381004-020 (6350 wide)		Varies Subassembly, top enclosure (items 1, 2 and 3)
assembly	381003-010 (6310 narrow) 381003-020 (6350 wide)		Varies Assembly, top enclosure (all items)
assembly	381046-010 (6310 narrow)		Varies Top enclosure (all items plus all items from table 02)
assembly	varies by model		381046020 6350 (wide carriage)

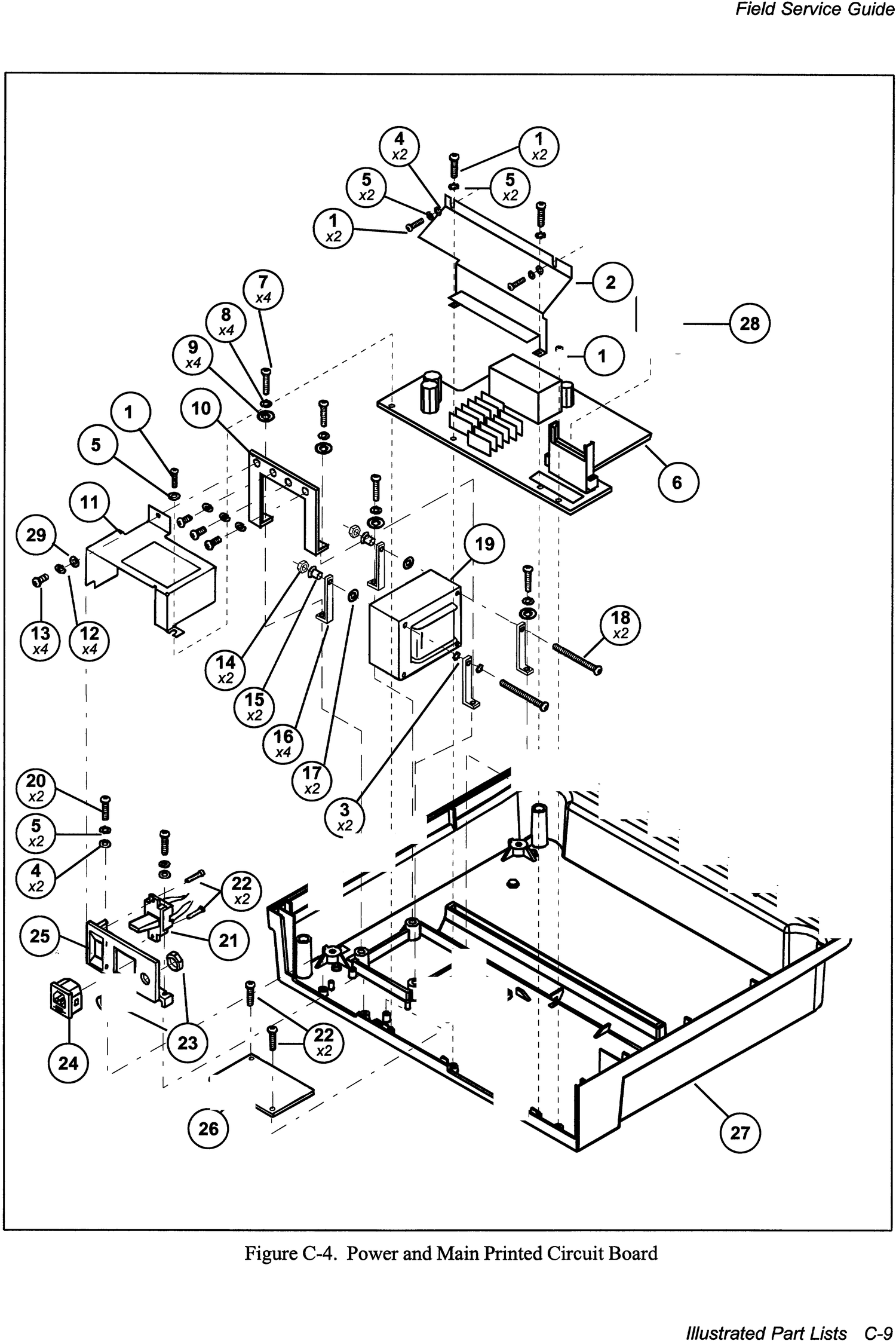

C-4. Power and main printed circuit board

Item	Part #	Qty	Description
1	852440-004	6	Screw, #4-40 x 3/16, Phillips pan-head, zinc-plated steel
2	303077	1	Shield, electro-magnetic interference, main printed circuit board (PCB)
3	865340-010	2	Washer, lock, external star, #10
4	865100-004	4	Washer, flat, #4, zinc-plated steel
5	865150-004	7	Washer, split-lock, #4, zinc-plated steel
6	366030-002	1	Main printed circuit board
7	852A24-012	4	Screw, 10-24 x 3/4, Phillips pan-head, zinc-plated steel
8	865150-010	4	Washer, split-lock, #10, zinc-plated steel
9	865100-010	4	Washer, flat, #10, zinc-plated steel
10	361021	1	Bracket with grounding symbol
11	381040	1	Assembly, cover, high-voltage
12	865340-008	4	Washer, star, #8, zinc-plated steel
13	852832-004	4	Screw, #8-32 x 1/4, Phillips pan-head, zinc-plated steel
14	863003-010	2	Nut with star, #10-24 (kep nut)
15	865501-002	2	Washer, shoulder, nylon, ID .196, OD .38X.06
16	363009	4	Bracket, transformer
17	865350-008	2	Washer, nylon, ID .2, OD .437, THK.02
18	852A24-048	2	Screw, #10-24 x 2.5, Phillips pan-head, zinc-plated steel
19	816118-000	1	Transformer, 50/60 Hz, 120/240V-6300 (to main PCB J2)
20	852440-006	2	Screw, #4-40 x 3/8, Phillips pan-head, zinc-plated steel
21	800322-000	1	Switch, power-ac on/off
22	857424-004	4	Screw, 4-24 x 1/4, Phillips pan-head, self-tapping, BT
23	800312-000	1	Switch, voltage select, 2-position (includes nut and switch)
24	805600-001	1	Receptacle, ac input
25	364013-003	1	Panel, ac-6300 series
26	366000	1	Assembly, PCB filter board
27	381010-010 (6310 narrow) 381010-020 (6350 wide)	1	Bottom enclosure (with acoustic foam, ground shield and clips)
28	389000-010 (6310 narrow) 389000-020 (6350 wide)	1	Intelli-card assembly
29	865100-008	1	Washer, flat #8
assembly	361003-003		Assembly, power input (items 21 through 26)
assembly	varies by model		Varies Assembly, bottom case with power/PCB (items 1 and 3 through 28
assembly	381049-010 (6310 narrow) 381049-020 (6350 wide)		plus items 1 through 10 on table C-5)

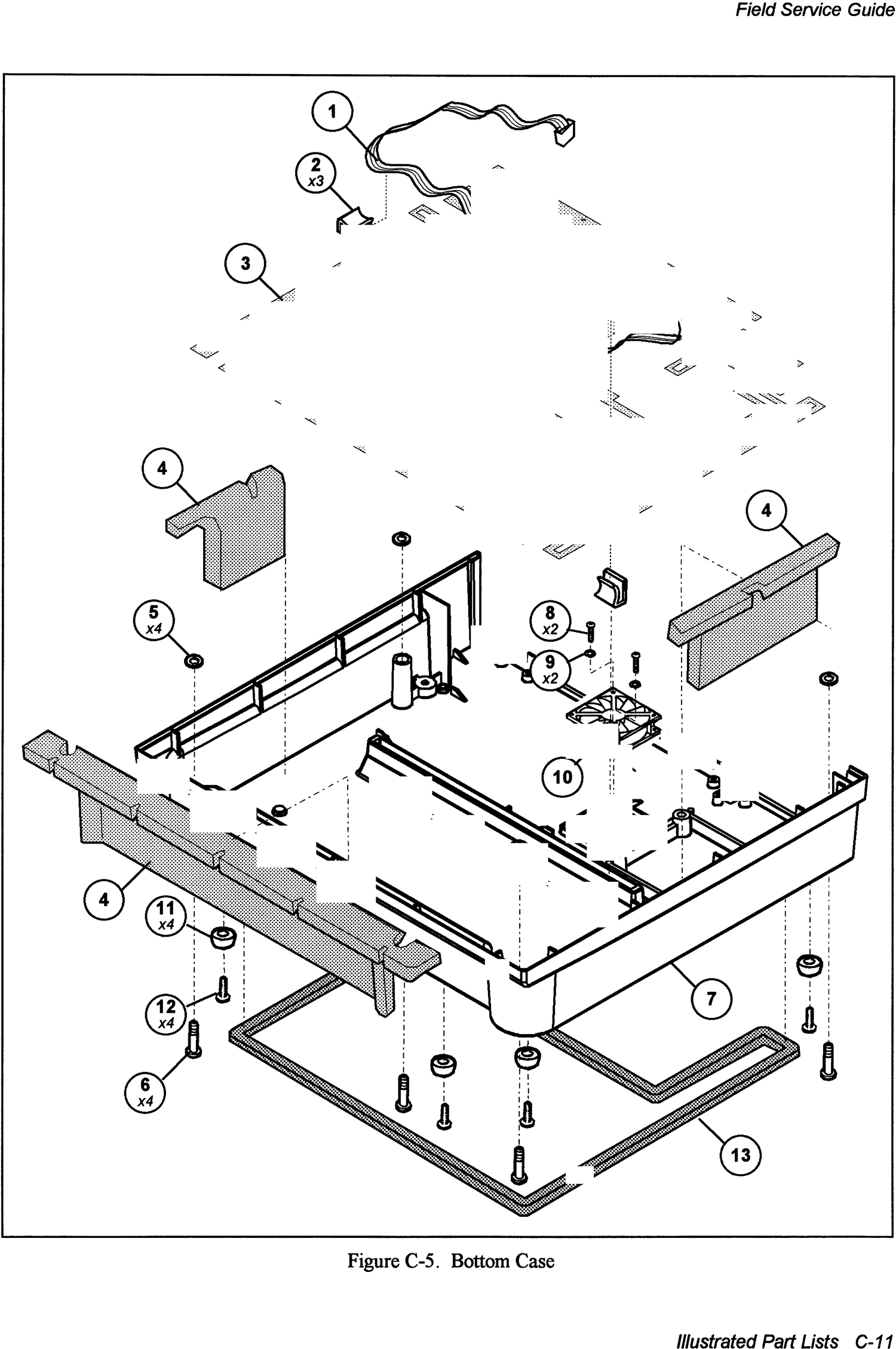

C-5. Bottom case

Item	Part #	Qty	Description
1	AMT 306106 Control panel cable Fully refurbished with 90-day warranty 306106 Retired, no longer available: Contact for alternatives Contact for Details 306106	1	Subassembly, cable, control panel (to main PCB J24)
2	817513-000	3	Clip, cable retainer 1.02W
3	385032 (6310 narrow) 385042 (6350 wide)	1	Shield, ground
4	385029 (6310 narrow) 385041 (6350 wide)	1	Acoustic foam set, bottom
5	865351-127	4	Washer, mylar #4, OD .31, ID .125, T HK .01
6	876000-001	4	Screw-captive #8-32, zinc-plated steel, Phillips pan-head
7	384000 (6310 narrow) 384023 (6350 wide)	1	Enclosure, bottom
8	852440-018	2	Screw, #4-40 x l/-1/8, Phillips pan-head, zinc-plated steel
9	865150-004	2	Washer, split-lock, #4, zinc-plated steel
10	830203-000 (6310 narrow) 830204-000 (6350 wide)	1	Fan assembly (to main PCB 115)
11	881101-002	4	Foot, rubber vibration mounting
12	852632-006	4	Screw #6-32 x 3/8, Phillips pan-head, zinc-plated steel
13	385021 (6310 narrow) 385022 (6350 wide)	1	Seal, bottom enclosure
assembly	381010-010		Assembly, bottom enclosure-6310 (items 2 through 7)
assembly	381010-020		Assembly, bottom enclosure-6350 (items 2 through 7)

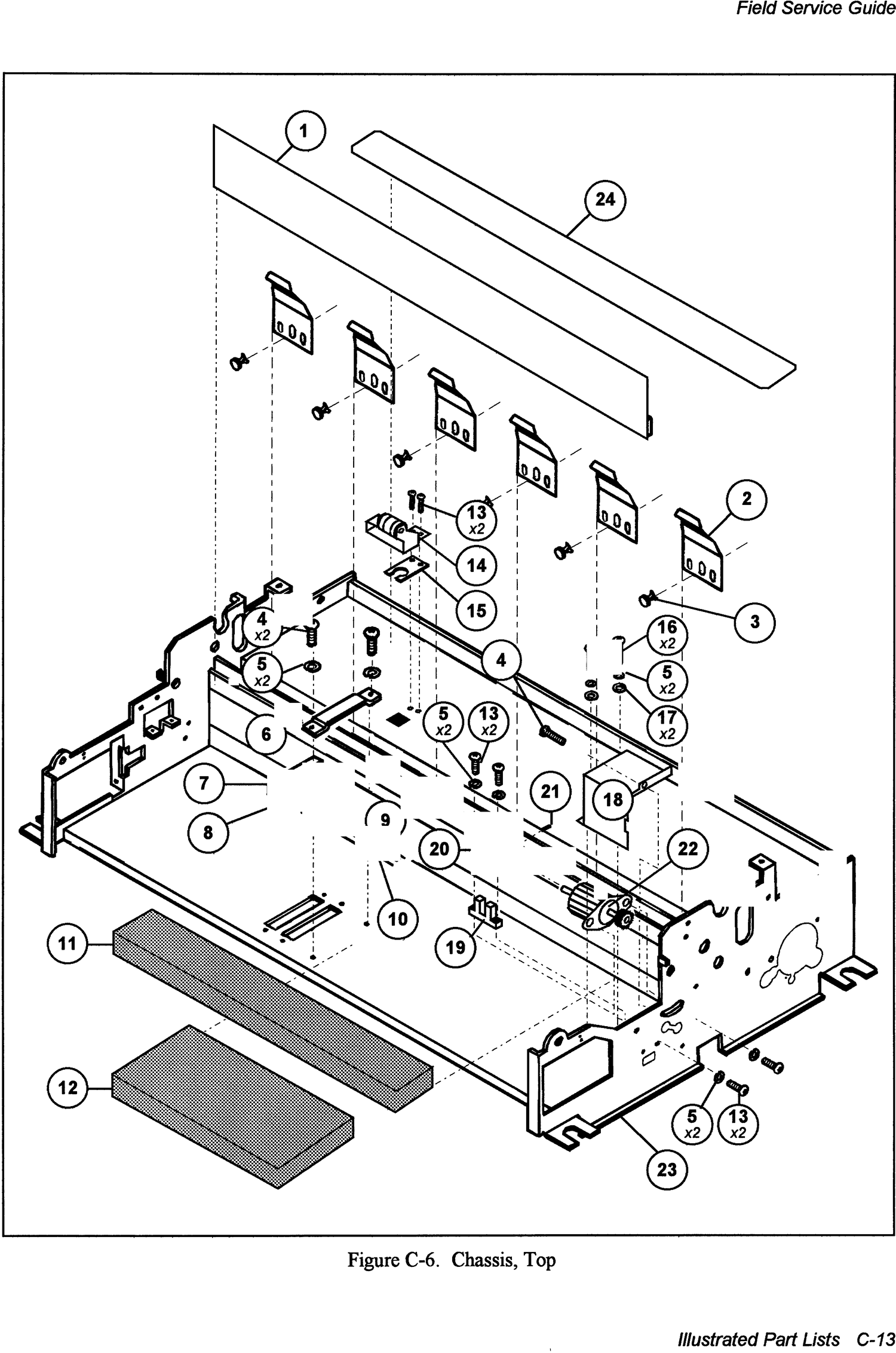

C-6. Chassis, top

Item	Part #	Qty	Description
1	385004 (6310 narrow) 385043 (6350 wide)	1	Platen wiper (with adhesive)
2	303004	3 (6310) 6 (6350)	Guide, paper feed front
3	304058	3 (6310) 6 (6350)	Fastener, paper feed guide, front
4	852440-004	3	Screw, #4-40 x 1/4, Phillips pan head, zinc-plated steel
5	865150-004	8	Washer, split-lock, #4, zinc-plated steel
6	303036	1	Clamp, printhead cable shield
7	306075	1	Cable, printhead interconnect, carriage board JP2 to main PCB J12
8	306074	1	Cable, printhead interconnect, carriage board JPl to main PCB J1 1
9	301092	1	Shield, printhead cable assembly, minor
10	301091	1	Shield, printhead cable assembly, major
11	385037 (6310 narrow) 385039 (6350 wide)	1	Acoustic foam, front crossbrace-major (rear)
12	385038	1	Acoustic foam, front crossbrace - minor (front)
13	852440-006	6	Screw, #4-40 x 3/8, Phillips pan-head
14	301542	1	Paper jam sensor (to main PCB J9)
15	304136	1	Block, mounting-jam sensor
16	852440-006	2	Screw, #4-40 x 3/8, Phillips pan-head
17	865100-004	2	Washer, flat, #4
18	383014	1	Cover, auto-gap motor
19	366022	1	Assembly, sensor encoder-auto gap (to main PCB J21)
20	361000	1	Subassembly,.timing disc
21	860440-004	1	Set screw, 4-40 x 1/4, HSH, C/PT
22	361030	1	Subassembly, motor/gear-auto gap (to main PCB J22)
23	381020-010 (6310 narrow) 381020-020 (6350 wide)	1	Subassembly, chassis (with acoustic foam: items 11 and 12)
24	385010 (6310 narrow) 385011 (6350 wide)	1	Scale 1
assembly	361018		Assembly, autogap motorwithdiskfitems 20,21 and 22)

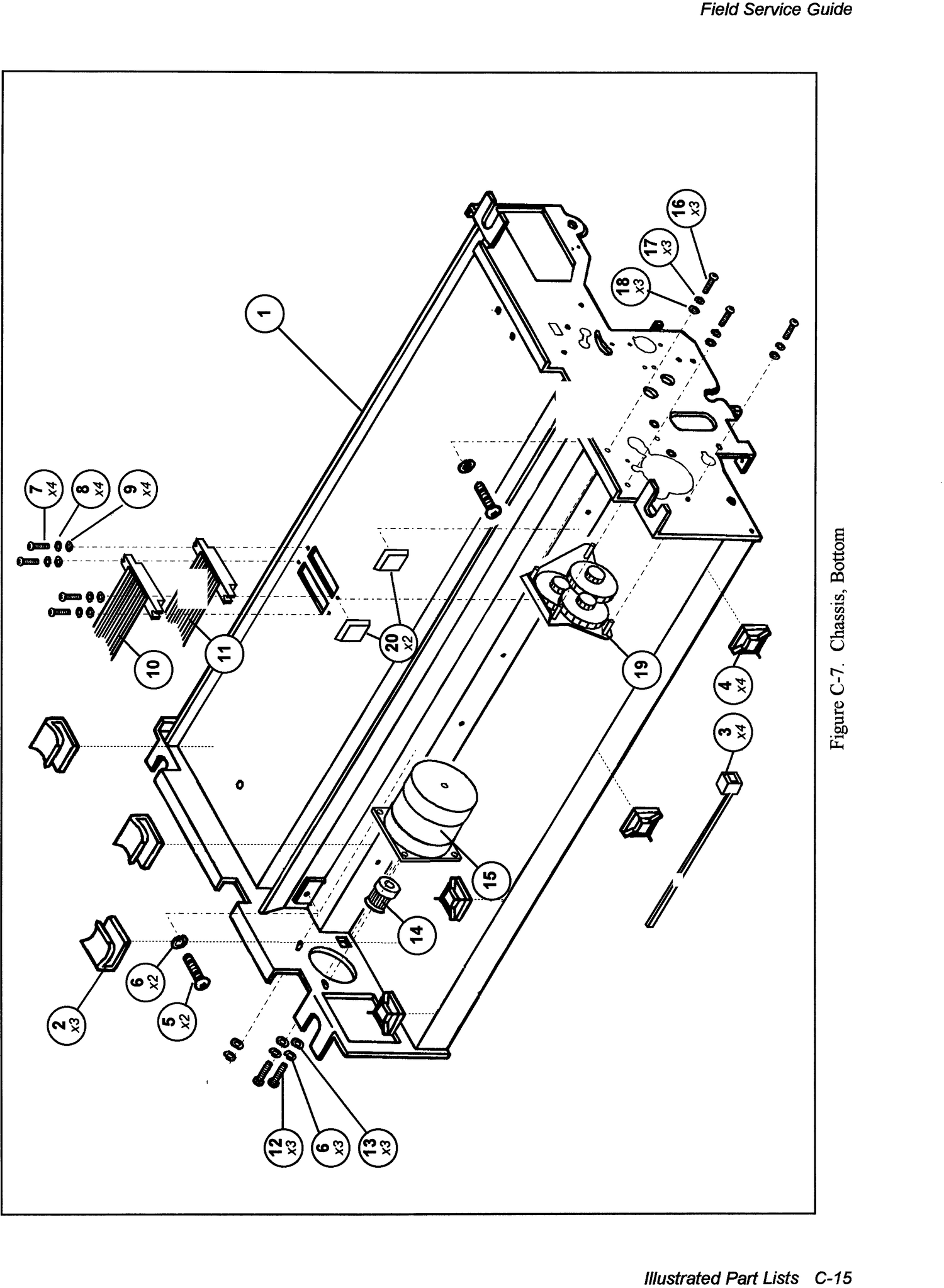

C-7. Chassis, bottom

Item	Part #	Qty	Description
1	381020-010 (6310 narrow) 381020-020 (6350 wide)	1	Subassembly, chassis
2	817513-000	3	Clip, cable retaining with adhesive backing
3	817500-002	4	Tie wrap
4	817510-001	4	Holder, cable tie
5	852832-006	2	Screw,#8-32x3/8, Phillips pan-head, zinc-p1ated steel
6	865150-008	5	Washer, split-lock, #8
7	852440-008	4	Screw,# 4-40x l/2, Phi11ips pan-head, zinc-plated steel
8	865150-004	4	Washer, split-lock,#4
9	865600-004	4	Washer, flat, light, #4, zinc-plated steel
10	AMT 306073 Bottom carriage cable (JP2 to J10) Fully refurbished with 90-day warranty 306073 Retired, no longer available: Contact for alternatives Contact for Details 306073	1	Cable, i nterconnect carriage board JP2 tomain PCB J12
11	306072	1	Cable, interconnect carriage boardJP] tomain PCB J1 1
12	852832-007	3	Screw,# 8-32x7/l 6, P hillipspan-head
13	865100-008	3	Washer, flat, #8
14	868100-018	1	Pulley/setscrew - 40DP,1 8 groove,0.25 bore
15	306012	1	Motor, paper drive (to main PCB J14)
16	852440-006	3	Screw, #4-40x3/8, Phillips pan-head
17	865150-004	3	Washer, split-lock,#4
18	865100-004	3	Washer, fl at,# 4
19	381005	1	Assembly, gear train/automatic tractor
20	842105-002	– (6310) 2 (6350)	Bumper, .5 square, .12 height
assembly	301012		Assembly, motor paper feed (items l4and 15)

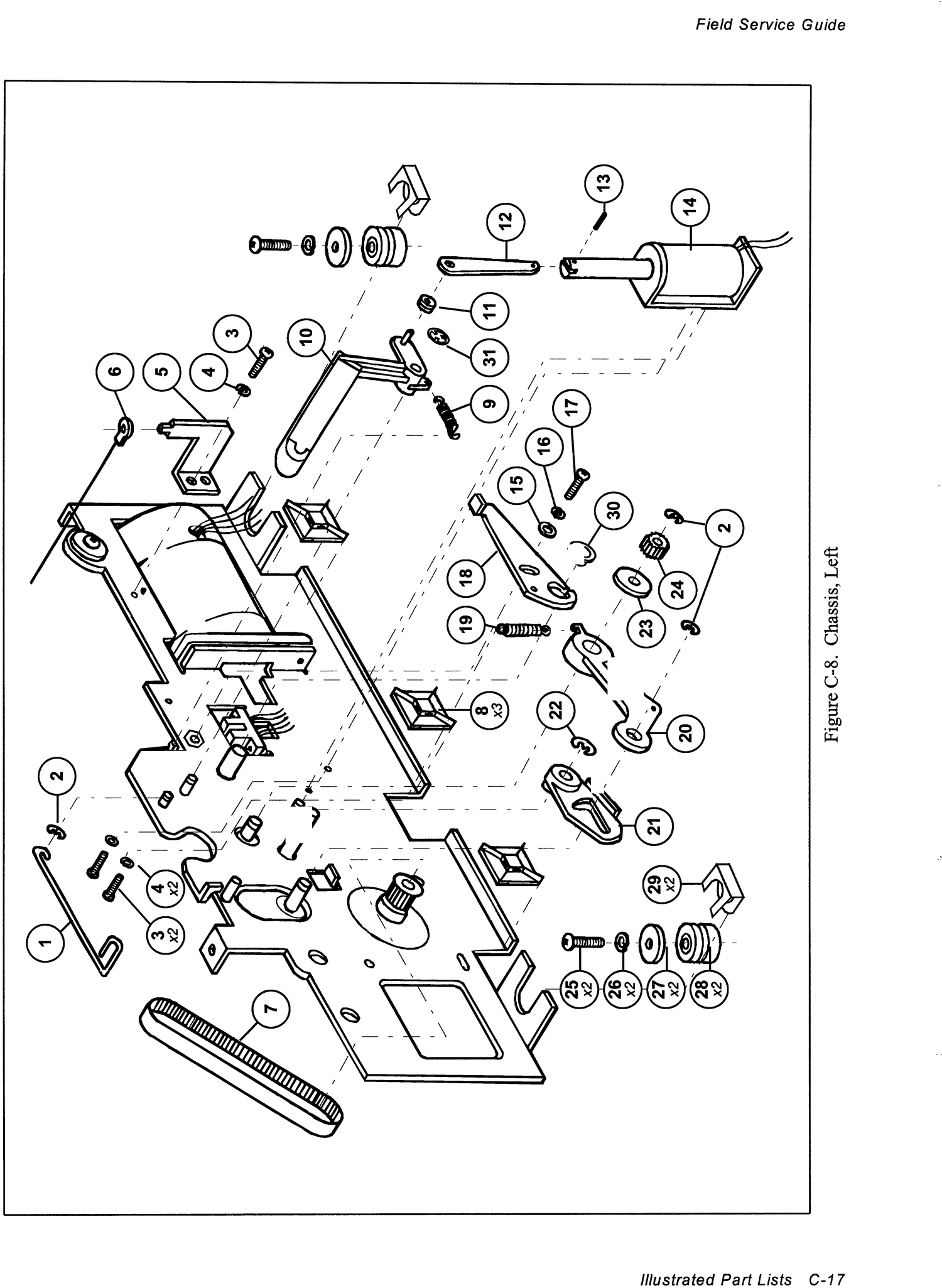

C-8. Chassis, left

Item	Part #	Qty	Description
1	305010	1	Lock, platen, left
2	872109-188	3	Ring, retaining, external shaftO.l88
3	852440-004	3	Screw#4-40x 1/4, Phi11ips pan-head, zinc-plated steel
4	865150-004	3	Washer, split/lock#4
5	363011	1	Bracket, ribbon drive cable support
6	385014	1	Cable, ribbon drive-6310 (narrow-carriage)
	AMT 305018 Ribbon drive cable Fully refurbished with 90-day warranty 305018 Retired, no longer available: Contact for alternatives Contact for Details 305018	1	Cable, ribbon drive-6350 (wide-carriage)
7	AMT 868200-005 Platen belt Fully refurbished with 90-day warranty 868200-005 Retired, no longer available: Contact for alternatives Contact for Details 868200-005	1	Belt, 40 DP, 1/4 wide, 125 grooves
8	817510-001	3	Cable tie holder, nylon
9	365004	1	Spring, bail
10	304134	1	Arm, bail, left
11	882002-001	1	Grommet
12	303127	1	Actuator, bail
13	873105-002	1	Pin, roll, O D 0.063
14	830303-000	1	Solenoid, bail (to main PCB J16)
15	865100-008	1	Washer, flat, #8
16	865150-008	1	Washer, split/lock, #8
17	852832-004	1	Screw,# 8-32x 1/4, Phi11ips pan-head, zinc-plated steel
18	363004	1	Lever, micro gap
19	305079	1	Spring, external paper release
20	AMT 304017 Left link Fully refurbished with 90-day warranty 304017 Retired, no longer available: Contact for alternatives Contact for Details 304017	1	Link, left
21	AMT 304015 Left actuator Fully refurbished with 90-day warranty 304015 Retired, no longer available: Contact for alternatives Contact for Details 304015	1	Actuator, paper release, left
22	872109-219	1	Ring, retaining, external shaft 0.21 9
23	303016	1	Washer, thrust, paper feed-0.042
24	304124	1	Gear, paper feed shaft
25	852832-013	2	Screw#8-32x 13/16, Phillipspan-head
26	865150-008	2	Washersplit/lock#8
27	865330-008	2	Washer, fl at, #8 ID .187 OD .75
28	301110	2	Subassembly, vibration mount
29	303039	2	Strap, ground
30	870104-625	1	Bearing, ball .625
31	872110-002	1	Ring, ret., ext., push-on - 0.1 25
assembly	381026		Assembly, bail/actuator (items 1 1 through1 4)
assembly	varies by model		C - 16 Illustrated Part Lists

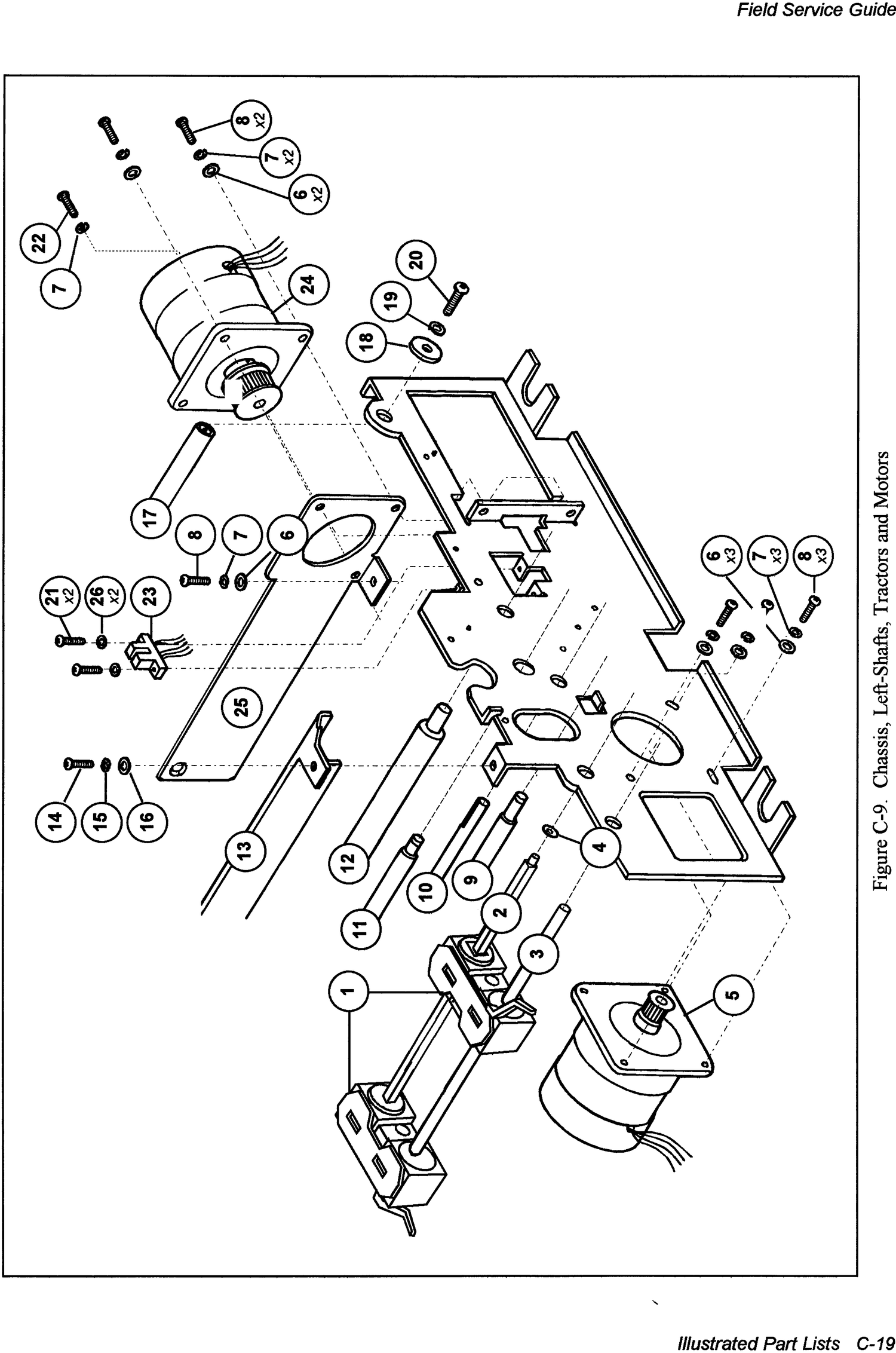

C-9. Chassis, left - shafts, tractors and motors

Item	Part #	Qty	Description
1	AMT 890127-000 Tractor pair Fully refurbished with 90-day warranty 890127-000 Retired, no longer available: Contact for alternatives Contact for Details 890127-000	1	Tractor, pair--4pin
2	varies by model
	382007	1	Shaft, tractor drive-6310 (narrow-carriage
	302013	1	Shaft, tractor drive-6350 (wide-carriage)
3	382002 (6310 narrow) 302014 (6350 wide)	1	Shaft, tractor support
4	865200-003	1	Washer, wave spring ID .203, OD .375
5	301012	1	Assembly, motor-paper feed (to main PCB J14)
6	865100-008	6	Washer, flat #8
7	865150-008	7	Washer, split/lock #8
8	852832-007	6	Screw, #8-32 x 7/16, Phillips pan-head
9	382006 (6310 narrow) 301010 (6350 wide)	1	Shaft, roller support
10	382003 (6310 narrow) 302015 (6350 wide)	1	Shall, paper release
11	382001 (6310 narrow) 302008 (6350 wide)	1	Shaft, paper feed
12	382004 (6310 narrow) 362000 (6350 wide)	1	Shaft, carrier main
13	383003 (6310 narrow) 303014 (6350 wide)	1	Deflector, paper
14	852632-004	1	Screw #6-32 x 1/4, Phillips pan-head, zinc-plated steel
15	865150-006	1	Washer, split/lock #6, zinc-plated steel
16	865100-006	1	Washer, flat, #6
17	382008 (6310 narrow) 302020 (6350 wide)	1	Shaft, carrier support
18	865330-008	1	Washer, fl at, ID .187, OD .75
19	865150-008	1	Washer, split/lock #8
20	852832-006	1	Screw, #8-32 x 3/8, Phillips pan-head, zinc-plated steel
21	852440-004	2	Screw, #4-40 x 1/4, Phillips pan-head
22	852832-008	1	Screw, #8-32 x 1/2, Phillips pan-head
23	AMT 306078 Carriage sensor Fully refurbished with 90-day warranty 306078 Retired, no longer available: Contact for alternatives Contact for Details 306078	1	Assembly, sensor home (to main PCB J5)
24	361034 Motor Assembly Fully refurbished with 90-day warranty 361034 $49.00 361034	1	Subassembly, motor/pulley-carriage drive (to main PCB J13)
25	303055	1	Bracket, carriage motor
26	865150-004	2	Washer, split-lock #4

C-10. Chassis, right

Item	Part #	Qty	Description
1	305004	1	Lock, platen, right
2	872109-188	4	Ring, retaining, external shaft 0.188
3	304133	1	Arm, bail, right - 535d/635d/6300
4	365004	1	Spring, bail
5	366023	1	Assembly, switch, auto tractor select (to main PCB J4)
6	865150-002	2	Washer, split/lock #2
7	852256-006	2	Screw #2-56 x 3/8, Phillips pan-head
8	381042	1	Indicator, tractor select (3 84035) and label (385035)
9	872109-312	1	Ring, retaining external shaft 0.312
10	304002	1	Gear, tractor drive 1
11	871350-006	1	Spring, compression, OD 0.265
12	872109-219	2	Ring, retaining external shaft 0.219
13	AMT 304014 Right actuator Fully refurbished with 90-day warranty 304014 Retired, no longer available: Contact for alternatives Contact for Details 304014	1	Actuator, right
14	AMT 304016 Right link Fully refurbished with 90-day warranty 304016 Retired, no longer available: Contact for alternatives Contact for Details 304016	1	Link, right
15	varies by model
	303129	1	Washer, thrust, paper feed-6350, 0.60
	303016	1	Washer, thrust, paper feed-6310, 0.42
16	305079	1	Spring, external paper release
17	AMT 301032 Tractor gear train plate Fully refurbished with 90-day warranty 301032 Retired, no longer available: Contact for alternatives Contact for Details 301032	1	Subassembly, gear train, rear tractor
18	865100-006	3	Washer, flat #6, zinc-plated steel
19	865150-006	3	Washer, split/lock #6, zinc-plated steel
20	852632-006	3	Screw #6-32 x 3/8, Phillips pan-head, zinc-plated steel
21	817510-001	2	Cable tie holder, nylon
22	381006	1	Assembly, motor/gear-auto tractor select (to main PCB J20)
23	865100-004	2	Washer, flat #4
24	865150-004	2	Washer, split/lock #4
25	852440-004	2	Screw #4-40 x 1/4, Phillips pan-head
26	364009	2	Retainer, bearing
27	855440-003	2	Screw, #4-40 x 3/1 6, Phillips flat-head
28	870104-625	1	Ball bearing .625
29	865330-030	1	Washer, SS 0.15 thick
30	381041	1	Indicator, auto gap (384034) and label (385035)
31	865340-004	1	Washer, external star, #4
32	852440-005	1	Screw #4-40 x 5/16, Phillips pan-head
33	852832-013	2	Screw #8-32 x 13/16, Phillips pan-head
34	865150-008	2	Washer split/lock #8
35	865330-008	2	Washer, flat, #8 ID .187 OD .75
36	301110	2	Subassembly, vibration mount
37	303039	2	Strap, ground

C-11. Chassis, right - shafts, cable and belt

Item	Part #	Qty	Description
1	868201-371	1	Belt, carriage drive-6310 (narrow-carriage)
	AMT 868201-000 Carriage belt Fully refurbished with 90-day warranty 868201-000 Retired, no longer available: Contact for alternatives Contact for Details 868201-000	1	Belt, carriage drive-6350 (wide-carriage)
2	301002	1	Pulley, return
3	870105-500	2	Bearing, ball, two-shield OD 0.5, ID 0.18
4	302023	1	Shaft, return pulley
5	872109-188	2	Ring, retaining, external shaft 0.188
6	303007	1	Bracket, return pulley
7	852632-006	2	Screw #6-32 x 3/8, Phillips pan-head, zinc-plated steel
8	865150-006	2	Washer, split/lock #6, zinc-plated steel
9	865100-006	2	Washer, flat #6, zinc-plated steel
10	875832-001	1	Nut, hex, nylok #8-32
11	305006	1	Spring, ribbon drive cable
12	805120-000	1	Tab, 90 degree, .25 x 0.032
13	865150-004	1	Washer, split/lock #4
14	852440-004	1	Screw #4-40 x 1/4, Phillips pan-head, zinc-plated steel
15	865330-008	1	Washer, flat, ID .187, OD .75
16	865150-008	1	Washer, split/lock #8
17	852832-006	1	Screw, #8-32 x 3/8, Phillips pan-head, zinc-plated steel
18	382008	1	Shaft, carrier support-6310 (narrow-carriage)
	302020	1	Shaft, carrier support-6350 (wide-carriage)
19	385014	1	Cable, ribbon drive-6310 (narrow-carriage)
	AMT 305018 Ribbon drive cable Fully refurbished with 90-day warranty 305018 Retired, no longer available: Contact for alternatives Contact for Details 305018	1	Cable, ribbon drive-6350 (wide-carriage)
20	382004	1	Shaft, carrier main-6310 (narrow-carriage)
	362000	1	Shaft, carrier main-6350 (wide-carriage)
21	865330-030	1	Washer, SS 0.15 thick
22	382003	1	Shaft, paper release-6310 (narrow-carriage)
	302015	1	Shaft, paper release-6350 (wide-carriage)
23	382001	1	Shaft, paper feed-6310 (narrow-carriage)
	302008	1	Shaft, paper feed-6350 (wide-carriage)
24	382006	1	Shaft, roller support-6310 (narrow-carriage)
	301010	1	Shaft, roller support-6350 (wide-carriage)
25	382007	1	Shaft, tractor drive-6310 (narrow-carriage)
	302013	1	Shaft, tractor drive-6350 (wide-carriage)
26	873117-001	1	Pin, groove type E, 3/32 diam x 3/8 long
27	872109-188	2	Ring, retaining, external shaft 0.188
28	382002	1	Shaft, tractor support-6310 (narrow-carriage)
	302014	1	Shaft, tractor support-6350 (wide-carriage)
29	872109-312	1	Ring, retaining, external shaft 0.31 2
30	383003	1	Deflector, paper-6310 (narrow-carriage)
	303014	1	Deflector, paper-6350 (wide-carriage)
31	852632-004	1	Screw #6-32 x 1/2, Phillips pan-head, zinc-plated steel
32	865150-006	1	Washer, split/lock #6, zinc-plated steel
33	865100-006	1	Washer, flat, #6, zinc-plated steel
34	381007	1	Assembly, bail tube-6310 (narrow-carriage)
	301536 Bail, Major Left (Pwr Btm Fd) New 301536 (New) $57.00 301536	1	Assembly, bail tube major-6350 (wide-carriage)
	301537 Bail, Minor Right (Pwr Btm Fd) New 301537 (New) $43.00 301537	1	Assembly, bail tube minor-6350 (wide-carriage)
35	382000	1	Shaft, bail-6310 (narrow-carriage)
	302006	1	Shaft, bail-6350 (wide-carriage)
36	304133	1	Am), bail, right
37	365004	1	Spring, bail
38	385015	1	Guide, rear paper feed-6310 (narrow-carriage)
	385036	1	Guide, rear paper feed-6350 (wide-carriage)
assembly	301015 AMT 535 5350 6350 Return Pulley Fully refurbished with 90-day warranty 301015 (Kit) $49.00 301015	1	Return pulley (items 2 through 5)

C-12. Platen

Item	Part #	Qty	Description
1	872109-312	1	Ring, retaining, external, shaft 0.312
2	304125	1	Pulley/gear, platen drive
3	304026	2	Bearing, platen
4	849A32-004	2	Screw, set, #10-32 x 1/4, hex socket head, knurled cup-point
5	200744	2	Gear, platen drive
6	304027	1	Bushing, platen left
7	865200-002	1	Washer, wave spring, ID 0.385, CD 0.50
8	385007 (6310 narrow) 305001 (6350 wide)	1	Platen
9	304028	1	Bushing, platen right
10	301515	1	Assembly, platen paper-out sensor brush
assembly	381013-010		Platen (all items), narrow-carriage
assembly	301367		Platen (all items), wide-carriage

C-13. Paper guides

Item	Part #	Qty	Description
1	303005	3 (6310) 6 (6350)	Guide, paper feed, rear
2	305351	4 (6310) 5 (6350)	Roller, paper feed
3	AMT 305007 Paper Feed Belt Fully refurbished with 90-day warranty 305007 (used, good shape) $19.00 305007	4 (6310) 5 (6350)	Belt, paper feed
4	872116-438	2	Ring, retaining, crescent, shaft 0.438
5	382006 (6310 narrow) 302009 (6350 wide)	1	Shall, roller support
6	382001 (6310 narrow) 302008 (6350 wide)	1	Shaft, paper feed
7	385008 (6310 narrow) 305013 (6350 wide)	1	Sleeve, paper feed shalt
assembly	381027 (6310 narrow) 301010 (6350 wide)		Varies Roller support shaft (items 1,2, 4 and 5)

C-14. Ribbon platform

Item	Part #	Qty	Description
1	844110-xxx	1	Ribbonc artridge (-001 , black; -002, color; -101 , HD black; -107, HD color)
2	304011	2	Clip, ribbon cartridge
3	305175	4	Pad, ribbon cartridge
4	852440-004	3	Screw,#4-40x 1/4, Phi11ips pan-head, zinc-plated steel
5	865150-004	3	Washer, split-lock,#4, zinc-plated steel
6	383015-002	1	Platform, ribbon elevator
7	850256-001	1	Nut, hex,#2-56, S TD, zinc-plated steel
8	304021	1	Gear quadrant, ribbon elevator
9	855256-003	1	Screw,# 2-56x3/1 6, P hillips flat-head, loo-degrees
10	872109-188	2	Ring, retaining, external, s hafi0.l88
11	302021	2	Pin, pivot, ribbon elevator
12	865200-003	2	Washer, wave spring, ID 0.203, OD 0.375
13	855440-004	4	Screw,# 4-40x 1/4, P hillips flat-head, lOO-degrees
14	AMT 306100 Multicolor ribbon switch Fully refurbished with 90-day warranty 306100 Retired, no longer available: Contact for alternatives Contact for Details 306100	1	Multicolor ribbon switch assembly (to carriage board JP8)
15	865100-002	1	Washer, flat, #2, zinc-plated steel
16	865150-002	1	Washer, split-lock, #2, zinc-plated steel
17	852256-006	1	Screw,# 2-56x 3/8, Phillips pan-head, zinc-plated steel
18	303006	1	Bracket, ribbon elevator
19	301026 Ribbon Drive Mechanism Fully refurbished with 90-day warranty 301026 $87.00 AMT 301026 Ribbon drive mechanism Fully refurbished with 90-day warranty 301026 Retired, no longer available: Contact for alternatives Contact for Details 301026	1	Ribbon drive mechanism
assembly	381018-002		Platform subassembly (items3 and 6)
assembly	300023		Kit, ribbon pad, set of 4 (item 3)

C-15. Ribbon drive mechanism

Item	Part #	Qty	Description
1	385014 (6310 narrow) AMT 305018 Ribbon drive cable Fully refurbished with 90-day warranty 305018 Retired, no longer available: Contact for alternatives Contact for Details 305018 (6350 wide)	1	Cable, ribbon drive
2	872109-125	1	Ring, retaining, external, shaft 0.125
3	865330-010	1	Washer, flat, ID 0.195, OD 0.375
4	304007	1	Pulley, ribbon drive
5	304010	1	Spindle, ribbon drive
6	872109-094	1	Ring, retaining, external, shaft 0.094
7	865330-004	1	Washer, fl at, ID 0.115, OD 0.270, 0.010 thick
8	304009	1	Gear, ribbon drive reversing
9	865330-012	1	Washer, flat, ID 0.114, 0D 0.312, 0.005 thick
10	865202-004	1	Washer, crescent spring, ID 0.099, CD 0.25
11	302005	1	Pin, reversing gear
12	304051	1	Arm, ribbon reversing
13	304008	3	Gear, ribbon drive idler
14	302022	3	Spacer, ribbon drive
15	301027	1	Ribbon drive plate
16	855440-004	3	Screw, #4-40 x 1/4, Phillips flat-head, loo-degrees
assembly	301026 Ribbon Drive Mechanism Fully refurbished with 90-day warranty 301026 $87.00 AMT 301026 Ribbon drive mechanism Fully refurbished with 90-day warranty 301026 Retired, no longer available: Contact for alternatives Contact for Details 301026		Ribbon drive mechanism (items 2 through 16)
assembly	301028		Ribbon reverse arm/gear (items 6 through 12)
assembly	301029		Ribbon reverse arm (items 11 and 12)

C-16. Carrier with printhead and ribbon lift motor

Item	Part #	Qty	Description
1	AMT 301042 Printhead screws (set of 2) Fully refurbished with 90-day warranty 301042 Retired, no longer available: Contact for alternatives Contact for Details 301042	2	Assembly, printhead screw
2	830137-000	1	Printhead, 24-wire (to carriage board JP7)
3	304055	1	Bearing, carriage shaft minor
4	852440-004	2	Screw, #4-40 x 1/4, Phillips pan-head, zine-plated steel
5	865150-004	2	Washer, split-lock, #4, zinc-plated steel
6	303027	1	Clamp, ribbon shield
7	AMT 303003 Ribbon shield Fully refurbished with 90-day warranty 303003 Retired, no longer available: Contact for alternatives Contact for Details 303003	1	Shield, ribbon
8	AMT 304020 Print-line indicator Fully refurbished with 90-day warranty 304020 Retired, no longer available: Contact for alternatives Contact for Details 304020	1	Print-line indicator/paper deflector
9	AMT 306079 Paper sensor Fully refurbished with 90-day warranty 306079 Retired, no longer available: Contact for alternatives Contact for Details 306079	1	Paper sensor assembly (to carriage board JP5)
10	872109-125	1	ring, retaining, external, shaft 0.125
11	304006	1	Gear, cluster, color
12	303000	1	Plate, ribbon shift motor
13	304005	1	Gear, motor drive-color
14	306104	1	Assembly, motor ribbon lift (to carriage board JP3)
15	865330-001	2	Washer, flat, ID 0.105, 0D 0.190
16	865150-002	2	Washer, split-lock, #2, zinc-lated steel
17	852256-004	2	Screw, #2-56 x l/4, Phillips pan-head, zinc-plated steel
18	865150-004	3	Washer, split-lock, #4, zinc-plated steel
19	302011	3	Spacer, ribbon lift motor
20	852440-010	3	Screw, #4-40 x 5/8, Phillips pan-head, zinc-plated steel
assembly	AMT 301024 Ribbon lift motor Fully refurbished with 90-day warranty 301024 Retired, no longer available: Contact for alternatives Contact for Details 301024		Assembly, motor-ribbon shift (items 10 through 17)

C-17. Carrier with printed circuit board, sensor and solenoid

Item	Part #	Qty	Description
1	AMT 306105 Carriage board and cables Fully refurbished with 90-day warranty 306105 Retired, no longer available: Contact for alternatives Contact for Details 306105	1	Carriage PCB assembly and cables (includes items 11 and 12)
2	857424-006	4	Screw, #4-24 x 3/8, Phillips pan-head, self-tapping, type B
3	304050	4	Washer, carriage PCB
4	301019	1	Assembly, carrier-standard 6300 series
5	303018	1	Plate, mating printhead cables
6	303020	1	Clamp, printhead cables
7	852440-004	4	Screw, #4-40 x 1/4, Phillips pan-head, zinc-plated steel
8	865150-004	4	Washer, split-lock, #4, zinc-plated steel
9	855440-004	4	Screw, #4-40 x 1/4, Phillips falt-head, loo-degrees
10	306075	1	Cable, printhead interconnect, carriage board JP2 to main PCB J12
11	306074	1	Cable, printhead interconnect, carriage board JPl to main PCB J11
12	301092	1	Shield, printhead cable, minor
13	301091	1	Shield, printhead cable, major
14	852172-003	2	Screw, #1-72 x 3/ 16, Phillips pan-head, zinc-plate steel
15	AMT 830301-000 Microshift solenoid Fully refurbished with 90-day warranty 830301-000 Retired, no longer available: Contact for alternatives Contact for Details 830301-000	1	Solenoid, micro-shift,1 2v, 1.44 L (SP-50) (to carriage board JP4) s’
16	852256-008	2	Screw, #2-567 x 1/2, Phillips pan-head, zinc-plated steel
17	865150-002	2	Washer, split-lock, #2, zinc-plated steel
18	865100-002	2	Washer, flat, #2, zinc-plate steel
19	306111	1	Ribbon home switch assembly (to carriage board JP6)
20	303023	1	Shield, ribbon home switch
21	817510-001	1	Cable tie holder, nylon
22	865150-001	2	Washer, split-lock, #1
assembly	AMT 306105 Carriage board and cables Fully refurbished with 90-day warranty 306105 Retired, no longer available: Contact for alternatives Contact for Details 306105		Carriage board and cables (item 1 includes items 11 and 12) v’

C-18. Carrier

Item	Part #	Qty	Description
1	304012	1	Carrier, head, machined
2	304070	1	Bearing, head carrier
3	304019	1	Lever, micro-shift, machined
4	873100-020	1	Dowel pin, .125 diameter x .625 length
5	873104-001	2	Dowel pin, metric, ss, 2mm x 8mm
6	305082	2	Wiper, carriage shaft, felt
7	304076	1	Retainer, wiper carrier-left
8	304075	1	Retainer, wiper carrier-right
9	305083	2	Bumper, carrier
10	304062	2	Mount, carrier printed circuit board
11	302012	1	Stop, micro-shift lever
12	868201-371 (6310 narrow) AMT 868201-000 Carriage belt Fully refurbished with 90-day warranty 868201-000 Retired, no longer available: Contact for alternatives Contact for Details 868201-000 (6350 wide)	1	Belt, carriage, 0.083 pitch, 0.38 wide
13	304048	1	Clamp, carriage belt
14	852632-008	1	Screw, #6-32 x 1/2, Phillips pan-head
15	865150-006	1	Washer, split-lock, #6
16	865100-006	1	Washer, flat, #6
assembly	301242		Subassembly, carrier (items 1 through 6)
assembly	301058		Subassembly, wiper retainer-left (items 8 and 10)
assembly	301057		Subassembly, wiper retainer-rigln (items 9 and 10)
assembly	301019		Assembly, carrier-standard (items 1 through 11)

C-19. Powered, bottom-feed stand

Item	Part #	Qty	Description
1	852632-005	7	Screw, #6-32 x 5/16, Phillips pan-head, zinc-plated steel
2	865150-006	5	Washer, split-lock, #6, zinc-plated steel
3	865100-006	5	Washer, flat, #6, zinc-plated steel
4	306295	1	Logic interconnect cable from J2 to main PCB at J19 (black)
5	306296	1	Power interconnect cable from J3 to main PCB at J18 (red)
6	306310	1	Assembly, printed circuit board, demand mechanism with jam sensor
7	381030-010 (6310 narrow) 381030-020 (6350 wide)	1	Assembly, mechanism-demand (see table C-21)
8	381029-010 (6310 narrow) 381029-020 (6350 wide)	1	Assembly, housing-demand (see table C-20)
9	851440-006	2	Screw, #4-40 x 3/8, Phillips pan-head, self-tapping AB
10	865150-004	2	Washer, split-lock, #4
11	301542	1	Assembly, paper jam sensor (to J1 on stand's PCB)
12	304136	1	Block, jam mounting-demand
assembly	380506-010		Option, demand-6310 (narrow-carriage) (all items)
assembly	380506-020		Option, demand-6350 (wide-carriage) (all items)

C-20. Powered, bottom-feed housing

Item	Part #	Qty	Description
1	852632-010	4	Screw #6-32 x 5/8, Phillips pan-head, zinc-plated steel
2	865150-006	4	Washer, split-lock, #6, zinc-plated steel
3	865000-006	4	Washer, flat, #6, zinc-plated steel
4	882002-001	4	Grommet, ID .12, OD .34, THK.19
5	876000-002	4	Screw, captive #6-32, Phillips pan-head
6	881101-002	4	' Foot, rubber, vibration mounting
7	852632-010	2	Screw #6-32 x 5/8, Phillips pan-head, zinc-plated steel
8	385010 (6310 narrow) 385011 (6350 wide)	1	Scale
9	383004 (6310 narrow) 383007 (6350 wide)	1	Crossbrace, demand
10	384017	1	Housing, demand, left
11	384018	1	Housing, demand, right
12	881106-018	2	O-ring, NPN, ID .75, 0D.875
13	384019	2	Track, demand-[cit
14	384020	2	Track, demand-right
15	382012	2	Pin, demand foot
16	384021	2	Foot, demand-stand, 6300
17	382013	2	Rod, demand, foot
18	852632-006	2	Screw #6-32 x 3/8, Phillips pan-head, zinc-plated steel
assembly	381019		Assembly, foot-6300B (items 6, 15, l6, l7 and 18)
assembly	381035		Assembly, foot/track-6300D (items 6 and 12 through 18) 1/
assembly	381034		Subassembly, housing, left-6300D (items 4, 5, 6, 7 and 10) 1/
assembly	381033		Subassembly, housing, right-6300D (items 4, 5, 6, 7 and 11)
assembly	381032		Housing, left-6300D (items 4, 5, 6,7 , 10 and 15 through 18)
assembly	381031		Housing, right-6300B (items 4, 5, 6, 7, 11 and 15 through 18)
assembly	381029-010 (6310 narrow) 381029-020 (6350 wide)		Varies Assembly, housing, demand (all items)

C-21. Powered, bottom-feed mechanism

Item	Part #	Qty	Description
1	868200-008	1	Belt,4 0dp 1/4W 90-groove
2	868102-024	1	Pulley, 40dp 2 fig 1/4 belt 24-groove with set screws
3	852832-006	3	Screw#8-32 x3/8, Phillipspan head, zinc-plated steel
4	865150-008	3	Washer, split-lock,# 8, zinc-plated steel
5	865100-008	3	Washer, flat, #8, zinc-plated steel
6	304121	1	Pulley, motor 16-groove,1 /18 0
7	849832-004	2	Screw, set,# 3-32 x 1/4 HSH KNL C/PT
8	AMT 306102 Platen motor Fully refurbished with 90-day warranty 306102 Retired, no longer available: Contact for alternatives Contact for Details 306102	1	Subassembly, motor (PJ55) 13" leads (to J4 on stand's PCB)
9	383005	1	Bracket, left, demand
10	304025	2	Bearing, tractor drive shaft
11	383006	1	Bracket, right-6300B
12	852632-006	2	Screw, #6-32x 3/8, Phillips pan-head, zinc-plated steel
13	865150-006	2	Washer, split-lock,# 6, zinc-plated steel
14	865350-005	1	Washer, nylon, O D.5, ID>193, THK.125
15	382009 (6310 narrow) 382018 (6350 wide)	1	Shaft, tractordrive - demand
16	382010 (6310 narrow) 381019 (6350 wide)	1	Shaft, tractor support-demand
17	890132-098	1	Tractor,4 -pin, .03 gap-left
18	303113	1	Guide, tractor demand - left
19	852440-020	2	Screw, #4-40 x 1 1/4, P hillips pan-head, zinc-plated steel
20	865600-004	6	Washer, fl at, light,#4, zinc-plated steel
21	865150-004	2	Washer, split-lock,#4
22	857328-004	2	Screw, #3-28 x 1/4, P hillipspan-head, zinc-plated steel BT
23	850440-001	4	Nut, hex, #440, standard, zinc-plated steel
24	303112	1	Guide, tractor demand-right
25	890132-099	1	Tractor,4 -pin, .03 gap-right
assembly	301350		Subassembly, motor/pulleypaper-feed (items 6,7 and 8)
assembly	381038		Subassembly, motor plate, left 6300D (items 9 and 1 0)
assembly	381037		Assembly, plate, right 6300D (items lOand 1 1)
assembly	381036		Assembly, motor/plate, lefi-6300D (items 2 through1 0)
assembly	301526		Assembly, tractor/guide-left(items 17 through 23)
assembly	301505		Subassembly, tractor/guide-right(items l9through 25)
assembly	381030-010		Assembly, mechanism-631 0D (narrow-carriage)( all items)
assembly	381030-020		Assembly, mechanism-63 50D (wide-carriage) (all items)
