AMT Datasouth Fastmark M7 Parts

-- select -- AMT Datasouth Parts Brother Printer Parts Canon imagePROGRAF iPF610 Parts Compuprint Parts Dascom Parts Dell Laser Printer Parts Epson Parts Fujitsu Printer Parts Genicom Parts Godex Printer Parts HP Parts for Printers, MFPs, & Scanners IBM Infoprint Parts Ithaca Parts Konica Parts Lexmark Parts for Printers and Scanners Oki Parts (Okidata Parts) Olivetti Parts OTC (Output Technology) Parts Printek Parts Printronix Parts PSI Parts Ricoh Parts Samsung Printer and MFP Parts Sato Parts Sharp Printer Parts Source Technologies Parts Tally Parts Tharo Parts Toshiba Parts TSC Parts Videojet Spare Parts Visioneer Parts Xerox Parts Zebra Parts

-- select -- AMT Accel 535 Parts AMT Datasouth 6310 6350 Parts AMT Datasouth ACCEL-7450 Parts AMT Datasouth Fastmark M10XPd Parts AMT Datasouth Fastmark M5 Parts AMT Datasouth Fastmark M5e Parts AMT Datasouth Fastmark M7 Parts AMT Datasouth Fastmark M8x Parts AMT Datasouth Fastmark M9+ Parts AMT Datasouth Fastmark MX5 Parts

Please call or email for parts

Please call or email for parts

1 120732 Electronics cover 2 N/A Mainframe 3 120733 Cover, front 4 120734 Top right side cover 5 120735 Cover, rear 6 30-0240016-00LF TTP2410M Media VIEW Window New 30-0240016-00LF (New) Contact for Details 7 Sale120736 Media Supply Spindle Assembly New 120736 120850 (New) $59.00 $49.00 8 98-0240021-00LF Media damper Assembly New 98-0240021-00LF (New) Contact for Details 9 120737 Ribbon sensor assembly 10 120738 Ribbon supply spindle assembly 11 120739 Media sensor assembly 12 120740 Ribbon rewind spindle assembly (Including gear) 13 120741 Print engine lower mechanism assembly (Including platen roller assembly) 14 120742 Screw, M3x6 (For TPH) 15 120743 Print engine upper mechanism assembly (Including print head burn line adjustable bracket assembly) 15 120727 Printhead module (M7 PLUS/203dpi) New 120727 (New) $498.00 15 120728 Printhead module (M7 PLUS /300dpi) 15 120729 Printhead module (M7 PLUS/600dpi) 15 120725 Printhead module (M7/203dpi) 16 120726 Printhead module (M7/300dpi) NS 72-0240003-00LF Printhead harness (M7 PLUS) NS 72-0240012-00LF Printhead harness (M7) NS 72-0240021-00LF Printhead harness (M7 PLUS 600dpi) 17 120744 Front lower plastic cover 18 120745 Lower front panel 19 120746 LCD panel assembly

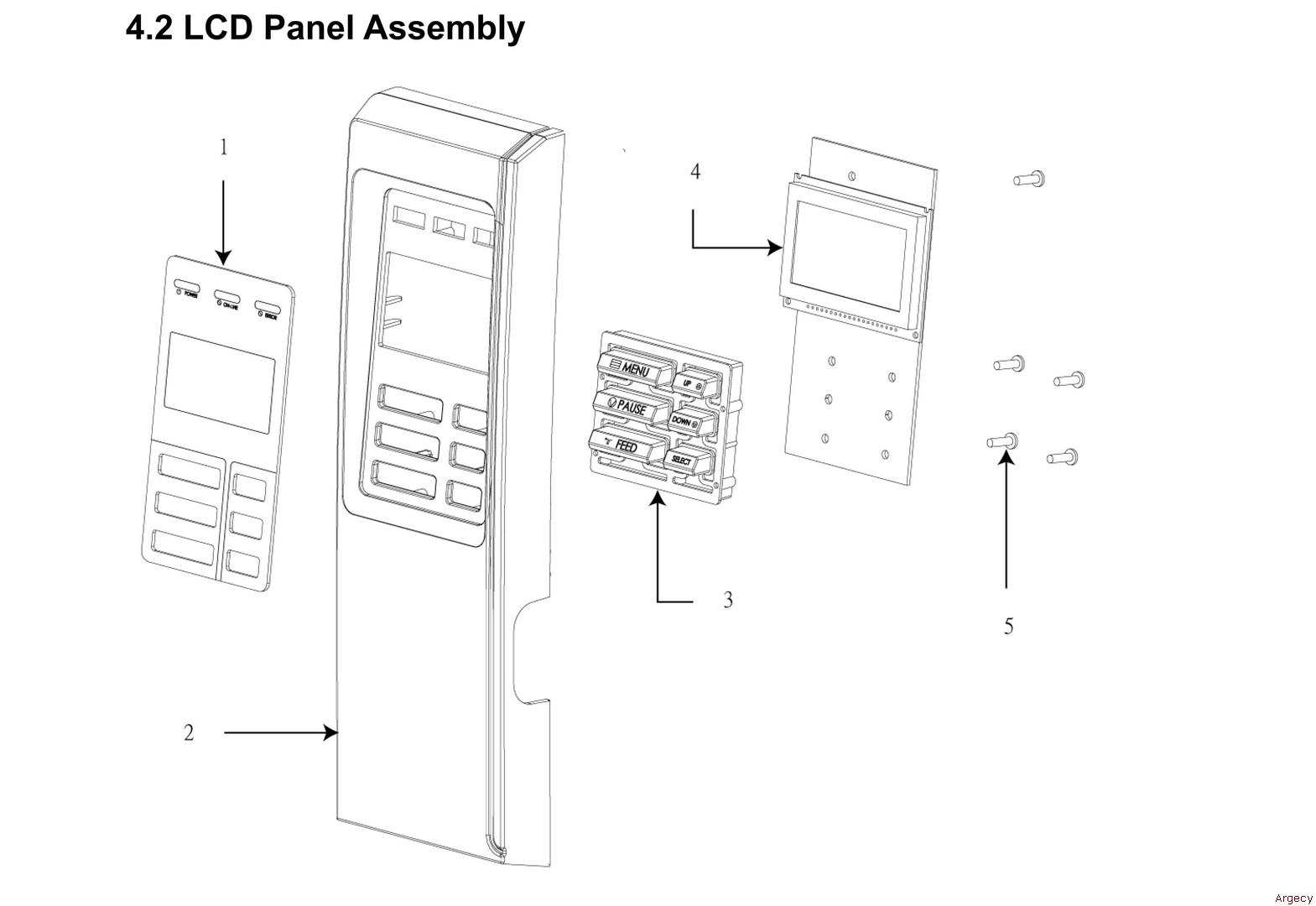

1 120747 Panel plate 2 120748 Panel cover 3 120749 Keypad 4 120750 LCD panel board assembly 5 120751 Screw, TP3*8
1 37-1502510-34LF Screw, M2.5*10 2 30-0240032-00LF Print head release lever (Left) 3 32-0240032-00LF Spring torsion 4 37-1503006-G4LF Screw, M3*6 5 98-0240034-00LF SP-286MT-0016 Printhead Open Sensor Assembly (1 Set/Box) New 98-0240034-00LF (New) Contact for Details 6 32-0240029-00LF Print engine lower frame 7 30-0240033-00LF Media path cover 8 32-0240031-10LF Shaft New 32-0240031-10LF (New) Contact for Details 9 30-0240031-00LF Print head release lever (Right) 10 120752 Platen roller assembly 11 32-0240030-00LF Platen Holder New 32-0240030-00LF (New) Contact for Details 12 37-1504012-54LF Screw, M4*12

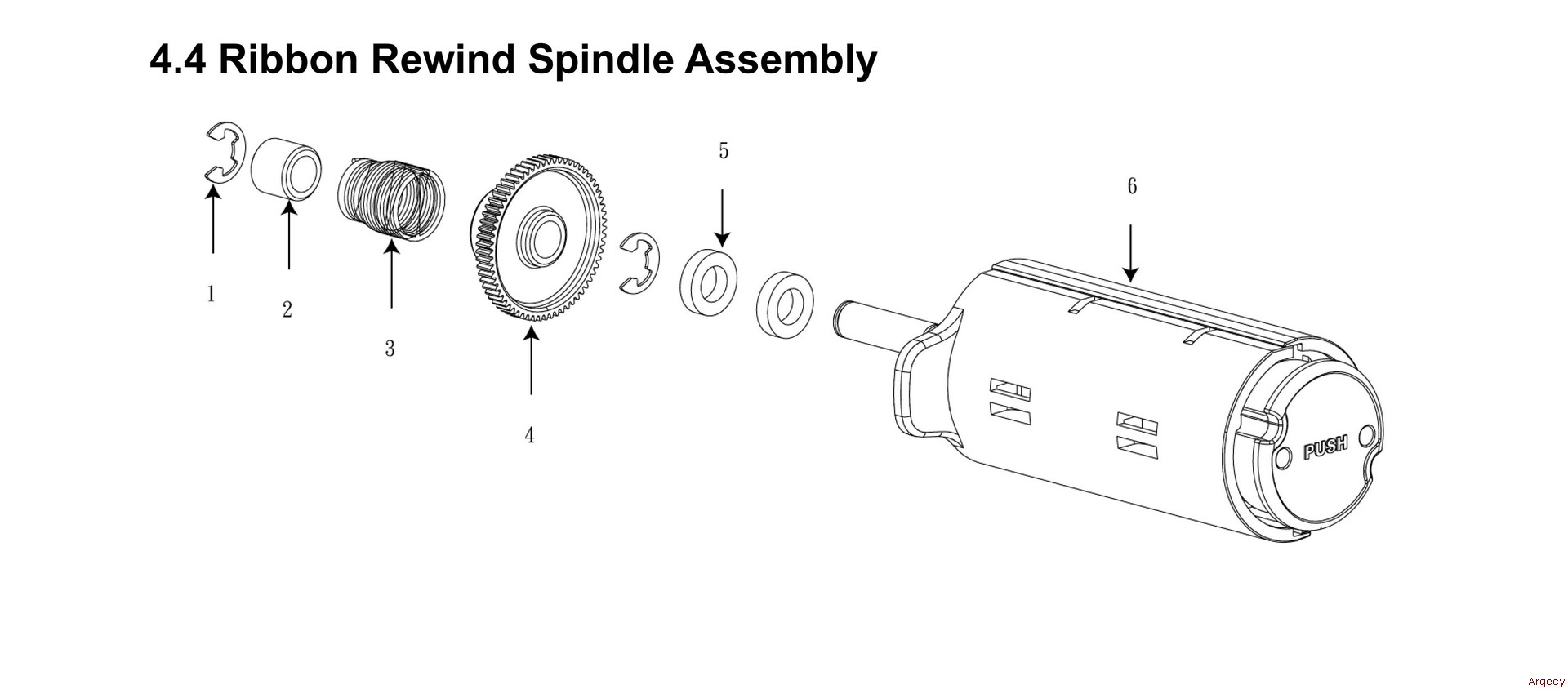

1 37-3410200-02LF Ring RtngEID10OD20T1.0mm Black New 37-3410200-02LF (New) Contact for Details 2 32-0240036-00LF Bearing New 32-0240036-00LF (New) Contact for Details 3 32-0240014-00LF Spring New 32-0240014-00LF (New) Contact for Details 4 120753 Gear 5 32-0240037-00LF Bearing New 32-0240037-00LF (New) Contact for Details 6 98-0240057-00LF Ribbon rewind spindle New 98-0240057-00LF (New) Contact for Details
1 32-0240012-00LF Ribbon supply spindle shaft 2 32-0240011-00LF Spring Ribbon supply spindle New 32-0240011-00LF (New) Contact for Details 3 98-0240059-00LF Ribbon supply spindle Front Cover (Including magnet Module) New 98-0240059-00LF (New) Contact for Details 4 30-0240024-00LF Ribbon Supply spindle rear Cover New 30-0240024-00LF (New) Contact for Details 5 37-1504008-54LF Screw, M4*8 6 32-0240009-00LF Spring damper New 32-0240009-00LF (New) Contact for Details 7 98-0240058-00LF Media damper New 98-0240058-00LF (New) Contact for Details 8 37-1504008-54LF Screw, M4*8

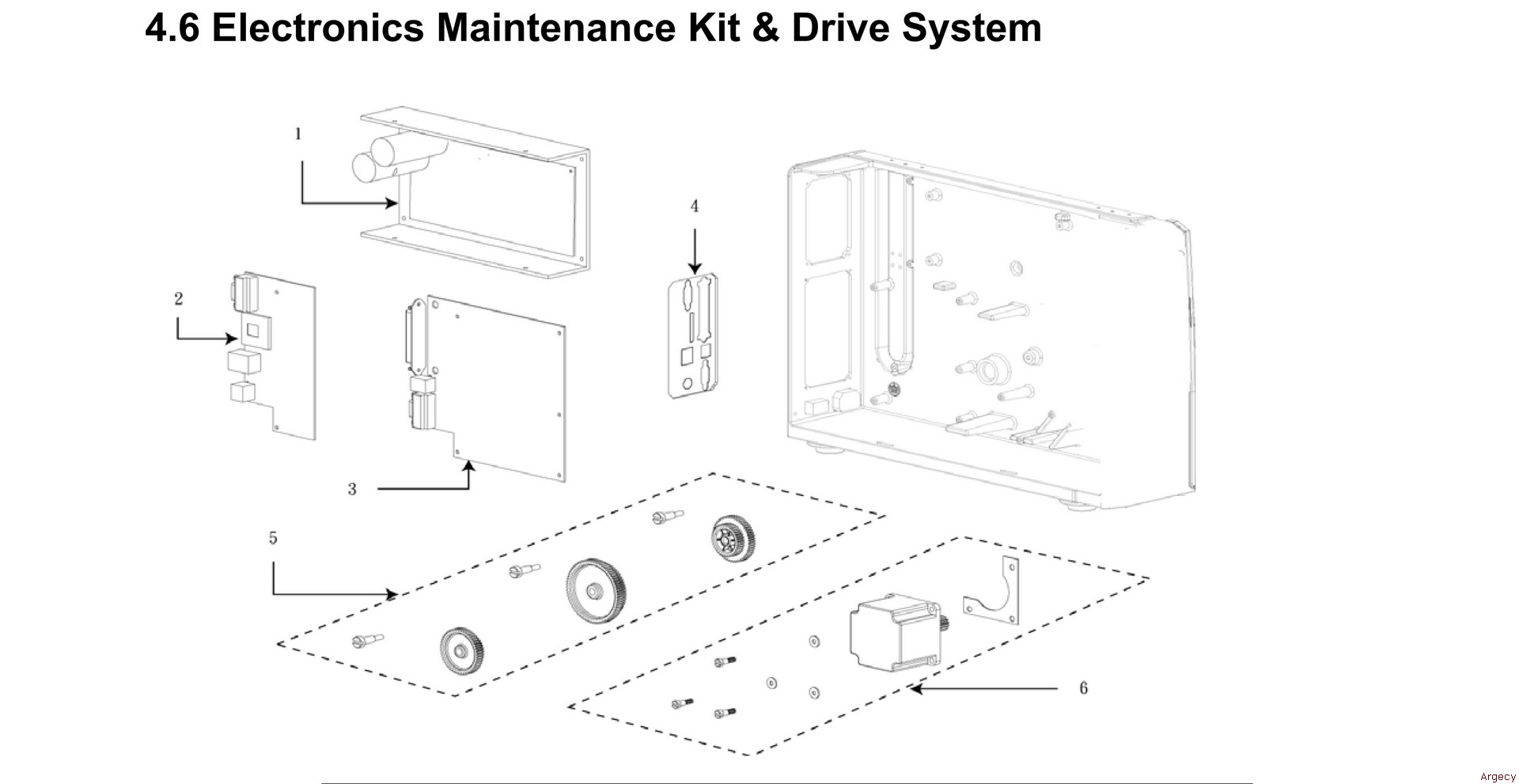

1 120754 Power supply unit (M7 PLUS) 1 120755 Power supply unit (M7) 2 120806 Multi-interface board (Dealer option for M7) 2 98-0240044-00LF GPIO with multi-interface board (Dealer option for M7) 3 120756 Main board (M7 PLUS) 3 120757 Main board (M7) 4 32-0240006-10LF Interface plate 5 120758 Gear set 6 120759 Stepping motor kit

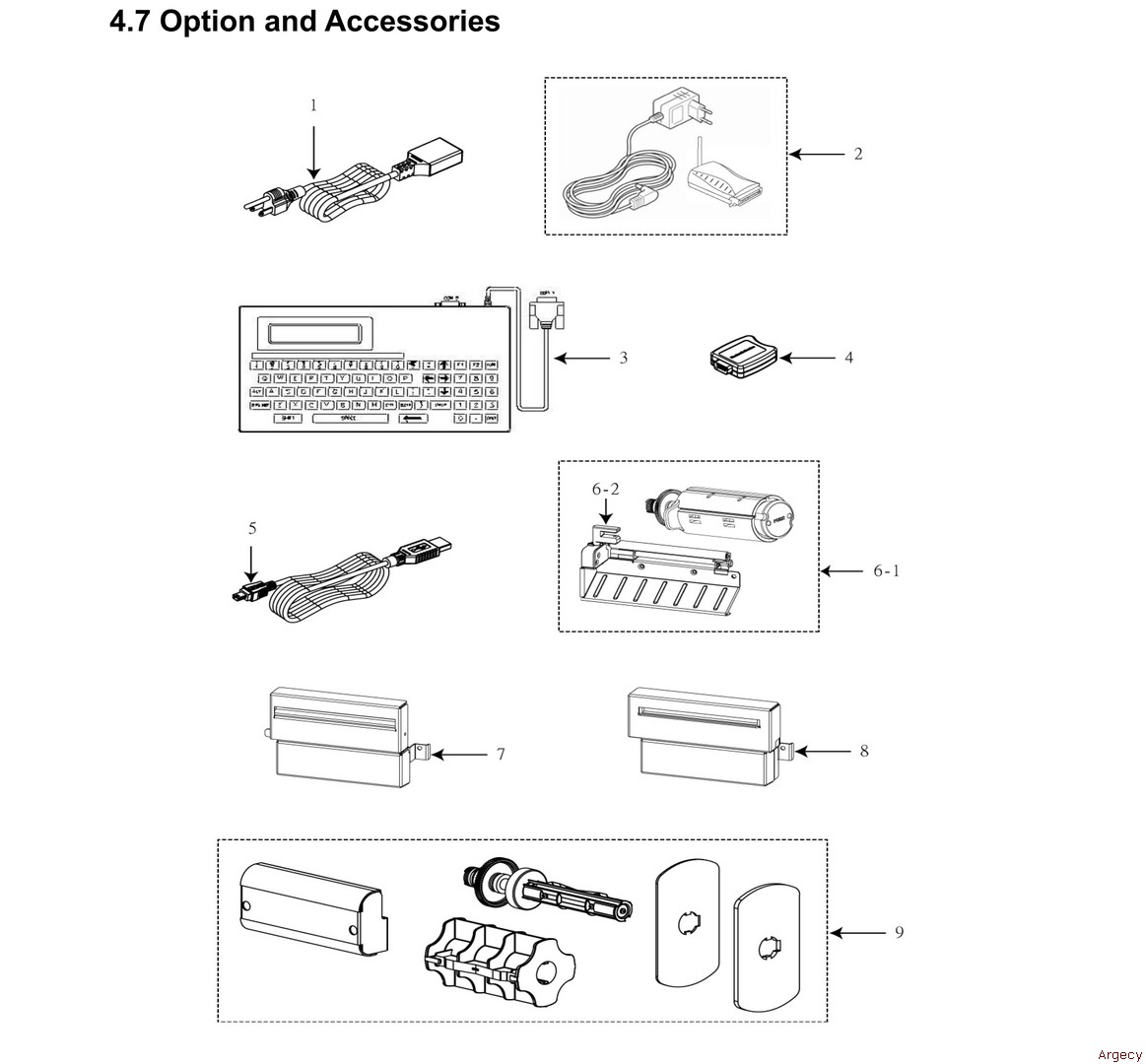

1 120762 External wireless print server / US 1 120763 KU-007 Plus, programmable keyboard unit 3 120764 KP-200, stand-alone keyboard unit 4 120711 Bluetooth module 4 120767 USB cable 5 120765 Parallel port cable 5 120766 RS-232 cable 6-1 120707 Peel-off kit (Including internal rewind + Peel-off module) 6-2 120768 Peel-off sensor assembly 7 120710 Regular cutter module (Guillotine cutter) 8 120760 Heavy duty cutter module (Rotary cutter) 9 120708 Internal Rewinding Kit (Including Internal Rewind + Label Redirect Front Panel)

1 120732 Electronics cover 2 N/A Mainframe 3 120733 Cover, front 4 120734 Top right side cover 5 120735 Cover, rear 6 30-0240016-00LF TTP2410M Media VIEW Window New 30-0240016-00LF (New) Contact for Details 7 Sale120736 Media Supply Spindle Assembly New 120736 120850 (New) $59.00 $49.00 8 98-0240021-00LF Media damper Assembly New 98-0240021-00LF (New) Contact for Details 9 120737 Ribbon sensor assembly 10 120738 Ribbon supply spindle assembly 11 120739 Media sensor assembly 12 120740 Ribbon rewind spindle assembly (Including gear) 13 120741 Print engine lower mechanism assembly (Including platen roller assembly) 14 120742 Screw, M3x6 (For TPH) 15 120743 Print engine upper mechanism assembly (Including print head burn line adjustable bracket assembly) 15 120727 Printhead module (M7 PLUS/203dpi) New 120727 (New) $498.00 15 120728 Printhead module (M7 PLUS /300dpi) 15 120729 Printhead module (M7 PLUS/600dpi) 15 120725 Printhead module (M7/203dpi) 16 120726 Printhead module (M7/300dpi) NS 72-0240003-00LF Printhead harness (M7 PLUS) NS 72-0240012-00LF Printhead harness (M7) NS 72-0240021-00LF Printhead harness (M7 PLUS 600dpi) 17 120744 Front lower plastic cover 18 120745 Lower front panel 19 120746 LCD panel assembly
1 120747 Panel plate 2 120748 Panel cover 3 120749 Keypad 4 120750 LCD panel board assembly 5 120751 Screw, TP3*8
1 37-1502510-34LF Screw, M2.5*10 2 30-0240032-00LF Print head release lever (Left) 3 32-0240032-00LF Spring torsion 4 37-1503006-G4LF Screw, M3*6 5 98-0240034-00LF SP-286MT-0016 Printhead Open Sensor Assembly (1 Set/Box) New 98-0240034-00LF (New) Contact for Details 6 32-0240029-00LF Print engine lower frame 7 30-0240033-00LF Media path cover 8 32-0240031-10LF Shaft New 32-0240031-10LF (New) Contact for Details 9 30-0240031-00LF Print head release lever (Right) 10 120752 Platen roller assembly 11 32-0240030-00LF Platen Holder New 32-0240030-00LF (New) Contact for Details 12 37-1504012-54LF Screw, M4*12
1 37-3410200-02LF Ring RtngEID10OD20T1.0mm Black New 37-3410200-02LF (New) Contact for Details 2 32-0240036-00LF Bearing New 32-0240036-00LF (New) Contact for Details 3 32-0240014-00LF Spring New 32-0240014-00LF (New) Contact for Details 4 120753 Gear 5 32-0240037-00LF Bearing New 32-0240037-00LF (New) Contact for Details 6 98-0240057-00LF Ribbon rewind spindle New 98-0240057-00LF (New) Contact for Details
1 32-0240012-00LF Ribbon supply spindle shaft 2 32-0240011-00LF Spring Ribbon supply spindle New 32-0240011-00LF (New) Contact for Details 3 98-0240059-00LF Ribbon supply spindle Front Cover (Including magnet Module) New 98-0240059-00LF (New) Contact for Details 4 30-0240024-00LF Ribbon Supply spindle rear Cover New 30-0240024-00LF (New) Contact for Details 5 37-1504008-54LF Screw, M4*8 6 32-0240009-00LF Spring damper New 32-0240009-00LF (New) Contact for Details 7 98-0240058-00LF Media damper New 98-0240058-00LF (New) Contact for Details 8 37-1504008-54LF Screw, M4*8
1 120754 Power supply unit (M7 PLUS) 1 120755 Power supply unit (M7) 2 120806 Multi-interface board (Dealer option for M7) 2 98-0240044-00LF GPIO with multi-interface board (Dealer option for M7) 3 120756 Main board (M7 PLUS) 3 120757 Main board (M7) 4 32-0240006-10LF Interface plate 5 120758 Gear set 6 120759 Stepping motor kit
1 120762 External wireless print server / US 1 120763 KU-007 Plus, programmable keyboard unit 3 120764 KP-200, stand-alone keyboard unit 4 120711 Bluetooth module 4 120767 USB cable 5 120765 Parallel port cable 5 120766 RS-232 cable 6-1 120707 Peel-off kit (Including internal rewind + Peel-off module) 6-2 120768 Peel-off sensor assembly 7 120710 Regular cutter module (Guillotine cutter) 8 120760 Heavy duty cutter module (Rotary cutter) 9 120708 Internal Rewinding Kit (Including Internal Rewind + Label Redirect Front Panel)
