Assembly 14 Transfer Station







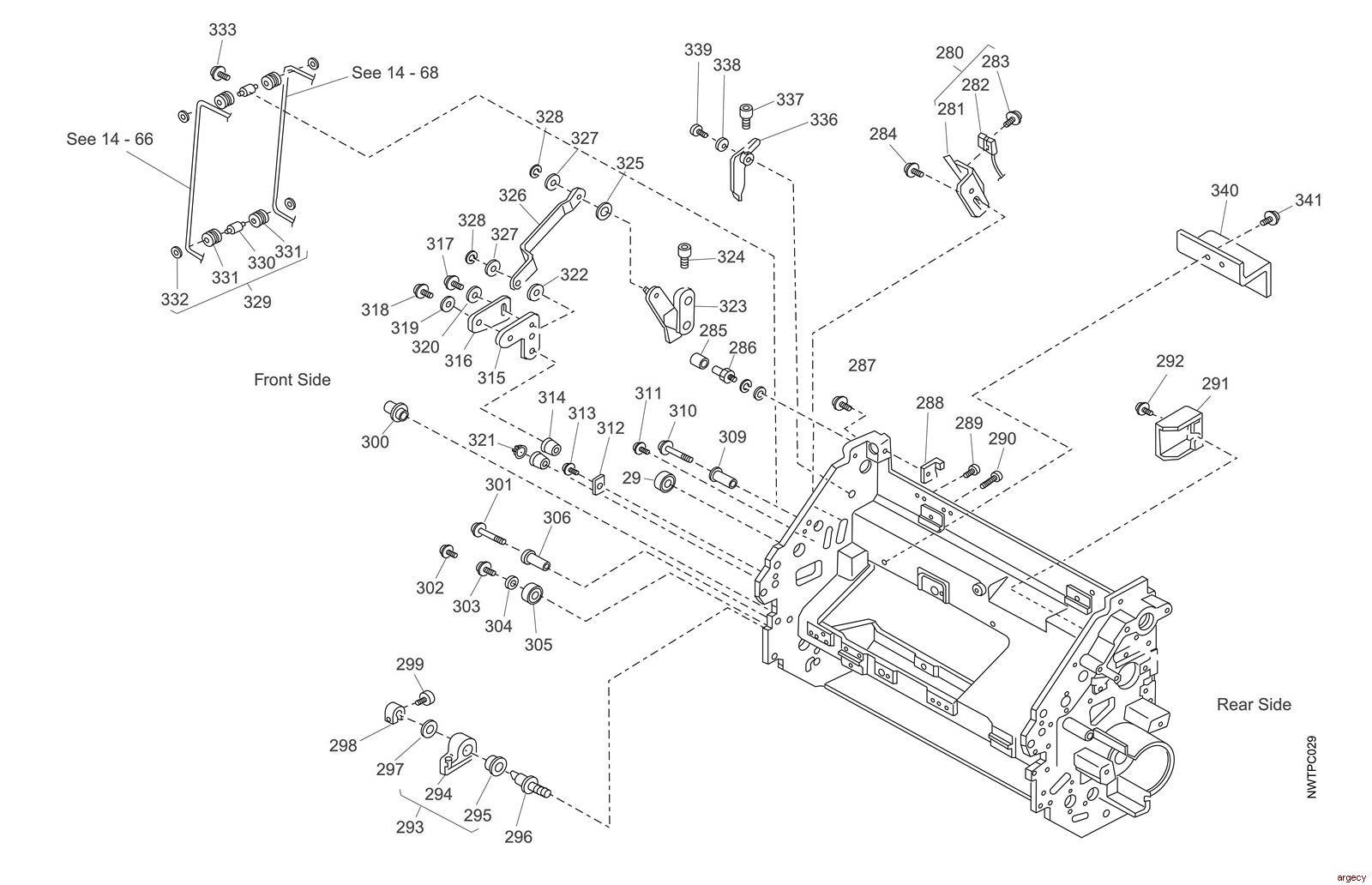

Assembly 14: Transfer Station

36 53F1798 Tractor, Upper Front

37 53F1795 Sensor, Upper Tractor Jam (Q301)

38 88F1626 Screw, Phillips Flat Hd M3 X 6 PP

39 06F0412 Screw, Phillips Flat Hd M4 X 10 PP

40 06F0407 Nut, M4 PP

41 88F1627 Ring, Retaining PP

42 06F0054 Bearing, Ball

43 88F3431 Spring, Front Tension Arm, heavy (For printers with EC-C87554A installed)

43 88F2791 Spring, Front Tension Arm, light (For printers Without EC-C87554A installed)

44 88F2792 Sleeve, Spring

45 88F2788 Arm, Tension Buffer Asm 90H2620 Tractor, rebuild kit (3 bearings)

46 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

49 06F0413 4 Screw, Phillips Bind Hd M5 X 10 PP

50 06F0413 Screw, Phillips Bind Hd M4 X 8 PP

51 06F0407 4 Nut, M4 PP

52 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

53 88F2797 Stay, Tension Arm

54 NP

55
88F2798 Stay Tension Arm
Fully refurbished with 90-day warranty
88F2798



56 88F2789 Arm, Tension Buffer Asm

57 06F0415 Bolt, Hexagon Socket Hd with Star Wshr M4 X 20 PP

58 06F0405 Washer, Bolt D4 PP

59 88F3432 Spring, Rear Tension Arm, heavy (For printers with EC-C87554A installed)

59 88F2790 Spring, Rear Tension Arm, light (For printers Without EC-C87554A installed)

60 88F2792 Sleeve, Spring

61 88F2760 Plate, Connection

62
88F2761 Tension Spring Cable
Fully refurbished with 90-day warranty
88F2761



63 88F2762 Connector, Cable

64 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 12 PP

65 06F0420 Washer, Press PP

66 57G6799 Cable, Tractor Positioning

67 06F0405 Washer, Bolt D4 PP

68 57G6800 Cable, Tractor Positioning

69A 88F3447 Scale, Forms Length E1

69B 88F3448 Scale, Forms Length E2

69C 88F3449 Scale, Forms Length E3

70 53F1814 Bearing, Ball

71 88F1627 Ring, Retaining PP

72 88F2793 Holder, Tension Arm Encoder

73 88F2794 Encoder, Tension Arm Housing

74 06F0409 Ring, Retaining PP

75 06F0413 Screw, Bind Hd with Star Wshr & Wshr M5 X 25 PP

76 88F2796 Encoder, Tension Arm

77 06F0405 Washer, Bolt D8 PP

78 06F0417 Washer PP

78A 04H0900 Washer PP

79 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

80 06F0401 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 12 PP

81 53F1792 Board, Tension Arm Encoder (EN123)

82 53F1790 Board, Tension Arm Encoder (EN122)

83 88F2832 Cover, Cable Asm

84 88F2834 Cable, Bridge

85 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

87 88F2777 Base, Capstan Roll

88 53F1802 Motor, Capstan Roll (M302) and Capacitor (C302) Asm

89 53F1805 Gearbox, Capstan Roll Motor

90 88F2778 Pulley, Drive

91 06F0292 Ring, Clamping

92 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 16 PP

93 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

94 88F2840 Guide, Cable

95 06F0413 Screw, Phillips Bind Hd M4 X 20 PP

96 53F1803 Motor, Capstan Pinch Roll (M301) and Capacitor (C301) Asm

97 53F1806 Gearbox, Capstan Pinch Roll Open Asm

98
88F2745 Cable Asm Pulley
Fully refurbished with 90-day warranty
88F2745



99 88F2746 Stand, Pulley

100 53F1817 Bearing, Pulley

101 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M6 X 16 PP

102 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

104 88F1627 Pin, D3 X 14 PP

105 88F1638 Gear

106 88F1627 Ring, Retaining PP

107A 30H5518 Shaft, BF Hinge (Also shown on Asm 14-13)

108A 06F0405 Washer, Bolt D8

109A 30H5519 Spacer, Disk

110A 30H5520 Plate, Disk

111A 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 10 PP

112A 30H5521 Holder, Brake Asm

113A 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

114A NP

115A 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

107
88F2740 Tractor Motor
Fully refurbished with 90-day warranty
88F2740



108 53F1800 Motor, Tractor (M303)

109 06F0414 4 Bolt, Hexagon Socket Hd M6 X 20 PP

110 88F2741 Pulley, Motor

111 06F0292 Ring, Tight

112 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 12 PP

113 88F2742 Collar, Motor

114 06F0054 Bearing, Ball 115 88F2743 Collar, Ball Bearing

116 88F1626 Bolt, Hexagon Socket Hd M3 X 10 PP

117 88F2946 Base, Hot Roll Motor

118 06F0414 Bolt, Hexagon Socket Hd M8 X 20 PP

119 53F1818 Belt, Tractor Drive

120 06F0415 Bolt, Hexagon Socket Hd with Star Wshr M4 X 16 PP

121 06F0292 Ring, Clamping

122 88F2733 Flange

123 04H0212 Pulley, Driven

124 06F0413 4 Screw, Bind Hd with Star Wshr & Wshr M5 X 12 PP

125 06F0403 Bolt, Hexagon Socket Hd M5 X 38 PP

126 06F0405 Washer, Spring D5 PP

127 06F0405 Washer, Bolt D5 PP

128 57G5998 Pulley, Idler Asm

129 88F2736 Shaft, Idler

130 88F2735 Sleeve, Guide Shaft

131 06F0413 Screw, with Star Wshr & Wshr Bind Hd M5 X 12 PP

132 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

133 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

134 88F2737 Pulley, Tension Asm

135 88F2738 Base, Tension Pulley

136 88F2739 Shaft, Idler

137 57G5998 Pulley, Idler Asm

138 88F1627 Ring, Retaining PP

139 06F0420 Washer, Press PP

140 06F0403 Bolt, Hexagon Socket Hd M5 X 12 PP

141 88F2770 Stopper, Bearing

142 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

143 88F2771 Plate, Grounding

144 53F1816 Bearing

145 88F2774 Slider, Poly

146 06F0417 Washer, Wave PP

147 88F1627 Ring, Retaining PP

150 NP

151 06F0417 Washer, Wave PP

154
88F2745 Cable Asm Pulley
Fully refurbished with 90-day warranty
88F2745



155 88F2746 Stand, Pulley

156 53F1817 Bearing, Pulley

157 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

158 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M6 X 16 PP

159 88F2842 Plate, Cable Clamp

160 88F1629 Cable, Ground

161 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

162 06F0406 Washer, Toothed D5 PP

163 88F2830 Holder, Hinge Asm

164 88F2831 Holder, Hinge

165 88F1639 Metal, D15 X 15 CU

166 88F2723 Shaft, Transfer Station Yoke Hinge

167 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

168
88F3365, Brush, Servo motor
Fully refurbished with 90-day warranty
88F3365



88F3365 IBM Brush Kit (6pc per Kit)
New
88F3365 (New)
$142.00



169 06F0695 Block, Support

170 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

173
88F2836 Tractor Motor Drive Belt Cover
Fully refurbished with 90-day warranty
88F2836



174 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 16 PP

175 88F2802 Reel, Transfer Corona Shield Asm

176 88F2800 Stopper, Spring

177 88F2803 Holder, Transfer Corona Shield Reel

178
88F2804 Transfer Corona Shield Reel
Fully refurbished with 90-day warranty
88F2804



179 88F2805 Shaft, Reel

180 88F1627 Ring, Retaining PP

181 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 10 PP

182 53F1794 Cable, High Voltage Asm

183 06F0116 Tape, Transfer Corona Shield

184 06F0684 Holder, Transfer Corona Shield

185 06F0412 Screw, Phillips Flat M3 X 4 PP

186 88F2806 Clamp, Cable

187 06F0411 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 16 PP

188 06F0410 Clip, Nylon PP

189 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

190 06F0407 Nut, M10 PP

191 06F0406 Washer, Special PP

192 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M5 X 16 PP

193 88F2720 Grommet

194 88F2721 Guide, Tube

195 88F2722 Plate, Sensor

196 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

197 88F2839 Cover, Capstan Roll Belt

198 88F2838 Cover, Cable

199 06F0413 Screw, Bind Hd with Star Wshr & Wshr M5 X 12 PP

200 NP

201 88F2812 Spacer, Pre-measure Shaft

202 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

203 NP

204 NP

205 88F2729 Spacer, Back Board

206 53F1791 Board, Forms Width Sensor (PW091)

207 88F2730 Cover, (PW091) (Except 8-inch forms width)

207 04H1056 Cover, (PW091) (8 inch-forms width only)

208 57G6802 Roll, Capstan Asm

211 88F2765 Pulley

212 88F1627 Ring, Retaining PP

213 53F1819 Belt, Capstan Roll Drive

214 57G6499 Roll, Capstan Sub Asm

215 57G6803 Roller, Capstan Pinch Asm

216 NP

217 06F0413 10 Screw, Phillips Bind Hd M4 X 8 PP

218 88F2768 4 Plate, Mount

219 53F1810 4 Roller, Capstan Pinch Sub Asm

220 NP

221 06F0413 Screw, Phillips Bind Hd M4 X 6 PP

222 57G6500 Roller, Pinch Sub Asm

223 NP

225 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

227 30H3176 Guide, Paper Asm

228 06F0106 Brush, Transfer Station Discharge

229 06F0412 Screw, Phillips Flat M3 X 8 PP

230 06F0407 Nut, M3 PP

231 06F0405 Washer, Spring D3 PP

232 06F0405 Washer, Bolt D3 PP

233 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

234 06F0413 Screw, Phillips Bind Hd M4 X 20 PP

235 06F0413 Screw, Phillips Bind Hd M4 X 20 PP

236 88F2823 Latch, Transfer Station Asm

237 88F2824 Latch, Transfer Station

238 88F3339 Handle, Transfer Station Release

239 06F0407 Nut, M5 PP

240 06F0403 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M5 X 35 PP

241 88F2826 Sleeve, Eccentric

243 06F0406 Washer, Special PP

244 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

245 06F0369 Spring, Return

246 06F0407 Nut, M5 PP

247 88F2750 Shaft, Tractor Positioning

248 88F1627 Pin, D3 X 14 PP

249
88F2751 Cable Pulley
Fully refurbished with 90-day warranty
88F2751



250 88F2754 Shaft, Guide

251
88F2755 Mount Bracket
Fully refurbished with 90-day warranty
88F2755



252 88F2756 Brake, Tractor Shift

253 88F2757 Spring, Tractor Shift Knob

254 88F2758 Pin, Shift Stopper

255 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

256 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

257 88F2759 Washer, D8

258 88F1627 Ring, Retaining PP

259 88F2843 Tube, Silicone B

260 57G6505 Corona, Transfer Asm

261 88F1632 Cover, Terminal

262 88F1633 Cover, Transfer Corona Wire Holder

263 30H6586 Wires (8), Corona

264 06F0413 Screw, Phillips Bind Hd M3 X 6 PP

265 NP

266 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

267 88F1634 Spring, Reflector

268 88F1626 Screw, Phillips Pan Hd M4 X 6 PP

269 06F1054 Brush, Transfer Corona

270 06F0412 Screw, Phillips Flat M3 X 4 PP

271 88F2801 Holder, Brush PY 272 88F3349 Screw, Phillips Tapping M4 X 10 PP

273 88F2835 Knob, Tractor Control

274 88F1640 Ring, Clamping

275 06F0415 Bolt, Hexagon Socket Hd with Star Wshr M4 X 20 PP

276 06F0413 Screw, Phillips Bind Hd with Star Wshr & Wshr M5 X 12 PP

277 06F0522 Holder, Magnet Asm

279
88F2841 Transfer Station Front Cover
Fully refurbished with 90-day warranty
88F2841




280 NP

281 88F2786 Holder, Switch

282 57G6805 Switch, Capstan Pinch Roll Open (S301) Asm

283 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 16 PP

284 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

285 88F2843 Collar

286 88F2719 Shaft, Stopper

287 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

288 88F2844 Plate, Tension Position Arm

289 06F0413 Screw, Phillips Bind Hd M4 X 10 PP

290 06F0413 Screw, Phillips Bind Hd M4 X 16 PP

291 88F2833 Cover, Pulley

292 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

293 88F2828 Holder, Hinge Asm

294 88F2829 Holder, Hinge

295 88F1639 Metal, D15 X 15 CU

296 88F2723 Shaft, Transfer Station Yoke Hinge

297 88F3355 Washer, Thrust

298 88F1640 Ring, Clamping

299 06F0415 Bolt, Hexagon Socket Hd with Star Wshr M4 X 20 PP

300 88F2718 Latch, Transfer Station Yoke Hinge

301 06F0411 Screw, Phillips Pan Hd M4 X 40 PP

302 06F0413 Screw, Phillips Pan Hd M5 X 12 PP

303 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

304 06F0417 Washer PP

305 06F0054 Bearing, Ball

306 88F2821 Sleeve, Tractor Mount

307 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 16 PP

308 06F0054 Bearing, Ball

309 88F2821 Sleeve, Tractor Mount

310 06F0411 Screw, Phillips Pan Hd M4 X 40 PP

311 06F0413 Screw, Phillips Pan Hd M5 X 12 PP

312 88F2770 Stopper, Bearing

313 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

314 53F1816 Bearing

315 88F2772 Plate, Link

316 88F2773 Holder, Link

317 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

318 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

319 06F0417 Washer, VF PP

320 88F2736 Shaft, Idler

321 88F1627 Ring, Retaining PP

322 88F1637 Collar, Link

323 88F3378 Lift Plate Asm

324 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 12 PP

325 88F1637 Collar, Link

326 88F2775 Plate, Link

327 06F0405 Washer, Bolt D6 PP

328 88F1627 E-Clip PP

329 88F2748 Pulley, Cable Asm

330
88F2749 Pulley Shaft
Fully refurbished with 90-day warranty
88F2749



331 90H2722 Bearing, Metal

332 88F1627 4 E-Clip PP

333 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 16 PP

336 88F2795 Cam, Tension Arm

337 06F0403 Bolt, Hexagon Socket Hd M4 X 8 PP

338 06F0417 Washer PP

339 06F0413 Screw, Phillips Bind Hd M4 X 12 PP

340 88F3340 Handle, Yoke

341 06F0420 Screw, Phillips Bind Hd M5 X 12 PP Side1/Side Verification Hardware

1S NP Cover, Verification Sensor Card

2S 06F0402 4 Screw, Phillips Pan Head M3x8 PP

3S 1622302 Washer, Flat M3

4S 06F0402 4 Screw, Phillips Pan Head M3x8 PP

5S 1622302 Washer, Flat M3

6S 1622316 Washer, Split M3

7S NP Plate, Sensor Card Mounting

8S NP Plate, Lower Rear Tractor Guide

9S 06F0412 Screw, Phillips Flat Head M3x6

10S 06F0412 Screw, Phillips Flat Head M3x10 PP

11S NP Bracket

12S 1622302 Washer, Flat M3

13S 1622401 Nut, M3

14S 88F3423 Clamp, Cable

15S 04H0574 Cable, J322S2 to P324S2

16S 04H0396 Card, Side 1/Side Verification Sensor

17S 06F0402 4 Screw, Phillips Pan Head M3x12 PP
https://argecy.com/images/4000-parts-3166.jpg
https://argecy.com/images/4000-parts-3172.jpg
https://argecy.com/images/4000-parts-3176.jpg
https://argecy.com/images/4000-parts-3182.jpg
https://argecy.com/images/4000-parts-3188.jpg
4000 Parts 3192
https://argecy.com/images/4000-parts-3198.jpg
