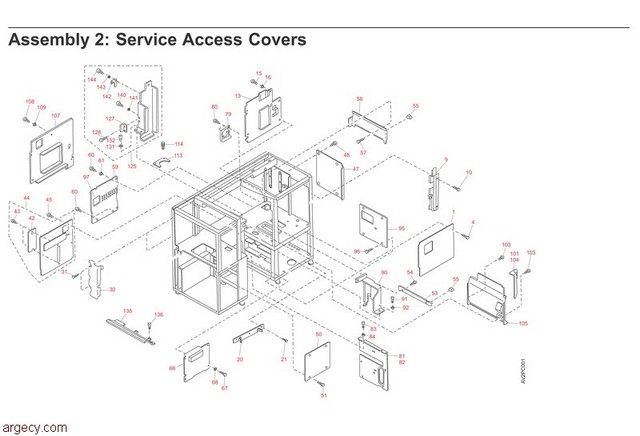

Assembly 2 Service Access Covers







1 88F1675 Cover, AC Power Supply

4 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

9 NP

10 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

13 NP

15 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

16 06F0420 Washer, Press PP

30 NP

31 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

42 88F3336 Cover, Inner Window (Tractor Gauge)

43 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

44 88F1681 Cover, B1 Board Asm

45 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

50 88F1683 Cover, Hopper

51 06F0413 Screw, Phillips Bind Hd M5 X 10 PP

53 NP

54 06F0413 Screw, Phillips Bind Hd M5 X 8 PP

55 57G6676 Stopper, Rubber

56 30H2804 Cover, OP Side

57 06F0413 Screw, Phillips Bind Hd M5 X 8 PP

59 88F1686 Cover, Blower

60 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

61 06F0420 Washer, Press PP

66 88F1687 Cover, Fuser Front

67 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

68 06F0420 Washer, Press PP

79 88F2378 Cover, Fan

80 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

81 88F2379 Cover, Input Bin Left Side

82 NP

83 06F0413 Screw, Phillips Bind Hd M5 X 12 PP

84 06F0420 Washer, Press PP

90 88F2380 Cover, Fuser Oil Filter

91 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

92 NP

95 NP

96 06F0413 Screw, Phillips Bind Hd M5 X 8 PP

97 88F0930 Filter, Ozone

101 NP

103 06F0413 Screw, Phillips Bind Hd M5 X 10 PP

104 NP

105 57G6634 Cover, Fuser Right Side

107 NP

108 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

109 06F0420 Washer, Press PP

113 88F2387 Mask, Duct Asm

114 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

118 06F0420 Washer, Press PP

125 88F2389 Stay, Connecting Asm

126 88F2390 Stay, Connecting

127
88F2391 Magnet Stopper
