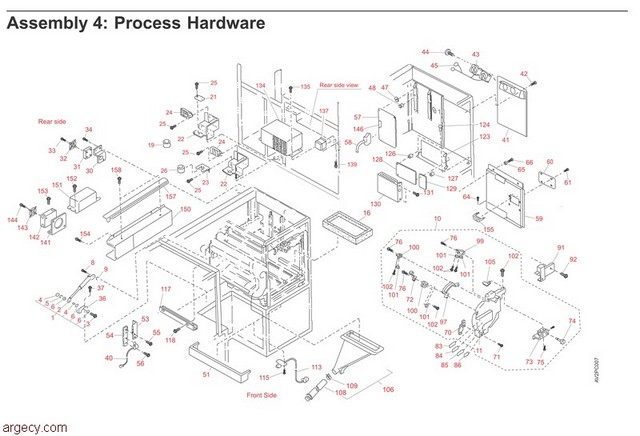

Assembly 4 Process Hardware







1 88F2392 Spring Asm, Gas

2 53F1824 Spring, Gas

3 88F1626 Bolt, Hexagon Socket Hd M8 X 32 PP

4 88F1627 Nut, M8 PP

5 06F0405 Washer, D8 Spring PP

6 06F0405 Washer, D8 Bolt PP

8 06F0414 Bolt, Hexagon Socket Hd M8 X 20 PP

9 88F1627 Nut, M8 PP

10 45G1893 Cover, Drum Asm

11 88F2393 Cover, Photoconductor (PC) Drum

12 06F0411 Screw, Phillips Bind Hd M5 X 16 PP

13 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

16 88F3338 Seal, Air Duct

19 88F3371 Lock, Cord (US 60 Hz)

21 88F2395 Cover, Power Cord Access Hole

22 88F2396 Holder, TB (US 60 Hz)

23 88F2397 Holder, TB (Europe 50 Hz)

24 88F2398 TB,

101

25 06F0420 6 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

26 88F2399 Lock, Cord (Europe 50 Hz)

30 NP

31 06F0194 Fan

32 06F0569 Guard, Finger

33 06F0413 Screw, Phillips Bind Hd M4 X 50 PP

34 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

36 88F2401 Guide, Spring

37 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

40 53F1784 LED, Upper & Lower EOF (PL103)

41 57G6586 Cover, Inner Asm

42 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

43 06F0194 Fan

44 06F0413 4 Screw, Phillips Bind Hd M4 X 50 PP

45 57G6587 Cable, Developer Fan Asm

47 88F1630 4 Holder

48 88F1631 Board, Spacer

51 NP

53 NP

54 NP

55 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

56 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 12 PP

57
04H0978 Card PC211
Fully refurbished with 90-day warranty
04H0978



(Fixed Resolution Printheads)

57
04H0842 PC531 Card
Fully refurbished with 90-day warranty
04H0842



(Model IS2 - 310 PPM)

57
24H8024R Card PC551
Fully refurbished with 90-day warranty
24H8024R



(Switchable Resolution Printheads)

59 57G6686 Plate, Hold IF

60 06F0389 Card, IF041 Asm (Single-beam printhead)

60 24H8325 Card, IF411 Asm (Switchable two-beam printhead)

60 04H0834 Card, IF421 Asm (Two- and four-beam printheads)

60 90H1363 Card, IF461 Asm (Five-beam printhead)

61 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

64 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

65 06F0420 Washer, Press PP

66 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

53F1722 Line Cord, US 4 Wire (Not Shown)

53F1723 Line Cord, Chicago (Not Shown)

53F1724 Line Cord, WTC 4 Wire (Not Shown)

53F1725 Line Cord, WTC 5 Wire (Not Shown)

81 57G6687 Cover, Drum Asm

82 57G6688 Spacer, Drum Cover

83 NP

84 NP

85 NP

86 NP

91 88F2862 Cover, Toner Inlet

92 06F0413 Screw, Phillips Bind Hd M5 X 10 PP

99 88F2413 Holder, Brush

100 88F2414 Holder, Brush

101 06F1056 4 Brush 102 06F0413 9 Screw, Phillips Bind Hd M4 X 6 PP

105 88F2889 Switch, PC Drum Cover Interlock (S122)

106
88F2416 Developer Asm Duct
Fully refurbished with 90-day warranty
88F2416



107 49G9570 Seal, Duct

108 88F2417 Hose, Developer Asm

109 06F0463 Band, Wire

113 53F1783 Sensor, Lower EOF (Q103)

115 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 12 PP

117 NP

118 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

123 88F2418 Base, MD141

123 24H8026 Base, MD192 and RB241

123A 04H0894 Base, MD141 and RB241 (With Enhanced Toner Loading System)

124 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

126 88F1630 8 Holder

128 45G1860 Board, Mirror Motor Driver (MD141) (Fixed resolution printheads)

128 24H8025 Board, Mirror Motor Driver (MD192) (Switchable resolution printheads)

130 NP

131 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

134
53F1865 Power Supply Laser
Fully refurbished with 90-day warranty
53F1865
$594.00



(All except 324 PPM and IR3/IR4)

134

(324 PPM and IR3/IR4 only)

135 06F0420 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M5 X 12 PP

137 88F2420 Meter, Laser Current (L102)

139 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

141 NP

142 06F0194 Fan

143 NP

144 06F0413 Screw, Phillips Bind Hd M4 X 50 PP

146 53F1777 Fuse, 3A 250V 150 NP

151
45G1856 High Volt PS - wide HVPS
Fully refurbished with 90-day warranty
45G1856
$1197.00




152 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 10 PP

153 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

154 06F0415 Bolt, Hexagon

155 88F2996 Ferrite Core

156 04H0901 Board, Relay (RB241) (With Enhanced Toner Loading)

157 NP

158 NP

159 NP

160 04H0896 Holder, Connector on IF041 Card (With Enhanced Toner Loading)

160 90H1029 Holder, Connector on IF411 Card (With Enhanced Toner Loading and Side Verfication)

161 30H2748 Screw, Phillips Pan Head M4 X 16 PP (With Enhanced Toner Loading)

161 45G2064 Screw, Phillips Pan Head M4 X 16 PP (With Enhanced Toner Loading and Side Verfication)
