Avision AD360G Scanner Parts
« Back to Avision Parts
New and refurbished field-replaceable parts for the Avision AD360G scanner. Please call 1-888-742-9565 for parts pricing and availability.
Boards
| Part # | Description | Photo |
|---|---|---|
| 004-3276-9-SP | Sensor board |  |
| 004-3466-9-SP | Ultrasonic transmitter board |  |

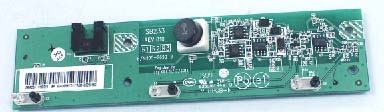

| 004-3467-9-SP | Ultrasonic reveicer board |  |

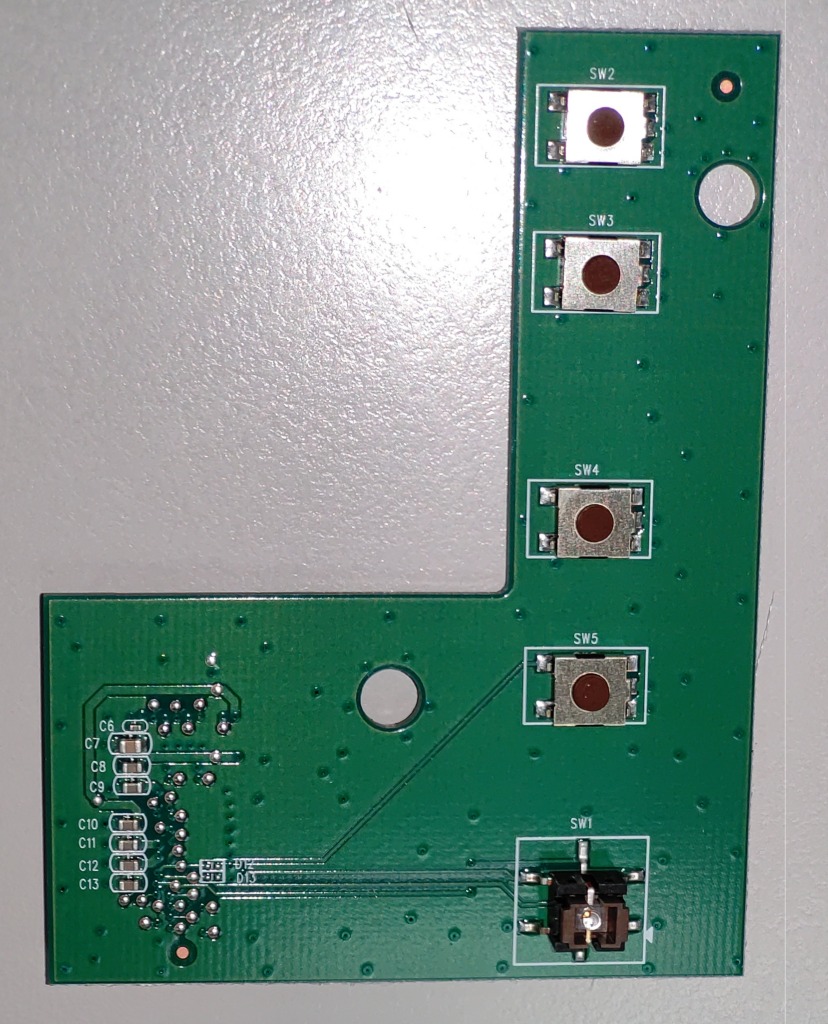

| 004-3571-9-SP | UI board |  |
| 004-3756-9-SP | Main board AD360G |  |
| 004-3756A-9-SP | Main board AD360GN |  |

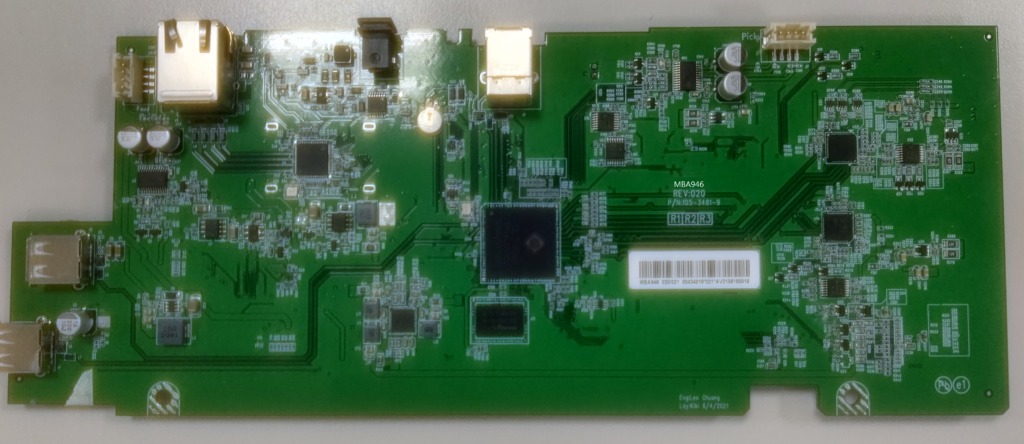

| 004-3756B-9-SP | Main board AD360GWN |  |
Sensors
| Part # | Description | Photo |
|---|---|---|

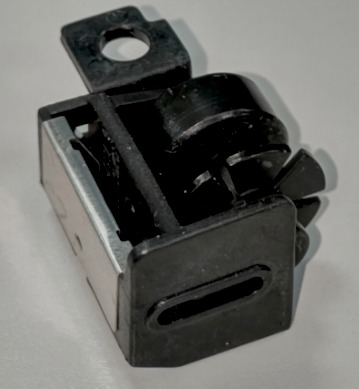

| 002-7046-0-SP | Sensor wheel |  |
| 007-0079-0-SP | Paper in sensor |  |
Optical / CIS
| Part # | Description | Photo |
|---|---|---|
| 008-1542-9-SP | CIS |  |
Motors and drives
| Part # | Description | Photo |
|---|---|---|

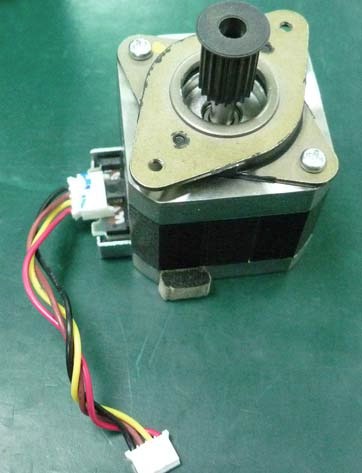

| 003-8354-0-SP | Feeding motor |  |

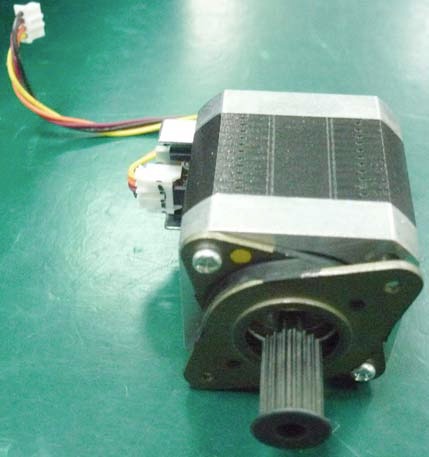

| 065-0206B-9-SP | Pick up motor |  |
Rollers and pads
| Part # | Description | Photo |
|---|---|---|

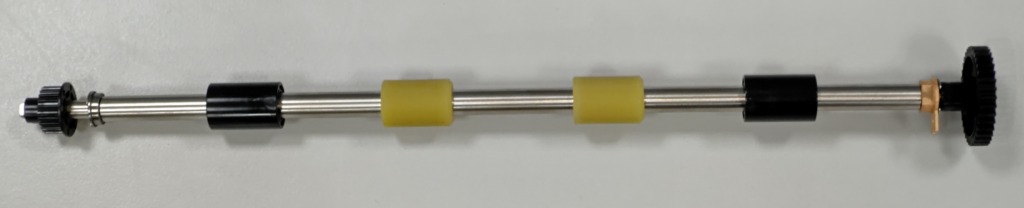

| 002-A295-0-SP | Feeding in roller |  |

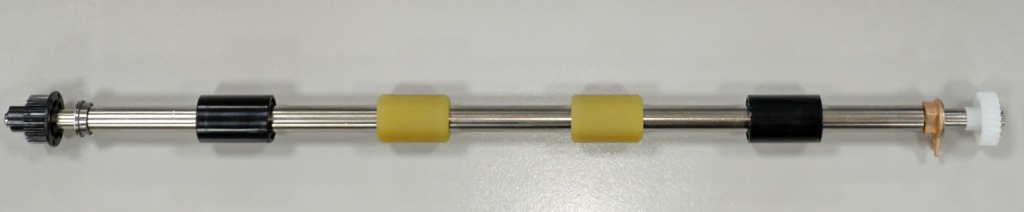

| 002-A296-0-SP | feeding out roller |  |

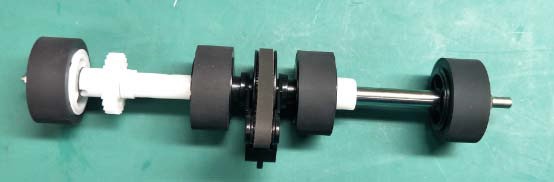

| 002-A403-0-SP | Pick up roller |  |
| 002-B291-0-SP | ADF roller |  |
Power
| Part # | Description | Photo |
|---|---|---|

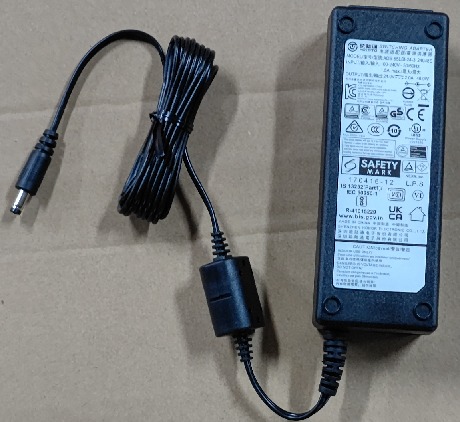

| 005-3131-9-SP | Adapter |  |
Cables
| Part # | Description | Photo |
|---|---|---|
| 104-6126-9-SP | USB cable |  |
Other parts
| Part # | Description | Photo |
|---|---|---|

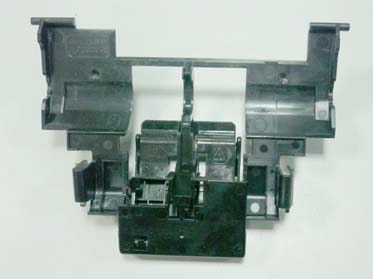

| 002-A498-0-SP | Press |  |
