Avision AD6090 Scanner Parts
« Back to Avision Parts
Avision AD6090 Series A3 Scanner
New and refurbished field-replaceable parts for the Avision AD6090 scanner. Please call 1-888-742-9565 for parts pricing and availability.
Boards
| Part # | Description | Photo |
|---|---|---|

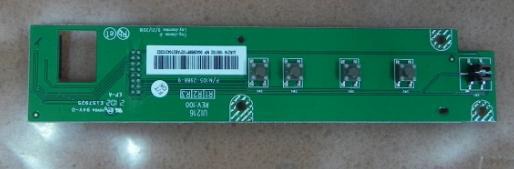

| 004-2988-9-SP | UI board |  |
| 004-3039-9-SP | Bridge board |  |
| 004-3201-9-SP | Ultrasonic receiver broad |  |
| 004-3202-9-SP | Ultrasonic transmitter board |  |

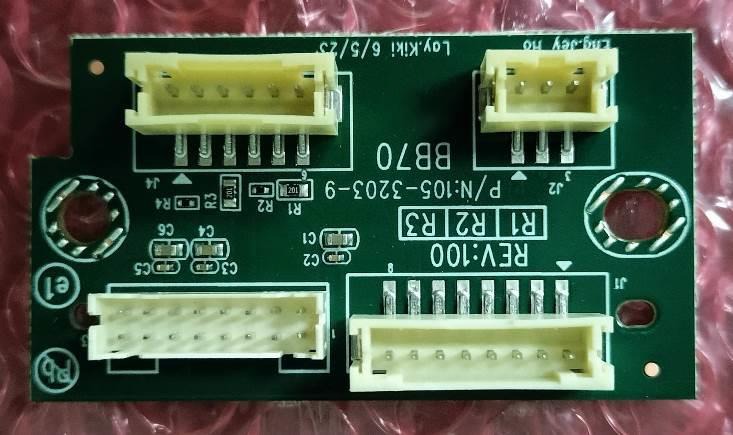

| 004-3203-9-SP | Bridge board |  |

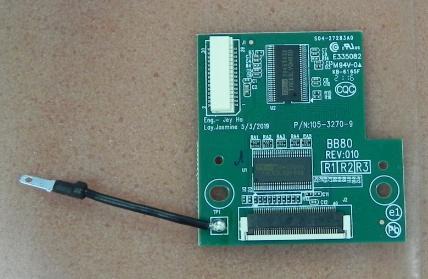

| 004-3270-9-SP | Bridge broad |  |

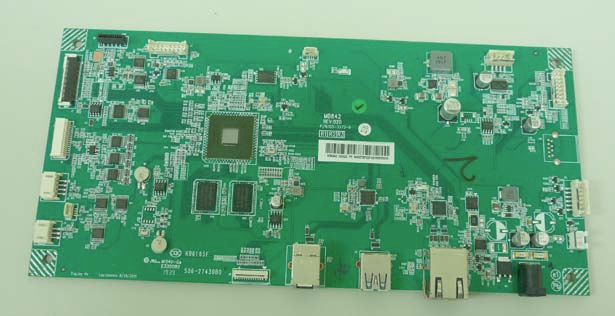

| 004-3272-9-SP | Main board AD6090 |  |
| 004-3272A-9-SP | Main board AD6090N |  |
| 004-3273-9-SP | Bridge board |  |
Sensors
| Part # | Description | Photo |
|---|---|---|

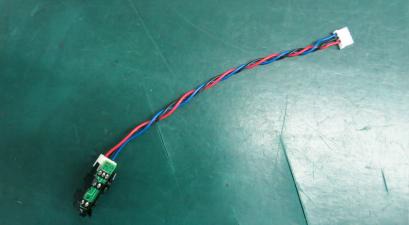

| 003-8219-0-SP | Rear cover open sensor |  |
| 004-2375-9-SP | Paper in sensor |  |
| 004-2990-9-SP | Jan sensor |  |

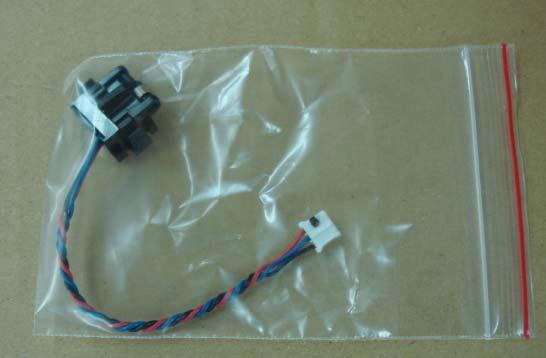

| 007-0037-0-SP | Paper out sensor sensor |  |

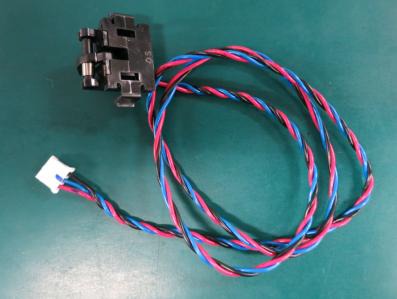

| 007-0076-0-SP | Paper out sensor sensor |  |
| 007-0079-0-SP | Paper in sensor |  |

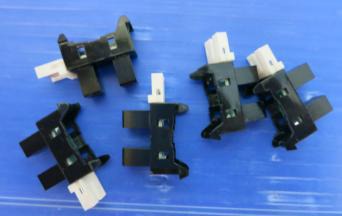

| 008-0364-9-SP | Paper-jam sensor |  |
Optical / CIS
| Part # | Description | Photo |
|---|---|---|
| 002-A344A-0-SP | Old: New: Upper CIS |  |
| 002-A357A-0-SP | Lower CIS |  |

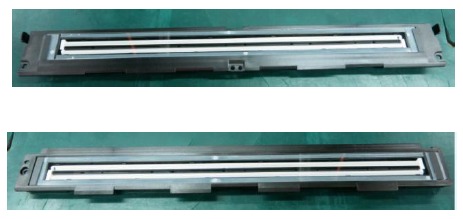

| 003-8339-0-SP | Upper & Lower CIS kit |  |
Motors and drives
| Part # | Description | Photo |
|---|---|---|
| 065-0206-9-SP | ADF motor |  |

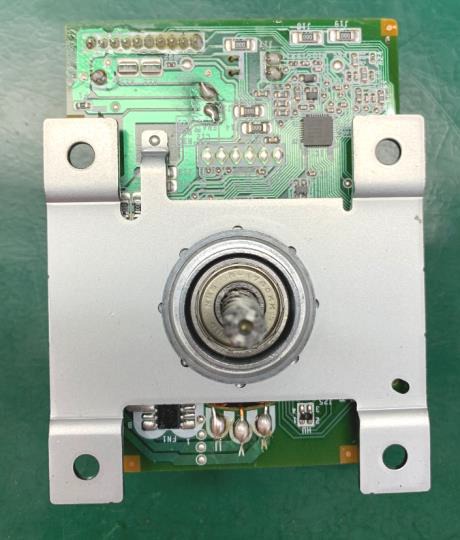

| 065-0222-9-SP | Feeding motor |  |

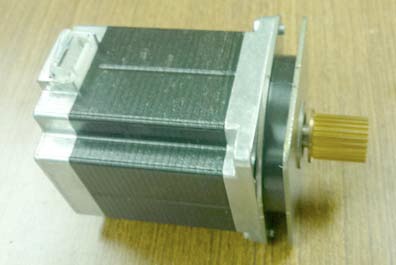

| 065-0227-9-SP | Feeding motor |  |

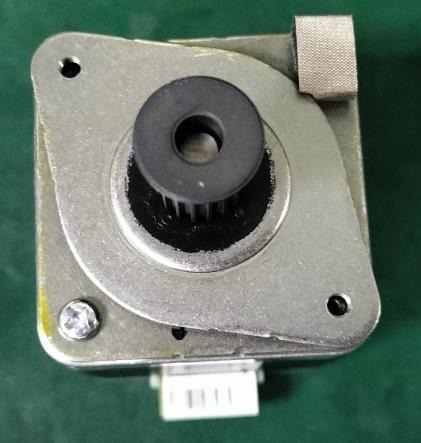

| 065-0229-9-SP | Pick up motor |  |
Rollers and pads
| Part # | Description | Photo |
|---|---|---|

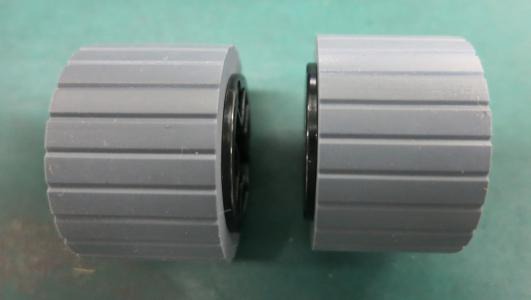

| 002-9894-0-SP | Pick up roller V1-Old |  |
| 002-9907-0-SP | feeding roller |  |
| 002-9908-0-SP | feeding roller |  |

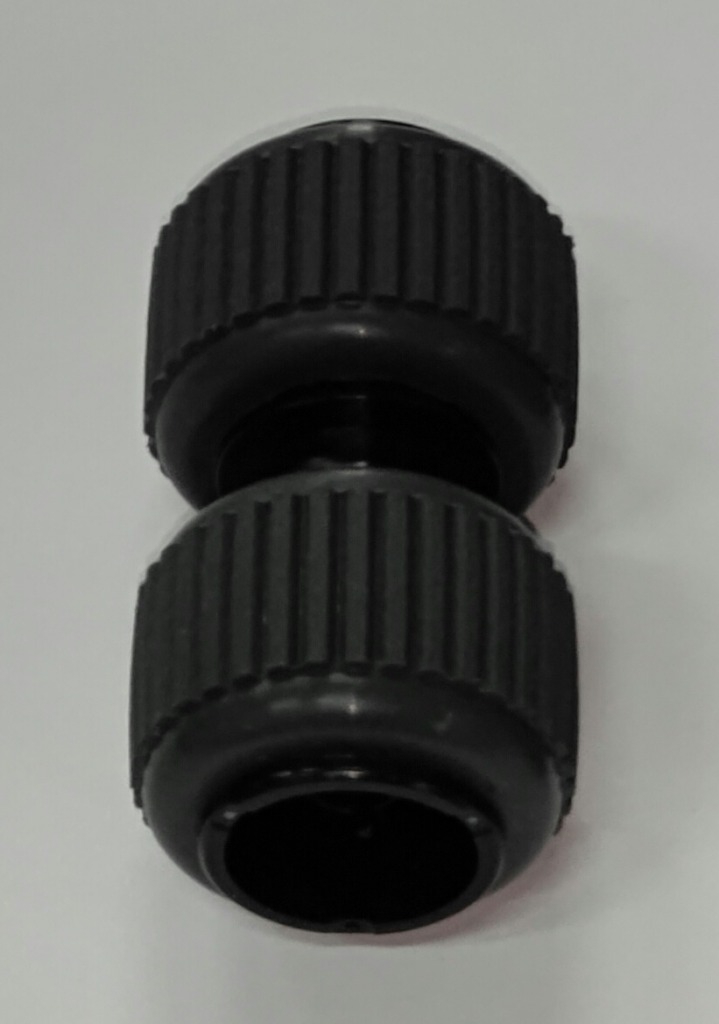

| 002-C041-0-SP | Pick up roller V1-Old V2-New |  |
Power
| Part # | Description | Photo |
|---|---|---|

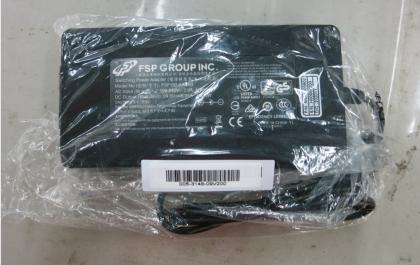

| 005-3148-9-SP | Adapter |  |
Cables
| Part # | Description | Photo |
|---|---|---|
| 104-6126-9-SP | USB cable |  |
Other parts
| Part # | Description | Photo |
|---|---|---|

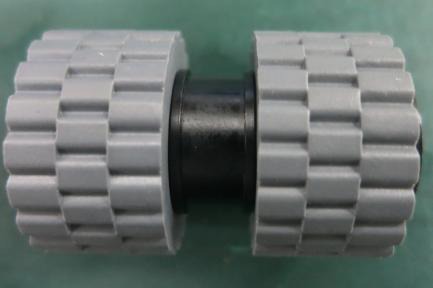

| 002-8669-0-SP | — |  |
| 002-9906-0-SP | — |  |
| 002-C258-0-SP | — |  |
