Avision AD8100 & AD8120 A3 Production Scanners
New and refurbished field-replaceable parts for the Avision AD8120U scanner. Please call 1-888-742-9565 for parts pricing and availability.
Boards
| Part # | Description | Photo |
|---|---|---|
| 003-8221-0-SP | Paper in sensor & tray sensor broad |  |

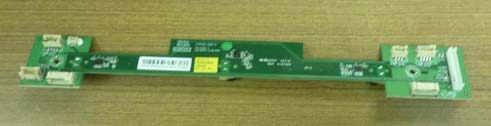

| 004-2991-9-SP | Ultrasonic transmitter board |  |
| 004-2996-9-SP | Bridge broad |  |
| 004-2997-9-SP | Ultrasonic receiver broad |  |
| 004-3039-9-SP | Bridge board |  |
| 004-3223-9-SP | Bridge broad |  |
| 004-3269-9-SP | UI board |  |
| 004-3270-9-SP | Bridge broad |  |
| 004-3273-9-SP | Bridge board |  |
| 004-3364-9-SP | Main board AD8120U |  |

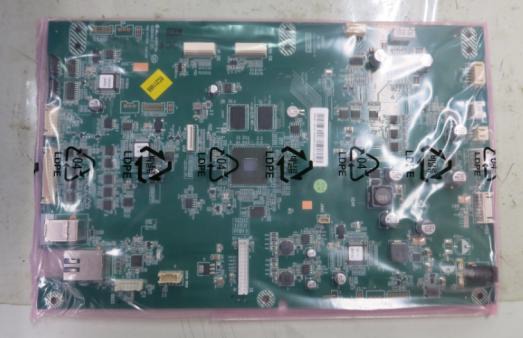

| 004-3364A-9-SP | Main board AD8120P |  |
| 004-3364F-9-SP | Main board AD8120UN |  |
| 005-3147-9-SP | Ultrasonic transmitter board |  |
Sensors
| Part # | Description | Photo |
|---|---|---|
| 002-9367-0-SP | Staple sensor right |  |
| 002-9368-0-SP | Staple sensor left |  |
| 003-8219-0-SP | Rear cover open sensor |  |
| 004-2990-9-SP | Jan sensor |  |
| 004-2998-9-SP | Scan sensor |  |
| 007-0037-0-SP | Paper out sensor sensor |  |
| 007-0079-0-SP | Paper in sensor |  |
Optical / CIS
| Part # | Description | Photo |
|---|---|---|

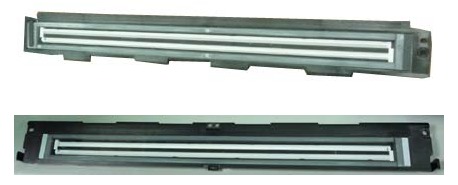

| 003-8340-0-SP | Upper & Lower CIS kit |  |
Motors and drives
| Part # | Description | Photo |
|---|---|---|
| 065-0206-9-SP | ADF motor |  |
| 065-0213-9-SP | Motor |  |
| 065-0227-9-SP | Feeding motor |  |
Rollers and pads
| Part # | Description | Photo |
|---|---|---|
| 002-A864-0-SP | Pick up roller |  |
| 057-1450-0-SP | feeding roller |  |
| 057-1451-0-SP | Feeding in roller |  |
| 057-1568-0-SP | feeding roller |  |
Fans
| Part # | Description | Photo |
|---|---|---|
| 008-0365A-9-SP | Fan |  |
Cables
| Part # | Description | Photo |
|---|---|---|
| 104-6126-9-SP | USB cable |  |
Other parts
| Part # | Description | Photo |
|---|---|---|
| 002-8669-0-SP | — |  |
