Avision AM5630i / AM5640i / AM7630i / AM7640i MFP Printer Parts
« Back to Avision Parts
Avision AM7640i / AM7630i / AM5630i A3 MFP Printers
New and refurbished field-replaceable parts for the Avision AM5630i / AM5640i / AM7630i / AM7640i mfp printer. Please call 1-888-742-9565 for parts pricing and availability.
Boards
| Part # | Description | Photo |
|---|---|---|

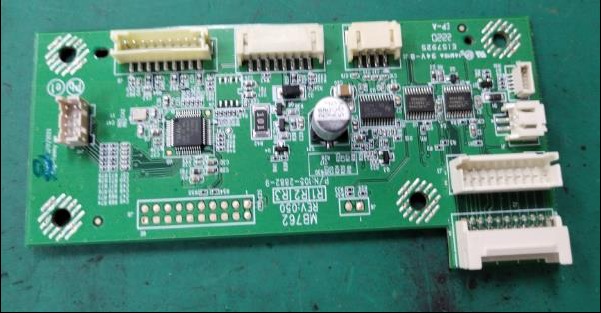

| 004-2882-9-SP | Tray control broad |  |

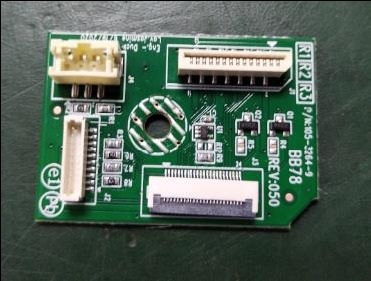

| 004-3264-9-SP | Bridge board |  |

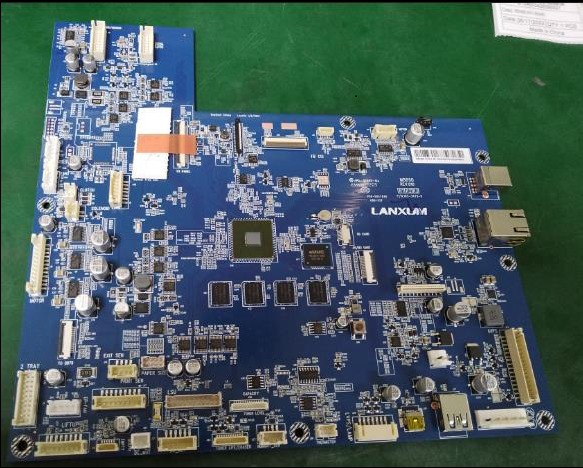

| 004-3479A-9-SP | Main board: AM7630i |  |
| 004-3479B-9-SP | Main board: AM7640i |  |
| 004-3479C-9-SP | Main board: AM5630i |  |
| 004-3479D-9-SP | Main board: AM5640i |  |
Sensors
| Part # | Description | Photo |
|---|---|---|

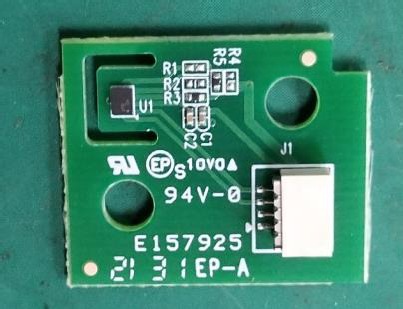

| 003-8369-0-SP | Humidity & temperature sensor |  |

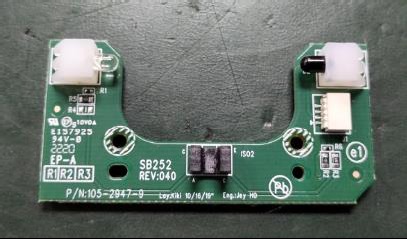

| 004-2947-9-SP | Toner sensor |  |

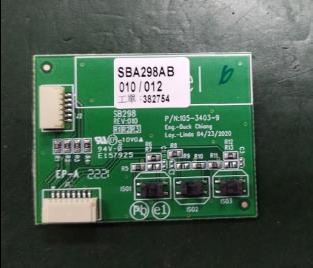

| 004-3403-9-SP | Manual tray sensor |  |

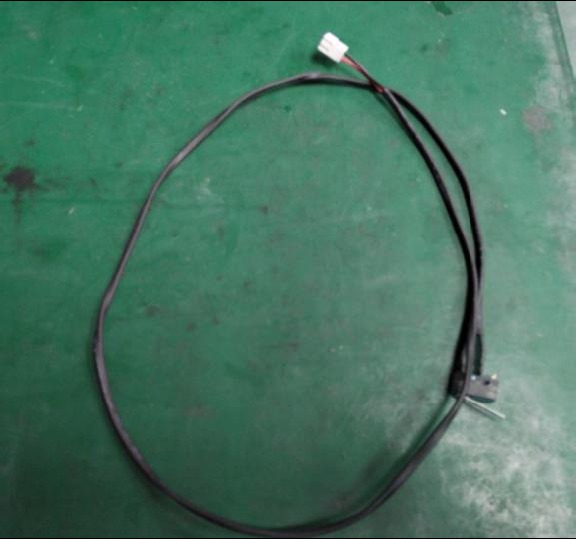

| 008-0346-9-SP | Side door open sensor |  |
| 008-0364-9-SP | Paper-jam sensor |  |

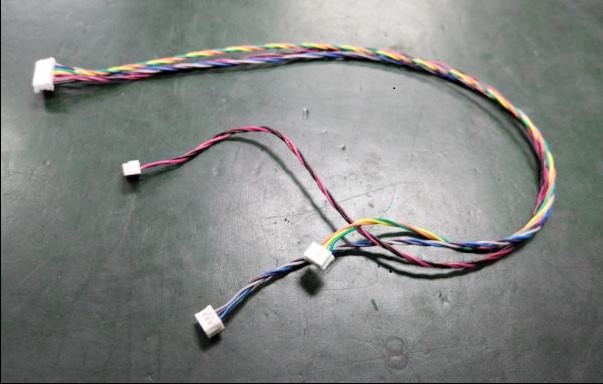

| 104-1344-9-SP | Cover open sensor cable |  |
Motors and drives
| Part # | Description | Photo |
|---|---|---|

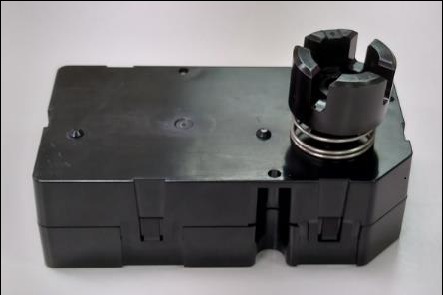

| 002-A539-0-SP | Lift-up motor assembly |  |
| 008-2036-9-SP | Clutch |  |
Rollers and pads
| Part # | Description | Photo |
|---|---|---|

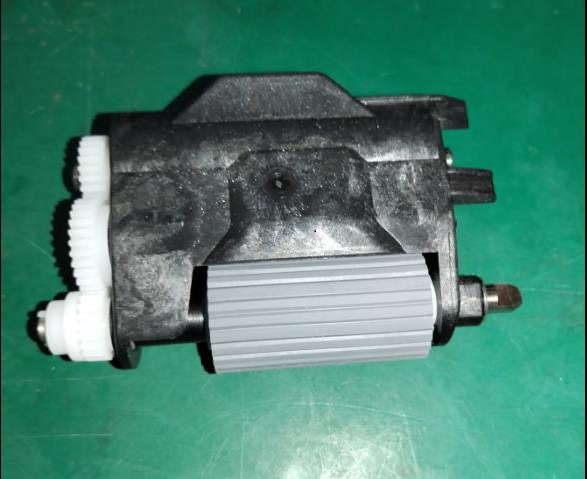

| 002-7897-0-SP | Pickup roller |  |

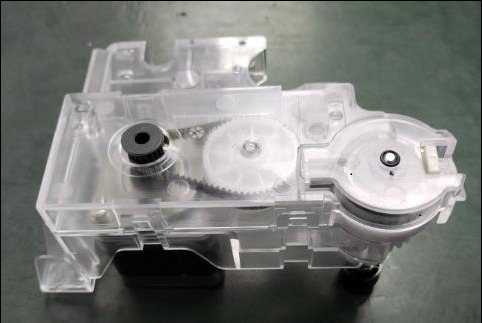

| 002-7903-0-SP | Pickup & feeding assembly |  |

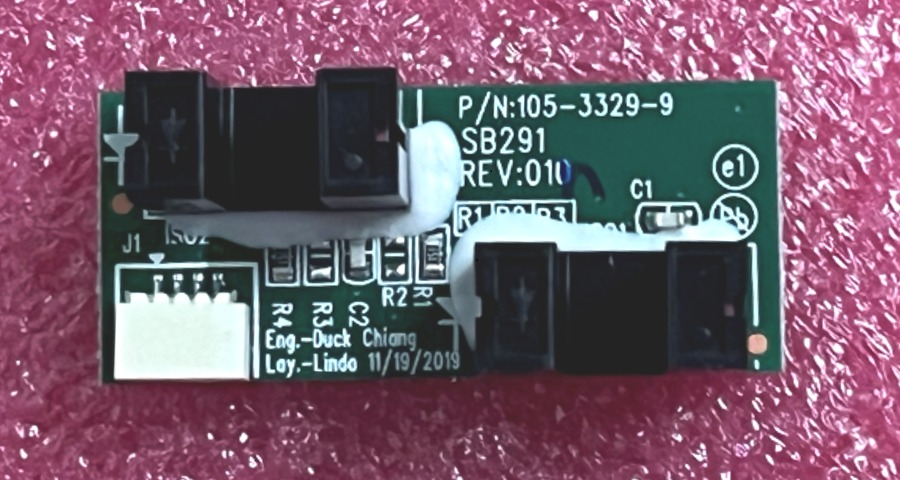

| 004-3329-9-SP | Pickup sensor |  |
Fuser and laser
| Part # | Description | Photo |
|---|---|---|

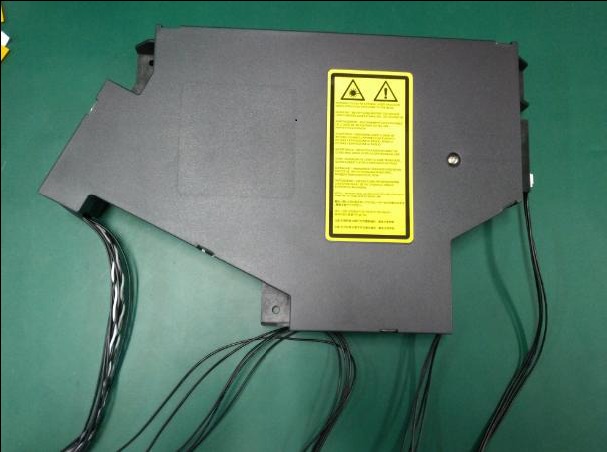

| 002-B097-0-SP | LSU |  |

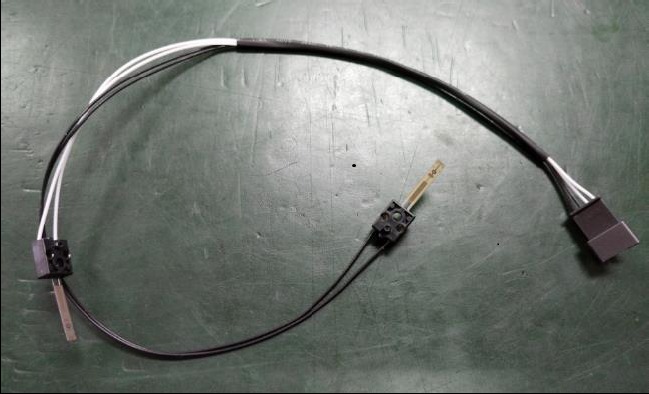

| 008-0347-9-SP | Fuser temperature sensor |  |

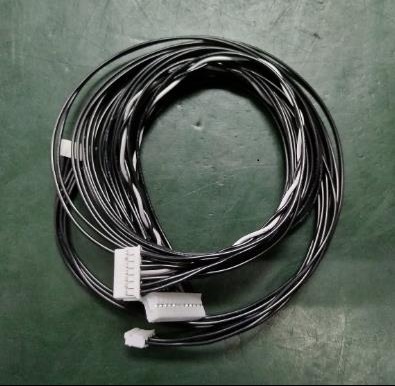

| 104-1520-9-SP | LSU cable |  |
Power
| Part # | Description | Photo |
|---|---|---|

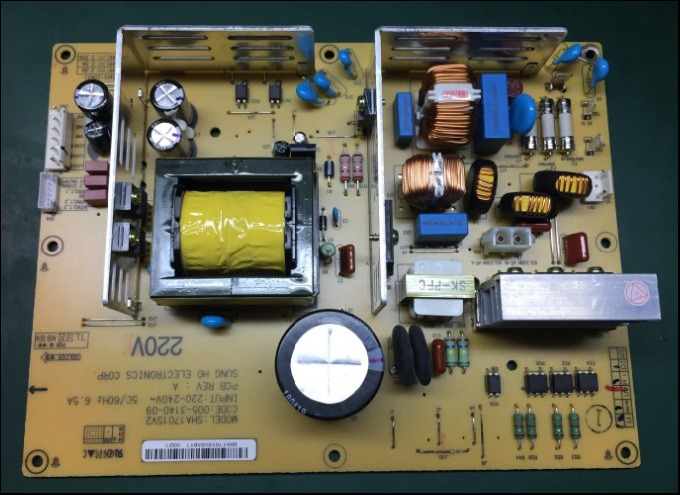

| 005-3140-9-SP | LVPS |  |

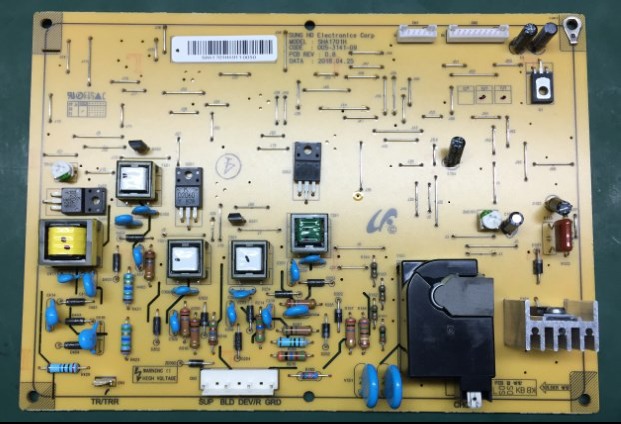

| 005-3141-9-SP | HVPS |  |
| 008-0361-9-SP | Thermostat |  |
Fans
| Part # | Description | Photo |
|---|---|---|

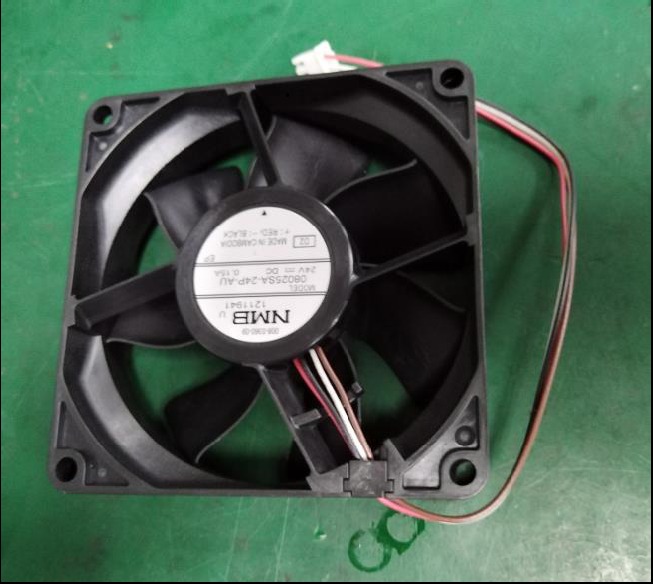

| 008-0360-9-SP | Fan |  |
Cables
| Part # | Description | Photo |
|---|---|---|

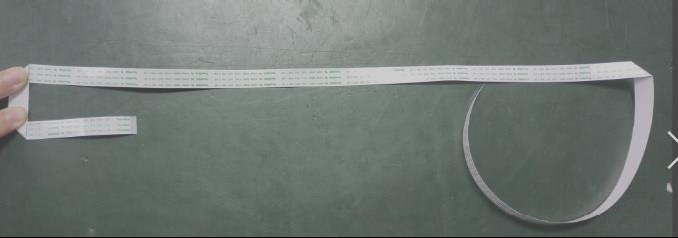

| 104-5310-9-SP | FFC cable |  |
Covers, trays and hardware
| Part # | Description | Photo |
|---|---|---|
| 102-0054-9-SP | Toggle switch |  |
Other parts
| Part # | Description | Photo |
|---|---|---|

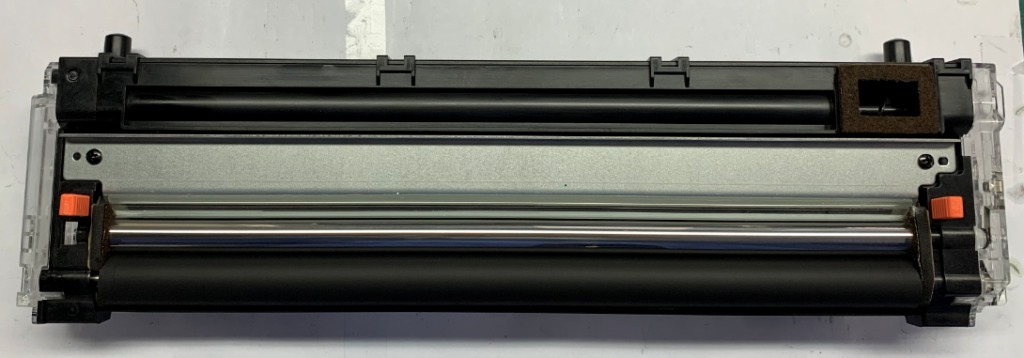

| 015-0204-21 | — |  |

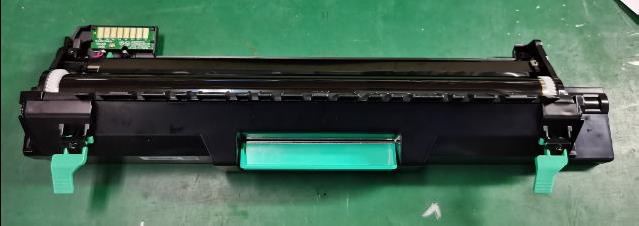

| 015-0289-21 | — |  |
| 015-0296-21 | — |  |

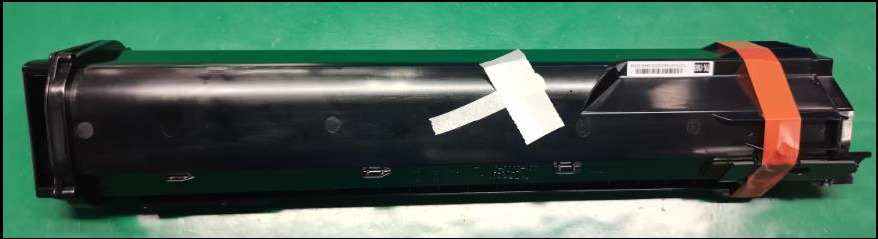

| 015-0297-21 | — |  |

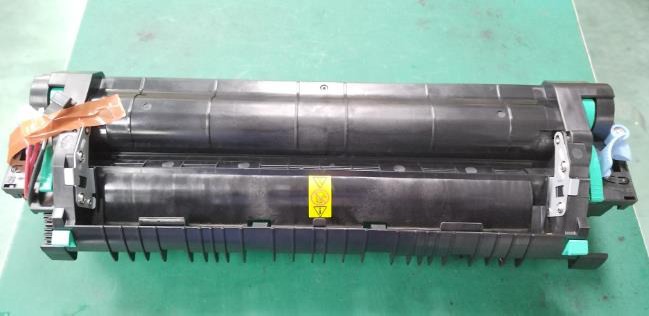

| 015-0301-0 | — |  |
