Avision AP4X series Printer Parts
« Back to Avision Parts
New and refurbished field-replaceable parts for the Avision AP4X series printer. Please call 1-888-742-9565 for parts pricing and availability.
Boards
| Part # | Description | Photo |
|---|---|---|
| 004-2779-9-SP | SBA237 |  |
Sensors
| Part # | Description | Photo |
|---|---|---|
| 004-2714-9-SP | Deskew sensor |  |

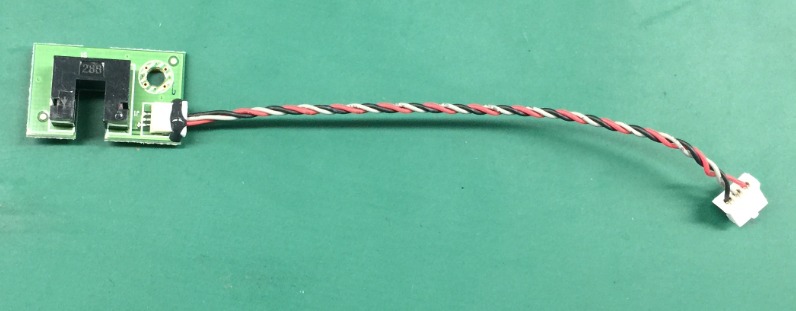

| 004-2738-9-SP | Rear cover open sensor |  |

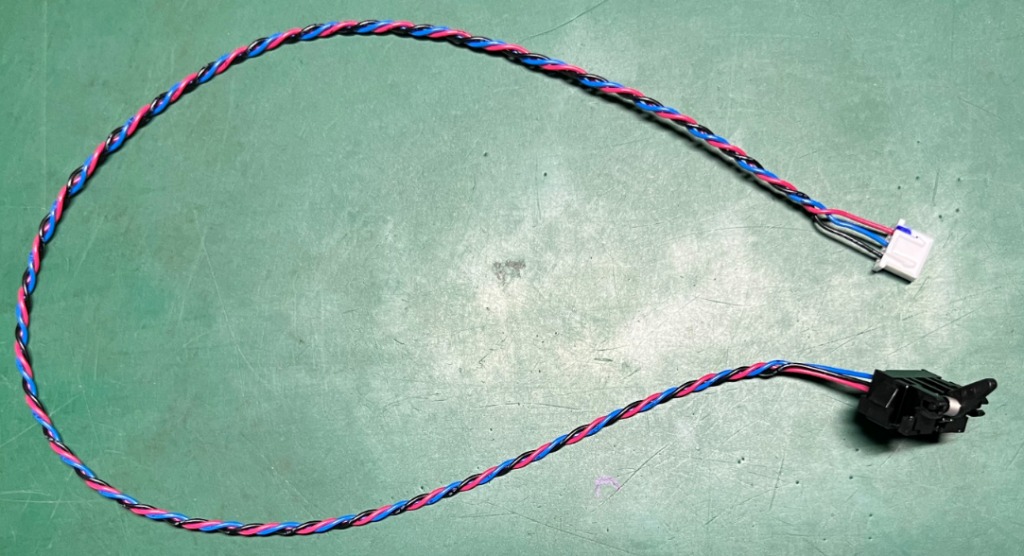

| 007-0066-0-SP | Exit sensor |  |

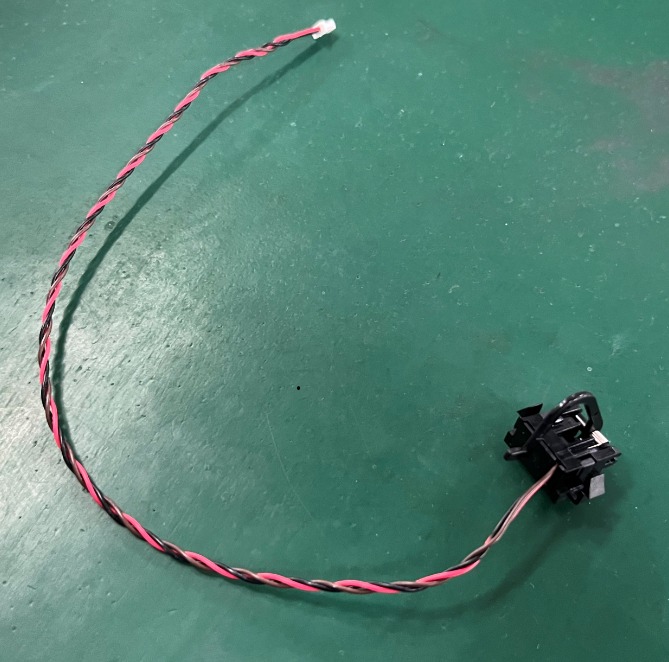

| 007-0071-0-SP | Paper empty sensor |  |

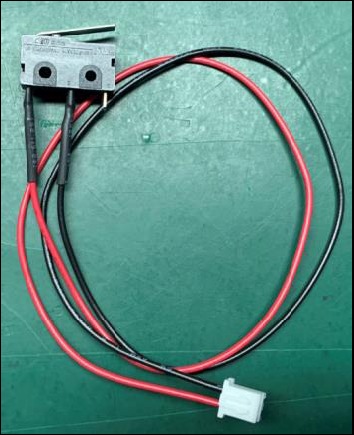

| 008-0328-9-SP | Front cover open sensor |  |
Motors and drives
| Part # | Description | Photo |
|---|---|---|

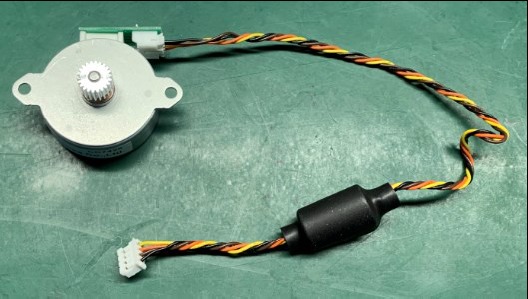

| 003-8182-0-SP | Exit motor |  |
| 008-2036-9-SP | Clutch |  |

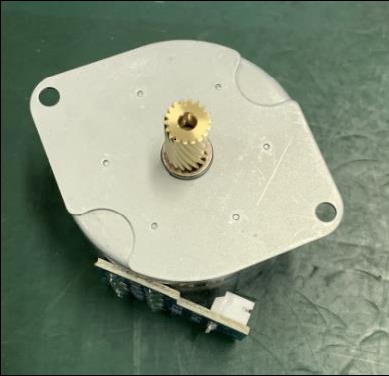

| 065-0232-9-SP | Main Motor |  |
Rollers and pads
| Part # | Description | Photo |
|---|---|---|
| 002-B725-0-SP | Pad |  |

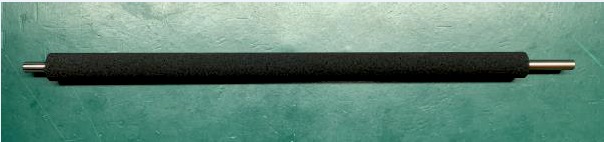

| 057-1680-0-SP | Transfer roller |  |
Fuser and laser
| Part # | Description | Photo |
|---|---|---|

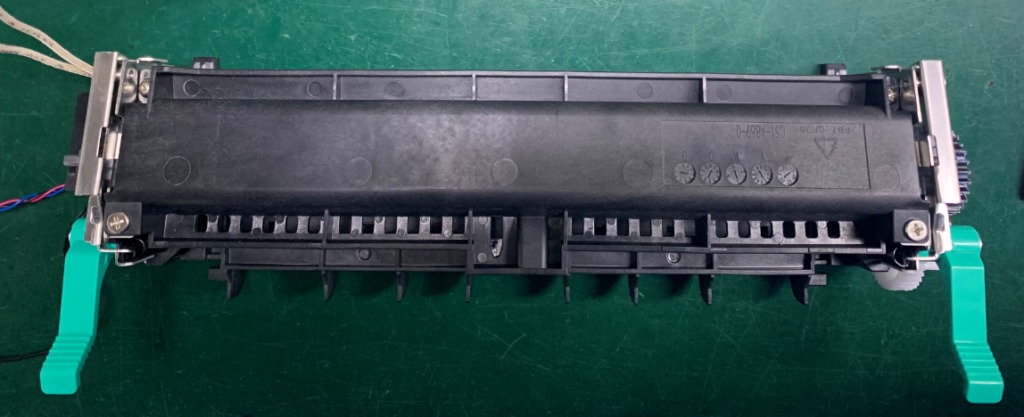

| 002-B209-0-SP | Fuser |  |

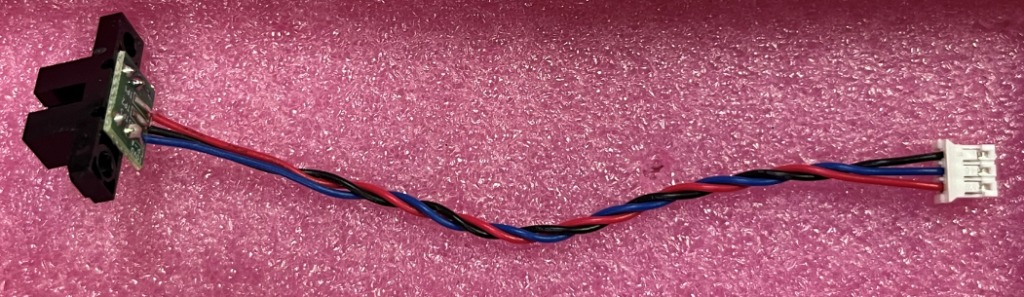

| 007-0070-0-SP | Fuser out sensor |  |

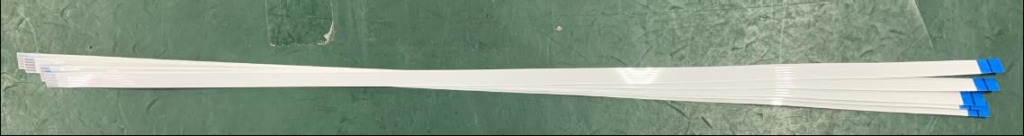

| 104-5269-9-SP | LSU FFC cable |  |
Power
| Part # | Description | Photo |
|---|---|---|
| 002-B117-0-SP | Power supply |  |

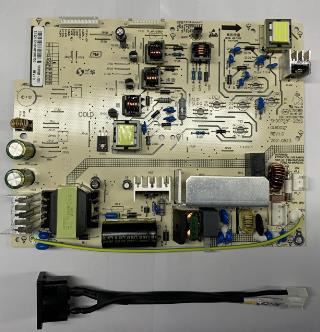

| 005-3134-9-SP | 220V Power supply |  |
Fans
| Part # | Description | Photo |
|---|---|---|
| 008-0348-9-SP | Fan |  |
Cables
| Part # | Description | Photo |
|---|---|---|

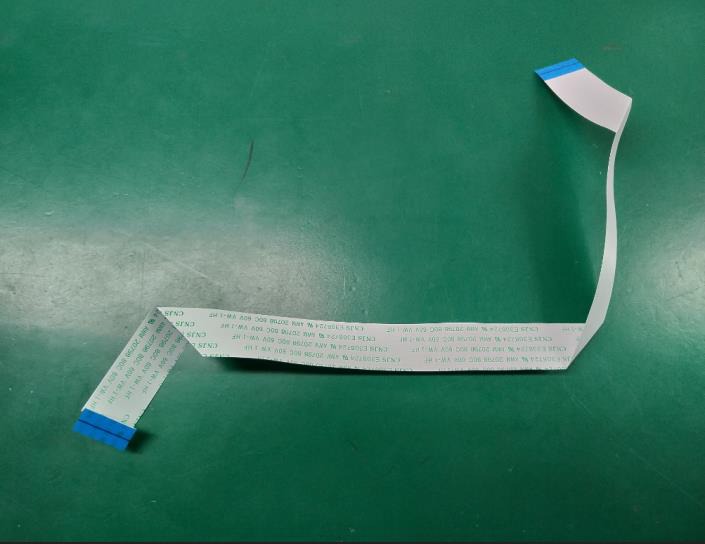

| 104-5251-9-SP | FFC cable |  |

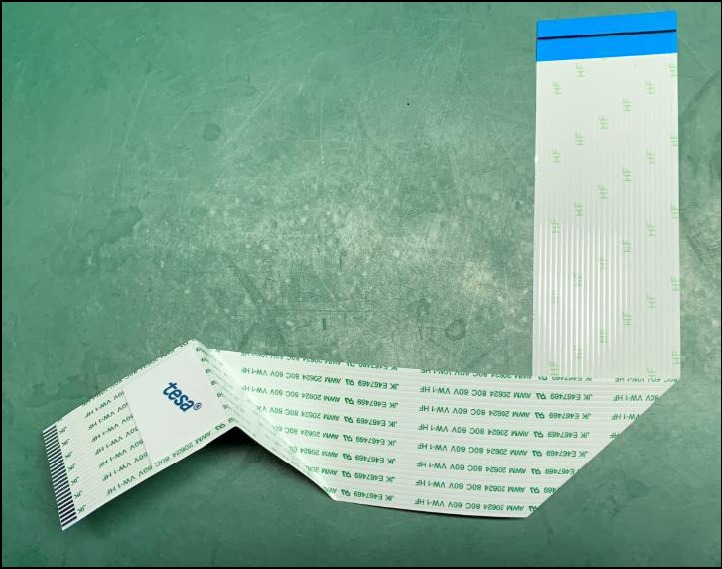

| 104-5261-9-SP | IFA133 FFC |  |
Other parts
| Part # | Description | Photo |
|---|---|---|

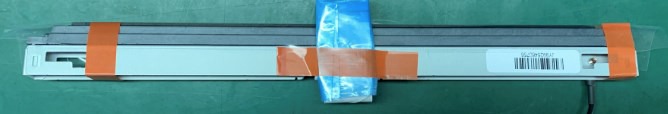

| 002-B377-0-SP | LPH unit |  |

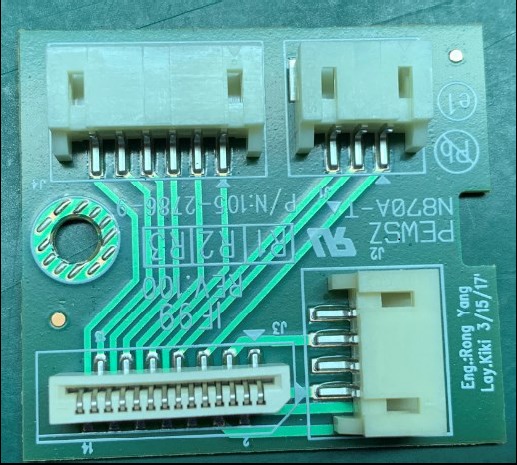

| 004-2786-9-SP | IFA99 |  |

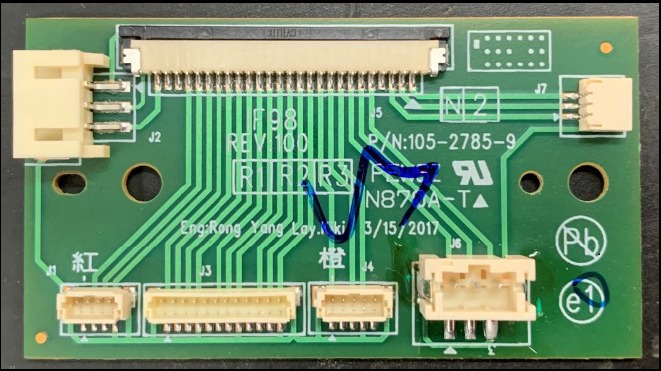

| 004-3315-9-SP | IFA133 |  |

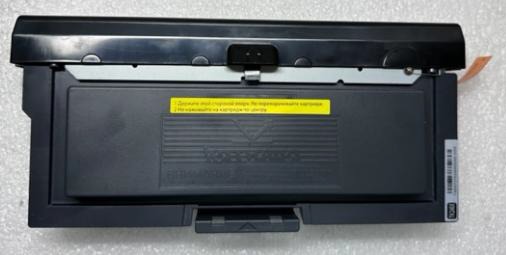

| 015-0292-22 | — |  |

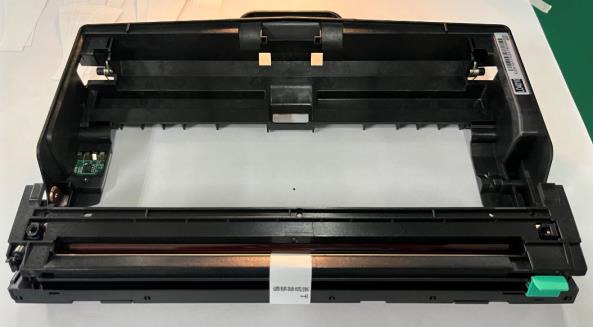

| 015-0333-22 | — |  |

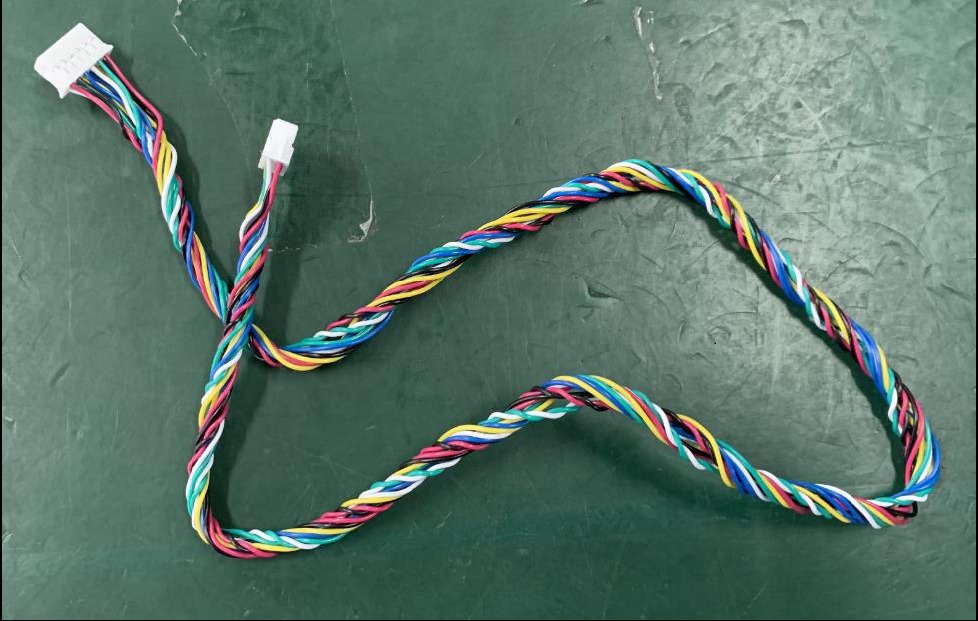

| 104-1526-9-SP | — |  |
