Avision AP500 Printer
The Avision AP500 is a high-performance A3 monochrome laser printer with print speeds up to 50 ppm. Features include A3 printing capability, built-in duplex printing, up to 2,100-sheet paper capacity, NP115pro 800MHz dual-core processor, 512MB memory, and network connectivity.
Abstract
The Avision AP500 is a state-of-the-art A3 high-speed monochrome laser printer designed for high-volume office environments requiring large format printing capabilities. It delivers exceptional print speeds of up to 50 pages per minute for A4 LEF documents with a first print out time of less than 11 seconds. The printer features an NP115pro 800MHz dual-core processor and 512MB DDR2 SDRAM for efficient document processing. Key features include built-in automatic duplex printing for A3, A4, B4, A5, B5, Letter, and Legal sizes, massive paper handling capacity up to 2,100 sheets with optional additional trays, and excellent 1,200 x 1,200 dpi print resolution. The printer supports various connectivity options including USB 2.0 and 10/100/1000 Mbps Gigabit Ethernet for seamless network integration.The AP500 incorporates advanced paper handling with a 100-sheet manual tray, 500-sheet main tray, 500-sheet second tray, and optional third and fourth trays (500 sheets each) for maximum productivity. Media handling capabilities include A3, A4, B4, A5, B5, A6, B6, Letter, Legal, Legal13, 8K, and 16K sizes plus custom sizes from 106 x 148 to 304.8 x 431.8 mm with paper weights from 16-43 lb. depending on the tray. With a maximum monthly duty cycle of 150,000 pages and recommended monthly volume of 15,000 sheets, this printer is built for demanding office workflows. The robust design measuring 23.5 x 22.6 x 22.0 inches and weighing 77 pounds delivers reliable performance in professional environments requiring high-quality A3 printing capabilities.
Supplies

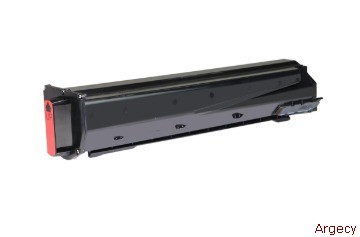

 TK-1060 20K Toner |
Toner Cartridge 20000 Pages | |

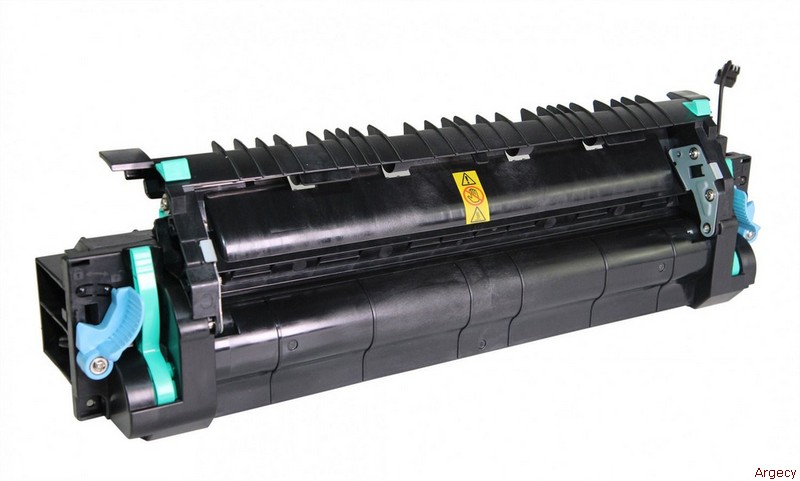

 H-1060 Fuser |
Fuser Assembly 300000 Pages | |

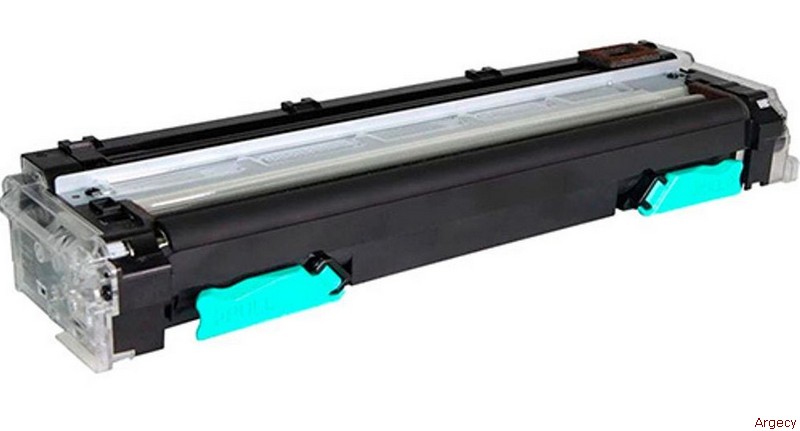

 EK-10106 Develop Unit 300K Pages |
Developer Unit 30000 Pages | |
 EK-10016 150000 Pages |
Drum Unit 150000 Pages |
High Performance Printing
An ideal combination of high quality and durability with A3 printing capability and 50 ppm print speeds.
Large Format A3 Capability
Print documents up to A3 size (11.7 x 16.5 inches) for presentations, drawings, and large format documents.
Massive Paper Capacity
Support up to 2,100 sheets total capacity with optional additional trays to minimize paper loading interruptions.
Built-in Duplex Printing
Automatic duplex printing for A3, A4, B4, A5, B5, Letter, and Legal sizes to save paper and reduce costs.
Network Ready
Built-in Gigabit Ethernet (10/100/1000 Mbps) connectivity for seamless network integration and sharing.
High-Volume Reliability
Built for demanding environments with 150,000 page maximum monthly duty cycle and long-life consumables.
Technical Specifications
| Size (in. - H x W x D) | 22.0 x 23.5 x 22.6 in. |
|---|---|
| Weight (lb.) | 77 lb. |
| Product Warranty | 1-Year Limited Warranty |
| Specified Operating Environment |
Temperature: 10°C to 32.5°C (50°F to 90.5°F) Humidity: 20% to 80% (no dew) |
| Country of Origin | Taiwan |
| Ethernet Network | Yes - 10/100/1000 Mbps Gigabit Ethernet |
| Direct USB | USB 2.0 |
| Workgroup Size | Large Workgroup / Department |
| Print Technology | Monochrome Laser |
| Print Resolution, Black | 1,200 x 1,200 dpi |
| Print Speed (A4 LEF): Up to | 50 ppm |
| Time to First Page (Black) As fast as | Less than 11 seconds |
| Processor | NP115pro 800MHz Dual Core |
| Memory, Standard | 512MB DDR2 SDRAM |
| Maximum Monthly Duty Cycle: Up to | 150,000 pages per month |
| Recommended Monthly Page Volume | 15,000 sheets |
| Paper Input Capacity, Standard: Up to | 100 sheets manual + 500 sheets main + 500 sheets second tray |
| Paper Input Capacity, Maximum: Up to | 2,100 sheets (with optional trays 3 and 4) |
| Paper Output Capacity: Up to | 500 sheets (top output) |
| Max Media Size | A3 (11.7 x 16.5 in.) |
| Media Sizes Supported |
A3 A4 A5 A6 B4 B5 B6 Letter Legal Legal13 8K 16K Custom: 106 x 148 to 304.8 x 431.8 mm |
| Media Types Supported |
Plain Paper Envelopes Labels Card Stock Transparencies |
| Paper Weight Range Supported - Manual Tray (lb.) | 16 - 43 lb. |
| Paper Weight Range Supported - Main/Second Tray (lb.) | 16 - 28 lb. |
| Paper Weight Range Supported - Trays 3&4 (lb.) | 16 - 28 lb. (Optional) |
| Paper Weight Range Supported - Duplex (lb.) | 16 - 28 lb. |
| Duplex (2-sided) Printing | Built-in Automatic Duplex |
| Duplex Sizes Supported |
A3, A4, B4, A5, B5, Letter, Legal Custom: 148 x 210 to 304.8 x 431.8mm |
| PDLs/Emulations | GDI |
| Imaging Unit Estimated Yield: Up to | 150,000 pages |
| Fuser Unit Estimated Yield: Up to | 300,000 pages |
| Toner Cartridge Yield | 20,000 pages (A4, 5% coverage) |
| Microsoft Windows Operating Systems Supported |
Microsoft Windows 10 Microsoft Windows 8.x Microsoft Windows 7 Microsoft Windows Vista |
| Standard Ports |
USB 2.0 10/100/1000 Mbps Gigabit Ethernet |
| Power Source | 100-120 VAC, 60Hz or 220-240 VAC, 50-60 Hz |
| Features |
Network Printing Collating Sorting Multiple Pages per Sheet Watermark Background Large LCD Display Easy-to-use Control Panel |
