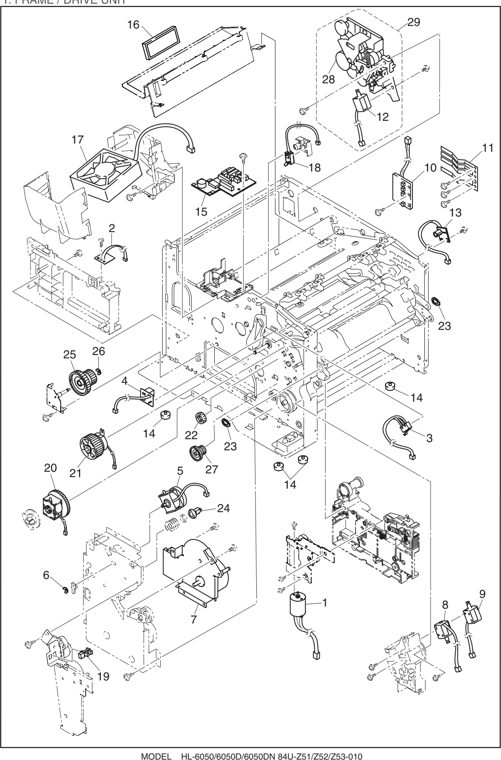

1. FRAME/DRIVE UNIT REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LM3672001 1 PLATE MOTOR ASSY 2 LJ9427001 1 DX SENSOR PCB ASSY AML B512093 3 LJ9424001 1 INTERLOCK SW ASSY AML 4 LJ9416001 1 TONER LED PCB ASSY AML (LIGHT B512143 5 LM3224001 1 DEVELOPER CLUTCH 6 LJ1209001 1 COLLAR 4 7 LM3227001 1 MAIN MOTOR ASSY 8 LM3236001 1 T1 SOLENOID ASSY 9 LM3238001 1 MP SOLENOID ASSY 10 LJ9432001 1 SIZE SW PCB ASSY AML B512181 11 LM3268001 1 SIZE SW SPRING 12 LM3813001 1 EJECTION SOLENOID DAMPER ASSY 13 LJ9434001 1 TONER SENSOR PCB UNIT AML (LIGHT B512084 14 UH2208001 4 RUBBER FOOT 15 LJ9437001 1 RELAY PCB L ASSY AML B512174 16 LU0948001 1 FILTER T8 ASSY CHG 17 LM3329001 1 FAN MOTOR 80 ASSY 18 LJ9418001 1 DEV SENSOR ASSY AML 19 LG2239001 1 PHOTO INTERRUPTER:SG-2482A 20 LM3348001 1 CLUTCH SPRING SEPARATING 21 LM3354001 1 MAGNETIC CLUTCH REGIST 22 LM3355001 1 GEAR 24 23 LM3301001 2 COVER STOPPER RING 24 LJ7377001 1 DEVELOP JOINT 25 LM3232001 1 GEAR 18/48 26 LJ0716001 1 GEAR COLLAR 27 LM3350001 1 GEAR 33 add 28 LM3755001 1 EJECTION GEAR PLATE UNIT (HL-6050) add 29 LM3269001 1 EJECTION GEAR PLATE UNIT (HL-

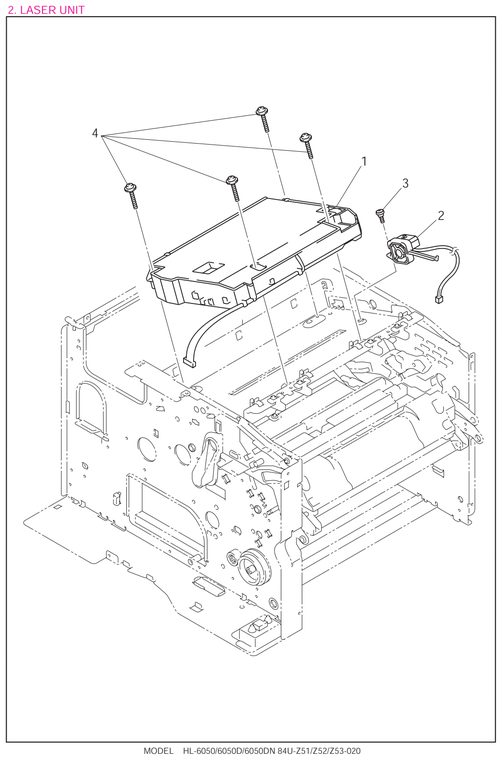

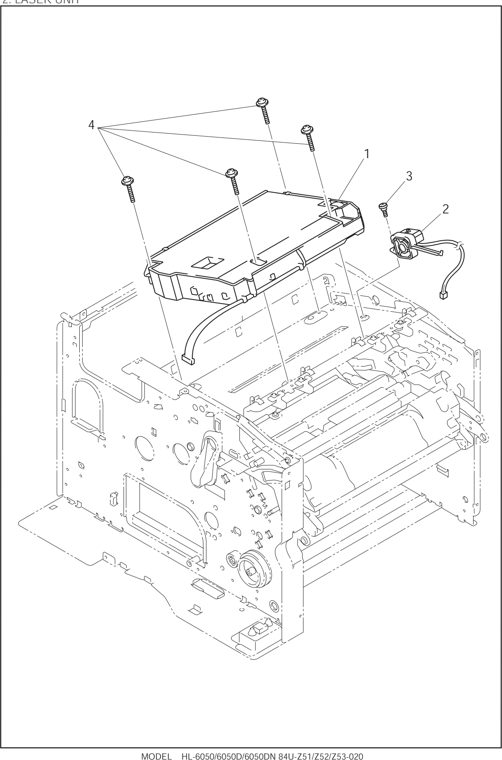

2. LASER UNIT REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LU1319001 1 LASER UNIT (SP) CHG 2 LM3814001 1 SCANNER FAN FOAM ASSY 3 LM3856001 1 SHOULDER SCREW chg 4 LJ7533001 4 TAPTITE, CUP S M3X16

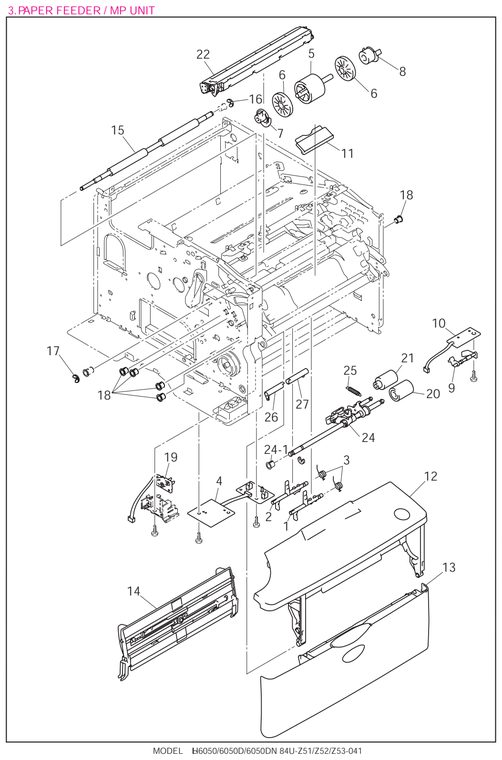

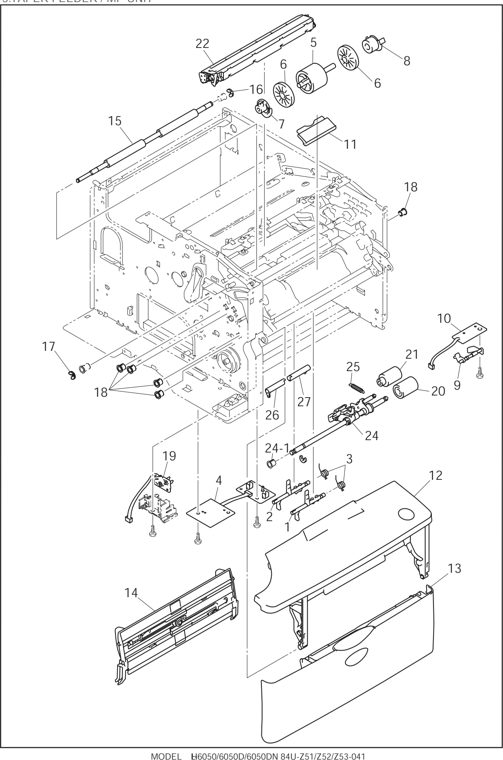

3. PAPER FEEDER/MP UNIT REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LM3395001 1 REGIST ACTUATOR FRONT 2 LM3396001 1 REGIST ACTUATOR REAR 3 LM3397001 2 REGIST ACTUATOR SPRING 4 LJ9421001 1 RELAY PCB UNIT AML 5 LJ5016001 1 PAPER PICK-UP ROLLER ASSY 6 LJ5150001 2 ROLLER COLLAR 7 LJ5020001 1 BUSH L 8 LJ5021001 1 BUSH R 9 LJ5162001 1 MP-PE SENSOR ACTUATOR 1 10 LJ9393001 1 MP SENSOR PCB ASSY AML B512097 11 LJ5184001 1 SEPARATION PLATE ASSY 12 LM3405001 1 PROCESS UNIT COVER ASSY 13 LM3413001 1 MP COVER ASSY 14 LM3417001 1 MP PAPER GUIDE 1 ASSY 15 LM3421001 1 RE ROLLER AML 16 LJ1168001 1 COLLAR 8 17 LJ1175001 1 COLLAR 6 18 LM3140001 5 FR BEARING AML 19 LJ9422001 1 PE/PO SENSOR PCB ASSY AML B512178 20 LM3454001 1 SEPARATION ROLLER ASSY 21 LU0496001 1 FEED ROLLER ASSY 1 chg 22 LJ1847001 1 F CHUTE UNIT2 chg 23 LM3350001 1 GEAR 33 del 24 LM6764001 1 PAPER FEED HOLDER UNIT S chg 24-1 LJ1957001 1 FR BUSH S add 25 LM3453001 1 PAPER FEED SPRING add 26 LM3435001 1 LIFT LEVER A ADD 27 LM3436001 1 LIFT LEVER B ADD

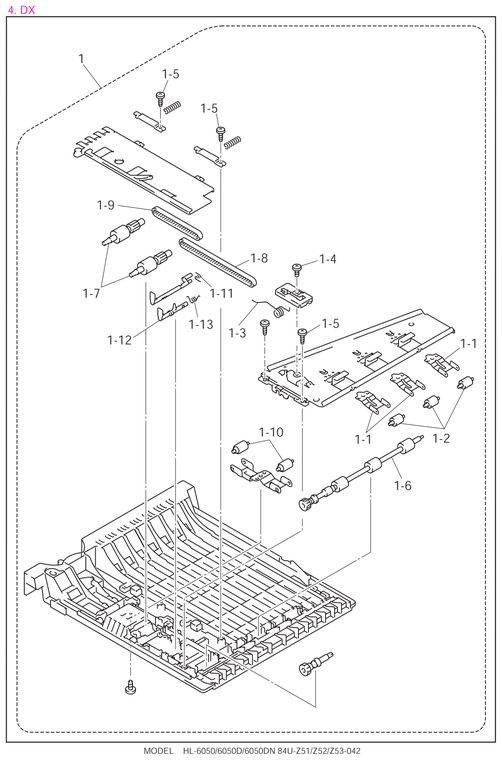

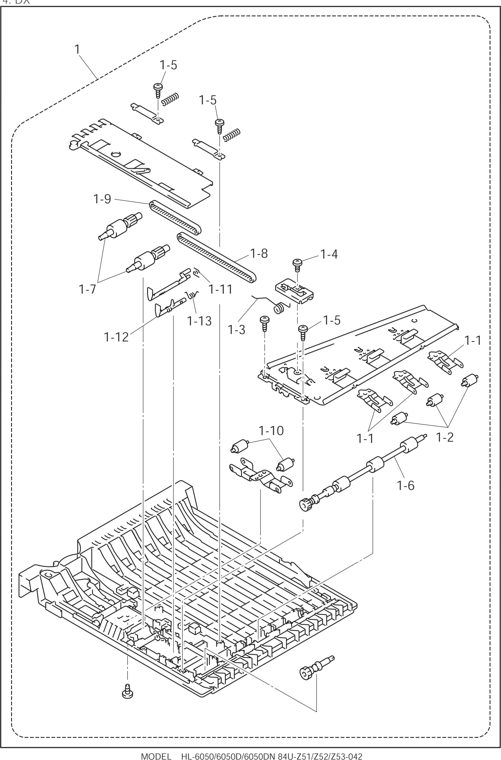

4. DX REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LJ1887001 1 DX FEED ASSY 2 CHG 1-1 LJ7092001 3 ROLLER HOLDER HE 1-2 UH2360000 3 PRESSURE ROLLER 1-3 LJ5233001 1 GROUND WIRE 1-4 060300415 1 SCREW, BIND M3X4 1-5 085310815 3 TAPTITE, BIND B M3X8 1-6 LJ5235001 1 DX FEED ROLLER ASSY 1-7 LJ5238001 2 SIDE REGIST ROLLER 1-8 LJ5015001 1 T-BELT B40S2M142 1-9 LJ5240001 1 T-BELT B40S2M224 1-10 UH2360000 2 PRESSURE ROLLER 1-11 LJ5249001 1 GUIDE ACTUATOR SPRING 1-12 LJ5250001 1 DX PAPER ACTUATOR 1-13 LJ5251001 1 PAPER ACTUATOR SPRING

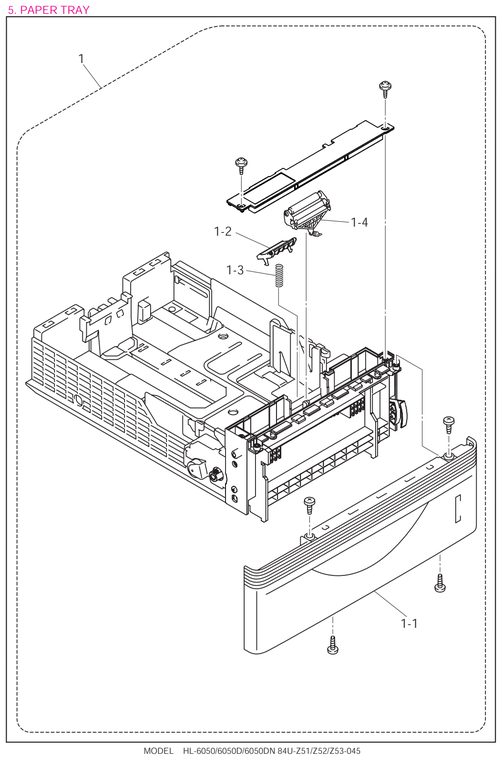

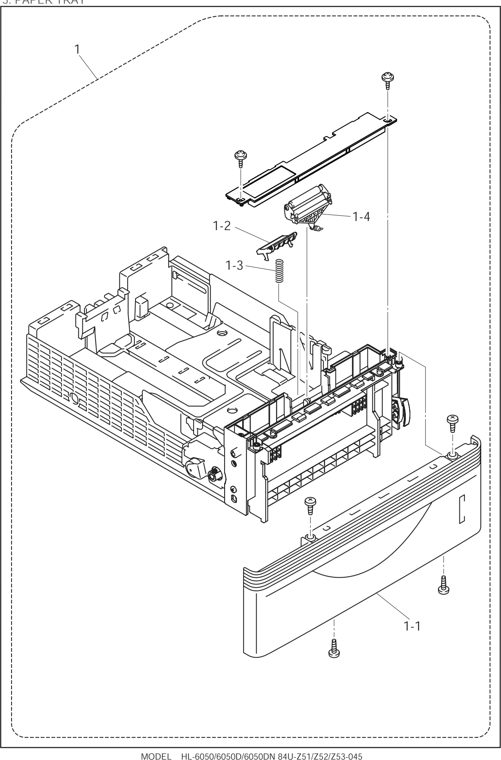

5. PAPER TRAY REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LM3823001 1 PAPER TRAY UNIT (SP) 1-1 LM3515001 1 FRONT TRAY 1 1-2 LM3543001 1 SEPARATION PAD ASSY 1-3 LM3546001 1 SEPARATION PAD SPRING 1-4 LM3828001 1 P ROLLER SUB ASSY

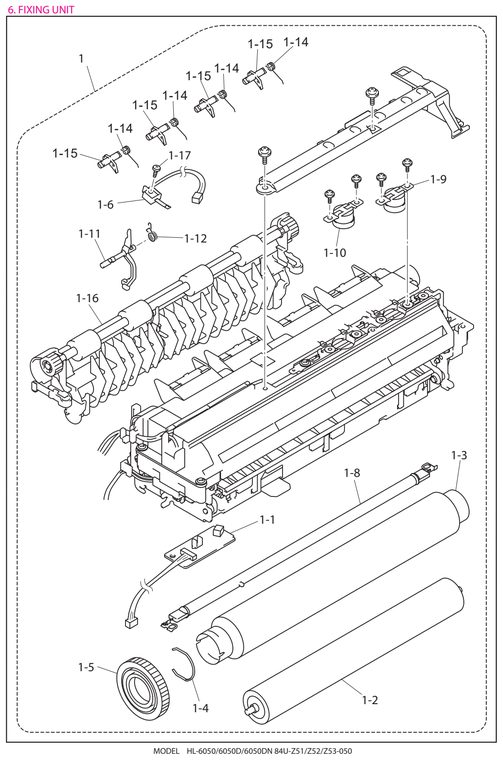

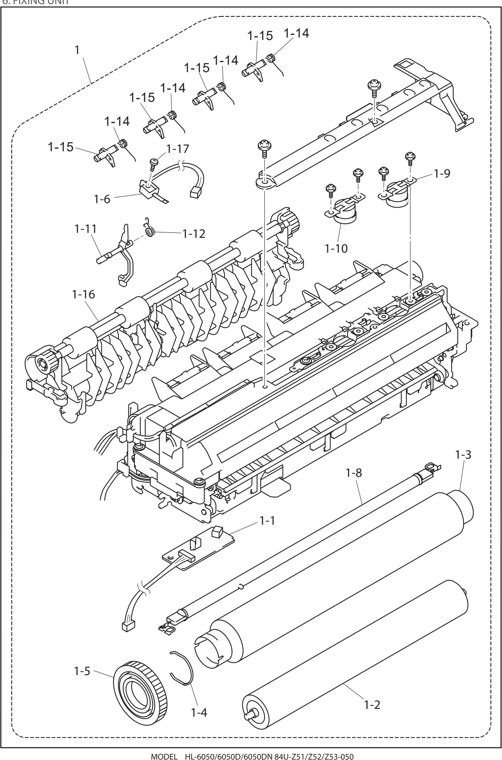

6. FIXING UNIT REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LU1175001 1 FIXING UNIT 115LT (SP) chg 1 LU1177001 1 FIXING UNIT 230A4 (SP) chg 1-1 LJ9414001 1 FIXING SENSOR PCB ASSY AML B512179 1-2 LM3016001 1 PRESSURE ROLLER 30 1-3 LM3023001 1 HEAT ROLLER 34 1-4 LM3024001 1 HR RING 1-5 LM3026001 1 HEAT ROLLER GEAR 30 1-6 LM3029001 1 THERMISTOR C 1-7 LM3030001 1 SEPARATION PLATE del 1-8 LM3784001 1 HALOGEN HEATER 115 S ASSY (SP) 1-8 LM3785001 1 HALOGEN HEATER 230 S ASSY (SP) 1-9 LM3047001 1 THERMOSTAT 1 1-10 LM3048001 1 THERMOSTAT 2 1-11 LM3054001 1 FIXING SENSOR ACTUATOR 1-12 LM3055001 1 SENSOR SPRING 1-13 LM3856001 2 SHOULDER SCREW del 1-14 LJ1831001 4 SP PAWL SPRING add 1-15 LJ1686001 4 SEPARATE PAWL AM add 1-16 LM3053001 1 OPEN COVER add 1-17 LU1183001 1 SCREW PAN (S/P WASHER) M3X10 L ADD

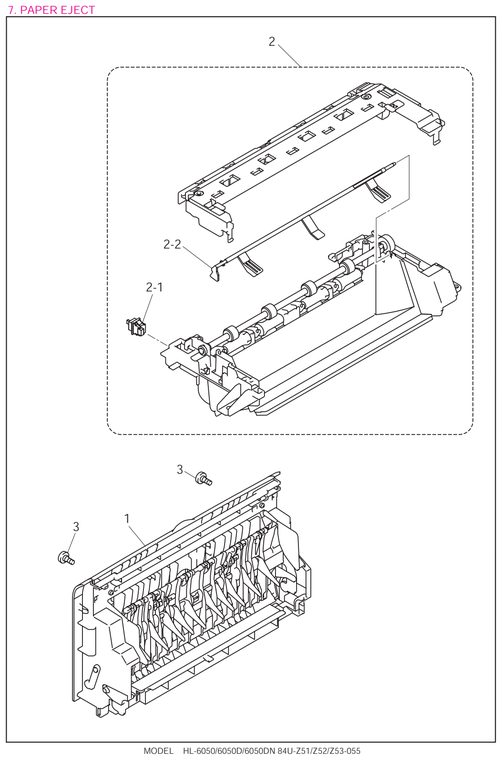

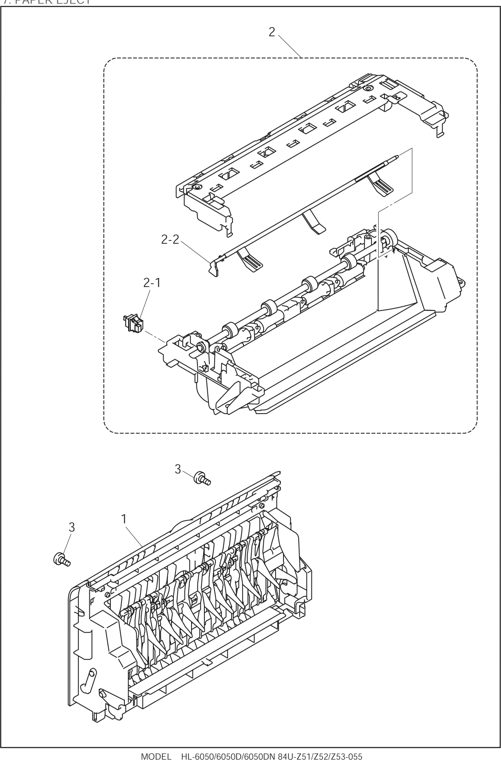

7. PAPER EJECT REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LM3123001 1 REAR COVER ASSY 2 LM3133001 1 EXIT ROLLER UNIT 2-1 LG3218001 1 DOCUMENT COVER SENSOR 2-2 LM3701001 1 PAPER UPPER GUIDE 3 LM3856001 2 SHOULDER SCREW ADD

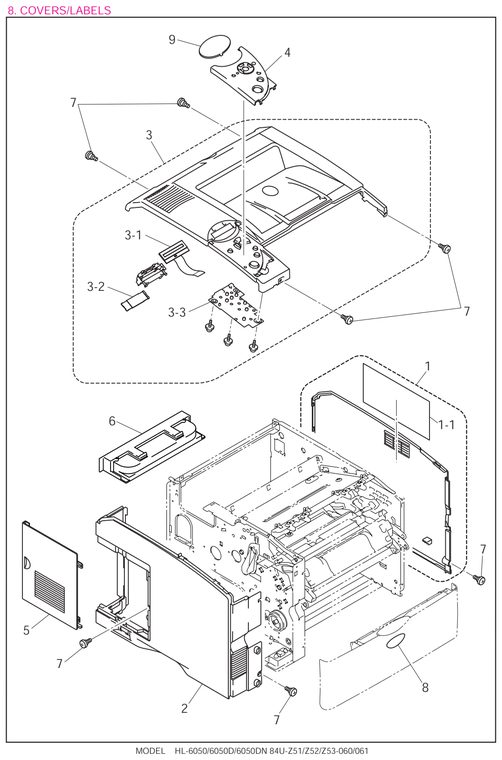

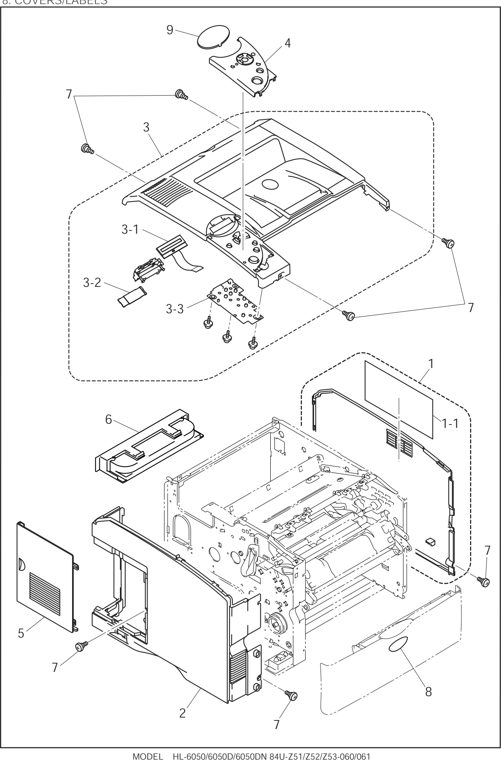

8. COVERS/LABELS REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LM3859001 1 SIDE COVER R ASSY chg 1-1 LM3858001 1 SHADE FILM add 2 LM3558001 1 SIDE COVER L 3 LM3560001 1 TOP COVER ASSY 3-1 LJ5301001 1 LCDLMG161S6-TPT 3-2 LJ9452001 1 BACK LIGHT PCB ASSY AML B512176 3-3 LJ9439001 1 PANEL PCB ASSY AML B512175 4 LM3449001 1 PRINTED PANEL COVER US 4 LM3742001 1 PRINTED PANEL COVER EUR 4 LM3915001 1 PRINTED PANEL COVER CHN ADD 5 LM3573001 1 ACCESS COVER 6 LM3635001 1 COVER DX (HL-6050 ONLY) 7 LM3856001 7 SHOULDER SCREW chg 8 LJ7350001 1 BROTHER EMBLEM 9 LM3575001 1 PRINTED LCD COVER ASSY 6050D 9 LM3746001 1 PRINTED LCD COVER ASSY 6050DN 9 LM3754001 1 PRINTED LCD COVER ASSY 6050 10 LJ0908001 1 LASER CAUTION LABEL B add 10 UL7931001 1 LASER LABEL LEGEND ADD

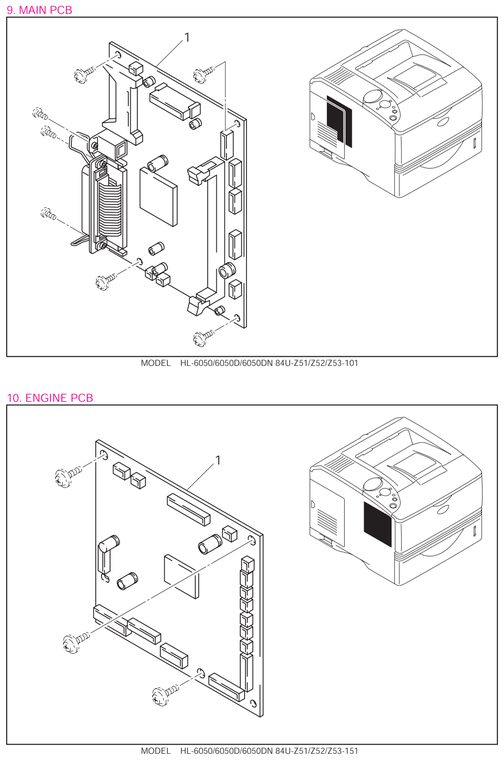

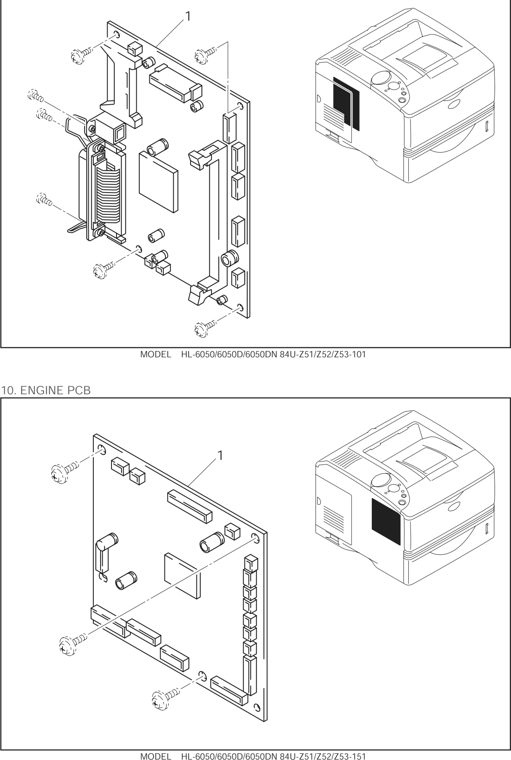

9. MAIN PCB REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LJ9487001 1 MAIN PCB ASSY AML (HL- B512169 1 LJ9665001 1 MAIN PCB ASSY AML CHN B512169 ADD 1 LJ9487002 1 MAIN PCB ASSY AML (HL-6050) B512169 1 LJ9912001 1 ENGINE PCB ASSY AML B512172 CHG

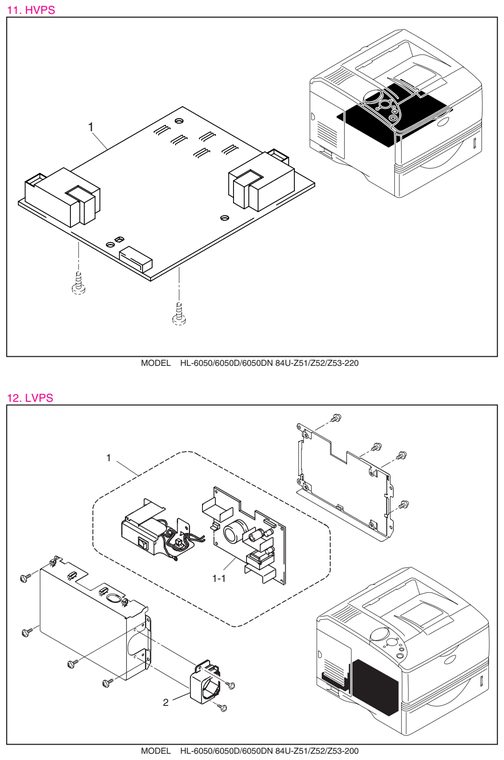

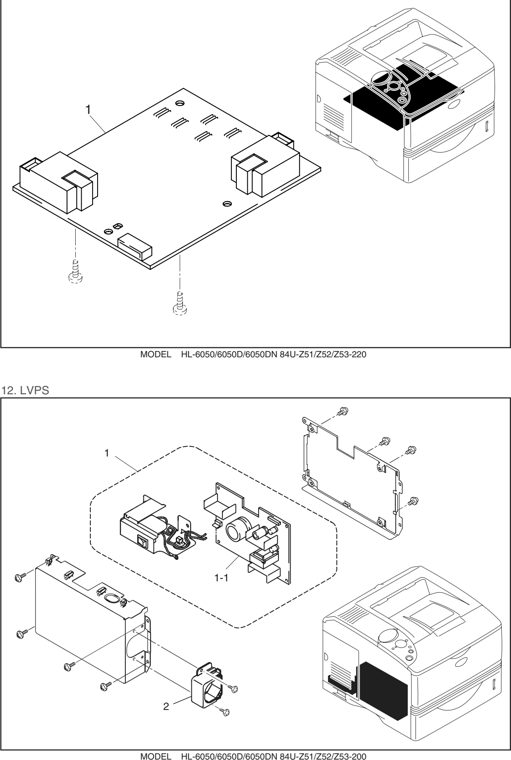

11. HVPS REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LJ9412001 1 HV PS PCB ASSY, AML MPH3257 1 LJ9584001 1 LVPS UNIT AML, 115V 1 LT1660001 1 LVPS UNIT AML, 230V CHG 1 LJ9645001 1 LVPS UNIT AML, 230V CHN add 1-1 LJ9406001 1 LVPS PCB ASSY AML, 115V MPS2203 1-1 LJ9405001 1 LVPS PCB ASSY AML, 230V MPS2103 1-1 LJ9642001 1 LVPS PCB ASSY AML, 230V CHN MPS2103 add 2 LM3815001 1 FAN 40 SPONGE ASSY

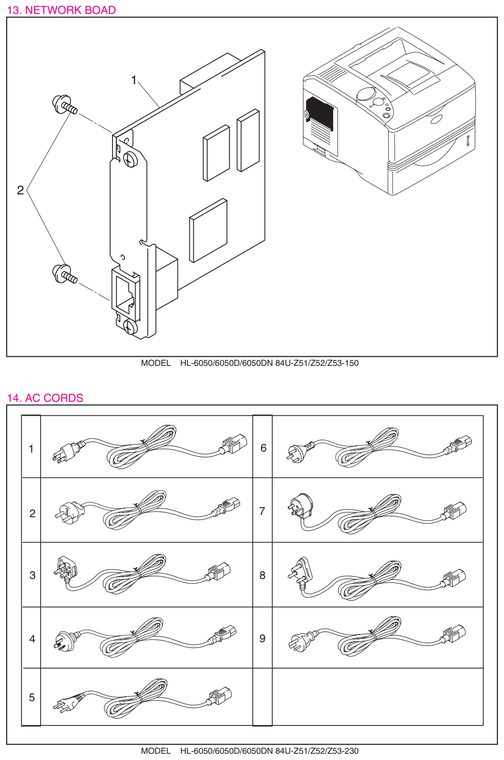

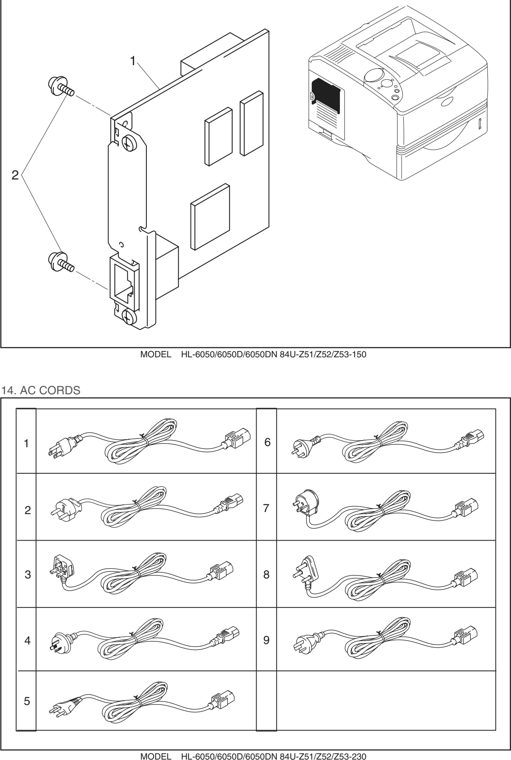

13. NETWORK BOARD REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LJ9536001 1 NC-6100H PCB UNIT 2 087320616 2 TAPTITE, CUP S M3X6 1 LJ9271001 1 AC CORD ASSY LF, UL/CSA 10A 2 LJ9103001 1 AC CORD ASSY LF, VDE 3 LV0367001 1 AC CORD ASSY LF, BS/PSB chg 4 LV0365001 1 AC CORD LF, SAA chg 5 LV0946001 1 AC CORD ASSY LF, SEV CHG 6 LJ9256001 1 AC CORD ASSY LF, DEMKO 7 LM9288001 1 AC CORD ASSY LF, ISRAEL chg 8 LJ9295001 1 AC CORD ASSY LF, SOUTH AFRICA 9 LV0361001 1 AC CORD ASSY LF, CHN chg

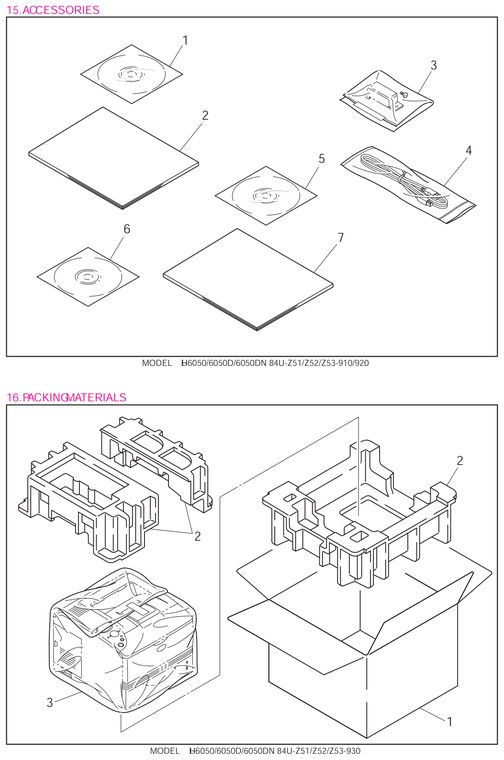

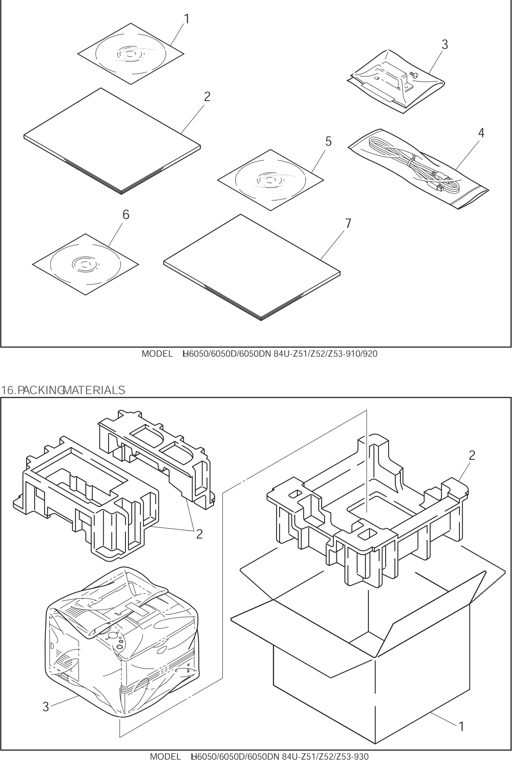

15. ACCESSORIES REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LJ1846001 1 CD ASSY 6050D/6050DN/6050 chg 1 LM3918001 1 CD ASSY 6050D/6050DN CHN add 2 LJ1844001 1 SET GUIDE ENG chg 2 LM3744001 1 SET GUIDE GER 2 LJ1845001 1 SET GUIDE FRE chg 2 LM3777001 1 SET GUIDE DEN 2 LM3778001 1 SET GUIDE SPA 2 LM3779001 1 SET GUIDE POR 2 LM3780001 1 SET GUIDE SWI/ITA 2 LM3781001 1 SET GUIDE DUT 2 LM3782001 1 SET GUIDE NOR/SWE 2 LM3917001 1 SET GUIDE CHN add 3 LM3470001 1 COMPACT FLASH GUARD ASSY add 4 LJ9803001 1 USB CABLE 2.0 CHN add 5 LU0428001 1 CD-ROM ASSY VISTA 6050D/6050DN/6050 add 5 LU0426001 1 CD-ROM ASSY VISTA 6050D/6050DN CHN add 6 LU1163001 1 CD ASSY WIN7 6050D/6050DN/6050 *1 ADD 6 LU1162001 1 CD ASSY WIN7 6050D/6050DN CHN ADD 7 LU0354001 1 SETUP GUIDE VISTA ENG *2 add 7 LU0356001 1 SETUP GUIDE VISTA FRE *3 add 7 LU7878001 1 SETUP GUIDE VI/7 ENG *1 ADD 7 LU7880001 1 SETUP GUIDE VI/7 FRE *4 ADD 7 LU7879001 1 SETUP GUIDE VI/7 GER CHG 7 LU7881001 1 SETUP GUIDE VI/7 DUT CHG 7 LU7882001 1 SETUP GUIDE VI/7 SWI/ITA CHG 7 LU7883001 1 SETUP GUIDE VI/7 SPA CHG 7 LU7884001 1 SETUP GUIDE VI/7 POR CHG 7 LU7885001 1 SETUP GUIDE VI/7 NOR CHG 7 LU7886001 1 SETUP GUIDE VI/7 SWE CHG 7 LU7887001 1 SETUP GUIDE VI/7 DEN CHG 7 LU7890001 1 SETUP GUIDE VI/7 CHN CHG 1 LM3706001 1 CARTON, HL-6050D US 1 LM3708001 1 CARTON, HL-6050DN US 1 LM3707001 1 CARTON, HL-6050D EUR 1 LM3709001 1 CARTON, HL-6050DN EUR 1 LM3710001 1 CARTON, HL-6050 EUR 1 LM3920001 1 CARTON, HL-6050D CHN add 1 LM3921001 1 CARTON, HL-6050DN CHN add 2 LM3735001 1 POLYSTYRENE PAD ASSY HL-6050 3 LJ0763001 1 BAG, 1000X1000H

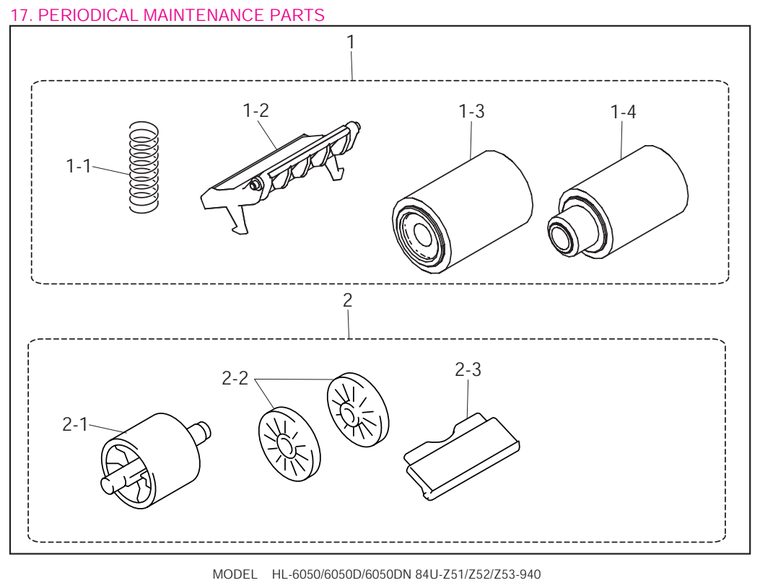

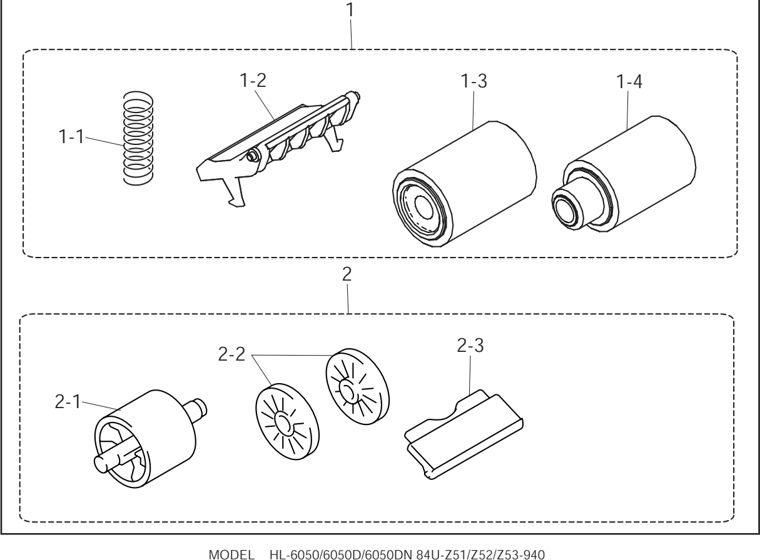

17. PERIODICAL MAINTENANCE PARTS REF.NO. CODE Q'TY DESCRIPTION REMARK 1 LU0523001 1 PAPER FEEDING KIT 1 CHG LU0523001 Paper Feed Roller Kit New LU0523001 (New) $73.44 1-1 LM3546001 1 SEPARATION PAD SPRING *1 1-2 LM3543001 1 SEPARATION PAD ASSY *1 1-3 LM3454001 1 SEPARATION ROLLER ASSY *2 1-4 LU0496001 1 FEED ROLLER ASSY 1 *2 CHG 2 LM3844001 1 PAPER FEEDING KIT MP add 2-1 LJ5016001 1 PAPER PICK-UP ROLLER ASSY *2 add 2-2 LJ5150001 2 ROLLER COLLAR *2 add 2-3 LJ5184001 1 SEPARATION PLATE ASSY*2 add
