Brother HL-720 HL-730 HL-730PLUS Parts
Please call for parts assistance

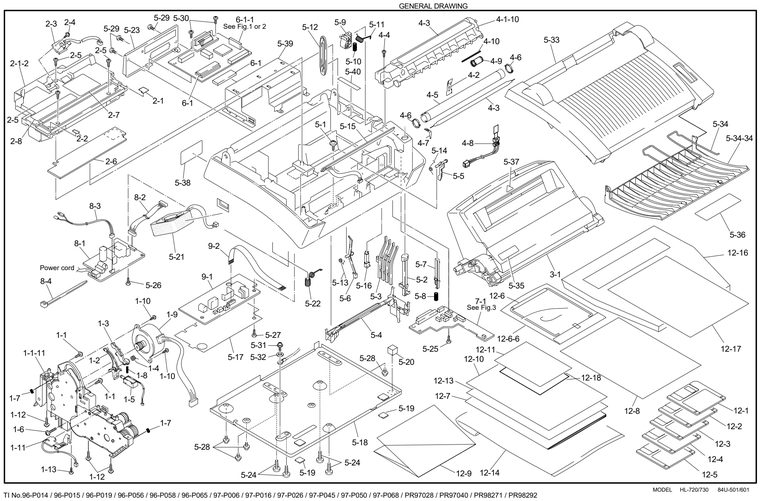

| 1. FRAME / DRIVE 1 087411615 TAPTITE, CUP B M4X16 1-11 UL6997001 DRIVE UNIT (SP) 2 UL6573000 PAPER PICK-UP SOLENOID LEVER 3 UL6574000 CLUTCH RELEASE LEVER 4 UL6575001 SOLENOID LEVER RETURN SPRING 5 UL6576001 PAPER PICK-UP SOLENOID ASSY 6 087322015 TAPTITE, CUP S M3X20 7 UL6577001 CLUTCH GEAR SPRING 8 UL6579001 CLUTCH HOLDER SPRING 9 UL6578001 MAIN MOTOR ASSY 10 087320616 TAPTITE, CUP S M3X6 11 UK3125001 DRUM GROUND PCB ASSY 12 087412016 TAPTITE, CUP B M4X20 13 085411215 TAPTITE, BIND B M4X12 MODEL HL-720/730 84U-501/601-010 TI NO.96-P021 / 96-P024 / 96-P036 |  |
| 2. SCANNER 1 UL6614001 S SHEET 1 1-2 UL6875001 SCANNER UNIT (SP) 2 UL6615001 S SHEET 2 3 UK3073001 TONER SENSOR PCB ASSY 4 087310815 TAPTITE, CUP B M3X8 5 085411215 TAPTITE, BIND B M4X12 6 UL6611001 S SEAL SPONGE 1 7 UL6740001 LASER CAUTION LABEL, EUR 7 UL7931001 LASER CAUTION LABEL, LEGEND 8 UL6741001 CAUTION LABEL, TONER MODEL HL-720/730 84U-501/601-020 | |
| 3. PAPER TRAY 1 UL6876001 MP TRAY ASSY (SP), GRAY1227 MODEL HL-720/730 84U-501/601-040 | |
| 4. FIXING UNIT 1 UL6879001 FU LAMP, 120V (SP) 1 UL6880001 FU LAMP, 240V (SP) 1-10 UL6877001 FIXING UNIT, 120V (SP) 1-10 UL6878001 FIXING UNIT, 240V (SP) 1-10 UL7934001 FIXING UNIT, 240V LEGEND (SP) 1-10 UU7442001 FIXING UNIT, 240V PFA (SP) 2 UL6616001 CLEANER ASSY 3 UL6688001 CAUTION LABEL 3 UL7928001 CAUTION LABEL, LEGEND 4 085411215 TAPTITE, BIND B M4X12 5 UL0984001 HEAT ROLLER ASSY (SP) 5 UL8495001 HEAT ROLLER ASSY, PFA (SP) 6 UL6673001 H/R BEARING 7 UL6677000 ELECTRODE PLATE 8 UL6667001 THERMISTOR ASSY 9 UL6681001 EJECT PINCH ROLLER ASSY 10 UL6682001 PINCH SPRING MODEL HL-720/730 84U-501/601-050/051/053 TI NO. 96-P056 / 97-P072 / PR97028 / PR97032 / PR98271 / PR98292 / PR99076 | |
| 5. CABINET 1 087310815 TAPTITE, CUP B M3X8 2 UL6714001 SW KEY, GRAY1227 3 UL6715001 PANEL LIGT GUIDE 4 UL6716001 DUCT LID 5 UL6936001 PAPER EJECT ACTUATOR ASSY, BLACK 6 UL6935001 REGIST SENSOR ACTUATOR ASSY, BLACK 7 UL6719000 INTERLOCK LEVER 8 UL6720001 SPRING, COMPRESSION 9 UL6721000 LOCK LEVER 10 UL6722001 SPRING, COMPRESSION 11 UL6723001 PR LOCK SPRING 12 UL6729000 TOP COVER LINK 13 UL6930001 SPRING, TORSION 14 UL6931001 SPRING, TORSION EX 15 UL6887001 EL PCB UNIT 16 UL6853001 DENSITY DIAL, GRAY1252 17 UL6725000 INSULATION SHEET 18 UL6728000 BASE PLATE 19 UL5600001 RUBBER FOOT 20 UL6864001 PCB SUPPORT 21 UL6934001 FAN MOTOR ASSY 22 UL6973000 DRUM GROUND SPRING 23 UL6731001 I/F SHIELD ASSY 24 085411215 TAPTITE, BIND B M4X12 25 085411215 TAPTITE, BIND B M4X12 26 085411215 TAPTITE, BIND B M4X12 27 085411215 TAPTITE, BIND B M4X12 28 087320616 TAPTITE, CUP S M3X6 29 002400616 SCREW, PAN M4X6 30 087320616 TAPTITE, CUP S M3X6 31 UL6915001 SCREW, PAN (WASHER) M4X6 32 025040235 WASHER, PLAIN M 4 33 UL6703001 TOP COVER, GRAY1227 34 UL6736001 PAPER EJECT TRAY EXTENSION 34-34 UL6735001 PAPER EJECT TRAY ASSY, GRAY1227 35 UL6581001 MODEL PLATE, HL-720 USA/CAN 35 UL6737001 MODEL PLATE, HL-730 USA/CAN 35 UL6944001 MODEL PLATE, HL-720 EUR 35 UL6945001 MODEL PLATE, HL-730 EUR 35 UL7530001 MODEL PLATE, HL-730DX USA/CAN 35 UL7549001 MODEL PLATE, HL-730 LEGEND 35 UL7763001 MODEL PLATE, HL-730 KOR OEM SSANG YONG 35 UL7814001 MODEL PLATE, HL-730+ USA/CAN 35 UL7815001 MODEL PLATE, HL-730+ EUR 35 UL7818001 MODEL PLATE, HL-730DX+ USA/CAN 35 UL7935001 MODEL PLATE, HL-720 LEGEND 36 UL6580001 MYLAR LABEL, USA HL-720 36 UL6743001 MYLAR LABEL, USA HL-730 36 UL6953001 MYLAR LABEL, CAN HL-720 36 UL6954001 MYLAR LABEL, CAN HL-730/730DX 36 UL7531001 MYLAR LABEL, USA HL-730DX 36 UL7819001 MYLAR LABEL, USA HL-730+ 36 UL7820001 MYLAR LABEL, CAN HL-730+/730DX+ 36 UL7821001 MYLAR LABEL, USA HL-730DX+ 37 UL5738001 PAPER SET LABEL, USA/CAN 38 UH0905001 PATENT LABEL, USA/CSA HL-730/730DX 39 UL6724000 MAIN SHIELD 40 UL7940001 GUIDE FILM MODEL HL-720/730 84U-501/601-060 TI NO. 96-P012 / 96-P014 / 96-P015 / 96-P026 / 96-P076 / 97-P016 / 97-P060 / 97-P068 / 97-P076 / PR97040 | |

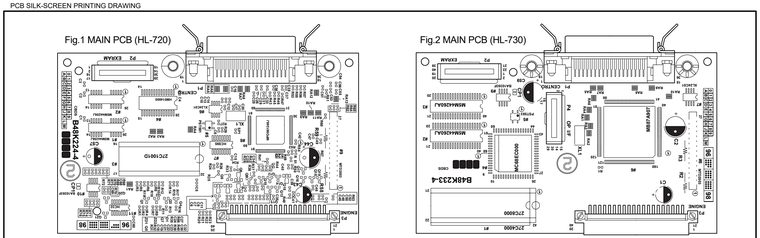

| 6. MAIN PCB 1 UK3551001 PROM:HL730HEB ASSY, HL-730/730+ MODEL HL-720/730 84U-501/601-102/101/104/105/106 TI NO.96-P012 / 96-P024 / 96-P036 / 96-P062 / 97-P015 / 97-P016 / 97-P076 / PR98042 1 UK3671001 MASK ROM:KM23C4100C HL-730/730+ 1-1 UK3593001 MAIN PCB ASSY W (SP), HL-720 1-1 UK3594001 MAIN PCB ASSY P (SP), HL-730/730DX 1-1 UK3597001 MAIN PCB ASSY P (SP), HEB HL-730 1-1 UK3703001 MAIN PCB ASSY 1M (SP), HL-730+/730DX+ 1-1 UK3704001 MAIN PCB ASSY 1M (SP) HEB, HL-730+ 1-1 UK3730001 MAIN PCB ASSY W (SP), LEGEND HL-720 |  |

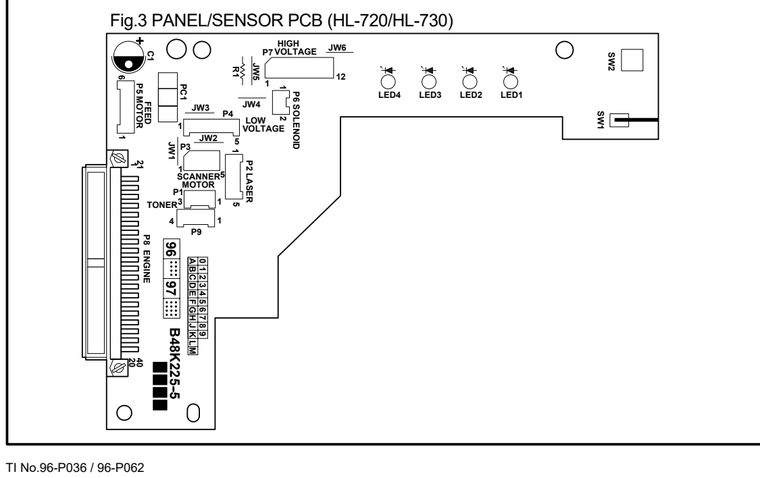

| 7. PANEL / SENSOR PCB 1 UK3189001 PANEL/SENSOR PCB ASSY (SP) MODEL HL-720/730 84U-501/601-151 |  |
| 8. LOW-VOLTAGE POWER SUPPLY UNIT 2 UK3061001 LV HARNESS ASSY 3 UK3062001 HEATER HARNESS ASSY 4 J02101051 BINDER 2.3X79 MODEL HL-720/730 84U-501/601-200/201 TI NO.96-P072 | |
| 9. HIGH-VOLTAGE POWER SUPPLY UNIT 1 UK3192001 HIGH-VOLTAGE PS PCB ASSY (SP) 2 UK3059000 HV FLAT CABLE 12 MODEL HL-720/730 84U-501/601-220 | |
| 10. POWER CORDS 1A UK3135001 AC CORD ASSY, USA 1B UK3138001 AC CORD ASSY, UK 1C UK3141001 AC CORD ASSY, EUR 1D UK3144001 AC CORD ASSY, SAA 1E UK3147001 AC CORD ASSY, SEV 1G UK3151001 AC CORD ASSY, HEB 1H UK3152001 AC CORD ASSY, S.AF 1I UK3217001 AC CORD ASSY, CHLI 1J UK3831001 AC CORD ASSY, CHN MODEL HL-720/730 84U-501/601-230 TI NO. 96-P012 / 96-P051 / 97-P044 / PR97146 / PR98037 1F UK3971001 AC CORD ASSY, DEMKO | |
| 12. DOCUMENTS 1 UK3155001 PR DRIVER DISK ASSY 1, WINDOWS HL-730/730DX 1 UK3181001 PR DRIVER DISK ASSY 1, WINDOWS HL-720 1 UK3243001 PR DRIVER DISK ASSY 1, WINDOWS LEGEND HL-730 1 UK3566001 PR DRIVER DISK ASSY 1, WINDOWS ISR HL-730 1 UK3571001 PR DRIVER DISK ASSY 1, WINDOWS KOR HL-730 1 UK3636001 PR DRIVER DISK ASSY 1, WINDOWS KOR OEM SSANG YONG 1 UK3672001 PR DRIVER DISK ASSY 1, WINDOWS HL-730+/730DX+ 1 UK3688001 PR DRIVER DISK ASSY 1, WINDOWS ISR HL-730+ 1 UK3726001 PR DRIVER DISK ASSY 1, WINDOWS LEGEND HL-720 2 UK3157001 PR DRIVER DISK ASSY 2, FONT&DOS HL-730/730DX 2 UK3183001 PR DRIVER DISK ASSY 2, FONT&DOS HL-720 2 UK3245001 PR DRIVER DISK ASSY 2, FONT&DOS LEGEND HL-730 2 UK3568001 PR DRIVER DISK ASSY 2, FONT&DOS ISR HL-730 2 UK3573001 PR DRIVER DISK ASSY 2, FONT&DOS KOR HL-730 2 UK3638001 PR DRIVER DISK ASSY 2, FONT&DOS KOR OEM SSANG YONG 2 UK3674001 PR DRIVER DISK ASSY 2, FONT&DOS HL-730+/730DX+ 2 UK3690001 PR DRIVER DISK ASSY 2, FONT&DOS ISR HL-730+ 2 UK3728001 PR DRIVER DISK ASSY 2, FONT&DOS LEGEND HL-720 3 UK3159001 PR DRIVER DISK ASSY 3, PCL5 USA/CAN HL-730/730DX 4 UK3676001 PR DRIVER DISK ASSY 3, INTERNET HL-730+/730DX+ 4 UK3714001 PR DRIVER DISK ASSY 5, NT4.0 CANADA 5 UK3686001 PR DRIVER DISK ASSY 4, PCL5E USA/CAN HL-730+/730DX+ 5 UK3732001 PR DRIVER DISK ASSY 6, ARABIC 6 UL7158001 TE TUBE 6-6 UE2188001 TRAY EXTENSION BAG ASSY 7 UL6857001 USER'S MANUAL, USA HL-720/730/730DX 7 UL6862001 USER'S MANUAL, GER HL-720/730 7 UL6951001 USER'S MANUAL, ITA HL-720/730 7 UL7055001 USER'S MANUAL, KOR HL-720/730 7 UL7495001 USER'S MANUAL, DEN HL-720/730 7 UL7510001 USER'S MANUAL, FRA HL-720/730 7 UL7511001 USER'S MANUAL, NOR HL-720/730 7 UL7512001 USER'S MANUAL, NLD HL-720/730 7 UL7513001 USER'S MANUAL, SWE HL-720/730 7 UL7765001 USER'S MANUAL, KOR OEM SSANG YONG 8 UL6858001 SET GUIDE, USA HL-720/730/730DX 8 UL6863001 SET GUIDE, GER HL-720/730 8 UL6952001 SET GUIDE, ITA HL-720/730 8 UL7056001 SET GUIDE, KOR HL-720/730 8 UL7496001 SET GUIDE, DEN HL-720/730 8 UL7514001 SET GUIDE, FRA HL-720/730 8 UL7515001 SET GUIDE, NOR HL-720/730 8 UL7516001 SET GUIDE, NLD HL-720/730 8 UL7517001 SET GUIDE, SWE HL-720/730 8 UL7775001 SET GUIDE, KOR OEM SSANG YONG 9 237703001 WARRANTY CARD, DUTCH 9 UH2693001 WARRANTY CARD, CAN 9 UL6859001 WARRANTY CARD, USA 9 UL7484001 WARRANTY CARD 2, CAN HL-730DX 9 UL7581001 WARRANTY CARD, FRA2 10 UL7426001 SC INSERTION SHEET, USA 11 UH3294001 ACCESSORY ORDER F, CANADA 11 UL6860001 ACCESSORY ORDER F, USA HL-730/730DX 11 UL6868001 ACCESSORY ORDER F, USA HL-720 11 UL7865001 ACCESSORY ORDER F, USA HL-730+ 13 UL7538001 PCL5E INSERTION, USA/CAN HL-730/730DX 14 UE2014001 BAG, 215X350H 16 UL6955001 DUST COVER MODEL HL-720/730 84U-501/601-920 17 UL6996001 INSERTION DC 18 UL7916001 HL-730+ INSERTION SHEET CHN MODEL HL-720/730 84U-501/601-920 TI NO. 96-P014/96-P019/96-P020/96-P030/96-P037/96-P038/96-P040/96-P45/96-P052/96-P058/96-P065 /96-P076/97-P006/97-P007/97-P016/97-P017/97-P018/97-P050/97-P061/97-P069/97-P070/97-P076 /97-P077/97-P080/PR97036/PR98035 | |
| Other listed parts UK3190001 1REV. A UK3190001 1 PS PCB ASSY, 115V (SP) UK3191001 1REV. A UK3191001 1 PS PCB ASSY, 230V (SP) |
