Brother Parts For DCP-L5500D DXP-L5500DN DCP-L5502DN DCP-L5600DN DCP-L5602DN DCP-L5650DN DCP-L5652DN DCP-L6600DW MFC-8530DN MFC-8535DN MFC-8540DN MFC-L5700DN MFC-L5700DW MFC-L5702DW MFC-L5750DW MFC-L5755DW MFC-L5800DW MFC-L5802DW MFC-L5850DW MFC-L5900DW M

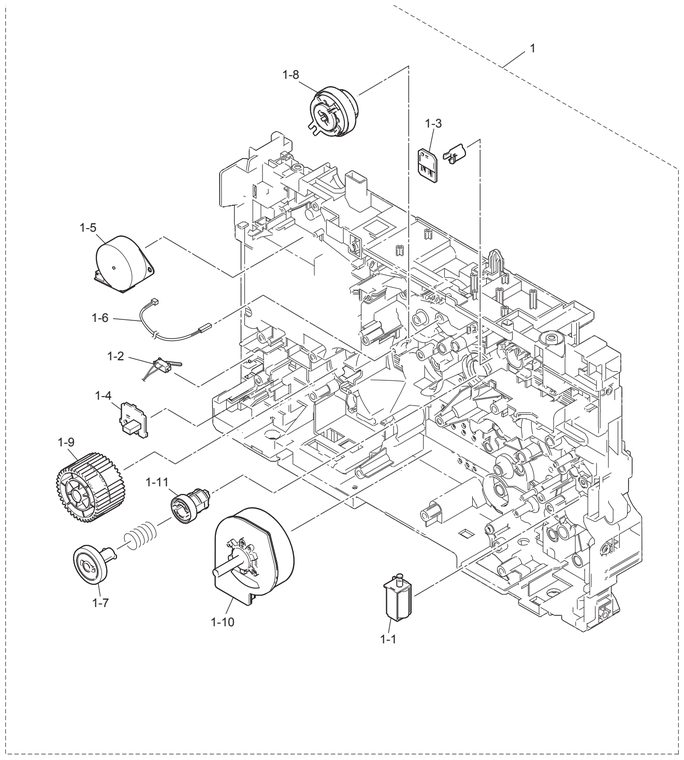

1. FRAME L&DRIVE UNIT

1 D009K4001 1 MAIN FRAME L ASSY (SP) DCP-L5500D

1 D009K4001 1 MAIN FRAME L ASSY (SP) DCP-L5500DN FOR USA

1 D009K5001 1 MAIN FRAME L ASSY (SP) DCP-L5502DN

1 D009K4001 1 MAIN FRAME L ASSY (SP) DCP-L5600DN

1 D009K5001 1 MAIN FRAME L ASSY (SP) DCP-L5602DN

1 D009K4001 1 MAIN FRAME L ASSY (SP) DCP-L5650DN

1 D009K5001 1 MAIN FRAME L ASSY (SP) DCP-L5652DN

1 D009K5001 1 MAIN FRAME L ASSY (SP) MFC-8530DN

1 D009K5001 1 MAIN FRAME L ASSY (SP) MFC-8535DN

1 D009K5001 1 MAIN FRAME L ASSY (SP) MFC-8540DN

1 D009K4001 1 MAIN FRAME L ASSY (SP) MFC-L5700DW

1 D009K5001 1 MAIN FRAME L ASSY (SP) MFC-L5702DW

1 D009K4001 1 MAIN FRAME L ASSY (SP) MFC-L5755DW

1 D009K4001 1 MAIN FRAME L ASSY (SP) MFC-L5800DW

1 D009K5001 1 MAIN FRAME L ASSY (SP) MFC-L5802DW

1 D009K4001 1 MAIN FRAME L ASSY (SP) MFC-L5850DW

1 D009K4001 1 MAIN FRAME L ASSY (SP) MFC-L5900DW

1 D009K5001 1 MAIN FRAME L ASSY (SP) MFC-L5902DW

1 D009K6001 1 MAIN FRAME L ASSY (SP) MFC-L6700DW

1 D009K7001 1 MAIN FRAME L ASSY (SP) MFC-L6702DW

1 D009K6001 1 MAIN FRAME L ASSY (SP) MFC-L6750DW

1 D009K6001 1 MAIN FRAME L ASSY (SP) MFC-L6800DW FOR USA/ISR

1 D009K6001 1 MAIN FRAME L ASSY (SP) MFC-L6900DWG

1 D009K6001 1 MAIN FRAME L ASSY (SP) MFC-L6900DWX

1 D009K7001 1 MAIN FRAME L ASSY (SP) MFC-L6902DW

1 D009K7001 1 MAIN FRAME L ASSY (SP) MFC-L6950DW

1 D009K7001 1 MAIN FRAME L ASSY (SP) MFC-L6970DW

1-1 LU9352001 1 MP SOLENOID

1-2 D000YK001 1 BACK COVER/DUPLEX TRAY SENSOR HARNESS

1-3 D0000L001 1 TONER SENSOR PCB ASSY

1-4 D0001C001 1 EXTERNAL TEMPERATURE/HUMIDITY SENSOR

1-5 D00054001 1 EJECT MOTOR

1-6 D001BA001 1 INTERNAL TEMPERATURE SENSOR

1-7 LY4382001 1 DEVELOP JOINT GEAR 37

1-8 LY4408001 1 DEVELOP CLUTCH 51R

1-9 LY4450001 1 FUSER DRIVE GEAR 39

1-10 LY4378001 1 PAPER FEED MOTOR DCP-L5500D

1-10 LY4378001 1 PAPER FEED MOTOR DCP-L5500DN

1-10 LY4378001 1 PAPER FEED MOTOR DCP-L5502DN

1-10 LY4378001 1 PAPER FEED MOTOR DCP-L5600DN

1-10 LY4378001 1 PAPER FEED MOTOR DCP-L5602DN

1-10 LY4378001 1 PAPER FEED MOTOR DCP-L5650DN

1-10 LY4378001 1 PAPER FEED MOTOR DCP-L5652DN

1-10 D000TC001 1 PAPER FEED MOTOR DCP-L6600DW

1-10 LY4378001 1 PAPER FEED MOTOR MFC-8530DN

1-10 LY4378001 1 PAPER FEED MOTOR MFC-8535DN

1-10 LY4378001 1 PAPER FEED MOTOR MFC-8540DN

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5700DN

1-10 LY4378001 1 PAPER FEED MOTOR MFC-

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5702DW

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5750DW

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5755DW

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5800DW

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5802DW

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5850DW

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5900DW

1-10 LY4378001 1 PAPER FEED MOTOR MFC-L5902DW

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6700DW

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6702DW

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6750DW

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6800DW

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6900DW

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6900DWG

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6900DWX

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6902DW

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6950DW

1-10 D000TC001 1 PAPER FEED MOTOR MFC-L6970DW

1-11 LY4380001 1 DEVELOP JOINT DCP-L5500D

1-11 LY4380001 1 DEVELOP JOINT DCP-L5500DN FOR USA

1-11 D001Y5001 1 DEVELOP JOINT DCP-L5502DN

1-11 LY4380001 1 DEVELOP JOINT DCP-L5600DN

1-11 D001Y5001 1 DEVELOP JOINT DCP-L5602DN

1-11 LY4380001 1 DEVELOP JOINT DCP-L5650DN

1-11 D001Y5001 1 DEVELOP JOINT DCP-L5652DN

1-11 D001Y5001 1 DEVELOP JOINT MFC-8530DN

1-11 D001Y5001 1 DEVELOP JOINT MFC-8535DN

1-11 D001Y5001 1 DEVELOP JOINT MFC-8540DN

1-11 LY4380001 1 DEVELOP JOINT MFC-L5700DW

1-11 D001Y5001 1 DEVELOP JOINT MFC-L5702DW

1-11 LY4380001 1 DEVELOP JOINT MFC-L5755DW

1-11 LY4380001 1 DEVELOP JOINT MFC-L5800DW

1-11 D001Y5001 1 DEVELOP JOINT MFC-L5802DW

1-11 LY4380001 1 DEVELOP JOINT MFC-L5850DW

1-11 LY4380001 1 DEVELOP JOINT MFC-L5900DW

1-11 D001Y5001 1 DEVELOP JOINT MFC-L5902DW

1-11 LY4380001 1 DEVELOP JOINT MFC-L6700DW

1-11 D001Y5001 1 DEVELOP JOINT MFC-L6702DW

1-11 LY4380001 1 DEVELOP JOINT MFC-L6750DW

1-11 LY4380001 1 DEVELOP JOINT MFC-L6800DW FOR USA/ISR

1-11 LY4380001 1 DEVELOP JOINT MFC-L6900DWG

1-11 LY4380001 1 DEVELOP JOINT MFC-L6900DWX

1-11 D001Y5001 1 DEVELOP JOINT MFC-L6902DW

1-11 D001Y5001 1 DEVELOP JOINT MFC-L6950DW

1-11 D001Y5001 1 DEVELOP JOINT MFC-L6970DW

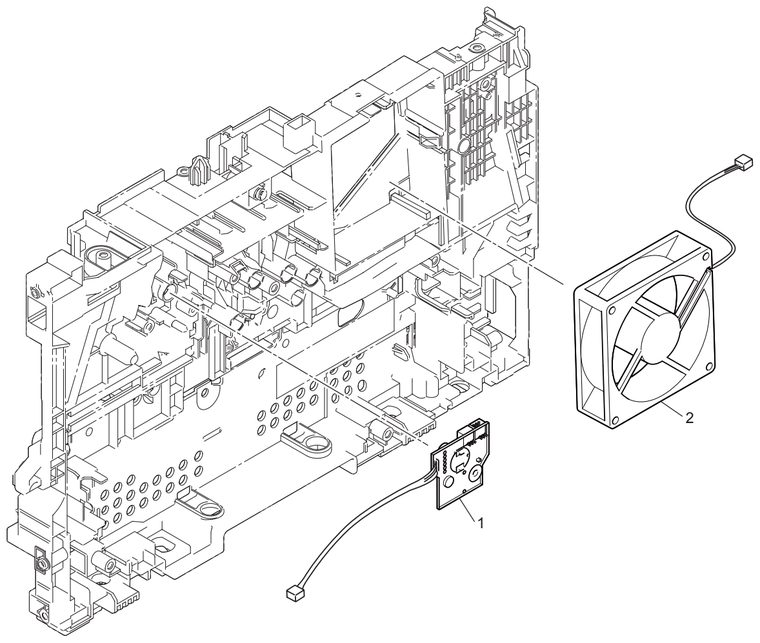

2. FRAME R UNIT

1 D0000M002 1 TONER LED PCB ASSY

2 D000BE001 1 MAIN FAN

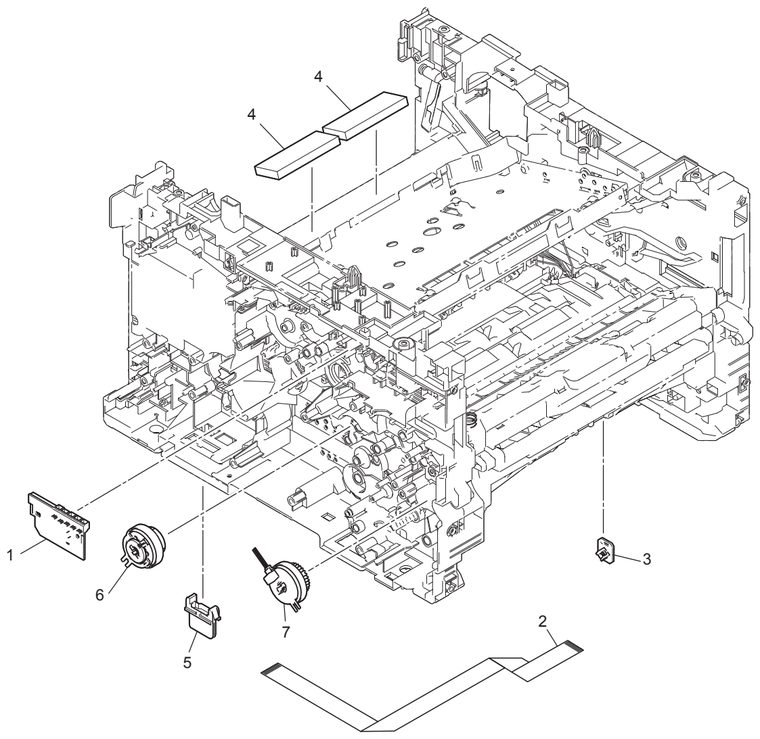

3. FRAME

1 D0000N001 1 NEW TONER SENSOR RELAY PCB ASSY*1

2 D0000U001 1 MAIN HVPS FLAT CABLE

3 D0050V001 1 T1 PAPER FEED SENSOR PCB ASSY

4 D00RH8001 2 FILTER chg

5 LM9266001 1 LT/TT CONNECTOR

6 LY4332001 1 REGISTRATION CLUTCH

7 LY4335001 1 T1 PICKUP CLUTCH

*1 Part names is changed as because it is not easy to find where the New toner sensor is. October, 2019.

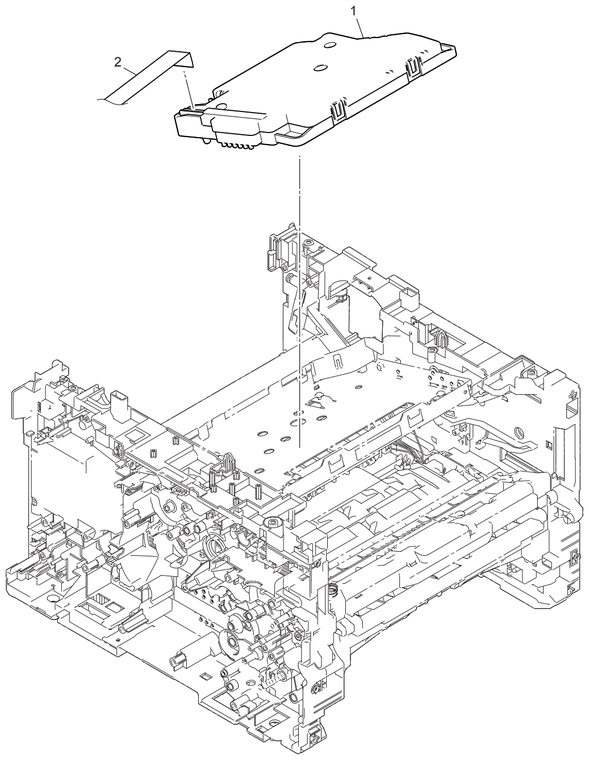

4. LASER UNIT

1 D002ZC001 1 LASER UNIT (SP) DCP-L5500D

1 D002ZC001 1 LASER UNIT (SP) DCP-L5500DN

1 D002ZC001 1 LASER UNIT (SP) DCP-L5502DN

1 D002ZC001 1 LASER UNIT (SP) DCP-L5600DN

1 D002ZC001 1 LASER UNIT (SP) DCP-L5602DN

1 D002ZC001 1 LASER UNIT (SP) DCP-L5650DN

1 D002ZC001 1 LASER UNIT (SP) DCP-L5652DN

1 D002ZG001 1 LASER UNIT (SP) DCP-L6600DW

1 D002ZC001 1 LASER UNIT (SP) MFC-8530DN

1 D002ZC001 1 LASER UNIT (SP) MFC-8535DN

1 D002ZC001 1 LASER UNIT (SP) MFC-8540DN

1 D002ZC001 1 LASER UNIT (SP) MFC-L5700DN

1 D002ZC001 1 LASER UNIT (SP) MFC-L5700DW

1 D002ZC001 1 LASER UNIT (SP) MFC-L5702DW

1 D002ZC001 1 LASER UNIT (SP) MFC-L5750DW

1 D002ZC001 1 LASER UNIT (SP) MFC-L5755DW

1 D002ZC001 1 LASER UNIT (SP) MFC-L5800DW

1 D002ZC001 1 LASER UNIT (SP) MFC-L5802DW

1 D002ZC001 1 LASER UNIT (SP) MFC-L5850DW

1 D002ZC001 1 LASER UNIT (SP) MFC-L5900DW

1 D002ZC001 1 LASER UNIT (SP) MFC-L5902DW

1 D002ZG001 1 LASER UNIT (SP) MFC-L6700DW

1 D002ZG001 1 LASER UNIT (SP) MFC-L6702DW

1 D002ZG001 1 LASER UNIT (SP) MFC-L6750DW

1 D002ZG001 1 LASER UNIT (SP) MFC-L6800DW

1 D002ZG001 1 LASER UNIT (SP) MFC-L6900DW

1 D002ZG001 1 LASER UNIT (SP) MFC-L6900DWG

1 D002ZG001 1 LASER UNIT (SP) MFC-L6900DWX

1 D002ZG001 1 LASER UNIT (SP) MFC-L6902DW

1 D002ZG001 1 LASER UNIT (SP) MFC-L6950DW

1 D002ZG001 1 LASER UNIT (SP) MFC-L6970DW

2 D00010001 1 FFC HARNESS MAIN-LD DL

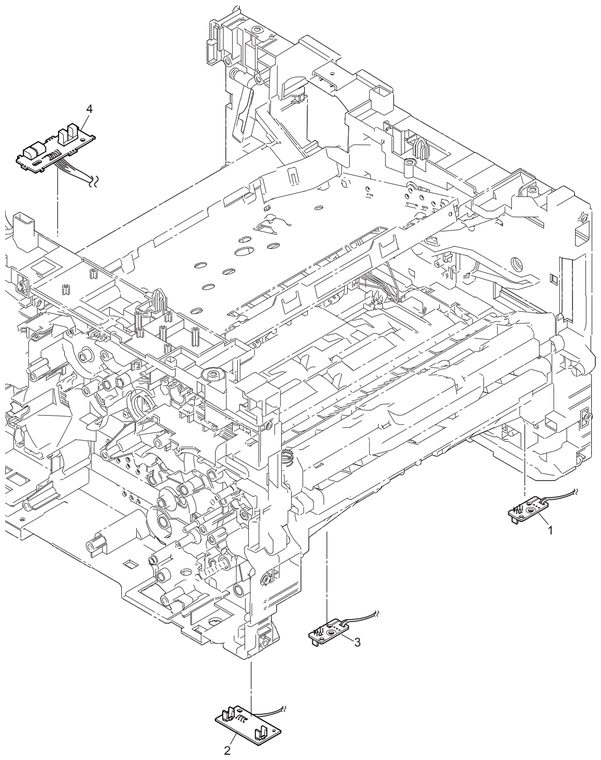

5. PAPER FEEDER

1 LV0789001 1 MP PAPER EMPTY SENSOR PCB ASSY

2 D00510001 1 REGISTRATION FRONT/REAR SENSOR PCB ASSY

3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY DCP-L6600DW

3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY MFC-L6800DW

3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY MFC-L6900DW

3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY MFC-L6900DWG

3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY MFC-L6900DWX

3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY MFC-L6902DW

3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY MFC-L6950DW

3 D001CW001 1 PAPER EMPTY SENSOR PCB ASSY MFC-L6970DW

4 D005KT001 1 EJECT SENSOR PCB ASSY

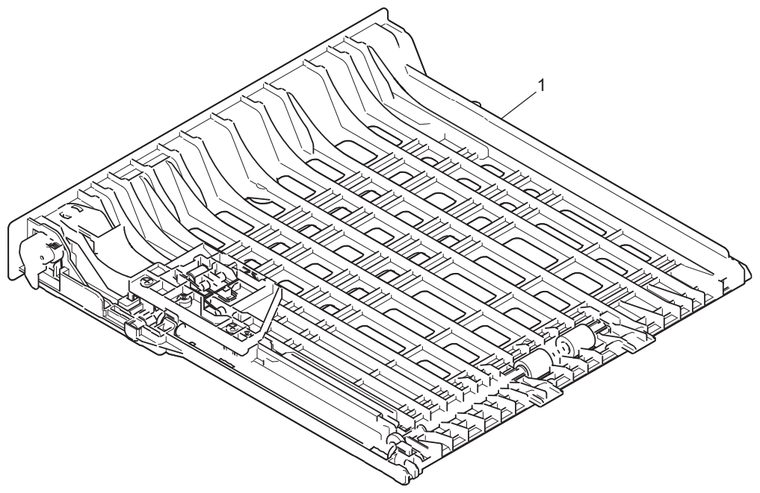

6. DX

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) DCP-L5500D

1 D008UJ001 1 DUPLEX TRAY LTR(SP) DCP-L5500DN FOR USA

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) DCP-L5502DN

1 D008UJ001 1 DUPLEX TRAY LTR(SP) DCP-L5600DN FOR USA

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) DCP-L5602DN

1 D008UJ001 1 DUPLEX TRAY LTR(SP) DCP-L5650DN FOR USA

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) DCP-L5652DN

1 D008UH001 1 DUPLEX TRAY A4 CHN(SP) MFC-8530DN

1 D008UH001 1 DUPLEX TRAY A4 CHN(SP) MFC-8535DN

1 D008UH001 1 DUPLEX TRAY A4 CHN(SP) MFC-8540DN

1 D008UJ001 1 DUPLEX TRAY LTR(SP) MFC-L5700DW FOR USA/CAN

1 D008UG001 1 DUPLEX TRAY A4(SP) MFC-L5700DW FOR KOR

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) MFC-L5702DW

1 D008UG001 1 DUPLEX TRAY A4(SP) MFC-L5750DW

1 D008UJ001 1 DUPLEX TRAY LTR(SP) MFC-L5800DW FOR USA/CAN

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) MFC-L5800DW FOR ARG

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) MFC-L5802DW

1 D008UJ001 1 DUPLEX TRAY LTR(SP) MFC-L5850DW

1 D008UJ001 1 DUPLEX TRAY LTR(SP) MFC-L5900DW FOR USA/CAN

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) MFC-L5902DW

1 D008UJ001 1 DUPLEX TRAY LTR(SP) MFC-L6700DW FOR USA/CAN/MEX

1 D008UK001 1 DUPLEX TRAY UNIVERSAL(SP) MFC-L6702DW

1 D008UJ002 1 DUPLEX TRAY LTR(SP) MFC-L6750DW

1 D008UJ001 1 DUPLEX TRAY LTR(SP) MFC-L6800DW FOR USA

1 D008UJ002 1 DUPLEX TRAY LTR(SP) MFC-L6900DW FOR USA/CAN/MEX

1 D008UJ002 1 DUPLEX TRAY LTR(SP) MFC-L6900DWG

1 D008UJ002 1 DUPLEX TRAY LTR(SP) MFC-L6900DWX

1 D008UK002 1 DUPLEX TRAY UNIVERSAL(SP) MFC-L6902DW

1 D008UG002 1 DUPLEX TRAY A4(SP) MFC-L6950DW

1 D008UG002 1 DUPLEX TRAY A4(SP) MFC-L6970DW

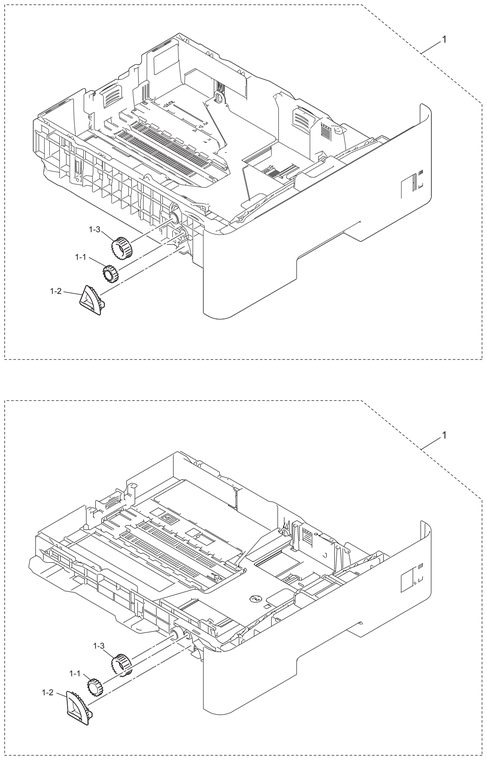

7. PAPER CASSETTE

1 D00551001 1 PAPER TRAY (SP) DCP-L5500D

1 D00551001 1 PAPER TRAY (SP) DCP-L5500DN

1 D00551001 1 PAPER TRAY (SP) DCP-L5502DN

1 D00551001 1 PAPER TRAY (SP) DCP-L5600DN

1 D00551001 1 PAPER TRAY (SP) DCP-L5602DN

1 D00551001 1 PAPER TRAY (SP) DCP-L5650DN

1 D00551001 1 PAPER TRAY (SP) DCP-L5652DN

1 D00690002 1 PAPER TRAY (SP) DCP-L6600DW

1 D008XD001 1 PAPER TRAY (SP) MFC-8530DN

1 D008XD001 1 PAPER TRAY (SP) MFC-8535DN

1 D008XD001 1 PAPER TRAY (SP) MFC-8540DN

1 D00551001 1 PAPER TRAY (SP) MFC-L5700DN

1 D00551001 1 PAPER TRAY (SP) MFC-L5700DW

1 D00551001 1 PAPER TRAY (SP) MFC-L5702DW

1 D00551001 1 PAPER TRAY (SP) MFC-L5750DW

1 D00551001 1 PAPER TRAY (SP) MFC-L5755DW

1 D00551001 1 PAPER TRAY (SP) MFC-L5800DW

1 D00551001 1 PAPER TRAY (SP) MFC-L5802DW

1 D00551001 1 PAPER TRAY (SP) MFC-L5850DW

1 D00551001 1 PAPER TRAY (SP) MFC-L5900DW

1 D00551001 1 PAPER TRAY (SP) MFC-L5902DW

1 D00690001 1 PAPER TRAY (SP) MFC-L6700DW

1 D00690001 1 PAPER TRAY (SP) MFC-L6702DW

1 D00690002 1 PAPER TRAY (SP) MFC-L6750DW

1 D00690001 1 PAPER TRAY (SP) MFC-L6800DW FOR USA

1 D00690002 1 PAPER TRAY (SP) MFC-L6900DW

1 D00690002 1 PAPER TRAY (SP) MFC-L6900DWG

1 D00690002 1 PAPER TRAY (SP) MFC-L6900DWX

1 D00690002 1 PAPER TRAY (SP) MFC-L6902DW

1 D00690002 1 PAPER TRAY (SP) MFC-L6950DW

1 D00690002 1 PAPER TRAY (SP) MFC-L6970DW

1-1 LY4242001 1 IDLE GEAR Z18M10 DCP-L5500D

1-1 LY4242001 1 IDLE GEAR Z18M10 DCP-L5500DN

1-1 LY4242001 1 IDLE GEAR Z18M10 DCP-L5502DN

1-1 LY4242001 1 IDLE GEAR Z18M10 DCP-L5600DN

1-1 LY4242001 1 IDLE GEAR Z18M10 DCP-L5602DN

1-1 LY4242001 1 IDLE GEAR Z18M10 DCP-L5650DN

1-1 LY4242001 1 IDLE GEAR Z18M10 DCP-L5652DN

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 DCP-L6600DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-8530DN

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-8535DN

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-8540DN

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5700DN

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5700DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5702DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5750DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5755DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5800DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5802DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5850DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5900DW

1-1 LY4242001 1 IDLE GEAR Z18M10 MFC-L5902DW

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6700DW

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6702DW

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6750DW

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6800DW

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6900DW

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6900DWG

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6900DWX

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6902DW

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6950DW

1-1 LU9365001 1 IDLE GEAR 50 Z18M10 MFC-L6970DW

1-2 LY4241001 1 LIFT GEAR Z27M10 DCP-L5500D

1-2 LY4241001 1 LIFT GEAR Z27M10 DCP-L5500DN

1-2 LY4241001 1 LIFT GEAR Z27M10 DCP-L5502DN

1-2 LY4241001 1 LIFT GEAR Z27M10 DCP-L5600DN

1-2 LY4241001 1 LIFT GEAR Z27M10 DCP-L5602DN

1-2 LY4241001 1 LIFT GEAR Z27M10 DCP-L5650DN

1-2 LY4241001 1 LIFT GEAR Z27M10 DCP-L5652DN

1-2 LY4516001 1 LIFT GEAR Z48M10 DCP-L6600DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-8530DN

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-8535DN

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-8540DN

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5700DN

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5700DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5702DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5750DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5755DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5800DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5802DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5850DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5900DW

1-2 LY4241001 1 LIFT GEAR Z27M10 MFC-L5902DW

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6700DW

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6702DW

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6750DW

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6800DW

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6900DW

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6900DWG

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6900DWX

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6902DW

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6950DW

1-2 LY4516001 1 LIFT GEAR Z48M10 MFC-L6970DW

1-3 LY4243001 1 GEAR Z22M10 DCP-L5500D

1-3 LY4243001 1 GEAR Z22M10 DCP-L5500DN

1-3 LY4243001 1 GEAR Z22M10 DCP-L5502DN

1-3 LY4243001 1 GEAR Z22M10 DCP-L5600DN

1-3 LY4243001 1 GEAR Z22M10 DCP-L5602DN

1-3 LY4243001 1 GEAR Z22M10 DCP-L5650DN

1-3 LY4243001 1 GEAR Z22M10 DCP-L5652DN

1-3 LY4243001 1 GEAR Z22M10 DCP-L6600DW

1-3 LY4243001 1 GEAR Z22M10 MFC-8530DN

1-3 LY4243001 1 GEAR Z22M10 MFC-8535DN

1-3 LY4243001 1 GEAR Z22M10 MFC-8540DN

1-3 LY4243001 1 GEAR Z22M10 MFC-L5700DN

1-3 LY4243001 1 GEAR Z22M10 MFC-L5700DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L5702DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L5750DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L5755DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L5800DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L5802DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L5850DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L5900DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L5902DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L6700DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L6702DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L6750DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L6800DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L6900DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L6900DWG

1-3 LY4243001 1 GEAR Z22M10 MFC-L6902DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L6950DW

1-3 LY4243001 1 GEAR Z22M10 MFC-L6970DW

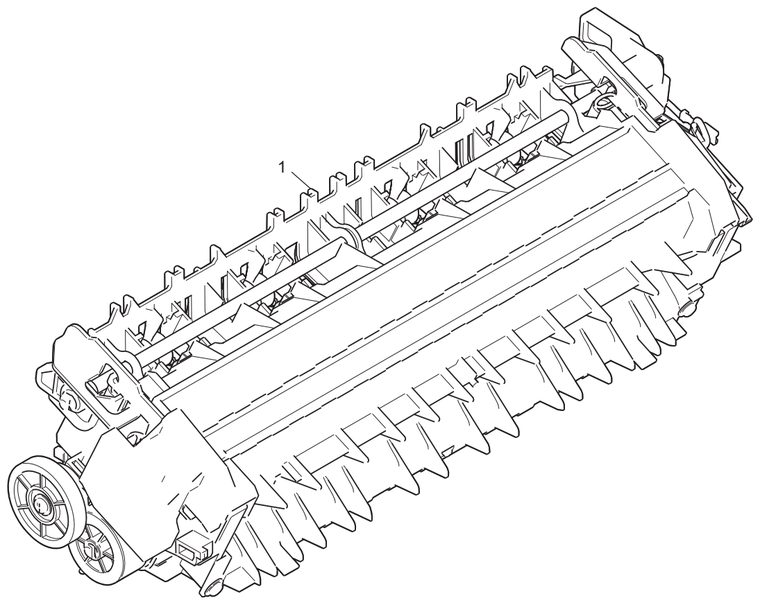

8. FUSER UNIT

1 D00V9P001 1 FUSER UNIT (SP) DCP-L5500D CHG

1 D00V9H001 1 FUSER UNIT (SP) DCP-L5500DN FOR USA

1 D00V9Z001 1 FUSER UNIT (SP) DCP-L5502DN CHG

1 D00V9H001 1 FUSER UNIT (SP) DCP-L5600DN FOR USA CHG

1 D00V9Z001 1 FUSER UNIT (SP) DCP-L5602DN CHG

1 D00V9H001 1 FUSER UNIT (SP) DCP-L5650DN FOR USA CHG

1 D00V9Z001 1 FUSER UNIT (SP) DCP-L5652DN CHG

1 D00V9P001 1 FUSER UNIT (SP) MFC-8530DN CHG

1 D00V9P001 1 FUSER UNIT (SP) MFC-8535DN CHG

1 D00V9P001 1 FUSER UNIT (SP) MFC-8540DN CHG

1 D00V9H001 1 FUSER UNIT (SP) MFC-L5700DN FOR TWN CHG

1 D00V9H001 1 FUSER UNIT (SP) MFC-L5700DW FOR USA/CAN CHG

1 D00V9Z001 1 FUSER UNIT (SP) MFC-L5702DW CHG

1 D00V9P001 1 FUSER UNIT (SP) MFC-L5750DW CHG

1 D00V9P001 1 FUSER UNIT (SP) MFC-L5755DW CHG

1 D00V9H001 1 FUSER UNIT (SP) MFC-L5800DW FOR USA/CAN CHG

1 D00V9Z001 1 FUSER UNIT (SP) MFC-L5802DW CHG

1 D00V9H001 1 FUSER UNIT (SP) MFC-L5850DW CHG

1 D00V9H001 1 FUSER UNIT (SP) MFC-L5900DW FOR USA/CAN CHG

1 D00V9Z001 1 FUSER UNIT (SP) MFC-L5902DW CHG

1 D00V9L001 1 FUSER UNIT (SP) MFC-L6700DW FOR USA/CAN CHG

1 D00V9L001 1 FUSER UNIT (SP) MFC-L6700DW FOR MEX

1 D00V9X001 1 FUSER UNIT (SP) MFC-L6702DW CHG

1 D00V9L001 1 FUSER UNIT (SP) MFC-L6750DW CHG

1 D00V9L001 1 FUSER UNIT (SP) MFC-L6800DW FOR USA CHG

1 D00V9L001 1 FUSER UNIT (SP) MFC-L6900DW FOR USA/CAN/TWN CHG

1 D00V9L001 1 FUSER UNIT (SP) MFC-L6900DWG CHG

1 D00V9L001 1 FUSER UNIT (SP) MFC-L6900DWX CHG

1 D00V9X001 1 FUSER UNIT (SP) MFC-L6902DW CHG

1 D00V9U001 1 FUSER UNIT (SP) MFC-L6950DW CHG

1 D00V9U001 1 FUSER UNIT (SP) MFC-L6970DW CHG

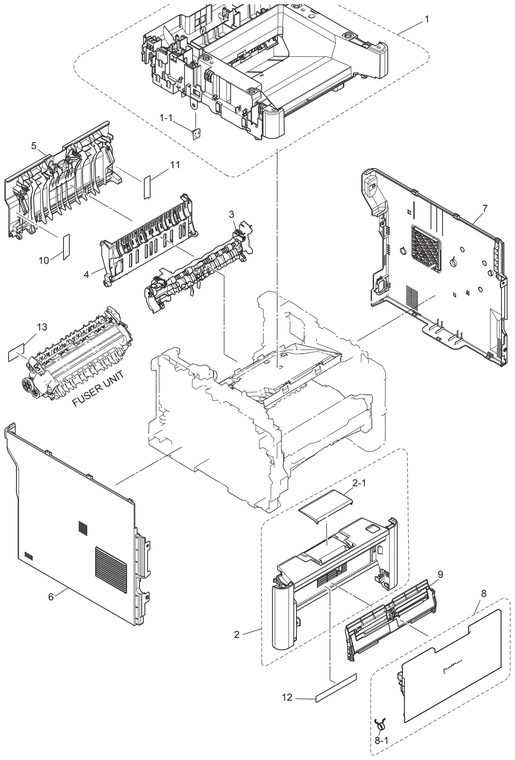

9. COVERS & LABELS

1 D008U3001 1 JOINT COVER ASSY DLFB(SP) DCP-L5500D

1 D008U3001 1 JOINT COVER ASSY DLFB(SP) DCP-L5500DN

1 D008U3001 1 JOINT COVER ASSY DLFB(SP) DCP-L5502DN

1 D008U3001 1 JOINT COVER ASSY DLFB(SP) DCP-L5600DN

1 D008U3001 1 JOINT COVER ASSY DLFB(SP) DCP-L5602DN

1 D008U3001 1 JOINT COVER ASSY DLFB(SP) DCP-L5650DN

1 D008U3001 1 JOINT COVER ASSY DLFB(SP) DCP-L5652DN

1 D00AVG001 1 JOINT COVER ASSY DLFB(SP) DCP-L6600DW chg

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-8530DN

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-8535DN

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-8540DN

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5700DN

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5700DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5702DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5750DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5755DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5800DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5802DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5850DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5900DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L5902DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L6700DW

1 D008U9001 1 JOINT COVER ASSY DLFB(SP) MFC-L6702DW

1 D008U9002 1 JOINT COVER ASSY DLFB(SP) MFC-L6750DW

1 D00AVH001 1 JOINT COVER ASSY DLFB(SP) MFC-L6800DW FOR USA chg

1 D008UA002 1 JOINT COVER ASSY DLFB(SP) MFC-L6900DW

1 D008UA002 1 JOINT COVER ASSY DLFB(SP) MFC-L6900DWG

1 D008UA002 1 JOINT COVER ASSY DLFB(SP) MFC-L6900DWX

1 D008UA002 1 JOINT COVER ASSY DLFB(SP) MFC-L6902DW

1 D008UA002 1 JOINT COVER ASSY DLFB(SP) MFC-L6950DW

1 D008UA002 1 JOINT COVER ASSY DLFB(SP) MFC-L6970DW

1-1 D000CX001 1 STACK SENSOR PCB ASSY DCP-L6600DW

1-1 D000CX001 1 STACK SENSOR PCB ASSY MFC-L6800DW

1-1 D000CX001 1 STACK SENSOR PCB ASSY MFC-L6900DW

1-1 D000CX001 1 STACK SENSOR PCB ASSY MFC-L6900DWG

1-1 D000CX001 1 STACK SENSOR PCB ASSY MFC-L6900DWX

1-1 D000CX001 1 STACK SENSOR PCB ASSY MFC-L6902DW

1-1 D000CX001 1 STACK SENSOR PCB ASSY MFC-L6950DW

1-1 D000CX001 1 STACK SENSOR PCB ASSY MFC-L6970DW

2 D005TN001 1 FRONT COVER ASSY DCP-L5500D

2 D00884001 1 FRONT COVER ASSY DCP-L5500DN FOR USA

2 D003SY001 1 FRONT COVER ASSY DCP-L5502DN

2 D00884001 1 FRONT COVER ASSY DCP-L5600DN FOR USA

2 D005TJ001 1 FRONT COVER ASSY DCP-L5600DN FOR ARG

2 D003TA001 1 FRONT COVER ASSY DCP-L5600DN FOR ASA/IND

2 D003SY001 1 FRONT COVER ASSY DCP-L5602DN

2 D00884001 1 FRONT COVER ASSY DCP-L5650DN FOR USA

2 D005TJ001 1 FRONT COVER ASSY DCP-L5650DN FOR ARG/CHL

2 D003SY001 1 FRONT COVER ASSY DCP-L5652DN

2 D005SZ002 1 FRONT COVER ASSY DCP-L6600DW FOR ISR

2 D005TJ002 1 FRONT COVER ASSY DCP-L6600DW FOR ARG

2 D005TM001 1 FRONT COVER ASSY MFC-8530DN

2 D005TM001 1 FRONT COVER ASSY MFC-8535DN

2 D005TM001 1 FRONT COVER ASSY MFC-8540DN

2 D00884001 1 FRONT COVER ASSY MFC-L5700DW FOR USA/CAN

2 D003SY001 1 FRONT COVER ASSY MFC-L5702DW

2 D00884001 1 FRONT COVER ASSY MFC-L5800DW FOR USA/CAN

2 D003SY001 1 FRONT COVER ASSY MFC-L5802DW

2 D00884001 1 FRONT COVER ASSY MFC-L5850DW

2 D00884001 1 FRONT COVER ASSY MFC-L5900DW FOR USA/CAN

2 D003UA001 1 FRONT COVER ASSY MFC-L6700DW FOR USA/CAN/MEX

2 D003SY001 1 FRONT COVER ASSY MFC-L6702DW

2 D003UA002 1 FRONT COVER ASSY MFC-L6750DW

2 D003UA001 1 FRONT COVER ASSY MFC-L6800DW FOR USA

2 D003UA002 1 FRONT COVER ASSY MFC-L6900DW FOR USA/CAN/MEX

2 D003UA002 1 FRONT COVER ASSY MFC-L6900DWG

2 D003UA002 1 FRONT COVER ASSY MFC-L6900DWX

2 D003SY002 1 FRONT COVER ASSY MFC-L6902DW

2 D000U4002 1 FRONT COVER ASSY MFC-L6950DW

2 D000U4002 1 FRONT COVER ASSY MFC-L6970DW

2-1 D0005D003 1 PAPER STOPPER DCP-L5500D

2-1 D0005D003 1 PAPER STOPPER DCP-L5500DN

2-1 D0005D003 1 PAPER STOPPER DCP-L5502DN

2-1 D0005D003 1 PAPER STOPPER DCP-L5600DN

2-1 D0005D003 1 PAPER STOPPER DCP-L5602DN

2-1 D0005D003 1 PAPER STOPPER DCP-L5650DN

2-1 D0005D003 1 PAPER STOPPER DCP-L5652DN

2-1 D0005D004 1 PAPER STOPPER DCP-L6600DW

2-1 D0005D003 1 PAPER STOPPER MFC-8530DN

2-1 D0005D003 1 PAPER STOPPER MFC-8535DN

2-1 D0005D003 1 PAPER STOPPER MFC-8540DN

2-1 D0005D003 1 PAPER STOPPER MFC-L5700DN

2-1 D0005D003 1 PAPER STOPPER MFC-L5700DW

2-1 D0005D003 1 PAPER STOPPER MFC-L5702DW

2-1 D0005D003 1 PAPER STOPPER MFC-L5750DW

2-1 D0005D003 1 PAPER STOPPER MFC-L5755DW

2-1 D0005D003 1 PAPER STOPPER MFC-L5800DW

2-1 D0005D003 1 PAPER STOPPER MFC-L5802DW

2-1 D0005D003 1 PAPER STOPPER MFC-L5850DW

2-1 D0005D003 1 PAPER STOPPER MFC-L5900DW

2-1 D0005D003 1 PAPER STOPPER MFC-L5902DW

2-1 D0005D003 1 PAPER STOPPER MFC-L6700DW

2-1 D0005D003 1 PAPER STOPPER MFC-L6702DW

2-1 D0005D004 1 PAPER STOPPER MFC-L6750DW

2-1 D0005D003 1 PAPER STOPPER MFC-L6800DW FOR USA

2-1 D0005D004 1 PAPER STOPPER MFC-L6900DW

2-1 D0005D004 1 PAPER STOPPER MFC-L6900DWG

2-1 D0005D004 1 PAPER STOPPER MFC-L6900DWX

2-1 D0005D004 1 PAPER STOPPER MFC-L6902DW

2-1 D0005D004 1 PAPER STOPPER MFC-L6950DW

2-1 D0005D004 1 PAPER STOPPER MFC-L6970DW

3 D005WD001 1 FUSER COVER

4 D00FF5001 1 OUTER CHUTE chg

5 D001BB001 1 BACK COVER DCP-L5500D

5 D001BB001 1 BACK COVER DCP-L5500DN

5 D001BB001 1 BACK COVER DCP-L5502DN

5 D001BB001 1 BACK COVER DCP-L5600DN

5 D001BB001 1 BACK COVER DCP-L5602DN

5 D001BB001 1 BACK COVER DCP-L5650DN

5 D001BB001 1 BACK COVER DCP-L5652DN

5 D001BB002 1 BACK COVER DCP-L6600DW

5 D003VB001 1 BACK COVER MFC-8530DN chg

5 D003VB001 1 BACK COVER MFC-8535DN chg

5 D003VB001 1 BACK COVER MFC-8540DN chg

5 D001BB001 1 BACK COVER MFC-L5700DN

5 D001BB001 1 BACK COVER MFC-L5700DW

5 D001BB001 1 BACK COVER MFC-L5702DW

5 D001BB001 1 BACK COVER MFC-L5750DW

5 D001BB001 1 BACK COVER MFC-L5755DW

5 D001BB001 1 BACK COVER MFC-L5800DW

5 D001BB001 1 BACK COVER MFC-L5802DW

5 D001BB001 1 BACK COVER MFC-L5850DW

5 D001BB001 1 BACK COVER MFC-L5900DW

5 D001BB001 1 BACK COVER MFC-L5902DW

5 D001BB001 1 BACK COVER MFC-L6700DW

5 D001BB001 1 BACK COVER MFC-L6702DW

5 D001BB002 1 BACK COVER MFC-L6750DW

5 D001BB001 1 BACK COVER MFC-L6800DW FOR USA

5 D001BB002 1 BACK COVER MFC-L6900DW

5 D001BB002 1 BACK COVER MFC-L6900DWG

5 D001BB002 1 BACK COVER MFC-L6900DWX

5 D001BB002 1 BACK COVER MFC-L6902DW

5 D001BB002 1 BACK COVER MFC-L6950DW

5 D001BB002 1 BACK COVER MFC-L6970DW

6 D008NS001 1 SIDE COVER L DCP-L5500D

6 D003XA001 1 SIDE COVER L DCP-L5500DN

6 D003XA001 1 SIDE COVER L DCP-L5502DN

6 D003XA001 1 SIDE COVER L DCP-L5600DN

6 D003XA001 1 SIDE COVER L DCP-L5602DN

6 D003XA001 1 SIDE COVER L DCP-L5650DN

6 D003XA001 1 SIDE COVER L DCP-L5652DN

6 D00597002 1 SIDE COVER L DCP-L6600DW

6 D000K6001 1 SIDE COVER L MFC-8530DN

6 D000K6001 1 SIDE COVER L MFC-8535DN

6 D000K6001 1 SIDE COVER L MFC-8540DN

6 D000K6001 1 SIDE COVER L MFC-L5700DN

6 D000K6001 1 SIDE COVER L MFC-L5700DW

6 D000K6001 1 SIDE COVER L MFC-L5702DW

6 D000K6001 1 SIDE COVER L MFC-L5750DW

6 D000K6001 1 SIDE COVER L MFC-L5755DW

6 D000K6001 1 SIDE COVER L MFC-L5800DW

6 D000K6001 1 SIDE COVER L MFC-L5802DW

6 D000K6001 1 SIDE COVER L MFC-L5850DW

6 D000K6001 1 SIDE COVER L MFC-L5900DW

6 D000K6001 1 SIDE COVER L MFC-L5902DW

6 D00225001 1 SIDE COVER L MFC-L6700DW

6 D00225001 1 SIDE COVER L MFC-L6702DW

6 D00225002 1 SIDE COVER L MFC-L6750DW

6 D000U2001 1 SIDE COVER L MFC-L6800DW FOR USA

6 D000U2002 1 SIDE COVER L MFC-L6900DW

6 D000U2002 1 SIDE COVER L MFC-L6900DWG

6 D000U2002 1 SIDE COVER L MFC-L6900DWX

6 D000U2002 1 SIDE COVER L MFC-L6902DW

6 D000U2002 1 SIDE COVER L MFC-L6950DW

6 D000U2002 1 SIDE COVER L MFC-L6970DW

7 D00549001 1 SIDE COVER R DCP-L5500D

7 D00549001 1 SIDE COVER R DCP-L5500DN

7 D00549001 1 SIDE COVER R DCP-L5502DN

7 D00549001 1 SIDE COVER R DCP-L5600DN

7 D00549001 1 SIDE COVER R DCP-L5602DN

7 D00549001 1 SIDE COVER R DCP-L5650DN

7 D00549001 1 SIDE COVER R DCP-L5652DN

7 D00596002 1 SIDE COVER R DCP-L6600DW

7 D0021K001 1 SIDE COVER R MFC-8530DN

7 D0021K001 1 SIDE COVER R MFC-8535DN

7 D0021K001 1 SIDE COVER R MFC-8540DN

7 D000KB001 1 SIDE COVER R MFC-L5700DN

7 D000KB001 1 SIDE COVER R MFC-L5700DW

7 D000KB001 1 SIDE COVER R MFC-L5702DW

7 D000KB001 1 SIDE COVER R MFC-L5750DW

7 D000KB001 1 SIDE COVER R MFC-L5755DW

7 D000KB001 1 SIDE COVER R MFC-L5800DW

7 D000KB001 1 SIDE COVER R MFC-L5802DW

7 D000KB001 1 SIDE COVER R MFC-L5850DW

7 D000KB001 1 SIDE COVER R MFC-L5900DW

7 D000KB001 1 SIDE COVER R MFC-L5902DW

7 D000U0001 1 SIDE COVER R MFC-L6700DW

7 D000U0001 1 SIDE COVER R MFC-L6702DW

7 D000U0002 1 SIDE COVER R MFC-L6750DW

7 D000U0001 1 SIDE COVER R MFC-L6800DW FOR USA

7 D000U0002 1 SIDE COVER R MFC-L6900DW

7 D000U0002 1 SIDE COVER R MFC-L6900DWG

7 D000U0002 1 SIDE COVER R MFC-L6900DWX

7 D000U0002 1 SIDE COVER R MFC-L6902DW

7 D000U0002 1 SIDE COVER R MFC-L6950DW

7 D000U0002 1 SIDE COVER R MFC-L6970DW

8 D008GF001 1 MP TRAY COVER ASSY SP DCP-L5500D

8 D008GF001 1 MP TRAY COVER ASSY SP DCP-L5500DN

8 D008GF001 1 MP TRAY COVER ASSY SP DCP-L5502DN

8 D008GF001 1 MP TRAY COVER ASSY SP DCP-L5600DN

8 D008GF001 1 MP TRAY COVER ASSY SP DCP-L5602DN

8 D008GF001 1 MP TRAY COVER ASSY SP DCP-L5650DN

8 D008GF001 1 MP TRAY COVER ASSY SP DCP-L5652DN

8 D008GG002 1 MP TRAY COVER ASSY SP DCP-L6600DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-8530DN

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-8535DN

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-8540DN

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5700DN

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5700DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5702DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5750DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5755DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5800DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5802DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5850DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5900DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L5902DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L6700DW

8 D008GF001 1 MP TRAY COVER ASSY SP MFC-L6702DW

8 D008GF002 1 MP TRAY COVER ASSY SP MFC-L6750DW

8 D008GG001 1 MP TRAY COVER ASSY SP MFC-L6800DW FOR USA

8 D008GG002 1 MP TRAY COVER ASSY SP MFC-L6900DW

8 D008GG002 1 MP TRAY COVER ASSY SP MFC-L6900DWG

8 D008GG002 1 MP TRAY COVER ASSY SP MFC-L6900DWX

8 D008GG002 1 MP TRAY COVER ASSY SP MFC-L6902DW

8 D008GG002 1 MP TRAY COVER ASSY SP MFC-L6950DW

8 D008GG002 1 MP TRAY COVER ASSY SP MFC-L6970DW

8-1 D000TH001 1 MP DAMPER SPRING DCP-L5500D

8-1 D000TH001 1 MP DAMPER SPRING DCP-L5500DN

8-1 D000TH001 1 MP DAMPER SPRING DCP-L5502DN

8-1 D000TH001 1 MP DAMPER SPRING DCP-L5600DN

8-1 D000TH001 1 MP DAMPER SPRING DCP-L5602DN

8-1 D000TH001 1 MP DAMPER SPRING DCP-L5650DN

8-1 D000TH001 1 MP DAMPER SPRING DCP-L5652DN

8-1 D007PP001 1 MP DAMPER SPRING DCP-L6600DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-8530DN

8-1 D000TH001 1 MP DAMPER SPRING MFC-8535DN

8-1 D000TH001 1 MP DAMPER SPRING MFC-8540DN

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5700DN

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5700DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5702DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5750DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5755DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5800DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5802DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5850DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5900DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L5902DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L6700DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L6702DW

8-1 D000TH001 1 MP DAMPER SPRING MFC-L6750DW

8-1 D007PP001 1 MP DAMPER SPRING MFC-L6800DW

8-1 D007PP001 1 MP DAMPER SPRING MFC-L6900DW

8-1 D007PP001 1 MP DAMPER SPRING MFC-L6900DWG

8-1 D007PP001 1 MP DAMPER SPRING MFC-L6900DWX

8-1 D007PP001 1 MP DAMPER SPRING MFC-L6902DW

8-1 D007PP001 1 MP DAMPER SPRING MFC-L6950DW

8-1 D007PP001 1 MP DAMPER SPRING MFC-L6970DW

9 LY4174006 1 MP PAPER GUIDE ASSY DCP-L5500D

9 LY4174006 1 MP PAPER GUIDE ASSY DCP-L5500DN

9 LY4174006 1 MP PAPER GUIDE ASSY DCP-L5502DN

9 LY4174006 1 MP PAPER GUIDE ASSY DCP-L5600DN

9 LY4174006 1 MP PAPER GUIDE ASSY DCP-L5602DN

9 LY4174006 1 MP PAPER GUIDE ASSY DCP-L5650DN

9 LY4174006 1 MP PAPER GUIDE ASSY DCP-L5652DN

9 D001DW002 1 MP PAPER GUIDE ASSY DCP-L6600DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-8530DN

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-8535DN

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-8540DN

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5700DN

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5700DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5702DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5750DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5755DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5800DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5802DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5850DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5900DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L5902DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L6700DW

9 LY4174006 1 MP PAPER GUIDE ASSY MFC-L6702DW

9 LY4174007 1 MP PAPER GUIDE ASSY MFC-L6750DW

9 D001DW001 1 MP PAPER GUIDE ASSY MFC-L6800DW FOR USA

9 D001DW002 1 MP PAPER GUIDE ASSY MFC-L6900DW

9 D001DW002 1 MP PAPER GUIDE ASSY MFC-L6900DWG

9 D001DW002 1 MP PAPER GUIDE ASSY MFC-L6900DWX

9 D001DW002 1 MP PAPER GUIDE ASSY MFC-L6902DW

9 D001DW002 1 MP PAPER GUIDE ASSY MFC-L6950DW

9 D001DW002 1 MP PAPER GUIDE ASSY MFC-L6970DW

10 D0030F001 1 LABEL H CAUTION REAR 14X42

11 D0030G001 1 LABEL S CAUTION REAR 14X42

12 D003JF001 1 LABEL CAUTION FRONT 14X130 DCP-L5500D

12 D003JD001 1 LABEL CAUTION FRONT 14X130 US3 DCP-L5500DN FOR USA

12 D003JF001 1 LABEL CAUTION FRONT 14X130 DCP-L5502DN

12 D003JD001 1 LABEL CAUTION FRONT 14X130 US3 DCP-L5600DN FOR USA

12 D003JF001 1 LABEL CAUTION FRONT 14X130 DCP-L5602DN

12 D003JD001 1 LABEL CAUTION FRONT 14X130 US3 DCP-L5650DN FOR USA

12 D003JF001 1 LABEL CAUTION FRONT 14X130 DCP-L5652DN

12 D003JF001 1 LABEL CAUTION FRONT 14X130 DCP-L6600DW

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-8530DN

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-8535DN

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-8540DN

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L5700DN

12 D003JD001 1 LABEL CAUTION FRONT 14X130 US3 MFC-L5700DW FOR USA

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L5702DW

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L5750DW

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L5755DW

12 D003JD001 1 LABEL CAUTION FRONT 14X130 US3 MFC-L5800DW FOR USA

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L5802DW

12 D003JD001 1 LABEL CAUTION FRONT 14X130 US3 MFC-L5850DW

12 D003JD001 1 LABEL CAUTION FRONT 14X130 US3 MFC-L5900DW FOR USA

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L5902DW

12 D003JC001 1 LABEL CAUTION FRONT 14X130 US2 MFC-L6700DW FOR USA/MEX

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L6702DW

12 D003JC001 1 LABEL CAUTION FRONT 14X130 US2 MFC-L6750DW

12 D003JC001 1 LABEL CAUTION FRONT 14X130 US2 MFC-L6800DW FOR USA

12 D002RV001 1 LABEL CAUTION FRONT 14X130 US1 MFC-L6900DW FOR USA/MEX

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L6900DWG

12 D002RV001 1 LABEL CAUTION FRONT 14X130 US1 MFC-L6900DWX

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L6902DW

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L6950DW

12 D003JF001 1 LABEL CAUTION FRONT 14X130 MFC-L6970DW

13 D004VK001 1 LABEL REAR JAM 17X55 DL

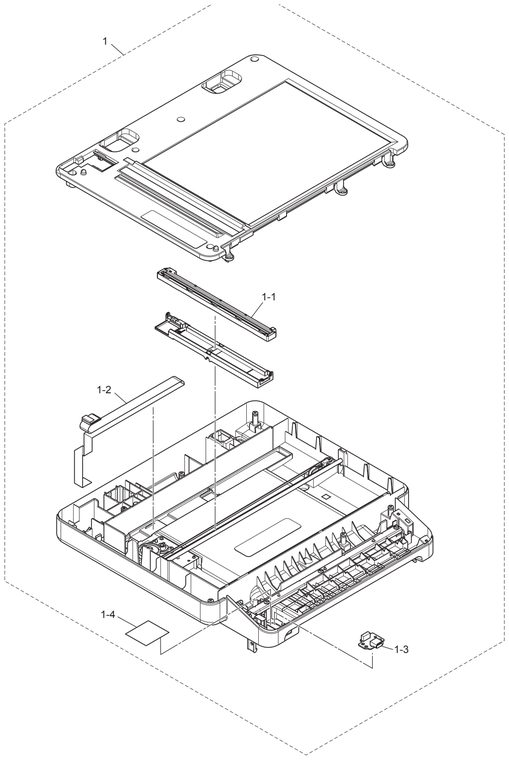

10. DOCUMENT SCANNER

1 D016TB001 1 DOCUMENT SCANNER UNIT(SP)2 *1 DCP-L5500D CHG

1 D016TB001 1 DOCUMENT SCANNER UNIT(SP)2 *1 DCP-L5500DN CHG

1 D016TB001 1 DOCUMENT SCANNER UNIT(SP)2 *1 DCP-L5502DN CHG

1 D016TH001 1 DOCUMENT SCANNER UNIT(SP)2 *1 DCP-L5600DN CHG

1 D016TH001 1 DOCUMENT SCANNER UNIT(SP)2 *1 DCP-L5602DN CHG

1 D016TF001 1 DOCUMENT SCANNER UNIT(SP)2 *1 DCP-L5650DN CHG

1 D016TF001 1 DOCUMENT SCANNER UNIT(SP)2 *1 DCP-L5652DN CHG

1 D016TF002 1 DOCUMENT SCANNER UNIT(SP)2 *1 DCP-L6600DW CHG

1 D016TB001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-8530DN CHG

1 D016TB001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-8535DN CHG

1 D016T9001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-8540DN CHG

1 D016TB001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5700DN CHG

1 D016TB001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5700DW FOR USA/CAN CHG

1 D016TB001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5702DW CHG

1 D016T9001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5750DW CHG

1 D016T9001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5755DW CHG

1 D016TH001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5800DW CHG

1 D016TH001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5802DW CHG

1 D016TH001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5850DW CHG

1 D016TF001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5900DW CHG

1 D016TF001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L5902DW CHG

1 D016TF001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6700DW CHG

1 D016TF001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6702DW CHG

1 D016TF002 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6750DW CHG

1 D016TF001 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6800DW FOR USA CHG

1 D016TF002 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6900DW CHG

1 D016TF002 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6900DWG CHG

1 D016TF002 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6900DWX

1 D016TF002 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6902DW CHG

1 D016TF002 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6950DW CHG

1 D016TF002 1 DOCUMENT SCANNER UNIT(SP)2 *1 MFC-L6970DW CHG

1-1 LT3308001 1 FIRST SIDE CIS UNIT

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE DCP-L5500D

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE DCP-L5500DN

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE DCP-L5502DN

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE DCP-L5600DN

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE DCP-L5602DN

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE DCP-L5650DN

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE DCP-L5652DN

1-2 D000KY002 1 FIRST SIDE CIS FLAT CABLE DCP-L6600DW

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE MFC-8530DN

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE MFC-8535DN

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE MFC-8540DN

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE MFC-L5700DN

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE MFC-L5700DW

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE MFC-L5702DW

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE MFC-L5750DW

1-2 D000L4001 1 FIRST SIDE CIS FLAT CABLE MFC-L5755DW

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE MFC-L5800DW

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE MFC-L5802DW

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE MFC-L5850DW

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE MFC-L5900DW

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE MFC-L5902DW

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE MFC-L6700DW

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE MFC-L6702DW

1-2 D000KY002 1 FIRST SIDE CIS FLAT CABLE MFC-L6750DW

1-2 D000KY001 1 FIRST SIDE CIS FLAT CABLE MFC-L6800DW FOR USA

1-2 D000KY002 1 FIRST SIDE CIS FLAT CABLE MFC-L6900DW

1-2 D000KY002 1 FIRST SIDE CIS FLAT CABLE MFC-L6900DWG

1-2 D000KY002 1 FIRST SIDE CIS FLAT CABLE MFC-L6900DWX

1-2 D000KY002 1 FIRST SIDE CIS FLAT CABLE MFC-L6902DW

1-2 D000KY002 1 FIRST SIDE CIS FLAT CABLE MFC-L6950DW

1-2 D000KY002 1 FIRST SIDE CIS FLAT CABLE MFC-L6970DW

1-3 LV0531001 1 USB HOST PCB ASSY

1-4 D0021V001 1 USB PROTECTION SHEET

*1 On the FB FG harness of DOCUMENT SCANNER UNIT(SP)2,

[Screw cup M3x8(Black)] its screw and terminal was changed as follows.

Since the screw head of the [screw cup M3x8 screw (Black)] will interfere with the new terminal of the FB FG harness, this screw cannot be used. Therefore DOCUMENT SCANNER UNIT(SP)2 include the new in it.And this new can be used for both new and old terminal.

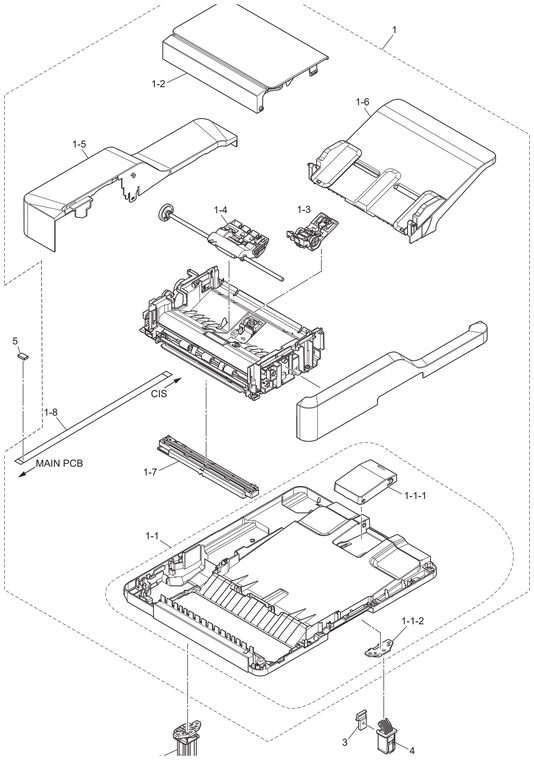

11. ADF & DOCUMENT COVER

1 D0167R001 1 ADF UNIT(SP) DCP-L5500D CHG

1 D0167R001 1 ADF UNIT(SP) DCP-L5500DN CHG

1 D0167R001 1 ADF UNIT(SP) DCP-L5502DN CHG

1 D0167W001 1 ADF UNIT(SP) DCP-L5600DN CHG

1 D0167W001 1 ADF UNIT(SP) DCP-L5602DN CHG

1 D0167S001 1 ADF UNIT(SP) DCP-L5650DN CHG

1 D0167S001 1 ADF UNIT(SP) DCP-L5652DN CHG

1 D0167U002 1 ADF UNIT(SP) DCP-L6600DW CHG

1 D0167R001 1 ADF UNIT(SP) MFC-8530DN CHG

1 D0167R001 1 ADF UNIT(SP) MFC-8535DN CHG

1 D014VS001 1 ADF UNIT(SP) MFC-8540DN CHG

1 D0167R001 1 ADF UNIT(SP) MFC-L5700DN CHG

1 D0167R001 1 ADF UNIT(SP) MFC-L5700DW CHG

1 D0167R001 1 ADF UNIT(SP) MFC-L5702DW CHG

1 D014VS001 1 ADF UNIT(SP) MFC-L5750DW CHG

1 D014VS001 1 ADF UNIT(SP) MFC-L5755DW CHG

1 D0167W001 1 ADF UNIT(SP) MFC-L5800DW CHG

1 D0167W001 1 ADF UNIT(SP) MFC-L5802DW CHG

1 D0167S001 1 ADF UNIT(SP) MFC-L5850DW CHG

1 D0167S001 1 ADF UNIT(SP) MFC-L5900DW CHG

1 D0167S001 1 ADF UNIT(SP) MFC-L5902DW CHG

1 D0167S001 1 ADF UNIT(SP) MFC-L6700DW CHG

1 D0167S001 1 ADF UNIT(SP) MFC-L6702DW CHG

1 D0167S002 1 ADF UNIT(SP) MFC-L6750DW CHG

1 D0167U001 1 ADF UNIT(SP) MFC-L6800DW FOR USA CHG

1 D0167U002 1 ADF UNIT(SP) MFC-L6900DW CHG

1 D0167U002 1 ADF UNIT(SP) MFC-L6900DWG CHG

1 D016TF002 1 ADF UNIT(SP)2 MFC-L6900DWX

1 D0167U002 1 ADF UNIT(SP) MFC-L6902DW CHG

1 D0167U002 1 ADF UNIT(SP) MFC-L6950DW CHG

1 D0167U002 1 ADF UNIT(SP) MFC-L6970DW CHG

1-1 D001R6001 1 DOCUMENT COVER ASSY DCP-L5500D

1-1 D001R6001 1 DOCUMENT COVER ASSY DCP-L5500DN

1-1 D001R6001 1 DOCUMENT COVER ASSY DCP-L5502DN

1-1 D001T4001 1 DOCUMENT COVER ASSY DCP-L5600DN

1-1 D001T4001 1 DOCUMENT COVER ASSY DCP-L5602DN

1-1 D001T4001 1 DOCUMENT COVER ASSY DCP-L5650DN

1-1 D001T4001 1 DOCUMENT COVER ASSY DCP-L5652DN

1-1 D001T4002 1 DOCUMENT COVER ASSY DCP-L6600DW

1-1 D001R6001 1 DOCUMENT COVER ASSY MFC-8530DN

1-1 D001R6001 1 DOCUMENT COVER ASSY MFC-8535DN

1-1 D001R6001 1 DOCUMENT COVER ASSY MFC-8540DN

1-1 D001R6001 1 DOCUMENT COVER ASSY MFC-L5700DN

1-1 D001R6001 1 DOCUMENT COVER ASSY MFC-L5700DW

1-1 D001R6001 1 DOCUMENT COVER ASSY MFC-L5702DW

1-1 D001R6001 1 DOCUMENT COVER ASSY MFC-L5750DW

1-1 D001R6001 1 DOCUMENT COVER ASSY MFC-L5755DW

1-1 D001T4001 1 DOCUMENT COVER ASSY MFC-L5800DW

1-1 D001T4001 1 DOCUMENT COVER ASSY MFC-L5802DW

1-1 D001T4001 1 DOCUMENT COVER ASSY MFC-L5850DW

1-1 D001T4001 1 DOCUMENT COVER ASSY MFC-L5900DW

1-1 D001T4001 1 DOCUMENT COVER ASSY MFC-L5902DW

1-1 D001T4001 1 DOCUMENT COVER ASSY MFC-L6700DW

1-1 D001T4001 1 DOCUMENT COVER ASSY MFC-L6702DW

1-1 D001T4002 1 DOCUMENT COVER ASSY MFC-L6750DW

1-1 D001T4001 1 DOCUMENT COVER ASSY MFC-L6800DW FOR USA

1-1 D001T4002 1 DOCUMENT COVER ASSY MFC-L6900DW

1-1 D001T4002 1 DOCUMENT COVER ASSY MFC-L6900DWG

1-1 D001T4002 1 DOCUMENT COVER ASSY MFC-L6900DWX

1-1 D001T4002 1 DOCUMENT COVER ASSY MFC-L6902DW

1-1 D001T4002 1 DOCUMENT COVER ASSY MFC-L6950DW

1-1 D001T4002 1 DOCUMENT COVER ASSY MFC-L6970DW

1-1-1 D001RA001 1 DOCUMENT STOPPER DCP-L5500D

1-1-1 D001RA001 1 DOCUMENT STOPPER DCP-L5500DN

1-1-1 D001RA001 1 DOCUMENT STOPPER DCP-L5502DN

1-1-1 D000UP001 1 DOCUMENT STOPPER DCP-L5600DN

1-1-1 D000UP001 1 DOCUMENT STOPPER DCP-L5602DN

1-1-1 D000UP001 1 DOCUMENT STOPPER DCP-L5650DN

1-1-1 D000UP001 1 DOCUMENT STOPPER DCP-L5652DN

1-1-1 D000UP002 1 DOCUMENT STOPPER DCP-L6600DW

1-1-1 D001RA001 1 DOCUMENT STOPPER MFC-8530DN

1-1-1 D001RA001 1 DOCUMENT STOPPER MFC-8535DN

1-1-1 D001RA001 1 DOCUMENT STOPPER MFC-8540DN

1-1-1 D001RA001 1 DOCUMENT STOPPER MFC-L5700DN

1-1-1 D001RA001 1 DOCUMENT STOPPER MFC-L5700DW

1-1-1 D001RA001 1 DOCUMENT STOPPER MFC-L5702DW

1-1-1 D001RA001 1 DOCUMENT STOPPER MFC-L5750DW

1-1-1 D001RA001 1 DOCUMENT STOPPER MFC-L5755DW

1-1-1 D000UP001 1 DOCUMENT STOPPER MFC-L5800DW

1-1-1 D000UP001 1 DOCUMENT STOPPER MFC-L5802DW

1-1-1 D000UP001 1 DOCUMENT STOPPER MFC-L5850DW

1-1-1 D000UP001 1 DOCUMENT STOPPER MFC-L5900DW

1-1-1 D000UP001 1 DOCUMENT STOPPER MFC-L5902DW

1-1-1 D000UP001 1 DOCUMENT STOPPER MFC-L6700DW

1-1-1 D000UP001 1 DOCUMENT STOPPER MFC-L6702DW

1-1-1 D000UP002 1 DOCUMENT STOPPER MFC-L6750DW

1-1-1 D000UP001 1 DOCUMENT STOPPER MFC-L6800DW FOR

1-1-1 D000UP002 1 DOCUMENT STOPPER MFC-L6900DW

1-1-1 D000UP002 1 DOCUMENT STOPPER MFC-L6900DWG

1-1-1 D000UP002 1 DOCUMENT STOPPER MFC-L6900DWX

1-1-1 D000UP002 1 DOCUMENT STOPPER MFC-L6902DW

1-1-1 D000UP002 1 DOCUMENT STOPPER MFC-L6950DW

1-1-1 D000UP002 1 DOCUMENT STOPPER MFC-L6970DW

1-1-2 LS8141005 1 HINGE ARM R DCP-L5500D

1-1-2 LS8141005 1 HINGE ARM R DCP-L5500DN

1-1-2 LS8141005 1 HINGE ARM R DCP-L5502DN

1-1-2 LS8141005 1 HINGE ARM R DCP-L5600DN

1-1-2 LS8141005 1 HINGE ARM R DCP-L5602DN

1-1-2 LS8141005 1 HINGE ARM R DCP-L5650DN

1-1-2 LS8141005 1 HINGE ARM R DCP-L5652DN

1-1-2 LS8141008 1 HINGE ARM R DCP-L6600DW

1-1-2 LS8141005 1 HINGE ARM R MFC-8530DN

1-1-2 LS8141005 1 HINGE ARM R MFC-8535DN

1-1-2 LS8141005 1 HINGE ARM R MFC-8540DN

1-1-2 LS8141005 1 HINGE ARM R MFC-L5700DN

1-1-2 LS8141005 1 HINGE ARM R MFC-L5700DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L5702DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L5750DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L5755DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L5800DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L5802DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L5850DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L5900DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L5902DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L6700DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L6702DW

1-1-2 LS8141008 1 HINGE ARM R MFC-L6750DW

1-1-2 LS8141005 1 HINGE ARM R MFC-L6800DW FOR USA

1-1-2 LS8141008 1 HINGE ARM R MFC-L6900DW

1-1-2 LS8141008 1 HINGE ARM R MFC-L6900DWG

1-1-2 LS8141008 1 HINGE ARM R MFC-L6900DWX

1-1-2 LS8141008 1 HINGE ARM R MFC-L6902DW

1-1-2 LS8141008 1 HINGE ARM R MFC-L6950DW

1-1-2 LS8141008 1 HINGE ARM R MFC-L6970DW

1-2 D014MU001 1 ADF COVER ASSY DCP-L5500D CHG

1-2 D014MU001 1 ADF COVER ASSY DCP-L5500DN CHG

1-2 D014MU001 1 ADF COVER ASSY DCP-L5502DN CHG

1-2 D014MU001 1 ADF COVER ASSY DCP-L5600DN CHG

1-2 D014MU001 1 ADF COVER ASSY DCP-L5602DN CHG

1-2 D014MU001 1 ADF COVER ASSY DCP-L5650DN CHG

1-2 D014MU001 1 ADF COVER ASSY DCP-L5652DN CHG

1-2 D014MU002 1 ADF COVER ASSY DCP-L6600DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-8530DN CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-8535DN CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-8540DN CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5700DN CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5700DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5702DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5750DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5755DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5800DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5802DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5850DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5900DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L5902DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L6700DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L6702DW CHG

1-2 D014MU002 1 ADF COVER ASSY MFC-L6750DW CHG

1-2 D014MU001 1 ADF COVER ASSY MFC-L6800DW FOR USA CHG

1-2 D014MU002 1 ADF COVER ASSY MFC-L6900DW CHG

1-2 D014MU002 1 ADF COVER ASSY MFC-L6900DWG

1-2 D014MU002 1 ADF COVER ASSY MFC-L6900DWX

1-2 D014MU002 1 ADF COVER ASSY MFC-L6902DW CHG

1-2 D014MU002 1 ADF COVER ASSY MFC-L6950DW CHG

1-2 D014MU002 1 ADF COVER ASSY MFC-L6970DW CHG

1-3 D001R9001 1 ADF SEPARATION HOLDER ASSY

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY DCP-L5500D

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY DCP-L5500DN

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY DCP-L5502DN

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY DCP-L5600DN

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY DCP-L5602DN

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY DCP-L5650DN

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY DCP-L5652DN

1-4 D00227001 1 DOCUMENT SEPARATE ROLLER ASSY DCP-L6600DW

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-8530DN

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-8535DN

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-8540DN

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5700DN

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5700DW

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5702DW

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5750DW

1-4 D00394001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5755DW

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5800DW

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5802DW

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5850DW

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5900DW

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L5902DW

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6700DW

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6702DW

1-4 D0016R001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6750DW

1-4 D00227001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6800DW

1-4 D00227001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6900DW

1-4 D00227001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6900DWG

1-4 D00227001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6900DWX

1-4 D00227001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6902DW

1-4 D00227001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6950DW

1-4 D00227001 1 DOCUMENT SEPARATE ROLLER ASSY MFC-L6970DW

1-5 D000NE001 1 GEAR COVER DCP-L5500D

1-5 D000NE001 1 GEAR COVER DCP-L5500DN

1-5 D000NE001 1 GEAR COVER DCP-L5502DN

1-5 D000UX001 1 GEAR COVER DCP-L5600DN

1-5 D000UX001 1 GEAR COVER DCP-L5602DN

1-5 D000UX001 1 GEAR COVER DCP-L5650DN

1-5 D000UX001 1 GEAR COVER DCP-L5652DN

1-5 D000UX002 1 GEAR COVER DCP-L6600DW

1-5 D000NE001 1 GEAR COVER MFC-8530DN

1-5 D000NE001 1 GEAR COVER MFC-8535DN

1-5 D000NE001 1 GEAR COVER MFC-8540DN

1-5 D000NE001 1 GEAR COVER MFC-L5700DN

1-5 D000NE001 1 GEAR COVER MFC-L5700DW

1-5 D000NE001 1 GEAR COVER MFC-L5702DW

1-5 D000NE001 1 GEAR COVER MFC-L5750DW

1-5 D000NE001 1 GEAR COVER MFC-L5755DW

1-5 D000UX001 1 GEAR COVER MFC-L5800DW

1-5 D000UX001 1 GEAR COVER MFC-L5802DW

1-5 D000UX001 1 GEAR COVER MFC-L5850DW

1-5 D000UX001 1 GEAR COVER MFC-L5900DW

1-5 D000UX001 1 GEAR COVER MFC-L5902DW

1-5 D000UX001 1 GEAR COVER MFC-L6700DW

1-5 D000UX001 1 GEAR COVER MFC-L6702DW

1-5 D000UX002 1 GEAR COVER MFC-L6750DW

1-5 D000UX001 1 GEAR COVER MFC-L6800DW FOR USA

1-5 D000UX002 1 GEAR COVER MFC-L6900DW

1-5 D000UX002 1 GEAR COVER MFC-L6900DWG

1-5 D000UX002 1 GEAR COVER MFC-L6900DWX

1-5 D000UX002 1 GEAR COVER MFC-L6902DW

1-5 D000UX002 1 GEAR COVER MFC-L6950DW

1-5 D000UX002 1 GEAR COVER MFC-L6970DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) DCP-L5500D

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) DCP-L5500DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) DCP-L5502DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) DCP-L5600DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) DCP-L5602DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) DCP-L5650DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) DCP-L5652DN

1-6 D008UC002 1 DOCUMENT SUB TRAY(SP) DCP-L6600DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-8530DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-8535DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-8540DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5700DN

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5700DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5702DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5750DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5755DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5800DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5802DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5850DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5900DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L5902DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L6700DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L6702DW

1-6 D008UC002 1 DOCUMENT SUB TRAY(SP) MFC-L6750DW

1-6 D008UC001 1 DOCUMENT SUB TRAY(SP) MFC-L6800DW FOR USA

1-6 D008UC002 1 DOCUMENT SUB TRAY(SP) MFC-L6900DW

1-6 D008UC002 1 DOCUMENT SUB TRAY(SP) MFC-L6900DWG

1-6 D008UC002 1 DOCUMENT SUB TRAY(SP) MFC-L6900DWX

1-6 D008UC002 1 DOCUMENT SUB TRAY(SP) MFC-L6902DW

1-6 D008UC002 1 DOCUMENT SUB TRAY(SP) MFC-L6950DW

1-6 D008UC002 1 DOCUMENT SUB TRAY(SP) MFC-L6970DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT DCP-L5650DN

1-7 LT3308001 1 SECOND SIDE CIS UNIT DCP-L5652DN

1-7 LT3308001 1 SECOND SIDE CIS UNIT DCP-L6600DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-8540DN

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L5750DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L5755DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L5850DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L5900DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L5902DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6700DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6702DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6750DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6800DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6900DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6900DWG

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6900DWX

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6902DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6950DW

1-7 LT3308001 1 SECOND SIDE CIS UNIT MFC-L6970DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE DCP-L5650DN

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE DCP-L5652DN

1-8 D000L3001 1 SECOND SIDE CIS FLAT CABLE DCP-L6600DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-8540DN

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-L5750DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-L5755DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-L5850DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-L5900DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-L5902DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-L6700DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-L6702DW

1-8 D000L0001 1 SECOND SIDE CIS FLAT CABLE MFC-L6750DW

1-8 D000L3001 1 SECOND SIDE CIS FLAT CABLE MFC-L6800DW

1-8 D000L3001 1 SECOND SIDE CIS FLAT CABLE MFC-L6900DW

1-8 D000L3001 1 SECOND SIDE CIS FLAT CABLE MFC-L6900DWG

1-8 D000L3001 1 SECOND SIDE CIS FLAT CABLE MFC-L6900DWX

1-8 D000L3001 1 SECOND SIDE CIS FLAT CABLE MFC-L6902DW

1-8 D000L3001 1 SECOND SIDE CIS FLAT CABLE MFC-L6950DW

1-8 D000L3001 1 SECOND SIDE CIS FLAT CABLE MFC-L6970DW

2 D00M4H001 1 HINGE L ASSY DCP-L5500D chg

2 D00M4H001 1 HINGE L ASSY DCP-L5500DN chg

2 D00M4H001 1 HINGE L ASSY DCP-L5502DN chg

2 D00RTT001 1 HINGE L ASSY DCP-L5600DN chg

2 D00RTT001 1 HINGE L ASSY DCP-L5602DN chg

2 D00M4G001 1 HINGE L ASSY DCP-L5650DN chg

2 D00M4G001 1 HINGE L ASSY DCP-L5652DN chg

2 D00M4G002 1 HINGE L ASSY DCP-L6600DW chg

2 D00M4H001 1 HINGE L ASSY MFC-8530DN chg

2 D00M4H001 1 HINGE L ASSY MFC-8535DN chg

2 D00RTT001 1 HINGE L ASSY MFC-8540DN chg

2 D00M4H001 1 HINGE L ASSY MFC-L5700DN chg

2 D00M4H001 1 HINGE L ASSY MFC-L5700DW chg

2 D00M4H001 1 HINGE L ASSY MFC-L5702DW chg

2 D00RTT001 1 HINGE L ASSY MFC-L5750DW chg

2 D00RTT001 1 HINGE L ASSY MFC-L5755DW chg

2 D00RTT001 1 HINGE L ASSY MFC-L5800DW chg

2 D00RTT001 1 HINGE L ASSY MFC-L5802DW chg

2 D00M4G001 1 HINGE L ASSY MFC-L5850DW chg

2 D00M4G001 1 HINGE L ASSY MFC-L5900DW chg

2 D00M4G001 1 HINGE L ASSY MFC-L5902DW chg

2 D00M4G001 1 HINGE L ASSY MFC-L6700DW chg

2 D00M4G001 1 HINGE L ASSY MFC-L6702DW chg

2 D00M4G002 1 HINGE L ASSY MFC-L6750DW chg

2 D00M4G001 1 HINGE L ASSY MFC-L6800DW FOR USA chg

2 D00M4G002 1 HINGE L ASSY MFC-L6900DW chg

2 D00M4G002 1 HINGE L ASSY MFC-L6900DWG

2 D00M4G002 1 HINGE L ASSY MFC-L6900DWX

2 D00M4G002 1 HINGE L ASSY MFC-L6902DW chg

2 D00M4G002 1 HINGE L ASSY MFC-L6950DW chg

2 D00M4G002 1 HINGE L ASSY MFC-L6970DW

3 LS8155005 1 HINGE R SUPPORT DCP-L5500D

3 LS8155005 1 HINGE R SUPPORT DCP-L5500DN

3 LS8155005 1 HINGE R SUPPORT DCP-L5502DN

3 LS8155005 1 HINGE R SUPPORT DCP-L5600DN

3 LS8155005 1 HINGE R SUPPORT DCP-L5602DN

3 LS8155005 1 HINGE R SUPPORT DCP-L5650DN

3 LS8155005 1 HINGE R SUPPORT DCP-L5652DN

3 LS8155008 1 HINGE R SUPPORT DCP-L6600DW

3 LS8155005 1 HINGE R SUPPORT MFC-8530DN

3 LS8155005 1 HINGE R SUPPORT MFC-8535DN

3 LS8155005 1 HINGE R SUPPORT MFC-8540DN

3 LS8155005 1 HINGE R SUPPORT MFC-L5700DN

3 LS8155005 1 HINGE R SUPPORT MFC-L5700DW

3 LS8155005 1 HINGE R SUPPORT MFC-L5702DW

3 LS8155005 1 HINGE R SUPPORT MFC-L5750DW

3 LS8155005 1 HINGE R SUPPORT MFC-L5755DW

3 LS8155005 1 HINGE R SUPPORT MFC-L5800DW

3 LS8155005 1 HINGE R SUPPORT MFC-L5802DW

3 LS8155005 1 HINGE R SUPPORT MFC-L5850DW

3 LS8155005 1 HINGE R SUPPORT MFC-L5900DW

3 LS8155005 1 HINGE R SUPPORT MFC-L5902DW

3 LS8155005 1 HINGE R SUPPORT MFC-L6700DW

3 LS8155005 1 HINGE R SUPPORT MFC-L6702DW

3 LS8155008 1 HINGE R SUPPORT MFC-L6750DW

3 LS8155005 1 HINGE R SUPPORT MFC-L6800DW FOR USA

3 LS8155008 1 HINGE R SUPPORT MFC-L6900DW

3 LS8155008 1 HINGE R SUPPORT MFC-L6900DWG

3 LS8155008 1 HINGE R SUPPORT MFC-L6900DWX

3 LS8155008 1 HINGE R SUPPORT MFC-L6902DW

3 LS8155008 1 HINGE R SUPPORT MFC-L6950DW

3 LS8155008 1 HINGE R SUPPORT MFC-L6970DW

4 LX5180005 1 HINGE R DCP-L5500D

4 LX5180005 1 HINGE R DCP-L5500DN

4 LX5180005 1 HINGE R DCP-L5502DN

4 LX5180005 1 HINGE R DCP-L5600DN

4 LX5180005 1 HINGE R DCP-L5602DN

4 LX5180005 1 HINGE R DCP-L5650DN

4 LX5180005 1 HINGE R DCP-L5652DN

4 LX5180008 1 HINGE R DCP-L6600DW

4 LX5180005 1 HINGE R MFC-8530DN

4 LX5180005 1 HINGE R MFC-8535DN

4 LX5180005 1 HINGE R MFC-8540DN

4 LX5180005 1 HINGE R MFC-L5700DN

4 LX5180005 1 HINGE R MFC-L5700DW

4 LX5180005 1 HINGE R MFC-L5702DW

4 LX5180005 1 HINGE R MFC-L5750DW

4 LX5180005 1 HINGE R MFC-L5755DW

4 LX5180005 1 HINGE R MFC-L5800DW

4 LX5180005 1 HINGE R MFC-L5802DW

4 LX5180005 1 HINGE R MFC-L5850DW

4 LX5180005 1 HINGE R MFC-L5900DW

4 LX5180005 1 HINGE R MFC-L5902DW

4 LX5180005 1 HINGE R MFC-L6700DW

4 LX5180005 1 HINGE R MFC-L6702DW

4 LX5180008 1 HINGE R MFC-L6750DW

4 LX5180005 1 HINGE R MFC-L6800DW FOR USA

4 LX5180008 1 HINGE R MFC-L6900DW

4 LX5180008 1 HINGE R MFC-L6900DWG

4 LX5180008 1 HINGE R MFC-L6900DWX

4 LX5180008 1 HINGE R MFC-L6902DW

4 LX5180008 1 HINGE R MFC-L6950DW

4 LX5180008 1 HINGE R MFC-L6970DW

5 D00221001 1 GUIDE SPONGE DCP-L5650DN chg

5 D00221001 1 GUIDE SPONGE DCP-L5652DN chg

5 D00221001 1 GUIDE SPONGE DCP-L6600DW chg

5 D00221001 1 GUIDE SPONGE MFC-8540DN chg

5 D00221001 1 GUIDE SPONGE MFC-L5750DW chg

5 D00221001 1 GUIDE SPONGE MFC-L5755DW chg

5 D00221001 1 GUIDE SPONGE MFC-L5850DW chg

5 D00221001 1 GUIDE SPONGE MFC-L5900DW chg

5 D00221001 1 GUIDE SPONGE MFC-L5902DW chg

5 D00221001 1 GUIDE SPONGE MFC-L6700DW chg

5 D00221001 1 GUIDE SPONGE MFC-L6702DW chg

5 D00221001 1 GUIDE SPONGE MFC-L6750DW chg

5 D00221001 1 GUIDE SPONGE MFC-L6800DW chg

5 D00221001 1 GUIDE SPONGE MFC-L6900DW chg

5 D00221001 1 GUIDE SPONGE MFC-L6900DWG

5 D00221001 1 GUIDE SPONGE MFC-L6900DWX

5 D00221001 1 GUIDE SPONGE MFC-L6902DW chg

5 D00221001 1 GUIDE SPONGE MFC-L6950DW chg

5 D00221001 1 GUIDE SPONGE MFC-L6970DW

12. PANEL

1 D008MN001 1 PANEL UNIT DCP-L5500D

1 D0054A001 1 PANEL UNIT DCP-L5500DN FOR USA

1 D005WF001 1 PANEL UNIT DCP-L5502DN

1 D0055E001 1 PANEL UNIT DCP-L5600DN FOR USA/ARG

1 D005WJ001 1 PANEL UNIT DCP-L5602DN

1 D0055U001 1 PANEL UNIT DCP-L5650DN

1 D005WM001 1 PANEL UNIT DCP-

1 D003RZ001 1 PANEL UNIT MFC-8530DN

1 D003UR001 1 PANEL UNIT MFC-8535DN

1 D003UK001 1 PANEL UNIT(Old)* MFC-8540DN

1 D0196N001 1 PANEL UNIT(New)* MFC-8540DN ADD

1 D001RZ001 1 PANEL UNIT MFC-L5700DN

1 D00442001 1 PANEL UNIT MFC-L5700DW

1 D003T5001 1 PANEL UNIT MFC-L5702DW

1 D001S6001 1 PANEL UNIT MFC-L5750DW

1 D007V2001 1 PANEL UNIT MFC-L5755DW

1 D003R0001 1 PANEL UNIT MFC-L5800DW

1 D003WB001 1 PANEL UNIT MFC-L5802DW

1 D006SU001 1 PANEL UNIT MFC-L5850DW

1 D001SV001 1 PANEL UNIT MFC-L5900DW FOR USA/CAN/CHL

1 D003S8001 1 PANEL UNIT MFC-L5902DW

1 D001TA001 1 PANEL UNIT MFC-L6700DW FOR USA/CAN/CHL/MEX

1 D003SL001 1 PANEL UNIT MFC-L6702DW

1 D005SR001 1 PANEL UNIT MFC-L6750DW

1 D005KF001 1 PANEL UNIT(Old)* MFC-L6800DW FOR USA

1 D019YC001 1 PANEL UNIT(New)* MFC-L6800DW FOR USA ADD

1 D001UG001 1 PANEL UNIT(Old)* MFC-L6900DW FOR USA/CAN/ARG/CHL/MEX

1 D019YB001 1 PANEL UNIT(New)* MFC-L6900DW FOR USA/CAN/ARG/CHL/MEX ADD

1 D00VZC001 1 PANEL UNIT(Old)* MFC-L6900DWG

1 D019YE001 1 PANEL UNIT(New)* MFC-L6900DWG ADD

1 D001UG001 1 PANEL UNIT(Old)* MFC-L6900DWX

1 D019YB001 1 PANEL UNIT(New)* MFC-L6900DWX ADD

1 D01B60001 1 PANEL UNIT(New) MFC-L6902DW CHG

1 D01970001 1 PANEL UNIT(New) MFC-L6970DW CHG

1-1 D000JT012 1 PANEL PCB DCP-L5500D

1-1 D000JT012 1 PANEL PCB DCP-L5500DN

1-1 D000JT012 1 PANEL PCB DCP-L5502DN

1-1 D000JT012 1 PANEL PCB DCP-L5600DN

1-1 D000JT012 1 PANEL PCB DCP-L5602DN

1-1 D000JT012 1 PANEL PCB DCP-L5650DN

1-1 D000JT012 1 PANEL PCB DCP-L5652DN

1-1 D000JT001 1 PANEL PCB DCP-L6600DW

1-1 D000JT012 1 PANEL PCB MFC-8530DN

1-1 D000JT012 1 PANEL PCB MFC-8535DN

1-1 D000JT011 1 PANEL PCB MFC-8540DN

1-1 D000JT012 1 PANEL PCB MFC-L5700DN

1-1 D000JT012 1 PANEL PCB MFC-L5700DW

1-1 D000JT012 1 PANEL PCB MFC-L5702DW

1-1 D000JT002 1 PANEL PCB MFC-L5750DW

1-1 D000JT012 1 PANEL PCB MFC-L5755DW

1-1 D000JT012 1 PANEL PCB MFC-L5800DW

1-1 D000JT012 1 PANEL PCB MFC-L5802DW

1-1 D000JT012 1 PANEL PCB MFC-L5850DW

1-1 D000JT012 1 PANEL PCB MFC-L5900DW

1-1 D000JT012 1 PANEL PCB MFC-L5902DW

1-1 D000JT002 1 PANEL PCB MFC-L6700DW

1-1 D000JT002 1 PANEL PCB MFC-L6702DW

1-1 D000JT002 1 PANEL PCB MFC-L6750DW

1-1 D000JT001 1 PANEL PCB MFC-L6800DW

1-1 D000JT001 1 PANEL PCB MFC-L6900DW

1-1 D000JT001 1 PANEL PCB MFC-L6900DWG

1-1 D000JT001 1 PANEL PCB MFC-L6900DWX

1-1 D000JT001 1 PANEL PCB MFC-L6902DW

1-1 D000JT001 1 PANEL PCB MFC-L6950DW

1-1 D000JT001 1 PANEL PCB MFC-L6970DW

1-2 A63291001 1 LCD DCP-L5500D chg

1-2 A63291001 1 LCD DCP-L5500DN chg

1-2 A63291001 1 LCD DCP-L5502DN chg

1-2 A63291001 1 LCD DCP-L5600DN chg

1-2 A63291001 1 LCD DCP-L5602DN chg

1-2 A63291001 1 LCD DCP-L5650DN chg

1-2 A63291001 1 LCD DCP-L5652DN chg

1-2 A62293001 1 LCD DCP-L6600DW add

1-2 A63291001 1 LCD MFC-8530DN chg

1-2 A63291001 1 LCD MFC-8535DN chg

1-2 A63291001 1 LCD MFC-8540DN chg

1-2 A63291001 1 LCD MFC-L5700DN chg

1-2 A63291001 1 LCD MFC-L5700DW chg

1-2 A63291001 1 LCD MFC-L5702DW chg

1-2 A62293001 1 LCD MFC-L5750DW add

1-2 A63291001 1 LCD MFC-L5755DW chg

1-2 A63291001 1 LCD MFC-L5800DW chg

1-2 A63291001 1 LCD MFC-L5802DW chg

1-2 A63291001 1 LCD MFC-L5850DW chg

1-2 A63291001 1 LCD MFC-L5900DW chg

1-2 A63291001 1 LCD MFC-L5902DW chg

1-2 A62293001 1 LCD MFC-L6700DW add

1-2 A62293001 1 LCD MFC-L6702DW add

1-2 A62293001 1 LCD MFC-L6750DW add

1-2 A62293001 1 LCD MFC-L6800DW add

1-2 A62293001 1 LCD MFC-L6900DW add

1-2 A62293001 1 LCD MFC-L6900DWG add

1-2 A62293001 1 LCD MFC-L6900DWX add

1-2 A62293001 1 LCD MFC-L6902DW add

1-2 A62293001 1 LCD MFC-L6950DW add

1-2 A62293001 1 LCD MFC-L6970DW add

1-3 D0013R001 1 LCD RELAY PCB ASSY DCP-L5500D

1-3 D0013R001 1 LCD RELAY PCB ASSY DCP-L5500DN

1-3 D0013R001 1 LCD RELAY PCB ASSY DCP-L5502DN

1-3 D0013R001 1 LCD RELAY PCB ASSY DCP-L5600DN

1-3 D0013R001 1 LCD RELAY PCB ASSY DCP-L5602DN

1-3 D0013R001 1 LCD RELAY PCB ASSY DCP-L5650DN

1-3 D0013R001 1 LCD RELAY PCB ASSY DCP-L5652DN

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-8530DN

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-8535DN

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-8540DN

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5700DN

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5700DW

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5702DW

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5755DW

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5800DW

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5802DW

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5850DW

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5900DW

1-3 D0013R001 1 LCD RELAY PCB ASSY MFC-L5902DW

1-4 D0013T001 1 LCD RELAY FLAT CABLE DCP-L5500D

1-4 D0013T001 1 LCD RELAY FLAT CABLE DCP-L5500DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE DCP-L5502DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE DCP-L5600DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE DCP-L5602DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE DCP-L5650DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE DCP-L5652DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-8530DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-8535DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-8540DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5700DN

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5700DW

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5702DW

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5755DW

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5800DW

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5802DW

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5850DW

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5900DW

1-4 D0013T001 1 LCD RELAY FLAT CABLE MFC-L5902DW

1-5 D008NU001 1 TOUCH PANEL ASSY DCP-L5500D

1-5 D008NU001 1 TOUCH PANEL ASSY DCP-L5500DN

1-5 D008NU001 1 TOUCH PANEL ASSY DCP-L5502DN

1-5 D008NU001 1 TOUCH PANEL ASSY DCP-L5600DN

1-5 D008NU001 1 TOUCH PANEL ASSY DCP-L5602DN

1-5 D008NU001 1 TOUCH PANEL ASSY DCP-L5650DN

1-5 D008NU001 1 TOUCH PANEL ASSY DCP-L5652DN

1-5 D008NX001 1 TOUCH PANEL ASSY DCP-L6600DW

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-8530DN

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-8535DN

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-8540DN

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5700DN

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5700DW

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5702DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L5750DW

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5755DW

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5800DW

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5802DW

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5850DW

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5900DW

1-5 D008NU001 1 TOUCH PANEL ASSY MFC-L5902DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6700DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6702DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6750DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6800DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6900DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6900DWG

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6900DWX

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6902DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6950DW

1-5 D008NX001 1 TOUCH PANEL ASSY MFC-L6970DW

1-6 D0000T001 1 NFC PCB ASSY(Old)* MFC-8540DN

1-6 D012X8011 1 NFC PCB ASSY(New)* MFC-8540DN ADD

1-6 D0000T001 1 NFC PCB ASSY(Old)* MFC-L6800DW FOR USA

1-6 D012X8011 1 NFC PCB ASSY(New)* MFC-L6800DW FOR USA ADD

1-6 D0000T001 1 NFC PCB ASSY(Old)* MFC-L6900DW FOR USA/CAN/TWN/ARG/CHL/GULF/MEX

1-6 D012X8011 1 NFC PCB ASSY(New)* MFC-L6900DW FOR USA/CAN/TWN/ARG/CHL/GULF/MEX

1-6 D0000T001 1 NFC PCB ASSY(Old)* MFC-L6900DWG

1-6 D012X8011 1 NFC PCB ASSY(New)* MFC-L6900DWG ADD

1-6 D0000T001 1 NFC PCB ASSY(Old)* MFC-L6900DWX

1-6 D012X8011 1 NFC PCB ASSY(New)* MFC-L6900DWX ADD

1-6 D012X8011 1 NFC PCB ASSY(New) MFC-L6902DW CHG

1-6 D012X8011 1 NFC PCB ASSY(New) MFC-L6970DW CHG

2 D000JW001 1 PANEL FLAT CABLE

Please see the "APPENDIX: Thermistor" page for detail.

*There is the difference between old and new parts.

13. PCB

1 D0062M035 1 MAIN PCB ASSY DCP-L5500D

1 D001PH001 1 MAIN PCB ASSY DCP-L5500DN

1 D001PH001 1 MAIN PCB ASSY DCP-L5502DN

1 D000VT001 1 MAIN PCB ASSY DCP-L5600DN FOR USA/ARG

1 D000VT040 1 MAIN PCB ASSY DCP-L5600DN FOR ASA/IND

1 D000VT001 1 MAIN PCB ASSY DCP-L5602DN

1 D000VU001 1 MAIN PCB ASSY DCP-L5650DN

1 D000VU001 1 MAIN PCB ASSY DCP-L5652DN

1 D0059X003 1 MAIN PCB ASSY DCP-L6600DW

1 D000KM020 1 MAIN PCB ASSY MFC-8530DN

1 D000KM001 1 MAIN PCB ASSY MFC-8535DN

1 D001PG020 1 MAIN PCB ASSY MFC-8540DN

1 D0044D001 1 MAIN PCB ASSY MFC-L5700DW FOR USA/CAN

1 D0044D001 1 MAIN PCB ASSY MFC-L5702DW

1 D000W1003 1 MAIN PCB ASSY MFC-L5750DW

1 D000KP001 1 MAIN PCB ASSY MFC-L5800DW

1 D000KP001 1 MAIN PCB ASSY MFC-L5802DW

1 D000VY001 1 MAIN PCB ASSY MFC-L5850DW

1 D000W6001 1 MAIN PCB ASSY MFC-L5900DW FOR USA/CAN/CHL

1 D000W6001 1 MAIN PCB ASSY MFC-L5902DW

1 D000W5001 1 MAIN PCB ASSY MFC-L6700DW FOR USA/CAN/ARL/NZ/CHL/MEX

1 D000W5001 1 MAIN PCB ASSY MFC-L6702DW

1 D000W5001 1 MAIN PCB ASSY MFC-L6750DW

1 D000W4001 1 MAIN PCB ASSY MFC-L6800DW

1 D000KT001 1 MAIN PCB ASSY MFC-L6900DW

1 D00W3L001 1 MAIN PCB ASSY MFC-L6900DWG

1 D000KT001 1 MAIN PCB ASSY MFC-L6900DWX

1 D000KT001 1 MAIN PCB ASSY MFC-L6902DW

1 D000KT001 1 MAIN PCB ASSY MFC-L6950DW

1 D000KT001 1 MAIN PCB ASSY MFC-L6970DW

2 LD1969001 1 WIRELESS LAN PCB DCP-L6600DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5700DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5702DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5750DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5755DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5800DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5802DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5850DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5900DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L5902DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L6700DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L6702DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L6750DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L6800DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L6900DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L6900DWG

2 LD1969001 1 WIRELESS LAN PCB MFC-L6900DWX

2 LD1969001 1 WIRELESS LAN PCB MFC-L6902DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L6950DW

2 LD1969001 1 WIRELESS LAN PCB MFC-L6970DW

3 D000K0001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY DCP-L5500D

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY DCP-L5500DN FOR USA

3 D003DJ001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY DCP-L5502DN

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY DCP-L5600DN FOR USA

3 D003DJ001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY DCP-L5602DN

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY DCP-L5650DN FOR USA

3 D003DJ001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY DCP-L5652DN

3 D000WM001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-8530DN

3 D000WM001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-8535DN

3 D000WM001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-8540DN

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L5700DW FOR USA/CAN

3 D003DJ001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L5702DW

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L5800DW FOR USA/CAN

3 D003DJ001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L5802DW

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L5850DW

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L5900DW FOR USA/CAN

3 D003DJ001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L5902DW

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L6700DW FOR USA/CAN/MEX

3 D003DJ001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L6702DW

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L6750DW

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L6800DW FOR USA

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L6900DWG

3 D000JY001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L6900DWX

3 D003DJ001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L6902DW

3 D000K0001 1 LOW-VOLTAGE POWERSUPPLY PCB ASSY MFC-L6970DW

4 D0000V001 1 HIGH-VOLTAGE POWER SUPPLY PCB ASSY

5 D000JH001 1 MODEM FLAT CABLE MFC-8530DN

5 D000JH001 1 MODEM FLAT CABLE MFC-8535DN

5 D000JH001 1 MODEM FLAT CABLE MFC-8540DN

5 D000JH001 1 MODEM FLAT CABLE MFC-L5700DN

5 D000JH001 1 MODEM FLAT CABLE MFC-L5700DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L5702DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L5750DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L5755DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L5800DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L5802DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L5850DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L5900DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L5902DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L6700DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L6702DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L6750DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L6800DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L6900DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L6900DWG

5 D000JH001 1 MODEM FLAT CABLE MFC-L6900DWX

5 D000JH001 1 MODEM FLAT CABLE MFC-L6902DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L6950DW

5 D000JH001 1 MODEM FLAT CABLE MFC-L6970DW

6 D003X0051 1 MODEM PCB ASSY MFC-8530DN

6 D003X0051 1 MODEM PCB ASSY MFC-8535DN

6 D003X0051 1 MODEM PCB ASSY MFC-8540DN

6 D003X0051 1 MODEM PCB ASSY MFC-L5700DW

6 D003X0051 1 MODEM PCB ASSY MFC-L5702DW

6 D003X0052 1 MODEM PCB ASSY MFC-L5750DW

6 D003X0051 1 MODEM PCB ASSY MFC-L5800DW

6 D003X0051 1 MODEM PCB ASSY MFC-L5802DW

6 D003X0051 1 MODEM PCB ASSY MFC-L5850DW

6 D003X0051 1 MODEM PCB ASSY MFC-L5900DW FOR USA/CAN/CHL/ASA/IND

6 D003X0051 1 MODEM PCB ASSY MFC-L5902DW

6 D003X0051 1 MODEM PCB ASSY MFC-L6700DW FOR USA/CAN/NZ/CHL/MEX

6 D003X0051 1 MODEM PCB ASSY MFC-L6702DW

6 D003X0051 1 MODEM PCB ASSY MFC-L6750DW

6 D003X0051 1 MODEM PCB ASSY MFC-L6800DW FOR USA

6 D003X0051 1 MODEM PCB ASSY MFC-L6900DW FOR USA/CAN/TWN/NZ/ARG/CHL/ASA/KOR/MEX

6 D003X0051 1 MODEM PCB ASSY MFC-L6900DWG

6 D003X0051 1 MODEM PCB ASSY MFC-L6900DWX

6 D003X0051 1 MODEM PCB ASSY MFC-L6902DW

6 D003X0052 1 MODEM PCB ASSY MFC-L6950DW

6 D003X0052 1 MODEM PCB ASSY MFC-L6970DW
