Dascom DL820 & DL830 Parts

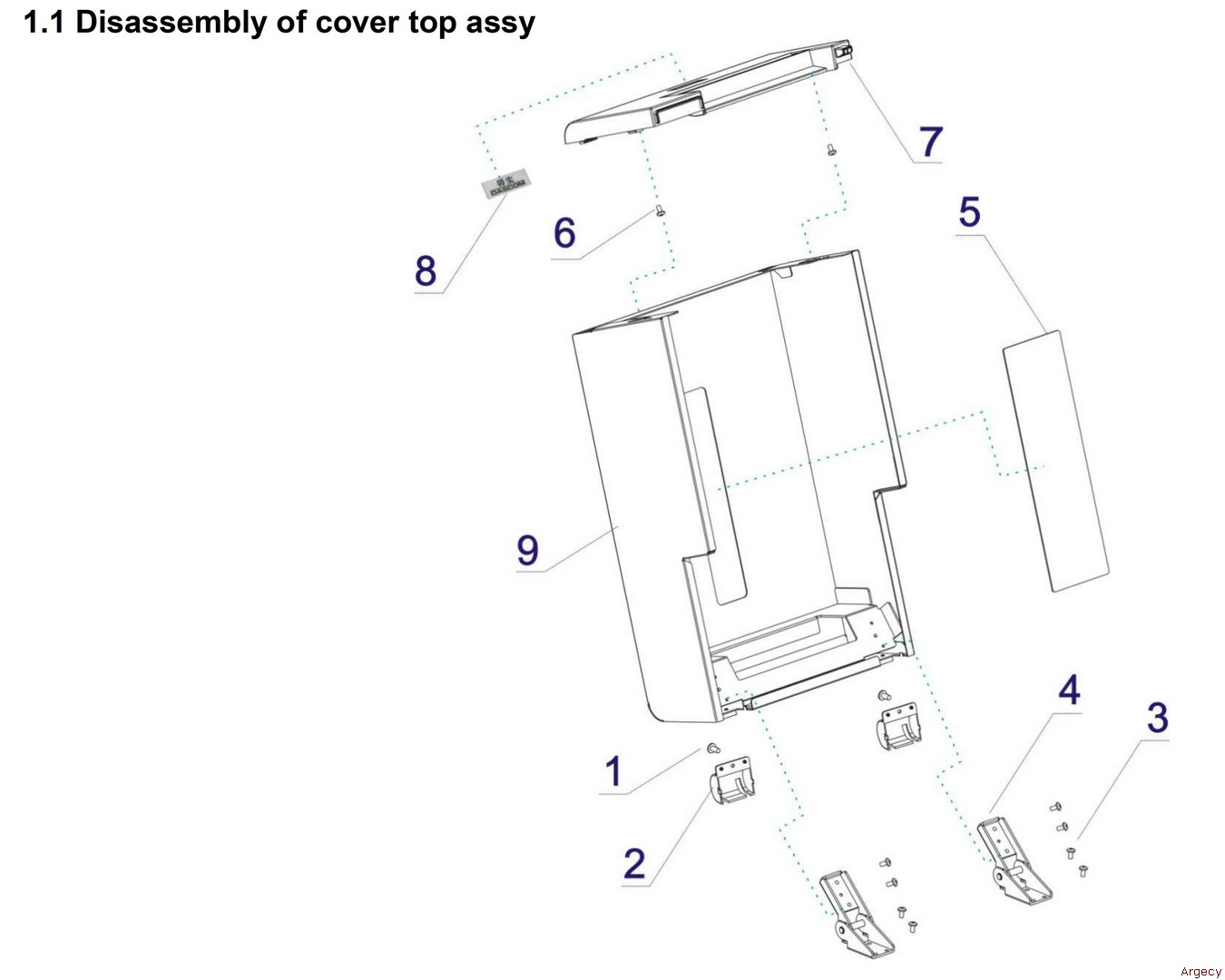

1 21.E.00930-060r Screw M3*6

2 21.503.491.0560r Rotated Cover

3 21.E.00930-060r Screw M3*6

4 21.903.491.0010r Hinge

5 21.503.491.0650r Cover Top Transparent Window

6 21.E.12830-080r Screw M3*8

7 21.503.491.0530r Sheet Cover, Top

8 21.501.460.0180r Rating Plate

9 21.501.491.0630r Cover Top Assy

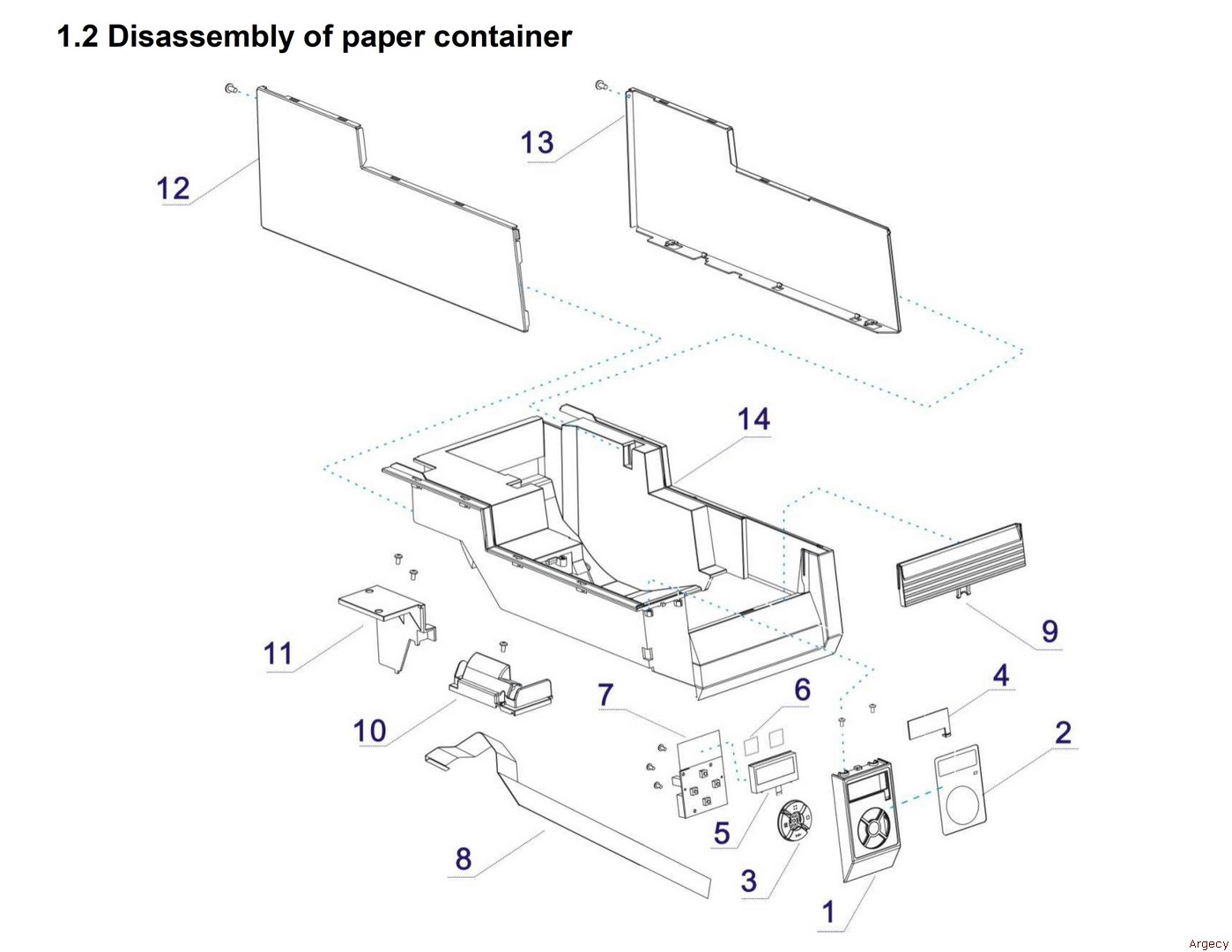

1.2

1 21.503.491.0520r Cover Control Plate

2 21.511.491.0030r Control Panel Label

3 21.503.491.0551r Key 2

4 21.503.491.0680r Control Panel Transparent Window

5 21.905.491.0010r Liquid Crystal Display/Lcd

6 21.518.491.0040r Lcd Pad

7 21.906.491.0030r Keypad Assy

8 21.001.491.0011r Ffc Cable, Keypad Assy

9 21.503.491.0540r Sheet Cover, Front

10 21.503.491.0700r Motor Cover

11 21.503.491.0670r Cover Converting Panel 1

12 21.501.491.0461r Side Board, Left 1

13 21.501.491.0471r Side Board, Right 1

14 21.503.491.0511r Paper Container 1

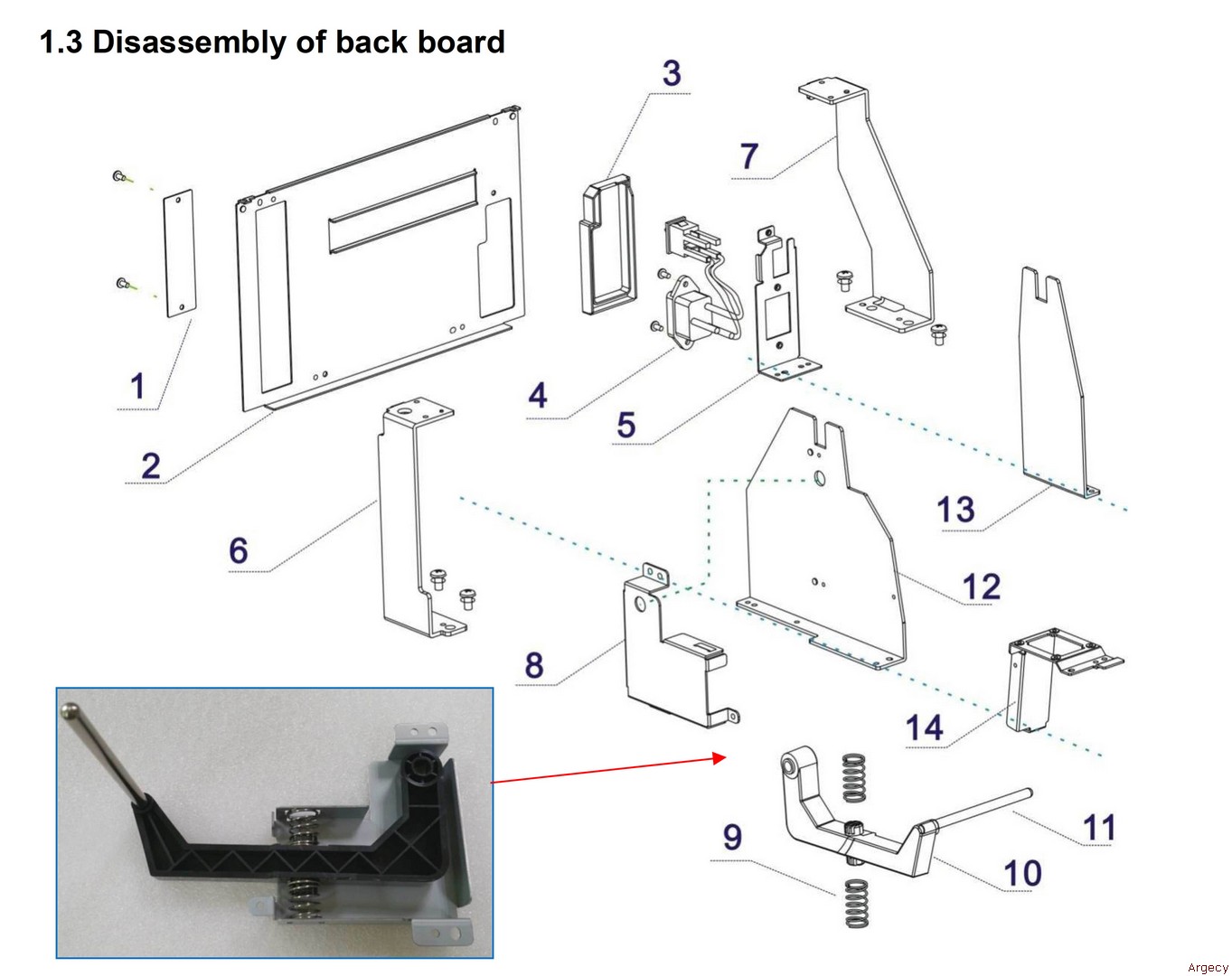

1.3

1 21.501.491.0600r Parallel Port Board

2 21.501.491.0480r Back Board

3 21.503.491.0590r Cover, Mains

4 21.912.491.0010r Power Input Switching Assy

5 21.501.491.0570r Power Socket Holder

6 21.501.491.0540r Case Holder, Left

7 21.501.491.0550r Case Holder, Right

8 21.501.491.0560r Cover Board

9 21.501.491.0610r Paper Bail Spring

10 21.503.491.0571r Paper Lever

11 21.508.491.0100r Paper Bail

12 21.501.491.0520r Paper Brace, Left

13 21.501.491.0530r Paper Brace, Right

14 21.501.491.0510r Connection Holder

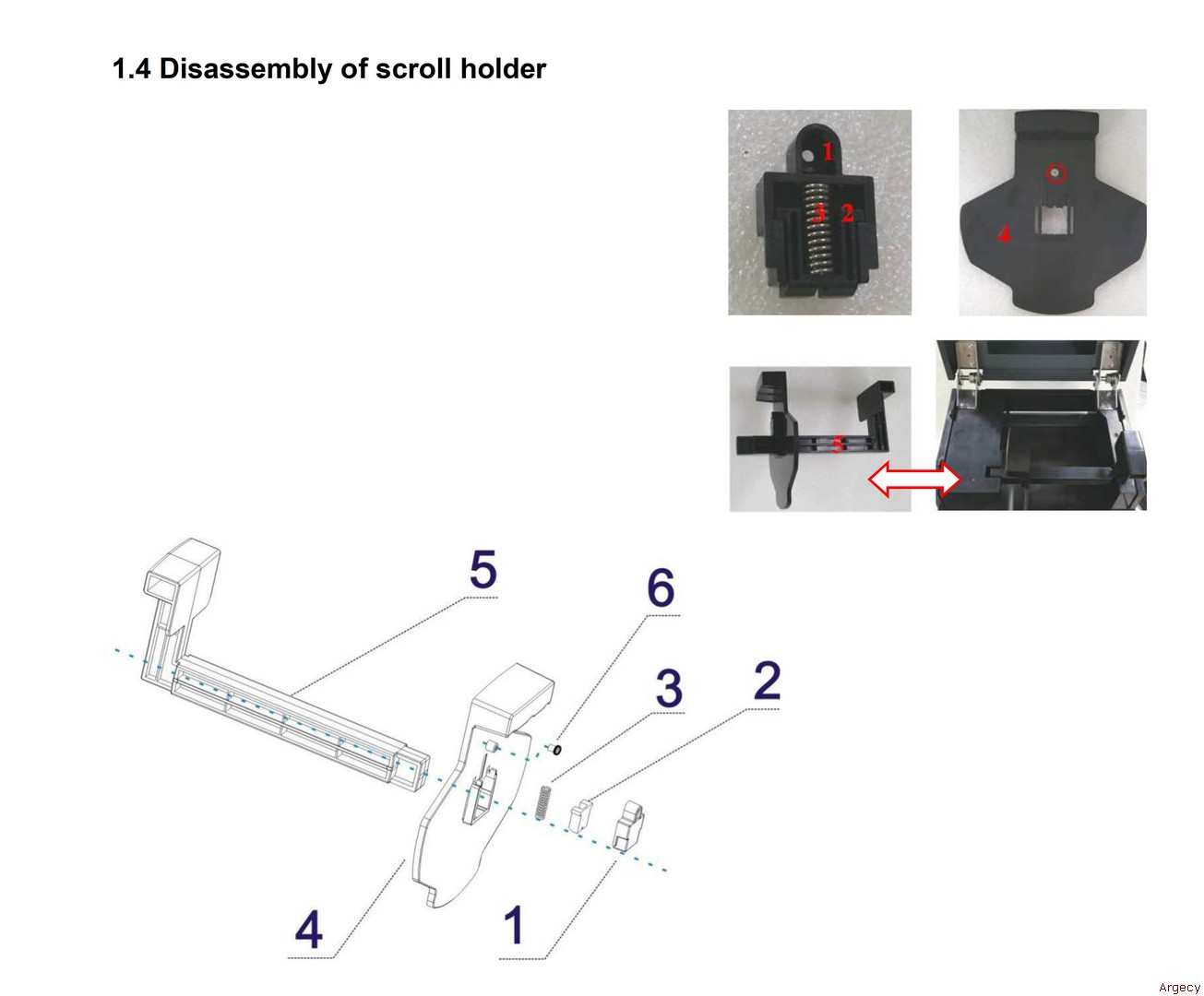

1.4

1 21.503.491.0620r Cover Briquetting

2 21.501.491.0620r Briquetting Spring

3 21.503.491.0630r Briquetting Central Axis

4 21.503.491.0611r Scroll Side Board, Right

5 21.503.491.0600r Scroll Central Axis

6 21.E.13626-060r Screw M2.6*6 1

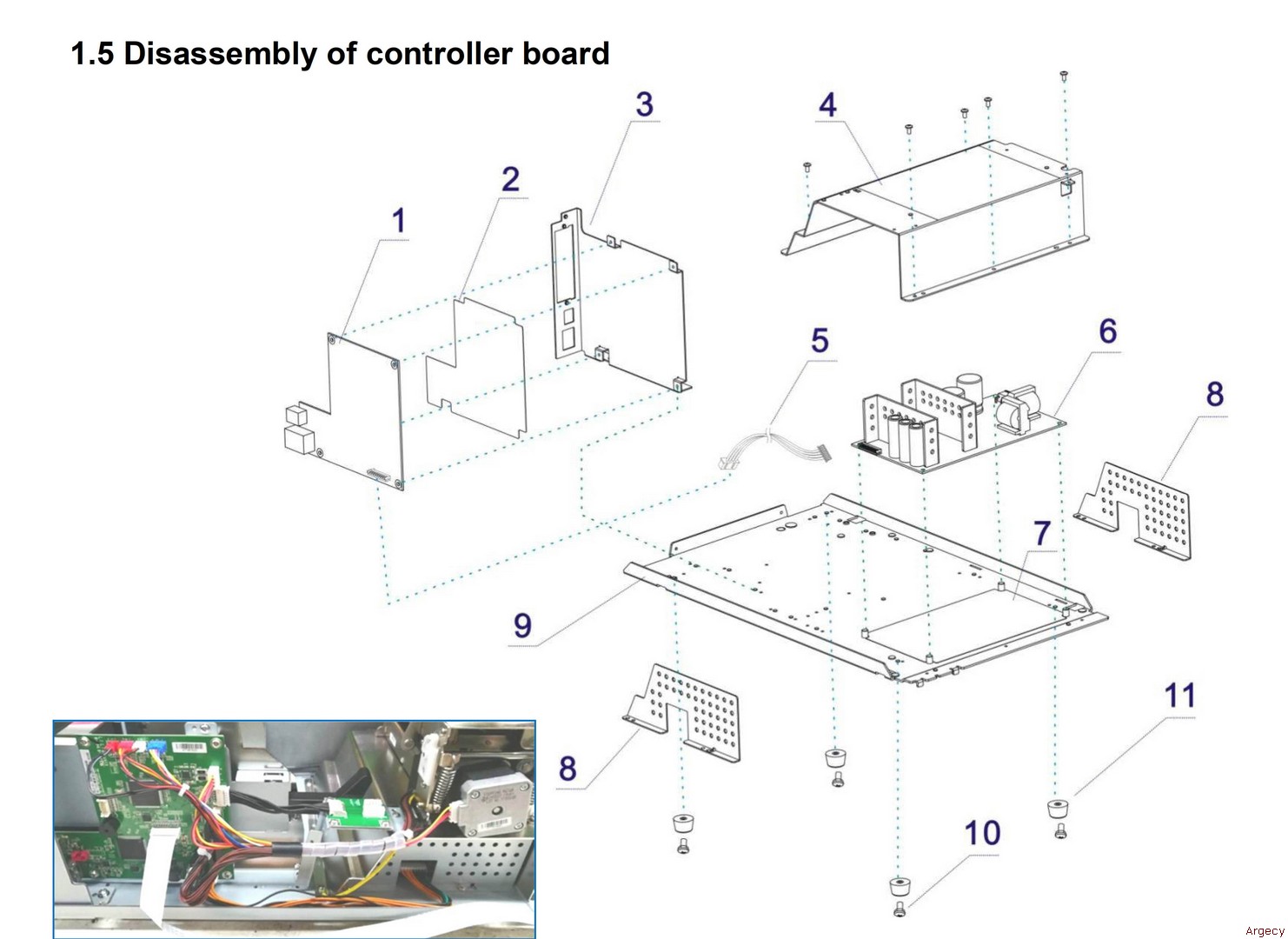

1.5

1 21.906.491.0061r Controller Board Assy(With Enternet Port)

1 21.906.491.0071r Controller Board Assy(Without Enternet Port)

2 21.503.491.0690r Insulating Plate

3 21.501.491.0490r Controller Board Holder

4 21.501.491.0451r Movement Holder

5 21.001.491.0021r Power Output Cable

6 21.906.491.0020r Power Supply Unit

7 21.503.491.0640r Power Supply Unit Shielding Plate 1

8 21.501.491.0650r Shielding Plate

9 21.501.491.0420r Bottom Base

10 21.E.00530-040r Screw M3*4

11 21.518.491.0030r Footpad

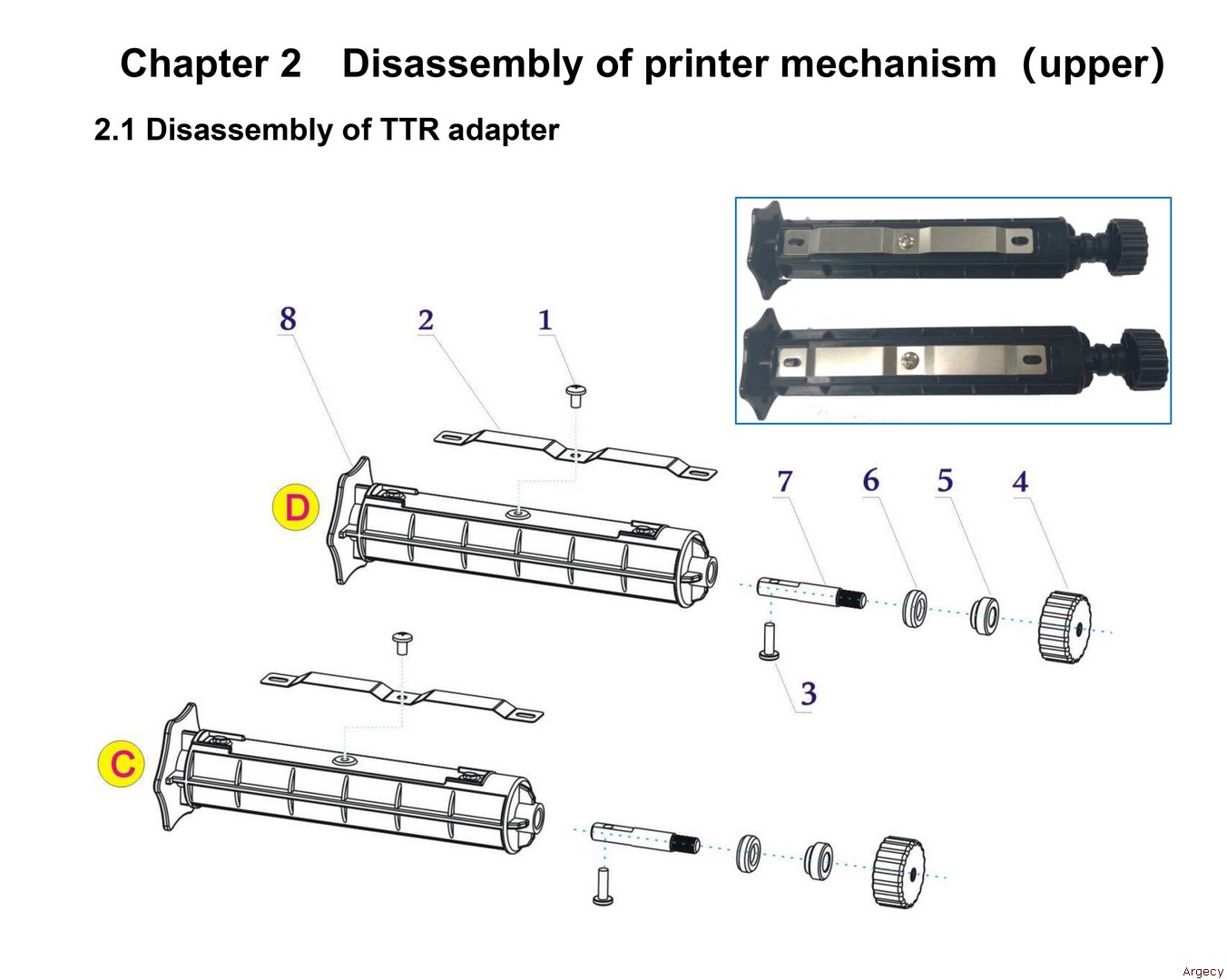

2.1

1 21.E.12830-080r Screw M3*8

2 21.501.491.0110r Adapter Clips

3 21.E.11230-100r Screw M3*10

4 21.503.491.0050r Adapter Hand Wheel

5 21.508.491.0290r Bushing

6 21.508.491.0280r Bushing

7 21.508.491.0060r Adapter Rotation Axis

8 21.503.491.0021r Ttr Adapter

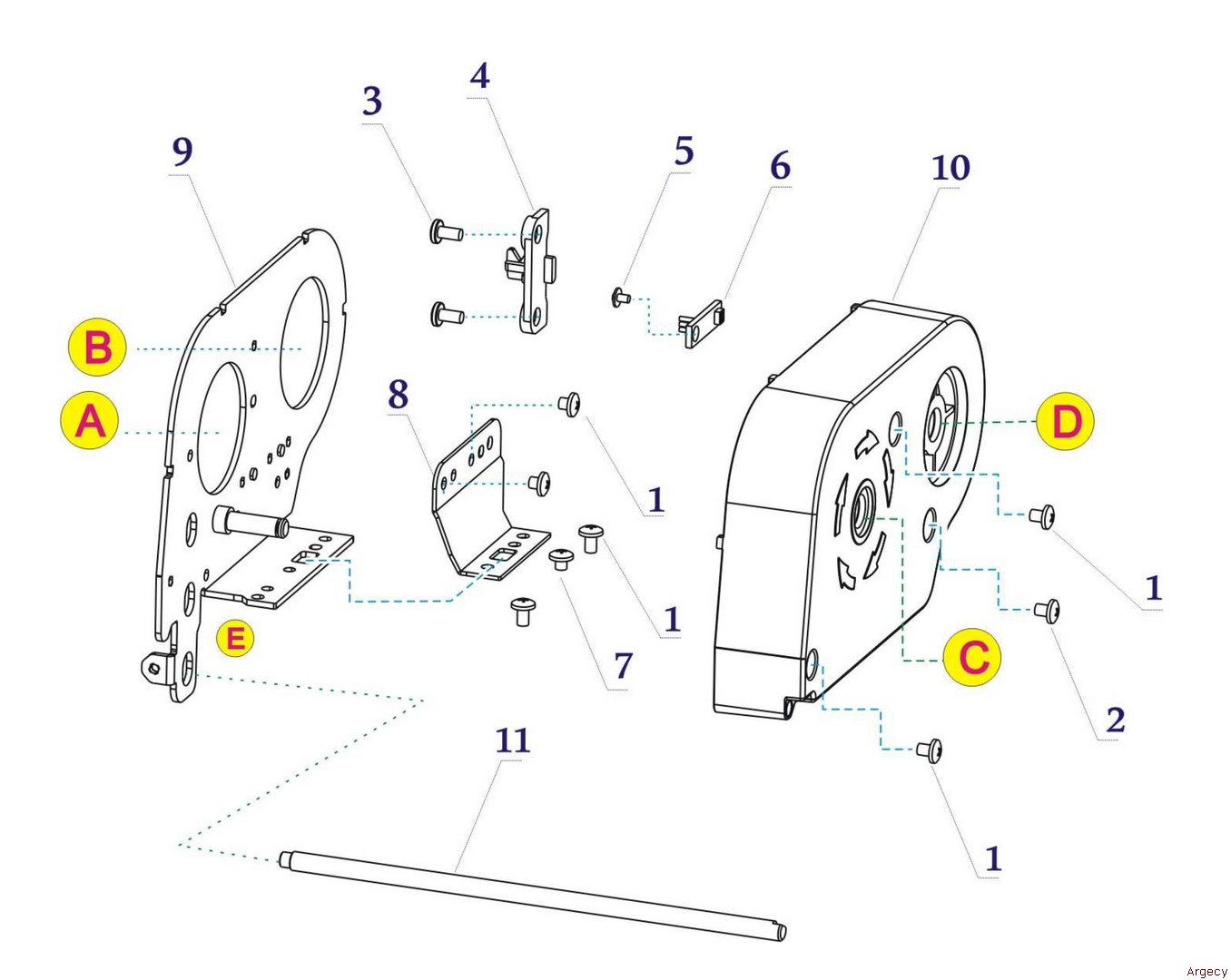

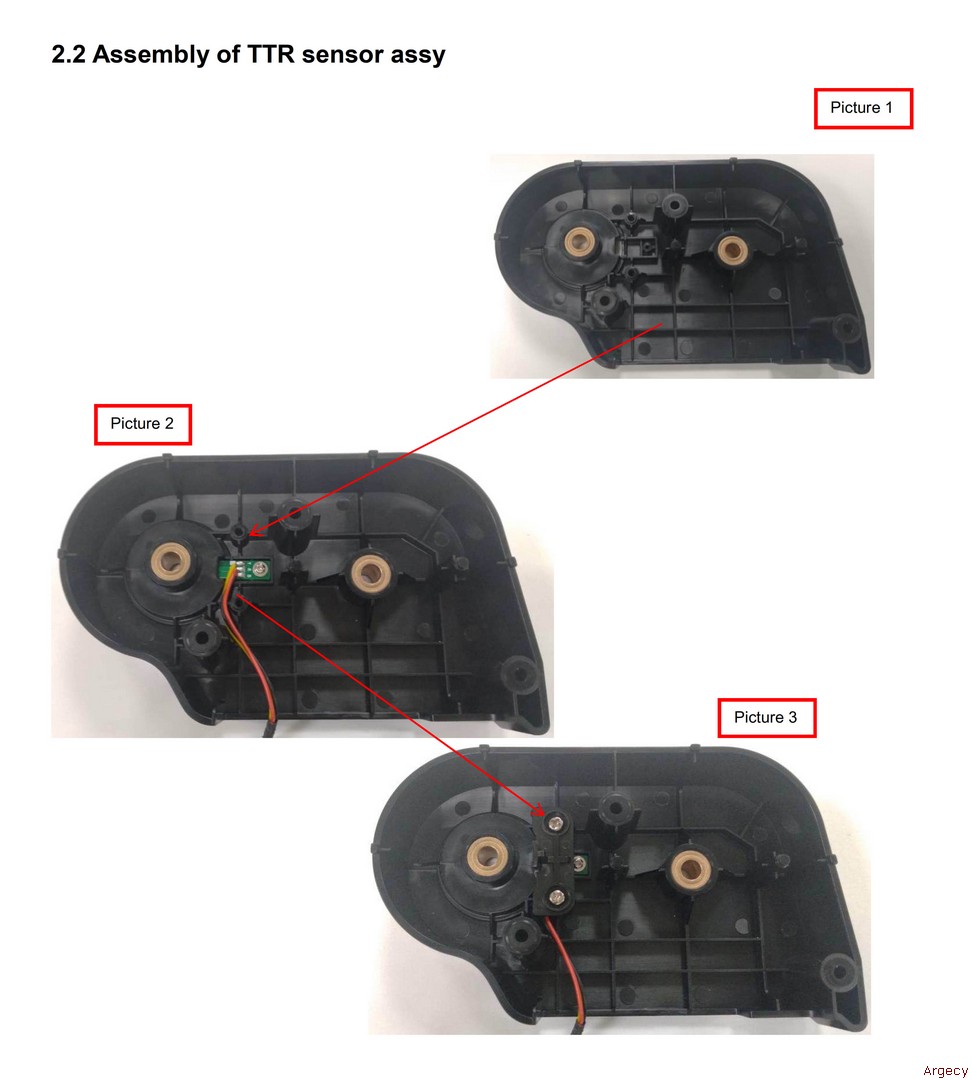

2.2

2.2 Ctd

1 21.E.00530-040f Screw M3*4

2 21.E.00530-030r Screw M3*3

3 21.E.11230-060r Screw M3*6

4 21.503.491.0121r Spring Stopper

5 21.E.12420-040r Screw M2*4

6 21.902.491.0010r Ttr Sensor Assy 1

7 21.E.00130-060r Screw M3*6 3

8 21.501.491.0090r Left Support Plate 1 1

9 21.501.491.0020r Ribbon Holder, Left 1

10 21.503.491.0010r Ribbon Support Holder, Right

11 21.508.491.0020r Ribbon Guides

2.3 1 21.E.60315-000r E Ring 1.5 2

2 21.508.491.0080r Limit Axis 2

3 21.503.491.0080r Ribbon Knob 2

4 21.501.491.0291r Ribbon Release Tension Spring 1

5 21.503.491.0071r Tension Spring Holder 2

6 21.520.491.0011r Felted Wool 1

7 21.501.491.0121r Friction Disk 1

8 21.501.491.0130r Spring Hook 1

9 21.503.491.0091r Split Chuck 1

10 21.501.491.0310r Tensioning Spring 1

11 21.503.491.0480r Plastic Pad, 5*1 2

12 21.501.491.0371r Bushing 2

13 21.501.491.0660r Pin 2

14 21.503.491.0110r Ribbon Transmitted Cover 2

15 21.508.491.0040r Ribbon Release Axis 1

16 21.503.491.0100r Ribbon Detection 1

17 21.501.904.0181r Reflector 1

18 21.503.491.0490r Plastic Pad, 6*0.5 2

19 21.518.491.0021r Friction Plate 1 1

20 21.503.491.0660r Friction Plate 2 1

21 21.503.491.0311r Gear 50 1

22 21.501.491.0300r Ribbon Regain Tension Spring 1

23 21.508.491.0050r Ribbon Regain Axis 1

2.4

1 21.E.00530-040f Screw M3*4 2

2 21.501.491.0360r Buffer Spring 1

3 21.501.491.0070r Support Plate Left 2 1

4 21.501.491.0100r Buffer Holder 1

5 21.E.60332-000r E Ring 3.2 4

6 21.503.491.0320r Gear 32 4

7 21.503.491.0270r Damping Spring Holder 1

8 21.501.491.0340r Damping Spring 4 1

9 21.501.491.0350r Damping Spring 5 1

10 21.E.60350-000r E Ring 5.0 2
2.5

1 Screw M3*6 21.E.00130-060r

2 Support Plate, Right 21.501.491.0080r

3 Screw M3*4 21.E.00530-040f

4 Adapter Holder 21.503.491.0030r

5 Screw M3*6 21.E.11230-060r

6 Key 1 21.503.491.0040r

7 Ribbon Holder, Right 21.501.491.0040r

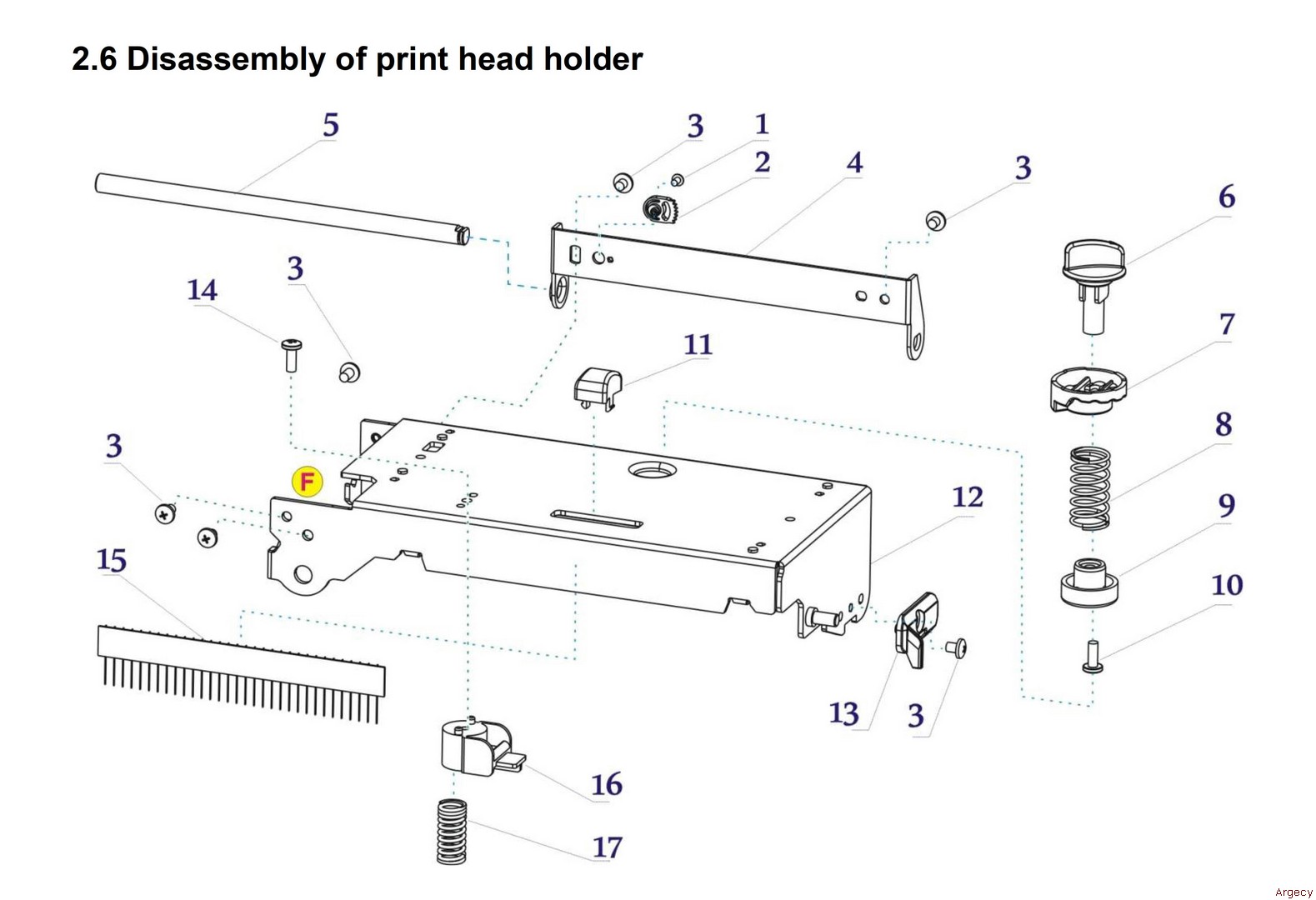

2.6

1 21.E.00820-030r Screw M2*3

2 21.503.491.0420r Balancing Knob

3 21.E.00530-040f Screw 3*4 6

4 21.501.491.0030r Guides Axle Holder

5 21.508.491.0010r Ribbon Guides 2

6 21.503.491.0390r Print Head Adjustment Knob

7 21.503.491.0430r Print Head Adjustment Plate

8 21.501.491.0280r Print Head Spring

9 21.503.491.0141r Print Head Spring

10 21.E.11230-100r Screw M3.0*10

11 21.503.491.0230r Print Head Keycap

12 21.501.491.0010r Print Head Holder

13 21.503.491.0131r Guides Upper Block

14 21.E.12830-080r Screw 3*8

15 21.501.491.0380r Esd Brush

16 21.503.491.0400r Print Head Spring

1721.501.491.0252r Print Head Spring Left

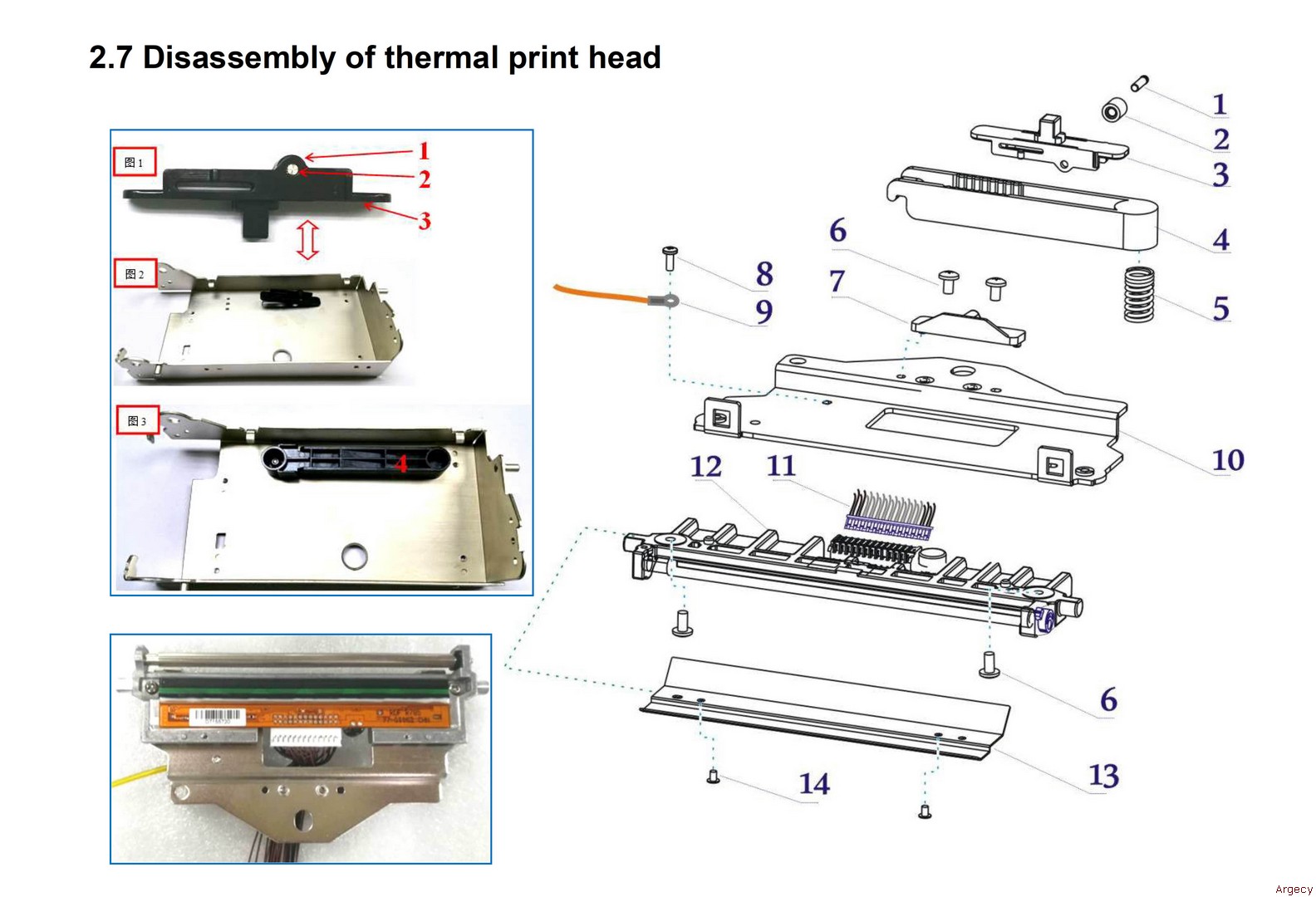

2.7

1 21.508.491.0090r Wheel Axis

2 21.503.491.0370r Print Head Adjustment Wheel

3 21.503.491.0150r Print Head Key

4 21.503.491.0381r Print Head Balancing Pole

5 21.501.491.0242r Print Head Spring Right

6 21.E.00130-060r Screw M3*6

7 21.503.491.0440r Print Head Adjustment Block

8 21.E.00530-040f Screw M3*4

9 21.001.904.0100r Grounding Cable Assy

10 21.501.491.0050r Print Head Fixing Plate

11 21.001.491.0041r Print Head Cable

12 21.916.491.0010r Thermal Print Head Assy

13 21.501.491.0060r Print Head Cover

14 21.E.00820-030r Screw M2.0*3

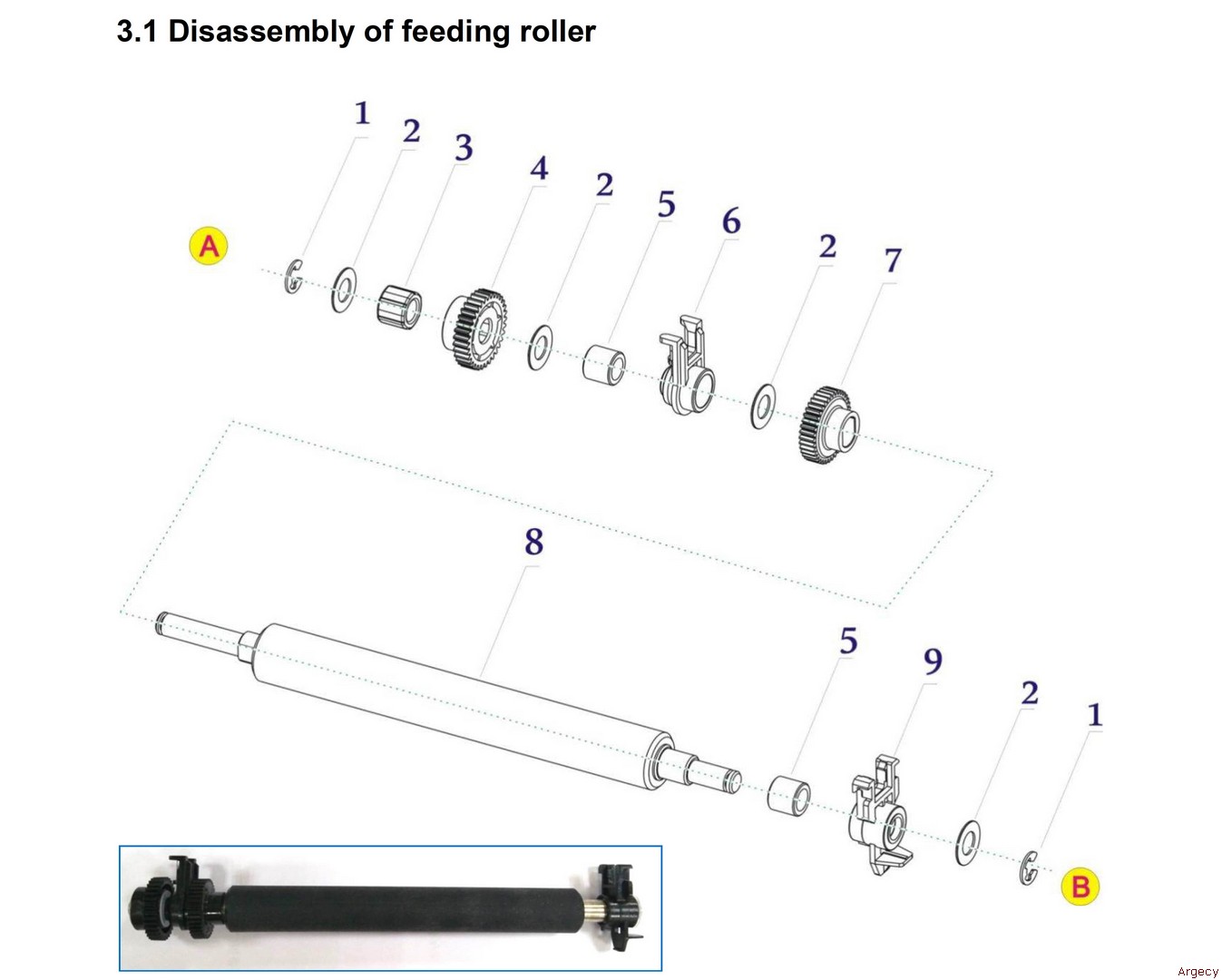

3.1

1 21.E.60340-000r E Ring 4.0

2 21.503.491.0490r Plastic Pad 6*0.5

3 21.523.904.0020r Unidirectional Bearing

4 21.503.491.0350r Unidirectional Gear

5 21.523.491.0011r Bearing

6 21.503.491.0190r Left Bearing Holder

7 21.503.491.0340r Gear 38

8 21.518.491.0011r Feeding Roller

9 21.503.491.0181r Right Bearing Holder

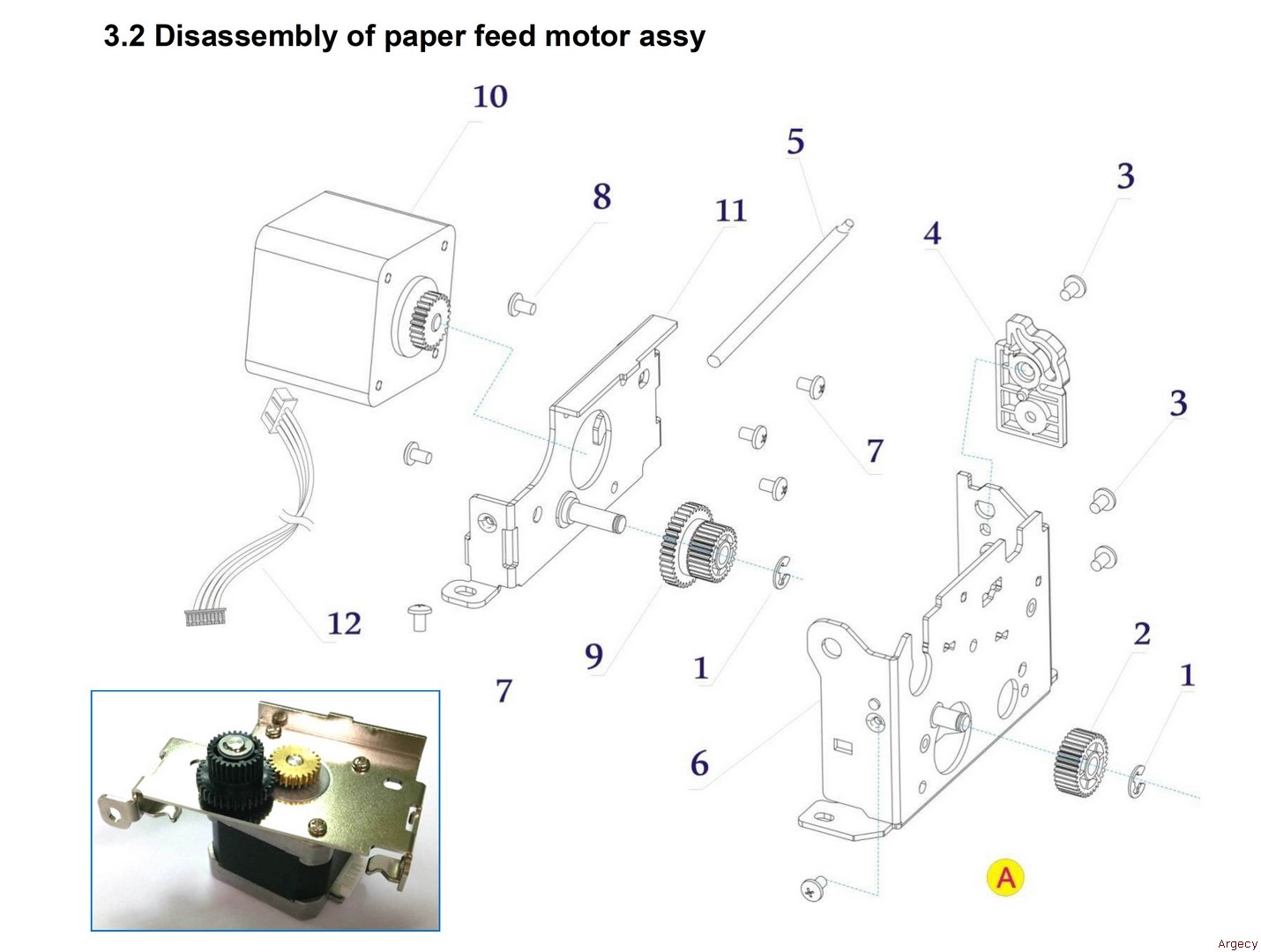

3.2

1 21.E.60340-000r E Ring 4.0

2 21.503.491.0360r Gear 33

3 21.E.00530-040f Screw M3*4

4 21.503.491.0260r Cover-Open Block

5 21.508.491.0030r Rotation Axis

6 21.501.491.0140r Paper Guides Holder, Left

7 21.E.01030-070r Screw M3*7

8 21.E.00530-040f Screw M3*4

9 21.503.491.0330r Gear 29-36

10 21.007.491.0010r Paper Feed Motor Assy

11 21.501.491.0150r Motor Holder

12 21.001.491.0090r Motor Cable

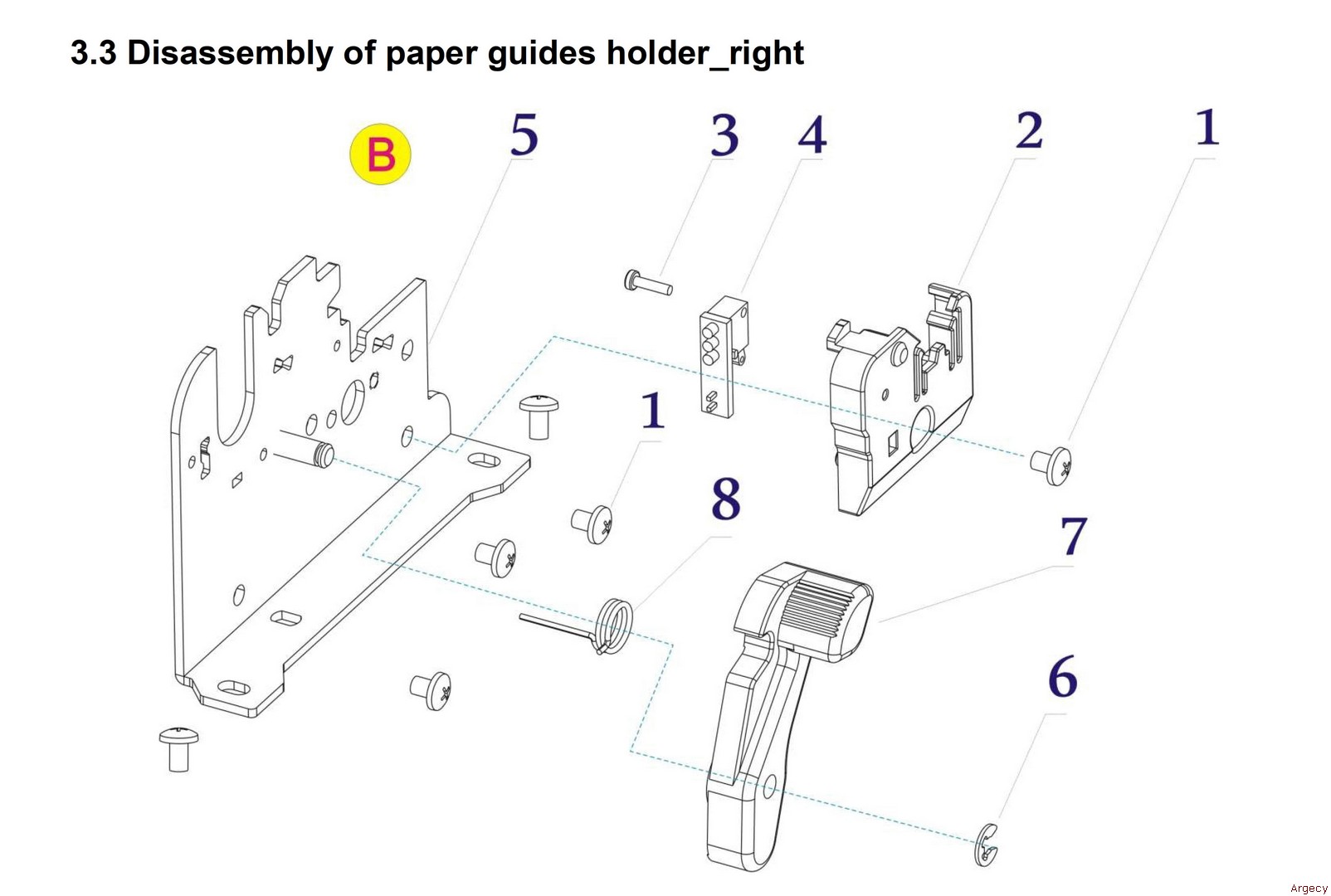

3.3

1 21.E.00130-060r Screw M3*6

221.503.491.0170r Guides Lower Block

3 21.E.12816-065r Screw M1.6*6.5

4 21.902.491.0021r Cover Open Sensor Assy

5 21.501.491.0160r Right Paper Guides Holder

6 21.E.60330-000r E Ring 3.0

7 21.503.491.0060r Locking Hook

8 21.501.491.0330r Locking Hook Spring

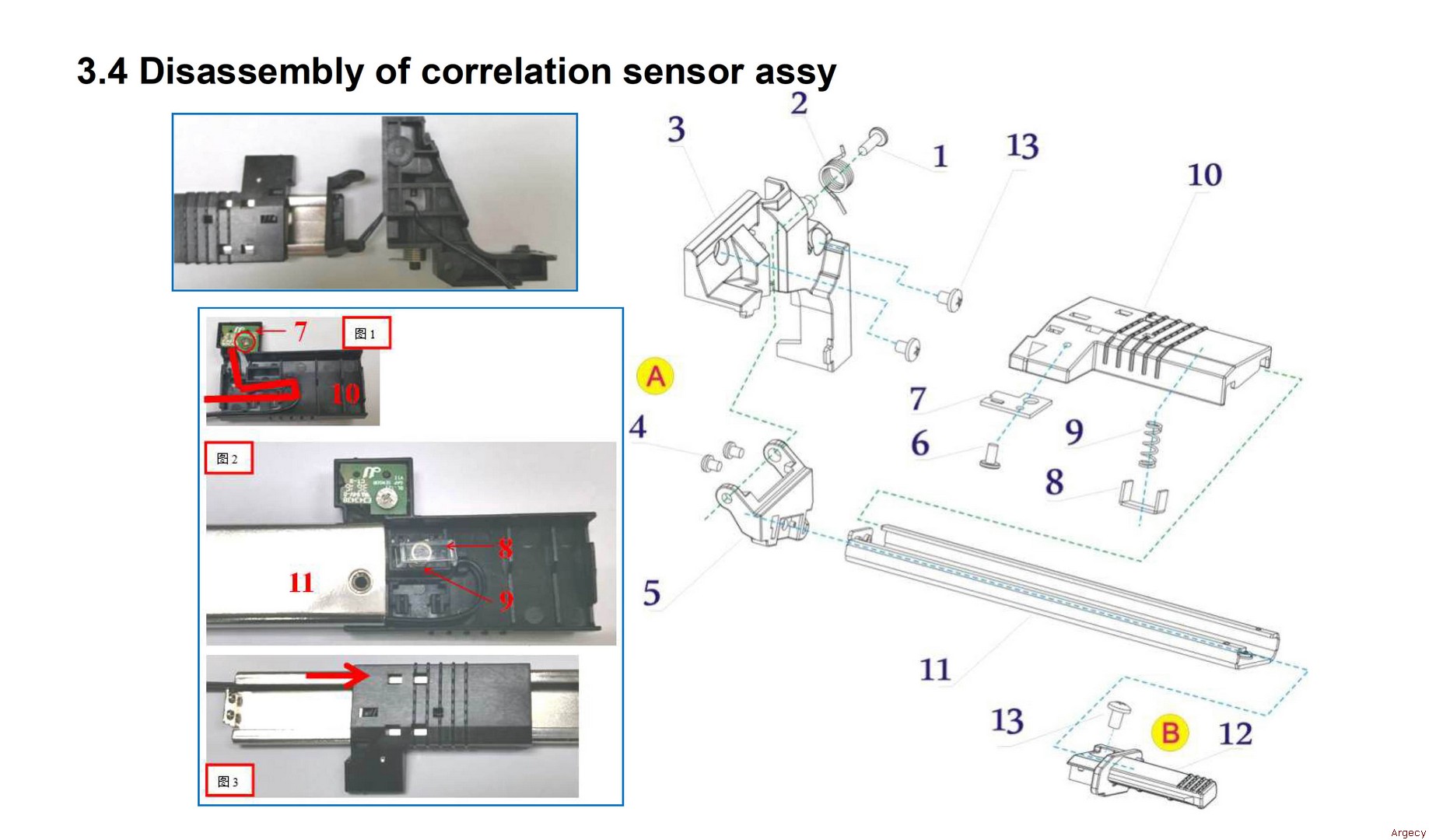

3.4

1 21.E.13626-060r Screw M2.6*6 1

2 21.501.491.0320r Rotation Spring 1

3 21.503.491.0240r Guides Brace 1

4 21.E.00125-030r Screw M2.5*3 2

5 21.503.491.0250r Guides Spindles 1

6 21.E.13626-050r Screw M2.6*5 1

7 21.902.491.0040r Correlation Sensor Assy 1

8 21.503.491.0500r Damping Cover 1

9 21.501.491.0410r Damping Spring 3 1

10 21.503.491.0201r Top Sensor Brace 1

11 21.501.491.0190r Sensor Guides 1

12 21.503.491.0160r Hand Shaft 1

13 21.E.00130-060r Screw M3*6 3

3.5

1 21.501.491.0170r Transverse 1

2 21.503.491.0222r Sensor Brace 1

3 21.503.904.0420r Sensor Lens Mirror 1

4 21.902.491.0030r Black Mark Sensor Assy 1

5 21.E.11220-030r Screw M2*3 1

6 21.503.491.0720r Sensor Protection Block 1

7 21.501.491.0271r Damping Spring 2 2

8 21.503.491.0210r Paper Briquetting Right 1

9 21.501.491.0260r Damping Spring 1 1

10 21.503.491.0460r Spring Collar 1

11 21.E.00130-060r Screw M3*6 4

12 21.501.491.0180r Tear Bar

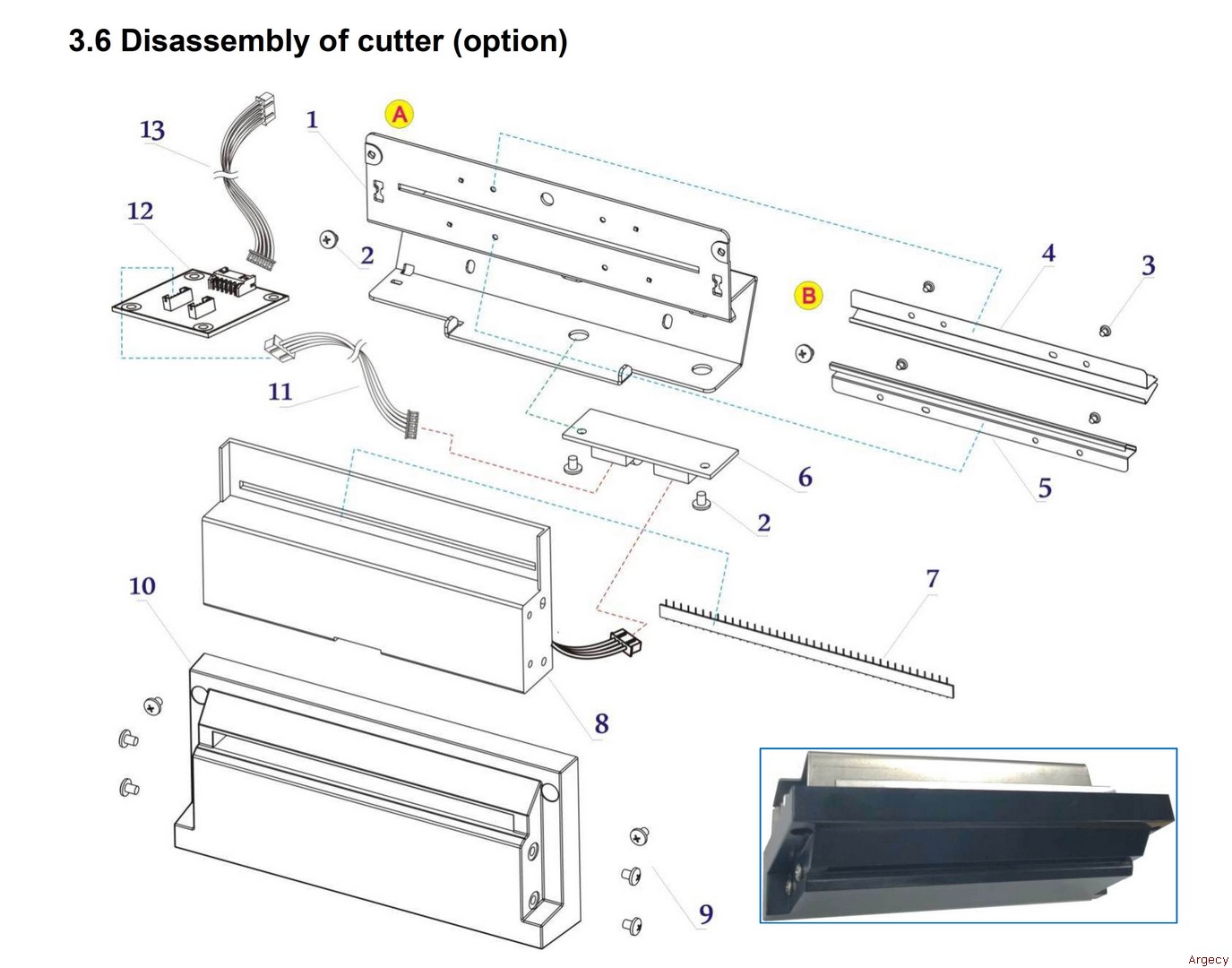

3.6

1 21.501.491.0220r Cutter Holder 1

2 21.E.11630-060r Screw M3.0*6 4

3 21.E.01720-020r Screw M2*2 4

4 21.501.491.0200r Upper Paper Guides 1

5 21.501.491.0210r Lower Paper Guides 1

6 21.903.491.0030r Cutter Drive Assy 1

7 21.501.491.0390r Cutter Esd Brush

8 21.903.904.0010r Cutter

9 21.E.00530-040f Screw M3 ?4 10

10 21.503.491.0451r Cutter Cover

11 21.001.491.0110r Connection Cable

12 21.906.491.0040r External Extension Board Assy

13 21.901.151.0030r External Extension Cable
