WebDT Thin Clients
Dt325 Wireless Web-Based Digital Tablet

The WebDT 325 and 380 wireless tablets offer bright TFT displays for a mobile experience based on wireless LAN standards, complemented by outstanding ergonomics and appearance.

The operating software and ease in handling combine to offer support for consumer and commercial applications over local networks as well as the Internet and Intranet. The user is afforded an experience based on a strong processor, light weight, full browser with comprehensive plug-ins, a superior display and high bandwidth.

The WebDT 380 offers added flexibility in the availability of the PCMCIA slot to support not only a range of wireless LAN cards but also to extend wireless support beyond the LAN into the WAN access.

WebDT 325
WebDT 380

Web-Based Digital Terminal

Digital Tablet for High Performance Wireless Computing

The WebDT 360 features the integration of a brilliant 8.4 touch display over an efficient AMD Geode processor within a thin, light, durable package. Ideal for mobile computing, the WebDT 360 is more dependable than a laptop, offers a larger display than a PDA, and is easy to use and integrate with other systems. Fingerprint reader for convenient authentication. With a stylus-activated touch screen, on-screen keyboards, and an optional outdoor-viewable display, the WebDT 360 performs on the sales floor, in the warehouse, in the classroom, and in the field.

  • Light and rugged; protective bumpers and screen cover
  • Fan-less operation, no moving parts with flash-based storage
  • Support for Windows CE.NET, Windows XP Embedded and XP TabletPC Edition
  • Optional hot-swappable battery expansion
  • VESA-compliant cradles for mounting options
  • Optional desktop charging cradle with USB and Ethernet ports
Major Options
  • Outdoor-viewable display option
  • Color: Black/ White Housing
  • Optional Magnetic Stripe Reader (MSR), triple track readers (ISO TK1, 2 & 3), high-performance decoding with ultra-compact design
  • Optional 2 Mega-pixels Camera, support auto focus, auto white balance and exposure
  • Optional 2D barcode scanner, reads both 1D and 2D barcodes, extremely durable, integrated for hassle-free operation
  • Magnetic Stripe Card Reader - Triple track readers, ISO TK1, 2 & 3
    - High-performance decoding
    - Ultra-compact design with low profile read head
    - Two-frequency coherent phase (F2F )
  • 2 Mega-pixels Camera - CMOS sensor, 2.0M Pixels (1600 x 1200)
    - Len size: 1/ 4
    - Auto focus@ 10cm ~ infinity
    - Auto white balance and exposure
    - Image Resolution: 1600 x 1200, 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480, 320 x 240
  • Optional 2D barcode scanner - High performance 2D imager engine - Reads both 1D and 2D barcodes
    - Extremely durable, integrated for hassle-free
    - Unmatched motion tolerance
    - Works in any lighting conditions, from 0 to 100,000 lux
    - Scan rate : 60 images/ s auto adaptive for 2D mode, 200 scans/ s auto adaptive for linear emulation mode
    - Optical Resolution : 752 (H) x 480 (V) pixels, 256 grey levels
  • Display: 8.4 TFT LCD with Resistive Touch; Outdoor-Viewable option
  • Processor?AMD Geode LX 800
  • Display Resolution?800 X 600
  • Memory (flash)?64MB 8GB
  • Memory (RAM)?256MB, 512MB, or 1GB
  • Operating Systems?Windows CE; Windows XP Embedded; Windows XP Tablet PC Edition
  • Storage?Internal flash module 60GB HDD ; 32GB Solid State Drive (SSD)
  • Enclosure?Magnesium-aluminum alloy
  • Stylus?Yes , non-electronic tip
  • Protective Bumpers? Rubber with optional handstrap, offers handling protection
  • Wireless Interface Integrated 802.11; Bluetooth
  • Control Buttons?Seven (7) Front buttons; Six (6) programmable; One Power (left edge); Internal battery control switch
  • Input/Output Ports?12V DC-in Jack; Microphone-In; Headset Jack; USB 2.0
  • Network Interface?Mini-PCI; RJ45 Ethernet; USB
  • AC/DC adapter?Input: 100240VAC Output: 12VDC
  • Power Cords?North America, EU, UK
  • Battery Packs?Internal (14W) Optional: External (28W, 0.5lb)
  • Dimensions?7.9" x 9.6" x 0.8" (H x W x D)
  • Base Weight?1.9 lbs (0.86 kg)
  • Regulatory?FCC Class B, CE, UL, RoHS compliant
  • Operating Temperature?0 40C
  • Humidity?0% 90% non-condensing

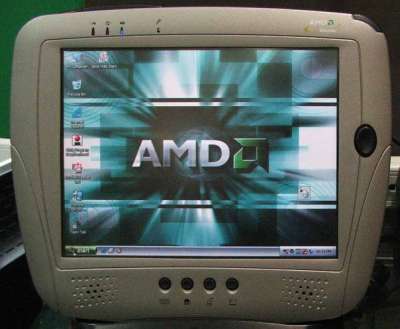

The WebDT 366 features the integration of a bright 8.4 touch display over an efficient AMD Geode-powered electronics platform within a thin, light, yet robust, metal package. Versatility reflected in the hardware and software features makes the device applicable for deployment leveraging network access and custom software.

support for major embedded operating systems
protective rubber jacket for ruggedized needs
accessible yet securable interfaces for range of peripherals and accessories
configurability for different storage and networking requirements
multiple options for battery expansion
display option for outdoor viewability

The WebDT 366, like other members in the WebDT tablet family, finds applications in Server-based Computing
Control & monitoring
Inventory & Warehousing
Service Industry
Web-based Applications
Manufacturing and numerous other vertical markets.

A suite of customized accessories complements the WebDT 366 to meet numerous deployment needs.

Display 8.4 (diag.) TFT LCD with Resistive Touch;
Outdoor-Viewable option
Display Resolution 800x600 (SVGA)
Processor AMD: Geode GX, Geode LX
Memory (flash) 64MB 4GB
Memory (RAM) 256MB (GX); 512MB (LX)

Software Operating Systems
Windows CE (GX only);
Windows XP Embedded;
Windows XP Professional

Internal flash module;
CompactFlash slot or HDD; USB

Magnesium-Aluminum alloy
Stylus Yes

Desktop Cradle
Pass-through for Power and USB for Keyboard and Mouse

Protective Jacket Adds drop protection
AC/DC adapter Input: 90-240VAC
Output: 12VDC, 3.5A
Power Cords USA, EU, UK

Battery Packs
(Lithium-Ion) Internal (14W)
External (28W, 0.5lb), and Tethered Pouch (72W, 1lb)

Network Interface (incl. WLAN)
PCMCIA or mini-PCI;
Bluetooth Built-in;
CF Slot

Input & Control
Four (4) Front buttons;
One (1) Oval 4-Way;
One Power (left edge);
One Trigger (right edge)

Input/Output Ports
12V DC-in Jack;
Headset Jack; USB (1.1) Port

(H x W x D)
7.9 x 9.6 x 0.8 (in)
200 x 240 x 18 (mm)
Base Weight 1.9 lbs (0.86 kg)

Regulatory FCC Class B, CE, UL

Operating Temp. 0 40C
Humidity 0% 90%
Dt400The WebDT 400 and 530 thin platforms with integrated displays emphasize the combination of superior viewing experience afforded by dazzling active matrix displays with a space-saving, shallow-footprint, industrial design. An optional matching wireless (IR) keyboard completes an outstanding appearance package which is powered by industry standard software that accommodates server-based or embedded commercial and casual applications for a non-PC experience on a low-power, thin platform.
WebDT 400
WebDT 530
Dt200The WebDT 220R and 220 modular Information Appliance offers a low cost yet elegant solution in a robust package designed for both unobtrusive upright placement and space-saving, horizontal, setup beneath external display monitors. The modularity of the WebDT 220R and 220 is complemented by a comprehensive suite of I/O ports including display, printing, networking, keyboard/mouse, audio and USB support. A compact operating software rounds off an outstanding user experience for Internet access and/or Intranet, server-based computing.
WebDT 220R
Dt220R Front
WebDT 220
