Please call for parts assistance

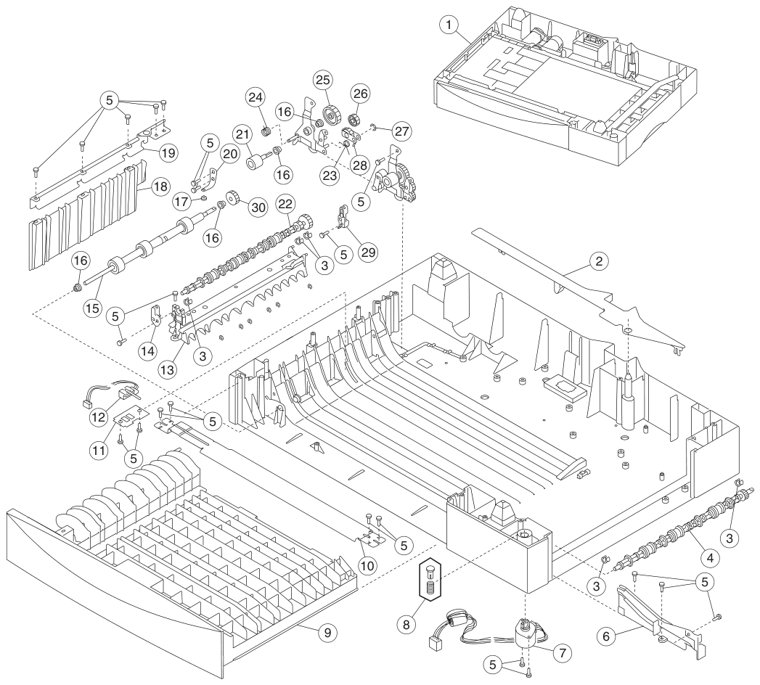

Assembly 30: Duplex option 1 40X1920 Duplex option, complete Lexmark 40X1920 Duplexer New 40X1920 (New) $139.00 2 40X1961 Back cover 2 40X1938 Autoconnect cable assembly Lexmark 40X1938 C77x SVC Cables A CONNECT New 40X1938 (New) Contact for Details Lexmark 40X1938 C77x SVC Cables A CONNECT Fully refurbished with 90-day warranty 40X1938 Contact for Details 3 40X1965 Redrive bearing 3 40X1939 DC forward/reverse motor assembly Lexmark 40X1939 DC Forward/Reverse Motor Assembly New 40X1939 (New) Contact for Details 4 40X1930 Duplex entry shaft assembly 4 40X1940 DC duplex feed motor 6 40X1923 Right side front tray guide 6 40X1648 Cable tie (6 in pack) Lexmark 40X1648 Cable Ties Fully refurbished with 90-day warranty 40X1648 $22.00 7 40X1956 Deflector actuator assembly 7 40X1937 Back support 8 40X1957 Deflector follower assembly 8 40X1922 Duplex card assembly 9 40X1959 Duplex front jam tray assembly 9 40X1958 Transfer belt 10 40X1935 Duplex support bracket 10 40X1960 Right jam clearance tray assembly 11 40X1964 Sensor mount plate 11 40X1969 C-clip retainer 12 40X1927 Duplex exit sensor 12 40X1953 Aligner spring 13 40X1924 Duplex shaft mount 13 40X1967 Paper guide assembly 14 40X1954 Front decurl assembly 14 40X1941 Drive alignment shaft assembly 15 40X1979 F/R backup shaft assembly Lexmark 40X1979 F/R Backup Shaft Assembly New 40X1979 (New) $43.14 Lexmark 40X1979 F/R Backup Shaft Assembly Fully refurbished with 90-day warranty 40X1979 $35.17 15 40X1952 Reduction gear shaft 16 40X1951 5 mm bushing 16 40X1931 Right backup spring assembly 17 40X1948 Brake pad 17 40X1968 Drive gear 18 40X1963 Duplex paper guide 18 40X1932 Left backup spring assembly 19 40X1933 Wall support 19 40X1962 Upper rib assembly 20 40X1950 Brake spring 20 40X1925 Duplex input sensor 21 40X1947 Pass thru shaft assembly 22 40X1926 Duplex shaft assembly 23 40X1944 Pass thru spring 24 40X1814 Aligner arm spring Lexmark 40X1814 Aligner Arm Spring New 40X1814 (New) $28.96 Lexmark 40X1814 Aligner Arm Spring Fully refurbished with 90-day warranty 40X1814 $23.58 25 40X1942 Spur drive gear 26 40X1943 26T duplex gear 28 40X1946 Bellcrank assembly 29 40X1949 Decurl BAC assembly 30 40X1929 40T shaft drive F/R gear 30.1–1 40X1934 Duplex support plate NS 40X1955 Pulley washer Parts catalog 7-55

Other listed parts 40X1633 40X1691 Screw type 312/322/412/423 Parts Packet Lexmark 40X1691 Screw type 312/322/412/423 Parts Packet New 40X1691 (New) Contact for Details Lexmark 40X1691 Screw type 312/322/412/423 Parts Packet Fully refurbished with 90-day warranty 40X1691 Contact for Details 40X1966 99A2540 Redrive Bearing Lexmark 99A2540 Redrive Bearing New 99A2540 40X1965 (New) $24.44
