Epson FX-890 and FX-2190 Parts (original models, not II)

This page is for the original FX-890 and FX-2190. For the II models see Epson FX-890II Parts and Epson FX-2190II Parts.

Please call for parts assistance

FX890 NON FIG SOFTWARE CD-ROM,E AI NON FIG USER'S GUIDE 100 HOUSING ASSY.,LOWER 101 FOOT 102 HOUSING ASSY.,UPPER 103 COVER ASSY .,PRINTER,REAR 104 COVER ASSY .,PRINTER 105 WING;EPAG 106 SHEET GUIDE ASSY 107 COVER ASSY .,FRONT 108 KNOB 109 SHIELD,PLATE,UPPER 110 SHIELD PLATE;B 111 SHIELD PLATE 112 GROUNDING PLATE 115 COVER,CONNECTOR,UPPER;EPAG 116 MOUNTING,HOUSING 117 GUIDE,I/F BOARD 120 LOGO PLATE,12X48;C 121 SHEET,RELEASE,CAP 122 STOPPER,COVER,FRONT 125 FAN ASSY. 127 C.B.S. SCREW(B300204311) 132 GROUNDING PLATE,I/F 133 GROUNDING PLATE,I/F,UPPER 137 GROUNDING PLATE,BOTTOM 138 HOLDER,CABLE 141 SHEET,PANEL 150 DETECTOR ASSY.,CASE OPEN 151 HOLDER,DETECTOR 180 C.B.P-TITE SCREW,3X12,F/ZN 181 C.B.S. SCREW(B300204211) 182 C.B.P-TITE SCREW,3X8,F/ZN 183 C.B.S-TITE,3X20,F/ZN 184 C.B.S. SCREW(B300204311) 185 C.P.SCREW(B010109511)
200 BOARD ASSY., MAIN 350 HARNESS AC INLET 372 HARNESS CN1 CONNECTOR 57RE-40360-830B(D7B) CN11 CONNECTOR CN12 CONNECTOR CN13 CONNECTOR CN14 CONNECTOR CN15 CONNECTOR CN16 CONNECTOR CN2 CONNECTOR CN20 CONNECTOR CN3 CONNECTOR CN5 CONNECTOR CN6 CONNECTOR CN7 CONNECTOR(X600440310) CN8 CONNECTOR(X600440120) CN9 CONNECTOR(X600440120) D1 DIODE D4 DIODE(X320010829) D7 DIODE(X320011839) D8 DIODE(X320011839) IC1 ASIC IC11 EEPROM IC13 RESET IC IC15 HYBRID IC SLA7024M IC4 FLASH ROM IC9 IC

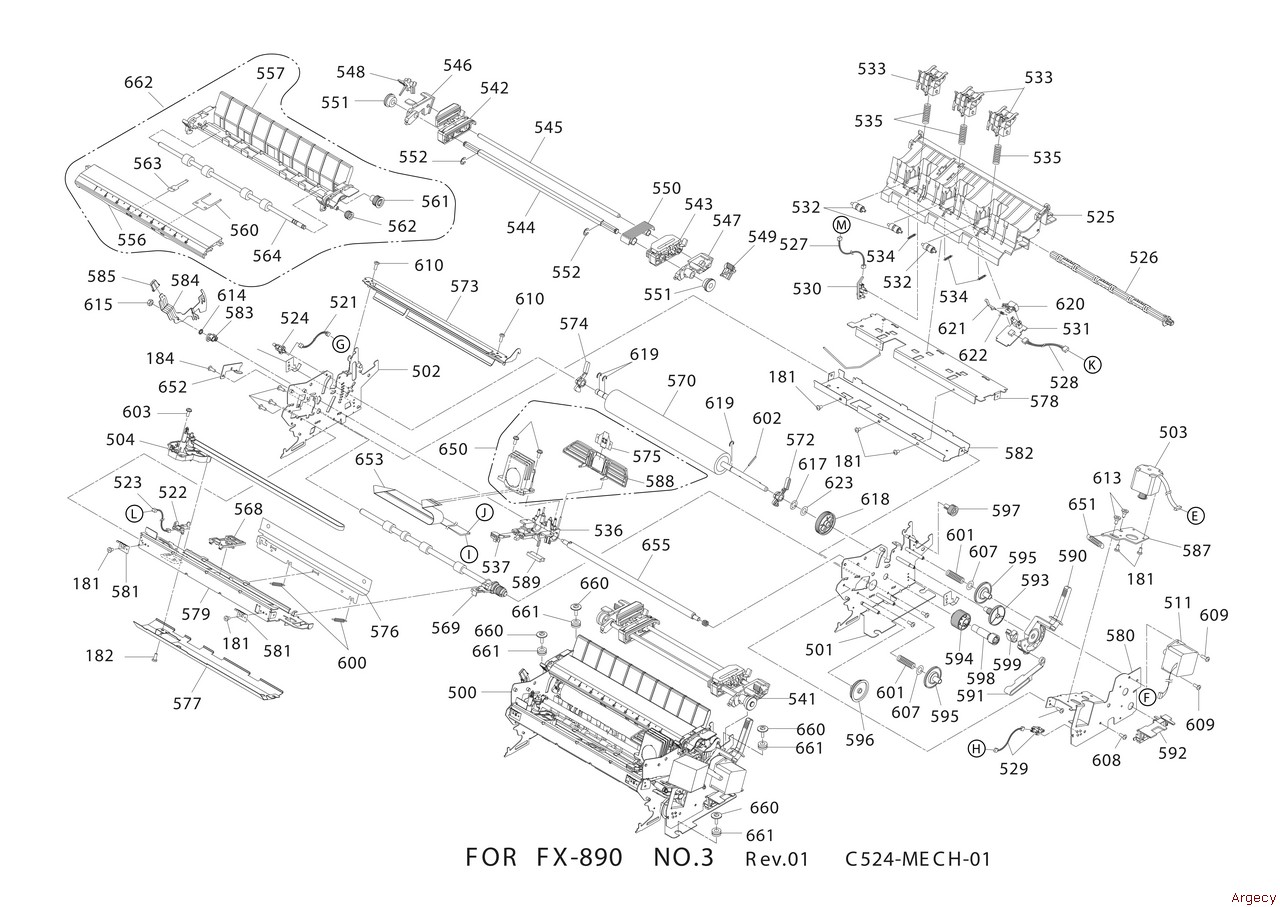

500 PRINTER MECHANISM(ASP)M-3Q10-100 501 FRAME ASSY.,RIGHT 502 FRAME ASSY.,LEFT 503 MOTOR ASSY.,CR 504 RD ASSY. 511 MOTOR,PF 522 DETECTOR,HP 523 HARNESS,HP 524 CONNECTOR SWITCH;B 525 PAPER GUIDE ASSY.,REAR 526 SHAFT,RELEASE 527 HARNESS,PE,FRONT 528 HARNESS,PE,REAR 529 HARNESS,RE 530 DETECTOR,PE,FRONT,S 531 DETECTOR ASSY., REAR 532 ROLLER,PF,DRIVEN,LOWER 533 ROLLER ASSY.,PF 534 EXTENSION SPRING,70 535 COMPRESSION SPRING,1000 536 CARRIAGE SUB ASSY. 537 SLIDER,CR 541 TRACTOR ASSY. 542 TRACTOR,LEFT;EDGB 543 TRACTOR,RIGHT;EDGB 544 SHAFT,TR,DRIVE 545 SHAFT,TR,GUIDE 546 FRAME,TR,LEFT;EPAG 547 FRAME,TR,RIGHT;EPAG 548 LEVER,TR,LEFT;EDGB 549 LEVER,TR,RIGHT;EDGB 550 PAPER SUPPORT 551 SPUR GEAR,20 618 SPUR GEAR,36 619 RETAINING RING(B160101412) 620 LEVER,DETECTOR,PE,REAR 621 LEVER,PE,SUPPORT 622 TORSION SPRING,0.26 623 PLAIN WASHER,3X0.5X8,F/ZB 650 HEAD KIT ASP 651 EXTENSION SPRING,16.45 652 HOLDER,PULLEY DRIVEN 653 CABLE,HEAD 655 SHAFT,CR,GUIDE 660 C.B.B-TITE(P(13)),3X14,F/ZN 661 BASE RUBBER 662 PAPER EJECT ASSY. 1 IND CARTON BOX FOR AMERICA 2 PAD SET PRINTER 3 PAD,SHEET GUIDE ASSY. 4 PAD,CR 5 PAD,PLATEN 6 PAD,SLEEVE 7 PLASTIC PROTECTIVE BAG,650X570X0.06T 300 BOARD ASSY., POWER SUPPLY 400 POWER CABLE 450 HOUSING ASSY.,PANEL NON FIG OIL O-14 NON FIG GREASE G-26 (40GR)

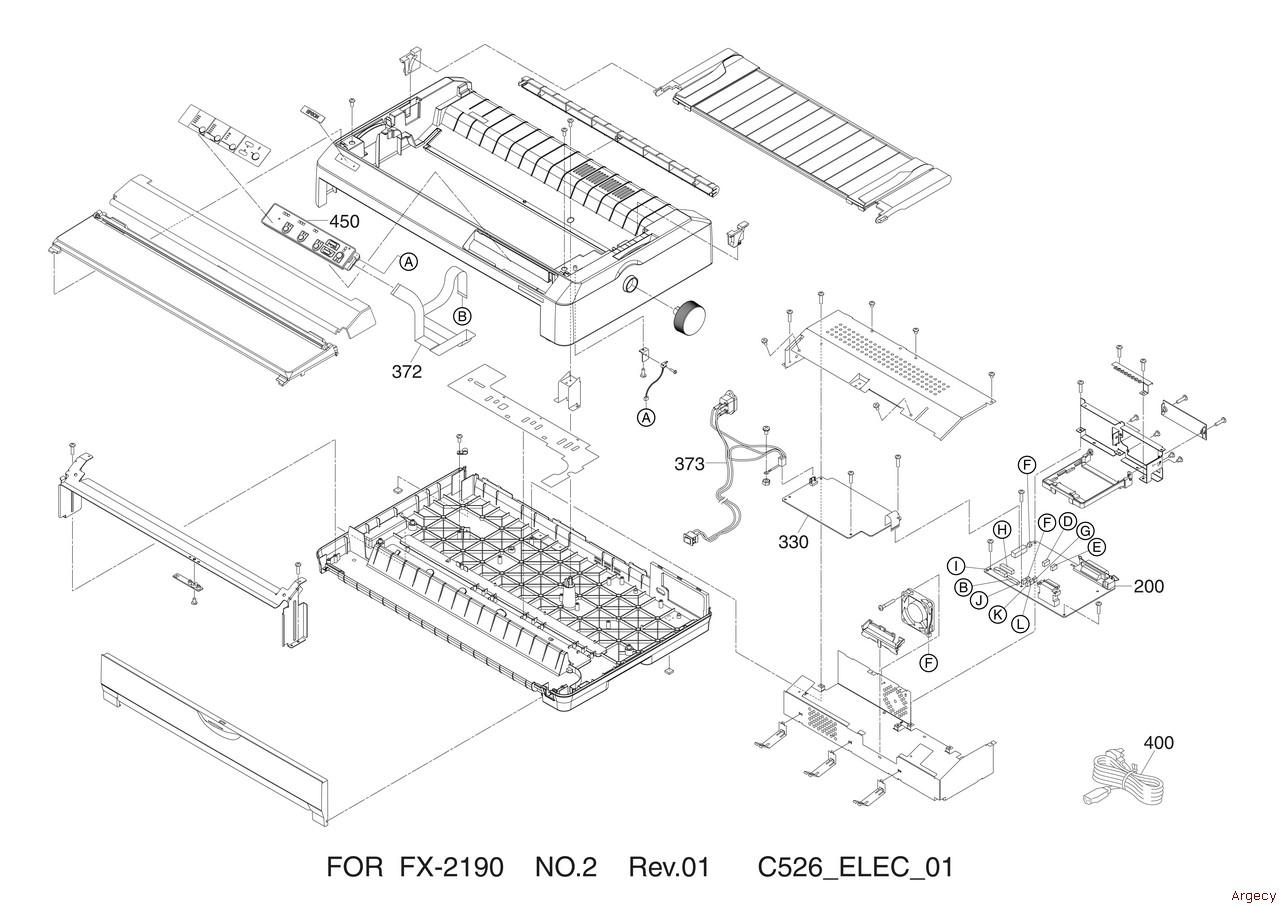

FX2190 NON FIG SOFTWARE CD-ROM,EAI NON FIG USER'S GUIDE 100 HOUSING ASSY.,LOWER 101 FOOT 102 HOUSING ASSY.,UPPER 103 COVER ASSY.,PRINTER,REAR 104 COVER ASSY.,PRINTER 105 WIHG;EPAG 106 SHEET GUIDE ASSY 107 COVER ASSY.,FRONT 108 KNOB 109 SHIELD,PLATE,UPPER 110 SHIELD PLATE;B 111 SHIELD PLATE 112 GROUNDING PLATE 113 SHEET,PANEL 115 COVER,CONNECTOR,UPPER;EPAG 116 MOUNT,HOUSING 117 GUIDE,I/F BOARD 118 HOLDER,SHEET GUIDE,L 119 HOLDER,SHEET GUIDE,R 120 LOGO PLATE,12X48;C 121 STOPPER,COVER,FRONT 122 HOLDER,CABLE 123 FAN ASSY. 125 C.B.S. SCREW(B300204211) 126 C.B.P-TITE SCREW,3X12,F/ZN 127 C.B.S. SCREW(B300204211) 132 GROUNDING PLATE,I/F 133 GROUNDING PLATE,I/F,UPPER 135 C.B.S-TITE,3X20,F/ZN 150 DETECTOR ASSY.,CASE OPEN 151 HOLDER,DETECTOR (CN2) GROUNDING PLATE,I/F 200 BOARD ASSY., MAIN
330 BOARD ASSY., POWER SUPPLY 372 HARNESS 373 HARNESS 400 UL/CSA APPROVED P.S. CORD SET 10A 125V 450 HOUSING ASSY.,PANEL B1 BEADS CORE B2 BEADS CORE B29 BEADS CORE CN1 CONNECTOR 57RE-40360-830B(D7B) CN11 CONNECTOR CN12 CONNECTOR CN13 CONNECTOR CN14 CONNECTOR CN15 CONNECTOR CN16 CONNECTOR CN2 CONNECTOR CN20 CONNECTOR CN3 CONNECTOR CN5 CONNECTOR CN6 CONNECTOR CN7 CONNECTOR(X600440310) CN8 CONNECTOR(X600440120) D1 DIODE D4 DIODE(X320010829) D7 DIODE(X320011839) D8 DIODE(X320011839) DM2 DIODE ARRAY IC13 RESET IC IC15 HYBRID IC SLA7024M IC16 DRAM IC2 INTERFACE IC IC4 FLASH ROM IC6 VOLTAGE REGULATOR IC9 IC Q1 TRANSISTOR Q27 TRANSISTOR(X302416909) Q28 CHIP TRANSISTOR ZD3 ZENER DIODE

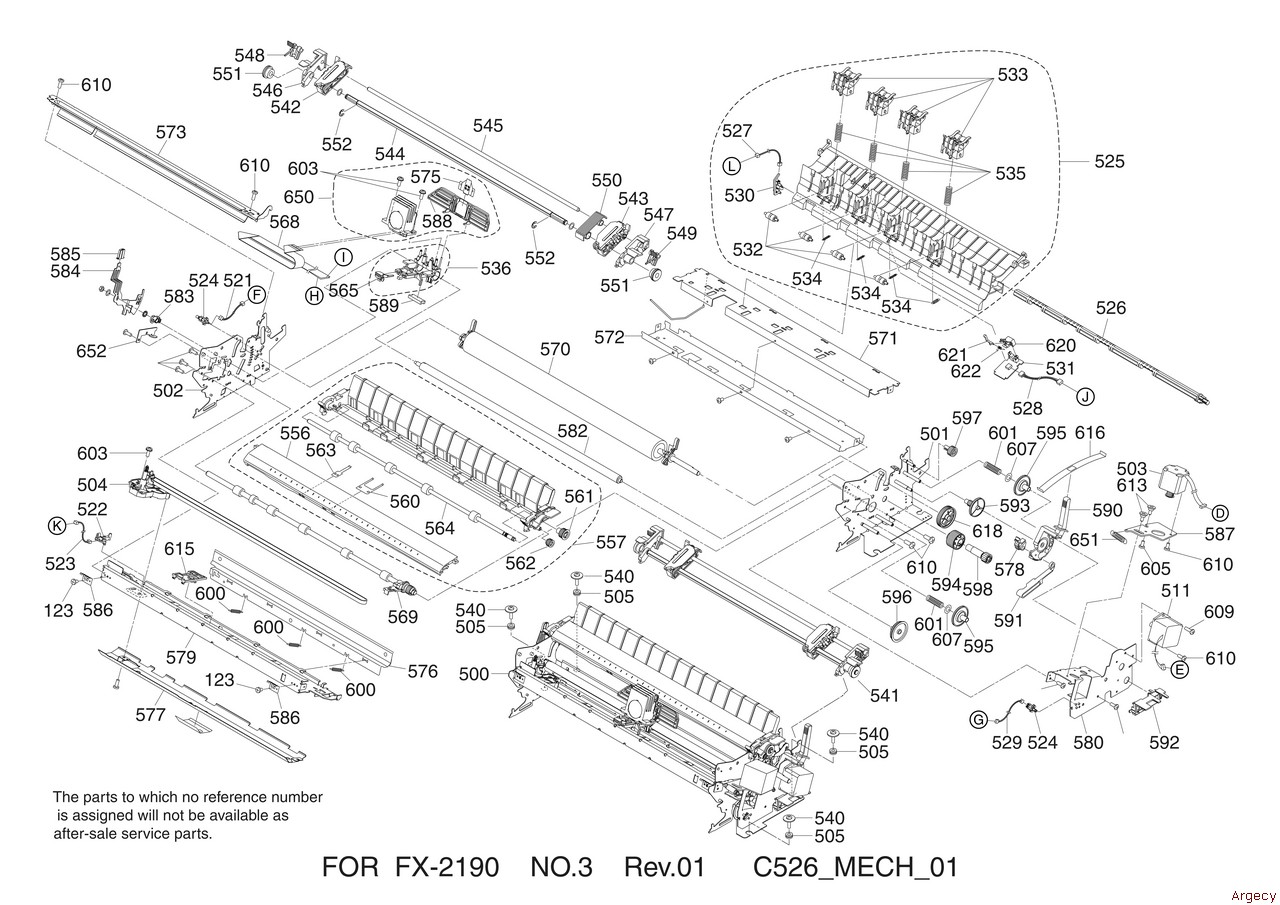

500 PRINTER MECHANISM(ASP)M-3R60-100 501 FRAME ASSY.,RIGHT 502 FRAME ASSY.,LEFT 503 MOTOR ASSY.,CR 504 RD ASSY. 505 BASE RUBBER 511 MOTOR,PF 521 HARNESS,PG 522 DETECTOR,HP 523 HARNESS,HP 524 CONNECTOR SWITCH;B 525 PAPER GUIDE ASSY.,REAR 526 SHAFT,RELEASE 527 HARNESS,PE,FRONT 528 HARNESS,PE,REAR 529 HARNESS,RE 530 DETECTOR,PE,FRONT,S 531 DETECTOR ASSY., REAR 532 ROLLER,PF,DRIVEN,LOWER 533 ROLLER ASSY.,PF 534 EXTENSION SPRING,46 535 COMPRESSION SPRING,1000 536 CARRIAGE SUB ASSY. 540 C.B.B-TITE(P(13)),3X14,F/ZN 541 TRACTOR ASSY. 542 TRACTOR,LEFT;EDGB 543 TRACTOR,RIGHT;EDGB 544 SHAFT,TR,DRIVE 545 SHAFT,TR,GUIDE 546 FRAME,TR,LEFT;EPAG 547 FRAME,TR,RIGHT;EPAG 548 LEVER,TR,LEFT;EDGB 549 LEVER,TR,RIGHT;EDGB 550 PAPER SUPPORT 551 SPUR GEAR,20 552 RETAINING RING(B150300911) 556 COVER,PAPER EJECT 557 PAPER EJECT ASSY. 560 LEAF SPRING,PAPER EJECT,DOUBLE 561 SPUR GEAR,15 562 SPUR GEAR,11.5 563 LEAF SPRING,PAPER EJECT,SINGLE 564 ROLLER,EJ,DRIVE 565 SLIDER,CR 568 CABLE,HEAD 569 ROLLER ASSY.,DRIVE 570 PLATEN ASSY. 571 FRAME,REAR 572 FRAME,BASE 573 COVER,PLATEN 575 RIBBON MASK 576 PAPER GUIDE ASSY.,SUPPORT 577 GUIDE,PAPER LOAD 578 LEVER,RELEASE,TRANSMISSION;W 579 FRAME,FRONT 580 FRAME,SUB,RIGHT 582 SHAFT,CR,GUIDE 583 BUSHING,PARALLEL,ADJUST 584 LEVER,GAP,ADJUST 585 CAP,LEVER;EDGB 586 GROUNDING PLATE,MECHA 587 MOUNTING PLATE,MOTOR,CR 588 HOLDER,RIBBON MASK 589 OIL PAD 590 LEVER,RELEASE;EDGB 591 CAM,CLUTCH,TRACTOR 592 HOLDER,CABLE 593 COMBINATION GEAR,31,5,8 594 SPUR GEAR,27 595 SPUR GEAR,34.5 596 SPUR GEAR,34 597 SPUR GEAR,15 598 INTERMITTENT GEAR 600 EXTENSION SPRING,71 601 COMPRESSION SPRING,200 603 C.B.S(P).(0) SCREW 605 C.B.SCREW(B010303311) 607 PLANE WASHER,8.2X0.5X12,L/NA 609 C.B.SCREW(B010303511) 610 C.B.SCREW(B010303411) 613 SHAFT,MOUNT,CR 615 HOLDER,CABLE,HEAD 616 SHEET,RELEASE,CAP 618 SPUR GEAR,36 620 LEVER,DETECTOR,PE,REAR 621 LEVER,PE,SUPPORT 622 TORSION SPRING,0.26 650 HEAD KIT ASP 651 EXTENSION SPRING,16.45 652 HOLDER,PULLEY DRIVEN NON FIG OIL O-14 NON FIG GREASE G-26 (40GR)(B702600001)
FX-890 parts list (Epson parts list) 100 1261490 Housing Assy., Lower 101 1004605 Foot 1004605 RUBBER FOOT New 1004605 (New) Contact for Details 1004605 RUBBER FOOT Fully refurbished with 90-day warranty 1004605 Contact for Details 102 1261492 Housing Assy., Upper 103 1261495 Cover Assy 104 1261494 Cover Assy., Printer 105 1235796 Ring 106 1261496 Sheet Guide Assy 107 1261493 Cover Assy., Front 108 1234171 Knob 109 1233915 Shield, Plate, Upper 110 1233914 Shield 111 1233912 Shield Plate 112 1233916 Grounding Plate 116 1233917 Mounting, Housing 117 1064686 Guide, I/F Board 121 1242257 Sheet, Release, Cap 1242257 SHEET RELEASE CAP New 1242257 (New) Contact for Details 1242257 SHEET RELEASE CAP Fully refurbished with 90-day warranty 1242257 Contact for Details 122 1236041 Stopper, Cover, Front 125 2081380 Fan Assy. 127 1073171 C.B.S. Screw(B300204311) M3X8 132 1233911 Grounding Plate, I/F 133 1064693 Grounding Plate, I/F, Upper 137 1037280 Grounding Plate, Bottom 138 1234169 Holder, Cable 141 1236544 Sheet, Panel 150 2018967 Detector Assy., Case Open 151 1026338 Holder, Detector 180 1003164 C.B.P-Tite Screw, 3X12,F/Zn 181 1073165 C.B.S. Screw(B300204211) M3X6 182 1005019 C.B.P-Tite M3X8 F/Zn 185 1004527 C.P.Screw(B010109511) M3X4 200 2080658 Board Assy., Main 5926A,C524 Standard 300 2080699 Board Assy., Power Supply 5928A,C524 Standard 350 2081158 Harness Ac Inlet Ac Inlet (Psb) 372 2081151 Harness Ffc Harness 1262597 Housing Assy., Panel 500 2084352 Printer 501 1232303 Frame Assy., Right 503 2035035 Motor Assy., Carriage 504 1234467 Ribbon Drive Assy. 511 2056298 Motor, Paper Feed 522 2004004 Detector, Home Position 523 2025264 Harness, Hp 524 2014328 Connector Switch;B 2014328 CONNECTOR SWITCH New 2014328 2116975 (New) Contact for Details 2014328 CONNECTOR SWITCH Fully refurbished with 90-day warranty 2014328 2116975 Contact for Details 525 1254858 Paper Guide Assy., Rear 526 1005157 Shaft, Release 527 2025262 Harness, Pe, Front 528 2025263 Harness, Pe, Rear 529 2025897 Harness, Re 530 2071496 Detector, Pe, Front,S 2071496 DETECTOR PE FRONT FOR PR New 2071496 (New) Contact for Details 2071496 DETECTOR PE FRONT FOR PR Fully refurbished with 90-day warranty 2071496 Contact for Details 531 1005727 Detector Assy., Rear 532 1005213 Roller, Lower 1005213 ROLLER PF DRIVEN LOWER New 1005213 (New) Contact for Details 1005213 ROLLER PF DRIVEN LOWER Fully refurbished with 90-day warranty 1005213 Contact for Details 533 1005282 Roller Assy., Pf 534 1005215 Extension Spring,70 535 1005214 Compression Spring, 1000 536 1232304 Carriage Sub Assy. 537 1008704 Slider, Cr 541 1254859 Tractor Assy. 542 1251317 Tractor 543 1251318 Tractor 544 1036500 Shaft, Tractor Drive 1036500 SHAFT TR DRIVE New 1036500 1677224 (New) Contact for Details 1036500 SHAFT TR DRIVE Fully refurbished with 90-day warranty 1036500 1677224 Contact for Details 545 1083356 Shaft, Tractor Guide 1083356 SHAFT TR GUIDE New 1083356 1677214 (New) Contact for Details 1083356 SHAFT TR GUIDE Fully refurbished with 90-day warranty 1083356 1677214 Contact for Details 546 1251312 Tractor 547 1251313 Frame, Tractor Right 548 1251314 Lever, Tractor Left 549 1251315 Tractor Right 550 1025296 Paper Support 1025296 PAPER SUPPORT New 1025296 1538301 (New) Contact for Details 1025296 PAPER SUPPORT Fully refurbished with 90-day warranty 1025296 1538301 Contact for Details 551 1039507 Spur Gear,20 552 1074768 Retaining Ring(B150300911) Type-E(6) 556 1050218 Cover, Paper Eject 557 1251310 Epag 560 1005243 Leaf Spring,Paper Eject, Double 561 1235581 Spur Gear, 15 562 1004929 Spur Gear, 11.5 1004929 11.5 SPUR GEAR New 1004929 (New) Contact for Details 1004929 11.5 SPUR GEAR Fully refurbished with 90-day warranty 1004929 Contact for Details 563 1005514 Leaf Spring,Paper Eject, Single 568 1005176 Holder, Cable, Head 1005176 HOLDER CABLE HEAD New 1005176 (New) Contact for Details 1005176 HOLDER CABLE HEAD Fully refurbished with 90-day warranty 1005176 Contact for Details 569 1036530 Roller Assy, Drive 570 1234468 Platen Assy. 572 1232297 Bushing,8, Right 1232297 BUSHING 8 RIGHT New 1232297 (New) Contact for Details 1232297 BUSHING 8 RIGHT Fully refurbished with 90-day warranty 1232297 Contact for Details 573 1232301 Cover, Platen 575 1232295 Ribbon Mask 576 1014600 Paper Guide Assy., Support 577 1232300 Guide, Paper Load 578 1232259 Frame, Rear 579 1232260 Frame, Front 580 1235586 Sub, Right 581 1036501 Grounding Plate, Mecha 582 1232261 Frame, Base 583 1232294 Bushing, Parallel,Adjust 1232294 BUSHING PARALLEL ADJUST New 1232294 (New) Contact for Details 1232294 BUSHING PARALLEL ADJUST Fully refurbished with 90-day warranty 1232294 Contact for Details 584 1232267 Lever, Gap, Adjust 585 1251316 Cap 587 1005185 Mounting Plate, Motor,Cr 1005185 MOUNTING PLATE MOTOR CR New 1005185 (New) Contact for Details 1005185 MOUNTING PLATE MOTOR CR Fully refurbished with 90-day warranty 1005185 Contact for Details 588 1010896 Holder, Ribbon Mask 590 1251311 Lever, Release; Edgb 591 1028357 Cam, Clutch, Tractor 1028357 CAM CLUTCH TRACTOR New 1028357 (New) Contact for Details 1028357 CAM CLUTCH TRACTOR Fully refurbished with 90-day warranty 1028357 Contact for Details 592 1036498 Holder, Cable 593 1008716 Combination 594 1005224 Spur Gear,27 1005224 SPUR GEAR New 1005224 (New) Contact for Details 1005224 SPUR GEAR Fully refurbished with 90-day warranty 1005224 Contact for Details 595 1013093 Spur Gear, 34.5 1013093 SPUR GEAR New 1013093 (New) Contact for Details 1013093 SPUR GEAR Fully refurbished with 90-day warranty 1013093 Contact for Details 596 1005226 Spur Gear,34 1005226 SPUR GEAR 34 New 1005226 (New) Contact for Details 1005226 SPUR GEAR 34 Fully refurbished with 90-day warranty 1005226 Contact for Details 597 1005227 Spur Gear, 15 598 1028359 Intermittent Gear 1028359 INTERMITTENT GEAR New 1028359 (New) Contact for Details 1028359 INTERMITTENT GEAR Fully refurbished with 90-day warranty 1028359 Contact for Details 599 1235585 Lever, Release,Transmission 1235585 LEVER RELEASE TRANSMISSION IMP New 1235585 (New) Contact for Details 1235585 LEVER RELEASE TRANSMISSION IMP Fully refurbished with 90-day warranty 1235585 Contact for Details 600 1005201 Extension Spring,71 601 1005232 Compression Spring,200 1005232 COMPRESSION SPRING 200 New 1005232 (New) Contact for Details 1005232 COMPRESSION SPRING 200 Fully refurbished with 90-day warranty 1005232 Contact for Details 602 1031702 Spring 1031702 SPRING PIN 2X12 New 1031702 (New) Contact for Details 1031702 SPRING PIN 2X12 Fully refurbished with 90-day warranty 1031702 Contact for Details 603 1000972 Screw M3X8 607 1076264 Plain Washer(B100166012) 1076264 PLAIN WASHER (8X0.5X15) New 1076264 (New) Contact for Details 1076264 PLAIN WASHER (8X0.5X15) Fully refurbished with 90-day warranty 1076264 Contact for Details 608 1006653 C.B.Screw(B010303411) M3X8 609 1001275 C.B.Screw(B010303511) M3X10 613 1005416 Shaft, Mount,Carriage 614 1009032 Toothed Lock Washer A 615 1076213 Hexagon Nut(B070200411) 617 1076285 Leaf Spring(B101253990) 1076285 LEAF SPRING (8.2X0.25X15) (B101253990) New 1076285 (New) Contact for Details 1076285 LEAF SPRING (8.2X0.25X15) (B101253990) Fully refurbished with 90-day warranty 1076285 Contact for Details 618 1031612 Spur Gear,36 1031612 PLATEN GEAR New 1031612 1738457 (New) Contact for Details 1031612 PLATEN GEAR Fully refurbished with 90-day warranty 1031612 1738457 Contact for Details 619 1074777 Retaining Ring(B160101412) Type-C 621 1025324 Lever, Pe, Support 622 1025325 Torsion Spring,0.26 623 1039378 Plain Washer, 3X0.5X8,F/Zb 650 1267348 Head Kit Asp Inc. Ask And Holder 651 1080933 Extension Spring, 16.45 1080933 EXTENSION SPRING 16.45 New 1080933 (New) Contact for Details 1080933 EXTENSION SPRING 16.45 Fully refurbished with 90-day warranty 1080933 Contact for Details 652 1080935 Holder, Pulley Driven 653 2080616 Cable, Head 655 1254449 Shaft, Carriage,Guide 661 1250538 Base Rubber 1250538 BASE RUBBER New 1250538 (New) Contact for Details 1250538 BASE RUBBER Fully refurbished with 90-day warranty 1250538 Contact for Details 662 1254860 Paper Eject Assy. IC11 2030125 Eeprom Sop, 1Kbit,8
