HP 5500 5550 Parts
Please call for parts
 | |
 | |
| 1 Rear top cover assembly, 5550 only RG5-7732-000CN 1 Rear top cover assembly, 5500 only RG5-6779-000CN 2 Right cover assembly RG5-6783-020CN 3 Left cover assembly RG5-6782-000CN 4 Rear cover RG5-9485-000CN 5 Filter, rear RB2-9379-000CN 6 screw, M3x8 XA9-1330-000CN 7 Filter, left side RB2-9378-000CN |  |
| 8 Top cover assembly RG5-6778-060CN 9 Multi-purpose tray assembly RG5-6780-070CN 10 Front cover assembly RG5-6777-120CN |  |
| 1 screw, M3x6, TP XA9-1329-000CN 2 support, right hinge RB2-9475-000CN 3 drum grounding assembly RG5-6720-030CN 4 cable, left side RG5-6818-000CN 5 disengaging drive assembly RG5-6719-000CN 6 DC controller PCB, 5550 only RG5-7684-000CN 6 DC controller PCB, 5500 only RG5-6850-070CN 7 plate, drive release RB2-9359-000CN 8 screw, M3x10, with washer XA9-1162-000CN 9 drum drive assembly, cyan/magenta RG5-7723-000CN 10 drum drive assembly, yellow RG5-7724-000CN 11 drum drive assembly, cyan/magenta RG5-7723-000CN 12 drum drive assembly, black RG5-7725-000CN 13 gear, 200T RS7-0320-000CN 14 gear, 200T RS7-0321-000CN 15 gear, 200T RS7-0320-000CN 16 gear, 200T RS7-0321-000CN 17 disengaging plate assembly RG5-6742-000CN 18 gear, 17T RS7-0323-000CN 19 damper assembly RG5-6786-000CN 20 fuser drive assembly, 5550 only RG5-7700-000CN 20 fuser drive assembly, 5500 only RG5-6714-000CN |  |
| 1 cable, formatter interface RG5-6834-000CN 2 cable, flat RH2-5510-000CN 3 spring, scanner support RB2-8246-000CN 4 fuse, 250 v, 8 amp (110 and 220 v) VD7-0648-001CN 5 fuse, 250 v, 20 amp (100 - 127 v) fuse, 250 v, 4 amp (220 - 240 v) VD7-1732-002CN,VD7-0644-001CN 6 power supply assembly (100 - 127 v) RG5-6808-060CN 7 cover, cassette rear RB2-9478-020CN 8 cable, DC RG5-6816-000CN |  |
| 1 color registration detection unit RG5-6688-000CN 2 ETB assembly RG5-7737-000CN 3 gear, pressure, right RB2-9151-000CN 4 spring, tension RS6-2626-000CN 5 support, left, ETB RB2-9147-000CN 6 support, right, ETB RB2-9146-000CN 7 lever, interlock RB2-9358-020CN 8 gear, pressure, left RB2-9150-000CN 9 hinge, one-way RB2-9152-000CN 10 cam/gear, 66T RS7-0302-000CN 11 spring, tension RS6-2632-000CN 12 fuser (100 - 127 v), C9656-69012 (exchange) 5500 only fuser (220 - 240 v), 5500 only), C9656-69002 (exchange) 12 fuser (100 - 127 v), 5550 only Q3984-69001 (exchange) fuser (220 - 240 v), 5550 only, Q3985-69001 (exchange) |  |
| 1 control panel assembly (100 - 127 v) RG5-6781-030CN 1 control panel assembly (100 - 127 v) RG5-6781-030CN 2 brush, cleaning RB2-9145-000CN 3 paper pickup assembly, 5550 only RG5-7709-000CN 3 paper pickup assembly, 5500 only RG5-6670-110CN 4 E-label memory controller PCB RG5-6803-000CN 5 DC controller PCB, 5550 only RG5-7684-000CN 5 DC controller PCB, 5500 only RG5-6850-070CN 6 cable, pickup unit RG5-6829-000CN 7 cable, flat RH2-5511-000CN 8 lever, test print RB2-9350-000CN 9 fan, cartridge RH7-1526-000CN 10 cable, fan RG5-6820-000CN 11 fan, formatter RH7-1491-000CN |  |
| 1 fuser connector mount assembly, 5550 only RG5-7727-000CN 1 fuser connector mount assembly, 5500 only RG5-6734-000CN 2 HVT terminal assembly RG5-6725-000CN 3 toner sensor PCB RG5-6805-000CN 4 high-voltage PCB RG5-6800-000CN 5 lever RF5-3898-000CN 6 e-label antenna assembly RG5-6728-000CN 7 cable, fuser power supply RG5-6827-000CN 8 fuser power supply (100 - 127 v) RG5-6801-000CN, 9 cable, intermediate RG5-6826-000CN 10 cable, AC RG5-6815-000CN 11 DC controller PCB, 5550 only RG5-7684-000CN 11 DC controller PCB, 5500 only RG5-6850-070CN |  |
| 1 laser/scanner assembly, 5500 only RG5-6736-000CN 1 laser/scanner assembly, 5550 only RG5-7681--000CN 2 guide, cartridge, left upper RB2-9391-000CN 3 gear, 36T RS7-0326-000CN 4 guide, cartridge, left lower RB2-9390-000CN 5 photo interrupter, TLP 1241 WG8-5362-000CN 6 guide, cartridge, right lower RB2-9392-000CN 7 guide, cartridge, right upper RB2-9393-000CN 8 DC controller PCB, 5550 only RG5-7684-000CN 8 DC controller PCB, 5500 only RG5-6850-070CN |  |
| 1 sensor and bracket assembly RG5-6715-000CN 2 photo interrupter WG8-5362-000CN 3 switch, cover safety WC4-5188-000CN 4 cartridge inlet assembly RG5-6726-000CN 5 contact assembly RG5-6844-000CN 6 fan, power supply RH7-1491-000CN |  |
| 1 frame assembly, lower right RG5-6673-000CN 2 lifter drive assembly RG5-6676-000CN 3 link arm assembly, MP tray, right RG5-6675-000CN 4 link, MP tray, left RB2-9066-000CN 5 rod, spring RB2-8213-000CN 6 connector, 6-pin, J39 VS1-6760-006CN 7 paper feeder cable RG5-6836-000CN 8 cable, paper size RG5-6821-000CN 9 frame assembly, lower left RG5-6672-040CN |  |
| 1 static discharge comb, 5500 only RG5-6846-000CN 1 static discharge comb KH, 5550 only Q3713-67901 2 static discharge PCB assembly RG5-6845-000CN 3 static discharge cleaning brush RB2-9561-030CN |  |
| 1 paper pickup drive assembly, 5550 only RG5-7711-000CN 1 paper pickup drive assembly, 5500 only RG5-6661-070CN 2 motor, PM2, pickup motor 5550 only RH7-1619-000CN 2 motor, PM2, pickup motor 5500 only RH7-1523-000CN 3 solenoid RH7-5330-000CN 4 clutch RH7-5329-000CN |  |
| 1 drum drive assembly (cyan/magenta) RG5-7723-000CN (cyan/ magenta) 1 drum drive assembly (black) RG5-7725-000CN (black) 1 drum drive assembly (yellow) RG5-7724- 000CN (yellow) |  |
| 1 disengaging drive assembly RG5-6719-000CN 2 photo interrupter, TLP1241 WG8-5362-000CN 3 motor, PM1, developing disengaging RH7-1524-000CN |  |
| 1 fuser drive assembly, 5550 only RG5-7700-000CN 1 fuser drive assembly, 5500 only RG5-6714-000CN 2 motor, M5, fuser RH7-1617-000CN 3 photo interrupter, TLP1241 WG8-5362-000CN 4 cable, upper crossmember 5550 only RG5-7687-000CN 4 cable, upper crossmember, 5500 only RG5-6823-000CN |  |
| 1 cassette (Tray 2) RG5-6647-150CN 1 2 roller assembly, MP tray pickup RG9-1529-000CN 1 3 separation pad RF5-3865-000CN 1 4 roller, separation RF5-3338-000CN (single roller), RY7-5097-000CN (roller kit), see note below 1 When you replace the separation roller, you should also replace the cassette feed roller and cassette pickup roller at the same time. The roller kit includes all three rollers. |  |
| 1 paper pickup assembly, 5550 only RG5-7709-000CN 1 paper pickup assembly, 5500 only RG5-6670-110CN 2 lifter drive assembly RG5-6665-000CN 3 photo interrupter, TLP 1241 WG8-5362-000CN 4 cassette sensor PCB RG5-6807-000CN 5 multi-purpose tray sensor PCB RG5-6806-000CN 6 paper pickup drive unit, 5550 only RG5-7711-000CN 6 paper pickup drive assy, 5500 only RG5-6661-070CN 7 roller, cassette feed RF5-3338-000CN (single roller), RY7-5097-000CN (roller kit) see second note on the next page 8 roller, cassette pickup RF5-3340-000CN (single roller), RY7-5097-000CN (roller kit) see second noteon the next page |  |
| 1 ETB assembly RG5-7737-000CN (new), C9656-69001 (exchange) | |
| 1 2 motor, M6, ETB RH7-1618-000CN |  |
| 1 fuser assembly, 5500 only RG5-6848-150CN (110 volt, new), C9656-69016 (110 volt, exchange), RG5-6701-000CN 1 fuser assembly, 5550 only RG5-7691-000CN (110 volt, new), Q3984-69001 (110 volt, exchange) 2 sensor flag assembly RG5-6842-040CN |  |

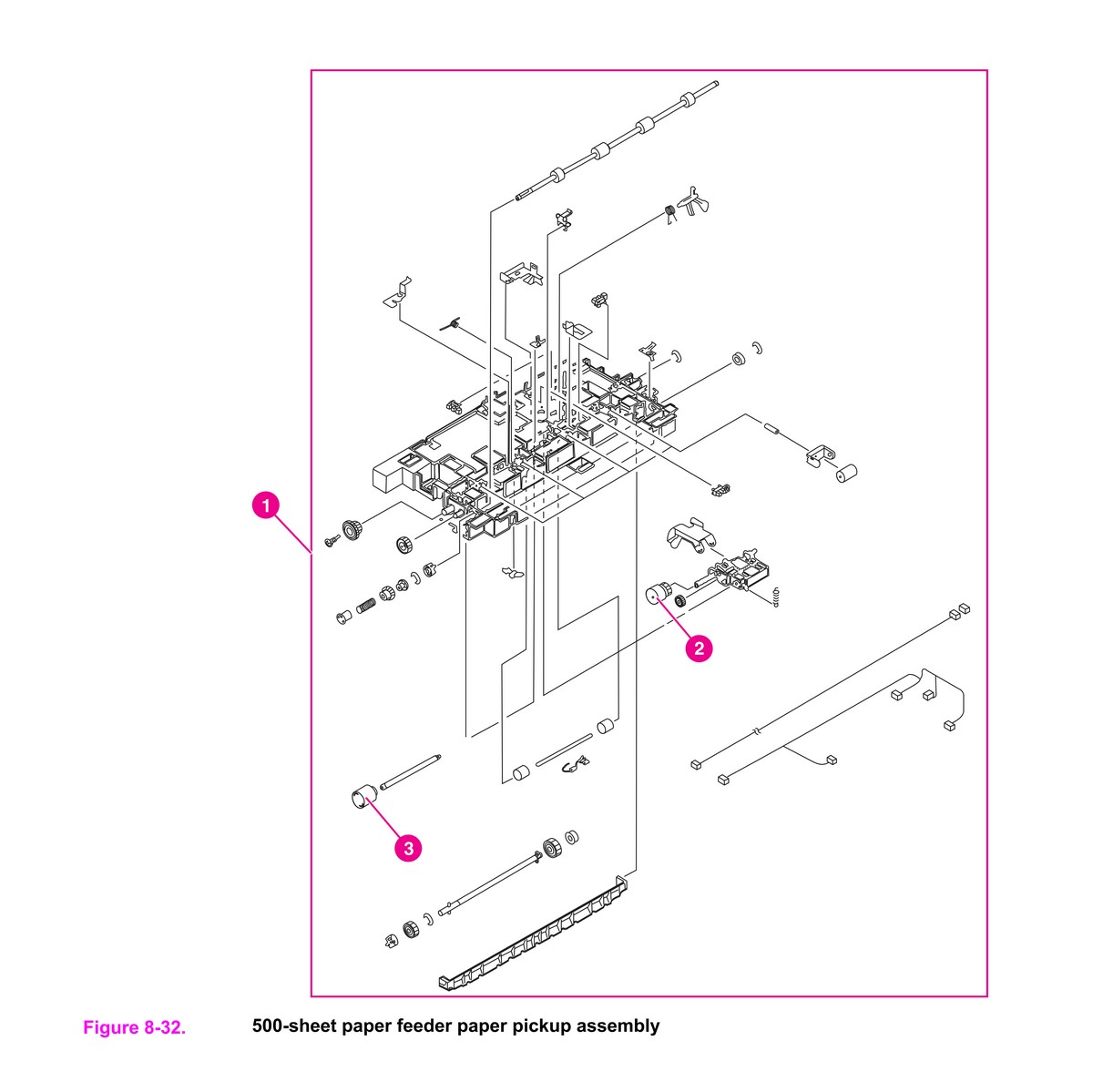

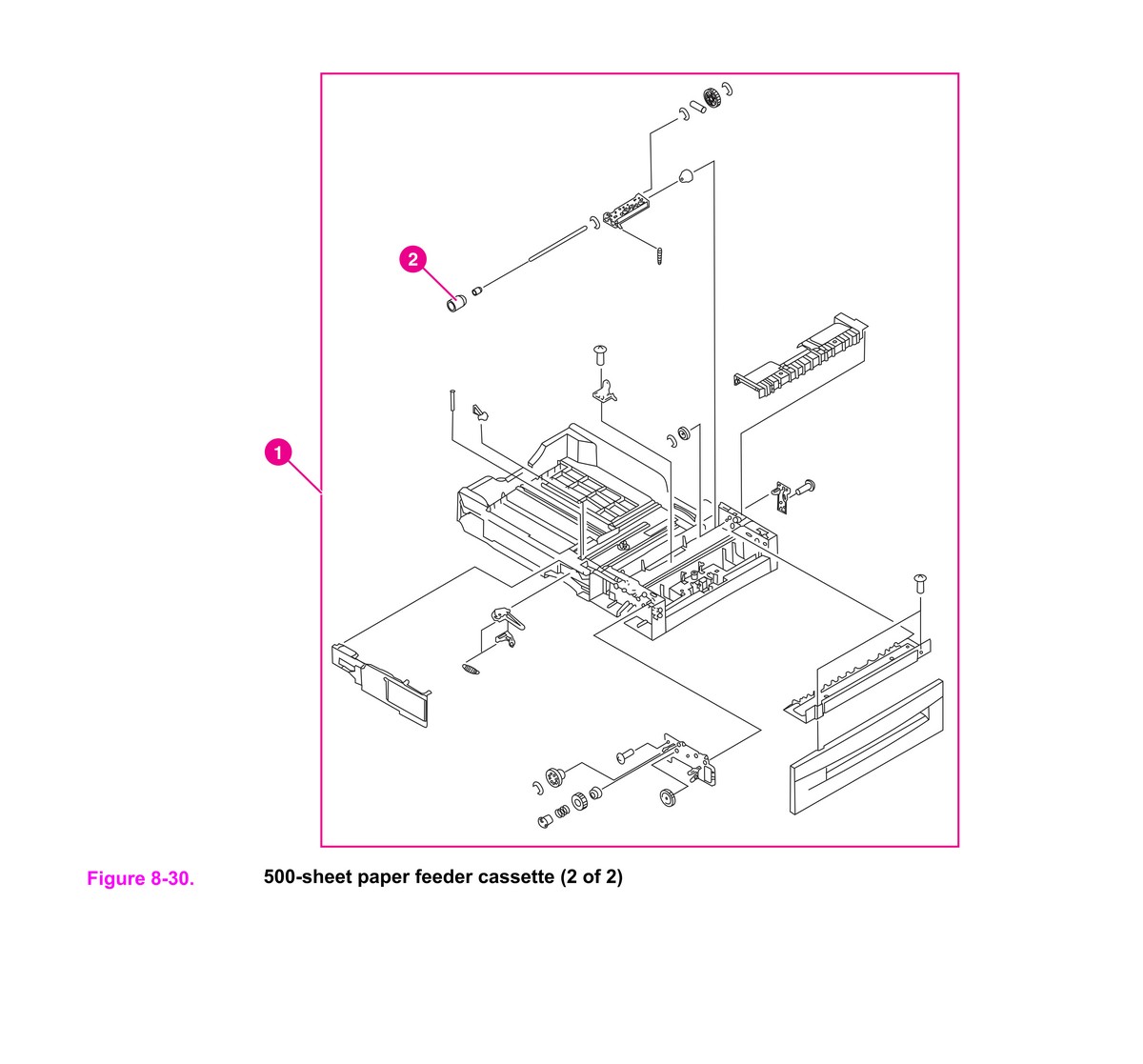

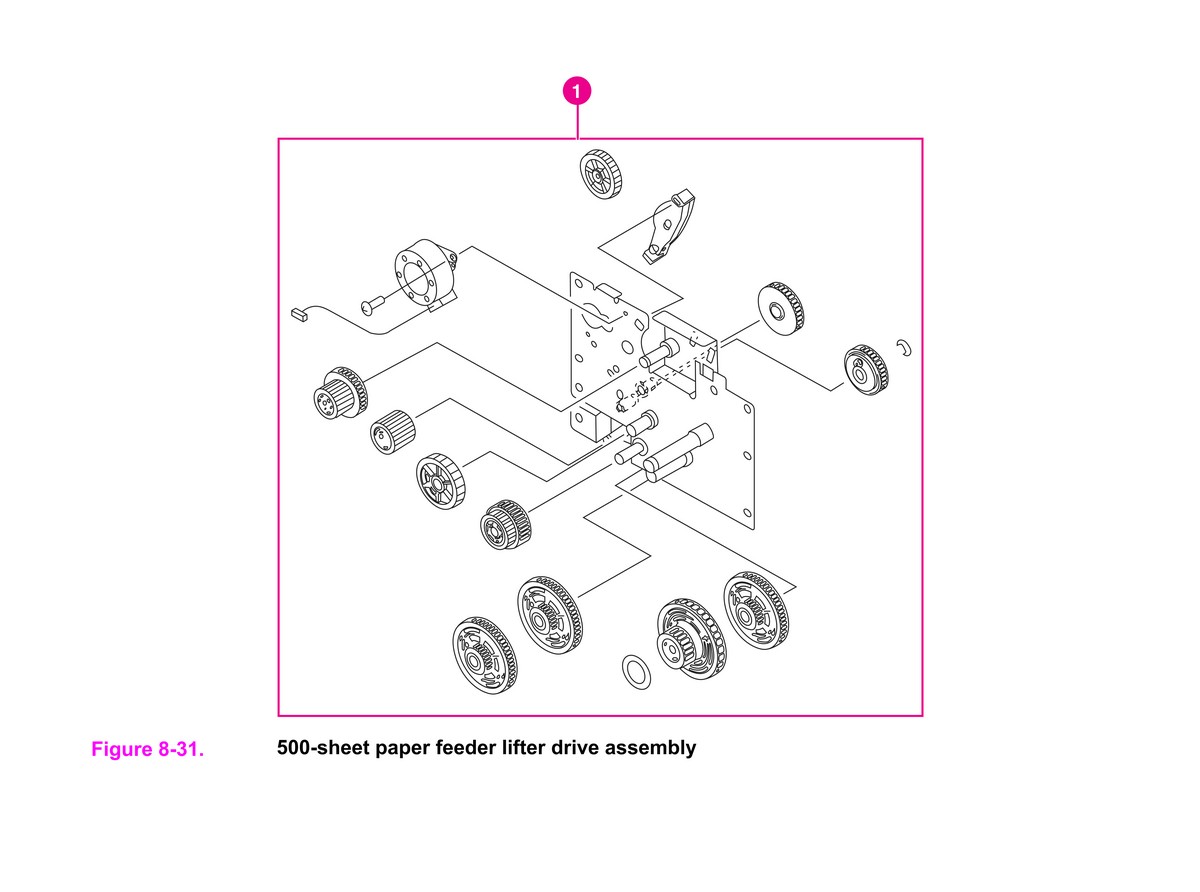

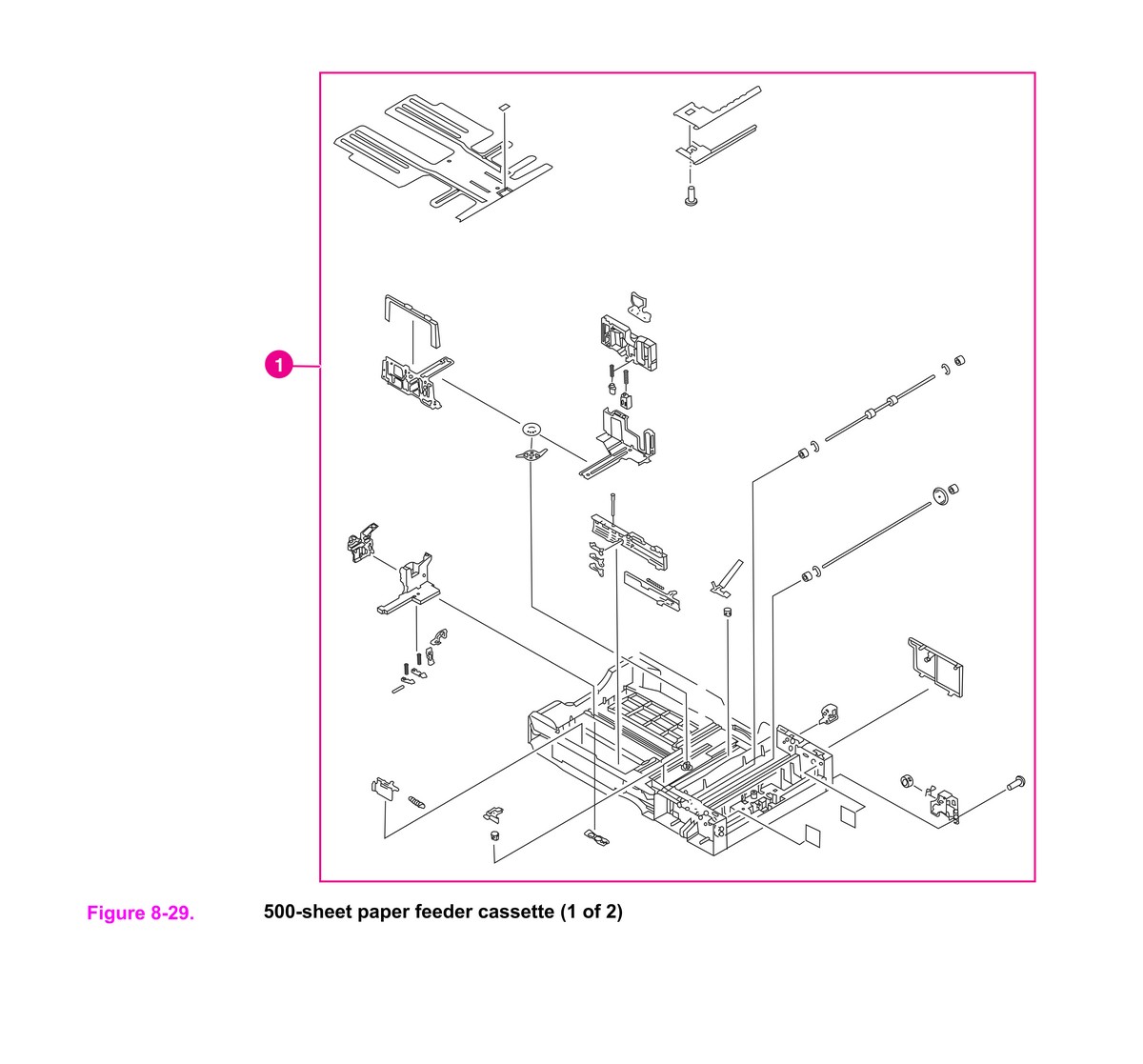

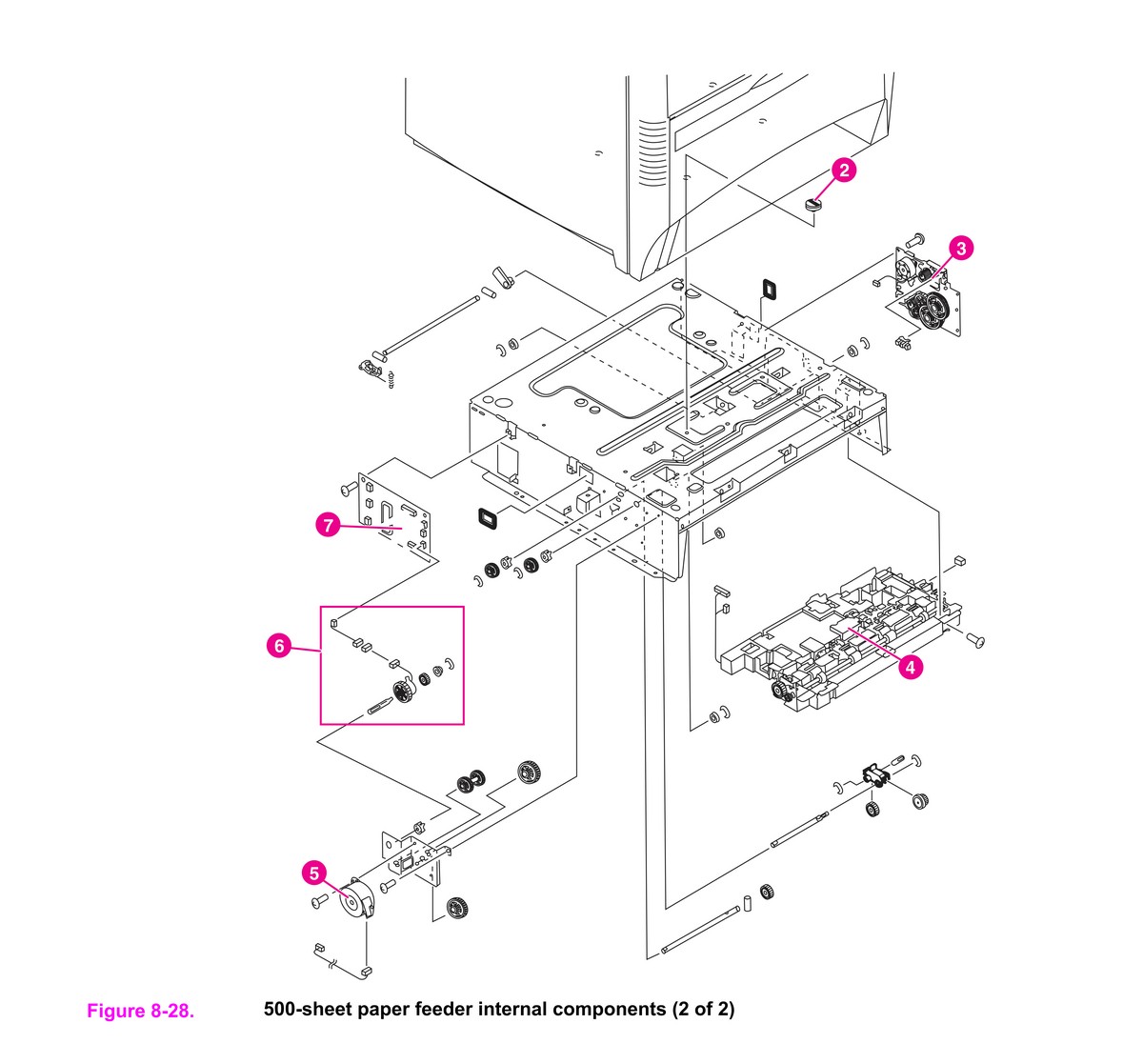

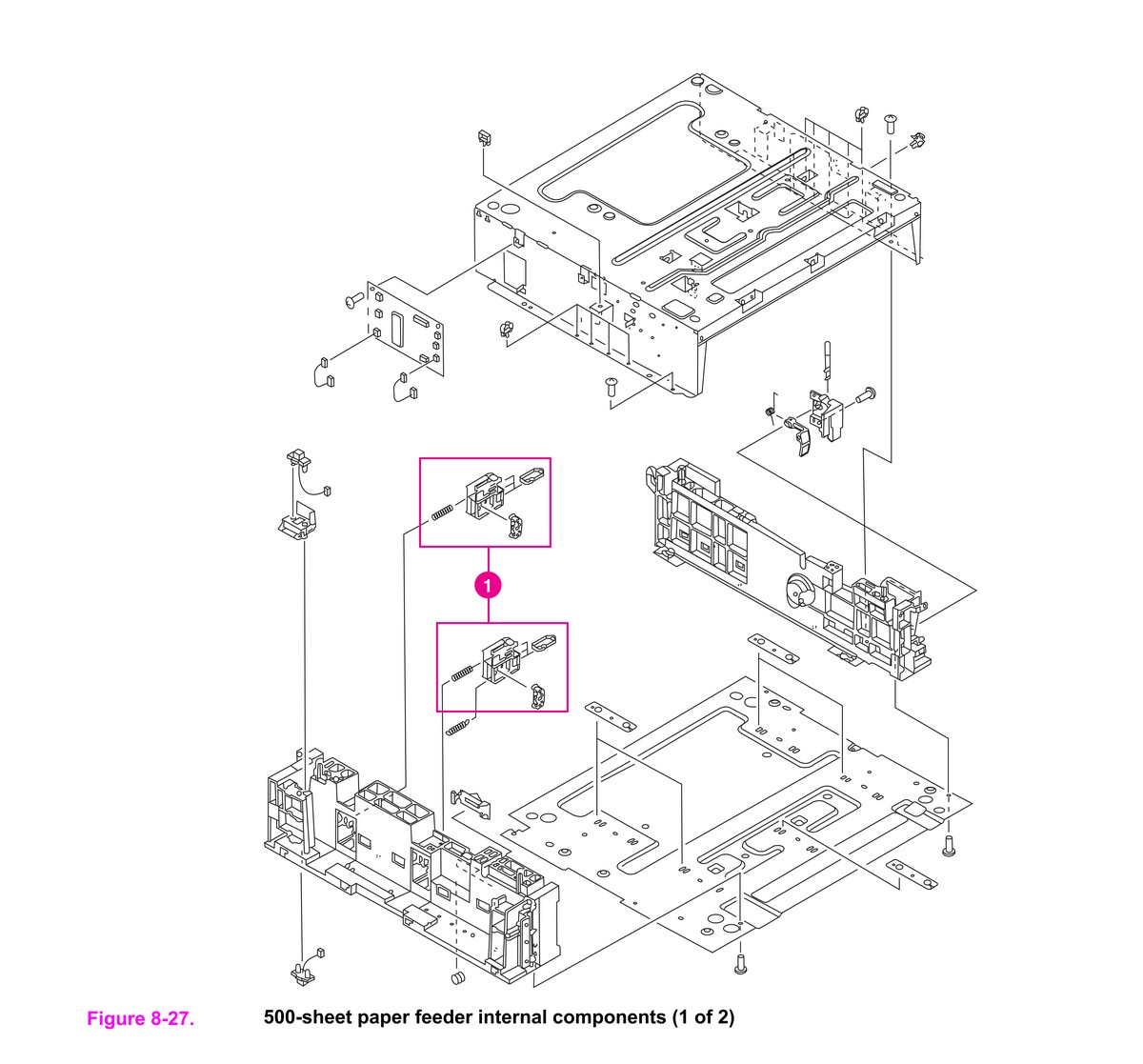

| 1 optional 500-sheet paper feeder and Tray 3 (or Tray 4) assembly C7130-67901 2 paper pickup unit, 500-sheet feeder (see Figure 8-32. 500-sheet paper feeder paper pickup assembly) RG5-6748-050CN 3 lifter drive unit, 500-sheet feeder (see Figure 8-31. 500-sheet paper feeder lifter drive assembly) RG5-6753-030CN 4 cassette, 500-sheet feeder (see Figure 8-29. 500-sheet paper feeder cassette (1 of 2)) RG5-6770-140CN |  |
| 1 paper size detection assembly, 500-sheet feeder RG5-6769-000CN 2 screw, security RS5-9175-000CN 3 lifter drive unit, 500-sheet feeder RG5-6753-030CN 4 paper pickup unit, 500-sheet feeder RG5-6748-050CN 5 motor, 500-sheet feeder RH7-1524-000CN 6 clutch assembly, 500-sheet feeder RG5-6761-000CN 7 paper feeder PCB 5550 only RG5-7718-000CN 7 paper feeder PCB 5500 only RG5-6772-000CN |  |
