HP 5Si 5SiMX 5SiNX 5SiHM 5SiMopier Parts
Please call for parts assistance
Please call. Limited availability
 | |

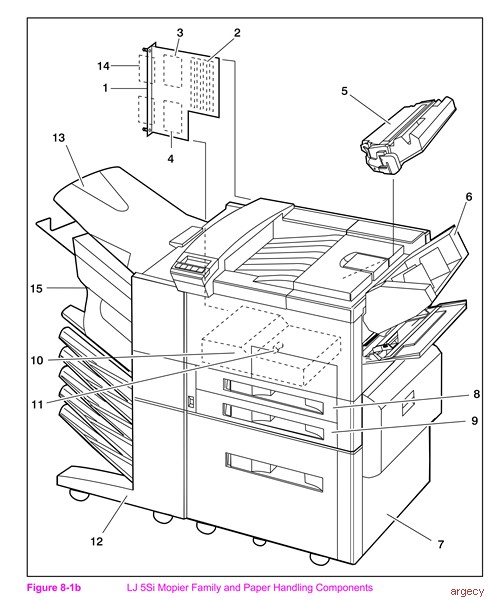

| LJ 5Si Mopier Family and Paper Handling Components 01 C3168-67905 Formatter Assembly 03A C2965-40001 420 MB Disk Drive, Exchange C2965-69001 (ex.) not shown 420 MB Disk Left Mounting Bracket 03A C2965-40002 not shown 420 MB Disk Right Mounting Bracket 03A C2965-60004 not shown 420 MB Disk Cable Assembly 03A C3768-60501 External Paper Handling Controller PCA 08 R77-0004-000CN Tray 2/C2931A 09 R77-0003-000CN Tray 3/C2930A 09 RF5-1484-000CN not shown Paper Size Guide (Trays 2 and 3) 09 RS5-8605-000CN not shown Paper Size Guide Label (Trays 2 and 3) 11 RB1-6822-000CN Duplex Unit Roller 1 13 RB1-6491-000CN Face-Up Bin 14 C2009-00006 MIO Coverplate 14 C3766-60500 Stapling Unit 1 C3166-67905 not shown Packaging Kit, Printer 1 C3762-60500 not shown Packaging Kit, Duplex Unit 1 C3763-60500 not shown Packaging Kit, 2000-Sheet Input Unit 1 C3764-60500 not shown Packaging Kit, Multi-Bin Mailbox 1 C3765-60500 not shown Packaging Kit, Envelope Feeder 1 C3764-70000 not shown Maintenance Kit, 100-120V/C3971A C3971-69001 (ex.) not shown Maintenance Kit, 220-240V/C3972A C3972-69001 (ex.) 8-8 Parts and Diagrams Description/Product Number Exchange /Service Number not shown C-Link Cable Assembly 178 cm (HCI to MBM) 1 C3763-70000 not shown C-Link Cable Assembly 61 cm (Engine to HCI) 1 C3766-60512 not shown C-Link Cable Assembly 97 cm (MBM to Stapler) |  |

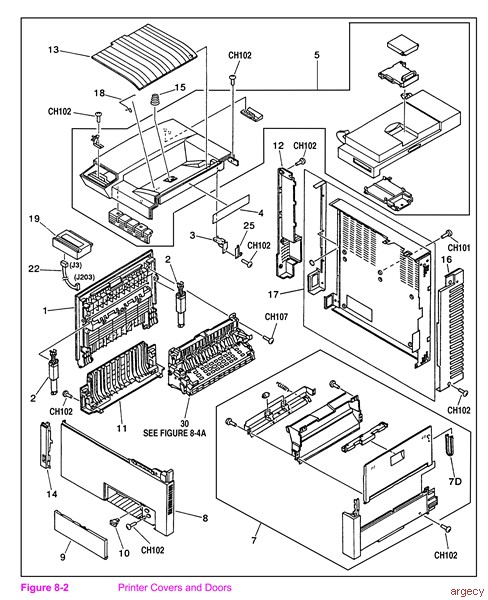

| Printer Covers and Doors 01 RB1-6667-000CN Left Access Door 02 RF5-1440-000CN Left Access Door Struts 03 RB1-6507-000CN Hinge Plate 04 RS5-8596-000CN Label, Operation (Special Order) 05 RG5-1870-000CN Cover Assembly 07 RG5-1915-040CN Right Cover Assembly 07D RB1-6484-000CN Open / Close Stopper 08 RB1-6494-000CN Front Cover 09 RB1-6495-000CN Front Door 10 XZ9-0379-000CN Front Door Latch 11 RB1-6480-000CN Cover, Left Lower (Special Order) 12 RB1-6489-000CN AC Access Cover 13 RB1-6490-000CN Face-Up Bin (Special Order) 14 RB1-6492-000CN Cover, Switch (Special Order) 15 RB1-6493-000CN Spring, Compression (Special Order) 16 RB1-6498-000CN Right, Lower Cover (Rear Plastic on Sheet Metal) 17 RF5-1402-000CN Rear Cover 18 RB1-6509-000CN Spring, Torsion (Special Order) 19 RG5-2433-000CN Front Panel ( Control Panel Display) 22 RG5-1924-000CN Cable Assembly 25 RB1-6522-000CN Plate Guard 30 RG9-1150-000CN Diverter Assembly CH101 XA9-0267-000CN Screw, TP, M3X6 (fixed shoulder) CH102 XA9-0547-000CN Screw, TP, M3X6 (floating flat and lock washer) CH107 XB4-7401-009CN Screw, tapping, pan head, M4X10 |  |

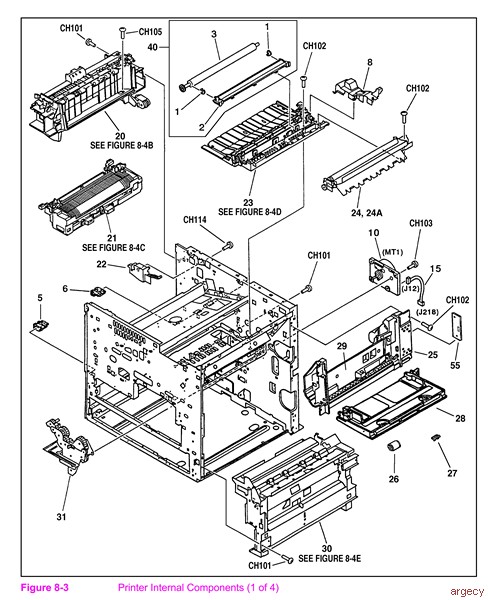

| Printer Internal Components (1 of 4) 01 RB1-6441-000CN Transfer Guide Bushing 02 RF5-1394-000CN Transfer Guide 03 RF5-1412-000CN Transfer Roller 05 RB1-6461-000CN Damper Holder (Front) 06 RB1-6462-000CN Damper Holder (Rear) 08 RB1-6468-000CN Clutch Cover 10 RH7-1260-000CN Main Motor 15 RG5-1919-000CN Main Motor Cable 20 RG5-1874-000CN Face-Down Delivery Assembly 21A RG5-1863-200CN Fusing Assembly 100-120V 21B RG5-1871-190CN Fusing Assembly 220-240V 21C C3166-69001 Fusing Assembly 100-120V, Exchange 21D C3166-69013 Fusing Assembly 220-240V, Exchange 21D RG5-1875-000CN Face -Up Solenoid Assembly 23 RG5-1834-000CN Feeder Assembly 24 RG5-1833-040CN Registration Assembly 24A RH7-5119-000CN Electromagnetic Clutch 25 RG5-1880-100CN Tray 1 Pick-up Assembly 26 RB1-6730-000CN Tray 1 Feed Roller 27 RF5-1455-000CN Tray 1 Separation Pad 28 RG5-1883-000CN Tray 1 Door 29 RB1-6749-000CN Tray 1 Internal Cover (Shield) 30 RG5-1852-160CN Paper Input Unit (PIU) 30A C3166-69011 Paper Input Unit (PIU), Exchange 30A RG5-1847-000CN Main Gear Assembly 40 RG5-1887-000CN Transfer Roller Assembly 55 RG5-1884-000CN Tray 1 PCA CH101 XA9-0267-000CN Screw, TP, M3X6 (fixed shoulder) CH102 XA9-0547-000CN Screw, TP, M3X6 (floating flat and losk washer) CH103 XB6-7400-807CN Screw, M4X8 CH105 XA9-0817-000CN Screw, w/washer, M3X20 CH114 XA9-0605-000CN Screw, tapping, M4X8 CH114 C3124-60001 not shown Heavy Media PIU (only compatible with C3124A) CH114 C3124-60002 not shown Registration, Heavy Media (only compatible with C3124A) |  |

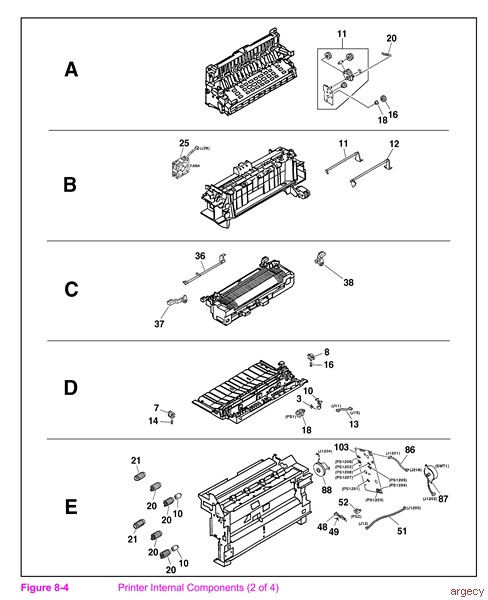

| Printer Internal Components (2 of 4) RG9-1150-000CN Fig Part 8-04 A Diverter Assembly 11 RF5-1441-000CN Diverter Drive Assembly 16 RS5-0758-000CN 20T Gear 18 RS5-1101-000CN Conductive Bushing 20 RS5-2490-000CN Tension Spring 11 RB1-6692-000CN Paper Sensing Lever 12 RB1-6693-000CN Paper Height Lever 25 RH7-1289-000CN Fan 4 8-04 C3166-69001 C Fuser Assembly 110V, Exchange 8-04 C3166-69013 C Fusing Assembly 220-240V, Exchange 36 RB1-6614-000CN Fuser Flag 37 RB1-6615-000CN Fuser Lock Lever Right 38 RB1-6616-000CN Fuser Lock Lever Left 8-04 RG5-1834-000CN D Feeder Assembly 03 RB1-6409-000CN Sensor Arm Spring 07 RB1-6414-000CN Block, Shaft Holding, Front 08 RB1-6415-000CN Block, Shaft Holding, Rear 10 RB1-6417-000CN Sensor Arm PS1 13 RG5-1843-000CN Sensor Cable 14 RS5-2463-000CN Compression Spring, Front 16 RS5-2466-000CN Compression Spring, Rear 18 WG8-0291-000CN Photo Interrupter 8-04 C3166-69011 E Paper Input Unit (PIU) 10 RB1-6588-000CN Torque Limiter 103 RG5-1860-000CN PIU PCA 20 RF5-1426-000CN Feed / Separation Rollers 21 RF5-1427-000CN Pickup Roller 48 RB1-6557-000CN Sensor Arm PS2 49 RB1-6558-000CN Sensor Arm Spring 51 RG5-1859-000CN Sensor Cable 52 WG8-0291-000CN Photo Interrupter 86 RG5-1861-000CN Paper Pickup Cable 87 RH7-1262-000CN Pick-Up Motor |  |

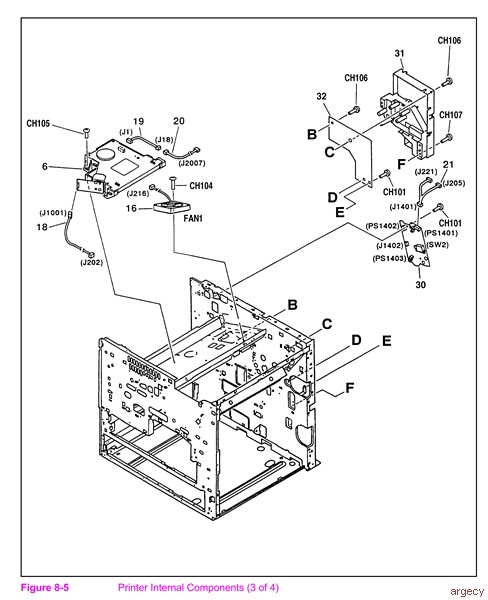

| Printer Internal Components (3 of 4) 06 RG5-1895-000CN Laser / Scanner Assembly 06A C3166-69006 Laser / Scanner Assembly, Exchange 06A RH7-1266-000CN Fan 1 18 RG5-1924-000CN Cable Assembly 19 RG5-1925-000CN Scanner Motor Cable 20 RG5-1926-000CN BD Cable 30 RG5-1846-000CN Switch / Sensor PCA 31 RG5-1888-000CN High Voltage Power Supply 31A C3166-69005 High Voltage Power Supply, Exchange 31A RG5-1844-050CN DC Controller PCA 32A C3166-69010 DC Controller PCA, Exchange CH101 XA9-0267-000CN Screw, TP, M3X6 (fixed shoulder) CH104 XB5-7303-007CN Screw, CT, M3X3 CH105 XA9-0817-000CN Screw, w/washer, M3X20 CH106 XB4-7300-809CN Screw, tapping, truss head, M3X8 CH107 XB4-7401-009CN Screw, tapping, pan head, M4X10 CH107 C3125-60002 Thermal Control PCA CH107 C3125-00001 Thermal Control PCA Cable |  |

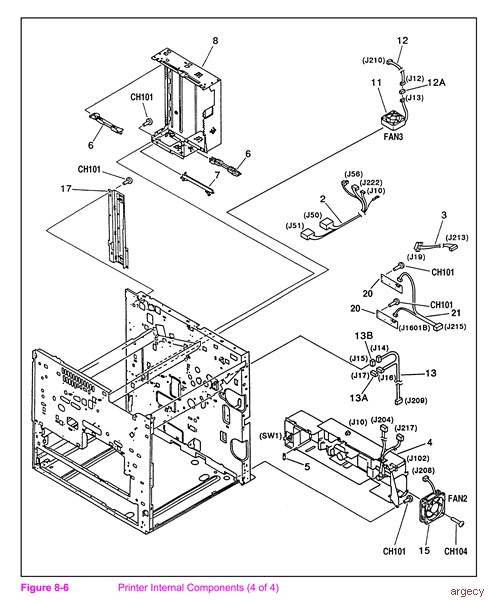

| Printer Internal Components (4 of 4) 02 RG5-1849-000CN Fuser Cable 1 03 RG5-1850-000CN Fuser Cable 2 04A RG5-1876-000CN Low Voltage Power Supply, 110-120V 04B RG5-1878-000CN Low Voltage Power Supply, Universal 04C C3166-69007 Low Voltage Power Supply, 110-120V, Exchange 04D C3166-69008 Low Voltage Power Supply, Universal, Exchange 05 VD5-0056-301CN Fuse, LVPS, 110-120V 05A VD7-0646-301CN Fuse, LVPS, Universal 06 RB1-6771-000CN Guide, PCA 07 RB1-6775-000CN Guide, Slide 08 RF5-1466-000CN Formatter Shield 11 RH7-1271-000CN Fan 3 12 RG5-1921-000CN Fan 3 Cable 13 RG5-1928-000CN Registration Cable 13A VS1-5057-007CN Connector, 7P 13B RG5-1928-000CN Connector, 3P 15 RH7-1266-000CN Fan 2 17 RF5-1464-000CN Plate Shield 20 RG5-1845-000CN Paper Size Sensing PCA, Trays 2 and 3 21 RG5-1920-000CN Cassette Size Sensor Cable CH101 XA9-0267-000CN Screw, TP, M3X6 (fixed shoulder) CH104 XB5-7303-007CN Screw, CT, M3X3 |  |

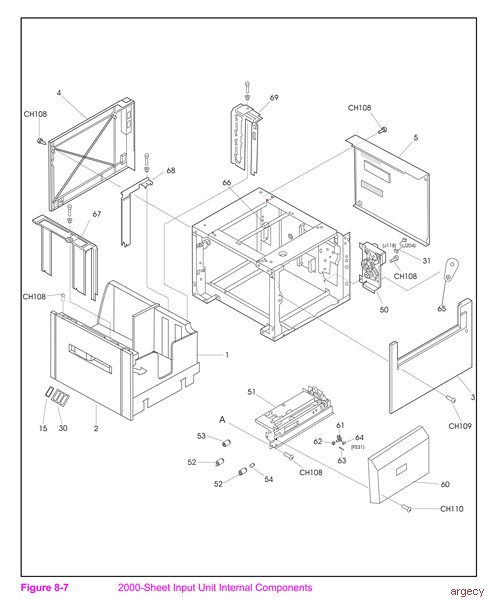

| 2000-Sheet Input Unit Internal Components 01 RG5-2155-000CN 2000-Sheet Input Tray Assembly 02 RF5-1632-000CN Front Cover 03 RB1-7832-000CN Right Cover 04 RB1-7833-000CN Left Cover 05 RB1-7834-000CN Back Cover 15 RB1-6894-000CN Cassette Size Plate 30 RS5-8611-000CN Cassette Size Labels 31 RG5-2233-000CN Motor Cable 50 RG5-2164-030CN Tray 4 Main Drive Assembly 51 RG5-2170-000CN Paper Pick-Up Assembly 52 RF5-1426-000CN Feed / Separation Rollers 53 RF5-1427-000CN Pickup Roller 54 RB1-6588-000CN Torque Limiter 60 RG5-2175-020CN Vertical Transfer Assembly 61 RB1-7813-000CN Paper Registration Sensor Flag 62 RS5-1201-000CN Paper Reg- Bushing 63 RS5-2556-000CN Spring 64 WG8-5210-000CN Paper Reg. Sensor 65 RS5-1207-020CN Bushing, Plastic 66 RG5-2546-000CN Lifter Sensing Switch (SW31) 67 RF5-1609-000CN Adjustable Size Plate: Back 68 RB1-7726-000CN Adjustable Size Plate: Middle 69 RF5-1623-000CN Adjustable Size Plate: Front CH108 XB6-7400-606CN Screw, TP, M4X6 CH109 XB6-7400-607CN Screw, TP, M4X6 CH110 XB6-7300-607CN Screw, TP, M3X6 |  |

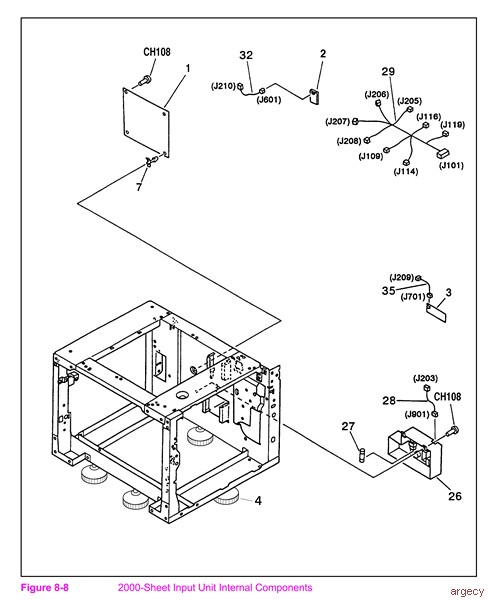

| 2000-Sheet Input Unit Internal Components 01 RG5-4198-000CN Paper Deck PCA 02 RG5-2225-000CN Paper Sensor PCA 03 RG5-2226-000CN Paper Size PCA 26 RG5-2281-000CN DC Power Supply Assembly 27 VD7-0643-151CN Power Supply Fuse 28 RG5-2227-000CN PSU Cable 28 RG5-2228-000CN Main Cable 32 RG5-2236-000CN Volume Paper Cable 33 RG5-2235-000CN Paper Size Cable CH108 XB6-7400-606CN Screw, TP, M4X6 CH109 XB6-7400-607CN Screw, TP, M4X6 CH110 XB6-7300-607CN Screw, TP, M3X6 |  |

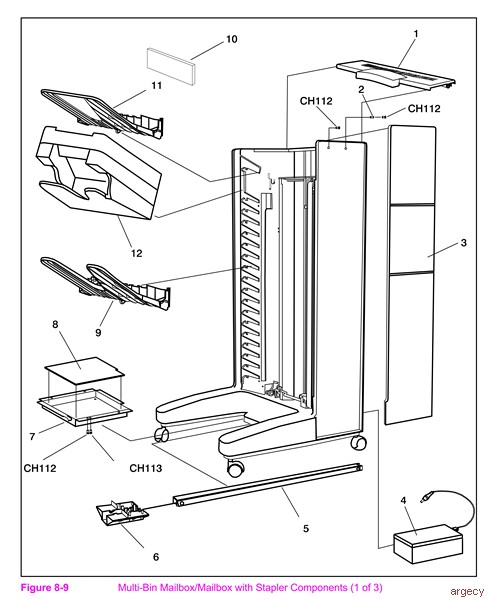

| Multi-Bin Mailbox/Mailbox with Stapler Components (1 of 3) 01 C3764-60555 Top Cover 02 C3764-60524 Spacer, plastic 03 C3764-60553 Right Cover 04 0950-2927 Power Supply Assembly 05 C3764-67906 Attachment Beam Assembly 06 C3764-60560 Attachment Bracket 07 C3764-60523 Metallic Box 08 C3766-60535 Multi-bin Mailbox Controller PCA 09 C3766-60536 Bin Assembly (8-pak) 09A C3766-60537 Individual Bin 10 C3764-60550 Blind Cover (only with 8 bin MBM) 11 C3764-60505 Face Up Bin 12 C3766-60500 Stapling Unit 12 C3766-69500 Stapling Unit Exchange CH112 C3764-60519 Screw, Torx, T20, M4X10 CH113 C3764-60525 Screw, Torx, T20, tapping, M4X10 CH113 C3764-60500 not shown Packaging Kit CH113 C3766-69515 not shown Exchange Mailbox: 5 bin for Stapler CH113 C3764-69100 not shown Exchange Mailbox: 8 bin for Stapler |  |

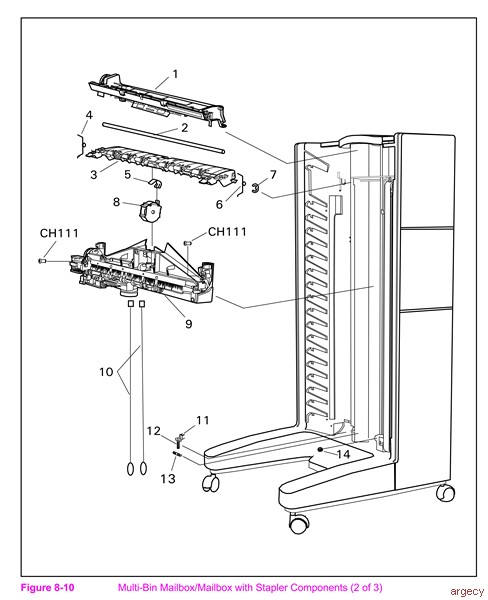

| Multi-Bin Mailbox/Mailbox with Stapler Components (2 of 3) 01 C3764-60501 Flipper Assembly (no cable) 02 C3764-60516 Mounting Shaft (Hex) 03 C3764-60514 Jam Access Door Assembly 04 C3764-60522 Spring, left, jam access door 05 C3764-60515 Metal Tape Holder 06 C3764-60518 Spring, right, jam access door 07 C3764-60517 Mounting Shaft "e" Clip 08 C3764-60521 Metallic Tape and Housing Assy. 09 C3764-60502 Delivery Head Assembly for Multi-Bin Mailbox Delivery Head Assembly for Mailbox with Stapler 1 C3764-60562 Anti-Curl String 11 C3764-60530 Lower Pulley Assembly 12 C3764-60531 Lower Pulley Spring 13 C3764-60563 Anti-Curl String Spring 14 C3764-60564 Pulley, small CH111 C3764-60520 Screw, Torx, T20, M4X12 CH111 C3764-67900 not shown Metallic Tape/Housing Kit includes: Metal Tape Holder, C3764-60515; Metallic Tape & Housing Assy, C3764-60521 CH111 C3764-67901 not shown Hardware Kit includes: Mounting Shaft ‘e’ Clip 5, C3764-60517; L Spring Right, C3764-60518; L Spring Left, C3764-60522; Mount Screw Machined T20 M4X10, C3764-60519; Plastic Spacer, C3764-60524; Mount Screw Machined T20 M4X12, C3764-60520; Gasket Cable Clamps, C3764-60565; Lower Pulley Assembly, C3764-60530; Lower Pulley Spring, C3764-60531; PCA Mounting Screw, C3764-60525 CH111 C3764-67902 not shown Paper Guide Kit includes: Paper Guide String, C3764-60562; Paper Guide Spring, C3764-60563; Pulley (small), C3764-60564 CH111 C3764-60566 not shown Flat Cable Kit Includes: Flat Cable, C3764-60545; Cable Holder (flat),C3764-60513; Cable Holder (edge), CH111 C3764-67904 not shown Stepper Motor/Encoder Kit includes: Transport Stepper Motor Assy, C3764-60532; Encoder Assy, C3764-60533; Encoder Cable, C3764-60549 CH111 C3764-67905 not shown Interlock Switch Kit includes: Interlock Switch, C3764-60556; Interlock Switch Cable, C3764-60548 CH111 C3764-67906 not shown Attachment Beam Kit includes: Attachment Beam Assy, C3764-60558; Attachment Clips, C3764-60559; Attachment Bracket, C3764-60560 |  |

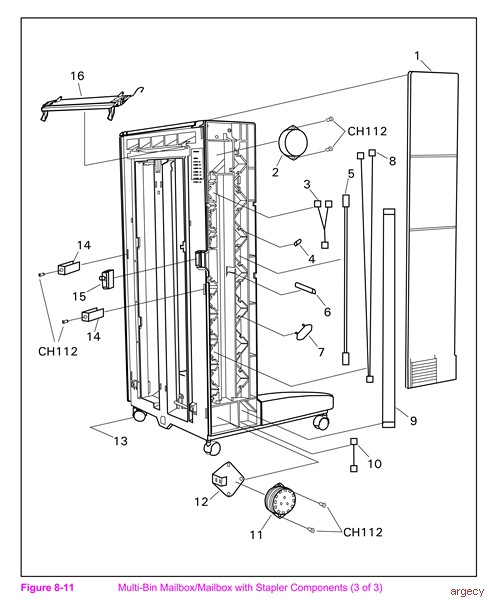

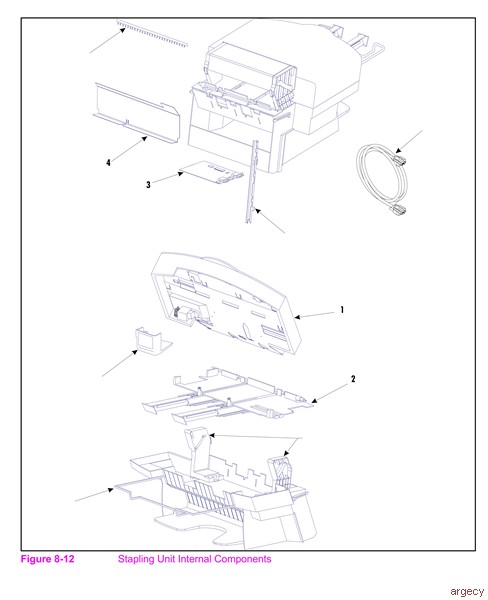

| Multi-Bin Mailbox/Mailbox with Stapler Components (3 of 3) 01 C3764-60554 Left Cover 02 C3764-60507 Delivery Head Position Motor 03 C3764-60547 Cable, Delivery Head Position Motor to Controller PCA 04 C3764-60565 Cable Holder, Round Gasket 05 C3764-60548 Cable, Interlock Switch to Controller PCA 06 C3764-60566 Cable Holder, Edge 07 C3764-60513 Cable Holder, Flat 08 C3764-60546 Cable, Flipper Assembly to Controller PCA 09 C3764-60545 Cable, Flat, Delivery Head to Controller PCA 10 C3764-60549 Cable, Encoder to Controller PCA 11 C3764-67904 Transport Belt Motor (in kit) 12 C3764-60533 Encoder Assembly 13 C3764-60551 Casters 14 C3764-67906 Attachment Clips (in kit) 15 C3764-60556 Interlock Switch 16 C3764-60561 Input Paper Guide CH112 C3764-60519 Screw, Torx, T20, M4X10 |  |
| Stapling Unit Internal Components C3766-60500 Stapling Unit Assembly C3766-69500 Exchange Stapling Unit 1 C3766-60501 Top Cover Assembly 2 C3766-60503 Stapling Bed Assembly 3 C3766-60504 Stapling Unit Control PCA 4 C3766-60505 Back Plate 5 C3766-60506 Hinges, Set of 6 C3766-60507 Wire Frame 7 C3766-60508 Brushes 7 C3766-60509 not shown Stapling Unit Packaging 8 C3766-60510 Kit: Plastic staple cover; scan bar (shown) bin full sensor, acutator, and flag (not shown) 8 C3766-60511 not shown Kit: T10 Torx screws (10) 8 C3766-60512 C-Link Cable (97 cm) 07 RG5-2155-000CN 2000-Sheet Input Tray Assembly 8-07 C4077-60102 3 Way Power Adapter 8-01 RS5-0758-000CN not shown 20T Gear 16 C2965-60004 420 MB Disk Cable Assembly 03 C2965-69001 420 MB Disk Drive, Exchange 8-01 C2965-40001 420 MB Disk Left Mounting Bracket 8-01 C2965-40002 not shown 420 MB Disk Right Mounting Bracket 8-01 C3764-69100 not shown 8 Bin Multi Bin 5 Bin Mailbox for Stapler 8-01 RB1-6489-000CN AC Access Cover 8-02 RF5-1609-000CN Adjustable-Size Plate: Back 8-07 RB1-7726-000CN Adjustable-Size Plate: Middle 8-07 RF5-1623-000CN Adjustable-Size Plate: Front 04 C3764-60562 Anti-Curl String 8-10 C3764-60563 Anti-Curl String Spring 8-10 C3764-67906 Attachment Beam Assembly 8-09 C3764-60560 Attachment Bracket 8-09 C3764-67906 Attachment Clips (in kit) 8-11 RB1-7834-000CN Back Cover 8-07 C3766-60505 Back Plate 8-12 RG5-1926-000CN BD Cable 8-05 C3766-60536 Bin Assembly (8-pak) 8-09 C3766-60537 Bin, Individual 8-09 C3764-60550 Blind Cover (only with 8 bin MBM) 8-09 RB1-6414-000CN Block, Shaft Holding, Front 07 RB1-6415-000CN Block, Shaft Holding, Rear 08 C3766-60508 Brushes 8-12 RS5-1207-020CN Bushing, Plastic 8-07 RG5-1924-000CN Cable Assembly |  |
