Please call for parts

---

Printer external covers and panels 1 Cover, left RC1-9336-000CN 2 Cover, front, upper RC1-9350-000CN 3 Cover, paper-delivery RC1-9351-000CN 4 Duplexing-tray lower assembly RC1-5949-000CN 5 Front internal small-cover assembly RC1-5953-000CN 6 Right-lower cover assembly RL1-1280-000CN 7 Cover, rear-left RC1-9344-000CN 8 Rear-right cover assembly RM1-4415-000CN 9 Face-down end-tray assembly RM1-3340-000CN 10 Fixing-fan cover assembly RM1-5950-000CN 11 Cover, rear RL1-1210-000CN 12 Cover, face-down drive RC1-9360-000CN 13 Switchback-cover assembly RM1-4408-000CN 14 Filter unit, air RC1-9313-000CN 501 Screw, tapping, truss-head, M4X10 XB4-7401-005CN
Printer front-door assembly 1 Front-cover assembly RM1-3357-000CN 2 Front internal-cover assembly RM1-4404-000CN 3 Band, door RC1-9043-000CN
Printer right-door assembly 1 Cover, multi-purpose blanking RC1-8527-000CN 2 Right-door sub-assembly RM1-3333-000CN 3 Cover, motor RC1-9511-000CN 5 Screw, RS, M3X6 XA9-1495-000CN 6 Screw, with washer, M4X12 XA9-1422-000CN 7 Guide, duplexing-feed, upper RL1-1335-000CN 501 Screw, tapping, truss-head, M4X10 XB4-7401-005CN A25 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00 A40 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00 NOTE: Only highlighted parts are orderable.
Printer internal components (1 of 7) 1 Spring, leaf RC1-9233-000CN 2 Screw, RS, M3x8 XA9-1504-000CN 3 Top-cover assembly RL1-1284-000CN 4 High-voltage transfer B PCA assembly RM1-5475-000CN 5 Right-side wall assembly RM1-3239-000CN 6 Transfer contact-holder assembly RM1-3230-000CN 7 Partition-plate assembly, cyan RM1-3238-000CN 8 Screw, RS, M3x6 XA9-1495-000CN 9 Left-side wall assembly RM1-3233-000CN 10 Partition-plate assembly, yellow RM1-3235-000CN 11 Partition-plate assembly, magenta RM1-3237-000CN
Printer internal components (2 of 7) 1 Guide, multi-purpose, right RL1-1283-000CN 2 Guide, face-down inner RC1-8959-000CN 3 Rail, reverse, rear RC1-9206-000CN 4 Screw, RS, M3x8 XA9-1504-000CN 5 Sheet, fixing-crossmember RC1-9232-000CN 7 Cable, laser flexible flat RK2-1354-000CN 8 Cable, laser flexible flat RK2-1355-000CN 9 Spring, tension RU5-2822-000CN 10 Spring, torsion RU5-2825-000CN 11 Clamp, FFC WT2-5912-000CN 12 Grip-support front assembly RM1-3225-000CN 13 Grip-support rear assembly RM1-3226-000CN 14 Thermopile case assembly RM1-3232-000CN 15 Photosensor assembly RM1-3250-000CN 16 Screw, RS, M3x8 XA9-1449-000CN 17 Reader rear-guide assembly RM1-4399-000CN 18 RM1-3364-000CN Fan Assembly Fully refurbished with 90-day warranty RM1-3364 $44.55 19 Scanner assembly kit with 1 scanner assembly and service document Q3931-67907 20 Screw, RS, M3x6 XA9-1495-000CN 20 21 Reader front-guide assembly RM1-4398-000CN 22 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00 23 Holder, environment-sensor RC1-9324-000CN 24 Sensor unit, humidity RK2-2376-000CN 25 Holder, scanner-thermistor RC1-9260-000CN 26 Duct, scanner RC1-9334-000CN 27 Thermistor unit RK2-1363-000CN 28 Connector, snap-tight VS1-7177-002CN 29 Interlock-switch assembly RM1-3589-000CN
Printer internal components (3 of 7) 1 Retainer RC1-8511-000CN 2 Bushing RC1-8734-000CN 3 Guide, intermediate transfer belt (ITB)-entrance, rear RC1-9186-000CN 4 Guide, intermediate transfer belt (ITB)-entrance, front RC1-9185-000CN 5 Arm, 1st-estrangement RC1-9189-000CN 6 Cover, internal, right RC1-9348-000CN 7 Intermediate transfer belt (ITB) lock-support rear assembly RM1-3215-000CN 9 Intermediate transfer belt (ITB) lock-support front assembly RM1-3228-000CN 10 Intermediate transfer belt (ITB)-drawer assembly RM1-3240-000CN 11 Intermediate transfer belt (ITB) estrangement-drive assembly RM1-3280-000CN 12 Registration 2nd-transfer assembly kit with service document Q3931-67909 13 2nd-transfer-roller assembly kit Q3931-67910 14 Intermediate transfer belt (ITB) assembly kit Q3931-67908 15 Color-plane-registration (CPR) sensor assembly RM1-3258-000CN 16 Screw, RS, M3x6 XA9-1495-000CN 17 Screw, RS, M3x8 XA9-1504-000CN
Printer internal components (4 of 7) 1 Damper, gear RC1-8925-000CN 2 Rail, fixing, front RC1-8931-000CN 3 Duct, air RC1-8961-000CN 4 Duct, face-down joint RC1-8964-000CN 5 Tag PCA-holder assembly RM1-4402-000CN 6 Duct, cartridge RC1-9276-000CN 7 Holder, cartridge-fan RC1-9277-000CN 8 Holder, fixing-fan RC1-9278-000CN 9 Holder, scanner-fan RC1-9279-000CN 10 Duct, scanner-fan RC1-9309-000CN 11 RM1-4519-000CN DC Motor Assembly Fully refurbished with 90-day warranty RM1-4519 $55.35 12 Motor, stepping, DC RK2-1366-000CN 13 Motor, stepping, DC RK2-1370-000CN 14 Gear, 83T/25T RU5-0790-000CN 15 Gear, 34T RU5-0791-000CN 16 Ring, E XD9-0234-000CN 17 Bearing, ball XG9-0586-000CN 18 Plate, fixing-motor RL1-1216-000CN 19 Fixing one-way gear assembly RM1-3247-000CN 20 Q3931-67911 Main Drive Unit Kit with Service Document Fully refurbished with 90-day warranty Q3931-67911 $199.81 21 Toner-cartridge drive-assembly kit with service document Q3931-67912 22 Toner-cartridge drive-assembly kit with service document Q3931-67913 23 Fixing assembly kit, 110-127V, with air filter (air filter is Ref 14 in Printer external panels and covers) Q3931-67914 23 Fixing assembly kit, 220-240V, with air filter (air filter is Ref 14 in Printer external panels and covers) Q3931-67915 24 Drum-motor assembly RM1-3286-000CN 25 Rail, fixing, rear RC1-8939-000CN 26 Memory-tag PCA assembly RM1-3585-000CN 27 Screw, RS, M3x6 XA9-1495-000CN 28 Screw, RS, M3x6 XA9-1495-000CN 29 Screw, RS, M3x8 XA9-1504-000CN 30 Pin, dowel XD9-0240-000CN 31 WT2-5694 Saddle- wire Fully refurbished with 90-day warranty WT2-5694 Contact for Details 32 Toner-motor cable RM1-3383-000CN 33 Toner-motor cable RM1-3385-000CN 34 Fan RK2-1377-000CN 35 Fan RK2-1382-000CN 36 RK2-1378-010 Fan Fully refurbished with 90-day warranty RK2-1378 $25.65 37 Screw, TP, M3x6 XA9-1159-000CN 16 38 Connector, snap-tight VS1-7177-003CN 501 Screw, with washer, M3x6 XB2-8300-607CN 502 Screw, machined, truss-head, M3x4 XB1-2300-407CN
Printer internal components (5 of 7) 1 Lever, paper-sensing RC1-8928-000CN 2 Intermediate transfer belt (ITB) duct assembly RM1-4401-000CN 3 Cover, cassette back-end RC1-9201-000CN 4 Rail, left, top RL1-1213-000CN 5 Rail, cassette, right RL1-1215-000CN 6 Spring, tension RU5-2796-000CN 7 Low-voltage power-supply assembly RM1-3594-000CN 8 Ring, E XD9-0234-000CN 9 Screw, RS, M3x8 XA9-1504-000CN 10 Screw, RS, M3x6 XA9-1495-000CN 11 Plate, fan-fixing, front RC1-9190-000CN 12 Lever, door-interlock shutter RC1-9220-000CN 13 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00 14 VS1-7258-007CN Connector, drawer Fully refurbished with 90-day warranty VS1-7258 Contact for Details 15 Plate, drawer-guard RC1-9235-000CN 16 Plate, sensor, front RC1-9246-000CN 17 Guide-sensor assembly RM1-4400-000CN 18 Spring, torsion RC1-9244-000CN 19 RK2-1378-010 Fan Fully refurbished with 90-day warranty RK2-1378 $25.65 20 Cable, fixing open-sensor RM1-5029-000CN 501 Screw, tapping, truss-head, M4x10 XB4-7401-005CN 502 Screw, TP, M3x30 XB6-7303-005CN
Printer internal components (6 of 7) 1 Guide, cable, C RC1-9308-000CN 2 Guide, cable, D RC1-9312-000CN 3 Guide, cable, E RC1-9318-000CN 4 Panel cable RM1-3389-000CN 5 Formatter-case assembly RM1-3253-000CN 6 Screw, RS, M3x6 XA9-1495-000CN 20 7 RM1-6642-060CN DC Controller PCA Assembly Fully refurbished with 90-day warranty RM1-6642 $182.25 8 DC-controller power cable RM1-3610-000CN 9 Front cable RM1-3617-000CN 10 Rear-lower cable RM1-3618-000CN 11 Rear-upper cable RM1-3619-000CN 12 Scanner-joint cable RM1-3620-000CN 13 Panel-joint cable RM1-3622-000CN 14 Interface-joint cable RM1-3623-000CN 15 Color-plane-registration (CPR)-joint cable RM1-3624-000CN 16 Waste-toner-sensor cable RM1-3640-000CN 17 Rear-cover-mount plate assembly RM1-3354-000CN 18 Fixing-motor cable RM1-3217-000CN 20 Guide, cable, B RC1-9307-000CN 21 Cable, flexible flat RK2-1356-000CN 22 Screw, RS, M3x8 XA9-1449-000CN 23 Tray, screw RC1-9256-000CN 24 Foot, rubber RC1-9208-000CN A03 Screw, RS, M3x6 XA9-1495-000CN
Printer internal components (7 of 7) 1 Guide, cable, A RC1-9306-000CN 2 Cover, main-switch RC1-9211-000CN 3 Guide, cable, F RC1-9323-000CN 4 Plate, high-voltage transmission (HVT-A) guard RC1-9326-000CN 5 Fixing power-supply assembly RM1-3218-000CN 6 Cartridge contact-holder assembly RM1-3254-000CN 7 Cartridge-interface assembly kit with service document Q3931-67917 8 Holder, high-voltage-connector RC1-9328-000CN 9 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00 10 Face-down unit-1 cable RM1-3390-000CN 11 Face-down unit-2 cable RM1-3391-000CN 12 RM1-3582-000CN High Voltage Transfer A PCA Assembly Fully refurbished with 90-day warranty RM1-3582 $93.16 13 Button, main-switch RC1-9300-000CN 14 Fixing-joint cable RM1-3612-000CN 15 T2 guide-arm assembly RM1-4411-000CN 16 Fixing-bias cable assembly RM1-4409-000CN 17 Guide, fixing-cable RC1-9332-000CN 18 Main switch-holder assembly RM1-3252-000CN 19 Screw, RS, M3x8 XA9-1504-000CN 47 20 Screw, RS, M3x6 XA9-1495-000CN 54 21 Cable TP/T2 open-sensor RM1-5030-000CN 22 Cable, MFP AC RM1-3599-000CN 24 Screw, RS, M13x12 XA9-1801-000CN 501 Screw, machined, truss-head, M4x8 XB1-2400-805CN
Printer multi-purpose-drive assembly 1 Multi-purpose-drive assembly RM1-3366-000CN
Printer lifter-drive assembly 1 Lifter-drive-assembly kit RM1-3222-000CN
Printer cassette 1 Cassette-assembly kit with service document Q3931-67918
Printer cassette paper-pickup assembly 1 Cassette paper-pickup assembly RM1-3206-000CN 1, 2 Tray 2 pickup, feed-roller kit Q3931-67919 A56 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00
Printer multi-purpose paper-pickup assembly 1 Multi-purpose paper-pickup assembly RM1-3345-000CN 1, 4 Tray 1 pickup, retard-roller kit Q3931-67920 2 Guide, multi-purpose, upper RC1-8526-000CN 3 Retainer RC1-8511-000CN 5 Limiter, torque RC1-8519-000CN
Printer multi-purpose-tray assembly 1 Multi-purpose-tray assembly RM1-3341-000CN 1 Multi-tray cable RM1-3630-000CN
Printer multi-purpose-guide assembly 1 Multi-purpose-guide assembly RM1-3291-000CN A15 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00
Printer face-down paper-delivery assembly 1 Face-down paper-delivery assembly RM1-3293-000CN 1 Face-down full-flag assembly RM1-4391-000CN 2 Paper-delivery-guide assembly RM1-4407-000CN A30 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00
Printer duplexing-reverse assembly 1 RM1-3652-040CN Duplexing Reverse Assembly Fully refurbished with 90-day warranty RM1-3652 $182.25 A28 WG8-5696 Photoreceptor Fully refurbished with 90-day warranty WG8-5696 $15.00 A46 RK2-1378-010 Fan Fully refurbished with 90-day warranty RK2-1378 $25.65
Printer duplexing-feed assembly 1 Duplexing-feed assembly RM1-3665-000CN
Printer PCA assembly location 1 Fixing power-supply assembly RM1-3218-000CN 2 RM1-6642-060CN DC Controller PCA Assembly Fully refurbished with 90-day warranty RM1-6642 $182.25 3 RM1-3582-000CN High Voltage Transfer A PCA Assembly Fully refurbished with 90-day warranty RM1-3582 $93.16 4 High-voltage-transfer B PCA assembly RM1-5475-000CN 5 Memory-tag PCA assembly RM1-3585-000CN 6 Low-voltage power-supply assembly RM1-3594-000CN
Input-tray main body (1x500-sheet) 1 Cover, rear RC1-9871-000CN 2 Cover, left RC1-9872-000CN 3 Cover, front-upper RC1-9873-000CN 4 Cover, right-lower RC1-9874-000CN 5 Guide, paper-feed roller RC1-9881-000CN 6 Stopper, right-door RC1-9882-000CN 7 Lever, lock RC1-9883-000CN 8 Tape, door RC1-9884-000CN 9 RK2-1331-000CN Motor, Stepping, DC Fully refurbished with 90-day warranty RK2-1331 $56.00 10 Cover, right-front RL1-1322-000CN 11 Screw, stepped RS5-9099-000CN 12 VS1-7257-007CN Drawer connector Fully refurbished with 90-day warranty VS1-7257 Contact for Details 13 Support, PCA VT2-0001-008CN 14 WT2-5694 Saddle- wire Fully refurbished with 90-day warranty WT2-5694 Contact for Details 15 Clamp, cable WT2-5738-000CN 16 Screw, RS, M4x8 XA9-1448-000CN 13 14 Screw, TP, M3x6 XA9-1469-000CN 7 15 Right-door assembly RM1-3538-000CN 19 Paper-feed PCA assembly RM1-3569-000CN 20 Cable, pickup-option drawer RM1-3571-000CN 21 Cable, pickup-option door switch RM1-3572-000CN 22 Cable, option-sensor PCA connect RM1-3574-000CN 23 Cable, paper-pickup option RM1-3575-000CN 24 Stock-box assembly RM1-3539-000CN 25 Roller, rail RC1-9231-000CN 26 Caster, double-lock, front RC1-9896-000CN 27 Support, lock-shaft RC1-9900-000CN 28 Plate, switch-cover RC1-9901-000CN 29 Shaft, lock RC1-9912-000CN 30 Arm, lock RC1-9913-000CN 31 Bushing RC1-9915-000CN 32 Caster, rear RC1-9917-000CN 33 Rail, cassette, right RL1-1310-000CN 34 Rail, cassette, left RL1-1311-000CN 35 Switch, button WC2-5512-000CN 36 Screw, with washer, M5x12 XA9-0912-000CN 37 Screw, RS, M4x8 XA9-1448-000CN 75 38 Door, stock RC1-9921-000CN 501 Screw, with washer, M3x6 XB2-8300-607CN 502 Screw, tapping, pan-head, M4x10 XB4-7401-006CN
Input-tray main body (3x500-sheet) 1 Cover, rear RC1-9871-000CN 2 Cover, left RC1-9872-000CN 3 Cover, front-upper RC1-9873-000CN 4 Cover, right-lower RC1-9874-000CN 5 Guide, paper-feed roller RC1-9881-000CN 6 Stopper, right-door RC1-9882-000CN 7 Lever, lock RC1-9883-000CN 8 Tape, door RC1-9884-000CN 9 RK2-1331-000CN Motor, Stepping, DC Fully refurbished with 90-day warranty RK2-1331 $56.00 10 Cover, right-front RL1-1321-000CN 11 Screw, stepped RS5-9099-000CN 12 VS1-7257-007CN Drawer connector Fully refurbished with 90-day warranty VS1-7257 Contact for Details 13 Support, PCA VT2-001-008CN 14 WT2-5694 Saddle- wire Fully refurbished with 90-day warranty WT2-5694 Contact for Details 15 Clamp, cable WT2-5738-000CN 16 Screw, RS, M4x8 XA9-1448-000CN 17 Screw, TP, M3x6 XA9-1469-000CN 21 18 Right-door assembly RM1-3537-000CN 19 Paper-feed PCA assembly RM1-3569-000CN 20 Cable, paper-pickup-option drawer RM1-3571-000CN 21 Cable, pickup-option door switch RM1-3572-000CN 22 Cable, option-sensor PCA connect RM1-3574-000CN 23 Cable, paper-pickup option RM1-3575-000CN 24 Cable, pickup-option PCA connect RM1-3573-000CN 25 Roller, rail RC1-9231-000CN 26 Caster, double-lock, front RC1-9896-000CN 27 Support, lock-shaft RC1-9900-000CN 28 Plate, switch-cover RC1-9901-000CN 29 Shaft, lock RC1-9912-000CN 30 Arm, lock RC1-9913-000CN 31 Bushing RC1-9915-000CN 32 Caster, rear RC1-9917-000CN 33 Rail, cassette, right RL1-1310-000CN 34 Rail, cassette, left RL1-1311-000CN 35 Switch, button WC2-5512-000CN 36 Screw, with washer, M5x12 XA9-0912-000CN 37 Screw, RS, M4x8 XA9-1448-000CN 77 501 Screw, with washer, M3x6 XB2-8300-607CN
Input-tray auto-close assembly 1 Auto-close assembly, 1x500-sheet RM1-3531-040CN 1 Auto-close assembly, 3x500-sheet RM1-3531-040CN 1 Cable, pickup-option lifter unit RM1-3576-000CN
Input-tray cassette 1 Cassette (1x500-sheet) RM1-3529-000CN 1 Cassette (3x500-sheet) RM1-3529-000CN
Input-tray paper-pickup assembly 12 Roller, paper-pickup RL1-1289-000CN 29 RM1-0037 Paper feed/separation roller assembly Fully refurbished with 90-day warranty RM1-0037 Contact for Details 31 Option paper-sensor PCA assembly RM1-3570-000CN
Input-tray PCA assembly 1 Paper-feed PCA assembly (1x500-sheet) RM1-3569-000CN 1 Paper-feed PCA assembly (3x500-sheet) RM1-3569-000CN
Intermediate-feed main body 1 Intermediate paper-transfer unit (IPTU)-driver PCA assembly RM1-3559-000CN 2 Motor, stepping, DC RK2-1320-000CN 3 Flange, pulley RC1-9620-000CN 4 Cable, drawer RM1-3561-000CN 5 Cover, assist, right RC1-9706-000CN 6 Plate, assist-arm cap RC1-9695-000CN 7 Cover, rear-upper RC1-9703-000CN 8 Belt, paper-feed, cogged RC1-9674-000CN 9 Pulley/gear, 22T RU5-0868-000CN 10 Screw, M4x14 XA9-1292-000CN 11 Cable, drawer RM1-3560-000CN 12 Screw, RS M3x8 XA9-1500-000CN 13 Side-cover assembly RM1-3683-000CN 14 Drive-belt assembly RM1-3684-000CN 15 Fin-lock assembly RM1-3685-000CN 16 Arm, auxiliary RL1-1272-000CN 17 Screw, B, M4x8 XA9-1277-000CN 18 Cable, motor RM1-3563-000CN 19 Cable, motor RM1-3564-000CN 20 Guide, cable, 2 RC1-9688-000CN 21 Bushing RC1-4585-000CN 22 Fan assembly RM1-4394-000CN 23 Sheet, blanking RC1-9687-000CN 24 Cover, assist, left RC1-9705-000CN 501 Screw, machined, truss-head, M3x4 XB1-2300-407CN 502 Screw, with washer, M3x6 XB2-8300-607CN

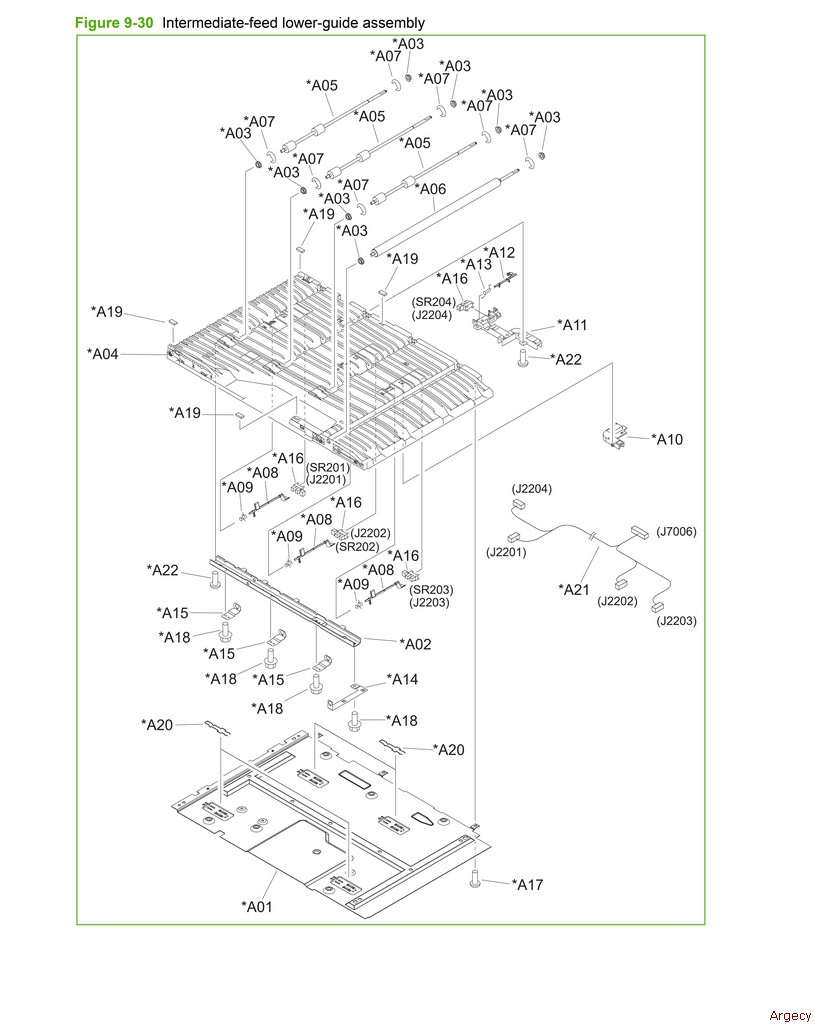

Intermediate-feed lower-guide assembly 1 Lower-guide assembly RM1-3686-000CN
Intermediate-feed upper-guide assembly 1 Upper-guide assembly RM1-4395-000CN
Left-assist assembly 1 Left-assist assembly RM1-4396-000CN
Right-assist assembly 1 Right-assist assembly RM1-4397-000CN
PCA assembly 1 Intermediate paper-transfer unit (IPTU)-driver PCA assembly RM1-3559-000CN
Stapler/stacker unit 1 Stapler/stacker whole unit CC517A (product number)
Booklet-maker unit 1 Booklet-maker (multi-function finisher) whole unit CC516A (product number)
External panels and covers (stapler/stacker) 1 Flag, paper-sensing sensor FC5-5004-000CN 2 Spring, torsion FC5-5005-000CN 4 Cover, rear RC2-1278-000CN 5 Cover, tray-connector RC2-1279-000CN 6 Paper-face sensor assembly 4G3-0934-000CN 7 Paper-face sensing assembly 4G3-1624-000CN 9 Top-door (upper-cover) assembly RM1-4121-000CN 9A Link-slide assembly 4G3-0271-000CN 10 Front-door assembly RM1-4134-000CN 11 Lower height-guide assembly RM1-4135-000CN 12 Left upper-cover assembly RM1-4179-000CN 14 Panel, height, upper RC2-1283-000CN 16 Cover, option-slide RC2-1347-000CN 18 Flag, paper-face sensing, upper FC5-4162-000CN 21 Cover, front-lower RL1-1717-000CN 22 Cover, rear-lower RL1-1718-000CN 23 LED-PCA assembly RM1-4141-000CN A02 Photo interrupter, TLP1242 WG8-5593-000CN A05 Mount, LED-PCA RC2-1735-000CN
External panels and covers (booklet-maker) 1 Flag, paper-sensing sensor FC5-5004-000CN 2 Spring, torsion FC5-5005-000CN 4 Cover, rear RC2-1278-000CN 5 Cover, tray-connector RC2-1279-000CN 7 Paper-face sensor assembly 4G3-0934-000CN 8 Paper-face sensing assembly 4G3-1624-000CN 9 Top-door (upper-cover) assembly RM1-4121-000CN 9A Link-slide assembly 4G3-0271-000CN 10 Front-door assembly RM1-4122-000CN 11 Middle-height cover assembly RM1-4119-000CN 12 Left-upper cover assembly RM1-4129-000CN 14 Cover, left-lower RC2-1280-000CN 18 Panel, height, upper RC2-1283-000CN 19 Guide, side-wall RC2-1284-000CN 22 Cover, front-lower RL1-1717-000CN 23 Cover, rear-lower RL1-1718-000CN 24 Window, LED RC2-1734-000CN 27 LED-PCA assembly RM1-4141-000CN A02 Photo interrupter, TLP1242 WG8-5593-000CN
Finisher (stapler/stacker and booklet-maker) 3 Limiter, torque FC5-3657-000CN 8 Hinge, front-door, 1 FC5-4991-030CN 9 Hinge, front-door, 2 FC5-4992-030CN 10 Rack, rail FC5-5436-000CN 16 Gear, 30T FU5-0428-000CN 17 Gear, 40T FU5-0454-000CN 19 Gear, 29T FU5-2399-000CN 20 Pulley, 20T FU5-3086-000CN 21 Screw, RS stepped, M3 FU9-9059-000CN 23 Cover, internal, lower (stapler/stacker only) RC2-1351-000CN 27 Screw, RS, M3x8 XA9-1386-000CN 28 Ring, E XD9-0136-000CN 29 Belt, timing, cogged XF2-1607-860CN 30 Belt, timing XF2-1608-840CN 31 Belt, timing, cogged XF9-0748-000CN 33 Upper-cover lock assembly 4G3-0210-000CN 34 Screw, RS, M4x8 (booklet-maker only) XA9-0732-000CN 35 Stack-ejection motor assembly 4G3-0769-000CN 36 Cable, solenoid FG3-2892-000CN 37 Shutter H.P. sensor assembly FM2-1401-000CN 38 Upper-crossmember assembly RM1-4180-000CN 42 Press-motor assembly FM2-1409-000CN 43 Sensor/switch assembly FM2-1417-000CN 44 Swing-press shaft assembly FM2-1423-000CN 46 Area-sensor flag assembly RM1-4107-000CN 47 Caster, universal RC2-1315-000CN 48 Screw, with washer, M5x12 XA9-0912-000CN 49 Inner-cover assembly RM1-4123-000CN 51 Cable-mount lattice assembly RM1-4128-000CN 59 Sheet, entrance-guide FC5-5542-000CN 60 Solenoid FL2-0821-000CN 69 Pin XD3-2200-102CN 70 Pin, dowel XD3-2200-142CN 71 Ring, E XD9-0136-000CN 75 Entrance-sensor flag assembly FM2-0718-000CN 79 Plate, hinge-stop (booklet-maker only) 4A3-4715-000CN 80 Knob (booklet-maker only) FB3-7881-000CN 86 Cover, internal, lower (booklet-maker only) RL1-1477-000CN 87 Plate, grounding (booklet-maker only) 4A3-1955-000CN 88 Clutch, electromagnetic 4H3-0370-000CN 91 Plate, grounding (booklet-maker only) RC2-1356-000CN 92 Flexible-cable mount assembly FM2-0720-000CN 501 Pin XD3-2200-102CN 503 Screw, TP, M3x6 (booklet-maker only) XB6-7300-607CN A51 Photo interrupter, TLP1242 WG8-5593-000CN
Output bin 1 (stack upper-tray assembly) (stapler/stacker) 1 Stack upper-tray assembly RM1-4101-000CN 3 Option-sensor assembly FM2-1708-000CN 17 Plate, option-tray, front FC5-6978-000CN 20 Gear, 44T FU5-0435-000CN 29 Cover, option-tray, front RL1-2210-000CN 32 Roller, tray-guide RU5-6035-000CN 40 Area-sensor PCA assembly 4G1-1498-000CN 44 Paper-sensor assembly FM2-0707-000CN 45 Area-sensor holder assembly FM2-0709-000CN A31 Photo interrupter, TLP1242 WG8-5593-000CN
Output bin 1 (stack upper-tray assembly) (booklet-maker) 1 Stack upper-tray assembly RM1-4102-000CN 2 Ring, E XD9-0137-000CN 9 3 Stack-tray assembly RM1-4104-000CN 5 Approach-switch assembly FM2-0710-000CN 8 Roller, tray-guide FC5-4221-000CN 19 Gear, 44T FU5-0435-000CN 20 Gear, 17T FU5-0457-000CN 28 Roller, tray-guide RU5-6035-000CN 34 Area-sensor PCA assembly 4G1-1498-000CN 35 Tray-driver PCA assembly FG3-2887-000CN 37 Paper-sensor assembly FM2-0707-000CN 38 Area-sensor holder assembly FM2-0709-000CN 503 Pin, dowel XD3-2300-142CN
Output bin 2 (stack lower-tray assembly) (stapler/stacker and booklet-maker) 1 Stack lower-tray assembly RM1-4105-000CN 5 Stack-tray assembly RM1-4104-000CN 7 Area-sensor holder assembly FM2-0709-000CN 8 Roller, tray-guide FC5-4221-000CN 12 Paper-sensor assembly FM2-0707-000CN 18 Gear, 44T FU5-0435-000CN 19 Gear, 17T FU5-0457-000CN 20 Bushing FU5-1169-000CN 26 Roller, tray-guide RU5-6035-000CN 32 Area-sensor PCA assembly 4G1-1498-000CN 33 Tray-driver PCA assembly FG3-2887-000CN 503 Pin, dowel XD3-2300-142CN
Top output bin (stack sub-tray assembly) (stapler/stacker) 1 Stack sub-tray assembly RM1-4115-000CN
Operation-tray assembly (stapler/stacker and booklet-maker) 1 Operation-tray assembly RM1-4125-000CN 5 Cable, operation-tray FG3-2903-000CN A12 Photo interrupter, TLP1242 WG8-5593-000CN A37 Photo interrupter, TLP1242 WG8-5593-000CN
Paper-feeder motor assembly (stapler/stacker and booklet-maker) 1 Paper-feeder motor assembly RM1-4175-000CN 1
Return-roller assembly (stapler/stacker and booklet-maker) 1 Return-roller assembly FM2-0725-090
Pressure-roller assembly (stapler/stacker and booklet-maker) 1 Pressure-roller assembly FM2-0730-000CN
Swing-guide assembly (stapler/stacker and booklet-maker) 1 Swing-guide assembly RM1-4108-000CN 4 Spring, torsion FC5-6857-000CN 5 Arm, paper-delivery gate RC2-1293-000CN
Entrance upper-guide assembly (stapler/stacker and booklet-maker) 1 Entrance upper-guide assembly RM1-4172-000CN
Staple assembly (stapler/stacker and booklet-maker) 1 Staple assembly FM2-0721-000CN 3 Stapler sub-assembly FM2-0722-000CN 5000-staple replacement cartridge C8091-67901 2000-staple cartridge (for booklet making) CC383-67901 6 Cable, staple-connecting assembly 4G3-1777-000CN
Saddle assembly (booklet-maker) 2 Arm, adjustment, front 4A3-1763-000CN 3 Arm, adjustment, rear 4A3-1764-000CN 4 Plate, rotation 4A3-1779-000CN 6 Lever, stopper 4A3-1782-000CN 7 Roller, folding 4A3-1783-000CN 14 Gear, 50T 4S3-0171-000CN 15 Bearing, ball, 6902ZZNR 4S3-1050-000CN 16 Spring, tension 4S3-2116-000CN 17 Spring, tension 4S3-2117-000CN 21 Flag, roller FB3-7925-030CN 23 Deflector FB3-7928-020CN 24 Rack, rear FB3-7934-000CN 27 Rack, front FB3-7967-000CN 28 Holder, roller, 2 FB3-7973-000CN 29 Flag, sensor FB3-7979-000CN 30 Spring, torsion FB3-7980-000CN 33 Deflector FB5-2697-000CN 34 Flag, sensor FB5-5937-020CN 35 Claw, latch, right FC5-5021-000CN 41 Pulley, 30T FS5-3576-000CN 42 Pulley, 39T FS5-3577-000CN 48 Gear, 16T/33T FS6-0822-000CN 49 Gear, 16T FS6-0823-000CN 50 Gear, 16T/56T FS6-0829-000CN 51 Gear, 16T FS6-0830-000CN 53 Spring, tension FS6-2582-000CN 58 Photo interrupter, TLP1242 WG8-5593-000CN 69 Belt, timing XF2-3837-340CN 70 Cable, saddle-unit 4G1-2283-000CN 76 Guide-motor assembly 4G3-0725-000CN 77 Plate, tension FF5-5805-040 82 Rear-end sensor assembly FM2-0763-000CN 84 Delivery-switch mount assembly FM2-1639-000CN 87 Upper delivery-guide assembly RM1-4131-000CN 88 Saddle-controller PCA assembly RM1-4140-000CN 91 Saddle paper-delivery assembly RM1-4130-000CN 92 Motor-mount assembly 4G3-0670-000CN 93 Saddle-guide assembly FM2-0756-000CN 94 Inner side-plate assembly 4G3-0671-000CN 95 Saddle-stapler assembly RM1-4178-000CN 505 Ring, C, external XD2-3100-152CN 506 Pin, dowel XD3-2300-202CN A61 Photo interrupter, TLP1242 WG8-5593-000CN A87 Photo interrupter, TLP1242 WG8-5593-000CN A94 Photo interrupter, TLP1242 WG8-5593-000CN
Saddle-tray assembly (booklet-maker) 1 Booklet-output bin (saddle-tray assembly) RM1-4113-000CN 1 Cable, sensor 4G1-2285-000CN A09 Photo interrupter, TLP1242 WG8-5593-000CN
Saddle-guide assembly (booklet-maker) 1 Saddle-guide assembly FM2-5024-000CN 1 Knob, latch FC5-5024-000CN
Saddle-stapler assembly (booklet-maker) 1 Saddle-stapler assembly RM1-4178-000CN 6 Stapler unit FL2-0846-000CN 5000-staple replacement cartridge C8091-67901 2000-staple cartridge (for booklet making) CC383-67901
Saddle paper-feeder assembly (stapler/stacker) 1 Saddle paper-feeder assembly RM1-4136-000CN 1 Saddle-motor assembly FM2-0737-000CN 2 Entrance lower-guide assembly RM1-4110-000CN
Saddle paper-feeder assembly (booklet-maker) 1 Saddle paper-feeder assembly RM1-4109-000CN 3 Saddle-motor assembly FM2-0737-000CN 4 Entrance lower-guide assembly RM1-4110-000CN A19 Photo interrupter, TLP1242 WG8-5593-000CN
Pass lower-guide assembly (booklet-maker) 3 Motor, stepping 4K1-1103-000CN 8 Pulley, 32T/gear, 16T FS6-0814-000CN 9 Pulley, 16T/gear, 32T FS6-0815-000CN 11 Photo interrupter, TLP1242 WG8-5593-000CN
Inner side-plate assembly (booklet-maker) 1 Inner side-plate assembly 4G3-0671-000CN A17 Photo interrupter, TLP1242 WG8-5593-000CN
Saddle paper-delivery assembly (booklet-maker) 1 Saddle paper-delivery assembly RM1-4130-000CN A25 Photo interrupter, TLP1242 WG8-5593-000CN
Motor-mount assembly (booklet-maker) 1 Motor-mount assembly 4G3-0670-000CN
PCA assembly 1 Main controller PCA assembly (stapler/stacker and booklet-maker) RM1-4139-000CN 2 Saddle-controller PCA assembly (booklet-maker) RM1-4140-000CN
ADF unit 1 Q3938-67943 DADF Assembly Fully refurbished with 90-day warranty Q3938-67943 $398.25 1 End cover (cap) back Q3938-67945 2 Cable, ADF to scanner Q3938-67948 3 PCA motor assembly Q7829-67903 4 Tray-input assembly Q3938-67950 5 Reflector foam (white backing) Q7829-67909 NS Flag sensor LS Q3938-67951 NS Photo interrupter with connector Q7829-67914 NS Maintenance kit Q3938-67944
Front-end cover 1 End cover (cap) front assembly Q3938-67946
Hinge assembly 1 Hinge assembly Q3938-67952 1 (Order 2)
Backbone assembly 2 Diverter Q3938-67953 3 Photo interrupter with connector Q7829-67914 32 Float assembly Q7829-67917
Jam-cover assembly 1 Jam-cover assembly Q3938-67970 2 Cover pick roller Q3938-67954
Pickup-roller assembly 1 Cover pick roller (part of the ADF maintenance kit) Q3938-67954 NOTE: The pickup roller is part of the ADF maintenance kit (which also includes the separation pad).
Separation-pad assembly 1 Separation-pad assembly (part of the ADF maintenance kit) Q3938-67949 NOTE: The separation pad is part of the ADF maintenance kit (which also includes the pickup roller).
Separation-floor assembly 1 Separation-floor assembly Q3938-67949
Scanner unit 1 Entire scanner without power supply, boards, and cable Q3938-60132 NOTE: The automatic document feeder (ADF) is not included.
Carriage assembly 1 Carriage assembly Q3938-67901
Scanner controller-board (SCB) assembly 1 Scanner controller-board (SCB) Q3938-67902
Large-pin assembly 1 Large-pin assembly Q3938-67903
Small-pin assembly 1 Small-pin assembly Q3938-67904
Inverter assembly 1 Inverter assembly Q3938-67905

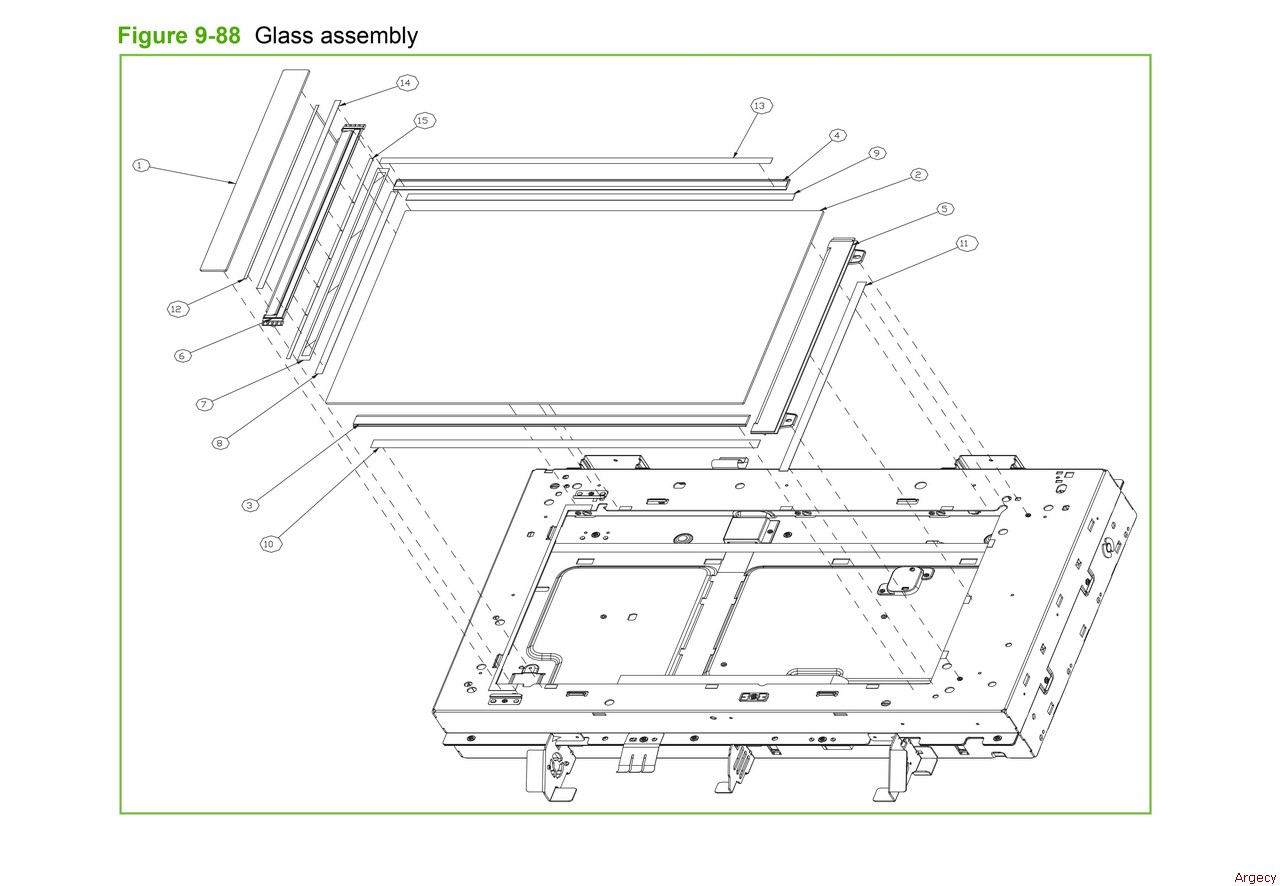

Glass assembly 1 Glass assembly Q3938-67906
Lid-sensor assembly 1 Lid-sensor assembly Q3938-67907
Motor assembly 1 Motor assembly Q3938-67908
Pulley assembly 1 Pulley assembly Q3938-67909
Power-supply assembly 1 Power-supply assembly Q3938-67910 6-3 Power-supply harness Q3938-67928
Main-frame assembly 2-5 Rod Q3938-67911 2-9 Flat cable, 28, 940, A Q3938-67912 2-10 Flat cable, 28, 970, B Q3938-67913 2-11 Sensor base Q3938-67914 2-13 Rubber glass guide Q3938-67915
Plastic-parts assembly 4-3 Upper-left cover Q3938-67920 4-4 Lower-left cover Q3938-67921 4-5 Upper-right cover Q3938-67922 4-6 Lower-right cover Q3938-67923 4-7 Top cover Q3938-67924 4-8 Rear cover Q3938-67925 4-9 Front cover Q3938-67926 4-29 Screw covers Q3938-67927 14
Transmission assembly 8-4 Timing belt Q3938-67935
Fan-system assembly 9-3 Scanner controller board (SCB) fan Q3938-67937 9-4 Scanner fan Q3938-67938 9-6 Control-panel fan Q3938-67939
Havic assembly 13-1 Copy processor board (CPB) Q3938-67940 13-2 SCUID board Q3938-67941 13-3 PCIe cable Q3938-67942 13-4 512 MB image scanner memory DIMM Q7559A (module only) or Q3931-67904 (service kit)

---
