Exploded parts diagrams and part numbers for the HP Color LaserJet Enterprise 6700dn, 6701dn, MFP 6800dn, 6800zf, 6800zfsw, 6800zfw+ and 6801, and the X654 and X677 variants. Part numbers are taken directly from HP's service manual. Where a part shows an order button we have it in stock — for anything else, call us on 248-540-4300 and we will source it.

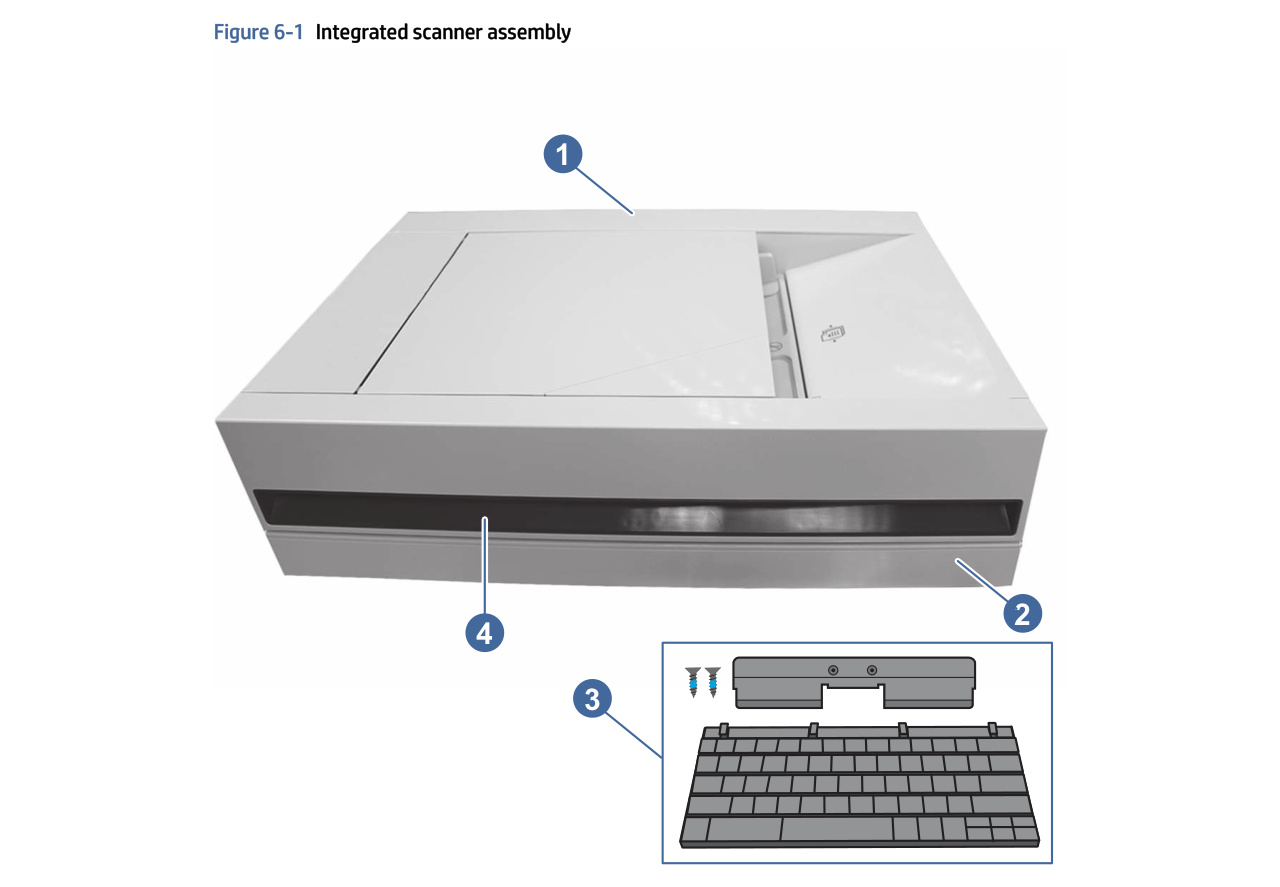

6-1 — Integrated scanner assembly

1   J1H98-67001   ADF WUR (6xxx Series Non-Workflow) (qty 1) 1   J1H98-67002   ADF WUR (6xxx Series Workflow) (qty 1) 2   6QN35-67006   Flatbed scanner (qty 1) 4   5851-8688   Handle (Lunar Grey Dark/ Cement 4   5851-8689   Handle (Lunar Comet Red 4   5851-8690   Handle (Lunar Cosmic Green 4   5851-8691   Handle (Lunar Constellation 4   5851-8692   Handle (Lunar Aurora Purple 4   5851-8693   Handle (OOV white) Integrated (qty 1)

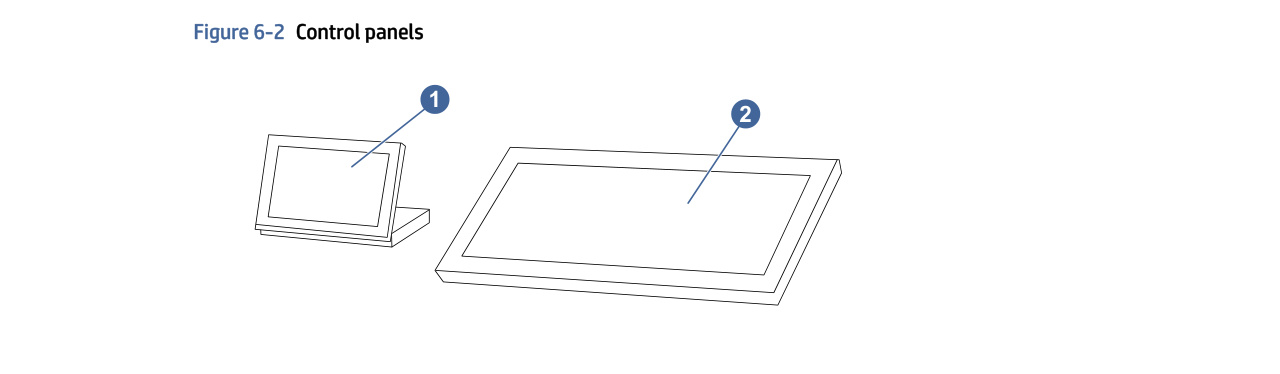

6-2 — Control panels

5851-8849   ADF damper (qty 1)     5851-8842   ADF hinge kit (6xxx Series) (qty 1)     5851-8850   ADF white backing kit (qty 1)     5851-8844   ADF roller cover (6xxx Series) (qty 1) 1   6QN28-67001   Control panel 10.9 cm (4.3 2   6QN35-60129   Control panel 25.6 cm (10.1 2   6QN37-60102   Control panel 23.3 cm (8 in)

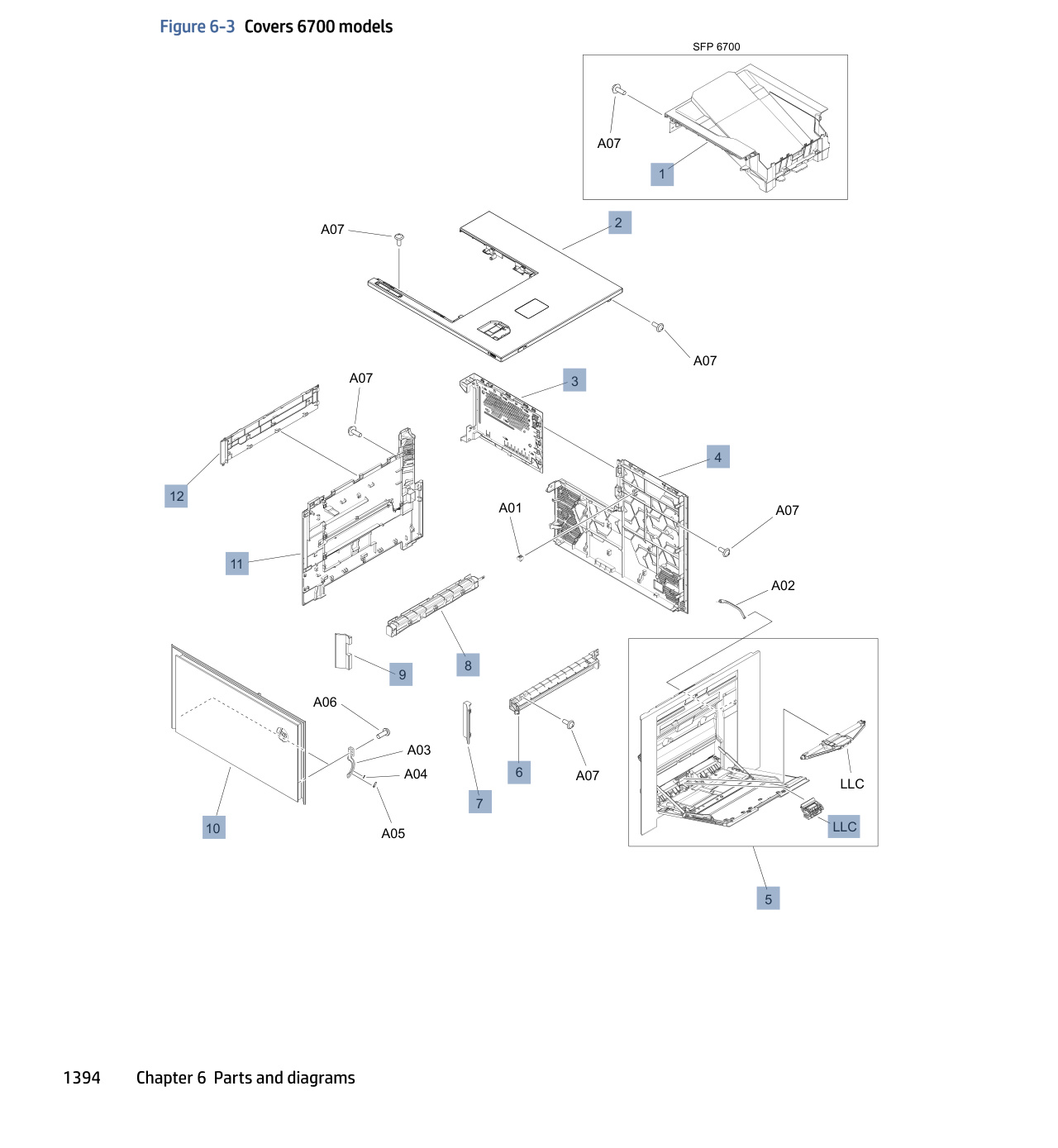

6-3 — Covers 6700 models

1   RM2-4471-000CN   Face down tray assembly (qty 1) 2   RM2-4517-000CN   Cover, top assembly (qty 1) 3   RM2-4480-000CN   Formatter cover assembly (qty 1) 4   RC5-9168-000CN   Cover, rear lower (qty 1) 5   RM2-3665-000CN   Right lower door assembly (qty 1) 6   RC5-8516-000CN   Handle, right door lower (qty 1) 7   RC5-9199-000CN   Cover, front right (qty 1) 8   RC5-9165-000CN   Handle, left (qty 1) 9   RC5-9198-000CN   Cover, front left (qty 1) 10   RM2-4533-000CN   Front door assembly (qty 1) 11   RM2-4535-000CN   Left cover assembly (qty 1) 12   RC5-9204-000CN   Cover, left upper (qty 1)     RC4-0213-000CN   Cover, Hardware integration pocket (HIP) and diagrams: Covers 6700 models 1395 (qty 1)

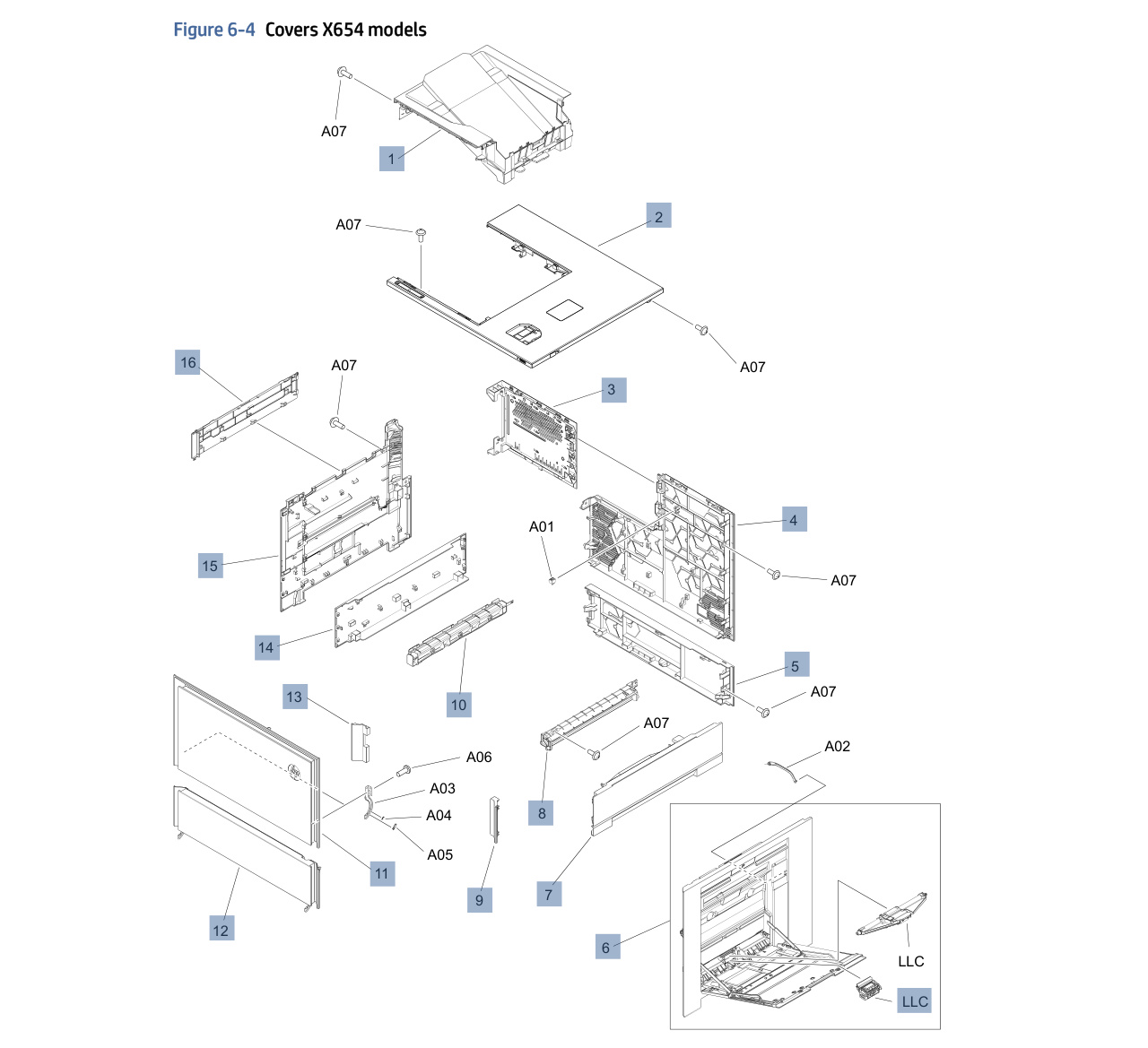

6-4 — Covers X654 models

1   RM2-4471-000CN   Face down tray assembly (qty 1) 2   RM2-4517-000CN   Cover, top assembly (qty 1) 3   RM2-4480-000CN   Formatter cover assembly (qty 1) 4   RC5-9168-000CN   Cover, rear lower (qty 1) 5   RC5-9409-000CN   Cover, rear lower RC5-9409-000CN Rear Cover New RC5-9409-000CN (New) 3-4 Day Lead $61.20 6   RM2-3665-000CN   Right lower door assembly (qty 1) 7   RM3-0004-000CN   Right lower door assembly (qty 1) 8   RC5-8516-000CN   Handle, right door lower (qty 1) 9   RC5-9199-000CN   Cover, front right (qty 1) 10   RC5-9165-000CN   Handle, left (qty 1) 11   RM2-4479-000CN   Front door assembly (qty 1) 12   RM2-3678-000CN   Toner supply door assembly (qty 1) 13   RC5-9198-000CN   Cover, front left (qty 1) 14   RC5-9408-000CN   Left lower cover (qty 1) 15   RM2-4535-000CN   Left cover assembly (qty 1) 16   RC5-9204-000CN   Cover, left upper (qty 1)     RC4-0213-000CN   Cover, Hardware integration pocket (HIP) and diagrams: Covers X654 models 1397 (qty 1)

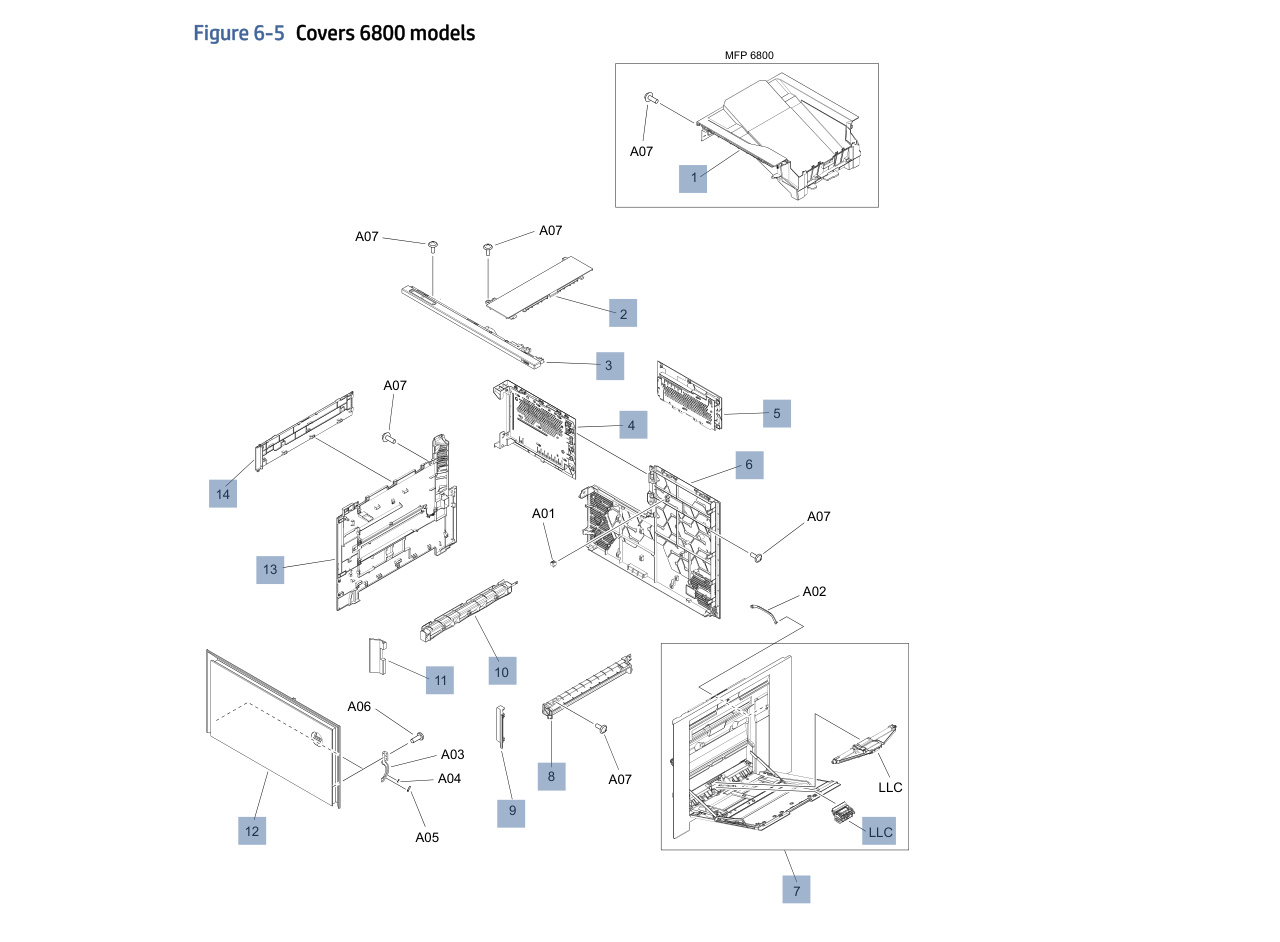

6-5 — Covers 6800 models

1   RM2-4471-000CN   Face down tray assembly (qty 1) 2   RC5-9172-000CN   Cover, top assembly (qty 1) 3   RM2-4518-000CN   Top front cover assembly (qty 1) 4   RM2-4480-000CN   Formatter cover assembly (qty 1) 5   RM2-4530-000CN   Formatter cover assembly (qty 1) 6   RC5-9168-000CN   Cover, rear lower (qty 1) 7   RM2-3665-000CN   Right lower door assembly (qty 1) 8   RC5-8516-000CN   Handle, right door lower (qty 1) 9   RC5-9199-000CN   Cover, front right (qty 1) 10   RC5-9165-000CN   Handle, left (qty 1) 11   RC5-9198-000CN   Cover, front left (qty 1) 12   RM2-4533-000CN   Front door assembly (qty 1) 13   RM2-4535-000CN   Left cover assembly (qty 1) 14   RC5-9204-000CN   Cover, left upper (qty 1)     RC4-0213-000CN   Cover, Hardware integration pocket (HIP) and diagrams: Covers 6800 models 1399 (qty 1)

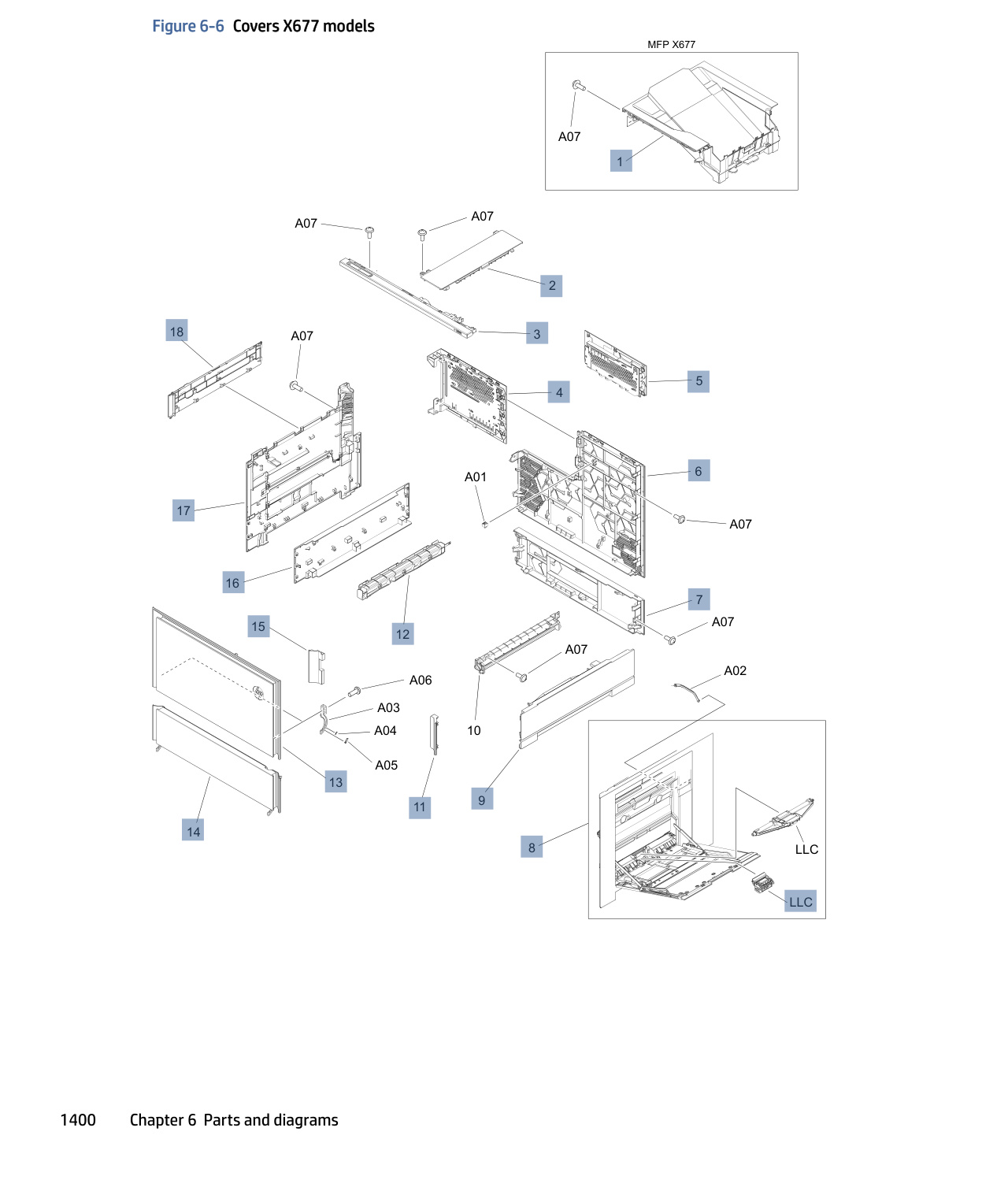

6-6 — Covers X677 models

1   RM2-4471-000CN   Face down tray assembly (qty 1) 2   RC5-9172-000CN   Cover, top assembly (qty 1) 3   RM2-4518-000CN   Top front cover assembly (qty 1) 4   RM2-4480-000CN   Formatter cover assembly (qty 1) 5   RM2-4530-000CN   Formatter cover assembly (qty 1) 6   RC5-9168-000CN   Cover, rear lower (qty 1) 7   RC5-9409-000CN   Cover, rear lower (qty 1) RC5-9409-000CN Rear Cover New RC5-9409-000CN (New) 3-4 Day Lead $61.20 8   RM2-3665-000CN   Right lower door assembly (qty 1) 9   RM3-0004-000CN   Right lower door assembly (qty 1) 10   RC5-8516-000CN   Handle, right door lower (qty 1) 11   RC5-9199-000CN   Cover, front right (qty 1) 12   RC5-9165-000CN   Handle, left (qty 1) 13   RM2-4479-000CN   Front door assembly (qty 1) 14   RM2-3678-000CN   Toner supply door assembly (qty 1) 15   RC5-9198-000CN   Cover, front left (qty 1) 16   RC5-9408-000CN   Left lower cover (qty 1) 17   RM2-4535-000CN   Left cover assembly (qty 1) 18   RC5-9204-000CN   Cover, left upper (qty 1)     RC4-0213-000CN   Cover, Hardware integration pocket (HIP) and diagrams: Covers X677 models 1401 (qty 1)

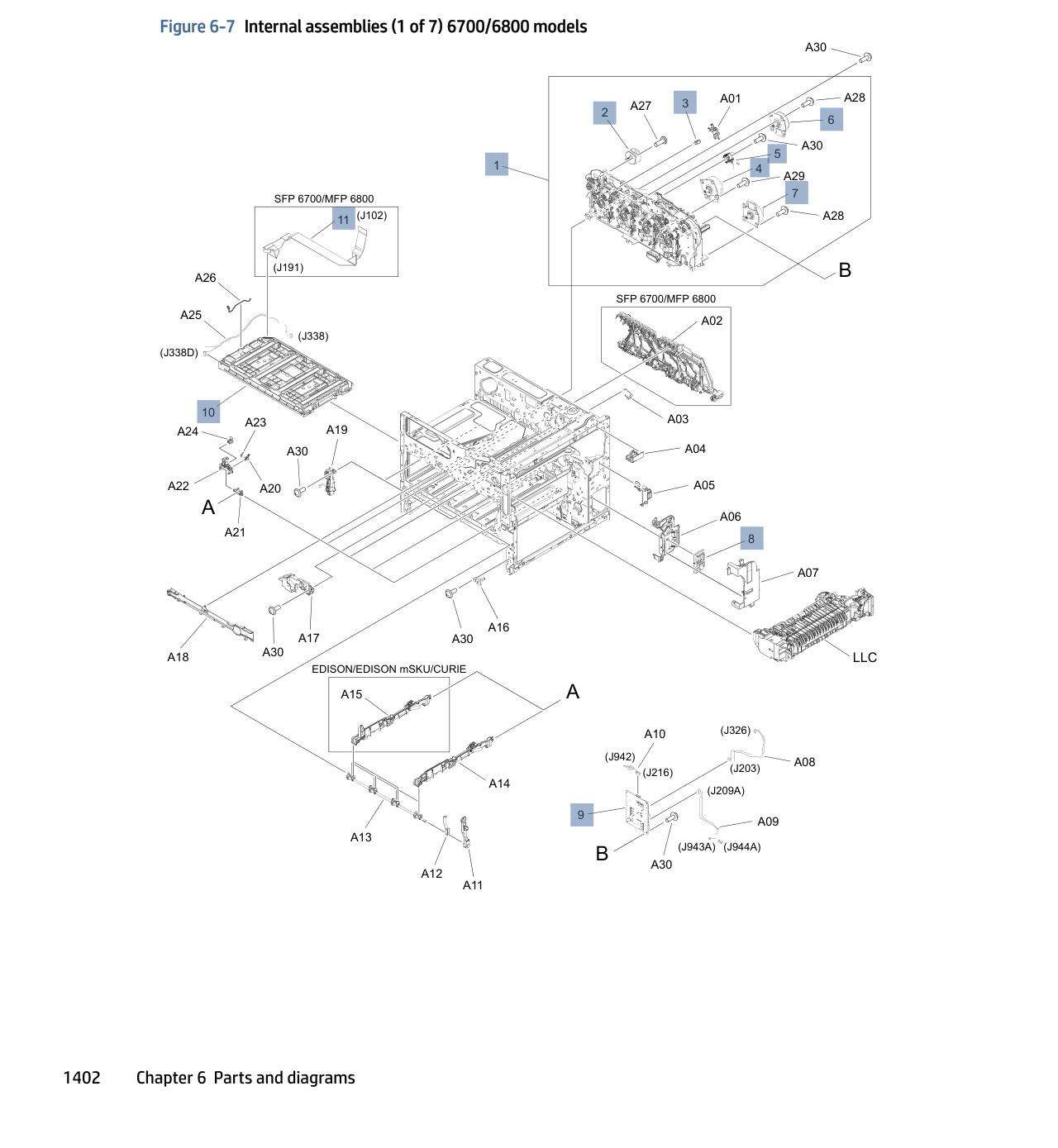

6-7 — Internal assemblies (1 of 7) 6700/6800 models

1   RM2-3504-000CN   Main drive assembly 2   RM2-3625-000CN   Developing motor assembly (qty 1) 3   RM3-7647-000CN   Drum position sensor PCA (qty 1) 4   RM3-7788-000CN   Drum motor assembly (qty 1) 5   RM2-7360-000CN   T1 solenoid assembly (qty 1) 6   RK2-6027-000CN   Motor, stepping (qty 1) 7   RM3-7797-000CN   ITB motor assembly (qty 1) 8   RM3-7792-000CN   Right PCA (qty 1) 9   RM3-7722-000CN   Driver PCA (qty 1) 10   RM2-3787-000CN   Laser scanner assembly (qty 1) 11   RK3-0825-000CN   Cable, flat SCN (qty 1)

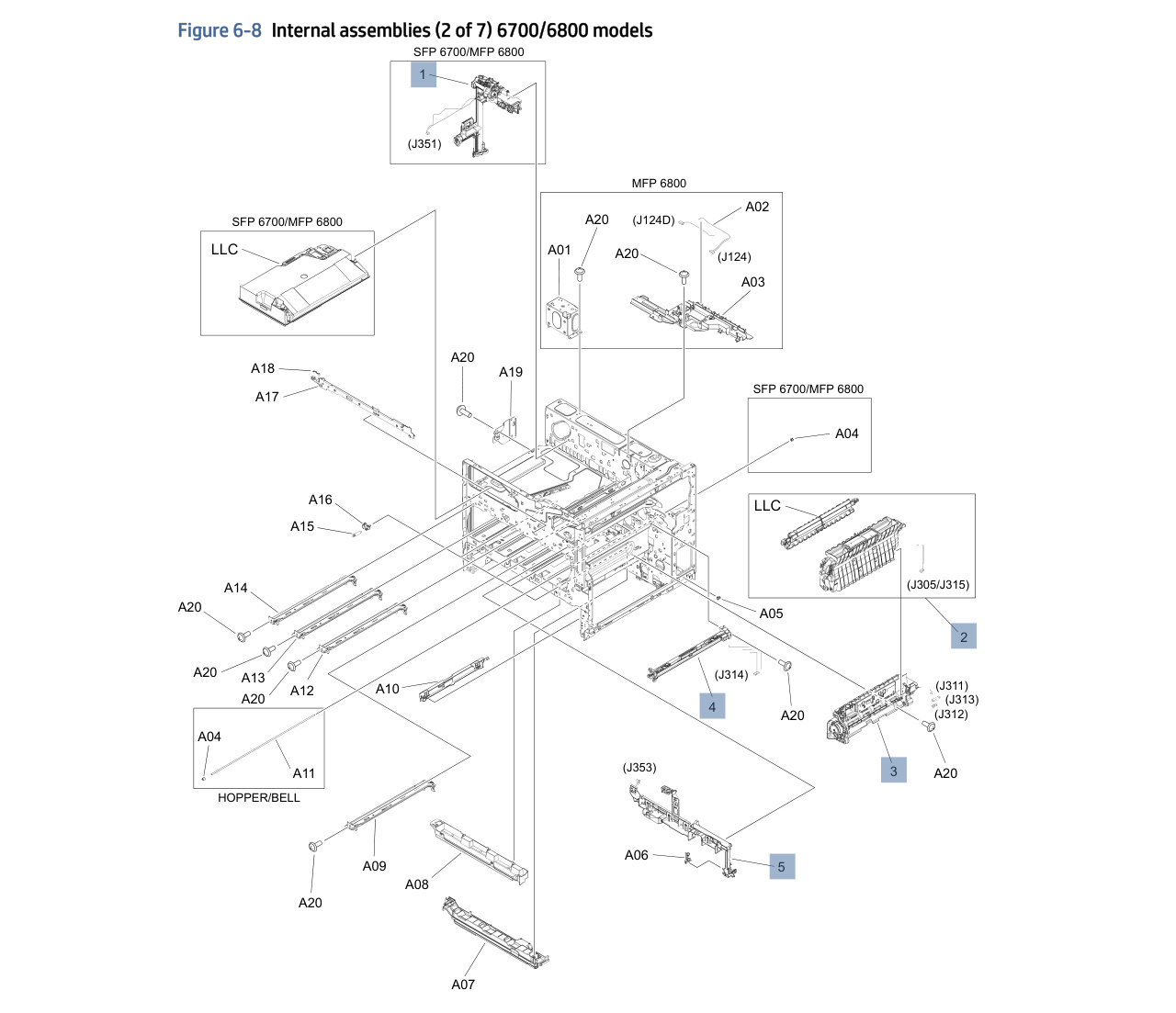

6-8 — Internal assemblies (2 of 7) 6700/6800 models

1   RM2-3518-000CN   Waste toner duct assembly (qty 1) 2   RM2-3586-000CN   Secondary transfer assembly 6700 (qty 1) 2   RM2-3628-000CN   Secondary transfer assembly 6800 (qty 1) 3   RM2-4458-000CN   Registration assembly (qty 1) 4   RM2-4492-000CN   Density detect assembly (qty 1) 5   RM2-3565-000CN   Pre-exposure PCA holder (qty 1)

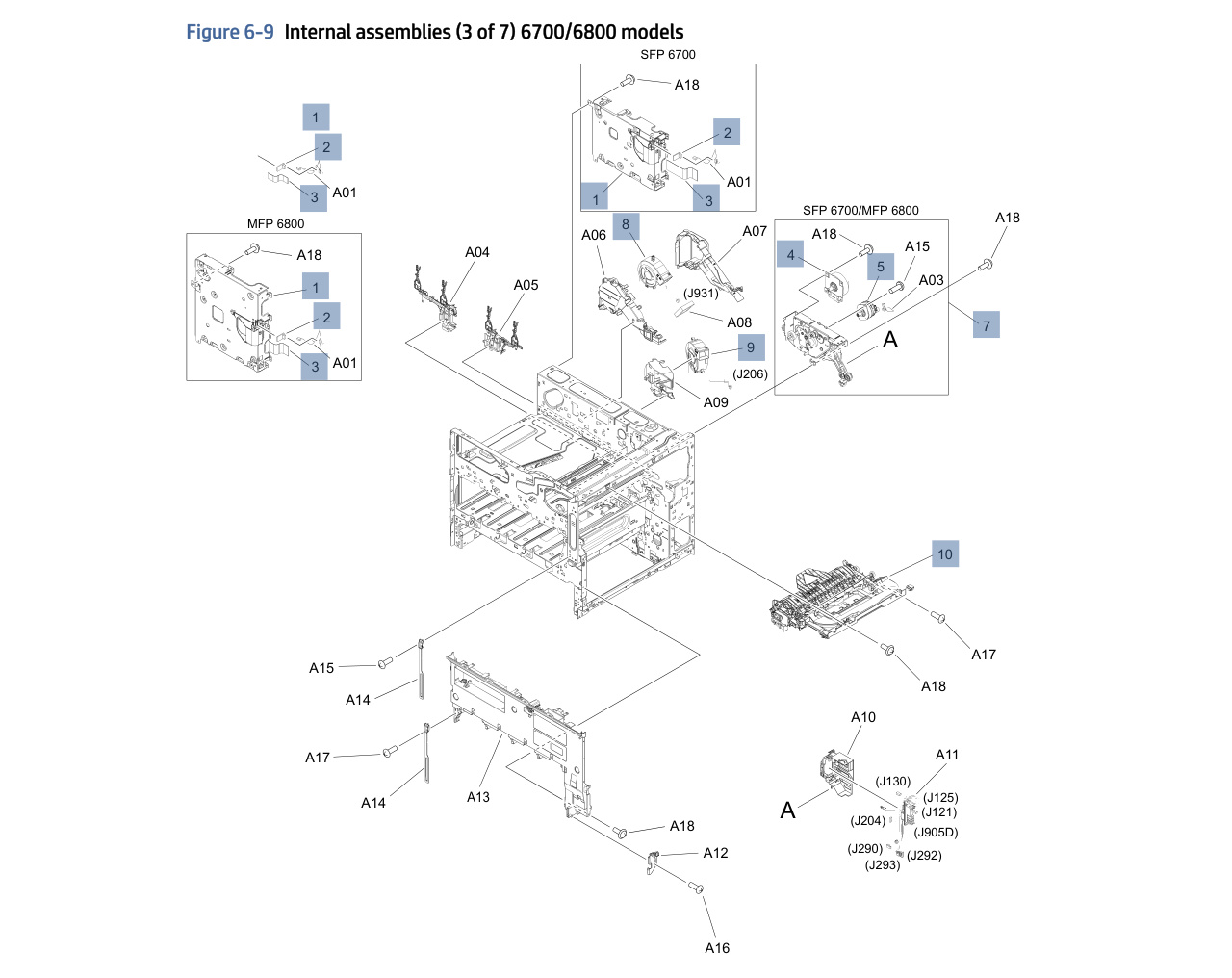

6-9 — Internal assemblies (3 of 7) 6700/6800 models

1   RM2-4520-000CN   Formatter cage assembly (6700) (qty 1) 1   RM2-4521-000CN   Formatter cage assembly (MFP 6800) (qty 1) 2   RM2-7138-000CN   Memory PC board assembly (qty 1) 3   RK3-0817-000CN   Cable, flat FMTR (qty 1) 3   RK3-0837-000   CABLE, FLAT, FMTR (qty 1) 4   RM2-4488-000CN   Fixing motor assembly (qty 1) 5   RM2-4489-000CN   Motor assembly (qty 1) 7   RM2-4487-000CN   Fixing drive assembly (qty 1) 8   RK3-0762-000CN   Fan (qty 1) 9   RK3-0762-000CN   Fan (qty 1) 10   RM2-3555-000CN   Paper delivery assembly (6700) (qty 1) 10   RM2-3556-000CN   Paper delivery assembly (MFP 6800) (qty 1)

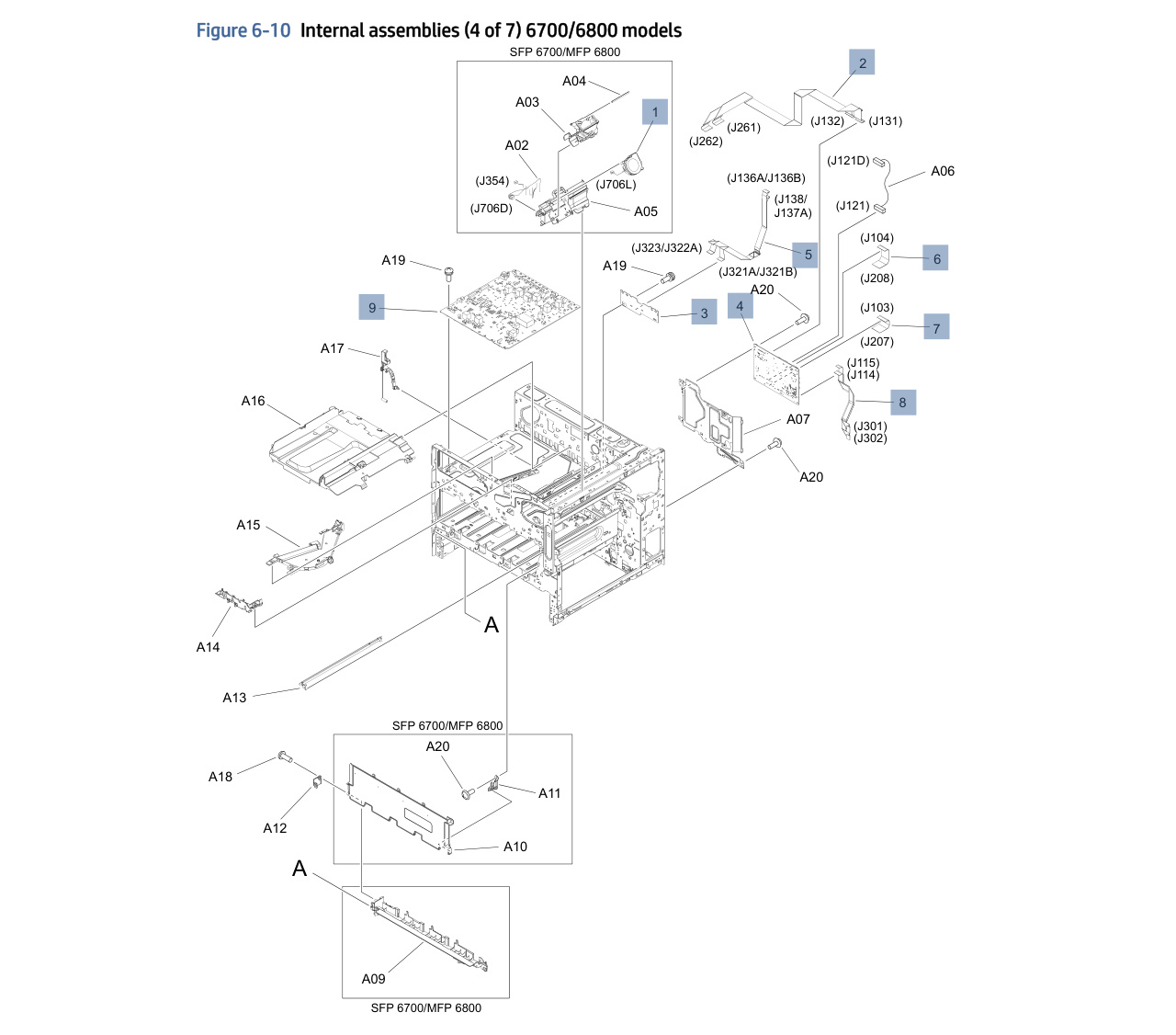

6-10 — Internal assemblies (4 of 7) 6700/6800 models

1   RK3-0760-000CN   Fan (qty 1) 2   RK3-1509-000CN   Cable, flat HVT (qty 1) 3   RM3-9045-000CN   Rear PCA (qty 1) 4   RM3-7753-000CN   DC controller PCA (qty 1) 4   RM3-7754-000CN   DC controller PCA (qty 1) 5   RK3-1692-000CN   Cable, flat rear (qty 1) 6   RK3-0821-000CN   Cable, flat drive (qty 1) 7   RK3-0819-000CN   Cable, flat drive (qty 1) 8   RK3-1694-000CN   Cable, flat right (qty 1) 9   RM3-9041-000CN   HV power supply PCA (qty 1)     6QN32-67002   Formatter (67xx / X65xxx) (qty 1)     6QN32-67004   Formatter (67xx / X65xxx) (China/India) (qty 1)     6QN35-67002   Formatter (68xx / X67xxx) (qty 1)     6QN35-67005   Formatter (68xx / X67xxx) (China/India) (qty 1)

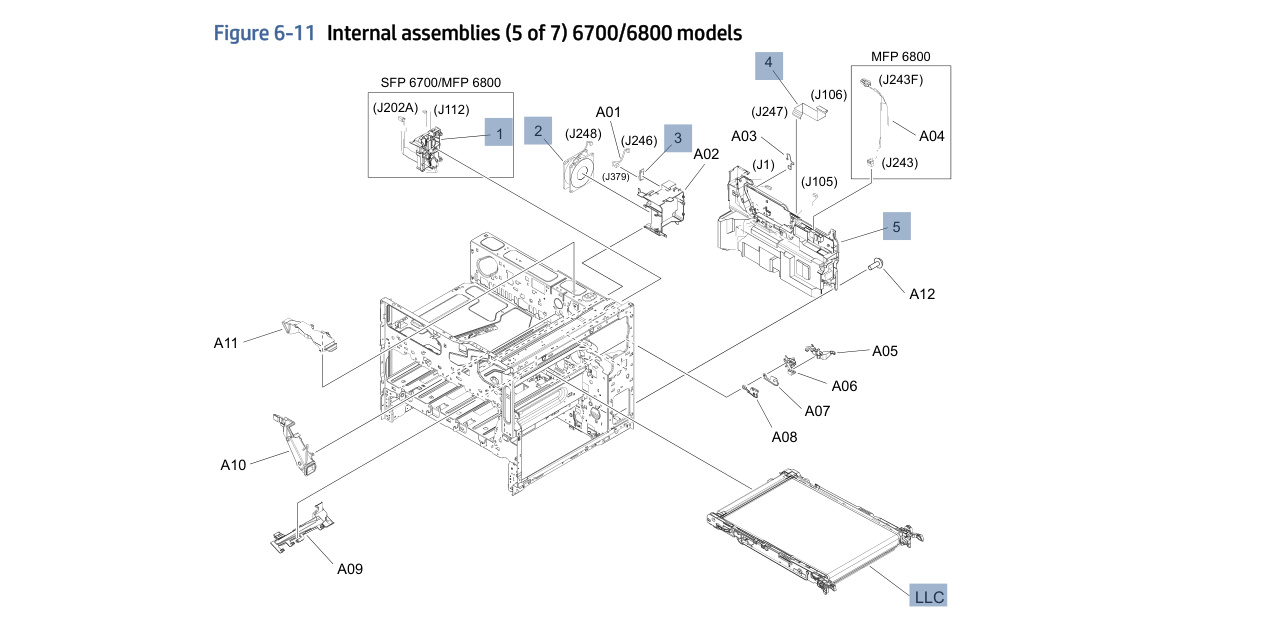

6-11 — Internal assemblies (5 of 7) 6700/6800 models

1   RM2-3676-000CN   Interlock assembly (qty 1) 2   RK3-2277-000CN   Fan (qty 1) 3   WP2-5473-000CN   Sensor, humidity HSU-08FDB2A (qty 1) 4   RK3-0827-000CN   Cable, flat LVPS (qty 1) 5   RM3-7726-000CN   LVPS (110-127V) (6700) (qty 1) 5   RM3-7727-000CN   LVPS (220-240V) (6700) (qty 1) 5   RM3-7728-000CN   LVPS (110-127V) (MFP 6800) (qty 1) 5   RM3-7729-000CN   LVPS (220-240V) (MFP 6800) (qty 1)

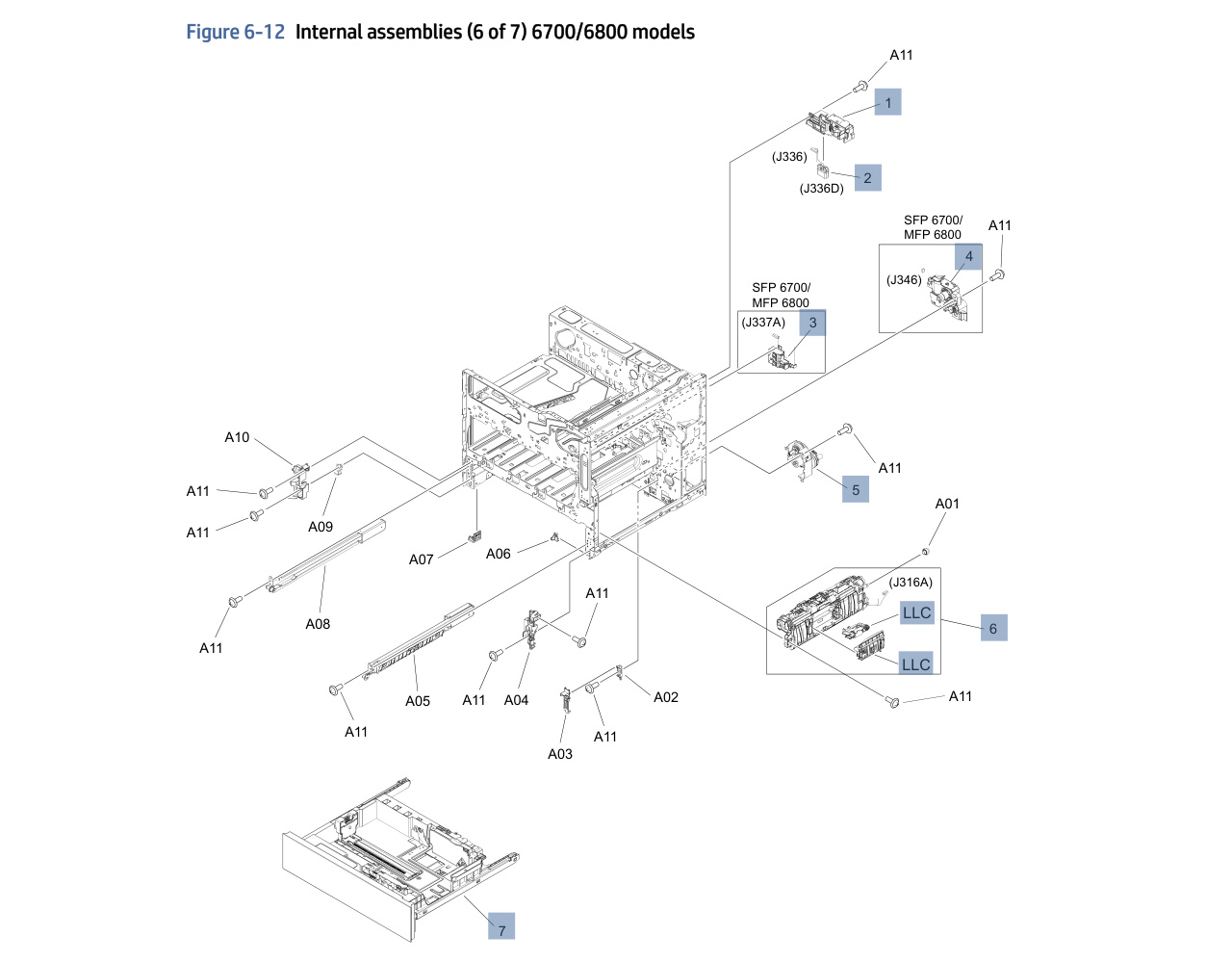

6-12 — Internal assemblies (6 of 7) 6700/6800 models

1   RM2-3559-000CN   Auto close assembly (qty 1) 2   RM3-8001-000CN   Drawer cable assembly (qty 1) 3   RM2-3585-000CN   Size detect assembly (qty 1) 4   RM2-3500-000CN   Lifter drive assembly (qty 1) 5   RM2-3682-000CN   Paper pickup drive assembly (qty 1) 6   RM2-3508-000CN   Paper pickup assembly (qty 1) 7   RM2-3616-000CN   Cassette assembly (qty 1)

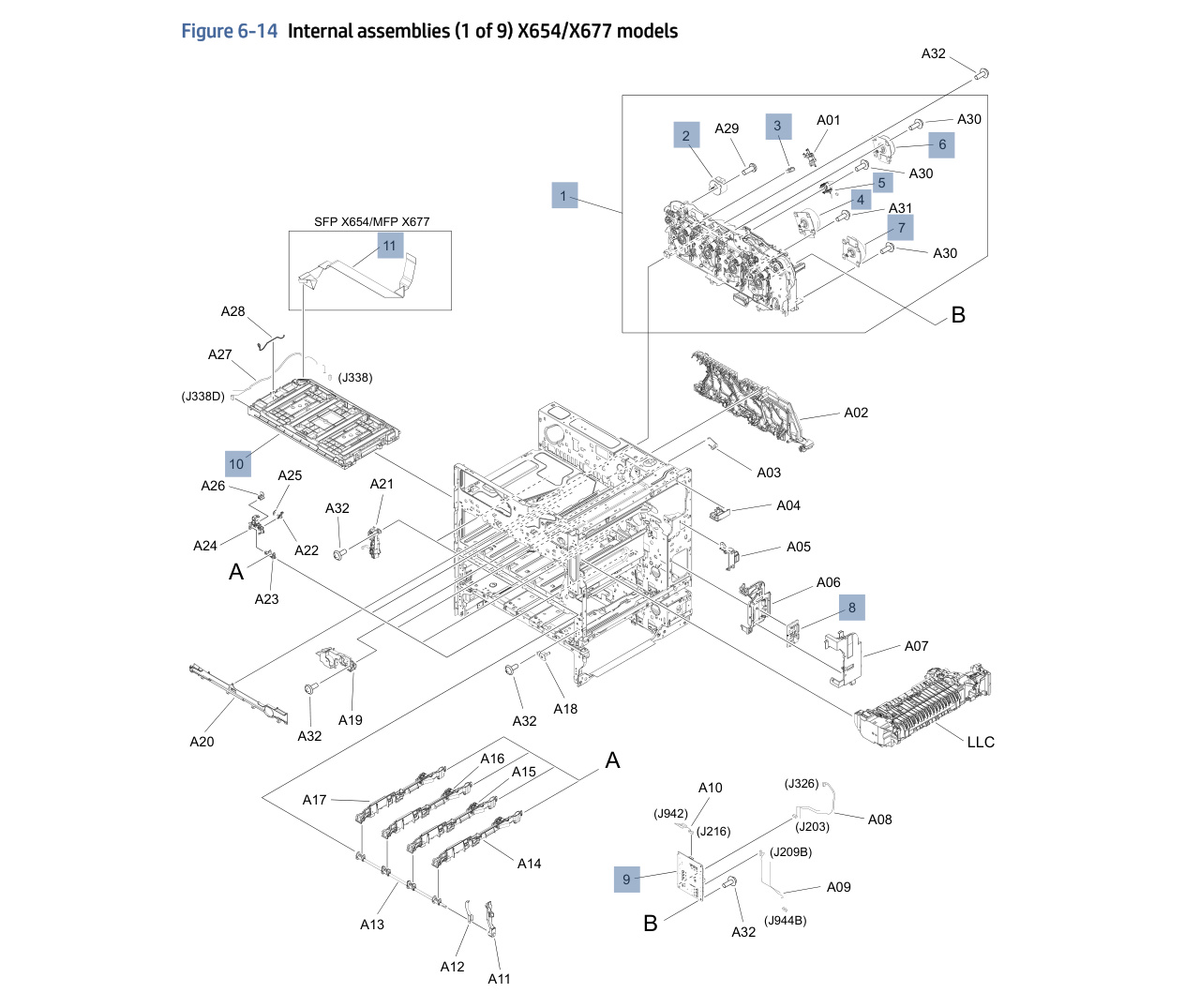

6-14 — Internal assemblies (1 of 9) X654/X677 models

1   RM2-3497-000CN   Main drive assembly 2   RM2-3625-000CN   Developing motor assembly (qty 1) 3   RM3-7647-000CN   Drum position sensor PCA (qty 1) 4   RM3-7788-000CN   Drum motor assembly (qty 1) 5   RM2-7360-000CN   T1 solenoid assembly (qty 1) 6   RK2-6027-000CN   Motor, stepping (qty 1) 7   RM3-7797-000CN   ITB motor assembly (qty 1) 8   RM3-7794-000CN   Right PCA (qty 1) 9   RM3-7722-000CN   Driver PCA (qty 1) 10   RM2-3787-000CN   Laser scanner assembly (qty 1) 11   RK3-0825-000CN   Cable, flat SCN (qty 1)

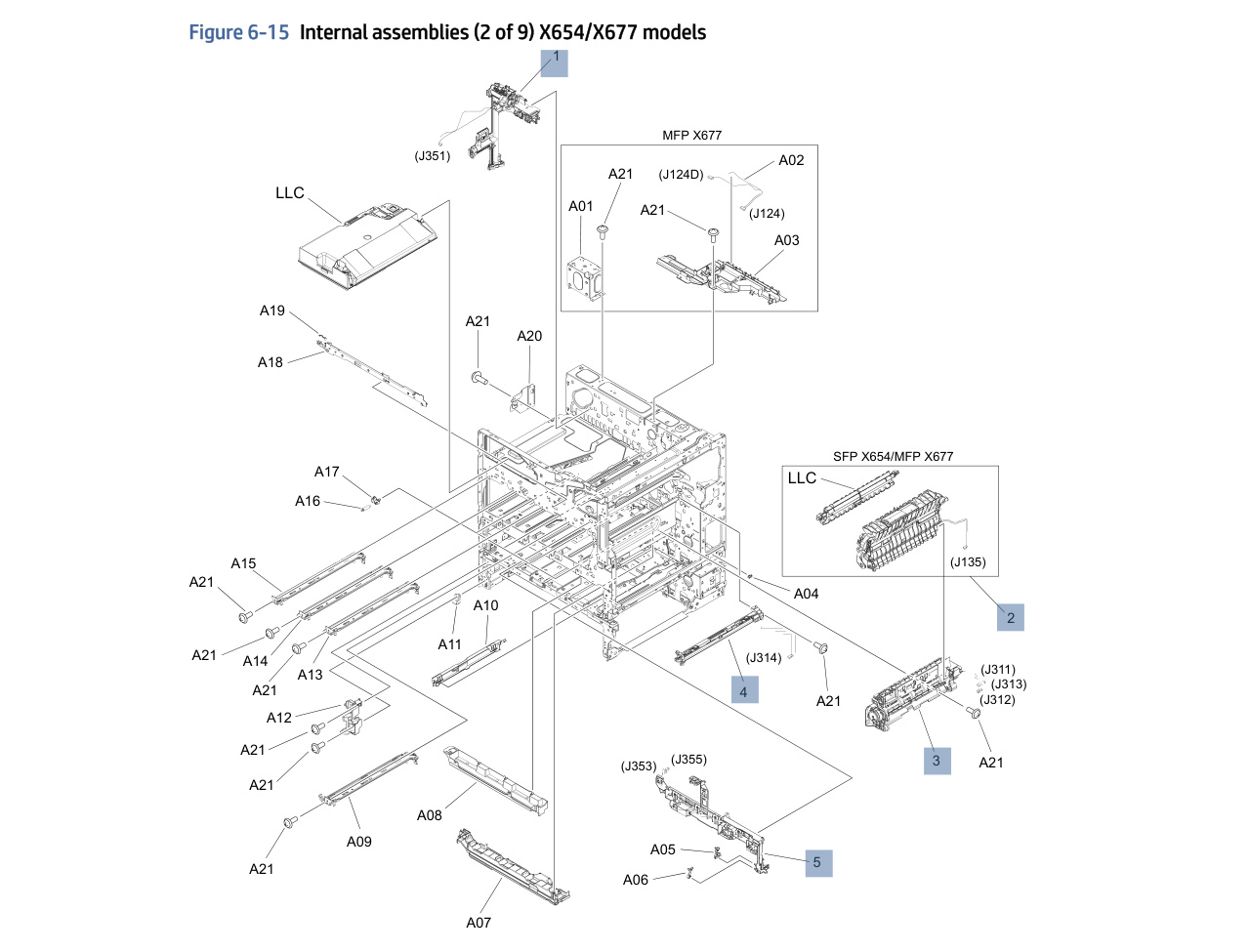

6-15 — Internal assemblies (2 of 9) X654/X677 models

1   RM2-3590-000CN   Waste toner duct assembly (qty 1) 2   RM2-3629-000CN   Secondary transfer assembly 6700 (qty 1) 3   RM2-4458-000CN   Registration assembly (qty 1) 4   RM2-4492-000CN   Density detect assembly (qty 1) 5   RM2-3673-000CN   Pre-exposure PCA holder (qty 1)

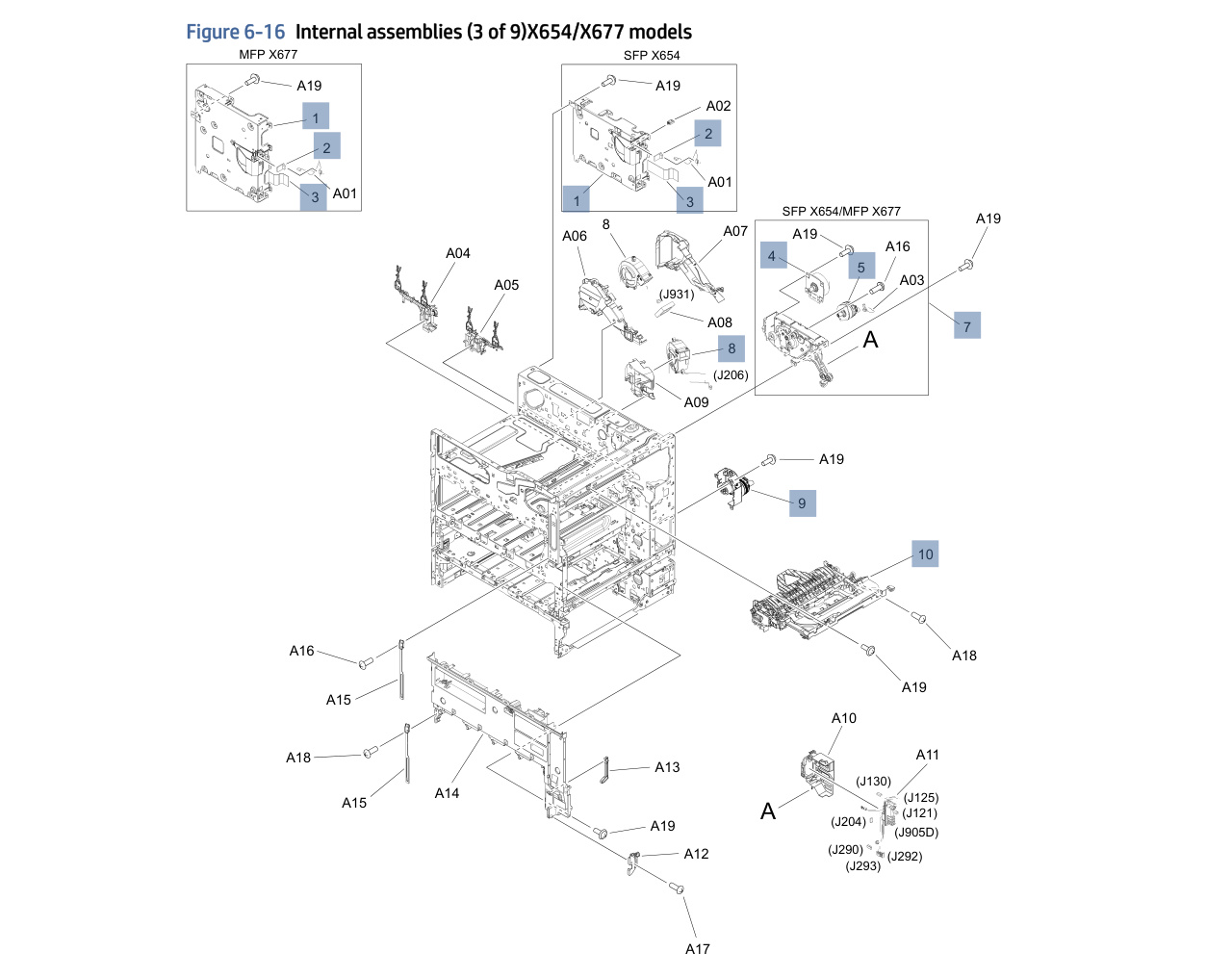

6-16 — Internal assemblies (3 of 9)X654/X677 models

1   RM2-4521-000CN   Formatter cage assembly (qty 1) 2   RM2-7138-000CN   Memory PC board assembly (qty 1) 3   RK3-0817-000CN   Cable, flat FMTR (X654) (qty 1) 3   RK3-0847-000CN   Cable, flat FMTR (X677) (qty 1) 4   RM2-4488-000CN   Fixing motor assembly (qty 1) 5   RM2-4489-000CN   Motor assembly (qty 1) 7   RM2-4487-000CN   Fixing drive assembly (qty 1) 8   RK3-0762-000CN   Fan (qty 2) 9   RM2-3683-000CN   Paper pickup drive assembly (qty 1) 10   RM2-3555-000CN   Paper delivery assembly (MFP X677) (qty 1) 10   RM2-3556-000CN   Paper delivery assembly (MFP X677) (qty 1)     B5L32-60002   eMMC 16GB (qty 1) B5L32-60002 Embedded MultiMedia Card - 16GB - EMMC Kit New B5L32-60002 (New) $148.24     B5L32-67001   eMMC 32GB (qty 1)

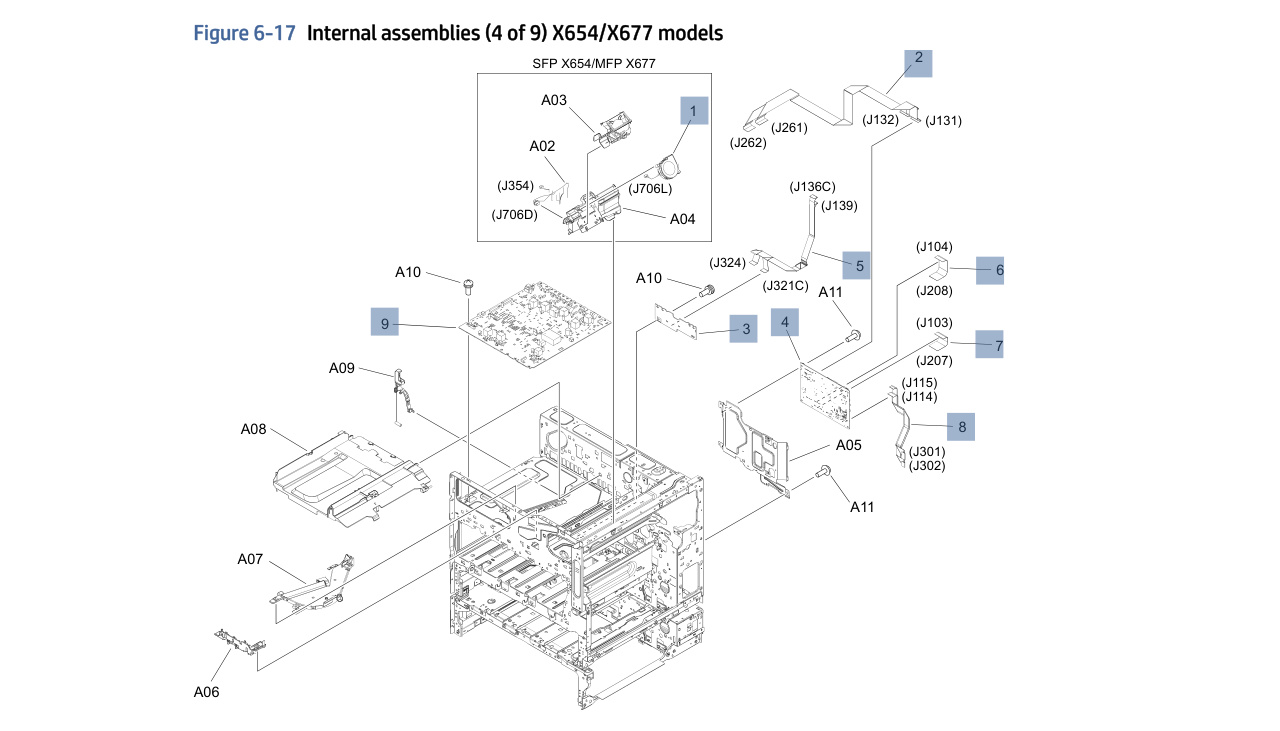

6-17 — Internal assemblies (4 of 9) X654/X677 models

1   RK3-0760-000CN   Fan (qty 1) 2   RK3-1509-000CN   Cable, flat HVT (qty 1) 3   RM3-9046-000CN   Rear PCA (qty 1) 4   RM3-7758-000CN   DC controller PCA (qty 1) 5   RK3-1693-000CN   Cable, flat rear (qty 1) 6   RK3-0821-000CN   Cable, flat drive (qty 1) 7   RK3-0819-000CN   Cable, flat drive (qty 1) 8   RK3-1694-000CN   Cable, flat right (qty 1) 9   RM3-9043-000CN   HV power supply PCA (qty 1)     6QN32-67002   Formatter (67xx / X65xxx) (qty 1)     6QN32-67004   Formatter (67xx / X65xxx) (China/India) (qty 1)     6QN35-67002   Formatter (68xx / X67xxx) (qty 1)     6QN35-67005   Formatter (68xx / X67xxx) (China/India) (qty 1)

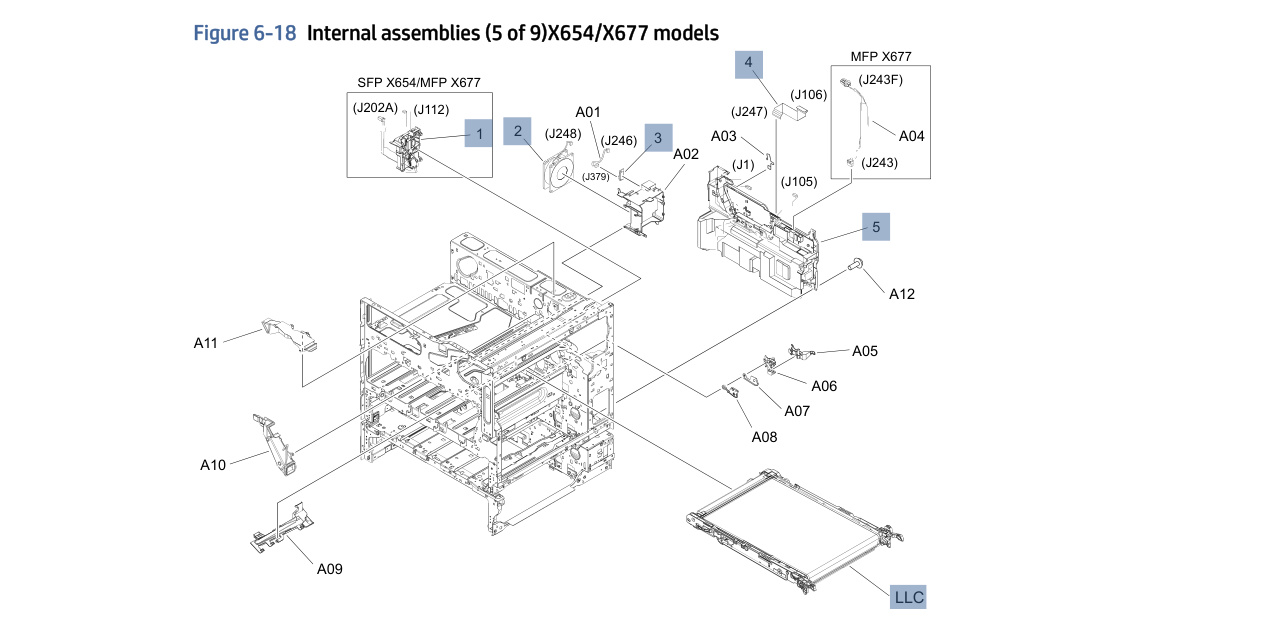

6-18 — Internal assemblies (5 of 9)X654/X677 models

1   RM2-3676-000CN   Interlock assembly (qty 1) 2   RK3-2277-000CN   Fan (qty 1) 3   WP2-5473-000CN   Sensor, humidity HSU-08FDB2A (qty 1) 4   RK3-0827-000CN   Cable, flat LVPS (qty 1) 5   RM3-7726-000CN   LVPS (110-127V) (X654) (qty 1) 5   RM3-7727-000CN   LVPS (220-240V)(X654) (qty 1) 5   RM3-7728-000CN   LVPS (110-127V)(MFP X677) (qty 1) 5   RM3-7729-000CN   LVPS (220-240V)(MFP X677) (qty 1)

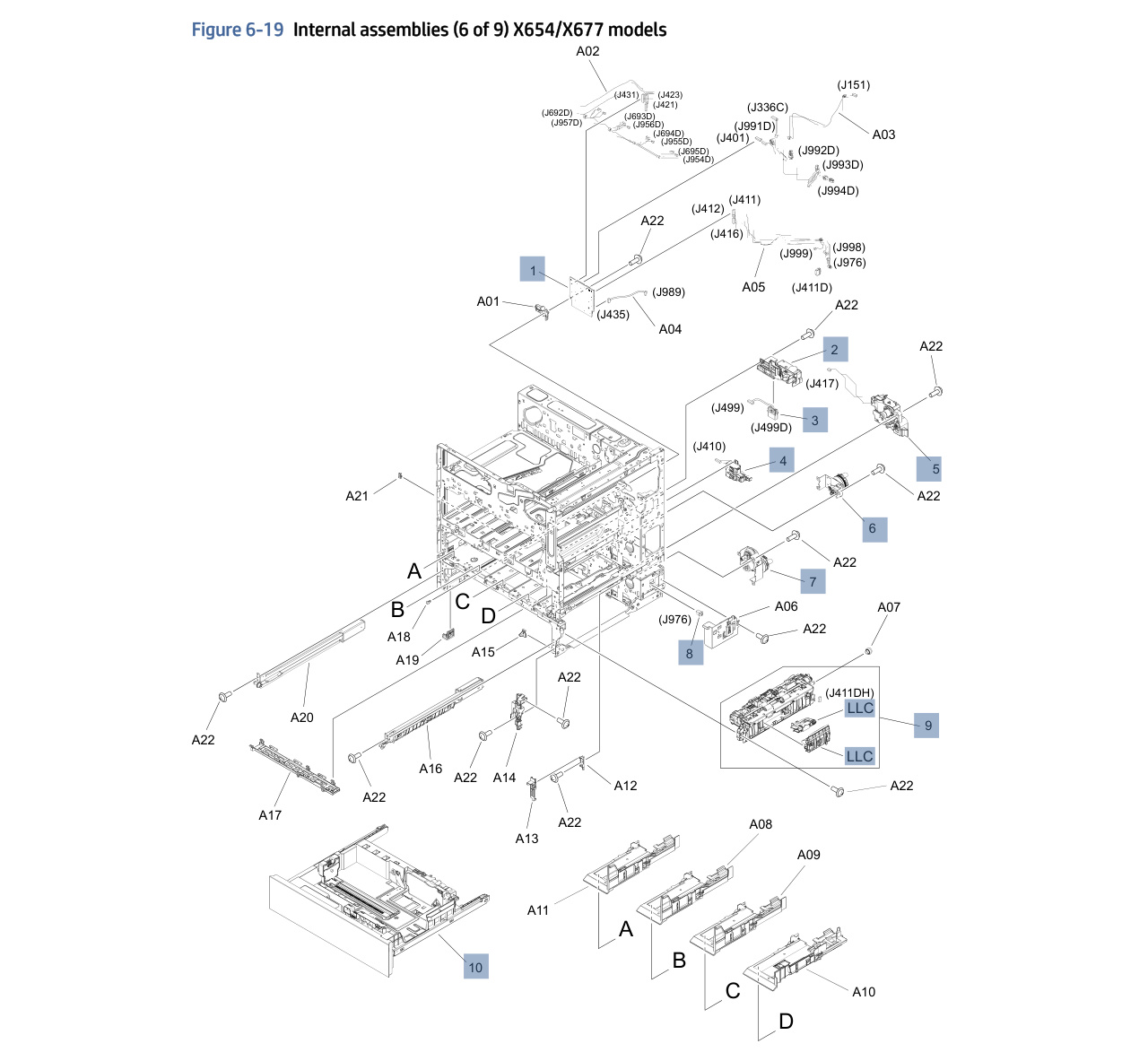

6-19 — Internal assemblies (6 of 9) X654/X677 models

1   RM3-7771-000CN   Toner supply PCA (qty 1) 2   RM2-3559-000CN   Auto close assembly (qty 1) 3   RM3-8038-000CN   Drawer cable assembly (qty 1) 4   RM2-3614-000CN   Size detect assembly (qty 1) 5   RM2-3501-000CN   Lifter drive assembly (qty 1) 6   RM2-3612-000CN   Toner supply drive motor assembly (qty 1) 7   RM2-3617-000CN   Paper pickup drive assembly (qty 1) 8   5851-7005   Assy-USB A F Panel Mount To WTB 335mm (qty 1) 9   RM2-3509-000CN   Paper pickup assembly (qty 1) 10   RM2-3616-000CN   Cassette assembly (qty 1)

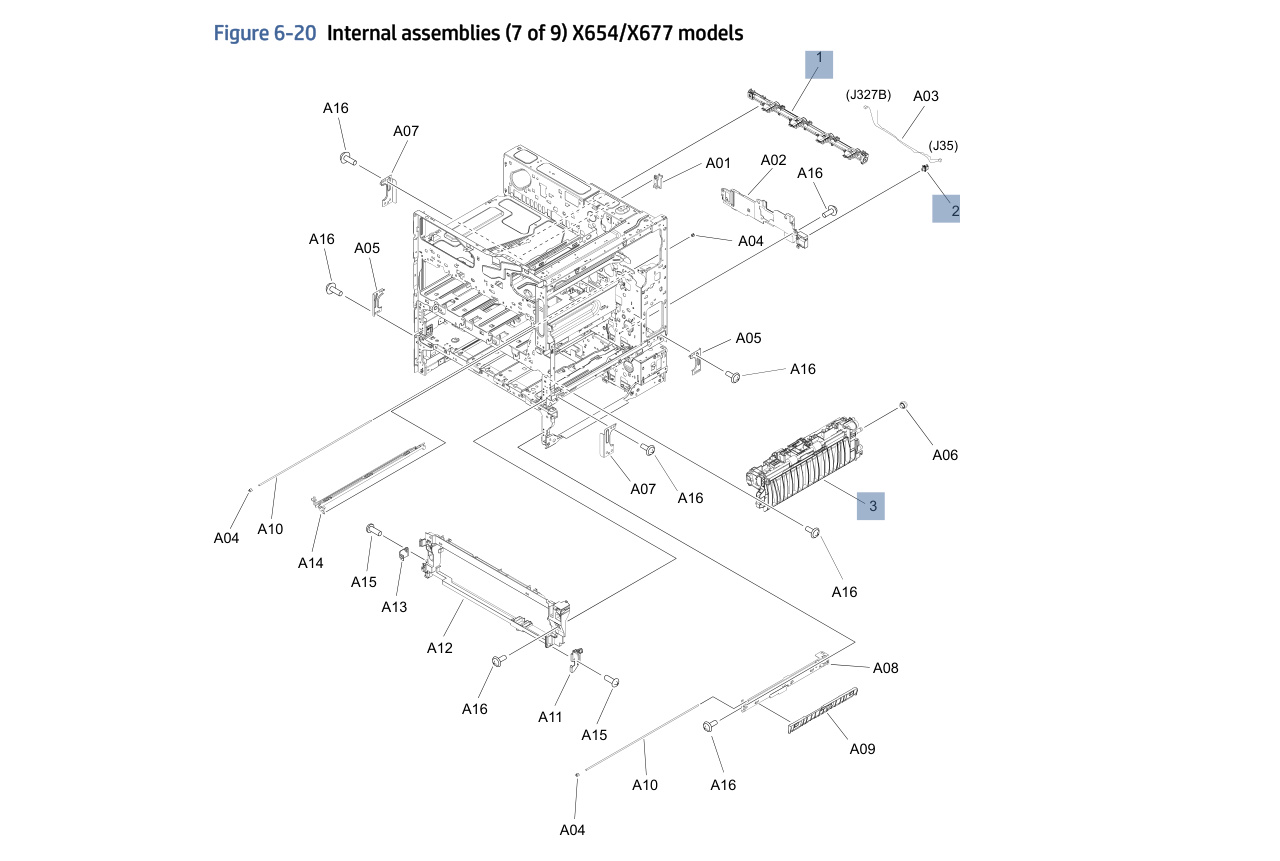

6-20 — Internal assemblies (7 of 9) X654/X677 models

1   RM2-3601-000CN   Waste toner carry assembly (qty 1) 2   5851-7005   Assy-USB A F Panel Mount To WTB 335mm (qty 1) 3   RM2-3479-000CN   Paper feed assembly (qty 1)

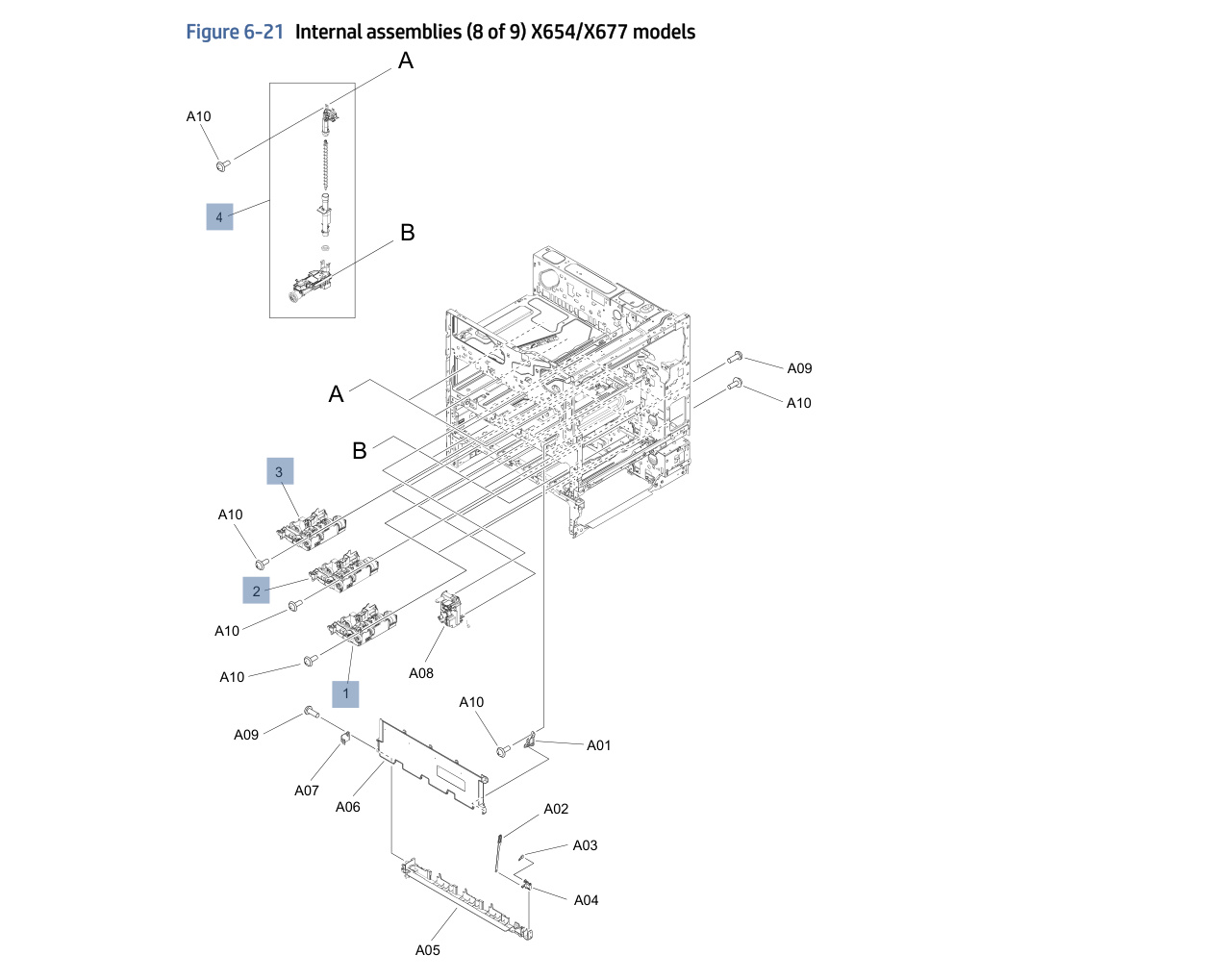

6-21 — Internal assemblies (8 of 9) X654/X677 models

1   RM2-3609-000CN   Toner supply drive assembly (qty 2) 2   RM2-3608-000CN   Toner supply drive assembly (qty 1) 3   RM2-3607-000CN   Toner supply drive assembly (qty 1) 4   RM3-0846-000CN   HP Toner supply service kit (qty 1)     5851-8886   Kit-Inline Scan Bar (Mngd) (qty 1)

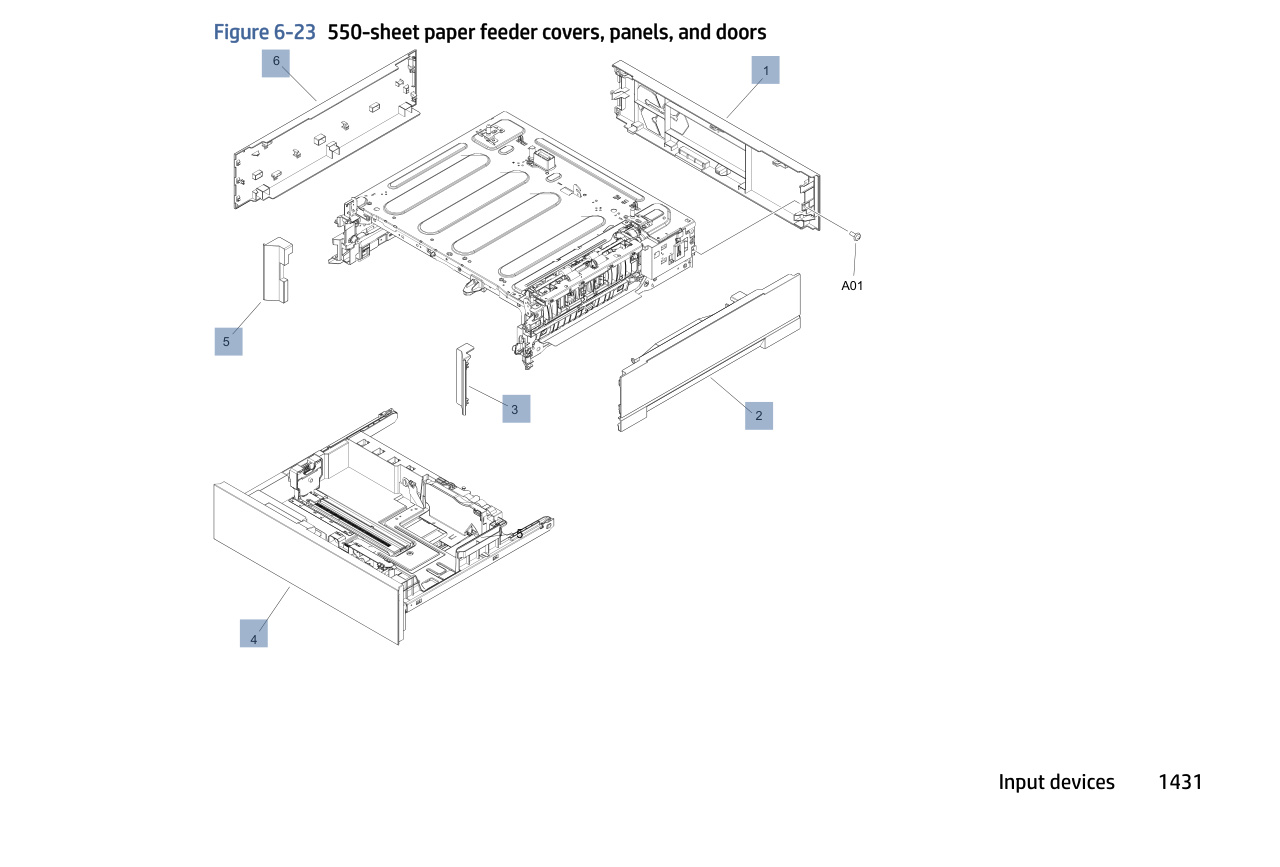

6-23 — 550-sheet paper feeder covers, panels, and doors

1   RC5-9409-000CN   Cover, rear lower (qty 1) RC5-9409-000CN Rear Cover New RC5-9409-000CN (New) 3-4 Day Lead $61.20 2   RM3-0004-000CN   Right lower door assembly (qty 1) 3   RC5-9201-000CN   Cover, front right (qty 1) 4   RM2-3640-000CN   Cassette assembly (qty 1) RM2-3640-000CN Paper Cassette Assembly New RM2-3640-000CN (New) 3-4 Day Lead $365.84 5   RC5-9200-000CN   Cover, front left (qty 1) 6   RC5-9408-000CN   Cover, left (J531F) A02 (J532F) A17 (J21) (J532FD) (J512) 3 (J512D) (J541) 6 7 A03 (SW16) A17 (J21) A05 (J532) LLC A17 A17 (qty 1)

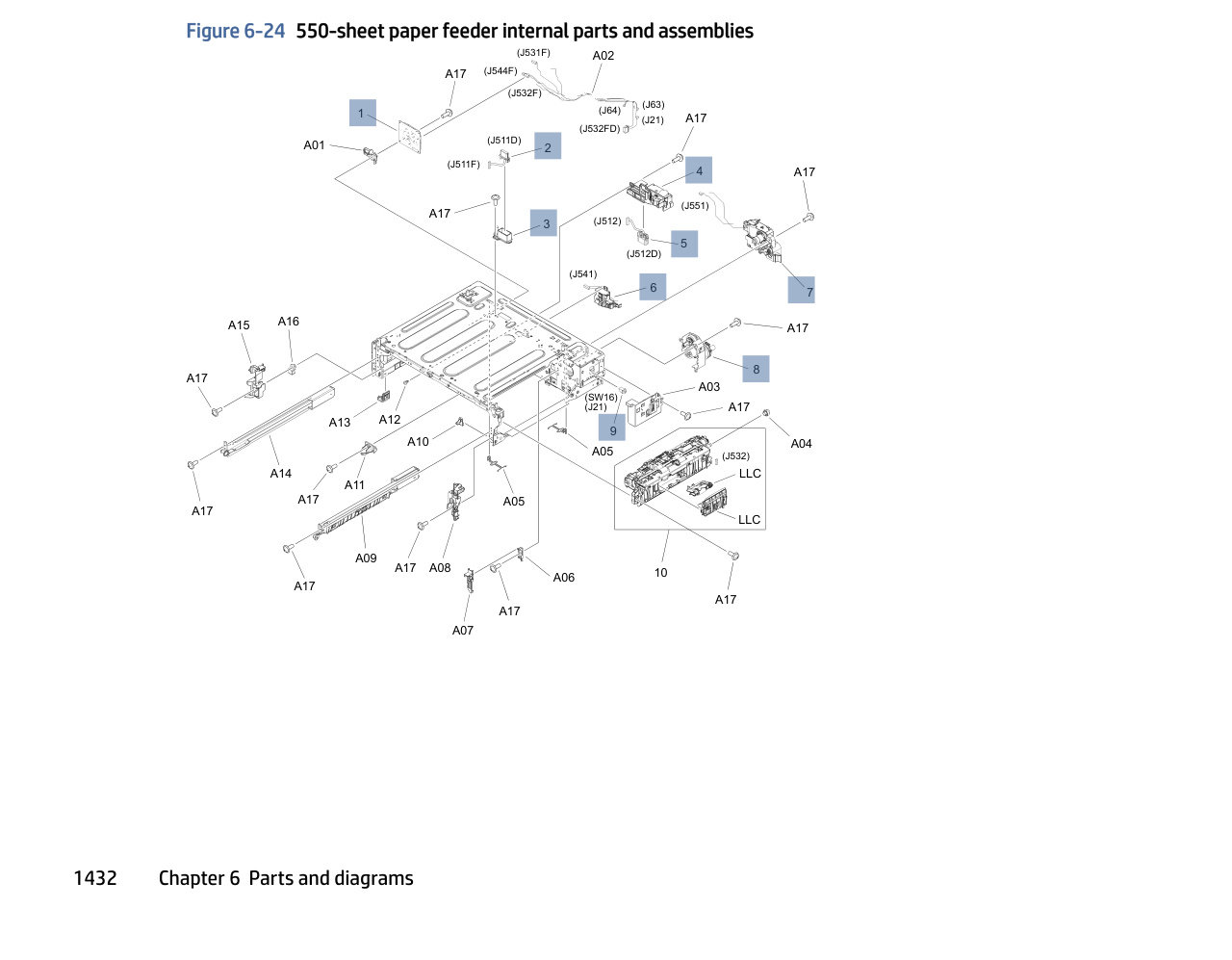

6-24 — 550-sheet paper feeder internal parts and assemblies

1   RM3-8051-000CN   Paper feeder controller PCA (qty 1) 2   RM3-8058-000CN   Drawer upper cable assembly (qty 1) 3   RC5-9398-000CN   Holder, drawer connector upper (qty 1) 4   RM2-3559-000CN   Auto close assembly (qty 2) 5   RM3-8059-000CN   Drawer lower cable assembly (qty 1) 6   RM2-3614-000CN   Size detect assembly (qty 1) 7   RM2-3501-000CN   Lifter drive assembly (qty 1) 8   RM2-3617-000CN   Paper pickup drive assembly (qty 1) 9   5851-7005   Assy-USB A F Panel Mount 9   RM2-3509-000CN   Paper pickup assembly Internal parts and assemblies (qty 1)

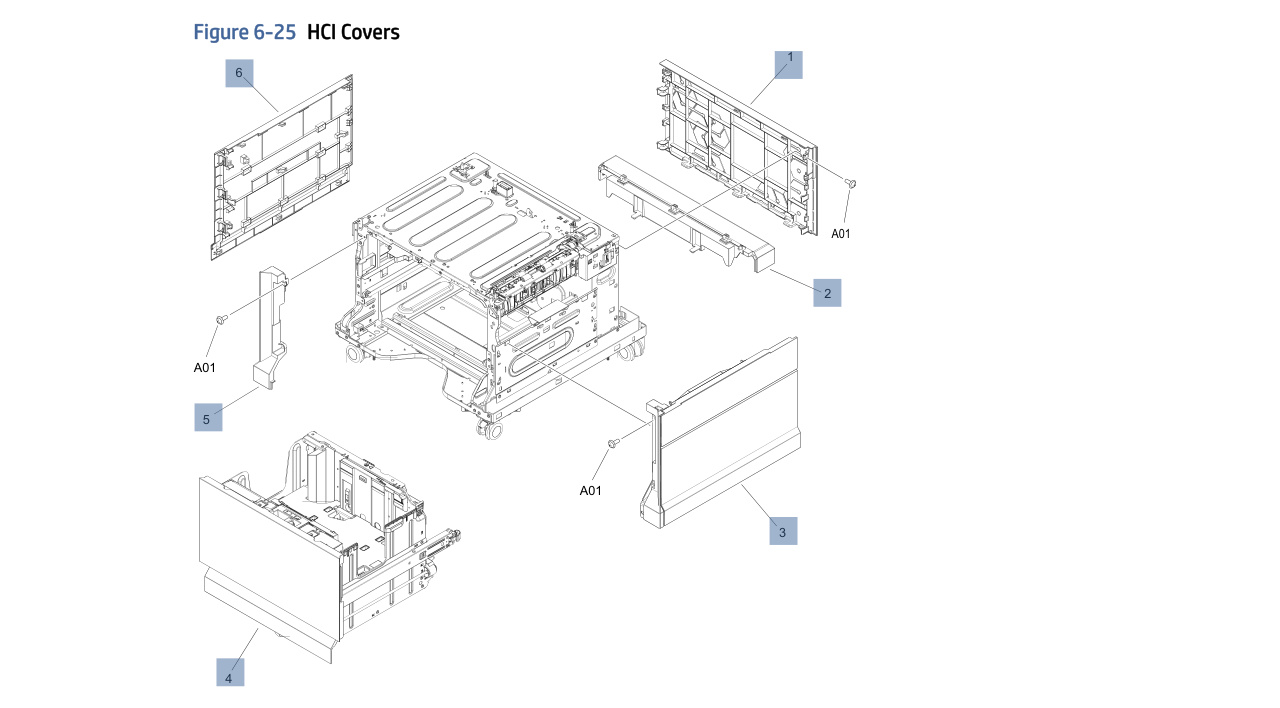

6-25 — HCI Covers

1   RC5-9693-000CN   Cover, rear (qty 1) 2   RC5-9695-000CN   Cover, rear lower (qty 1) 3   RM3-0035-000CN   Right door assembly (qty 1) 4   RM3-0023-000CN   Tray assembly (qty 1) 5   RC5-9696-000CN   Cover, front left (qty 1) 6   RC5-9692-000CN   Cover, left (qty 1)

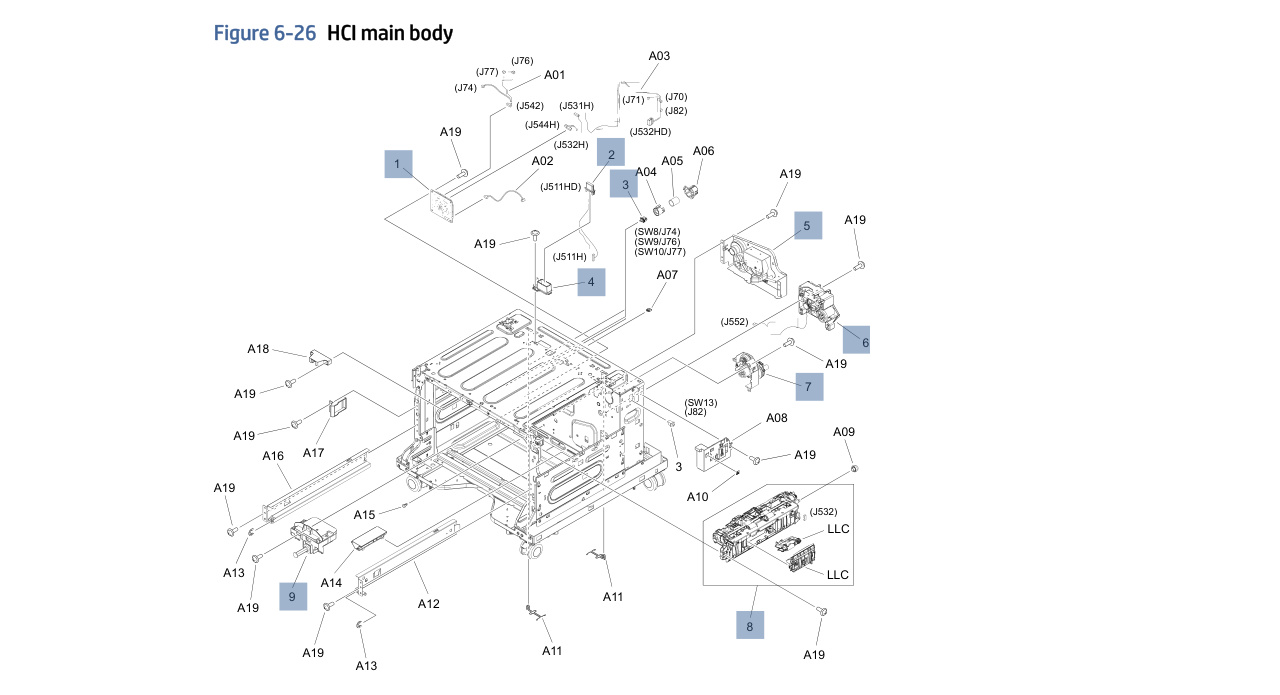

6-26 — HCI main body

1   RM3-8071-000CN   HCI controller PCA (qty 1) 2   RM3-8079-000CN   Drawer cable assembly (qty 1) 3   WC2-5806-000CN   Button switch (qty 1) 4   RC5-9398-000CN   Holder, drawer connector upper (qty 1) 5   RM3-0021-000CN   Lifter drive assembly (qty 1) 6   RM3-0022-000CN   Pick estrangement assembly (qty 1) 7   RM2-3617-000CN   Paper pickup drive assembly (qty 1) 8   RM2-3509-000CN   Paper pickup assembly (qty 1) 9   RM2-0918-000CN   Auto close assembly (qty 1)

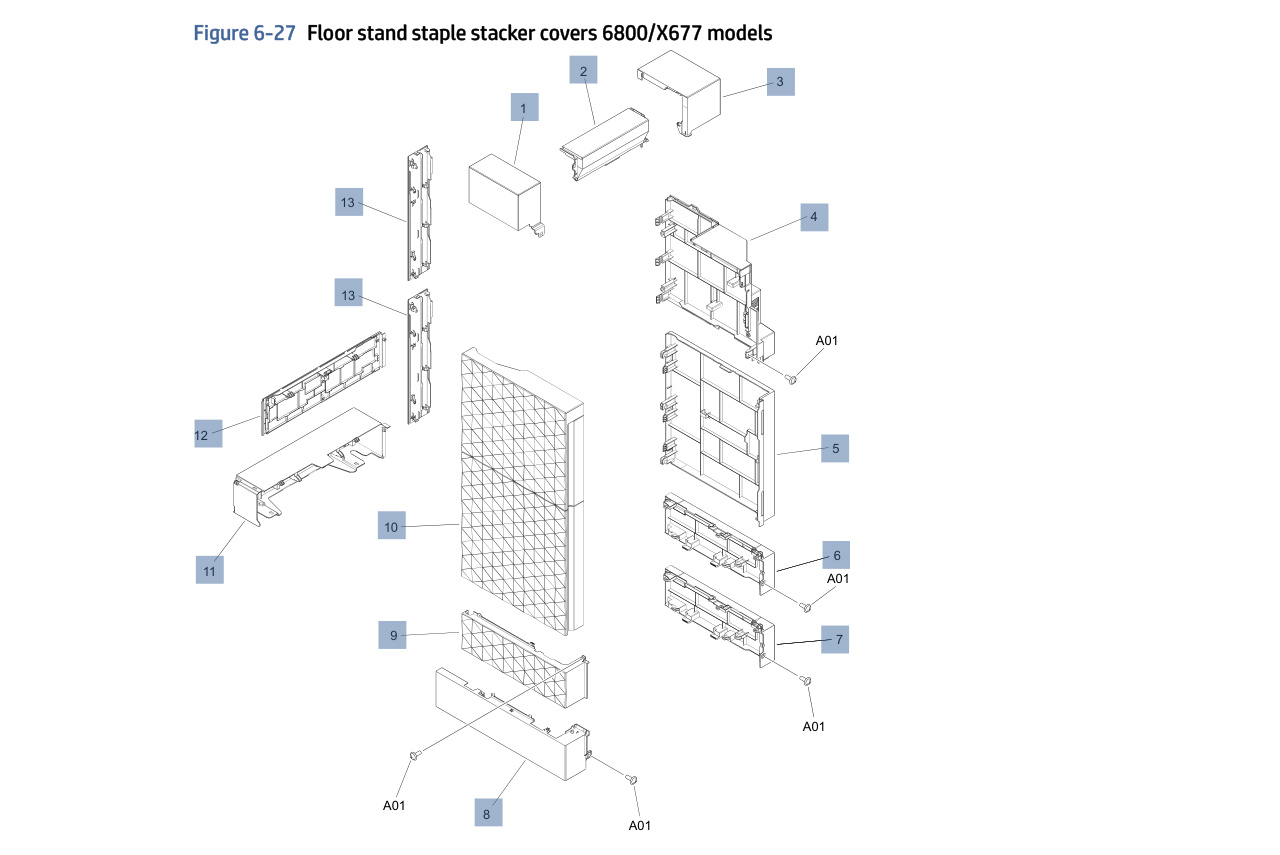

6-27 — Floor stand staple stacker covers 6800/X677 models

1   RC6-0214-000CN   Cover, MBM front (qty 1) 2   RM2-3863-000CN   MBM cover assembly (qty 1) 3   RC5-0215-000CN   Cover, MBM rear (qty 1) 4   RM2-3864-000CN   Rear upper cover assembly (qty 1) 5   RC5-0223-000CN   Cover, rear (qty 1) 6   RC6-0222-000CN   Cover, foot rear (qty 1) 7   RC6-0222-000CN   Cover, foot rear (qty 1) 8   RC6-0226-000CN   Cover, foot front (tall model) (qty 1) 9   RC6-0220-000CN   Cover, foot front (qty 1) 10   RM2-3857-000CN   Front cover assembly (qty 1) 11   RC6-0229-000CN   Cover, foot (qty 1) 12   RC6-0227-000CN   Cover, foot center (qty 1) 13   RC6-0213-000CN   Cover, rear left (qty 1)

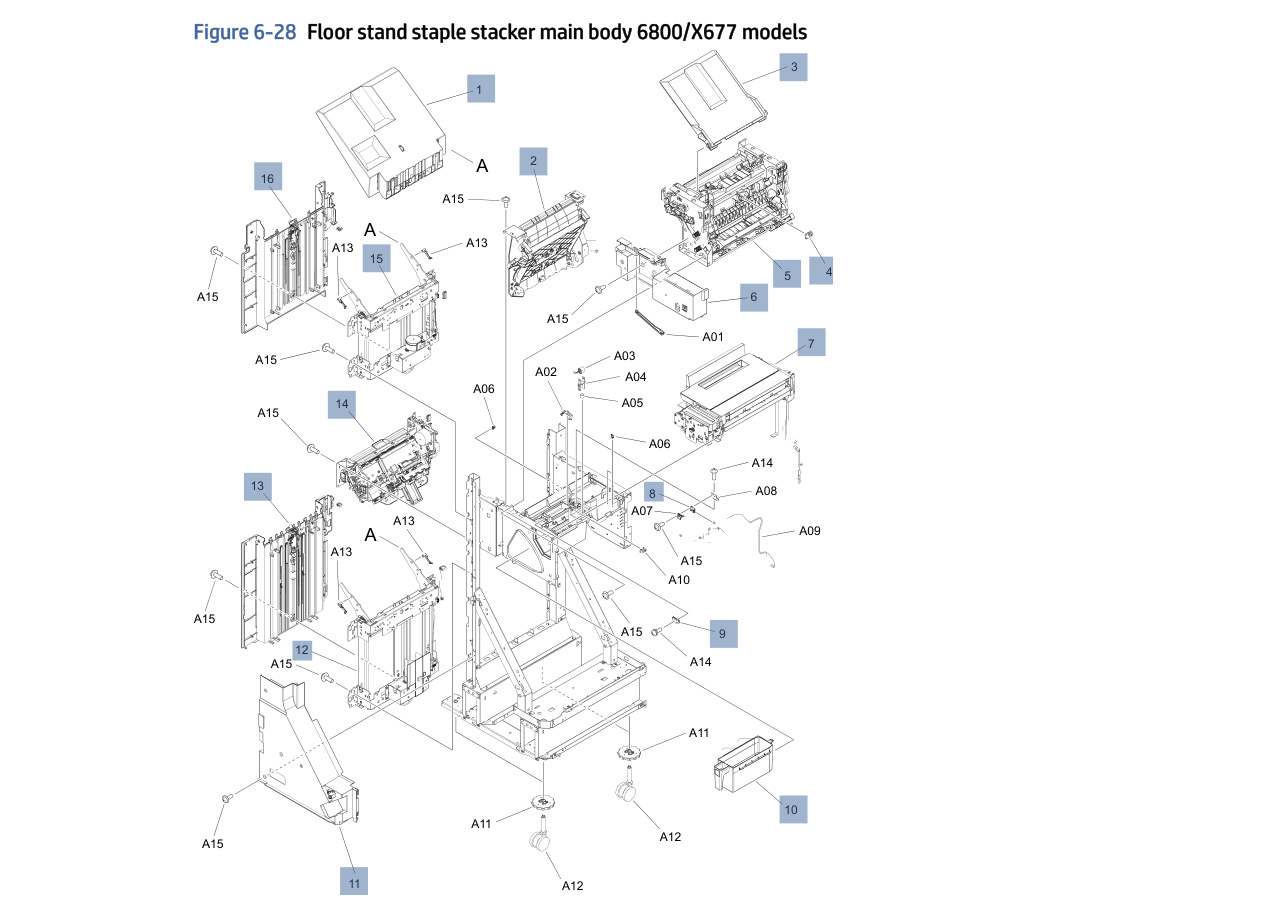

6-28 — Floor stand staple stacker main body 6800/X677 models

1   RM2-3837-000CN   Tray assembly (qty 1) 2   RM2-3834-000CN   Punch assembly (qty 1) 3   RC6-0513-000CN   Tray, MBM (qty 1) 4   RM3-7934-000CN   Sensor PCA (qty 1) 5   RM2-3867-000CN   Switch back assembly (qty 1) 6   RC6-0186-000CN   Cover, front inner upper (qty 1) 7   RM2-3839-000CN   IMF assembly (qty 1) 8   RM3-7937-000CN   LED PCA (qty 1) 9   RM3-7738-000CN   Sensor PCA (qty 1) 10   RM2-3865-000CN   Punch box assembly (qty 1) 11   RM2-3862-000CN   Lower front inner cover assembly (qty 1) 12   RM2-3842-000CN   Lifter base lower assembly (qty 1) 13   RM2-3844-000CN   Height wall lower assembly (qty 1) 14   RM2-3836-000CN   Paper delivery assembly (qty 1) 15   RM2-3843-000CN   Lifter base upper assembly (qty 1) 16   RM2-3845-000CN   Height wall upper assembly (qty 1)

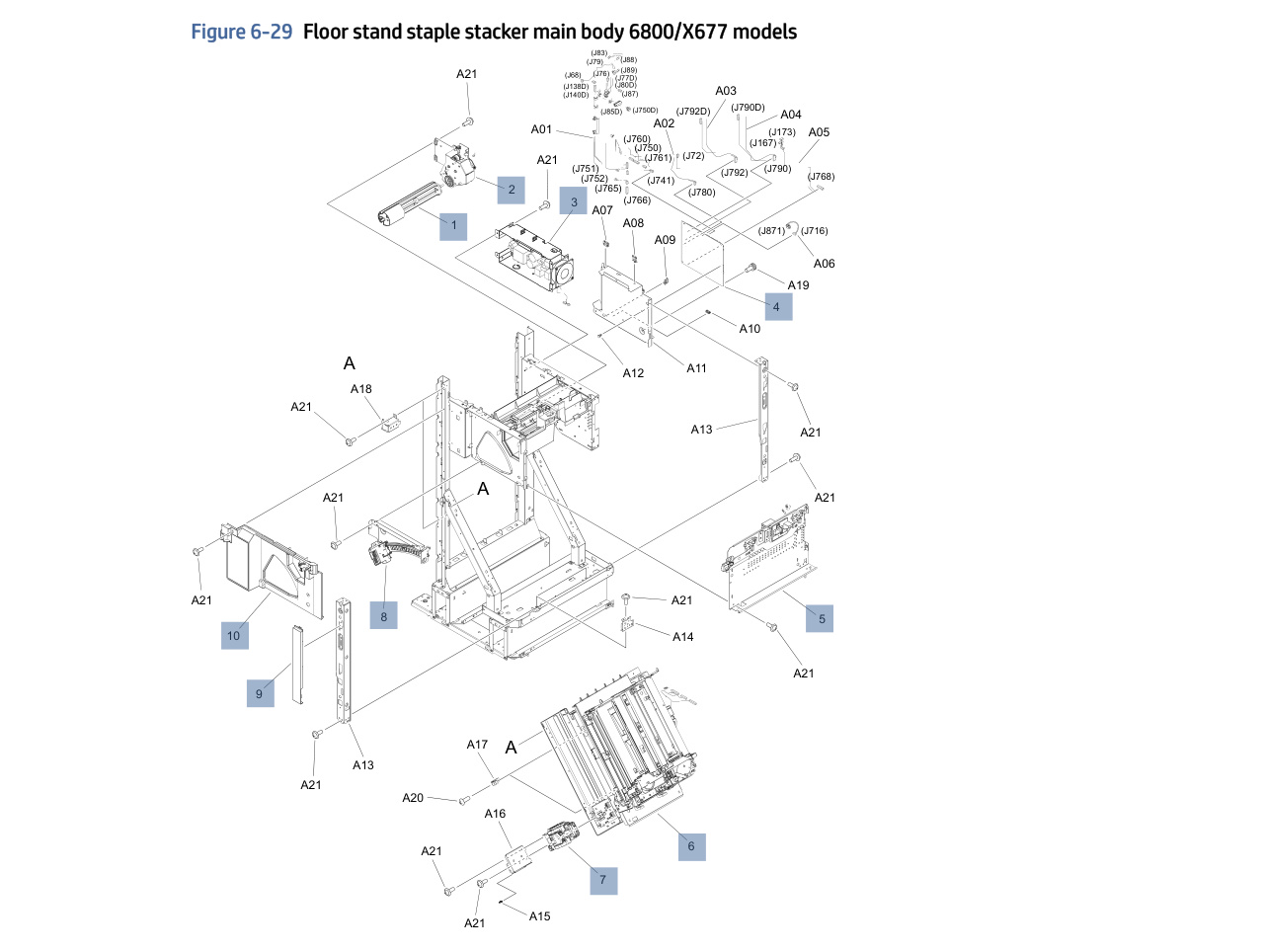

6-29 — Floor stand staple stacker main body 6800/X677 models

1   RM2-3848-000CN   Drum assembly (qty 1) 2   RM2-3847-000CN   Drum drive assembly (qty 1) 3   RM2-3854-000CN   Sub power supply assembly (qty 1) 4   RM3-7931-000CN   Staple stacker PCA (qty 1) 5   RM2-3866-000CN   Side plate assembly right (qty 1) 6   RM2-3833-000CN   Alignment assembly (qty 1)

6-30 — Intermediate paper transfer unit 6800/X677 models

7   RK2-8148-000CN   Stapler assembly (qty 1) 8   RM2-3849-000CN   Door handle rail assembly (qty 1) 9   RC6-2402-000CN   Cover, front inner right lower (qty 1) 10   RM2-3861-000CN   Front inner cover assembly A01 (qty 1) 1   RM2-3858-000CN   Paper feed assembly (qty 1) 2   RC6-2406-000CN   Cover, harness (qty 1) 3   RM2-3859-000CN   Connecting assembly Intermediate paper transfer unit (IPTU) 1441 (qty 1)

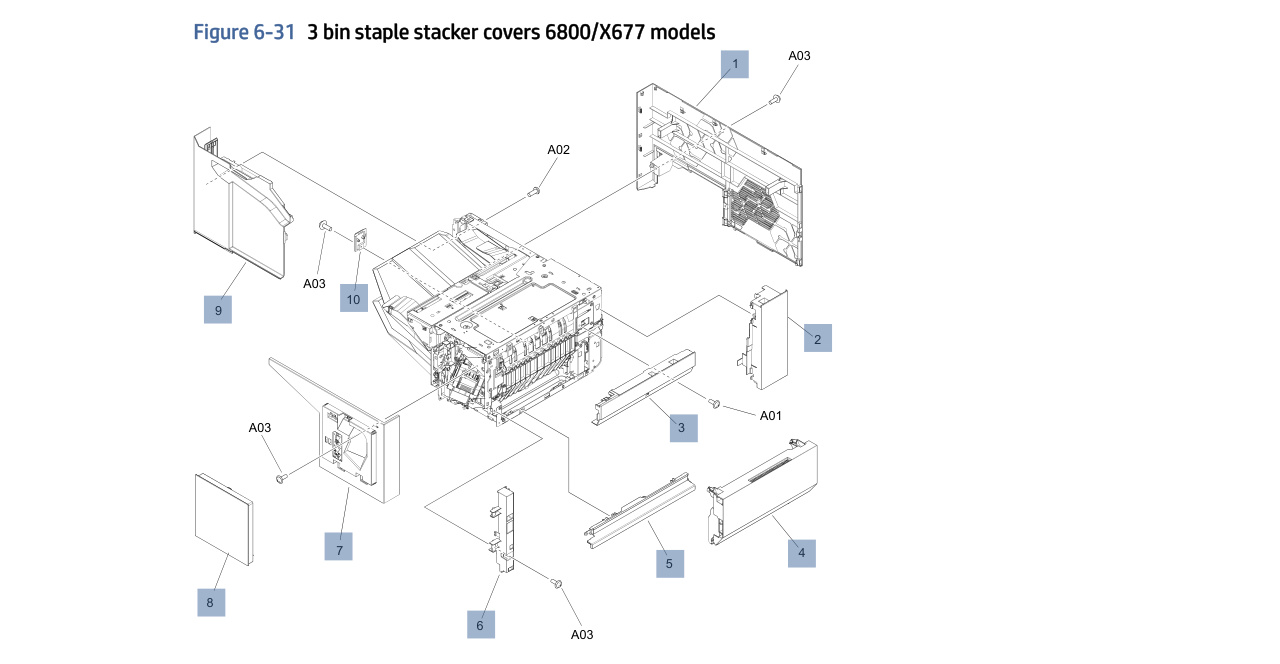

6-31 — 3 bin staple stacker covers 6800/X677 models

1   RC6-1305-000CN   Cover, rear (qty 1) 2   RC6-1307-000CN   Cover, corner right (qty 1) 3   RC6-1308-000CN   Cover, right upper (qty 1) 4   RM2-4167-000CN   Right door assembly (qty 1) 5   RC6-1309-000CN   Cover, right lower (qty 1) 6   RC6-1310-000CN   Cover, stapler rear (qty 1) 7   RM3-0483-000CN   Staple cover assembly (qty 1) 8   RM3-0484-000CN   Staple door assembly (qty 1) 9   RM3-0485-000CN   Rear inner cover assembly (qty 1) 10   RC6-2356-000CN   Cover, left front (qty 1)

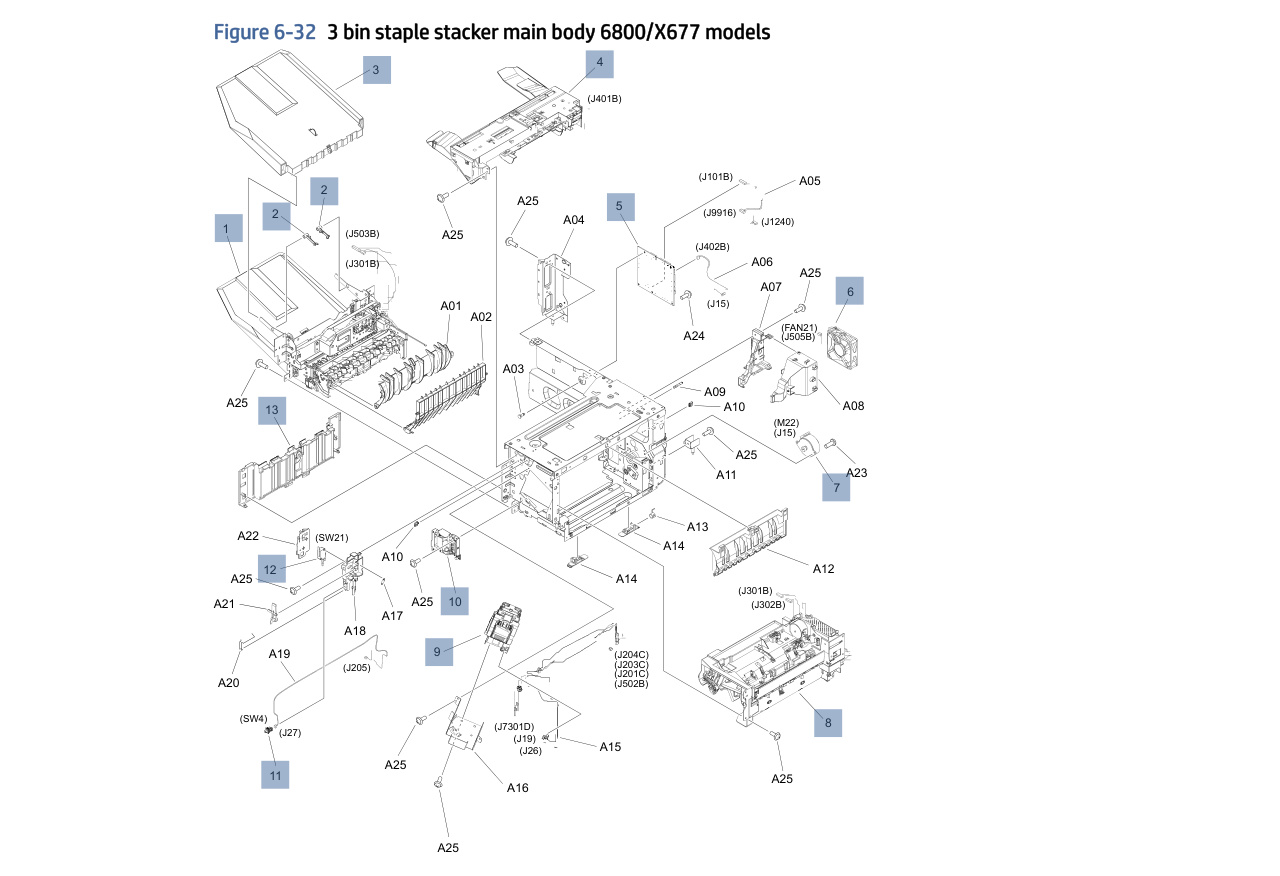

6-32 — 3 bin staple stacker main body 6800/X677 models

1   RM2-4168-000CN   Lower paper feed assembly (qty 1) 2   RC5-0353-000CN   Pin, tray fixed (qty 1) 3   RM2-4173-000CN   Tray assembly (qty 1) 4   RM3-0481-000CN   Jog assembly (qty 1) 5   RM3-7950-000CN   Staple stacker PCA (qty 1) 6   RK2-8153-000CN   Fan Internal parts and assemblies 1443 (qty 1) 7   RK2-8149-000CN   Motor, stepping DC (qty 1) 8   RM2-4169-000CN   Upper paper feed assembly (qty 1) 9   RK2-8148-000CN   Stapler assembly (qty 1) 10   RM2-1040-010CN   Solenoid assembly (qty 1) 11   5851-7005   Assy-USB A F Panel Mount To WTB 335mm (qty 1) 12   WC4-5136-000CN   Microswitch (qty 1) WC4-5136-000CN Switch Black Cartridge New WC4-5136-000CN (New) 3-4 Day Lead $51.68 13   RM3-0480-000CN   Stacking wall assembly (qty 1)
