HP Color LaserJet CM4540 MFP Parts

›Parts for Printers, MFPs, and Scanners›HP Parts for Printers, MFPs, & Scanners





Exploded parts diagrams and part numbers for the HP Color LaserJet CM4540, CM4540f and CM4540fskm MFP. Part numbers are taken directly from HP's service manual. Where a part shows an order button we have it in stock — for anything else, call us on 248-540-4300 and we will source it.

4-4 — Internal components 1 of 7
1   RC2-4268-000CN   Grip, left front (qty 1)
2   RC2-4269-000CN   Grip, left rear (qty 1)
3   RM1-5613-000CN   Rear cover assembly (qty 1)
4   RC2-4287-000CN   Cover, right front (qty 1)
5   RC2-4273-000CN   Cover, right rear (qty 1)
6   RM1-5645-000CN   Cover, intermediate assembly (qty 1)
7   RC2-4300-000CN   Cover, left lower (qty 1)
8   RM1-5520-000CN   Cover, inner (qty 1)
9   CC419-67904   Output bezel kit (qty 1)
10   RC2-8213-000CN   Cover, left rear (qty 1)
11   RC2-4288-000CN   Cover, fan (qty 1)
12   RM1-5632-000CN   Output bin, left paper delivery assembly (qty 1)
13   RM1-5507-000CN   Right handle cover assembly (qty 1)

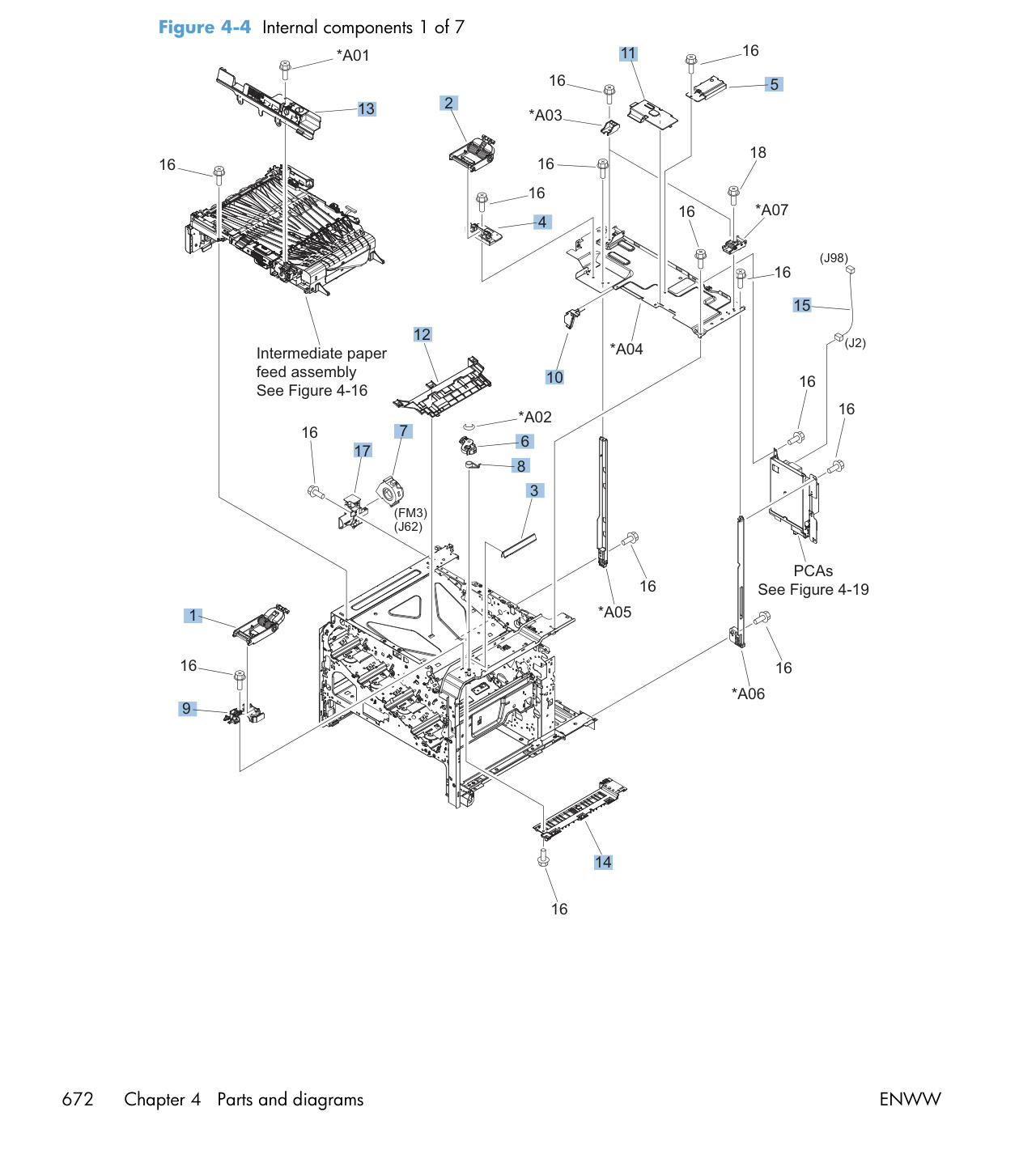

 4-4 Internal components 1 of 7

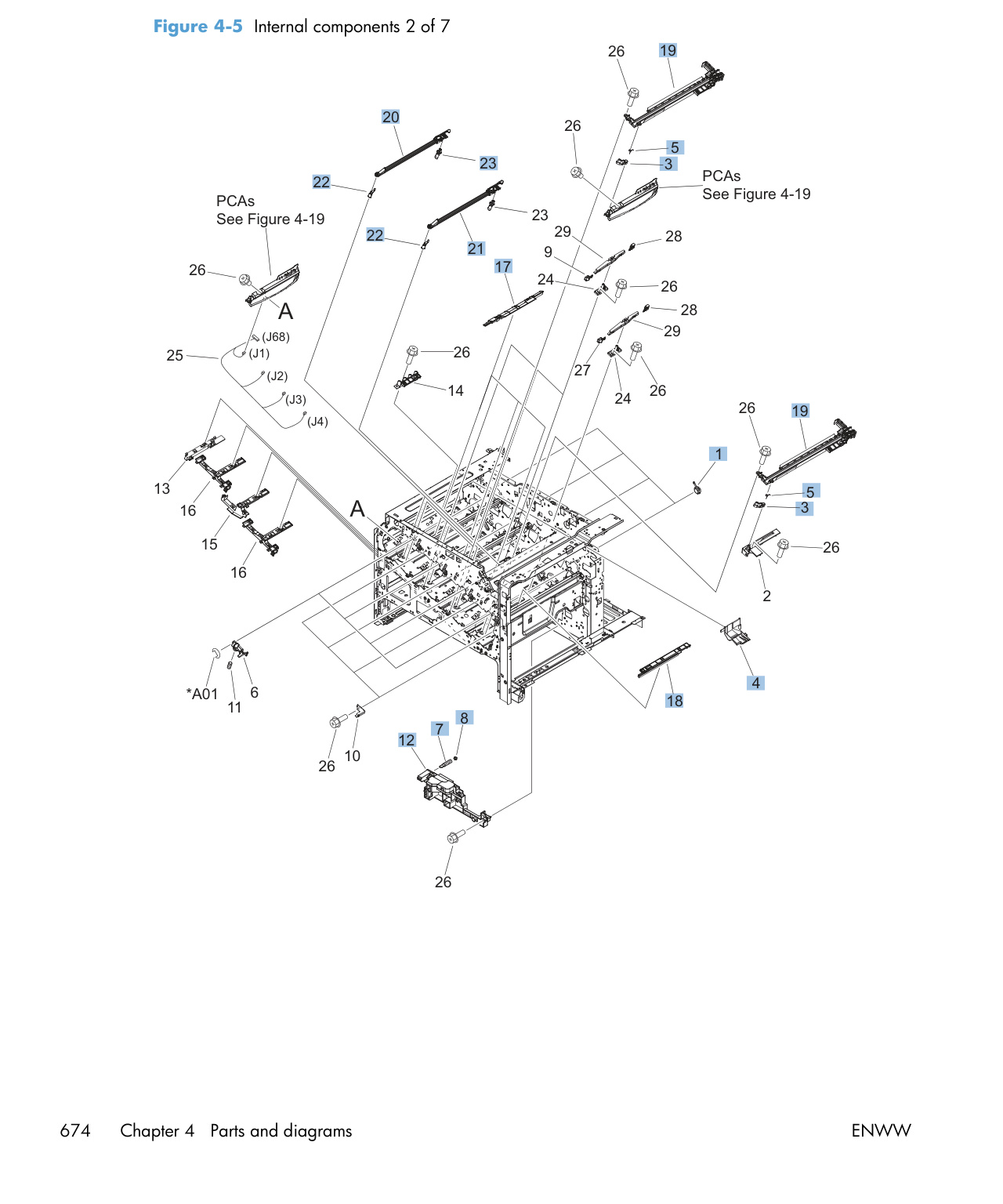

4-5 — Internal components 2 of 7
1   RM1-5509-000CN   Right door assembly (qty 1)
3   RC2-4747-000CN   Cover, M.P. crossmember R (qty 1)
 4-5 Internal components 2 of 7

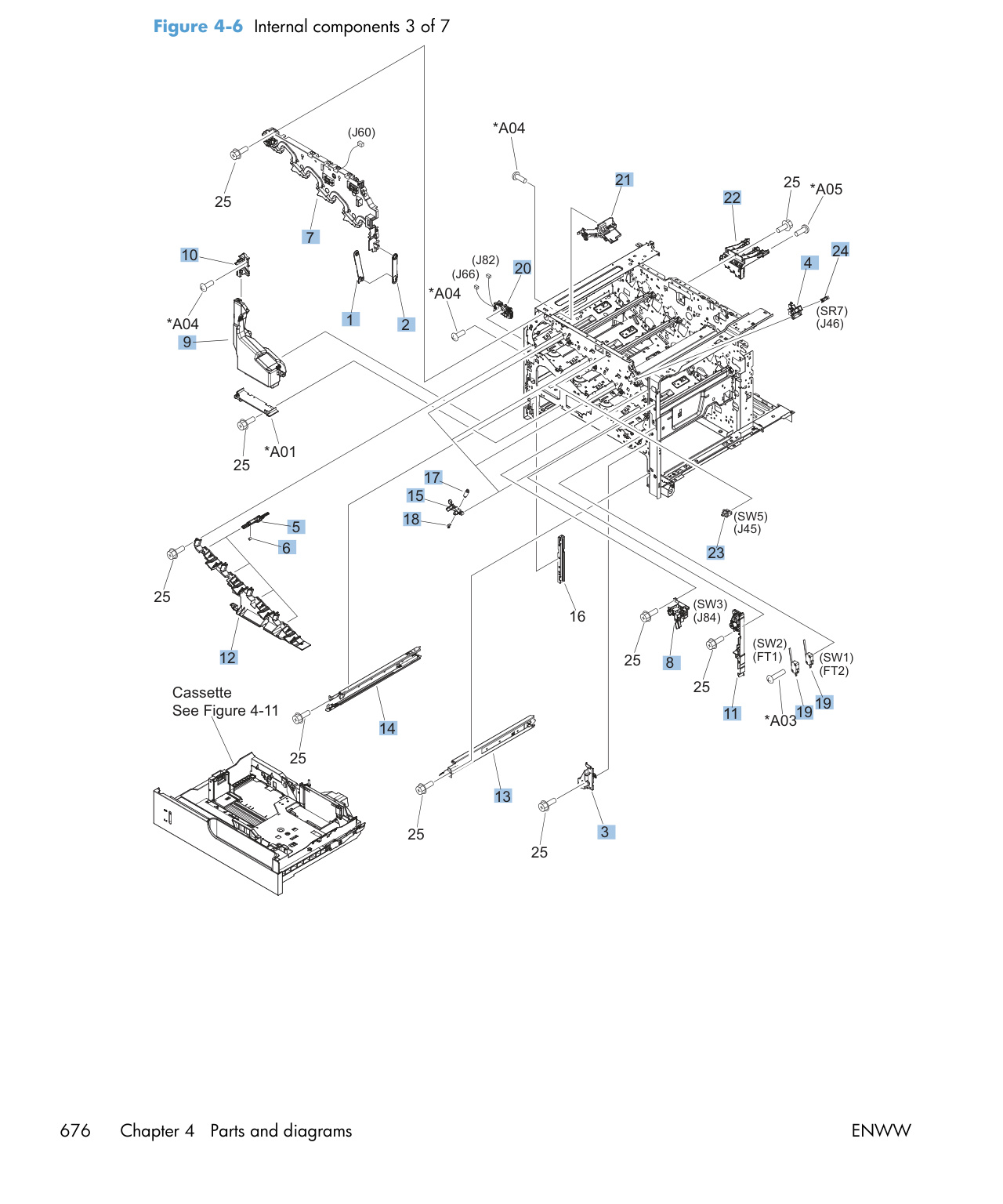

4-6 — Internal components 3 of 7
1   RM1-5612-000CN   Front door assembly (qty 1)
 4-6 Internal components 3 of 7

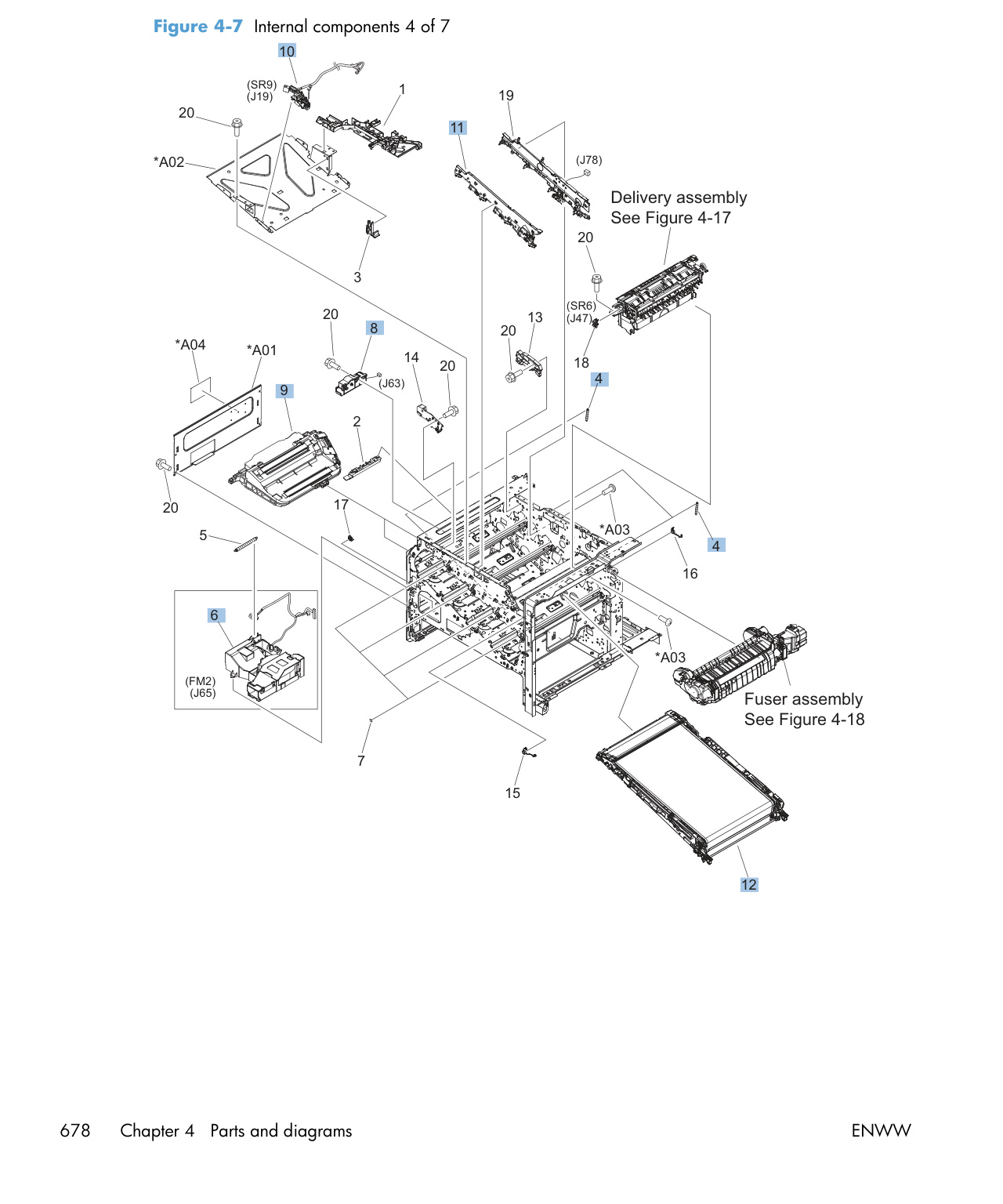

4-7 — Internal components 4 of 7
1   RM1-5614-000CN   Scissors hinge assembly, right (qty 1)
2   RM1-5616-000CN   Scissors hinge assembly, left (qty 1)
3   RC2-4632-000CN   Guide, interlock cable (qty 1)
4   RC2-4642-000CN   Stand, scissors hinge, left (qty 1)
5   RM1-5646-000CN   Image scanner CN cover assembly (qty 1)
6   RC2-4644-000CN   Lever, release (qty 1)
7   RK2-2575-000CN   Fan (qty 1)
8   RC2-4645-000CN   Spring, torsion (qty 1)
9   RC2-4646-000CN   Stand, scissors hinge, right (qty 1)
10   RC2-4662-000CN   Cover, high voltage (qty 1)
11   RC2-4664-000CN   Cover, duplexing gear (qty 1)
12   RC2-8206-000CN   Guide, crossmember cable, upper (qty 1)
13   RL1-2181-000CN   IPTU inner cover assembly (qty 1)
14   RC2-4661-000CN   Holder, door handle, right (qty 1)
15   RM1-5827-000CN   DC cable assembly (qty 1)
17   RC2-4665-000CN   Holder, exhaust fan (qty 1)
 4-7 Internal components 4 of 7

4-8 — Internal components 5 of 7
1   RC2-9719-000CN   Bushing (qty 4)
3   RC2-3986-000CN   Lever, CRG. lock (qty 4)
4   RC2-4218-000CN   Tray, waste toner catch (qty 1)
5   RU6-2247-000CN   Spring, torsion (qty 4)
7   RC2-4469-000CN   Spring, grounding (qty 1)
8   RC2-4470-000CN   Bushing (qty 1)
12   RM1-5913-000CN   Lifter base assembly (qty 1)
17   RC2-4403-000CN   Cover (qty 3)
18   RC2-5962-000CN   Cover (qty 1)
19   RM1-5486-000CN   Crg. Guide lower assembly (qty 4)
20   RM1-5488-000CN   Shutter assembly (qty 2)
21   RM1-5489-000CN   Shutter assembly (qty 2)
22   RM1-5585-000CN   Shutter arm assembly (qty 4)
23   RM1-5586-000CN   Shutter arm assembly (qty 4)

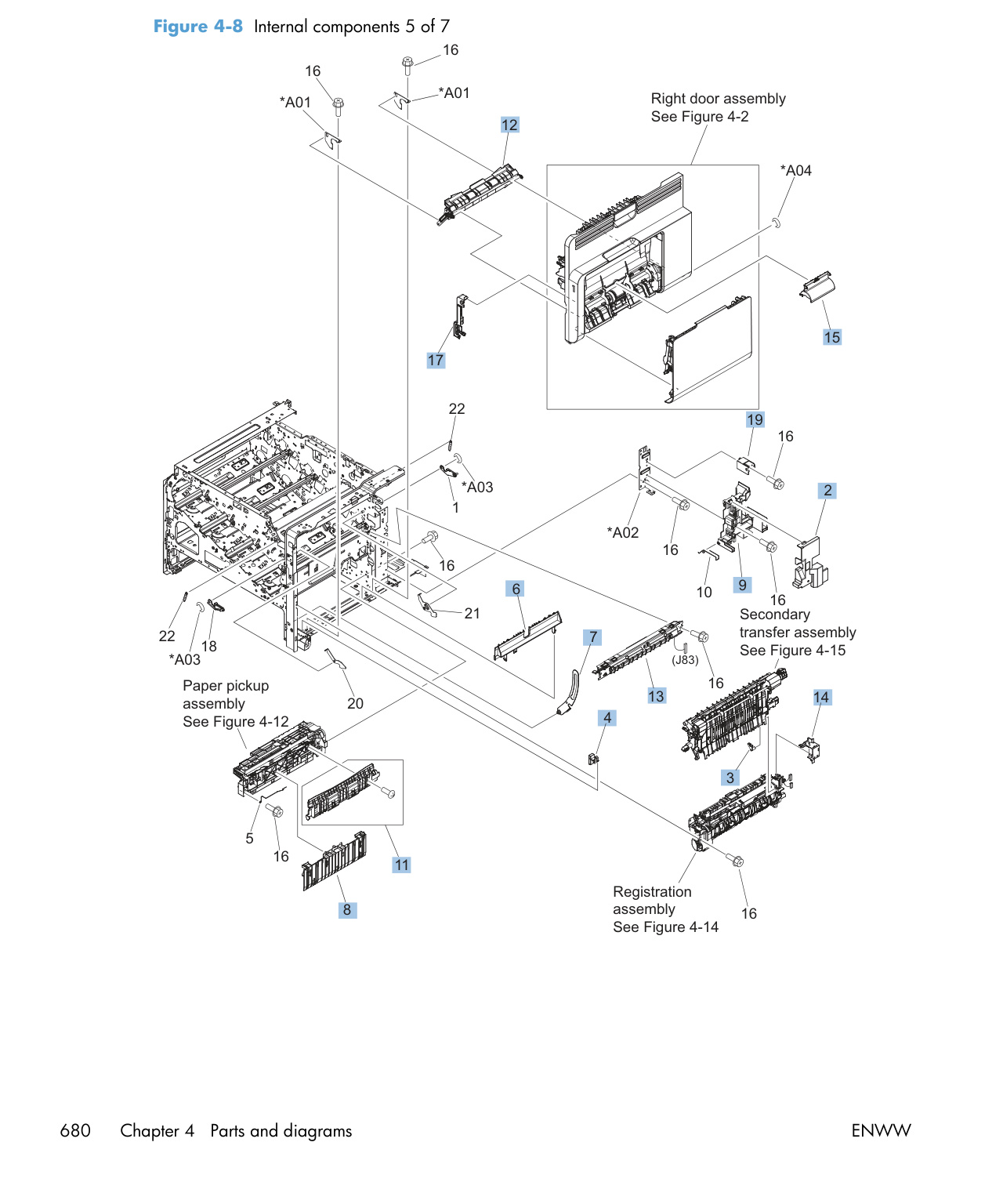

 4-8 Internal components 5 of 7

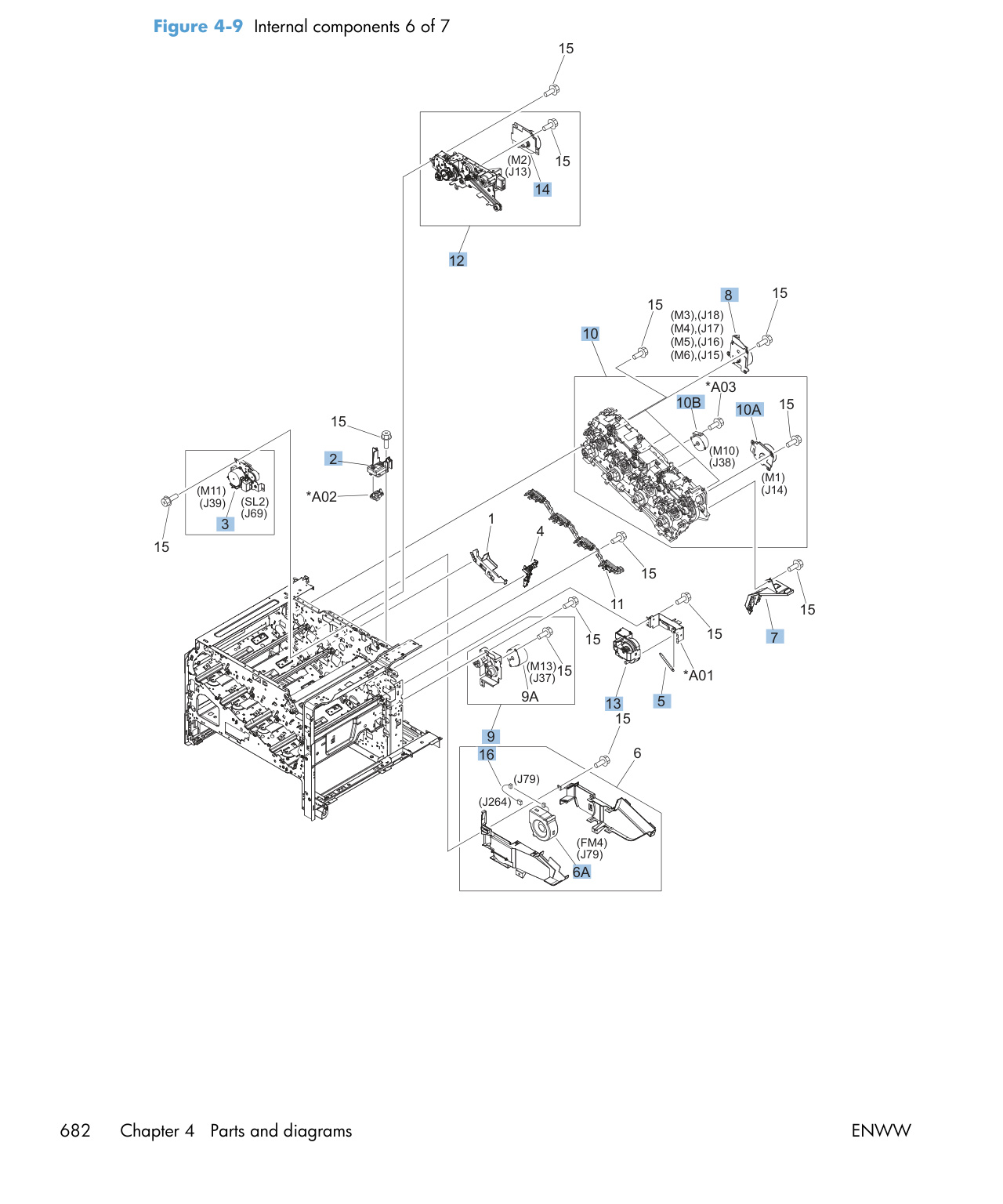

4-9 — Internal components 6 of 7
1   RC2-4291-000CN   Hinge, front door (qty 1)
2   RC2-4292-000CN   Hinge, front door (qty 1)
3   RC2-4467-000CN   Cover (qty 1)
4   RC2-4369-000CN   Holder, sensor (qty 1)
5   RC2-4415-000CN   Lever, shutter (qty 4)
6   RU6-2316-000CN   Spring, compression (qty 4)
7   RM1-5495-000CN   Front inner cover upper assembly (qty 1)
8   RM1-5496-000CN   Interlock assembly (qty 1)
10   RM1-5519-000CN   Waste toner duct assembly (qty 1)
11   RM1-5582-000CN   Power switch assembly (qty 1)
12   RM1-5598-000CN   Front inner cover lower assembly (qty 1)
13   RM1-6195-000CN   Cassette rail right assembly (qty 1)
14   RM1-6196-000CN   Cassette rail left assembly (qty 1)
15   RC2-3983-020CN   Lever, crg. pressure, front (qty 4)
17   RU6-2236-000CN   Spring, tension (qty 4)
18   RU6-2237-000CN   Spring, grounding (qty 4)
19   WC4-5303-000CN   Switch (qty 2)
20   RM1-5545-000CN   Waste toner detect assembly (qty 1)
21   RM1-5584-000CN   Waste toner paper feed assembly (qty 1)
22   RM1-6694-000CN   High voltage holder assembly (qty 1)
23   WC2-5637-000CN   Switch, push (qty 1)
24   WG8-5696-000CN   Photo interrupter (qty 1)
 4-9 Internal components 6 of 7

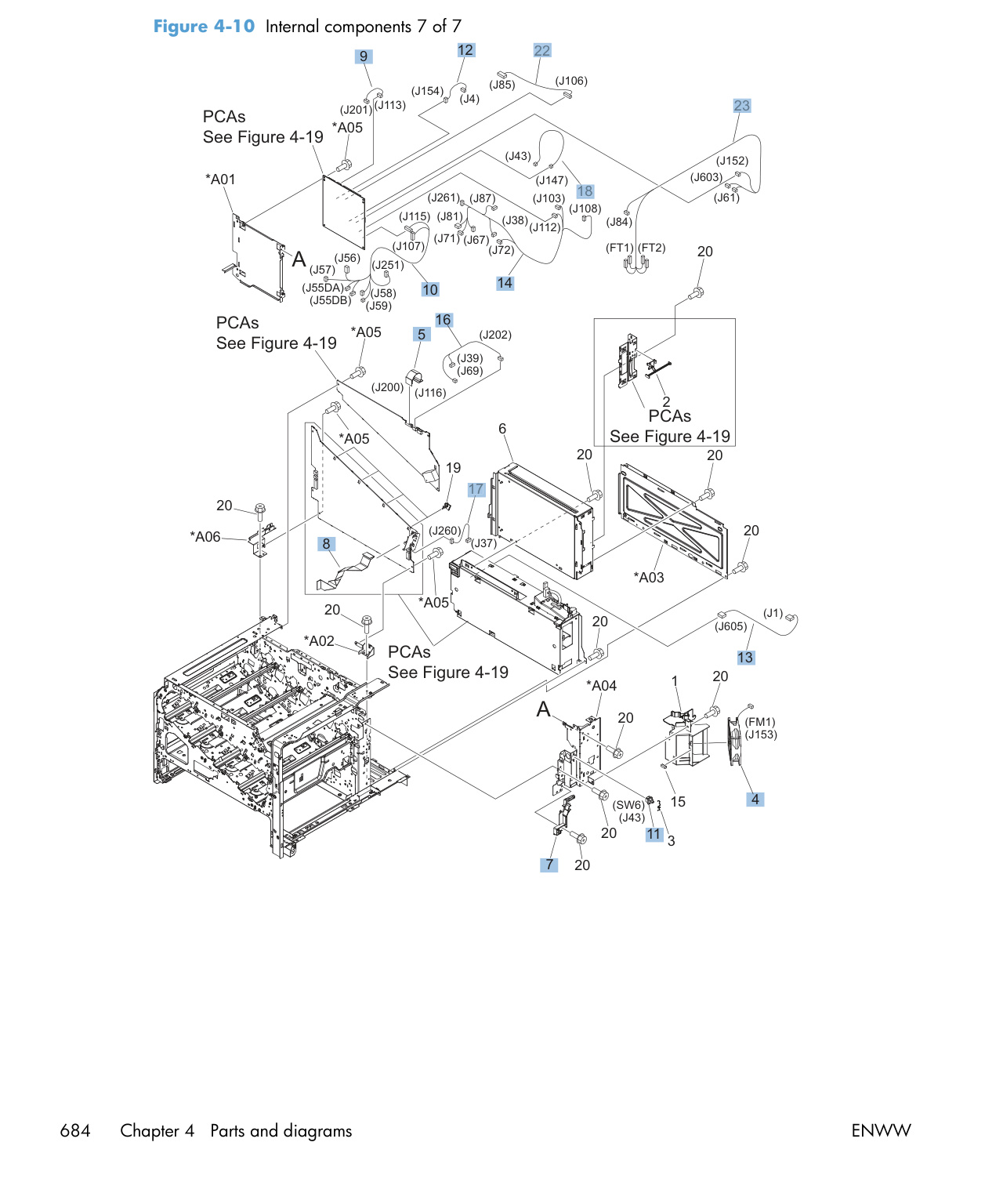

4-10 — Internal components 7 of 7
4   RU6-2235-000CN   Spring, tension (qty 4)
6   RM1-5589-000CN   Cartridge fan assembly (qty 1)
8   RM1-5605-000CN   Waste toner motor assembly assembly) (qty 1)
10   RM1-5604-000CN   Position detect assembly (qty 1)
11   RM1-5492-000CN   Front light guide assembly transfer roller) (qty 1)
 4-10 Internal components 7 of 7

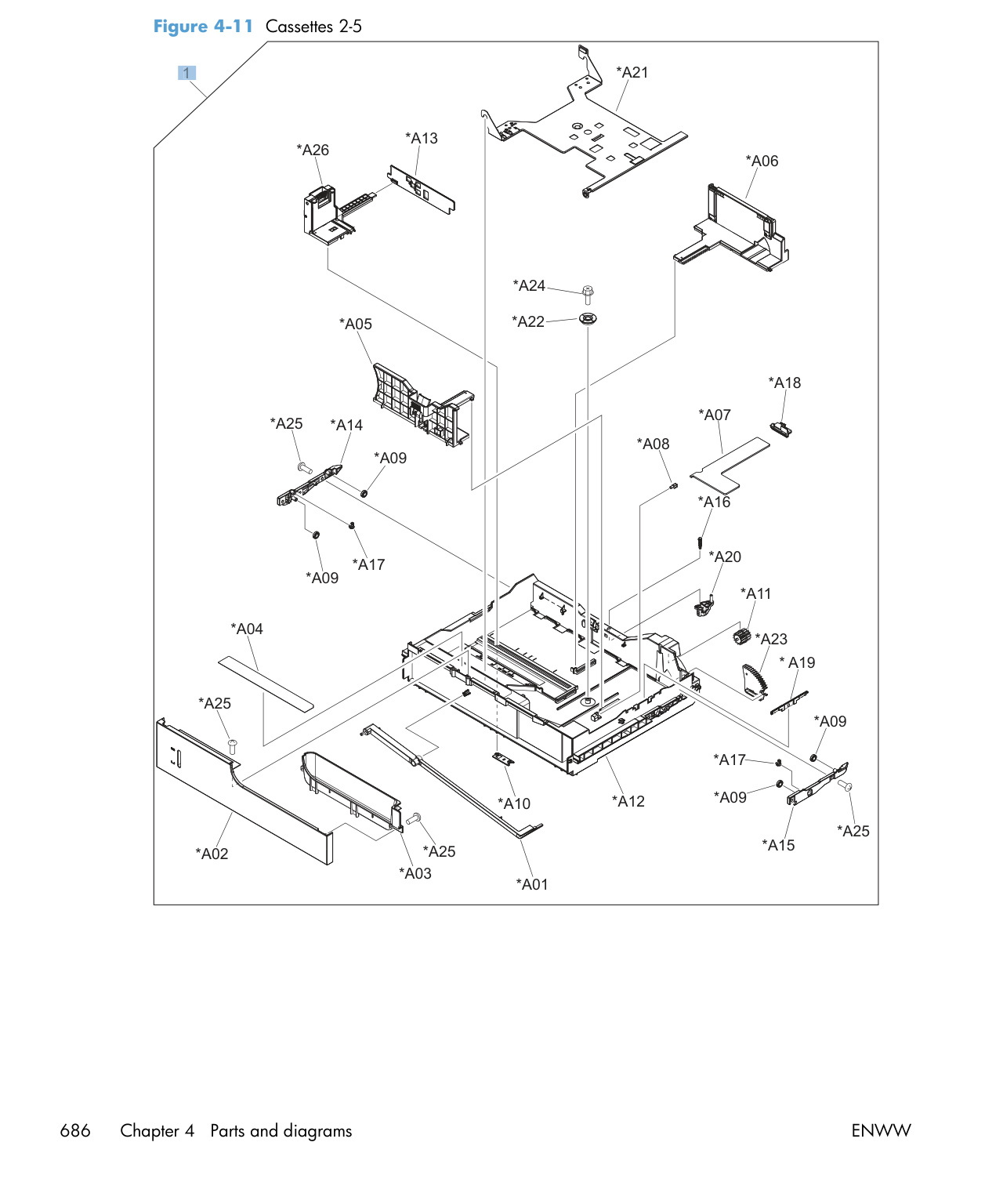

4-11 — Cassettes 2-5
2   RC2-3981-000CN   Cover, inner 15) (qty 1)
4   RC2-4514-000CN   Spacer (qty 1)
6   RC2-4527-000CN   Guide (qty 1)
7   RC2-4726-000CN   Link, right door (qty 1)
8   RC2-4741-000CN   Guide, cassette option (qty 1)
9   RM1-5601-000CN   Holder, duct cable (qty 1)
11   RM1-5504-000CN   Cassette guide assembly (jam access) (qty 1)
12   RM1-5525-000CN   Paper feed roller assembly (qty 1)
13   RM1-5641-000CN   Density detect assembly (qty 1)
14   RM1-6695-000CN   Cable cover assembly (qty 1)
15   RC2-4483-000CN   Cover, roller (qty 1)
17   RC2-9189-000CN   Cover, M.P. crossmember F (qty 1)
19   RC2-4055-000CN   Arm, door link supporting, right (qty 1)
 4-11 Cassettes 2-5

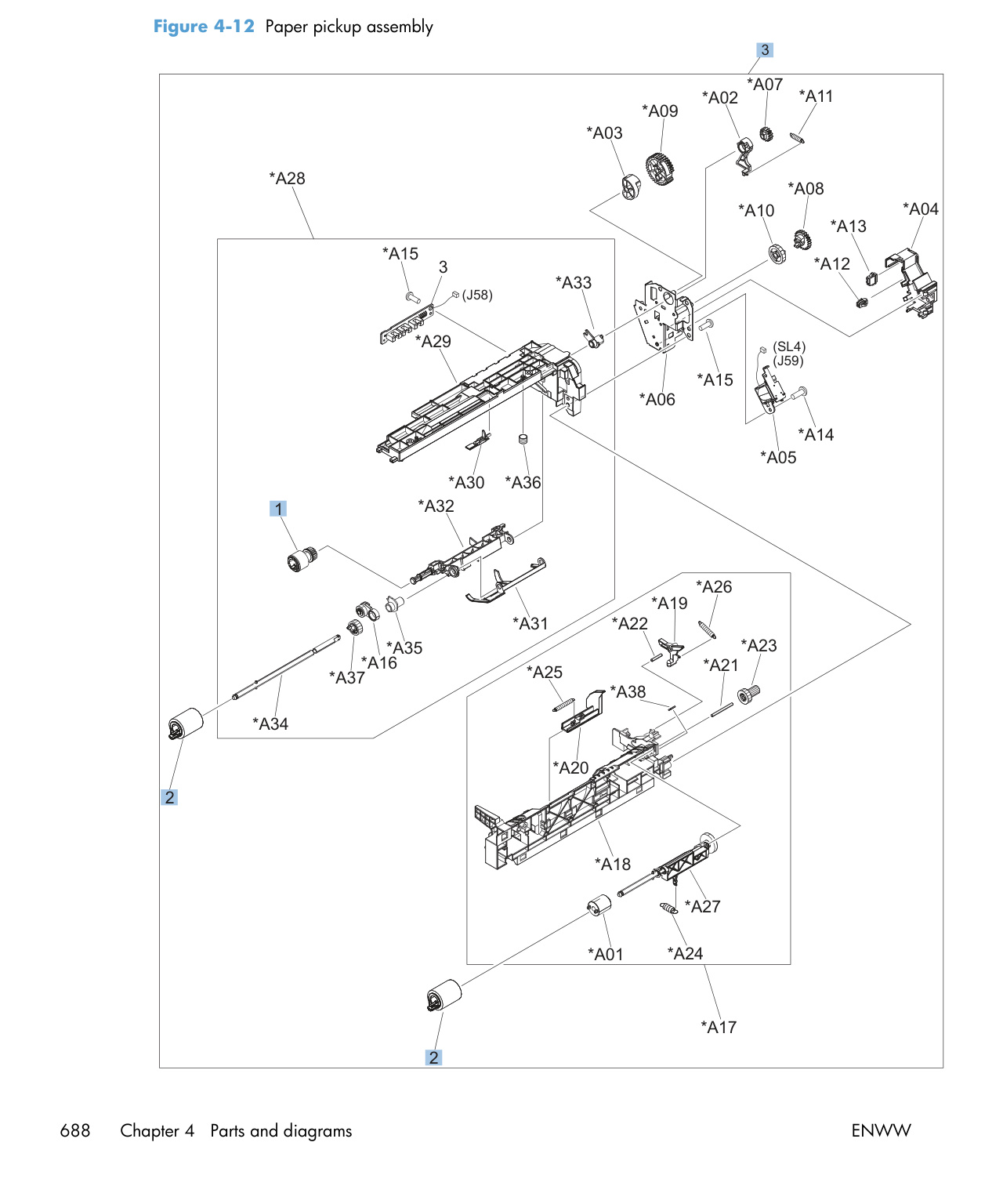

4-12 — Paper pickup assembly
2   RC2-4044-000CN   Holder, paper pickup connector (qty 1)
3   RM1-4973-000CN   Duplexing drive assembly (qty 1)
5   RU6-2468-000CN   Spring, tension (qty 1)
    RK2-2418-000CN   Cartridge fan scanner) (qty 1)
8   RM1-5521-000CN   Main DC motor assembly (qty 4)
9   RM1-5549-000CN   Paper pickup drive assembly (qty 1)
10   CC493-67915   Main drive kit (includes instructions) (qty 1)
CC493-67915 Main Drive Assembly Kit
Fully refurbished with 90-day warranty
CC493-67915
$129.20


    RM1-5777-000CN   ITB motor assembly (qty 1)
    RK2-2415-000CN   Developing disengaging motor (qty 1)
12   RM1-5656-000CN   Fuser drive assembly, duplex (qty 1)
13   RM1-5914-000CN   Lifter assembly (qty 1)
14   RM1-4983-000CN   Fuser motor assembly (qty 1)
16   RM1-5821-000CN   Cable, fan (qty 1)
 4-12 Paper pickup assembly

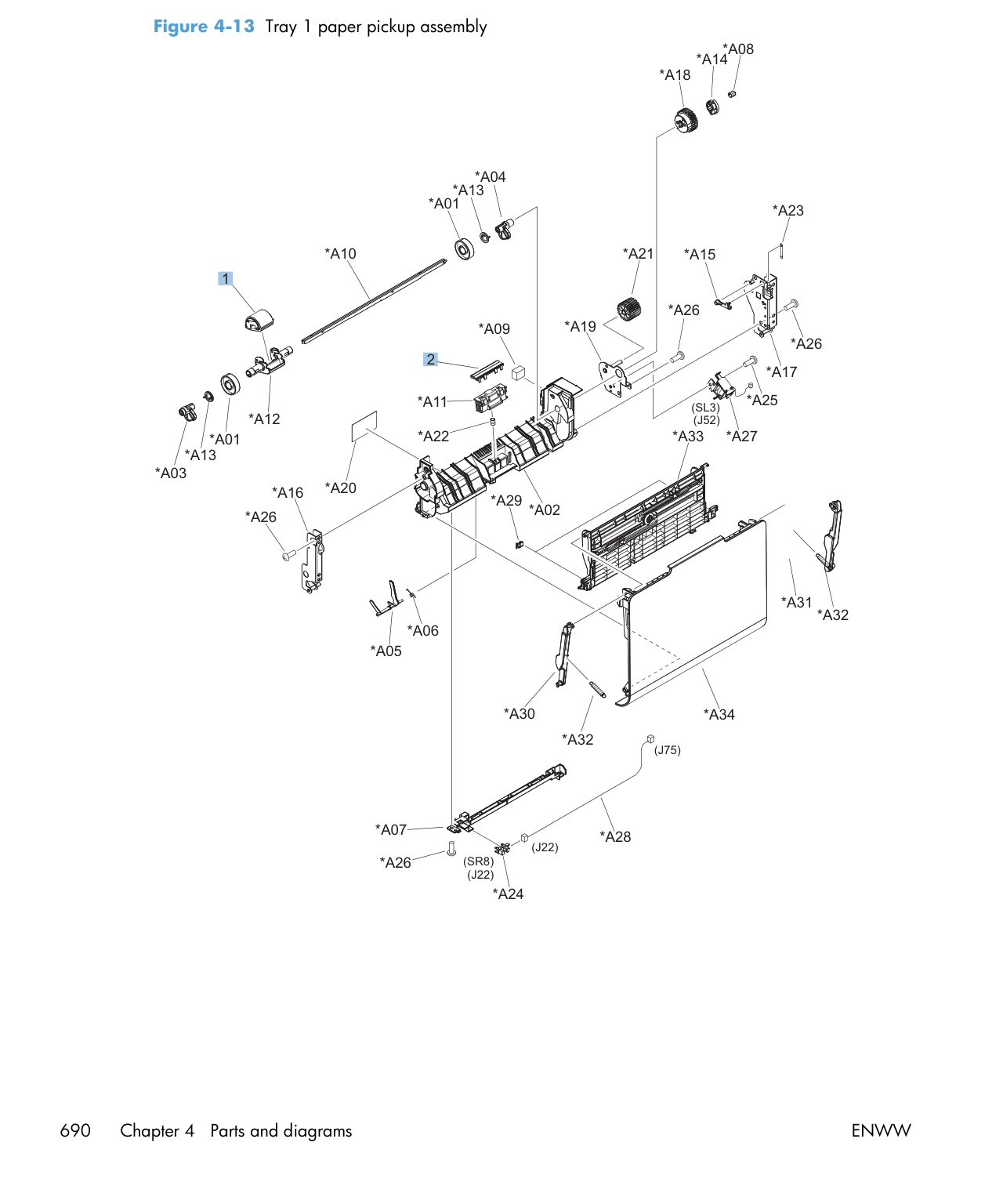

4-13 — Tray 1 paper pickup assembly
4   RK2-2577-000CN   Fan (qty 1)
5   RK2-2603-000CN   Cable, flexible flat, H.V.T. (qty 1)
7   RM1-5502-000CN   Contact assembly (qty 1)
8   RK2-2604-000CN   Cable, flat flexable (FFC) (qty 1)
9   RM1-5724-000CN   H.V. power supply cable assembly (qty 1)
10   RM1-5801-000CN   Lower main cable assembly (qty 1)
11   WC2-5637-000CN   Switch, push (qty 1)
12   RM1-5826-000CN   Sub controller cable assembly (qty 1)
13   RM1-5825-000CN   Sub PS AD cable assembly (qty 1)
14   RM1-5799-000CN   Connecting cable assembly (qty 1)
16   RM1-5803-000CN   Duplexing cable assembly, duplex (qty 1)
17   RM1-5804-000CN   Feed cable assembly (qty 1)
18   RM1-5807-000CN   Switch cable assembly (qty 1)
22   RM1-5815-000CN   Sensor cable assembly (qty 1)
23   RM1-5832-000CN   Interlock switch cable assembly (qty 1)
 4-13 Tray 1 paper pickup assembly

4-14 — Registration assembly
1   RM1-5928-000CN   Cassette (qty 1)

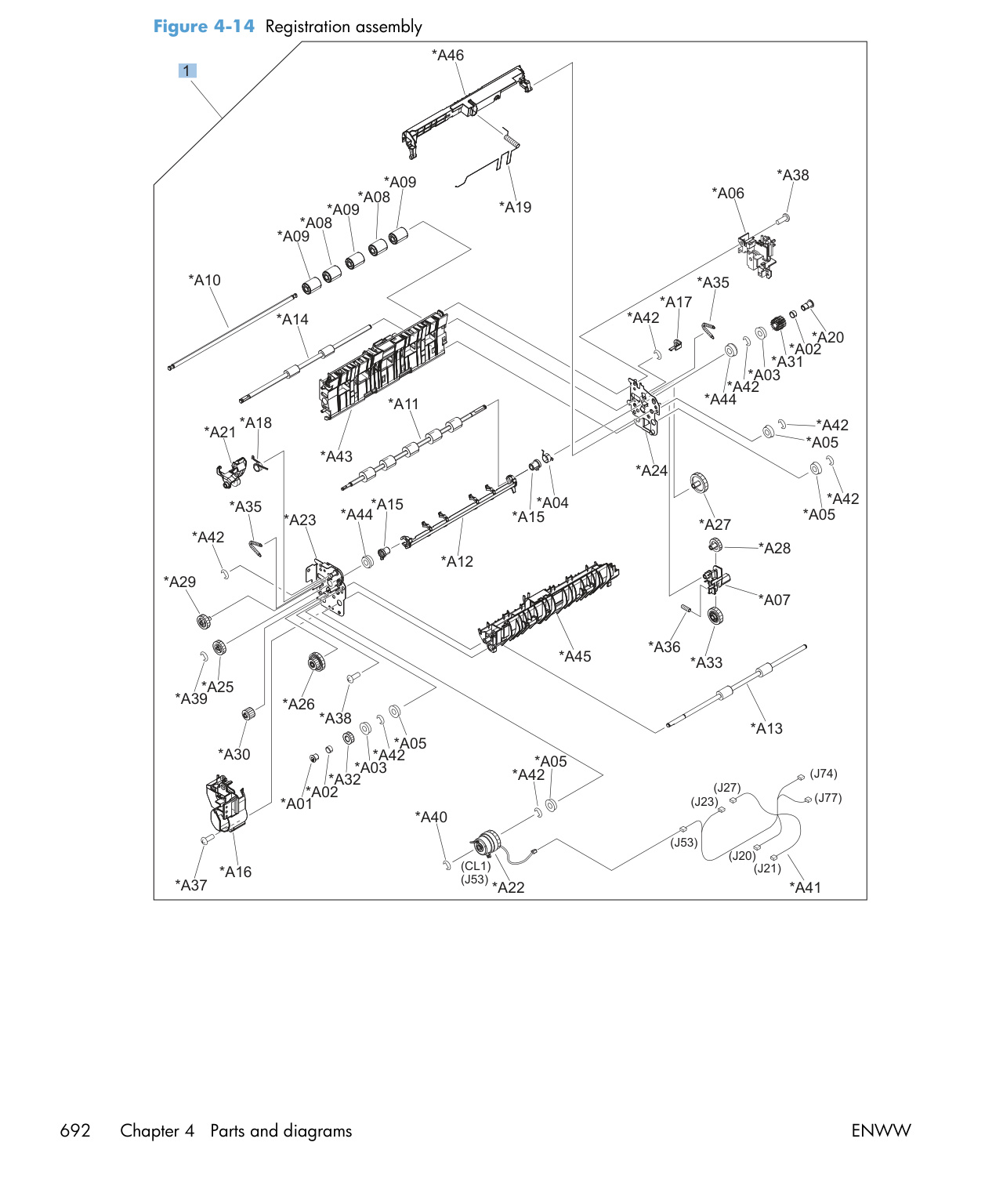

 4-14 Registration assembly

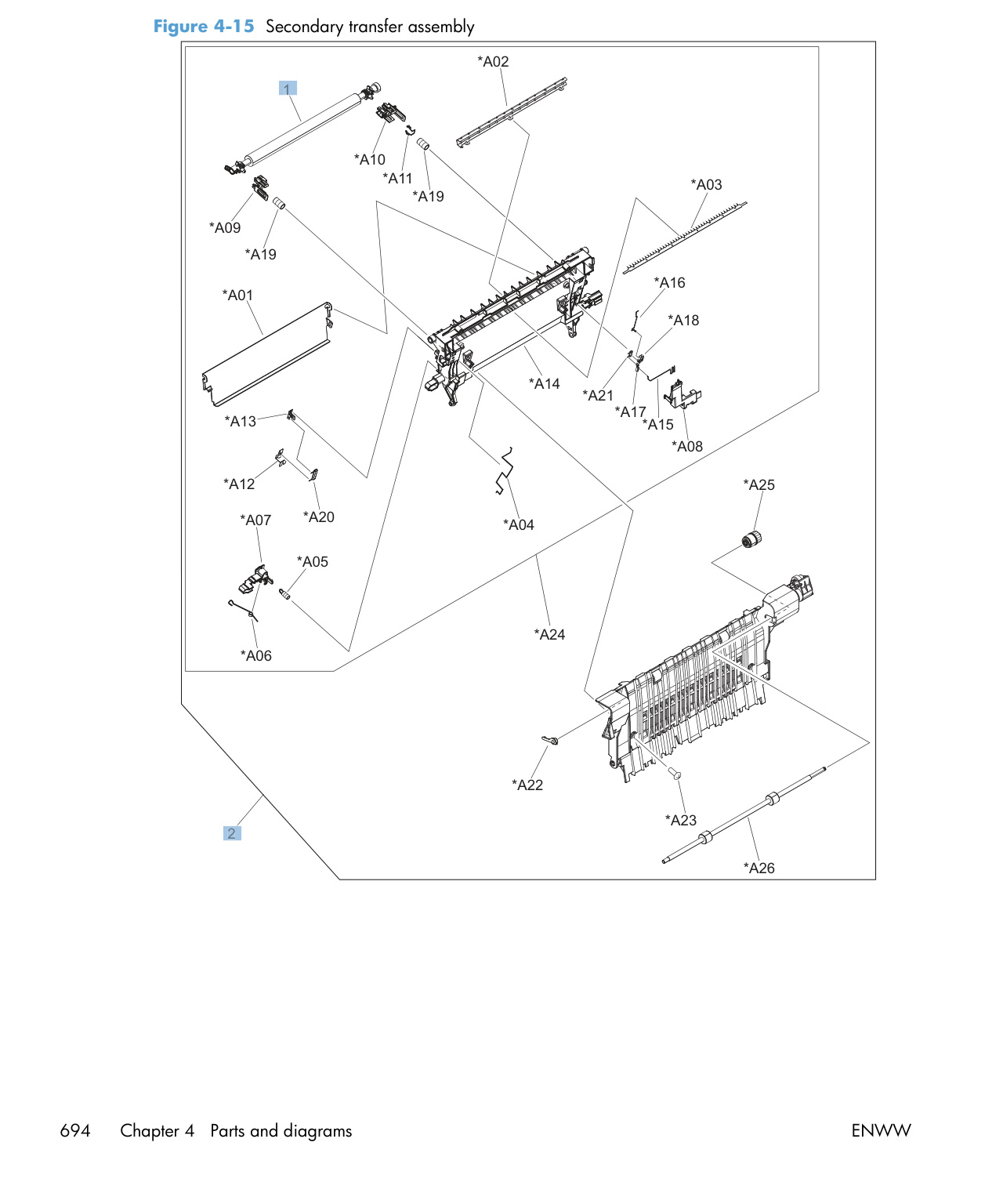

4-15 — Secondary transfer assembly
1   RL1-2099-000CN   Roller, paper pickup (qty 1)
2   RM1-0037-020CN   Paper feed roller (qty 2)
3   RM1-5919-000CN   Paper pickup assembly (qty 1)
 4-15 Secondary transfer assembly

4-16 — Intermediate paper transfer unit (IPTU)
2   RL1-1937-000CN   Separation pad (Tray 1) (qty 1)

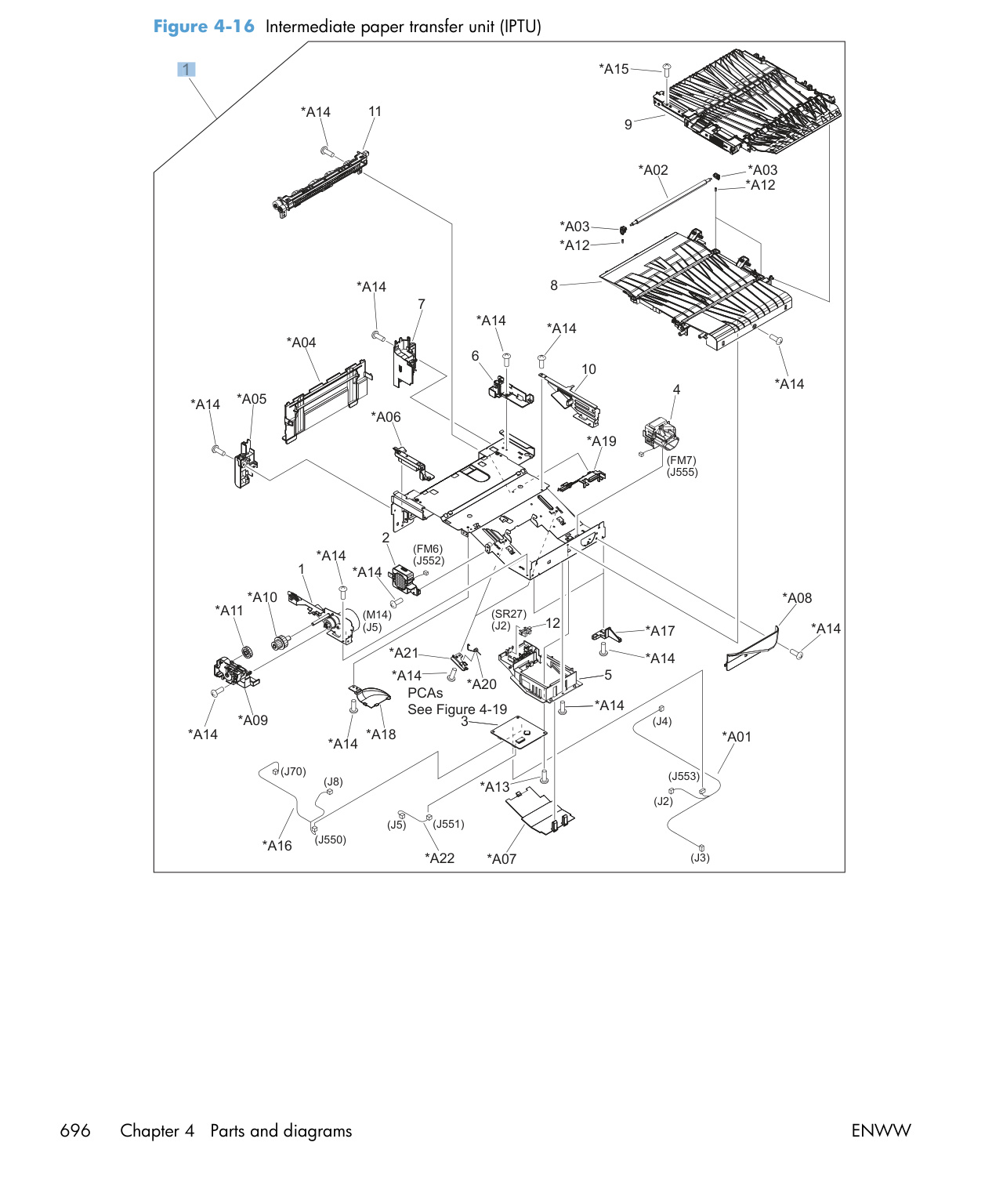

 4-16 Intermediate paper transfer unit (IPTU)

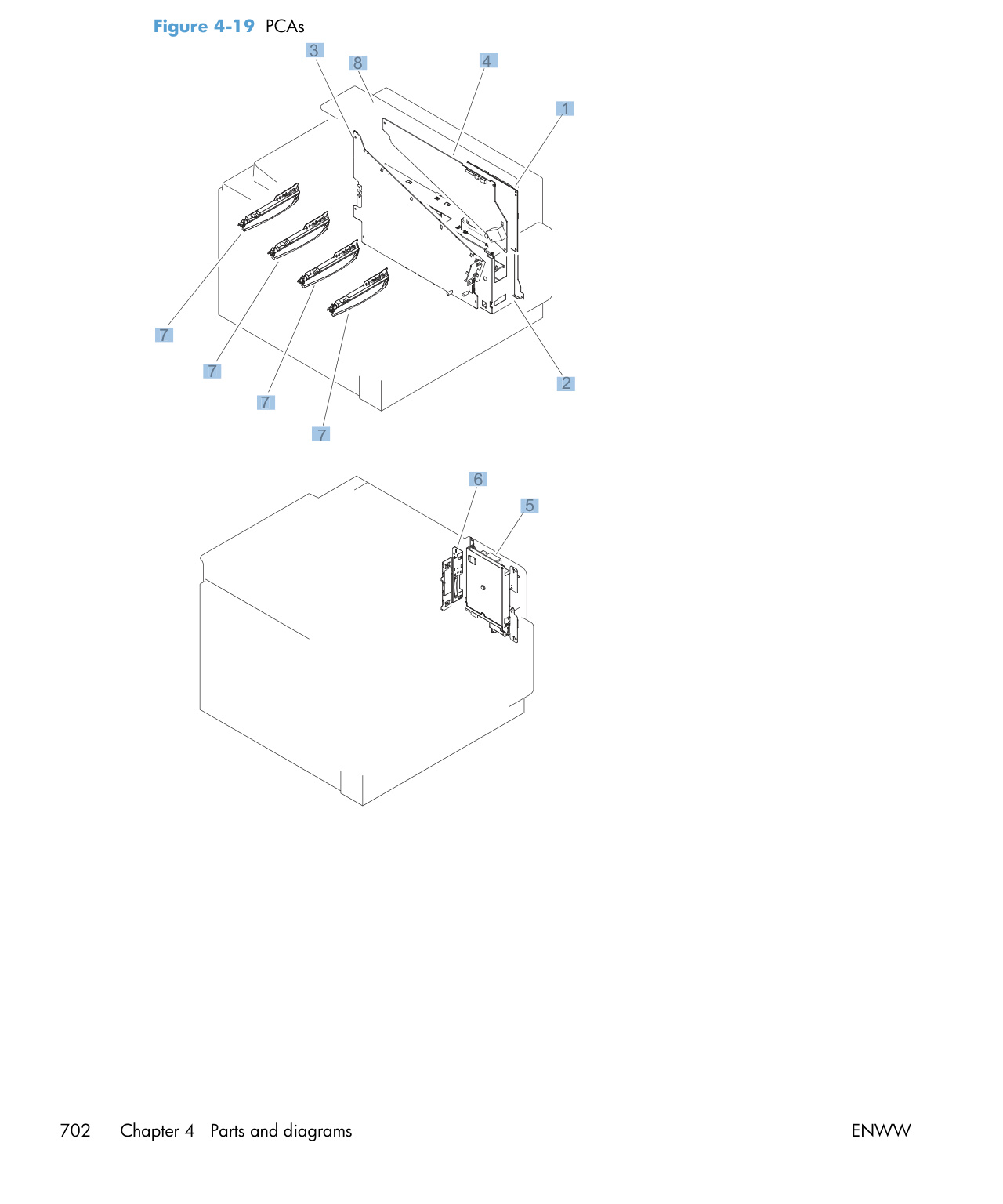

4-19 — PCAs
1   RM1-5621-000CN   Intermediate paper transfer unit (IPTU) (qty 1)
 4-19 PCAs

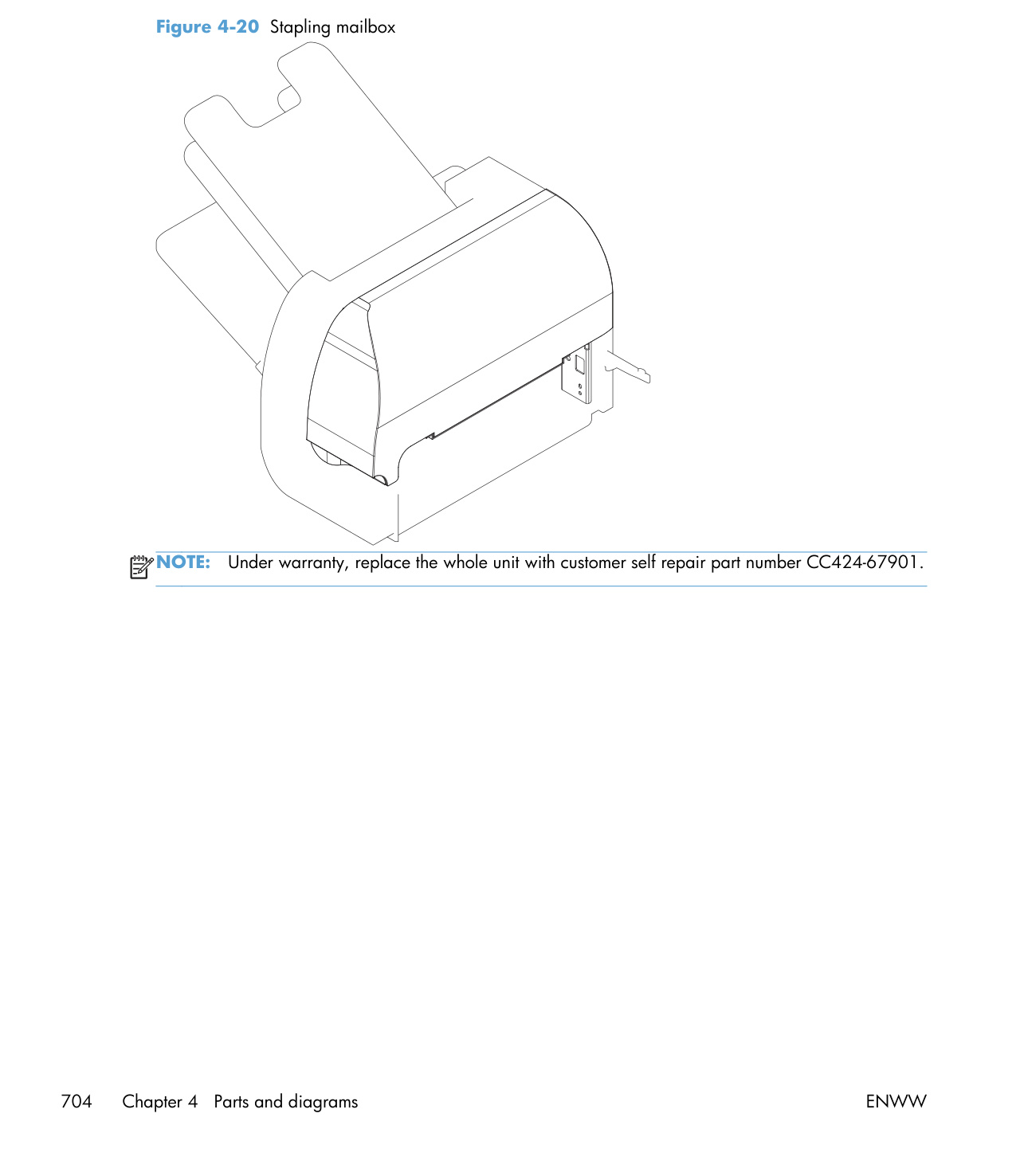

4-20 — Stapling mailbox
1   RM1-5615-000CN   Delivery assembly (qty 1)
 4-20 Stapling mailbox

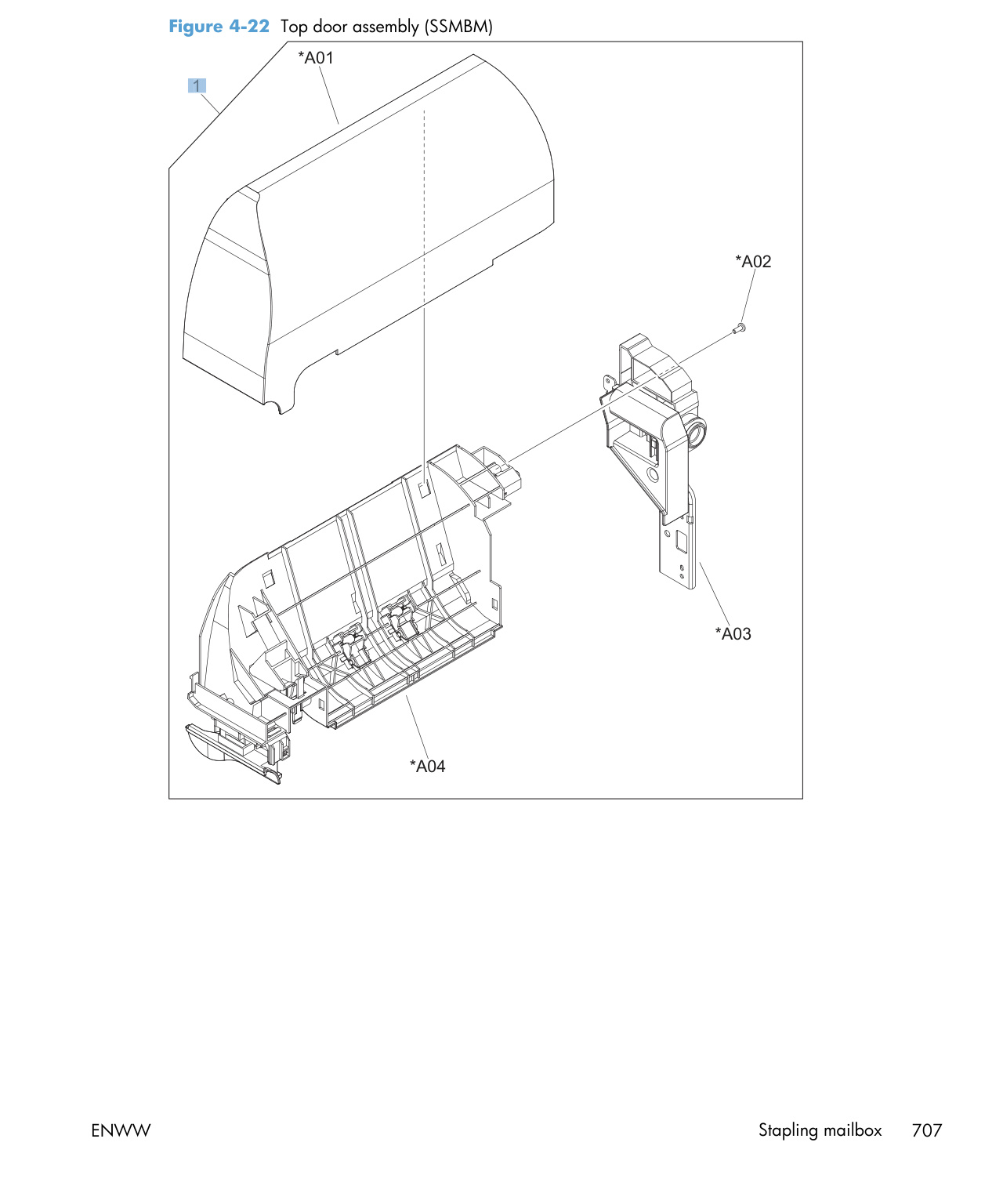

4-22 — Top door assembly (SSMBM)
1   RM1-5758-000CN   DC controller PCA assembly HVPS lower) (qty 1)
4   RM1-5781-000CN   High voltage power supply, upper (qty 1)
5   RM1-5619-000CN   Image scanner power supply assembly (qty 1)
6   RM1-5544-020CN   Inner connecting board (ICB) assembly (qty 1)
7   RM1-5771-020CN   Toner remain PCA assembly (qty 4)
 4-22 Top door assembly (SSMBM)

4-23 — Main body (SSMBM; 1 of 2)
1   RC2-5571-000CN   Cover, front (SSMBM) (qty 1)
2   RC2-5572-000CN   Cover, rear (SSMBM) (qty 1)
4   RL1-1984-000CN   Panel, stacking (SSMBM) (qty 1)
6   RC2-5625-000CN   Holder, connector (SSMBM) (qty 1)
7   RM1-6669-000CN   Top cover assembly (SSMBM) (qty 1)
8   RM1-5161-000CN   Tray assembly (SSMBM) (qty 1)
9   RC2-5576-000CN   Stopper, tray (SSMBM) (qty 1)

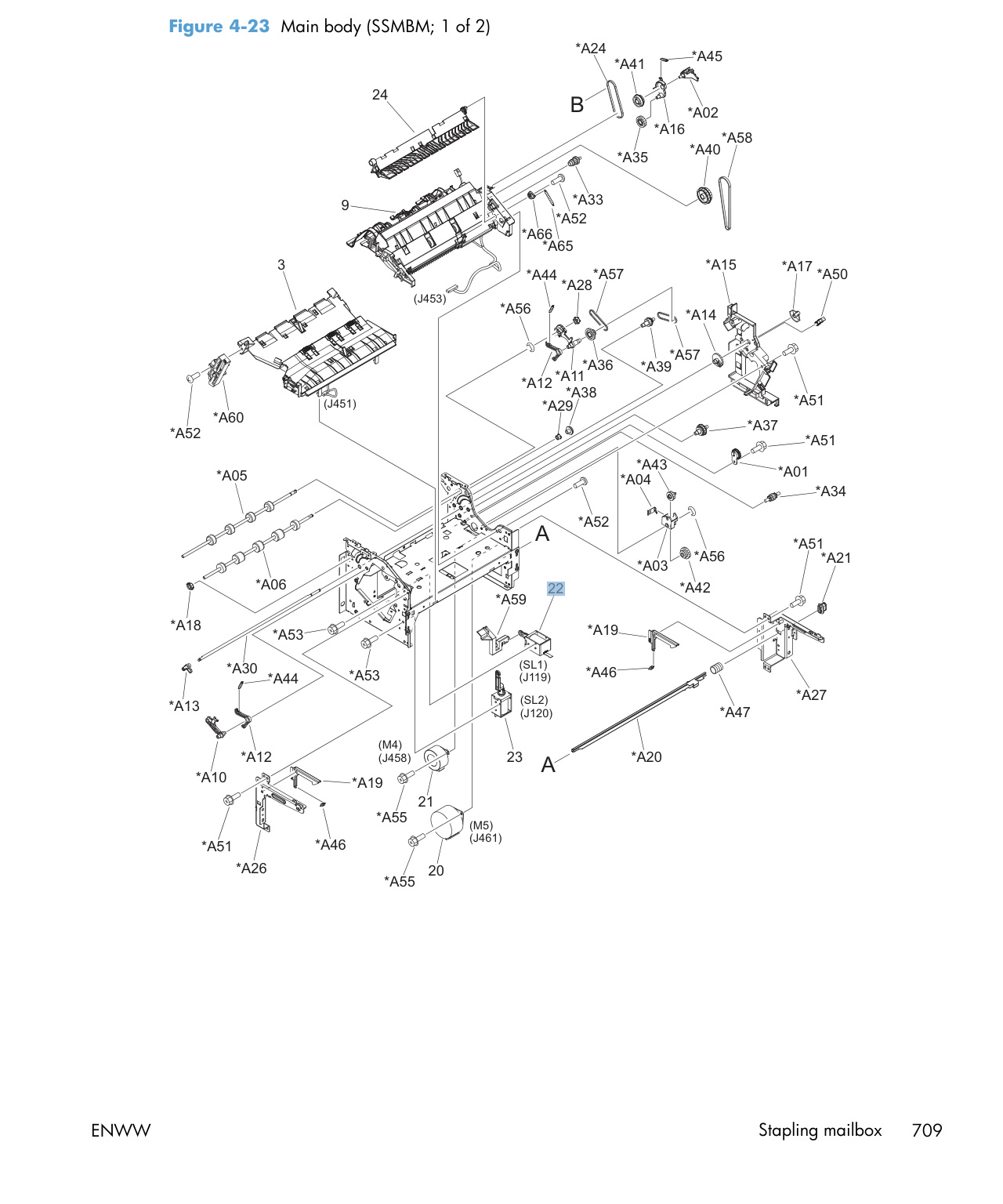

 4-23 Main body (SSMBM; 1 of 2)

4-24 — Main body (SSMBM; 2 of 2)
1   RM1-5160-000CN   Top door assembly (SSMBM) (qty 1)

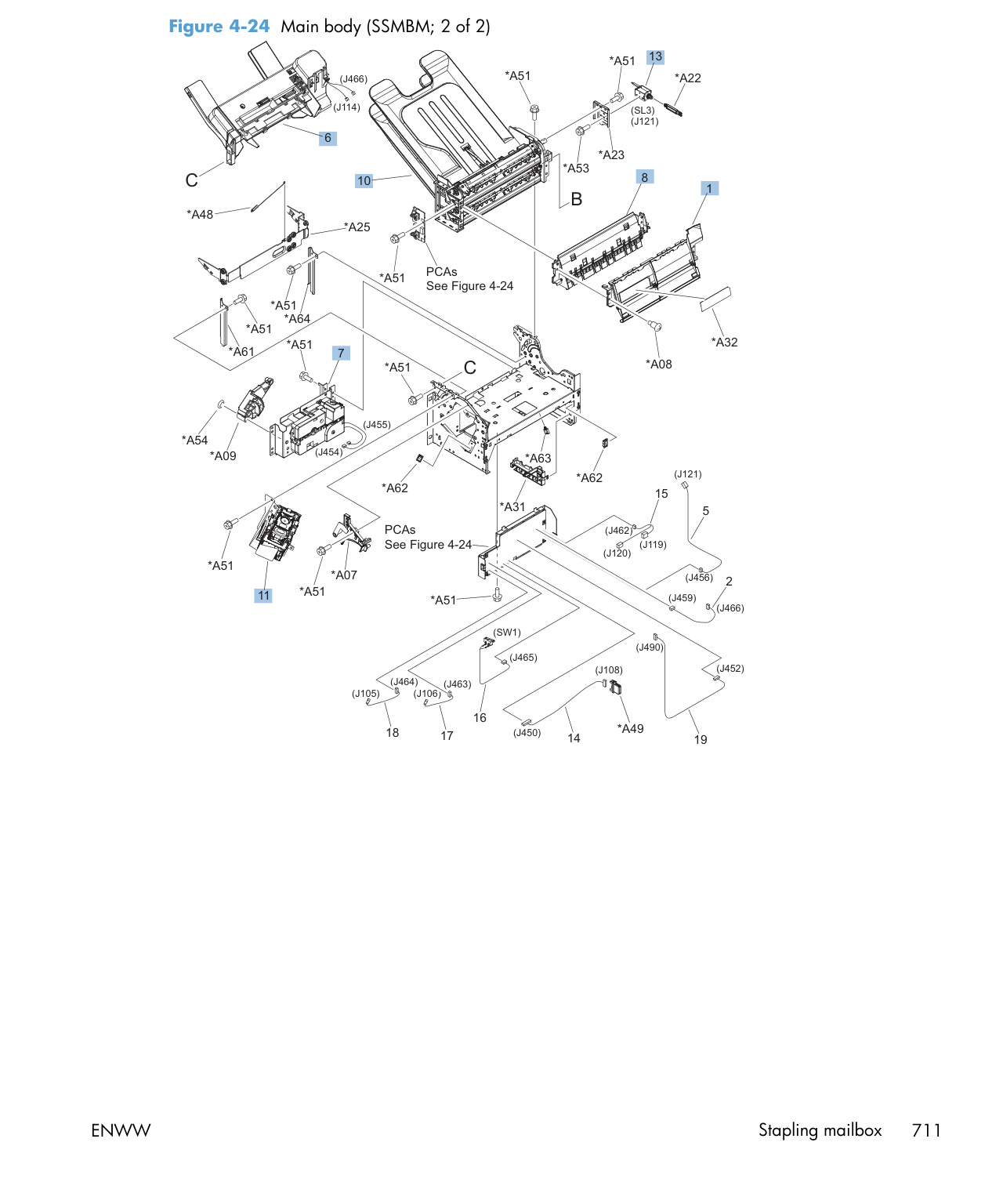

 4-24 Main body (SSMBM; 2 of 2)

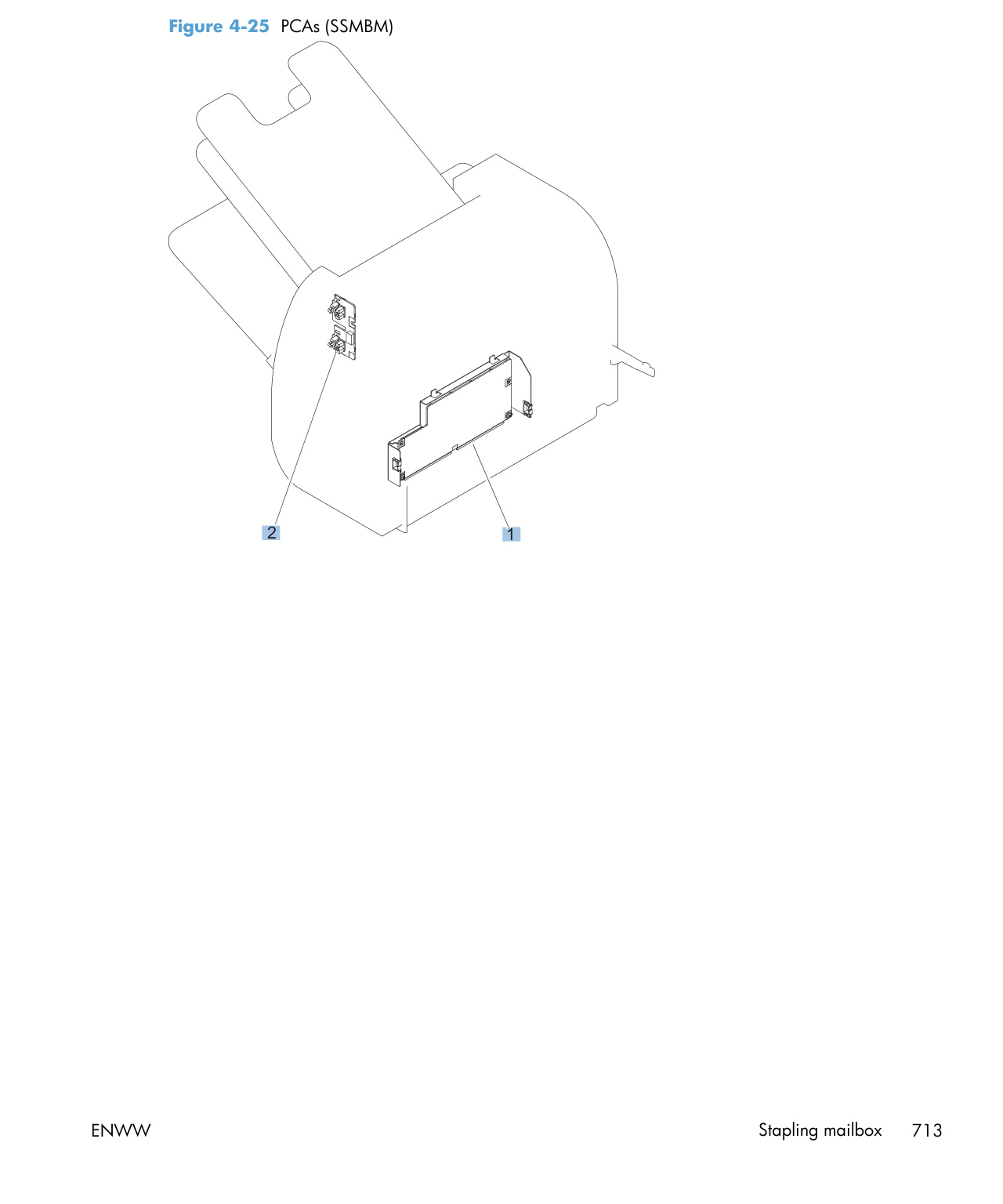

4-25 — PCAs (SSMBM)
22   RM1-6664-000CN   Stamp solenoid assembly (SSMBM) (qty 1)
 4-25 PCAs (SSMBM)

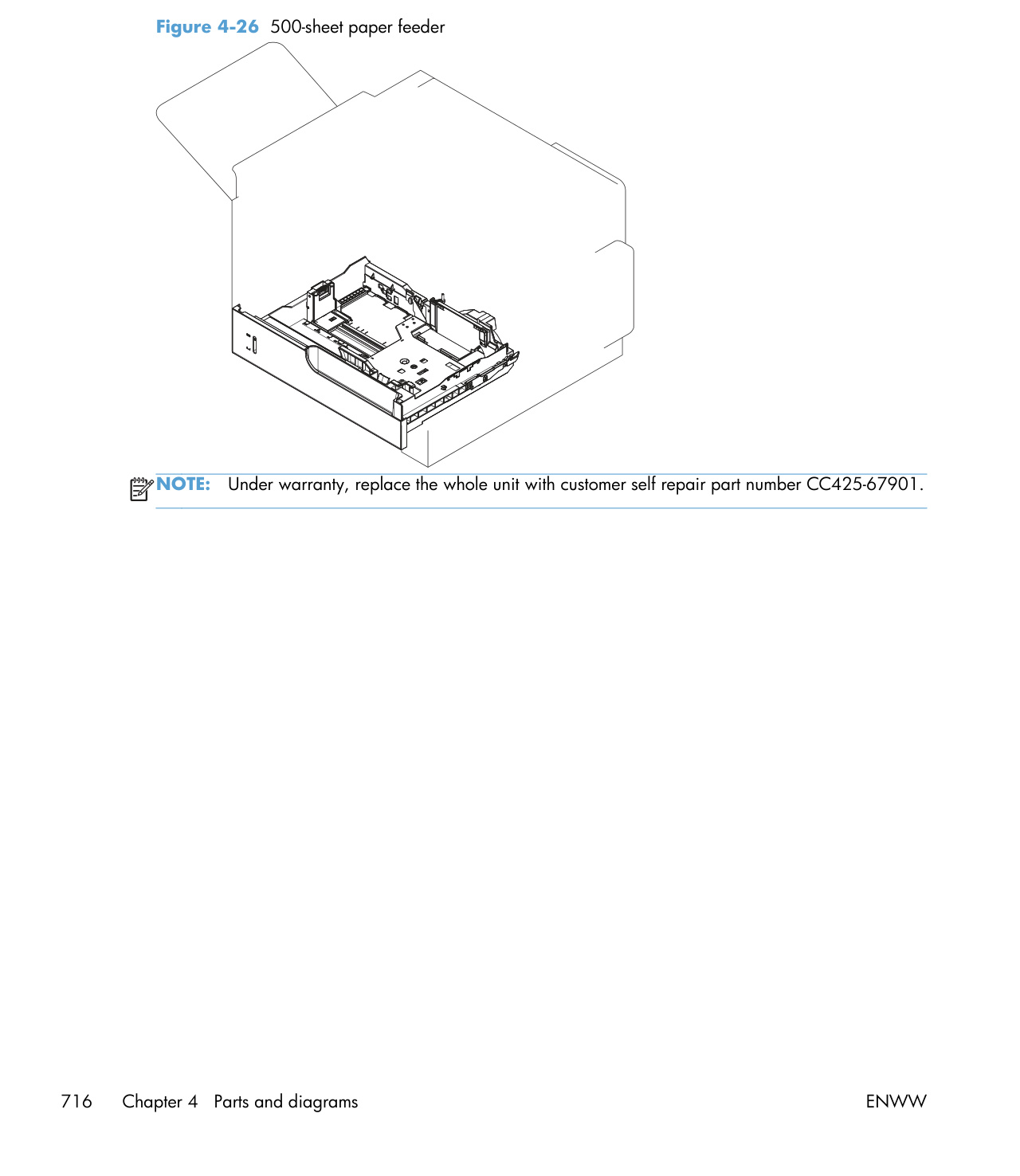

4-26 — 500-sheet paper feeder
1   RM1-5153-000CN   Flapper guide assembly (SSMBM) (qty 1)
6   RM1-5155-000CN   Jog assembly (SSMBM) (qty 1)
7   RM1-5156-000CN   Lift tray assembly (SSMBM) (qty 1)
8   RM1-5157-000CN   MBM flapper assembly (SSMBM) (qty 1)
10   RM1-6670-000CN   MBM bin assembly (SSMBM) (qty 1)
11   RM1-5166-000CN   Stapler assembly (SSMBM) (qty 1)
13   RM1-5896-000CN   Bin solenoid assembly (SSMBM) (qty 1)
 4-26 500-sheet paper feeder

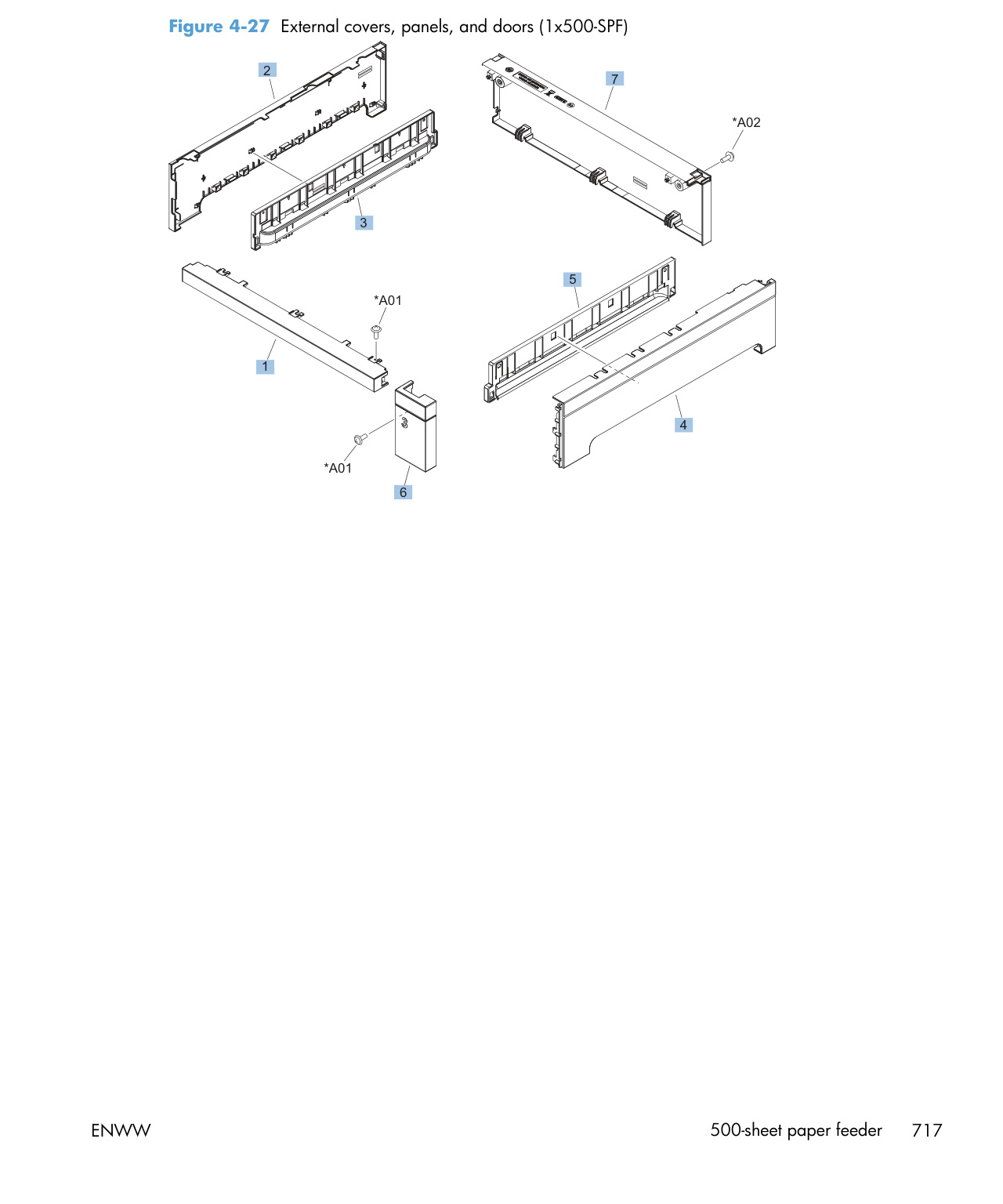

4-27 — External covers, panels, and doors (1x500-SPF)
1   RM1-5168-000CN   MBM driver PCA (SSMBM) (qty 1)
2   RM1-5894-000CN   Bin sensor PCA (SSMBM) (qty 1)
 4-27 External covers, panels, and doors (1x500-SPF)

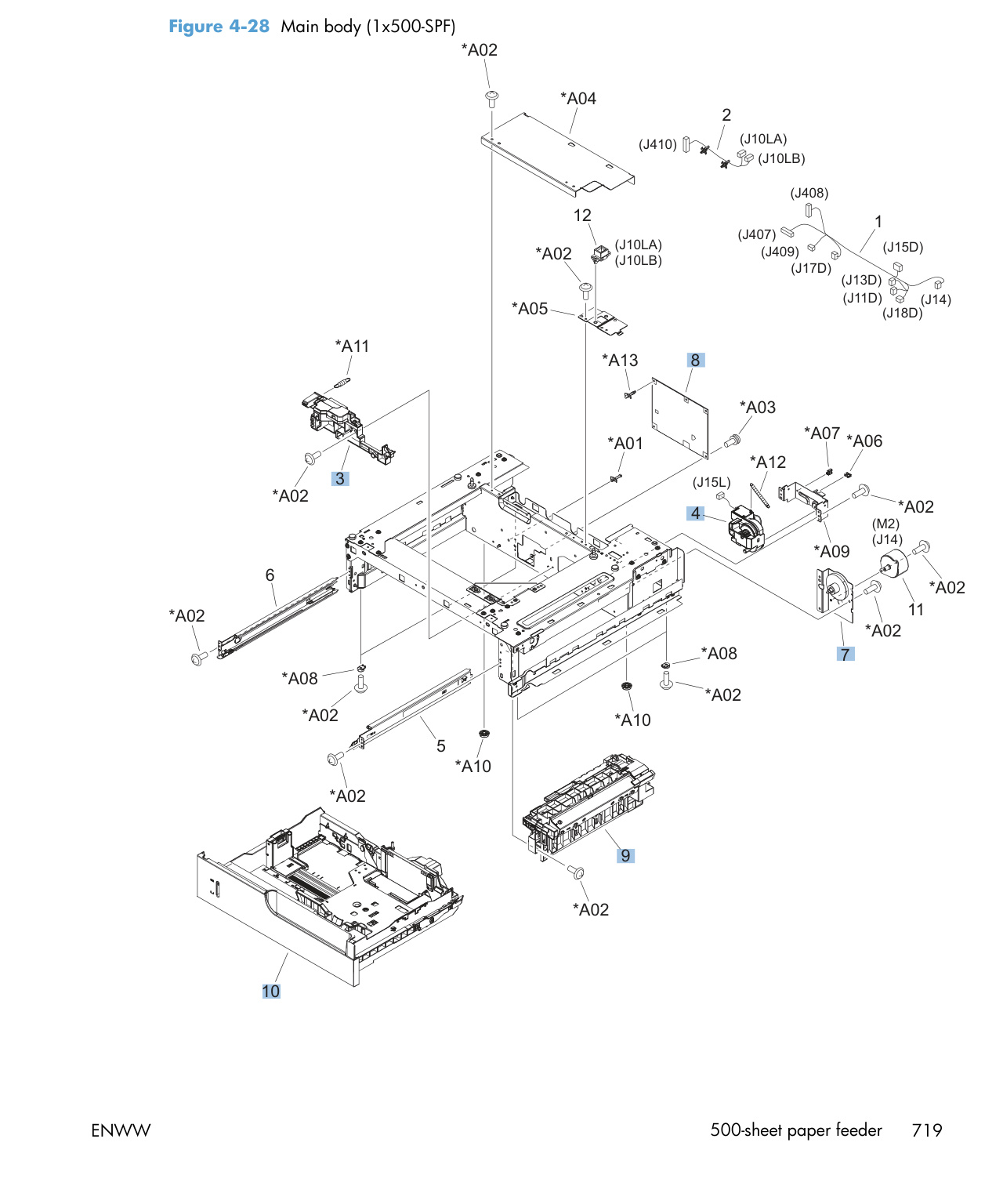

4-28 — Main body (1x500-SPF)
1   RC2-5395-000CN   Cover, front upper (1x500-SPF) (qty 1)
2   RC3-1314-000CN   Cover, left (1x500-SPF) (qty 1)
3   RC3-1315-000CN   Cover, handle, left (1x500-SPF) (qty 1)
4   RC3-1316-000CN   Cover, right (1x500-SPF) (qty 1)
5   RC3-1317-000CN   Cover, handle, right (1x500-SPF) (qty 1)
6   RC3-1318-000CN   Cover, right front (1x500-SPF) (qty 1)
7   RC3-1319-000CN   Cover, rear (1x500-SPF) (qty 1)
 4-28 Main body (1x500-SPF)

4-29 — Paper feeders
3   RM1-5913-000CN   Lifter base assembly (1x500-SPF) (qty 1)
4   RM1-5914-000CN   Lifter assembly (1x500-SPF) (qty 1)
7   RM1-5934-000CN   Paper pickup drive assembly (1x500-SPF) (qty 1)
8   RM1-5854-000CN   Feeder PCA (1x500-SPF) (qty 1)
9   RM1-5929-000CN   Paper pickup assembly (1x500-SPF) (qty 1)
10   RM1-5928-000CN   Cassette (1x500-SPF) (qty 1)

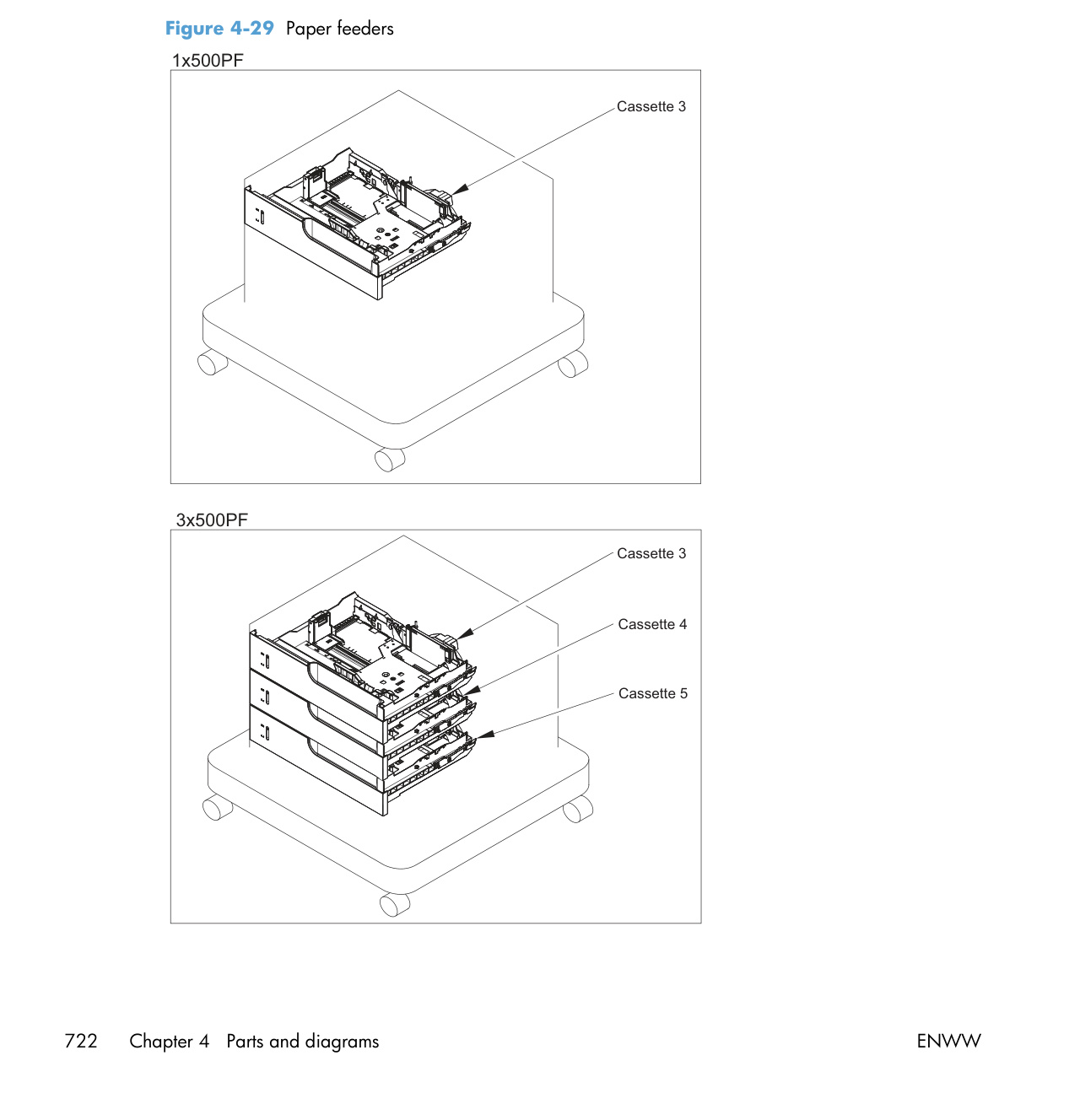

 4-29 Paper feeders

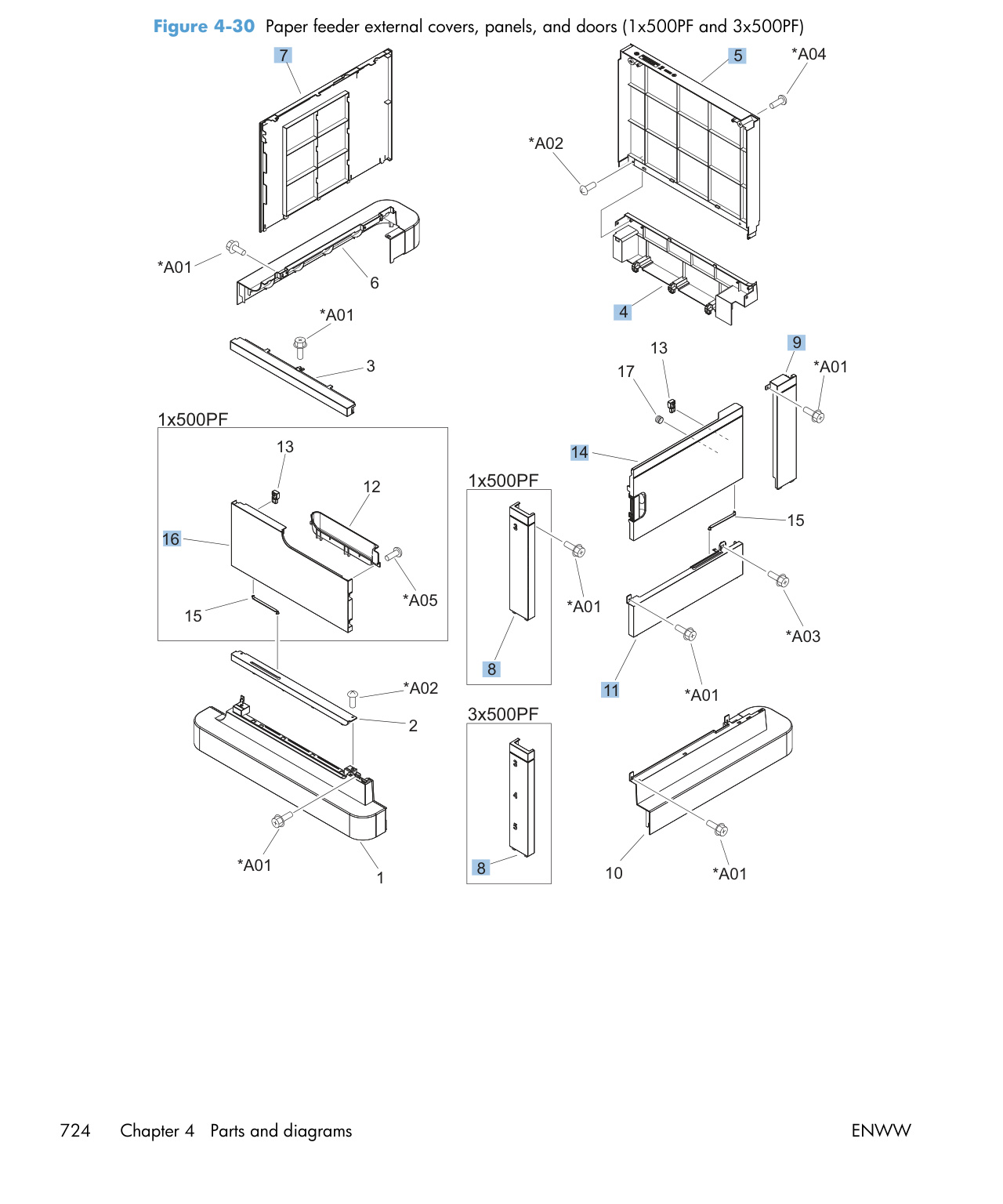

4-30 — Paper feeder external covers, panels, and doors (1x500PF and 3x500PF)
    RM1-5928-000CN   Cassette (1x500PF and 3x500PF)
 4-30 Paper feeder external covers, panels, and doors (1x500PF and 3x500PF)

4-31 — Main body (1x500PF)
4   RC2-5378-000CN   Cover, rear lower (1x500PF and 3x500PF) (qty 1)
5   RC2-5379-000CN   Cover, rear (1x500PF and 3x500PF) (qty 1)
7   RC2-5393-000CN   Cover, left (1x500PF and 3x500PF) (qty 1)
8   RC2-5356-000CN   Cover, right front, (1x500PF) (qty 1)
8   RC2-5357-000CN   Cover, right front, (3x500PF) (qty 1)
9   RC2-5380-000CN   Cover, right rear (1x500PF and 3x500PF) (qty 1)
14   RM1-5937-000CN   Right door assembly (3x500PF) (qty 1)
14   RM1-5936-000CN   Right door assembly (1x500PF) (qty 1)
16   RC2-5377-000CN   Door, stock, (1x500PF) (qty 1)

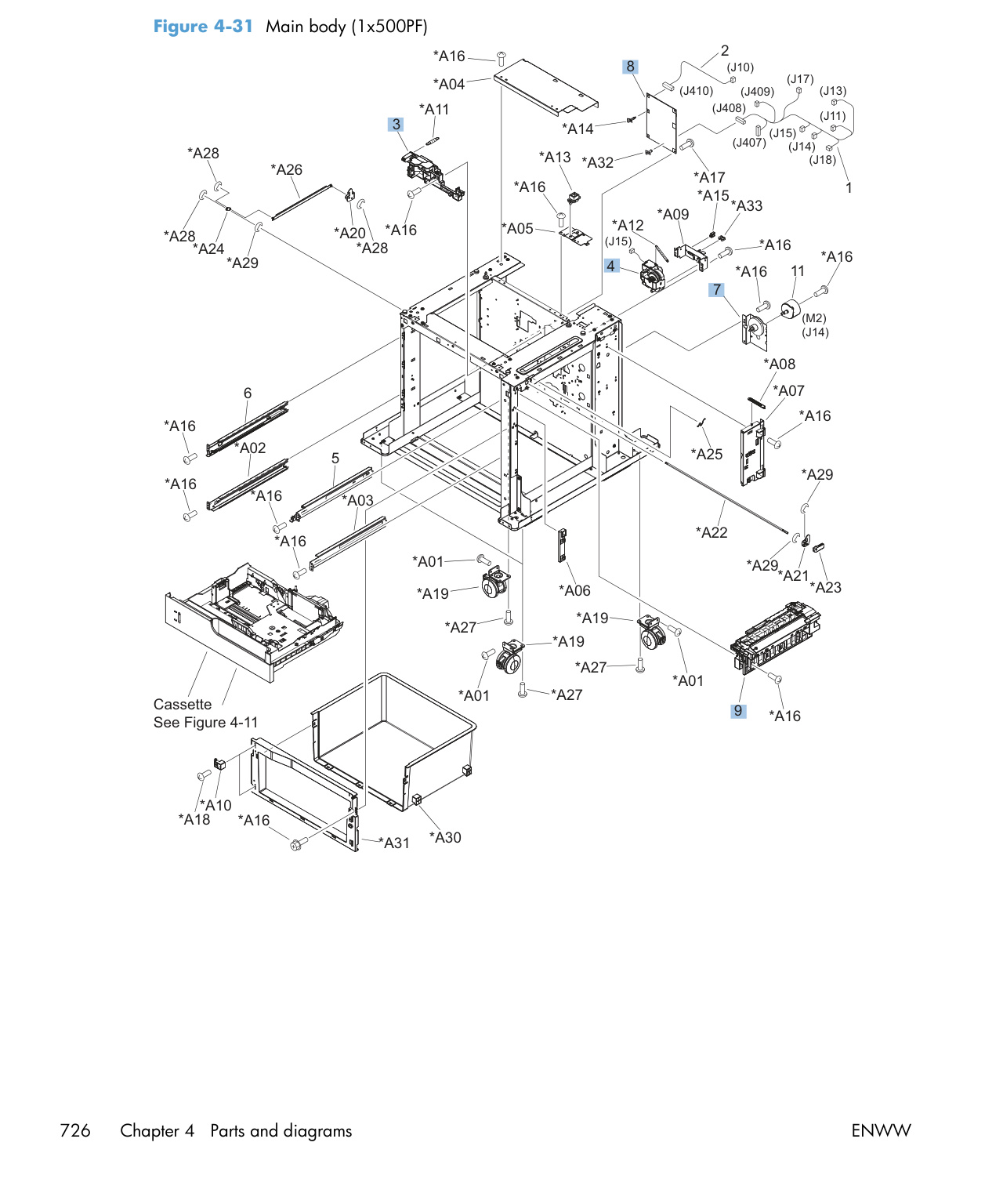

 4-31 Main body (1x500PF)

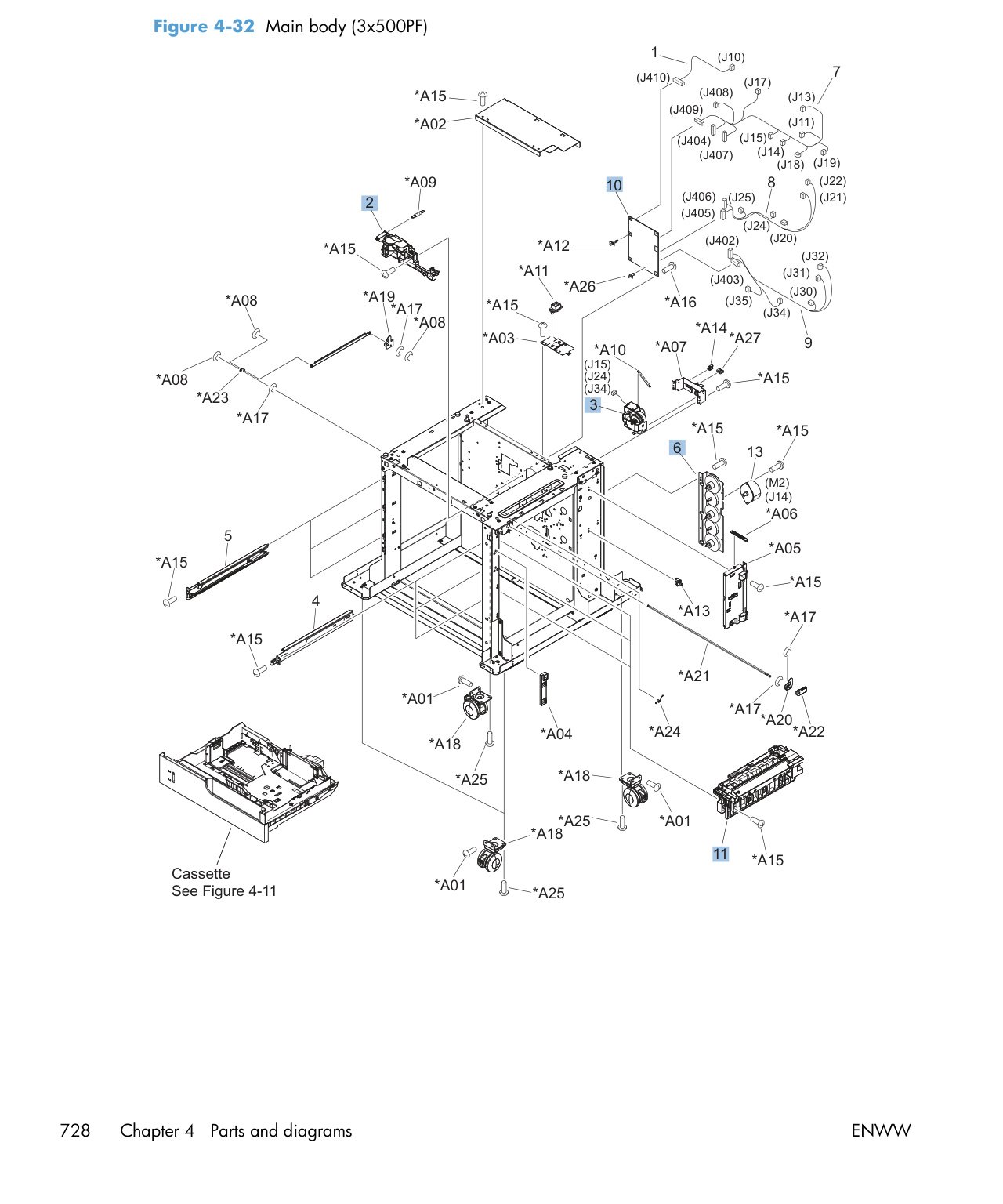

4-32 — Main body (3x500PF)
3   RM1-5913-000CN   Lifter base assembly (1x500PF) (qty 1)
4   RM1-5914-000CN   Lifter assembly (1x500PF) (qty 1)
7   RM1-5934-000CN   Paper pickup drive assembly (1x500PF) (qty 1)
8   RM1-5854-000CN   Feeder PCA assembly (1x500PF) (qty 1)
9   RM1-5929-000CN   Paper pickup assembly (1x500PF) (qty 1)
 4-32 Main body (3x500PF)

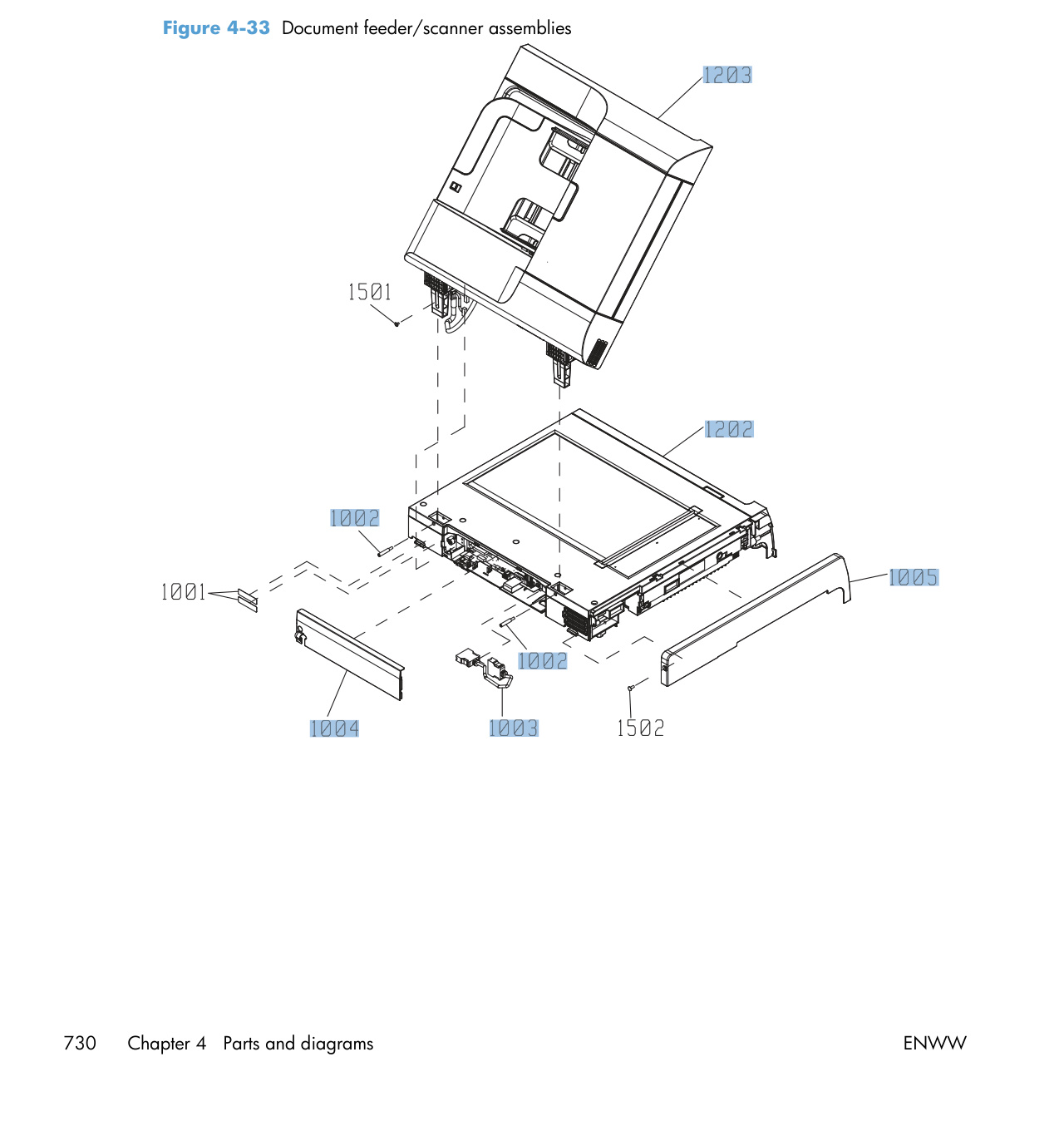

4-33 — Document feeder/scanner assemblies
2   RM1-5913-000CN   Lifter base assembly (3x500PF) (qty 1)
3   RM1-5914-000CN   Lifter assembly (3x500PF) (qty 1)
6   RM1-5935-000CN   Paper pickup drive assembly (3x500PF) (qty 1)
10   RM1-5958-000CN   Feeder PCA assembly (3x500PF) (qty 1)
11   RM1-5929-000CN   Paper pickup assembly (3x500PF) (qty 3)
 4-33 Document feeder/scanner assemblies

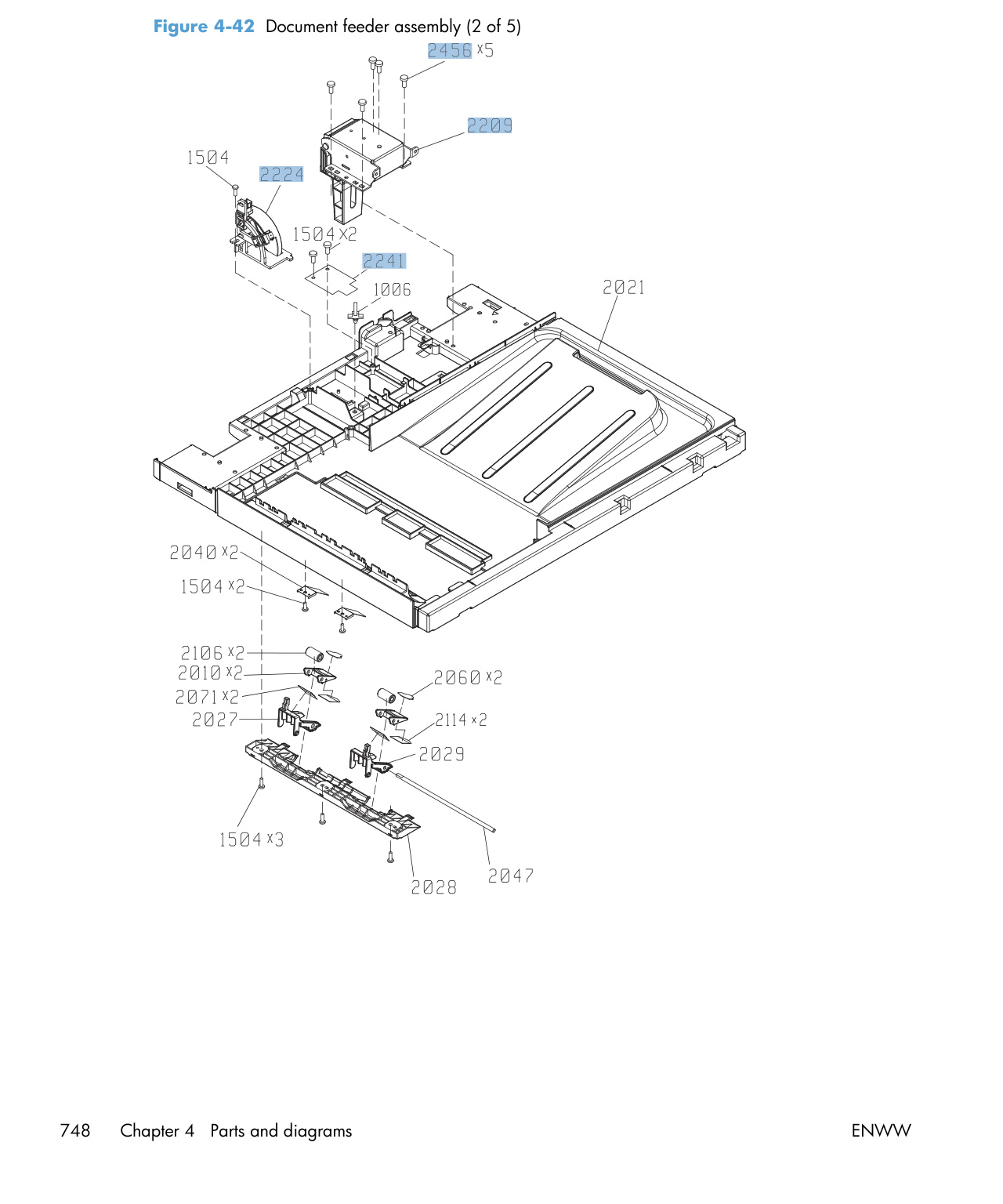

4-42 — Document feeder assembly (2 of 5)
2024   CC419-67903   ASY-TRY-F-BASE-SP (qty 1)
 4-42 Document feeder assembly (2 of 5)
