Exploded parts diagrams and part numbers for the HP Color LaserJet Enterprise M652 and M653 printers and the MFP M681 and M682. Part numbers are taken directly from HP's parts list. Where a part shows an order button we have it in stock — for anything else, call us on 248-540-4300 and we will source it.

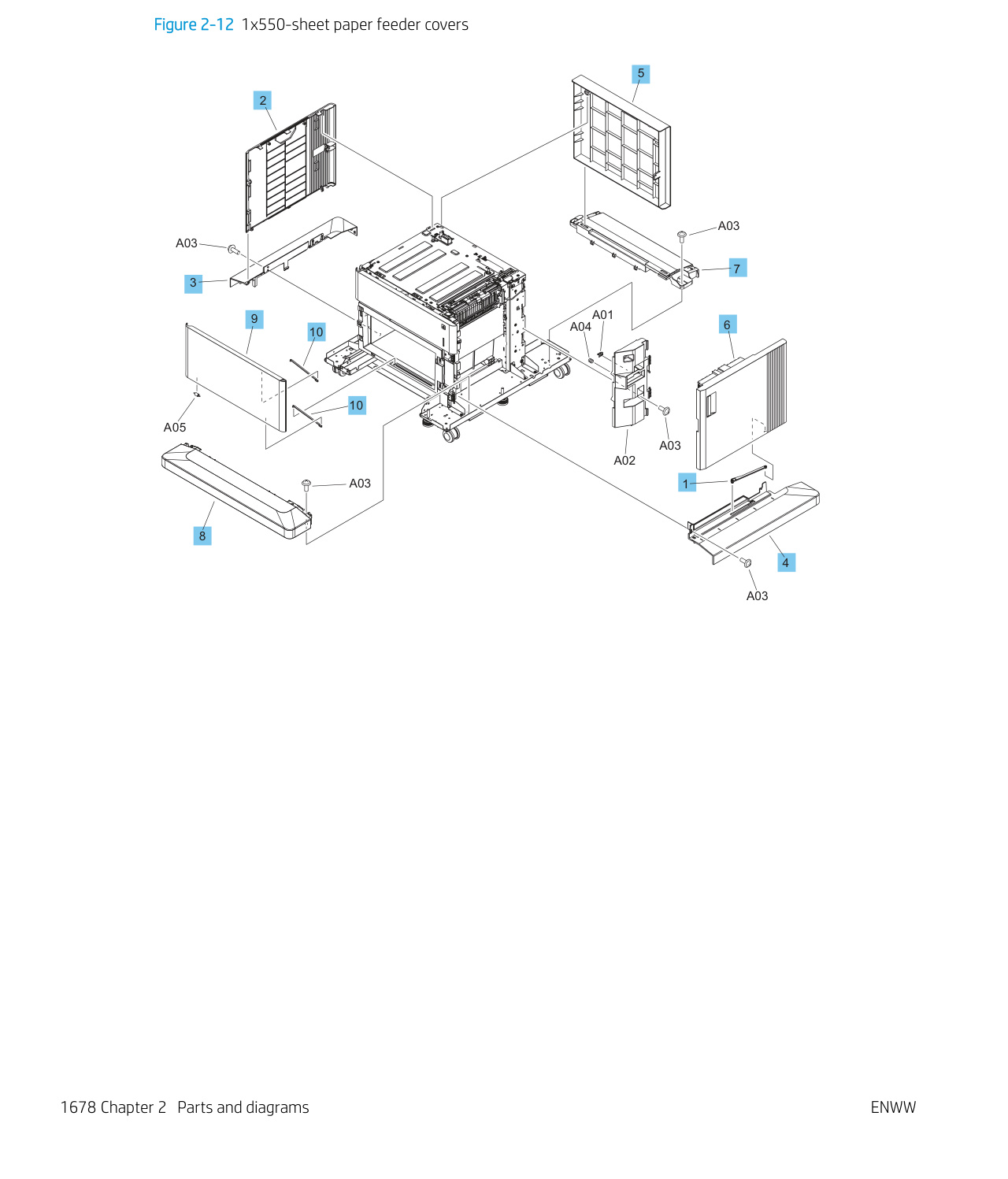

2-12 — 1x550-sheet paper feeder covers

1   RC4-9824-000CN   Link, door (1x550-sheet feeder) (qty 1) 2   RC5-0387-000CN   Cover, left (1x550-sheet feeder) (qty 1) 3   RC5-0385-000CN   Cover, left lower (1x550-sheet feeder) (qty 1) 4   RC5-0384-000CN   Cover, right lower (1x550-sheet feeder) (qty 1) 5   RC5-0386-000CN   Cover, rear (1x550-sheet feeder) (qty 1) 6   RM2-1226-000CN   Right door assembly (1x550-sheet feeder) (qty 1) 7   RC5-0399-000CN   Cover, rear lower (1x550-sheet feeder) (qty 1) 8   RC5-0383-000CN   Cover, front lower (1x550-sheet feeder) (qty 1) 9   RC5-0405-000CN   Door, stock (1x550-sheet feeder) (qty 1) 10   RC4-1778-000CN   Link, door (1x550-sheet feeder) (qty 2)

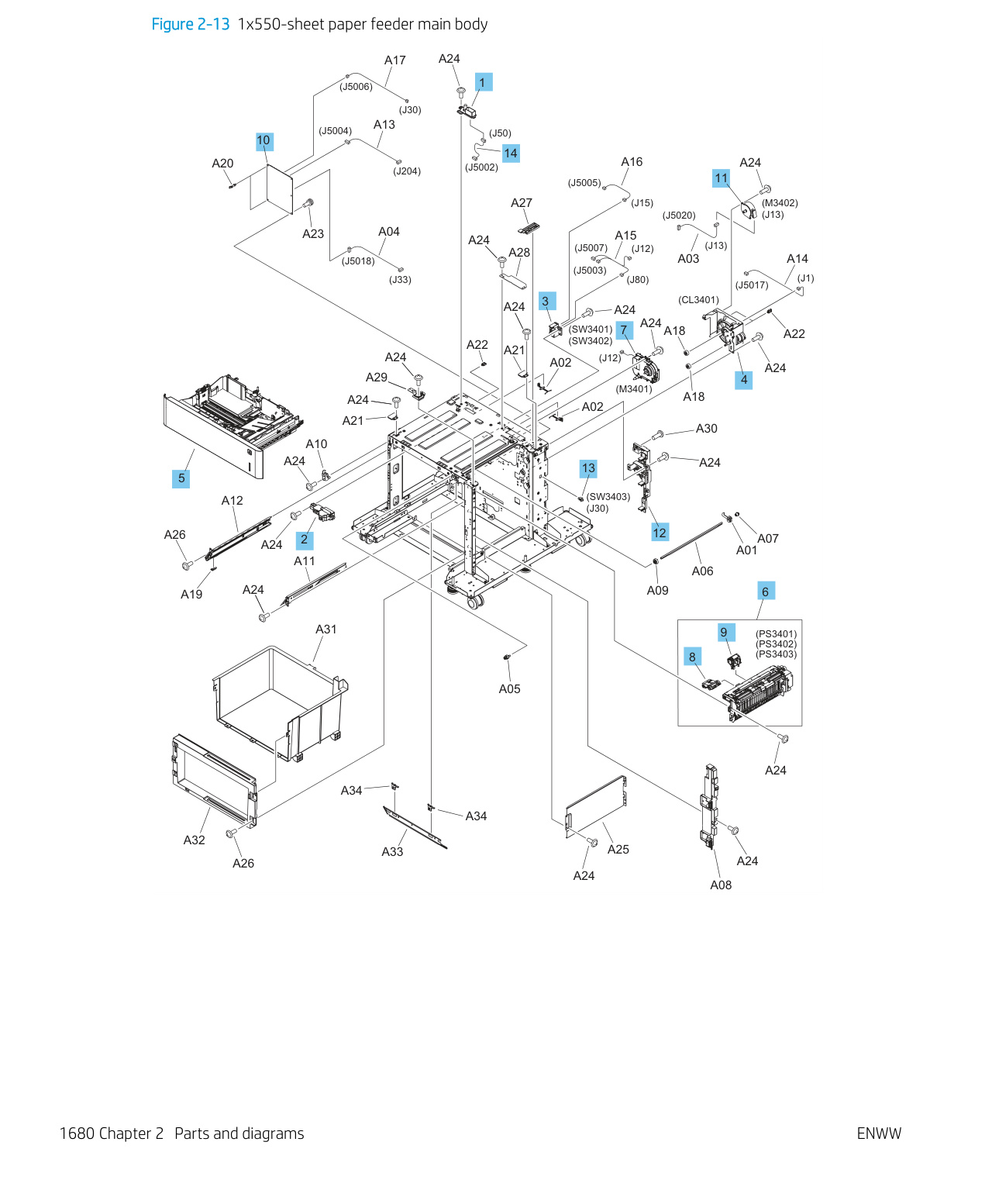

2-13 — 1x550-sheet paper feeder main body

2   RM2-0856-000CN   Auto close assembly (1x550-sheet feeder) (qty 1) 3   RM2-0857-000CN   Size sensor assembly (1x550-sheet feeder) (qty 1) 4   RM2-1222-000CN   Drive assembly (1x550-sheet feeder) (qty 1) 7   RM2-2091-000CN   Lifter drive assembly (1x550-sheet feeder) Tray 2-5 Roller Kit) 2-5 Roller Kit) (qty 1) 10   RM2-8482-000CN   Paper deck cont. PCA (qty 1) 11   RK2-7831-000CN   Motor, stepping (1x550-sheet feeder) (qty 1) 13   WC2-5803-000CN   Switch, push (1x550-sheet feeder) (qty 1)

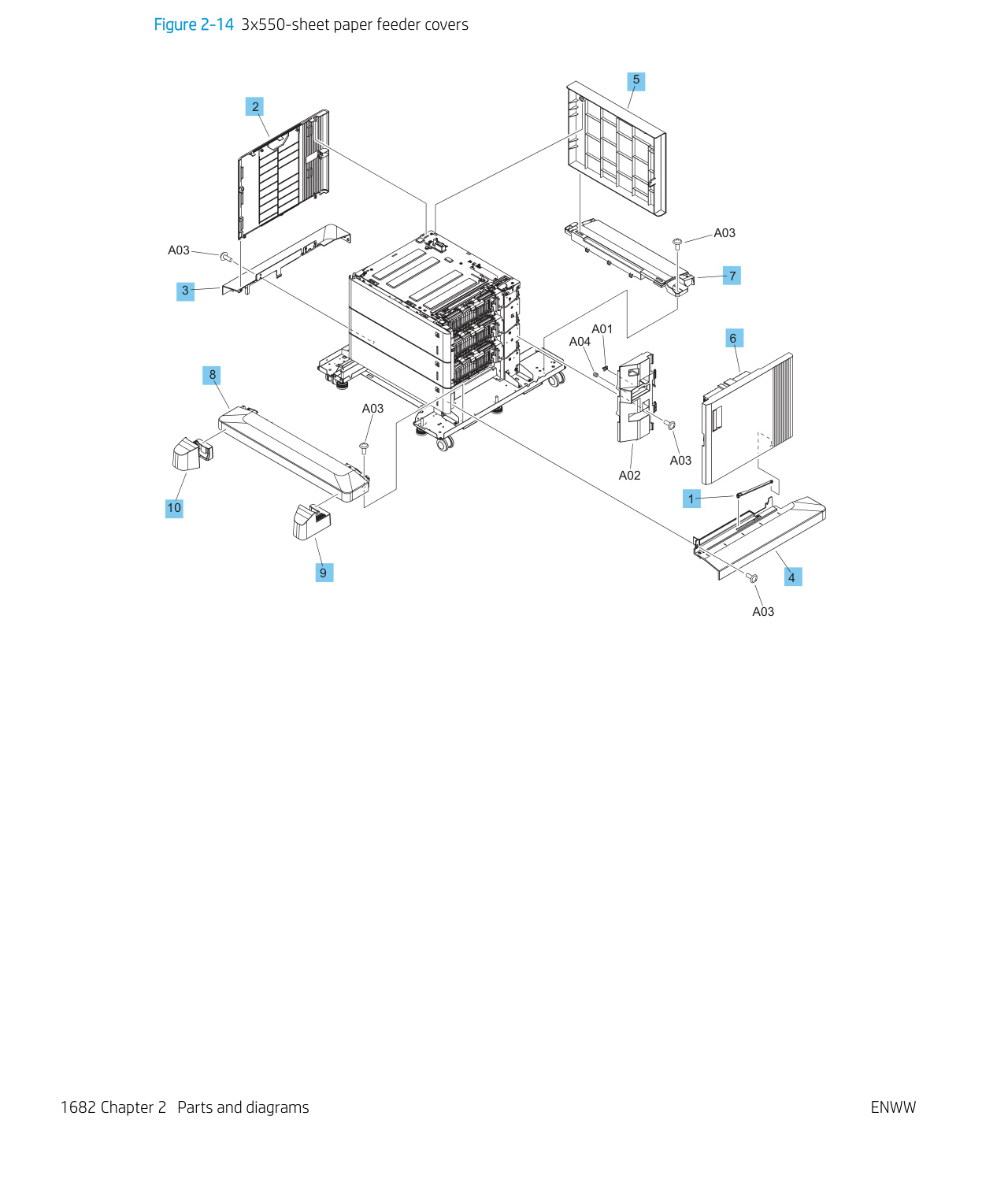

2-14 — 3x550-sheet paper feeder covers

1   RC4-9824-000CN   Link, door (3x550-sheet feeder) (qty 1) 2   RC5-0387-000CN   Cover, left (3x550-sheet feeder) (qty 1) 3   RC5-0385-000CN   Cover, left lower (3x550-sheet feeder) (qty 1) 4   RC5-0384-000CN   Cover, right lower (3x550-sheet feeder) (qty 1) 5   RC5-0386-000CN   Cover, rear (3x550-sheet feeder) (qty 1) 6   RM2-1230-000CN   Right door assembly (3x550-sheet feeder) (qty 1) 7   RC5-0399-000CN   Cover, rear lower (qty 1) 8   RC5-0383-000CN   Cover, front lower (qty 1) 9   RC5-0417-000CN   Cover, caster, right (qty 1) 10   RC5-0418-000CN   Cover, caster, left (qty 1)

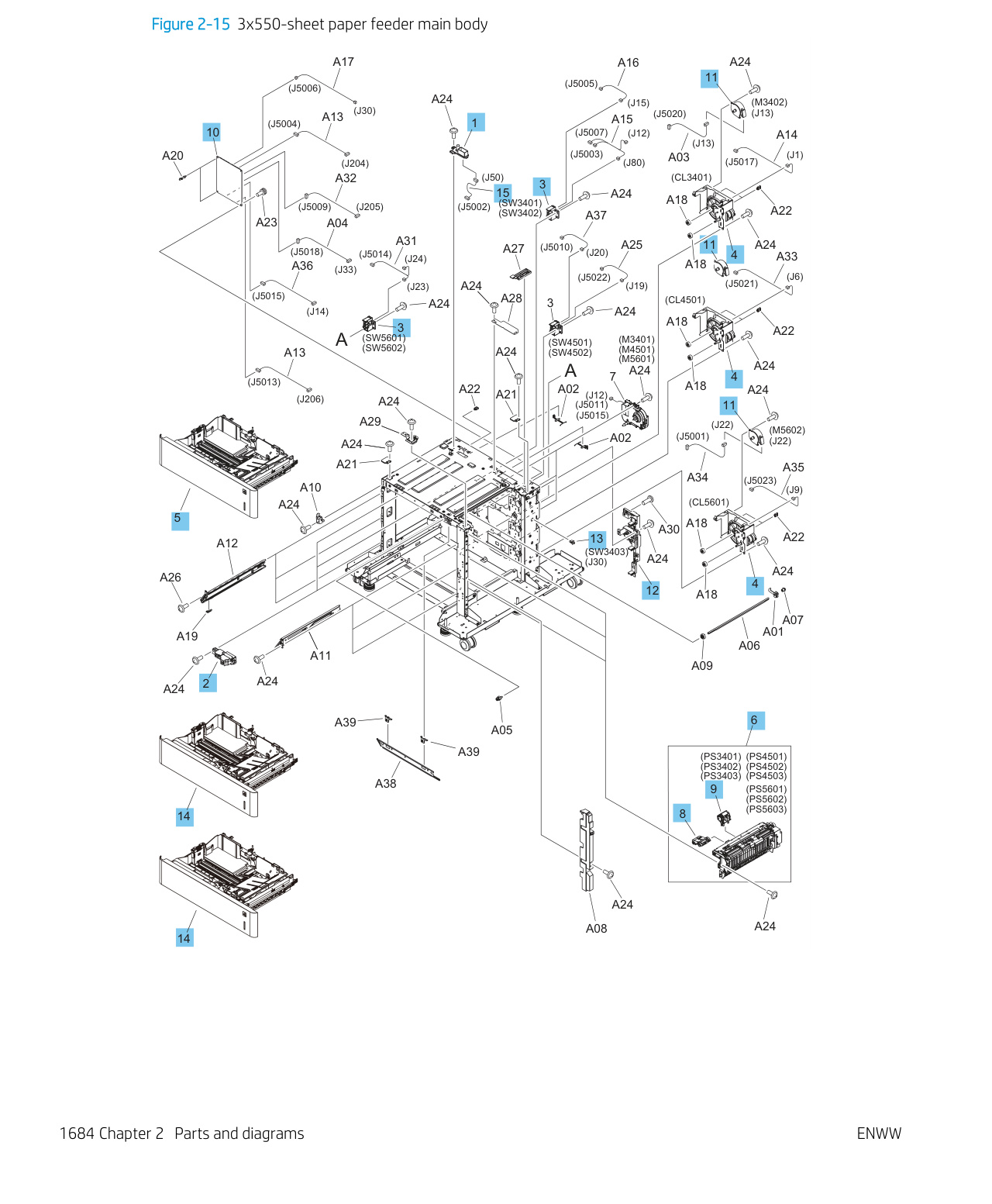

2-15 — 3x550-sheet paper feeder main body

2   RM2-0856-000CN   Auto close assembly (3x550-sheet feeder) (qty 3) 3   RM2-0857-000CN   Size sensor assembly (3x550-sheet feeder) (qty 3) 4   RM2-1222-000CN   Drive assembly (3x550-sheet feeder) (qty 3) 7   RM2-2091-000CN   Lifter drive assembly (3x550-sheet feeder) (qty 3) 10   RM2-8483-000CN   Paper deck cont. PCA (3x550-sheet feeder) (qty 1) 11   RK2-7831-000CN   Motor, stepping (3x550-sheet feeder) (qty 2) 13   WC2-5803-00CN   Switch, push (3x550-sheet feeder) (qty 1)

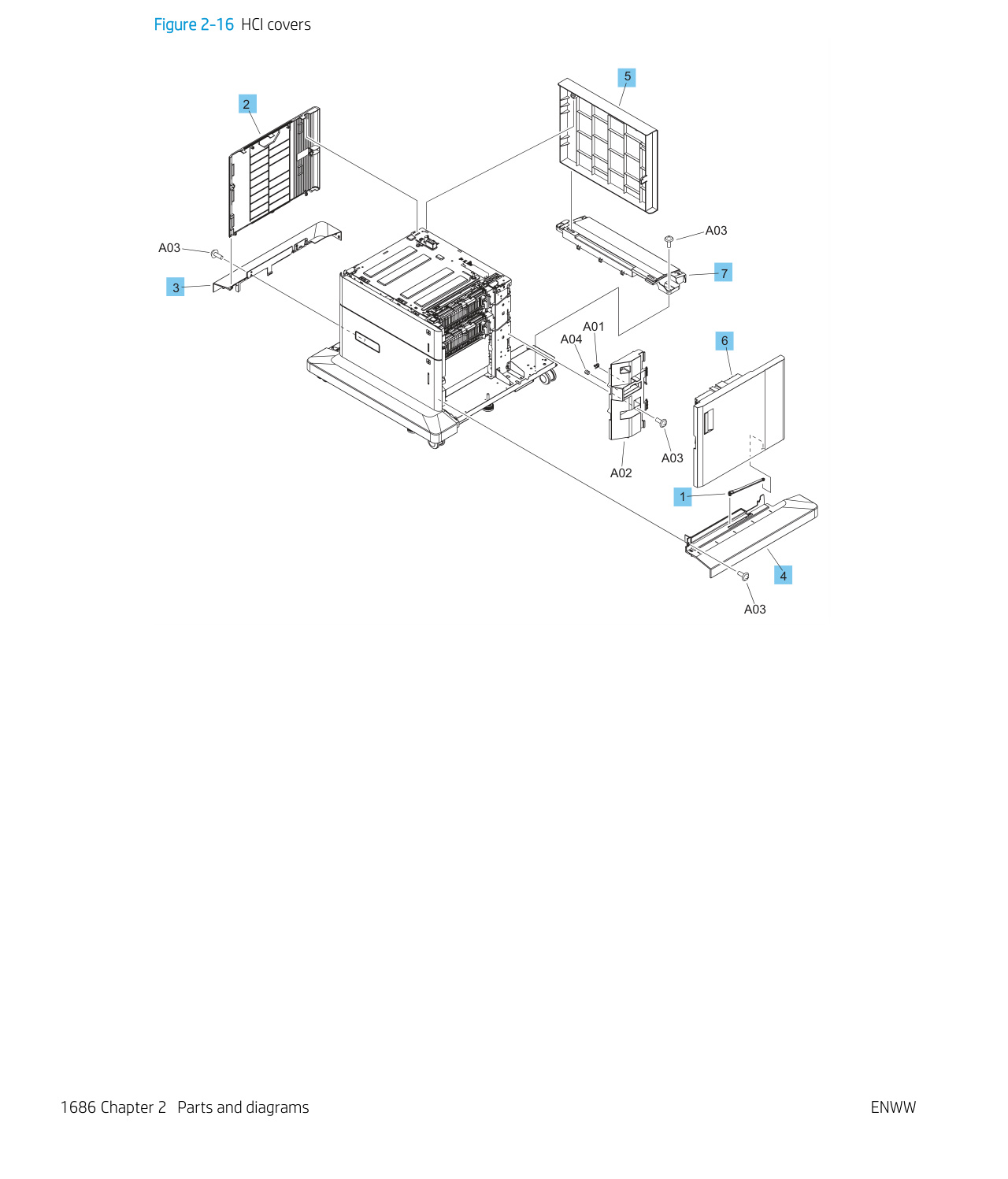

2-16 — HCI covers

1   RC4-9824-000CN   Link, door (HCI) (qty 1) 2   RC5-0387-000CN   Cover, left (HCI) (qty 1) 3   RC5-0385-000CN   Cover, left lower (HCI) (qty 1) 4   RC5-0384-000CN   Cover, right lower (HCI) (qty 1) 5   RC5-0386-000CN   Cover, rear (HCI) (qty 1) 6   RM2-1218-000CN   Right door assembly (HCI) (qty 1) 7   RC5-0399-000CN   Cover, rear lower (HCI) (qty 1)

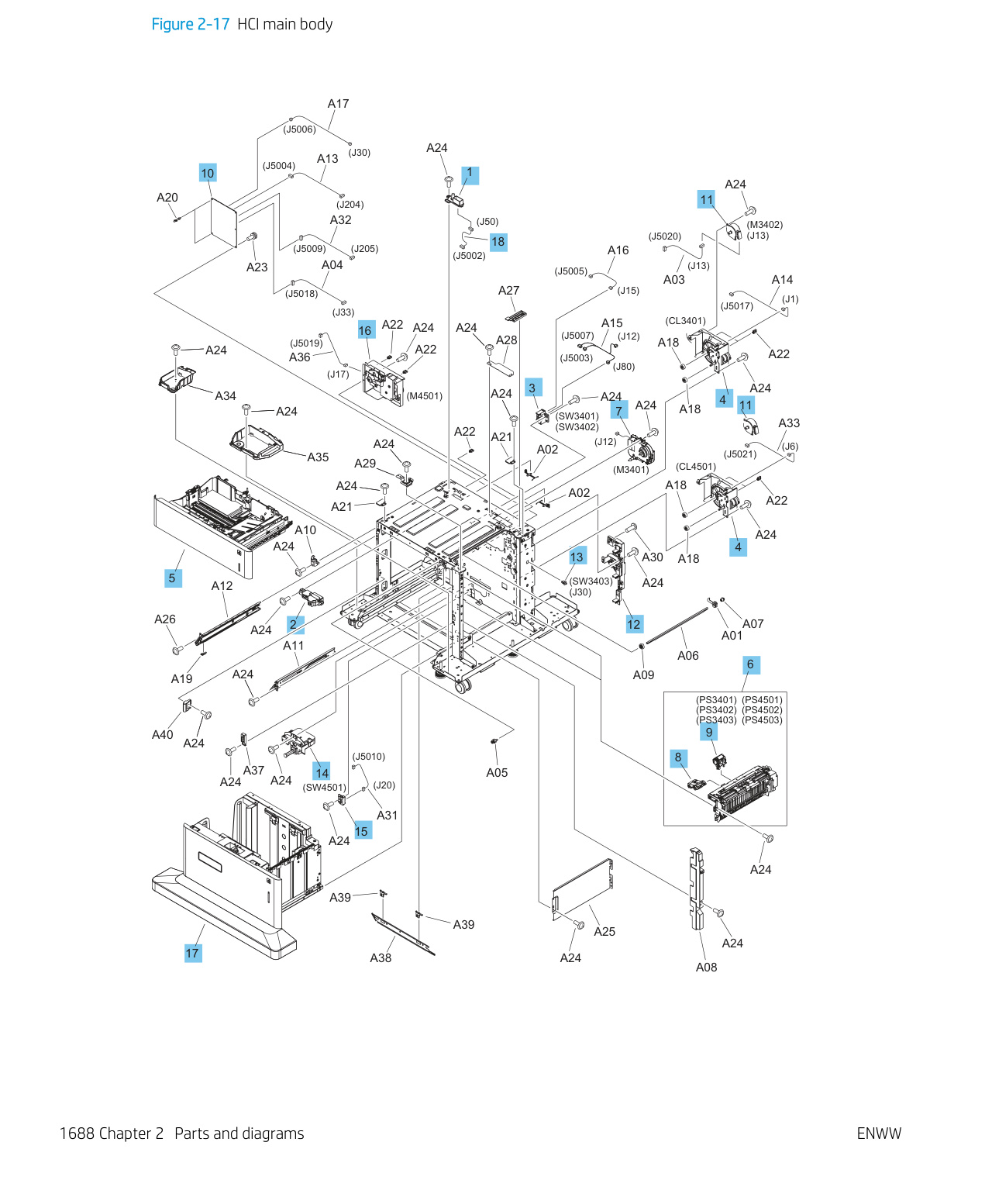

2-17 — HCI main body

1   RC4-8914-000CN   Holder, drawer connector (HCI) (qty 1) 2   RM2-0856-000CN   Auto close assembly (HCI) (qty 1) 3   RM2-0857-000CN   Size sensor assembly (HCI) (qty 1) 4   RM2-1222-000CN   Drive assembly (HCI) (qty 2) 5   RM2-1219-000CN   Cassette assembly (tray; HCI) (qty 1) 6   RM2-1235-000CN   Paper pick-up assembly (HCI) (qty 2) 7   RM2-2091-000CN   Lifter drive assembly (HCI) (qty 1) 10   RM2-8481-000CN   Paper deck cont. PCA (HCI) (qty 1) 11   RK2-7831-000CN   Motor, stepping (HCI) (qty 1) 12   RM2-1223-000CN   Estrangement holder assembly (HCI) (qty 1) 13   WC2-5803-000CN   Switch, push (HCI) (qty 1) 14   RM2-0918-000CN   Tray auto close assembly (HCI) (qty 1) 15   RM2-0921-000CN   Size sensor assembly (HCI) (qty 1) 16   RM2-0915-000CN   Tray lifter motor drive assembly (HCI) (qty 1) 17   RM2-1220-000CN   Tray assembly (HCI) (qty 1) 18   RM2-9286-000CN   Drawer upper cable assembly (HCI) (qty 1)

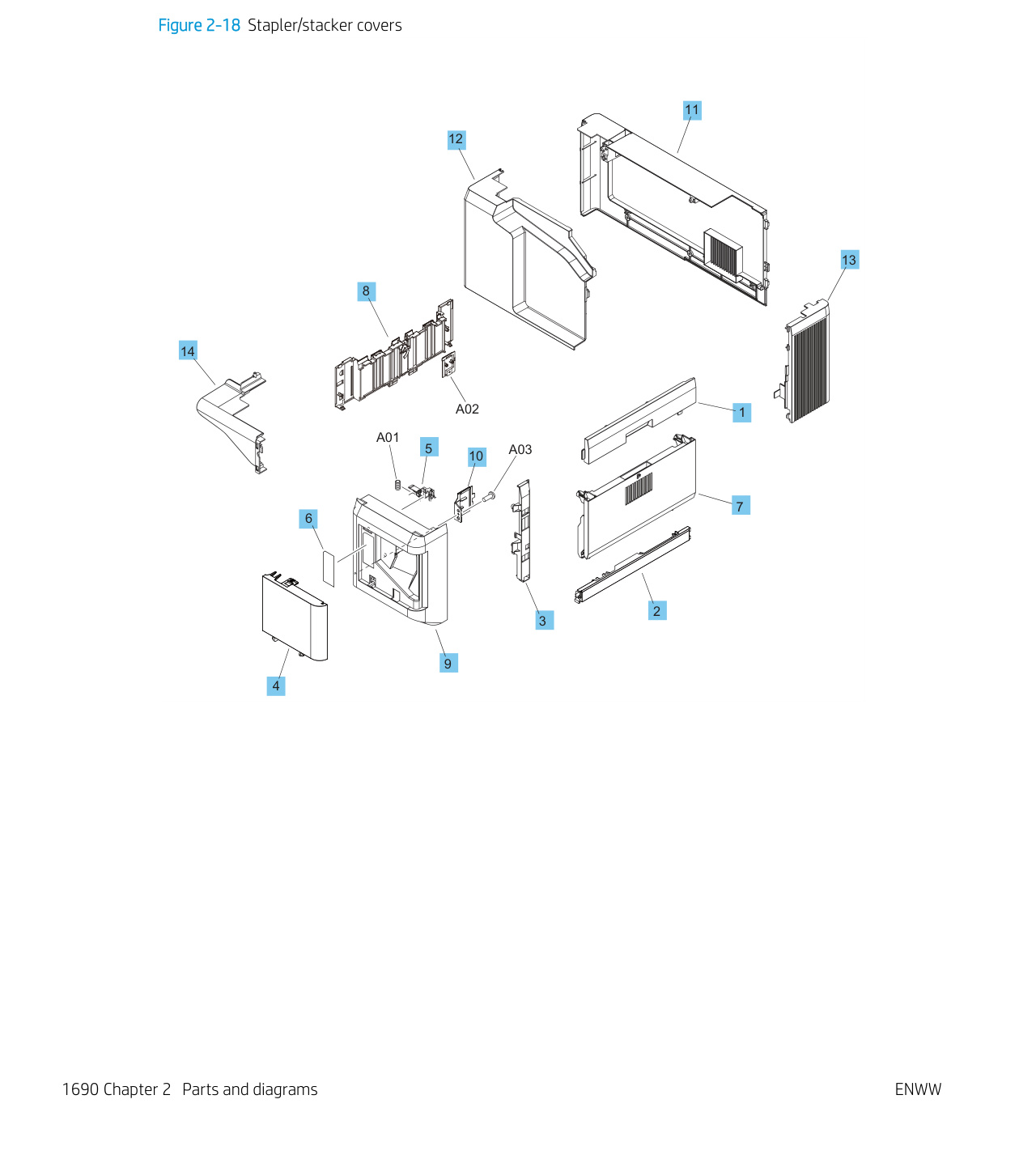

2-18 — Stapler/stacker covers

1   RC4-7409-000CN   Cover, right upper (stapler/stacker) (qty 1) 2   RC4-9439-000CN   Cover, right lower (stapler/stacker) (qty 1) 3   RC4-7412-000CN   Cover, staple rear (stapler/stacker) (qty 1) 4   RC4-9575-000CN   Door, staple (stapler/stacker) (qty 1) 5   RC4-9576-000CN   Arm, staple door lock (stapler/stacker) (qty 1) 6   RU7-8831-000CN   Label, staple exchange OPE. (stapler/stacker) (qty 1) 7   RM2-6807-000CN   Right door assembly (stapler/stacker) (qty 1) 8   RM2-1057-000CN   Stacking wall assembly (stapler/stacker) (qty 1) 9   RC4-7405-000CN   Cover, staple (stapler/stacker) (qty 1) 10   RC4-9586-000CN   Cover, right front (stapler/stacker) (qty 1) 11   RC4-7406-000CN   Cover, rear front (stapler/stacker) (qty 1) 12   RC4-7407-000CN   Cover, rear inner (stapler/stacker) (qty 1) 13   RC4-7408-000CN   Cover, rear corner (stapler/stacker) (qty 1) 14   RC4-7411-000CN   Cover, jogger (stapler/stacker) (qty 1)

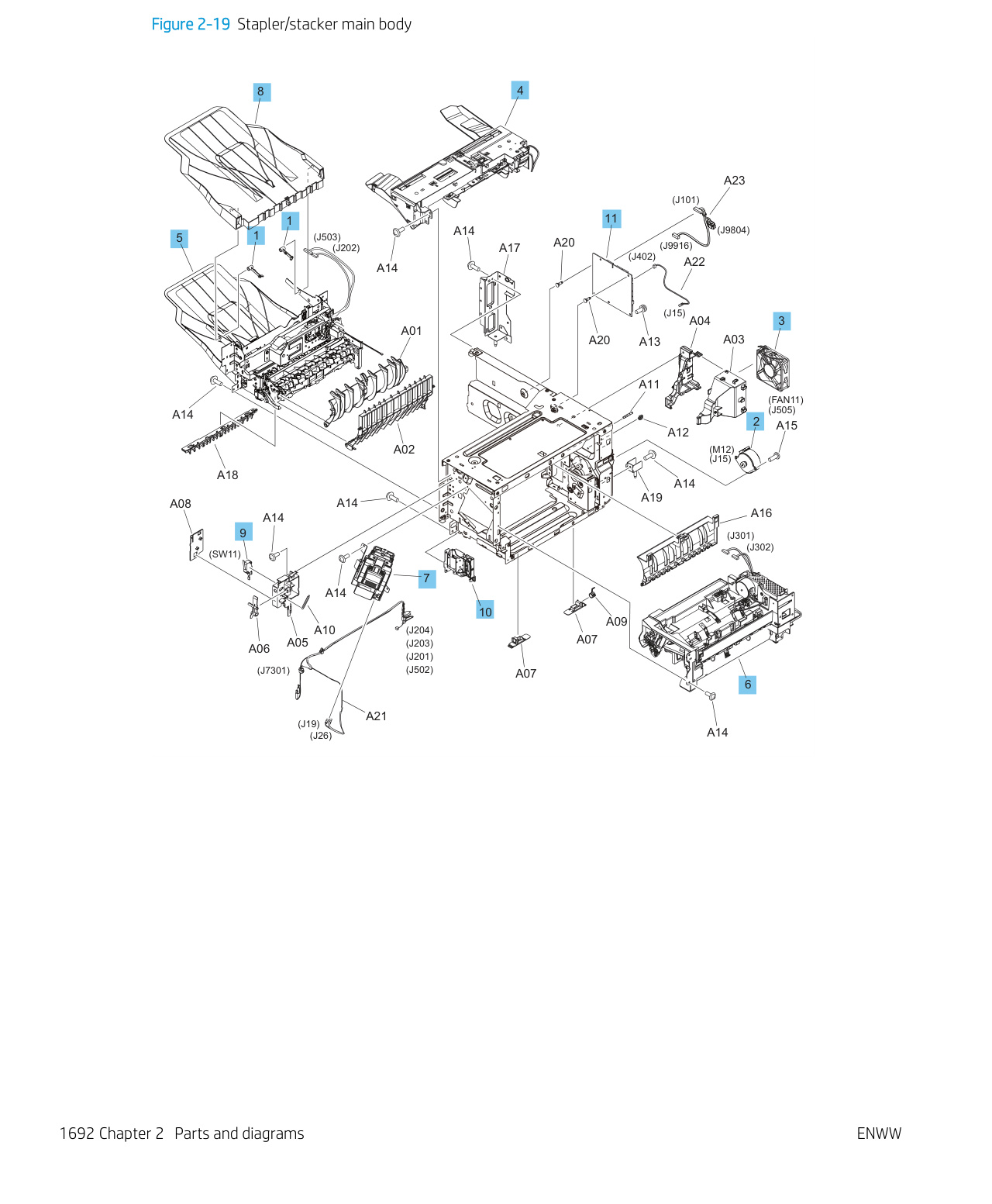

2-19 — Stapler/stacker main body

1   RC5-0353-000CN   Pin, tray fixed (stapler/stacker) (qty 2) 2   RK2-8149-000CN   Motor, stepping, DC (stapler/stacker) (qty 1) 3   RK2-8153-000CN   Fan (stapler/stacker) (qty 1) 4   RM2-1066-000CN   Jog assembly (stapler/stacker) (qty 1) 5   RM2-6813-000CN   Lower paper feed assembly (stapler/stacker) (qty 1) 6   RM2-6810-000CN   Upper paper feed assembly (stapler/stacker) (qty 1) 7   RM2-1193-000CN   Stapler assembly (stapler/stacker) (qty 1) 8   RM2-1196-000CN   Tray assembly (stapler/stacker) (qty 1) 9   WC4-5171-000CN   Microswitch (stapler/stacker) (qty 1) 10   RM2-1040-000CN   Solenoid assembly (stapler/stacker) (qty 1) 11   RM2-8689-000CN   Staple stacker PCA (stapler/stacker) (qty 1)
