HP Color LaserJet Enterprise MFP 8801 Parts

Exploded parts diagrams and part numbers for the HP Color LaserJet Enterprise MFP 8801dn and Flow MFP 8801z, 8801z+ and 8801zb+. Part numbers are taken directly from HP's repair manual. Where a part shows an order button we have it in stock — for anything else, call us on 1-888-742-9565 and we will source it.

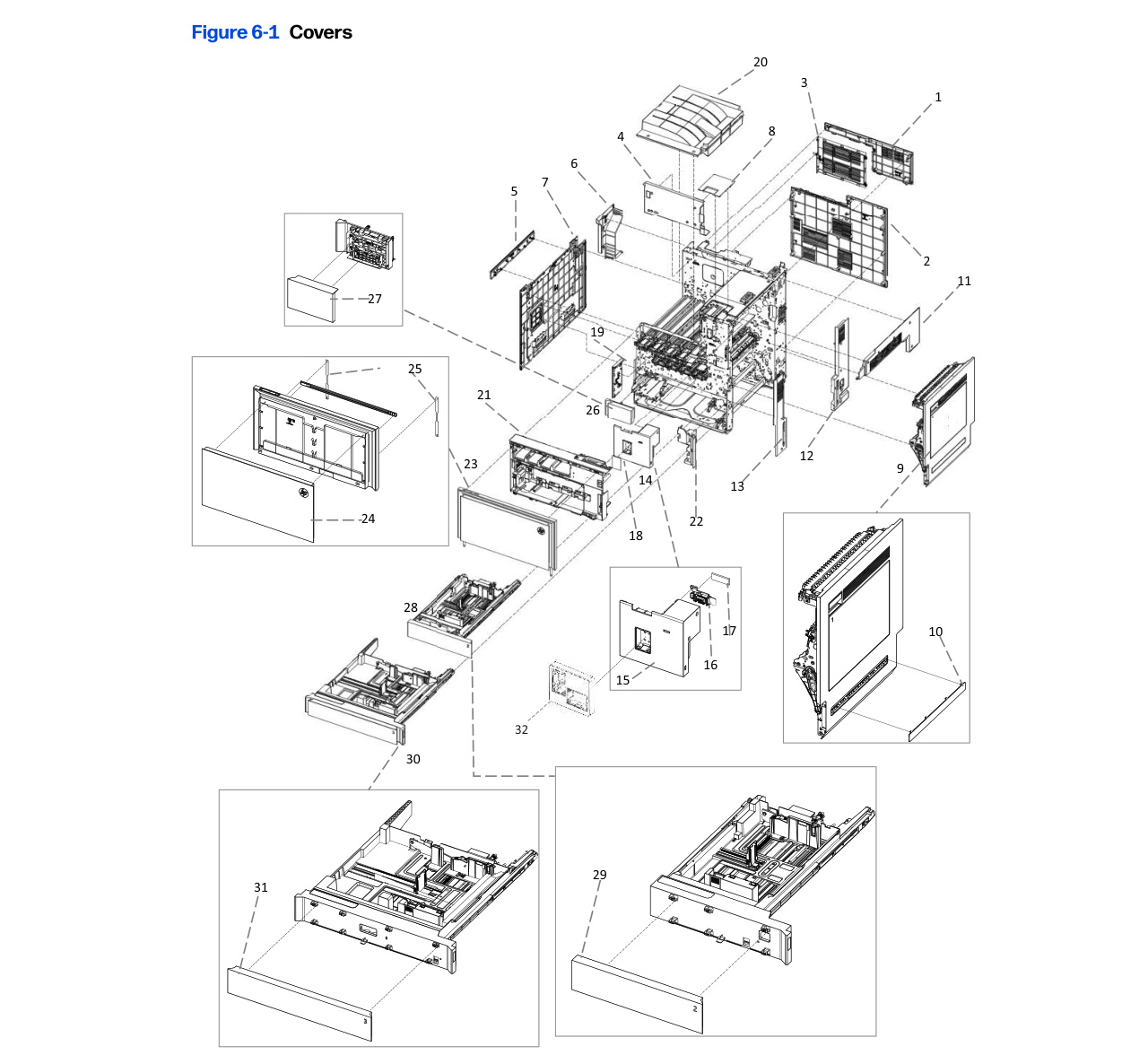

**6-1 — Covers**
6ER04-40008 Rear upper cover (qty 1) 6ER04-40019 Rear lower cover (qty 1) 6ER04-61005 Controller cover Parts (qty 1) 6ER04-40028 Exit rear cover (qty 1) 6ER04-40027 Left upper cover (qty 1) 6ER04-40049 Left cover (qty 1) 6ER04-40026 Middle upper cover (qty 1) 6ER04-40021 Right upper cover (qty 1) 6ER04-61003 Right rear cover (qty 1) 6ER04-40005 Right front cover (qty 1) 6ER04-61006 Right middle cover assembly (qty 1) 15 6ER04-40025 Right middle cover (qty 1) 16 6EQ94-40029 Power key (qty 1) 3SJ33-60007 PCA -power key (qty 1) 3SJ33-60007 PCA-PBA KEY SUB New 3SJ33-60007 (New) 3-4 Day Lead $88.40 6EQ94-40032 HIP cover (qty 1) 6ER04-40036 Middle left cover (qty 1) 6ER04-61004 Exit cover stacker (qty 1) 6ER04-40048 Inner cover (qty 1) 6ER04-40030 Front lower cover (qty 1) 6ER04-61001 Front cover assembly (qty 1) 24 6ER04-40003 Front cover - Blue CMF Panel (qty 1) 6ER04-40050 TCU cover assembly (qty 1) 27 5QK03-40044 TCU cover - Blue CMF Panel (qty 1) 5QK03-40027 Tray 2 cover - Blue CMF panel (qty 1) 5QK09-60121 Tray 3 (qty 1) 5QK09-40058 Tray 3 cover - Blue CMF panel (qty 1) 32 63C82-67029 Card reader rotation adapter X3A92-67924 Kit-Screws c-clips e-clips

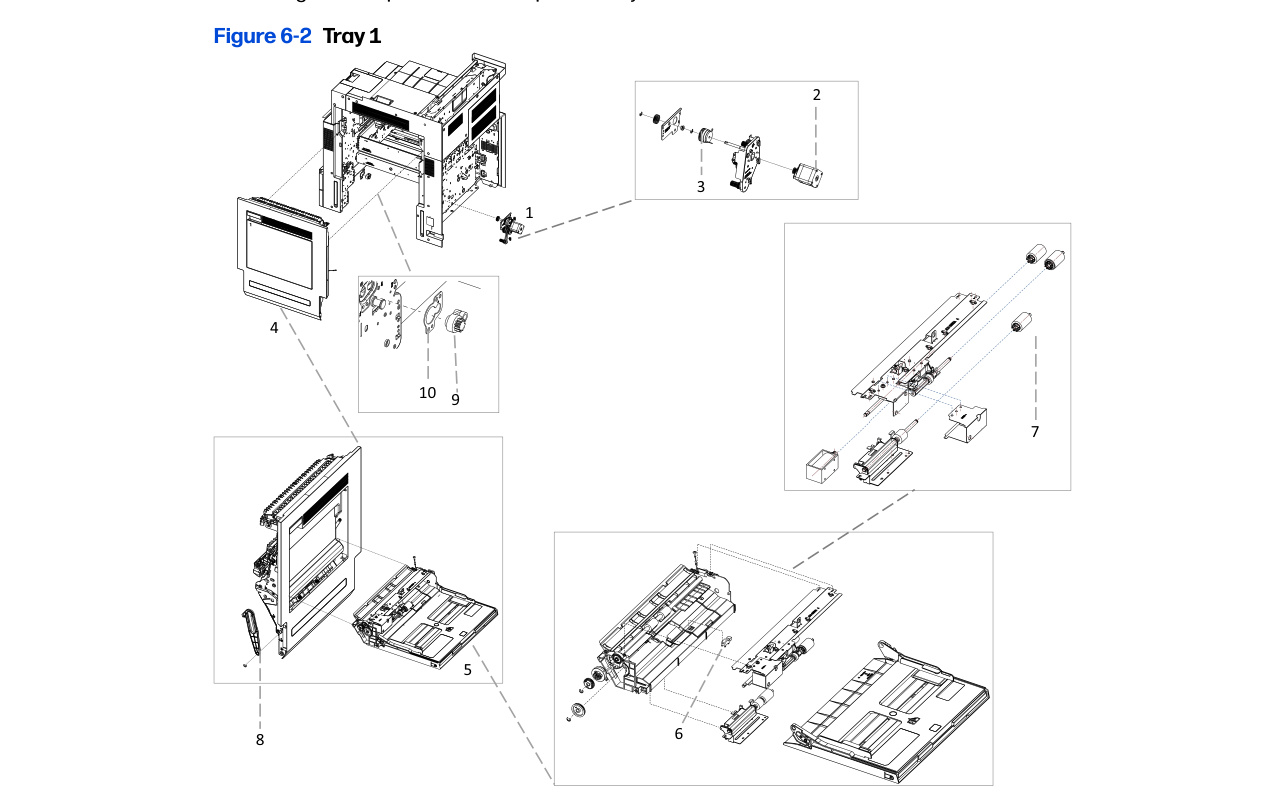

**6-2 — Tray 1**
5RC03-67001 Tray 1 roller kit (qty 1) 5RC03-67001 MP Roller Kit New 5RC03-67001 (New) $134.64

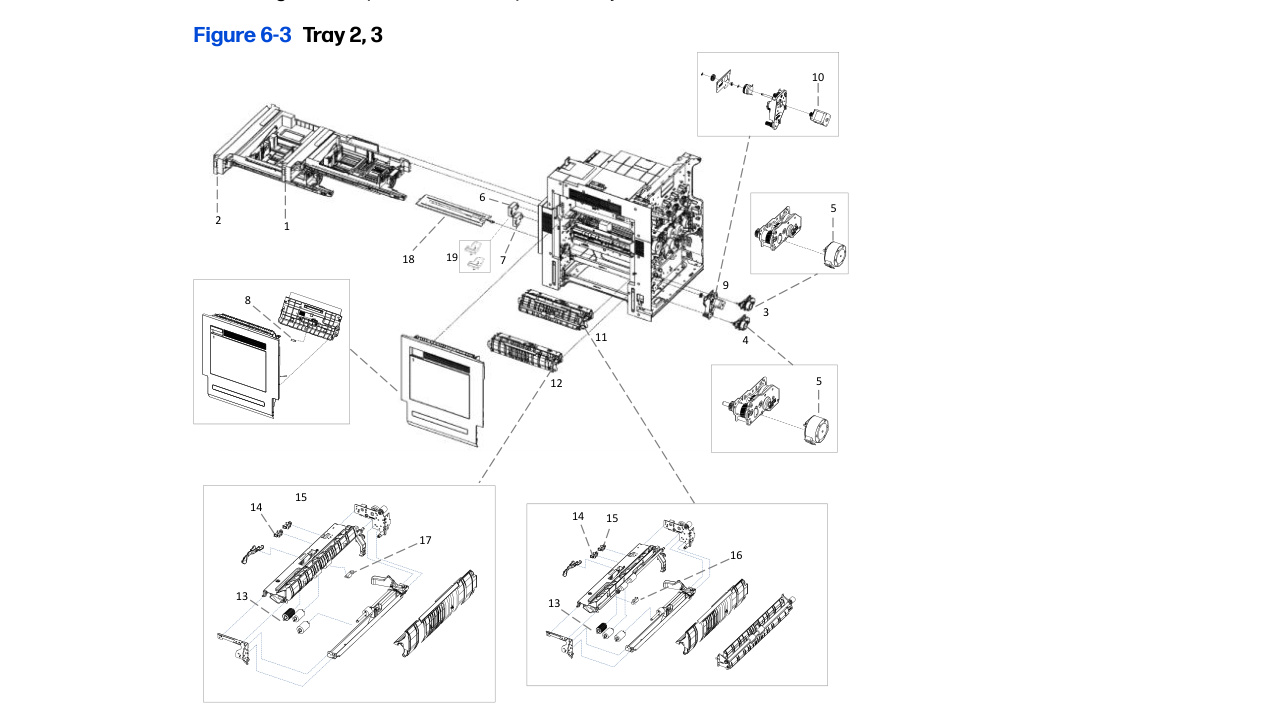

**6-3 — Tray 2, 3**
5QK09-60121 Tray 3 (qty 1) 5PN66-67001 Tray 2, 3 roller kit (qty 1) 5PN66-67001 Feed Roller Kit New 5PN66-67001 (New) $134.64 3SJ00-60110 Photo interrupter (Tray 2, sensor) Y1G22-67901 Tray heater 110V (qty 1) Y1G22-67902 Tray heater 220V Registration (qty 1)

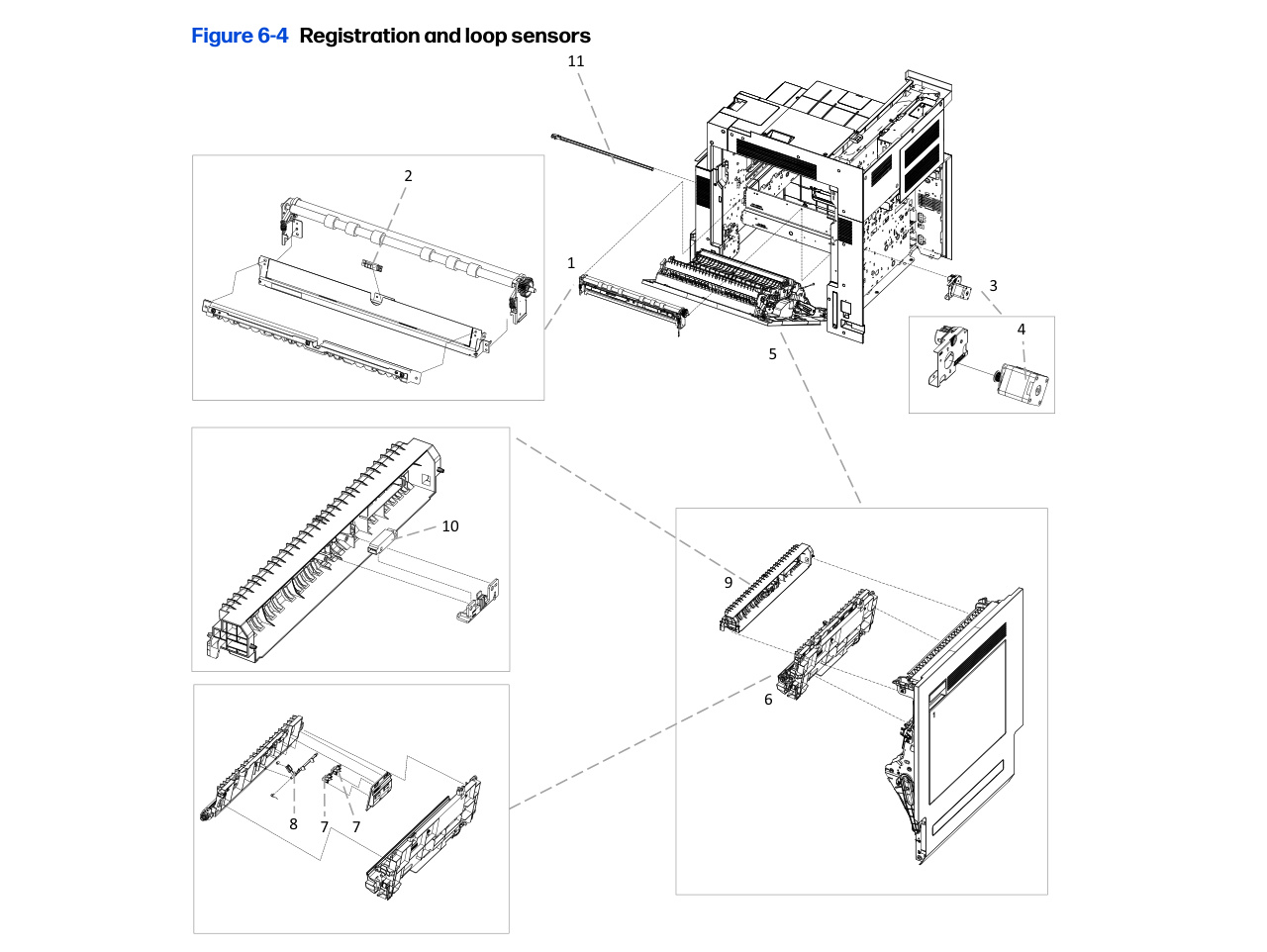

**6-4 — Registration and loop sensors**
8GS05-60128 Registration unit (qty 1) 5PN80-67002 Second transfer(T2) assembly (qty 1) 3SJ00-60110 Photo interrupter (Loop sensor

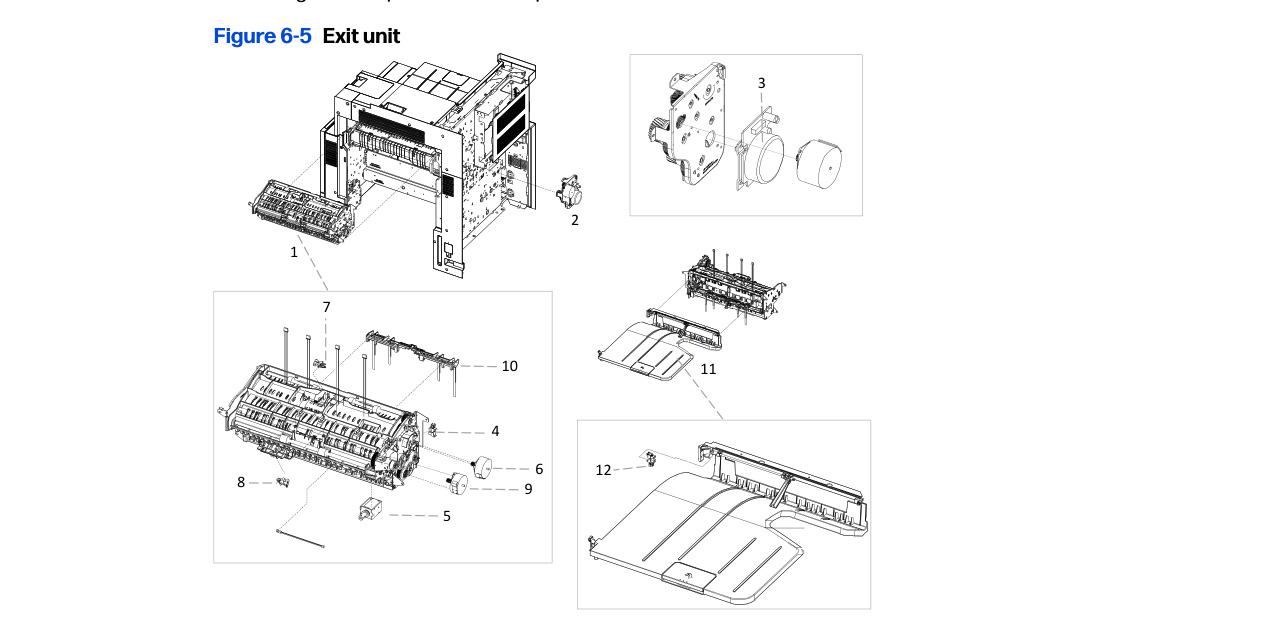

**6-5 — Exit unit**
0960-5271 Paper sensor (Fuser out sensor) 6 12 (qty 1) 3SJ00-60110 Photo interrupter (Out bin 3SJ00-60110 Photo interrupter (Exit 2 sensor) (qty 1) 3SJ00-60110 Photo interrupter (Duplex 3SJ00-60110 Photo interrupter (Out bin)

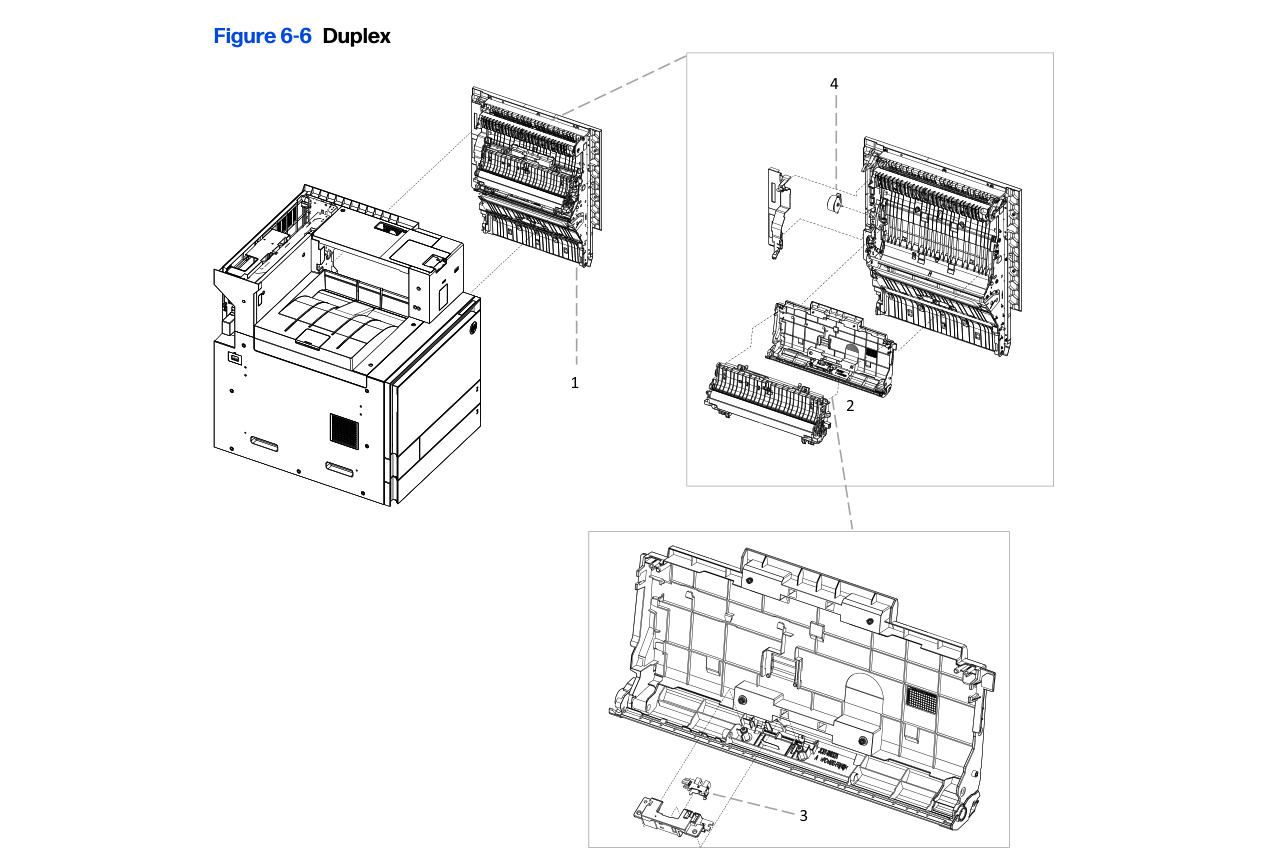

**6-6 — Duplex**
3SJ00-60110 Photo interrupter Duplex

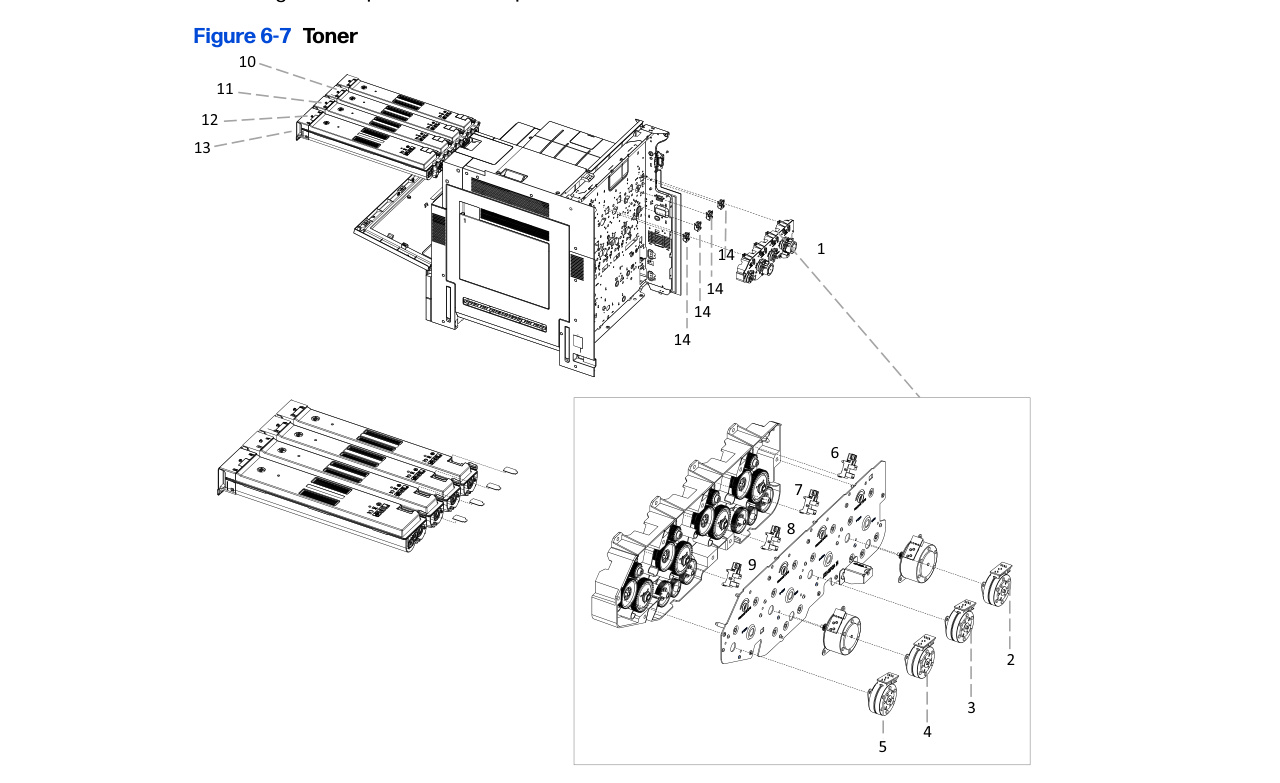

**6-7 — Toner**
SS216-80501 Yellow toner dispense motor (qty 1) SS216-80501 Magenta toner dispense SS216-80501 Cyan toner dispense motor (qty 1) SS216-80501 Black toner dispense motor (qty 1) 3SJ00-60110 Photo interrupter (Yellow sensor) 3SJ00-60110 Photo interrupter (Magenta motor sensor) 3SJ00-60110 Photo interrupter (Cyan toner sensor) 3SJ00-60110 Photo interrupter (Black toner sensor) W2252-67002 Yellow toner cartridge (qty 1) W2252-67003 Yellow toner cartridge - Contract (qty 1) W2253-67002 Magenta toner cartridge (qty 1) W2253-67003 Magenta toner cartridge W2251-67002 Cyan toner cartridge (qty 1) W2251-67003 Cyan toner cartridge -Contract (qty 1) W2250-67002 Black toner cartridge (qty 1) W2250-67003 Black toner cartridge -Contract (qty 1)

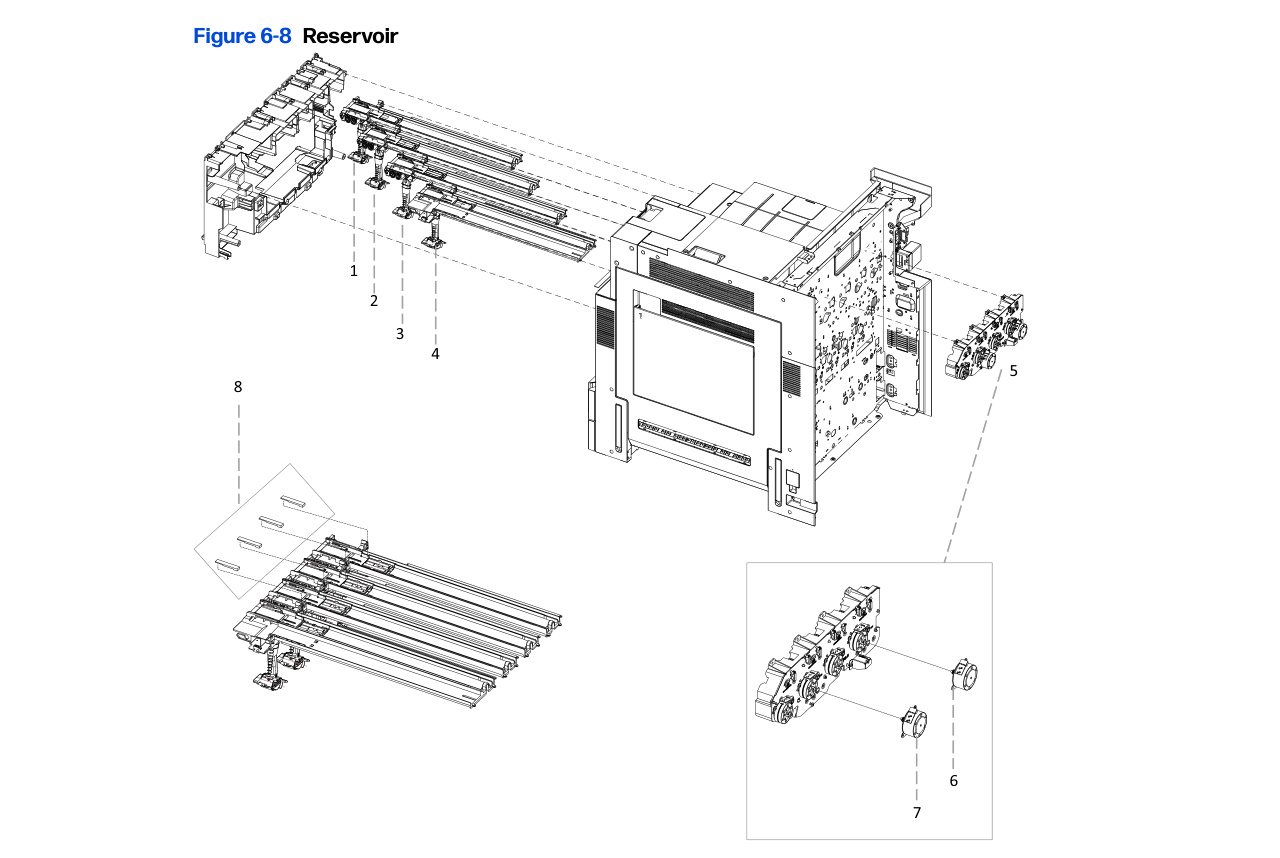

**6-8 — Reservoir**
5QK03-60130 Yellow reservoir unit (qty 1) 5QK03-60130 Magenta reservoir unit (qty 1) 5QK03-60130 Cyan reservoir unit (qty 1) 5QK03-60129 Black reservoir unit reservoir motor) motor) (qty 1) 5QK03-60129 Toner Reservoir Black New 5QK03-60129 (New) 3-4 Day Lead Contact for Details

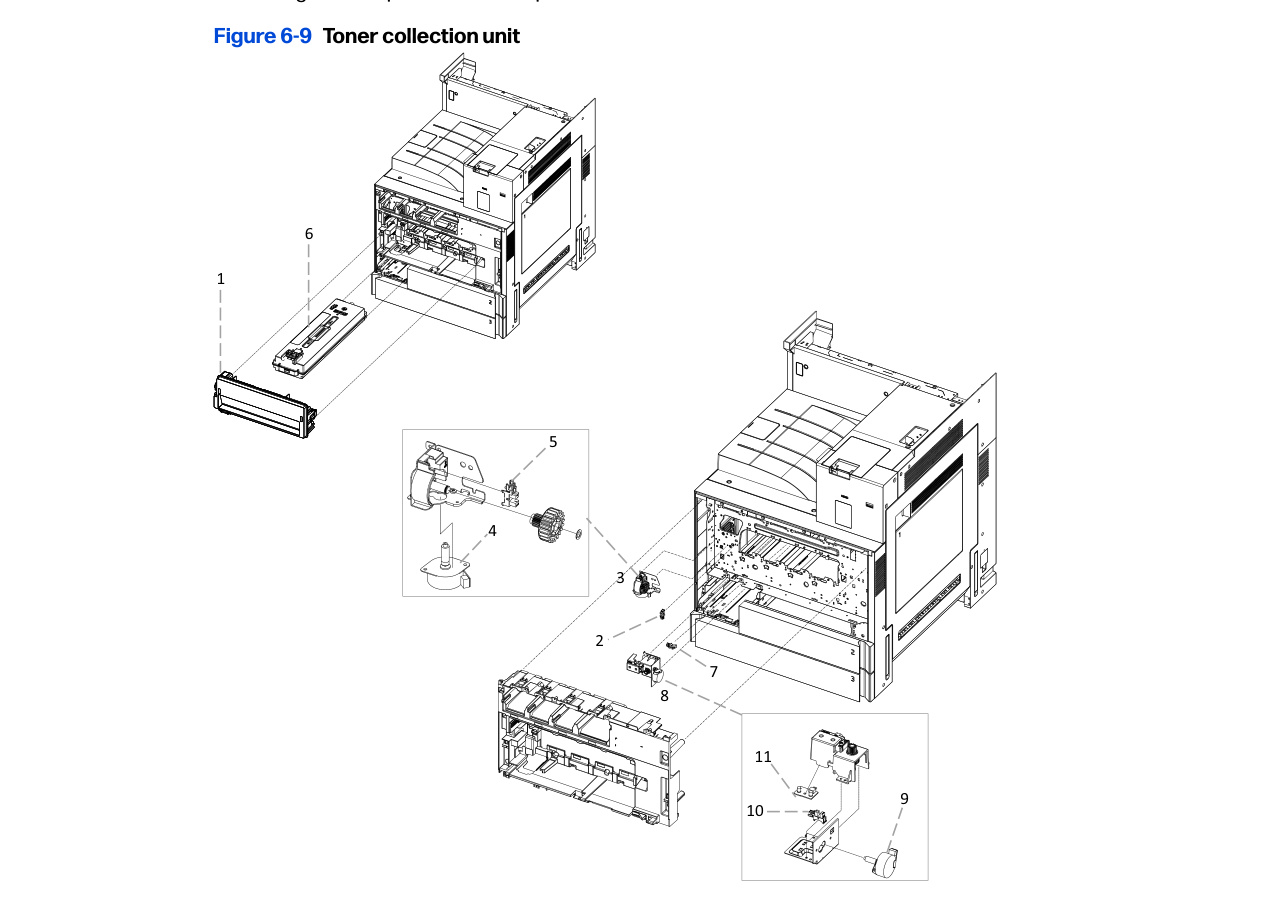

**6-9 — Toner collection unit**
3SJ00-60110 Photo interrupter (toner collection detection sensor) motor) Toner 3SJ00-60110 Photo interrupter (toner collection motor sensor) A91Z4-67001 Toner collection unit (qty 1) 3SJ00-60110 Photo interrupter (Toner collection detection sensor) 3SJ00-60110 Photo interrupter (Toner collection sensor)

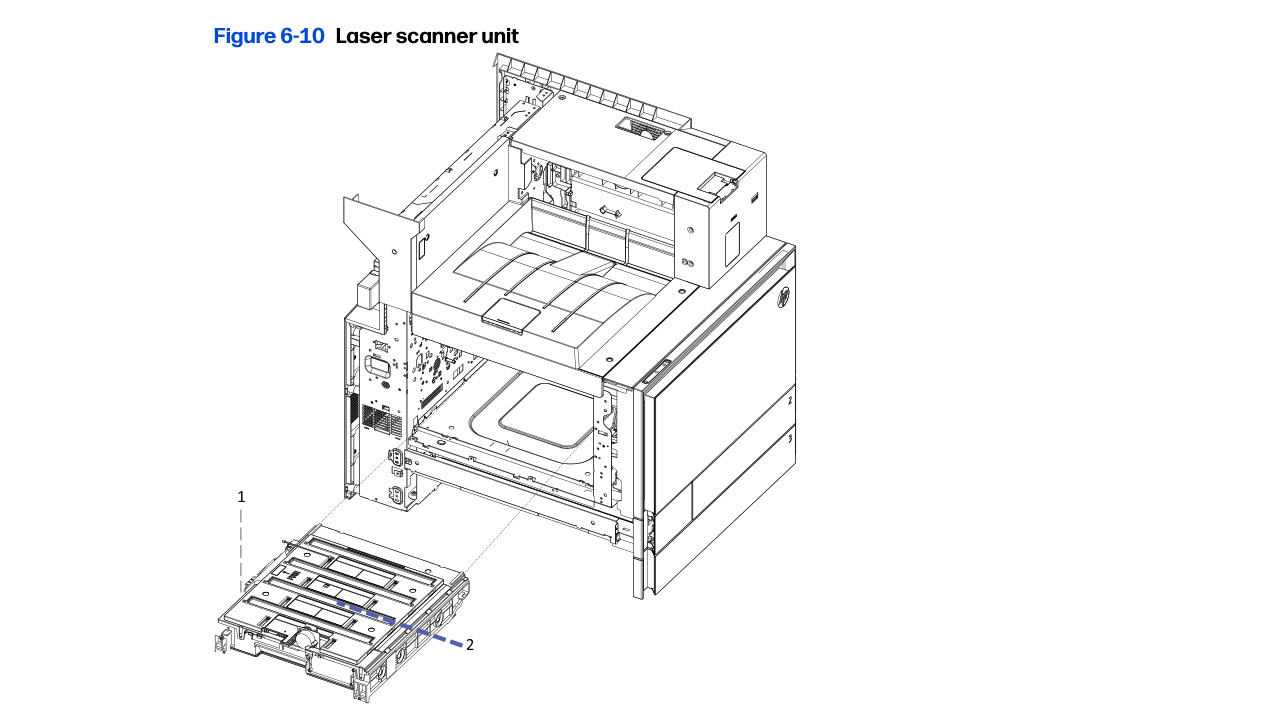

**6-10 — Laser scanner unit**
2 3SJ19-20001 Motor DC-Polygon (qty 1)

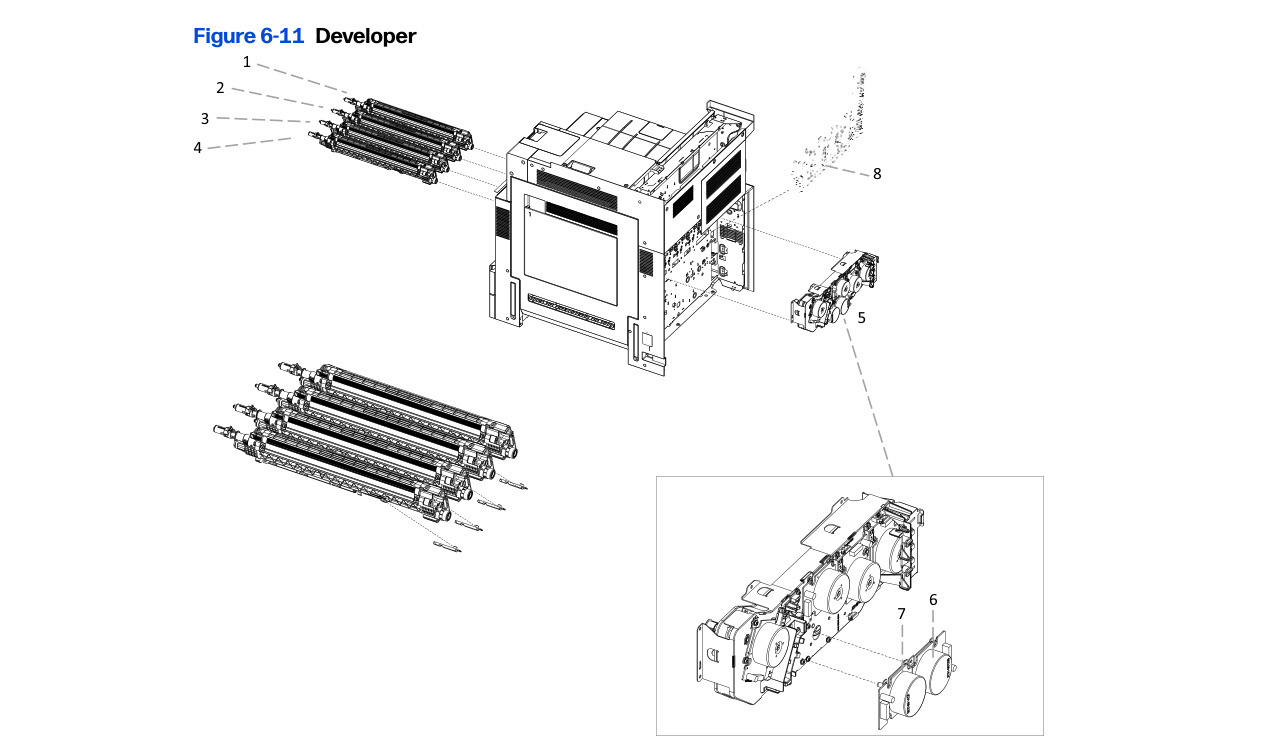

**6-11 — Developer**
5PN73-67002 Yellow developer unit (qty 1) 5PN73-67002 Developer Unit - Yellow New 5PN73-67002 (New) $251.60 5PN74-67002 Magenta developer unit (qty 1) 5PN74-67002 3-4 Day Lead Developer Unit - Magenta New 5PN74-67002 (New) 3-4 Day Lead $251.60 5PN75-67002 Cyan developer unit (qty 1) 5PN75-67002 Developer Unit - Cyan New 5PN75-67002 (New) $251.60 5PN72-67002 Black developer unit motor) (qty 1) 5PN72-67002 Developer Unit - Black New 5PN72-67002 (New) $251.60 5PN73-67001 Yellow developer powder 5PN74-67001 Magenta developer powder 5PN75-67001 Cyan developer powder kit (qty 1)

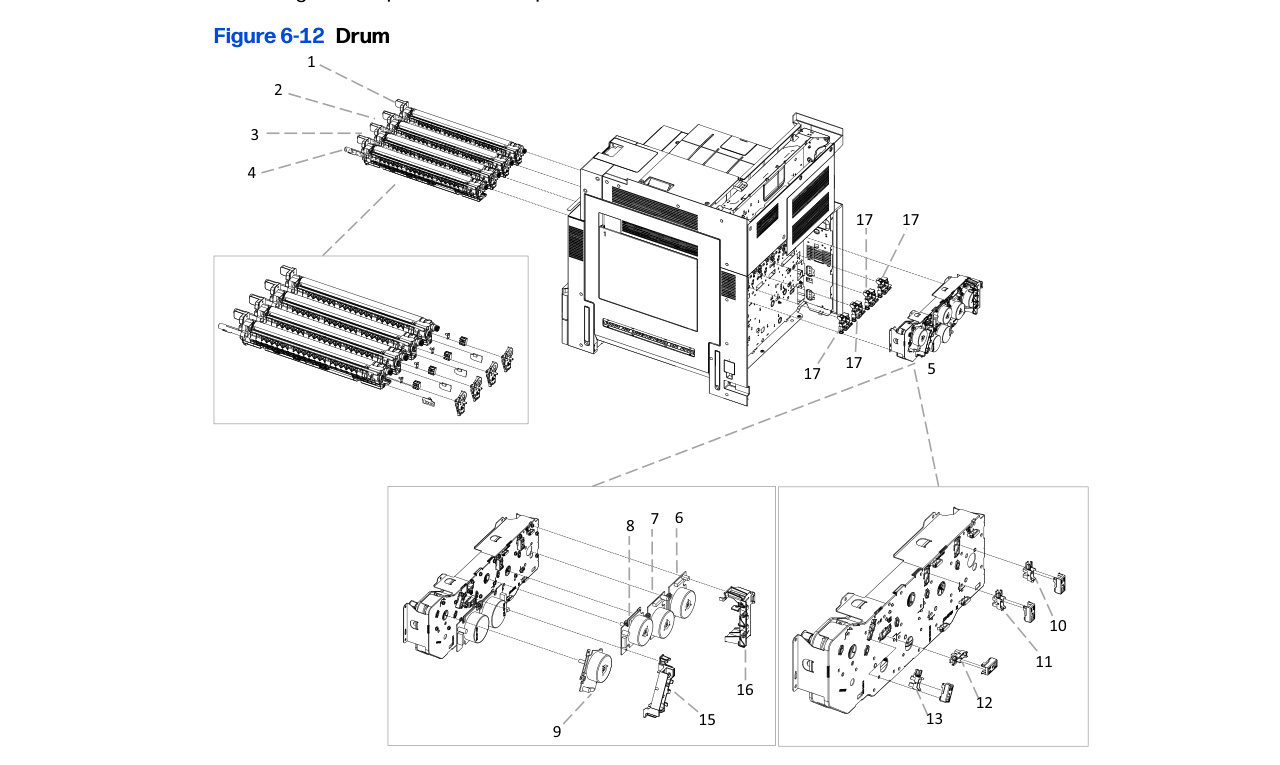

**6-12 — Drum**
5PN72-67001 Black developer powder kit 6 7 8 (qty 1) W2257-67001 Yellow drum unit (qty 1) W2257-67001 Magenta drum unit (qty 1) W2257-67001 Cyan drum unit (qty 1) W2256-67001 Black drum unit (qty 1) 3SJ00-60110 Photo interrupter (Yellow 3SJ00-60110 Photo interrupter (Magenta sensor) 3SJ00-60110 Photo interrupter (Cyan drum 3SJ00-60110 Photo interrupter (Black drum

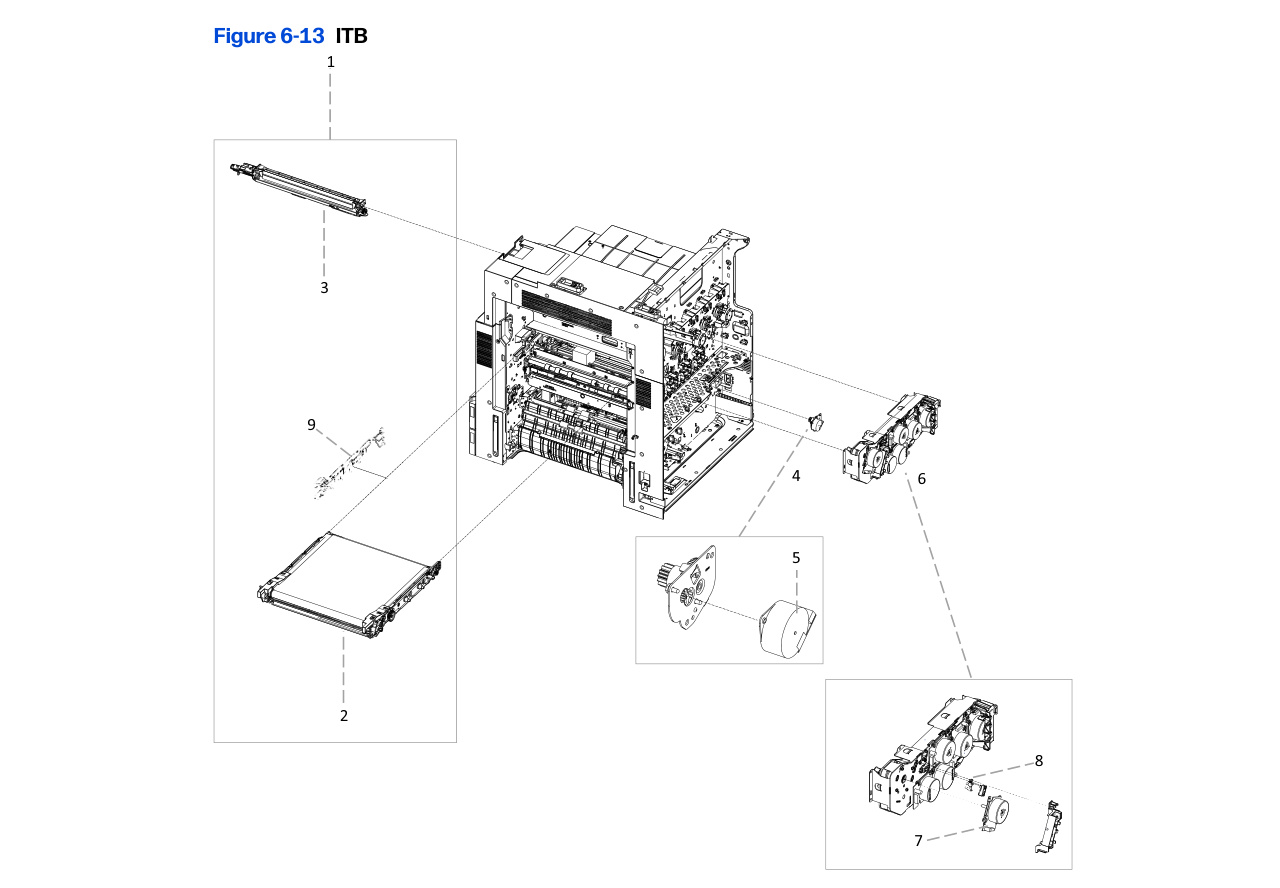

**6-13 — ITB**
5PN78-67001 ITB and ITB cleaning unit 5PN78-67001 IBT Intermediate Transfer Belt Assembly New 5PN78-67001 (New) 3-4 Day Lead $689.00 5PN79-67001 ITB cleaning unit (qty 1) 3SJ00-60110 Photo interrupter (Black drum 9 5QK03-64004 Guide rail HV frame assembly (qty 1)

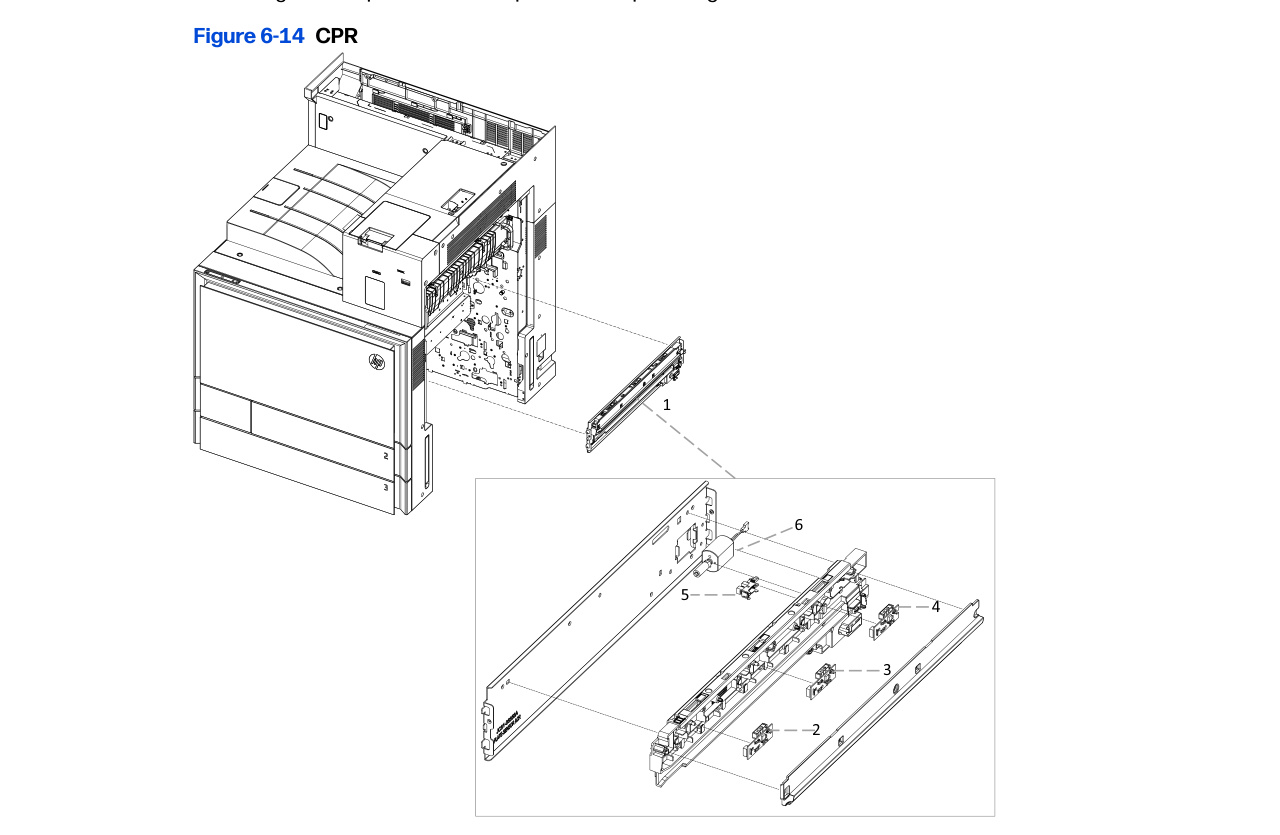

**6-14 — CPR**
5QK03-60102 CPR unit (qty 1) 3SJ00-60110 Photo interrupter (CPR shutter

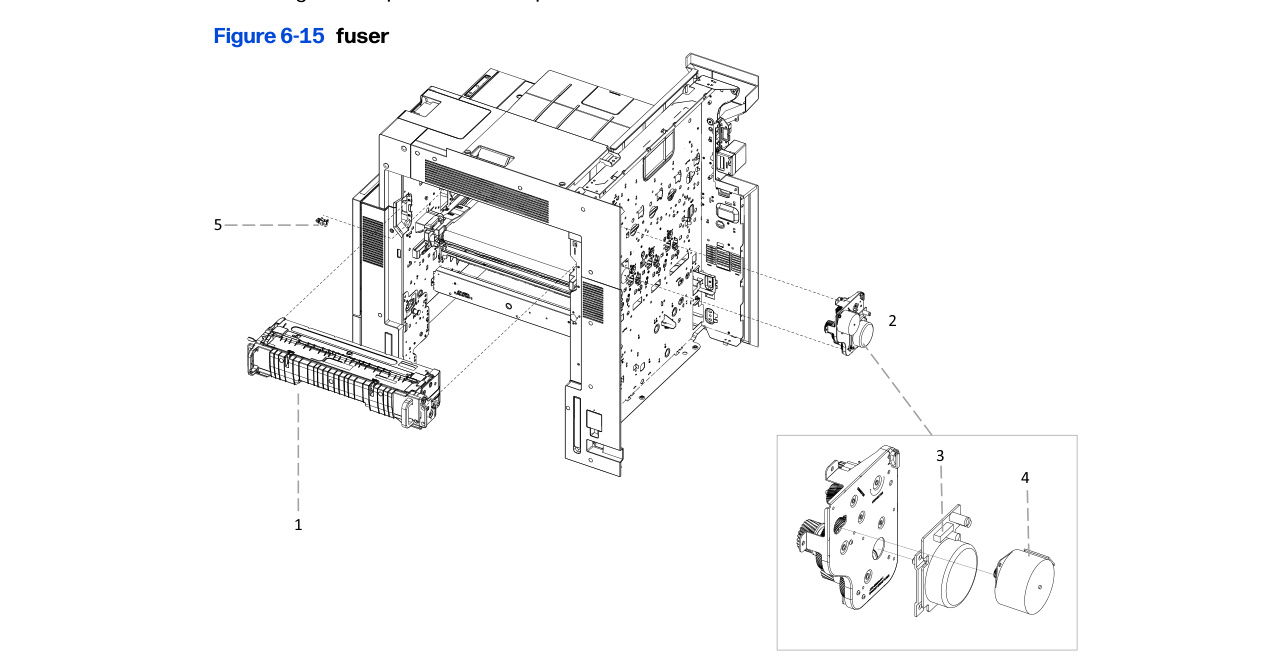

**6-15 — fuser**
5PN53-67001 Fuser unit -100V (qty 1) 5PN76-67001 Fuser unit -110V (qty 1) 5PN76-67001 Fuser Assembly - 110V New 5PN76-67001 (New) $850.00 5PN77-67001 Fuser unit -220V (qty 1) 3SJ00-60110 Photo interrupter (Fuser gap

**6-16 — Sensor and fan**
5QJ90-40002 Outer environment sensor 5QK03-40103 Fuser fan duct assembly (qty 1)

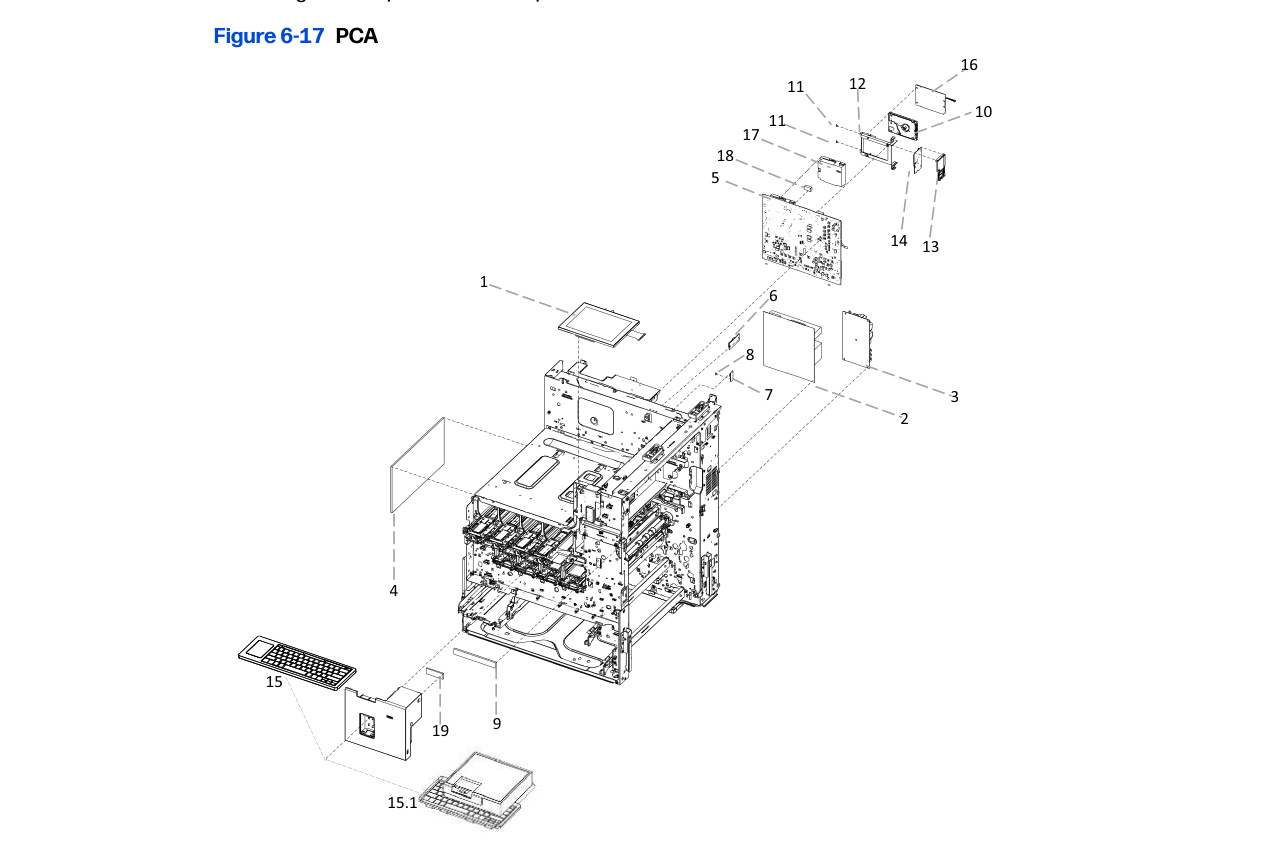

**6-17 — PCA**
5QK42-60104 Control-panel assembly 25.6 6CF14-67001 Main PCA (Formatter) (qty 1) 3SJ06-60001 Island of Data (IOD) PCA (qty 1) 3SJ04-60002 USB Hub PCA (qty 1) 0950-5111 Solid-state drive 256GB (qty 1) 11 6ER04-40035 Rivet-SSD (qty 1) 13 5851-8707 Cradle-Riser Card (qty 1) 3SJ01-60002 Riser for SSD (qty 1) 63C82-67003 Keyboard (drawer type) Assy 63C82-67005 Keyboard (drawer type) Assy 5851-6019 Keyboard overlay kit (FR, IT, RU, 5851-6020 Keyboard overlay kit (FR-CN, 5851-6021 Keyboard overlay kit (FR-SW, 5851-6022 Keyboard overlay kit (ZHTW, ZHCN) (qty 1) 5851-6023 Keyboard overlay kit (ES, PT) (qty 1) 5851-6024 Keyboard overlay kit (JA-KG, JA-KT) (qty 1) 6HN30-67001 Accelerator(Optional) (qty 1) 7ZA08-67001 Single Fax Card (WW)(Optional) (qty 1) 7ZA09-67001 Single Fax Card (BBU)(Optional) (qty 1) 5QK14-67001 Dual Fax Card (WW)(Optional) (qty 1) 5QK14-67001 Analog Dual Fax 810 Accessory New 5QK14-67001 (New) 3-4 Day Lead $945.20 7ZA07-67001 Dual Fax Card (BBU)(Optional) (qty 1) 3SJ33-60007 PCA -power key (qty 1) 3SJ33-60007 PCA-PBA KEY SUB New 3SJ33-60007 (New) 3-4 Day Lead $88.40

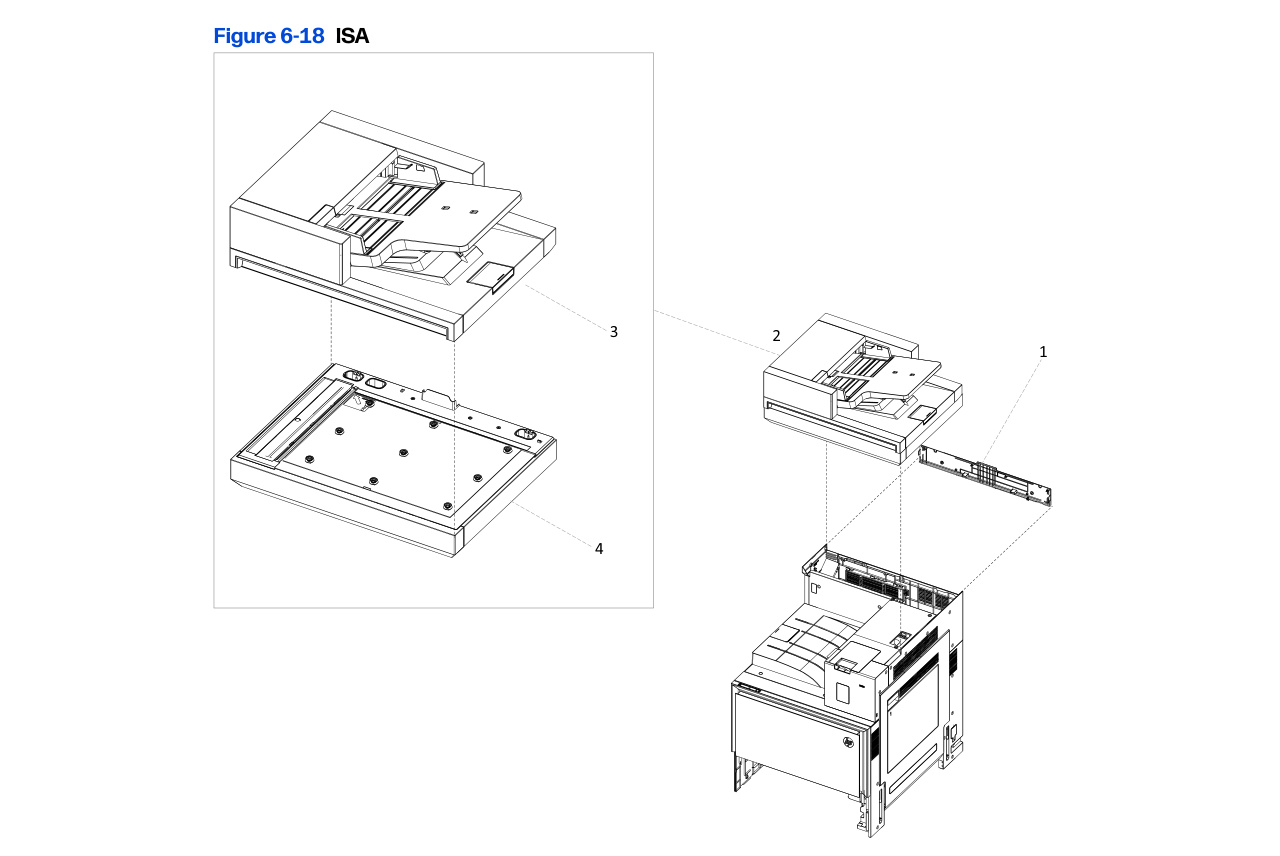

**6-18 — ISA**
1 3SJ11-40008 Cover Rear (qty 1) 2 5QK38-67002 HP LaserJet 180ipm 200 speed Scanner 2 5QK39-67002 HP LaserJet 300ipm 300 high speed Scanner 3 5QK08-67014 300sh flow ADF (white backing suspension clips included) NOTE: Availability of this depending on regional supply conditions. 5QJ90-67011 200sh ADF (qty 1) 5QJ90-67011 ADF Assembly Non-Flow DN Models New 5QJ90-67011 (New) 3-4 Day Lead $1013.20 3SJ32-60103 Tarot HS platen (qty 1)

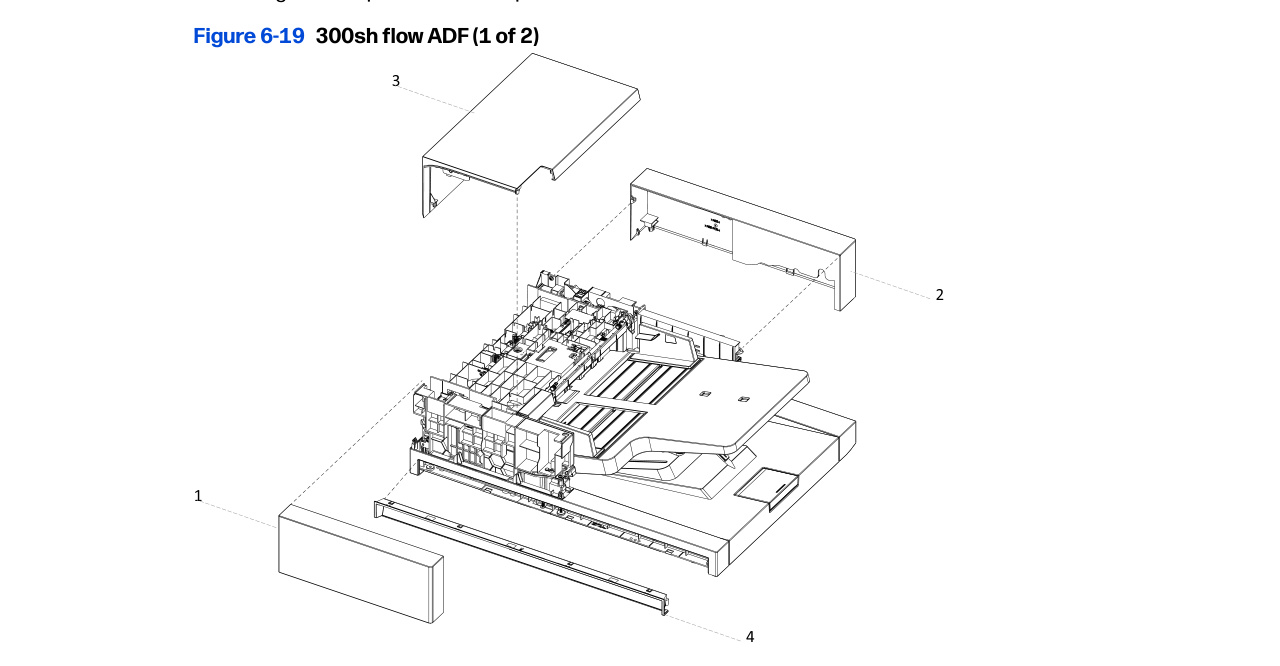

**6-19 — 300sh flow ADF (1 of 2)**
5QJ90-40049 ADF front cover (qty 1) 5QJ90-40041 ADF rear cover (qty 1) 5QJ90-40054 ADF top cover (qty 1) 5QJ90-40056 ADF Blue CMF panel (qty 1)

**6-20 — 300sh flow ADF (2 of 2)**
A91Z5-67001 ADF roller kit (qty 1) Z9Y05-60004 300sh ADF PCA (qty 1) 5 Z9Y05-50002 ADF FFC cable to SSA (qty 1) 6 Z9Y05-50003 ADF Power cable (qty 1) 7 5QK08-67003 SVC-Hinge Kit (right, middle, 10 Z9Y05-60016 Damper module (qty 1) 11 5QK08-67005 SVC-A3 White Backing Kit (qty 1)

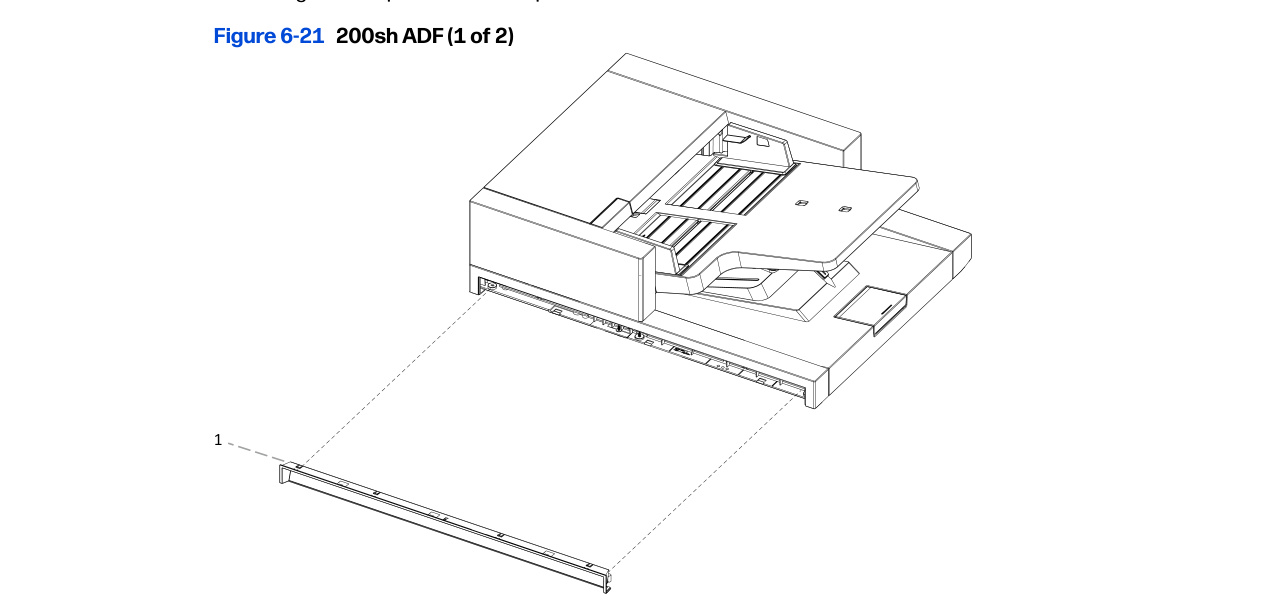

**6-21 — 200sh ADF (1 of 2)**
5QJ90-40056 ADF Blue CMF panel (qty 1)

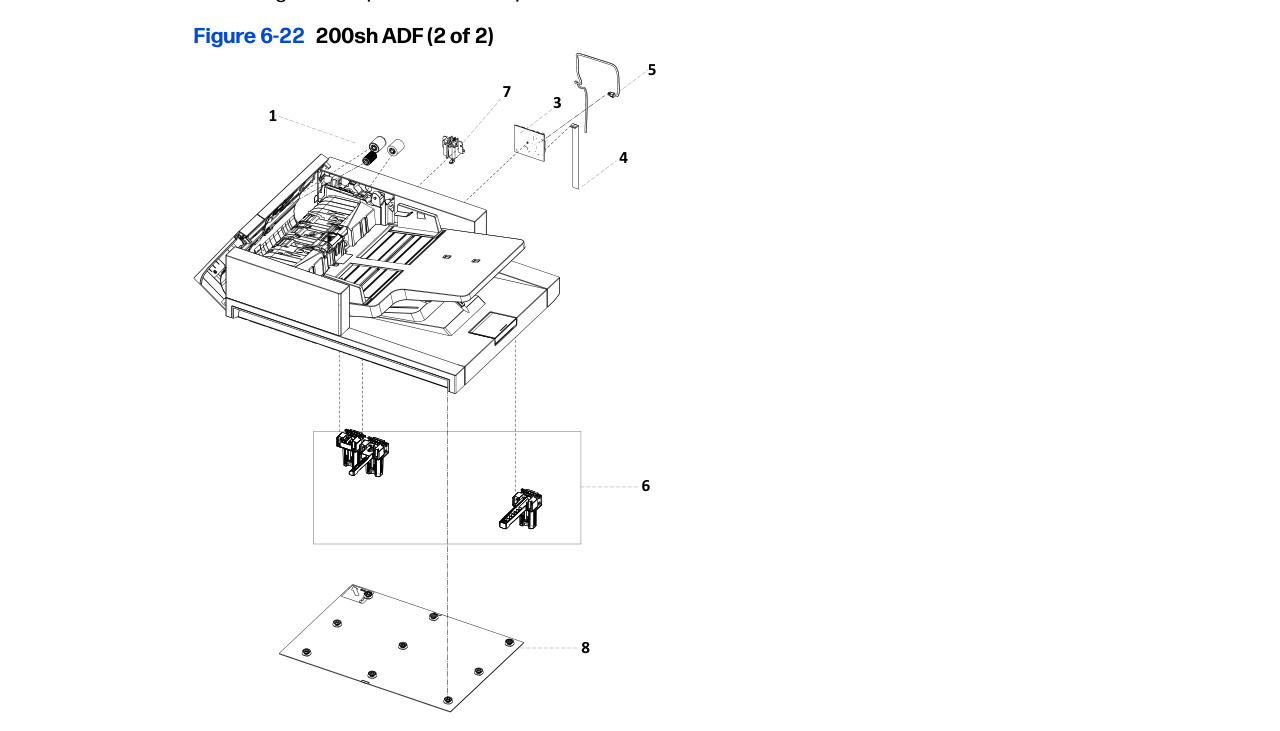

**6-22 — 200sh ADF (2 of 2)**
5851-7202 ADF roller kit (qty 1) 5851-7202 ADF Roller Replacement Kit New 5851-7202 (New) 3-4 Day Lead $114.24 5QJ90-67013 200sh ENT ADF PCA (qty 1) 4 5QJ90-67009 ADF FFC cable to SSA (qty 1) 5 5QJ90-67010 ADF Power cable (qty 1) 5QJ90-67004 Hinge Kit (qty 1) 7 5QJ90-67006 Damper module (qty 1) 5QK08-67005 A3 White Backing Kit (qty 1)

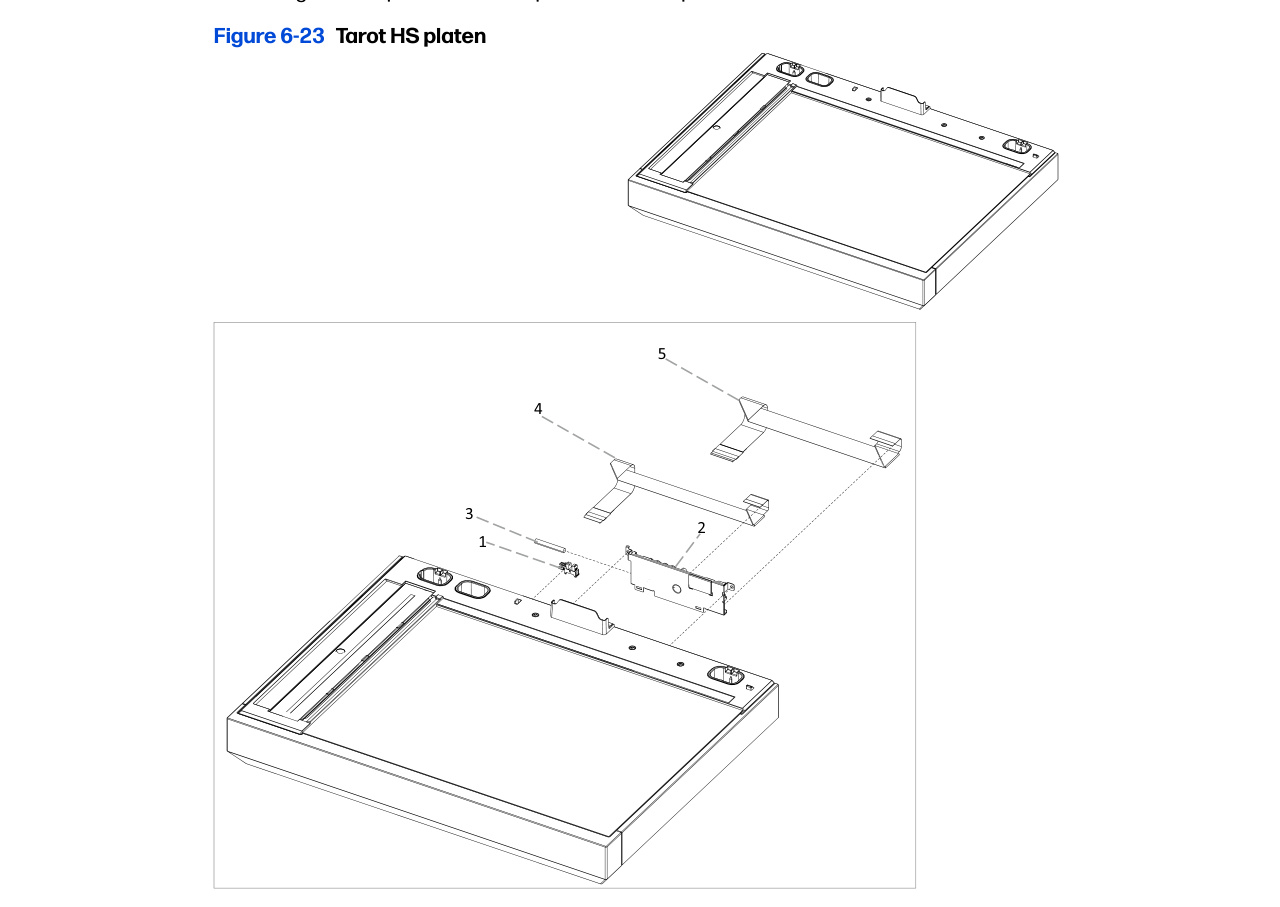

**6-23 — Tarot HS platen**
3SJ00-60110 Photo interrupter (ADF open 3SJ32-60104 Tarot HS platen PCA (qty 1) 3 3SJ11-50006 Discrete power cable (qty 1) 4 5QK08-67011 SVC-Flat Cable, Tarot SCB 5 5QK08-67012 SVC-Flat Cable, Tarot SCB

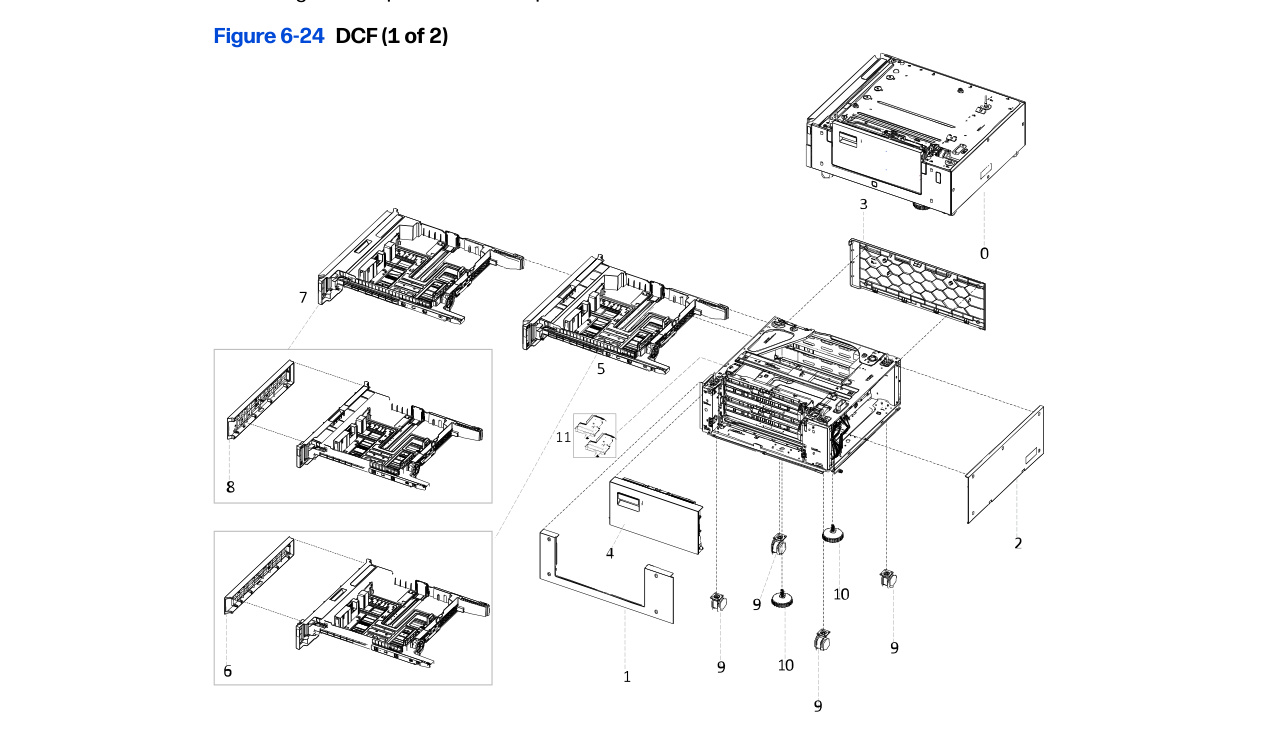

**6-24 — DCF (1 of 2)**
0 6GW47-67001 DCF (qty 1) 6GW47-67001 Optional Paper Feeder, 1040 Sheets (2 x 520SH) New 6GW47-67001 (New) 3-4 Day Lead $673.20 1 5QK08-40006 DCF right cover (qty 1) 2 5QK08-40007 DCF rear cover (qty 1) 3 5QK08-40008 DCF left cover (qty 1) 4 5QK08-61004 DCF right door (qty 1) 5 5QK08-61007 Tray 4 cassette (qty 1) 6 5QK08-40011 Tray 4 Blue CMF panel (qty 1) 7 5QK08-61005 Tray 5 cassette (qty 1) 8 5QK08-40012 Tray 5 Blue CMF panel Department Dual cassette (qty 1)

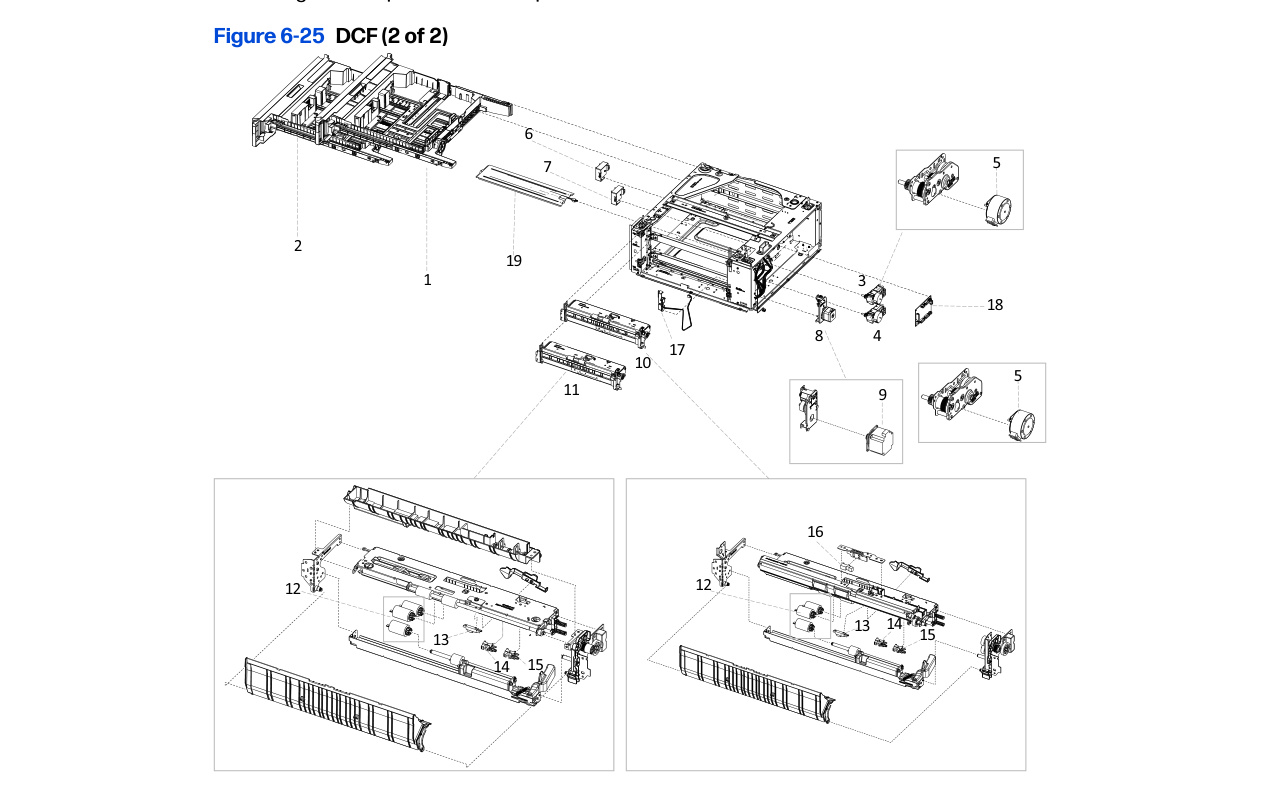

**6-25 — DCF (2 of 2)**
1 5QK08-61007 Tray 4 cassette (qty 1) 2 5QK08-61005 Tray 5 cassette (qty 1) 10 5QK08-61009 Tray 4 pickup assembly (qty 1) 11 5QK08-61010 Tray 5 pickup assembly (qty 1) 12 5PN66-67001 Tray 4, 5 roller kit (qty 1) 5PN66-67001 Feed Roller Kit New 5PN66-67001 (New) $134.64 14 3SJ00-60110 Photo interrupter (DCF paper 15 3SJ00-60110 Photo interrupter (DCF stack harness 18 6GW47-60001 PCA-DCF Department (qty 1) 19 Y1G22-67901 Tray heater 110V (qty 1) 19 Y1G22-67902 Tray heater 220V (qty 1)

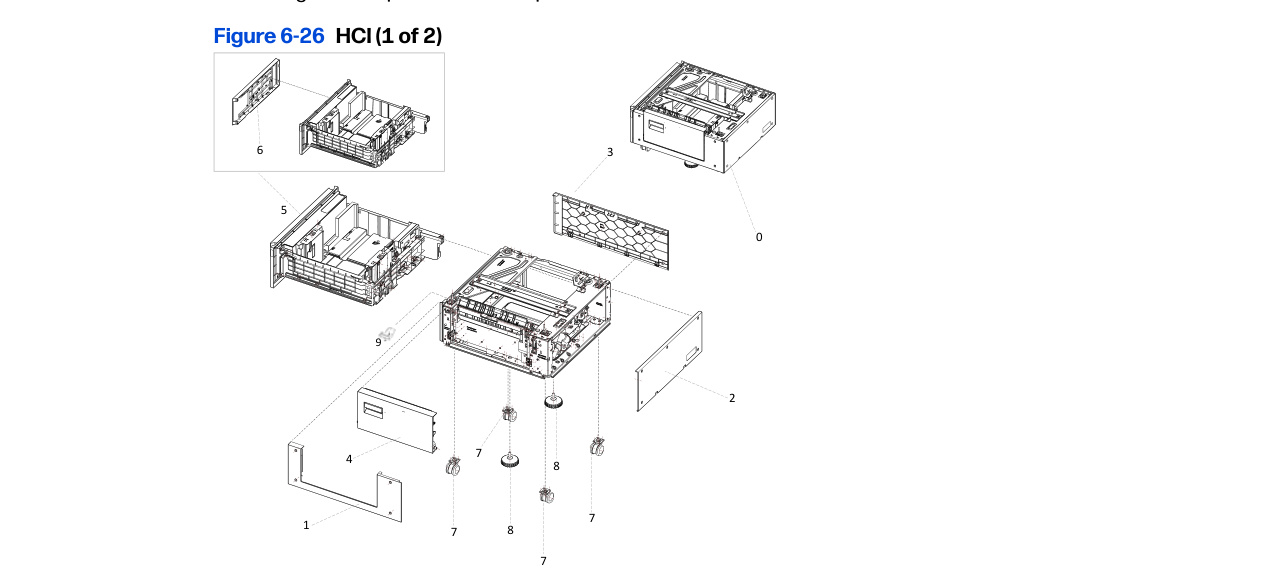

**6-26 — HCI (1 of 2)**
0 6GW57-67001 HCI (qty 1) 1 5QK08-40006 HCI right cover (qty 1) 2 5QK08-40007 HCI rear cover (qty 1) 3 5QK08-40008 HCI left cover (qty 1) 4 5QK08-61023 HCI right door (qty 1) 5 5QK08-61014 HCI cassette (qty 1) 6 5QK08-40016 HCI front Blue CMF panel (qty 1) 6 8GR90-40029 HCI front Gray CMF panel (qty 1) 6 8GR90-40038 HCI front Red CMF panel (qty 1) 6 8GR90-40039 HCI front Green CMF panel (qty 1) 6 8GR90-40040 HCI front Yellow CMF panel (qty 1) 6 8GR90-40041 HCI front Purple CMF panel Department High Capacity (qty 1)

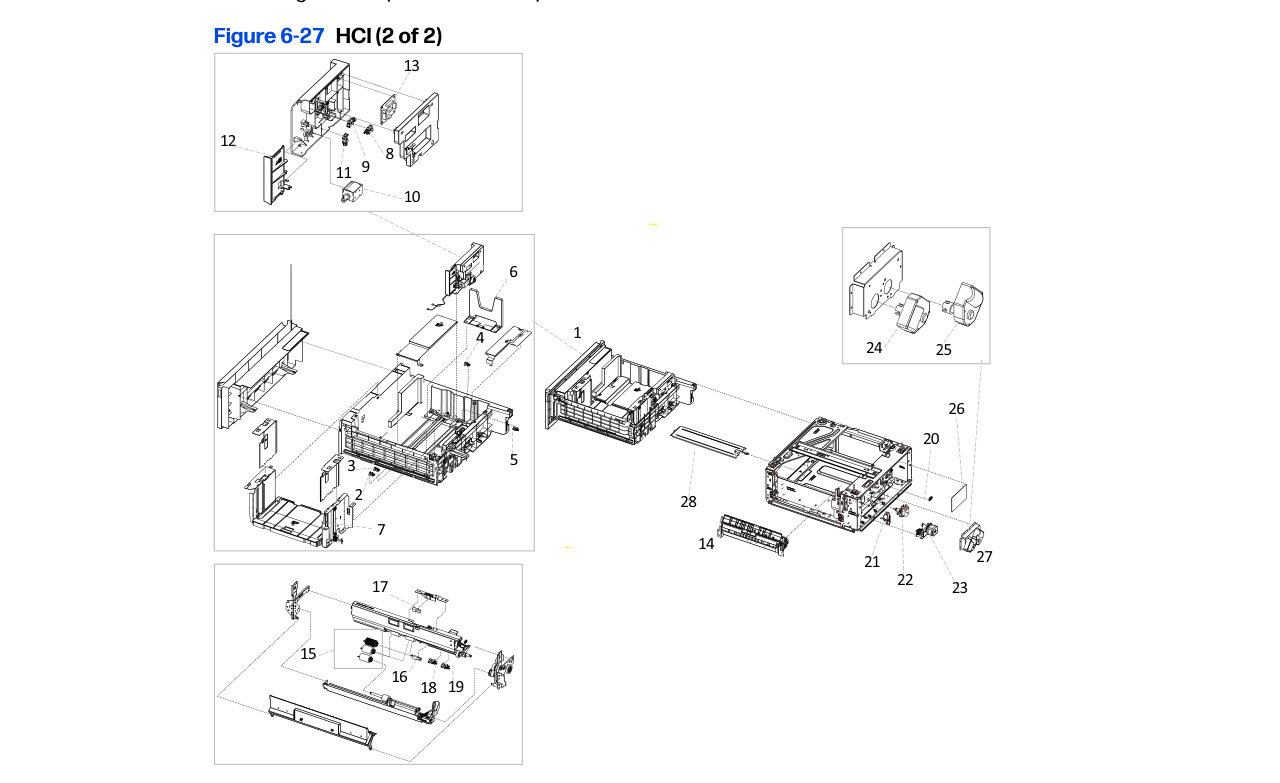

**6-27 — HCI (2 of 2)**
1 5QK08-61014 HCI cassette (qty 1) 2 3SJ00-60110 Photo interrupter (HCI knock-up 3 3SJ00-60110 Photo interrupter (HCI shift 4 3SJ00-60110 Photo interrupter (HCI shift 5 3SJ00-60110 Photo interrupter (HCI shift 7 6GW48-60003 Knock-up plate assembly (qty 1) 6GW48-60003 HCF Sub Knock Up New 6GW48-60003 (New) 3-4 Day Lead $107.44 8 3SJ00-60110 Photo interrupter (HCI shift 9 3SJ00-60110 Photo interrupter (HCI shift Parts and 11 3SJ00-60110 Photo interrupter (HCI shift sensor) 14 5QK08-61013 HCI pickup assembly (qty 1) 15 5PN66-67001 HCI roller kit (qty 1) 5PN66-67001 Feed Roller Kit New 5PN66-67001 (New) $134.64 18 3SJ00-60110 Photo interrupter (HCI paper 19 3SJ00-60110 Photo interrupter (HCI stack 20 3SJ00-60110 Photo interrupter (HCI tray 26 6GW57-60001 PCA-HCI Department (qty 1) 28 Y1G22-67901 Tray heater 110V (qty 1) 28 Y1G22-67902 Tray heater 220V (qty 1)

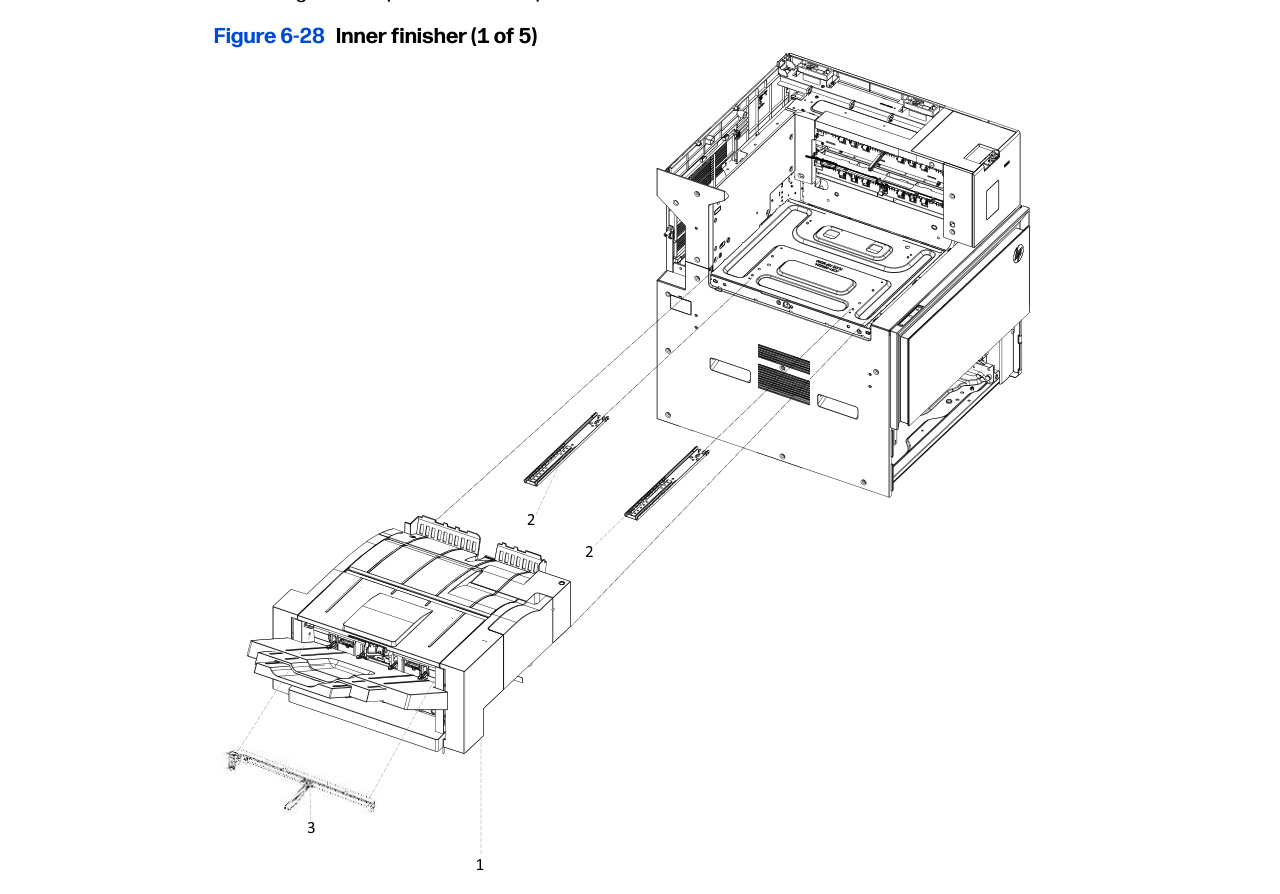

**6-28 — Inner finisher (1 of 5)**
1 6GW49-67002 Inner Finisher (qty 1)

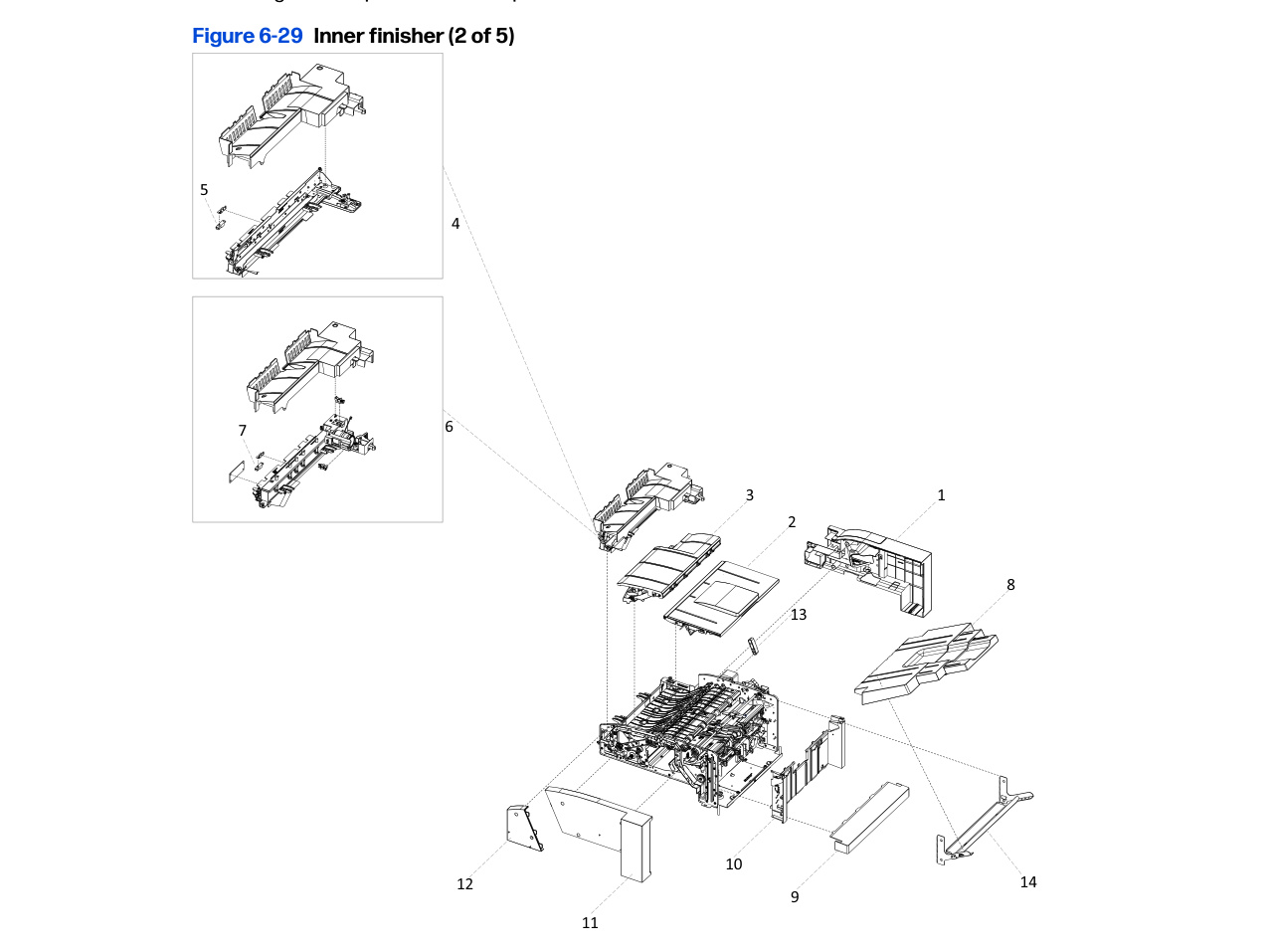

**6-29 — Inner finisher (2 of 5)**
1 5QK09-60123 Front cover assy (qty 1) 2 5QK09-60125 Top cover assy (qty 1) 3 5QK09-60124 Middle cover assy (qty 1) 4 8GS05-60114 Punch cover assembly (qty 1) 6 155P7-67001 Hole 2/3 punch (optional) (qty 1) 155P7-67001 InnerFinisher 2/3-Hole Punch New 155P7-67001 (New) 3-4 Day Lead $2446.64 6 155P8-67001 Hole 2/4 punch (optional) (qty 1) 6 155P9-67001 Swedish punch (optional) (qty 1) 8 5QK09-60118 Output tray assy (qty 1) 9 5QK09-40004 PCA cover (qty 1) 10 8GS05-60113 Left cover assy (qty 1) 11 5QK09-40018 Rear cover -base (qty 1) 12 5QK09-40037 Rear cover -punch (qty 1)

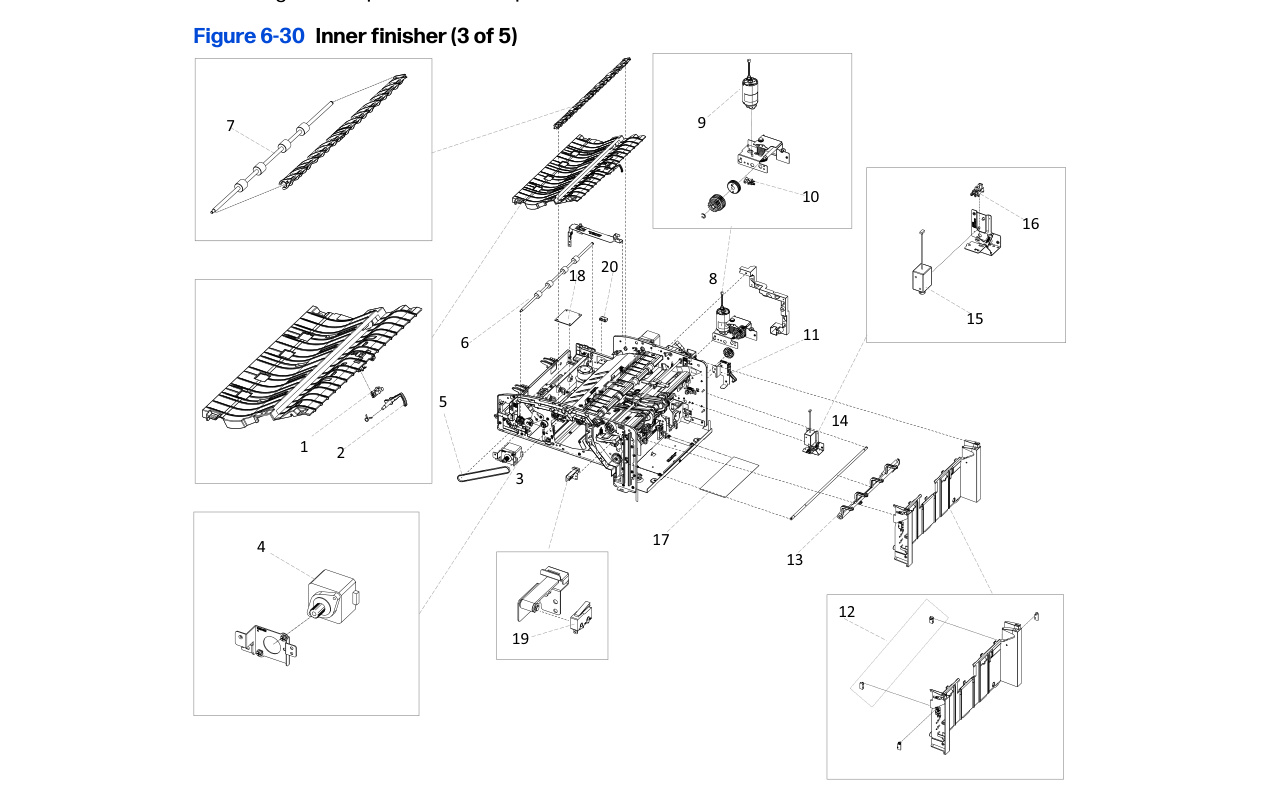

**6-30 — Inner finisher (3 of 5)**
3 5QK09-60128 Entrance motor assy (qty 1) 10 3SJ00-60110 Photo interrupter (Output 16 3SJ00-60110 Photo interrupter (Paper holding 17 6GW49-60001 Inner finisher PCA (qty 1)

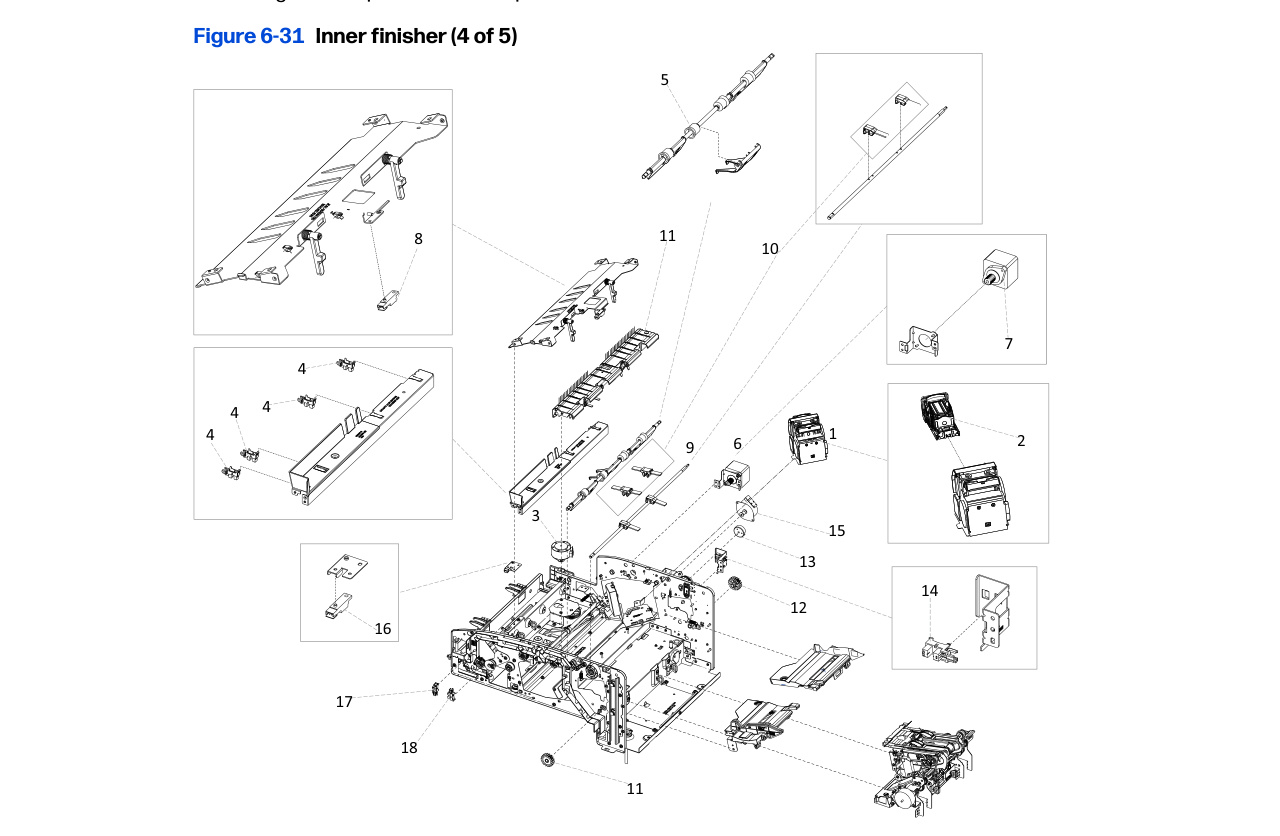

**6-31 — Inner finisher (4 of 5)**
1 6GW49-60003 Stapler assembly (qty 1) 6GW49-60003 Finisher Sub-Stapler New 6GW49-60003 (New) 3-4 Day Lead $265.20 2 6GW49-40001 Staple cartridge (qty 1) 4 3SJ00-60110 Photo interrupter (Stapler 14 3SJ00-60110 Photo interrupter (Main paddle 17 3SJ00-60110 Photo interrupter (finisher 18 3SJ00-60110 Photo interrupter (punch

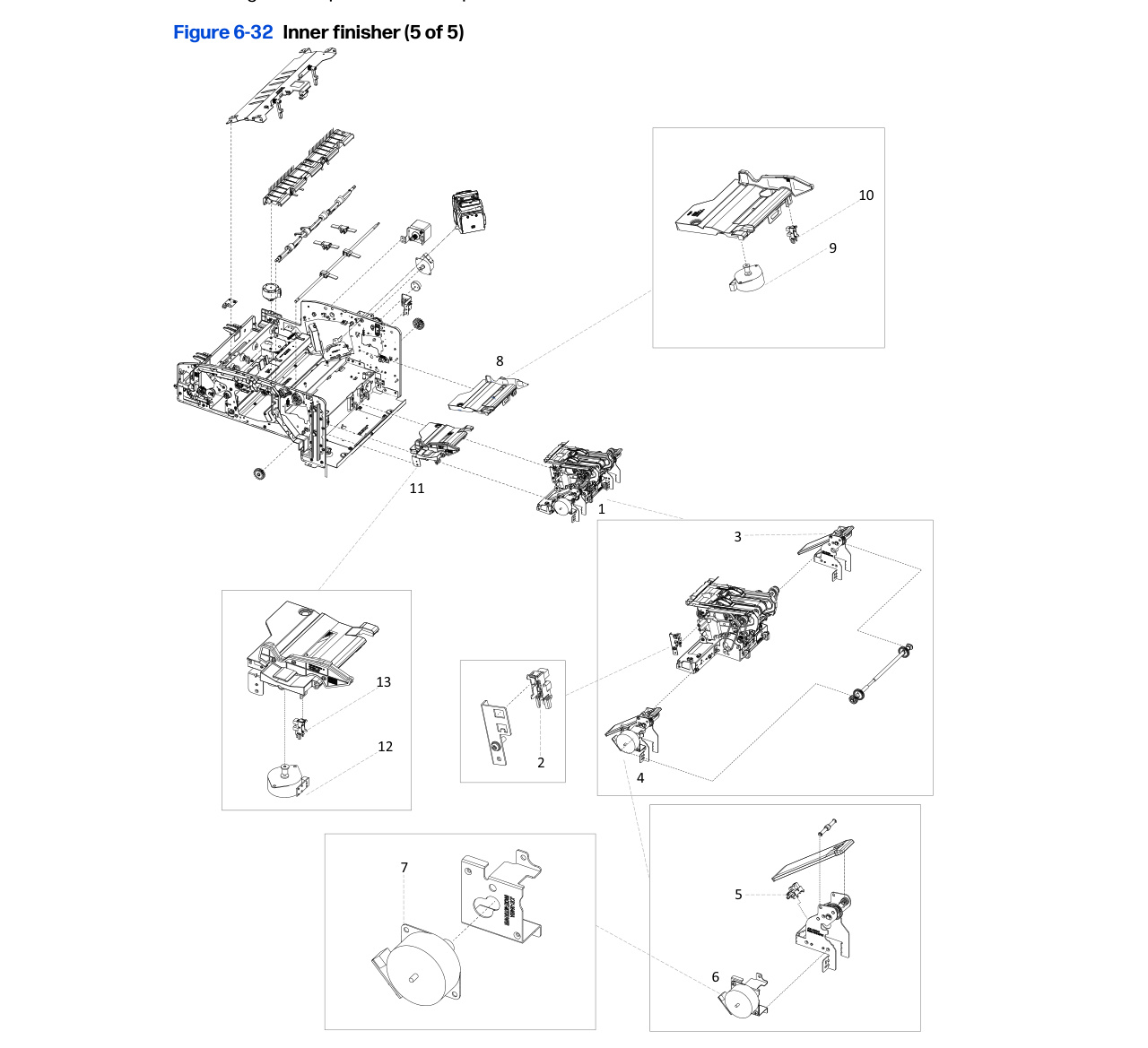

**6-32 — Inner finisher (5 of 5)**
1 SS456-61001 Ejector (qty 1) SS456-61001 Ejector Assembly New SS456-61001 (New) 3-4 Day Lead Contact for Details 2 3SJ00-60110 Photo interrupter (Ejector1 5 3SJ00-60110 Photo interrupter (Paper support 10 3SJ00-60110 Photo interrupter (Front tamper 13 3SJ00-60110 Photo interrupter (Rear tamper

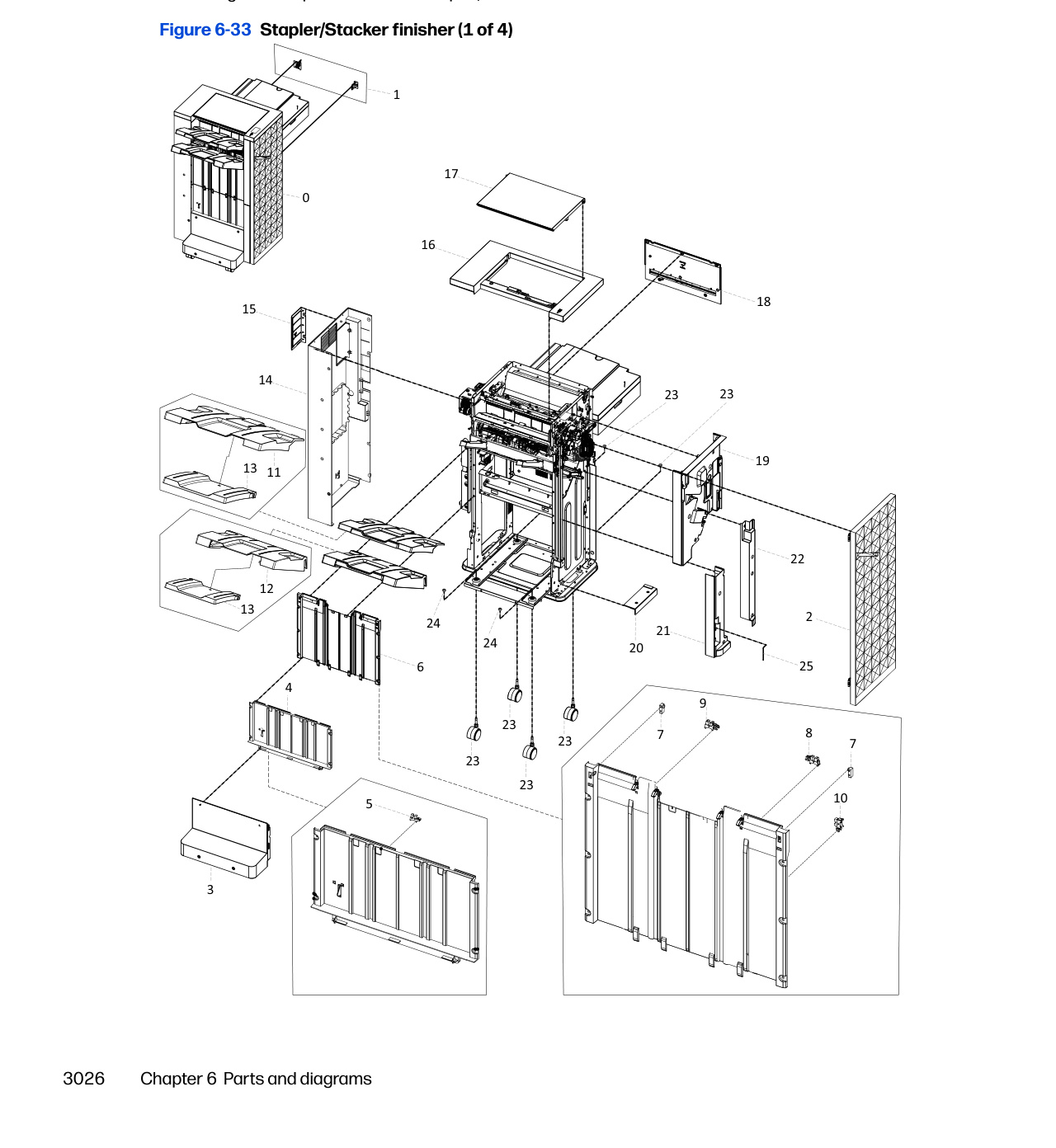

**6-33 — Stapler/Stacker finisher (1 of 4)**
0 6GW55-67001 Stapler/Stacker finisher (qty 1) 2 5QK09-60106 Front door (qty 1) 3 8GS05-40018 Caster cover (qty 1) 4 8GS05-60122 Left lower cover (qty 1) 6 8GS05-60118 Left upper cover (qty 1) 8 3SJ00-60110 Front paper holding sensor (qty 1) 9 3SJ00-60110 Rear paper holding sensor (qty 1) 10 3SJ00-60110 Paper holding home sensor (qty 1) 11 5QK09-40027 Top output tray (qty 1) 12 5QK09-40028 Main output tray (qty 1) 13 5QK09-40029 Tray extension (qty 1) 14 5QK09-40021 Rear cover (qty 1) 15 5QK09-40030 Punch cover (qty 1) 16 5QK09-60108 Top cover (qty 1) 17 5QK09-60107 Top door (qty 1) 18 5QK09-60109 Right upper cover (qty 1) 19 5QK09-40019 Front cover (qty 1) 20 5QK09-40020 Front lower cover (qty 1) 21 5QK09-40047 Front lower left cover (qty 1) 22 5QK09-40048 Front lower right cover (qty 1)

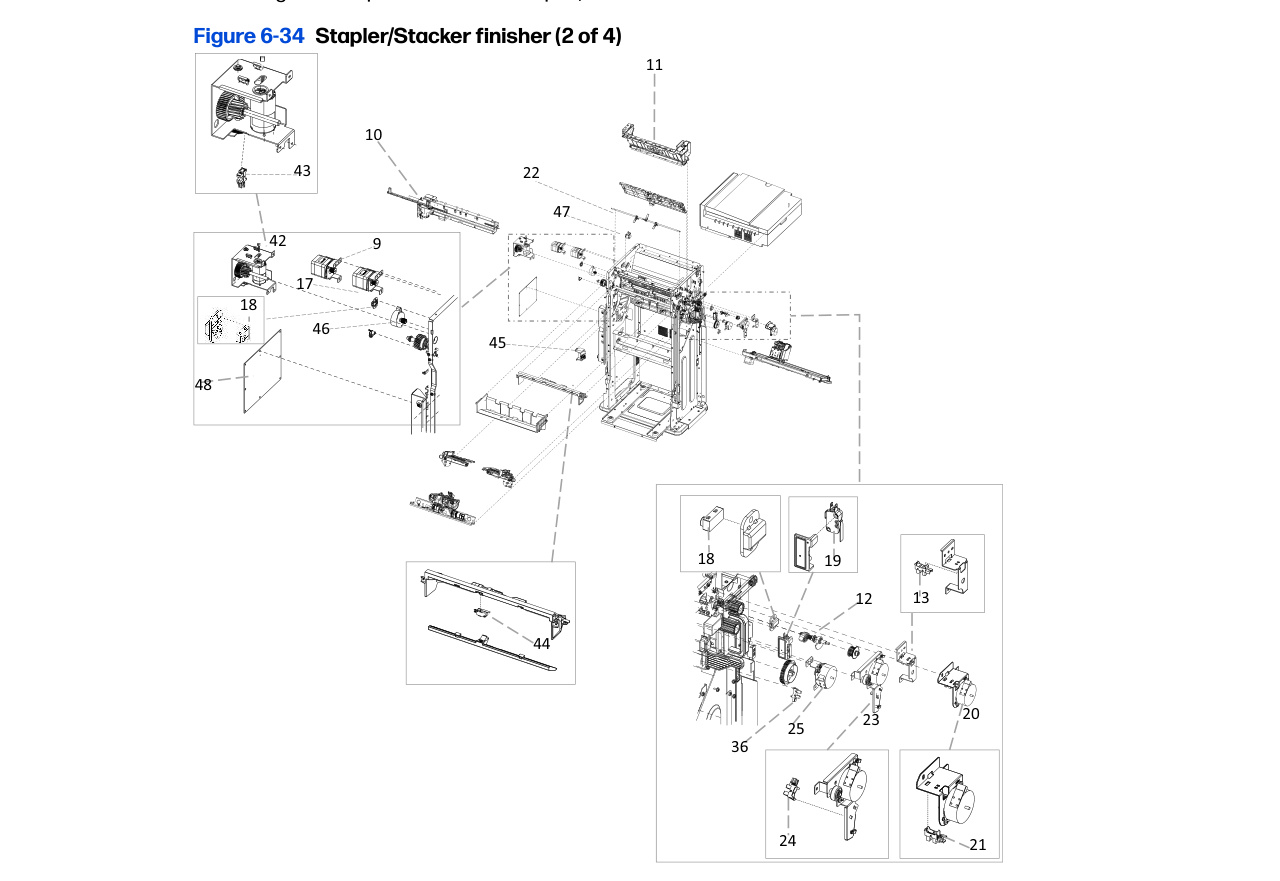

**6-34 — Stapler/Stacker finisher (2 of 4)**
9 8GS05-60104 Entrance motor assembly (qty 1) 10 Y1G10-67901 Punch unit 2-3 hole (qty 1) 10 Y1G11-67901 Punch unit 2-4 hole (qty 1) 17 8GS05-60106 Exit motor assembly (qty 1) 21 3SJ00-60110 Main exit cam home sensor (qty 1) 24 3SJ00-60110 Paddle home sensor (qty 1) 43 3SJ00-60110 Main output tray motor sensor (qty 1) 48 6GW55-60001 Main PCA (qty 1) 6GW55-60001 Finisher PBA New 6GW55-60001 (New) 3-4 Day Lead $161.84

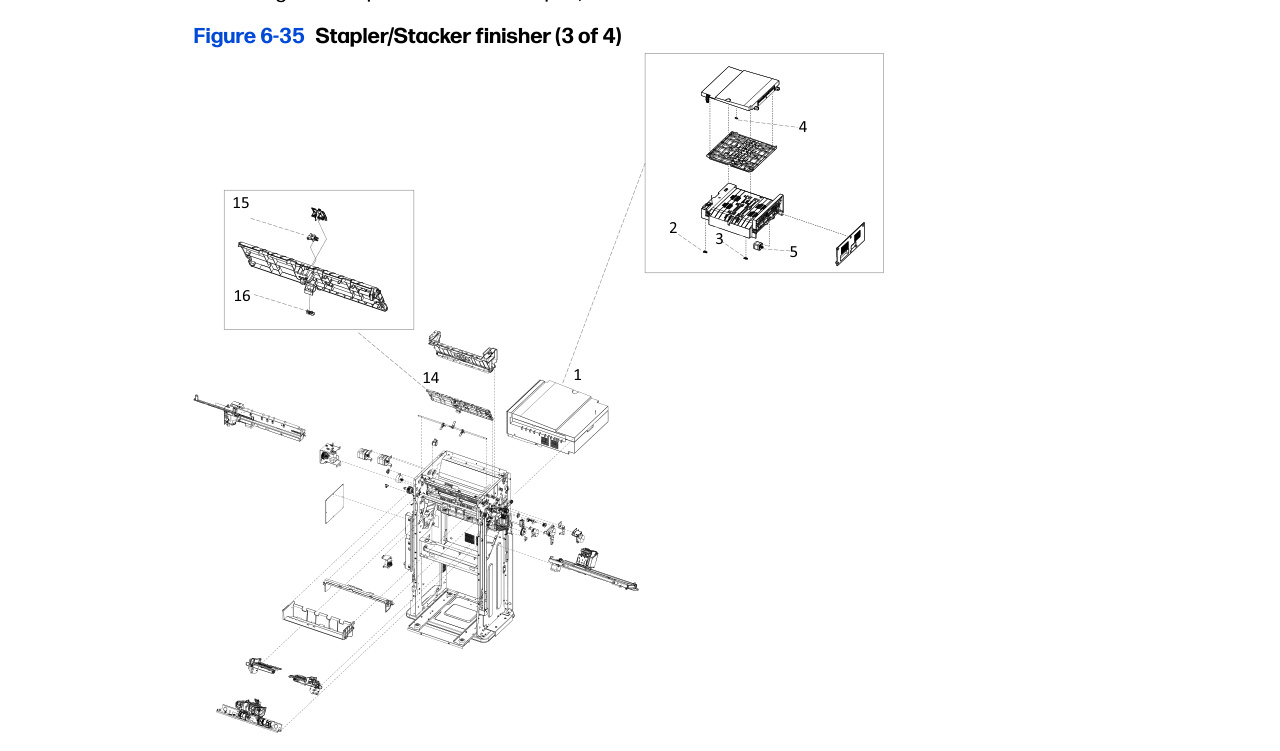

**6-35 — Stapler/Stacker finisher (3 of 4)**
1 5QK09-60110 Bridge unit (qty 1) 63C80-60109 Bridge unit with Print Quality 2 3SJ00-60110 Bridge door sensor (qty 1) 4 3SJ00-60110 Bridge exit sensor (qty 1) 5 3SJ19-80501 Bridge motor (qty 1) 16 3SJ00-60110 Top exit sensor (qty 1) 17 8GS05-60106 Exit motor assembly (qty 1)

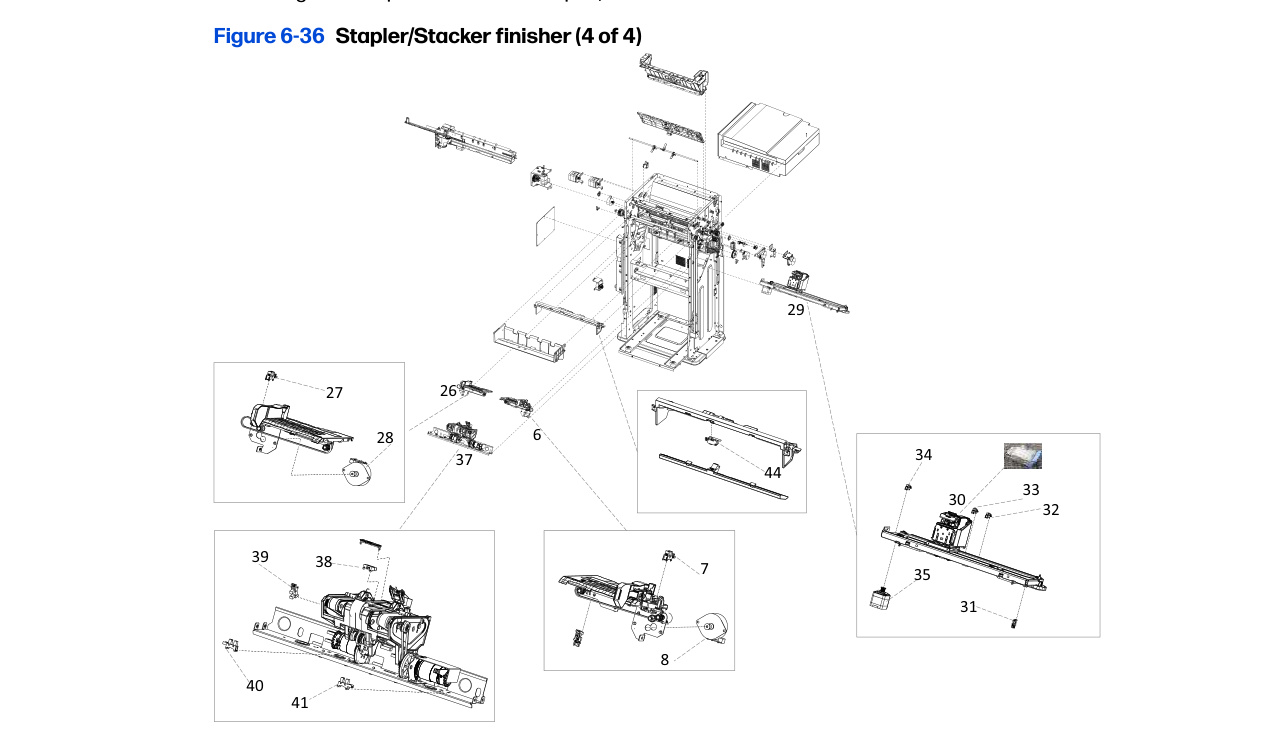

**6-36 — Stapler/Stacker finisher (4 of 4)**
7 3SJ00-60110 Front tamper home sensor (qty 1) 27 3SJ00-60110 Rear tamper home sensor (qty 1) 31 3SJ00-60110 Staple front sensor (qty 1) 32 3SJ00-60110 Staple mid-front sensor (qty 1) 33 3SJ00-60110 Staple mid-rear sensor (qty 1) 34 3SJ00-60110 Staple rear sensor (qty 1)

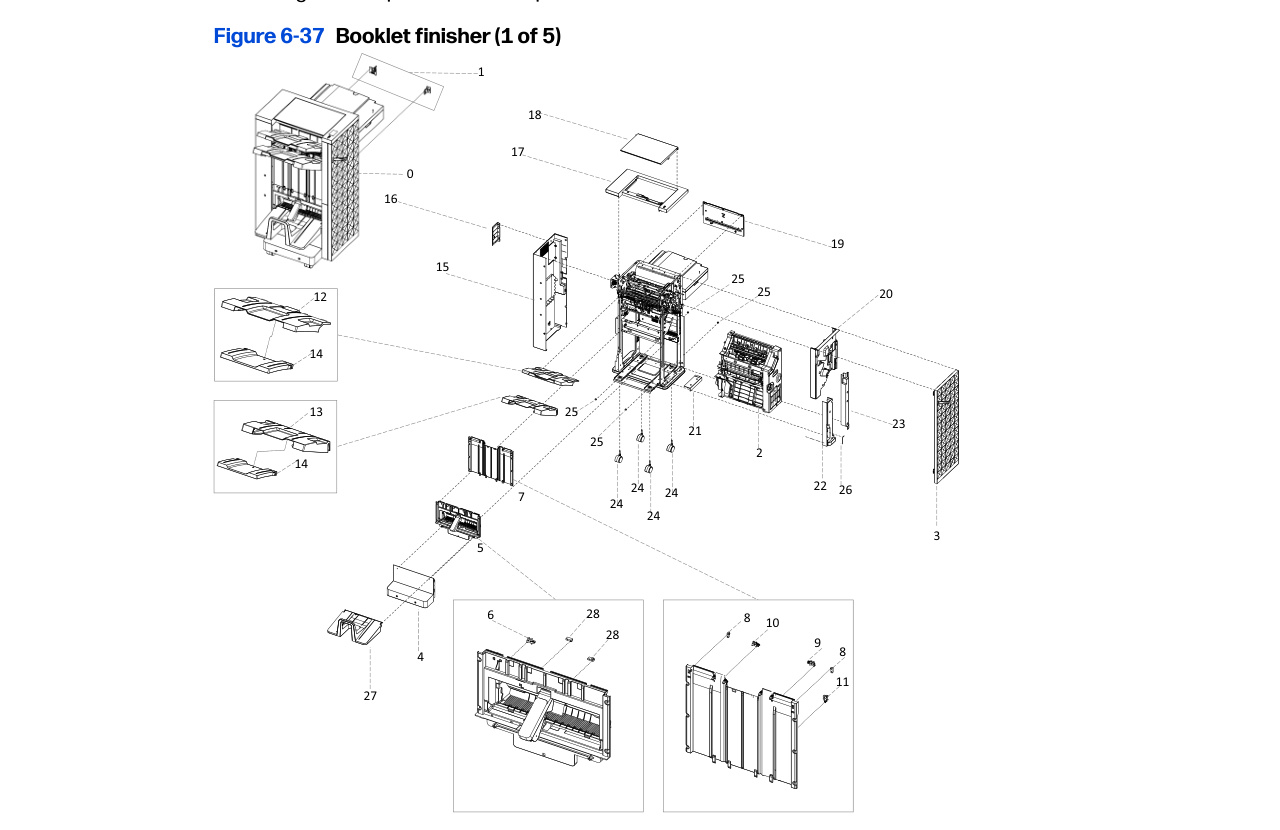

**6-37 — Booklet finisher (1 of 5)**
0 6GW51-67001 Booklet finisher (qty 1) 6GW51-67001 Booklet Finisher New 6GW51-67001 (New) $809.20 2 5QK09-60104 Booklet maker unit (qty 1) 5QK09-60104 Booklet Sub Unit - Finisher New 5QK09-60104 (New) $741.20 3 5QK09-60106 Front door (qty 1) 4 8GS05-40018 Caster cover (qty 1) 5 8GS05-60124 Left lower cover (Booklet) (qty 1) 7 8GS05-60118 Left upper cover (qty 1) 9 3SJ00-60110 Front paper holding sensor (qty 1) 10 3SJ00-60110 Rear paper holding sensor (qty 1) 11 3SJ00-60110 Paper holding home sensor (qty 1) 12 5QK09-40027 Top output tray (qty 1) 13 5QK09-40028 Main output tray (qty 1) 14 5QK09-40029 Tray extension (qty 1) 15 5QK09-40021 Rear cover (qty 1) 16 5QK09-40030 Punch cover (qty 1) 17 5QK09-60108 Top cover (qty 1) 18 5QK09-60107 Top door (qty 1) 19 5QK09-60109 Right upper cover (qty 1) 20 5QK09-40019 Front cover (qty 1) 21 5QK09-40020 Front lower cover (qty 1) 22 5QK09-40047 Front lower left cover (qty 1) 23 5QK09-40048 Front lower right cover (qty 1) 27 8GS05-60126 Booklet output tray (qty 1)

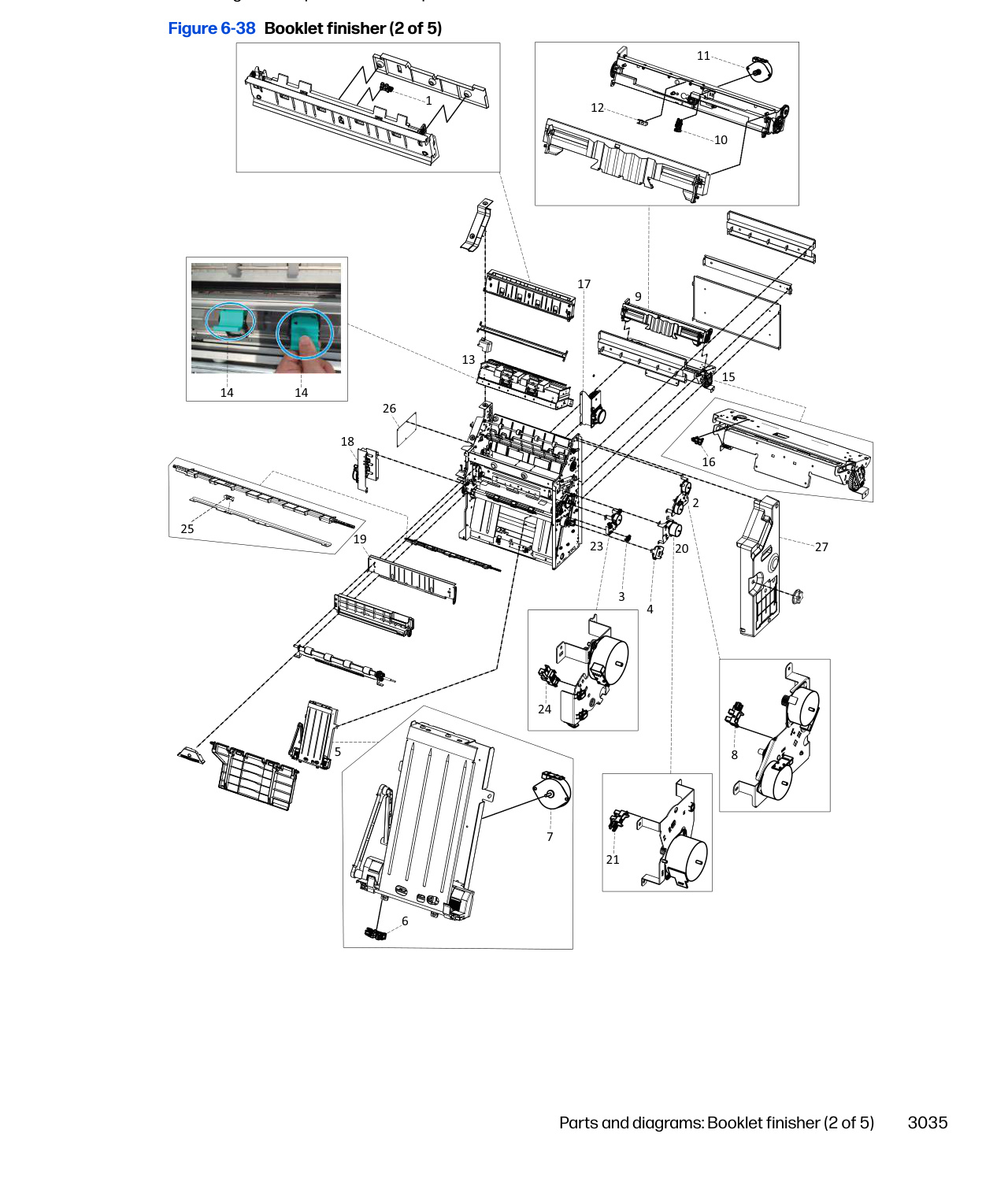

**6-38 — Booklet finisher (2 of 5)**
3 3SJ00-60110 Booklet paddle home sensor (qty 1) 6 3SJ00-60110 Booklet end fence home sensor (qty 1) 8 3SJ00-60110 Booklet presser home sensor (qty 1) 10 3SJ00-60110 Booklet tamper home sensor (qty 1) 13 6GW51-40001 Booklet stapler (qty 1) 16 3SJ00-60110 Booklet blade home sensor (qty 1) 21 3SJ00-60110 Booklet c-fold blade home 26 6GW51-60001 Booklet maker PCA (qty 1)

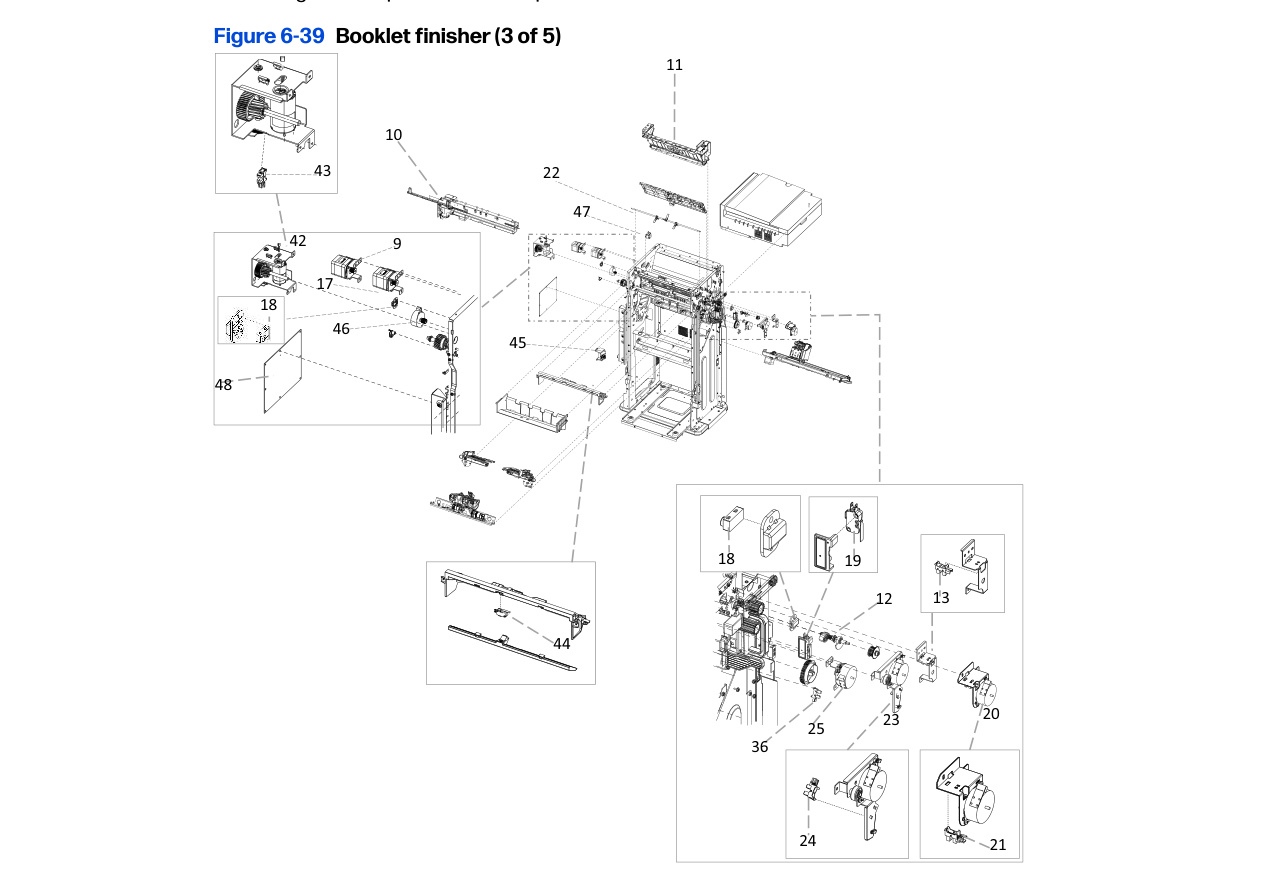

**6-39 — Booklet finisher (3 of 5)**
9 8GS05-60104 Entrance motor assembly (qty 1) 10 Y1G10-67901 Punch unit 2-3 hole (qty 1) 10 Y1G11-67901 Punch unit 2-4 hole (qty 1) 10 Y1G12-67901 Punch unit Swedish hole (qty 1) 17 8GS05-60106 Exit motor assembly (qty 1) 21 3SJ00-60110 Main exit cam home sensor (qty 1) 24 3SJ00-60110 Paddle home sensor (qty 1) 43 3SJ00-60110 Main output tray motor sensor (qty 1) 48 6GW55-60001 Main PCA (qty 1) 6GW55-60001 Finisher PBA New 6GW55-60001 (New) 3-4 Day Lead $161.84

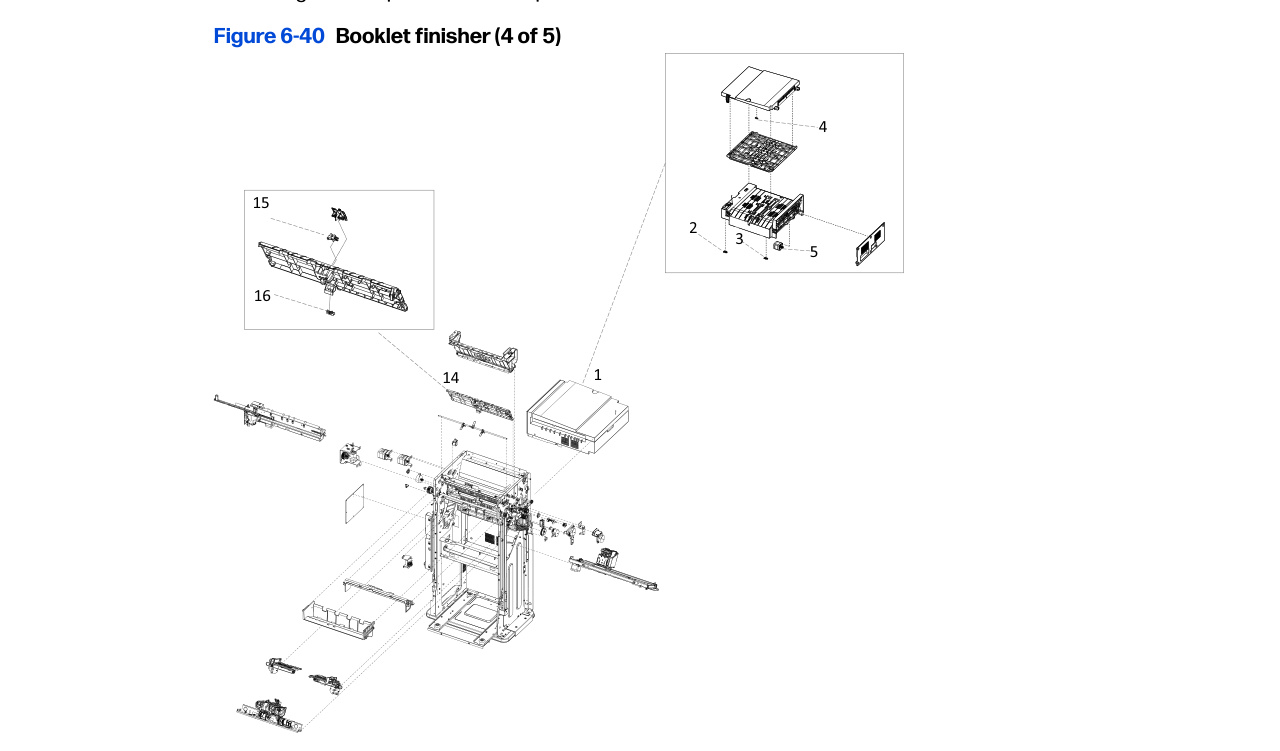

**6-40 — Booklet finisher (4 of 5)**
1 5QK09-60110 Bridge unit (qty 1) 2 3SJ00-60110 Bridge door sensor (qty 1) 4 3SJ00-60110 Bridge exit sensor (qty 1) 5 3SJ19-80501 Bridge motor (qty 1) 16 3SJ00-60110 Top exit sensor (qty 1) 17 8GS05-60106 Exit motor assembly (qty 1)

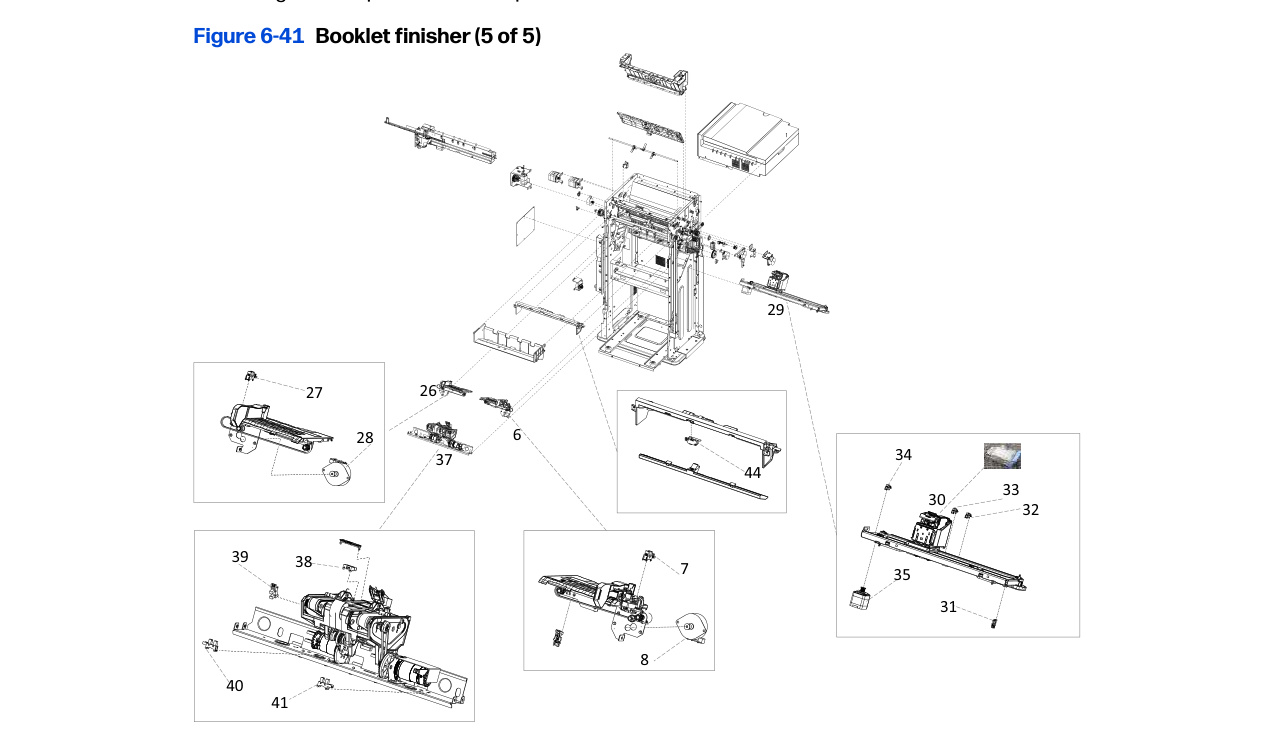

**6-41 — Booklet finisher (5 of 5)**
7 3SJ00-60110 Front tamper home sensor (qty 1) 27 3SJ00-60110 Rear tamper home sensor (qty 1) 31 3SJ00-60110 Staple front sensor (qty 1) 32 3SJ00-60110 Staple mid-front sensor (qty 1) 33 3SJ00-60110 Staple mid-rear sensor (qty 1) 34 3SJ00-60110 Staple rear sensor (qty 1)
