Exploded parts diagrams and part numbers for the HP Color LaserJet Enterprise M455dn and MFP M480f, and the E45028 and E47528 variants, including the optional 550-sheet paper feeder. Part numbers are taken directly from HP's service manual. Where a part shows an order button we have it in stock — for anything else, call us on 248-540-4300 and we will source it.

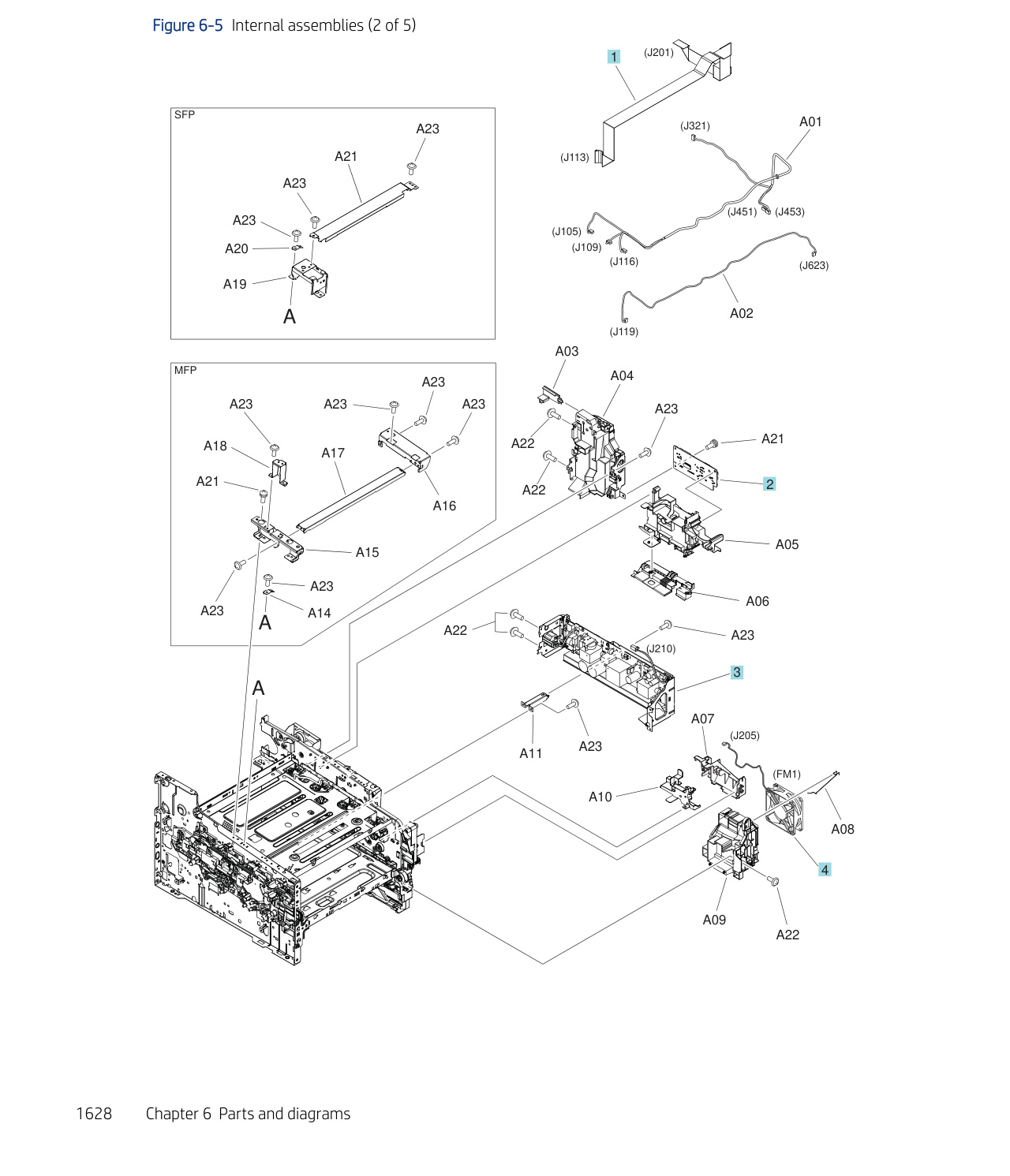

6-5 — Internal assemblies (2 of 5)

1   W1A73-60110   ISA assembly scanner/ADF W1A73-60110 Duplex Document Feeder and Image Scanner Assembly Fully refurbished with 90-day warranty W1A73-60110 $199.00 2   W1A77-67903   Document feeder top cover W1A77-67903 Cover - Document Feeder Top (Includes Rollers) New W1A77-67903 (New) $107.44 3   B3Q10-40041   ISA lift slider pin (qty 1) B3Q10-40041 ISA lift slider pin New B3Q10-40041 (New) 3-4 Day Lead $66.64 4   B3Q10-60128   ISA lift assembly Document feeder (qty 1) B3Q10-60128 ISA lift assembly Fully refurbished with 90-day warranty B3Q10-60128 $49.00

6-6 — Internal assemblies (3 of 5)

1   RM2-3088-000CN   Cover, top assembly (SFP) (includes and FFC) 2   RC4-4853-000CN   Cover, right (SFP) (qty 1) 3   RM2-1823-000CN   Front (cartridge) door assembly 5   RC4-5334-000CN   Cover, cassette (qty 1) 6   RC4-4854-000CN   Cover, left (SFP) (qty 1) 7   RM2-6383-000CN   Duplexing door assembly (qty 1)     7121-8684   HP logo jewel (qty 1) 7121-8684 Logo Jewel / GEM 31mm 2pc PC Chrome New 7121-8684 (New) 3-4 Day Lead $39.44

6-7 — Internal assemblies (4 of 5)

1   RM2-3091-000CN   Cover, top assembly (MFP) (qty 1) 2   RC4-6044-000CN   Cover, right (MFP) (qty 1) 3   RM2-1824-000CN   Front (cartridge) door assembly 4   RC4-5334-000CN   Cover, cassette (qty 1) 5   RC4-6045-000CN   Cover, left (MFP) (qty 1) 6   RM2-6383-000CN   Duplexing door assembly (qty 1) 7   3PZ55-67901   Control panel assembly (qty 1) 8   3PZ55-67984   Control panel mount base (qty 1) 9   3PZ55-67904   Control panel ICB chassis mount (qty 1) 10   3PZ55-67903   CP interconnect board and 11   3PZ55-67902   Cover, top control panel mount (qty 1) 12   3QA55-67903   Cable, flexible flat control panel 13   CF377-40005   Guide, control panel FFC and 14   CF377-40004   Cover, ISA FFCs (qty 1)     7121-8684   HP logo jewel (qty 1) 7121-8684 Logo Jewel / GEM 31mm 2pc PC Chrome New 7121-8684 (New) 3-4 Day Lead $39.44

6-8 — Internal assemblies (5 of 5)

1   RM3-7245-000CN   Memory PCA (qty 1) 2   RM2-5612-000CN   Laser scanner assembly (qty 1) 3   RM2-8662-000CN   Cable, flexible flat scanner (qty 1) 4   RM2-8663-000CN   Cable, flexible flat scanner (qty 1) 5   RK2-6270-000CN   Fan assembly (qty 1) 6   RM2-6373-000CN   Power switch (SW601) assembly (qty 1) 7   RM3-7227-000CN   Front door switch cable assembly (qty 1) 8   VS1-7258-007CN   Connector, drawer (qty 1) 9   RM2-7896-000CN   Cassette switch cable assembly (qty 1) 10   RM3-7272-000CN   DC controller (qty 1) RM3-7272-000CN DC Engine Controller PWB New RM3-7272-000CN (New) $333.20 11   CF388-60116   Cable, flexible flat DC controller CF388-60116 Cable, FFC (M377, M477) Fully refurbished with 90-day warranty CF388-60116 $43.52

6-9 — 550-sheet paper feeder covers

1   RM2-8661-000CN   Cable, flexible flat (DCC to driver 2   RM2-7369-000CN   Driver PCA assembly (qty 1) 3   RM3-7278-000CN   LV power supply PCA (110-127V) (qty 1) 3   RM3-7279-000CN   LV power supply PCA (220-240V) (qty 1) 4   RK2-6270-000CN   Fan assembly (qty 1)

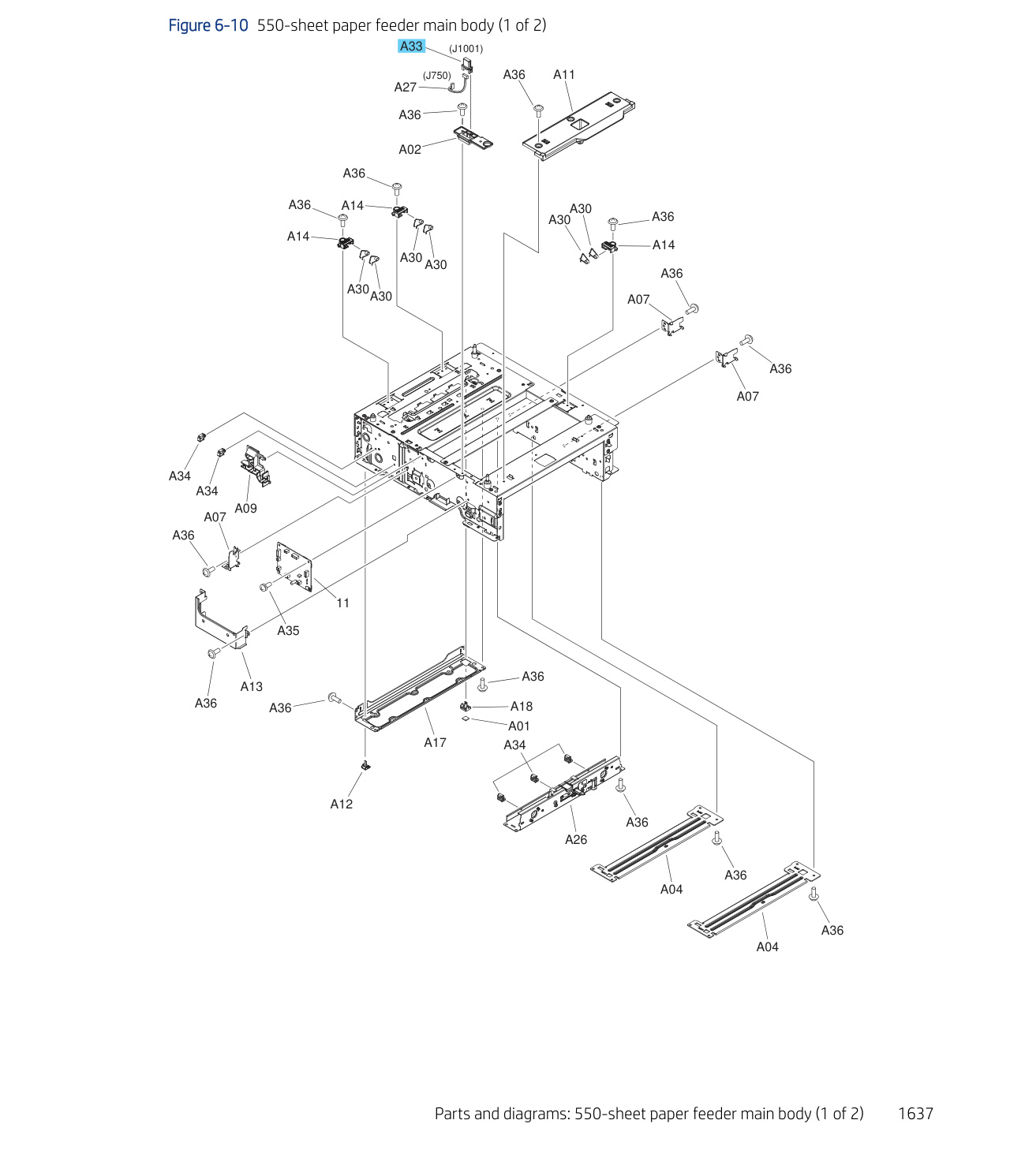

6-10 — 550-sheet paper feeder main body (1 of 2)

1   RM2-7349-000CN   Assembly, fixing motor (qty 1) 2   RM2-7342-000CN   Drum motor (M2) (qty 1) 3   RM2-7344-000CN   Developing motor (M3) (qty 1) 4   RM2-7399-000CN   Density detect sensor (qty 1) 5   WG8-5935-000CN   Photointerrupter, IC (qty 1) 6   RM2-6406-000CN   Separation pad assembly (qty 1) 7   RL1-2593-000CN   Roller, paper pickup (qty 1) 8   RM2-6377-000CN   Cassette (Tray 2) assembly (qty 1) 9   RM3-7236-000CN   Environment sensor PCB assembly (qty 1) 10   RM2-6454-000CN   Intermediate transfer belt (ITB) 11   3PZ55-67980   Fax PCA with plug kit (USA) (qty 1) 11   3PZ55-67981   Fax PCA with plug kit (EURO) (qty 1) 11   3PZ55-67982   Fax PCA with plug kit (BRAZIL) (qty 1) 11   3PZ55-67983   Fax PCA with plug kit (AP) (qty 1) 12   3QA55-67904   Cable, FFC fax to formatter (qty 1) 13   3QA55-67901   Formatter (MFP) (qty 1) 3QA55-67901 Formatter Board New 3QA55-67901 (New) 3-4 Day Lead $278.80 13   3QA55-67902   Formatter (China/India; MFP) (qty 1) 14   B5L32-60002   eMMC 16GB (MFP) (qty 1) B5L32-60002 Embedded MultiMedia Card - 16GB - EMMC Kit New B5L32-60002 (New) $148.24 15   3PZ15-67908   Island of Data (IOD) (qty 1) 16   3PZ95-67903   Formatter (SFP) (qty 1) 3PZ95-67903 Formatter Main Board New 3PZ95-67903 (New) $319.60 16   3PZ95-67904   Formatter (China/India; SFP) (qty 1) 17   3PZ15-67905   eMMC 4GB (SFP) (qty 1) 3PZ15-67905 EMMC 4gb New 3PZ15-67905 (New) 3-4 Day Lead $129.20     3PZ95-67906   Locking Tray Guides (managed

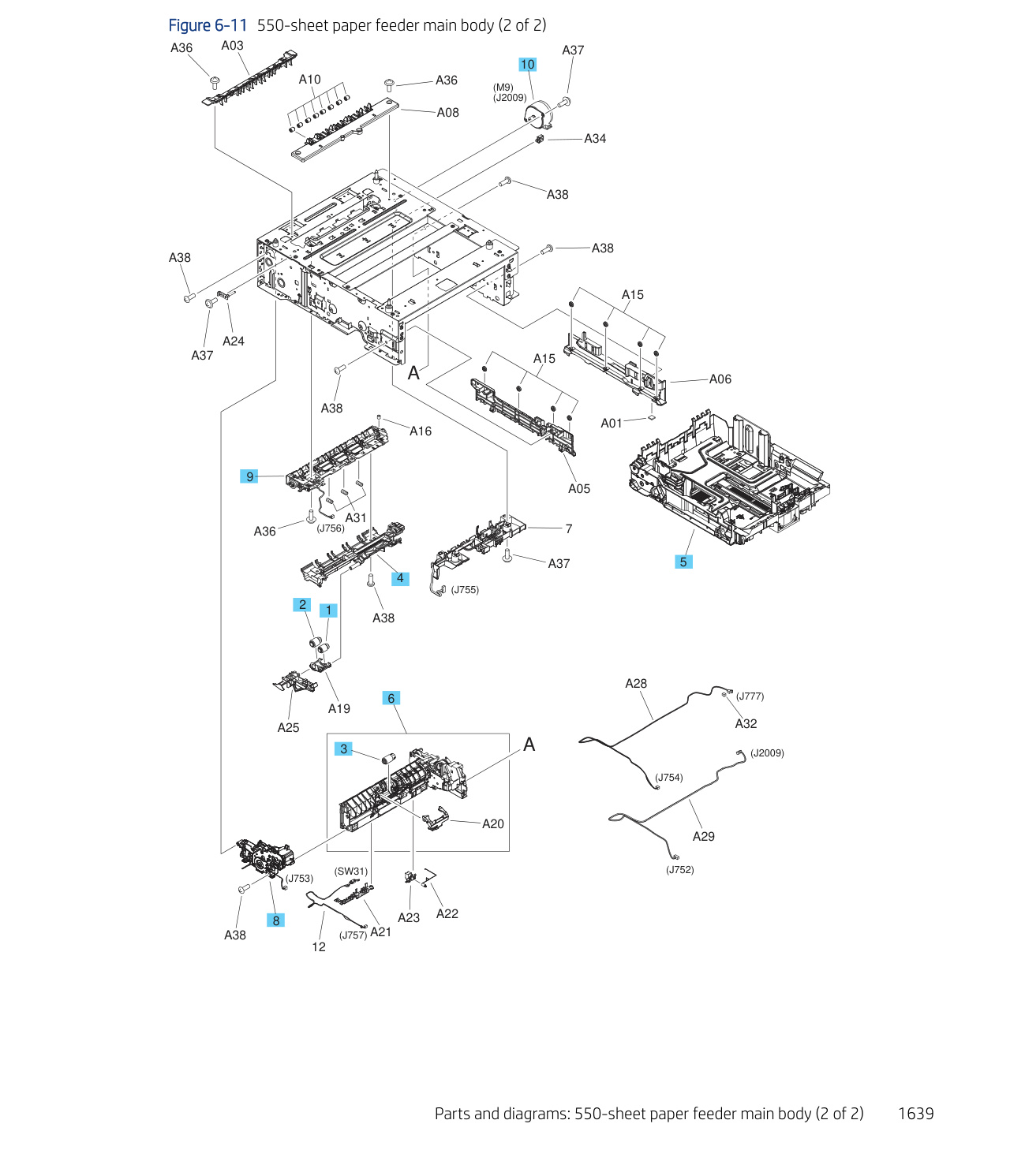

6-11 — 550-sheet paper feeder main body (2 of 2)

1   RM2-7350-000CN   Pickup motor assembly (qty 1) 2   RM2-1807-000CN   Cartridge (toner) tray assembly (qty 1) 3   RM2-6368-000CN   Feed guide assembly (front) (qty 1) 4   RM2-6366-000CN   Feed guide assembly (rear) (qty 1) 5   RM2-6372-000CN   Paper pickup assembly (qty 1) 6   RM2-5881-000CN   Roller, separation assembly (qty 1) 7   RM2-6370-000CN   Lifter drive assembly (qty 1) 8   RM2-5576-000CN   Roller, paper pickup assembly (qty 1) 9   RM2-5577-000CN   Roller, feed assembly (qty 1) 10   RM2-6374-000CN   Registration assembly (qty 1)
