Exploded parts diagrams and part numbers for the HP LaserJet Pro 4006, 4007, 4008 printers and the LaserJet Pro MFP 4112, 4113, 4114, including the optional 550-sheet paper feeder. Part numbers are taken directly from HP's service manual. Where a part shows an order button we have it in stock — for anything else, call us on 248-540-4300.

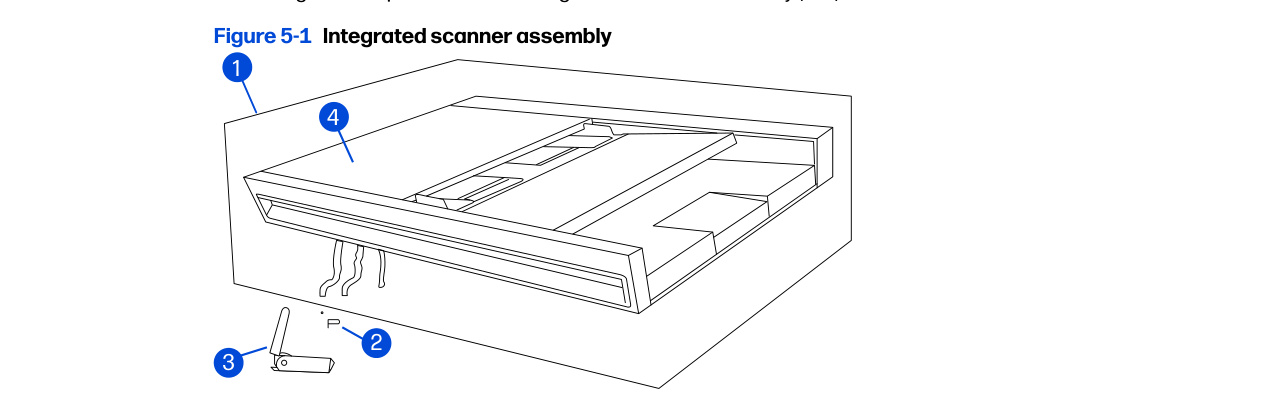

5-1 — Integrated scanner assembly

1   4RA80-67007   Duplex ISA assembly GSO 1   4RA80-67008   Duplex ISA assembly GSO 2   B3Q10-40041   ISA lift slider pin (qty 1) B3Q10-40041 ISA lift slider pin New B3Q10-40041 (New) 3-4 Day Lead $66.64 3   B3Q10-60128   ISA lift assembly (qty 1) B3Q10-60128 ISA lift assembly Fully refurbished with 90-day warranty B3Q10-60128 $49.00 4   W1A77-67903   ADF top cover assembly Document W1A77-67903 Cover - Document Feeder Top (Includes Rollers) New W1A77-67903 (New) $107.44

5-4 — Covers (4006, 4007, 4008)

1   RM3-2098-000CN   Top cover assembly SF (qty 1) 2   RM3-2107-000CN   Top Cover Assembly (qty 1) 3   RM3-2096-000CN   Cartridge door assembly 4   RM3-2100-000CN   Cartridge door sub assembly 5   RM3-2099-000CN   Cartridge door sub assembly 6   RM3-2106-000CN   Power supply button assembly 7   RC6-4397-000CN   Cover, inner SF N/DN/D only (qty 1) 8   RC6-4127-000CN   Cover, Inner SF DW Only (qty 1) 9   RM3-9927-000CN   Cable, flat, WiFi SF (qty 1) 10   RU3-2036-000CN   Spring, compression SF (qty 1) 11   RC6-7393-000CN   Plate, name 4006n (qty 1) 11   RC6-7394-000CN   Plate, name 4006dn (qty 1) 11   RC6-7395-000CN   Plate, name 4006dw (qty 1) 11   RC6-7396-000CN   Plate, name 4007n (qty 1) 11   RC6-7397-000CN   Plate, name 4007dn (qty 1) 11   RC6-7398-000CN   Plate, name 4007dw (qty 1) 11   RC6-7399-000CN   Plate, name 4008d (qty 1) 11   RC6-7400-000CN   Plate, name 4008dn (qty 1) 11   RC6-7401-000CN   Plate, name 4008dw (qty 1) 11   RC6-7404-000CN   Plate, name 4007d (qty 1) 12   63M52-67002   2.4" CP assembly SFP w/cables (qty 1) 13   63M47-67001   LCD Hybrid CP assembly

5-5 — Covers (MFP 4112, 4113, 4114)

1   RC6-4117-000CN   Cover, Right (qty 1) 2   RC6-4123-000CN   Cover, Right front (qty 1) 3   RM3-0201-000CN   Front cover ass’y Multipurpose door assembly MULTI-PURPOSE DOOR ASS'Y EXCEPT CHINA/INDIA MODEL (qty 1) 3   RM3-0412-000CN   Multipurpose door assembly (qty 1) 4   RC6-4122-000CN   Cover, Left front (qty 1) 5   RC6-4116-000CN   Cover, Left SF (qty 1) 6   RC6-4380-000CN   Cap, Network SF D Only (qty 1) 7   RM3-0229-000CN   Rear door assembly (qty 1) 8   RC6-4134-000CN   Cover, Paper delivery Parts and (qty 1)

5-6 — Internal components (1 of 4)

1   RC6-4258-000CN   Cover, pillar, right MFP (qty 1) 2   RC6-4305-000CN   Cover, pillar, right front MFP (qty 1) 3   RC6-4260-000CN   Cover, pillar, left upper MFP (qty 1) 4   RC6-4290-000CN   Cover, pillar, left lower MFP (qty 1) 5   RC6-4257-000CN   Cover, flat cable MFP (qty 1) 6   RC6-4117-000CN   Cover, Right (qty 1) 7   RC6-4123-000CN   Cover, Right front (qty 1) 8   RM3-0202-000CN   Multipurpose door assembly, CHINA/INDIA model 8   RM3-0413-000CN   Multipurpose door assembly, INDIA 9   RC6-4122-000CN   Cover, Left front (qty 1) 10   RC6-4268-000CN   Cover, left MFP (qty 1) 11   RC6-4280-000CN   Door, USB MFP (qty 1) 12   RM3-0229-000CN   Rear door assembly (qty 1) 13   RC6-4134-000CN   Cover, Paper delivery (qty 1) 14   RM3-2107-000CN   Top cover assembly MFP (qty 1)     63M62-67001   4.3" CP assembly MFP w/cables (qty 1)

5-7 — Internal components (2 of 4)

1   RK3-2945-000CN   Fan (qty 1) 3   RK3-2546-000CN   Cable, flat, formatter (qty 1) 4   RK3-2497-000CN   Cable, flat, sensor (qty 1)

5-8 — Internal assemblies (3 of 4)

1   RM3-9380-000CN   Connecting PCB 1   RM3-9567-000CN   Connecting PCB 2   RK3-2503-000CN   Cable, flat, connecting (qty 1) 3   RC6-3973-000CN   Bushing, Transfer 4   RM3-2089-000CN   Transfer Roller (qty 1) 5   RM3-0756-000CN   Laser scanner assembly (qty 1) 6   RK3-2501-000CN   Cable, flat, laser (qty 1)     8X3D4-67001   Formatter PCA 4006dn (qty 1)     8X3D6-67001   Formatter PCA 4006dw (qty 1)     8X3D2-67001   Formatter PCA 4006n (qty 1)     8X3E2-67001   Formatter PCA 4007d (qty 1)     8X3E1-67001   Formatter PCA 4007dn (qty 1)     8X3E0-67001   Formatter PCA 4007dw (qty 1)     8X3D8-67001   Formatter PCA 4007n (qty 1)     8X3E8-67001   Formatter PCA 4008d (qty 1)     8X3E6-67001   Formatter PCA 4008dn (qty 1)     8X3E7-67001   Formatter PCA 4008dw (qty 1)     8X3F0-67001   Formatter PCA 4112fdn (qty 1)     8X3F2-67001   Formatter PCA 4112fdw (qty 1)     8X3F4-67001   Formatter PCA 4112dw (qty 1)     8X3F6-67001   Formatter PCA 4113dw (qty 1)     B09RY-67001   Formatter PCA 4113dwg (qty 1)     8X3F8-67001   Formatter PCA 4113fdn (qty 1)     B09RZ-67001   Formatter PCA 4113fdng (qty 1)     8X3G0-67001   Formatter PCA 4113fdw (qty 1)     B09S0-67001   Formatter PCA 4113fdwg (qty 1)     8X3G4-67001   Formatter PCA 4114dw (qty 1)     8X3G5-67001   Formatter PCA 4114fdn (qty 1)     8X3G6-67001   Formatter PCA 4114fdw EXCEPT CHINA/INDIA CHINA/INDIA MODEL (qty 1)

5-9 — Internal components (4 of 4)

1   RM3-0394-000CN   Separation roller assembly (qty 1) 2   RM3-0220-000CN   Cassette assembly SFP except 2   RM3-0221-000CN   Cassette assembly MFP 2   RM3-0407-000CN   Cassette assembly MFP 2   RM3-0408-000CN   Cassette assembly SFP China/India (qty 1) 3   RL3-0679-000CN   Roller, multiple-purpose (qty 1) 4   RM3-0212-000CN   Paper re-pick up assembly 5   RM2-5452-010CN   Paper pick-up roller assembly (qty 1) 6   RL3-0684-000CN   Pad, multiple-purpose separation (qty 1) 7   RM3-0211-000CN   Registration assembly, simplex 7   RM3-2094-000CN   Registration assembly, duplex

5-10 — 550-sheet paper feeder covers

1   RK3-2729-000CN   Solenoid (qty 1) 2   RM3-9381-000CN   Door sensor PCB assembly (qty 1) 3   RK3-2727-000CN   Solenoid (qty 1)

5-11 — 550-sheet paper feeder main body (1 of 2)

1   RC6-4198-000CN   Cover, right (qty 1) 2   RC6-4200-000CN   Cover, front right 3   RC6-4199-000CN   Cover, left front (qty 1) 4   RM3-2101-000CN   Left cover assembly, 4   RM3-2102-000CN   Left cover assembly 5   RC6-4196-000CN   Cover, rear Input device (qty 1)

5-12 — 550-sheet paper feeder main body (2 of 2)

1   RM3-9374-000CN   Connecting PCB assembly (qty 1) 2   RM3-0278-000CN   Drive assembly (qty 1) 4   RM3-0270-000CN   Cassette assembly SFP Blue (qty 1) 4   RM3-2084-000CN   Cassette assembly MFP 4   RM3-2088-000CN   Cassette assembly SFP Gray (qty 1) 4   RM3-2087-000CN   Cassette assembly MFP 5   RM3-9373-000CN   Paper feeder main PCB assembly (qty 1) 6   RK3-2552-000CN   Cable, flat, connecting (qty 1) 7   RC6-5325-000CN   Plate, number, 3 MFP Blue (qty 1) 7   RC6-4389-000CN   Plate, number, 3 MFP Gray (qty 1)     XA9-1420-000   AR SCREW, W/WASHER, M3X8 (qty 1)
