IBM Infoprint 1622 & 1612 (4546) Parts






Please call for parts assistance

Looking for whole machines?
IBM 4546-501 Infoprint 1622dn Printer
New
4546-501 39V1699 (New)

Retired, no longer available: Contact for alternatives


IBM 4546-501 Infoprint 1622dn Printer
Fully refurbished with 1-year warranty
4546-501 39V1699

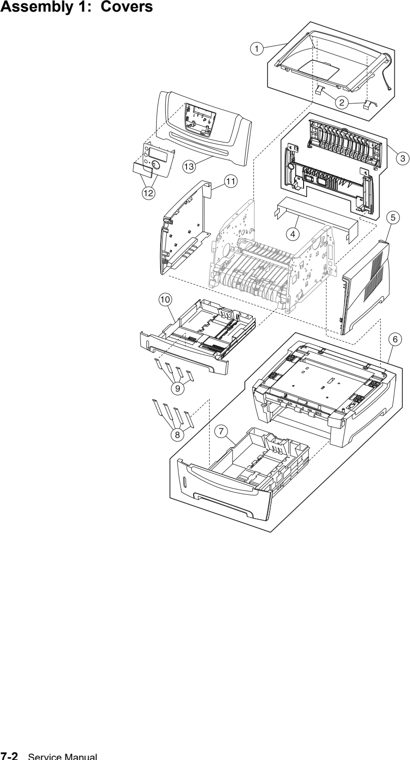

1-1
40X2835 Top Cover Assembly
Fully refurbished with 90-day warranty
40X2835
$38.17



2
40X2812 Top cover right and left flags
Fully refurbished with 90-day warranty
40X2812
$19.71



3
40X2839 Rear Upper And Lower Cover Assembly
New
40X2839 (New)
$24.28

Retired, no longer available: Contact for alternatives



40X2839 Rear Upper And Lower Cover Assembly
Fully refurbished with 90-day warranty
40X2839
$16.29

Retired, no longer available: Contact for alternatives



4 40X2858 Legal extender dust cover

5
40X2837 Right Side Cover
Fully refurbished with 90-day warranty
40X2837
$14.93

Retired, no longer available: Contact for alternatives



40X2837 Right Side Cover
New
40X2837 (New)
$16.61

Retired, no longer available: Contact for alternatives



6

40X2843 Optional Media Drawer Assembly
Fully refurbished with 90-day warranty
40X2843
$135.00



7
40X2844 Tray 2 Assembly (No Drawer)
New
40X2844 (New)

Retired, no longer available: Contact for alternatives



40X2844 Tray 2 Assembly (No Drawer)
Fully refurbished with 90-day warranty
40X2844

Retired, no longer available: Contact for alternatives



8
40X2855 Tray 2 Wear Strips
Fully refurbished with 90-day warranty
40X2855
$16.85

Retired, no longer available: Contact for alternatives



9 40X2854 4 Tray wear strips

10
40X2842 Main Tray
Fully refurbished with 90-day warranty
40X2842
$67.49

Retired, no longer available: Contact for alternatives



40X2842 Main Tray
New
40X2842 (New)

Retired, no longer available: Contact for alternatives



11
40X2836 Left Side Cover
Fully refurbished with 90-day warranty
40X2836
$18.00

Retired, no longer available: Contact for alternatives



40X2836 Left Side Cover
New
40X2836 (New)
$17.71

Retired, no longer available: Contact for alternatives



12 40X2816 (1612)

12
40X2818 LCD Bezel Cover
New
40X2818 (New)
$11.48



1622

13
40X2840 Front Access Cover Assembly
Fully refurbished with 90-day warranty
40X2840
$24.71

Retired, no longer available: Contact for alternatives



40X2840 Front Access Cover Assembly
New
40X2840 (New)
$24.71

Retired, no longer available: Contact for alternatives

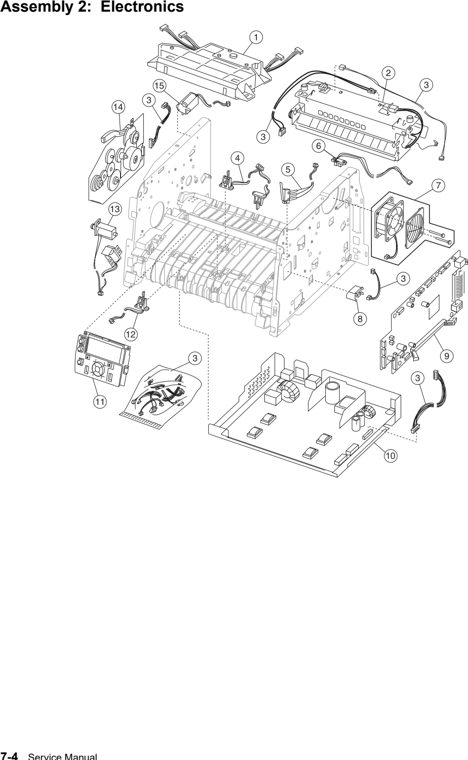

2-1
40X2803 Laser Scanning Unit (Printhead)
Fully refurbished with 90-day warranty
40X2803



40X2803 Laser Scanning Unit (Printhead)
New
40X2803 (New)

Retired, no longer available: Contact for alternatives



2
40X2800 Fuser Assembly 110 V
New
40X2800 Compatible (New)
$89.00



40X2800 Fuser Assembly 110 V
New
40X2800 (New)
$114.71



3 40X2833 Miscellaneous cable assemblies
Thermistor
LVPS/HVPS to controller card
Main drive gear assembly (motor to controller card)
Fuser power (LVPS to fuser)

4
40X2823 Duplex And Media Sensor Assembly
Fully refurbished with 90-day warranty
40X2823
$11.25



5
40X2813 Cover Open Sensor Assembly
Fully refurbished with 90-day warranty
40X2813 I
$13.74

Retired, no longer available: Contact for alternatives



6 40X2856 Narrow media sensor

7


8 56P2076 Toner low sensor (RO)

9
40X2805 I Controller Card 1612
New
40X2805 I (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$210.66

Retired, no longer available: Contact for alternatives



40X2808 Controller card 1622dn
Fully refurbished with 90-day warranty
40X2808 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$149.00



10
40X2819 LV/HV Power Supply Card Assembly 110 V
New
40X2819 (New)

Retired, no longer available: Contact for alternatives



40X2819 LV/HV Power Supply Card Assembly 110 V
Fully refurbished with 90-day warranty
40X2819
$72.78



11
40X2811 LCD operator panel assembly 1622dn
Fully refurbished with 90-day warranty
40X2811 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$50.00



12 40X2824 Manual input sensor assembly

13 40X2845 Pickup and manual feed solenoids

14
40X2826 Main Drive Gear Assembly
New
40X2826 (New)
$83.75

Retired, no longer available: Contact for alternatives



40X2826 Main Drive Gear Assembly
Fully refurbished with 90-day warranty
40X2826
$68.31

Retired, no longer available: Contact for alternatives



15 40X2846 Reversing solenoid

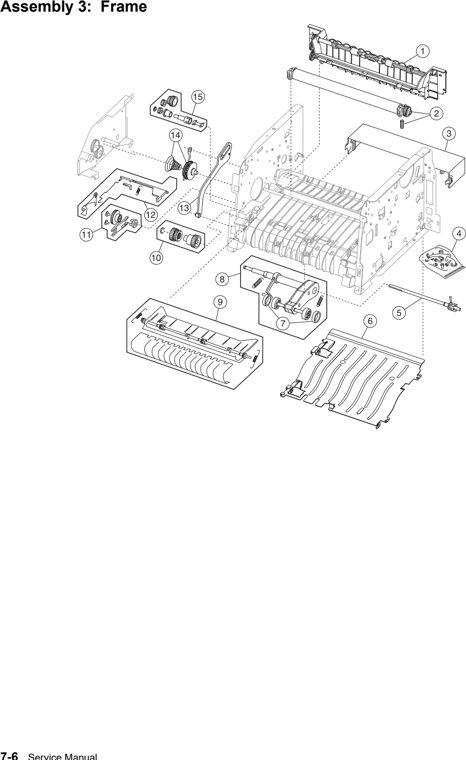

3-1
40X2834 Media Exit Guide Assembly
Fully refurbished with 90-day warranty
40X2834
$39.71

Retired, no longer available: Contact for alternatives



40X2834 Media Exit Guide Assembly
New
40X2834 (New)

Retired, no longer available: Contact for alternatives



2
40X2822 Transfer Roll Assembly
New
40X2822 (New)
$30.51

Retired, no longer available: Contact for alternatives



3 40X2858 Legal extender dust cover

4 40X2850 Screws, miscellaneous
TP2NCX3X6PF-Ni
TP2C-4.0+8PF-Ni
M3.0*0.5+6PF-Ni
M3.0*0.5+4PF-Ni
M3.5*0.6+6P-Ni

5 40X2853 ACM drive shaft assembly

6
40X2841 Complete Duplex Assembly
Fully refurbished with 90-day warranty
40X2841
$34.71

Retired, no longer available: Contact for alternatives



40X2841 Complete Duplex Assembly
New
40X2841 (New)
$54.71

Retired, no longer available: Contact for alternatives



7
56P1820 Paper Feed Rubber Tires (Set of 2)
New
56P1820 40X1319 (New)
$11.00



8
40X2838 Media (ACM) Drive Assembly
New
40X2838 (New)

Retired, no longer available: Contact for alternatives



9
40X2857 Upper front frame assembly
Fully refurbished with 90-day warranty
40X2857
$25.00

Retired, no longer available: Contact for alternatives



10
40X2830 Manual Feed Clutch CBM
Fully refurbished with 90-day warranty
40X2830
$14.89

Retired, no longer available: Contact for alternatives



11
40X2831 Media Feed ACM Clutch CBM
New
40X2831 40X5930 (New)

Retired, no longer available: Contact for alternatives



40X2831 Media Feed ACM Clutch CBM
Fully refurbished with 90-day warranty
40X2831 40X5930

Retired, no longer available: Contact for alternatives




12 40X2832 Media level indicator CBM

13 40X2825 Developer drive/access door link

14 40X2829 Developer drive coupling assembly

15 40X2821 Duplex drive gear CBM

NS
40X2847 Fuser Maintenance Kit E350 E352 E450
Fully refurbished with 90-day warranty
40X2847
$159.00



40X2847 Fuser Maintenance Kit E350 E352 E450
New
40X2847 (New)
$209.71

Retired, no longer available: Contact for alternatives



Kit contains the following:
Fuser (40X2800, 40X2801, or 40X2802)
Exit guide (40X2834)
Tray ACM feed tires (56P1820)
Transfer roll CBM (40X2822)
