Lexmark CX825, CX860, XC8155, and XC8160 Parts

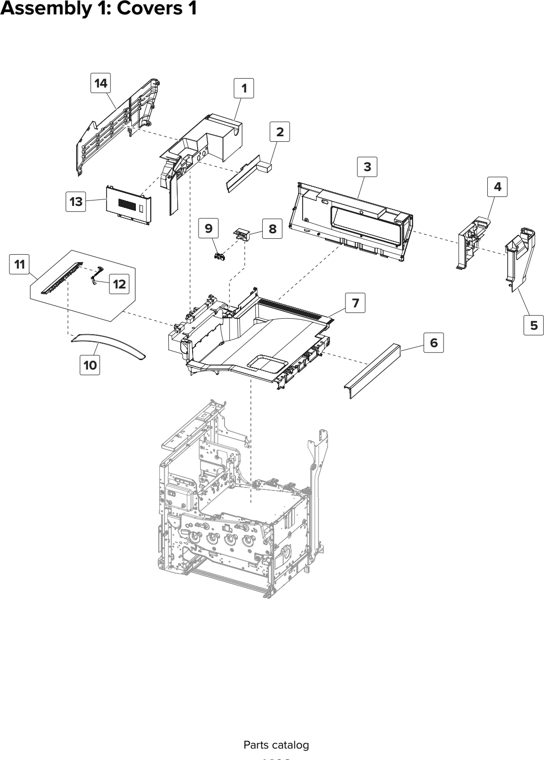

Assembly 1: Covers 1

1
41X0213 Top cover
New
41X0213 (New)
$44.42



41X0213 Top cover
Fully refurbished with 90-day warranty
41X0213
$36.08



2
41X0710 Connector access cover
New
41X0710 (New)
$73.17



41X0710 Connector access cover
Fully refurbished with 90-day warranty
41X0710
$59.54



3
41X0214 Rear upper cover
New
41X0214 (New)
$47.50



41X0214 Rear upper cover
Fully refurbished with 90-day warranty
41X0214
$38.59



4
41X0218 Column inner cover
New
41X0218 (New)
$17.78



41X0218 Column inner cover
Fully refurbished with 90-day warranty
41X0218
$11.40



5
41X0217 Column outer cover
New
41X0217 (New)
$18.51



41X0217 Column outer cover
Fully refurbished with 90-day warranty
41X0217
$12.06



6

41X0211 Horizontal Paper Transport (HPT) attach cover
Fully refurbished with 90-day warranty
41X0211
$21.12



7
41X0210 Standard bin cover
New
41X0210 (New)
$91.95



41X0210 Standard bin cover
Fully refurbished with 90-day warranty
41X0210
$74.88



8
41X0716 Stacking bail
New
41X0716 (New)
$79.76



41X0716 Stacking bail
Fully refurbished with 90-day warranty
41X0716
$64.93



9

41X0212 Static brush/bin full actuator
Fully refurbished with 90-day warranty
41X0212
$16.68



10
41X0220 Front column upper cover
New
41X0220 (New)
$17.68



41X0220 Front column upper cover
Fully refurbished with 90-day warranty
41X0220
$11.31



11
41X0216 Left upper cover
New
41X0216 (New)
$41.01



41X0216 Left upper cover
Fully refurbished with 90-day warranty
41X0216
$33.30



12
41X0228 Bin full sensor housing
New
41X0228 (New)
$37.94



41X0228 Bin full sensor housing
Fully refurbished with 90-day warranty
41X0228
$30.78

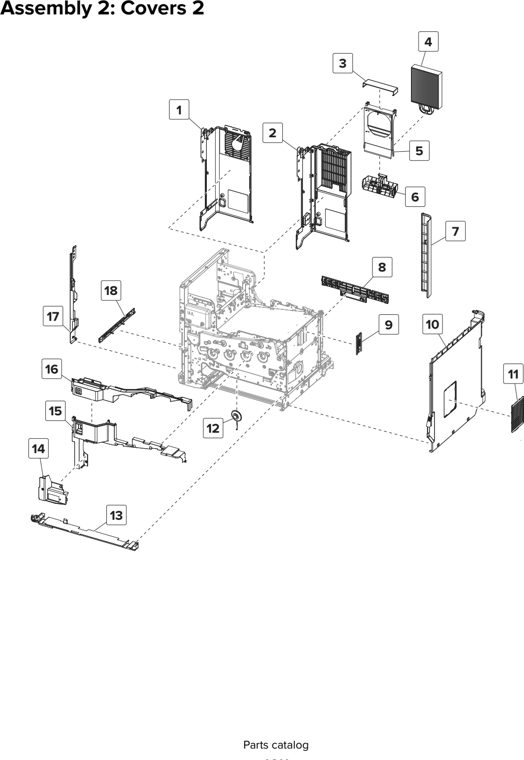

Assembly 2: Covers 2

1
41X0089 Rear left cover
New
41X0089 (New)
$53.40



41X0089 Rear left cover
Fully refurbished with 90-day warranty
41X0089
$43.41



2
41X0099 Connector access cover
New
41X0099 (New)
$19.51



3
41X0088 Rear lower cover
New
41X0088 (New)
$18.80



41X0088 Rear lower cover
Fully refurbished with 90-day warranty
41X0088
$16.82



4
41X0092 Right cover
New
41X0092 (New)
$74.31



41X0092 Right cover
Fully refurbished with 90-day warranty
41X0092
$60.48



5
41X0070 Right cover bracket
New
41X0070 (New)
$13.67



6
41X0090 Vent cover
New
41X0090 (New)
$14.09



7 40X9079 Audio speaker

8
41X0094 Lower front cover
New
41X0094 (New)
$38.94



41X0094 Lower front cover
Fully refurbished with 90-day warranty
41X0094
$31.61



9
41X0097 Door rod cover
New
41X0097 (New)
$13.81



41X0097 Door rod cover
Fully refurbished with 90-day warranty
41X0097
$7.83



10
41X0093 Inner lower cover
New
41X0093 (New)
$46.53



41X0093 Inner lower cover
Fully refurbished with 90-day warranty
41X0093
$37.80



11
41X0715 Inner upper cover
New
41X0715 (New)
$39.32



41X0715 Inner upper cover
Fully refurbished with 90-day warranty
41X0715
$31.91



12
41X0096 Left lower cover
New
41X0096 (New)
$15.96



41X0096 Left lower cover
Fully refurbished with 90-day warranty
41X0096
$14.26



13
41X0091 Left front cover
New
41X0091 (New)
$17.78

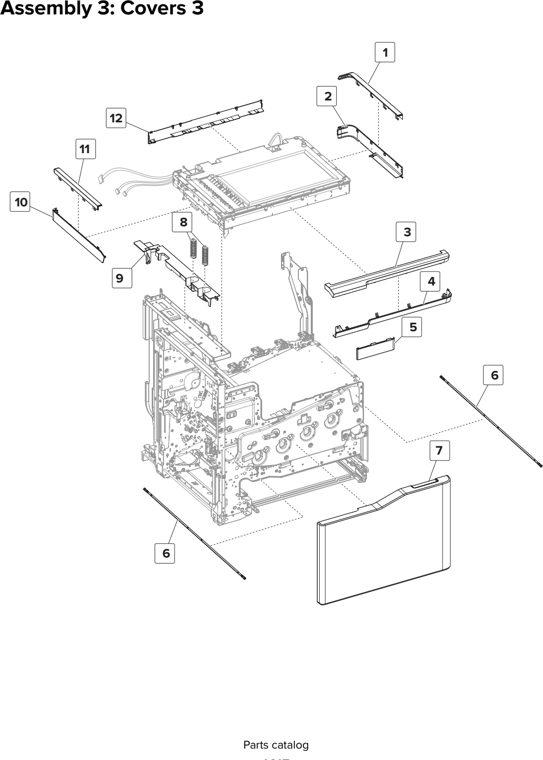

Assembly 3: Covers 3

1
41X0234 Scanner right upper cover
New
41X0234 (New)
$17.89



41X0234 Scanner right upper cover
Fully refurbished with 90-day warranty
41X0234
$16.00



2
41X0231 Scanner right cover
New
41X0231 (New)
$18.58



3
41X0235 Scanner front upper cover
New
41X0235 (New)
$36.26



41X0235 Scanner front upper cover
Fully refurbished with 90-day warranty
41X0235
$29.42



4
41X0232 Scanner front cover
New
41X0232 (New)
$36.42



41X0232 Scanner front cover
Fully refurbished with 90-day warranty
41X0232
$29.54



5
41X0229 Keyboard access cover
New
41X0229 (New)
$16.80



41X0229 Keyboard access cover
Fully refurbished with 90-day warranty
41X0229
$10.52



6
41X0780 Front door strap
New
41X0780 (New)
$15.07



7
41X0227 Front door
New
41X0227 (New)
$105.32



41X0227 Front door
Fully refurbished with 90-day warranty
41X0227
$87.60



8
41X0781 Support spring
New
41X0781 (New)
$14.65



9
41X0278 Cable cover
New
41X0278 (New)
$18.46



10
41X0230 Scanner left cover
New
41X0230 (New)
$18.58



11
41X0233 Scanner left upper cover
New
41X0233 (New)
$17.31



12
41X0236 Scanner rear cover
New
41X0236 (New)
$33.75



41X0236 Scanner rear cover
Fully refurbished with 90-day warranty
41X0236
$27.37

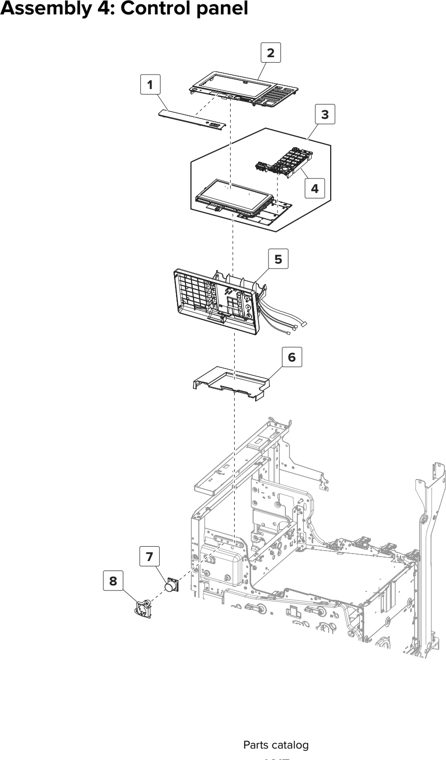

Assembly 4: Control panel

1
41X0903 Model name plate CX860
New
41X0903 (New)
$18.17



1 41X0904 Model plate (XC8155)

1 41X0905 Model plate (XC8160)

2

41X0544 10-inch class operator panel bezel
Fully refurbished with 90-day warranty
41X0544
$22.49



3

41X0052 Operator panel card 10-inch
Fully refurbished with 90-day warranty
41X0052 subs to 41X2276



41X2276 Operator panel card, 10-inch
New
41X2276 (New)
$335.00



41X2276 Operator panel card, 10-inch
Fully refurbished with 90-day warranty
41X2276




4

41X0224 Operator panel button kit 10-inch
Fully refurbished with 90-day warranty
41X0224
$20.88



5
41X0215 Operator panel support 10-inch
New
41X0215 (New)
$184.71



41X0215 Operator panel support 10-inch
Fully refurbished with 90-day warranty
41X0215
$134.42



6
41X0238 Operator panel support cover
New
41X0238 (New)
$17.44



7
41X0222 Proximity sensor
New
41X0222 (New)
$59.72



41X0222 Proximity sensor
Fully refurbished with 90-day warranty
41X0222
$48.57



8
41X0221 Proximity sensor cover
New
41X0221 (New)
$38.98



41X0221 Proximity sensor cover
Fully refurbished with 90-day warranty
41X0221
$31.64

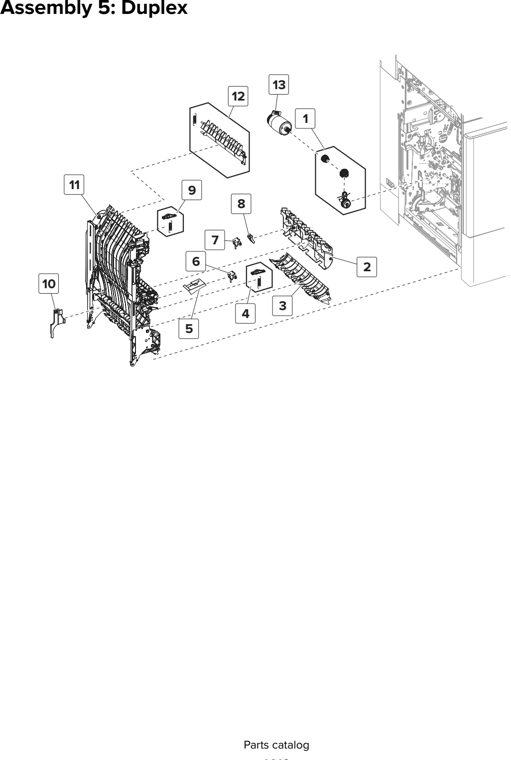

Assembly 5: Duplex

1
41X0133 Duplex drive gears
New
41X0133 (New)
$16.27



41X0133 Duplex drive gears
Fully refurbished with 90-day warranty
41X0133
$10.04



2

41X0123 Duplex lower pinch roller guide
Fully refurbished with 90-day warranty
41X0123
$20.76



3
41X0121 Duplex turn guide
New
41X0121 (New)
$20.93



41X0121 Duplex turn guide
Fully refurbished with 90-day warranty
41X0121
$18.74



4
41X0066 Front nip release arm
New
41X0066 (New)
$13.41



41X0066 Front nip release arm
Fully refurbished with 90-day warranty
41X0066
$7.47



5
41X0072 Lower duplex sensor bracket
New
41X0072 (New)
$8.68





6
41X0446 Sensor (duplex path 1 2)
New
41X0446 (New)
$16.51



7
41X0446 Sensor (duplex path 1 2)
New
41X0446 (New)
$16.51



8
41X0071 Upper duplex sensor bracket
New
41X0071 (New)
$8.98





9
41X0065 Rear nip release arm
New
41X0065 (New)
$13.41



41X0065 Rear nip release arm
Fully refurbished with 90-day warranty
41X0065
$7.47



10
41X0098 Connector cover plastic
New
41X0098 (New)
$13.25



41X0098 Connector cover plastic
Fully refurbished with 90-day warranty
41X0098
$7.32



11
41X0105 Duplex assembly
New
41X0105 (New)
$221.40



12
41X0122 Duplex upper guide
New
41X0122 (New)
$15.14



41X0122 Duplex upper guide
Fully refurbished with 90-day warranty
41X0122
$13.53

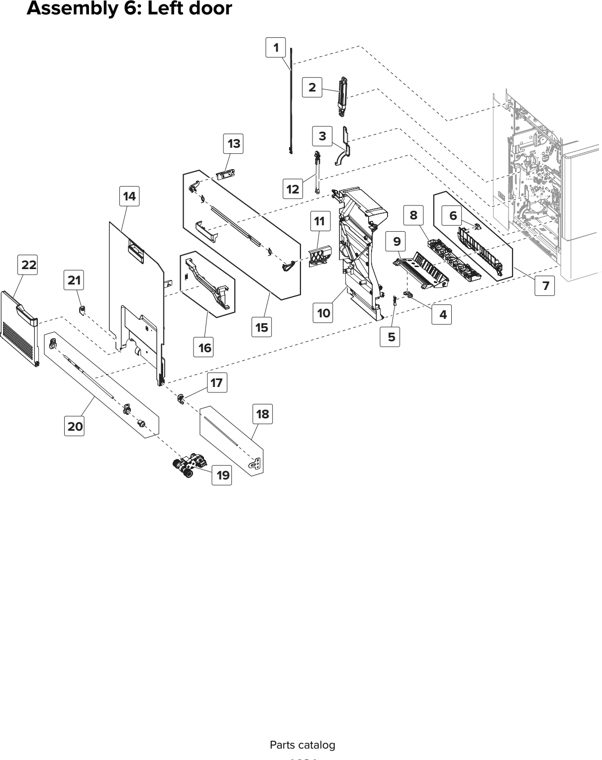

Assembly 6: Left door

1
41X0173 Left door support strap
New
41X0173 (New)
$13.61



41X0173 Left door support strap
Fully refurbished with 90-day warranty
41X0173
$7.65



2
41X0100 Left door damper
New
41X0100 (New)
$15.86



41X0100 Left door damper
Fully refurbished with 90-day warranty
41X0100
$9.67



3
41X0073 Connector cover metal
New
41X0073 (New)
$13.93



41X0073 Connector cover metal
Fully refurbished with 90-day warranty
41X0073
$7.94



4

5
41X0058 MPF media present actuator
New
41X0058 (New)
$8.69





6

41X0914 Sensor (pass-through near narrow media deskew roller entry)
Fully refurbished with 90-day warranty
41X0914
$10.35



7

41X0120 Deflector with sensor (pass-through)
Fully refurbished with 90-day warranty
41X0120
$19.03



8
41X0172 MPF tray stop
New
41X0172 (New)
$17.11



9
41X0119 MPF pick guide
New
41X0119 (New)
$20.58



41X0119 MPF pick guide
Fully refurbished with 90-day warranty
41X0119
$18.42



10
41X0124 Left door paper guide
New
41X0124 (New)
$55.92



41X0124 Left door paper guide
Fully refurbished with 90-day warranty
41X0124
$45.46



11
41X0081 Left door front catch
New
41X0081 (New)
$14.29



41X0081 Left door front catch
Fully refurbished with 90-day warranty
41X0081
$8.26



12
41X0174 Left door support
New
41X0174 (New)
$15.46



41X0174 Left door support
Fully refurbished with 90-day warranty
41X0174
$9.31



13
41X0080 Left door rear catch
New
41X0080 (New)
$9.04





14
41X0101 Left door
New
41X0101 (New)
$89.83



41X0101 Left door
Fully refurbished with 90-day warranty
41X0101
$73.14



15
41X0136 Left door release latch
New
41X0136 (New)
$14.01



41X0136 Left door release latch
Fully refurbished with 90-day warranty
41X0136
$12.51



16
41X0135 Duplex release latch
New
41X0135 (New)
$14.78



41X0135 Duplex release latch
Fully refurbished with 90-day warranty
41X0135
$13.20



17
41X0059 MPF tray front actuator
New
41X0059 (New)
$14.33



41X0059 MPF tray front actuator
Fully refurbished with 90-day warranty
41X0059
$8.30



18
41X0250 Left door rod
New
41X0250 (New)
$17.11





19
41X0993 Pick roller
New
41X0993 (New)
$27.78





20
41X0167 MPF pick shaft
New
41X0167 (New)
$19.51



41X0167 MPF pick shaft
Fully refurbished with 90-day warranty
41X0167
$17.46



21
41X0060 MPF tray rear actuator
New
41X0060 (New)
$14.33



41X0060 MPF tray rear actuator
Fully refurbished with 90-day warranty
41X0060
$8.30



22
41X0176 MPF tray
New
41X0176 (New)
$35.33



41X0176 MPF tray
Fully refurbished with 90-day warranty
41X0176
$28.66

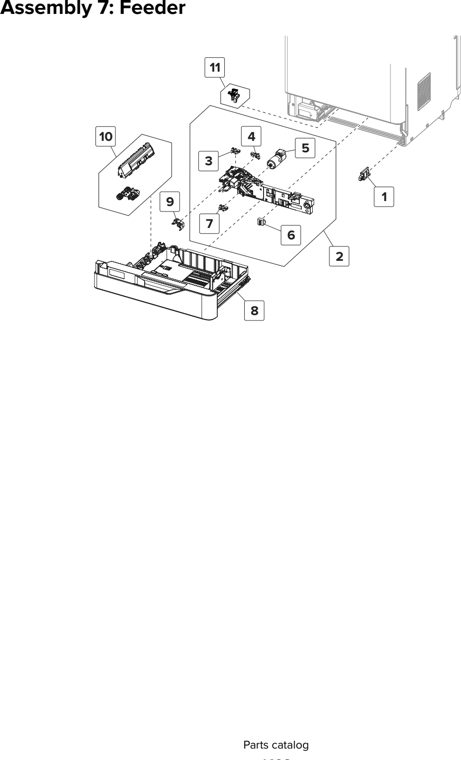

Assembly 7: Feeder

1

2
41X0106 Paper feeder
New
41X0106 (New)
$105.03



41X0106 Paper feeder
Fully refurbished with 90-day warranty
41X0106
$87.36



3



4
41X0129 Paper tray guide
New
41X0129 (New)
$8.89





5
40X7911 Media size sensor
New
40X7911 (New)
$12.66



6
41X0175 550-sheet tray insert
New
41X0175 (New)
$153.68



41X0175 550-sheet tray insert
Fully refurbished with 90-day warranty
41X0175
$111.78



7



8
41X0067 Feeder bearing
New
41X0067 (New)
$13.47



41X0067 Feeder bearing
Fully refurbished with 90-day warranty
41X0067
$7.52



9
41X0999 Pick roller and separator pad
New
41X0999 (New)
$31.97

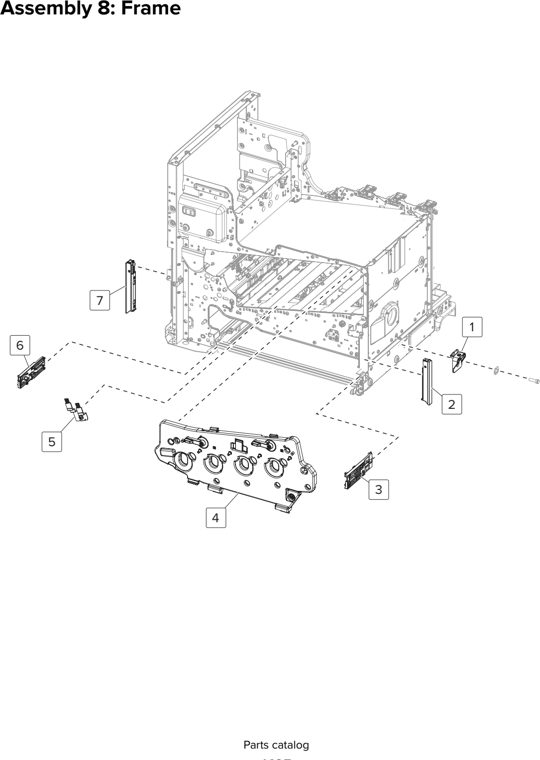

Assembly 8: Frame

1
41X0074 Frame connector bracket
New
41X0074 (New)
$9.04





2
41X0131 Right handle
New
41X0131 (New)
$17.34



41X0131 Right handle
Fully refurbished with 90-day warranty
41X0131
$11.01



3
41X0991 Tray close rail right
New
41X0991 (New)
$23.00



41X0991 Tray close rail right
Fully refurbished with 90-day warranty
41X0991
$20.60



4
41X0103 PC unit/developer door
New
41X0103 (New)
$93.92



41X0103 PC unit/developer door
Fully refurbished with 90-day warranty
41X0103
$76.49



5
41X0992 Tray close rail left
New
41X0992 (New)
$21.91



41X0992 Tray close rail left
Fully refurbished with 90-day warranty
41X0992
$19.62



6
41X0130 Left handle
New
41X0130 (New)
$16.72



41X0130 Left handle
Fully refurbished with 90-day warranty
41X0130
$10.45

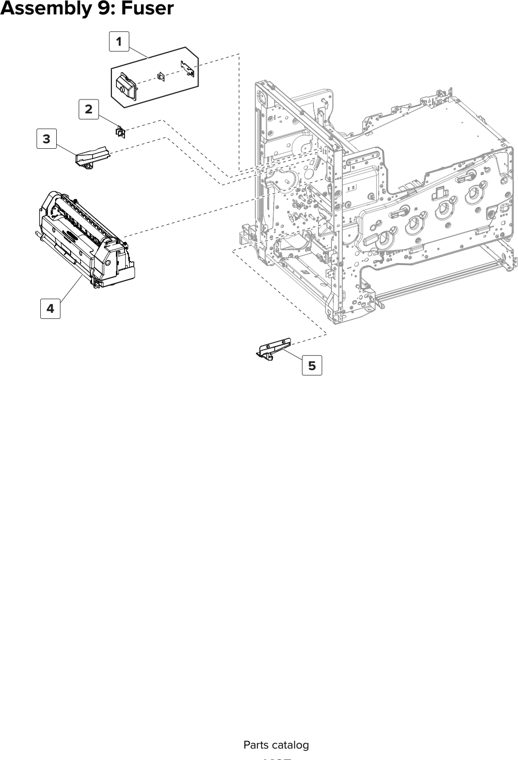

Assembly 9: Fuser

1

41X0078 Fuser connect cable
Fully refurbished with 90-day warranty
41X0078



2
41X0125 Fuser front loading guide
New
41X0125 (New)
$13.98



41X0125 Fuser front loading guide
Fully refurbished with 90-day warranty
41X0125
$7.98



3 41X0248 Fuser (100 V)

3
41X0246 CS820 C6160 CX820 CX825 CX860 Fuser 110-120V
Fully refurbished with 90-day warranty
41X0246





3 41X0247 Fuser (230 V)

4
41X0126 Fuser rear loading guide
New
41X0126 (New)
$14.12



41X0126 Fuser rear loading guide
Fully refurbished with 90-day warranty
41X0126
$8.11



5
41X0127 Fuser alignment guide
New
41X0127 (New)
$13.25



41X0127 Fuser alignment guide
Fully refurbished with 90-day warranty
41X0127
$7.32



6
41X0165 Fuser temperature sensor
New
41X0165 (New)
$40.26



41X0165 Fuser temperature sensor
Fully refurbished with 90-day warranty
41X0165
$32.68

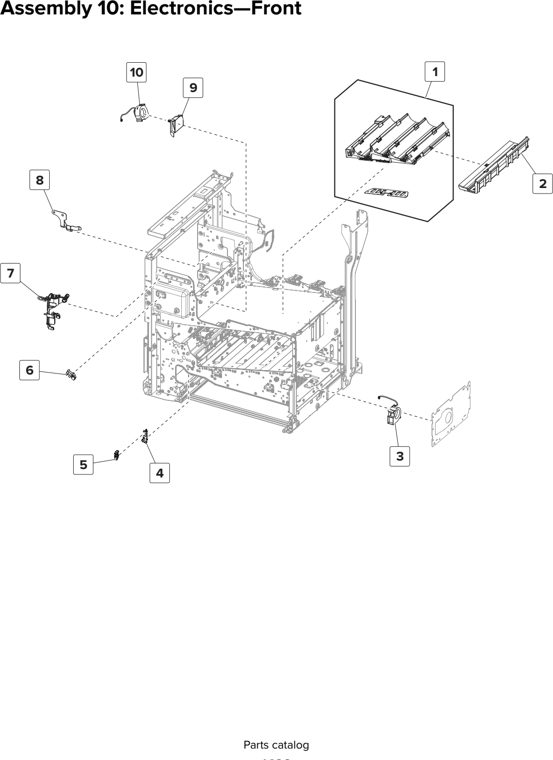

Assembly 10: Electronics- Front

1
41X0143 Main HV power supply
New
41X0143 (New)
$188.28



41X0143 Main HV power supply
Fully refurbished with 90-day warranty
41X0143
$144.60



2
41X0117 Toner cartridge guide
New
41X0117 (New)
$21.14



41X0117 Toner cartridge guide
Fully refurbished with 90-day warranty
41X0117
$18.93



3
41X0954 Main fan
New
41X0954 (New)
$39.45



41X0954 Main fan
Fully refurbished with 90-day warranty
41X0954
$32.02



4
41X0162 Door interlock actuator
New
41X0162 (New)
$17.53



41X0162 Door interlock actuator
Fully refurbished with 90-day warranty
41X0162
$15.68



5
41X0162 Door interlock actuator
New
41X0162 (New)
$17.53



41X0162 Door interlock actuator
Fully refurbished with 90-day warranty
41X0162
$15.68



6
41X0141 Grounding plate
New
41X0141 (New)
$13.71



41X0141 Grounding plate
Fully refurbished with 90-day warranty
41X0141
$7.74



7
41X0973 Fan duct
New
41X0973 (New)
$13.21



41X0973 Fan duct
Fully refurbished with 90-day warranty
41X0973
$7.29



8
41X0974 HVPS fan
New
41X0974 (New)
$28.97



41X0974 HVPS fan
Fully refurbished with 90-day warranty
41X0974
$23.46

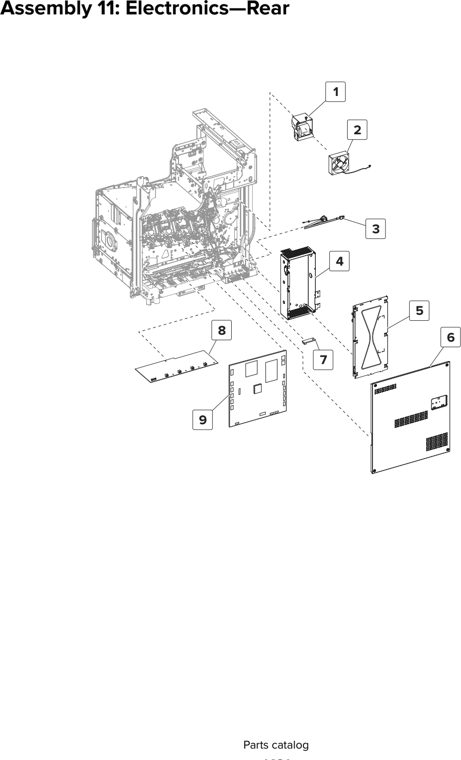

Assembly 11: Electronics- Rear

1
41X0104 Main fan duct
New
41X0104 (New)
$21.50



41X0104 Main fan duct
Fully refurbished with 90-day warranty
41X0104
$19.25



2
41X0975 Printhead fan
New
41X0975 (New)
$27.09



41X0975 Printhead fan
Fully refurbished with 90-day warranty
41X0975
$21.93



3
41X0260 AC power input cable
New
41X0260 (New)
$27.92





4
41X0244 LVPS cage
New
41X0244 (New)
$32.20



41X0244 LVPS cage
Fully refurbished with 90-day warranty
41X0244
$26.10



5
41X0242 LV power supply
New
41X0242 (New)
$208.45



41X0242 LV power supply
Fully refurbished with 90-day warranty
41X0242
$160.12



6
41X0087 Controller card cover
New
41X0087 (New)
$47.66



41X0087 Controller card cover
Fully refurbished with 90-day warranty
41X0087
$38.72



7
41X0785 Weather station
New
41X0785 (New)
$24.00



41X0785 Weather station
Fully refurbished with 90-day warranty
41X0785
$19.41



8
41X0241 Charge roller HVPS
New
41X0241 (New)
$111.48



41X0241 Charge roller HVPS
Fully refurbished with 90-day warranty
41X0241
$92.74



9
41X0237 Controller card
New
41X0237 (New)
$1454.19



41X0237 Controller card
Fully refurbished with 90-day warranty
41X0237

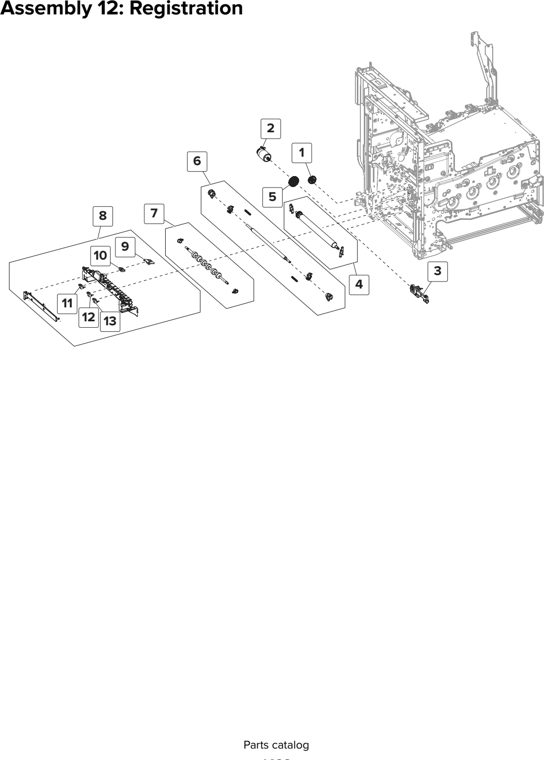

Assembly 12: Registration

1
41X0108 Deskew roller gear
New
41X0108 (New)
$13.47



41X0108 Deskew roller gear
Fully refurbished with 90-day warranty
41X0108
$7.52



2
41X0163 Sensor (input)
New
41X0163 (New)
$14.94



41X0163 Sensor (input)
Fully refurbished with 90-day warranty
41X0163
$8.85



3
41X0107 Isolation roller gear
New
41X0107 (New)
$13.41



41X0107 Isolation roller gear
Fully refurbished with 90-day warranty
41X0107
$7.47



4
41X0155 Deskew roller
New
41X0155 (New)
$37.33



41X0155 Deskew roller
Fully refurbished with 90-day warranty
41X0155
$30.29



5
41X0156 Deskew pinch roller
New
41X0156 (New)
$22.57



41X0156 Deskew pinch roller
Fully refurbished with 90-day warranty
41X0156
$20.21



6
41X0168 Isolation roller shaft
New
41X0168 (New)
$23.48



41X0168 Isolation roller shaft
Fully refurbished with 90-day warranty
41X0168
$21.03



7 40X7779 Sensor (deskew roller exit)

8

9

10

11
41X0128 Deskew roller sensor guide
New
41X0128 (New)
$63.10



41X0128 Deskew roller sensor guide
Fully refurbished with 90-day warranty
41X0128
$51.33

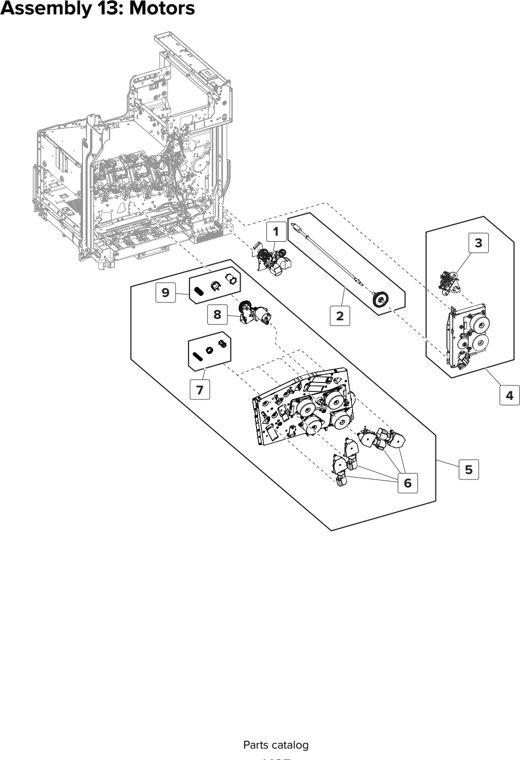

Assembly 13: Motors

1

41X0159 Sensor (waste toner full)
Fully refurbished with 90-day warranty
41X0159
$11.92



2

41X0111 Fuser/transfer belt motor gearbox
Fully refurbished with 90-day warranty
41X0111
$94.88



3
41X0109 Waste toner gear and shaft
New
41X0109 (New)
$13.31



41X0109 Waste toner gear and shaft
Fully refurbished with 90-day warranty
41X0109
$7.38



4

41X0113 Toner add motor gearbox (C M Y K)
Fully refurbished with 90-day warranty
41X0113
$80.40



4

41X0113 Toner add motor gearbox (C M Y K)
Fully refurbished with 90-day warranty
41X0113
$80.40



5
41X0112 EP developer toner add gearbox
New
41X0112 (New)
$270.35



41X0112 EP developer toner add gearbox
Fully refurbished with 90-day warranty
41X0112



6
41X0114 Motor (black only retract)
New
41X0114 (New)
$22.31



41X0114 Motor (black only retract)
Fully refurbished with 90-day warranty
41X0114
$19.98



7
41X0115 MPF reference edge gearbox
New
41X0115 (New)
$81.82



41X0115 MPF reference edge gearbox
Fully refurbished with 90-day warranty
41X0115
$66.61

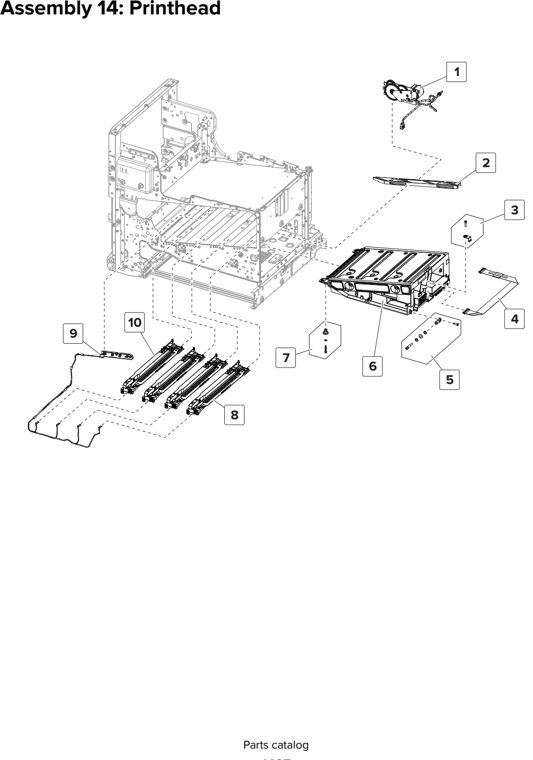

Assembly 14: Printhead

1
41X0139 Printhead wiper Motor
New
41X0139 (New)
$35.14



41X0139 Printhead wiper Motor
Fully refurbished with 90-day warranty
41X0139
$28.50



2
41X0145 Printhead wiper actuator rack
New
41X0145 (New)
$18.08



41X0145 Printhead wiper actuator rack
Fully refurbished with 90-day warranty
41X0145
$16.17



3
41X0082 Printhead clamp
New
41X0082 (New)
$13.06



41X0082 Printhead clamp
Fully refurbished with 90-day warranty
41X0082
$7.15



4
41X0076 Printhead data cable
New
41X0076 (New)
$21.60



41X0076 Printhead data cable
Fully refurbished with 90-day warranty
41X0076
$19.34



5
41X0240 Printhead adjustment parts pack
Fully refurbished with 90-day warranty
41X0240
$13.98





6
41X0144 Laser printhead
New
41X0144 (New)
$356.82



41X0144 Laser printhead
Fully refurbished with 90-day warranty
41X0144
$274.25



7
41X0132 Printhead post
New
41X0132 (New)
$13.41



41X0132 Printhead post
Fully refurbished with 90-day warranty
41X0132
$7.47



8

41X0147 Developer/PC unit CMY wiper rail
Fully refurbished with 90-day warranty
41X0147
$34.96



9
41X0086 Developer roll power contact
New
41X0086 (New)
$24.85



41X0086 Developer roll power contact
Fully refurbished with 90-day warranty
41X0086
$20.10



10

41X0146 Developer/PC unit K wiper rail
Fully refurbished with 90-day warranty
41X0146
$40.55

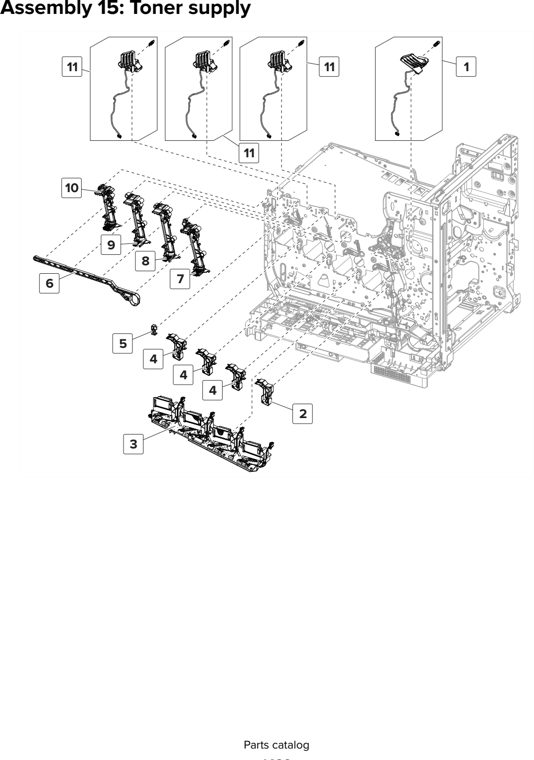

Assembly 15: Toner supply

1
41X0084 Toner cartridge contact (K)
New
41X0084 (New)
$19.97



41X0084 Toner cartridge contact (K)
Fully refurbished with 90-day warranty
41X0084
$17.87



2
41X0152 Toner port retainer (K)
New
41X0152 (New)
$9.24



3
41X0069 Smart chip interface card
New
41X0069 (New)
$81.40



41X0069 Smart chip interface card
Fully refurbished with 90-day warranty
41X0069
$66.26



4
41X0151 Toner port retainer (CMY)
New
41X0151 (New)
$9.34



5
41X0150 Toner port retainer
New
41X0150 (New)
$8.89



6
41X0056 Toner supply actuator
New
41X0056 (New)
$18.08



41X0056 Toner supply actuator
Fully refurbished with 90-day warranty
41X0056
$16.17



7
41X0180 Toner add tube (K)
New
41X0180 (New)
$14.47



41X0180 Toner add tube (K)
Fully refurbished with 90-day warranty
41X0180
$12.92



8
41X0178 Toner add tube (M)
New
41X0178 (New)
$14.98



41X0178 Toner add tube (M)
Fully refurbished with 90-day warranty
41X0178
$13.38



9
41X0177 Toner add tube (C)
New
41X0177 (New)
$21.50



41X0177 Toner add tube (C)
Fully refurbished with 90-day warranty
41X0177
$19.25



10
41X0179 Toner add tube (Y)
New
41X0179 (New)
$14.78



41X0179 Toner add tube (Y)
Fully refurbished with 90-day warranty
41X0179
$13.20



11
41X0083 Toner cartridge contact (CMY)
New
41X0083 (New)
$19.97



41X0083 Toner cartridge contact (CMY)
Fully refurbished with 90-day warranty
41X0083
$17.87

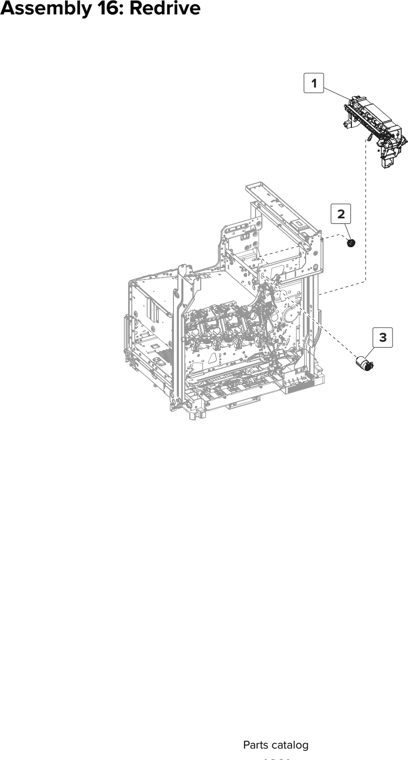

Assembly 16: Redrive

1
41X0148 Redrive
New
41X0148 (New)
$90.84



41X0148 Redrive
Fully refurbished with 90-day warranty
41X0148
$73.97



2
41X0110 Redrive gear
New
41X0110 (New)
$13.67



41X0110 Redrive gear
Fully refurbished with 90-day warranty
41X0110
$7.70



3

41X0140 Motor (duplex pick deskew lift)
Fully refurbished with 90-day warranty
41X0140
$20.76

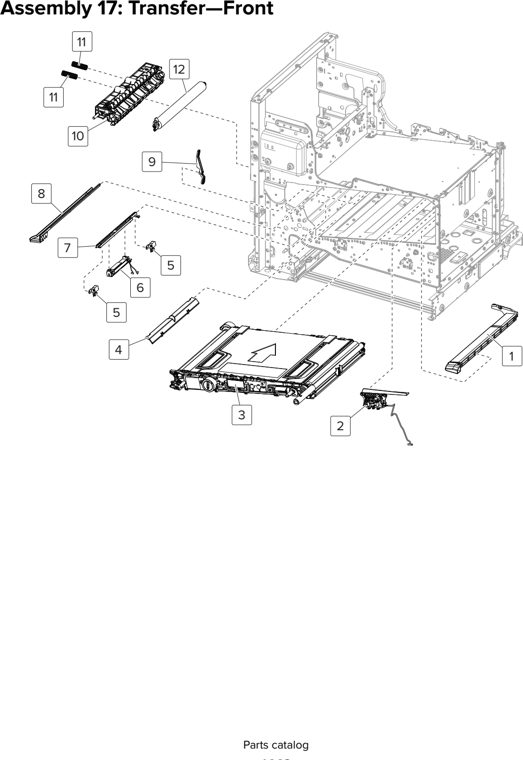

Assembly 17: Transfer- Front

1
41X0116 Transfer belt right guide
New
41X0116 (New)
$18.76



41X0116 Transfer belt right guide
Fully refurbished with 90-day warranty
41X0116
$16.78



2
41X0085 Transfer belt contact
New
41X0085 (New)
$18.18



41X0085 Transfer belt contact
Fully refurbished with 90-day warranty
41X0085
$16.26



3



4
41X0095 Wiring cover
New
41X0095 (New)
$17.69



41X0095 Wiring cover
Fully refurbished with 90-day warranty
41X0095
$11.32



5
41X0161 Sensor (auto alignment)
New
41X0161 (New)
$18.14



41X0161 Sensor (auto alignment)
Fully refurbished with 90-day warranty
41X0161
$16.23



6
41X0160 Toner Patch Sensor (TPS)
New
41X0160 (New)
$42.07



41X0160 Toner Patch Sensor (TPS)
Fully refurbished with 90-day warranty
41X0160
$34.16



7
41X0181 Toner patch sensor wiper
New
41X0181 (New)
$15.08



41X0181 Toner patch sensor wiper
Fully refurbished with 90-day warranty
41X0181
$13.47



8
41X0118 Transfer belt left guide
New
41X0118 (New)
$16.00



41X0118 Transfer belt left guide
Fully refurbished with 90-day warranty
41X0118
$14.30



9

41X0057 Toner patch sensor (TPS) wiper actuator
Fully refurbished with 90-day warranty
41X0057
$7.33



10
41X0079 Transfer roller housing
New
41X0079 (New)
$75.59



41X0079 Transfer roller housing
Fully refurbished with 90-day warranty
41X0079
$61.52



11

12
41X0154 Transfer roller
New
41X0154 (New)
$41.69

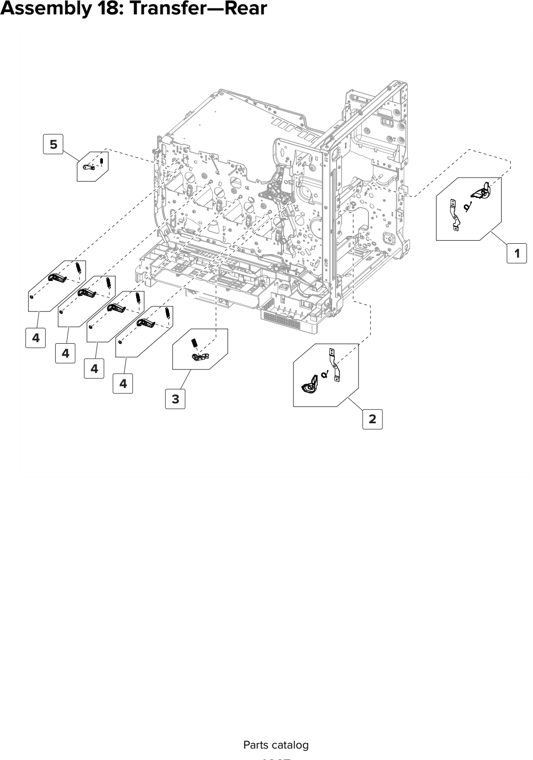

Assembly 18: Transfer- Rear

1
41X0137 Transfer roller front latch
New
41X0137 (New)
$18.30



2
41X0138 Transfer roller rear latch
New
41X0138 (New)
$18.26



3
41X0064 Transfer belt left bias arm
New
41X0064 (New)
$13.67



4
41X0062 Hold down arm
New
41X0062 (New)
$14.39



5
41X0063 Transfer belt right bias arm
New
41X0063 (New)
$13.99

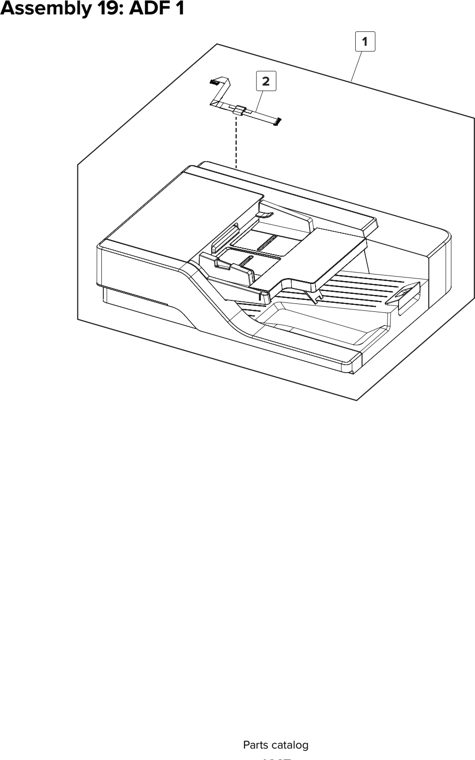

Assembly 19: ADF 1

1
41X0324 Automatic Document Feeder (ADF)
New
41X0324 (New)
$1558.19

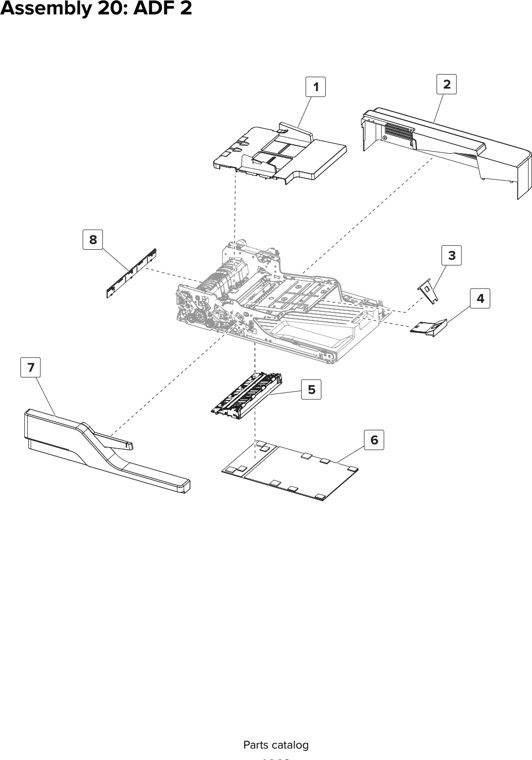

Assembly 20: ADF 2

1
41X0323 ADF tray
New
41X0323 (New)
$57.49



41X0323 ADF tray
Fully refurbished with 90-day warranty
41X0323
$46.74



2
41X0298 ADF rear cover
New
41X0298 (New)
$76.11



41X0298 ADF rear cover
Fully refurbished with 90-day warranty
41X0298
$61.94



3
41X0295 Paper bail
New
41X0295 (New)
$15.40



41X0295 Paper bail
Fully refurbished with 90-day warranty
41X0295
$9.26



4
41X0304 Bin extension
New
41X0304 (New)
$15.96



41X0304 Bin extension
Fully refurbished with 90-day warranty
41X0304
$14.26



5
41X0303 ADF bottom door
New
41X0303 (New)
$63.16



6
41X0314 ADF pad
New
41X0314 (New)
$58.69



41X0314 ADF pad
Fully refurbished with 90-day warranty
41X0314
$47.73



7
41X0297 ADF front cover
New
41X0297 (New)
$56.20



41X0297 ADF front cover
Fully refurbished with 90-day warranty
41X0297
$45.70



8
41X0277 Left lower cover
New
41X0277 (New)
$17.34



41X0277 Left lower cover
Fully refurbished with 90-day warranty
41X0277
$11.01

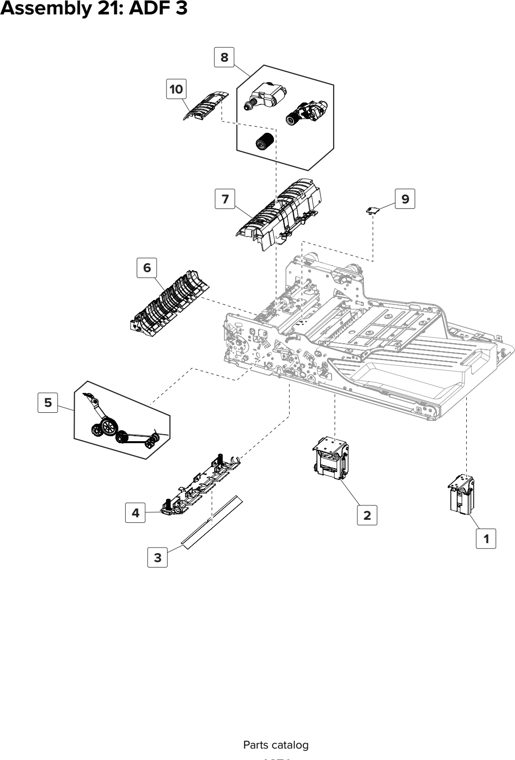

Assembly 21: ADF 3

1 41X7762 Right hinge

2
41X0311 Left hinge
New
41X0311 (New)
$36.14



41X0311 Left hinge
Fully refurbished with 90-day warranty
41X0311
$29.32



3
41X0305 Float plate guide
New
41X0305 (New)
$23.49



41X0305 Float plate guide
Fully refurbished with 90-day warranty
41X0305
$21.04



4
41X0319 Float plate
New
41X0319 (New)
$42.26



41X0319 Float plate
Fully refurbished with 90-day warranty
41X0319
$34.31



5
41X0317 ADF front drive train
New
41X0317 (New)
$18.86



41X0317 ADF front drive train
Fully refurbished with 90-day warranty
41X0317
$16.87



6
41X0309 Deflector guide
New
41X0309 (New)
$37.18



41X0309 Deflector guide
Fully refurbished with 90-day warranty
41X0309
$30.17



7
41X0306 Input guide
New
41X0306 (New)
$39.17



41X0306 Input guide
Fully refurbished with 90-day warranty
41X0306
$31.79



8
41X0360 ADF separator roller and cover
Fully refurbished with 90-day warranty
41X0360
$17.37

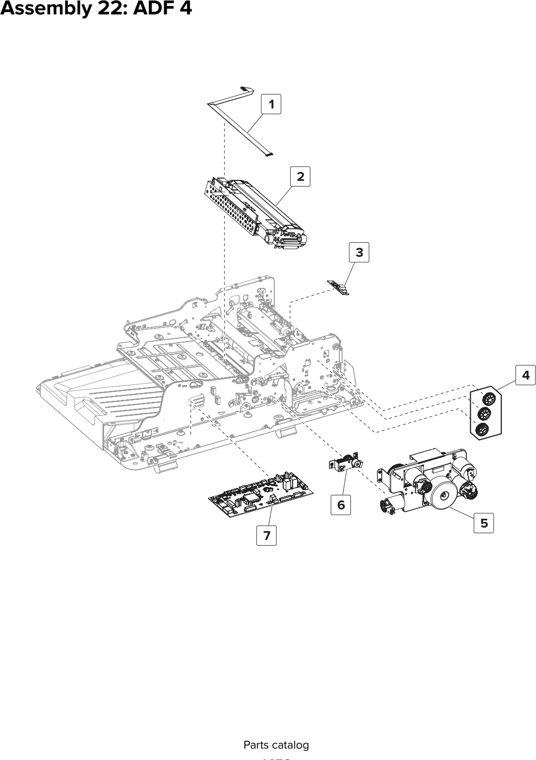

Assembly 22: ADF 4

1
41X0296 ADF CCDM cable
New
41X0296 (New)
$20.99



41X0296 ADF CCDM cable
Fully refurbished with 90-day warranty
41X0296
$18.79



2
41X0320 ADF CCDM
New
41X0320 (New)
$229.44



41X0320 ADF CCDM
Fully refurbished with 90-day warranty
41X0320
$176.26



3

41X0322 Sensor (ADF multi-feed receiver)
Fully refurbished with 90-day warranty
41X0322
$49.54



4
41X0316 ADF rear drive gears
New
41X0316 (New)
$18.71



41X0316 ADF rear drive gears
Fully refurbished with 90-day warranty
41X0316
$12.24



5
41X0312 ADF Motor
New
41X0312 (New)
$200.62



41X0312 ADF Motor
Fully refurbished with 90-day warranty
41X0312
$154.09



6
41X0313 Calibration roller motor
New
41X0313 (New)
$37.61



41X0313 Calibration roller motor
Fully refurbished with 90-day warranty
41X0313
$30.52



7
41X0318 ADF controller card
New
41X0318 (New)
$116.76



41X0318 ADF controller card
Fully refurbished with 90-day warranty
41X0318
$97.14



NS
41X0219 ADF cable pack
New
41X0219 (New)
$94.57

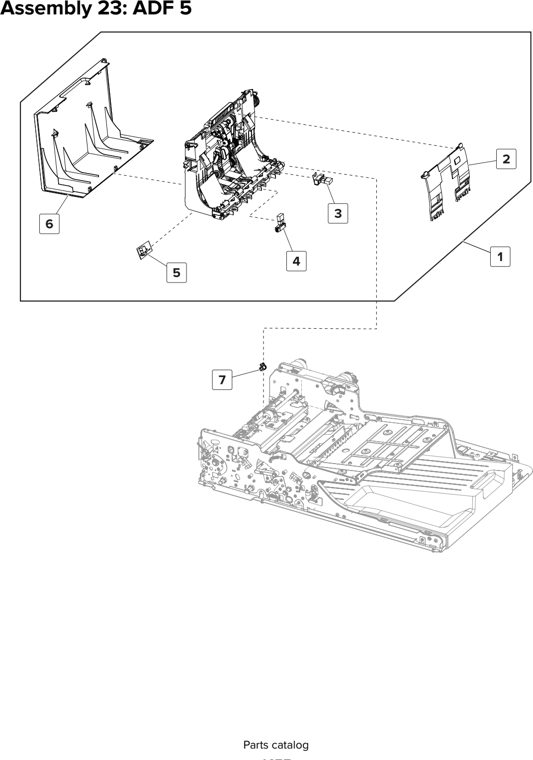

Assembly 23: ADF 5

1
41X0299 Pick roller cover
New
41X0299 (New)
$19.06



41X0299 Pick roller cover
Fully refurbished with 90-day warranty
41X0299
$17.05



2
41X0302 Top door
New
41X0302 (New)
$255.20



41X0302 Top door
Fully refurbished with 90-day warranty
41X0302
$196.08



3
41X0310 Top door hinge retainer
New
41X0310 (New)
$13.67



4
41X0358 ADF pick roller
New
41X0358 (New)
$50.36



5
40X7779 Sensor
New
40X7779 (New)
$19.24



6
41X0359 ADF feed belt
New
41X0359 (New)
$40.41



41X0359 ADF feed belt
Fully refurbished with 90-day warranty
41X0359
$32.81



7
40X7779 Sensor
New
40X7779 (New)
$19.24



8

41X0574 Sensor (ADF multi-feed transmitter)
Fully refurbished with 90-day warranty
41X0574
$31.14



9

41X0579 Top door cover
Fully refurbished with 90-day warranty
41X0579

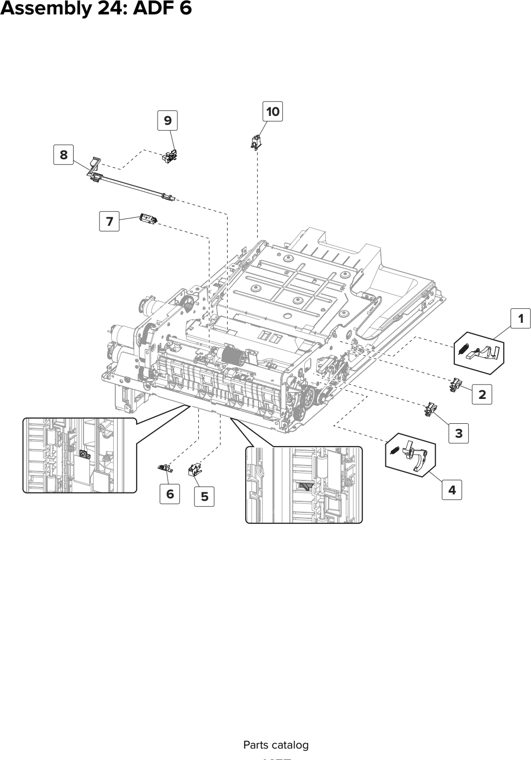

Assembly 24: ADF 6

1
41X0293 Top interlock actuator
New
41X0293 (New)
$15.61



2
41X0570 Sensor (door interlock)
New
41X0570 (New)
$14.54



3
41X0570 Sensor (door interlock)
New
41X0570 (New)
$14.54



4
41X0294 Bottom interlock actuator
New
41X0294 (New)
$15.61



5

6
41X0576 Sensor (ADF 1st scan)
New
41X0576 (New)
$14.47



7
40X7779 Sensor
New
40X7779 (New)
$19.24



8
41X0292 ADF media exit actuator
New
41X0292 (New)
$18.96



9

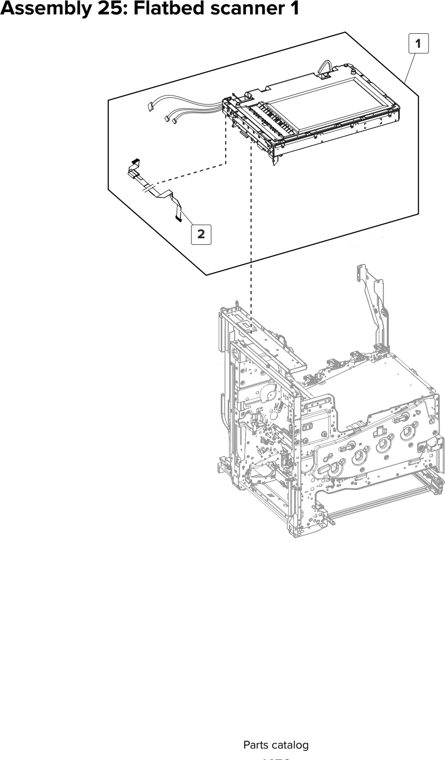

Assembly 25: Flatbed scanner 1

1
41X0289 Flatbed scanner
New
41X0289 (New)
$593.08



41X0289 Flatbed scanner
Fully refurbished with 90-day warranty
41X0289
$455.99

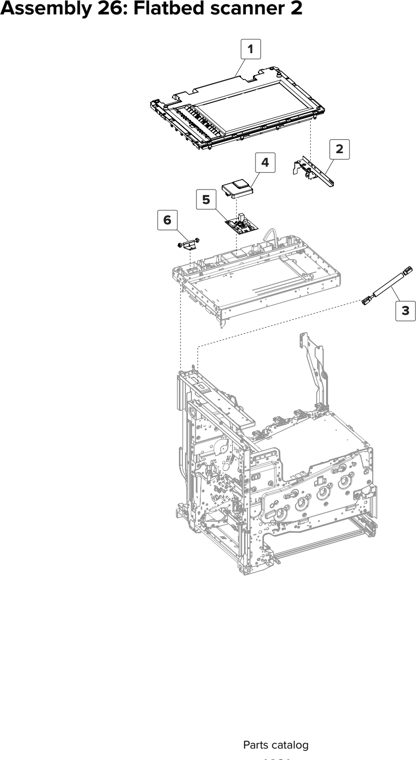

Assembly 26: Flatbed scanner 2

1
41X0275 Flatbed scanner top cover
New
41X0275 (New)
$138.96



41X0275 Flatbed scanner top cover
Fully refurbished with 90-day warranty
41X0275
$115.63



2
41X0281 Scanner frame latch
New
41X0281 (New)
$31.81



3
41X0261 Scanner support
New
41X0261 (New)
$29.93



4
41X0276 Card cover
New
41X0276 (New)
$18.81



5
41X0283 Flatbed scanner card
New
41X0283 (New)
$31.77



41X0283 Flatbed scanner card
Fully refurbished with 90-day warranty
41X0283
$25.75



6
41X0286 Hinge roller
New
41X0286 (New)
$18.10



41X0286 Hinge roller
Fully refurbished with 90-day warranty
41X0286
$11.69

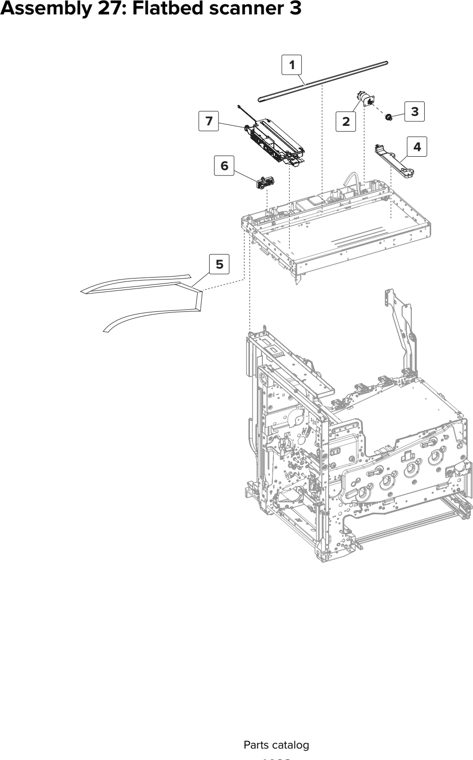

Assembly 27: Flatbed scanner 3

1
41X0273 Scanner belt
New
41X0273 (New)
$18.36



41X0273 Scanner belt
Fully refurbished with 90-day warranty
41X0273
$11.92



2
41X0282 Flatbed scanner motor
New
41X0282 (New)
$52.68



41X0282 Flatbed scanner motor
Fully refurbished with 90-day warranty
41X0282
$42.82



3
41X0279 Scanner gear
New
41X0279 (New)
$23.39



41X0279 Scanner gear
Fully refurbished with 90-day warranty
41X0279
$20.95



4
41X0290 Sensor (flatbed media length)
New
41X0290 (New)
$22.71



41X0290 Sensor (flatbed media length)
Fully refurbished with 90-day warranty
41X0290
$20.34



5
41X0274 Flatbed CCDM cable
New
41X0274 (New)
$25.47



41X0274 Flatbed CCDM cable
Fully refurbished with 90-day warranty
41X0274
$20.61



6
41X0284 Tensioner pulley
New
41X0284 (New)
$16.97



41X0284 Tensioner pulley
Fully refurbished with 90-day warranty
41X0284
$15.17



7
41X0287 Flatbed CCDM
New
41X0287 (New)
$216.72



41X0287 Flatbed CCDM
Fully refurbished with 90-day warranty
41X0287
$166.48

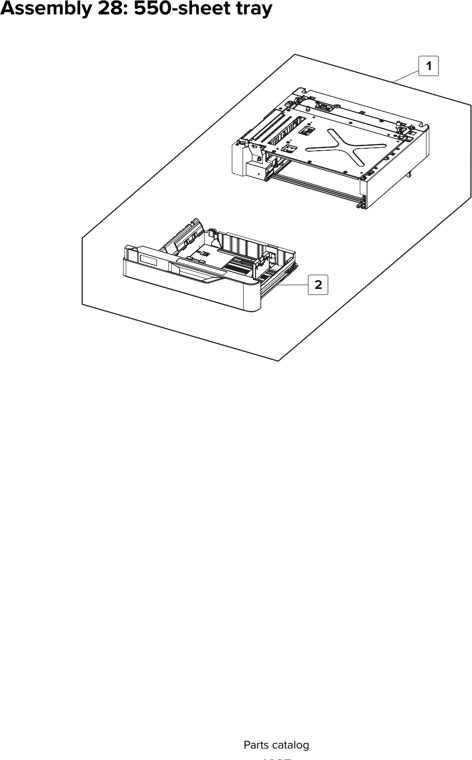

Assembly 28: 550-sheet tray

1
41X0326 550-sheet tray
New
41X0326 (New)
$477.92



41X0326 550-sheet tray
Fully refurbished with 90-day warranty
41X0326
$367.40



2
41X0175 550-sheet tray insert
New
41X0175 (New)
$153.68



41X0175 550-sheet tray insert
Fully refurbished with 90-day warranty
41X0175
$111.78

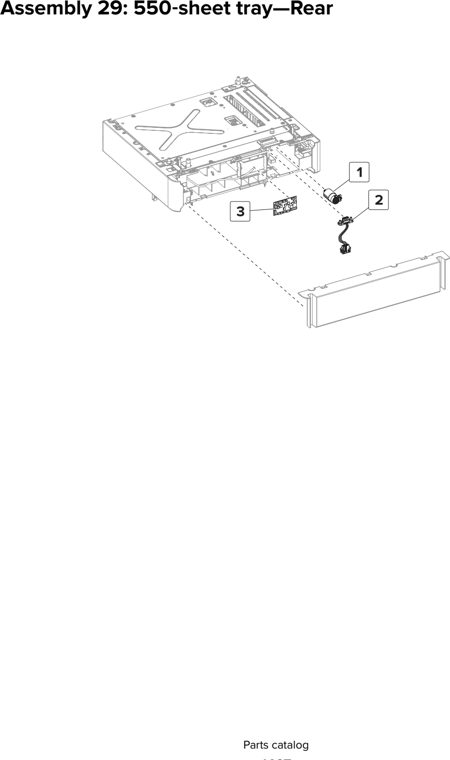

Assembly 29: 550 - sheet tray- Rear

1
41X0451 Motor (Redrive pass-through)
New
41X0451 (New)
$22.00



41X0451 Motor (Redrive pass-through)
Fully refurbished with 90-day warranty
41X0451



2
41X0336 Interface cable
New
41X0336 (New)
$22.85



41X0336 Interface cable
Fully refurbished with 90-day warranty
41X0336



3
41X0331 Controller card
New
41X0331 (New)
$37.74



41X0331 Controller card
Fully refurbished with 90-day warranty
41X0331
$30.62

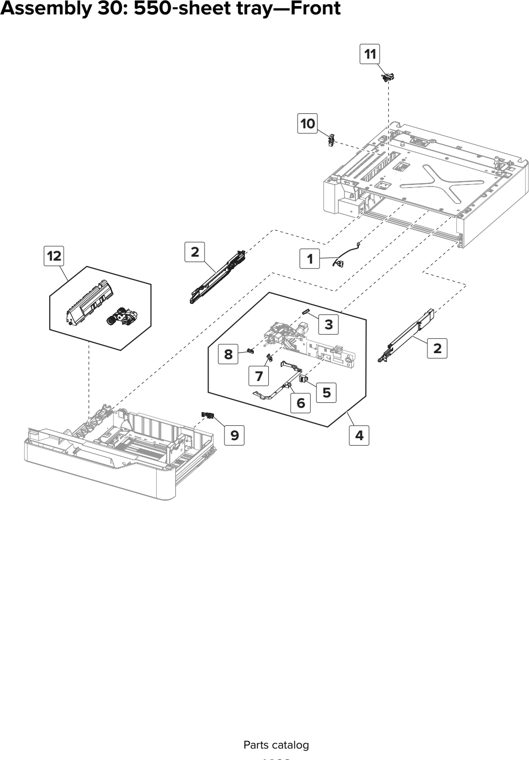

Assembly 30: 550 - sheet tray- Front

1
41X0335 Wake-up switch
New
41X0335 (New)
$12.32



41X0335 Wake-up switch
Fully refurbished with 90-day warranty
41X0335



2
41X0342 Tray rails
New
41X0342 (New)
$42.54



41X0342 Tray rails
Fully refurbished with 90-day warranty
41X0342



3

4
41X0106 Paper feeder
New
41X0106 (New)
$105.03



41X0106 Paper feeder
Fully refurbished with 90-day warranty
41X0106
$87.36



5
40X7911 Media size sensor
New
40X7911 (New)
$12.66



6
41X0338 Media out sensor actuator
New
41X0338 (New)
$10.74



7

8

9 40X8541 550-sheet tray media size sensor actuators

10

11 41X0951 Sensor (550-sheet tray pass - through)

12
41X0999 Pick roller and separator pad
New
41X0999 (New)
$31.97

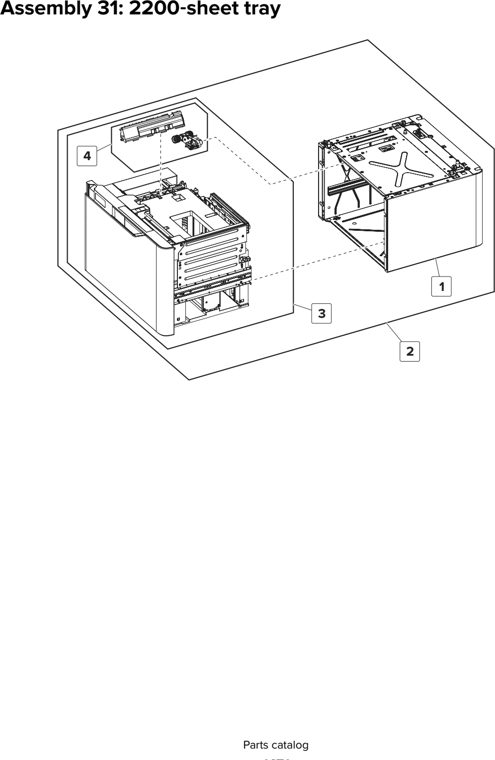

Assembly 31: 2200 - sheet tray

1
41X0329 2200-sheet tray base
New
41X0329 (New)
$605.38



41X0329 2200-sheet tray base
Fully refurbished with 90-day warranty
41X0329
$465.45



2
41X0328 2200-sheet tray
New
41X0328 (New)
$992.31



3
41X0330 2200-sheet tray insert
New
41X0330 (New)
$493.94



41X0330 2200-sheet tray insert
Fully refurbished with 90-day warranty
41X0330
$379.72



4
41X0999 Pick roller and separator pad
New
41X0999 (New)
$31.97

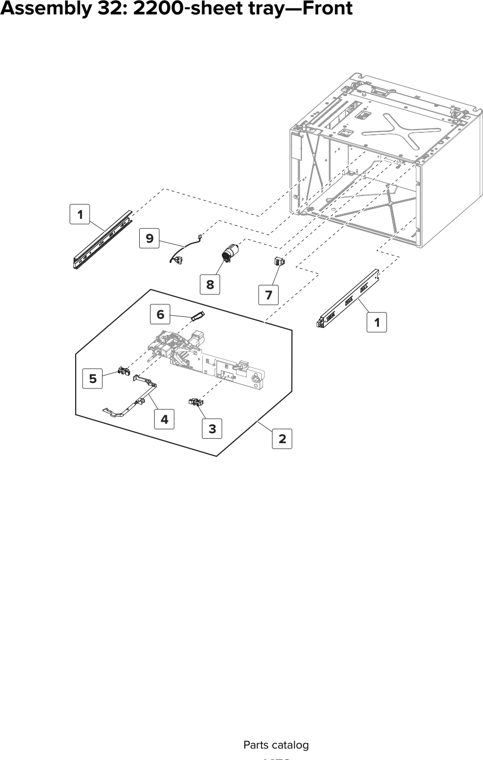

Assembly 32: 2200 - sheet tray- Front

1
41X0343 Tray rails
New
41X0343 (New)
$123.99



41X0343 Tray rails
Fully refurbished with 90-day warranty
41X0343



2
41X0369 Paper feeder
New
41X0369 (New)
$97.24



41X0369 Paper feeder
Fully refurbished with 90-day warranty
41X0369



3

4
41X0338 Media out sensor actuator
New
41X0338 (New)
$10.74



41X0338 Media out sensor actuator
Fully refurbished with 90-day warranty
41X0338



5

6

7
40X7911 Media size sensor
New
40X7911 (New)
$12.66



8

41X0140 Motor (duplex pick deskew lift)
Fully refurbished with 90-day warranty
41X0140
$20.76



9
41X0335 Wake-up switch
New
41X0335 (New)
$12.32

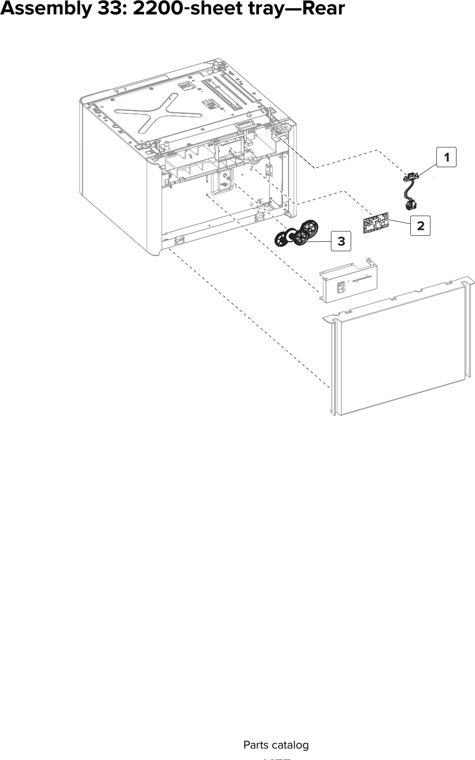

Assembly 33: 2200 - sheet tray- Rear

1
41X0337 Interface cable
New
41X0337 (New)
$16.54



2
41X0332 Controller card
New
41X0332 (New)
$37.85



41X0332 Controller card
Fully refurbished with 90-day warranty
41X0332



3
41X0351 Elevator gears
New
41X0351 (New)
$34.90



41X0351 Elevator gears
Fully refurbished with 90-day warranty
41X0351

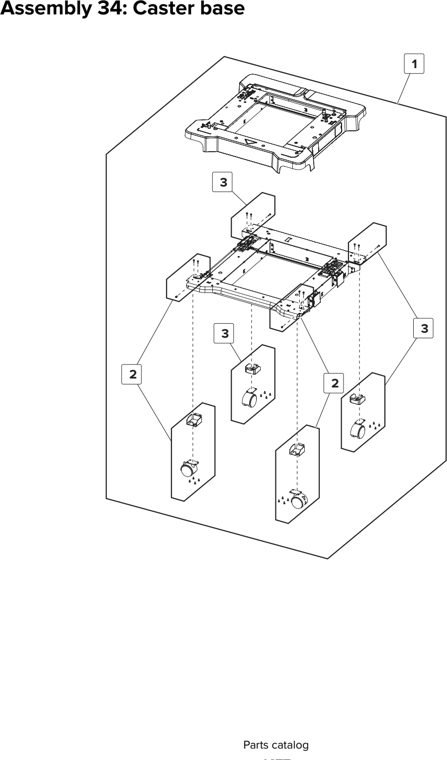

Assembly 34: Caster base

1
41X0762 Caster base
New
41X0762 (New)
$337.00



41X0762 Caster base
Fully refurbished with 90-day warranty
41X0762
$259.00



2
41X0774 Locking caster
New
41X0774 (New)
$38.79



41X0774 Locking caster
Fully refurbished with 90-day warranty
41X0774
$31.48



3
41X0775 Non-locking caster
New
41X0775 (New)
$36.75



41X0775 Non-locking caster
Fully refurbished with 90-day warranty
41X0775
$29.82

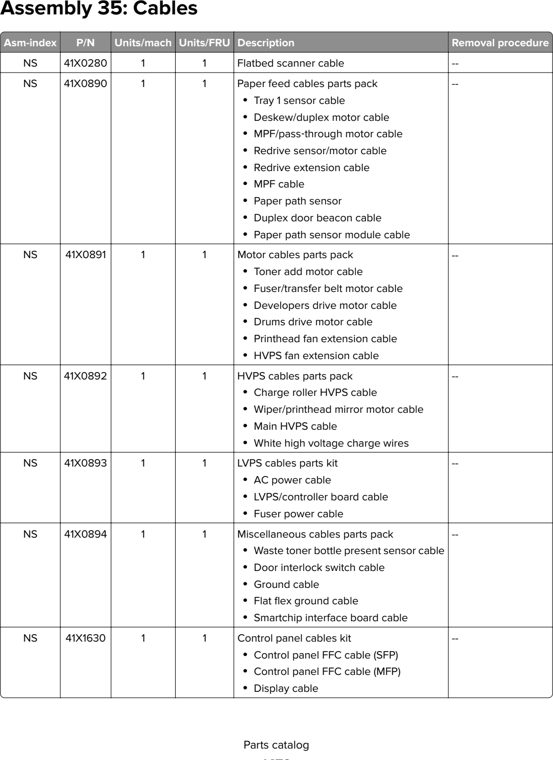

Assembly 35: Cables

NS
41X0890 Paper feed cables parts pack
New
41X0890 (New)
$74.98



- - Tray 1 sensor cable
- - Deskew/duplex motor cable
- - MPF/pass through motor cable
- - Redrive sensor/motor cable
- - Redrive extension cable
- - MPF cable
- - Paper path sensor
- - Duplex door beacon cable
- - Paper path sensor module cable
NS
41X0891 Motor cables parts pack
New
41X0891 (New)
$45.75



- - Waste toner motor cable
- - Fuser/transfer belt motor cable
- - Developers drive motor cable
- - Drums drive motor cable
- - Printhead fan extension cable
- - HVPS fan extension cable

NS
41X0892 HVPS cables parts pack
New
41X0892 (New)
$30.11



- - Charge roller HVPS cable
- - Wiper/printhead mirror motor cable
- - Main HVPS cable
NS
41X0893 LVPS cables parts kit
New
41X0893 (New)
$76.95



- - AC power cable
- - LVPS/controller board cable
- - Fuser power cable

NS

- - Waste toner bottle present sensor cable
- - Door interlock switch cable
- - Ground cable
- - Flat fiex ground cable
- - Distribution card cable
NS
41X0895 Operator panel cables kit
New
41X0895 (New)
$81.47



- - Control panel cable (SFP)
- - Proximity sensor cable (MFP)
- - LCD cable
- - USB cable
- - Speaker extension cable
- - Headphone cable (MFP)
- - Keyboard USB cable
NS

- - Input option cable
- - Output option cable (SFP)
- - Output option cable (MFP)
NS

- - Separator motor cable
- - Paper feeder extension cable
- - Paper feeder cable

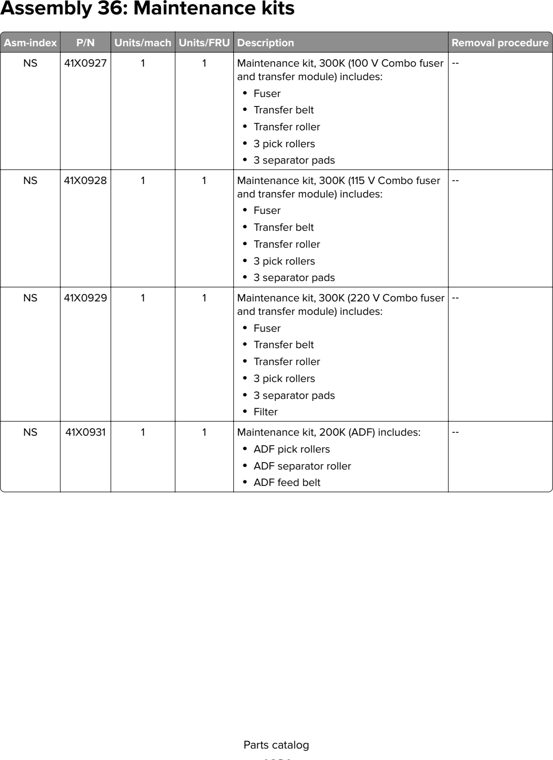

NS

includes:
- - Fuser
- - Transfer belt
- - Transfer roller
- - 3 pick rollers
- - 3 separator pads

NS 41X0930 Maintenance kit, 300K (Roller) includes:
- - Transfer roller
- - 3 pick rollers
- - 3 separator pads
NS

includes:
- - Fuser
- - Transfer belt
- - Transfer roller
- - 3 pick rollers
- - 3 separator pads

NS 41X0930 Maintenance kit, 300K (Roller) includes:
- - Transfer roller
- - 3 pick rollers
- - 3 separator pads

NS
41X0931 ADF Maintenance Kit
New
41X0931 (New)
$106.79




Maintenance kit, 200K (ADF) includes:
 - - ADF pick rollers
 - - ADF separator roller
- - ADF feed belt

NS 40X7104 Power cord (low - voltage)- USA, Canada, Puerto Rico, Virgin Islands and Caribbean countries (including Dominican Republic), Mexico, Colombia, Costa Rica, Ecuador, El salvador, Guatemala, Honduras, Nicaragua, Panama, Venezuela

NS 40X7104 Power cord (low - voltage)- USA (TAA)

NS 40X1767 Power cord (high - voltage)- USA TAA)

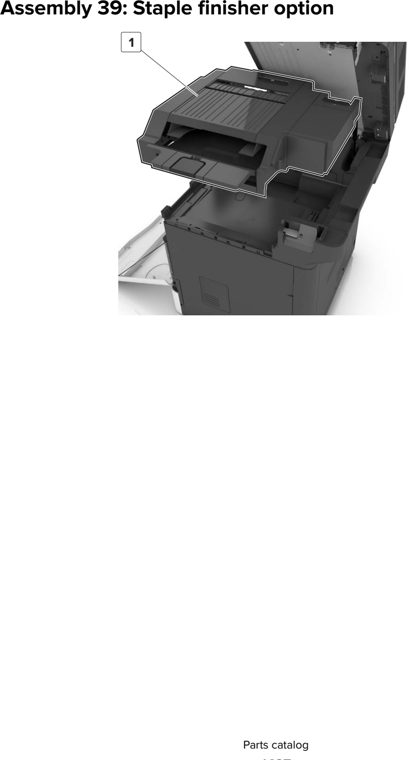

Assembly 39: Staple finisher option

1

41X0746 CS820 C6160 CX820 Inline Stapler
Fully refurbished with 90-day warranty
41X0746
$881.15

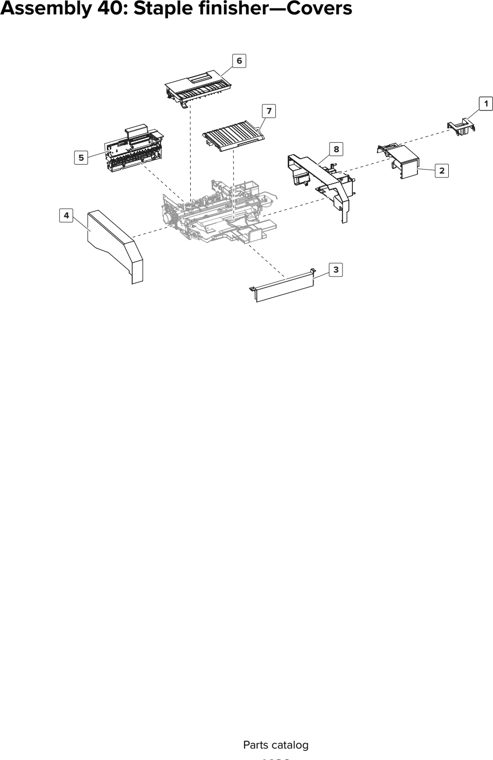

Assembly 40: Staple finisher- Covers

1
41X0531 Staple cartridge door
New
41X0531 (New)
$20.70



2
41X0742 Rear cover
New
41X0742 (New)
$53.83



3
41X0743 Right cover
New
41X0743 (New)
$26.25



4
41X0744 Front Cover
New
41X0744 (New)
$42.80



5
41X0745 Lock Assembly
New
41X0745 (New)
$77.00



6
41X0498 Jam access door
New
41X0498 (New)
$52.00



41X0498 Jam access door
Fully refurbished with 90-day warranty
41X0498



7
41X0507 Top cover
New
41X0507 (New)
$41.70



41X0507 Top cover
Fully refurbished with 90-day warranty
41X0507



8
41X0748 Inner Rear Cover
New
41X0748 (New)
$54.50

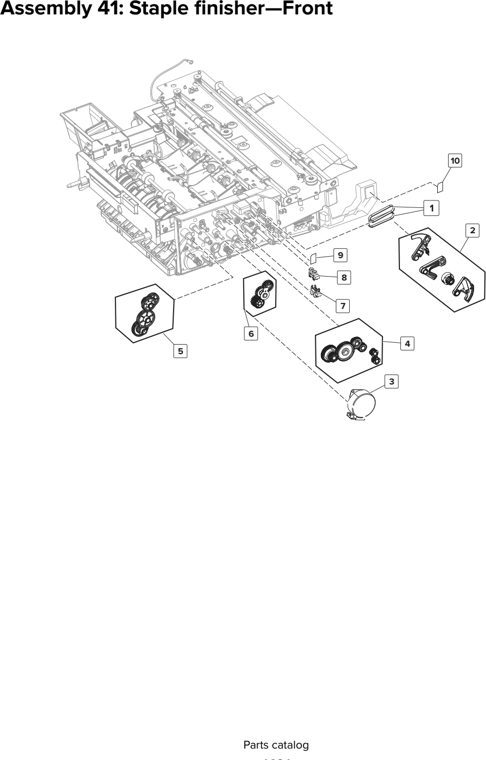

Assembly 41: Staple finisher- Front

1

2

3 40X8753 Motor (staple finisher aligner paddle)

4
41X0514 Exit gears
New
41X0514 (New)
$19.40



5

6

7

8

9
41X0504 Bin full sensor
New
41X0504 (New)
$7.80



10
41X0504 Bin full sensor
New
41X0504 (New)
$7.80

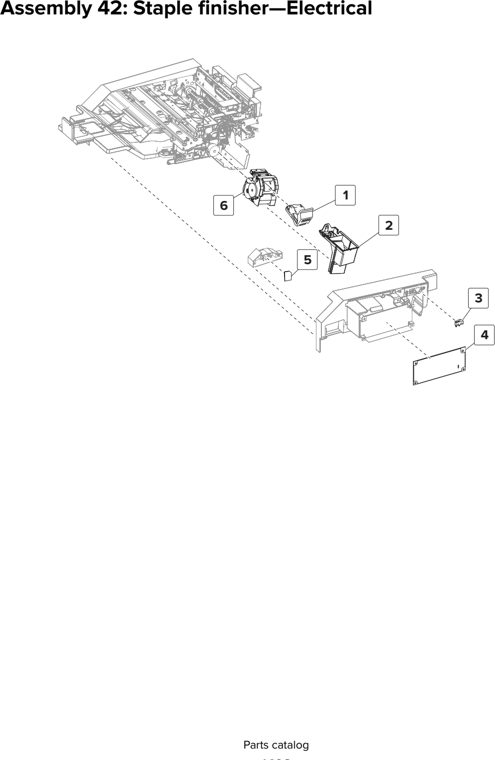

Assembly 42: Staple finisher- Electrical

1
41X0530 Staple cartridge holder
New
41X0530 (New)
$61.60



41X0530 Staple cartridge holder
Fully refurbished with 90-day warranty
41X0530



2
41X0500 Staple cartridge ejector
New
41X0500 (New)
$21.70



3
41X0499 Staple cartridge door switch
New
41X0499 (New)
$17.60



4
41X0496 Controller card
New
41X0496 (New)
$105.00



41X0496 Controller card
Fully refurbished with 90-day warranty
41X0496



5
41X0504 Bin full sensor
New
41X0504 (New)
$7.80



6
41X0501 Staple unit
New
41X0501 (New)
$291.00



NS
41X0783 Cable parts pack
Fully refurbished with 90-day warranty
41X0783



41X0783 Cable parts pack
New
41X0783 (New)
$67.20


Staple finisher cable parts pack

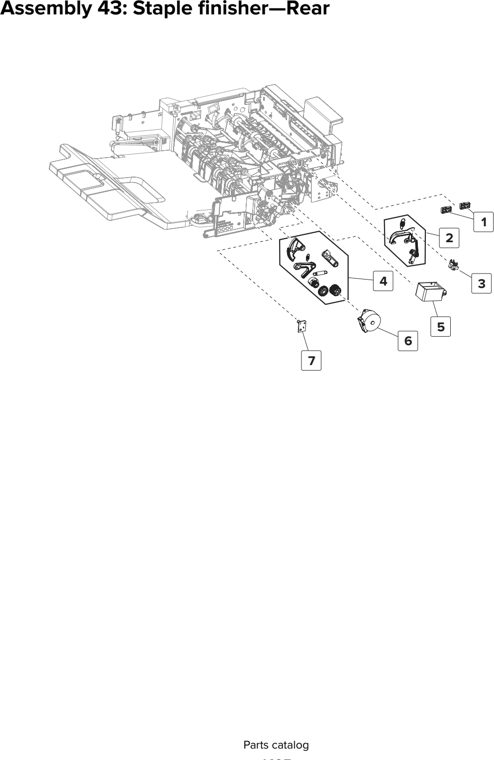

Assembly 43: Staple finisher- Rear

1
41X0505 Jam door switch
New
41X0505 (New)
$15.04



2
41X0503 Stack clamp
New
41X0503 (New)
$16.70



3

4

5
41X0502 Stack clamp solenoid
New
41X0502 (New)
$24.00



6
40X8256 Divert motor
New
40X8256 (New)
$23.82



7
41X0504 Bin full sensor
New
41X0504 (New)
$7.80

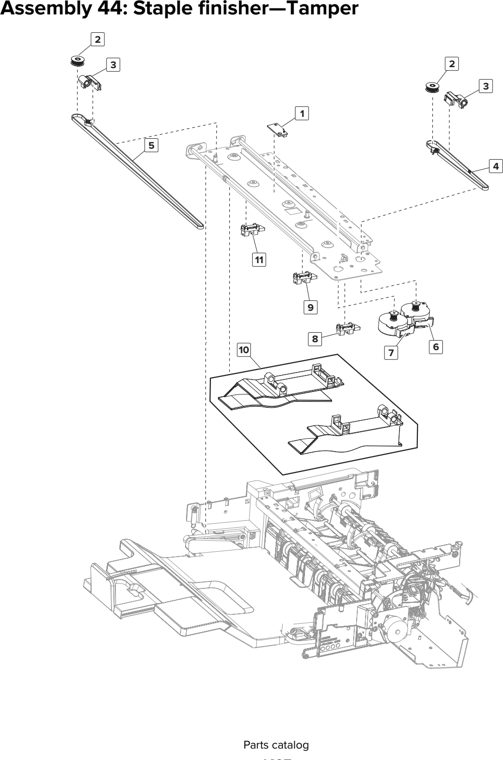

Assembly 44: Staple finisher- Tamper

1

41X0778 Cave light
Fully refurbished with 90-day warranty
41X0778



2
41X0776 Tamper pulley gears
New
41X0776 (New)
$14.80



41X0776 Tamper pulley gears
Fully refurbished with 90-day warranty
41X0776



3

4
41X0535 Rear tamper belt
New
41X0535 (New)
$19.70



5

6
40X8211 Tamper motor (left or right)
New
40X8211 (New)
$15.97



7
40X8211 Tamper motor (left or right)
New
40X8211 (New)
$15.97



8

9

10

11

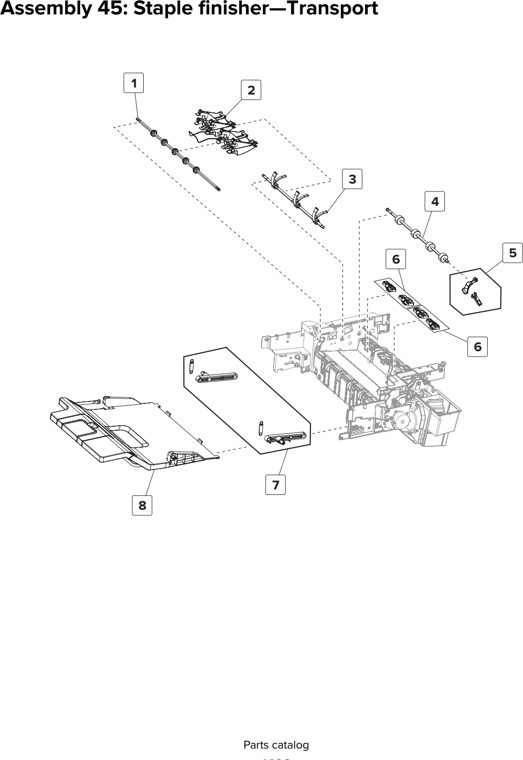

Assembly 45: Staple finisher- Transport

1
41X0515 Upper exit rollers
New
41X0515 (New)
$35.50



41X0515 Upper exit rollers
Fully refurbished with 90-day warranty
41X0515



2
41X0519 Upper paper guide
New
41X0519 (New)
$18.80



41X0519 Upper paper guide
Fully refurbished with 90-day warranty
41X0519



3
41X0518 Aligner paddle
New
41X0518 (New)
$23.89



41X0518 Aligner paddle
Fully refurbished with 90-day warranty
41X0518



4
41X0517 Compiler feed roller
New
41X0517 (New)
$24.70



41X0517 Compiler feed roller
Fully refurbished with 90-day warranty
41X0517



5
41X0525 Compiler paper guide
New
41X0525 (New)
$14.05



6
41X0526 Compiler feed idler
New
41X0526 (New)
$8.90



7
41X0527 Bin link
New
41X0527 (New)
$21.20



8
41X0528 Bin
New
41X0528 (New)
$85.70



41X0528 Bin
Fully refurbished with 90-day warranty
41X0528

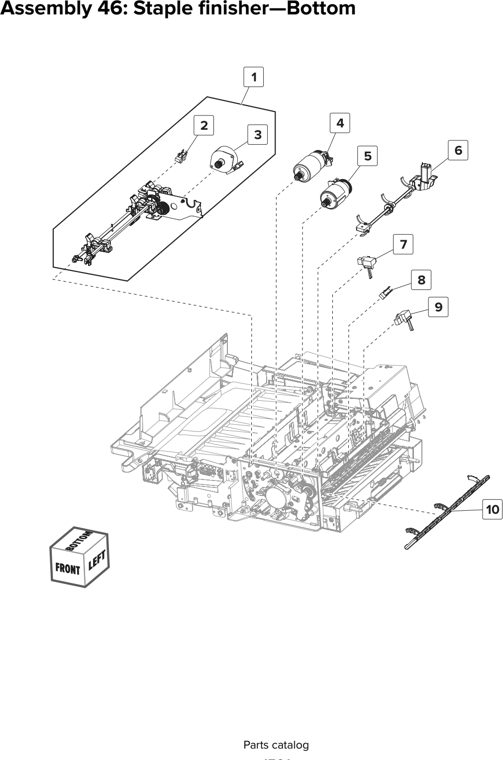

Assembly 46: Staple finisher- Bottom

1
41X0532 Bin clamp assembly
New
41X0532 (New)
$57.20



41X0532 Bin clamp assembly
Fully refurbished with 90-day warranty
41X0532



2

3

4
41X0529 Motor (exit transport)
New
41X0529 (New)
$29.49



5
41X0529 Motor (exit transport)
New
41X0529 (New)
$29.49



6
41X0523 Decurl paddle
New
41X0523 (New)
$42.50



41X0523 Decurl paddle
Fully refurbished with 90-day warranty
41X0523



7 40X8745 Sensor (staple finisher staple unit paper present)

8

9 40X8745 Sensor (staple finisher transport)

10
41X0511 Entrance paper guide
New
41X0511 (New)
$26.70



NS
41X0786 Screw parts pack
New
41X0786 (New)
$14.60



NS
41X0787 Plastic clip
New
41X0787 (New)
$14.60

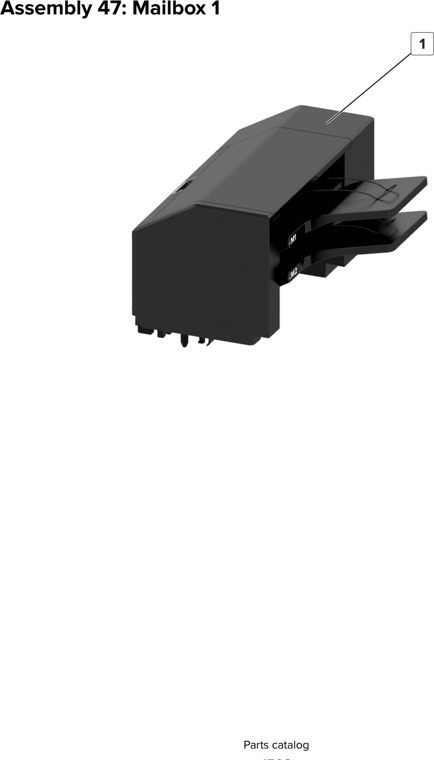

Assembly 47: Mailbox 1

1
41X0707 2-Bin Mailbox
New
41X0707 (New)
$688.72



41X0707 2-Bin Mailbox
Fully refurbished with 90-day warranty
41X0707

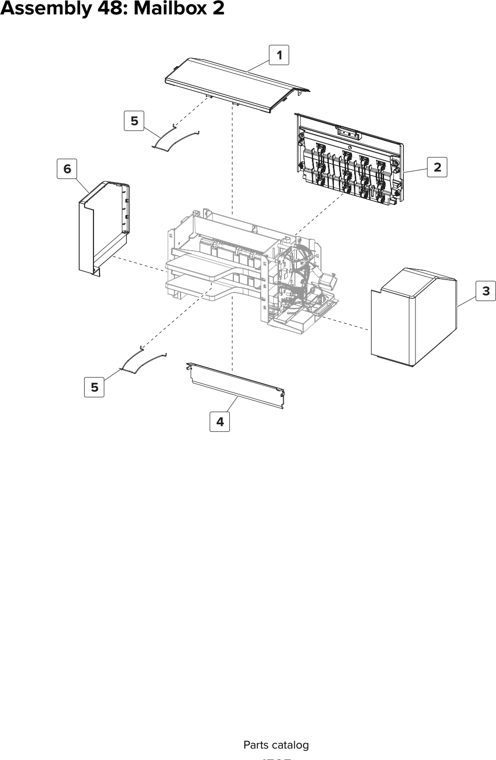

Assembly 48: Mailbox 2

1
41X0696 Mailbox top cover
New
41X0696 (New)
$25.14



41X0696 Mailbox top cover
Fully refurbished with 90-day warranty
41X0696



2
41X0697 Mailbox jam door
New
41X0697 (New)
$80.89



41X0697 Mailbox jam door
Fully refurbished with 90-day warranty
41X0697



3
41X0721 Mailbox rear cover
New
41X0721 (New)
$34.70



41X0721 Mailbox rear cover
Fully refurbished with 90-day warranty
41X0721



4
41X0722 Mailbox bottom cover
New
41X0722 (New)
$25.35



41X0722 Mailbox bottom cover
Fully refurbished with 90-day warranty
41X0722



5
41X0698 Mailbox bail
New
41X0698 (New)
$25.04



41X0698 Mailbox bail
Fully refurbished with 90-day warranty
41X0698



6
41X0695 Mailbox front cover
New
41X0695 (New)
$28.85



41X0695 Mailbox front cover
Fully refurbished with 90-day warranty
41X0695

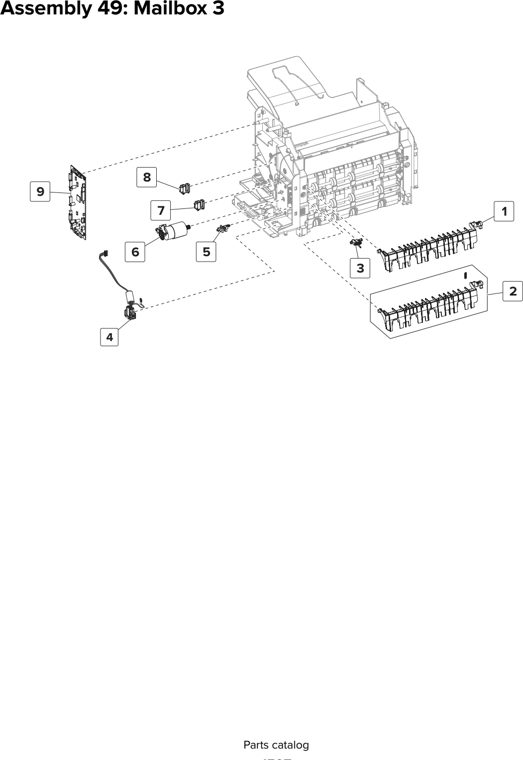

Assembly 49: Mailbox 3

1
41X0702 Mailbox diverter
New
41X0702 (New)
$25.94



41X0702 Mailbox diverter
Fully refurbished with 90-day warranty
41X0702



2
41X0702 Mailbox diverter
New
41X0702 (New)
$25.94



41X0702 Mailbox diverter
Fully refurbished with 90-day warranty
41X0702



3
41X0385 Sensor
New
41X0385 (New)
$17.03



4
41X0723 Mailbox interface cable
New
41X0723 (New)
$18.63



41X0723 Mailbox interface cable
Fully refurbished with 90-day warranty
41X0723



5
41X0709 Sensor
New
41X0709 (New)
$16.79



6
41X0703 Motor (mailbox transport)
New
41X0703 (New)
$30.06



41X0703 Motor (mailbox transport)
Fully refurbished with 90-day warranty
41X0703



7
41X0701 Sensor (mailbox bin full)
New
41X0701 (New)
$18.36



8
41X0701 Sensor (mailbox bin full)
New
41X0701 (New)
$18.36



9
41X0679 Controller card
New
41X0679 (New)
$67.82



41X0679 Controller card
Fully refurbished with 90-day warranty
41X0679

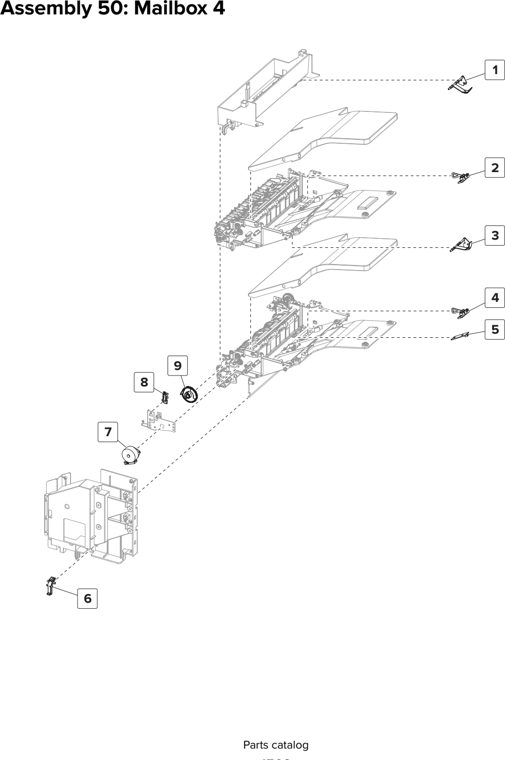

Assembly 50: Mailbox 4

1
41X0700 Mailbox bin full sensor flag
New
41X0700 (New)
$11.61



2
41X0724 Sensor (bin - paper present)
New
41X0724 (New)
$15.14



3
41X0700 Mailbox bin full sensor flag
New
41X0700 (New)
$11.61



4
41X0724 Sensor (bin - paper present)
New
41X0724 (New)
$15.14



5
41X0725 Bin light card
New
41X0725 (New)
$14.51



6
41X0726 Mailbox latch
New
41X0726 (New)
$18.73



7
41X0726 Mailbox latch
New
41X0726 (New)
$18.73



8
41X0709 Sensor
New
41X0709 (New)
$16.79



9
41X0727 Mailbox diverter gear
New
41X0727 (New)
$12.57


Assembly 51: Mailbox 5

1
41X0726 Mailbox latch
New
41X0726 (New)
$18.73



2
41X0628 Gear
New
41X0628 (New)
$11.50



3
41X0628 Gear
New
41X0628 (New)
$11.50



4
41X0628 Gear
New
41X0628 (New)
$11.50



5
41X0628 Gear
New
41X0628 (New)
$11.50



6
40X8249 Belt
New
40X8249 (New)
$13.31



7
40X8249 Belt
New
40X8249 (New)
$13.31



8
41X0699 Mailbox drive gears
New
41X0699 (New)
$18.99


1369 Assembly 52: HPT 1

1
41X0708 Horizontal paper transport (HPT)
New
41X0708 (New)
$1468.64



41X0708 Horizontal paper transport (HPT)
Fully refurbished with 90-day warranty
41X0708


Assembly 53: HPT 2

1
41X0729 HPT top cover
New
41X0729 (New)
$60.30



41X0729 HPT top cover
Fully refurbished with 90-day warranty
41X0729



2
41X0674 HPT rear cover
New
41X0674 (New)
$27.88



41X0674 HPT rear cover
Fully refurbished with 90-day warranty
41X0674



3
41X0677 HPT hole punch unit cover
New
41X0677 (New)
$17.46



4
41X0731 HPT door hinge covers
New
41X0731 (New)
$26.14



41X0731 HPT door hinge covers
Fully refurbished with 90-day warranty
41X0731



5
41X0934 HPT transport idler roller
New
41X0934 (New)
$30.49



41X0934 HPT transport idler roller
Fully refurbished with 90-day warranty
41X0934



6
41X0673 HPT front cover
New
41X0673 (New)
$26.62



41X0673 HPT front cover
Fully refurbished with 90-day warranty
41X0673



7
41X0675 HPT front inner cover
New
41X0675 (New)
$15.88



8
41X0676 HPT lock
New
41X0676 (New)
$74.50



41X0676 HPT lock
Fully refurbished with 90-day warranty
41X0676


Assembly 54: HPT 3

1
40X7580 Cartridge cooling fan
New
40X7580 WNJHV (New)
$27.00





2
41X0679 Controller card
New
41X0679 (New)
$67.82



41X0679 Controller card
Fully refurbished with 90-day warranty
41X0679



3
41X0681 HPT autoconnect cable
New
41X0681 (New)
$23.72



41X0679 Controller card
New
41X0679 (New)
$67.82



4
41X0709 Sensor
New
41X0709 (New)
$16.79


Assembly 55: HPT 4

1
41X0732 HPT transport belts
New
41X0732 (New)
$14.15



2
41X0652 Belt pulley gears
New
41X0652 (New)
$11.96



3
41X0694 HPT hole punch unit
New
41X0694 (New)
$717.18



41X0694 HPT hole punch unit
Fully refurbished with 90-day warranty
41X0694



4
41X0734 HPT hole punch unit gears
New
41X0734 (New)
$12.73



5
41X0803 Motor
New
41X0803 (New)
$34.70



41X0803 Motor
Fully refurbished with 90-day warranty
41X0803



6
41X0709 Sensor
New
41X0709 (New)
$16.79



7
41X0803 Motor
New
41X0803 (New)
$34.70



41X0803 Motor
Fully refurbished with 90-day warranty
41X0803



8
41X0749 HPT transport drive gear
New
41X0749 (New)
$12.62



9
41X0628 Gear
New
41X0628 (New)
$11.50



10
41X0736 HPT transport drive belt
New
41X0736 (New)
$13.39


Assembly 56: HPT 5

1
41X0737 HPT transport rollers
New
41X0737 (New)
$39.06



41X0737 HPT transport rollers
Fully refurbished with 90-day warranty
41X0737



2
41X0738 HPT transport belts
New
41X0738 (New)
$14.10



3
41X0652 Belt pulley gears
New
41X0652 (New)
$11.96



4
41X0739 HPT alignment rollers
New
41X0739 (New)
$24.28



41X0739 HPT alignment rollers
Fully refurbished with 90-day warranty
41X0739



5

6
Assembly 57: MSHPF covers 1

1
41X0594 Top frame covers
New
41X0594 (New)
$36.78



41X0594 Top frame covers
Fully refurbished with 90-day warranty
41X0594



2
41X0593 Inner top cover
New
41X0593 (New)
$26.52



3
41X0589 Right cover
New
41X0589 (New)
$44.29



41X0589 Right cover
Fully refurbished with 90-day warranty
41X0589



4
41X0595 Standard bin bottom cover
New
41X0595 (New)
$26.28



41X0595 Standard bin bottom cover
Fully refurbished with 90-day warranty
41X0595



5
41X0591 Stapler bin cave cover
New
41X0591 (New)
$30.93



41X0591 Stapler bin cave cover
Fully refurbished with 90-day warranty
41X0591



6
41X0595 Standard bin bottom cover
New
41X0595 (New)
$26.28



41X0595 Standard bin bottom cover
Fully refurbished with 90-day warranty
41X0595



7
41X0588 Bottom right cover
New
41X0588 (New)
$33.01



41X0588 Bottom right cover
Fully refurbished with 90-day warranty
41X0588



8
41X0587 Right frame cover
New
41X0587 (New)
$34.17



9
41X0682 Door hinge
New
41X0682 (New)
$11.81



10
41X0682 Door hinge
New
41X0682 (New)
$11.81



11
41X0583 Staple cartridge door
New
41X0583 (New)
$19.60



12
41X0682 Door hinge
New
41X0682 (New)
$11.81



13
41X0581 Front door
New
41X0581 (New)
$220.85



41X0581 Front door
Fully refurbished with 90-day warranty
41X0581



14
41X0582 Inner front cover
New
41X0582 (New)
$138.79



41X0582 Inner front cover
Fully refurbished with 90-day warranty
41X0582



15
41X0584 Left front cover
New
41X0584 (New)
$30.20



NS
41X0725 Bin light card
New
41X0725 (New)
$14.51


Assembly 58: MSHPF covers 2

1
41X0585 Front left cover
New
41X0585 (New)
$27.59



2
41X0586 Bottom left cover
New
41X0586 (New)
$29.91



3
41X0592 Controller card cover
New
41X0592 (New)
$38.33



4
41X0590 Rear cover
New
41X0590 (New)
$124.74



41X0590 Rear cover
Fully refurbished with 90-day warranty
41X0590


Assembly 59: MSHPF electronics

1
41X0599 Mid-transport interface card
New
41X0599 (New)
$32.77



41X0599 Mid-transport interface card
Fully refurbished with 90-day warranty
41X0599



2
41X0639 Power supply
New
41X0639 (New)
$102.93



41X0639 Power supply
Fully refurbished with 90-day warranty
41X0639



3
41X0638 Power supply cable
New
41X0638 (New)
$27.54



41X0638 Power supply cable
Fully refurbished with 90-day warranty
41X0638



4

41X0805 Mid-transport interface cable (mailbox)
Fully refurbished with 90-day warranty
41X0805



5

6
41X0598 Controller card
New
41X0598 (New)
$231.38



41X0598 Controller card
Fully refurbished with 90-day warranty
41X0598



7

41X0637 Mid-transport interface card cable
Fully refurbished with 90-day warranty
41X0637



8
41X0636 Compiler interface card cable
New
41X0636 (New)
$51.30



41X0636 Compiler interface card cable
Fully refurbished with 90-day warranty
41X0636


Assembly 60: MSHPF mid-transport drive

1
41X0633 Mid-transport diverter cam
New
41X0633 (New)
$13.64



2
40X8256 Divert motor
New
40X8256 (New)
$23.82





3
41X0798 Sensor
New
41X0798 (New)
$17.59



4
41X0629 Mid-transport gear
New
41X0629 (New)
$13.34



5
41X0612 Motor (transport)
New
41X0612 (New)
$35.14



41X0612 Motor (transport)
Fully refurbished with 90-day warranty
41X0612



6
41X0628 Gear
New
41X0628 (New)
$11.50



7
41X0628 Gear
New
41X0628 (New)
$11.50



8
41X0628 Gear
New
41X0628 (New)
$11.50



9
41X0630 Hole punch box belt
New
41X0630 (New)
$13.39



10
41X0628 Gear
New
41X0628 (New)
$11.50



11
41X0632 Standard bin exit belt
New
41X0632 (New)
$13.84



12
41X0628 Gear
New
41X0628 (New)
$11.50



13
41X0814 Offset belt tensioner
New
41X0814 (New)
$13.64


Assembly 61: MSHPF mid-transport paper path

1
41X0635 Mid-transport guide
New
41X0635 (New)
$29.77



41X0635 Mid-transport guide
Fully refurbished with 90-day warranty
41X0635



1
41X0635 Mid-transport guide
New
41X0635 (New)
$29.77



41X0635 Mid-transport guide
Fully refurbished with 90-day warranty
41X0635



2
41X0621 Mid-transport diverter 2
New
41X0621 (New)
$16.29



3

4
41X0709 Sensor
New
41X0709 (New)
$16.79



5
41X0622 Staging diverter
New
41X0622 (New)
$17.76



6
41X0385 Sensor
New
41X0385 (New)
$17.03



7
41X0385 Sensor
New
41X0385 (New)
$17.03



8
41X0385 Sensor
New
41X0385 (New)
$17.03



9
41X0620 Mid-transport diverter 1
New
41X0620 (New)
$17.56


Assembly 62: MSHPF offset drive

1
41X0617 Offset assembly
New
41X0617 (New)
$108.66



41X0617 Offset assembly
Fully refurbished with 90-day warranty
41X0617



2
41X0709 Sensor
New
41X0709 (New)
$16.79



3
41X0932 Standard bin bail
New
41X0932 (New)
$37.51



41X0932 Standard bin bail
Fully refurbished with 90-day warranty
41X0932



4
41X0797 Motor
New
41X0797 (New)
$35.53



41X0797 Motor
Fully refurbished with 90-day warranty
41X0797


Assembly 63: MSHPF standard bin 1

1
41X0618 Standard bin
New
41X0618 (New)
$54.61



41X0618 Standard bin
Fully refurbished with 90-day warranty
41X0618



2
41X0724 Sensor (bin - paper present)
New
41X0724 (New)
$15.14



3
41X0644 Gear
New
41X0644 (New)
$17.41



4
41X0614 Elevator belt holder
New
41X0614 (New)
$11.96



5
41X0642 Elevator pulley gear
New
41X0642 (New)
$12.11



6
41X0810 Standard bin elevator belt
New
41X0810 (New)
$20.97



7
41X0642 Elevator pulley gear
New
41X0642 (New)
$12.11



8
41X0802 Bin full sensor
New
41X0802 (New)
$15.34


Assembly 64: MSHPF standard bin 2

1
41X0704 Standard bin assembly
New
41X0704 (New)
$347.95



41X0704 Standard bin assembly
Fully refurbished with 90-day warranty
41X0704



2
41X0809 Staging paper guide
New
41X0809 (New)
$45.74



41X0809 Staging paper guide
Fully refurbished with 90-day warranty
41X0809



3
41X0614 Elevator belt holder
New
41X0614 (New)
$11.96



4
41X0709 Sensor
New
41X0709 (New)
$16.79



5
41X0642 Elevator pulley gear
New
41X0642 (New)
$12.11



6
41X0810 Standard bin elevator belt
New
41X0810 (New)
$20.97



7
41X0642 Elevator pulley gear
New
41X0642 (New)
$12.11



8
41X0802 Bin full sensor
New
41X0802 (New)
$15.34



9
41X0644 Gear
New
41X0644 (New)
$17.41


Assembly 65: MSHPF transport roller and hole punch box

1
41X0706 Roller J2
New
41X0706 (New)
$31.31



2
41X0821 Knob J7
New
41X0821 (New)
$13.90



3
41X0980 Mid-transport roller
New
41X0980 (New)
$29.04



4
41X0807 Staging transport roller
New
41X0807 (New)
$30.49



41X0807 Staging transport roller
Fully refurbished with 90-day warranty
41X0807



5
41X0807 Staging transport roller
New
41X0807 (New)
$30.49



41X0807 Staging transport roller
Fully refurbished with 90-day warranty
41X0807



6
41X0807 Staging transport roller
New
41X0807 (New)
$30.49



41X0807 Staging transport roller
Fully refurbished with 90-day warranty
41X0807



7
41X0624 Hole punch box
New
41X0624 (New)
$111.16



41X0624 Hole punch box
Fully refurbished with 90-day warranty
41X0624



8
41X0385 Sensor
New
41X0385 (New)
$17.03



9
41X0601 Box full sensor
New
41X0601 (New)
$21.53



9
41X0601 Box full sensor
New
41X0601 (New)
$21.53



10
41X0798 Sensor
New
41X0798 (New)
$17.59



11
41X0623 Hole punch box gears
New
41X0623 (New)
$13.49


Assembly 66: MSHPF staging drive

1
41X0628 Gear
New
41X0628 (New)
$11.50



2
41X0628 Gear
New
41X0628 (New)
$11.50



3
41X0811 Transport belt
New
41X0811 (New)
$14.91



4
41X0628 Gear
New
41X0628 (New)
$11.50



5
41X0626 Drive belt
New
41X0626 (New)
$14.35



6
41X0628 Gear
New
41X0628 (New)
$11.50



7
41X0813 Belt tensioner
New
41X0813 (New)
$17.76



8
41X0628 Gear
New
41X0628 (New)
$11.50



9
41X0628 Gear
New
41X0628 (New)
$11.50



10
41X0811 Transport belt
New
41X0811 (New)
$14.91



11
41X0628 Gear
New
41X0628 (New)
$11.50



12
41X0612 Motor (transport)
New
41X0612 (New)
$35.14



41X0612 Motor (transport)
Fully refurbished with 90-day warranty
41X0612



13
41X0612 Motor (transport)
New
41X0612 (New)
$35.14



41X0612 Motor (transport)
Fully refurbished with 90-day warranty
41X0612



14
40X8256 Divert motor
New
40X8256 (New)
$23.82





15
41X0798 Sensor
New
41X0798 (New)
$17.59



16
41X0812 Transport gear parts pack
New
41X0812 (New)
$15.58


Assembly 67: MSHPF staging paper path

1
41X0385 Sensor
New
41X0385 (New)
$17.03



2
41X0807 Staging transport roller
New
41X0807 (New)
$30.49



41X0807 Staging transport roller
Fully refurbished with 90-day warranty
41X0807



3
41X0385 Sensor
New
41X0385 (New)
$17.03



4
41X0807 Staging transport roller
New
41X0807 (New)
$30.49



41X0807 Staging transport roller
Fully refurbished with 90-day warranty
41X0807



5
41X0611 Standard bin elevator drive
New
41X0611 (New)
$193.22



41X0611 Standard bin elevator drive
Fully refurbished with 90-day warranty
41X0611



6
41X0803 Motor
New
41X0803 (New)
$34.70



41X0803 Motor
Fully refurbished with 90-day warranty
41X0803



7
41X0607 Door J6
New
41X0607 (New)
$41.43



41X0607 Door J6
Fully refurbished with 90-day warranty
41X0607



8
41X0606 Door J5
New
41X0606 (New)
$43.90



41X0606 Door J5
Fully refurbished with 90-day warranty
41X0606



9
41X0605 Door J4
New
41X0605 (New)
$58.14



41X0605 Door J4
Fully refurbished with 90-day warranty
41X0605



10
41X0604 Door J3
New
41X0604 (New)
$51.06



41X0604 Door J3
Fully refurbished with 90-day warranty
41X0604



11
41X0603 Door J1
New
41X0603 (New)
$44.38



41X0603 Door J1
Fully refurbished with 90-day warranty
41X0603



12
41X0816 Staging exit guide
New
41X0816 (New)
$17.82


Assembly 68: MSHPF compiler 1

1

41X0666 Compiler entrance upper roller
Fully refurbished with 90-day warranty
41X0666



2
41X0628 Gear
New
41X0628 (New)
$11.50



3
41X0669 Compiler entrance belt
New
41X0669 (New)
$13.44



4
41X0671 Compiler stack height clamp
New
41X0671 (New)
$39.54



41X0671 Compiler stack height clamp
Fully refurbished with 90-day warranty
41X0671



5
41X0798 Sensor
New
41X0798 (New)
$17.59



6
40X8256 Divert motor
New
40X8256 (New)
$23.82





7
41X0600 Compiler interface card
New
41X0600 (New)
$34.36



41X0600 Compiler interface card
Fully refurbished with 90-day warranty
41X0600



8
41X0667 Compiler entrance guide
New
41X0667 (New)
$31.31



41X0667 Compiler entrance guide
Fully refurbished with 90-day warranty
41X0667



9
41X0670 Compiler gear parts pack
New
41X0670 (New)
$15.17



41X0670 Compiler gear parts pack
Fully refurbished with 90-day warranty
41X0670



10
41X0649 Compiler paddle and exit drive
New
41X0649 (New)
$200.88



41X0649 Compiler paddle and exit drive
Fully refurbished with 90-day warranty
41X0649



11
41X0650 Compiler exit roller
New
41X0650 (New)
$13.34



12
41X0798 Sensor
New
41X0798 (New)
$17.59



13
41X0798 Sensor
New
41X0798 (New)
$17.59



14
41X0797 Motor
New
41X0797 (New)
$35.53



41X0797 Motor
Fully refurbished with 90-day warranty
41X0797



15
41X0690 Compiler paddle motor
New
41X0690 (New)
$36.69



41X0690 Compiler paddle motor
Fully refurbished with 90-day warranty
41X0690



16
41X0821 Knob J7
New
41X0821 (New)
$13.90


Assembly 69: MSHPF compiler 2

1
41X0648 Compiler tray
New
41X0648 (New)
$126.38



41X0648 Compiler tray
Fully refurbished with 90-day warranty
41X0648



2
41X0794 Compiler tray gear
New
41X0794 (New)
$15.42



3
41X0709 Sensor
New
41X0709 (New)
$16.79



4
40X8213 Paddle drive motor
New
40X8213 (New)
$13.31



5
40X7779 Sensor
New
40X7779 (New)
$19.24



6
41X0795 Compiler tray cable
New
41X0795 (New)
$25.99



41X0795 Compiler tray cable
Fully refurbished with 90-day warranty
41X0795


Assembly 70: MSHPF tamper

1
41X0664 Tamper pulley gear
New
41X0664 (New)
$15.66



2

41X0692 Motor (Compiler paddle tamper)
Fully refurbished with 90-day warranty
41X0692



3
41X0661 Tamper belt
New
41X0661 (New)
$14.35



4
41X0798 Sensor
New
41X0798 (New)
$17.59



5
41X0663 Tamper
New
41X0663 (New)
$43.51



41X0663 Tamper
Fully refurbished with 90-day warranty
41X0663



6
41X0798 Sensor
New
41X0798 (New)
$17.59



7
41X0661 Tamper belt
New
41X0661 (New)
$14.35



8
41X0664 Tamper pulley gear
New
41X0664 (New)
$15.66



9

41X0692 Motor (Compiler paddle tamper)
Fully refurbished with 90-day warranty
41X0692


Assembly 71: MSHPF carriage transport

1
41X0654 Staple unit
New
41X0654 (New)
$188.96



41X0654 Staple unit
Fully refurbished with 90-day warranty
41X0654



2
41X0656 Staple carriage holder
New
41X0656 (New)
$61.15



41X0656 Staple carriage holder
Fully refurbished with 90-day warranty
41X0656



3
41X0693 Staple unit carriage
New
41X0693 (New)
$340.60



41X0693 Staple unit carriage
Fully refurbished with 90-day warranty
41X0693



4
41X0659 Staple unit extension cable
New
41X0659 (New)
$22.29



41X0659 Staple unit extension cable
Fully refurbished with 90-day warranty
41X0659



5
41X0691 Staple unit carriage motor
New
41X0691 (New)
$39.30



41X0691 Staple unit carriage motor
Fully refurbished with 90-day warranty
41X0691



6
41X0796 Staple unit carriage gear
New
41X0796 (New)
$12.11



7
41X0658 Staple carriage belt
New
41X0658 (New)
$14.35



8
41X0709 Sensor
New
41X0709 (New)
$16.79



9
40X7779 Sensor
New
40X7779 (New)
$19.24



10
41X0655 Carriage rail
New
41X0655 (New)
$107.91



41X0655 Carriage rail
Fully refurbished with 90-day warranty
41X0655



11
41X0646 Staple unit cable
New
41X0646 (New)
$46.27



41X0646 Staple unit cable
Fully refurbished with 90-day warranty
41X0646


Assembly 72: MSHPF door interlock

1
41X0709 Sensor
New
41X0709 (New)
$16.79



2
41X0672 Door interlock cable
New
41X0672 (New)
$17.61



3
41X0660 Door interlock switch
New
41X0660 (New)
$15.83


Assembly 73: MSHPF stapler bin 1

1
41X0705 Stapler bin assembly
New
41X0705 (New)
$423.26



41X0705 Stapler bin assembly
Fully refurbished with 90-day warranty
41X0705



2
41X0644 Gear
New
41X0644 (New)
$17.41



3
41X0642 Elevator pulley gear
New
41X0642 (New)
$12.11



4
41X0641 Elevator belt
New
41X0641 (New)
$22.50



5
41X0614 Elevator belt holder
New
41X0614 (New)
$11.96



6
41X0709 Sensor
New
41X0709 (New)
$16.79



7
41X0709 Sensor
New
41X0709 (New)
$16.79



8
41X0802 Bin full sensor
New
41X0802 (New)
$15.34


Assembly 74: MSHPF stapler bin 2

1
41X0640 Stapler bin
New
41X0640 (New)
$55.08



41X0640 Stapler bin
Fully refurbished with 90-day warranty
41X0640



2
41X0724 Sensor (bin - paper present)
New
41X0724 (New)
$15.14



3
41X0799 Exit roller belt
New
41X0799 (New)
$13.44



4
41X0652 Belt pulley gears
New
41X0652 (New)
$11.96



5
41X0651 Exit roller
New
41X0651 (New)
$31.65



41X0651 Exit roller
Fully refurbished with 90-day warranty
41X0651


Assembly 75: MSHPF stapler bin 3

1
41X0801 Stapler bin guide
New
41X0801 (New)
$18.48



2
41X0802 Bin full sensor
New
41X0802 (New)
$15.34



3
41X0614 Elevator belt holder
New
41X0614 (New)
$11.96



4
41X0642 Elevator pulley gear
New
41X0642 (New)
$12.11



5
41X0800 Elevator drive
New
41X0800 (New)
$189.50



41X0800 Elevator drive
Fully refurbished with 90-day warranty
41X0800



6
41X0803 Motor
New
41X0803 (New)
$34.70



41X0803 Motor
Fully refurbished with 90-day warranty
41X0803



7
41X0641 Elevator belt
New
41X0641 (New)
$22.50



8
41X0644 Gear
New
41X0644 (New)
$17.41


Assembly 76: MSHPF cabinet

1
41X0939 Rear cover
New
41X0939 (New)
$30.10



41X0939 Rear cover
Fully refurbished with 90-day warranty
41X0939



2
41X0940 Bottom cover
New
41X0940 (New)
$137.38



41X0940 Bottom cover
Fully refurbished with 90-day warranty
41X0940



3
41X0941 Side covers
New
41X0941 (New)
$35.38



41X0941 Side covers
Fully refurbished with 90-day warranty
41X0941



4
41X0942 Right wheels
New
41X0942 (New)
$44.00



41X0942 Right wheels
Fully refurbished with 90-day warranty
41X0942



5
41X0943 Left wheels
New
41X0943 (New)
$40.12



41X0943 Left wheels
Fully refurbished with 90-day warranty
41X0943



6
41X0944 Cabinet door
New
41X0944 (New)
$55.51



41X0944 Cabinet door
Fully refurbished with 90-day warranty
41X0944



7
41X0682 Door hinge
New
41X0682 (New)
$11.81



8
41X0941 Side covers
New
41X0941 (New)
$35.38



41X0941 Side covers
Fully refurbished with 90-day warranty
41X0941



NS
41X0945 Tall cabinet door
New
41X0945 (New)
$75.53



41X0945 Tall cabinet door
Fully refurbished with 90-day warranty
41X0945



NS
41X0947 Lock button
New
41X0947 (New)
$14.96



NS
41X0985 Lock latch
New
41X0985 (New)
$28.27
