Lexmark Parts for CX421 CX522 CX622 CX625 MC2325 MC2425 MC2535 MC2640 XC2235 XC4240

Looking for whole machines? Click on the one of the linked models below:
CX421
CX521
CS622
CX625

📖 Lexmark CX421 / CX522 / CX622 / CX625 / MC2325 / MC2535 / MC2640: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.

Please call for parts assistance

Assembly 1: Parts 1 41X2056 MC2325 control panel badge cover Lexmark 41X2056 MC2325 Control Panel Badge Cover New 41X2056 (New) $10.79 Lexmark 41X2056 MC2325 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2056 Contact for Details 1 41X2131 MC2425 control panel badge cover Lexmark 41X2131 MC2425 Control Panel Badge Cover New 41X2131 (New) $10.79 Lexmark 41X2131 MC2425 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2131 Contact for Details 1 41X2057 CX321 control panel badge cover 1 41X2065 CX421 control panel badge cover Lexmark 41X2065 Control Panel Badge Cover New 41X2065 (New) $10.87 Lexmark 41X2065 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2065 Contact for Details 1 41X2128 CX625 control panel badge cover Lexmark 41X2128 Control Panel Badge Cover New 41X2128 (New) $15.54 Lexmark 41X2128 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2128 Contact for Details 1 41X2129 XC4240 control panel badge cover Lexmark 41X2129 XC4240 Control Panel Badge Cover New 41X2129 (New) $20.28 Lexmark 41X2129 XC4240 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2129 Contact for Details 2 41X1044 2.4-inch control panel top cover Lexmark 41X1044 2.4-inch Control Panel Top Cover New 41X1044 (New) $23.45 Lexmark 41X1044 2.4-inch Control Panel Top Cover Fully refurbished with 90-day warranty 41X1044 Contact for Details 2 41X0543 7-inch control panel bezel (CX625 and XC4240) Lexmark 41X0543 Operator panel bezel New 41X0543 (New) $24.50 3 41X1368 2.4-inch control panel assembly Lexmark 41X1368 Control panel Fully refurbished with 90-day warranty 41X1368 Contact for Details Lexmark 41X1368 Control panel New 41X1368 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $97.45 3 41X0051 7-inch control panel assembly (CX625 and XC4240) Lexmark 41X0051 Operator panel card New 41X0051 41X1150 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $279.00 4 41X2024 2.4-inch control panel ribbon cable Lexmark 41X2024 Control Panel Ribbon Cable New 41X2024 (New) $19.09 Lexmark 41X2024 Control Panel Ribbon Cable Fully refurbished with 90-day warranty 41X2024 Contact for Details 4 41X1048 7-inch control panel base cover (CX625 and XC4240) Lexmark 41X1048 7-inch Control Panel Base Cover New 41X1048 (New) Contact for Details Lexmark 41X1048 7-inch Control Panel Base Cover Fully refurbished with 90-day warranty 41X1048 Contact for Details 5 41X2023 USB cable Lexmark 41X2023 USB Cable New 41X2023 (New) $21.19 Lexmark 41X2023 USB Cable Fully refurbished with 90-day warranty 41X2023 Contact for Details 5 41X2632 7-inch control panel ribbon cable (CX625 and XC4240) Lexmark 41X2632 7-inch Control Panel Ribbon Cable New 41X2632 41X2025 (New) $19.54 6 40X6517 Speaker (MC2325, CX421, and MC2425) Lexmark 40X6517 Speaker New 40X6517 (New) $29.00 Lexmark 40X6517 Speaker Fully refurbished with 90-day warranty 40X6517 $18.33 6 41X1311 Speaker (CX522, CX622, CX625, XC2235, XC4240, MC2535, and MC2640) Lexmark 41X1311 Speaker New 41X1311 (New) $18.66 Lexmark 41X1311 Speaker Fully refurbished with 90-day warranty 41X1311 $9.54 7 41X2023 USB cable Lexmark 41X2023 USB Cable New 41X2023 (New) $21.19 Lexmark 41X2023 USB Cable Fully refurbished with 90-day warranty 41X2023 Contact for Details 8 41X1047 Control panel rotation arm Lexmark 41X1047 Control Panel Rotation Arm New 41X1047 (New) $14.28 Lexmark 41X1047 Control Panel Rotation Arm Fully refurbished with 90-day warranty 41X1047 $5.60 9 41X2306 Headphone cable with clip Lexmark 41X2306 Headphone Cable With Clip New 41X2306 (New) $18.28 Lexmark 41X2306 Headphone Cable With Clip Fully refurbished with 90-day warranty 41X2306 Contact for Details 10 41X1045 Scanner top front cover Lexmark 41X1045 Scanner Top Front Cover New 41X1045 (New) $25.22 Lexmark 41X1045 Scanner Top Front Cover Fully refurbished with 90-day warranty 41X1045 $20.03 11 41X2921 4.3-inch control panel ribbon cable (CX522, CX622, MC2535, MC2640 and XC2235) Lexmark 41X2921 Control Panel Ribbon Cable New 41X2921 (New) $18.78 12 41X1046 4.3-inch control panel base cover (CX522, CX622, MC2535, MC2640, and XC2235) Lexmark 41X1046 4.3-inch Control Panel Base Cover New 41X1046 (New) $24.73 Lexmark 41X1046 4.3-inch Control Panel Base Cover Fully refurbished with 90-day warranty 41X1046 $18.81 13 41X1359 4.3-inch control panel assembly (CX522, CX622, MC2535, MC2640, and XC2235) Lexmark 41X1359 Control panel (XC2235 MB2442 MB2546 MC2535 MC2640 MX421 XM1242 XM1246) Fully refurbished with 90-day warranty 41X1359 Matched set with main logic $136.68 Lexmark 41X1359 Control panel (XC2235 MB2442 MB2546 MC2535 MC2640 MX421 XM1242 XM1246) New 41X1359 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $183.11 14 41X1727 4.3-inch control panel bezel (CX522, CX622, MC2535, MC2640, and XC2235) Lexmark 41X1727 4.3-inch Control Panel Bezel New 41X1727 (New) $19.09 Lexmark 41X1727 4.3-inch Control Panel Bezel Fully refurbished with 90-day warranty 41X1727 Contact for Details 15 41X2130 MC2535 control panel badge cover Lexmark 41X2130 MC2535 Control Panel Badge Cover New 41X2130 (New) $10.87 Lexmark 41X2130 MC2535 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2130 Contact for Details 15 41X2058 CX522 control panel badge cover Lexmark 41X2058 Control Panel Badge Cover New 41X2058 (New) $10.87 Lexmark 41X2058 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2058 Contact for Details 15 41X2059 XC2235 control panel badge cover Lexmark 41X2059 XC2235 Control Panel Badge Cover New 41X2059 (New) $10.87 Lexmark 41X2059 XC2235 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2059 Contact for Details 15 41X2067 CX622 control panel badge cover Lexmark 41X2067 Control Panel Badge Cover New 41X2067 (New) $10.87 Lexmark 41X2067 Control Panel Badge Cover Fully refurbished with 90-day warranty 41X2067 Contact for Details

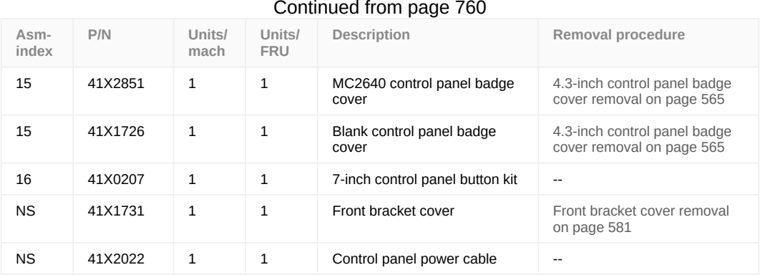

Assembly 2: Continued from page 760 15 41X2851 MC2640 control panel badge cover 41X2851 4.3-INCH AND 7-INCH CONTROL PANEL New 41X2851 (New) Contact for Details 41X2851 4.3-INCH AND 7-INCH CONTROL PANEL Fully refurbished with 90-day warranty 41X2851 Contact for Details 15 41X1726 Blank control panel badge cover Lexmark 41X1726 Blank control panel badge cover New 41X1726 (New) $14.72 16 41X0207 7-inch control panel button kit Lexmark 41X0207 Operator panel Button kit 7-inch New 41X0207 (New) $32.26 Lexmark 41X0207 Operator panel Button kit 7-inch Fully refurbished with 90-day warranty 41X0207 Contact for Details NS 41X1731 Front bracket cover Lexmark 41X1731 Front Bracket Cover New 41X1731 (New) $10.74 Lexmark 41X1731 Front Bracket Cover Fully refurbished with 90-day warranty 41X1731 Contact for Details NS 41X2022 Control panel power cable Lexmark 41X2022 Control Panel Power Cable New 41X2022 (New) $12.38 Lexmark 41X2022 Control Panel Power Cable Fully refurbished with 90-day warranty 41X2022 Contact for Details

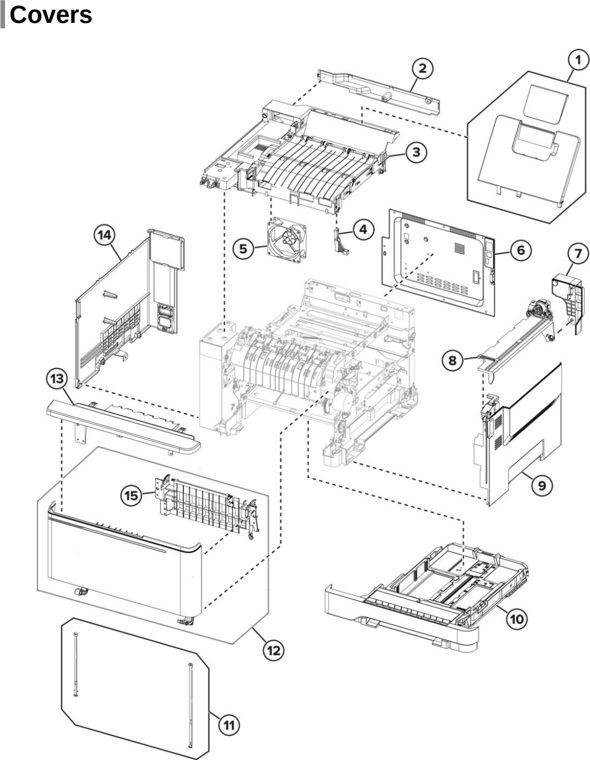

Assembly 3: Covers 1 41X1295 Output bin Lexmark 41X1295 Output Bin New 41X1295 (New) Contact for Details 2 41X1288 MFP cable cover Lexmark 41X1288 MFP Cable Cover New 41X1288 (New) $17.98 Lexmark 41X1288 MFP Cable Cover Fully refurbished with 90-day warranty 41X1288 Contact for Details 3 41X5799 Top cover with fan Lexmark 41X5799 Top Cover New 41X5799 (New) Contact for Details Lexmark 41X5799 Top Cover Fully refurbished with 90-day warranty 41X5799 Contact for Details 4 41X2114 Front toner door pivot bracket Lexmark 41X2114 Front Toner Door Pivot Bracket New 41X2114 (New) $10.74 Lexmark 41X2114 Front Toner Door Pivot Bracket Fully refurbished with 90-day warranty 41X2114 Contact for Details 5 41X0397 System fan Lexmark 41X0397 Main fan New 41X0397 (New) $39.36 Lexmark 41X0397 Main fan Fully refurbished with 90-day warranty 41X0397 Contact for Details 6 41X1787 Rear cover (CX622, CX625, MC2640, and XC4240) Lexmark 41X1787 Rear Cover (MC2640 and XC4240) New 41X1787 (New) $31.87 Lexmark 41X1787 Rear Cover (MC2640 and XC4240) Fully refurbished with 90-day warranty 41X1787 Contact for Details 6 41X2101 Rear cover (CX522, XC2235, and MC2535) Rear cover (CX421 and MC2425) Lexmark 41X2101 Rear cover (and MC2535) New 41X2101 (New) $31.87 Lexmark 41X2101 Rear cover (and MC2535) Fully refurbished with 90-day warranty 41X2101 Contact for Details 6 41X2104 Rear cover (MC2325) Lexmark 41X2104 Rear cover New 41X2104 (New) $30.63 Lexmark 41X2104 Rear cover Fully refurbished with 90-day warranty 41X2104 Contact for Details 7 41X1296 MFP link Lexmark 41X1296 MFP Link New 41X1296 (New) $16.63 Lexmark 41X1296 MFP Link Fully refurbished with 90-day warranty 41X1296 Contact for Details 8 41X1049 Toner cover with damper Lexmark 41X1049 Toner Cover With Damper New 41X1049 (New) $31.10 Lexmark 41X1049 Toner Cover With Damper Fully refurbished with 90-day warranty 41X1049 $23.68 9 40X7823 Right cover Lexmark 40X7823 Right cover New 40X7823 (New) $24.50 10 41X1285 250-sheet tray Lexmark 41X1285 250-sheet tray assembly New 41X1285 (New) $95.50 Lexmark 41X1285 250-sheet tray assembly Fully refurbished with 90-day warranty 41X1285 Contact for Details 11 40X7619 Door straps Lexmark 40X7619 Front cover straps New 40X7619 (New) $3.33 Lexmark 40X7619 Front cover straps Fully refurbished with 90-day warranty 40X7619 Contact for Details 12 41X1286 Front door Lexmark 41X1286 Front Door Assembly New 41X1286 (New) $78.14 Lexmark 41X1286 Front Door Assembly Fully refurbished with 90-day warranty 41X1286 Contact for Details 13 41X1287 Front middle cover Lexmark 41X1287 Front Middle Cover New 41X1287 (New) $26.82 Lexmark 41X1287 Front Middle Cover Fully refurbished with 90-day warranty 41X1287 Contact for Details 14 41X1291 Left cover Lexmark 41X1291 Left Cover New 41X1291 (New) $48.35 Lexmark 41X1291 Left Cover Fully refurbished with 90-day warranty 41X1291 Contact for Details 15 41X2663 Front door inner deflector Lexmark 41X2663 Front cover inner deflector New 41X2663 (New) $27.33 Lexmark 41X2663 Front cover inner deflector Fully refurbished with 90-day warranty 41X2663 Contact for Details NS 40X7812 Exit bail Lexmark 40X7812 Media bin New 40X7812 (New) $15.42 Lexmark 40X7812 Media bail Fully refurbished with 90-day warranty 40X7812 $6.63

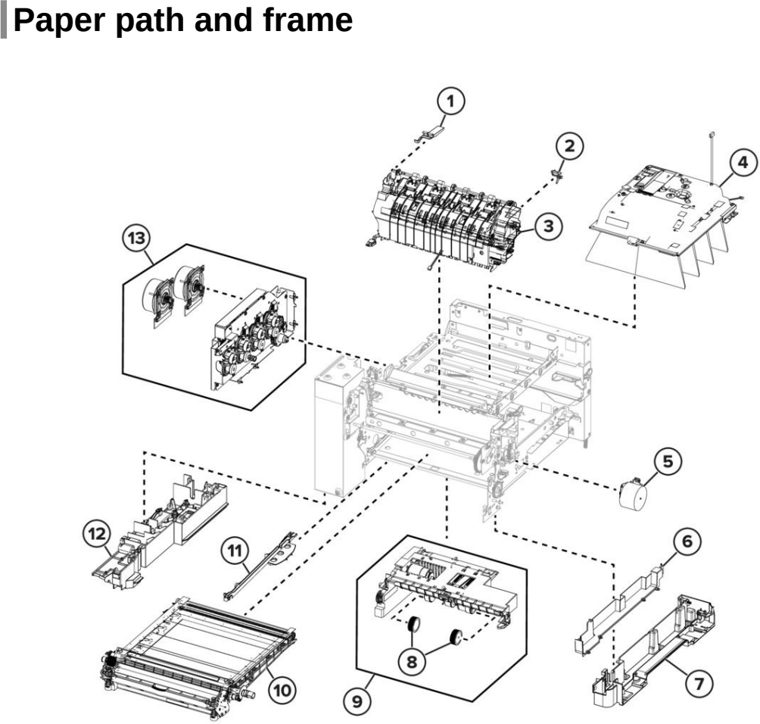

Assembly 4: Paper path and frame 1 41X2307 Narrow media sensor flag Lexmark 41X2307 Narrow Media Sensor Flag New 41X2307 (New) $11.30 Lexmark 41X2307 Narrow Media Sensor Flag Fully refurbished with 90-day warranty 41X2307 Contact for Details 2 40X8819 Right fuser deflector Lexmark 40X8819 MFP fuser deflector flag New 40X8819 (New) $15.75 Lexmark 40X8819 MFP fuser deflector flag Fully refurbished with 90-day warranty 40X8819 Contact for Details 3 41X1041 110 V Fuser Lexmark 41X1041 110 V Fuser New 41X1041 (New) $225.00 Lexmark 41X1041 110 V Fuser Fully refurbished with 90-day warranty 41X1041 Contact for Details 3 41X1300 220 V Fuser 3 41X1299 100 V Fuser Lexmark 41X1299 100 V Fuser Fully refurbished with 90-day warranty 41X1299 Contact for Details 4 41X1040 Printhead Lexmark 41X1040 Printhead New 41X1040 (New) $303.87 Lexmark 41X1040 Printhead Fully refurbished with 90-day warranty 41X1040 $154.50 5 40X7629 Motor (fuser drive) page Lexmark 40X7629 Fuser drive motor assembly New 40X7629 (New) $26.03 Lexmark 40X7629 Fuser drive motor assembly Fully refurbished with 90-day warranty 40X7629 $11.50 6 41X2327 Subframe cable cover -- Lexmark 41X2327 Subframe Cable Cover New 41X2327 (New) $17.14 Lexmark 41X2327 Subframe Cable Cover Fully refurbished with 90-day warranty 41X2327 Contact for Details 7 41X1312 Lower right subframe Lower page Lexmark 41X1312 Lower Right Subframe New 41X1312 (New) $34.00 Lexmark 41X1312 Lower Right Subframe Fully refurbished with 90-day warranty 41X1312 Contact for Details 8 40X5168 Pick tires Pick Lexmark 40X5168 Pick Tire New 40X5168 (New) $8.75 9 41X1292 Media feeder Tray on Lexmark 41X1292 Media Feeder New 41X1292 (New) $91.90 Lexmark 41X1292 Media Feeder Fully refurbished with 90-day warranty 41X1292 $59.00 10 41X1039 Transfer module Transfer page 11 41X0580 Transfer module guide Transfer removal Lexmark 41X0580 ITU guide New 41X0580 (New) $20.40 Lexmark 41X0580 ITU guide Fully refurbished with 90-day warranty 41X0580 Contact for Details 12 41X2326 Lower left subframe Lower page Lexmark 41X2326 Lower Left Subframe New 41X2326 (New) $24.90 Lexmark 41X2326 Lower Left Subframe Fully refurbished with 90-day warranty 41X2326 Contact for Details 13 41X1289 EP drive assembly EP page Lexmark 41X1289 EP Drive Assembly New 41X1289 (New) $194.68 Lexmark 41X1289 EP Drive Assembly Fully refurbished with 90-day warranty 41X1289 Contact for Details NS 41X2360 Sub‑frame foot -- Lexmark 41X2360 Sub-frame Foot New 41X2360 (New) $12.38 Lexmark 41X2360 Sub-frame Foot Fully refurbished with 90-day warranty 41X2360 Contact for Details

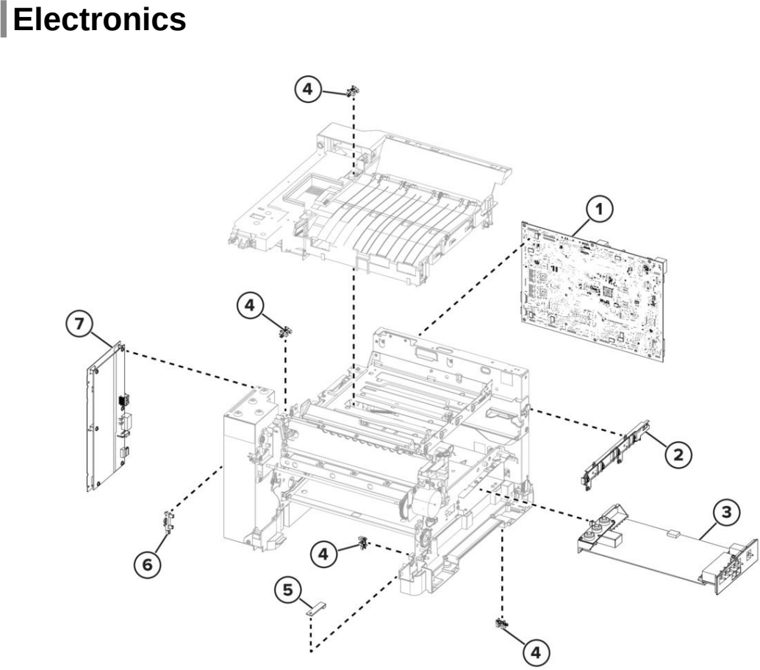

Assembly 5: Electronics 1 41X1785 Controller board (MC2325, CX421, and MC2425) Lexmark 41X1785 Controller board New 41X1785 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $494.39 Lexmark 41X1785 Controller board Fully refurbished with 90-day warranty 41X1785 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 1 41X2099 Controller board (CX522, XC2235, and MC2535) Lexmark 41X2099 Controller board (MC2535 XC2235) New 41X2099 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $585.21 Lexmark 41X2099 Controller board (MC2535 XC2235) Fully refurbished with 90-day warranty 41X2099 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details 1 41X1786 Controller board (CX622, CX625, MC2640, and XC4240) Lexmark 41X1786 Controller board (MC2640 and XC4240) New 41X1786 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 41X1786 Controller board Fully refurbished with 90-day warranty 41X1786 Matched Set CX622 his part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $341.50 2 40X7620 Toner meter card Lexmark 40X7620 Toner meter cycle card assembly New 40X7620 (New) $30.23 Lexmark 40X7620 Toner meter cycle card assembly Fully refurbished with 90-day warranty 40X7620 $23.02 3 41X1042 High‑voltage power supply Lexmark 41X1042 High Voltage Power Supply New 41X1042 (New) $158.72 Lexmark 41X1042 High Voltage Power Supply Fully refurbished with 90-day warranty 41X1042 $112.00 4 40X7301 Photo sensors: Lexmark 40X7301 New Photo sensor and retainer (one per package) New 40X7301 (New) $15.25 Lexmark 40X7301 Photo sensor and retainer (one per package) Fully refurbished with 90-day warranty 40X7301 Contact for Details 5 41X1290 Weather station Lexmark 41X1290 Weather Station New 41X1290 (New) $20.93 Lexmark 41X1290 Weather Station Fully refurbished with 90-day warranty 41X1290 Contact for Details 6 40X5413 Sensor (fuser exit) Lexmark 40X5413 Fuser exit sensor New 40X5413 (New) $14.16 Lexmark 40X5413 Fuser exit sensor Fully refurbished with 90-day warranty 40X5413 Contact for Details 7 41X1043 Low-voltage power supply (170 W) Lexmark 41X1043 175 W Low Voltage Power Supply New 41X1043 (New) $337.43 Lexmark 41X1043 175 W Low Voltage Power Supply Fully refurbished with 90-day warranty 41X1043 $206.50

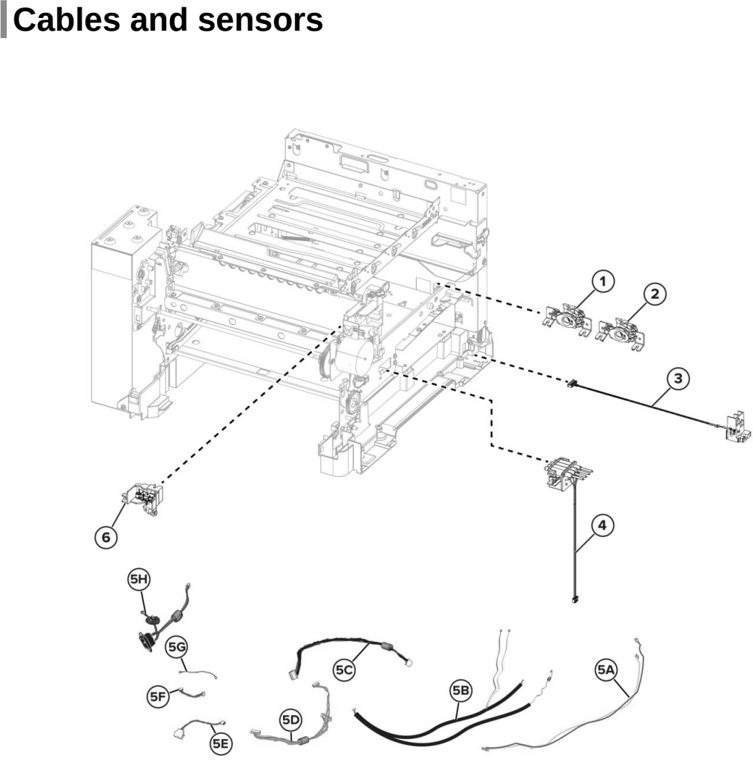

Assembly 6: Cables and sensors 1 41X1904 Sensor (left toner patch) Lexmark 41X1904 Sensor (left toner patch with thermistor) New 41X1904 (New) $20.54 Lexmark 41X1904 Sensor (left toner patch with thermistor) Fully refurbished with 90-day warranty 41X1904 Contact for Details 2 41X2348 Sensor (right toner patch with thermistor) Lexmark 41X2348 Sensor (right toner patch with thermistor) New 41X2348 (New) $27.76 Lexmark 41X2348 Sensor (right toner patch with thermistor) Fully refurbished with 90-day warranty 41X2348 Contact for Details 3 41X1722 Waste toner bottle contact block Lexmark 41X1722 Waste toner bottle contact block New 41X1722 (New) $14.85 Lexmark 41X1722 Waste toner bottle contact block Fully refurbished with 90-day warranty 41X1722 Contact for Details 4 41X1723 Toner cartridge contact Lexmark 41X1723 Toner cartridge contact New 41X1723 (New) $21.74 Lexmark 41X1723 Toner cartridge contact Fully refurbished with 90-day warranty 41X1723 Contact for Details 5A 41X2328 Fuser exit narrow media to controller board Lexmark 41X2328 Fuser exit narrow media to controller board Fully refurbished with 90-day warranty 41X2328 Contact for Details 5B 41X2329 Fuser/input sensor cable Lexmark 41X2329 Fuser/input sensor cable New 41X2329 (New) $21.44 Lexmark 41X2329 Fuser/input sensor cable Fully refurbished with 90-day warranty 41X2329 Contact for Details 5C 41X2332 LVPS to controller board cable Lexmark 41X2332 LVPS to controller board cable New 41X2332 (New) $18.31 Lexmark 41X2332 LVPS to controller board cable Fully refurbished with 90-day warranty 41X2332 Contact for Details 5D 41X2330 EP motor to controller board cable Lexmark 41X2330 EP motor to controller board cable New 41X2330 (New) $21.57 Lexmark 41X2330 EP motor to controller board cable Fully refurbished with 90-day warranty 41X2330 Contact for Details 5E 41X2335 Tray 2 to controller board cable Lexmark 41X2335 Tray 2 to controller board cable New 41X2335 (New) $15.80 Lexmark 41X2335 Tray 2 to controller board cable Fully refurbished with 90-day warranty 41X2335 Contact for Details 5F 41X2334 HVPS to controller board cable Lexmark 41X2334 HVPS to controller board cable New 41X2334 (New) $17.26 Lexmark 41X2334 HVPS to controller board cable Fully refurbished with 90-day warranty 41X2334 Contact for Details 5G 41X2336 Tray present sensor cable Lexmark 41X2336 Tray present sensor cable New 41X2336 (New) $11.44 Lexmark 41X2336 Tray present sensor cable Fully refurbished with 90-day warranty 41X2336 Contact for Details 5H 41X2331 AC power to LVPS cable Lexmark 41X2331 AC power to LVPS cable New 41X2331 (New) $22.32 Lexmark 41X2331 AC power to LVPS cable Fully refurbished with 90-day warranty 41X2331 Contact for Details 6 41X1561 Front and right side interlock switch cover assembly Lexmark 41X1561 Front and right side interlock switch cover assembly New 41X1561 (New) $18.47 Lexmark 41X1561 Front and right side interlock switch cover assembly Fully refurbished with 90-day warranty 41X1561 Contact for Details NS 41X2333 Weather station cable Lexmark 41X2333 Weather Station Cable New 41X2333 (New) $12.63 Lexmark 41X2333 Weather Station Cable Fully refurbished with 90-day warranty 41X2333 Contact for Details

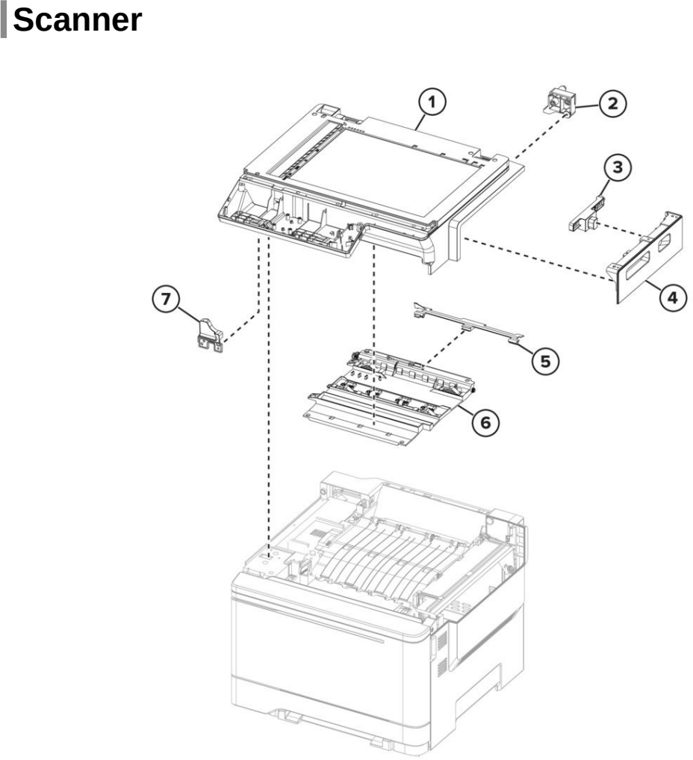

Assembly 7: Scanner 1 41X1294 Flatbed scanner assembly (XC2235, MC2325, CX421, MC2425, CX522, and MC2535) Lexmark 41X1294 Flatbed Scanner Assembly New 41X1294 (New) Contact for Details Lexmark 41X1294 Flatbed Scanner Assembly Fully refurbished with 90-day warranty 41X1294 Contact for Details 1 41X2071 Flatbed scanner assembly (CX622, CX625, MC2640, and XC4240) Lexmark 41X2071 Flatbed Scanner Assembly New 41X2071 (New) $270.50 Lexmark 41X2071 Flatbed Scanner Assembly Fully refurbished with 90-day warranty 41X2071 $164.50 2 41X1282 Flatbed pivot link (rear right) Lexmark 41X1282 Flatbed Pivot Link (rear right) New 41X1282 (New) $11.23 Lexmark 41X1282 Flatbed Pivot Link (rear right) Fully refurbished with 90-day warranty 41X1282 Contact for Details 3 41X1560 Release lever Lexmark 41X1560 Release Lever New 41X1560 (New) $10.74 Lexmark 41X1560 Release Lever Fully refurbished with 90-day warranty 41X1560 Contact for Details 4 41X1281 Scanner right cover Lexmark 41X1281 Scanner Right Cover New 41X1281 (New) $20.62 Lexmark 41X1281 Scanner Right Cover Fully refurbished with 90-day warranty 41X1281 Contact for Details 5 41X2126 Bin full flag Lexmark 41X2126 Bin Full Flag New 41X2126 (New) $13.71 Lexmark 41X2126 Bin Full Flag Fully refurbished with 90-day warranty 41X2126 Contact for Details 6 41X1559 Redrive unit Lexmark 41X1559 Redrive Unit New 41X1559 (New) $39.78 Lexmark 41X1559 Redrive Unit Fully refurbished with 90-day warranty 41X1559 Contact for Details 7 41X1283 Flatbed pivot link (front left) Lexmark 41X1283 Flatbed Pivot Link (front left) New 41X1283 (New) $12.06 Lexmark 41X1283 Flatbed Pivot Link (front left) Fully refurbished with 90-day warranty 41X1283 Contact for Details NS 40X2252 Redrive spacer screws Lexmark 40X2252 Redrive spacer screws New 40X2252 (New) $9.04

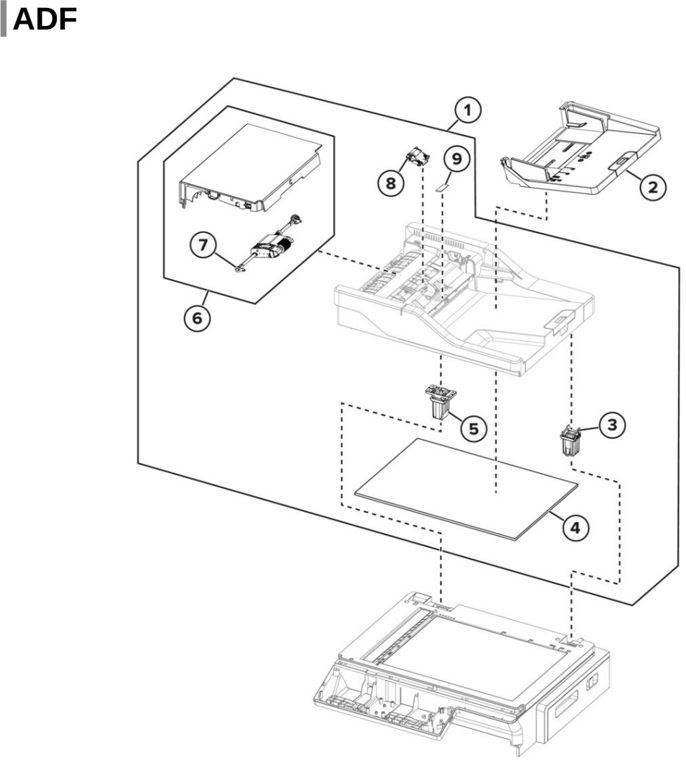

Assembly 8: ADF 1 41X1276 ADF assembly (CX421, MC2425, CX522, XC2235, and MC2535) Lexmark 41X1276 ADF Assembly New 41X1276 (New) $380.50 1 41X1293 ADF assembly (CX622, CX625, MC2640, and XC4240) Lexmark 41X1293 ADF Assembly New 41X1293 (New) ~~$509.00~~ $426.00 Lexmark 41X1293 ADF Assembly Fully refurbished with 90-day warranty 41X1293 Contact for Details 1 41X1275 ADF assembly (MC2325) Lexmark 41X1275 ADF assembly New 41X1275 (New) $341.50 2 41X1333 ADF tray (XC2235, MC2325, CX421, MC2425, CX522, and MC2535) Lexmark 41X1333 ADF tray (MX321 MX421) Fully refurbished with 90-day warranty 41X1333 Contact for Details Lexmark 41X1333 ADF tray (MX321 MX421 ) New 41X1333 (New) $55.08 2 41X1335 ADF tray (CX622, CX625, MC2640, and XC4240) Lexmark 41X1335 ADF tray New 41X1335 (New) $50.06 Lexmark 41X1335 ADF tray Fully refurbished with 90-day warranty 41X1335 Contact for Details 3 40X8734 ADF right hinge Lexmark 40X8734 ADF Right Hinge Assembly Fully refurbished with 90-day warranty 40X8734 Contact for Details Lexmark 40X8734 ADF Right Hinge Assembly New 40X8734 (New) $32.32 4 41X1974 Flatbed cushion Lexmark 41X1974 Flatbed Cushion New 41X1974 (New) Contact for Details Lexmark 41X1974 Flatbed Cushion Fully refurbished with 90-day warranty 41X1974 Contact for Details 5 41X4484 ADF left hinge (CX622, CX625, MC2640, and XC4240) Lexmark 41X4484 ADF left hinge New 41X4484 (New) $43.88 5 41X4486 ADF left hinge (CX421, MC2425, CX522, XC2235, and MC2535) Lexmark 41X4486 ADF left hinge New 41X4486 (New) $49.32 Lexmark 41X4486 ADF left hinge Fully refurbished with 90-day warranty 41X4486 Contact for Details 6 41X2116 ADF door (MC2325) Lexmark 41X2116 ADF Top Cover Assembly (MC2325) New 41X2116 (New) $60.28 Lexmark 41X2116 ADF Top Cover Assembly (MC2325) Fully refurbished with 90-day warranty 41X2116 Contact for Details 6 41X1318 ADF door (CX622, CX625, MC2640, and XC4240) Lexmark 41X1318 ADF door New 41X1318 (New) $76.08 Lexmark 41X1318 ADF access door Fully refurbished with 90-day warranty 41X1318 Contact for Details 6 41X2118 ADF door (CX421, MC2425, CX522, XC2235, and MC2535) Lexmark 41X2118 ADF Top Cover Assembly New 41X2118 (New) $62.30 Lexmark 41X2118 ADF Top Cover Assembly Fully refurbished with 90-day warranty 41X2118 Contact for Details 7 40X8736 ADF pick roller (XC2235, MC2325, CX421, MC2425, CX522, and MC2535) Lexmark 40X8736 ADF Pick Roll New 40X8736 (New) $65.94 7 41X1326 ADF pick roller (CX622, CX625, MC2640, and XC4240) Lexmark 41X1326 ADF Pickup Roller Fully refurbished with 90-day warranty 41X1326 Contact for Details Lexmark 41X1326 ADF Pickup Roller New 41X1326 (New) $32.53 8 40X6247 ADF separator pad (MC2325) Lexmark 40X6247 ADF Separator Pad, Simplex New 40X6247 (New) $21.00 8 41X0917 ADF separator roller (CX421, MC2425, CX522, XC2235, and MC2535) Lexmark 41X0917 ADF Separator Roll New 41X0917 (New) $20.00 8 41X1325 Standard ADF separator roller (CX622, CX625, MC2640, XC2240, and XC4240) Note: Replace the ADF separator roller with the high torque version (41X2855) instead of the standard version Lexmark 41X1325 ADF separator roller New 41X1325 Compatible Contact for Details Lexmark 41X1325 ADF separator roller New 41X1325 (New) $20.50

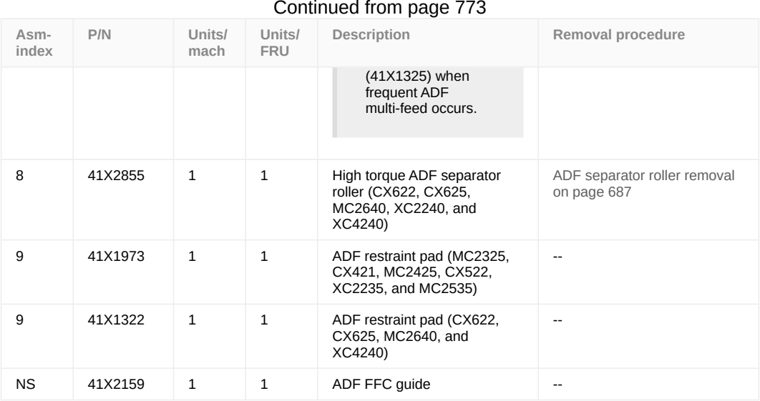

Assembly 9: Continued from page 773 8 41X2855 High torque ADF separator roller (CX622, CX625, MC2640, XC2240, and XC4240) Lexmark 41X2855 ADF separator roller (high torque) New 41X2855 (New) $23.52 9 41X1973 ADF restraint pad (MC2325, CX421, MC2425, CX522, XC2235, and MC2535) Lexmark 41X1973 ADF Restraint Pad New 41X1973 (New) $16.46 9 41X1322 ADF restraint pad (CX622, CX625, MC2640, and XC4240) Lexmark 41X1322 ADF restraint pad Fully refurbished with 90-day warranty 41X1322 Contact for Details Lexmark 41X1322 ADF restraint pad New 41X1322 (New) $14.10 NS 41X2159 ADF FFC guide Lexmark 41X2159 ADF FFC Guide New 41X2159 (New) $16.19 Lexmark 41X2159 ADF FFC Guide Fully refurbished with 90-day warranty 41X2159 Contact for Details

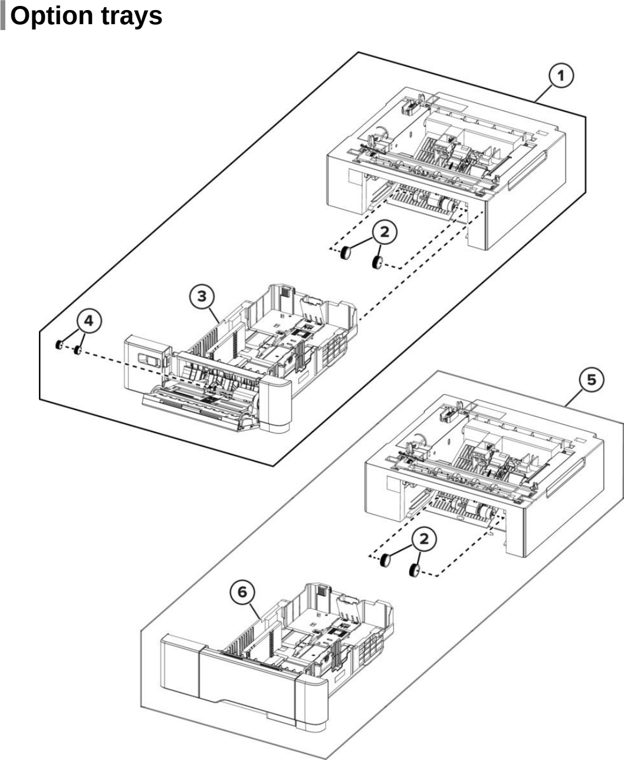

Assembly 10: Option trays 1 41X1783 Optional 650-sheet duo tray on Lexmark 41X1783 Optional 650-sheet duo tray New 41X1783 (New) $349.00 Lexmark 41X1783 Optional 650-sheet duo tray Fully refurbished with 90-day warranty 41X1783 Contact for Details 2 40X5168 Pick tires Pick Lexmark 40X5168 Pick Tire New 40X5168 (New) $8.75 3 41X1784 650-sheet duo tray insert Lexmark 41X1784 650-sheet duo tray insert New 41X1784 (New) $172.88 Lexmark 41X1784 650-sheet duo tray insert Fully refurbished with 90-day warranty 41X1784 Contact for Details 4 40X7178 650-sheet duo tray MPF rollers Lexmark 40X7178 MPF Pick Tires and Wear Strip New 40X7178 (New) $14.59 5 41X1780 550-sheet tray Lexmark 41X1780 550-sheet tray New 41X1780 (New) $321.00 Lexmark 41X1780 550-sheet tray Fully refurbished with 90-day warranty 41X1780 Contact for Details 6 41X1781 550‑sheet tray insert Lexmark 41X1781 550-sheet tray insert New 41X1781 (New) $121.50 Lexmark 41X1781 550-sheet tray insert Fully refurbished with 90-day warranty 41X1781 Contact for Details
Assembly 11: Miscellaneous NS 40X9934 500 GB SATA hard disk drive Lexmark 40X9934 500GB SATA Hard disk New 40X9934 (New) $299.00 Lexmark 40X9934 500GB SATA Hard disk Fully refurbished with 90-day warranty 40X9934 $161.00 NS 41X1872 Marknet N8372, front Wi‑Fi— FSM (CX421, CX522, CX622, MC2325, MC2425, MC2640, XC2235) Lexmark 41X1872 MarkNet N8372 Front WiFi FSM New 41X1872 (New) $279.00 Lexmark 41X1872 MarkNet N8372 Front WiFi FSM Fully refurbished with 90-day warranty 41X1872 Contact for Details NS 41X1873 Wireless network card cardlet without cable Lexmark 41X1873 Wireless module New 41X1873 (New) $92.34 NS 41X1871 1 port vertical fax card Lexmark 41X1871 1 port vertical fax card New 41X1871 (New) $152.86 Lexmark 41X1871 1 port vertical fax card Fully refurbished with 90-day warranty 41X1871 Contact for Details NS 41X2937 Fax card kit Lexmark 41X2937 Fax card kit New 41X2937 (New) $127.55

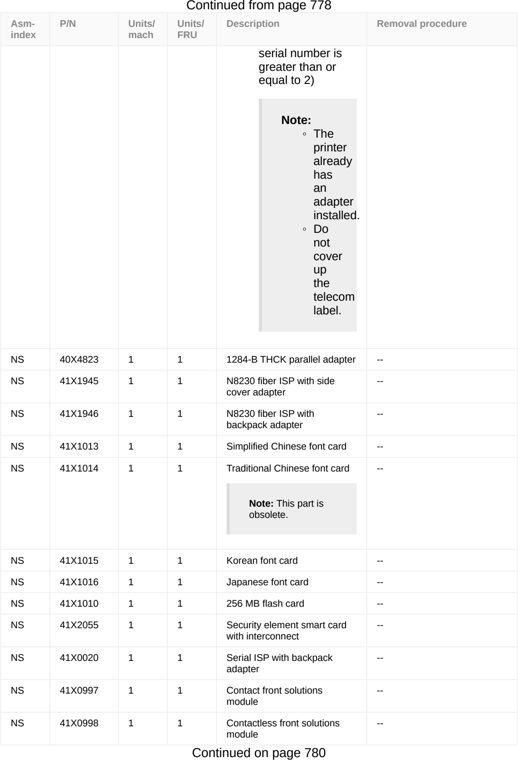

Assembly 12: Continued from page 778 NS 40X4823 1284-B THCK parallel adapter Lexmark 40X4823 Parallel 1284-B interface card New 40X4823 (New) $168.98 Lexmark 40X4823 Parallel 1284-B interface card Fully refurbished with 90-day warranty 40X4823 $80.00 NS 41X1945 N8230 fiber ISP with side cover adapter Lexmark 41X1945 New MarkNet N8230 Fiber Ethernet 100BASEFX (LC) 1000BASE-SX (LC) (Fiber + side backpack) New 41X1945 (New) $1194.50 Lexmark 41X1945 MarkNet N8230 Fiber Ethernet 100BASEFX (LC) 1000BASE-SX (LC) (Fiber + side backpack) Fully refurbished with 90-day warranty 41X1945 Contact for Details NS 41X1946 N8230 fiber ISP with backpack adapter Lexmark 41X1946 New MarkNet N8230 Fiber Ethernet 100BASEFX (LC) 1000BASE-SX (LC) (Fiber + side cover) (MX52x) New 41X1946 (New) $1039.50 Lexmark 41X1946 MarkNet N8230 Fiber Ethernet 100BASEFX (LC) 1000BASE-SX (LC) (Fiber + side cover) (MX52x) Fully refurbished with 90-day warranty 41X1946 Contact for Details NS 41X1013 Simplified Chinese font card Lexmark 41X1013 Simplified Chinese Font Card New 41X1013 (New) $86.42 Lexmark 41X1013 Simplified Chinese Font Card Fully refurbished with 90-day warranty 41X1013 Contact for Details NS 41X1014 Traditional Chinese font card Note: This part is obsolete. NS 41X1015 Korean font card Lexmark 41X1015 Korean Font Card New 41X1015 (New) $86.42 Lexmark 41X1015 Korean Font Card Fully refurbished with 90-day warranty 41X1015 Contact for Details NS 41X1016 Japanese font card NS 41X1010 256 MB flash card Lexmark 41X1010 Flash memory 256 MB New 41X1010 (New) $92.60 Lexmark 41X1010 Flash memory 256 MB Fully refurbished with 90-day warranty 41X1010 $62.50 NS 41X2055 Security element smart card with interconnect Lexmark 41X2055 Smart card New 41X2055 (New) $291.50 Lexmark 41X2055 Smart card Fully refurbished with 90-day warranty 41X2055 Contact for Details NS 41X0020 Serial ISP with backpack adapter Lexmark 41X0020 CS72x SVC Adapter Serial ISP with Backpa New 41X0020 (New) $380.50 Lexmark 41X0020 CS72x SVC Adapter Serial ISP with Backpa Fully refurbished with 90-day warranty 41X0020 $226.50 NS 41X0997 Contact front solutions module Lexmark 41X0997 Contact Front Authentication Device New 41X0997 (New) $256.22 Lexmark 41X0997 Contact Front Authentication Device Fully refurbished with 90-day warranty 41X0997 Contact for Details NS 41X0998 Contactless front solutions module Lexmark 41X0998 Contactless Front Authentication Device New 41X0998 (New) $817.80 Lexmark 41X0998 Contactless Front Authentication Device Fully refurbished with 90-day warranty 41X0998 Contact for Details

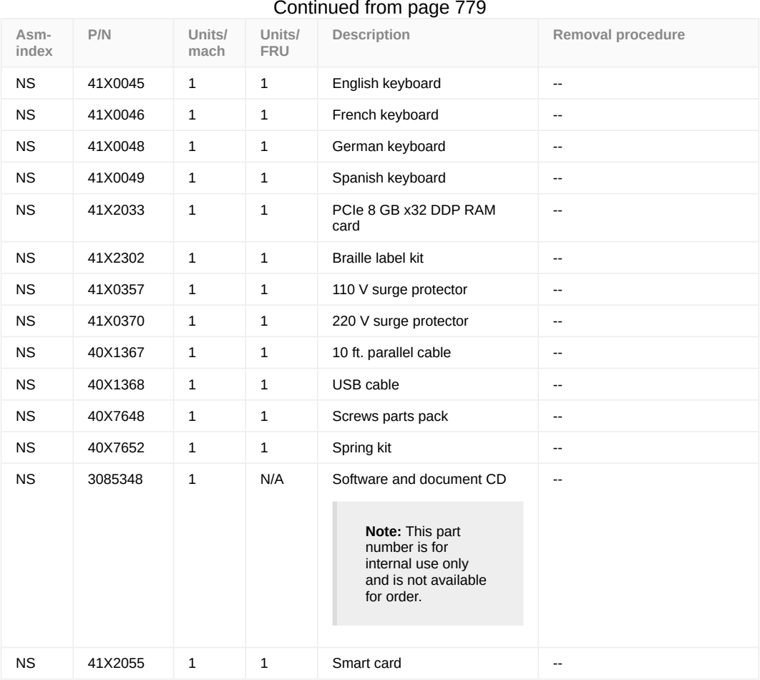

Assembly 13: Continued from page 779 NS 41X0045 English keyboard NS 41X0046 French keyboard NS 41X0048 German keyboard NS 41X0049 Spanish keyboard NS 41X2033 PCIe 8 GB x32 DDP RAM card Lexmark 41X2033 RAM card PCIe 8GB x32 DDP New 41X2033 (New) Contact for Details Lexmark 41X2033 RAM card PCIe 8GB x32 DDP Fully refurbished with 90-day warranty 41X2033 Contact for Details NS 41X2302 Braille label kit Lexmark 41X2302 Braille label kit New 41X2302 (New) $181.08 Lexmark 41X2302 Braille label kit Fully refurbished with 90-day warranty 41X2302 Contact for Details NS 41X0357 110 V surge protector Lexmark 41X0357 Surge Protective Device 110-120V New 41X0357 (New) $86.22 Lexmark 41X0357 Surge Protective Device 110-120V Fully refurbished with 90-day warranty 41X0357 Contact for Details NS 41X0370 220 V surge protector NS 40X1367 10 ft. parallel cable Lexmark 40X1367 Parallel Cable Packaged (3 m) New 40X1367 (New) $26.03 Retired, no longer available: Contact for alternatives NS 40X1368 USB cable Lexmark 40X1368 2-Meter USB Cable New 40X1368 (New) $23.70 Retired, no longer available: Contact for alternatives NS 40X7648 Screws parts pack Lexmark 40X7648 Screw part packet New 40X7648 (New) $79.49 Lexmark 40X7648 Screws parts packet Fully refurbished with 90-day warranty 40X7648 Contact for Details NS 40X7652 Spring kit Lexmark 40X7652 Spring parts package New 40X7652 (New) $11.32 NS 3085348 Software and document CD Note: This part number is for internal use only and is not available for order. NS 41X2055 Smart card Lexmark 41X2055 Smart card New 41X2055 (New) $291.50 Lexmark 41X2055 Smart card Fully refurbished with 90-day warranty 41X2055 Contact for Details
Assembly 14: Maintenance kits NS 41X2095 100‑V Fuser maintenance kit • Fuser 100 V • Pick roller NS 41X2096 110‑V Fuser maintenance kit • Fuser 110 V • Pick roller Lexmark 41X2096 115 V Fuser maintenance kit New 41X2096 (New) $186.50 Lexmark 41X2096 115 V Fuser maintenance kit Fully refurbished with 90-day warranty 41X2096 Contact for Details NS 41X2097 220‑V Fuser maintenance kit • Fuser 220 V • Pick roller
Assembly 15: Power cords NS 40X0269 Power cord, 2.5 m (straight)— USA, Canada Lexmark 40x0269 Power Cord; 2.5m, 8ft. Right angle, US, CA, La New 40x0269 (New) $30.90 NS 40X3141 Power cord, 2.5 m (straight)— Europe and others Lexmark 40x3141 Power cord; 2.5m, 8ft. Europe, Middle East, Indonesia, Africa (HV) New 40x3141 (New) Contact for Details NS 40X0288 Power cord, 2.5 m (straight)— Argentina Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina New 40x0288 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0271 Power cord, 2.5 m (straight)— United Kingdom Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X0275 Power cord, 2.5 m (straight)— Israel Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X1772 Power cord, 2.5 m (straight)— Switzerland Lexmark 40x1772 Power cord; 2.5m, 8ft. Straight, Liechtenstein, Switzerland New 40x1772 (New) Contact for Details NS 40X1773 Power cord, 2.5 m (straight)— South Africa Lexmark 40x1773 Power cord; 2.5m, 8ft. Straight, South Africa, Hong Kong, Singapore, Thailand, Malaysia New 40x1773 (New) Contact for Details NS 40X0273 Power cord, 2.5 m (straight)— Traditional Italy Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay New 40x0273 (New) $44.20 Retired, no longer available: Contact for alternatives NS 40X1774 Power cord, 2.5 m (straight)— Denmark Lexmark 40x1774 Power cord; 2.5m, 8ft. Straight, Denmark, Finland, Norway, Sweden New 40x1774 (New) Contact for Details NS 40X4596 Power cord, 2.5 m (straight)— Brazil Lexmark 40x4596 Power cord; 2.5m, 8ft. Straight, Brazil New 40x4596 (New) Contact for Details NS 40X0303 Power cord, 2.5 m (straight)— China Lexmark 40x0303 Power cord; 2.5m, 8ft. Straight, PR China New 40x0303 (New) Contact for Details NS 40X0270 Power cord, 2.5 m (straight)— Japan Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan New 40x0270 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X1792 Power cord, 2.5 m (straight)— Korea Lexmark 40x1792 Power cord; 2.5m, 8ft. Straight, Korea New 40x1792 (New) Contact for Details NS 40X1791 Power cord, 2.5 m (straight)— Taiwan Lexmark 40x1791 Power Cord; 2.5m, 8ft. Straight, Taiwan New 40x1791 (New) Contact for Details NS 40X0301 Power cord, 2.5 m (straight)— Australia Lexmark 40x0301 Power cord; 2.5m, 8ft. Straight, Australia, New Zealand New 40x0301 (New) Contact for Details
Other listed parts 40X1973 Media Support Lexmark 40X1973 Media Support New 40X1973 (New) $11.78 40X5490 Front middle cover 40X8735 ADF Left Hinge Assembly Lexmark 40X8735 ADF Left Hinge Assembly New 40X8735 (New) $64.28 41X1284 Top Cover With Fan Lexmark 41X1284 Top Cover With Fan New 41X1284 (New) $109.86 Lexmark 41X1284 Top Cover With Fan Fully refurbished with 90-day warranty 41X1284 Contact for Details 41X2025 7-inch Control Panel Ribbon Cable Lexmark 41X2025 7-inch Control Panel Ribbon Cable Fully refurbished with 90-day warranty 41X2025 Contact for Details 41X2102 Rear cover Lexmark 41X2102 Rear cover New 41X2102 (New) $27.96 Lexmark 41X2102 Rear cover Fully refurbished with 90-day warranty 41X2102 Contact for Details 41X2117 ADF Top Cover Assembly (MC2640 and XC4240) Lexmark 41X2117 ADF Top Cover Assembly (MC2640 and XC4240) Fully refurbished with 90-day warranty 41X2117 Contact for Details 41X4537 Front USB cable Lexmark 41X4537 Front USB cable New 41X4537 (New) Contact for Details 41X4547 Control panel FFC Lexmark 41X4547 Control panel FFC New 41X4547 (New) $19.47
