IBM Infoprint 1567 (4935) Parts

Please call for parts assistance

Looking for whole machines? View Printer Info

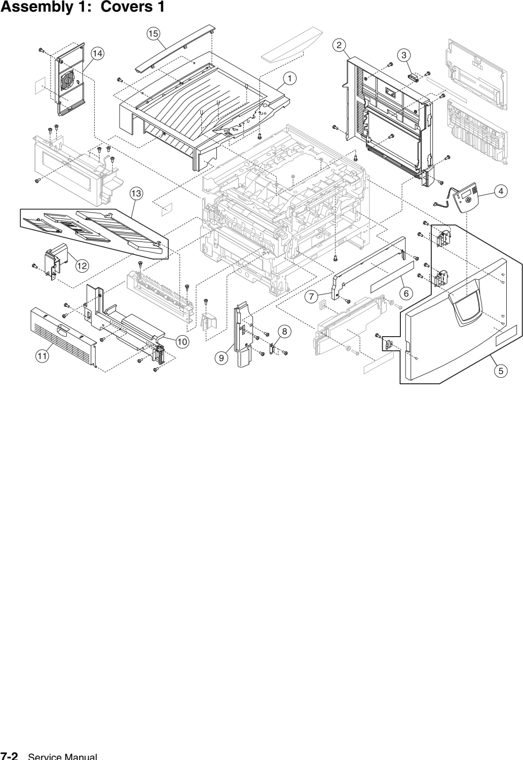

Assembly 1: Covers 1 1 40X1131 Cover, top Lexmark 40X1131 Cover- Top New 40X1131 (New) Contact for Details Lexmark 40X1131 Cover- Top Fully refurbished with 90-day warranty 40X1131 Contact for Details 2 40X1124 Cover assembly, right side Lexmark 40X1124 Cover Assembly- Right Side New 40X1124 (New) Contact for Details Lexmark 40X1124 Cover Assembly- Right Side Fully refurbished with 90-day warranty 40X1124 Contact for Details 3 40X1139 Magnet, right side latch 4 40X1260 Operator panel Lexmark 40X1260 Operator panel Fully refurbished with 90-day warranty 40X1260 Contact for Details 5 40X1123 Cover assembly, front Lexmark 40X1123 Cover Assembly- Front New 40X1123 (New) Contact for Details Lexmark 40X1123 Cover Assembly- Front Fully refurbished with 90-day warranty 40X1123 Contact for Details 6 56P9545 Label, operator panel 7 40X1132 Cover, waste toner bottle 8 40X1140 Magnet, front cover latch 9 40X1129 Cover, left front Lexmark 40X1129 Cover- Left Front New 40X1129 (New) Contact for Details Lexmark 40X1129 Cover- Left Front Fully refurbished with 90-day warranty 40X1129 Contact for Details 10 40X1126 Cover, left side Lexmark 40X1126 Cover- Left Side New 40X1126 (New) Contact for Details Lexmark 40X1126 Cover- Left Side Fully refurbished with 90-day warranty 40X1126 Contact for Details 11 40X1127 Cover, paper feed Lexmark 40X1127 Cover- Paper Feed New 40X1127 (New) Contact for Details Lexmark 40X1127 Cover- Paper Feed Fully refurbished with 90-day warranty 40X1127 Contact for Details 12 40X1125 Cover, solenoid Lexmark 40X1125 Cover- Solenoid New 40X1125 (New) Contact for Details Lexmark 40X1125 Cover- Solenoid Fully refurbished with 90-day warranty 40X1125 Contact for Details 13 40X1122 Tray assembly, exit Lexmark 40X1122 Tray Assembly- Exit New 40X1122 (New) Contact for Details Lexmark 40X1122 Tray Assembly- Exit Fully refurbished with 90-day warranty 40X1122 Contact for Details 14 40X1128 Cover, rear Lexmark 40X1128 Cover- Rear New 40X1128 (New) Contact for Details Lexmark 40X1128 Cover- Rear Fully refurbished with 90-day warranty 40X1128 Contact for Details 15 40X1130 Cover, adjustment Lexmark 40X1130 Cover Adjustment Fully refurbished with 90-day warranty 40X1130 Contact for Details Lexmark 40X1130 Cover- Adjustment New 40X1130 (New) Contact for Details NS 40X1516 Label, MPT NS 40X1262 Parts packet Parts catalog 7-3

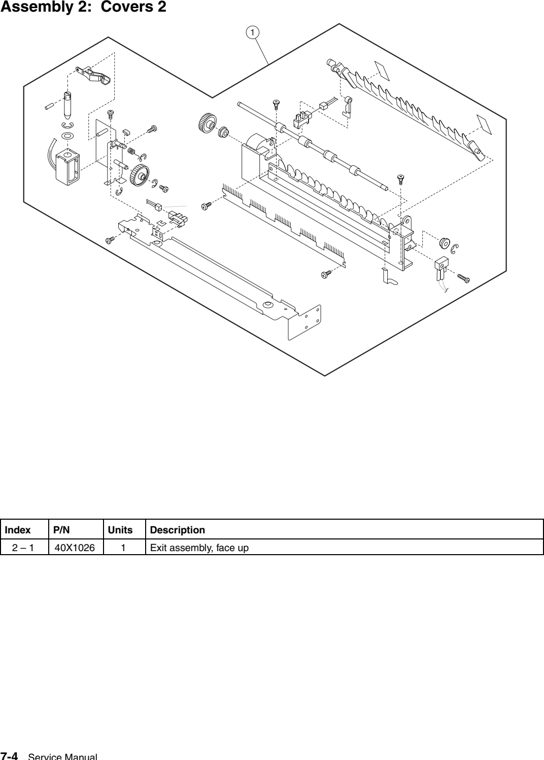

Assembly 2: Covers 2 1 40X1026 Exit assembly, face up Lexmark 40X1026 Exit Assembly- Face Up Fully refurbished with 90-day warranty 40X1026 $99.00 Lexmark 40X1026 Exit Assembly- Face Up New 40X1026 (New) $129.00

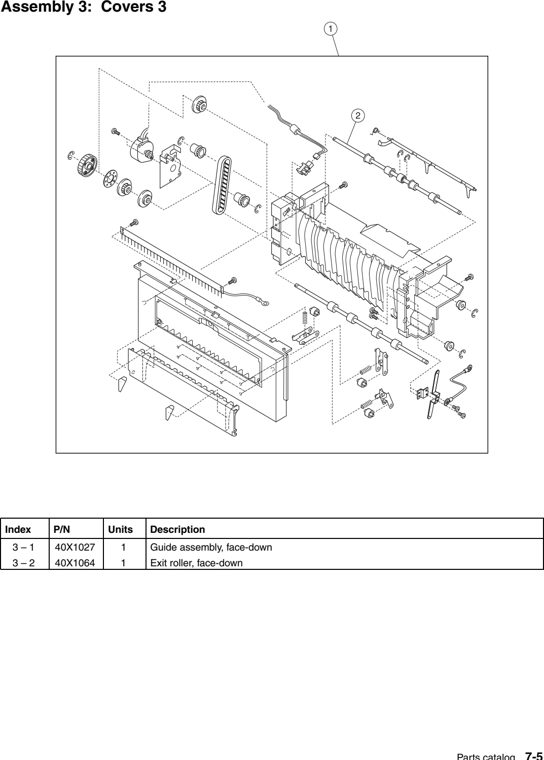

Assembly 3: Covers 3 1 40X1027 Guide assembly, face-down Lexmark 40X1027 Guide Assembly- Face-Down New 40X1027 (New) Contact for Details Lexmark 40X1027 Guide Assembly- Face-Down Fully refurbished with 90-day warranty 40X1027 Contact for Details 2 40X1064 Exit roller, face-down Parts catalog 7-5 Lexmark 40X1064 Exit roller- Face-Down New 40X1064 (New) Contact for Details Lexmark 40X1064 Exit roller- Face-Down Fully refurbished with 90-day warranty 40X1064 Contact for Details

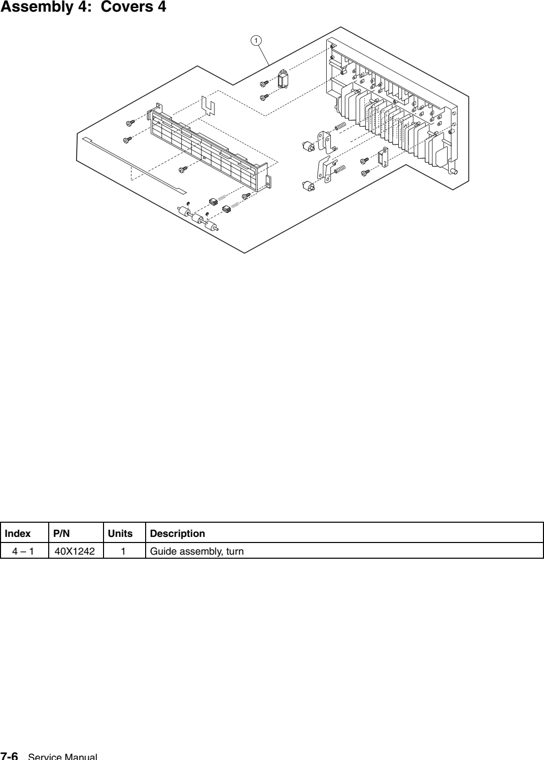

Assembly 4: Covers 4 1 40X1242 Guide assembly, turn Lexmark 40X1242 Guide Assembly- Turn New 40X1242 (New) Contact for Details Lexmark 40X1242 Guide Assembly- Turn Fully refurbished with 90-day warranty 40X1242 Contact for Details

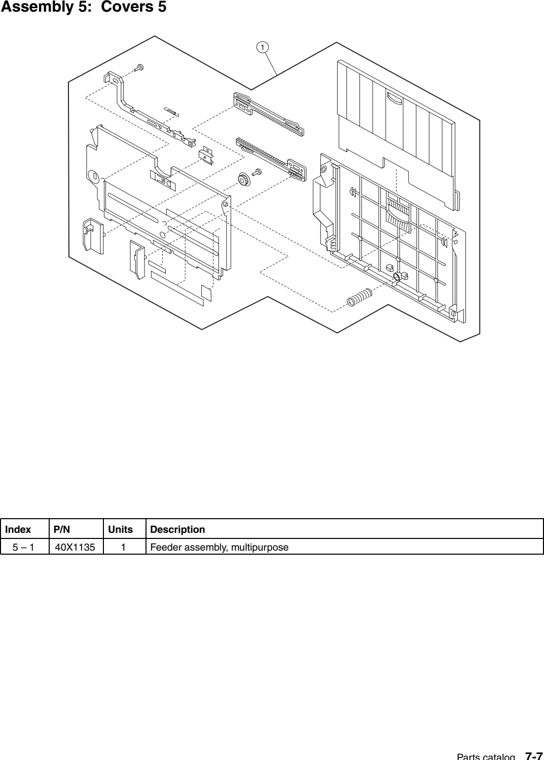

Assembly 5: Covers 5 1 40X1135 Feeder assembly, multipurpose Parts catalog 7-7 Lexmark 40X1135 Feeder Assembly- Multipurpose Fully refurbished with 90-day warranty 40X1135 $79.00 Lexmark 40X1135 Feeder Assembly- Multipurpose New 40X1135 (New) Retired, no longer available: Contact for alternatives Contact for Details

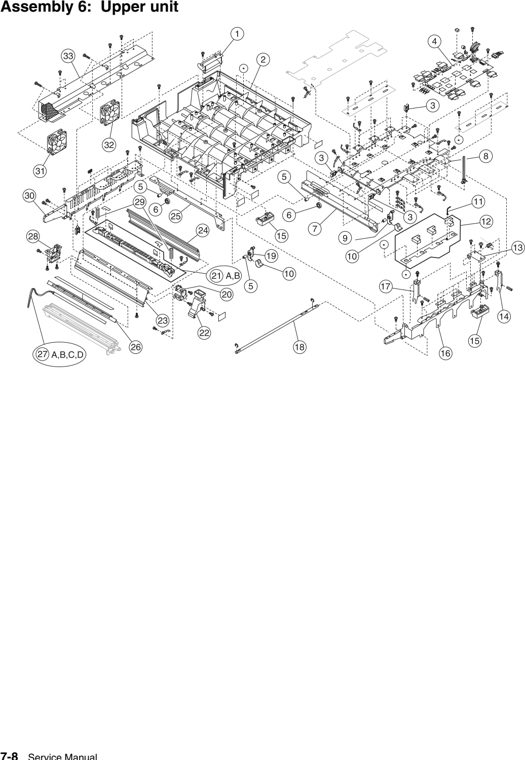

Assembly 6: Upper unit 1 56P9632 Shroud, cable 2 56P9591 Frame, upper 56P9591 Frame upper Fully refurbished with 90-day warranty 56P9591 Contact for Details 56P9591 Frame- upper New 56P9591 (New) Contact for Details 3 56P9638 Holder, cable 4 56P3980 Board, printhead controller 56P3980 Board, printhead controller New 56P3980 (New) $269.00 56P3980 Board printhead controller Fully refurbished with 90-day warranty 56P3980 $119.00 5 56P9628 Pivot, color link 56P9628 Pivot Color Ink Fully refurbished with 90-day warranty 56P9628 Contact for Details 56P9628 Pivot Color Ink New 56P9628 (New) Contact for Details 6 56P9627 Bearing, roller 56P9627 Bearing Roller Fully refurbished with 90-day warranty 56P9627 Contact for Details 56P9627 Bearing Roller New 56P9627 (New) Contact for Details 7 56P9624 Link, frame 56P9624 Link- frame New 56P9624 (New) Contact for Details 56P9624 Link Frame Fully refurbished with 90-day warranty 56P9624 Contact for Details 8 40X1149 Frame, printhead controller Lexmark 40X1149 Printhead Controller Frame New 40X1149 (New) Contact for Details Lexmark 40X1149 Printhead Controller Frame Fully refurbished with 90-day warranty 40X1149 Contact for Details 9 56P9625 Hook, right link 10 56P9626 Cover, hook 11 40X1118 Cable, RFID Lexmark 40X1118 Cable, RFID New 40X1118 (New) Contact for Details Lexmark 40X1118 Cable RFID Fully refurbished with 90-day warranty 40X1118 Contact for Details 12 40X1117 Assembly, RFID Lexmark 40X1117 Assembly, RFID New 40X1117 (New) Contact for Details Lexmark 40X1117 Assembly- RFID Fully refurbished with 90-day warranty 40X1117 Contact for Details 13 40X1145 Hook, middle 14 40X1147 Hook, right 15 40X1257 Handle, up opening 16 40X1143 Bracket, front upper Lexmark 40X1143 Bracket- Front Upper New 40X1143 (New) Contact for Details Lexmark 40X1143 Bracket- Front Upper Fully refurbished with 90-day warranty 40X1143 Contact for Details 17 40X1146 Hook, left 18 40X1144 Rod, interlocking Lexmark 40X1144 Rod- Interlocking New 40X1144 (New) Contact for Details Lexmark 40X1144 Rod- Interlocking Fully refurbished with 90-day warranty 40X1144 Contact for Details 19 56P9630 Hook, left link 56P9630 Hook Left Link Fully refurbished with 90-day warranty 56P9630 Contact for Details 56P9630 Hook Left Link New 56P9630 (New) Contact for Details 20 40X1142 Holder, front hsp Lexmark 40X1142 Holder- Front Hsp New 40X1142 (New) Contact for Details Lexmark 40X1142 Holder- Front Hsp Fully refurbished with 90-day warranty 40X1142 Contact for Details 21A 56P3981 Assembly, LED printhead (K) 56P3981 Assembly, LED printhead (K) New 56P3981 (New) $675.00 56P3981 Assembly LED printhead (K) Fully refurbished with 90-day warranty 56P3981 $159.00 21B 56P3982 Assembly, LED printhead (C) 56P3982 Assembly, LED printhead (C) New 56P3982 (New) $275.00 56P3982 Assembly LED printhead (C) Fully refurbished with 90-day warranty 56P3982 $159.00 22 56P9611 Holder, front printhead 56P9611 printhead holder front Fully refurbished with 90-day warranty 56P9611 Contact for Details 23 56P9592 Rail, left side 56P9592 Rail- left side New 56P9592 (New) Contact for Details 56P9592 Left Slide Rail Fully refurbished with 90-day warranty 56P9592 Contact for Details 24 56P9610 Rail, right side 56P9610 Rail- right side New 56P9610 (New) Contact for Details 56P9610 right slide rail Fully refurbished with 90-day warranty 56P9610 Contact for Details 25 56P9629 Link, frame 56P9629 Frame- link New 56P9629 (New) Contact for Details 56P9629 Frame Link Fully refurbished with 90-day warranty 56P9629 Contact for Details 26 56P9594 Cover, eraser 27A 40X1028 Lamp, M erase Lexmark 40X1028 Lamp- M Erase New 40X1028 (New) Contact for Details Lexmark 40X1028 Lamp- M Erase Fully refurbished with 90-day warranty 40X1028 Contact for Details 27B 40X1029 Lamp, C erase Lexmark 40X1029 Lamp- C Erase New 40X1029 (New) Contact for Details Lexmark 40X1029 Lamp- C Erase Fully refurbished with 90-day warranty 40X1029 Contact for Details 27C 40X1030 Lamp, Y erase Lexmark 40X1030 Lamp- Y Erase New 40X1030 (New) Contact for Details Lexmark 40X1030 Lamp- Y Erase Fully refurbished with 90-day warranty 40X1030 Contact for Details 27D 40X1031 Lamp, K erase Lexmark 40X1031 Lamp- K Erase New 40X1031 (New) Contact for Details Lexmark 40X1031 Lamp- K Erase Fully refurbished with 90-day warranty 40X1031 Contact for Details 28 56P9593 Holder, rear printhead 56P9593 rear printhead holder Fully refurbished with 90-day warranty 56P9593 Contact for Details 29 56P9609 Spring, printhead 56P9609 Printhead Spring New 56P9609 (New) Contact for Details 30 40X1148 Bracket, rear upper Lexmark 40X1148 Bracket- Rear Upper New 40X1148 (New) Contact for Details Lexmark 40X1148 Bracket- Rear Upper Fully refurbished with 90-day warranty 40X1148 Contact for Details 31 40X1032 Fan, upper right Lexmark 40X1032 Fan- Upper Right New 40X1032 (New) Contact for Details Lexmark 40X1032 Fan- Upper Right Fully refurbished with 90-day warranty 40X1032 Contact for Details 32 40X1033 Fan, upper left Lexmark 40X1033 Fan- Upper Left New 40X1033 (New) Contact for Details Lexmark 40X1033 Fan- Upper Left Fully refurbished with 90-day warranty 40X1033 Contact for Details 33 56P9621 Bracket, fan holder 56P9621 Bracket, fan holder New 56P9621 (New) $74.00 NS 56P9993 Shield, light (used on p/n 56P9594) NS 40X1263 Parts packet Parts catalog 7-9

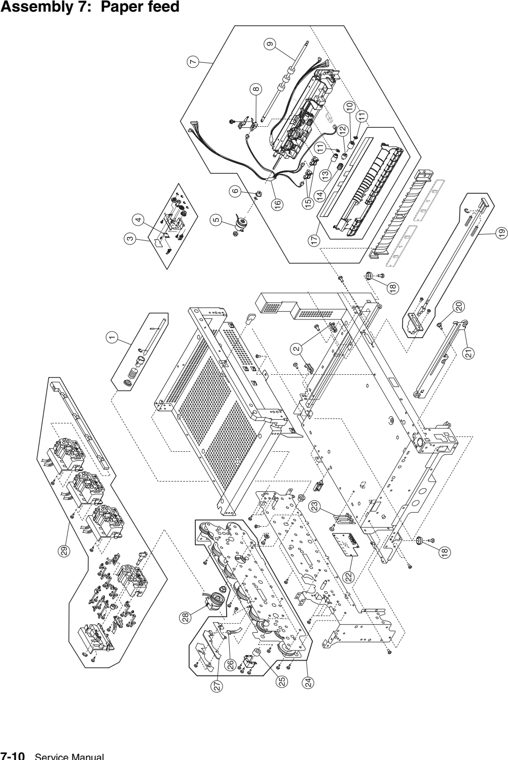

Assembly 7: Paper feed 1 40X1119 Shaft, changing 2 40X1103 Bushing, turn guide 3 40X1112 Assembly, drive link Lexmark 40X1112 Assembly- Drive Link New 40X1112 (New) Contact for Details Lexmark 40X1112 Assembly- Drive Link Fully refurbished with 90-day warranty 40X1112 Contact for Details 4 40X1247 Sensor, humidity (not included in 7-3) Lexmark 40X1247 Sensor- Humidity New 40X1247 (New) Contact for Details Lexmark 40X1247 Sensor- Humidity Fully refurbished with 90-day warranty 40X1247 Contact for Details 5 40X1082 Clutch, paper feed Lexmark 40X1082 Clutch- Paper Feed New 40X1082 (New) Contact for Details Lexmark 40X1082 Clutch- Paper Feed Fully refurbished with 90-day warranty 40X1082 Contact for Details 6 40X1081 Clutch, roller 6 x 10 x 14 Lexmark 40X1081 Clutch- Roller 6 x 10 x 14 New 40X1081 (New) $39.60 Lexmark 40X1081 Clutch- Roller Fully refurbished with 90-day warranty 40X1081 $39.89 7 40X1075 Assembly, paper-feed base Lexmark 40X1075 Assembly- Paper-Feed Base New 40X1075 (New) Contact for Details Lexmark 40X1075 Assembly- Paper-Feed Base Fully refurbished with 90-day warranty 40X1075 Contact for Details 8 40X1107 Sensor, relay Lexmark 40X1107 Sensor- Relay New 40X1107 (New) Contact for Details Lexmark 40X1107 Sensor- Relay Fully refurbished with 90-day warranty 40X1107 Contact for Details 9 40X1108 Roller, relay Lexmark 40X1108 Roller- Relay New 40X1108 (New) Contact for Details Lexmark 40X1108 Roller- Relay Fully refurbished with 90-day warranty 40X1108 Contact for Details 10 40X1079 Roller, separator Lexmark 40X1079 Roller- Separator New 40X1079 (New) $33.00 Lexmark 40X1079 Roller- Separator Fully refurbished with 90-day warranty 40X1079 Contact for Details 11 40X1106 Clip, paper-feed shaft 12 40X1080 Clutch, friction (torque limiter) Lexmark 40X1080 Clutch- Friction (Torque Limiter) New 40X1080 (New) $185.81 Lexmark 40X1080 Clutch- Friction (Torque Limiter) Fully refurbished with 90-day warranty 40X1080 Contact for Details 13 40X1078 Roller, paper feed Lexmark 40X1078 Roller- Paper Feed New 40X1078 (New) $87.00 Lexmark 40X1078 Roller- Paper Feed Fully refurbished with 90-day warranty 40X1078 Contact for Details 14 40X1077 Roller, pickup Lexmark 40X1077 Roller Pickup New 40X1077 (New) $24.50 Lexmark 40X1077 Roller- Pickup Fully refurbished with 90-day warranty 40X1077 Contact for Details 15 40X1173 Interrupt, photo Lexmark 40X1173 Photo Interrupter New 40X1173 (New) $23.40 Lexmark 40X1173 Photo Interrupter Fully refurbished with 90-day warranty 40X1173 Contact for Details 16 40X1098 Cable asm, paper-feed type 1 Lexmark 40X1098 Cable Assembly- Paper-Feed Type 1 New 40X1098 (New) Contact for Details Lexmark 40X1098 Cable Assembly- Paper-Feed Type 1 Fully refurbished with 90-day warranty 40X1098 Contact for Details 17 40X1076 Plate, guide rocking Lexmark 40X1076 Plate- Guide Rocking New 40X1076 (New) Contact for Details Lexmark 40X1076 Plate- Guide Rocking Fully refurbished with 90-day warranty 40X1076 Contact for Details 18 56P9503 Foot, rubber 19 56P9641 Actuator, front cover open switch 56P9641 Actuator Frt Cover Open Switch New 56P9641 (New) Contact for Details 56P9641 Actuator Frt Cover Open Switch Fully refurbished with 90-day warranty 56P9641 Contact for Details 20 56P9524 Screw, slide rail 21 40X1034 Rail, base left side Lexmark 40X1034 Rail- base left side New 40X1034 (New) Contact for Details Lexmark 40X1034 Rail- base left side Fully refurbished with 90-day warranty 40X1034 Contact for Details 22 40X1083 Board, CK2 daughter board/sensor Lexmark 40X1083 Board- CK2 Daughter Board/Sensor New 40X1083 (New) Contact for Details Lexmark 40X1083 Board- CK2 Daughter Board/Sensor Fully refurbished with 90-day warranty 40X1083 Contact for Details 23 56P9521 Lever, size sense 56P9521 lever size sensor New 56P9521 (New) Contact for Details 56P9521 lever size sensor Fully refurbished with 90-day warranty 56P9521 Contact for Details 24 56P2666 Unit, drive 120V 56p2666 Drive Unit, 120V New 56p2666 (New) $290.00 56p2666 Drive Unit 120V Fully refurbished with 90-day warranty 56p2666 $220.00 24 56P2667 Unit, drive 230V 25 40X1150 Clutch, drive unit Lexmark 40X1150 Clutch- Drive Unit New 40X1150 (New) Contact for Details Lexmark 40X1150 Clutch- Drive Unit Fully refurbished with 90-day warranty 40X1150 Contact for Details 26 56P9644 Cable asm, drive unit sensor 27 56P9645 Sensor, drive unit 56P9645 Sensor Drive Unit Fully refurbished with 90-day warranty 56P9645 $42.00 56P9645 Sensor- drive unit gear New 56P9645 (New) Contact for Details 28 40X1037 Clutch, belt up/down Lexmark 40X1037 Clutch Belt Up/Down New 40X1037 (New) Contact for Details Lexmark 40X1037 Clutch Belt Up/Down Fully refurbished with 90-day warranty 40X1037 Contact for Details 29 56P2668 Frame, sub NS 40X1264 Parts packet (See “Parts packets” on page7-58 for contents) Parts catalog 7-11

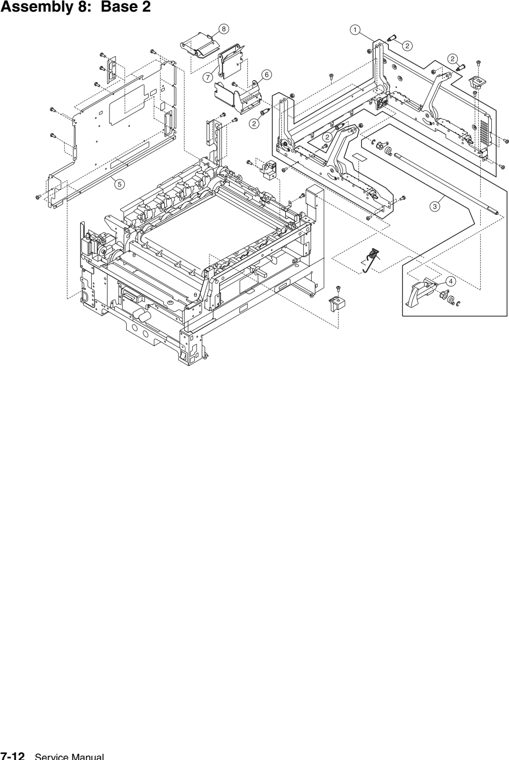

Assembly 8: Base 2 1 40X1207 Support assembly, upper unit Lexmark 40X1207 Support Assembly- Upper Unit New 40X1207 (New) Contact for Details Lexmark 40X1207 Support Assembly- Upper Unit Fully refurbished with 90-day warranty 40X1207 Contact for Details 2 56P9667 Pin, upper unit support 3 40X1208 Handle assembly, lock Lexmark 40X1208 Handle Assembly- Lock New 40X1208 (New) $48.19 Lexmark 40X1208 Handle Assembly- Lock Fully refurbished with 90-day warranty 40X1208 $39.30 4 56P9669 Handle, lock 56P9669 Handle- lock New 56P9669 (New) Contact for Details 56P9669 Handle- lock Fully refurbished with 90-day warranty 56P9669 Contact for Details 5 40X1151 Cover, electronic Lexmark 40X1151 Cover- Electronic New 40X1151 (New) Contact for Details Lexmark 40X1151 Cover- Electronic Fully refurbished with 90-day warranty 40X1151 Contact for Details 6 56P9670 Shroud, cable 7 56P9672 Guide, cable 8 56P9671 Guide, cable NS 40X1265 Parts packet Parts catalog 7-13

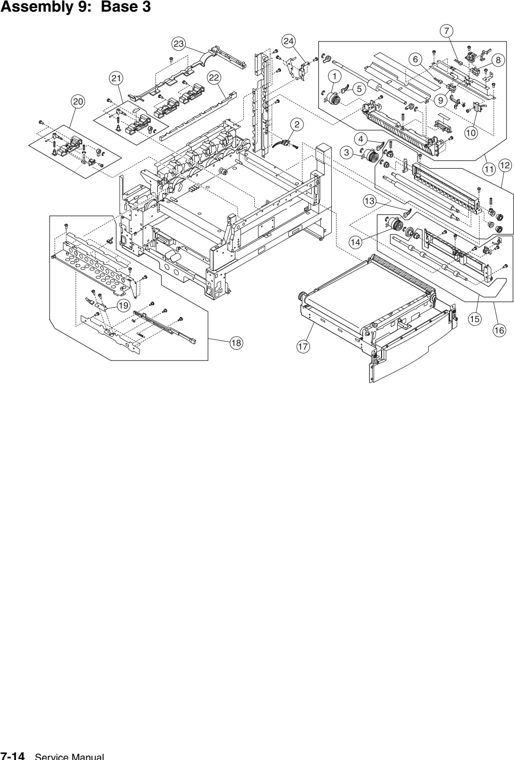

Assembly 9: Base 3 1 40X1067 Clutch, MPF Lexmark 40X1067 Clutch- MPF New 40X1067 (New) Contact for Details Lexmark 40X1067 Clutch- MPF Fully refurbished with 90-day warranty 40X1067 Contact for Details 2 40X1085 Switch, turn guide Lexmark 40X1085 Switch- Turn Guide New 40X1085 (New) Contact for Details Lexmark 40X1085 Switch- Turn Guide Fully refurbished with 90-day warranty 40X1085 Contact for Details 3 40X1040 Clutch, registration Lexmark 40X1040 Clutch- Registration New 40X1040 (New) Contact for Details Lexmark 40X1040 Clutch- Registration Fully refurbished with 90-day warranty 40X1040 Contact for Details 4 40X1113 Cable, registration clutch 5 40X1116 Cable, MPF clutch 6 40X1115 Cable, registration sensor 7 40X1115 Cable, registration sensor 8 40X1137 Photo interruptor 9 40X1136 Photo interruptor 10 56P2671 Sensor, upper OHP 11 56P2669 Frame assembly, MPF 56p2669 MPF Frame Assembly New 56p2669 (New) $186.00 56p2669 MPF Frame Assembly Fully refurbished with 90-day warranty 56p2669 $133.00 12 40X1154 Frame assembly, registration Lexmark 40X1154 Frame Assembly- Registration New 40X1154 (New) Contact for Details Lexmark 40X1154 Frame Assembly Registration Fully refurbished with 90-day warranty 40X1154 Contact for Details 13 40X1114 Cable, carrying clutch 14 40X1040 Clutch, registration (used on carrying frame) Lexmark 40X1040 Clutch- Registration New 40X1040 (New) Contact for Details Lexmark 40X1040 Clutch- Registration Fully refurbished with 90-day warranty 40X1040 Contact for Details 15 56P9683 Roller assembly, carrying 56P9683 Carrying Roller assembly New 56P9683 (New) Contact for Details 56P9683 Carrying Roller assembly Fully refurbished with 90-day warranty 56P9683 Contact for Details 16 40X1025 Frame assembly, carrying Lexmark 40X1025 Frame Assembly- Carrying New 40X1025 (New) Contact for Details Lexmark 40X1025 Frame Assembly- Carrying Fully refurbished with 90-day warranty 40X1025 Contact for Details 17 40X1041 Unit, transfer belt 18 40X1209 Guide assembly, fuser entry Lexmark 40X1209 Guide Assembly- Fuser Entry New 40X1209 (New) Contact for Details Lexmark 40X1209 Guide Assembly- Fuser Entry Fully refurbished with 90-day warranty 40X1209 Contact for Details 19 40X1152 Sensor, density Lexmark 40X1152 Sensor- Density New 40X1152 (New) Contact for Details Lexmark 40X1152 Sensor- Density Fully refurbished with 90-day warranty 40X1152 Contact for Details 20 40X1155 Frame assembly, F1 sub Lexmark 40X1155 Frame Assembly- F1 Sub New 40X1155 (New) Contact for Details Lexmark 40X1155 Frame Assembly- F1 Sub Fully refurbished with 90-day warranty 40X1155 Contact for Details 21 56P9685 Frame assembly, F2 sub 56P9685 Frame Assembly- F2 sub New 56P9685 (New) Contact for Details 56P9685 Frame Assembly- F2 sub Fully refurbished with 90-day warranty 56P9685 Contact for Details 22 56P9686 Rod, lock 56P9686 Rod Lock Fully refurbished with 90-day warranty 56P9686 Contact for Details 56P9686 Rod Lock New 56P9686 (New) Contact for Details 23 56P9687 Cover, gear 56P9687 Cover- gear New 56P9687 (New) Contact for Details 56P9687 Cover Gear Fully refurbished with 90-day warranty 56P9687 Contact for Details 24 40X1156 Stopper, clutch NS 56P9697 Bushing NS 40X1266 Parts packet Parts catalog 7-15

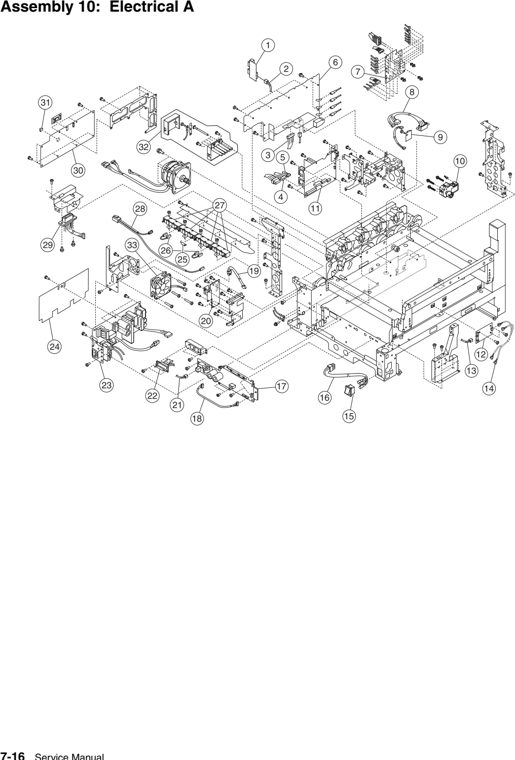

Assembly 10: Electrical A 1 40X1101 Asm, HCF/FIN D-Sub Lexmark 40X1101 Assembly- HCF/FIN D-Sub New 40X1101 (New) Contact for Details Lexmark 40X1101 Assembly- HCF/FIN D-Sub Fully refurbished with 90-day warranty 40X1101 Contact for Details 2 40X1102 Cable asm, finisher 3 56P9715 Cable asm, HVU 4 56P9727 Cable asm, printer controller power 2 5 40X1053 Cable asm, printer controller power 1 6 56P3983 Supply, high voltage 7 40X1084 Card, CK1 Daughter Lexmark 40X1084 Card- CK1 Daughter New 40X1084 (New) Contact for Details Lexmark 40X1084 Card- CK1 Daughter Fully refurbished with 90-day warranty 40X1084 Contact for Details 8 40X1042 Cable asm, feeder Lexmark 40X1042 Cable Assembly- Feeder New 40X1042 (New) Contact for Details Lexmark 40X1042 Cable Assembly- Feeder Fully refurbished with 90-day warranty 40X1042 Contact for Details 9 40X1247 Sensor, humidity Lexmark 40X1247 Sensor- Humidity New 40X1247 (New) Contact for Details Lexmark 40X1247 Sensor- Humidity Fully refurbished with 90-day warranty 40X1247 Contact for Details 10 40X1097 Motor, paper tray lift Lexmark 40X1097 Motor- Paper Tray Lift New 40X1097 (New) Contact for Details Lexmark 40X1097 Motor- Paper Tray Lift Fully refurbished with 90-day warranty 40X1097 Contact for Details 11 56P3986 Supply, 120V power 2 11 56P3987 Supply, 230V power 2 12 40X1043 Board, sensor Lexmark 40X1043 Board- Sensor New 40X1043 (New) Contact for Details Lexmark 40X1043 Board- Sensor Fully refurbished with 90-day warranty 40X1043 Contact for Details 13 40X1044 Cable asm, sensor board 14 40X1120 Cable, belt relay Lexmark 40X1120 Cable- Belt Relay New 40X1120 (New) Contact for Details Lexmark 40X1120 Cable- Belt Relay Fully refurbished with 90-day warranty 40X1120 Contact for Details 15 40X1158 Switch, power Lexmark 40X1158 Switch- Power New 40X1158 (New) Contact for Details Lexmark 40X1158 Switch- Power Fully refurbished with 90-day warranty 40X1158 Contact for Details 16 40X1157 Cable, power switch 17 56P2652 Board, 120V motor driver 17 56P2653 Board, 230V motor driver 18 40X1055 Cable asm, MIF 19 40X1205 Cable asm, conditioning printer controller 20 56P3988 Card, conditioning (EMEA) 21 56P9747 Cable, motor driver power 22 56P2670 Cable asm, duplex connector 23 56P3984 Supply, 120V power 1 23 56P3985 Supply, 230V power 1 24 56P9737 Sheet, insulation 25 56P9943 Fuse, thermal 26 56P9738 Cable, conditioning joint 27 56P9741 Resistor, conditioning (230V only) 28 56P9740 Cable, conditioning resistor 29 40X1049 Cable, fuser drawer Lexmark 40X1049 Cable- Fuser Drawer New 40X1049 (New) Contact for Details Lexmark 40X1049 Cable- Fuser Drawer Fully refurbished with 90-day warranty 40X1049 Contact for Details 29 40X1050 Cable, fuser drawer (EMEA) 30 56P2654 Board, printer controller 31 56P9729 EEPROM, printer controller 56P9729 EPROM, controller New 56P9729 (New) Contact for Details 32 40X1052 Belt, power supply Lexmark 40X1052 Belt- Power Supply New 40X1052 (New) Contact for Details Lexmark 40X1052 Belt- Power Supply Fully refurbished with 90-day warranty 40X1052 Contact for Details 33 40X1047 Fan, power supply Lexmark 40X1047 Fan- Power Supply New 40X1047 (New) Contact for Details Lexmark 40X1047 Fan- Power Supply Fully refurbished with 90-day warranty 40X1047 Contact for Details NS 40X0269 Cord, US, Canada, APG, LAD NS 40X0270 Cord, Japan NS 40X0286 Cord, England, France, Germany, Spain, Belgium NS 40X0272 Cord, Argentina, Paraguay, Uruguay NS 40X0273 Cord, Italy NS 40X0274 Cord, Switzerland NS 40X0271 Cord, UK Parts catalog 7-17 NS 40X0275 Cord, Israel NS 40X0276 Cord, South Africa NS 40X0277 Cord, Brazil (HV, LV) NS 40X0278 Cord, Austria, Russia NS 40X0279 Cord, Denmark, Finland, Norway, Sweden NS 40X0280 Cord, Korea NS 40X0281 Cord, Taiwan NS 40X0282 Cord, People’s Republic of China NS 40X1104 Interuptor, photo (paper low sensor) NS 40X1267 Parts packet NS 56P9964 Transformer (Japan Only) Parts catalog 7-19

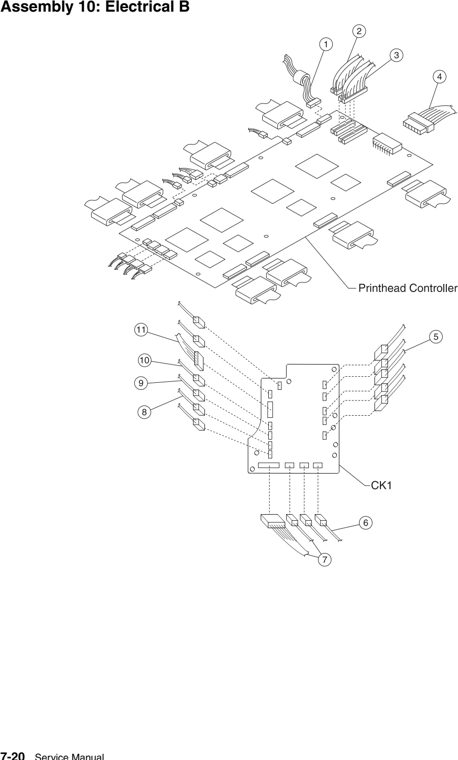

Assembly 10: Electrical B 10B–1 40X1068 Cable assembly, 8 pin PH controller Lexmark 40X1068 Cable Assembly- 8 Pin Ph Controller New 40X1068 (New) Contact for Details Lexmark 40X1068 Cable Assembly- 8 Pin Ph Controller Fully refurbished with 90-day warranty 40X1068 Contact for Details 10B–2 40X1074 Cable assembly, 30 pin RIP harness 10B–3 40X1073 Cable assembly, 36 pin RIP harness Lexmark 40X1073 Cable Assembly- 36 Pin Rip Harness New 40X1073 (New) Contact for Details Lexmark 40X1073 Cable Assembly- 36 Pin Rip Harness Fully refurbished with 90-day warranty 40X1073 Contact for Details 10B–4 56P9720 Cable assembly, printhead controller power 56P9720 Cable assembly- PH controller power New 56P9720 (New) Contact for Details 56P9720 Cable assembly PH controller power Fully refurbished with 90-day warranty 56P9720 Contact for Details 10B–5 40X1099 Cable assembly, paper tray lift motor 10B–6 40X1100 Cable assembly, cassette bottom sensor 10B–7 40X1098 Cable assembly, paper feed type 1 Lexmark 40X1098 Cable Assembly- Paper-Feed Type 1 New 40X1098 (New) Contact for Details Lexmark 40X1098 Cable Assembly- Paper-Feed Type 1 Fully refurbished with 90-day warranty 40X1098 Contact for Details 10B–8 40X1114 Cable assembly, carrying clutch 10B–9 40X1116 Cable assembly, MPF clutch 10B–10 40X1113 Cable assembly, registration clutch 10B–11 40X1115 Cable assembly, registration sensor NS 40X1267 Parts packet Parts catalog 7-21

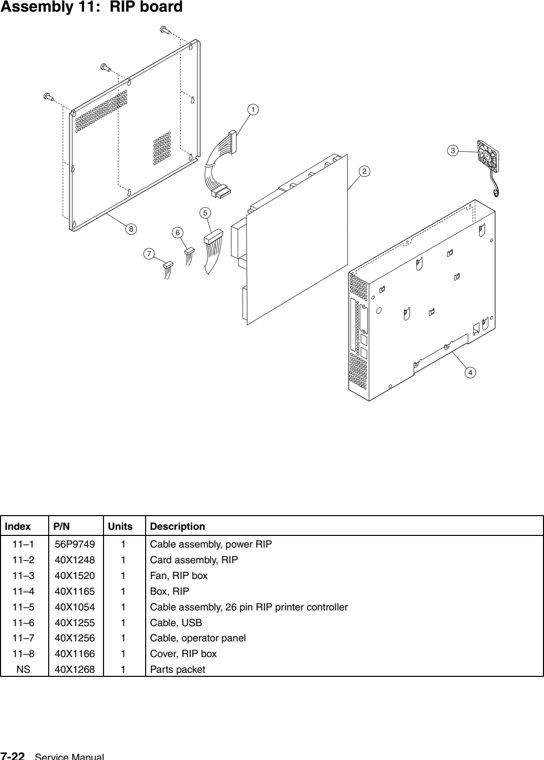

Assembly 11: RIP board 1 56P9749 Cable assembly, power RIP 2 40X1248 Card assembly, RIP Lexmark 40X1248 RIP Board New 40X1248 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED Contact for Details Lexmark 40X1248 RIP Board Fully refurbished with 90-day warranty 40X1248 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $583.71 3 40X1520 Fan, RIP box Lexmark 40X1520 Fan- RIP box New 40X1520 (New) Contact for Details Lexmark 40X1520 Fan- RIP box Fully refurbished with 90-day warranty 40X1520 Contact for Details 4 40X1165 Box, RIP Lexmark 40X1165 Box- RIP New 40X1165 (New) Contact for Details Lexmark 40X1165 Box- RIP Fully refurbished with 90-day warranty 40X1165 Contact for Details 5 40X1054 Cable assembly, 26 pin RIP printer controller 6 40X1255 Cable, USB 7 40X1256 Cable, operator panel 8 40X1166 Cover, RIP box Lexmark 40X1166 Cover- RIP box New 40X1166 (New) Contact for Details Lexmark 40X1166 Cover- RIP box Fully refurbished with 90-day warranty 40X1166 Contact for Details NS 40X1268 Parts packet

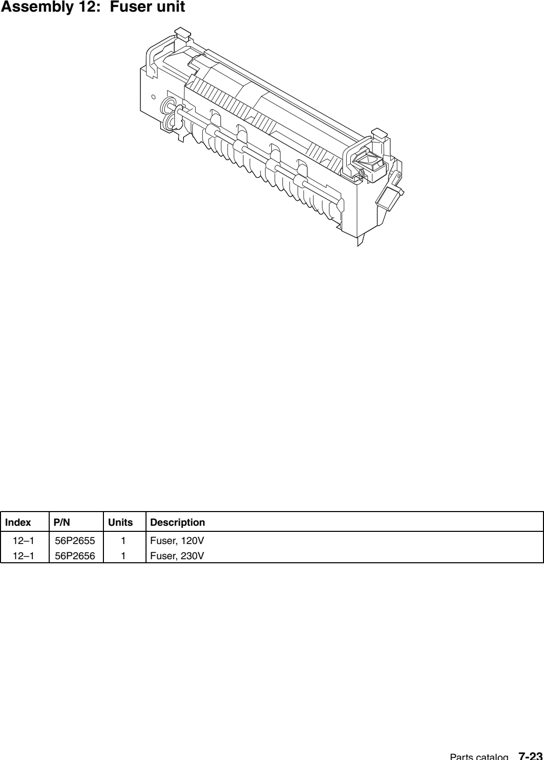

Assembly 12: Fuser unit 1 56P2655 Fuser, 120V Lexmark 56p2655 Fuser Unit C910 C912 X912 1357 New 56p2655 (New) ~~$835.00~~ $735.00 Lexmark 56p2655 Fuser Unit C910 C912 X912 1357 Fully refurbished with 90-day warranty 56p2655 Advanced Exchange Contact for Details 1 56P2656 Fuser, 230V Parts catalog 7-23

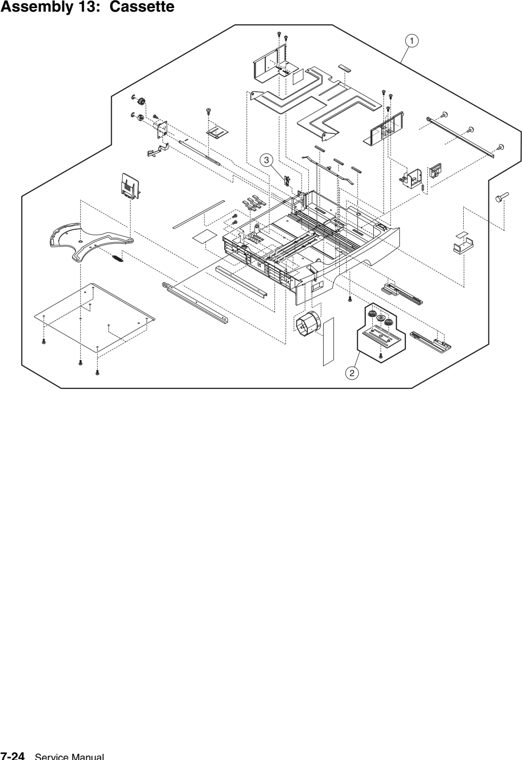

Assembly 13: Cassette 1 40X1058 Cassette, paper feed Lexmark 40X1058 550-Sheet Tray New 40X1058 (New) Contact for Details Lexmark 40X1058 550-Sheet Tray Fully refurbished with 90-day warranty 40X1058 Contact for Details 2 40X1501 Kit, rack guard holder 3 40X1105 Flag, bottom sense Parts catalog 7-25

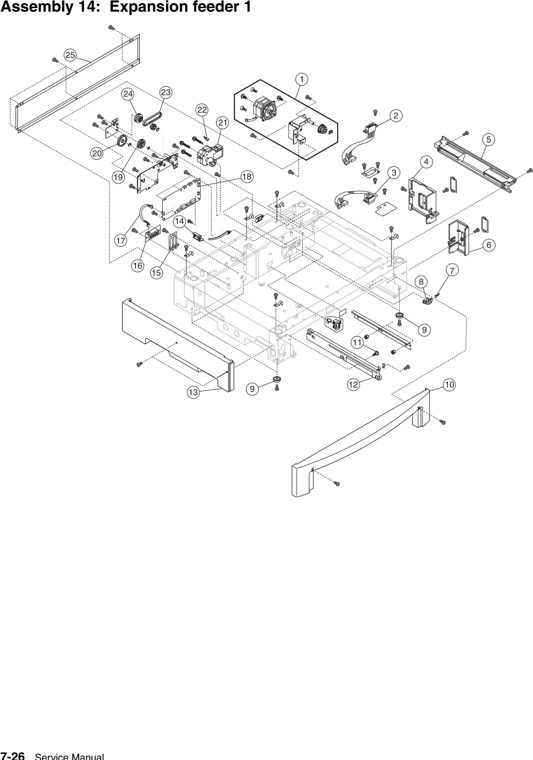

Assembly 14: Expansion feeder 1 1 40X1090 Motor asm, stepping 2 56P9777 Cable asm, upper optional drawer 56P9777 Cable assembly- upper optional drawer New 56P9777 (New) Contact for Details 56P9777 Cable assembly- upper optional drawer Fully refurbished with 90-day warranty 56P9777 Contact for Details 3 56P9778 Cable asm, lower optional drawer 56P9778 Cable assembly- lower optional drawer New 56P9778 (New) Contact for Details 56P9778 Cable assembly- lower optional drawer Fully refurbished with 90-day warranty 56P9778 Contact for Details 4 40X1204 Cover, right side C 5 40X1203 Cover, right side B 6 40X1202 Cover, right side A 7 40X1091 Cable asm, expansion paper level 8 40X1173 Interrupt, photo Lexmark 40X1173 Photo Interrupter New 40X1173 (New) $23.40 Lexmark 40X1173 Photo Interrupter Fully refurbished with 90-day warranty 40X1173 Contact for Details 9 56P9503 Foot, rubber 10 40X1200 Cover, front feed 11 56P9524 Screw, slide rail 12 40X1034 Rail, base left side Lexmark 40X1034 Rail- base left side New 40X1034 (New) Contact for Details Lexmark 40X1034 Rail- base left side Fully refurbished with 90-day warranty 40X1034 Contact for Details 13 40X1201 Cover. left side 14 53P7940 Guide, wire 15 56P9521 Lever, size sense 56P9521 lever size sensor New 56P9521 (New) Contact for Details 56P9521 lever size sensor Fully refurbished with 90-day warranty 56P9521 Contact for Details 16 56P9522 Card, size sense 56P9522 Board- size sensor New 56P9522 (New) Contact for Details 56P9522 Board- size sensor Fully refurbished with 90-day warranty 56P9522 Contact for Details 17 56P9775 Cable asm, size sense 18 56P2657 Board, expansion feeder controller 19 40X1096 Gear, Z30 20 40X1093 Gear, IDS 38 21 40X1097 Motor, paper tray lift Lexmark 40X1097 Motor- Paper Tray Lift New 40X1097 (New) Contact for Details Lexmark 40X1097 Motor- Paper Tray Lift Fully refurbished with 90-day warranty 40X1097 Contact for Details 22 40X1092 Cable asm, expansion lift motor 23 40X1095 Belt, timing S3M:177 24 40X1246 Gear, Z28:20T 25 40X1167 Cover, rear NS 56P4024 Assembly, expansion feeder NS 53P9977 Plate, ground NS 40X1094 Pulley, timing 20t NS 40X1269 Parts packet Parts catalog 7-27

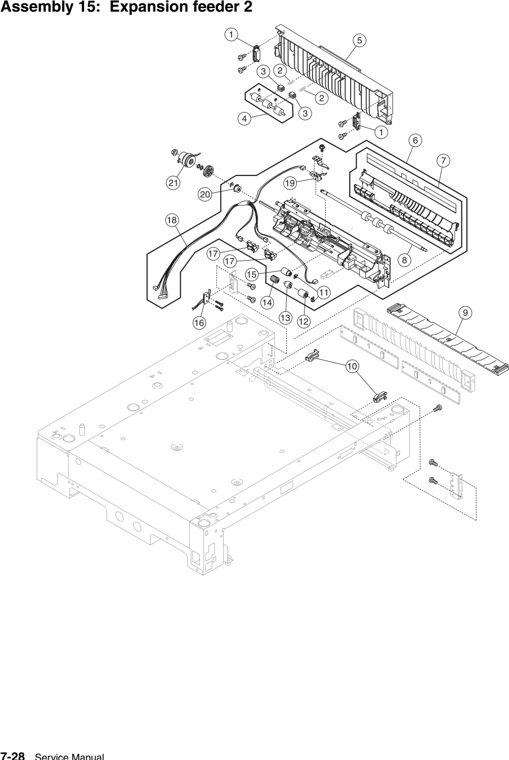

Assembly 15: Expansion feeder 2 1 40X1140 Magnet, front cover latch 2 40X1071 Spring, paper carry 2 3 40X1070 Bushing, pressure 4 40X1072 Roller, follow up 5 40X1069 Guide assembly, expansion turn guide 6 40X1086 Assembly, paper feed expansion 7 40X1076 Plate, guide rocking Lexmark 40X1076 Plate- Guide Rocking New 40X1076 (New) Contact for Details Lexmark 40X1076 Plate- Guide Rocking Fully refurbished with 90-day warranty 40X1076 Contact for Details 8 40X1111 Roller, relay expansion feed 9 56P9788 Guide, HCPF 56P9788 Guide- HCF New 56P9788 (New) Contact for Details 56P9788 Guide- HCF Fully refurbished with 90-day warranty 56P9788 Contact for Details 10 40X1103 Bushing, turn guide 11 40X1106 Clip, paper feed shaft 12 40X1079 Roller, separator Lexmark 40X1079 Roller- Separator New 40X1079 (New) $33.00 Lexmark 40X1079 Roller- Separator Fully refurbished with 90-day warranty 40X1079 Contact for Details 13 40X1080 Clutch, friction Lexmark 40X1080 Clutch- Friction (Torque Limiter) New 40X1080 (New) $185.81 Lexmark 40X1080 Clutch- Friction (Torque Limiter) Fully refurbished with 90-day warranty 40X1080 Contact for Details 14 40X1077 Roller, pickup Lexmark 40X1077 Roller Pickup New 40X1077 (New) $24.50 Lexmark 40X1077 Roller- Pickup Fully refurbished with 90-day warranty 40X1077 Contact for Details 15 40X1078 Roller, paper feed Lexmark 40X1078 Roller- Paper Feed New 40X1078 (New) $87.00 Lexmark 40X1078 Roller- Paper Feed Fully refurbished with 90-day warranty 40X1078 Contact for Details 16 40X1088 Assembly, turn guide switch option 17 40X1173 Interrupt, photo Lexmark 40X1173 Photo Interrupter New 40X1173 (New) $23.40 Lexmark 40X1173 Photo Interrupter Fully refurbished with 90-day warranty 40X1173 Contact for Details 18 40X1089 Cable asm, paper feed type 2 19 40X1107 Sensor, relay Lexmark 40X1107 Sensor- Relay New 40X1107 (New) Contact for Details Lexmark 40X1107 Sensor- Relay Fully refurbished with 90-day warranty 40X1107 Contact for Details 20 40X1081 Clutch, roller 6 x 10 x 14 Lexmark 40X1081 Clutch- Roller 6 x 10 x 14 New 40X1081 (New) $39.60 Lexmark 40X1081 Clutch- Roller Fully refurbished with 90-day warranty 40X1081 $39.89 21 40X1087 Clutch, paper feed NS 40X1270 Parts packet Parts catalog 7-29

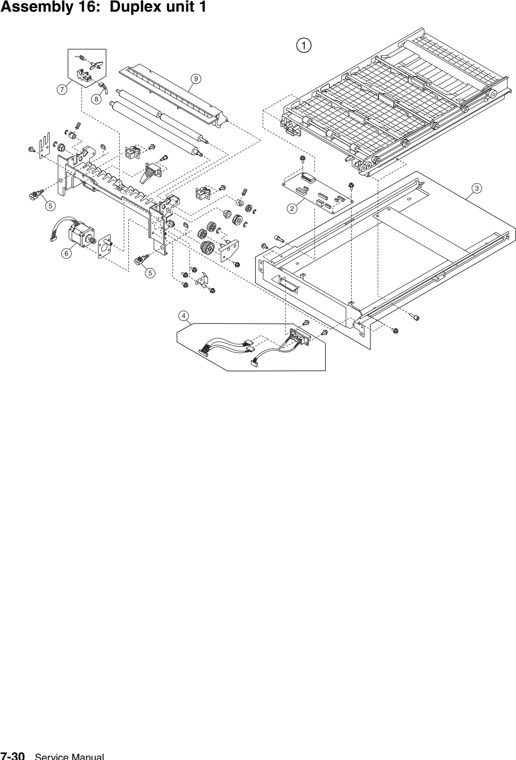

Assembly 16: Duplex Unit 1 1 56P4023 Duplex assembly 2 40X1060 Board, duplex interface 3 40X1168 Frame, duplex 4 56P3990 Cable assembly, duplex connection 5 40X1169 Screw, duplex mounting 6 56P3989 Motor, duplex stepping 7 40X1171 Interrupter, photo 8 56P9806 Cable assembly, paper detection 9 56P9994 Plate, duplex guide 56P9994 Plate- duplex guide New 56P9994 (New) Contact for Details NS 56P9807 Cable assembly, duplex interface 56P9807 Cable assembly- duplex interface New 56P9807 (New) Contact for Details 56P9807 Cable assembly- duplex interface Fully refurbished with 90-day warranty 56P9807 Contact for Details NS 40X1271 Parts packet Parts catalog 7-31

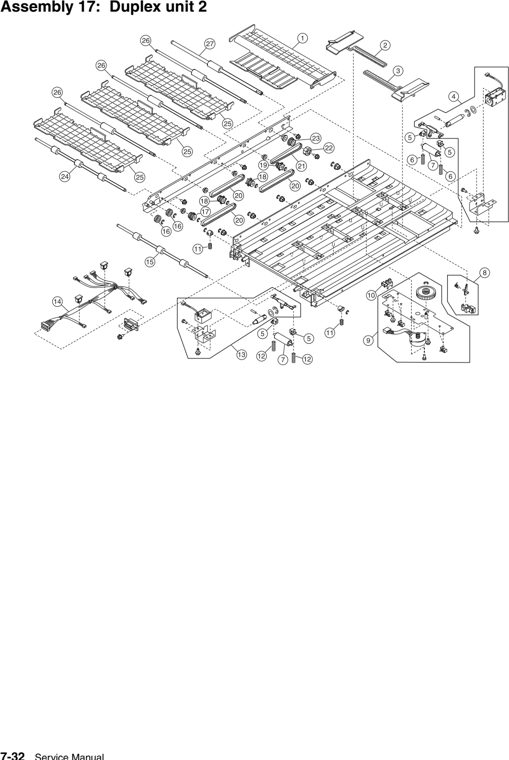

Assembly 17: Duplex unit 2 1 56P9825 Plate, paper re-feed drawer 56P9825 Plate- paper re-feed drawer New 56P9825 (New) Contact for Details 56P9825 Plate- paper re-feed drawer Fully refurbished with 90-day warranty 56P9825 Contact for Details 2 56P9827 Guide, rear side 56P9827 Guide- rear side New 56P9827 (New) Contact for Details 56P9827 Guide- rear side Fully refurbished with 90-day warranty 56P9827 Contact for Details 3 56P9826 Guide, front side 56P9826 Guide- front side New 56P9826 (New) Contact for Details 56P9826 Guide- front side Fully refurbished with 90-day warranty 56P9826 Contact for Details 4 56P3992 Solenoid assembly, paper re-feed 5 56P9814 Bearing, release 6 56P9816 Spring, re-feed roller 7 56P9813 Roll, release 8 40X1171 Interrupter, photo 9 56P9828 Motor assembly, paper guide 56P9828 Motor assembly- paper guide New 56P9828 (New) Contact for Details 56P9828 Motor assembly- paper guide Fully refurbished with 90-day warranty 56P9828 Contact for Details 10 40X1173 Interrupter, photo Lexmark 40X1173 Photo Interrupter New 40X1173 (New) $23.40 Lexmark 40X1173 Photo Interrupter Fully refurbished with 90-day warranty 40X1173 Contact for Details 11 56P9526 Spring, feed roller 12 56P9815 Spring, reed roller 13 56P3991 Solenoid assembly, feed roller 14 56P3993 Cable assembly, duplex drawer 15 40X1175 Roller, follow-up feed 16 56P9527 Gear, idler 17 56P9817 Gear, carrying roller 56P9817 Gear- carrying roller New 56P9817 (New) Contact for Details 18 56P9818 Pulley, carrying roller timing 19 56P9819 Pulley, feed roller 20 56P9822 Belt, timing 21 56P9823 Belt, timing 22 56P9821 Knob, paper re-feed 23 56P9820 Pulley, re-feed roller 24 40X1174 Roller, drive feed 25 56P9824 Plate, paper carrying drawer 56P9824 Plate- paper carrying drawer New 56P9824 (New) Contact for Details 56P9824 Plate- paper carrying drawer Fully refurbished with 90-day warranty 56P9824 Contact for Details 26 40X1176 Roller, middle feed 27 40X1177 Roller, re-feed NS 40X1271 Parts packet Parts catalog 7-33

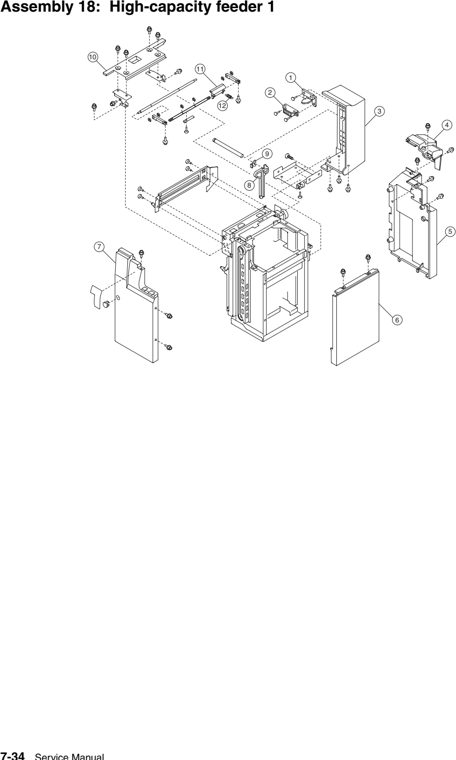

Assembly 18: High-capacity feeder 1 1 56P9838 Catch, door 2 56P9835 Magnet, latch 3 56P9837 Cover, upper 4 56P9834 Cover, upper rear 5 56P9843 Cover, lower rear 6 56P9839 Cover, right 7 56P9833 Cover, front 8 56P9836 Fence, end 9 56P9940 Ring, snap 10 56P9841 Cover assembly, upper 11 56P9840 Lever, vertical transport 12 56P9842 Spring, tension NS 56P9958 Parts packet Parts catalog 7-35

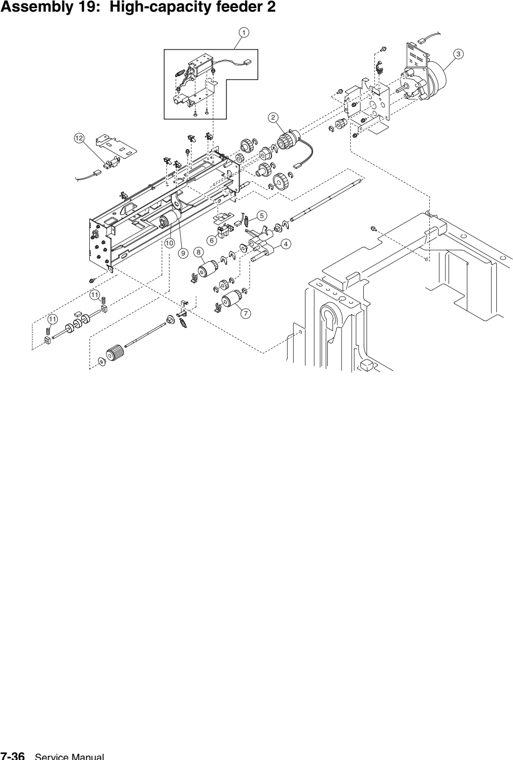

Assembly 19: High-capacity feeder 3 1 56P9846 Solenoid assembly, paper pickup 2 56P9848 Clutch, paper feed 3 56P9844 Motor assembly, transport 4 56P9941 Arm, pick-up 5 56P9501 Spring, pressure 6 56P9528 Interrupter, photo 7 56P9849 Roller, manual feed pickup 8 56P9850 Roller, manual feed 9 56P9852 Limiter, torque 10 56P9851 Roller, manual feed separate 11 56P9847 Spring, compression 12 56P9845 Sensor assembly, paper feed NS 56P9959 Parts packet Parts catalog 7-37

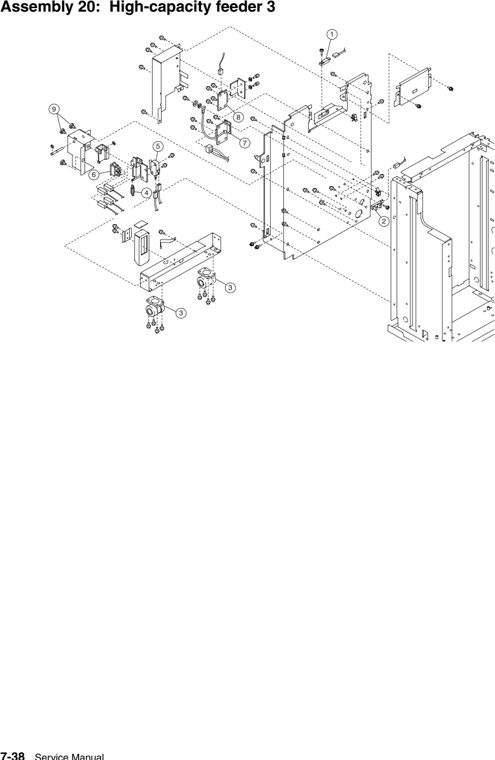

Assembly 20: High-capacity feeder 3 1 56P9854 Sensor assembly, photo 2 56P9855 Interrupter, photo 3 56P9529 Caster, HCF 4 56P9856 Spring, tension 5 56P9857 Switch, micro 6 56P9530 Switch, push 7 56P9859 Connector, inlet 8 56P9858 Connector, I/F 9 56P9853 Screw, shoulder NS 56P9960 Parts packet Parts catalog 7-39

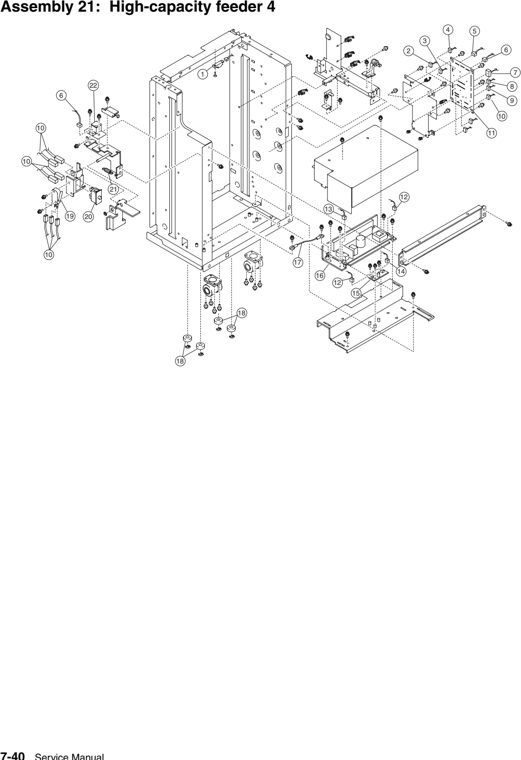

Assembly 21: High-capacity feeder 4 1 56P9541 Sensor, resistor 2 56P9875 Cable assembly, safety switch 3 56P9865 Cable assembly, HCF motor 4 56P9871 Cable assembly, I/F 5 56P9866 Cable assembly, paper feed sensor 6 56P9880 Cable, up/down switch 7 56P9879 Cable, paper volume 8 56P9878 Cable assembly, sensor 9 56P9877 Cable assembly, paper size sensor 10 56P9876 Cable assembly, lift motor 11 56P2658 Board, high-capacity feed 12 56P9873 Cable assembly, power supply out 13 56P9872 Cable assembly, power supply in 14 56P9874 Cable assembly, power supply 15 56P9870 Converter, DC/DC 16 56P4008 Power supply, HCF 17 56P9867 Cable assembly, drawer ground 18 56P9861 Roller, track 19 56P9864 Switch, micro 20 56P9530 Switch, push 21 56P9501 Spring, pressure pickup 22 56P9863 Switch, HCF push NS 56P9961 Parts packet Parts catalog 7-41

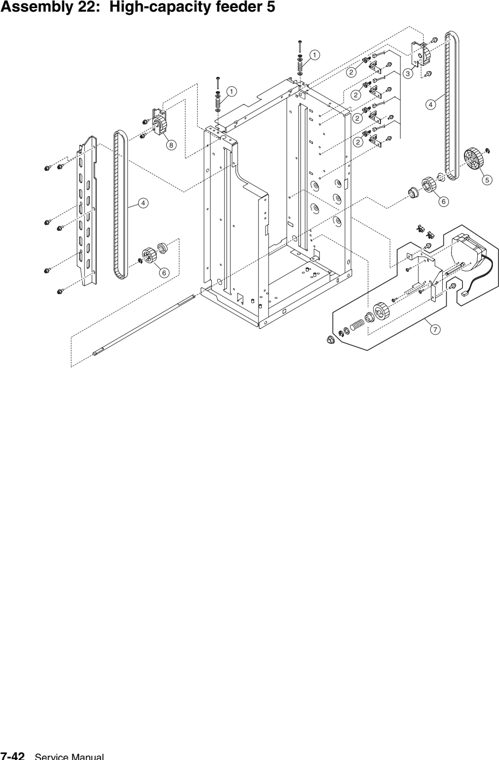

Assembly 22: High-capacity feeder 5 1 56P9883 Spring, pressure 2 56P9528 Interrupter, photo 3 56P9888 Bracket, rear idler 4 56P9884 Belt, timing 5 56P9886 Gear, drive 6 56P9885 Pulley, timing 7 56P9882 Motor, HCF DC 8 56P9887 Bracket, front idler NS 56P9962 Parts packet Parts catalog 7-43

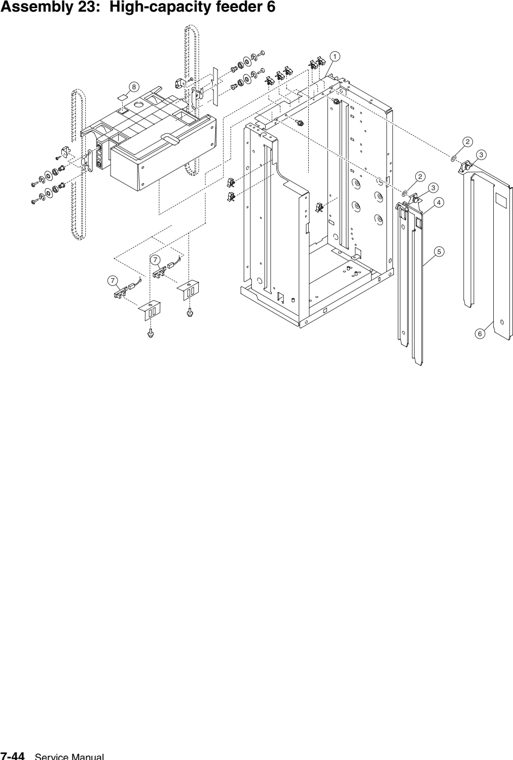

Assembly 23: High-capacity feeder 6 1 56P9892 Plate, upper side fence 2 56P9893 Knob, stopper 3 56P9891 Knob, tray 4 56P9890 Plate, paper adhesion 5 56P9915 Fence assembly, front side 6 56P9894 Fence assembly, rear side 7 56P9528 Interrupter, photo 8 56P9889 Pad, friction NS 56P9963 Parts packet Parts catalog 7-45

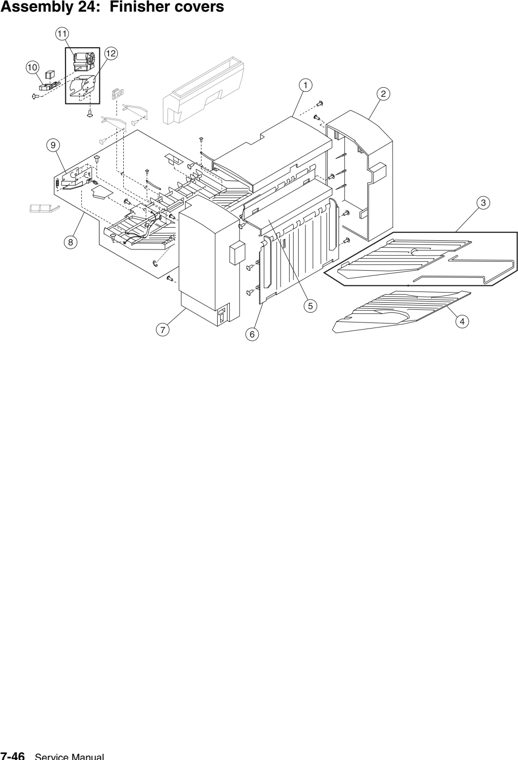

Assembly 24: Finisher covers 1 56P4064 Cover, top 2 56P4065 Cover, front 3 56P4067 Tray, upper 4 56P4068 Tray, lower 5 56P4062 Panel, left upper 6 40X1227 Assembly, lower left panel 7 56P4066 Cover, rear 8 56P4063 Assembly, staple cover 9 56P9365 Cover, staple A 10 56P9367 Cartridge, staple 11 56P9363 Stapler 12 56P9364 Cover, staple B Parts catalog 7-47

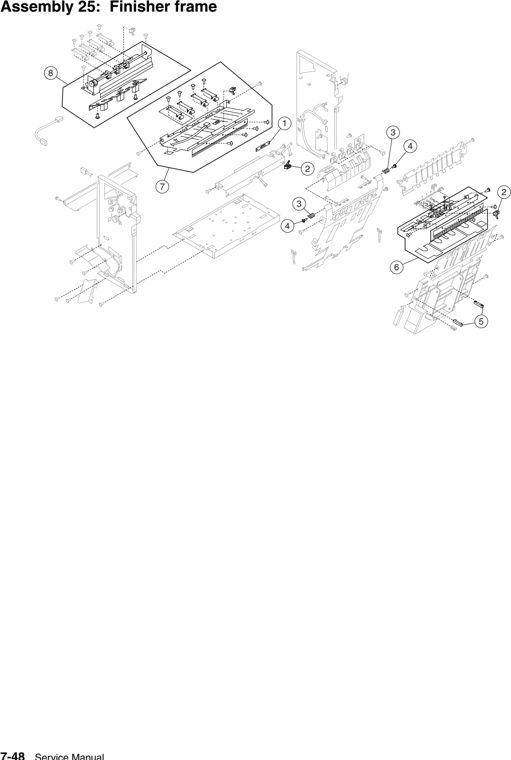

Assembly 25: Finisher frame 1 56P4069 Handle 2 56P9380 Sensor, photo 3 56P9386 Spring 4 56P9373 Screw, M4 5 56P9309 Assembly, exit guide inverter 6 56P9399 Sensor, photo 7 40X1223 Assembly, exit guide straight 8 56P9313 Unit, 3 hole punch (U.S. only) 8 56P9314 Unit, 4 hole punch (non U.S.) NS 56P4072 Kit, punch speed up Parts catalog 7-49

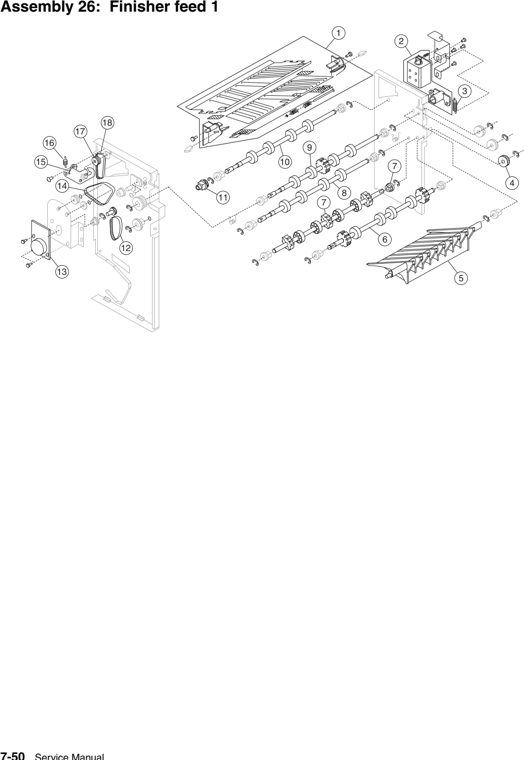

Assembly 26: Finisher feed 1 1 56P9395 Assembly, guide plate 2 56P9334 Assembly, solenoid 3 56P9396 Spring, H 4 56P9398 Gear, Z19 5 56P9310 Gate 6 56P9400 Roller 7 56P9361 Roller, patting 8 56P9401 Roller, I 9 56P9312 Roller, F 10 56P9405 Roller, G 11 56P9335 Clutch, registration 12 56P9407 Belt, timing 60S2M184 13 56P9341 Assembly, feed motor 14 56P9339 Belt, timing 60S2M334 15 56P4060 Assembly, punch drive 16 56P9318 Spring, B 17 56P4070 Pulley gear Z36/T24 18 56P4061 Belt Parts catalog 7-51

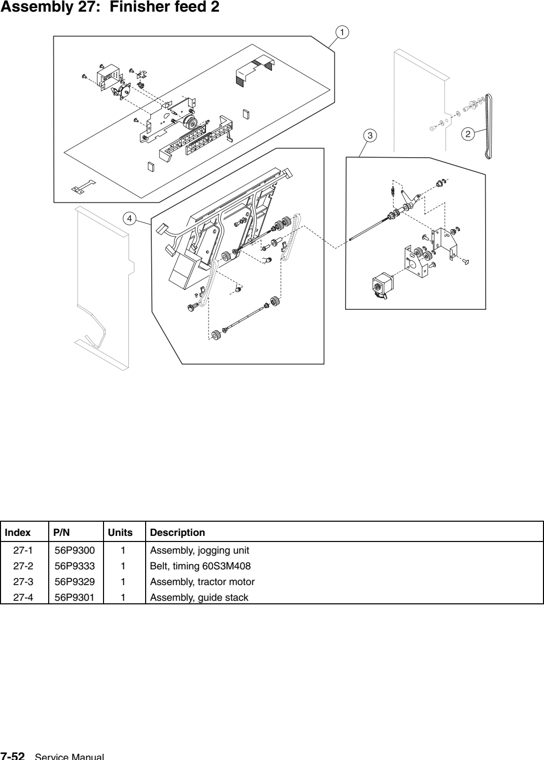

Assembly 27: Finisher feed 2 1 56P9300 Assembly, jogging unit 2 56P9333 Belt, timing 60S3M408 3 56P9329 Assembly, tractor motor 4 56P9301 Assembly, guide stack

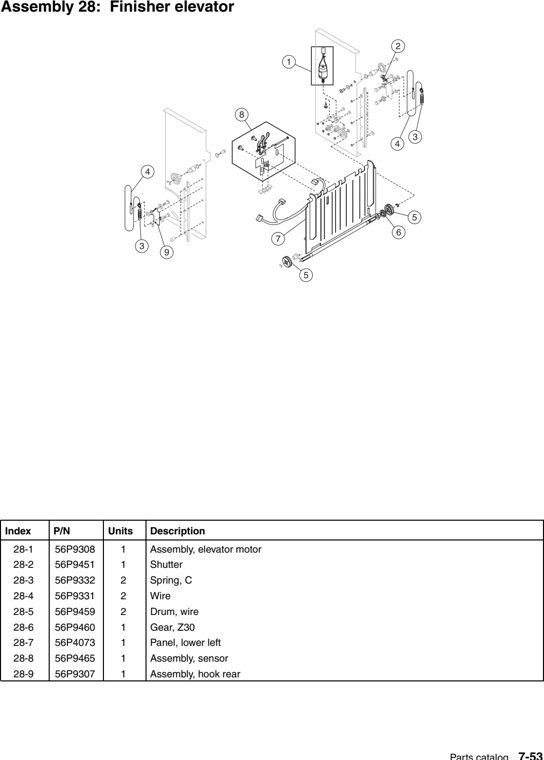

Assembly 28: Finisher elevator 1 56P9308 Assembly, elevator motor 2 56P9451 Shutter 3 56P9332 Spring, C 4 56P9331 Wire 5 56P9459 Drum, wire 6 56P9460 Gear, Z30 7 56P4073 Panel, lower left 8 56P9465 Assembly, sensor 9 56P9307 Assembly, hook rear Parts catalog 7-53

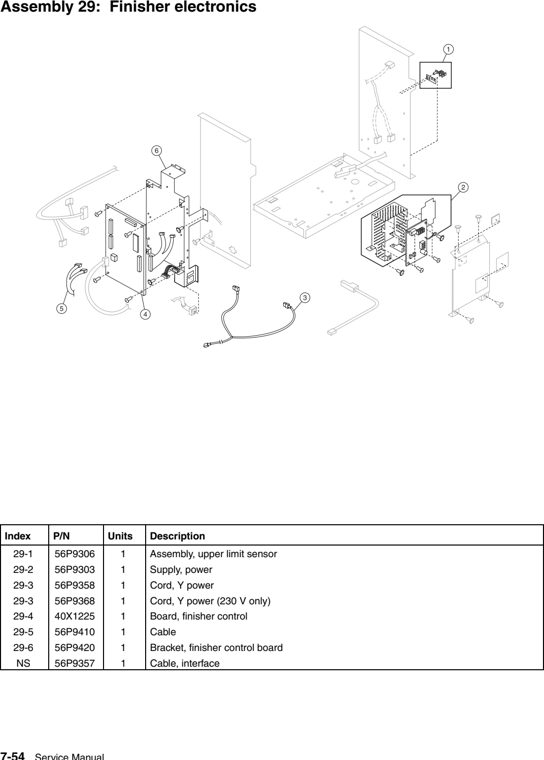

Assembly 29: Finisher electronics 1 56P9306 Assembly, upper limit sensor 2 56P9303 Supply, power 3 56P9358 Cord, Y power 3 56P9368 Cord, Y power (230 V only) 4 40X1225 Board, finisher control 5 56P9410 Cable 6 56P9420 Bracket, finisher control board NS 56P9357 Cable, interface

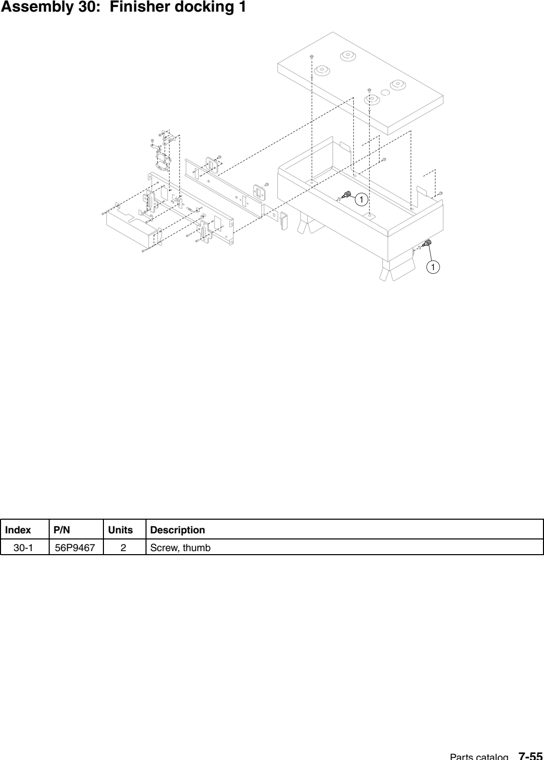

Assembly 30: Finisher docking 1 1 56P9467 Screw, thumb Parts catalog 7-55

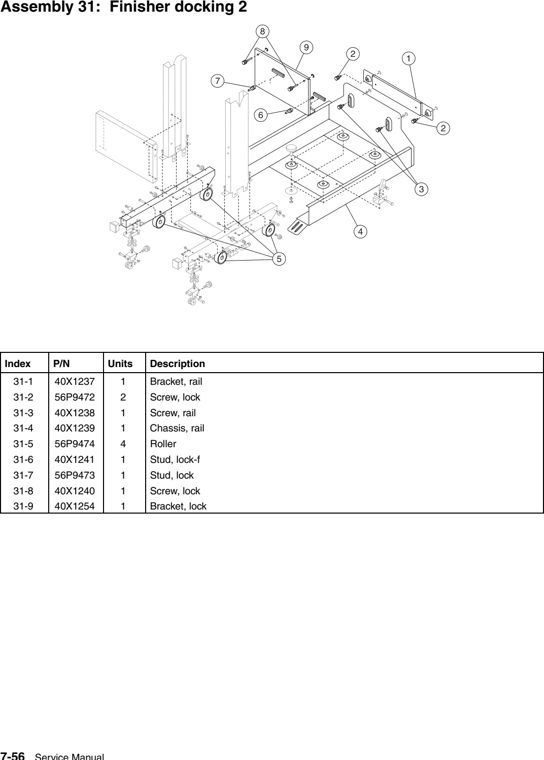

Assembly 31: Finisher docking 2 1 40X1237 Bracket, rail 2 56P9472 Screw, lock 3 40X1238 Screw, rail 4 40X1239 Chassis, rail 5 56P9474 Roller 6 40X1241 Stud, lock-f 7 56P9473 Stud, lock 8 40X1240 Screw, lock 9 40X1254 Bracket, lock

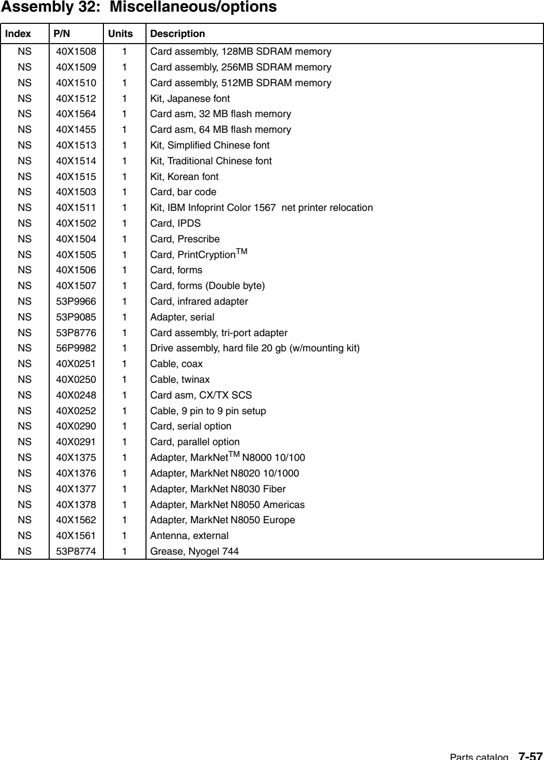

Assembly 32: Miscellaneous/options NS 40X1508 Card assembly, 128MB SDRAM memory NS 40X1509 Card assembly, 256MB SDRAM memory NS 40X1510 Card assembly, 512MB SDRAM memory NS 40X1512 Kit, Japanese font NS 40X1564 Card asm, 32 MB flash memory NS 40X1455 Card asm, 64 MB flash memory NS 40X1513 Kit, Simplified Chinese font NS 40X1514 Kit, Traditional Chinese font NS 40X1515 Kit, Korean font NS 40X1503 Card, bar code NS 40X1511 Kit, IBM Infoprint Color 1567 net printer relocation NS 40X1502 Card, IPDS NS 40X1504 Card, Prescribe NS 40X1505 Card, PrintCryptionTM NS 40X1506 Card, forms NS 40X1507 Card, forms (Double byte) NS 53P9966 Card, infrared adapter NS 53P9085 Adapter, serial NS 53P8776 Card assembly, tri-port adapter NS 56P9982 Drive assembly, hard file 20 gb (w/mounting kit) 56P9982 20+ GB Hard Drive With Adapter New 56p9982 (New) $570.00 56P9982 20+ GB Hard Drive With Adapter Fully refurbished with 90-day warranty 56p9982 Contact for Details NS 40X0251 Cable, coax NS 40X0250 Cable, twinax NS 40X0248 Card asm, CX/TX SCS NS 40X0252 Cable, 9 pin to 9 pin setup NS 40X0290 Card, serial option NS 40X0291 Card, parallel option NS 40X1375 Adapter, MarkNetTM N8000 10/100 NS 40X1376 Adapter, MarkNet N8020 10/1000 NS 40X1377 Adapter, MarkNet N8030 Fiber NS 40X1378 Adapter, MarkNet N8050 Americas NS 40X1562 Adapter, MarkNet N8050 Europe NS 40X1561 Antenna, external NS 53P8774 Grease, Nyogel 744 Parts catalog 7-57

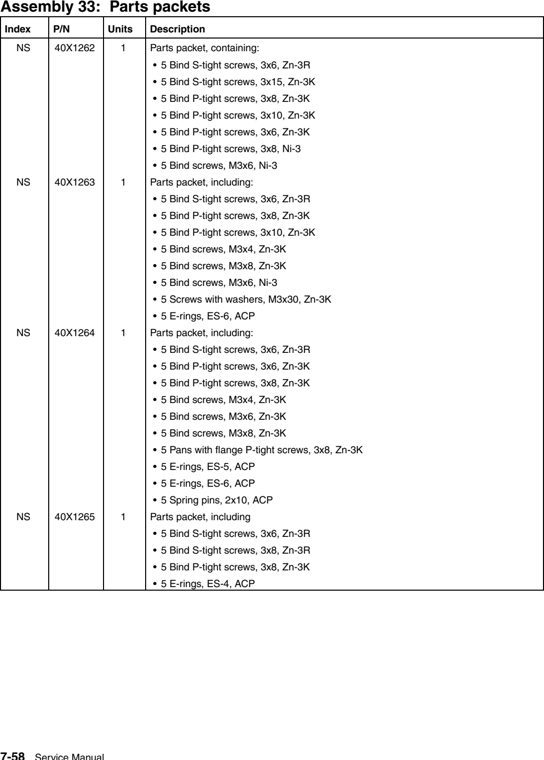

Assembly 33: Parts packets NS 40X1262 Parts packet, containing: (cid:129) 5 Bind S-tight screws, 3x6, Zn-3R (cid:129) 5 Bind S-tight screws, 3x15, Zn-3K (cid:129) 5 Bind P-tight screws, 3x8, Zn-3K (cid:129) 5 Bind P-tight screws, 3x10, Zn-3K (cid:129) 5 Bind P-tight screws, 3x6, Zn-3K (cid:129) 5 Bind P-tight screws, 3x8, Ni-3 (cid:129) 5 Bind screws, M3x6, Ni-3 NS 40X1263 Parts packet, including: (cid:129) 5 Bind S-tight screws, 3x6, Zn-3R (cid:129) 5 Bind P-tight screws, 3x8, Zn-3K (cid:129) 5 Bind P-tight screws, 3x10, Zn-3K (cid:129) 5 Bind screws, M3x4, Zn-3K (cid:129) 5 Bind screws, M3x8, Zn-3K (cid:129) 5 Bind screws, M3x6, Ni-3 (cid:129) 5 Screws with washers, M3x30, Zn-3K (cid:129) 5 E-rings, ES-6, ACP NS 40X1264 Parts packet, including: (cid:129) 5 Bind S-tight screws, 3x6, Zn-3R (cid:129) 5 Bind P-tight screws, 3x6, Zn-3K (cid:129) 5 Bind P-tight screws, 3x8, Zn-3K (cid:129) 5 Bind screws, M3x4, Zn-3K (cid:129) 5 Bind screws, M3x6, Zn-3K (cid:129) 5 Bind screws, M3x8, Zn-3K (cid:129) 5 Pans with flange P-tight screws, 3x8, Zn-3K (cid:129) 5 E-rings, ES-5, ACP (cid:129) 5 E-rings, ES-6, ACP (cid:129) 5 Spring pins, 2x10, ACP NS 40X1265 Parts packet, including (cid:129) 5 Bind S-tight screws, 3x6, Zn-3R (cid:129) 5 Bind S-tight screws, 3x8, Zn-3R (cid:129) 5 Bind P-tight screws, 3x8, Zn-3K (cid:129) 5 E-rings, ES-4, ACP

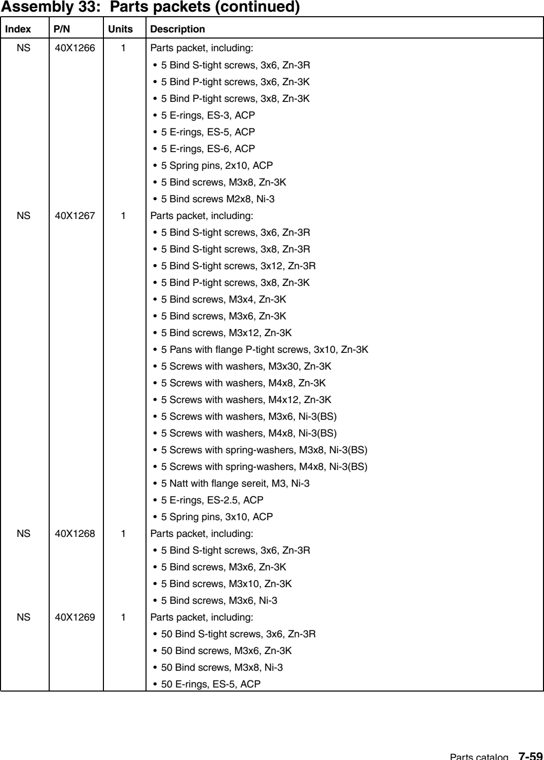

Assembly 33: Parts packets (continued) NS 40X1266 Parts packet, including: (cid:129) 5 Bind S-tight screws, 3x6, Zn-3R (cid:129) 5 Bind P-tight screws, 3x6, Zn-3K (cid:129) 5 Bind P-tight screws, 3x8, Zn-3K (cid:129) 5 E-rings, ES-3, ACP (cid:129) 5 E-rings, ES-5, ACP (cid:129) 5 E-rings, ES-6, ACP (cid:129) 5 Spring pins, 2x10, ACP (cid:129) 5 Bind screws, M3x8, Zn-3K (cid:129) 5 Bind screws M2x8, Ni-3 NS 40X1267 Parts packet, including: (cid:129) 5 Bind S-tight screws, 3x6, Zn-3R (cid:129) 5 Bind S-tight screws, 3x8, Zn-3R (cid:129) 5 Bind S-tight screws, 3x12, Zn-3R (cid:129) 5 Bind P-tight screws, 3x8, Zn-3K (cid:129) 5 Bind screws, M3x4, Zn-3K (cid:129) 5 Bind screws, M3x6, Zn-3K (cid:129) 5 Bind screws, M3x12, Zn-3K (cid:129) 5 Pans with flange P-tight screws, 3x10, Zn-3K (cid:129) 5 Screws with washers, M3x30, Zn-3K (cid:129) 5 Screws with washers, M4x8, Zn-3K (cid:129) 5 Screws with washers, M4x12, Zn-3K (cid:129) 5 Screws with washers, M3x6, Ni-3(BS) (cid:129) 5 Screws with washers, M4x8, Ni-3(BS) (cid:129) 5 Screws with spring-washers, M3x8, Ni-3(BS) (cid:129) 5 Screws with spring-washers, M4x8, Ni-3(BS) (cid:129) 5 Natt with flange sereit, M3, Ni-3 (cid:129) 5 E-rings, ES-2.5, ACP (cid:129) 5 Spring pins, 3x10, ACP NS 40X1268 Parts packet, including: (cid:129) 5 Bind S-tight screws, 3x6, Zn-3R (cid:129) 5 Bind screws, M3x6, Zn-3K (cid:129) 5 Bind screws, M3x10, Zn-3K (cid:129) 5 Bind screws, M3x6, Ni-3 NS 40X1269 Parts packet, including: (cid:129) 50 Bind S-tight screws, 3x6, Zn-3R (cid:129) 50 Bind screws, M3x6, Zn-3K (cid:129) 50 Bind screws, M3x8, Ni-3 (cid:129) 50 E-rings, ES-5, ACP Parts catalog 7-59

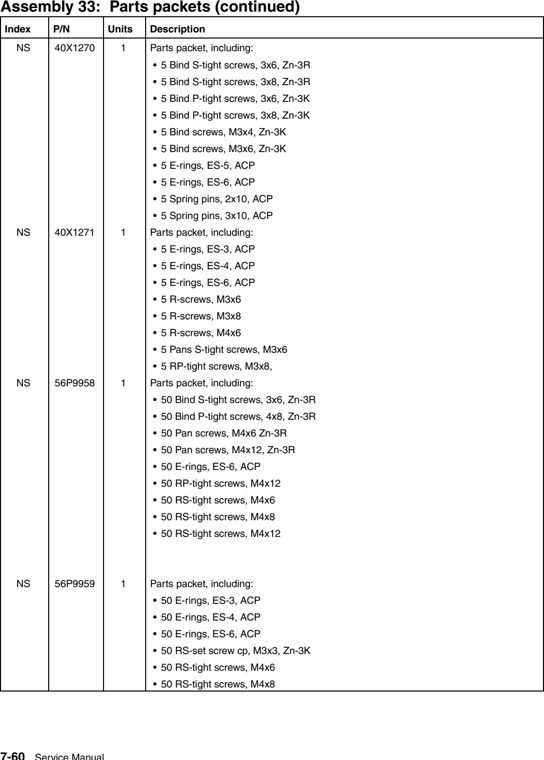

Assembly 33: Parts packets (continued) NS 40X1270 Parts packet, including: (cid:129) 5 Bind S-tight screws, 3x6, Zn-3R (cid:129) 5 Bind S-tight screws, 3x8, Zn-3R (cid:129) 5 Bind P-tight screws, 3x6, Zn-3K (cid:129) 5 Bind P-tight screws, 3x8, Zn-3K (cid:129) 5 Bind screws, M3x4, Zn-3K (cid:129) 5 Bind screws, M3x6, Zn-3K (cid:129) 5 E-rings, ES-5, ACP (cid:129) 5 E-rings, ES-6, ACP (cid:129) 5 Spring pins, 2x10, ACP (cid:129) 5 Spring pins, 3x10, ACP NS 40X1271 Parts packet, including: (cid:129) 5 E-rings, ES-3, ACP (cid:129) 5 E-rings, ES-4, ACP (cid:129) 5 E-rings, ES-6, ACP (cid:129) 5 R-screws, M3x6 (cid:129) 5 R-screws, M3x8 (cid:129) 5 R-screws, M4x6 (cid:129) 5 Pans S-tight screws, M3x6 (cid:129) 5 RP-tight screws, M3x8, NS 56P9958 Parts packet, including: (cid:129) 50 Bind S-tight screws, 3x6, Zn-3R (cid:129) 50 Bind P-tight screws, 4x8, Zn-3R (cid:129) 50 Pan screws, M4x6 Zn-3R (cid:129) 50 Pan screws, M4x12, Zn-3R (cid:129) 50 E-rings, ES-6, ACP (cid:129) 50 RP-tight screws, M4x12 (cid:129) 50 RS-tight screws, M4x6 (cid:129) 50 RS-tight screws, M4x8 (cid:129) 50 RS-tight screws, M4x12 NS 56P9959 Parts packet, including: (cid:129) 50 E-rings, ES-3, ACP (cid:129) 50 E-rings, ES-4, ACP (cid:129) 50 E-rings, ES-6, ACP (cid:129) 50 RS-set screw cp, M3x3, Zn-3K (cid:129) 50 RS-tight screws, M4x6 (cid:129) 50 RS-tight screws, M4x8

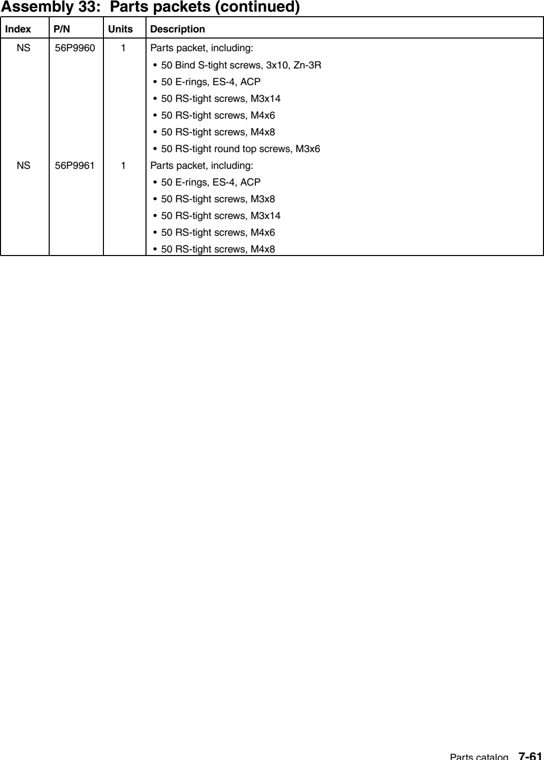

Assembly 33: Parts packets (continued) NS 56P9960 Parts packet, including: (cid:129) 50 Bind S-tight screws, 3x10, Zn-3R (cid:129) 50 E-rings, ES-4, ACP (cid:129) 50 RS-tight screws, M3x14 (cid:129) 50 RS-tight screws, M4x6 (cid:129) 50 RS-tight screws, M4x8 (cid:129) 50 RS-tight round top screws, M3x6 NS 56P9961 Parts packet, including: (cid:129) 50 E-rings, ES-4, ACP (cid:129) 50 RS-tight screws, M3x8 (cid:129) 50 RS-tight screws, M3x14 (cid:129) 50 RS-tight screws, M4x6 (cid:129) 50 RS-tight screws, M4x8 Parts catalog 7-61

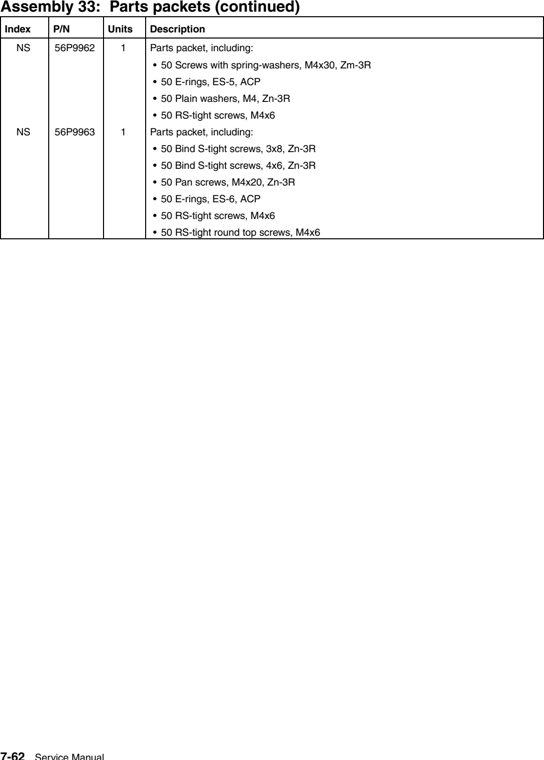

Assembly 33: Parts packets (continued) NS 56P9962 Parts packet, including: (cid:129) 50 Screws with spring-washers, M4x30, Zm-3R (cid:129) 50 E-rings, ES-5, ACP (cid:129) 50 Plain washers, M4, Zn-3R (cid:129) 50 RS-tight screws, M4x6 NS 56P9963 Parts packet, including: (cid:129) 50 Bind S-tight screws, 3x8, Zn-3R (cid:129) 50 Bind S-tight screws, 4x6, Zn-3R (cid:129) 50 Pan screws, M4x20, Zn-3R (cid:129) 50 E-rings, ES-6, ACP (cid:129) 50 RS-tight screws, M4x6 (cid:129) 50 RS-tight round top screws, M4x6
Other listed parts 40X1051 Board Controller Lexmark 40X1051 Board Controller New 40X1051 56P2654 (New) Contact for Details Lexmark 40X1051 Board Controller Fully refurbished with 90-day warranty 40X1051 56P2654 Contact for Details
