Lexmark C792 (c792 c795 cs796 cs797 cs798 cs799) Parts
Please call for parts assistance
Looking for whole machines? View Printer Info

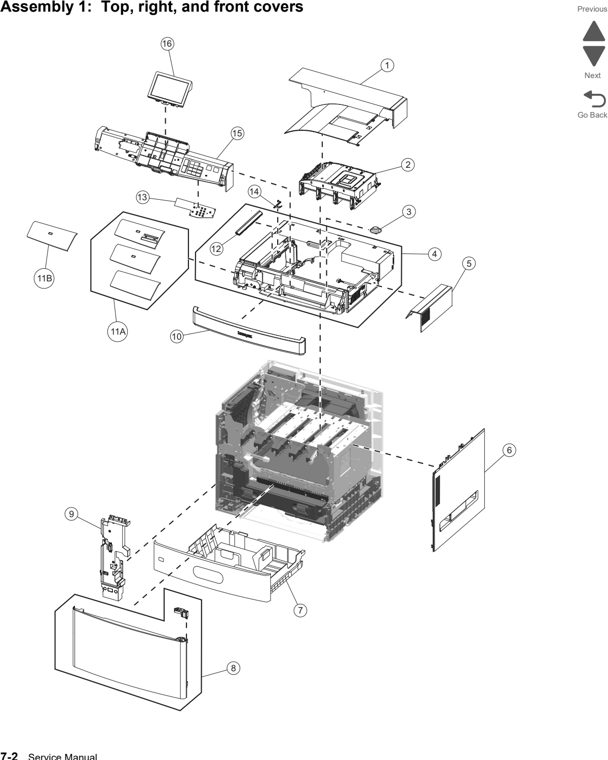

| Assembly 1: Top, right, and front covers 1 40X7109 Printhead access cover SaleLexmark 40X7109 Printhead access cover Fully refurbished with 90-day warranty 40X7109 2 40X7127 Printhead assembly SaleLexmark 40X7127 Printhead assembly Fully refurbished with 90-day warranty 40X7127 3 40X7117 Speaker 4 40X7108 Top cover assembly with output option cable SaleLexmark 40X7108 Top cover assembly with output option cable Fully refurbished with 90-day warranty 40X7108 5 40X7110 Top cap cover 6 40X7120 Right cover 7 40X6099 Standard media tray (550-sheet media 8 40X7111 Front access door and pivot SaleLexmark 40X7111 Front access door and pivot Fully refurbished with 90-day warranty 40X7111 9 40X7125 Waste toner left cover with beacon SaleLexmark 40X7125 Waste toner left cover Fully refurbished with 90-day warranty 40X7125 10 40X7113 Logo panel 11A 40X7118 OP panel bezel, 210 (3 bezels): 11B 40X7329 BSD OP panel bezel, 235 (1 bezel): • Bezel with USB SaleLexmark 40X7329 Operator panel bezel 235 (1) Fully refurbished with 90-day warranty 40X7329 12 40X7179 ESD bracket 13 40X7115 OP panel UICC card Lexmark 40X7115 Operator panel UICC card New 40X7115 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $94.55 SaleLexmark 40X7115 Operator panel UICC card Fully refurbished with 90-day warranty 40X7115 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 14 40X7124 Bin-full flag 15 40X7114 OP panel cover assembly with buttons SaleLexmark 40X7114 Operator panel cover assembly with buttons Fully refurbished with 90-day warranty 40X7114 16 40X7116 OP panel display: 4.3 LCD touch screen NS 40X7119 OP panel bezel, 230 (3 bezels): • Bezel • Bezel with USB • Bezel with USB and card reader |  |

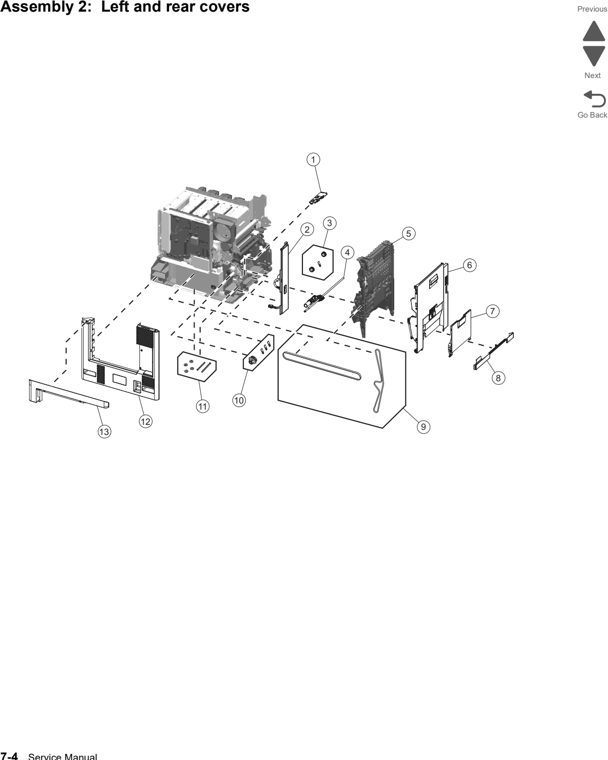

| Assembly 2: Left and rear covers 1 40X7151 MPF sensor plate assembly 2 40X7122 Left cover assembly with LVPS power switch cable SaleLexmark 40X7122 Left cover assembly with LVPS power switch cable Fully refurbished with 90-day warranty 40X7122 3 40X7178 MPF pick tire roll assembly, including 4 40X7148 MPF paper pick assembly, including SaleLexmark 40X7148 MPF paper pick assembly Fully refurbished with 90-day warranty 40X7148 5 40X7156 Duplex assembly 6 40X7123 Left access door assembly, including 7 40X7147 MPF door assembly, including 8 40X7121 Lower left cover 9 40X7157 Belts parts packet, including 10 40X7150 MPF pick parts packet, including 11 40X7174 Pins and pads parts packet, including • Pad (x6) • Side door front pin • Side door rear pin 12 40X7105 Rear cover 13 40X7106 Rear upper cover |  |

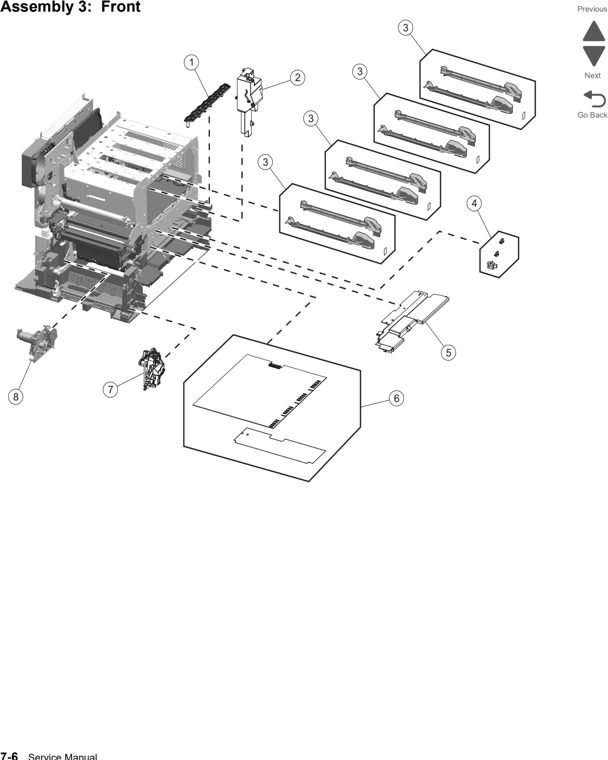

| Assembly 3: Front 1 40X7145 ITU contact block assembly SaleLexmark 40X7145 ITU contact block assembly Fully refurbished with 90-day warranty 40X7145 2 40X7130 Cartridge blower assembly SaleLexmark 40X7130 Cartridge blower assembly Fully refurbished with 90-day warranty 40X7130 2 40X7160 Paper pick mechanism assembly SaleLexmark 40X7160 Paper pick mechanism assembly Fully refurbished with 90-day warranty 40X7160 3 40X7141 Cartridge rail assembly, including SaleLexmark 40X7141 Cartridge rail assembly Fully refurbished with 90-day warranty 40X7141 3 40X6104 Pick tire roll assembly 3.1—1 40X7142 Cartridge memory block with sensor SaleLexmark 40X7142 Cartridge memory block with sensor Fully refurbished with 90-day warranty 40X7142 4 40X7163 Sensors parts packet, including 4 40X7143 Cartridge contact block assembly SaleLexmark 40X7143 Cartridge contact block assembly Fully refurbished with 90-day warranty 40X7143 5 40X7161 Waste toner tray bracket SaleLexmark 40X7161 Waste toner tray bracket Fully refurbished with 90-day warranty 40X7161 5 40X7126 Media tray rails (1 right, 1 left) SaleLexmark 40X7126 Media tray rails (1 right 1 left) Fully refurbished with 90-day warranty 40X7126 6 40X7139 HVPS assembly with cable shield SaleLexmark 40X7139 HVPS assembly with cable shield Fully refurbished with 90-day warranty 40X7139 7 40X7112 Housing interlock assembly with sensor SaleLexmark 40X7112 Housing interlock assembly with sensor Fully refurbished with 90-day warranty 40X7112 8 40X7158 Staging paper path reference edge SaleLexmark 40X7158 Staging paper path reference edge assembly Fully refurbished with 90-day warranty 40X7158 |  |

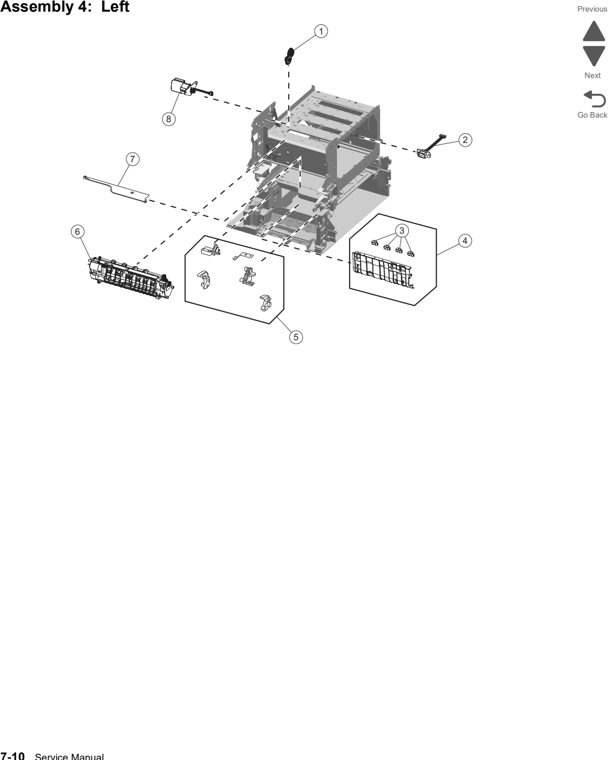

| Assembly 4: Left 1 40X7133 Redrive parts packet, including 2 40X7166 ITU autoconnect cable SaleLexmark 40X7166 ITU autoconnect cable Fully refurbished with 90-day warranty 40X7166 2 40X7153 Left access door pistons parts packet, 3 41X0914 Staging sensor Lexmark 41X0914 Sensor (pass-through near narrow media deskew roller entry) New 41X0914 (New) $17.84 Lexmark 41X0914 Sensor (pass-through near narrow media deskew roller entry) Fully refurbished with 90-day warranty 41X0914 3 40X7165 Fuser system card and LVPS cable SaleLexmark 40X7165 Fuser system card and LVPS cable with cable ties Fully refurbished with 90-day warranty 40X7165 4 40X7146 Staging deflector assembly with sensors SaleLexmark 40X7146 Staging deflector assembly with sensors Fully refurbished with 90-day warranty 40X7146 4 40X7103 ITU module assembly Lexmark 40X7103 C792 X792 Transfer Module Maintenance Kit New 40X7103 (New) Retired, no longer available: Contact for alternatives 4.1—1 40X7100 Fuser assembly, 115 V Lexmark 40X7100 Maintenance Kit 110-120V New 40X7100 DY3253 (New) Retired, no longer available: Contact for alternatives 5 40X7172 Fuser/MPF/autocomp parts packet, 6 40X7134 Paper path redrive assembly SaleLexmark 40X7134 Paper path redrive assembly Fully refurbished with 90-day warranty 40X7134 7 40X7164 Lower frame cable cover 8 40X7132 Redrive motor assembly NS 40X7101 Fuser assembly, 220 V NS 40X7102 Fuser assembly, 100 V |  |

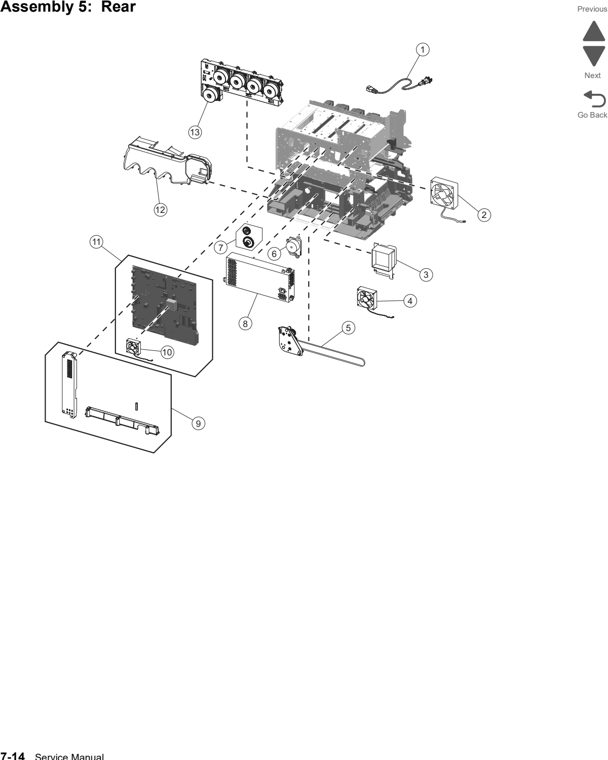

| Assembly 5: Rear 1 40X0269 Bolivia, Peru (8’ ST) 2 40X7131 Main fan 3 40X7128 LVPS exit duct SaleLexmark 40X7128 LVPS cooling exit duct Fully refurbished with 90-day warranty 40X7128 4 40X7129 LVPS fan 5 40X7152 MPF drive assembly 6 40X7135 Fuser drive assembly, including SaleLexmark 40X7135 Fuser drive assembly Fully refurbished with 90-day warranty 40X7135 7 40X7162 Waste toner gears parts packet, including • Gear–30T Helical • Gear–46T Spur 17T Helical 8 40X8755 Low-voltage power supply (LVPS) with thermistor retainer 9 40X7140 System board and HVPS card parts SaleLexmark 40X7140 System board and HVPS card parts packet Fully refurbished with 90-day warranty 40X7140 10 40X6501 CPU cooling fan 11 40X7136 System board Lexmark 40X7136 System board New 40X7136 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $977.23 SaleLexmark 40X7136 System board Fully refurbished with 90-day warranty 40X7136 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 12 40X7155 Exit cooling duct assembly SaleLexmark 40X7155 Exit cooling duct assembly Fully refurbished with 90-day warranty 40X7155 13 40X7144 EP drive assembly NS 40X0270 Japan (8’ ST) Lexmark 40x0270 Power cord; 2.5m, 8ft. Straight, Japan New 40x0270 (New) Retired, no longer available: Contact for alternatives NS 40X0271 UK, Ireland (8' ST) Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives NS 40X0273 Chile, Uruguay (8’ ST) Lexmark 40x0273 Power cord; 2.5m, 8ft. Straight, Italy, Chile, Uruguay New 40x0273 (New) $44.20 Retired, no longer available: Contact for alternatives NS 40X0275 Israel (8’ ST) Lexmark 40x0275 Power cord; 1.8m, 6ft. Straight, Israel New 40x0275 (New) Retired, no longer available: Contact for alternatives NS 40X0288 Argentina (8’ ST) Lexmark 40x0288 Power cord; 2.5m, 8ft. Straight, Argentina New 40x0288 (New) Retired, no longer available: Contact for alternatives NS 40X0301 Australia (8’ ST) NS 40X0303 PRC (8’ ST) NS 40X1772 Switzerland (8’ ST) NS 40X1773 South Africa (8’ ST) Lexmark 40x1773 Power cord; 2.5m, 8ft. Straight, South Africa, Hong Kong, Singapore, Thailand, Malaysia New 40x1773 (New) NS 40X1774 Denmark (8’ ST) NS 40X1791 Taiwan (2.5 m ST) NS 40X1792 Korea (2.5 m ST) NS 40X3141 Europe (8’ ST) Lexmark 40x3141 Power cord; 2.5m, 8ft. Europe, Middle East, Indonesia, Africa (HV) New 40x3141 (New) NS 40X4596 Brazil (8’ ST) NS 40X7104 U.S., Canada (8’ ST) |  |

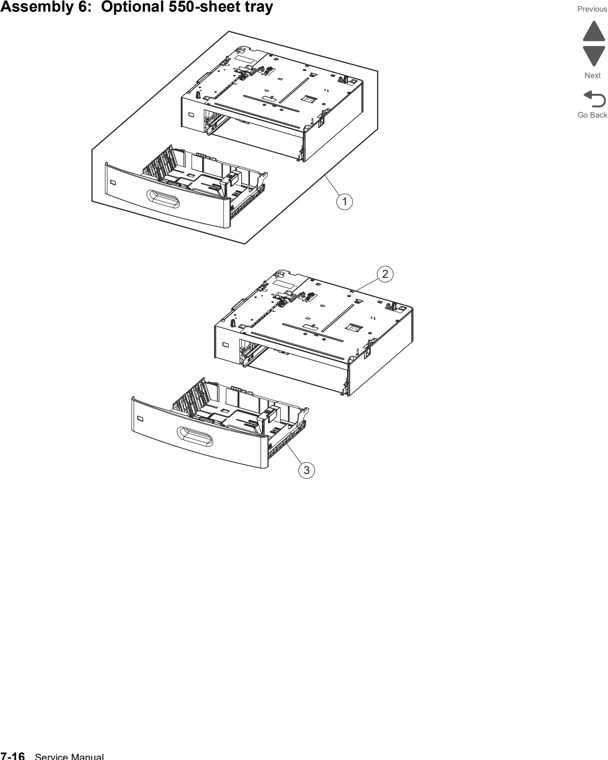

| Assembly 6: Optional 550-sheet tray 1 40X6967 550-sheet tray option N\A 2 40X6102 550-sheet drawer assembly 3 40X6099 550-sheet media tray assembly |  |

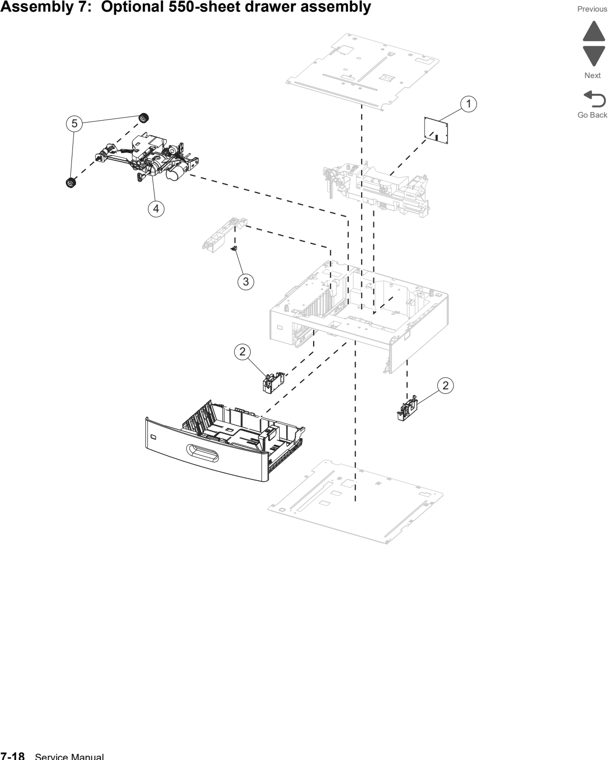

| Assembly 7: Optional 550-sheet drawer assembly 1 40X6100 550-sheet tray controller card assembly Lexmark 40X6100 550-sheet tray controller card Fully refurbished with 90-day warranty 40X6100 $46.41 2 40X6101 Anti-tip latch assembly Lexmark 40X6101 Anti-tip latch New 40X6101 (New) Retired, no longer available: Contact for alternatives 3 40X6274 550-sheet/2000-sheet input option 4 40X6103 550-sheet tray pick assembly 5 40X6104 Pick roll assembly |  |

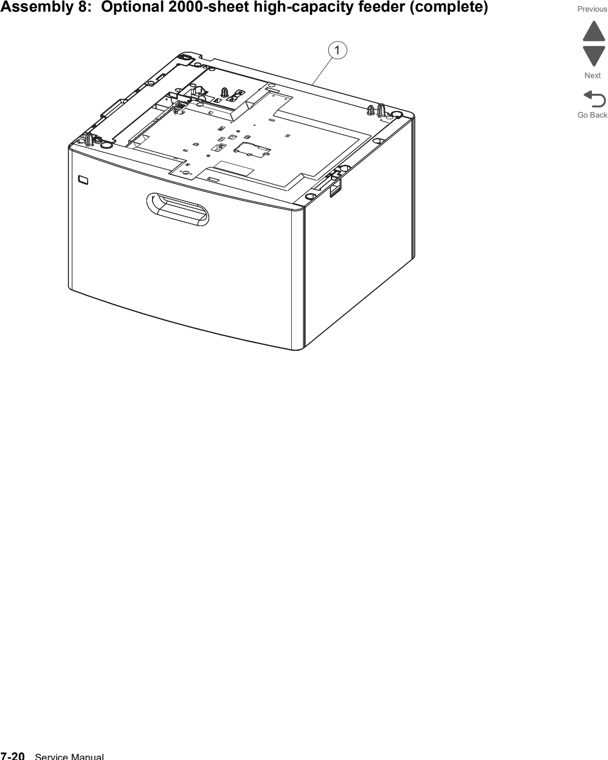

| Assembly 8: Optional 2000-sheet high-capacity feeder (complete) 1 40X6968 2000-sheet high-capacity feeder media tray option |  |

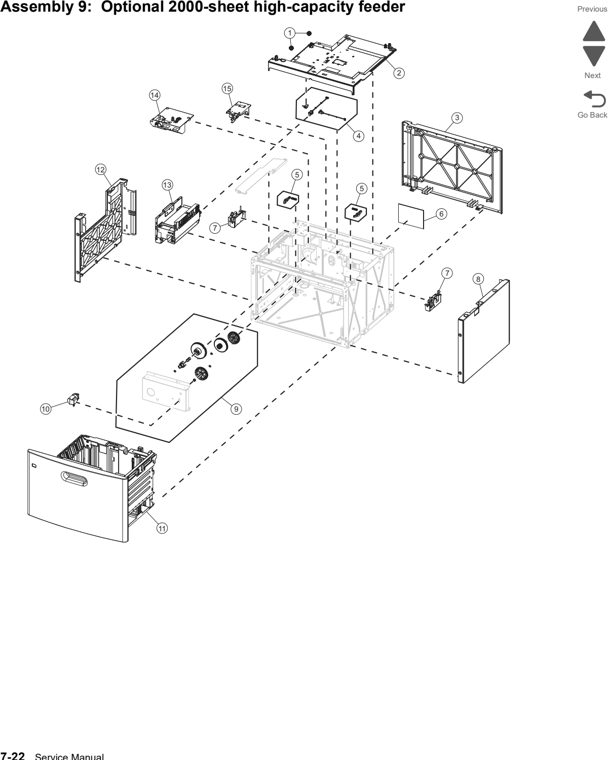

| Assembly 9: Optional 2000-sheet high-capacity feeder 1 40X6275 2000-sheet high-capacity feeder pick roll assembly 2 40X6119 2000-sheet high-capacity feeder pick 3 40X6972 2000-sheet high-capacity feeder rear 4 40X6274 550-sheet/2000-sheet input option 5 40X4585 Tray latch SaleLexmark 40X4585 Tray closed latch with spring Fully refurbished with 90-day warranty 40X4585 6 40X6276 2000-sheet high-capacity feeder 7 40X6101 Anti-tip latch assembly Lexmark 40X6101 Anti-tip latch New 40X6101 (New) Retired, no longer available: Contact for alternatives 8 40X6971 2000-sheet high-capacity feeder right 9 40X6486 2000-sheet high-capacity feeder lift 10 40X6969 2000-sheet high-capacity feeder lift 11 40X6115 2000-sheet high-capacity feeder media 12 40X6970 2000-sheet high-capacity feeder left 13 40X6118 2000-sheet high-capacity feeder jam 14 40X6116 2000-sheet high-capacity feeder drive 15 41X1022 2000-sheet high-capacity feeder pick |  |

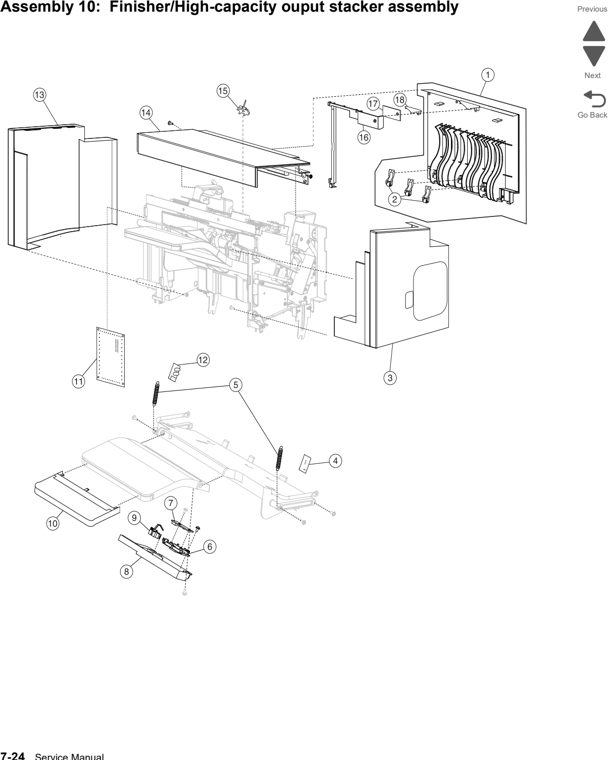

| Assembly 10: Finisher/High-capacity output stacker assembly 1 40X7234 Left access door assembly 2 40X7238 Backup redrive roller 2 40X7245 Front media stack flap “Finisher and removal” 3 40X7231 Finisher rear cover 3 40X7252 Stacker rear cover 3 40X7243 LED clear lens “Finisher and page 4 40X5544 Sensor (bin full receive) 4 40X4622 Rear tamper motor assembly “Finisher motor page SaleLexmark 40X4622 Right tamper motor assembly Fully refurbished with 90-day warranty 40X4622 5 40X7240 Finisher bin-full spring 5 40X4624 Tamper recoil spring “Finisher spring 6 40X5727 LED clear lens 6 40X5909 Sensor (tamper front and rear paddle) “Finisher HP) 7 40X5545 Standard output bin LED SaleLexmark 40X5545 Standard output bin LED Fully refurbished with 90-day warranty 40X5545 7 40X4623 Tamper drive belt “Finisher belt 8 40X7239 Bottom cover 8 40X4621 Front tamper motor assembly “Finisher motor page SaleLexmark 40X4621 Left tamper motor assembly Fully refurbished with 90-day warranty 40X4621 9 40X4618 Sensor (bin media present) SaleLexmark 40X4618 Sensor (finisher bin media present) Fully refurbished with 90-day warranty 40X4618 9 40X5545 Output beacon card “Finisher and page SaleLexmark 40X5545 Standard output bin LED Fully refurbished with 90-day warranty 40X5545 10 40X4619 Output bin extension 10 40X4615 Paddle drive motor “Finisher motor page 10.1—1 40X7244 Rear media stack flap “Finisher and removal” 11 40X7241 Finisher controller card assembly Lexmark 40X7241 Controller card assembly New 40X7241 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 11 40X7253 Stacker controller card assembly 12 40X4626 Sensor (bin full send) 13 40X7232 Front cover 14 40X7233 Top cover 15 40X5906 Finisher sensor (pass thru)/Stacker sensor (pass thru) SaleLexmark 40X5906 Sensor (stapler pass through) Fully refurbished with 90-day warranty 40X5906 16 40X7237 Beacon housing 17 40X4528 Left access beacon SaleLexmark 40X4528 Scanner reference LED cable assembly Fully refurbished with 90-day warranty 40X4528 I 18 40X7236 Beacon clear lens |  |

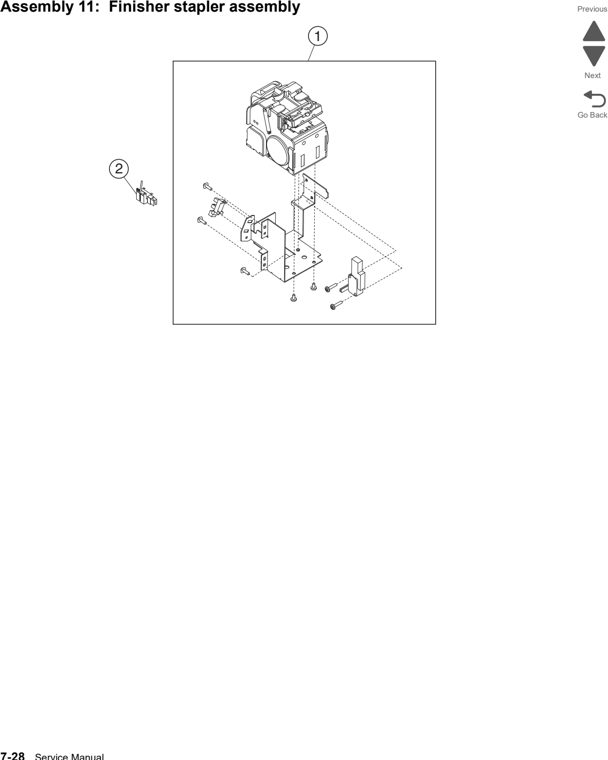

| Assembly 11: Finisher stapler assembly 1 40X7246 Stapler assembly 2 40X5909 Sensor (media in stapler) |  |

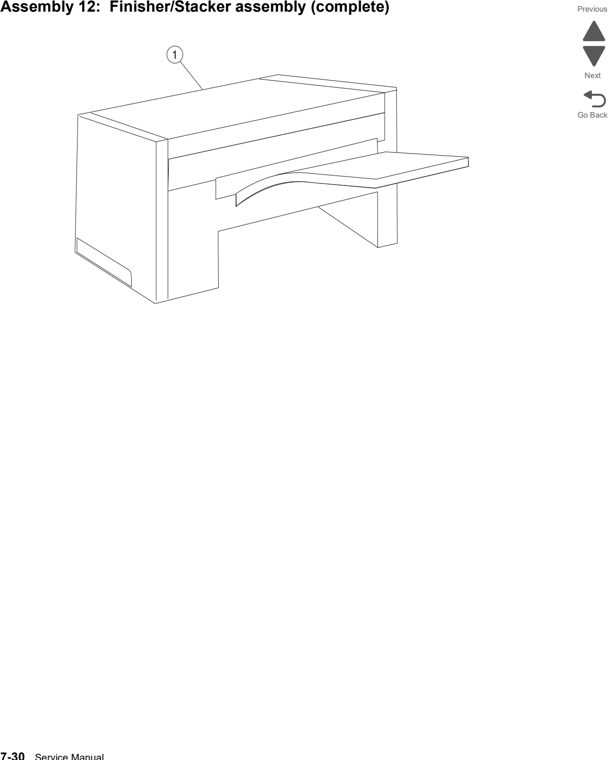

| Assembly 12: Finisher/Stacker assembly (complete) 1 40X7230 Finisher assembly SaleLexmark 40X7230 Staple finisher complete assembly Fully refurbished with 90-day warranty 40X7230 1 40X7251 Stacker assembly N\A |  |

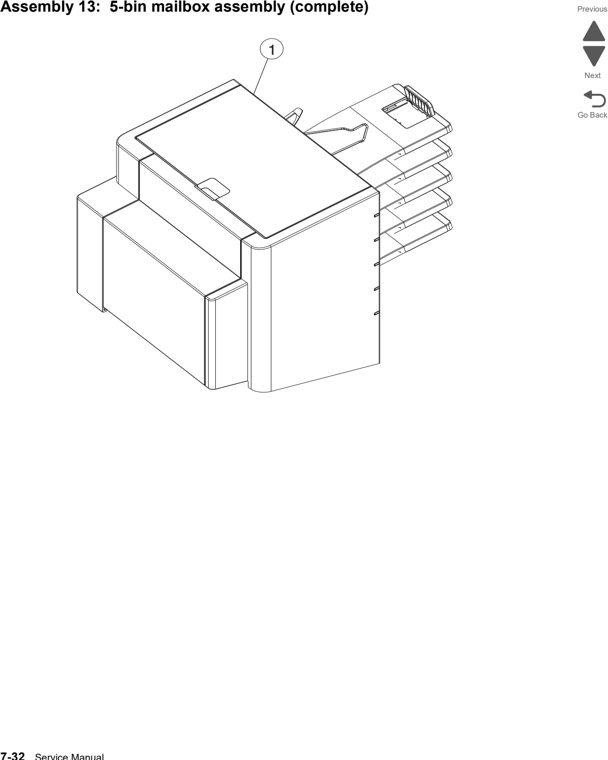

| Assembly 13: 5-bin mailbox assembly (complete) 1 40X7254 5 bin mailbox total option N\A |  |

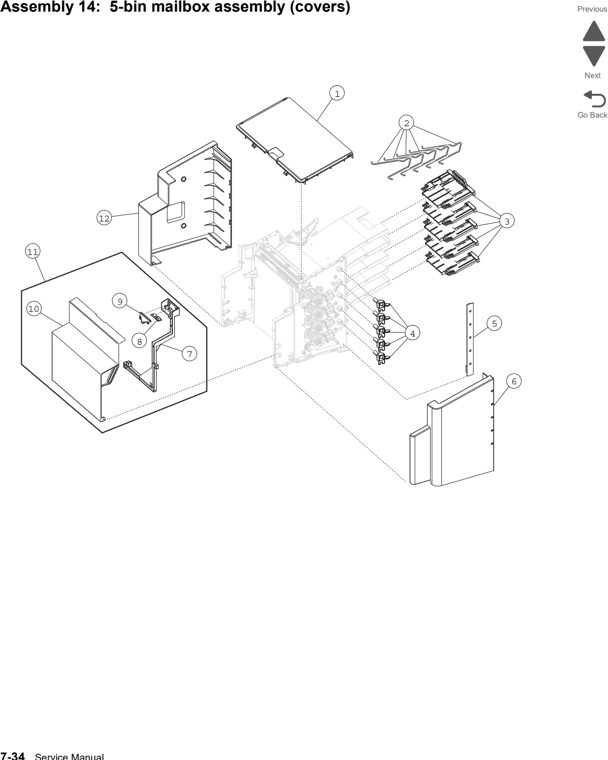

| Assembly 14: 5-bin mailbox assembly (covers) 1 40X7272 Top cover “5-bin on 2 40X7266 Output bin paper bail “5-bin bail 3 40X7267 Output bin extension cover “5-bin removal” 4 40X7257 Output bin light pipe “5-bin and page 5 40X7256 LED card assembly “5-bin and page 6 40X7255 Front cover “5-bin removal” 7 40X7261 LED jam cover “5-bin removal” 8 40X4528 LED PCB assembly “5-bin removal” SaleLexmark 40X4528 Scanner reference LED cable assembly Fully refurbished with 90-day warranty 40X4528 I 9 40X7236 Beacon clear lens “5-bin removal” 10 40X7259 Jam access door “5-bin removal” 11 40X8665 Jam access door assembly “5-bin removal” 12 40X7270 Rear cover “5-bin on |  |

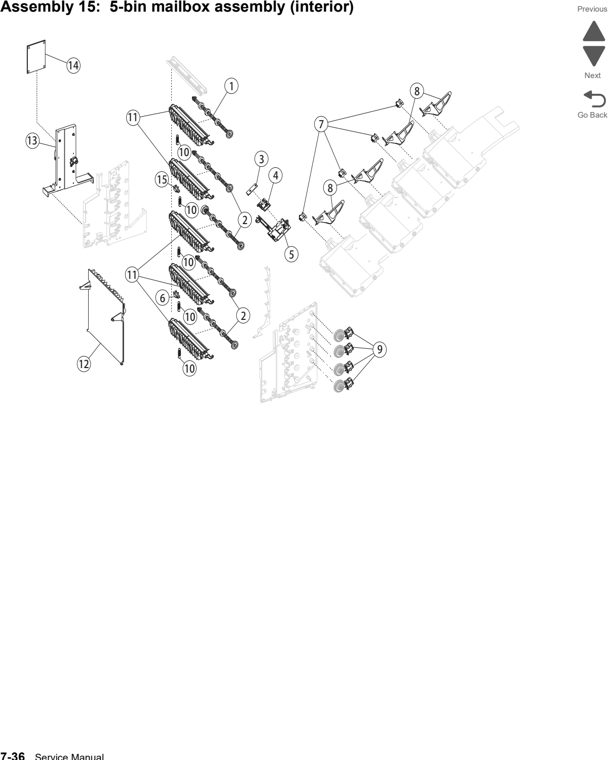

| Assembly 15: 5-bin mailbox assembly (interior) 1 40X7263 Top output bin roller “5-bin page 2 40X7264 1 thru 4 output bin roller “5-bin page 3 40X5545 Output bin LED “5-bin removal” SaleLexmark 40X5545 Standard output bin LED Fully refurbished with 90-day warranty 40X5545 4 40X5727 LED clear lens “5-bin removal” 5 40X4647 Output bin LED bracket “5-bin removal” 6 40X7265 Pass thru sensor “5-bin assembly 7 40X4633 Bin full sensor “5-bin removal” 8 40X7268 Bin full flag “5-bin actuator 9 40X4635 Deflector gate solenoid “5-bin removal” 10 40X5750 Diverter spring “5-bin removal” 11 40X7262 Output bin deflector “5-bin removal” 12 40X7260 Backup roll plate “5-bin assembly 13 40X7269 Feed motor with bracket “5-bin plate 14 40X7271 Controller card “5-bin removal” Lexmark 40X7271 Controller card New 40X7271 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 15 40X7265 Input sensor “5-bin assembly |  |

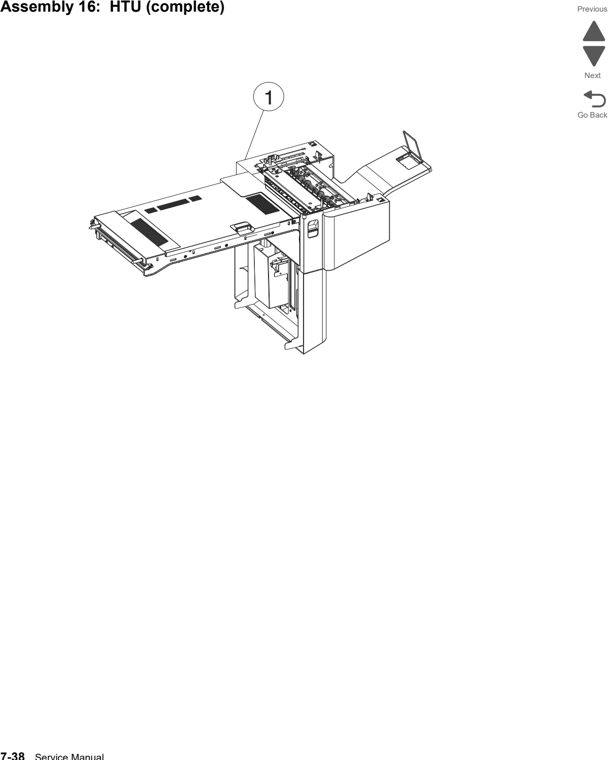

| Assembly 16: HTU (complete) 1 40X7275 Horizontal transport unit, whole N\A assembly SaleLexmark 40X7275 New Horizontal Transport Unit (HTU), complete assembly New 40X7275 (New) Exceeds UPS shipping dimensions / weight. |  |

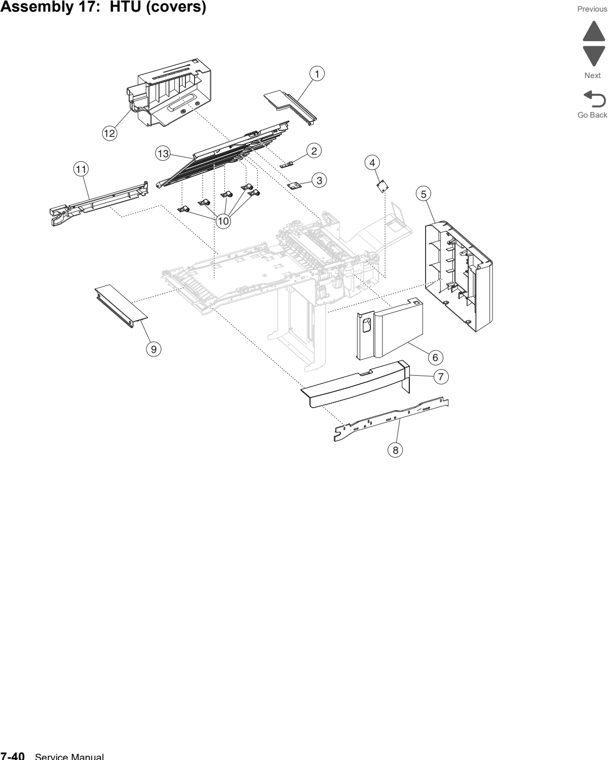

| Assembly 17: HTU (covers) 1 40X7287 HTU top right cover “HTU page 2 40X4528 HTU access door beacon card “HTU beacon removal” SaleLexmark 40X4528 Scanner reference LED cable assembly Fully refurbished with 90-day warranty 40X4528 I 3 40X5544 Receive PCBA (transparency detect) “HTU beacon removal” 4 40X5544 Receive PCBA (bin full) “HTU lens) 5 40X7285 HTU right bottom cover “HTU on 6 40X7280 HTU front standard bin cover “HTU removal” SaleLexmark 40X7280 Front standard bin cover Fully refurbished with 90-day warranty 40X7280 7 40X7274 HTU outer front cover (AIO only) “HTU (AIO SaleLexmark 40X7274 Outer front cover (X792 only) Fully refurbished with 90-day warranty 40X7274 8 40X7279 HTU front redrive cover “HTU on SaleLexmark 40X7279 Front redrive cover Fully refurbished with 90-day warranty 40X7279 9 40X7286 HTU top redrive cover “HTU on 10 40X7277 HTU access door rollers “HTU on 11 40X7258 HTU rear redrive cover “HTU on 12 40X7283 HTU rear standard bin cover “HTU removal” SaleLexmark 40X7283 Rear standard bin cover Fully refurbished with 90-day warranty 40X7283 13 40X7276 HTU access door “HTU page |  |

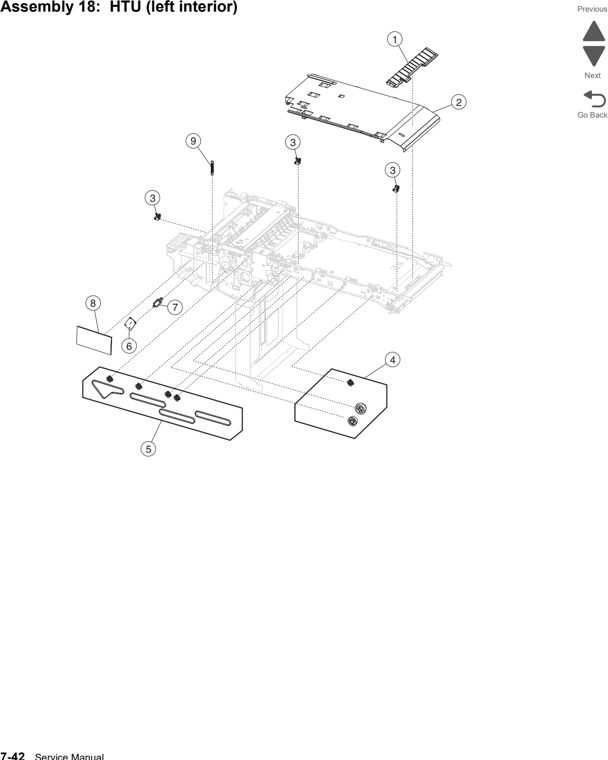

| Assembly 18: HTU (left interior) 1 40X7305 HTU upper redrive guide “HTU page 2 40X7312 HTU lower redrive guide “HTU on SaleLexmark 40X7312 Lower redrive guide Fully refurbished with 90-day warranty 40X7312 3 40X7314 HTU input sensor “HTU page “HTU HTU 2nd sensor page “HTU HTU output sensor page SaleLexmark 40X7314 Sensor (Input Output) Fully refurbished with 90-day warranty 40X7314 4 40X7324 Drive motor gears parts pkt “HTU page • M6 e-clip • 4 mm e-clip • Redrive pulley • Pulley gear • Idler roller 5 40X7288 HTU belts/pulley parts pkt “HTU page (rear) 6 40X4626 HTU bin full send card “HTU lens) 7 40X7315 HTU bin full send/rec lens “HTU and 8 40X7302 HTU controller card “HTU page Lexmark 40X7302 Controller card New 40X7302 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $117.15 SaleLexmark 40X7302 Controller card Fully refurbished with 90-day warranty 40X7302 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 9 40X7316 HTU drive gear spring “HTU on |  |

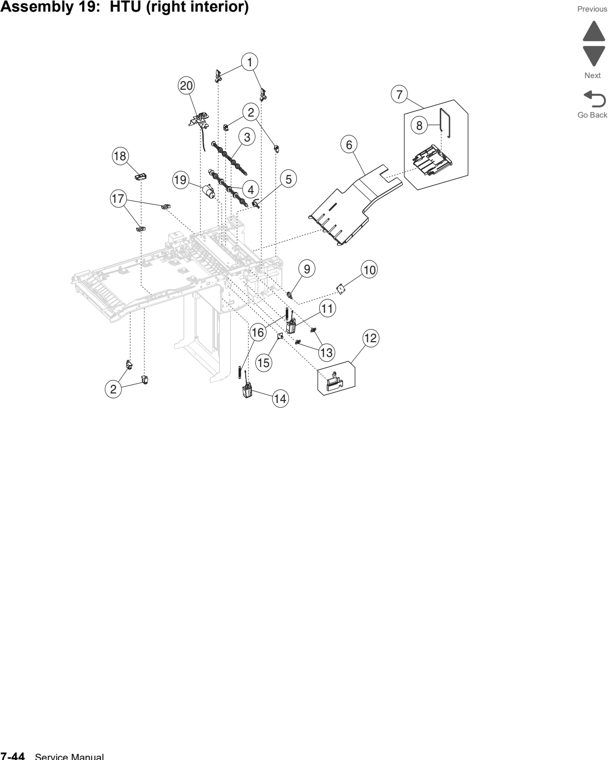

| Assembly 19: HTU (right interior) 1 40X7304 HTU output option with spring hook “HTU page • Spring torsion hook front 2 40X7303 HTU (engage/output option) roller “HTU on 3 40X7319 HTU upper exit shaft “HTU page 4 40X7318 HTU exit roller “HTU page 5 40X4618 HTU empty bin sensor “HTU on SaleLexmark 40X4618 Sensor (finisher bin media present) Fully refurbished with 90-day warranty 40X4618 6 40X7307 HTU output bin “HTU page 7 40X7306 HTU output bin extension “HTU removal” SaleLexmark 40X7306 Output bin extension Fully refurbished with 90-day warranty 40X7306 8 40X7308 HTU output bin stop “HTU removal” 9 40X7315 HTU bin full send/receive lens “HTU and 10 40X5544 HTU bin full receive PCBA “HTU and 11 40X7310 HTU output bin divert solenoid “HTU on 12 40X7281 HTU locking lever “HTU page 13 40X7311 HTU stop diverter “HTU page 14 40X7309 HTU output option diverter solenoid “HTU removal” 15 40X7282 HTU locking lever PCBA “HTU on 16 40X7300 HTU diverter gate spring “HTU removal” “HTU removal” 17 40X7313 HTU access door sensor “HTU interlock) “HTU 18 40X7278 HTU sensor housing “HTU interlock) 19 40X7317 HTU transport motor “HTU page 20 40X7284 HTU output option guide “HTU on |  |

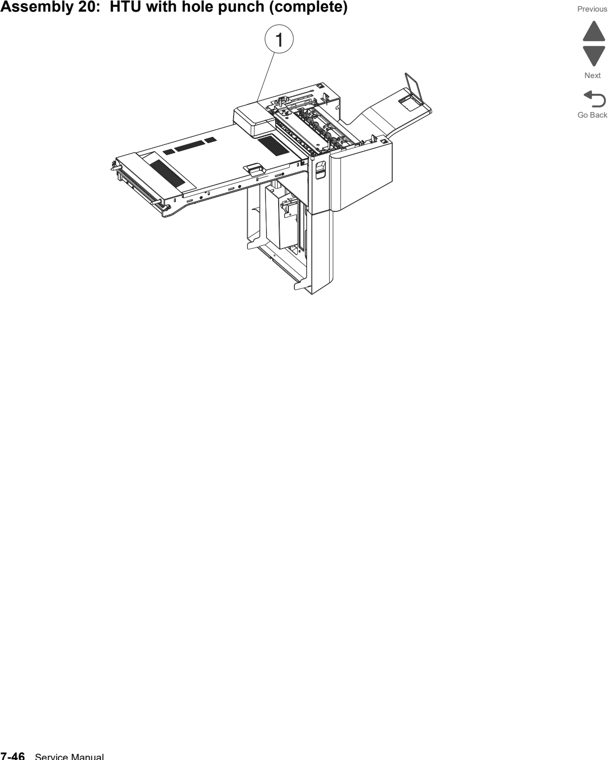

| Assembly 20: HTU with hole punch (complete) 1 40X7235 HTU with hole punch, total assembly N/A Lexmark 40X7235 Redrive Unit with Hole Punch complete assembly Fully refurbished with 90-day warranty 40X7235 $995.00 |  |

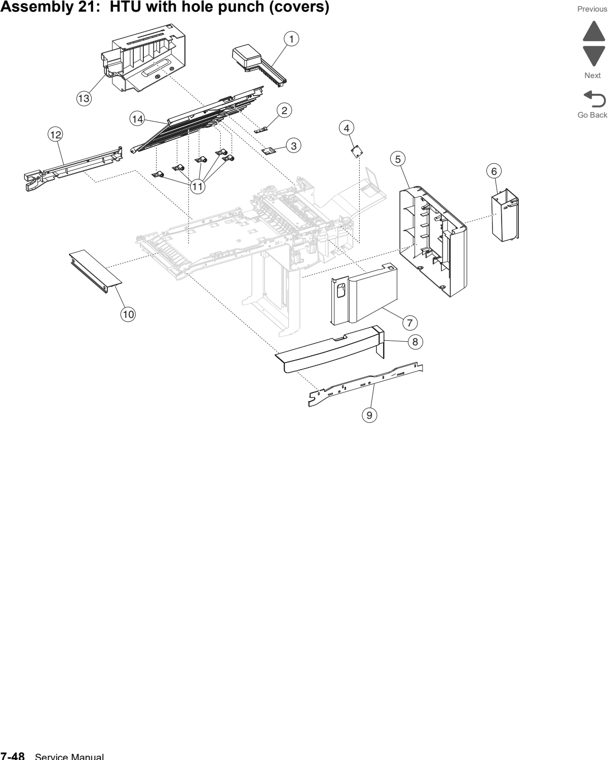

| Assembly 21: HTU with hole punch (covers) 1 40X7326 HTU with hole punch, top right cover 2 40X4528 HTU access door beacon card SaleLexmark 40X4528 Scanner reference LED cable assembly Fully refurbished with 90-day warranty 40X4528 I 3 40X5544 Receive PCBA (transparency detect) 4 40X5544 Receive PCBA (bin full) 5 40X7289 HTU with hole punch, right bottom cover SaleLexmark 40X7289 Right bottom cover Fully refurbished with 90-day warranty 40X7289 6 40X7299 Chad hopper 7 40X7280 HTU front standard bin cover SaleLexmark 40X7280 Front standard bin cover Fully refurbished with 90-day warranty 40X7280 8 40X7274 HTU outer front cover (AIO only) SaleLexmark 40X7274 Outer front cover (X792 only) Fully refurbished with 90-day warranty 40X7274 9 40X7279 HTU front redrive cover SaleLexmark 40X7279 Front redrive cover Fully refurbished with 90-day warranty 40X7279 10 40X7286 HTU top redrive cover 11 40X7277 HTU access door rollers 12 40X7258 HTU rear redrive cover 13 40X7283 HTU rear standard bin cover SaleLexmark 40X7283 Rear standard bin cover Fully refurbished with 90-day warranty 40X7283 14 40X7276 HTU access door |  |

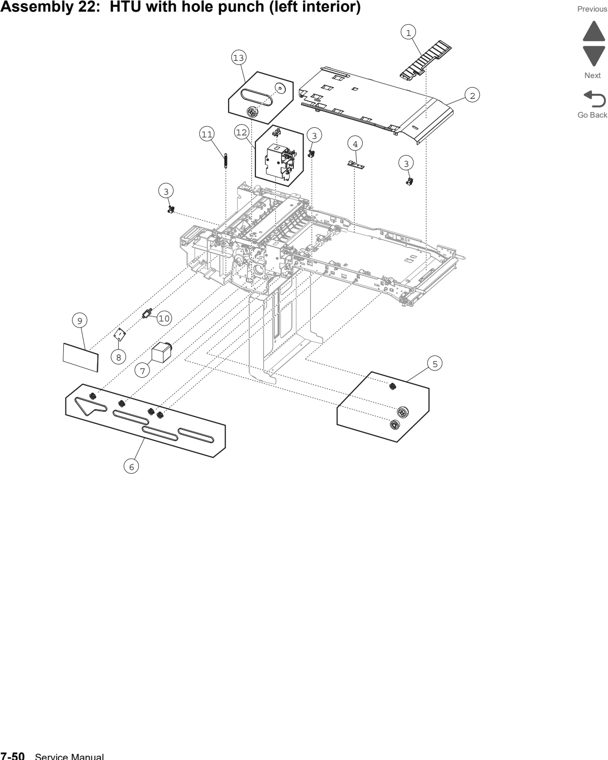

| Assembly 22: HTU with hole punch (left interior) 1 40X7305 HTU upper redrive guide “HTU on 2 40X7312 HTU lower redrive guide “HTU removal” SaleLexmark 40X7312 Lower redrive guide Fully refurbished with 90-day warranty 40X7312 3 40X7314 HTU input sensor “HTU on “HTU HTU 2nd sensor removal” “HTU HTU output sensor on SaleLexmark 40X7314 Sensor (Input Output) Fully refurbished with 90-day warranty 40X7314 4 40X4626 Send PCBA (transparency detect) “HTU beacon removal” 5 40X7324 Drive motor gears parts pkt “HTU on 6 40X7288 HTU belts/pulley parts pkt “HTU page belts page 7 40X7327 Punch motor “HTU on 8 40X4626 HTU bin full send card “HTU and page 9 40X7302 HTU controller card “HTU on Lexmark 40X7302 Controller card New 40X7302 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $117.15 SaleLexmark 40X7302 Controller card Fully refurbished with 90-day warranty 40X7302 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED 10 40X7315 HTU bin full send/rec lens “HTU and page 11 40X7316 HTU drive gear spring “HTU removal” 12 40X7224 Hole punch with sensor “HTU page SaleLexmark 40X7224 Hole punch with sensor Fully refurbished with 90-day warranty 40X7224 13 40X7228 Punch gears and belt “HTU page |  |

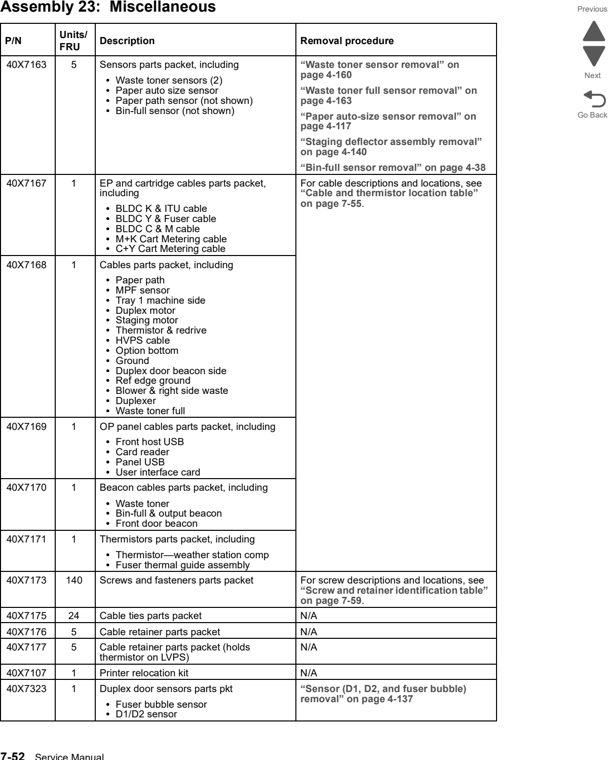

| Assembly 23: Miscellaneous NS 40X7163 Sensors parts packet, including NS 40X7167 EP and cartridge cables parts packet, including NS 40X7168 Cables parts packet, including • Paper path • MPF sensor • Tray 1 machine side • Duplex motor • Staging motor • Thermistor & redrive • HVPS cable • Option bottom • Ground • Duplex door beacon side • Ref edge ground • Blower & right side waste • Duplexer • Waste toner full NS 40X7169 OP panel cables parts packet, including • Front host USB • Card reader • Panel USB • User interface card Lexmark 40x7169 Operator Panel Cables Parts Packet New 40x7169 (New) Retired, no longer available: Contact for alternatives NS 40X7170 Beacon cables parts packet, including • Waste toner • Bin-full & output beacon • Front door beacon NS 40X7171 Thermistors parts packet, including • Thermistor—weather station comp • Fuser thermal guide assembly NS 40X7173 Screws and fasteners parts packet NS 40X7175 Cable ties parts packet NS 40X7176 Cable retainer parts packet N/A NS 40X7177 Cable retainer parts packet (holds thermistor on LVPS) NS 40X7107 Printer relocation kit NS 40X7323 Duplex door sensors parts pkt |  |

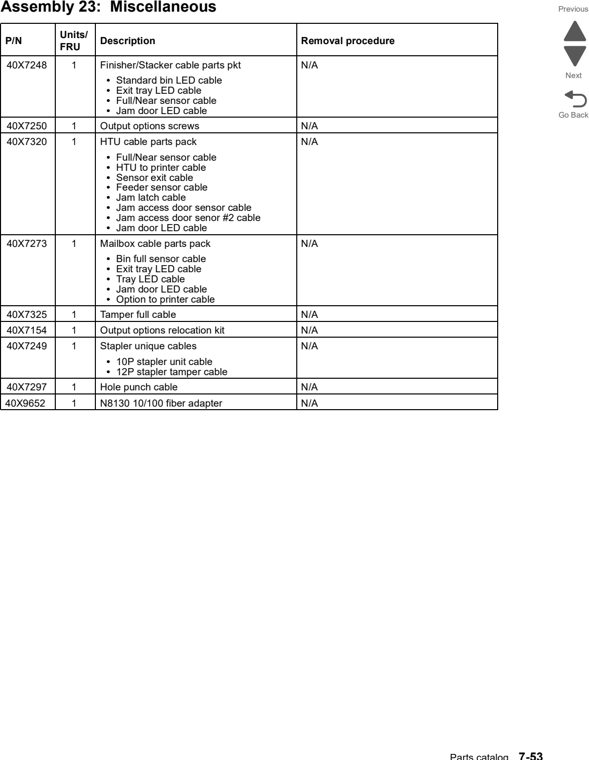

| Assembly 23: Miscellaneous NS 40X7248 Finisher/Stacker cable parts pkt NS 40X7250 Output options screws NS 40X7320 HTU cable parts pack • Full/Near sensor cable • HTU to printer cable • Sensor exit cable • Feeder sensor cable • Jam latch cable • Jam access door sensor cable • Jam access door senor #2 cable • Jam door LED cable NS 40X7273 Mailbox cable parts pack • Bin full sensor cable • Exit tray LED cable • Tray LED cable • Jam door LED cable • Option to printer cable NS 40X7325 Tamper full cable NS 40X7154 Output options relocation kit NS 40X7249 Stapler unique cables • 10P stapler unit cable • 12P stapler tamper cable NS 40X7297 Hole punch cable N/A NS 40X9652 N8130 10/100 fiber adapter |  |

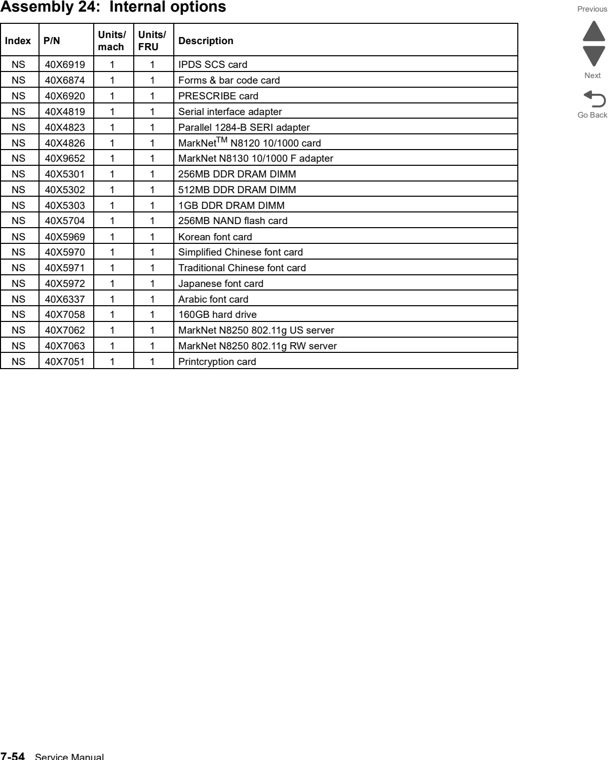

| Assembly 24: Internal options NS 40X6919 IPDS SCS card Next NS 40X6874 Forms & bar code card NS 40X6920 PRESCRIBE card NS 40X4819 Serial interface adapter Go Back NS 40X4823 Parallel 1284-B SERI adapter Lexmark 40X4823 Parallel 1284-B interface card Fully refurbished with 90-day warranty 40X4823 $80.00 NS 40X4826 MarkNetTM N8120 10/1000 card Lexmark 40x4826 MarkNet N8120 GigaBit Ethernet Fully refurbished with 90-day warranty 40X4826 $145.00 NS 40X9652 MarkNet N8130 10/1000 F adapter NS 40X5301 256MB DDR DRAM DIMM NS 40X5302 512MB DDR DRAM DIMM NS 40X5303 1GB DDR DRAM DIMM NS 40X5704 256MB NAND flash card Lexmark 40X5704 256MB Flash Memory Card Fully refurbished with 90-day warranty 40X5704 11B75N-00 $25.00 NS 40X5969 Korean font card NS 40X5970 Simplified Chinese font card NS 40X5971 Traditional Chinese font card NS 40X5972 Japanese font card NS 40X6337 Arabic font card NS 40X7058 160GB hard drive NS 40X7062 MarkNet N8250 802.11g US server NS 40X7063 MarkNet N8250 802.11g RW server NS 40X7051 Printcryption card NS 40X7165 Fuser system Fuser See “Fuser system card and LVPS SaleLexmark 40X7165 Fuser system card and LVPS cable with cable ties Fully refurbished with 90-day warranty 40X7165 NS 40X7166 ITU Right frame See “ITU autoconnect removal” SaleLexmark 40X7166 ITU autoconnect cable Fully refurbished with 90-day warranty 40X7166 NS 40X7167 BLDC K & ITU EP drive See “EP drive assembly removal” NS 10J0931 BLDC Y & EP drive replace them. NS 10J0932 BLDC C & M EP drive NS 10J0940 M+K cartridge Cartridge memory blocks See “Cartridge metering cable NS 10J0955 C+Y cartridge Cat ridge memory blocks NS 40X7168 Paper path Deflector assembly 1. Remove the lower frame cable Thermistor & Behind fuser See “Fuser thermistor removal” NS 10J0929 MPF sensor Multipurpose feeder 1. Remove the MPF sensor plate NS 10J0933 Autocomp Behind Tray 1, between MPF See “MPF drive assembly NS 10J0935 Duplex motor Left access door See “Staging paper path NS 10J0936 Staging motor Left access door See “Staging paper path NS 10J0939 HVPS cable Under HVPS board See “High-voltage power supply (HVPS) board removal” on • System board connector: page 4-71. JHVPS1 Go Back NS 10J0942 Input option Bottom frame 1. Remove the bottom plate of the NS 10J0947 Ground strap Front system board cage 1. Remove the rear cover. See NS 10J0948 Duplex door Behind LVPS exit duct, through See “LVPS exit duct removal” on NS 10J0949 Ref edge Staging paper path reference See “Staging paper path NS 10J0951 Paper path Paper path redrive See “Paper path redrive assembly NS 10J0953 Blower & right Behind blower, on top frame See “Printhead access cover NS 10J0957 Duplex unit Behind LVPS exit duct, through See “LVPS exit duct removal” on NS 10J0967 Waste toner • System board connector: See “Waste toner full cable NS 40X7169 Front host Operator panel assembly, See “Host USB cable removal” on Lexmark 40x7169 Operator Panel Cables Parts Packet New 40x7169 (New) Retired, no longer available: Contact for alternatives NS 10J0970 Card reader Operator panel assembly, See “OP panel cover removal” on NS 10J0971 Operator Under top cover See “Top cover removal” on NS 10J0972 UICC cable Operator panel assembly See “OP panel display removal” on page 4-113. • System board connector: J1 Parts catalog 7-57 NS 40X7170 Waste toner Under lower frame cable cover See “Waste toner cable removal” NS 10J0950 Bin-full sensor Top cover See “Top cover removal” on NS 10J0960 Front door Waste toner left cover See “Waste toner left cover NS 40X7171 Weather On LVPS See step 5 of “Low-voltage power NS 10J1370 Fuser thermal Behind fuser See “Fuser thermistor removal” |  |
| Other listed parts 40X7137 Low-voltage power supply (LVPS) with thermistor retainer Lexmark 40X7137 Low-voltage power supply (LVPS) with thermistor retainer New 40X7137 40X8755 (New) $284.77 Lexmark 40X7137 Advanced Exchange Low-voltage power supply (LVPS) with thermistor retainer New 40X7137 40x8755 Advanced Exchange (New) $207.00 40X7138 System board shield door SaleLexmark 40X7138 System board shield door Fully refurbished with 90-day warranty 40X7138 |
