📖 Lexmark MB2236: Complete Technical Guide. Specifications, maintenance & parts reference from 40 years of Lexmark expertise.

Please call for parts assistance

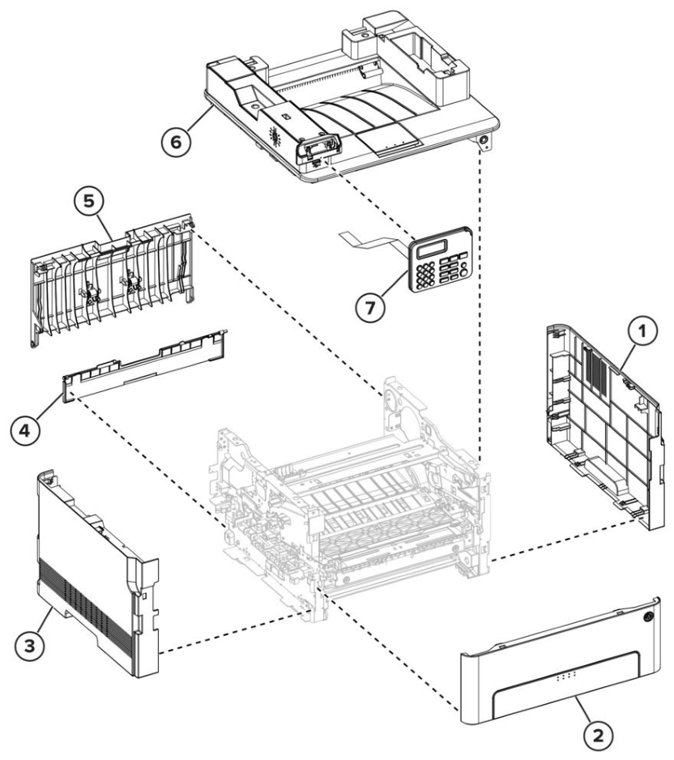

Assembly 1: Covers (MB2236adw) 1 41X2449 Right cover Lexmark 41X2449 Right cover New 41X2449 (New) $27.14 2 41X2450 Front door Lexmark 41X2450 Front door New 41X2450 (New) $29.59 3 41X2451 Left cover Lexmark 41X2451 Left cover New 41X2451 (New) $29.25 4 41X2448 Bottom rear door Lexmark 41X2448 Bottom rear door New 41X2448 (New) $22.08 5 41X2447 Rear door Lexmark 41X2447 Rear door New 41X2447 (New) $24.73 6 41X2446 Top cover Lexmark 41X2446 Top cover New 41X2446 (New) $93.50 7 41X2479 2‑line control panel Lexmark 41X2479 Control panel New 41X2479 (New) $59.27

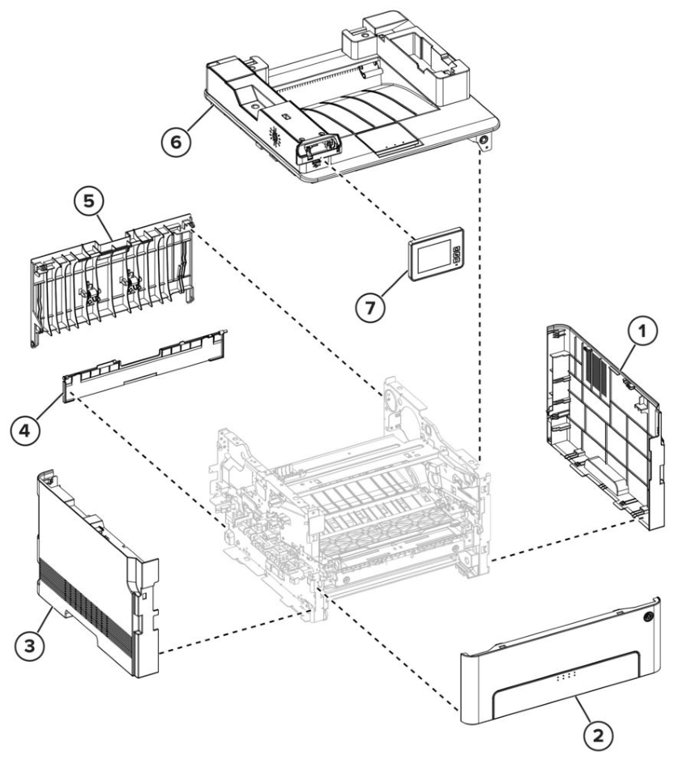

Assembly 2: Covers (MB2236adwe, MB2236i) 1 41X2449 Right cover Lexmark 41X2449 Right cover New 41X2449 (New) $27.14 2 41X2450 Front door Lexmark 41X2450 Front door New 41X2450 (New) $29.59 3 41X2451 Left cover Lexmark 41X2451 Left cover New 41X2451 (New) $29.25 4 41X2448 Bottom rear door Lexmark 41X2448 Bottom rear door New 41X2448 (New) $22.08 5 41X2447 Rear door Lexmark 41X2447 Rear door New 41X2447 (New) $24.73 6 41X2446 Top cover (MB2236adwe) Lexmark 41X2446 Top cover New 41X2446 (New) $93.50 6 41X2979 Top cover (MB2336i) Lexmark 41X2979 Top cover (MB2336i) New 41X2979 (New) $121.23 7 41X2516 2.8‑in. control panel Lexmark 41X2516 2.8-inch control panel New 41X2516 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $90.82

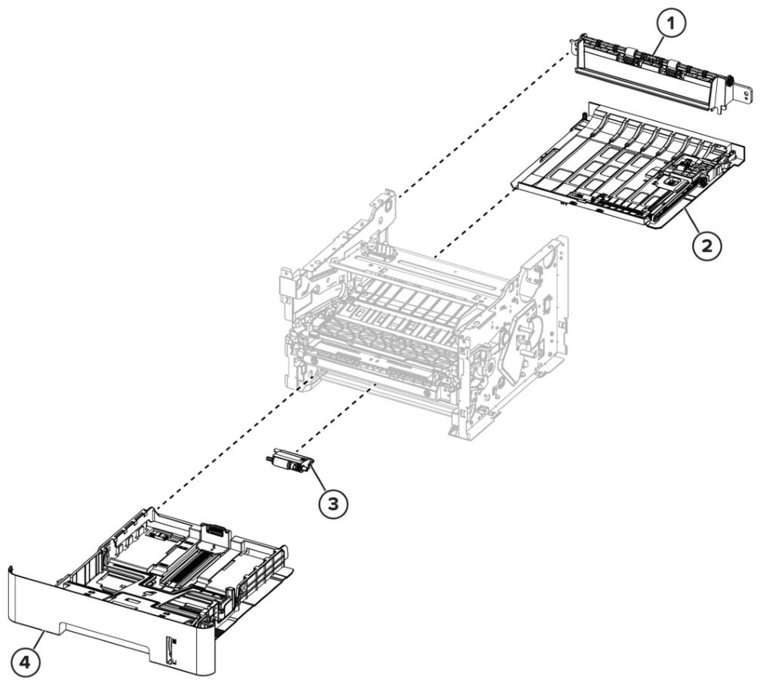

Assembly 3: Paper path 1 41X2453 Redrive Lexmark 41X2453 Redrive New 41X2453 (New) $24.50 2 41X2454 Duplex unit Lexmark 41X2454 Duplex unit New 41X2454 (New) $33.64 3 41X2455 Pick roller Lexmark 41X2455 Pick roller New 41X2455 (New) $20.43 4 41X2452 Tray insert Lexmark 41X2452 Tray insert New 41X2452 (New) $76.60

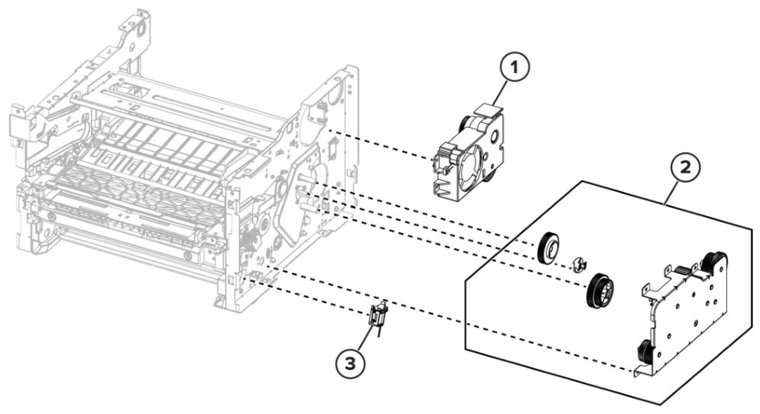

Assembly 4: Drive 1 41X2470 Fan assembly Lexmark 41X2470 Fan assembly New 41X2470 (New) $25.32 2 41X2471 Main drive Lexmark 41X2471 Main drive New 41X2471 (New) $32.22 3 41X2472 Pick solenoid Lexmark 41X2472 Pick solenoid New 41X2472 (New) $18.14

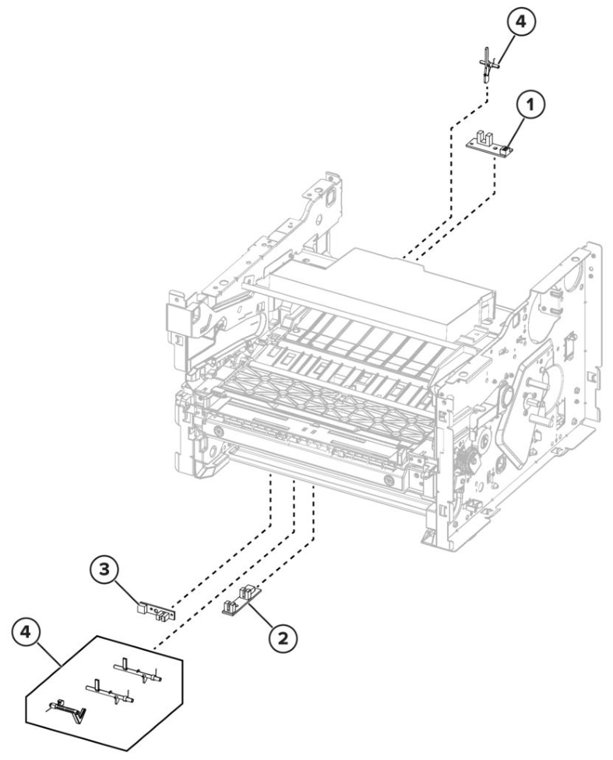

Assembly 5: Sensors 1 41X2468 Sensor (fuser exit) page Lexmark 41X2468 Sensor (fuser exit) New 41X2468 (New) $19.97 2 41X2467 Sensor (staging and input) Sensor removal Lexmark 41X2467 Sensor (input) New 41X2467 (New) $17.26 3 41X2466 Sensor (paper present) Sensor removal Lexmark 41X2466 Sensor (paper present) New 41X2466 (New) 3-4 day lead $17.80 4 41X2469 Sensor flags Input page Fuser page Lexmark 41X2469 Sensor flags New 41X2469 (New) $16.00

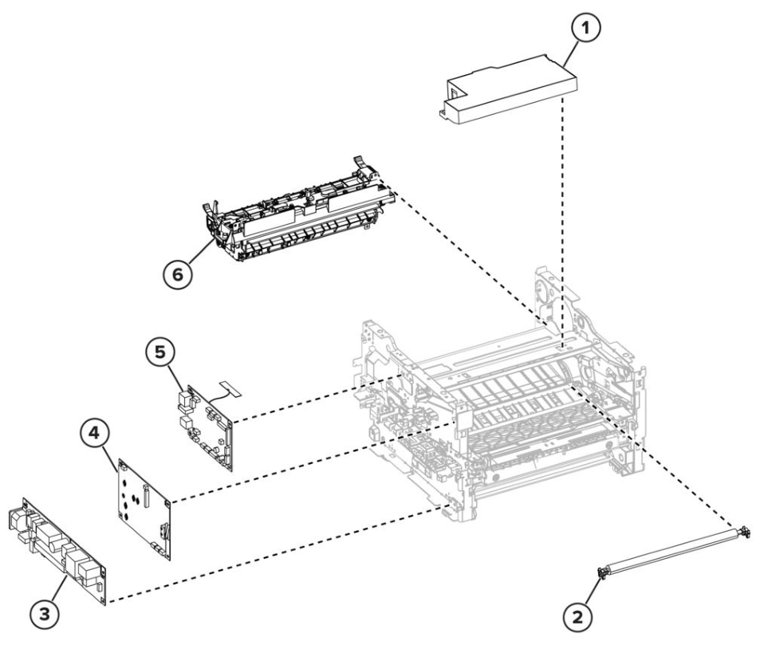

Assembly 6: Electronics 1 41X2843 Printhead Lexmark 41X2843 Printhead New 41X2843 (New) $123.79 2 41X2457 Transfer roller Lexmark 41X2457 Transfer roller New 41X2457 (New) $20.28 3 41X2459 LVPS, 110 V Lexmark 41X2459 LVPS 110 V New 41X2459 (New) $68.50 3 41X2460 LVPS, 220 V 4 41X2458 HVPS Lexmark 41X2458 HVPS New 41X2458 (New) $53.36 5 41X2461 Controller board (MB2236adw) Lexmark 41X2461 Controller board New 41X2461 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $197.85 5 41X2973 Controller board (MB2236adw) Note: Make sure to upgrade the firmware to version FW 074.038 or later. Lexmark 41X2973 Controller board (MB2236adw) New 41X2973 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $185.31 Lexmark 41X2973 Controller board (MB2236adw) Fully refurbished with 90-day warranty 41X2973 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $138.32 5 41X2515 Controller board (MB2236adwe) Lexmark 41X2515 e controller board New 41X2515 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $186.84 5 41X2974 Controller board (MB2236adwe) Note: Make sure to upgrade the firmware to version FW 074.038 or later. Lexmark 41X2974 Controller board (MB2263adwe) New 41X2974 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $189.94 Lexmark 41X2974 Controller board (MB2236adwe) Fully refurbished with 90-day warranty 41X2974 This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $141.79 6 41X2463 Fuser, 110 V Lexmark 41X2463 Fuser 110 V New 41X2463 41X6258 (New) Contact for Details 6 41X2464 Fuser, 220 V NS 41X2482 Cable kit parts pack Lexmark 41X2482 Cable kit parts pack New 41X2482 (New) $27.53 Lexmark 41X2482 Cable kit parts pack Fully refurbished with 90-day warranty 41X2482 $20.95 NS 41X2634 Control panel and fax FFC cable Lexmark 41X2634 Control panel and fax FFC cable New 41X2634 (New) $14.98 Lexmark 41X2634 Control panel and fax FFC cable Fully refurbished with 90-day warranty 41X2634 Contact for Details NS 41X2617 Front USB cable Lexmark 41X2617 Front USB cable New 41X2617 (New) $26.01

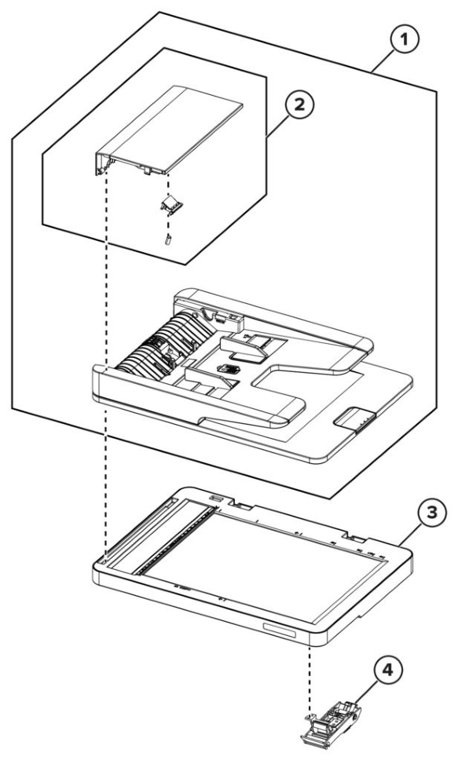

Assembly 7: Scanner 1 41X2476 ADF scanner assembly (old) Lexmark 41X2476 ADF scanner assembly (Old-style) New 41X2476 (New) Retired, no longer available: Contact for alternatives Contact for Details Lexmark 41X2476 ADF scanner assembly (Old-style) Fully refurbished with 90-day warranty 41X2476 Contact for Details 1 41X4494 ADF scanner assembly (new) Lexmark 41X4494 ADF scanner assembly (New-style) Fully refurbished with 90-day warranty 41X4494 Contact for Details Lexmark 41X4494 ADF scanner assembly (New-style) New 41X4494 (New) $135.01 2 41X2480 ADF pick assembly Lexmark 41X2480 ADF pick assembly New 41X2480 (New) $25.77 3 41X2478 Flatbed scanner (old) Lexmark 41X2478 Flatbed scanner (Old-style) New 41X2478 (New) Contact for Details Lexmark 41X2478 Flatbed scanner (Old-style) Fully refurbished with 90-day warranty 41X2478 Contact for Details 3 41X4495 Flatbed scanner (new) Lexmark 41X4495 Flatbed scanner (New-style) New 41X4495 (New) $120.55 Lexmark 41X4495 Flatbed scanner (New-style) Fully refurbished with 90-day warranty 41X4495 Contact for Details 4 41X2629 Scanner stand Lexmark 41X2629 Scanner stand New 41X2629 (New) $24.11 Lexmark 41X2629 Scanner stand Fully refurbished with 90-day warranty 41X2629 $18.33
Assembly 8: Miscellaneous NS 40X0278 Power cord, straight—Austria and Russia NS 40X0282 Power cord, straight—PRC NS 40X0286 Power cord, straight—Ireland, Bahrain, Cyprus, Kuwait, Lebanon, Malta, Oman, Qatar, United Arab Emirates, and United Kingdom (England, Scotland, Wales, and Northern Ireland) NS 40X0297 Power cord, straight (6 feet)— US, Canada, and Latin America (Colombia, Costa Rica, Dominican Republic, Ecuador, El Salvador, Guatemala, Honduras, Mexico, Nicaragua, Panama, Puerto Rico, Venezuela, and the US Virgin Islands) Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP New 40X0297 (New) Contact for Details Lexmark 40X0297 Power cord; 1.8 m, 6 ft. Straight, US, Canada, Latin America, AP Fully refurbished with 90-day warranty 40X0297 Contact for Details NS 40X4596 Power cord, 3-wire (10A, 2500 mm)—Brazil Lexmark 40x4596 Power cord; 2.5m, 8ft. Straight, Brazil New 40x4596 (New) Contact for Details NS 40X1792 Power cord, straight (8 feet)— Korea Lexmark 40x1792 Power cord; 2.5m, 8ft. Straight, Korea New 40x1792 (New) Contact for Details NS 40X0296 Power cord, straight— Australia Note: This part is obsolete. NS 40X0279 Power cord, straight— Denmark NS 40X0271 Power cord, straight—United Kingdom Lexmark 40x0271 Power Cord; 2.5m, 8ft. Straight, UK, Ireland, HK, IT New 40x0271 (New) Retired, no longer available: Contact for alternatives Contact for Details NS 40X1791 Power cord, straight (8 feet)— Taiwan Lexmark 40x1791 Power Cord; 2.5m, 8ft. Straight, Taiwan New 40x1791 (New) Contact for Details
Other listed parts 41X2456 Printhead Lexmark 41X2456 Printhead New 41X2456 (New) Contact for Details 41X6129 Hinge 41X6129 ADF Hinge New 41X6129 (New) $37.30 X41X2461 On Exchange Lexmark X41X2461 On Exchange New X41X2461 (New) Contact for Details
