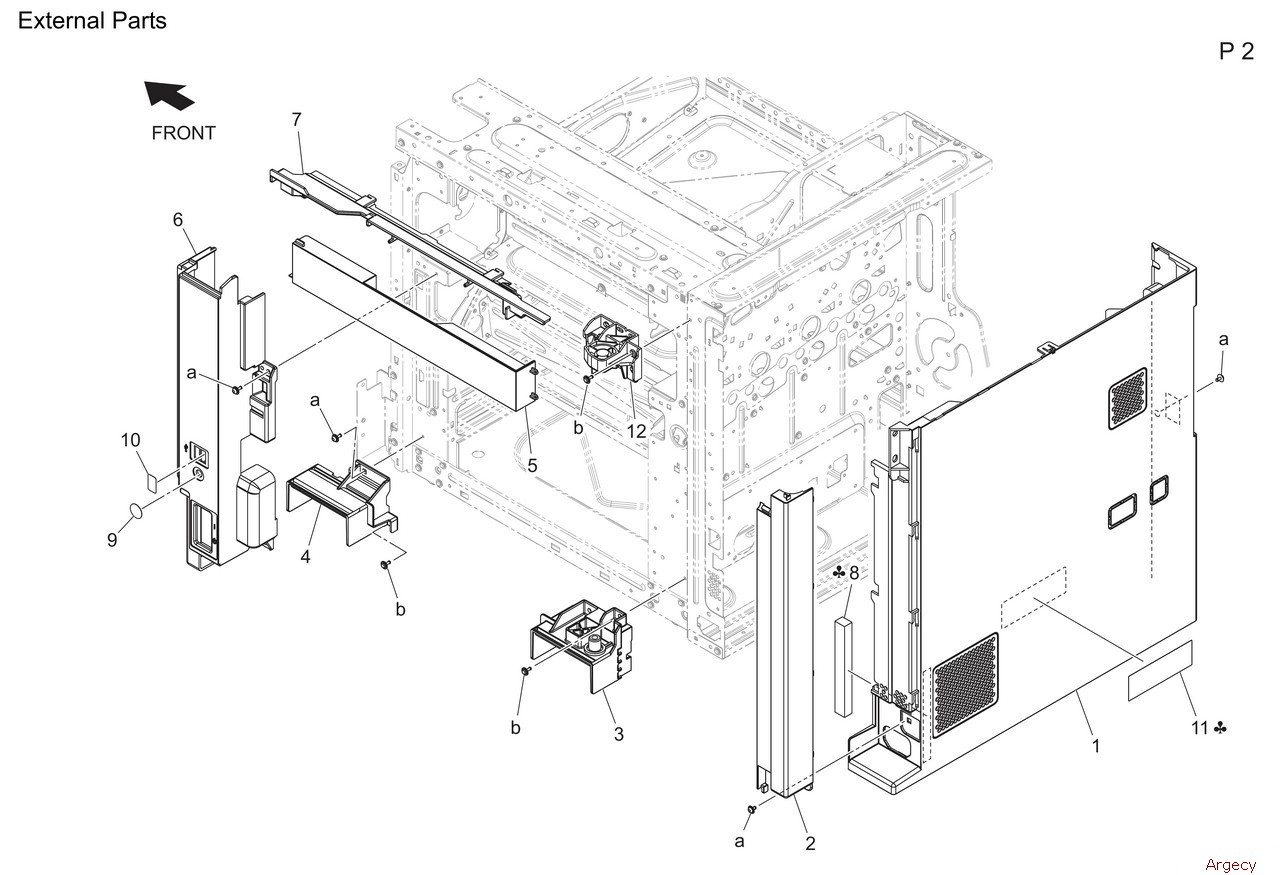

\n External Parts\n \n 1 AAJNR70300 OPTICAL UNIT\n \n 1 AAJNR70400 OPTICAL UNIT\n \n 2 A93E160103 Paper exit Cover\n \n 3 A93E151700 Duct\n \n 4 A93E162801 Paper exit Cover\n \n 5 A797162000 Band\n \n 6 A93E160214 Openclose Cover Front\n \n 7 A93E160302 Openclose Cover Front\n \n 8 AAJRR71900 Cleaning Material\n \n 9 ACT9941100 Sheet\n \n 10 A00J945500 Logo Mark\n \n 11 ACT8940100 Label bizhub 4750i\n \n 12 A93E168100 Support Arm\n \n 13 A93E160603 Cover\n \n 14 A93E160700 Cover\n \n 15 A93E162701 Paper exit Cover\n \n 16 A93E164000 Paper exit Tray\n \n 17 A93E153500 Seal\n \n 18 A02E940300 Label\n \n 19 ACT9150200 Seal\n	\n \n
\n External Parts\n \n 1 A93E166103 Cover\n \n 2 A93E166200 Cover\n \n 3 A93E101702 Handle\n \n 4 A93E101803 Handle\n \n 5 A93E161902 Cover\n \n 6 A93E161301 Cover\n \n 7 A93E162001 Cover\n \n 8 A93E157200 Seal\n \n 9 A7PU168600 Seal\n \n 10 A7PU168500 Seal\n \n 11 A7PU941701 Label Caution\n \n 12 A93E108101 Adjusting Plate\n	\n \n

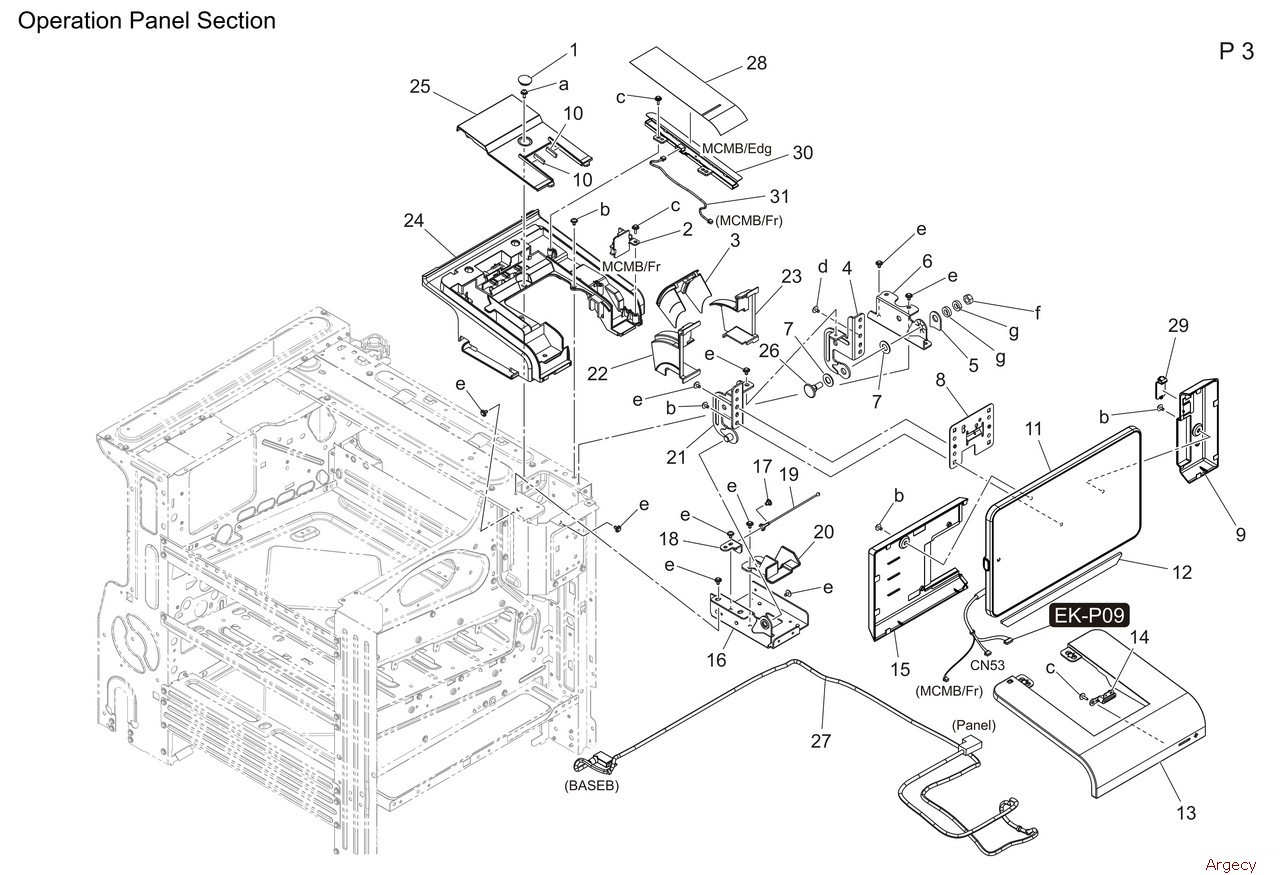

\n Operation Panel Section\n \n 1 A02E167700 Cover\n \n 2 A93EM72001 Indicating Unit\n \n 3 A93E191601 Cover\n \n 4 A93E191000 Hinge\n \n 5 AA2J191300 Spacer\n \n 6 A93E190300 Mounting Plate Right\n \n 7 AA2J191800 Slide Spacer\n \n 8 AA2J191201 Mounting Plate\n \n 9 AA2J192100 Cover Right rear\n \n 10 A93E161400 Brake Part\n \n 11 A93EM70005 Panel Assy\n \n 12 AA2J195000 Cushion\n \n 13 A93E161102 Panel\n \n 14 AA2J193000 Indicating Part\n \n 15 AA2J192200 Cover Left rear\n \n 16 A93E190202 Mounting Plate\n \n 17 A7AH267201 Shoulder screw\n \n 18 AA2J193100 Mounting Plate\n \n 19 A93E191701 Wire\n \n 20 A93E192700 Guide Part\n \n 21 A93E190900 Hinge ASSY\n \n 22 A93E192401 Cover\n \n 23 A93E191302 Cover\n \n 24 A93E161002 Panel\n \n 25 A93E161201 Panel\n \n 26 AA2J191600 Shaft\n \n 27 A93EN12311 Interface Cable\n \n 28 A93E192800 Reflecting Sheet C\n \n 29 AA2J192801 Cover\n \n 30 A93EM72100 Indicating Unit\n \n 31 A93EN12400 Harness\n	\n \n

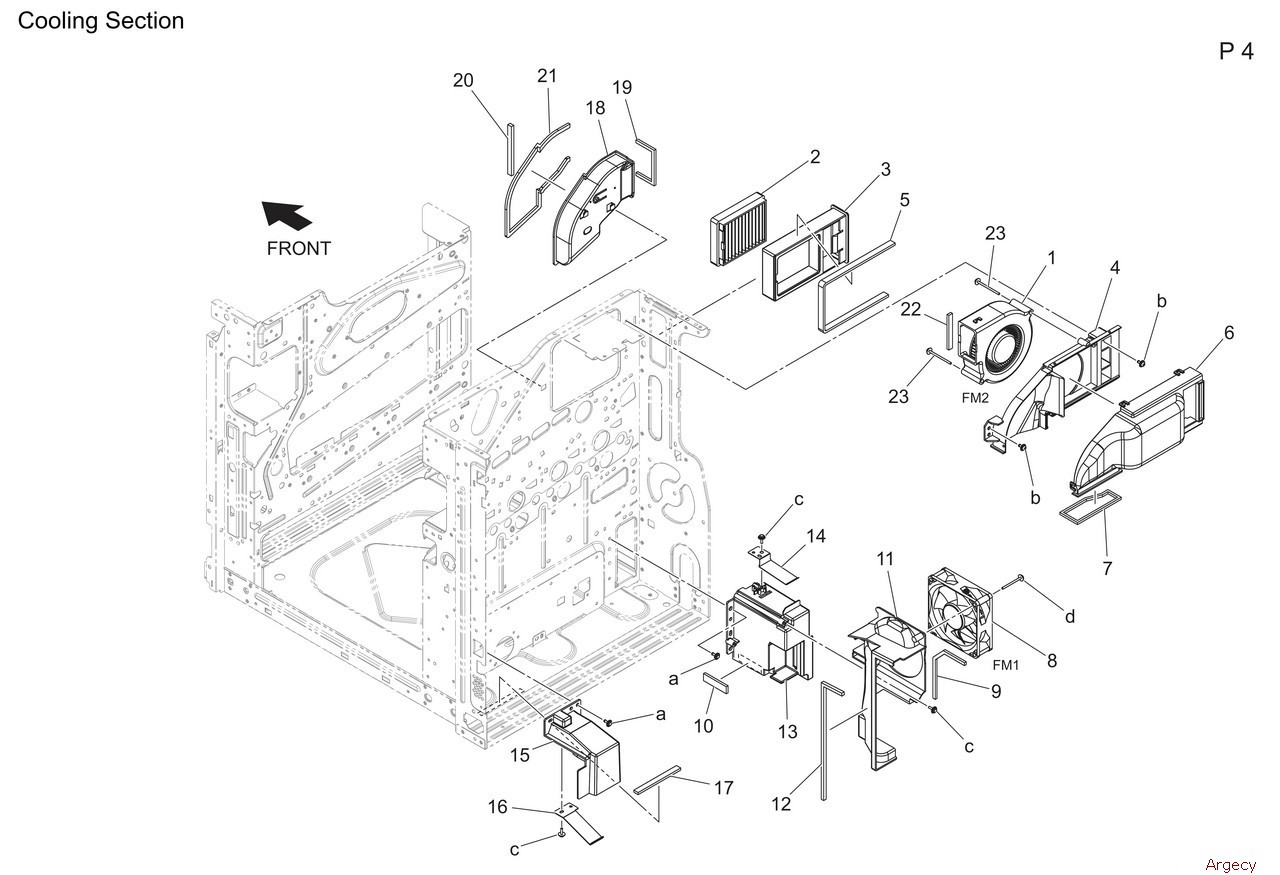

\n Cooling Section\n \n 1 A93EM10600 Fan motor\n \n 2 A92E158100 Dust-proof Filter\n \n 3 A93E155001 Filter Holder\n \n 4 A93E152801 Duct\n \n 5 A93E155100 Seal\n \n 6 A93E152701 Duct\n \n 7 A93E152400 Seal\n \n 8 A93EM10000 Fan motor\n \n 9 A93E156900 Seal\n \n 10 A93E157300 Seal\n \n 11 A93E150600 Duct\n \n 12 A93E150800 Seal\n \n 13 A93E623200 Cover\n \n 14 A93E626600 Plate spring\n \n 15 A93E623100 Cover\n \n 16 A93E626000 Plate spring\n \n 17 A93E157000 Seal\n \n 18 A93E151500 Duct\n \n 19 A93E151800 Seal\n \n 20 A93E153400 Seal\n \n 21 A93E153200 Seal\n \n 22 A93E153300 Seal\n \n 23 A93E154000 Screw B\n	\n \n

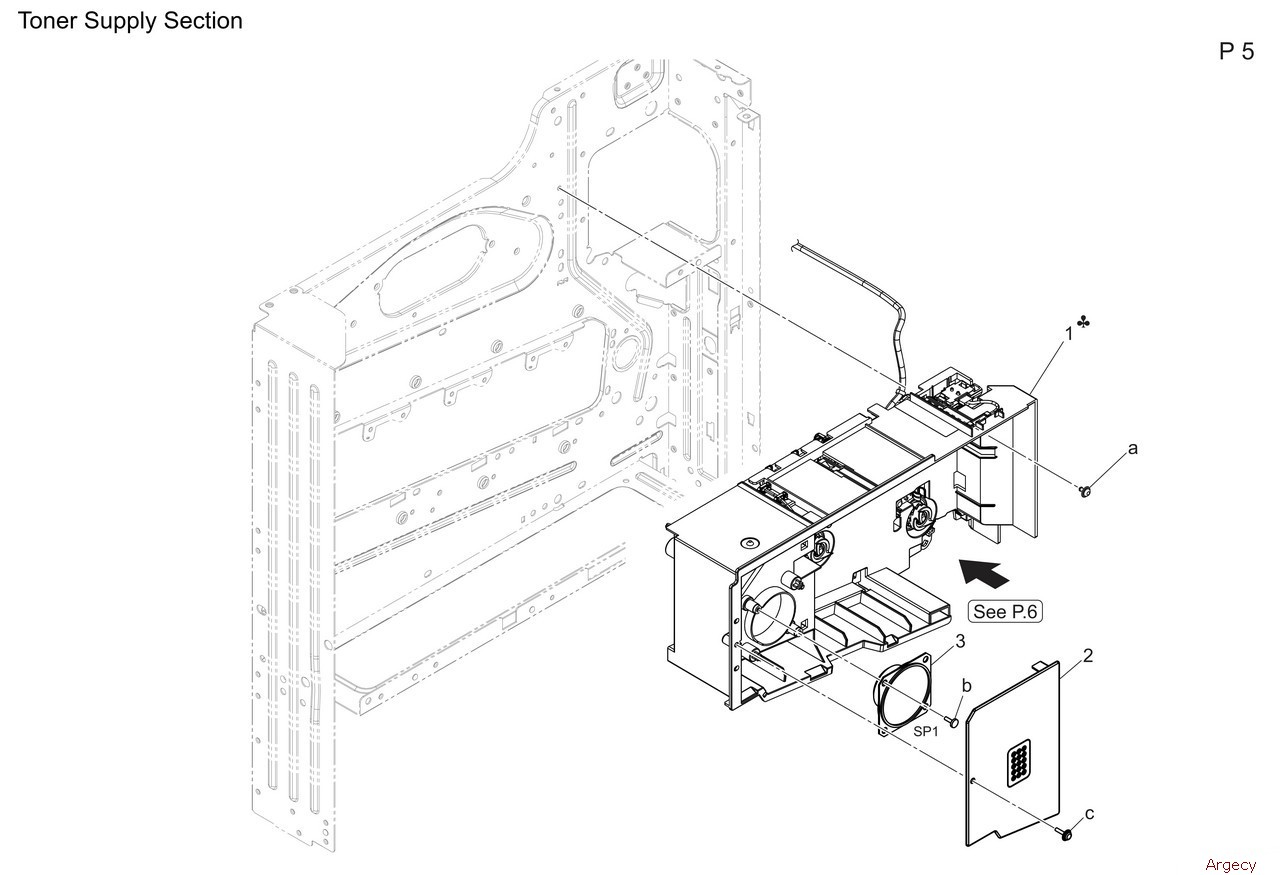

\n Toner Supply Section\n \n 1 ACT9R70400 TB Drive ASSY\n \n 1 ACT9R71200 TB Drive ASSY\n \n 2 ACT9400200 Cover\n \n 3 A0P0M73100 Speaker\n	\n \n

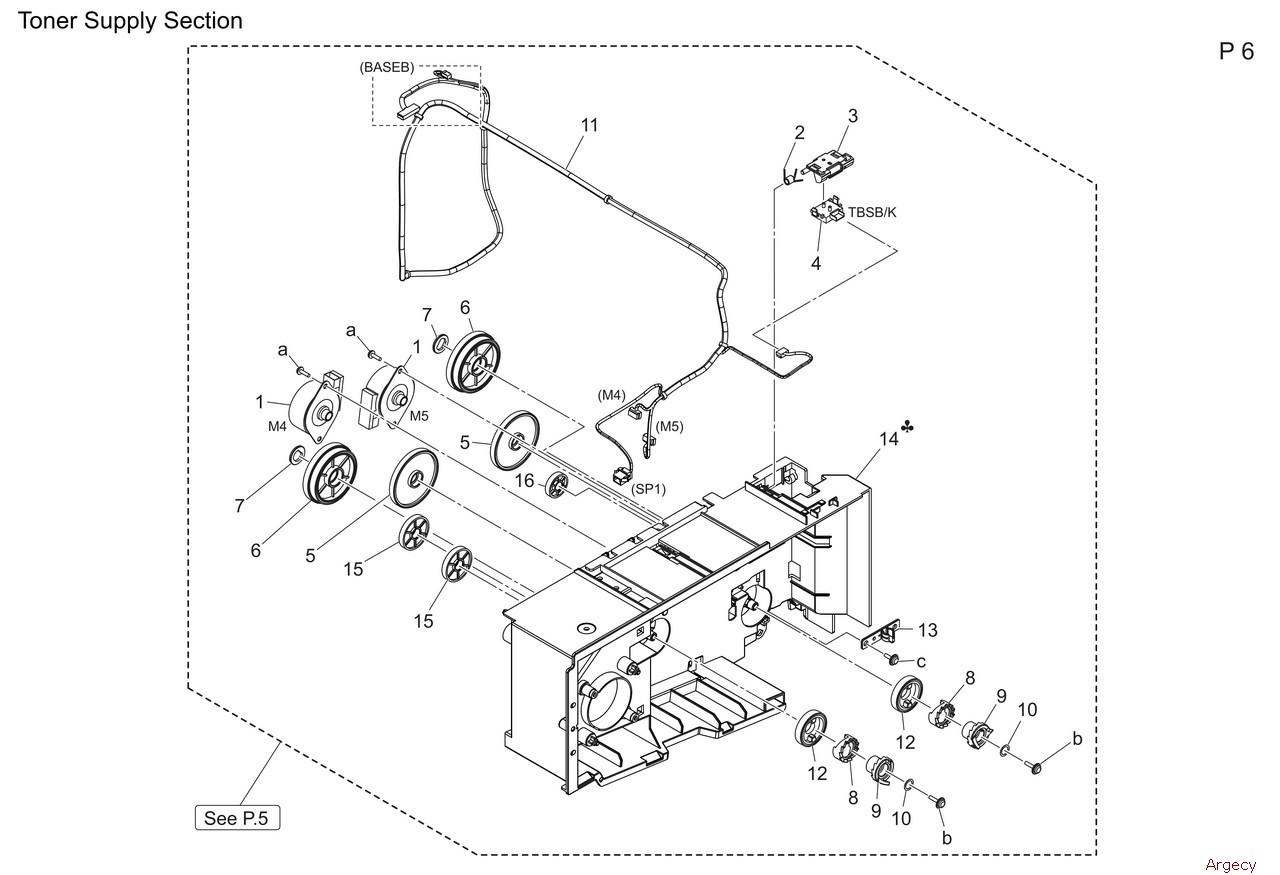

\n Toner Supply Section\n \n 1 A7PUM10700 Stepping motor\n \n 2 A3GN401000 Torsion Coil spring\n \n 3 A93E401400 Mounting Plate\n \n 4 A0EDM60001 Relay Connector\n \n 5 A93E400200 Gear 20107T\n \n 6 A93E400300 Gear 4986T\n \n 7 A93E402000 Holding Part\n \n 8 A93E400900 Coupling\n \n 9 A93E400800 Coupling\n \n 10 A93E401700 Washer\n \n 11 ACT9N10100 Toner Control Harness\n \n 12 A93E400500 Gear 30T\n \n 13 A93E401500 Lock Part\n \n 14 ACT9400001 Holder\n \n 14 ACT9405001 Holder\n \n 15 ACT9400100 Gear\n \n 16 A93E400400 Gear 25T\n	\n \n

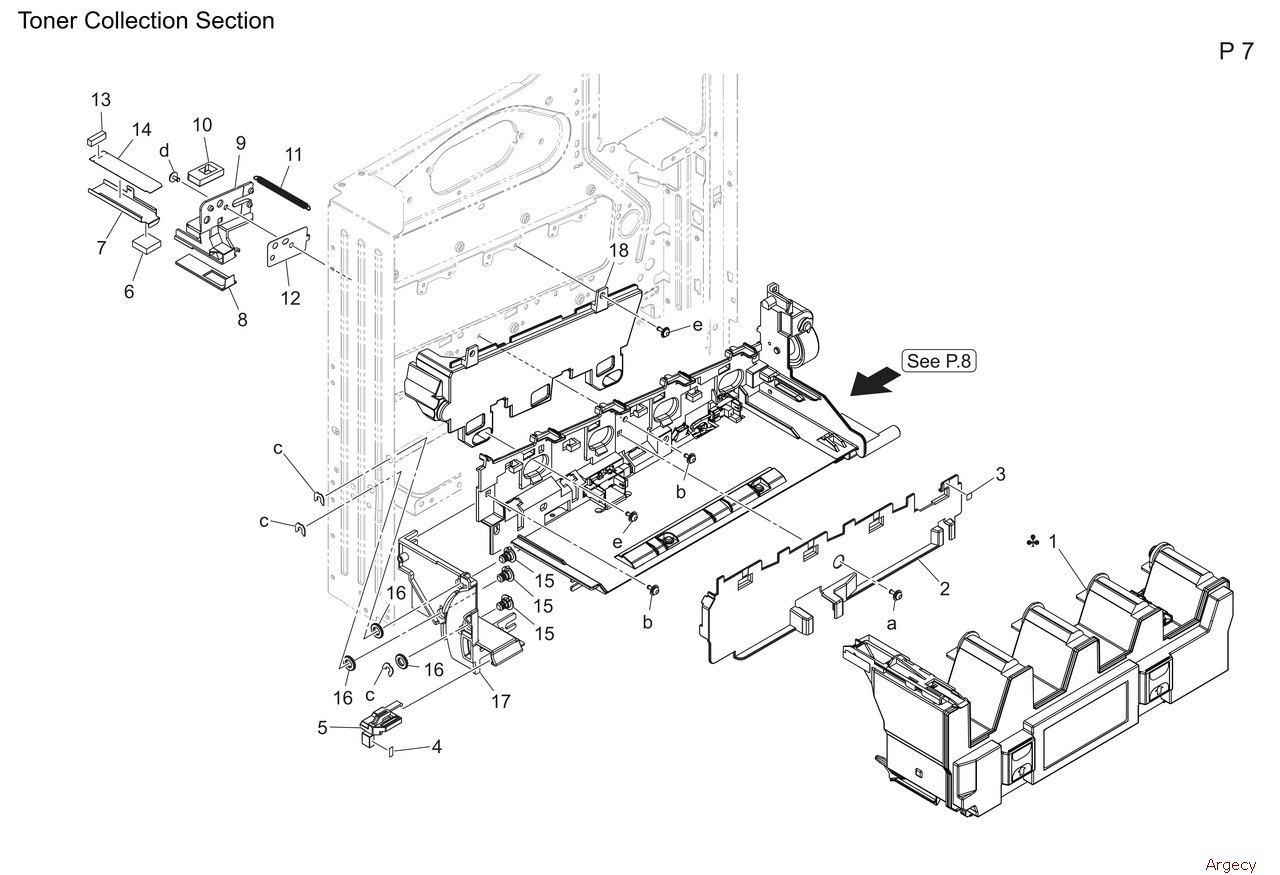

\n Toner Collection Section\n \n 1 ACTE011 Waste Toner Bottle\n \n 1 ACTEWY1 Waste Toner Bottle\n \n 2 A93E164502 Cover\n \n 3 A02E940300 Label\n \n 4 A93E940600 Label\n \n 5 A93E623602 Stopper\n \n 6 A93E363701 Seal\n \n 7 A93E362301 Shutter\n \n 8 A93E362402 Seal\n \n 9 A93E363803 Holder\n \n 10 A93E362201 Seal\n \n 11 A93E362501 Pulling Coil spring\n \n 12 A93E110300 Ground Spring\n \n 13 A93E363900 Seal\n \n 14 A93E364100 Seal\n \n 15 A93E168000 Shaft\n \n 16 A93E168300 Roll\n \n 17 A93E165200 Cover B\n \n 18 ACT9165002 Cover\n	\n \n

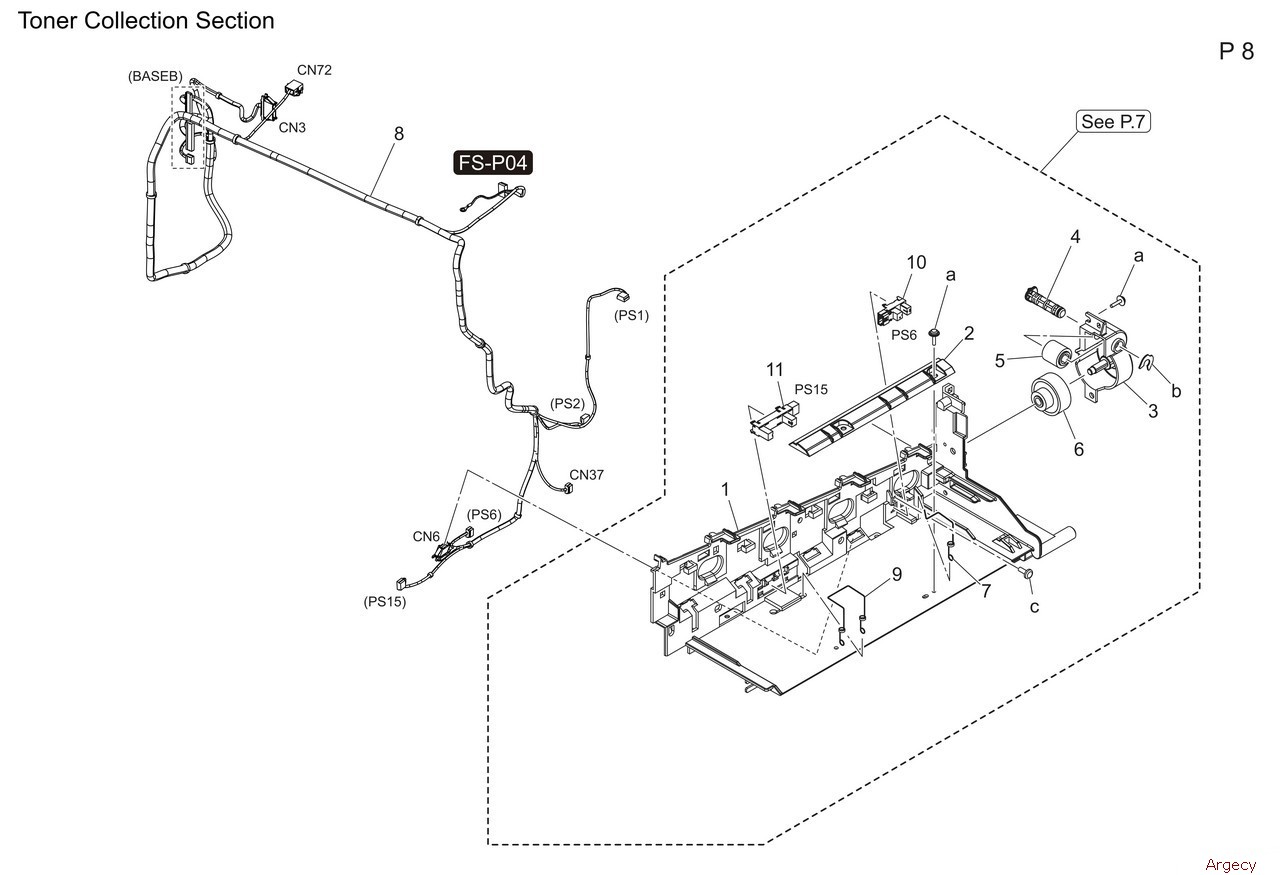

\n Toner Collection Section\n \n 1 A93E165113 Cover\n \n 2 A93E165301 Lock Claw\n \n 3 A93E240000 Drive Holder\n \n 4 A93E240100 Connecting Shaft\n \n 5 A93E240500 Gear 10T\n \n 6 A93E240600 Gear 1320T\n \n 7 A93E163011 Pulling Coil spring\n \n 8 ACT9N10001 Photoconductor Harness\n \n 9 A93E163111 Pulling Coil spring\n \n 10 A5C1M50100 Photointerrupter\n \n 11 9335140051 Solid State Switch\n	\n \n

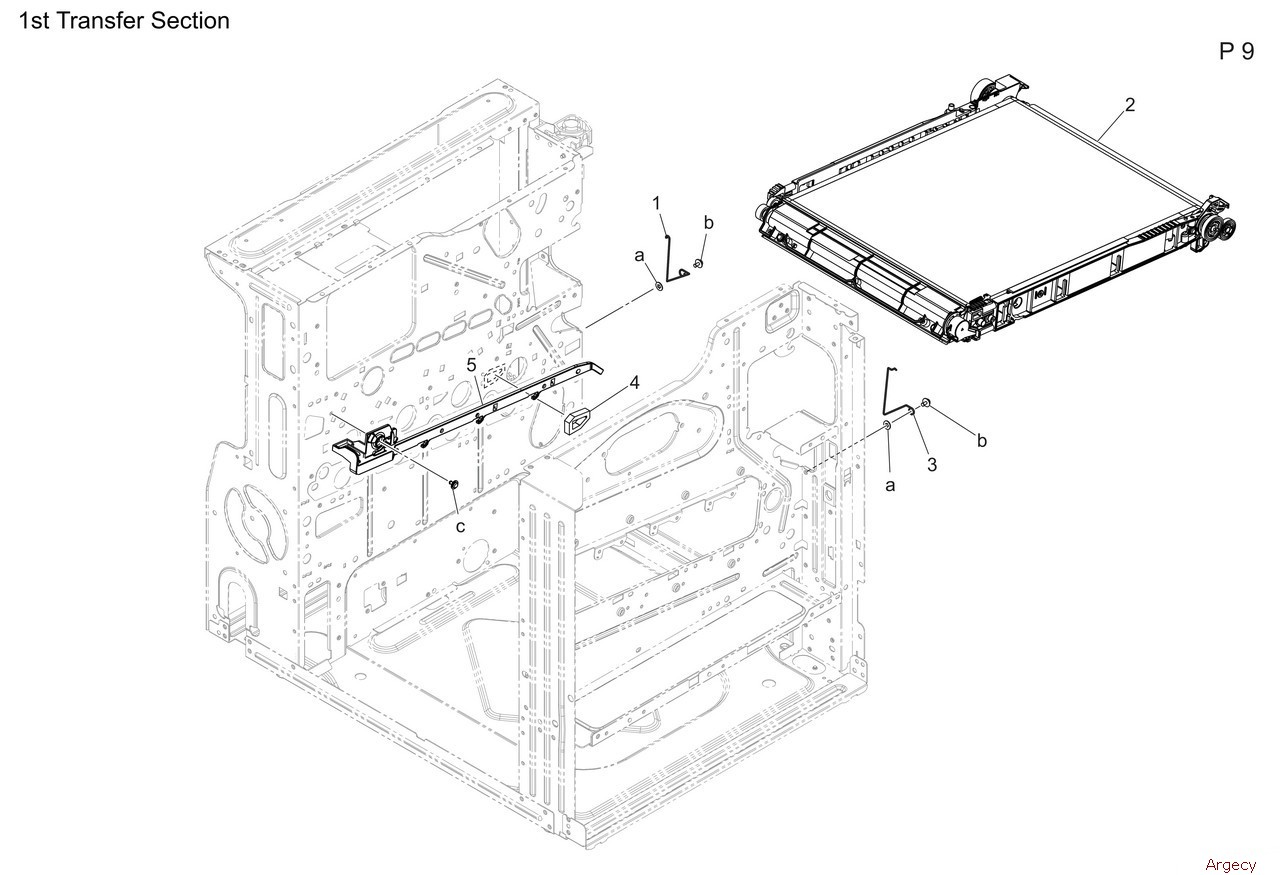

\n 1st Transfer Section\n \n 1 A93E110400 Fixing Spring\n \n 2 ACT9R70300 Transfer Unit\n \n 3 A93E110600 Fixing Spring\n \n 4 A93E152600 Seal\n \n 5 A93E110100 Rail Rear\n	\n \n
\n Paper Feed Section\n \n 1 ACT9R70700 Conveyance Paper Feed Assy\n \n 2 A93E701902 Guide\n \n 3 A93E703102 Open/close Guide\n \n 4 A93E703200 Compressing Coil spring\n \n 5 4532341001 SHOULDER SCREW\n \n 6 A93E700401 Conveyance Guide\n \n 7 A161M50000 Photo sensing\n \n 8 A93E705200 Ground Plate\n \n 9 A93EN10J00 Relay harness\n \n 10 A93E133300 Cover\n \n 11 A93E707800 Sheet\n \n 12 A93E707700 Sheet\n	\n \n
\n Paper Feed Section\n \n 1 A93E705000 Holder\n \n 2 A93E230600 Gear 20T\n \n 3 A93E700600 Mounting Plate\n \n 4 A93E701101 Roller\n \n 5 A93E705401 Stopper Part\n \n 6 A93E700800 Guide\n \n 7 A93E704800 Cushion\n \n 8 A93E705301 Stopper Part\n \n 9 A93E707300 Roll\n \n 10 A93E700902 Torsion Coil spring\n \n 11 A93E706100 Bushing\n \n 12 1134304301 BUSHING\n \n 13 A93E701600 Gear 20T\n \n 14 A93E701700 Compressing Coil spring\n \n 15 A93E701300 Lever\n \n 16 A93E701500 Ground Plate\n \n 17 A93E701211 Reinforce Plate\n \n 18 A5C1M50100 Photointerrupter\n \n 19 ACT9700100 Conveyance Guide\n \n 20 A7AHM50400 Humidity sensor\n \n 21 A93E230500 Gear 17T\n \n 22 A93E230400 Gear 17T\n \n 23 A93E230700 Gear 1718T\n \n 24 A7AHM20501 Clutch\n \n 25 A93E230301 Gear 19T\n	\n \n
\n Paper Feed Section\n \n 1 A0EDM50100 Photoreflector\n \n 2 A93E562200 Mounting Plate\n \n 3 A5C1M50100 Photointerrupter\n \n 4 A93E562411 Mounting Plate\n \n 5 A7AH562900 Protection Sheet\n \n 6 A93E560501 Paper feed Shaft\n \n 7 1134304301 BUSHING\n \n 8 A7AH562400 Paper feed Gear\n \n 9 A02E561100 Clutch\n \n 10 A64J564101 Paper feed Roller\n \n 11 A64J564201 Paper feed Roller\n \n 12 A7AH562600 Conveyance Gear 28T\n \n 13 A7AH562300 Idling Gear\n \n 14 A93E563400 Shaft\n \n 15 A93E562100 Pressing Lever\n \n 16 A93E566100 Release Lever\n \n 17 A93E566200 Torsion Spring\n \n 18 A93E566400 Mounting Plate\n \n 19 A7AHM20501 Clutch\n \n 20 A02E815200 Bushing\n \n 21 A93E562800 Compressing Coil spring\n \n 22 A93E565800 Actuator\n \n 23 ACT9N10600 Main Body Harness\n \n 24 ACT9562500 Cushion\n	\n \n

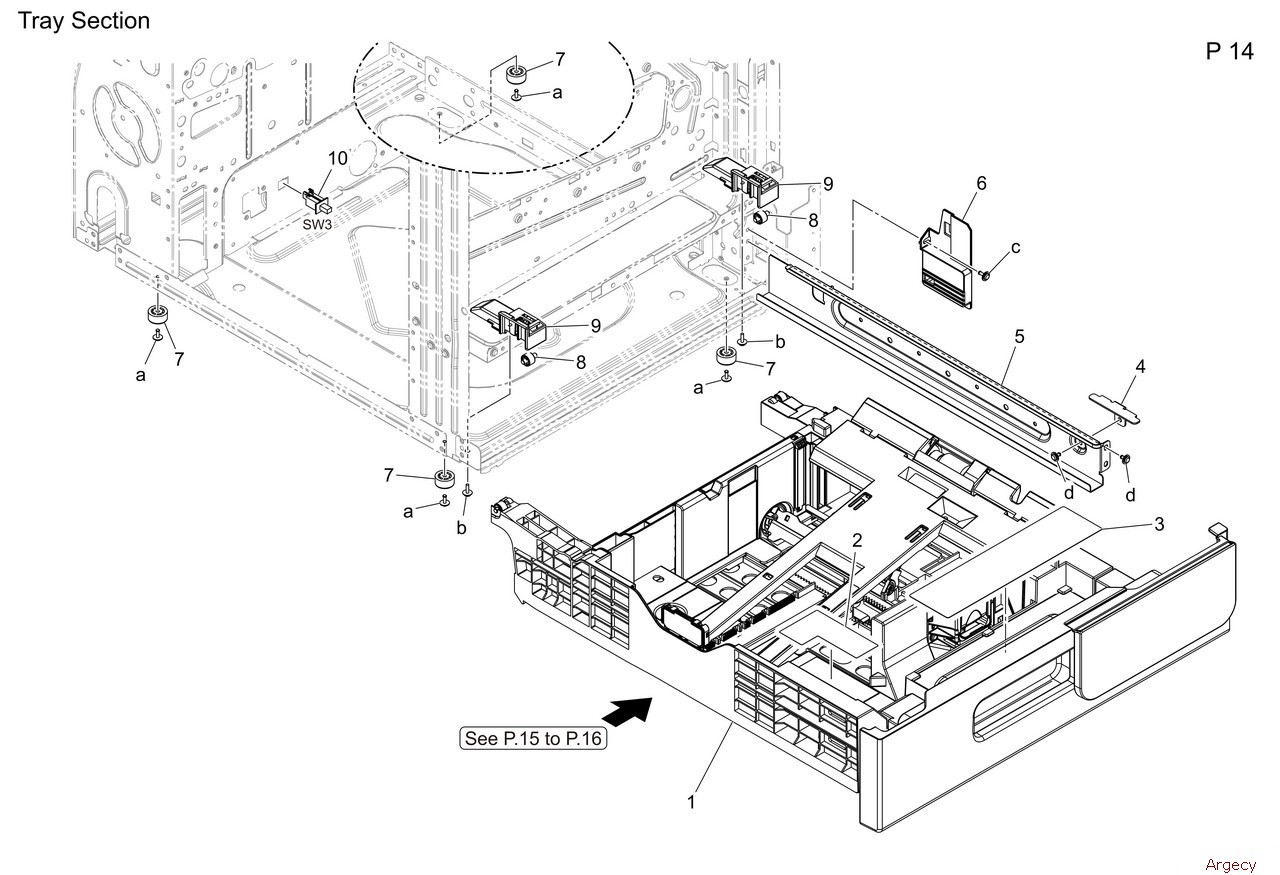

\n Tray Section\n \n 1 ACT9F62003 Cassette ASSY\n \n 2 A93E940800 Label\n \n 3 A93E940701 Label\n \n 4 A93E103300 Reinforce Plate\n \n 5 A93E103001 Rail\n \n 6 A93E103200 Cover\n \n 7 0996305501 RUBBER FOOT\n \n 8 A93E623301 Roll\n \n 9 A93E121301 Guide\n \n 10 A797M60100 Switch\n	\n \n
\n Tray Section\n \n 1 A93E620214 Lifting Plate\n \n 2 A93E620500 Separating Sheet\n \n 3 A93E621000 Reinforce Plate\n \n 4 ACT9626300 Shaft\n \n 5 A0ED563900 Torque limiter\n \n 6 A11U560000 Roller A 1\n \n 7 ACT9626101 Holder\n \n 8 ACT9626201 Compressing Coil spring\n \n 9 A93E620701 Cover\n \n 10 A93E621100 Hold Part\n \n 11 9J04534301 Collar\n \n 12 A93E620601 Support Shaft\n \n 13 A93E620901 Guide Stopper Front\n \n 14 ACT9620100 Paper feed Cassette\n \n 15 A93E623301 Roll\n \n 16 A93E620401 Lifting Coupling\n \n 17 A93E623400 Roll\n \n 18 A93E620801 Guide Stopper Rear\n \n 19 A93E620301 Lifting Lever\n \n 20 A93E626501 Guide\n \n 21 A93E940400 Label\n \n 22 A93E940500 Label\n	\n \n

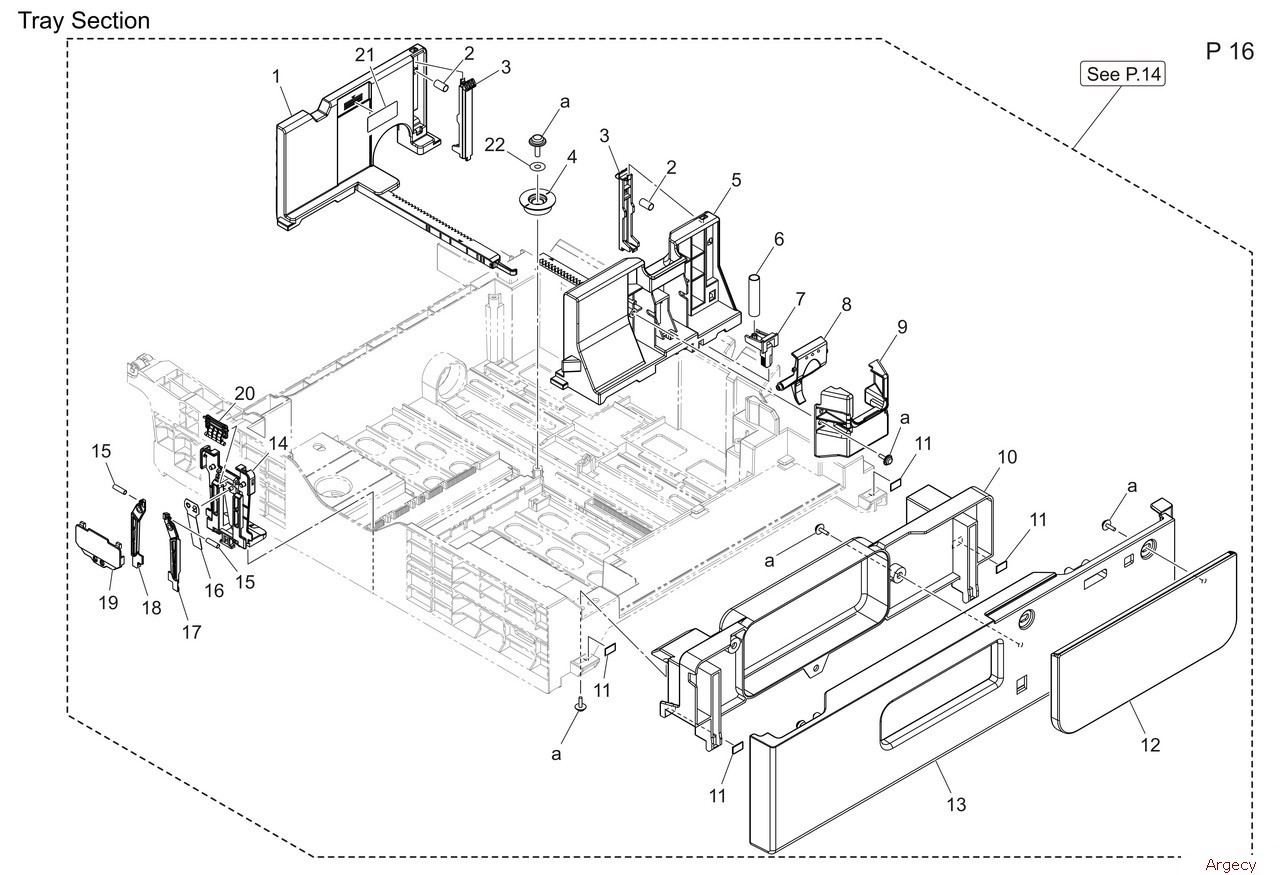

\n Tray Section\n \n 1 A93E622203 Regulating Plate\n \n 2 A795622700 Compressing Spring\n \n 3 A93E622601 Auxiliary Guide\n \n 4 A161620701 Gear\n \n 5 A93E622103 Regulating Plate\n \n 6 AA2J621000 Compressing Spring\n \n 7 AA2J621200 Lock Lever\n \n 8 A93E622700 Lock Lever\n \n 9 A93E622501 Holder\n \n 10 A93E625202 Cover\n \n 11 A93E624000 Spacer\n \n 12 A93E626702 Cover\n \n 13 A93E625100 Cover\n \n 14 A93E625000 Regulating Plate\n \n 15 A795565500 Compressing Spring\n \n 16 AA2J629200 Plate spring\n \n 17 A93E625900 Lock Lever\n \n 18 A93E625800 Lock Lever\n \n 19 A93E625300 Cover\n \n 20 AA2J629000 Operation Lever\n \n 21 AA2J943701 Label\n \n 22 9J08890700 WASHER\n	\n \n

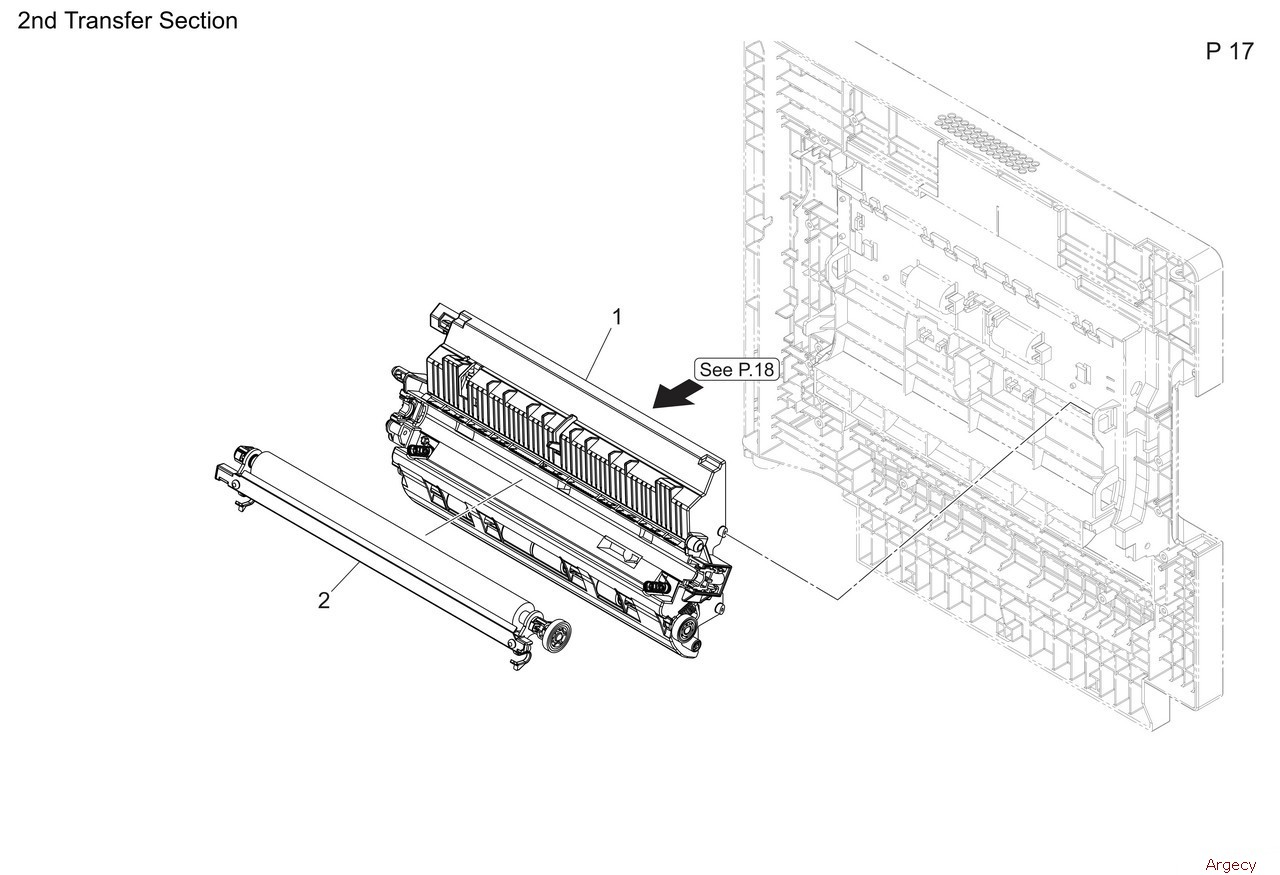

\n 2nd Transfer Section\n \n 1 AAJRR71500 Conveyance Assy\n \n 2 AAJRR70500 2nd Transfer Roller Unit\n	\n \n

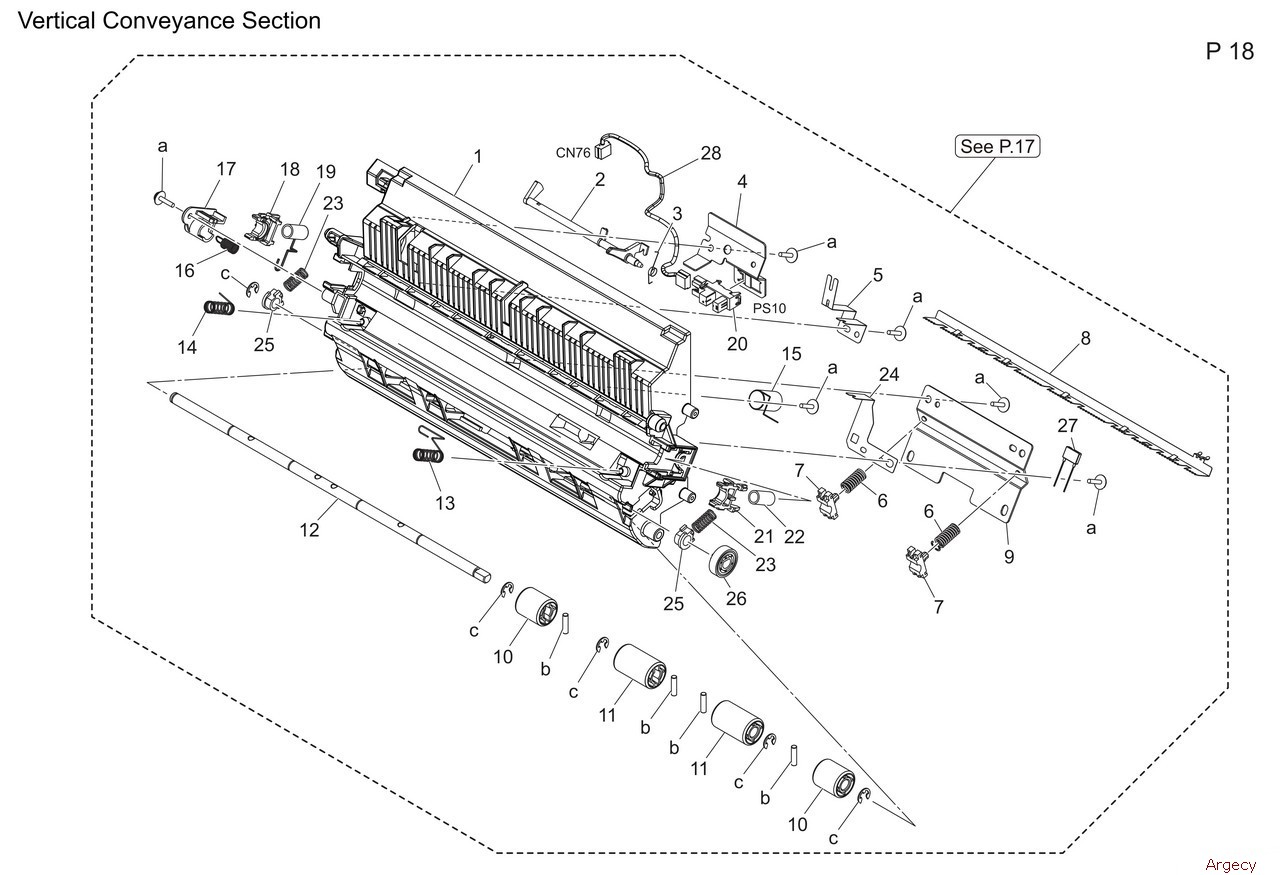

\n Vertical Conveyance Section\n \n 1 A93E702114 Conveyance Guide\n \n 2 A93E703400 Actuator\n \n 3 A0VD700302 Torsion Coil spring\n \n 4 A93E702400 Mounting Plate\n \n 5 A93E707000 Ground Plate\n \n 6 A93E704100 Compressing Coil spring\n \n 7 A93E704301 Bushing\n \n 8 A3GN701800 Neutralizing Part\n \n 9 A93E703900 Mounting Plate\n \n 10 A93E707100 Roll Outside\n \n 11 A93E702500 Roll\n \n 12 A93E703600 Shaft\n \n 13 A93E706200 Compressing Spring\n \n 14 A93E707200 Compressing Spring\n \n 15 A93E708300 Compressing Coil spring\n \n 16 A93E704700 Compressing Coil spring\n \n 17 A93E704900 Cover\n \n 18 A93E510902 Receiving Part Rear\n \n 19 A93E702600 Compressing Coil spring\n \n 20 A5C1M50100 Photointerrupter\n \n 21 A93E511102 Receiving Part Front\n \n 22 A93E703300 Compressing Coil spring\n \n 23 A93E704200 Compressing Coil spring\n \n 24 A93E704600 Ground Plate\n \n 25 A93E703800 Bushing\n \n 26 A93E703700 Gear 20T\n \n 27 V800500300 FIXED POWER RESISTORS\n \n 28 A93EN10N00 Relay harness 5\n	\n \n

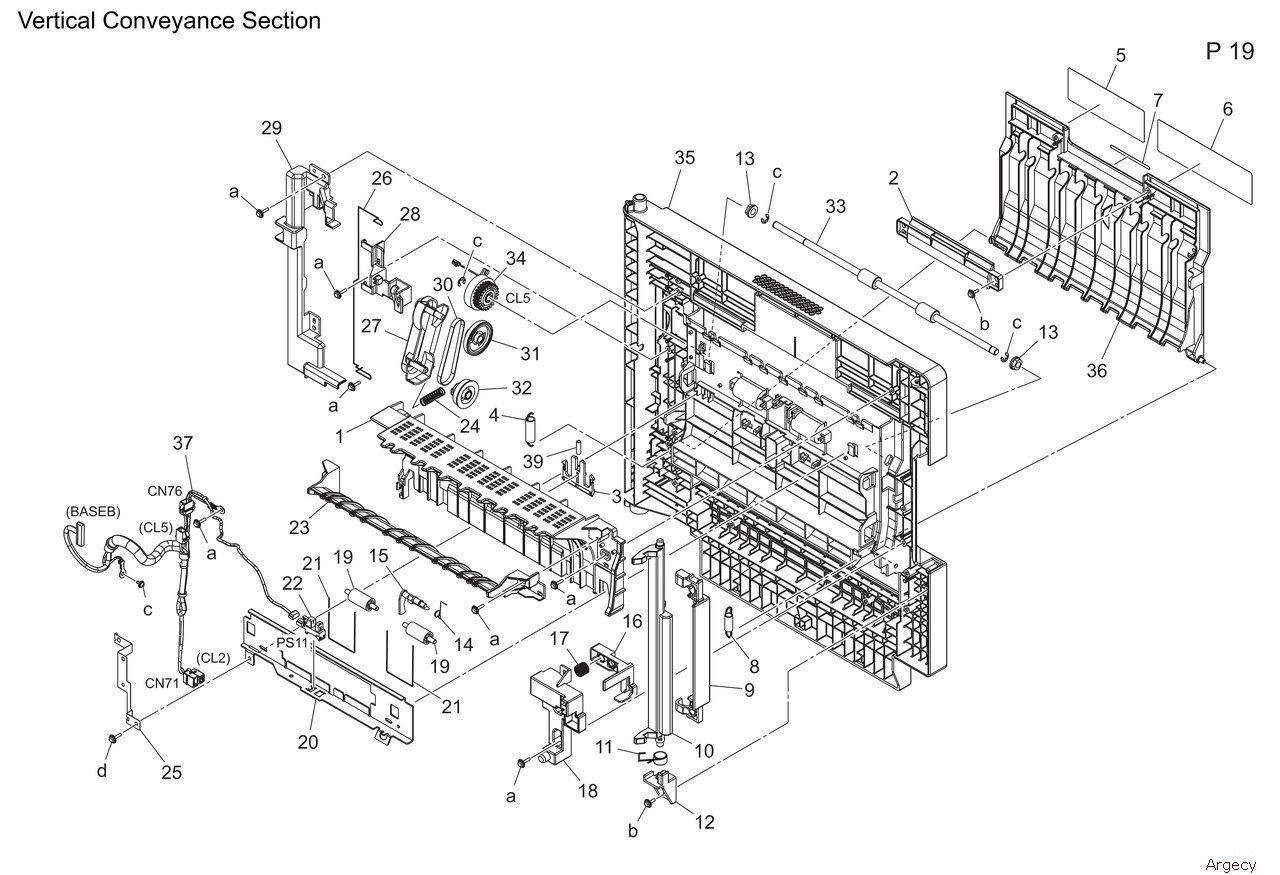

\n Vertical Conveyance Section\n \n 1 ACT9813100 Guide Upper\n \n 2 A93E810800 Handle\n \n 3 A93E810701 Lock Part\n \n 4 A93E810600 Pulling Coil spring\n \n 5 A93E944500 Label\n \n 6 A93E944600 Operation Label\n \n 7 A93E942100 Label\n \n 8 A0VD703700 Pulling Coil spring\n \n 9 A93E814702 Handle\n \n 10 A93E814300 Lock Lever\n \n 11 A93E814500 Torsion Coil spring\n \n 12 A93E814401 Holder\n \n 13 1134304301 BUSHING\n \n 14 A93E815200 Torsion Coil spring\n \n 15 A93E815100 Actuator\n \n 16 A93E814001 Lever\n \n 17 A93E811400 Compressing Coil spring\n \n 18 A93E814100 Cover\n \n 19 4538373201 ROLL\n \n 20 A93E810211 Reinforce Plate\n \n 21 A93E812100 Spring\n \n 22 A5C1M50100 Photointerrupter\n \n 23 A93E814202 Guide\n \n 24 A93E813800 Compressing Coil spring\n \n 25 A93E814800 Ground Plate\n \n 26 A93E594200 Ground Contact\n \n 27 A93E813302 Swing Housing\n \n 28 A93E813201 Positioning Shaft\n \n 29 A93E815302 Cover\n \n 30 A0HR211900 Drive Belt 5\n \n 31 A93E813501 Gear 31T\n \n 32 A93E813700 Gear 23T\n \n 33 A93E812000 Roller\n \n 34 A7AHM20501 Clutch\n \n 35 A93E810118 Door\n \n 36 A93E810502 Openclose Guide\n \n 37 A93EN10B00 Conveyance Wiring 1\n \n 39 A93E810900 Compressing Coil spring\n	\n \n

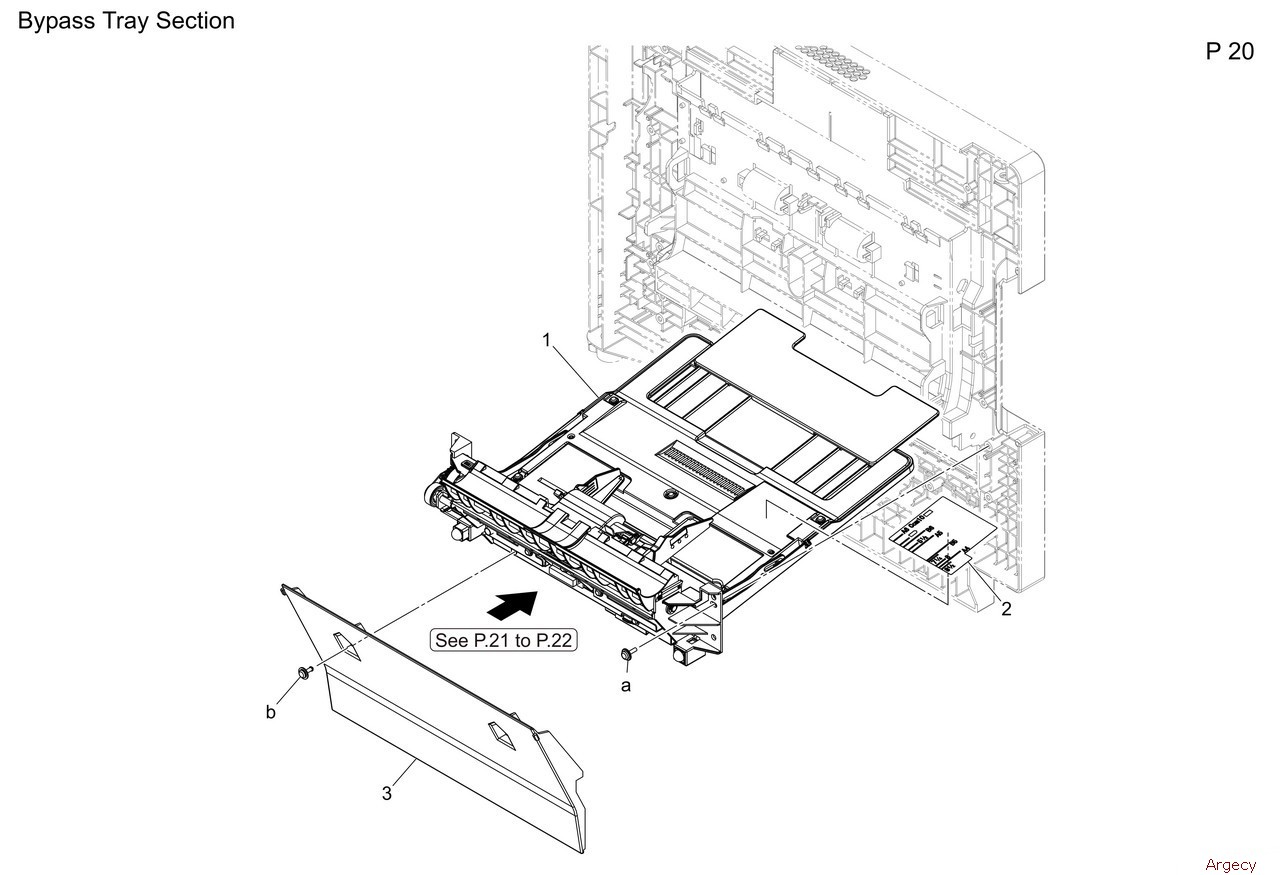

\n Bypass Tray Section\n \n 1 AAJRR71633 Manual Bypass Assy\n \n 2 A93E944200 Label\n \n 3 A93E590402 Guide\n	\n \n

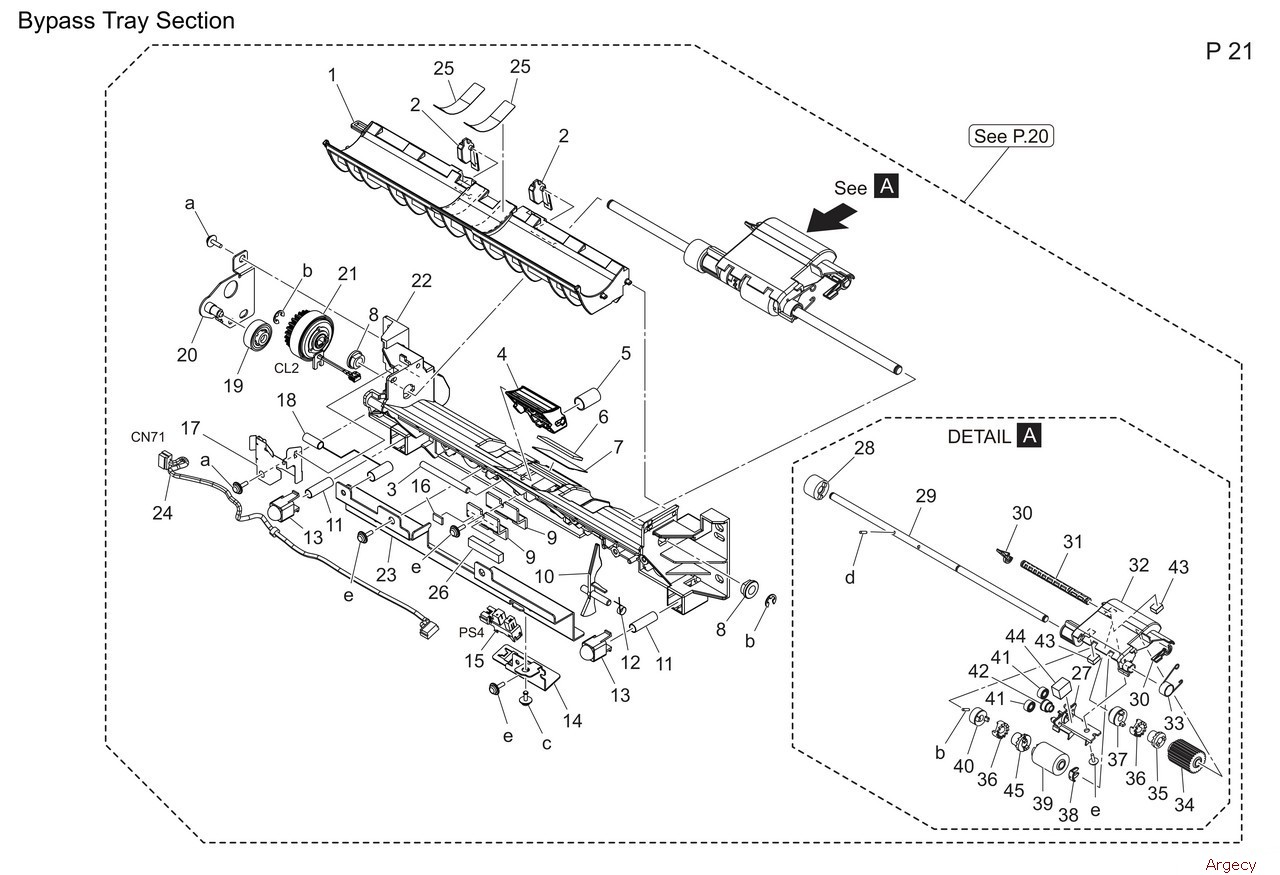

\n Bypass Tray Section\n \n 1 A93E590302 Guide\n \n 2 A93E596300 Shutter\n \n 3 A93E591900 Support Shaft\n \n 4 AAJRR72200 Friction Sheet Assy\n \n 5 A93E591600 Compressing Coil spring\n \n 6 A93E592300 Separating Pad\n \n 7 A93E591800 Cover Sheet\n \n 8 1134304301 BUSHING\n \n 9 A93E597800 Vibrationproof Part\n \n 10 A93E594100 Actuator\n \n 11 A93E595600 Compressing Coil spring\n \n 12 A93E594400 Torsion Spring\n \n 13 A93E595700 Holding Cap\n \n 14 A93E594700 Mounting Plate\n \n 15 A5C1M50100 Photointerrupter\n \n 16 A93E598600 Neutralizing Sheet 2\n \n 17 A93E594312 Ground Plate\n \n 18 A93E597600 Ground Part\n \n 19 A93E590600 Bypass Gear 17T\n \n 20 A93E590500 Mounting Plate\n \n 21 A7AHM20401 Clutch\n \n 22 A93E590203 Paper feed Frame\n \n 23 A93E597100 Reinforce Part\n \n 24 A93EN10M00 Relay harness 4\n \n 25 A93E597900 Sheet\n \n 26 A93E598000 Cushion\n \n 27 A93E592800 Holder\n \n 28 A93E593800 Torque limiter\n \n 29 A93E590800 Shaft\n \n 30 A93E596201 Lock Lever\n \n 31 A93E591700 Shaft\n \n 32 A93E591300 Holder\n \n 33 A93E593100 Torsion Coil spring\n \n 34 A5C1562200 Roller \n \n 35 A93E593400 Drive Coupling 2\n \n 36 A93E593300 Drive Coupling 1\n \n 37 A93E593900 Gear 28T\n \n 38 56AA40490 Shaft Stopper 4\n \n 39 A93E597500 Roller\n \n 40 A93E593200 Gear 26T\n \n 41 A93E592900 Gear 17T\n \n 42 A93E592500 Gear 17T\n \n 43 A93E598800 Cushion 1\n \n 44 A93E599700 Cushion\n \n 45 A93E598400 Drive Coupling\n	\n \n

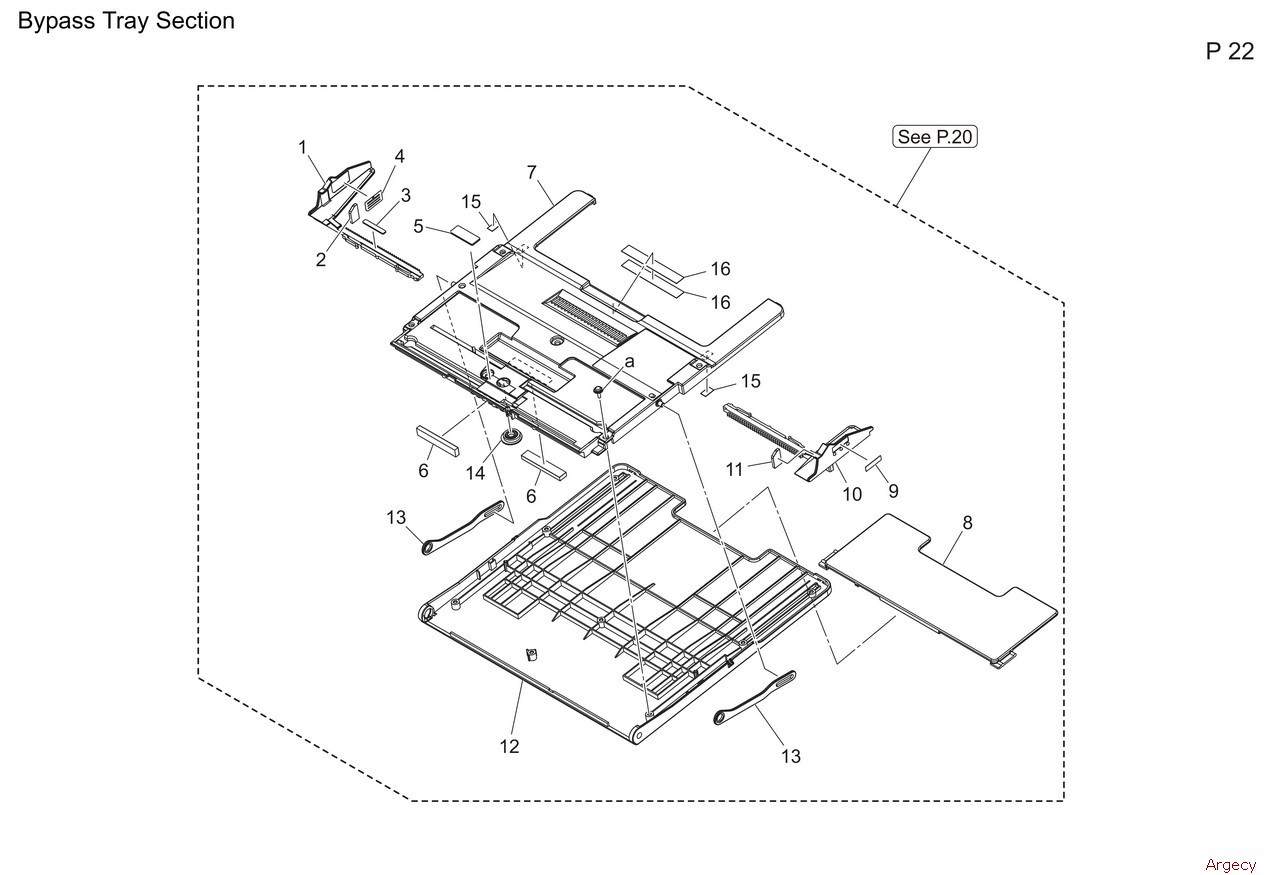

\n Bypass Tray Section\n \n 1 A93E592201 Regulating Plate R\n \n 2 A7AH604501 Brake Part\n \n 3 A93E597200 Friction Part\n \n 4 AA2J944500 Label\n \n 5 A93E594600 Separating Sheet\n \n 6 A93E598200 Cushion\n \n 7 A93E592002 Holder\n \n 8 A93E591002 Tray\n \n 9 A93E943800 Label\n \n 10 A93E592104 Regulating Plate F\n \n 11 A7AH604401 Brake Part F\n \n 12 A93E590100 Tray\n \n 13 A93E597300 Stopper Part\n \n 14 A0VD562300 Gear 16T\n \n 15 A93E599900 Duplex Tape 2\n \n 16 A93E599800 Duplex Tape 1\n	\n \n

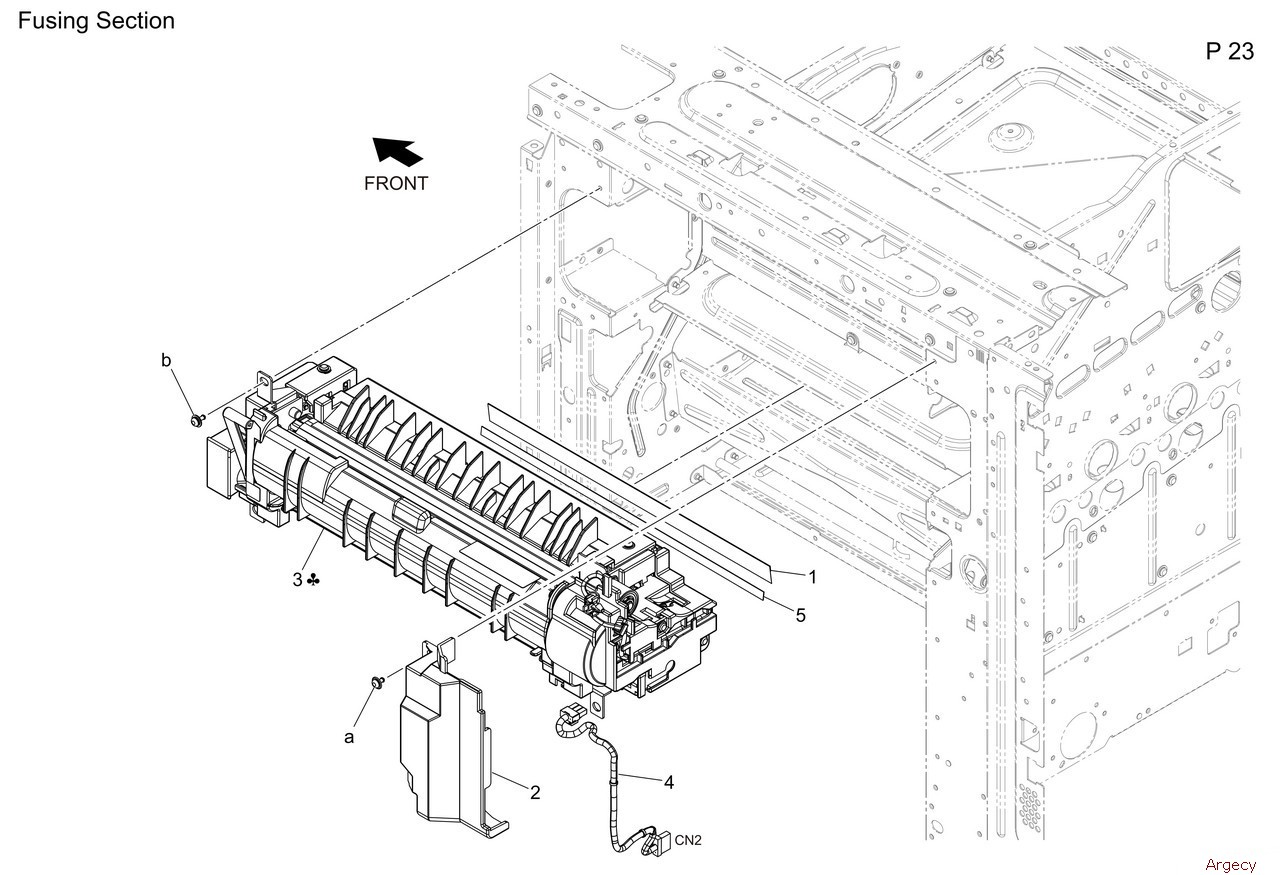

\n Fusing Section\n \n 1 A93E151900 Shield Sheet\n \n 2 A93E133201 Cover\n \n 3 ACT8R70100 Fusing Unit (120V)\n \n 3 ACT8R70200 Fusing Unit (230V)\n \n 4 ACTAN10100 Fusing Relay Harness 1\n \n 5 A93E153000 Moisture proof Sheet\n	\n \n

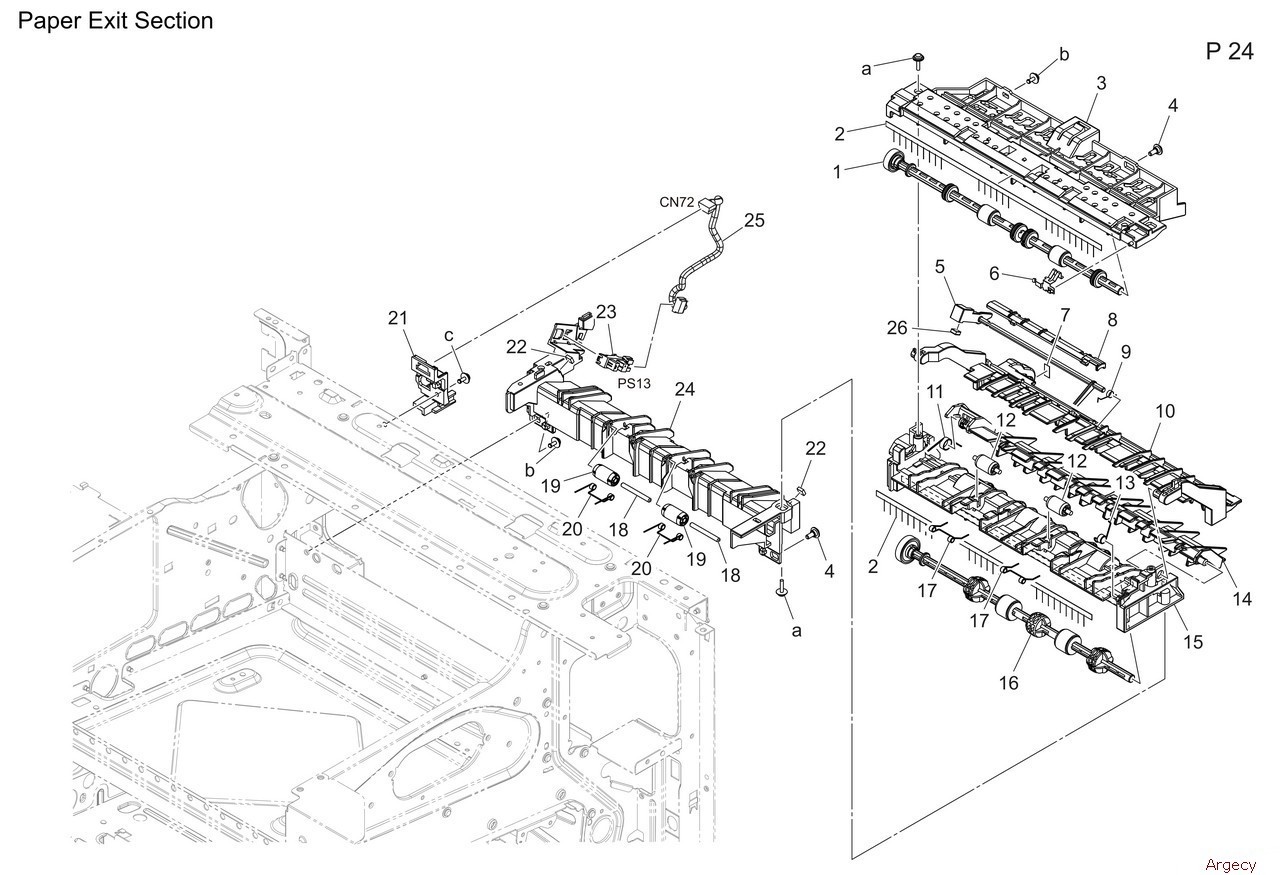

\n Paper Exit Section\n \n 1 A93E816102 ReverseExit Roller\n \n 2 A93E891500 Neutralizing Brush\n \n 3 A93E890202 Paper exit Guide Upper\n \n 4 A00J169200 Shoulder screw\n \n 5 A93E890900 Actuator\n \n 6 A93E891600 Contact\n \n 7 A93E895500 Label\n \n 8 A93E890800 Guide\n \n 9 A93E891200 Torsion Coil spring\n \n 10 A93E890703 Separating Guide\n \n 11 A93E816502 Torsion Coil spring\n \n 12 A93E816802 Roll\n \n 13 A93E816700 Torsion Coil spring\n \n 14 A93E816402 Guide\n \n 15 A93E816302 Guide\n \n 16 A93E890103 Paper exit Roller\n \n 17 A93E816200 Spring\n \n 18 A93E892300 Shaft\n \n 19 A93E890300 Roll\n \n 20 A93E890601 Spring\n \n 21 A93E895100 Hold Plate\n \n 22 A93E891300 Cushion\n \n 23 A5C1M50100 Photointerrupter\n \n 24 A93E891000 Paper exit Holder\n \n 25 A93EN10K00 Relay harness 3\n \n 26 A93E892500 Cushion\n	\n \n

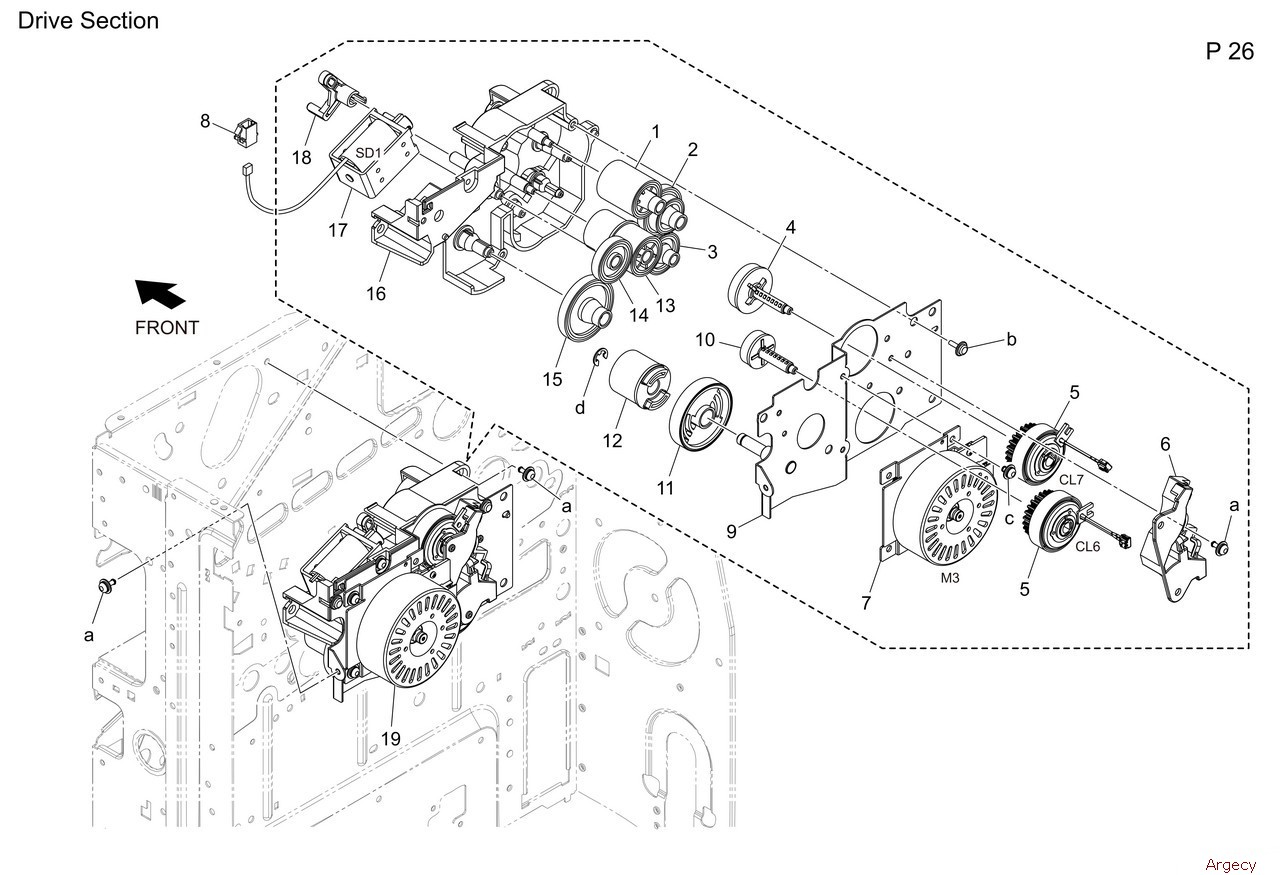

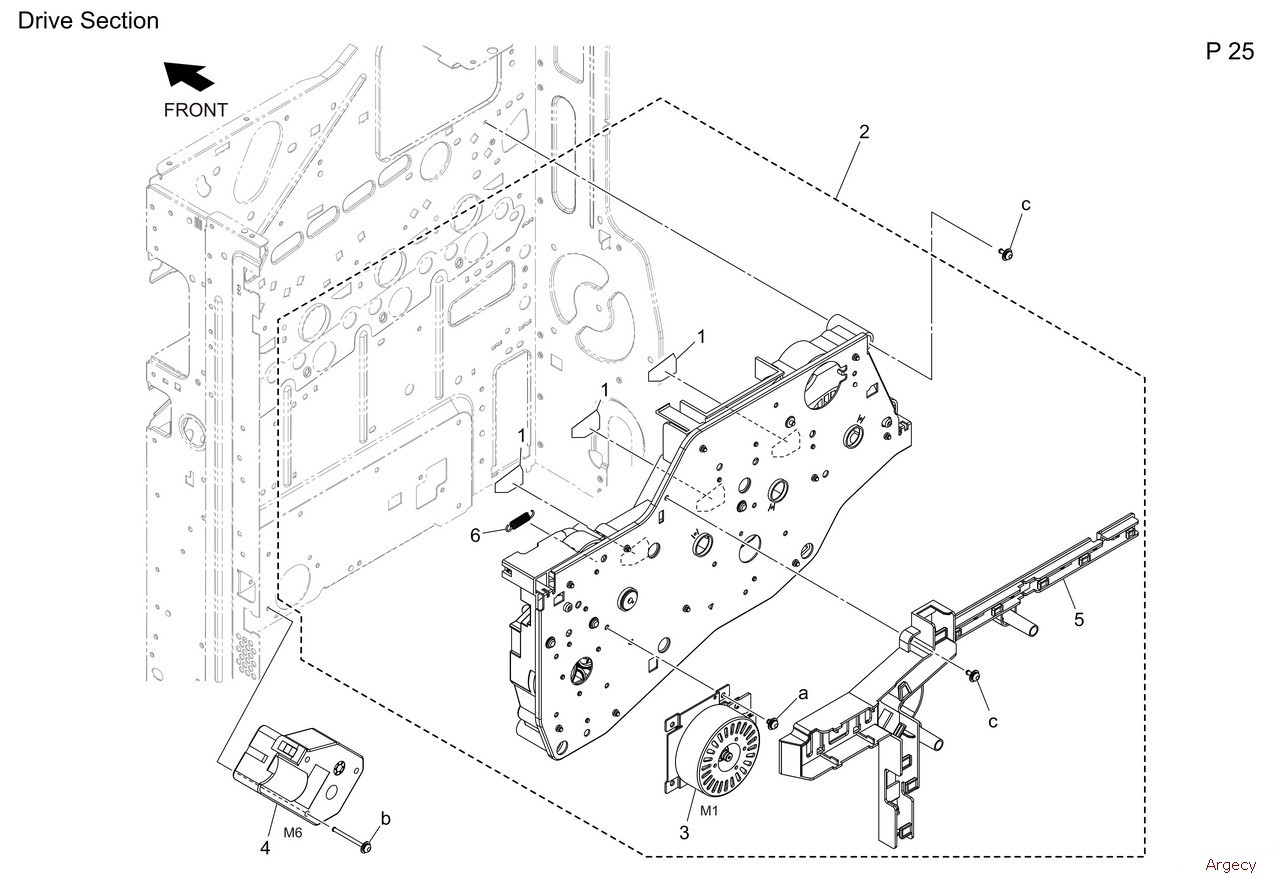

\n Drive Section\n \n 1 ACT9150100 Seal\n \n 2 ACT9R70500 Main Drive Assy\n \n 3 AA2JM11000 Brushless motor 30\n \n 4 9J06M10300 MOTOR\n \n 5 A93E133600 Holder\n \n 6 A93E110801 Pulling Coil spring\n	\n \n
\n Drive Section\n \n 1 A93E222500 Gear 20T\n \n 2 A93E222600 Gear 2426T\n \n 3 A93E222700 Gear 28T\n \n 4 A93E222300 Gear 23T\n \n 5 A7AHM20501 Clutch\n \n 6 A93E222800 Holder\n \n 7 AA2JM11000 Brushless motor 30\n \n 8 V651010001 connector\n \n 9 A93E220201 Drive Side plate\n \n 10 A93E222100 Gear 21T\n \n 11 A93E220401 Gear 71T\n \n 12 A93E220300 Gear 22T\n \n 13 A93E221300 Gear 2021T\n \n 14 A93E221200 Gear 23T\n \n 15 A93E221100 Gear 34T\n \n 16 A93E220102 Drive Holder\n \n 17 AAJRR72100 Solenoid Assy\n \n 18 A93E223100 Lever\n \n 19 AAJRR71322 Fusing Drive Assy\n	\n \n

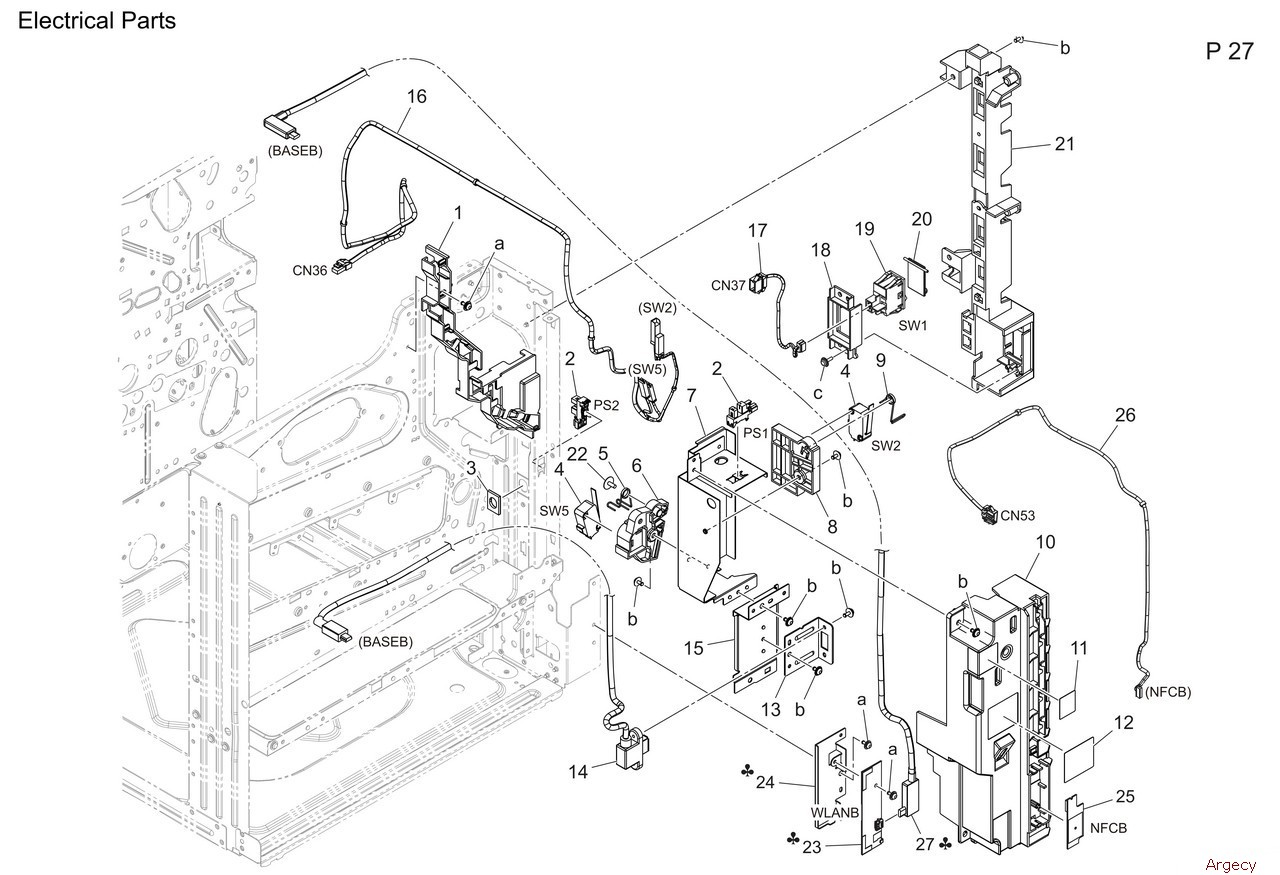

\n Electrical Parts\n \n 1 A93E135000 Wiring Guide\n \n 2 A5C1M50100 Photointerrupter\n \n 3 A93E105100 Seal\n \n 4 9J06M60100 Micro Switch\n \n 5 A93E135211 Torsion Coil spring\n \n 6 A93E136911 Holder\n \n 7 A93E134300 Mounting Plate\n \n 8 A93E135401 Holder\n \n 9 A161151300 Torsion Coil spring\n \n 10 A93E134801 Cover\n \n 11 A93E402601 Label K\n \n 12 ACT9401200 Label\n \n 13 A93E135900 Mounting Plate\n \n 14 A93EN12000 IF Cable\n \n 15 A93E134400 Mounting Plate\n \n 16 A93EN10201 Interlock Wiring\n \n 17 A93EN10G00 Relay harness 1\n \n 18 A93E132001 Mounting Plate\n \n 19 A93EM60000 Rocker switch\n \n 20 A93E132200 Cover\n \n 21 A93E132103 Cover\n \n 22 4163529301 SCREW\n \n 23 AA2JM72F01 Interface Board\n \n 24 A93E134700 Mounting Plate\n \n 25 AA2JM70600 Interface Unit\n \n 26 A93EN12500 Wiring\n \n 27 A93EN12111 IF Cable\n	\n \n

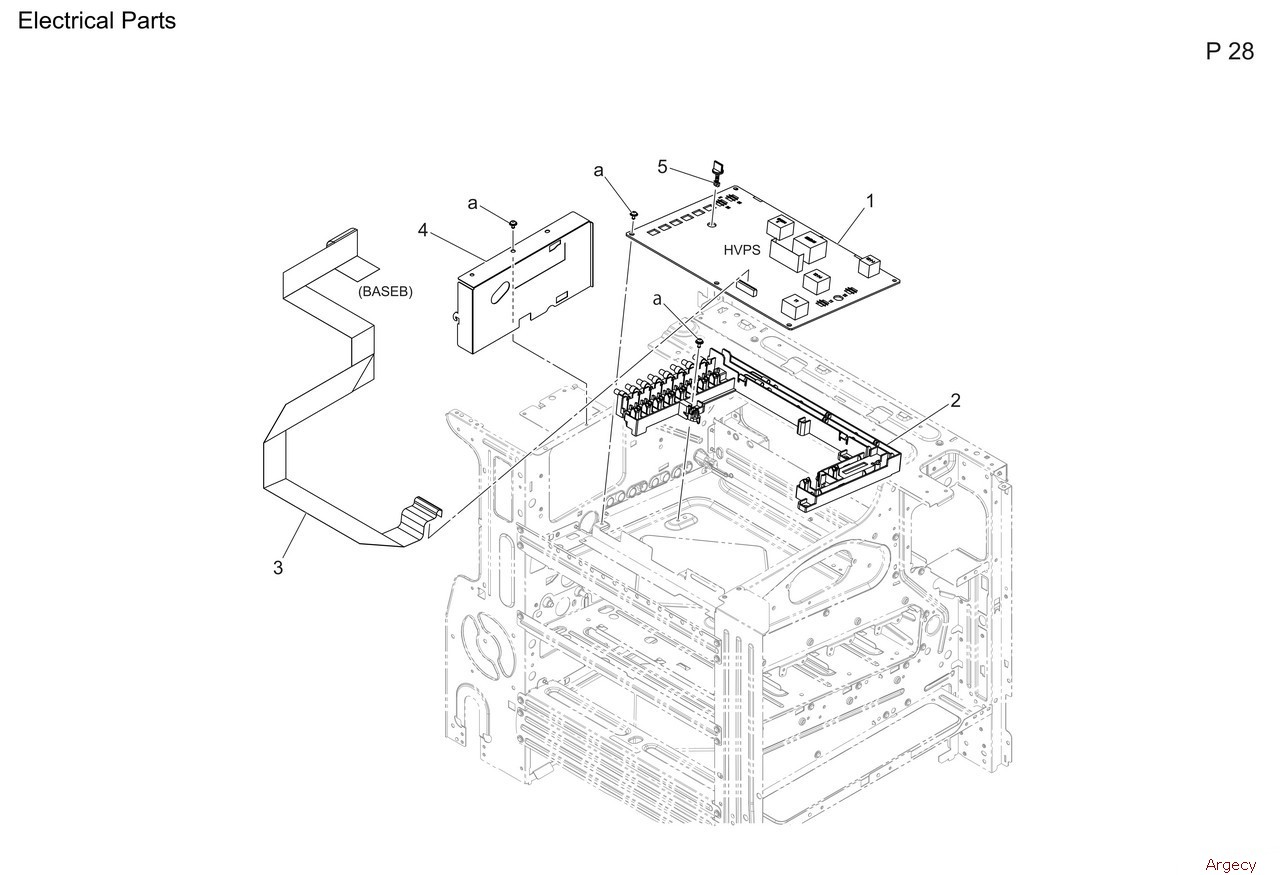

\n Electrical Parts\n \n 1 ACT9M40300 HV Board Assembly\n \n 2 ACT9R71100 HV Board Contact Assy\n \n 3 ACT9N10400 HV Flat Cable\n \n 4 A93E134200 Mounting Plate\n \n 5 A797151500 Stopper Shaft\n	\n \n
\n Electrical Parts\n \n 1 A93E137300 Mounting Plate\n \n 2 A93E137600 Mounting Plate\n \n 3 A3GN134500 Shield Plate\n \n 4 ACT9H02013 Base Board Assembly\n \n 5 A93E137400 Shield Plate 2\n \n 6 ACT9H01007 CPU Board Assembly\n \n 7 A93E137200 Shield Plate 1\n \n 8 A93E137700 Mounting Plate\n \n 9 A93E137800 Mounting Plate\n \n 10 A93E137100 Mounting Plate\n \n 11 AAJNN10100 Power supply Wiring\n \n 12 AA2J135101 Mounting Plate\n \n 13 AAJRR70600 Power supply Assy (100V)\n \n 13 AAJRR70700 Power supply Assy (230V)\n \n 14 ACT9R70600 HV Contact Assy\n \n 15 AA2JH00C00 ERB ASSY\n \n 16 A92E135400 Insulating Part 2\n \n 17 A93EN10000 AC Wiring\n \n 18 ACT9N10300 Interface Harness\n \n 19 AA2JM72702Old Memory Board\n \n 19 AA2JM72M00 Memory Board\n \n 20 AA2JH02T00 PWB Assembly(PWB-TPM)\n \n 21 A161137600 Shoulder screw\n \n 22 AA2J139800 Screw\n \n 23 A879130300 Insulating Part\n \n 27 A92EN12300 Power source Cable\n \n 28 A92EN12800 IF Cable F\n	\n \n

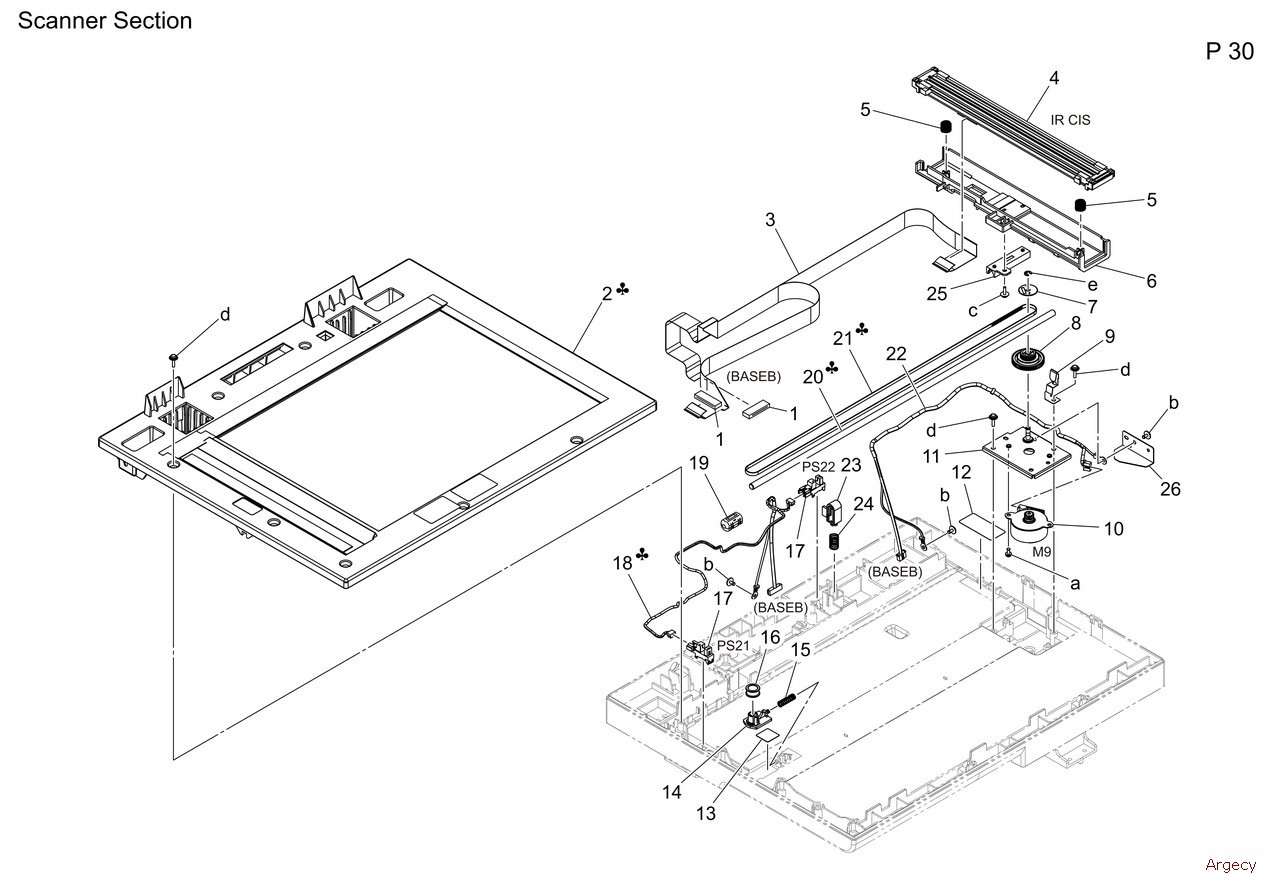

\n Scanner Section\n \n 1 A7AHM90000 Connector\n \n 2 AAJNR71100 Upper Cover Assy (IRLGL)\n \n 2 AAJNR71000 Upper Cover Assy (IRA4)\n \n 3 A93EN11300 Scanner Flat Cable\n \n 4 AAJNR71200 CIS unit IR\n \n 5 A93E263200 Compressing Coil spring\n \n 6 A93E262802 Frame\n \n 7 A93E261000 Cap\n \n 8 A93E260800 Gear 2460T\n \n 9 A93E260900 Ground Plate\n \n 10 A93EM10K00 Stepping Motor\n \n 11 A93E260701 Mounting Plate ASSY\n \n 12 A93E264202 Sheet\n \n 13 A93E261500 Sheet\n \n 14 A93E260400 Holder\n \n 15 A93E260501 Compressing Coil spring\n \n 16 A93E260300 Pulley\n \n 17 A5C1M50100 Photointerrupter \n \n 18 A93EN11100 Scanner Detection Harness 1\n \n 18 A93EN11200 Scanner Detection Harness 2\n \n 19 A3GNM93100 Ferrite core\n \n 20 A93E261200 Guide Shaft\n \n 20 A93E263500 Guide Shaft\n \n 21 A93E260600 Timing belt 788L\n \n 21 A93E263600 Timing belt 894L\n \n 22 A93EN11000 Scanner Drive Harness\n \n 23 A93E261300 Lever\n \n 24 A93E261400 Compressing Coil spring\n \n 25 A93E262901 Guide\n \n 26 A93E264000 Shield Plate\n	\n \n

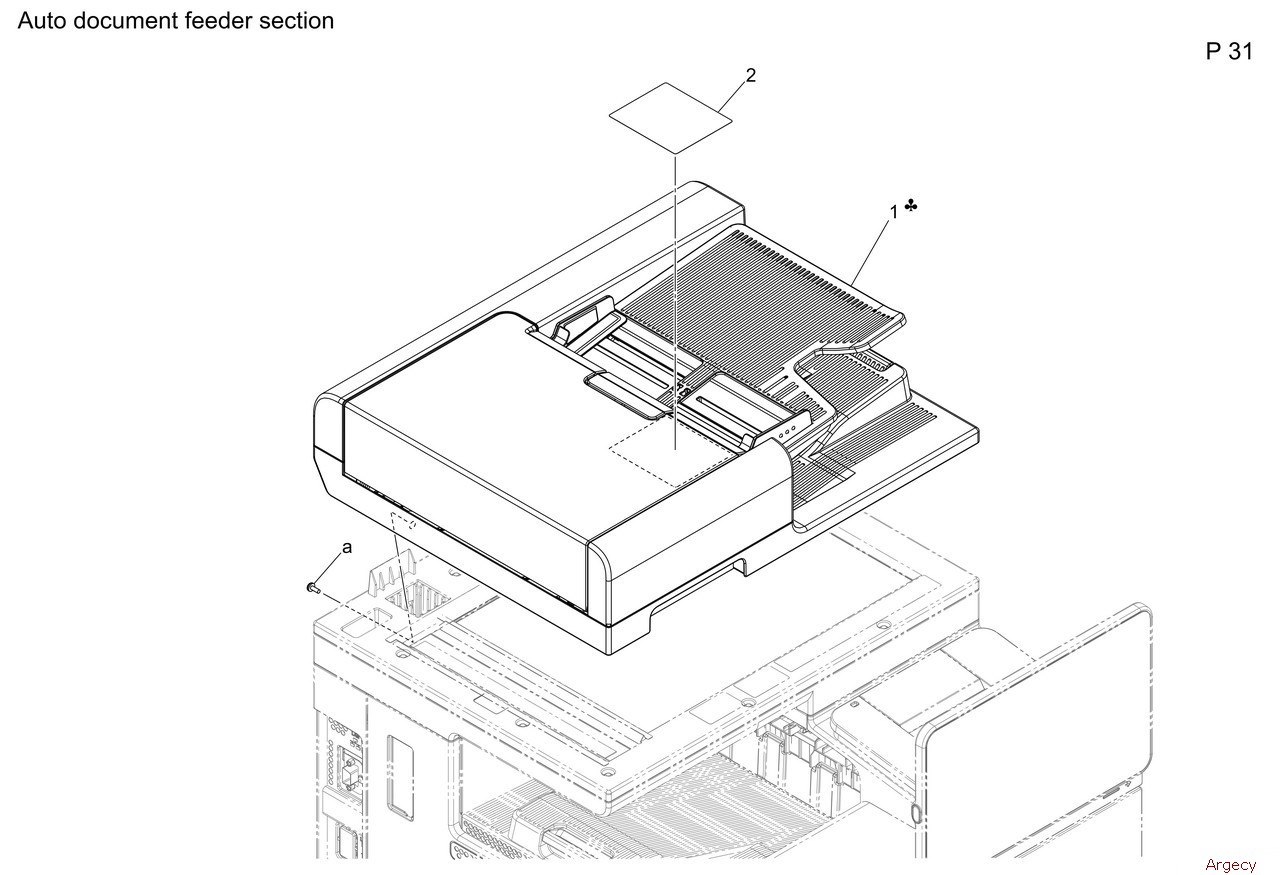

\n Auto document feeder section\n \n 1 AAJNR70155 Auto Document Feeder\n \n 1 AAJNR70255 Auto Document Feeder\n \n 2 A93E945700 Label\n	\n \n

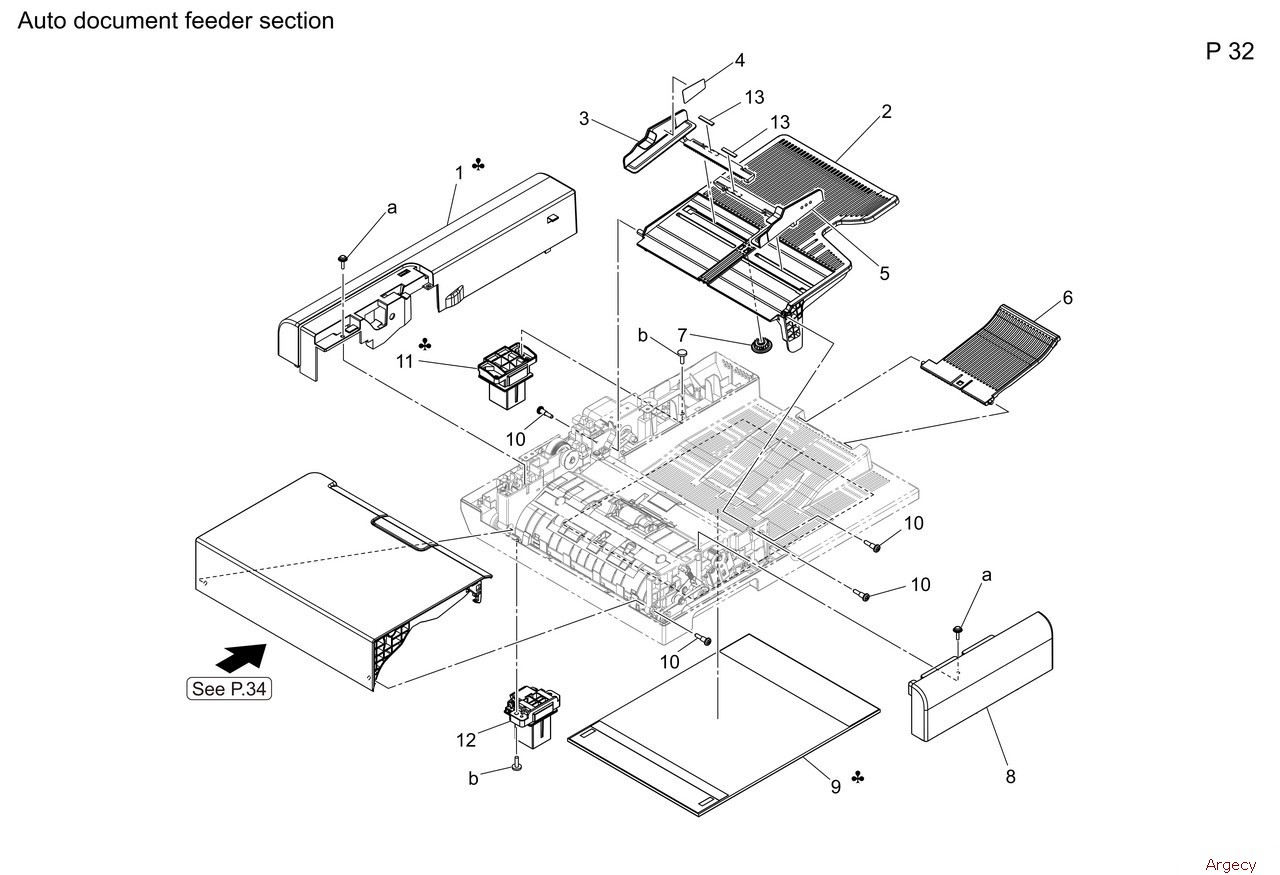

\n Auto document feeder section\n \n 1 A93E268401 Cover Rear\n \n 2 A93E273701 Tray\n \n 3 A93E273901 Rack\n \n 4 A93E945900 Label\n \n 5 A93E273801 Rack\n \n 6 A93E266800 Paper exit Tray\n \n 7 A93E274100 Regulating Gear\n \n 8 A93E268200 Cover Front\n \n 9 A93E265100 Original Mat\n \n 9 A93E265200 Original Mat\n \n 10 A93E266100 Hold Shaft\n \n 11 A93E268602 Hinge Right\n \n 11 A93E268702 Hinge Right\n \n 12 A93E268501 Hinge Left\n \n 13 A93E274000 Pad\n	\n \n

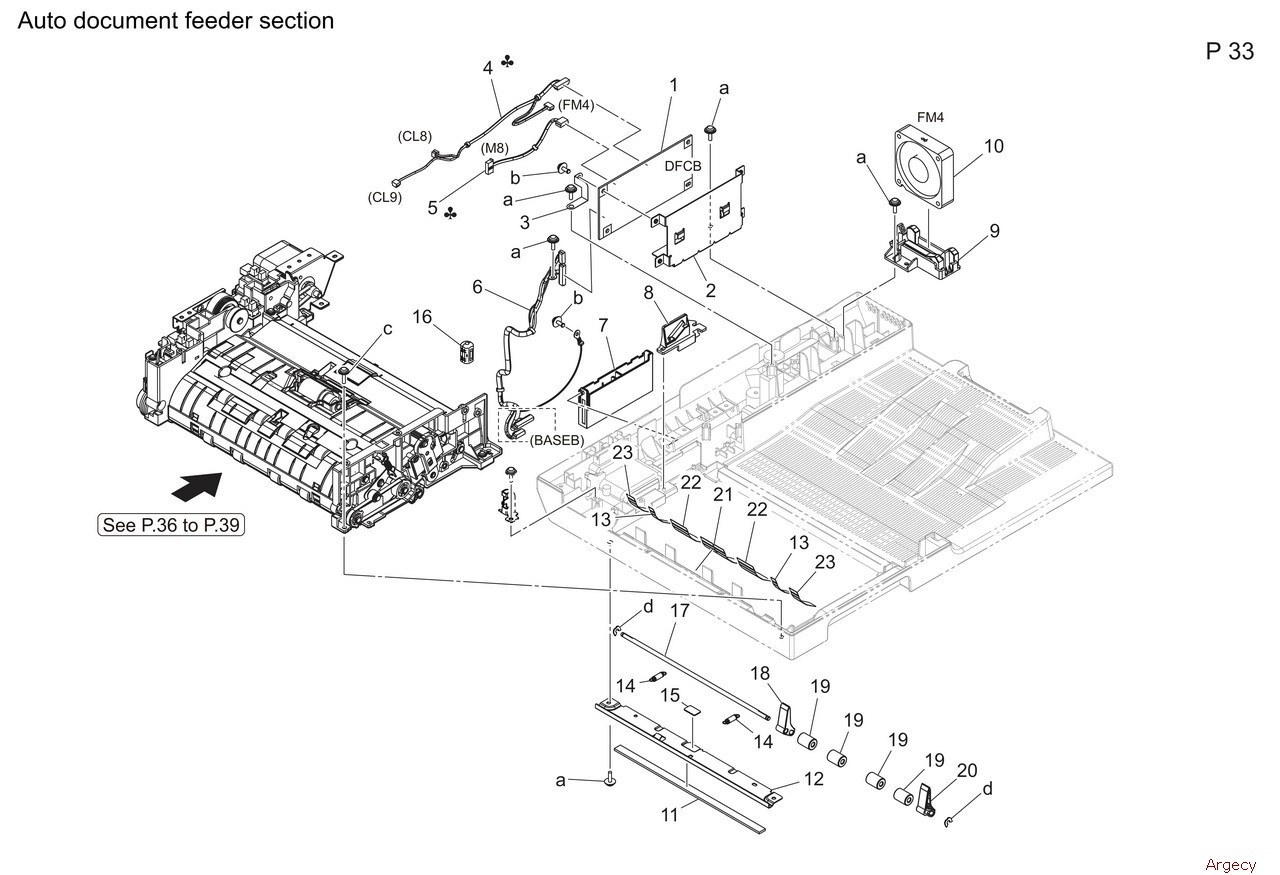

\n Auto document feeder section\n \n 1 A93EH00901 ADF Control Board Assy\n \n 2 A93E267200 Mounting Plate\n \n 3 A93E277000 BKT EARTH BOARD\n \n 4 A93EN11700 Conveyance Harness 1\n \n 4 A93EN11K00 Conveyance Harness 2\n \n 5 A93EN11800 ADF Drive Harness 1\n \n 5 A93EN11M00 ADF Drive Harness 2\n \n 6 A93EN11900 ADF Control Harness\n \n 7 A93E267300 Wiring Guide\n \n 8 A93E270000 Holder\n \n 9 A93E265000 Holder\n \n 10 9J06M10000 Fan motor\n \n 11 A93E276100 Cushion\n \n 12 A93E267500 Reinforce Plate\n \n 13 A93E267900 Guide Film 2\n \n 14 A93E267000 Pulling Coil spring\n \n 15 A93E267400 Reflecting Pad\n \n 16 A3GNM93100 Ferrite core\n \n 17 A93E267100 Shaft\n \n 18 A93E267701 Lever Rear\n \n 19 A93E266900 Roll\n \n 20 A93E267601 Lever Front\n \n 21 A93E268100 Guide Film 4\n \n 22 A93E268000 Guide Film 3\n \n 23 A93E267800 Guide Film 1\n	\n \n

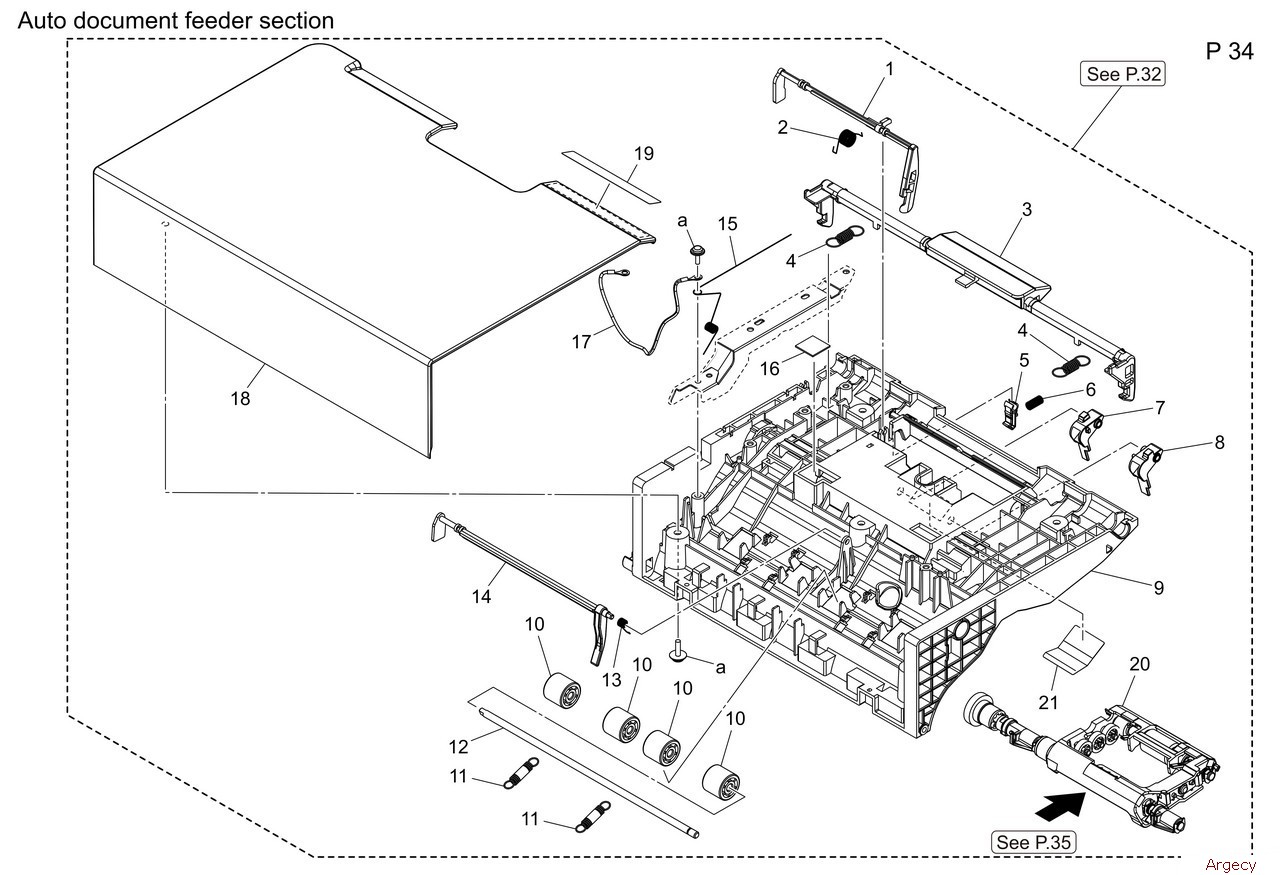

\n Auto document feeder section\n \n 1 A93E271000 Actuator\n \n 2 A93E278301 Torsion Spring\n \n 3 A93E270803 Lock Lever\n \n 4 A93E270900 Pulling Coil spring\n \n 5 A93E277700 Lever\n \n 6 A93E277802 Compressing Coil spring\n \n 7 A93E276900 Stopper 2\n \n 8 A93E276800 Stopper 1\n \n 9 A93E275124 Guide Upper\n \n 10 A93E275300 Idler Roll \n \n 11 A93E275500 Pulling Coil spring\n \n 12 A93E275411 Shaft\n \n 13 A93E275600 Torsion Coil spring\n \n 14 A93E275200 Actuator\n \n 15 A93E277300 Ground Spring\n \n 16 A93E275700 Light blocking Part\n \n 17 A93EN11D01 Ground Harness 3\n \n 18 A93E270701 Cover Upper\n \n 19 A93E945600 Label\n \n 20 AAJNR70733 Feed Roller Assy \n \n 21 A93E279000 Guide\n	\n \n

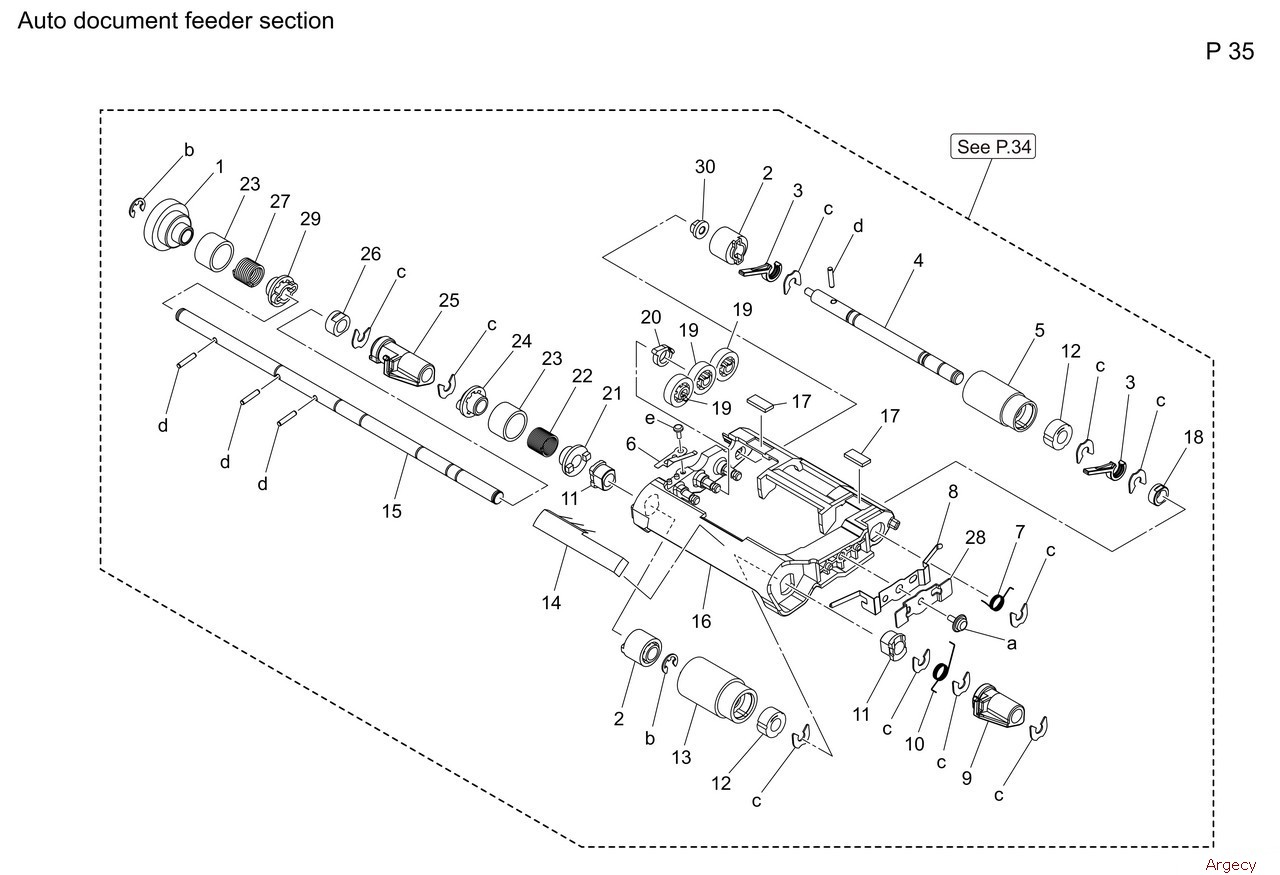

\n Auto document feeder section\n \n 1 A93E272101 Paper feed Gear 20T\n \n 2 A93E271501 Gear 20T\n \n 3 A93E271200 Stopper Lever\n \n 4 A93E271401 Shaft\n \n 5 A93E270200 Roller ASSY\n \n 6 A93E288900 Plate spring\n \n 7 A93E277101 Ground Spring 1\n \n 8 A93E274300 Ground Plate\n \n 9 A93E276600 Bushing 2\n \n 10 A93E277201 Ground Spring 2\n \n 11 A93E277500 Bushing\n \n 12 A93E270500 Clutch\n \n 13 A93E270400 Roller ASSY\n \n 14 A93E274800 Neutralizing Brush\n \n 15 A93E271801 Paper feed Shaft\n \n 16 A93E271313 Holder\n \n 17 A93E272300 Cushion\n \n 18 A93E278900 Bushing 2\n \n 19 A93E276702 Idling Gear 21T\n \n 20 A93E278501 Cam\n \n 21 A93E278001 Holder 2\n \n 22 A93E278200 Spring 2\n \n 23 A93E277901 Cover\n \n 24 A93E277602 Holder\n \n 25 A93E276501 Bushing 1\n \n 26 4131253701 BUSHING\n \n 27 A93E276402 Spring\n \n 28 A93E279400 Reinforce Plate\n \n 29 A93E279200 Holder\n \n 30 A93E278800 Bushing 1\n	\n \n
\n Auto document feeder section\n \n 1 A93E272813 Paper feed Guide\n \n 2 A93E273601 Lever\n \n 3 A93E278600 Shoulder screw\n \n 4 A93E278400 Cover\n \n 5 A93E273200 Pad\n \n 6 A93E270101 Neutralizing Brush\n \n 7 AAJNR70800 Separation Roller Assy\n \n 8 A93E272700 Holder\n \n 9 A93E276000 Guide Film\n \n 10 A93E273501 Lever\n \n 11 A93E274511 Ground Plate\n \n 12 A93E273401 Guide Rear\n \n 13 A93E273301 Guide Front\n \n 14 A108M50000 Photoreflector\n \n 15 A93EN11600 ADF Detection Harness 2\n \n 16 A93E272900 Shaft\n \n 17 A93E273100 Compressing Coil spring\n \n 18 A93E274900 Ground Spring\n \n 19 A93E273000 Roll\n \n 20 A93E272600 Compressing Coil spring\n \n 21 A93E279500 Ground Spring\n	\n \n

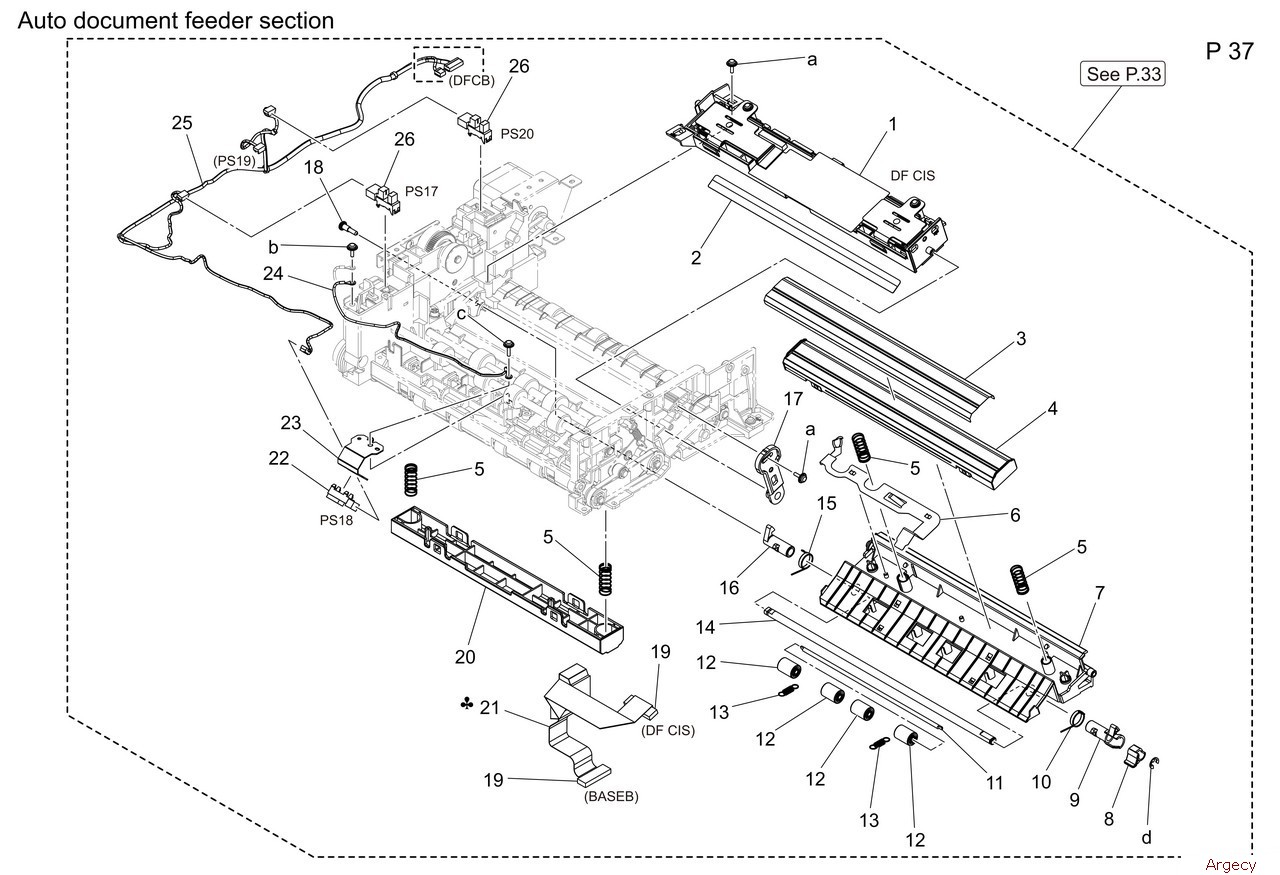

\n Auto document feeder section\n \n 1 AAJNR70900 CIS unit ADF\n \n 2 A93E266000 Guide Film\n \n 3 A93E286500 Read Sheet\n \n 4 A93E287400 Guide Part\n \n 5 A93E285900 Spring\n \n 6 A93E287200 Ground Plate\n \n 7 A93E286002 Conveyance Holder\n \n 8 A93E286700 Lock Lever\n \n 9 A93E286800 Lock Hook\n \n 10 A93E287100 Spring\n \n 11 A93E286300 Shaft\n \n 12 A93E286100 Idler Roller\n \n 13 A93E286200 Spring\n \n 14 A93E287000 Lock Shaft\n \n 15 A93E288200 Spring\n \n 16 A93E286901 Lock Hook\n \n 17 A93E285600 Support Frame\n \n 18 A93E266100 Hold Shaft\n \n 19 A7AHM90000 Connector\n \n 20 A93E288000 Guide\n \n 21 A93EN11G00 ADF Flat Cable\n \n 21 A93EN11H00 ADF Flat Cable\n \n 22 9335140071 Solid State Switch\n \n 23 A93E265800 Mounting Plate\n \n 24 A93EN11B01 Ground Harness 1\n \n 25 A93EN11501 ADF Detection Harness 1\n \n 26 A85CM55600 Photo Sensor\n	\n \n
\n Auto document feeder section\n \n 1 A93E265712 Frame\n \n 2 A93E285700 Support Holder\n \n 3 A93E282200 Bushing\n \n 4 A93E270900 Pulling Coil spring\n \n 5 A93E282111 Tension Plate ASSY\n \n 6 A93E281800 Timing belt 178L\n \n 7 A93E281000 Pulley 30T\n \n 8 A93E280800 Pulley 25T\n \n 9 A93E281900 Idling Pulley\n \n 10 A93E265601 Roller\n \n 11 A93E265500 Roller\n \n 12 A93E265300 Roller\n \n 13 A93E265400 Roller\n \n 14 A93E282000 Fly wheel\n \n 15 A93E280700 Gear 36T\n \n 16 A93EM21100 Clutch\n \n 17 A93E282800 Flange\n \n 18 A93E281700 Timing belt 96L\n \n 19 A93E283200 Pulley 23T\n \n 20 A93E283300 Drum\n \n 21 A00J663200 Bushing\n \n 22 A93E265900 Guide Film\n \n 23 4163529301 SCREW\n	\n \n
\n Auto document feeder section\n \n 1 A93EM10M00 Stepping Motor\n \n 2 A93E281412 Mounting Plate\n \n 3 A93E281500 Timing belt 114L\n \n 4 A93E282800 Flange\n \n 5 A93E280101 Gear 2431T\n \n 6 A93E282200 Bushing\n \n 7 A93E280511 Gear 19T\n \n 8 A85CM55600 Photo Sensor\n \n 9 A93E281312 Drive Frame ASSY\n \n 10 A93E269100 Ground Plate\n \n 11 A00J663200 Bushing\n \n 12 A93E269000 Ground Plate\n \n 13 A93E282700 Ground Plate\n \n 14 A93E280601 Gear 1930T\n \n 15 A93E281600 Timing belt 278L\n \n 16 A93E280400 Gear 30T\n \n 17 A93E280300 Gear 3234T\n \n 18 A93E280201 Gear 2250T\n \n 19 A93E280900 Shaft\n \n 20 A93EM21000 Clutch\n \n 21 A93E281201 Auxiliary Frame\n \n 22 A93EN11C00 Ground Harness 2\n	\n \n
\n Wiring Accessories\n \n 1 V500010082 Locking Wire Saddle \n \n 2 V500010083 Locking Wire Saddle \n \n 3 V500020098 Mini Locking wire saddle\n \n 4 V500020099 Mini Locking wire saddle\n \n 5 V500020100 Mini Locking wire saddle\n \n 6 V570010056 Locking Edge Saddle\n \n 7 V570010057 Wing Edge Saddle\n \n 8 V570010060 Wing Edge Saddle\n \n 9 V570010021 Saddle\n \n 10 V570010050 Locking Edge Saddle\n	\n
