Konica Bizhub C250i Parts

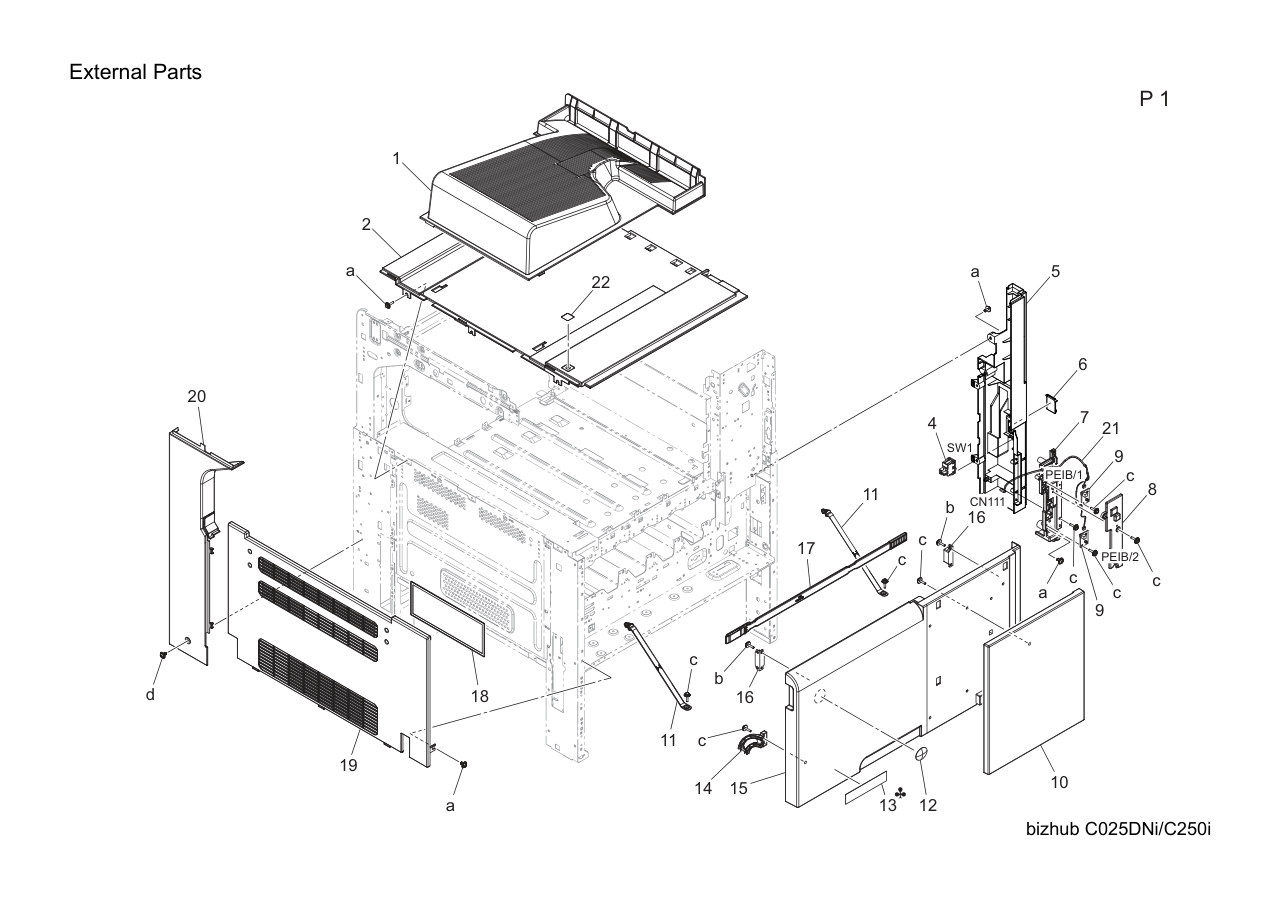

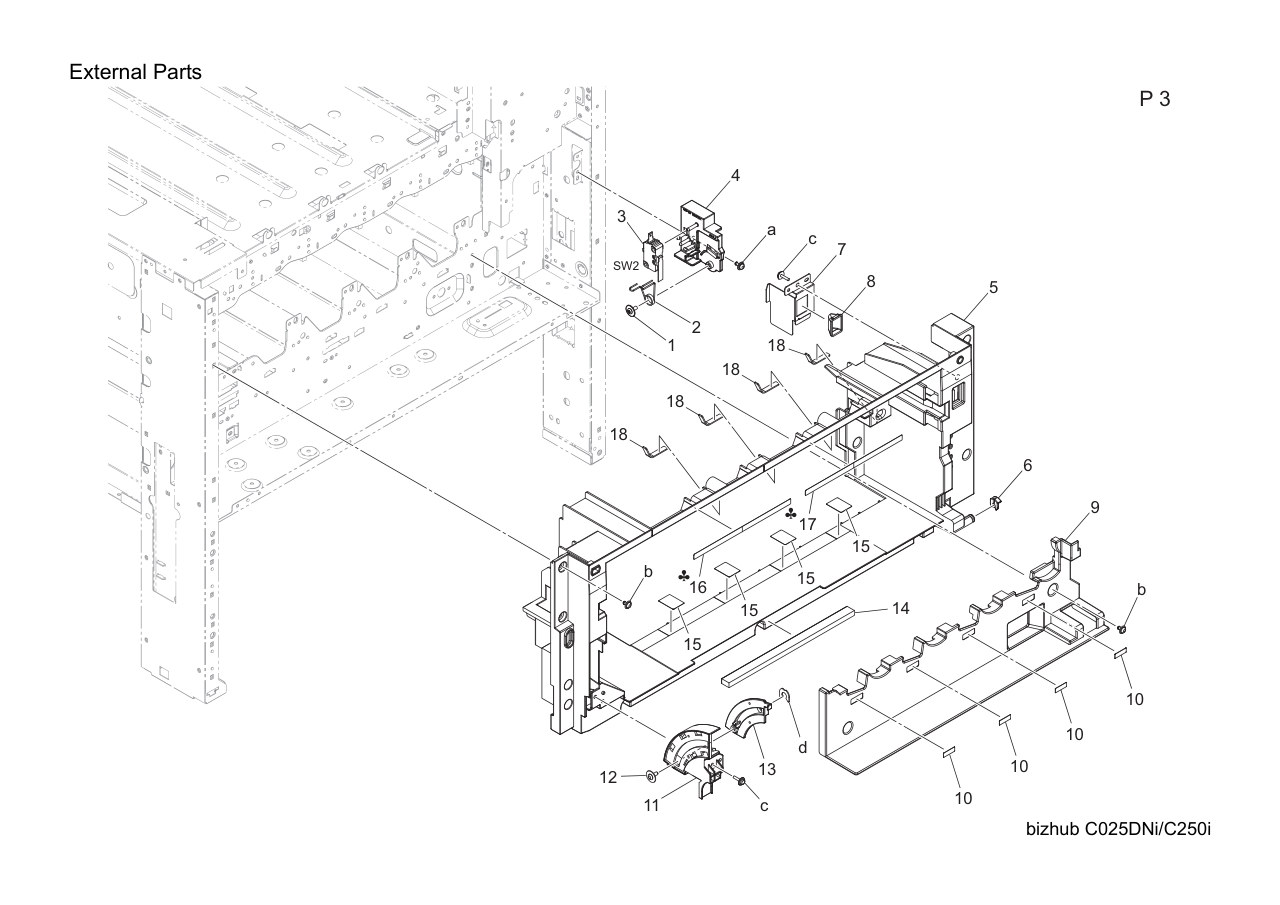

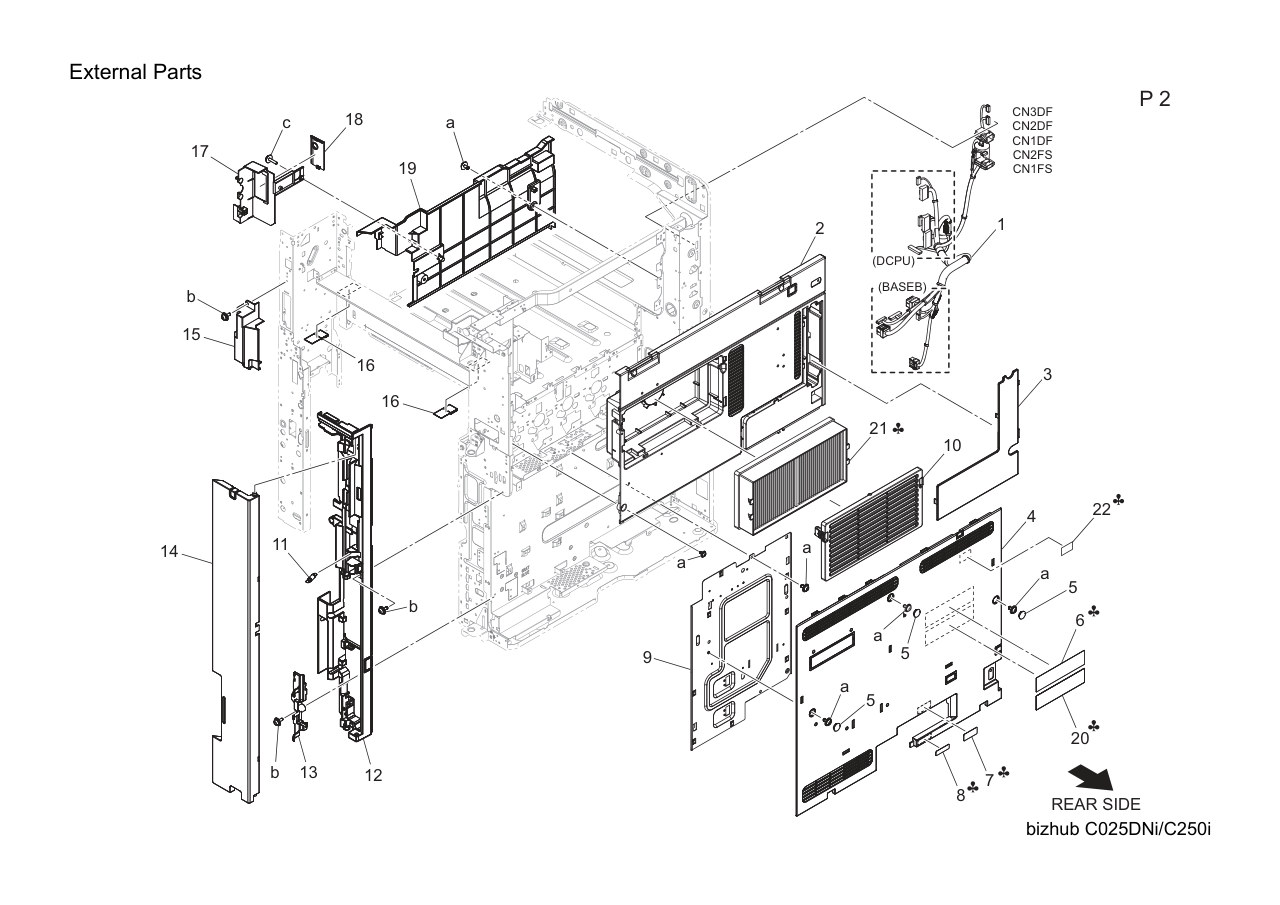

| External Parts 1 AA2J161000 Paper exit Tray 2 AA2J160103 Cover/Upper 4 A93EM60000 Rocker switch 5 AA2J160401 (Old) Cover/Right front 5 AA2J160412 Cover/Right front 6 AA2J160500 (Old) Cover 6 AA2J160511 Cover 7 AA2J169100 Receiving Pedestal 8 AA2J169201 Cover 9 A00JH00D00 PWB Assembly LED1 10 AA2J161301 Open/close Cover/Front 11 A797162000 Band 12 A00J945500 Logo Mark 13 AA2M940100 Label bizhub C250i (bizhub C250i) 13 AA2M941000 Label (bizhub C025DNi) 14 AA2J165100 Open/close Cover/Front 15 AA2J160204 Open/close Cover/Front 17 AA2JR70800 Cleaning Material 18 A7PU101500 Filter 19 AA2J160702 Cover/Left front 20 AA2J160801 Cover/Left rear 21 AA2JN10J00 Indicating Wiring 22 AA2J164800 Seal |  |
| External Parts 1 AA2JN10Y02 Power source Wiring 2 AA2J162102 Cover/Rear 3 AA2J163400 Cover/Rear 4 AA2J166303 Cover/Rear 5 A00J169100 Cover 6 A90G945700 Label Caution D1,D3,E,F2,G1,I,K 6 A2X0945701 Label A,B,C,G2,H 7 A02E149900 Label A 8 A00J945201 Label 220-240V 0.65A C,D1,D3,E,F2,G1,I,K 9 AA2J132301 Shield Plate 10 A7PU168301 Cover 11 A161163900 Pulling Coil spring 12 AA2J161803 Cover/Right rear 13 AA2J168700 Cover 14 AA2J160901 Cover/Right rear 15 AA2J161201 Cover/Right front 16 A7PU109100 Cushion 17 AA2J164300 Cover 18 AA2J164400 Cover 19 A79J162201 Cover 20 A7PU941701 Label Caution C,I(South Africa) 21 A7PU142100 Filter C,I(South Africa) 22 A7PU942400 Label A(YCS) |  |
| External Parts 1 4163529301 SCREW 2 AA2J130501 Torsion Coil spring 3 9J06M60100 MICRO SWITCH 4 AA2J130400 Holder 5 AA2J165001 Cover/Front 7 AA2J163200 Mounting Plate 8 A79J122200 Collar 9 AA2J164601 (Old) Cover/Front 9 AA2J164603 Cover/Front 10 A161943000 Label 11 AA2J165300 Arm/2 12 4163529301 SCREW 13 AA2J165200 Arm 14 AA2J165500 Seal 15 AA2J943000 Label 16 AA2J942100 Label A(KMJ),B,C,D1,D3,E, 16 AA2J942700 Label A(YCS) 17 AA2J942600 Label A(KMJ),B,C,D1,D3,E, 17 AA2J942800 Label A(YCS) 18 A85Y375100 Protection Part |  |

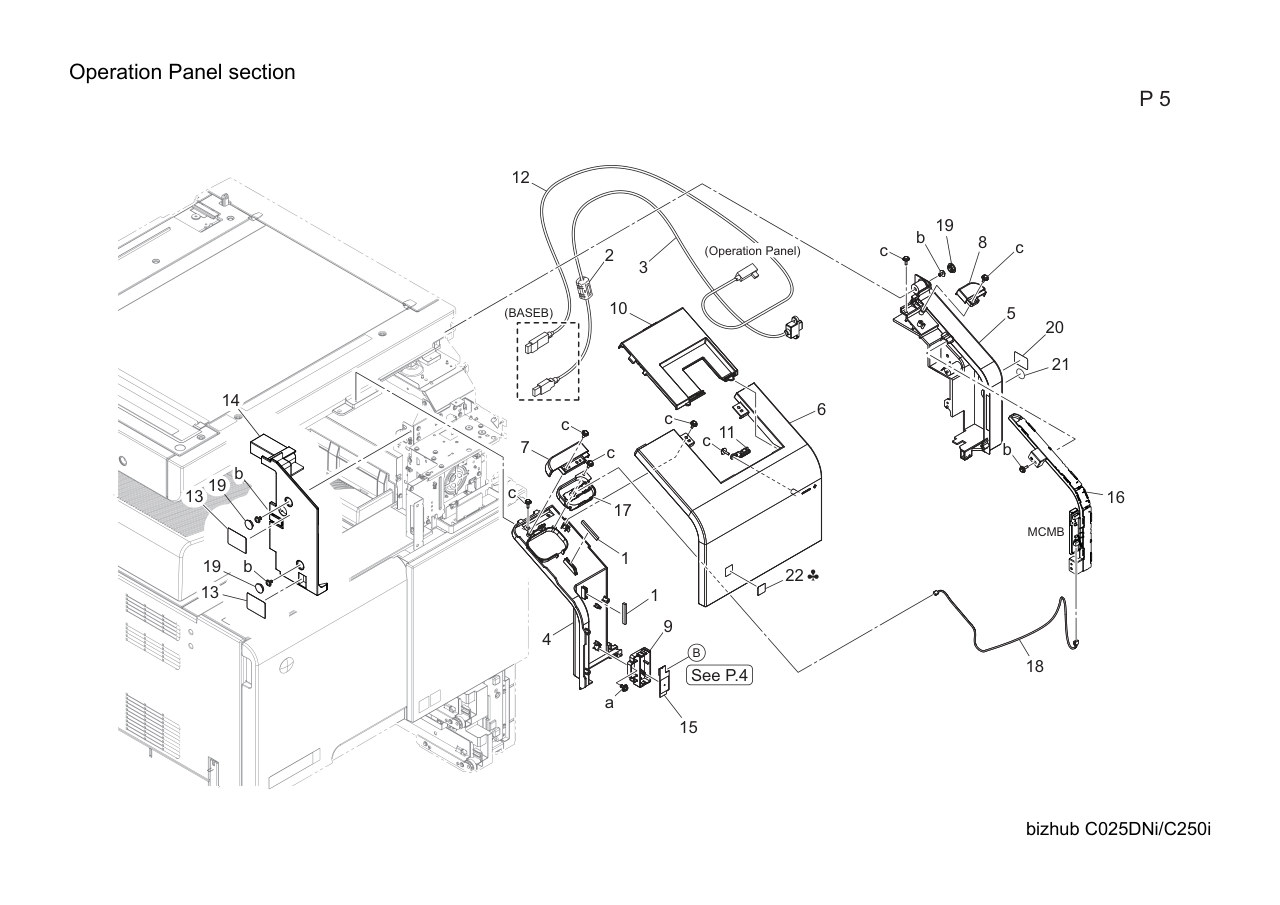

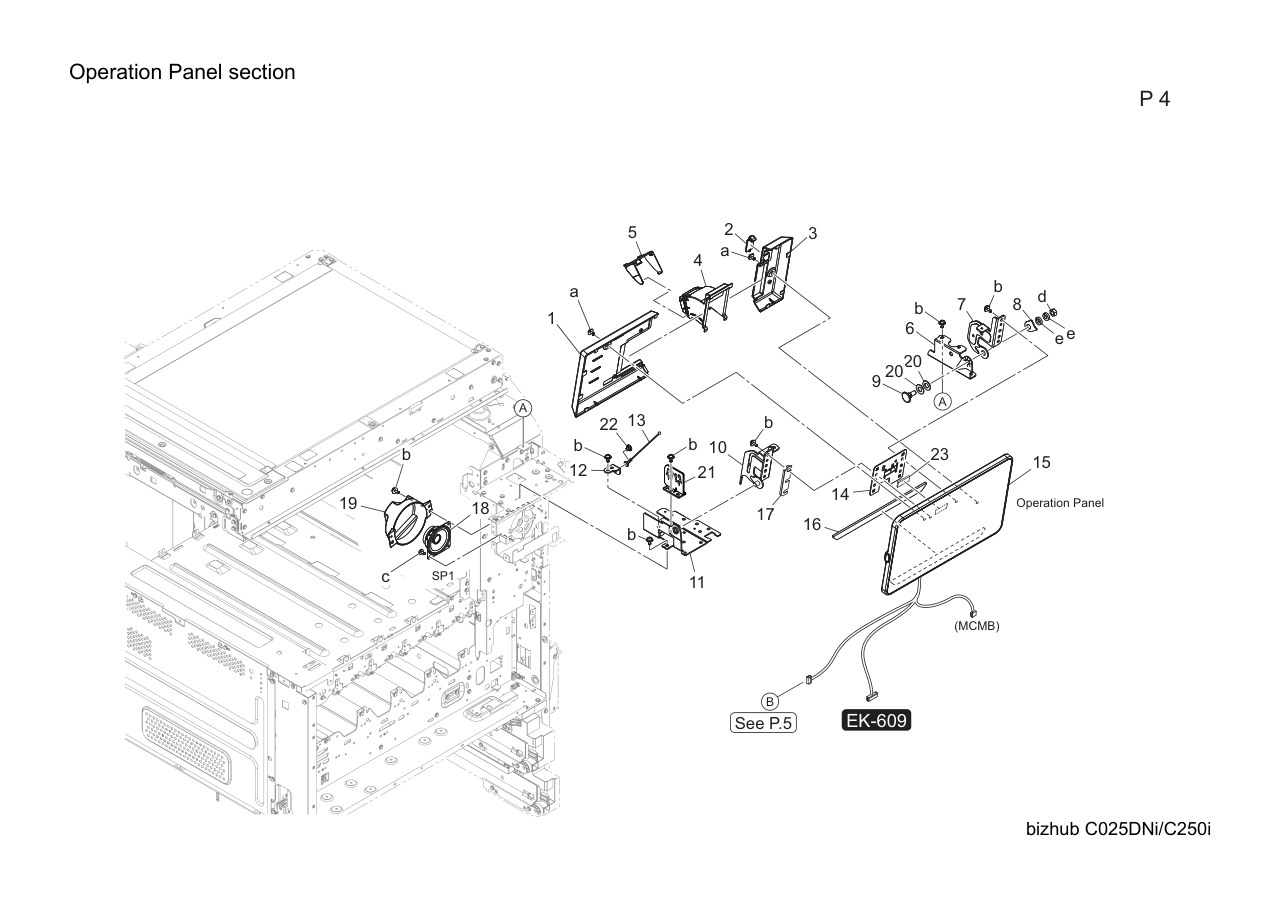

| Operation Panel section 1 AA2J192200 Cover/Left rear 2 AA2J192801 Cover 3 AA2J192100 Cover/Right rear 4 AA2J192301 Cover 5 AA2J192501 Cover 6 AA2J190101 Mounting Plate/Right 7 AA2J191100 Hinge 8 AA2J191300 Spacer 9 AA2J191600 Shaft 10 AA2J191000 Hinge/ASSY 11 AA2J190201 Mounting Plate 12 AA2J193100 Mounting Plate 13 AA2J191500 Wire 14 AA2J191201 Mounting Plate 15 AA2JM70002 Panel assembly 16 AA2J195000 Cushion 17 AA2J193200 Spacer 18 A7PUM72100 Speaker 19 AA2J134601 Mounting Cover 20 AA2J191800 Slide Spacer 21 AA2J191401 Guide 22 A7AH267201 Shoulder screw 23 AA2J136100 Seal |  |
| Operation Panel section 1 A161825800 Cushion/B 2 A5C1M92000 Ferritecore 3 A90GN15300 Interface Cable 4 AA2J161401 Cover 5 AA2J161501 Cover 6 AA2J161702 Cover 7 AA2J168000 Cover 8 AA2J168100 Cover 9 AA2J173300 Holder 10 AA2J192602 Cover 11 AA2J193000 Indicating Part 12 AA2JN15600 Interface Cable 13 A161162400 Seal 14 AA2J161902 Cover 15 AA2JM70600 Interface Unit 16 AA2JM72002 Indicating Unit 17 AA2JM72100 Indicating Unit 18 AA2JN15701 Wiring 19 A00J169100 Cover 20 A7PU168500 Seal 21 A7PU168600 Seal 22 AA2J948600 Label A |  |

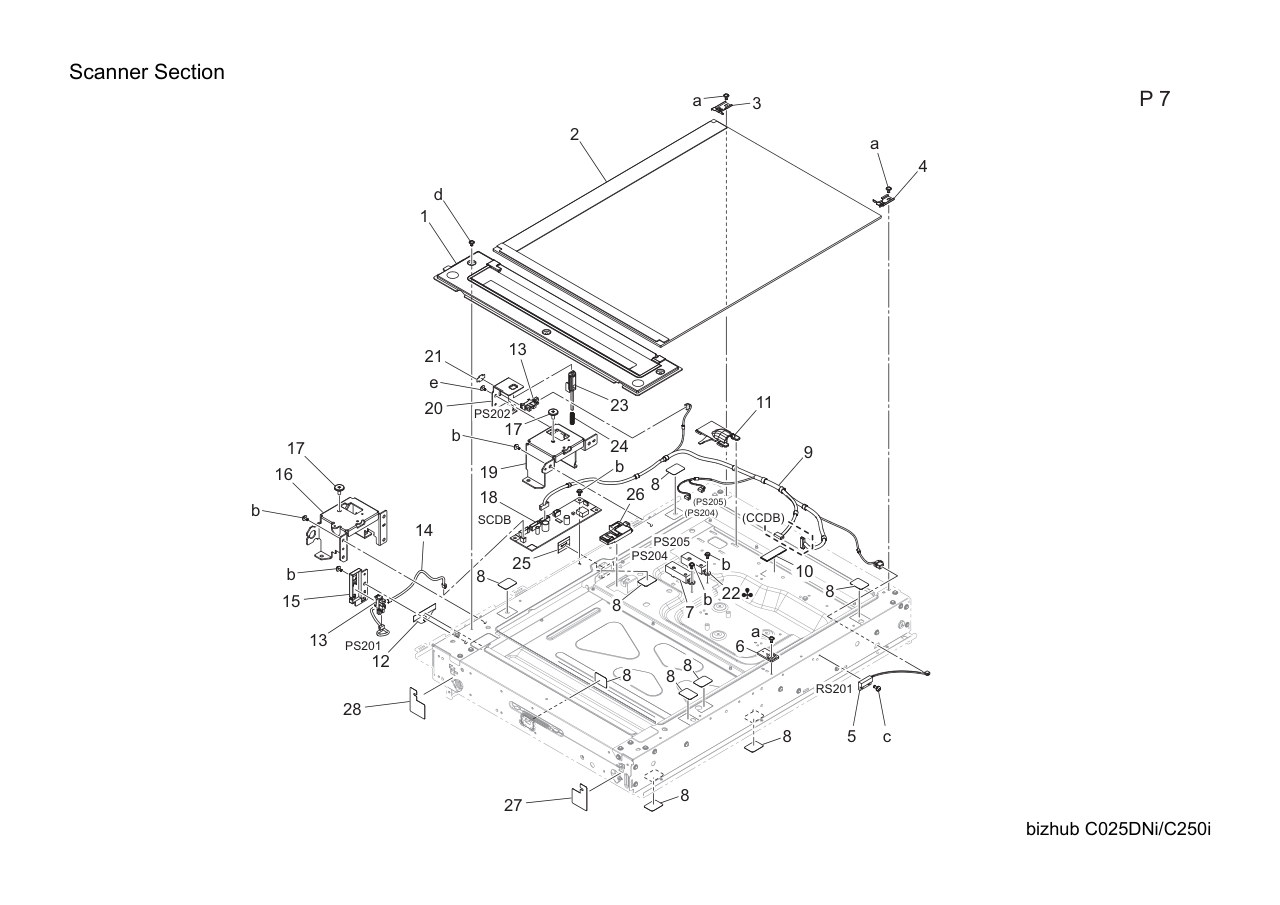

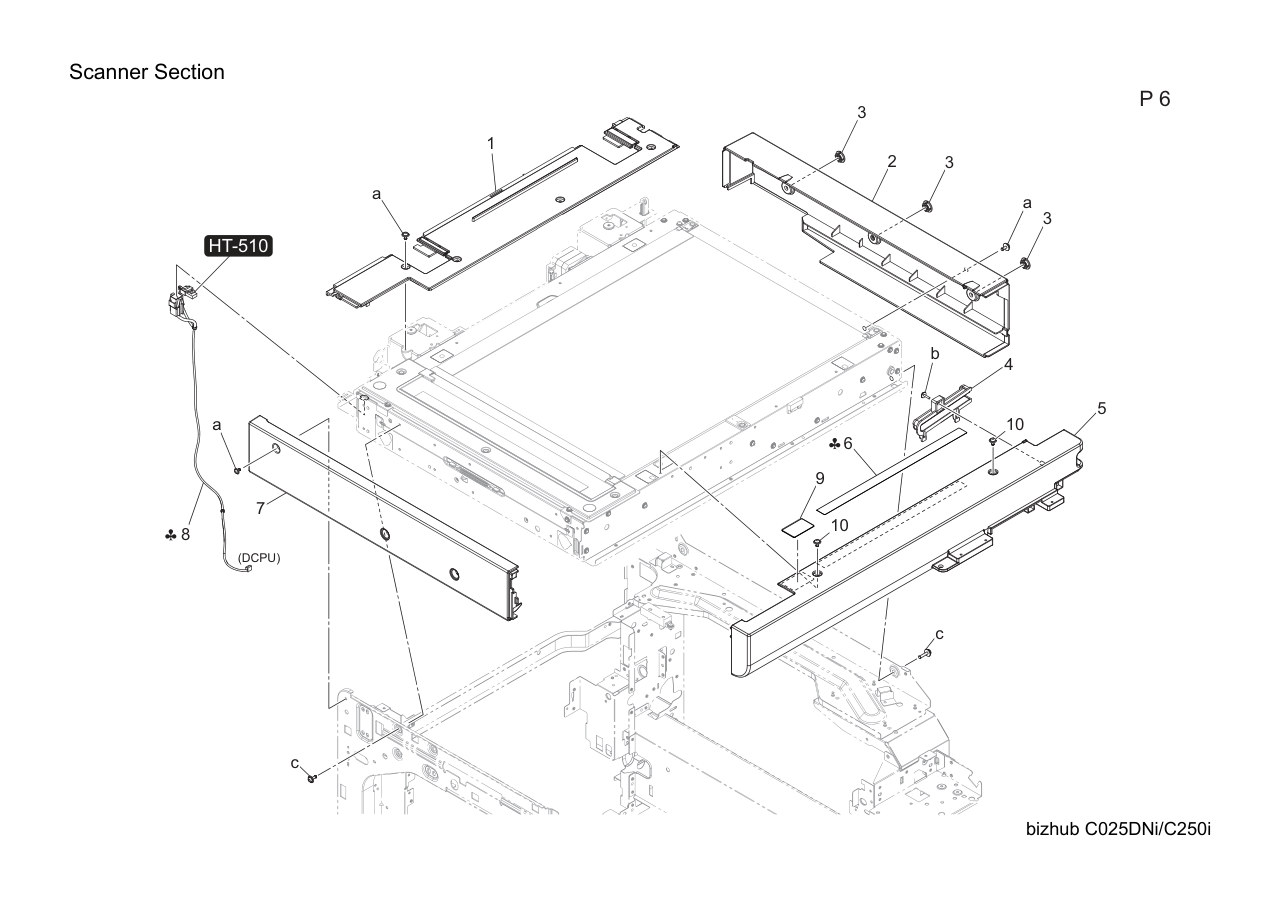

| Scanner Section 1 A7PU170702 Read Cover 2 AA2J170402 Read Cover/Right 3 A00J169100 Cover 4 A161170800 Holder 5 AA2J170104 Read Cover/Front 6 A92T940800 Label A 7 AA2J170300 Read Cover/Left 8 A161N11C01 Scanner Relay harness/100V A 9 A55D941100 Caution Label 10 A00J169200 Shoulder screw |  |

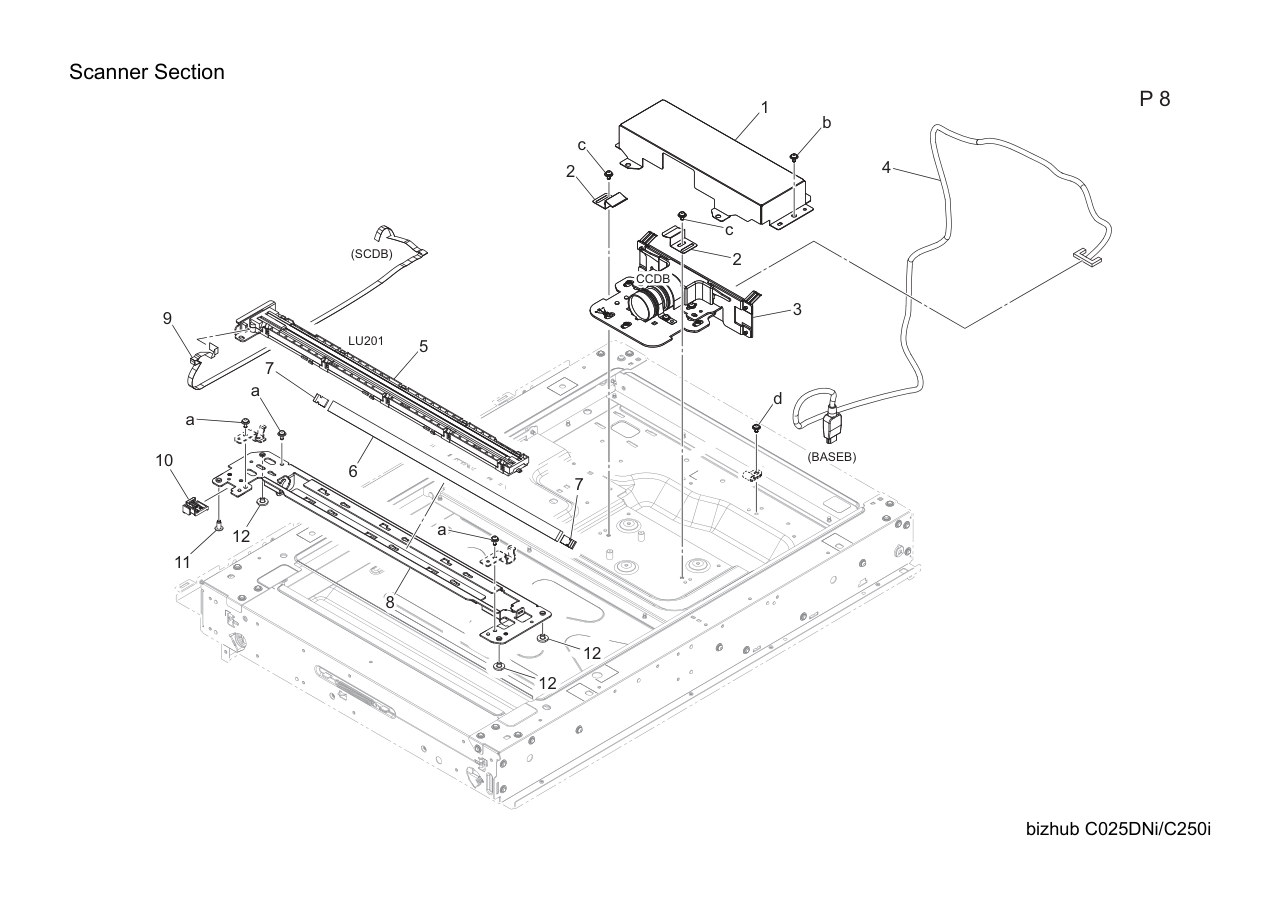

| Scanner Section 1 AA2JR73200 Slit Glass ASSY 2 AA2JR73300 Original Glass ASSY 3 A161268300 Holding Plate 4 A161268200 Holding Plate 5 A1UDM50200 Lead Switch 6 A00J265300 Regulating Plate 7 A161M50A00 APS Photoreflector 8 4581162501 SEAL 9 A161N14100 Scanner Wiring/1 10 4036307501 Tape 11 A161281600 Guide 12 A161263000 Seal 13 A5C1M50100 Photointerrupter 14 A161N14201 Scanner Wiring/2 15 A161262200 Cover 16 A161261902 Frame 17 9J07210802 Shoulder Screw 18 AA2JH01A00 PWD-ID 19 A161262002 Frame 20 A5C1280100 Mounting Plate 21 4470402401 Stopper 22 A161M50A00 APS Photoreflector 23 A161280211 Lever 24 A161280300 Compressing Coil spring 25 A161281300 Seal 26 A161281100 Guide 27 A5C1263300 Seal 28 A5C1263400 Seal |  |

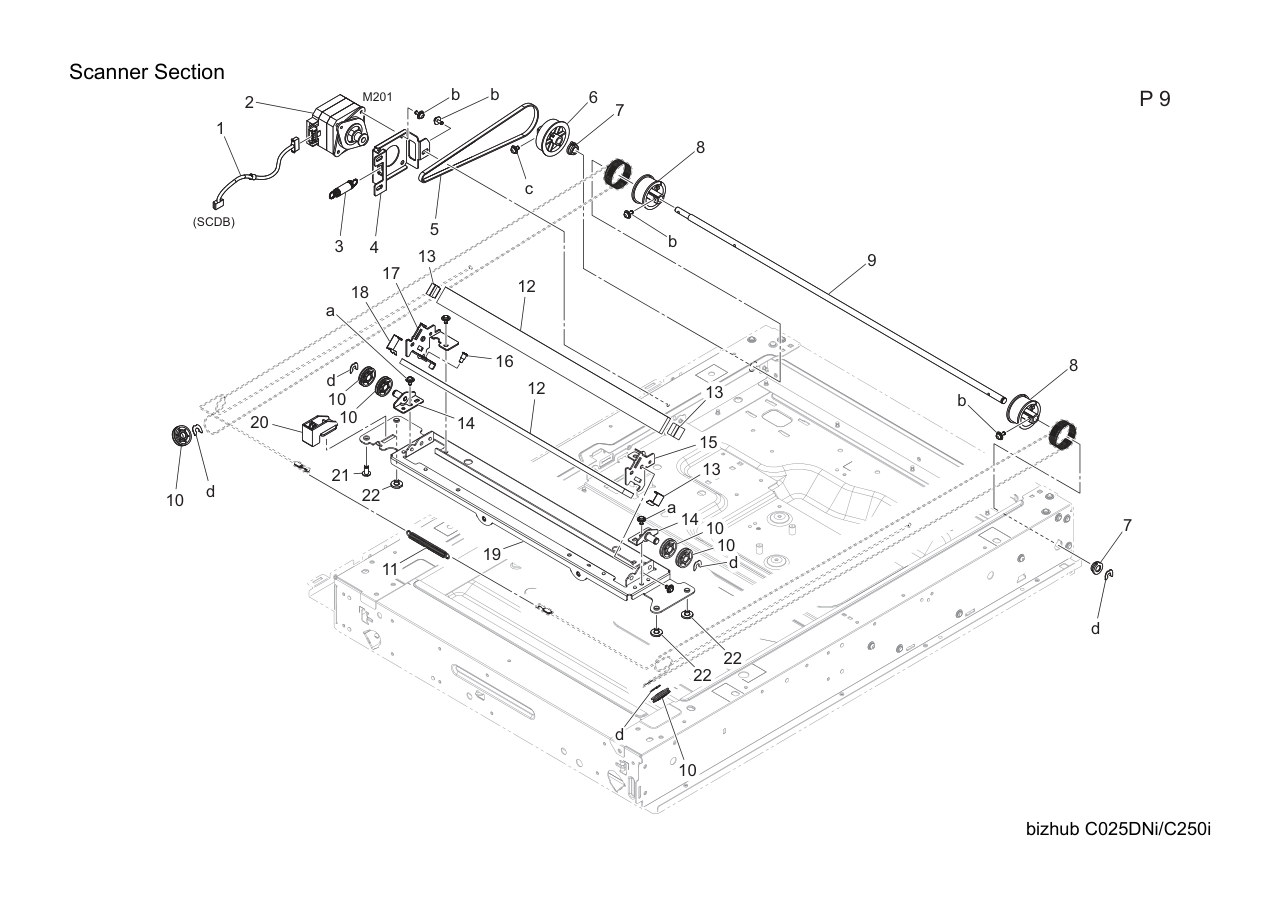

| Scanner Section 1 A161278600 Cover 2 A161278900 Plate spring 3 AA2JR70100 CCD Lens Assy 4 AA2JN14500 CCD Cable 5 AA2JR71400 LED Lighting Assy 6 A0ED271200 Mirror 7 A0ED271300 Plate spring 8 A7PU270100 Frame 9 A7PUN14000 Flatcable/Scanner 10 A7PU270600 Guide 11 A161271100 Bushing 12 A161271000 Bushing |  |
| Scanner Section 1 A5C1N14300 Scanner Wiring 2 A5C1M10A00 Stepping motor 3 A161275700 Pulling Spring 4 A161276000 Mounting Plate 5 A161275600 Timing belt 335L 6 A161275500 Pulley 103T 7 A161276500 Bearing 8 A161275300 Pulley 9 A161275400 Shaft 10 A0ED273600 Pulley 11 A0ED276301 Pulling Spring 12 A0ED274300 Mirror 13 A79J274400 (Old) Plate spring 13 A0ED274400 Plate spring 14 A161273401 Mounting Plate 15 A161273800 Mounting Plate 16 A161274600 Adjusting Screw 17 A161273701 Mounting Plate 18 A79J274500 (Old) Plate spring 18 A161274500 Plate spring/1 19 A161273113 Frame 20 A161273500 Guide Part 21 A161271100 Bushing 22 A161271000 Bushing |  |

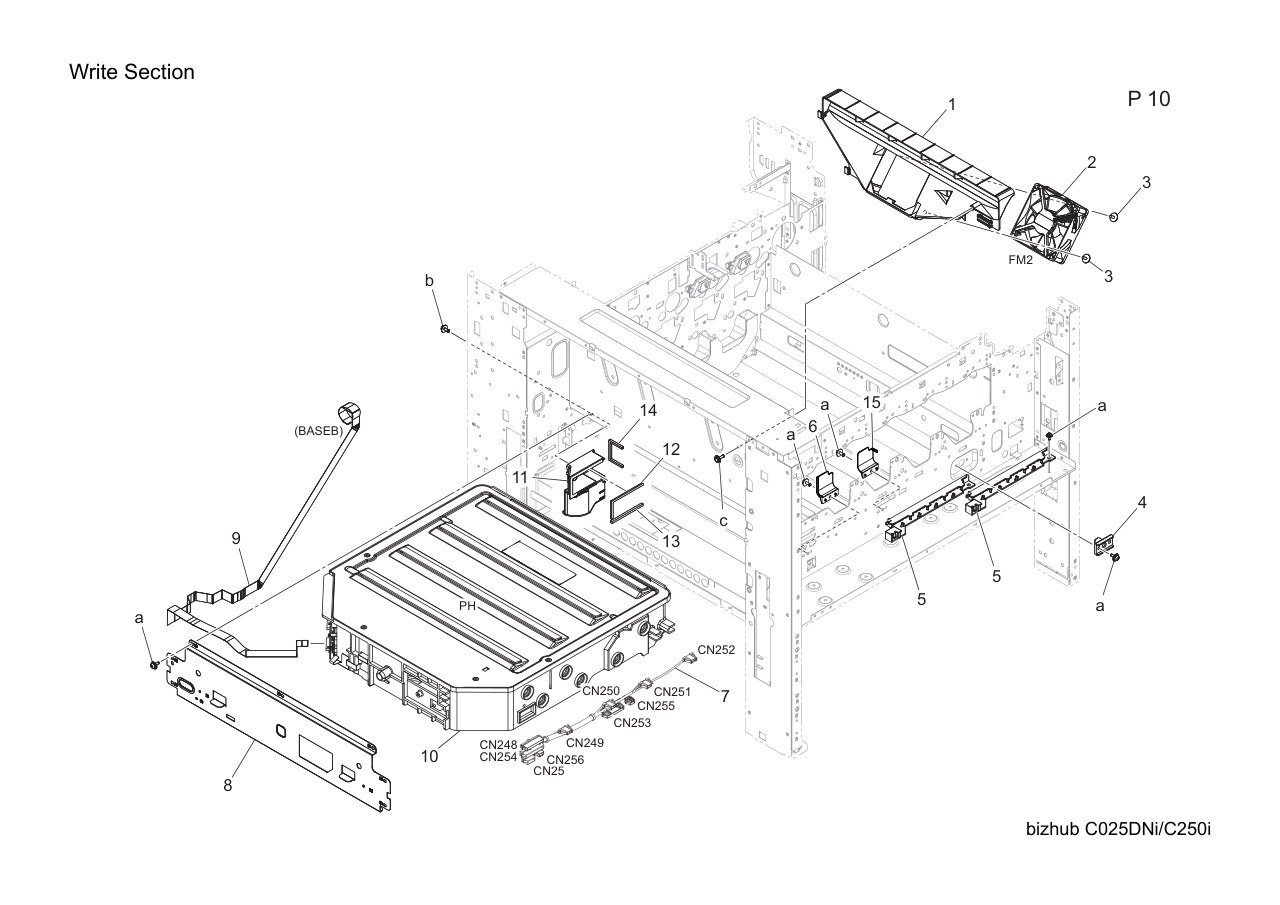

| Write Section 1 A161140200 Duct 2 A93EM10000 Fan motor 3 4163529301 SCREW 4 A161105400 Positioning Plate 5 A5C1135300 Guide 6 AA2J134201 Guide 7 AA2JN10G01 Relay Wiring/Front 8 A161101802 Mounting Plate 9 AA2JN11C00 I/F Flatcable 10 AA2JR71500 Print Head Assy 11 AA2J147400 Duct 12 A7PU145900 Seal 13 A7PU146000 Seal 14 AA2J145800 Seal/2 15 AA2J134100 Guide |  |

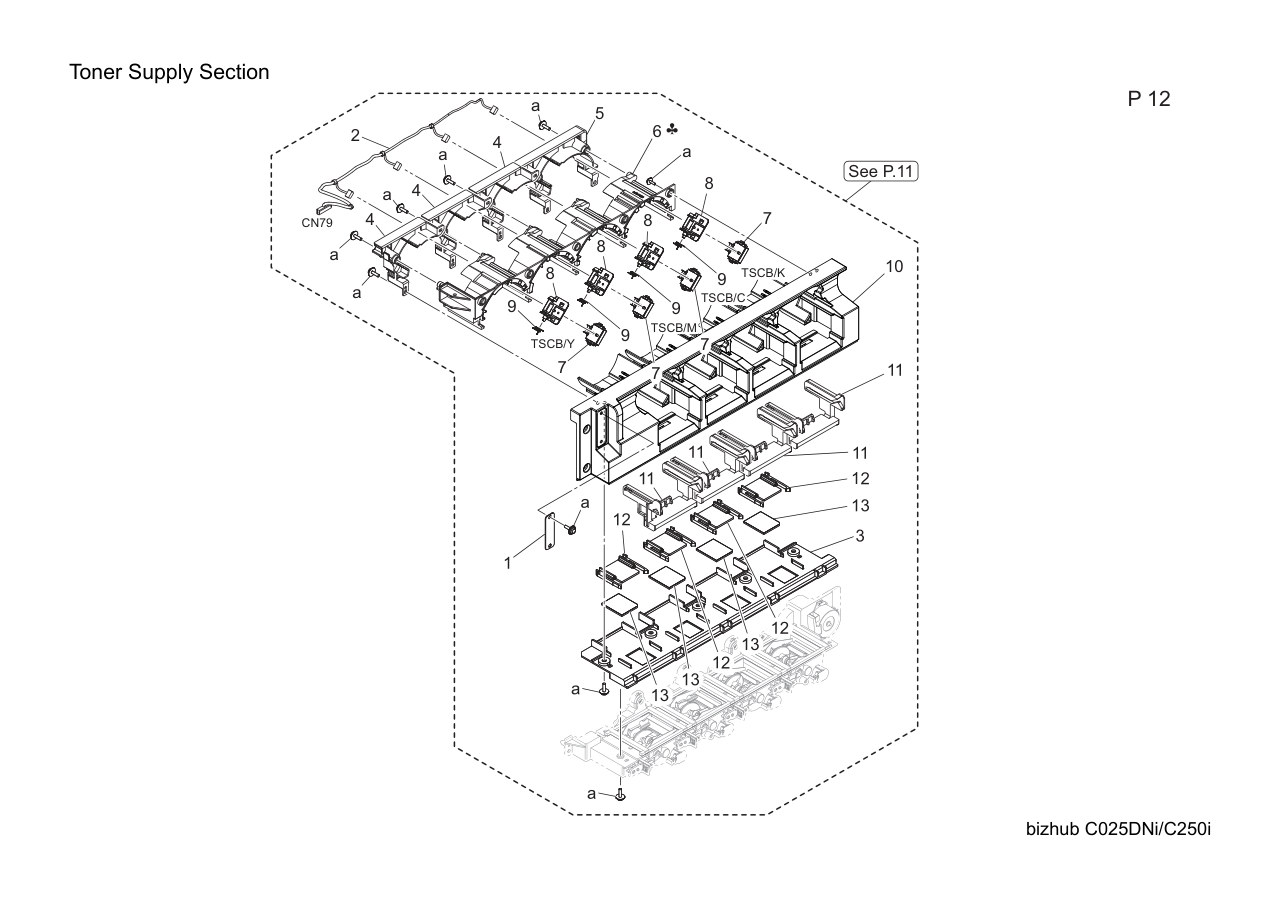

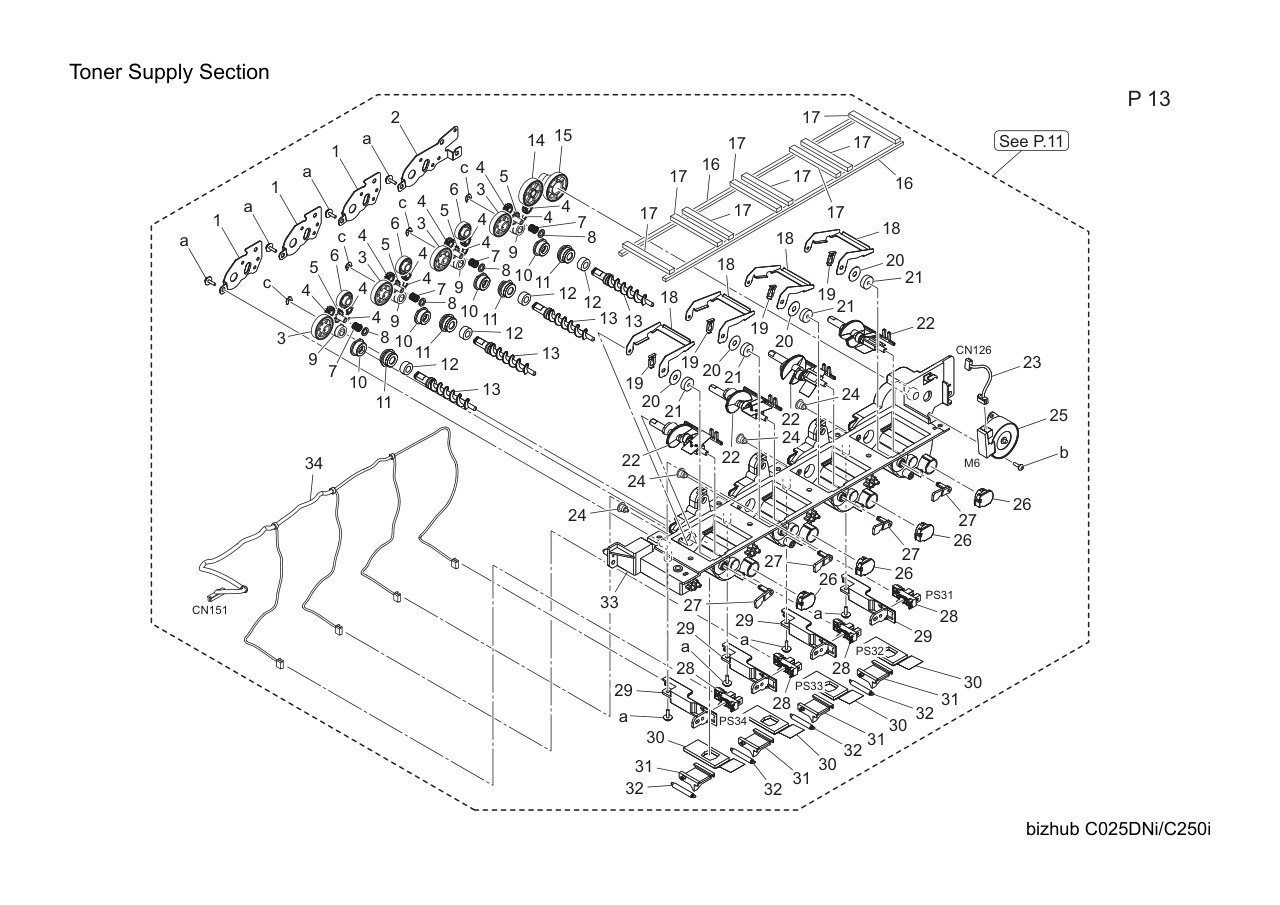

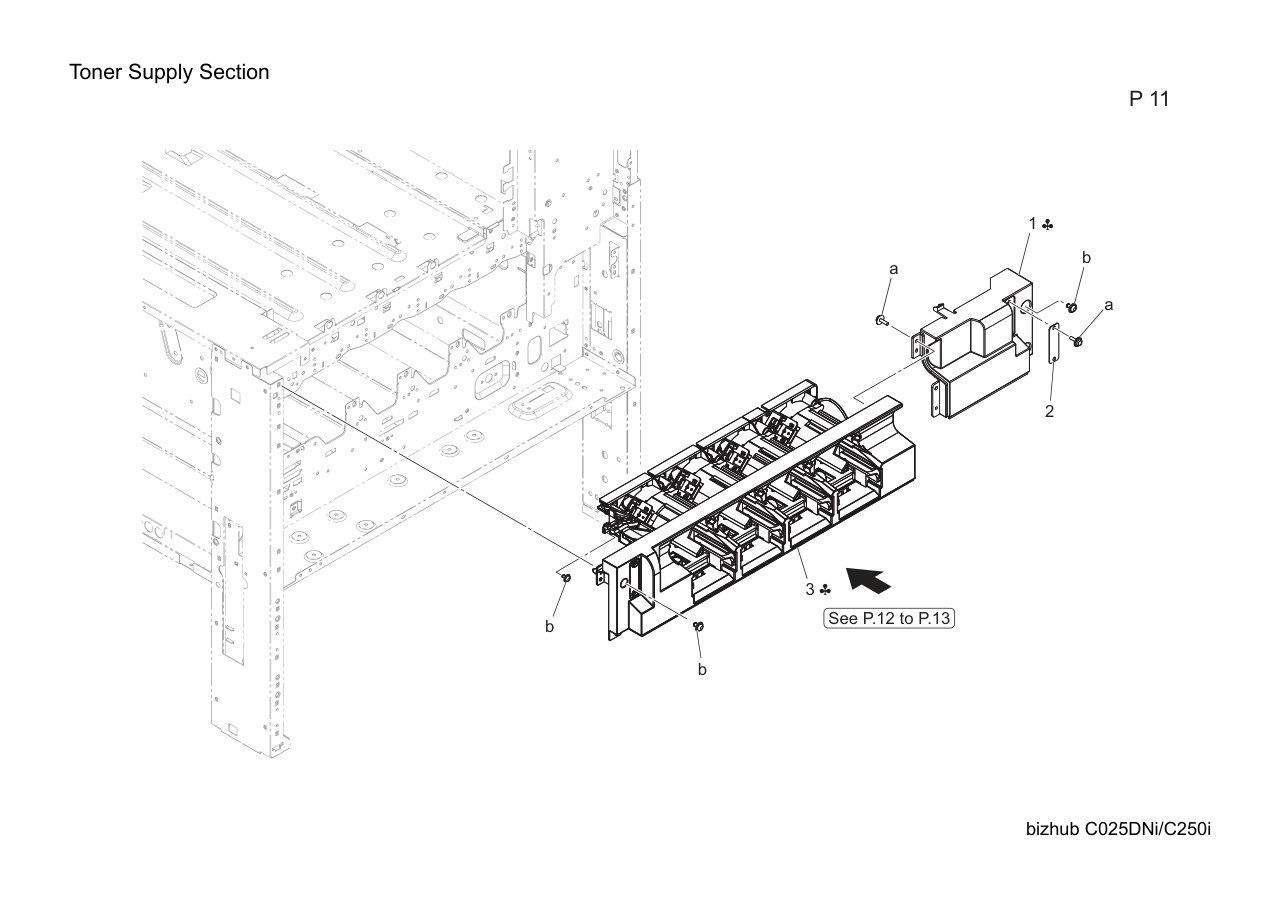

| Toner Supply Section 1 AA2J401401 Cover/Right A 1 AA2J401501 Cover/Right B,C,D1,D3,E,F2,G1,G 2 4038101401 SUCTION PLATE 3 AA2JR71700 Sub Hopper Assy A(KMJ) 3 AA2JR71900 Sub Hopper Assy C,I(South Africa) 3 AA2JR73500 Sub Hopper Assy D1,D3,E,F2,G1,I(exc 3 AA2JR71800 Sub Hopper Assy A(YCS),B,G2 |  |
| Toner Supply Section 1 4038101401 SUCTION PLATE 2 AA2JN11E00 Toner Detection harness/2 3 AA2J402100 Cover 4 AA2J404101 Guide 5 AA2J405301 Guide 6 AA2J406100 Cover C,I(South Africa) 6 AA2J406200 Cover A(KMJ) 6 AA2J406300 Cover D1,D3,E,F2,G1,I(exc 6 AA2J405100 Cover A(YCS),B,G2 7 A0EDM60001 Relay Connector 8 AA2J404503 Holder 9 AA2J404600 Torsion Coil spring 10 AA2J401302 Cover 11 AA2J402600 Guide 12 AA2J402401 Shutter 13 AA2J402500 Seal |  |
| Toner Supply Section 1 AA2J402700 Mounting Plate 2 AA2J402800 Mounting Plate 3 AA2J401100 Gear 36T 4 A79J401600 Gear 20T 5 A79J401700 Gear 18T 6 A161401500 Gear 25T 7 A79J401900 Spring 8 A79J401800 Washer 9 A161401000 Gear 18T 10 4163510201 BUSHING 11 AA2J403100 Holder 12 4576536301 SEAL 13 AA2J400100 Screw 14 A79J401400 Gear 40T 15 A161401300 Gear 17/65T 16 AA2J403300 Seal 17 AA2J405500 Seal 18 AA2J400400 Detecting Plate 19 A161404200 Fixing Plate 20 A5C1404600 Washer 21 A161400601 Detecting Seal 22 AA2JR73400 Agitating Shaft Assy 23 A161N12801 Toner Drive harness/K 24 A161400800 Pin 25 A7PUM10700 Stepping motor 26 A161403000 Bushing 27 AA2J404300 Detecting Actuator 28 A5C1M50100 Photointerrupter 29 AA2J400700 Mounting Plate 30 A161403200 Seal 31 A0ED401000 Shutter 32 4036534801 TENSION SPRING 33 AA2J400000 Casing 34 AA2JN10E00 Toner Detection harness/1 |  |

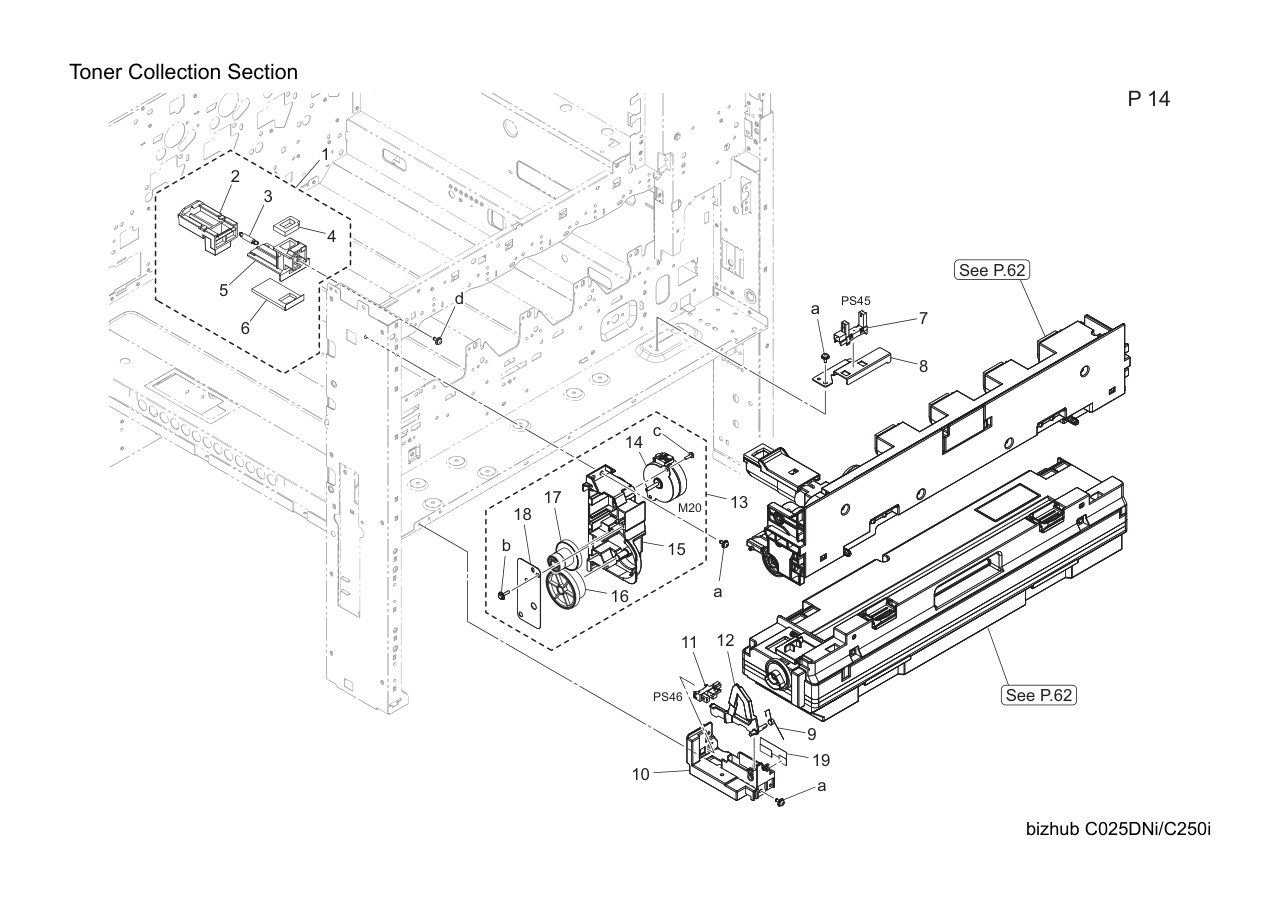

| Toner Collection Section 1 AA2JR73600 Waste Toner Pipe Assy 2 A64J363700 Shutter 3 A0ED363200 Pulling Coil spring 4 A0ED363400 Seal 5 AA2J363000 Pipe 6 AA2J368001 Seal 7 A0VDM50200 Photointerrupter 8 AA2J134401 Mounting Plate 9 AA2J369301 Torsion Coil spring 10 AA2J369101 Holder 11 A5C1M50100 Photointerrupter 12 AA2J369201 Lever 13 AA2JR71000 Waste Toner Driva 14 A7PUM10600 Stepping motor 15 AA2J245002 Drive Holder 16 AA2J245200 Gear 20/50T 17 AA2J245100 Gear 20/76T 18 AA2J245300 Mounting Plate 19 AA2J369500 Sheet |  |

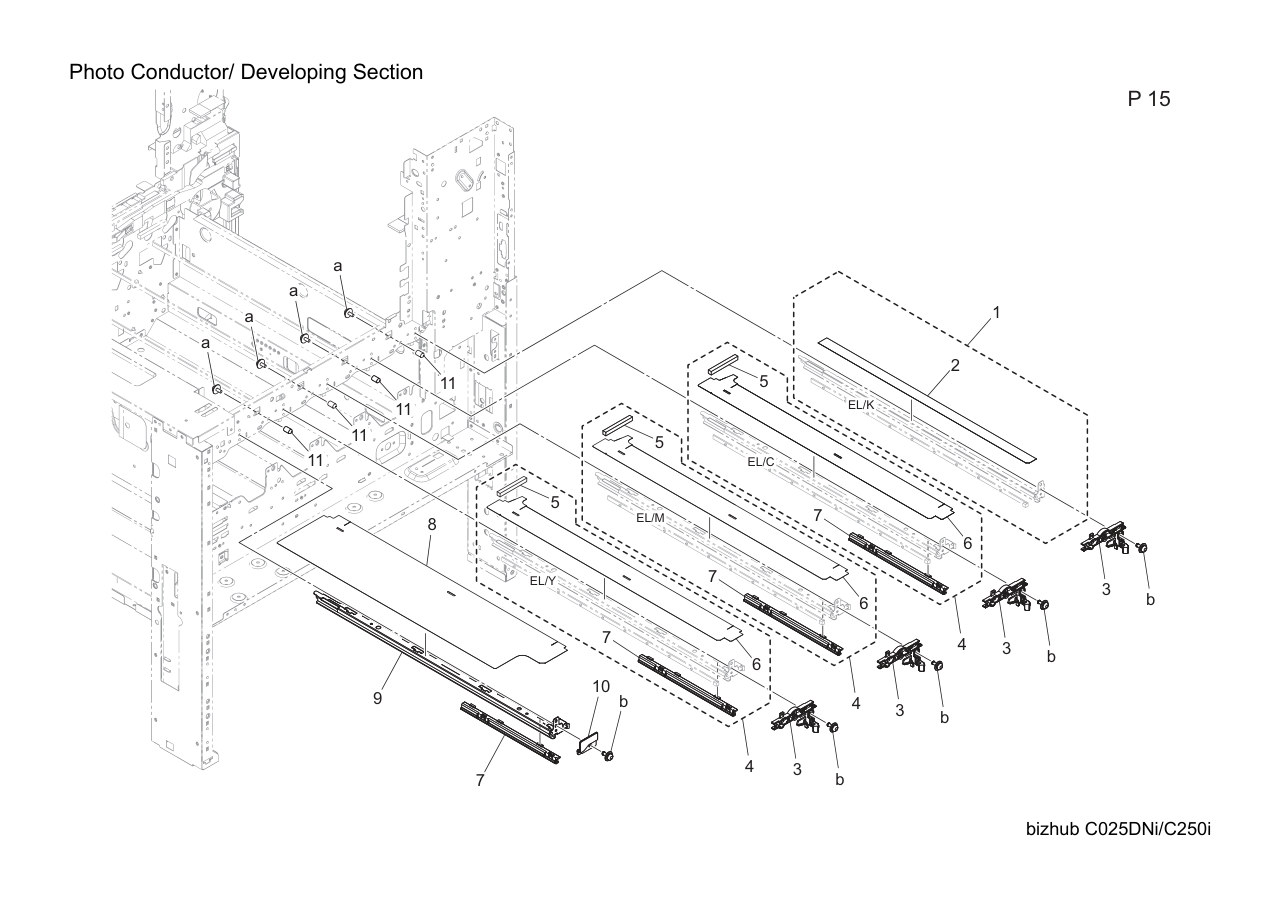

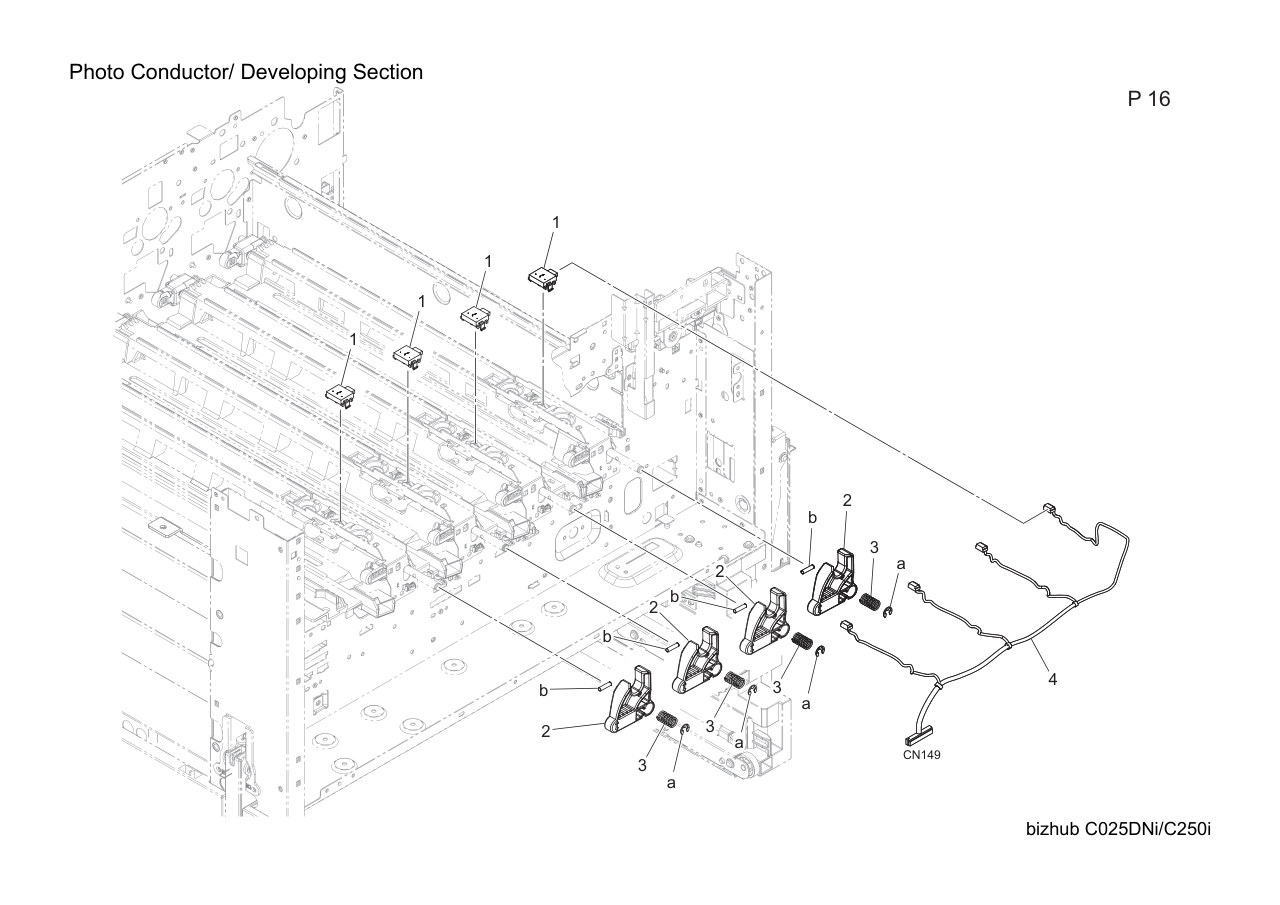

| Photo Conductor/ Developing Section 1 A7PUR70500 Eraser (Black) Assy 2 A161107400 Light blocking Part 3 AA2J130100 Holder 4 A7PUR70611 Eraser (YMC) Assy 5 A161107100 Seal 6 A5C1105500 Light blocking Part 7 A797105400 Rail 8 A5C1102800 Seal 9 A161105600 Rail 10 A161138500 Guide 11 A0ED103100 Pin |  |
| Photo Conductor/ Developing Section 1 A0EDM60001 Relay Connector 2 A161116202 Release Lever 3 A161119500 Compressing Coil spring 4 AA2JN10F00 Photoconductor Wiring |  |

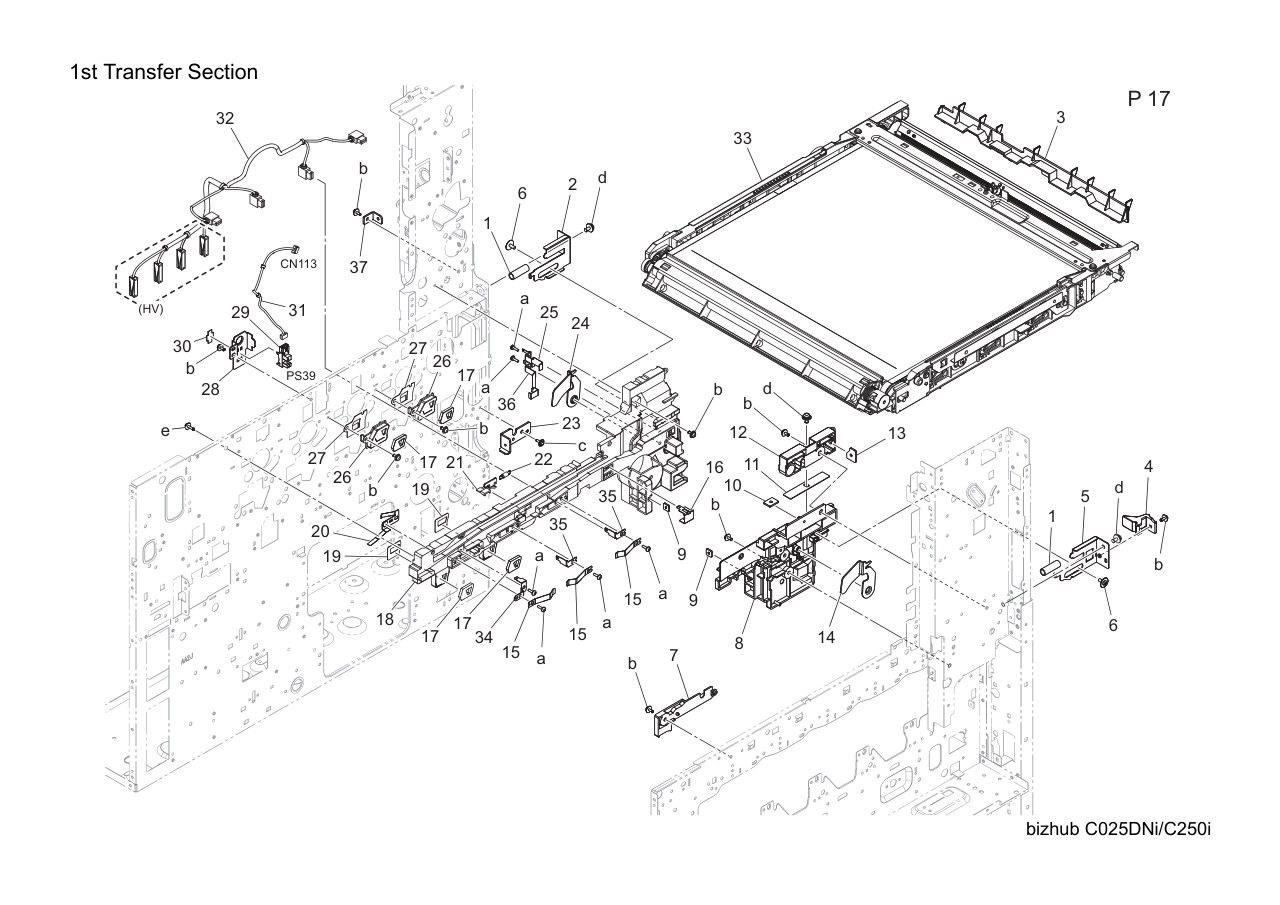

| 1st Transfer Section 1 A0ED111000 Compressing Coil spring 2 A161112101 Lever/Rear 3 A79J508400 Guide 4 A161110601 Lock Part 5 A161112500 Lever/Front 6 4163529301 SCREW 7 A161110300 Rail 8 AA2J110200 Rail 9 4002504202 PLATE NUT 10 A161112200 Mounting Plate 11 A161112600 Adjusting Plate 12 AA2J110400 Fusing Rail/Front 13 AA2J112200 Mounting Plate 14 A5C1112800 Arm/Front 15 A0ED111500 Contact/Color 16 A0ED111400 Contact/K 17 A161144801 Seal 18 AA2J110100 Rail 19 A161144900 Seal 20 A0ED112000 Contact 21 A161110500 Detecting Plate 22 A0ED110900 Pulling Coil spring 23 A7PU109000 Reinforce Plate 24 A5C1112900 Arm/Rear 25 A161112400 Contact 26 A161141700 Duct 27 AA7N145200 Seal 28 A5C1112101 Mounting Plate 29 A5C1M50100 Photointerrupter 30 4470402401 Stopper 31 AA2JN10X00 Connecting Detection harness 32 AA2JN11200 Transfer Wiring/1 33 AA2JR73700 Intermediate Image Transfer Unit A,B,C,D1,D3,E,F2,G1 34 A161112000 Contact 35 A0ED111700 Contact 36 A161112300 Contact 37 A161112700 Mounting Plate |  |

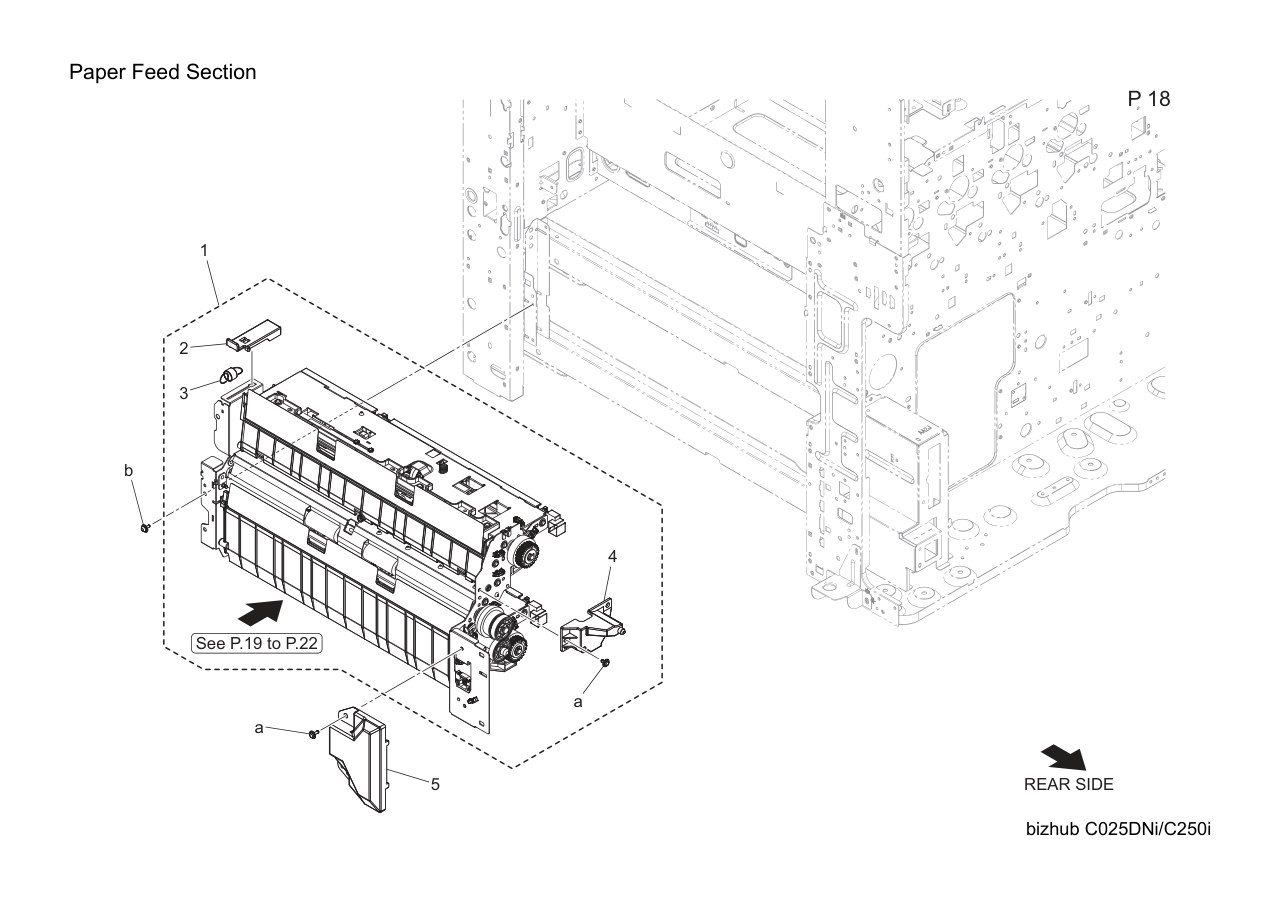

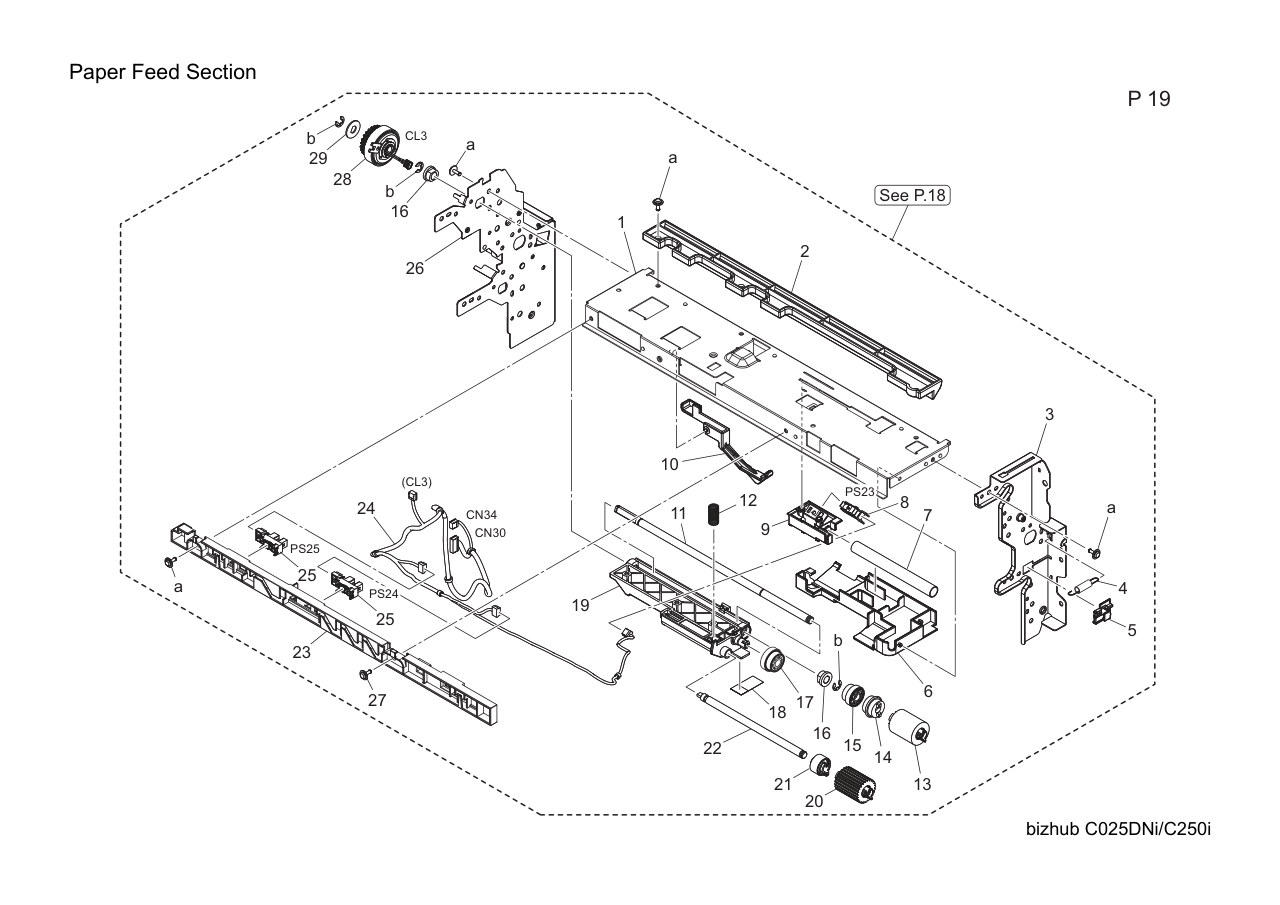

| Paper Feed Section 1 AA2JR72100 Paper Feed Assy 2 A161561100 Holder 3 A161561200 Pulling Coil spring 4 A161565102 Mounting Plate 5 A161579011 Cover |  |

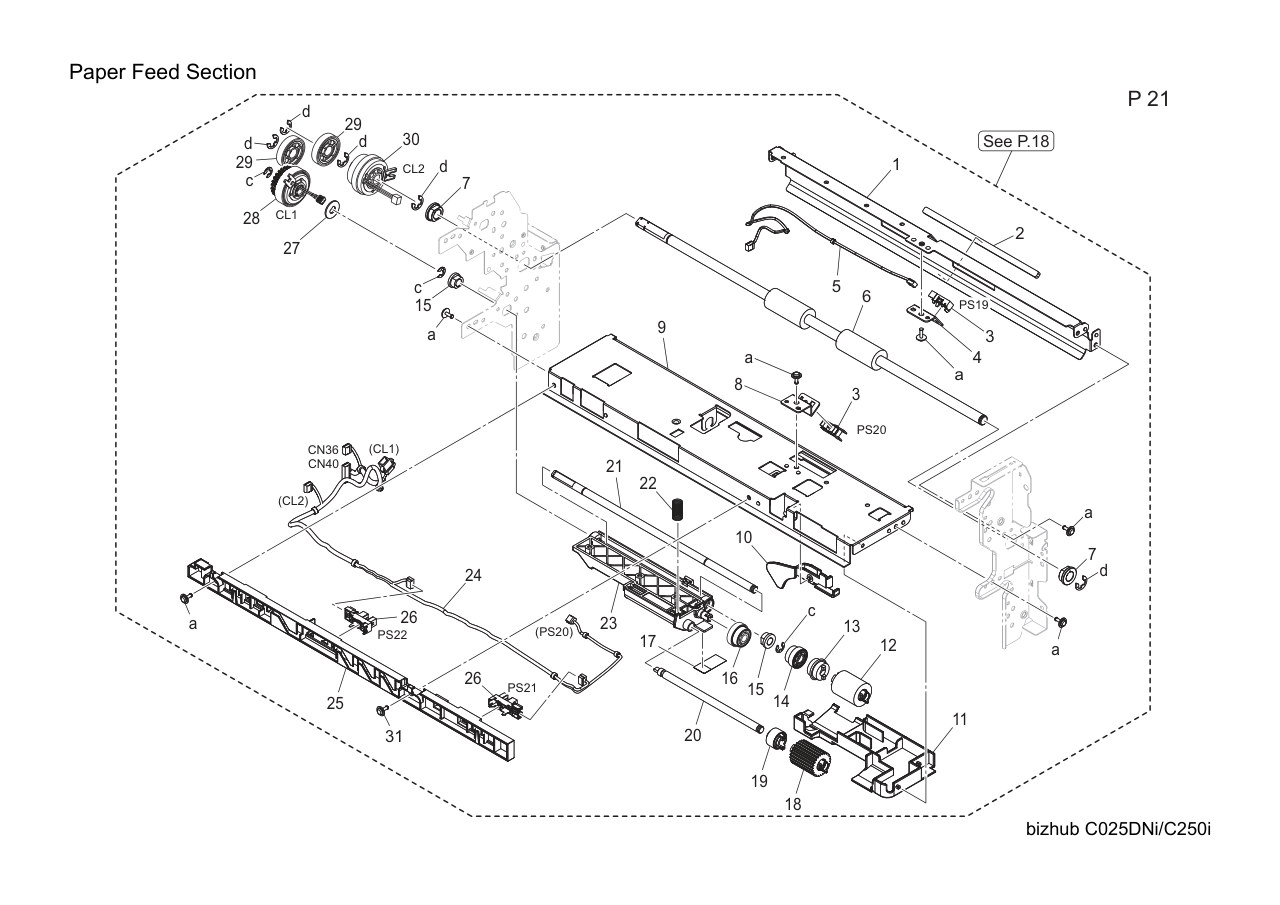

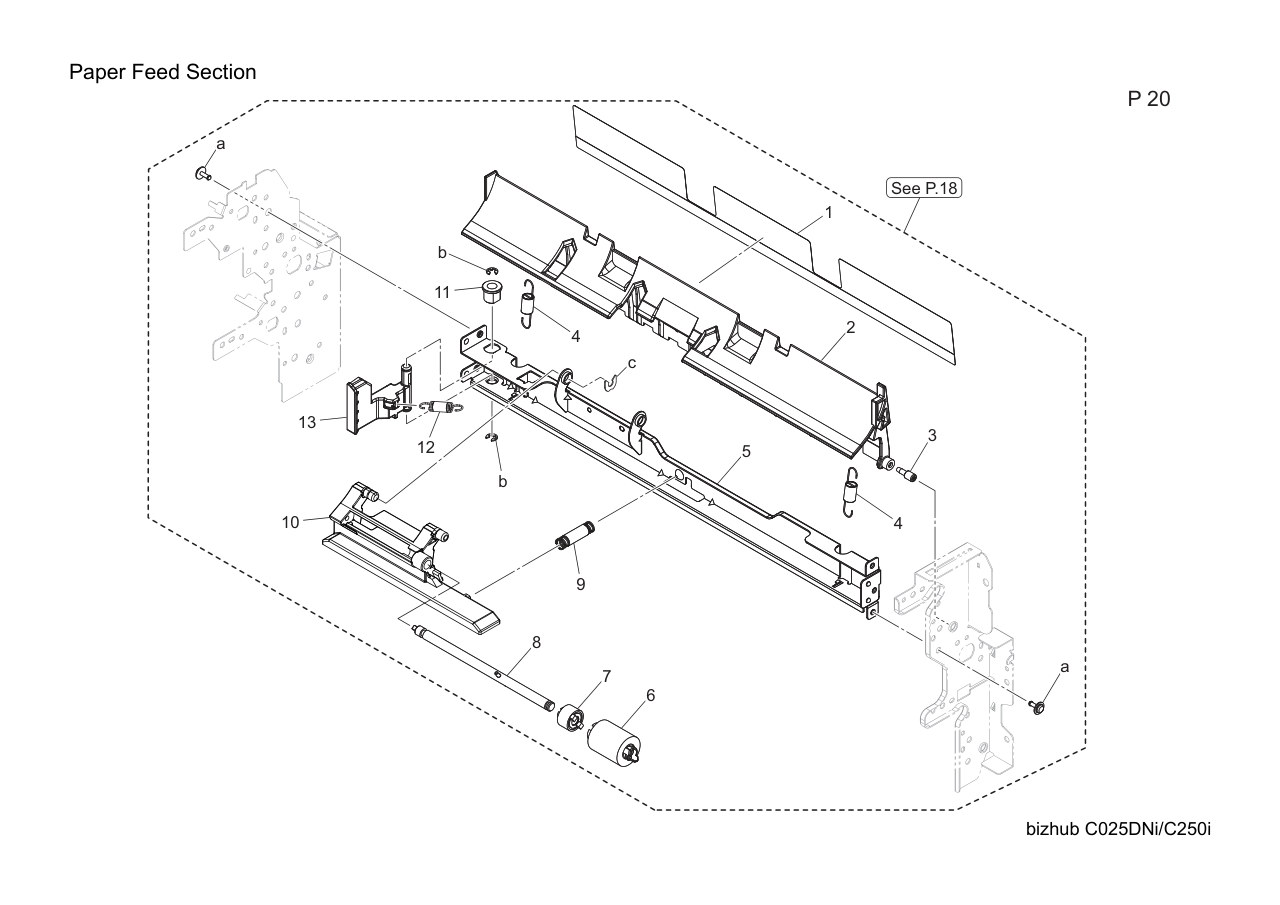

| Paper Feed Section 1 AA2J565202 Paper feed Frame 2 AA2J566000 Paper feed Guide 3 AA2J560101 Frame/Front 4 AA2J571200 Pulling Coil spring 5 AA2J571100 Holder 6 AA2J565700 Conveyance Guide/3 7 AA2J565400 Compressing Coil spring 8 A0EDM50100 Photoreflector 9 AA2J565300 Holder 10 AA2J561600 Detecting Lever 11 AA2J560500 Paper feed Shaft 12 A7AH562801 Compressing Coil spring 13 A64J564101 Paper feed Roller 14 A02E561100 Clutch 15 A7AH562400 Paper feed Gear 16 A00J663200 Bushing 17 A7AH562300 Idling Gear 18 A7AH562900 Protection Sheet 19 A7AH562100 Conveyance Guide/4 20 A64J564201 Paper feed Roller 21 A7AH562600 Conveyance Gear 28T 22 A7AH563400 Support Shaft 23 AA2J579603 Guide 24 AA2JN10P01 Paperfeed Wiring/1 25 A5C1M50100 Photointerrupter 26 AA2J560200 Frame/ASSY 27 A00J169300 Shoulder screw 28 A7AHM20501 Clutch 29 A7PU569200 Spacer |  |
| Paper Feed Section 1 AA2J567500 Guide 2 AA2J568401 Guide Plate 3 4532341001 SHOULDER SCREW 4 AA2J568900 Pulling Coil spring 5 AA2J563801 Frame 6 AA2J560000 Paper feed Roller 7 A0ED563900 Torque limiter 8 A7AH565000 Support Shaft 9 AA2J561301 Compressing Coil spring 10 AA2J563103 Holder 11 A02E815200 BUSHING 12 A797564400 Pulling Coil spring 13 AA2J564200 Release Lever |  |

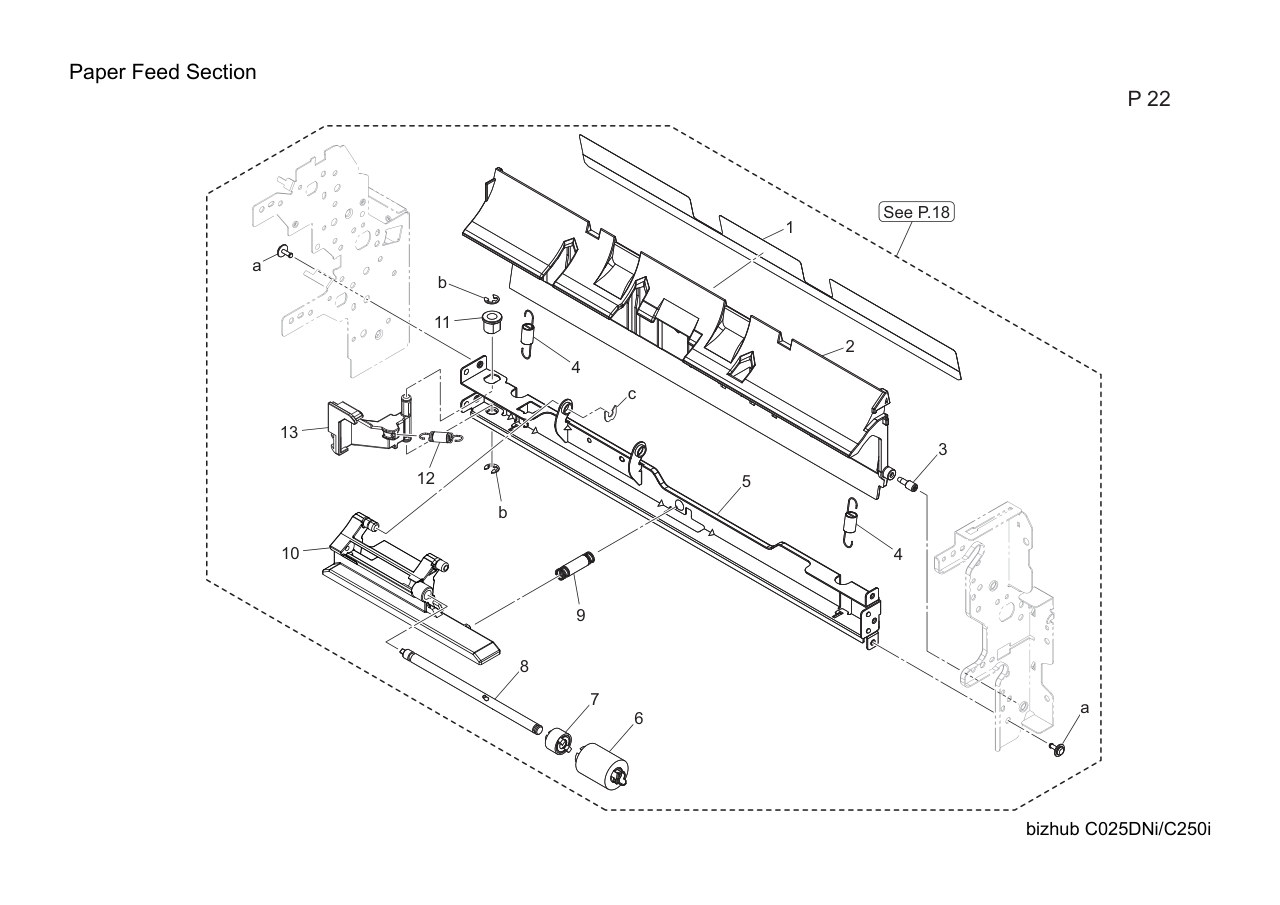

| Paper Feed Section 1 A161578214 Guide Plate 2 A161578700 Cushion 3 A0EDM50100 Photoreflector 4 A161571100 Mounting Plate 5 A161N12701 Conveyance Detection harness 6 AA2J578100 Drive Roller 7 A03U812800 Slide Shaft Holder 8 AA2J575300 Mounting Plate 9 AA2J575202 Paper feed Frame 10 A7AH561601 Detecting Lever 11 AA2J565700 Conveyance Guide/3 12 A64J564101 Paper feed Roller 13 A02E561100 Clutch 14 A7AH562400 Paper feed Gear 15 A00J663200 Bushing 16 A7AH562300 Idling Gear 17 A7AH562900 Protection Sheet 18 A64J564201 Paper feed Roller 19 A7AH562600 Conveyance Gear 28T 20 A7AH563400 Support Shaft 21 AA2J570500 Paper feed Shaft 22 A7AH562801 Compressing Coil spring 23 A7AH562100 Conveyance Guide/4 24 AA2JN10Q02 Paperfeed Wiring/2 25 AA2J579603 Guide 26 A5C1M50100 Photointerrupter 27 A7PU569200 Spacer 28 A7AHM20501 Clutch 29 AA2J576300 Gear 24T 30 A02EM20000 Clutch 31 A00J169300 Shoulder screw |  |
| Paper Feed Section 1 AA2J577500 Guide 2 AA2J578401 Guide Plate 3 4532341001 SHOULDER SCREW 4 AA2J569000 Pulling Coil spring 5 AA2J563801 Frame 6 AA2J560000 Paper feed Roller 7 A0ED563900 Torque limiter 8 A7AH565000 Support Shaft 9 AA2J561301 Compressing Coil spring 10 AA2J563103 Holder 11 A02E815200 BUSHING 12 A797564400 Pulling Coil spring 13 AA2J574101 Release Lever |  |

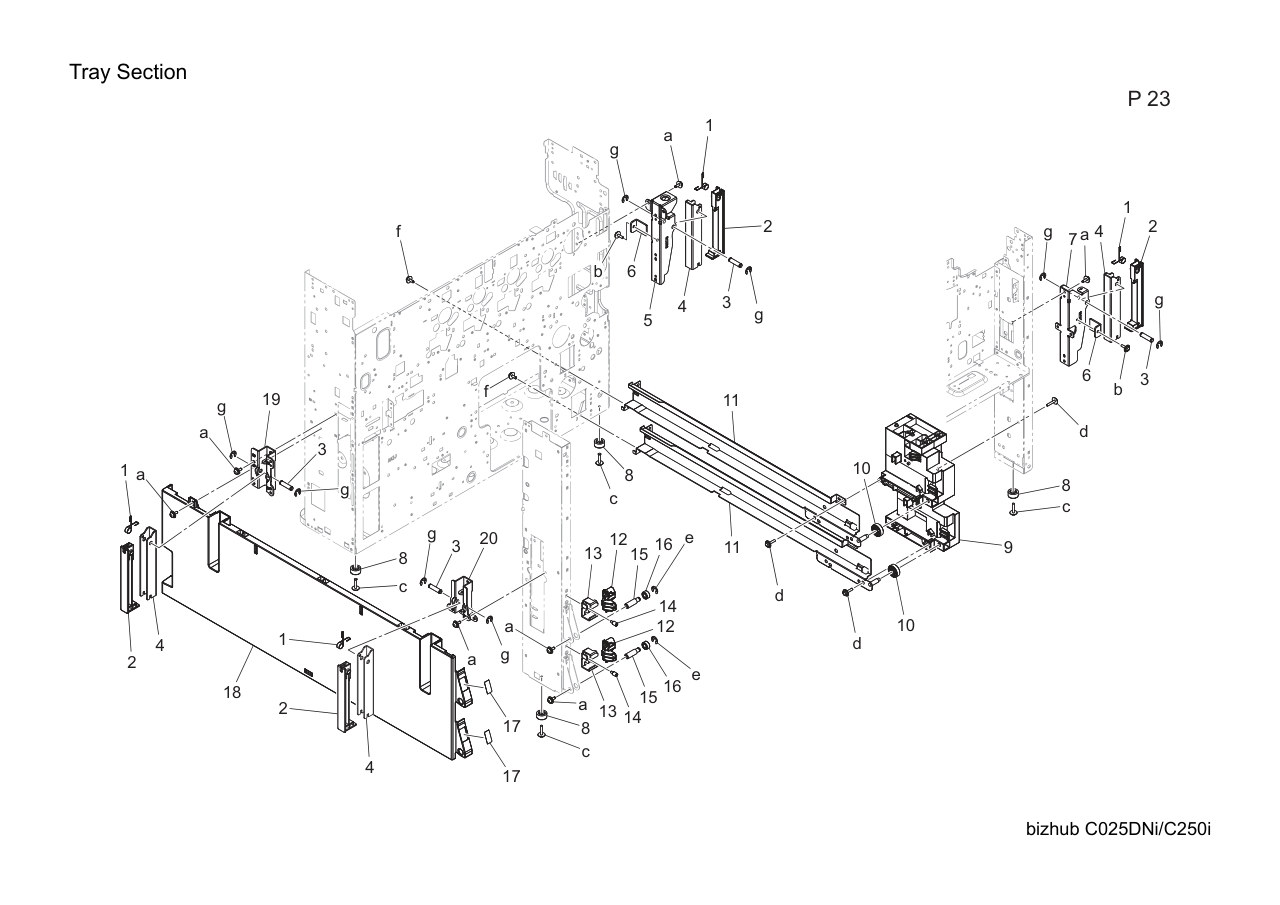

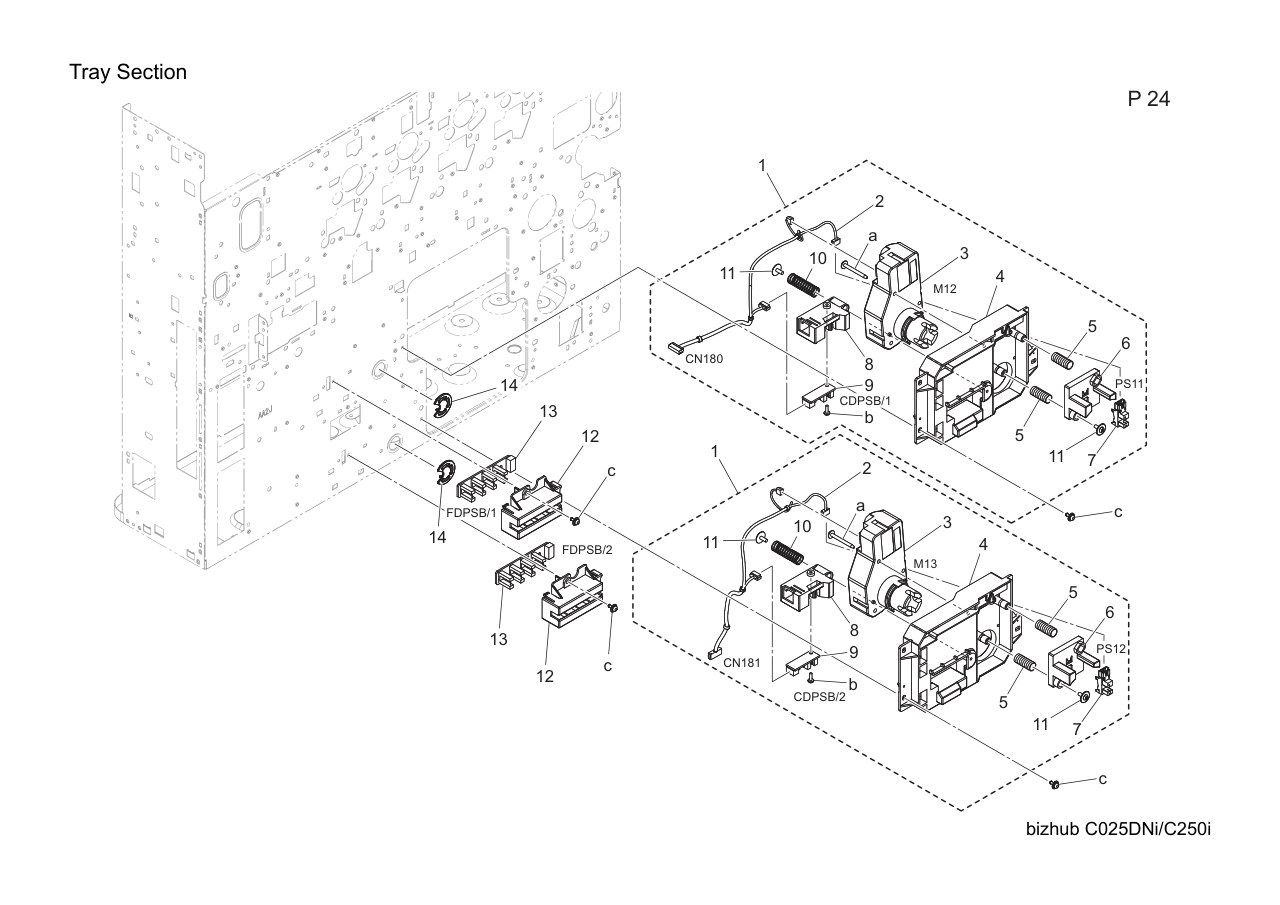

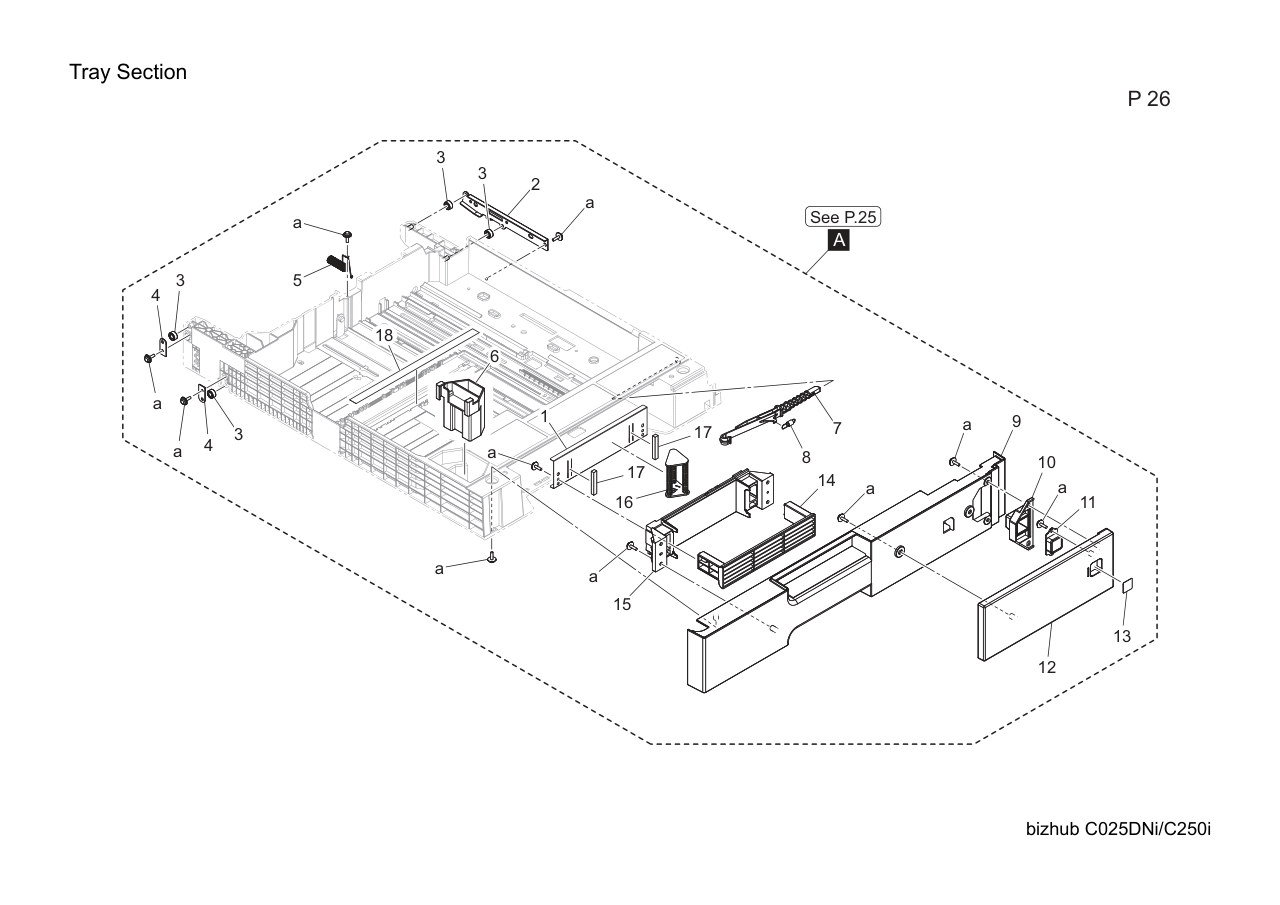

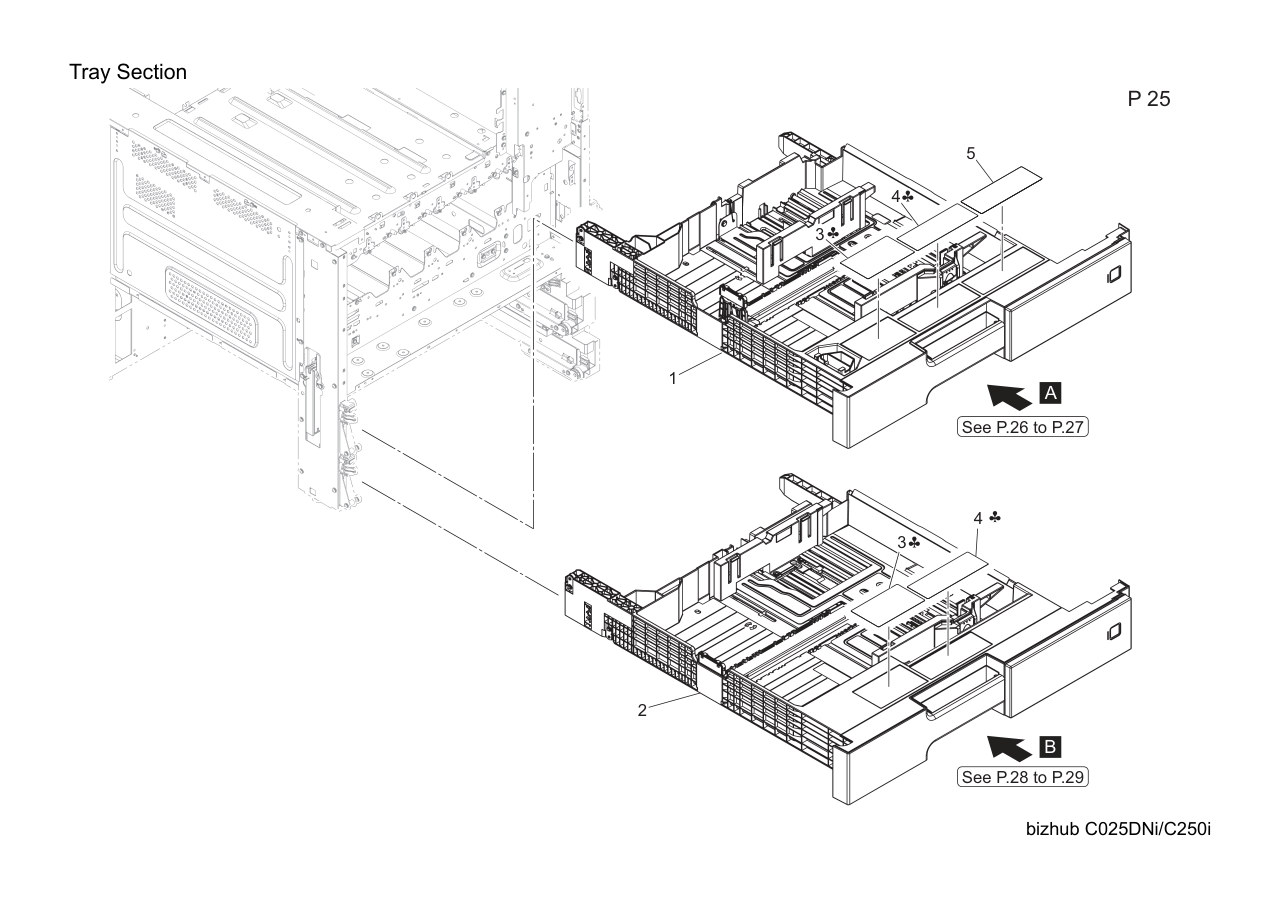

| Tray Section 1 A161104300 Torsion Coil spring 2 A161103700 Cover 3 A161104200 Shaft 4 A161101900 Lever 5 A5C1104800 Mounting Plate 6 A5C1104700 Mounting Plate 7 A5C1104400 Mounting Plate 8 0996305501 RUBBER FOOT 9 AA2J106000 Holder 10 A161103901 Roll 11 AA2J101100 Rail/ASSY 12 A7PU102301 Stopper 13 A7PU102201 Mounting Plate 14 A1UD192400 Shoulder screw/2 15 A161105200 Shaft 16 A161623400 Roll 17 AA2J947800 Label 18 AA2J104002 Holder 19 A161101701 Mounting Plate 20 A161101600 Mounting Plate |  |
| Tray Section 1 AA2JR72200 Paper Size Detection Assy/ Upper 2 AA2JN10T00 Paperfeed Wiring/K 3 9J06M10300 MOTOR 4 A5C1627103 Holder 5 A5C1627900 Compressing Coil spring 6 A5C1627300 Holder 7 A5C1M50100 Photointerrupter 8 A7PU627500 Holder 9 A161M50501 Photointerrupter 10 4002311002 Pressure Spring 11 4163529301 SCREW 12 A5C1628000 Holder 13 A161M50600 Photointerrupter 14 A7PU106100 Cover |  |
| Tray Section 1 AA2JR72400 Cassette Assy/1st 2 AA2JR72500 Cassette Assy/2nd 3 AA2J947100 Label A 3 AA2J947200 Label B,C,D1,D3,E,F2,G1,G 4 AA2J942400 Label A 4 AA2J942500 Label B,C,D1,D3,E,F2,G1,G 5 AA2J947400 Label |  |

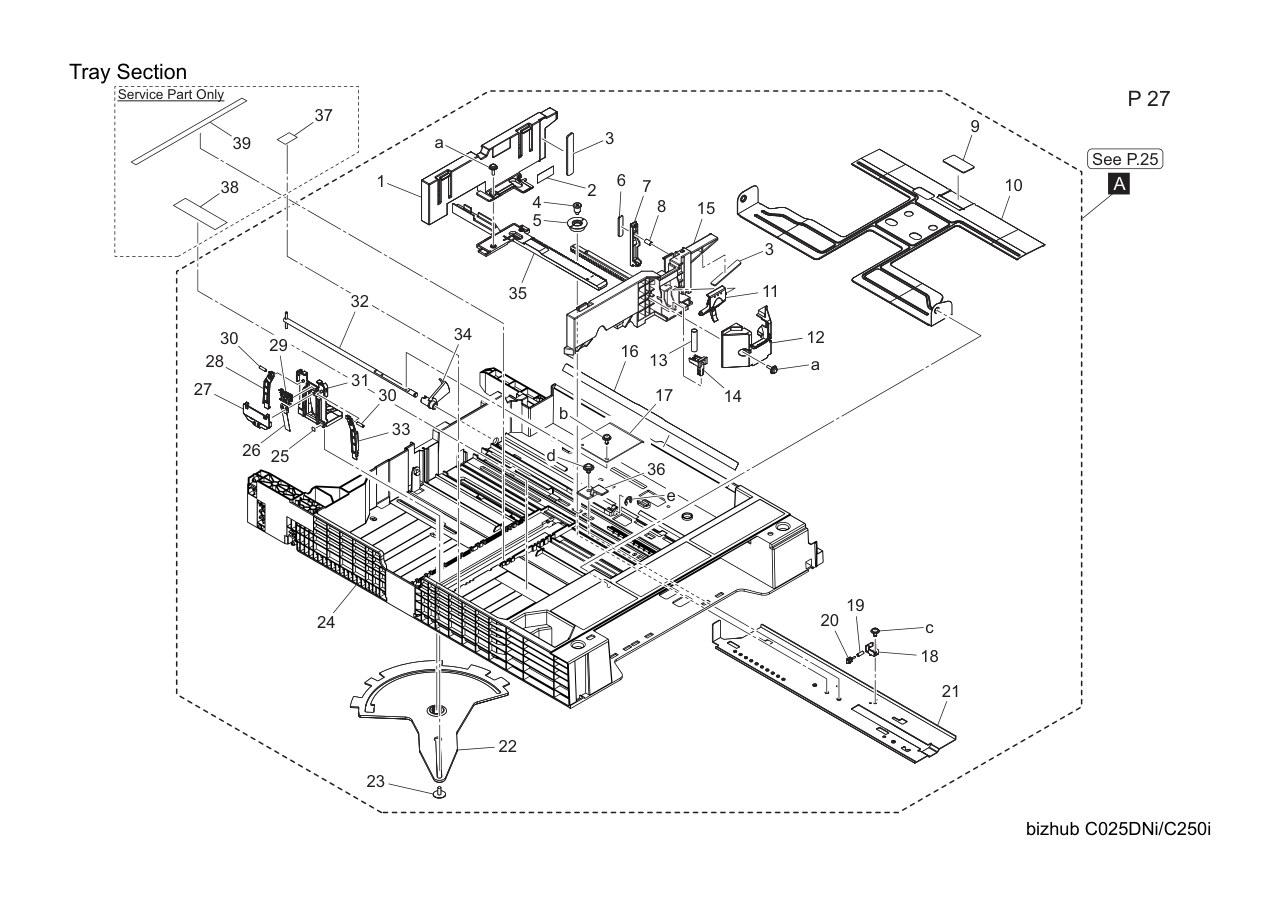

| Tray Section 1 AA2J624300 Holder 2 AA2J623101 Reinforce Plate/Right 3 A161623400 Roll 4 AA2J623300 Reinforce Plate/Left 5 AA2J622101 Ground Spring 6 AA2J629600 Regulating Part 7 A161626502 Lever 8 A161626800 Pulling Coil spring 9 AA2J625101 Cover 10 AA2J625300 Cover 11 AA2J626702 Cover 12 AA2J625000 Cover 13 AA2J943100 Label 14 AA2J626900 Handle 15 AA2J625201 Cover 16 AA2J626600 Lever 17 A5C1628500 Cushion 18 AA2J941700 Sheet |  |

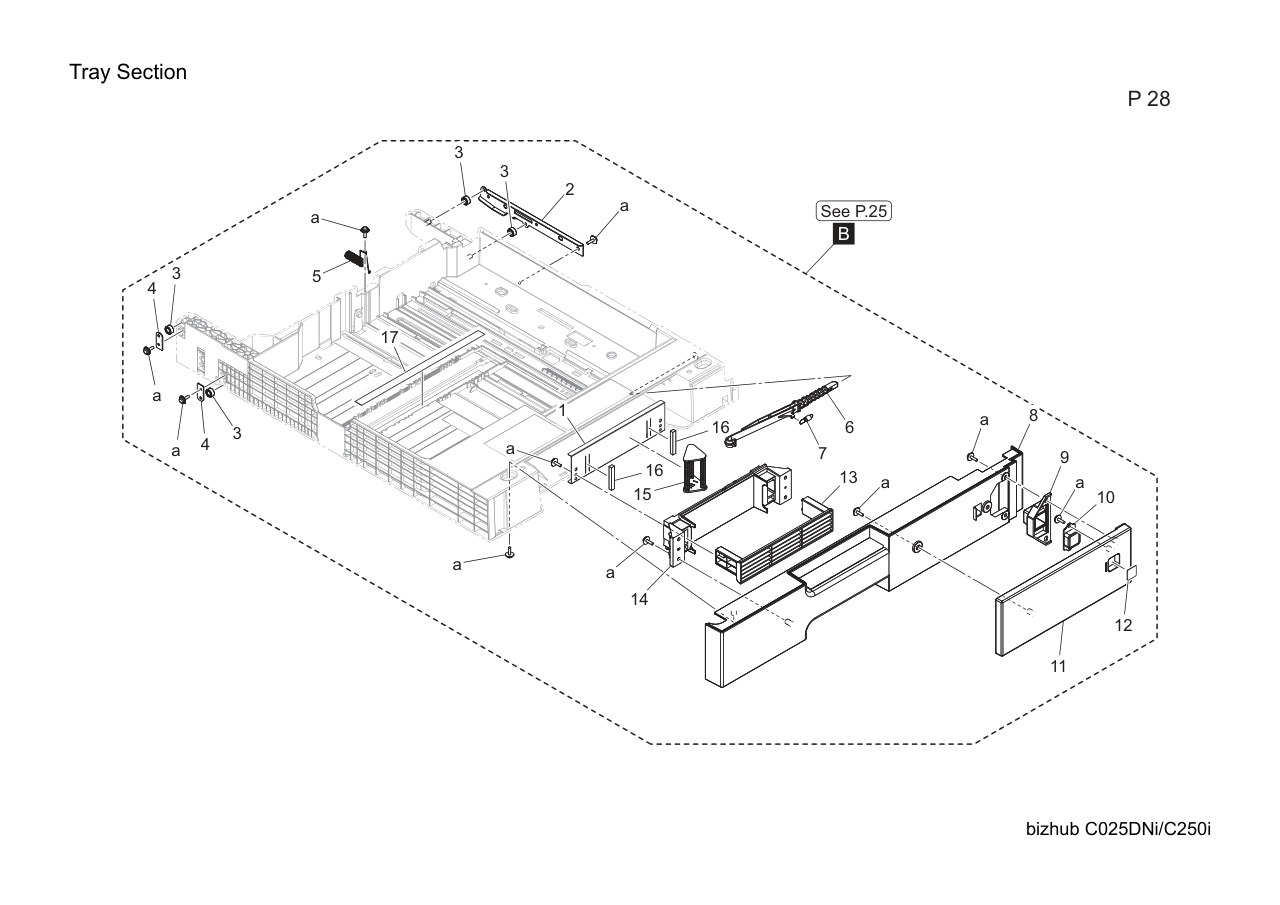

| Tray Section 1 AA2J620901 Regulating Plate/Rear 2 AA2J943700 Label 3 A161624100 Cushion 4 A161620600 Shoulder screw 5 A161620701 Gear 6 A79J566000 Cushion 7 A79J622500 Auxiliary Guide/1 8 A795622700 Compressing Spring 9 4030322602 FRICTION SHEET 10 AA2J620400 Lifting Plate 11 AA2J621300 Lock Lever 12 AA2J621500 Holder 13 AA2J621000 Compressing Spring 14 AA2J621200 Lock Lever/2 15 AA2J620802 Regulating Plate 16 AA2J620200 Guide 17 4030320601 LEVER 18 A795565700 Holder 19 A795565900 Compressing Spring 20 A795565800 Lever 21 A795621901 Mounting Plate 22 A161621411 Lever 23 4163529301 SCREW 24 AA2J620102 Paper feed Cassette 25 A02E940300 Label 26 AA2J629200 Plate spring 27 AA2J628901 Cover 28 AA2J628700 Lock Lever 29 AA2J629000 Operation Lever 30 A795565500 Compressing Spring 31 AA2J628601 Regulating Plate 32 A161621600 Lifting Shaft 33 AA2J628800 Lock Lever 34 A0ED620701 Actuator 35 AA2J621100 Rack 36 AA2J621600 Stopper/1 37 AA2J941300 Label 38 AA2J941500 Label 39 AA2J941600 Label |  |

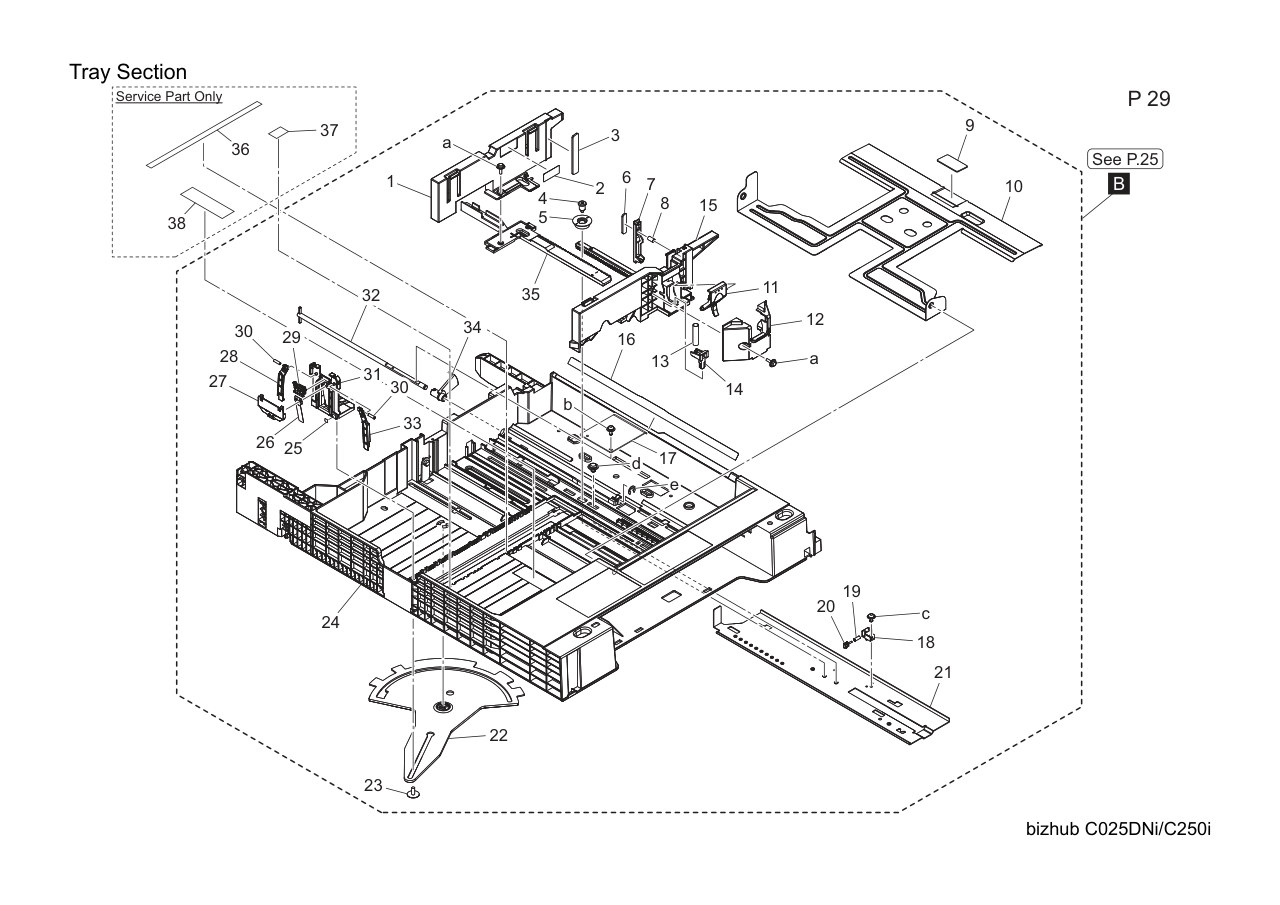

| Tray Section 1 AA2J624300 Holder 2 AA2J633101 Reinforce Plate/Right 3 A161623400 Roll 4 AA2J623300 Reinforce Plate/Left 5 AA2J622101 Ground Spring 6 A161636502 Lever 7 A161626800 Pulling Coil spring 8 AA2J635101 Cover 9 AA2J625300 Cover 10 AA2J626702 Cover 11 AA2J635001 Cover 12 AA2J943200 Label 13 AA2J626900 Handle 14 AA2J625201 Cover 15 AA2J626600 Lever 16 A5C1628500 Cushion 17 AA2J941700 Sheet |  |
| Tray Section 1 AA2J620901 Regulating Plate/Rear 2 AA2J943700 Label 3 A161624100 Cushion 4 A161620600 Shoulder screw 5 A161620701 Gear 6 A79J566000 Cushion 7 A79J622500 Auxiliary Guide/1 8 A795622700 Compressing Spring 9 4030322602 FRICTION SHEET 10 A161620400 Lifting Plate 11 AA2J621300 Lock Lever 12 AA2J621500 Holder 13 AA2J621000 Compressing Spring 14 AA2J621200 Lock Lever/2 15 AA2J620802 Regulating Plate 16 A0ED620200 Guide 17 4030320601 LEVER 18 A795565700 Holder 19 A795565900 Compressing Spring 20 A795565800 Lever 21 A795621901 Mounting Plate 22 A161631411 Lever 23 4163529301 SCREW 24 AA2J630102 Paper feed Cassette 25 A02E940300 Label 26 AA2J629200 Plate spring 27 AA2J628901 Cover 28 AA2J628700 Lock Lever 29 AA2J629000 Operation Lever 30 A795565500 Compressing Spring 31 AA2J628601 Regulating Plate 32 A161621600 Lifting Shaft 33 AA2J628800 Lock Lever 34 A0ED620701 Actuator 35 AA2J621100 Rack 36 AA2J941200 Label 37 AA2J943500 Label 38 AA2J943600 Label |  |

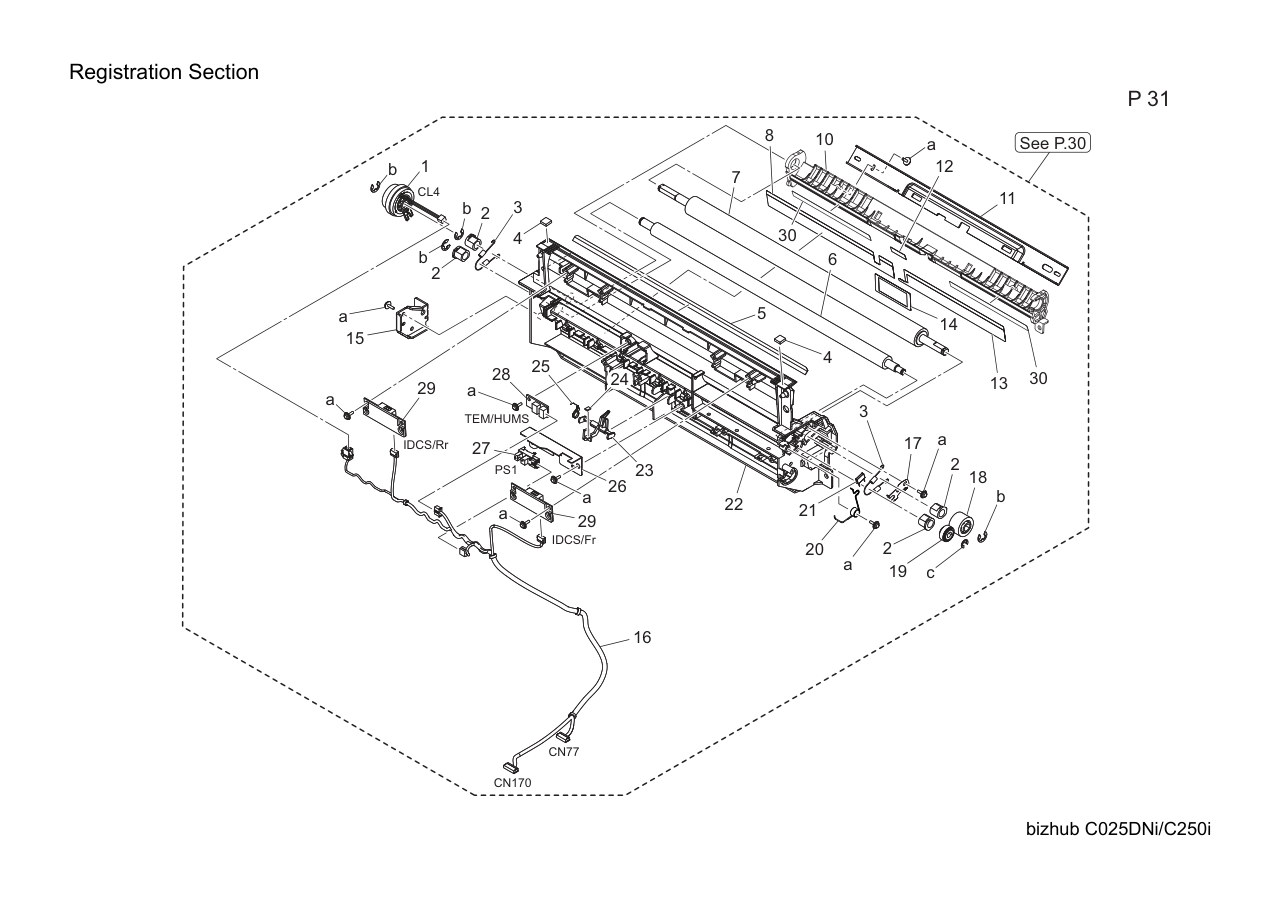

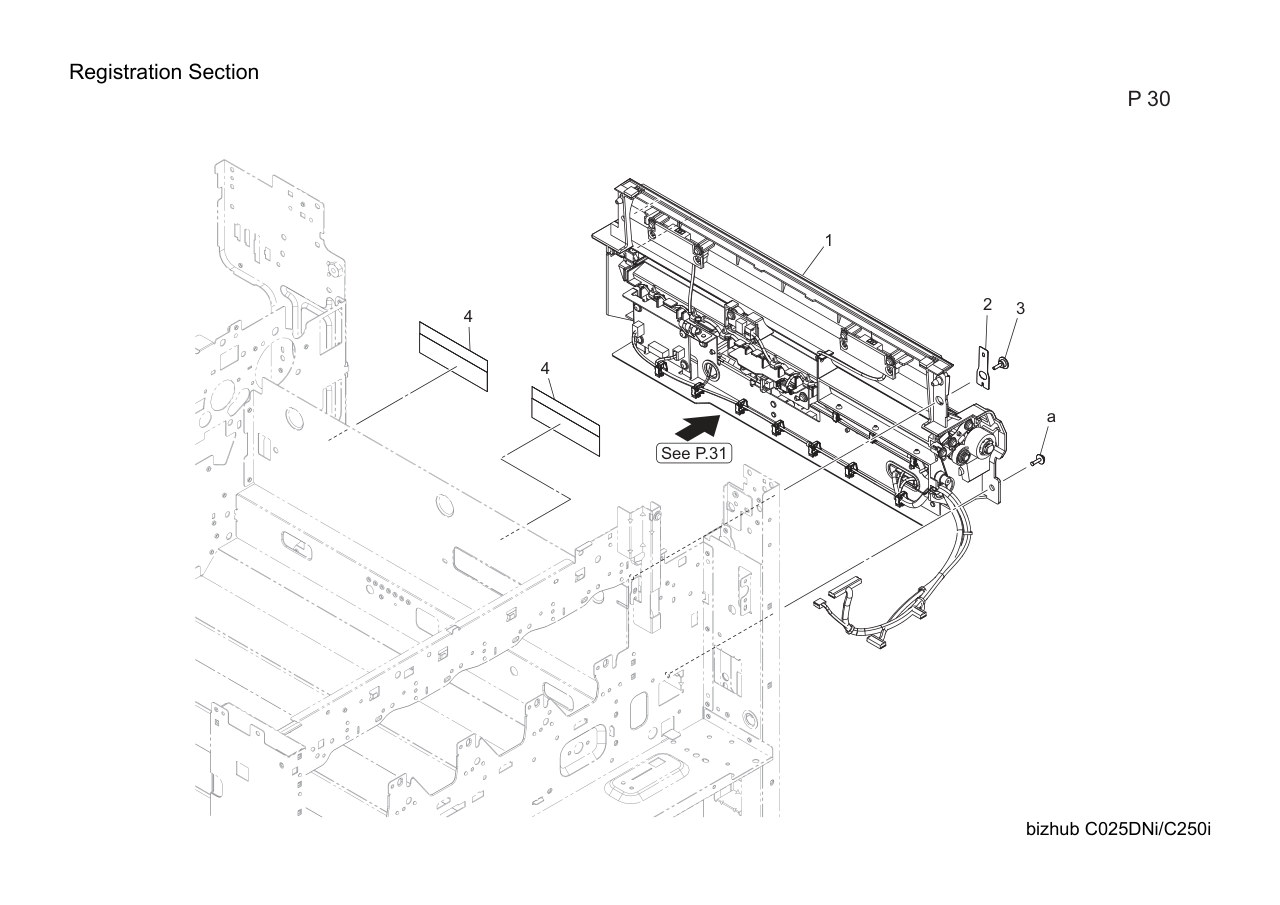

| Registration Section 1 AA2JR72611 Conveyance Assy 2 A7PU701100 Plate spring 3 AA2J701200 Shoulder screw 4 AA2J701800 Protection Sheet |  |
| Registration Section 1 A02EM20000 Clutch 2 A161702200 Bushing 3 A161702000 Conveyance Spring/A 4 A161701900 Seal/A 5 A161701301 Guide Sheet/A 6 A0ED700200 Roller 7 A5C1700101 Roller 8 AA2J701500 Guide Sheet/C 10 AA2J700602 (Old) Conveyance Guide 10 AA2J700613 Conveyance Guide 11 AA2J702900 Reinforce Plate 12 A79J701000 Guide Sheet 13 AA2J701400 Guide Sheet/B 14 AA2J716700 Guide 15 A7PU701000 Reinforce Plate 16 AA2JN10H01 Conveyance Wiring/1 17 A5C1700800 Ground Plate/D 18 A0ED700300 Gear 20T 19 A0ED700700 Gear 14T 20 A5C1703201 Torsion Coil spring 21 V800500300 FIXED POWER RESISTORS 22 AA2J700102 Guide Plate/Inside 23 A161701703 Actuator/T 24 A161702101 Cushion/C 25 A161701100 Spring/A 26 AA2J700300 Mounting Plate/B 27 A5C1M50100 Photointerrupter 28 A7AHM50400 Humidity sensor 29 A161M50300 Photo sensing 30 AA2J701000 Guide Film/5 |  |

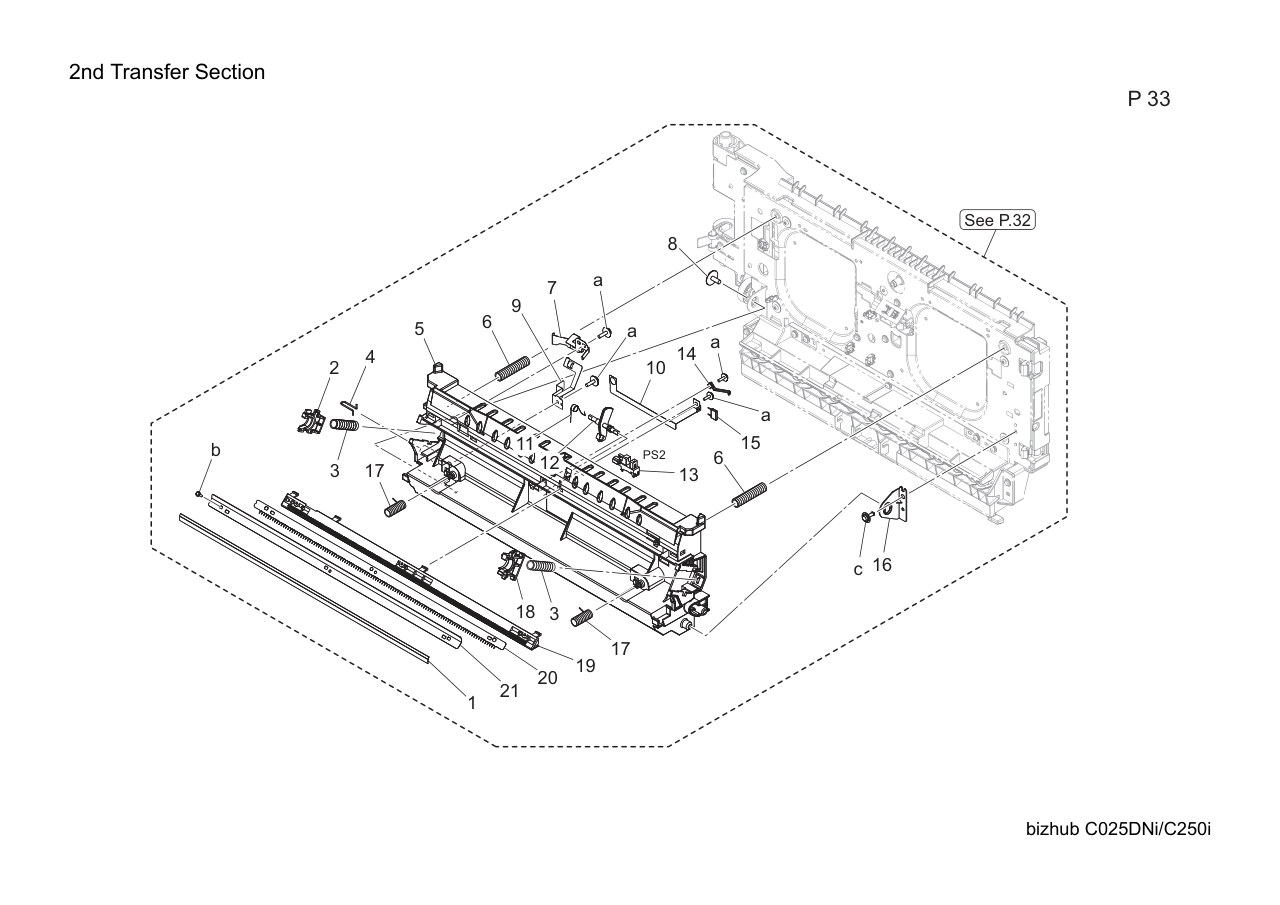

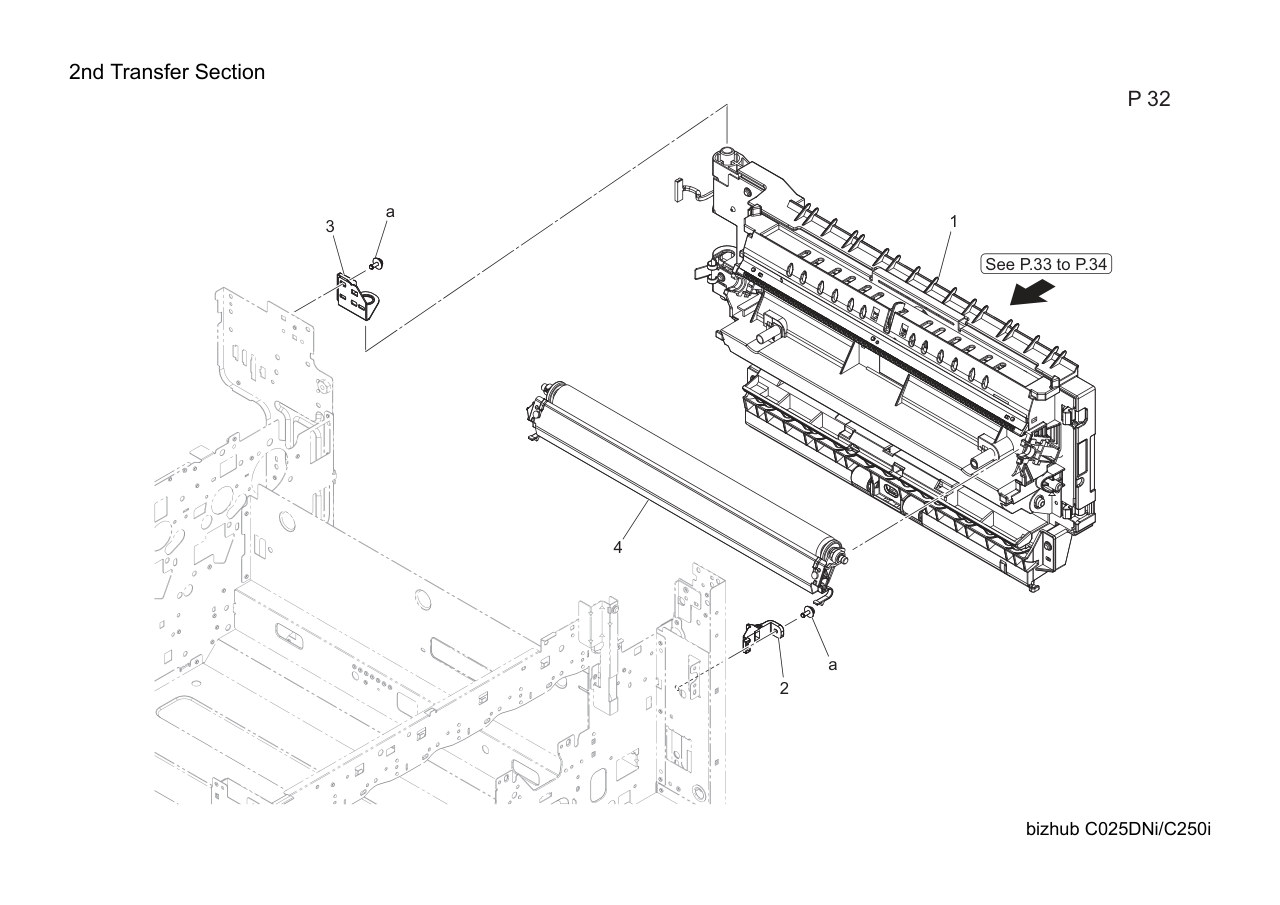

| 2nd Transfer Section 1 AA2JR72700 Vertical Transport Assy 2 AA2J712300 Fixing Part/Lower 3 A161104101 Adjusting Plate 4 AA2JR72000 2nd Image Transfer Roller Assy |  |

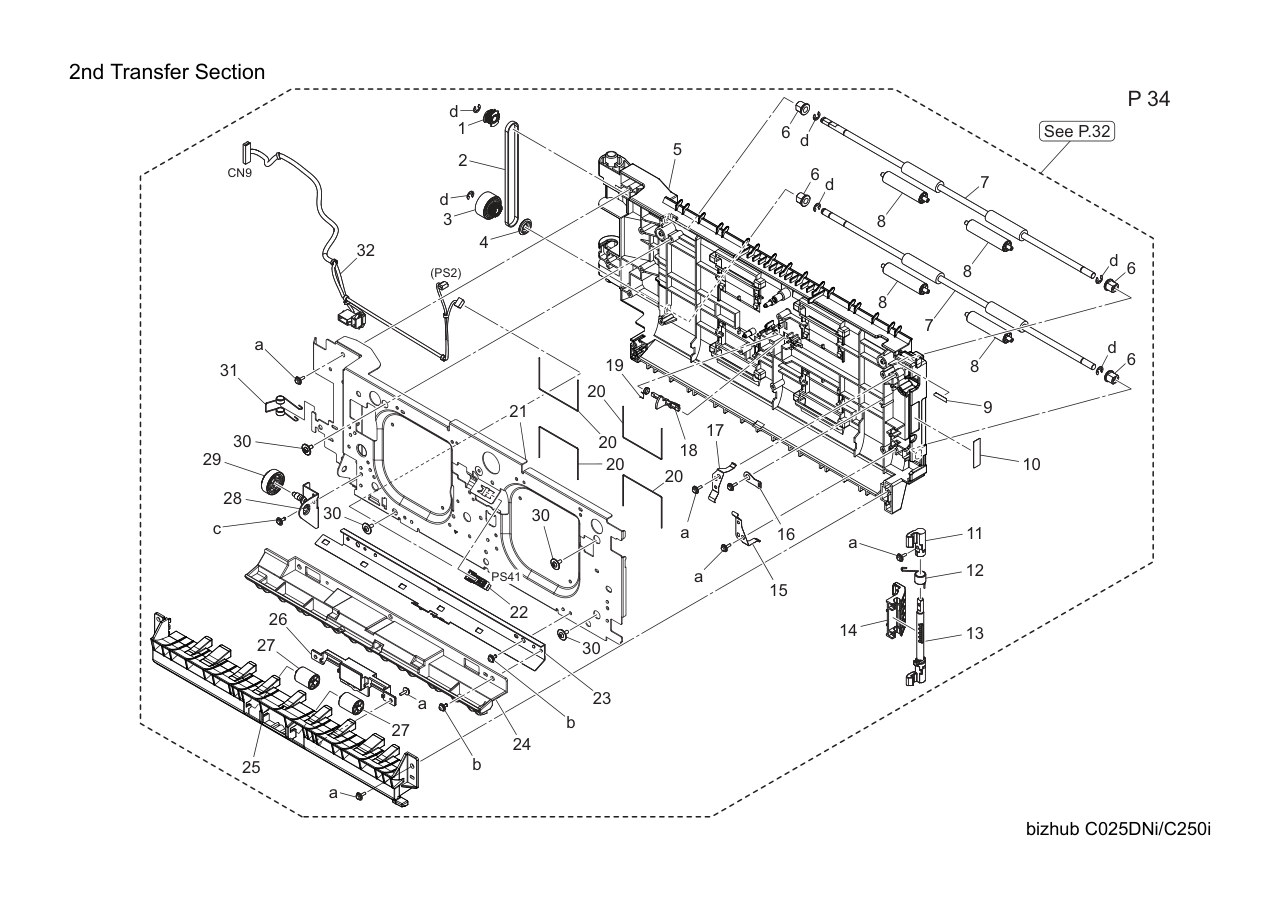

| 2nd Transfer Section 1 A5C1551701 Guide Seal 2 AA2J551500 Transfer Holder/2 3 AA2J551000 Compressing Coil spring/2 4 A161712401 Ground Spring/A 5 AA2J710101 Holder/A 6 A161711200 Pressing Spring 7 AA2J715100 Ground Plate/C 8 4163529301 SCREW 9 AA2J710900 Ground Plate/A 10 AA2J712500 Plate spring 11 A161712700 Spring/C 12 A0ED703800 Actuator 13 A5C1M50100 Photointerrupter 14 AA2J711000 Ground Spring/B 15 V800500300 FIXED POWER RESISTORS 16 A5C1711801 Support Plate/Front 17 A0ED551100 Compressing Coil spring 18 AA2J550701 Transfer Holder/2 19 AA2J551600 Mounting Plate 20 A0ED550800 Neutralizing Part 21 A0ED550900 Mounting Plate |  |
| 2nd Transfer Section 1 A0ED811700 Pulley 22T 2 A161719000 Drive Belt 266L 3 A64J709100 Gear 22/23T 4 A0ED811900 Collar 5 AA2J710203 Guide Plate/A 6 A02E815200 BUSHING 7 A161710500 Roller/A 8 A161825700 Idler Roller/A 9 AA2J946500 Label 10 AA2J946400 Label 11 A161711300 Lock Shaft/A 12 A161711700 Spring/B 13 A5C1711500 Lock Shaft 14 A161711600 Open/close Lever 15 A161712100 Ground Plate/E 16 A161714500 Fixing Part 17 A161712000 Ground Plate/D 18 A161713500 Actuator 19 A161712800 Spring/D 20 A161714600 Conveyance Spring/B 21 AA2J710402 Mounting Plate 22 A5C1M50100 Photointerrupter 23 AA2J710701 Mounting Plate/C 24 AA2J710602 Guide Plate/C 25 AA2J710302 Guide Plate/B 26 AA2J716100 Holder 27 AA2J716000 Roll 28 A161711901 Support Plate/Rear 29 A64J719100 Gear 23T 30 4163529301 SCREW 31 A161712900 Ground Spring/D 32 AA2JN10K00 Conveyance Wiring/2 |  |

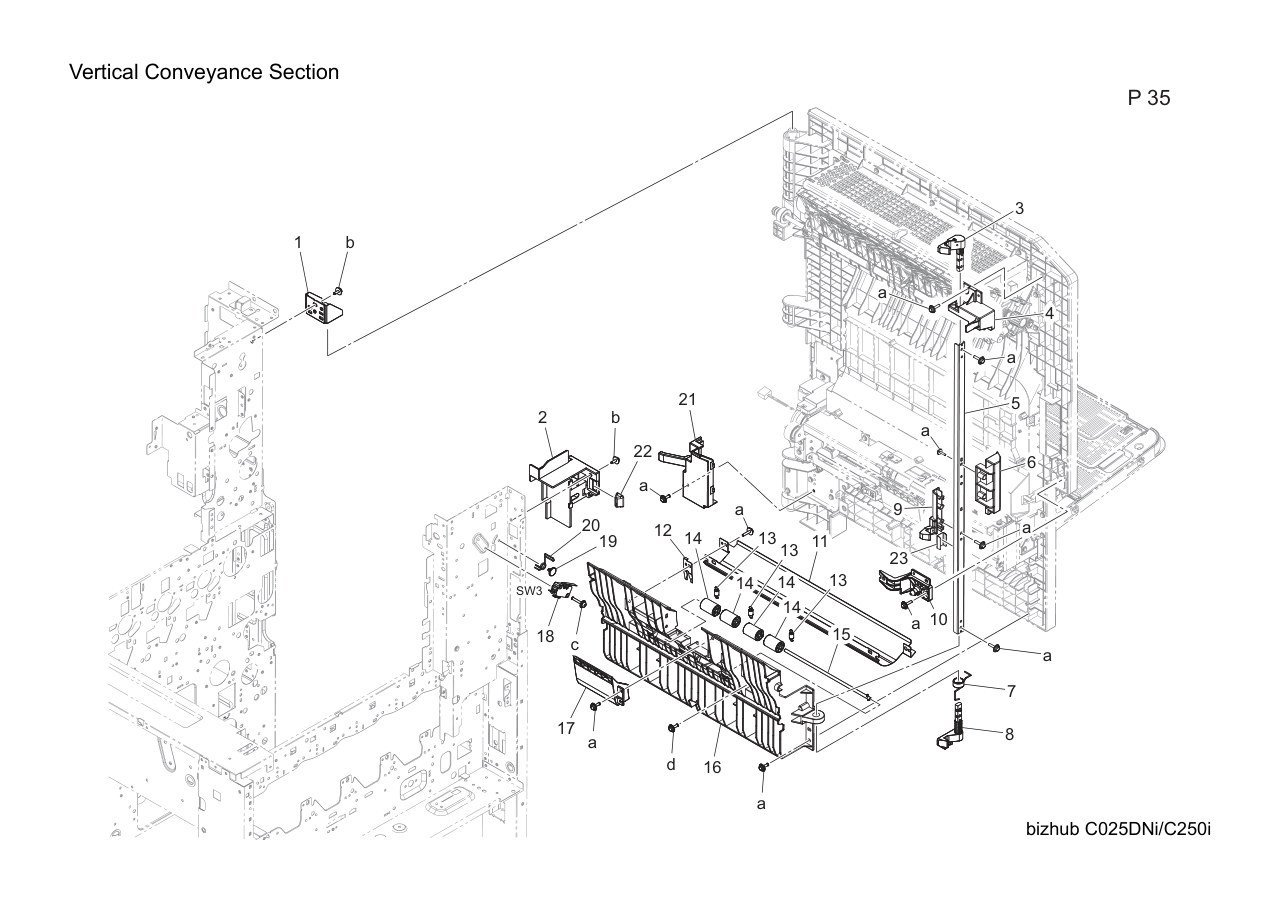

| Vertical Conveyance Section 1 A161121300 Adjusting Plate 2 AA2J121201 Holder 3 AA2J712100 Lock Claw/Upper 4 A161811500 Support Part/Upper 5 A161811001 Lock Plate 6 A5C1811101 Open/close Handle 7 A161815900 Torsion Coil spring 8 AA2J811600 Lock Claw/Lower 9 AA2J815200 Lock/Middle 10 A161811302 Lock Part/Lower 11 A161815000 Guide Door 12 A161816200 Ground Guide 13 A64J815500 Pulling Spring 14 A161815400 Roll 15 A161815300 Shaft 16 A161810305 Guide Plate/2 17 AA7N590500 Paper feed Guide 18 9J06M60100 MICRO SWITCH 19 A161137100 Shoulder screw 20 A161151200 Torsion Coil spring 21 A161592900 Wiring Cover/B 22 A79J122200 Collar 23 AA2J812100 Protection Sheet |  |

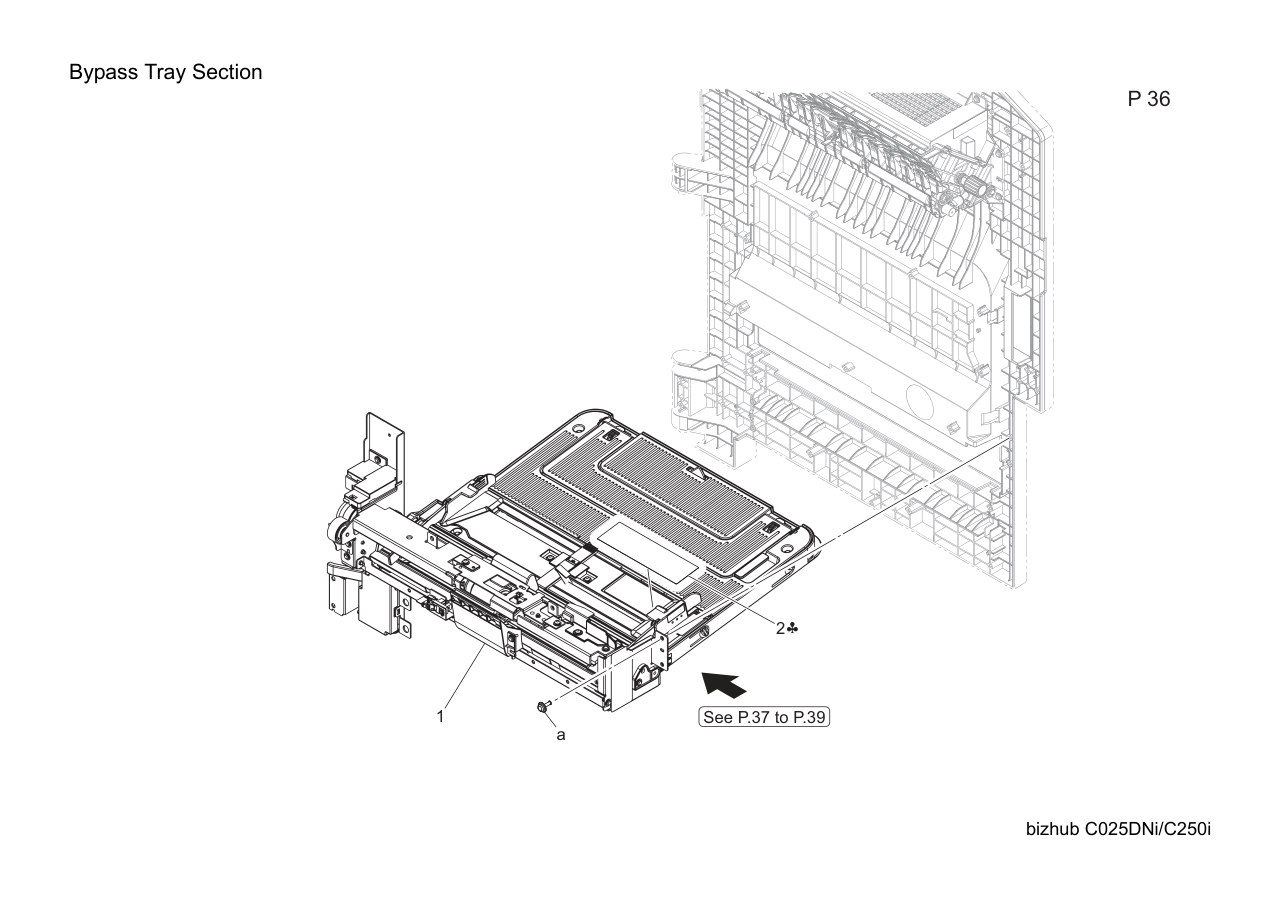

| Bypass Tray Section 1 AA2JR72301 Manual Feed Tray Assy 2 AA2J944100 Label A,C,D1,D3,E,F2,G1,I 2 AA2J944200 Label B,G2 |  |

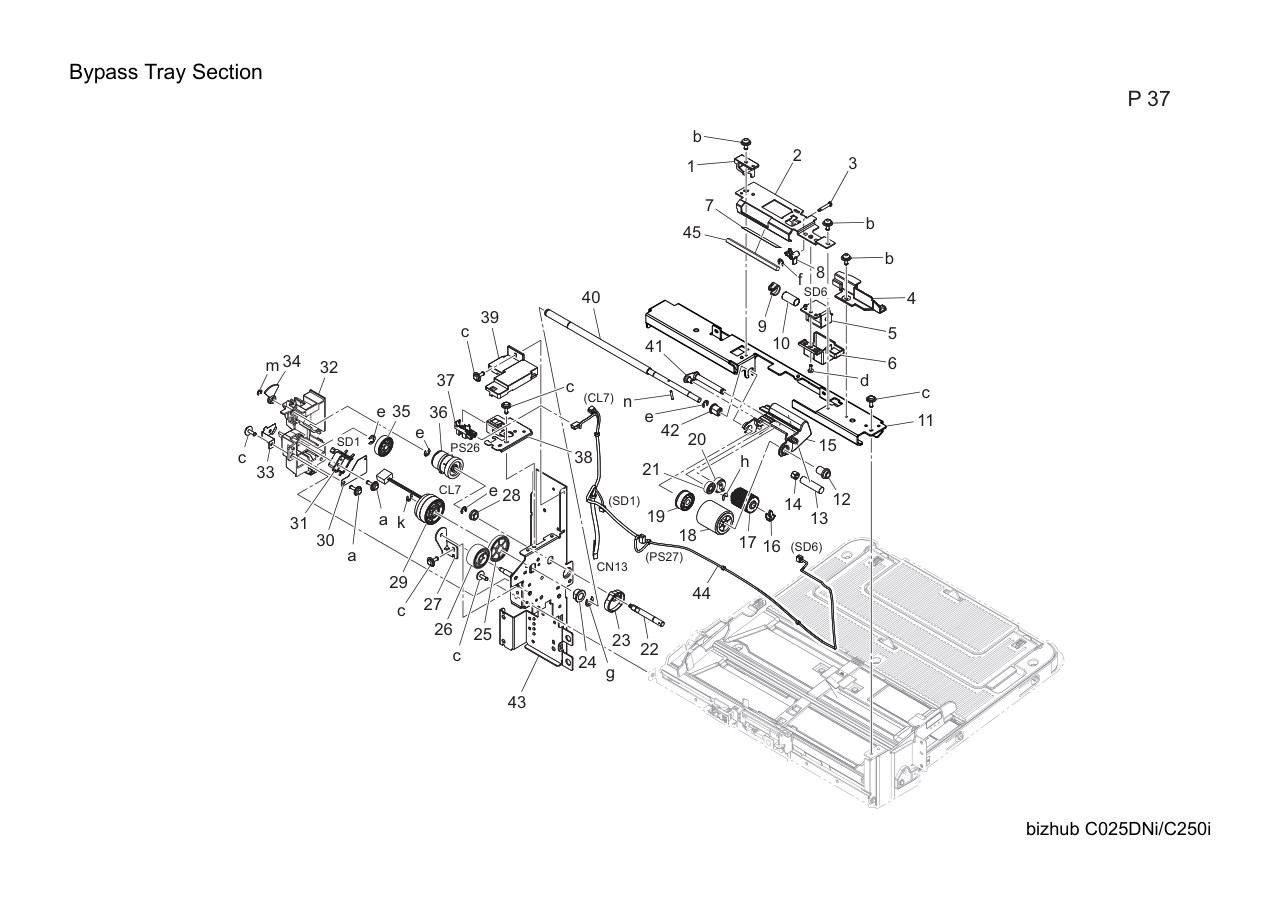

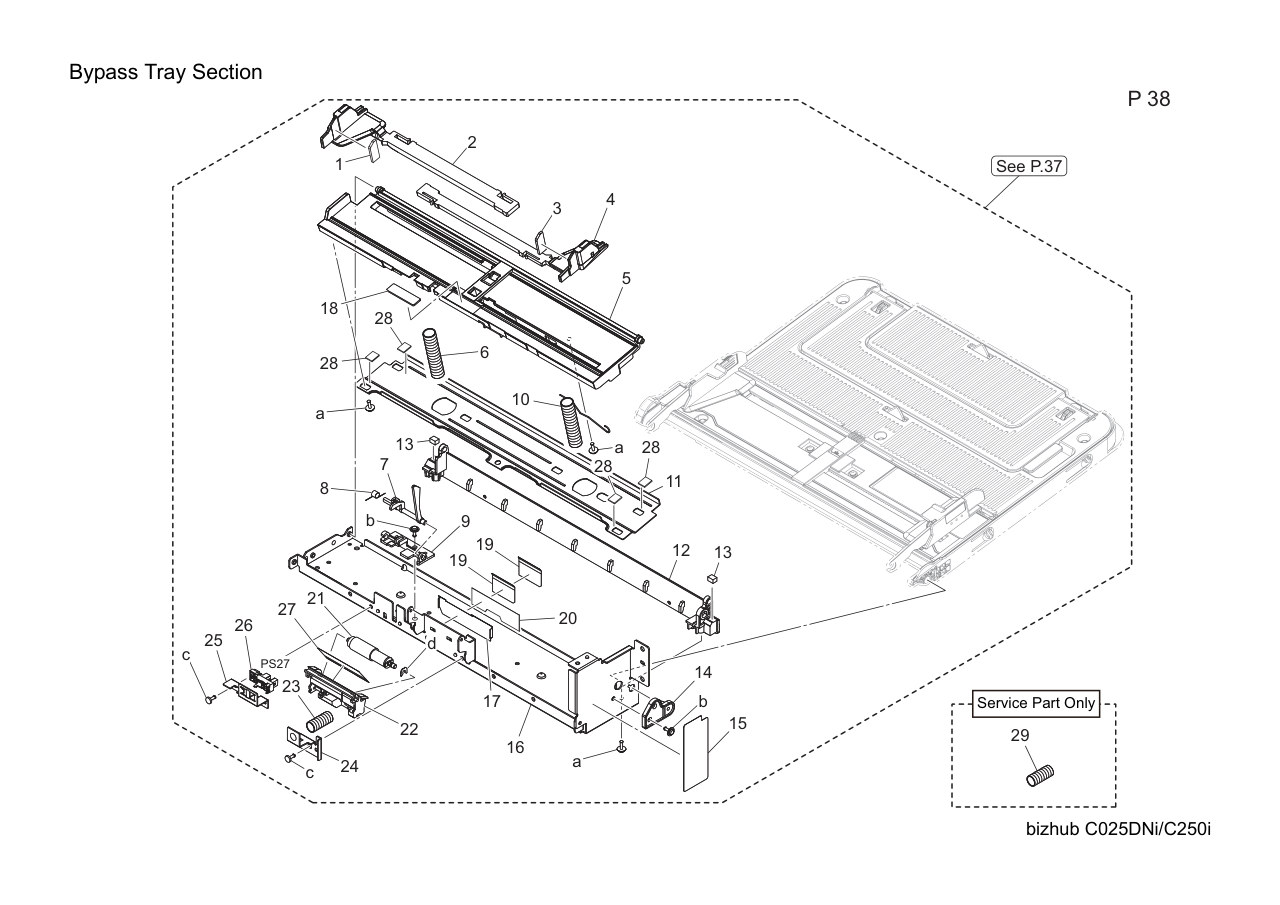

| Bypass Tray Section 1 AA2J590900 Holding Plate 2 AA2J590300 Reinforce Plate 3 AA2J591600 Shaft 4 AA2J593700 Wiring Cover/Front 5 A034M20100 Conveyance Solenoid 6 AA2J592401 Cover 7 A161594700 Guide Sheet 8 AA2J592301 Lifting Lever 9 AA2J593100 Pressing Holder 10 AA2J594301 Compressing Coil spring 11 AA2J590202 Paper feed Frame 12 AA2J592701 Bushing 13 AA2J591900 Weight 14 AA2J595000 Cover 15 AA2J592000 Paper feed Holder 17 A5C1562200 Roller 18 A00F623201 Roller 19 AA2J592600 Gear 42T 20 AA2J592100 Gear 32T 21 AA2J592200 Idling Gear 26T 22 A161591400 Drive Shaft 23 A161593300 Paper feed Cam 24 AA2J592900 Slide Bearing 25 A02E596100 Gear 30T 26 AA2J593800 Bypass Gear 24T 27 A161590600 Reinforce Plate 28 A02E596300 Bushing 29 A02EM20100 Clutch 30 A0ED597800 Cover 31 9321240011 SOLENOID 32 A5C1591200 Drive Cover 33 A7PU596900 Auxiliary Cover 34 A161591300 Light blocking Plate 35 A02E595400 Gear 22T 36 A02E595100 Clutch assy 37 A5C1M50100 Photointerrupter 38 A5C1591900 Mounting Plate 39 A161592800 Wiring Cover/A 40 AA2J591500 Paper feed Shaft 41 AA2J591000 Mounting Plate/ASSY 42 AA2J592800 Bushing 43 A161F59002 Caulking(Mounting Plate Drive Frame 44 AA2JN10S00 Paperfeed Wiring/4 45 AA2J594700 Cushion |  |
| Bypass Tray Section 1 A161594500 Brake Part 2 AA2J593200 Regulating Plate/R 3 A161594600 Brake Part/F 4 AA2J593301 Regulating Plate/L 5 AA2J593000 Lifting Plate 6 A161593400 Compressing Coil spring 7 A161590901 Actuator 8 A161591000 Torsion Spring 9 A161591100 Sensor Holder 10 A161593600 Compressing Coil spring 11 A7PU596800 Mounting Plate 12 A161590304 Support Holder 13 A161594201 Cushion 14 A161591600 Hold Plate 15 AA2J594500 Protection Seal/Front 16 AA2J590100 Bypass Frame 17 A161595300 Separating Plate 18 A7PU594000 Separating Sheet 19 4030340301 GUIDE 20 A161595100 Seal 21 AA7N591100 Roller/ASSY 22 A161595000 Holder 23 AA2J594201 Compressing Coil spring 24 A161595400 Hold Plate 25 A161591800 Sensor Holder 26 A5C1M50100 Photointerrupter 27 A02E597600 Guide 28 A161825301 Cushion/A 29 AA7NP10100 Compressing Coil spring |  |

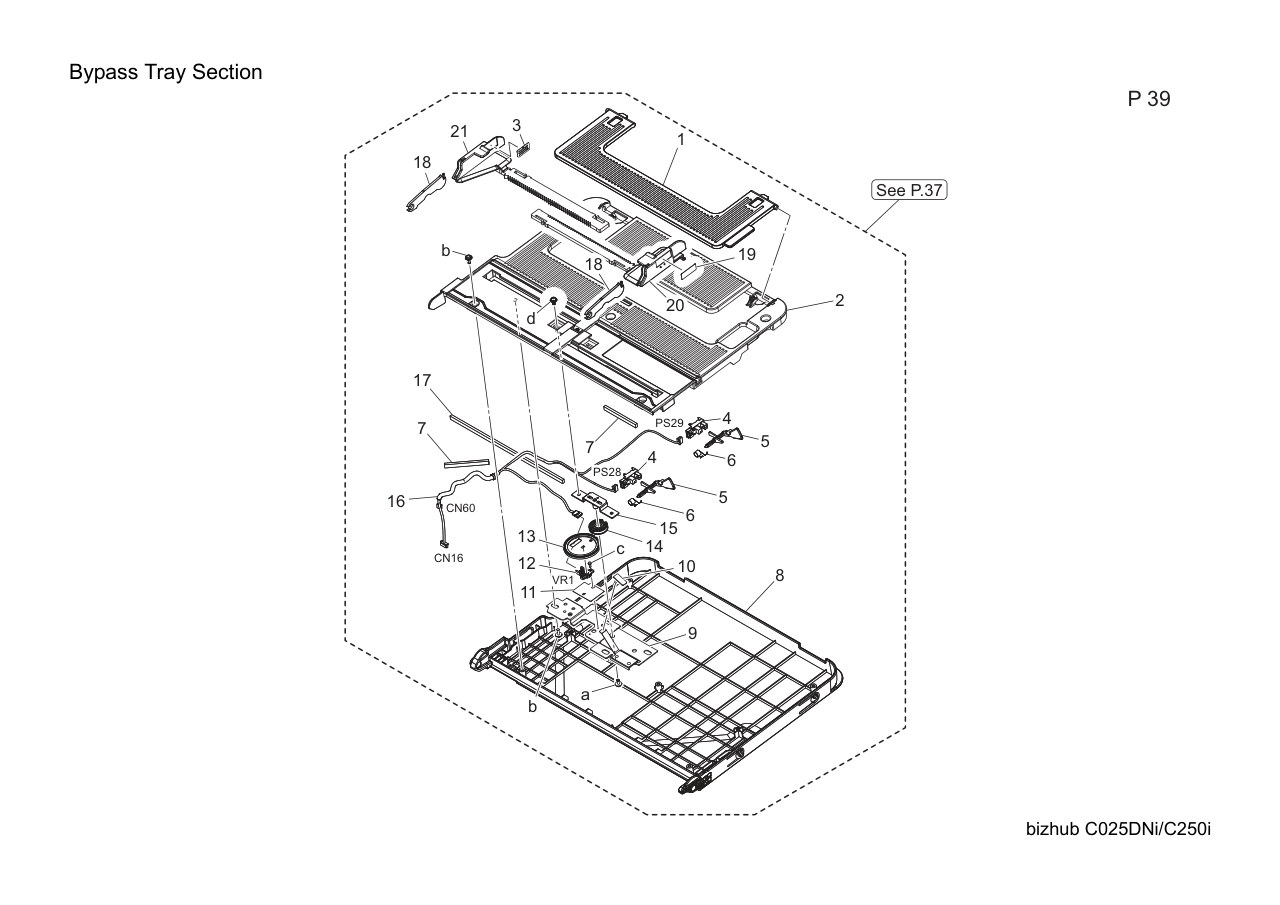

| Bypass Tray Section 1 A161592200 Auxiliary Tray 2 AA2J593900 Bypass Tray/Upper 3 AA2J944500 Label 4 A5C1M50100 Photointerrupter 5 A161592400 Actuator 6 A161592501 Torsion Spring 7 A161592600 Holding Cover/2 8 AA2J593601 Bypass Tray 9 A7PU593700 Mounting Plate 10 A161593800 Friction Plate 11 A7PU599300 Insulating Sheet 12 A161M50400 VR 13 A161594300 Regulating Gear 41T 14 A7PU593500 Gear 15 A7PUF60001 Mounting Plate 16 A7PUN10B01 Harness/ Sensor 17 A161592300 Holding Cover 18 A7PU595500 Lever 19 A7PU944900 Label 20 AA2J593400 Regulating Plate/F 21 AA2J593500 Regulating Plate/R |  |

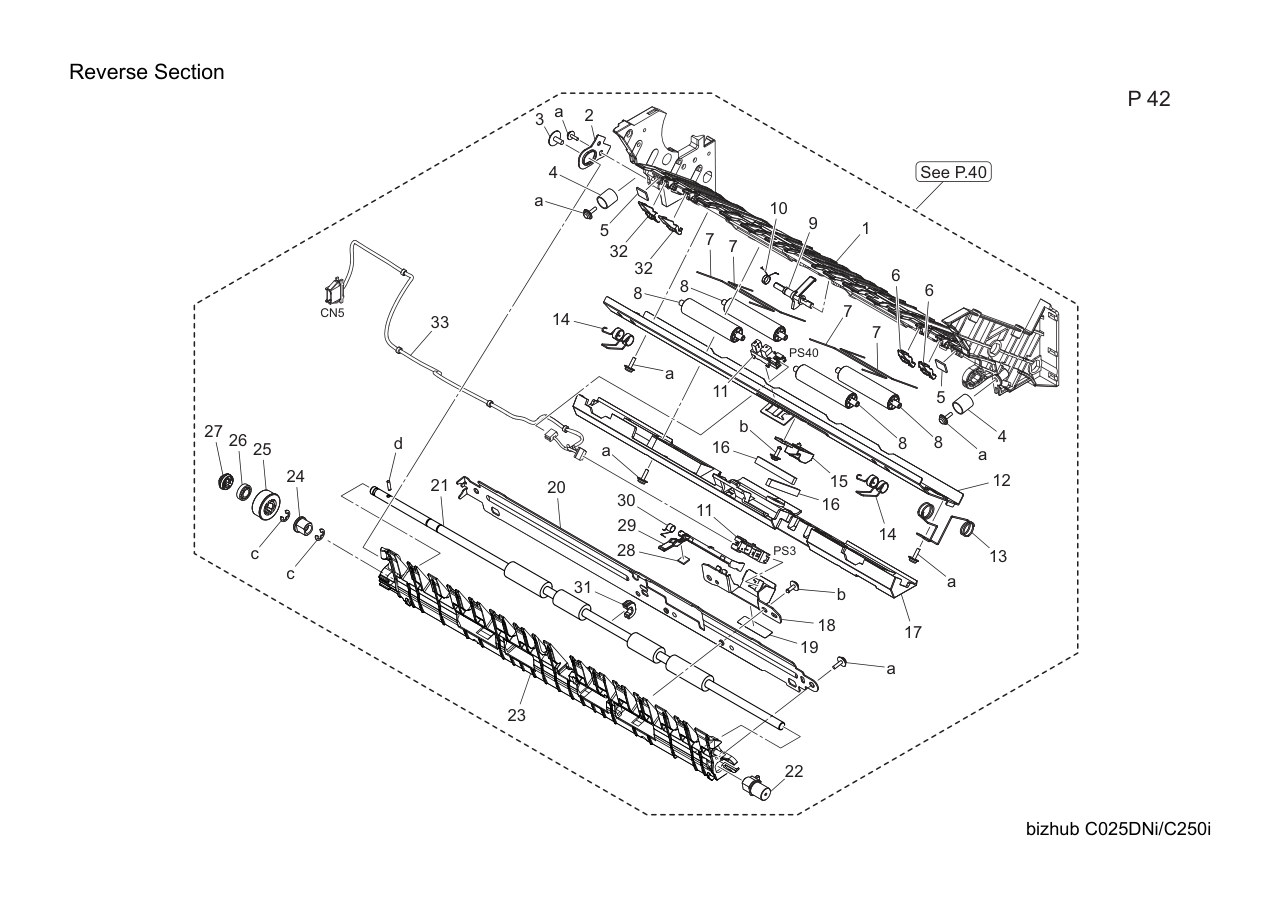

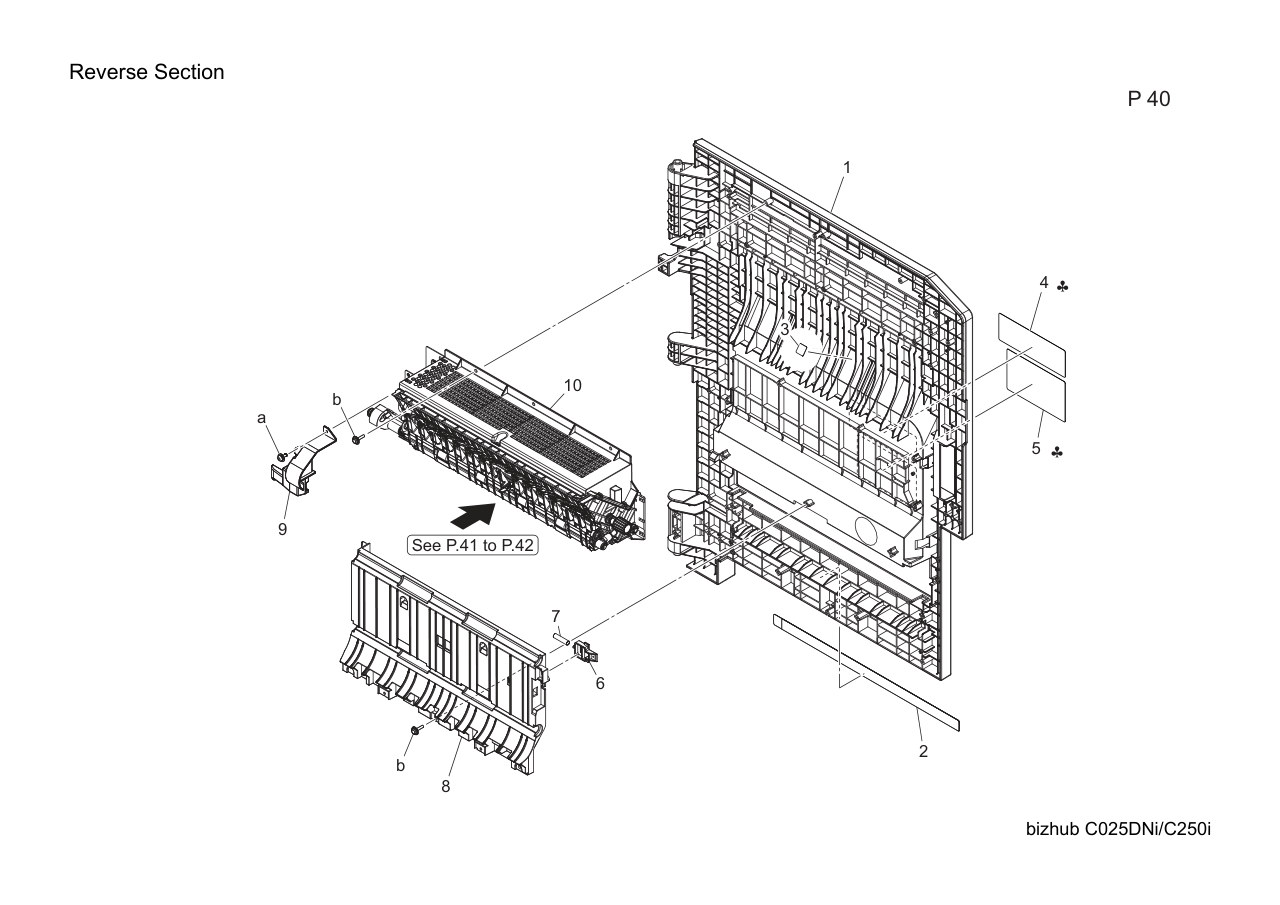

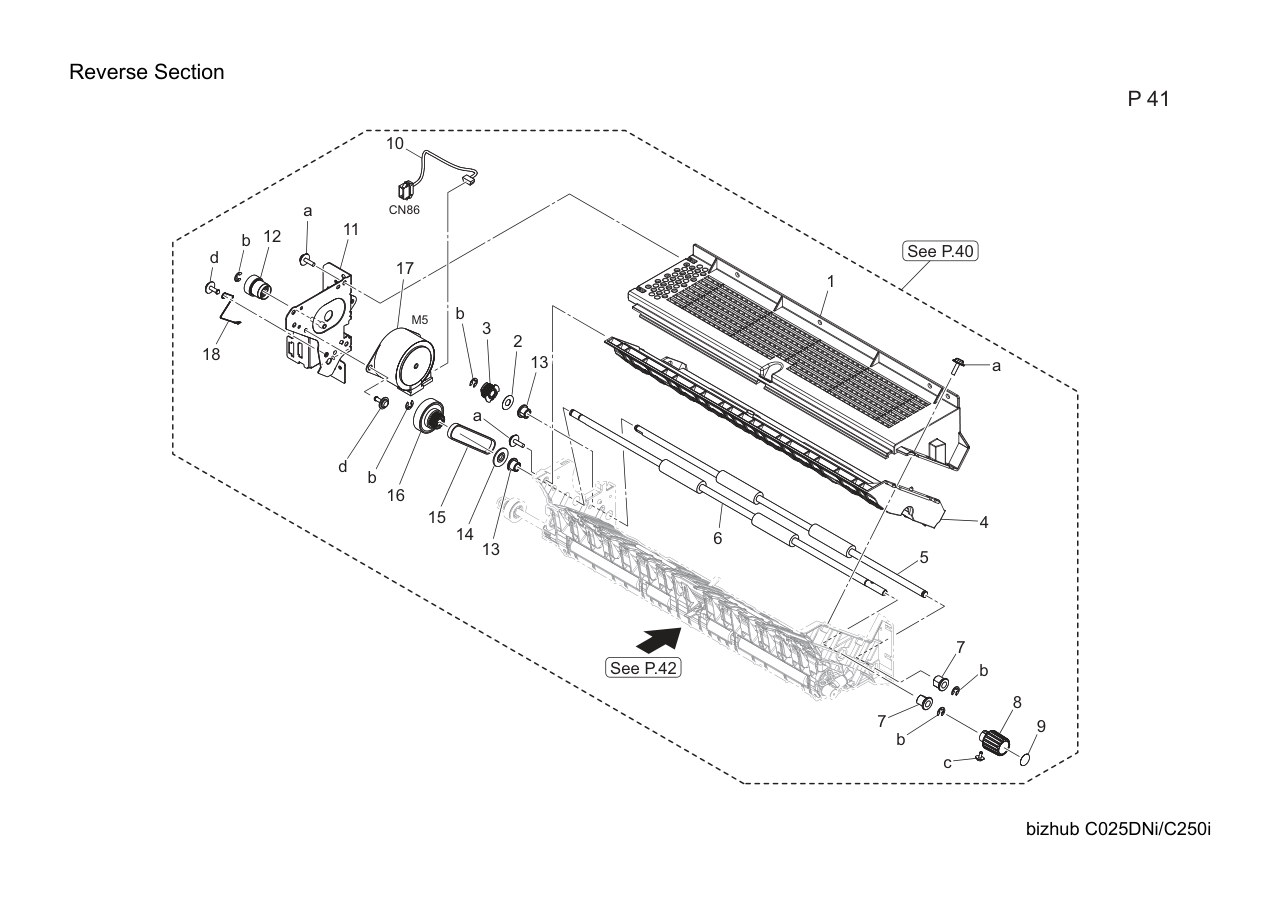

| Reverse Section 1 AA2J810102 Guide Door/Right 2 A161815100 Cover Door 3 A00F941100 Label 4 AA2J944300 Label B,C,D1,D3,E,F2,G1,G 4 AA2J944400 Label A 5 AA2J947100 Label A 5 AA2J947200 Label B,C,D1,D3,E,F2,G1,G 6 AA2J815700 Open/close Claw 7 A161815800 Swing Spring 8 A7PU810201 Guide Plate/1 9 AA2J814900 Cover/B 10 AA2JR72811 Reverse Assy |  |
| Reverse Section 1 A5C1820701 Cover/Upper 2 A161816400 Spacer/A 3 A0ED811700 Pulley 22T 4 A79J812202 Guide Plate 5 A161814601 Roller/C 6 A161813701 Roller/B 7 A02E815200 BUSHING 8 A161814700 Knob/A 9 AA2J946100 Label 10 AA2JN10M00 ADU Drive harness 11 AA2J811300 Panel/Rear 12 A7PU819600 Gear/4 13 A161813300 Bushing/A 14 A161813801 Collar/A 15 A161819000 Drive Belt 156L 16 A5C1819700 Gear 22/29T 17 AA2JM10300 Stepping motor 18 A5C1814300 Contact/B |  |
| Reverse Section 1 A5C1811701 Guide Plate/3 2 A161814401 Mounting Plate/3 3 4163529301 SCREW 4 A161813600 Pressing Spring/A 5 A161825301 Cushion/A 6 A5C1811803 Guide Plate/Front 7 A0ED815100 Holding Part 8 A161825700 Idler Roller/A 9 A161813200 Actuator 10 A161712800 Spring/D 11 A5C1M50100 Photointerrupter 12 A7PU810900 Mounting Plate/1 13 A5C1814200 Contact/A 14 A161813400 Torsion Coil spring 15 A161825400 Wiring Part 16 A161825800 Cushion/B 17 A161813902 Cover/A 18 AA2J825100 Mounting Plate/4 19 A79J821000 Protection Part 20 AA2J810800 Mounting Plate/2 21 AA2J810600 (Old) Roller/1 21 AA2J810611 Roller/1 22 AA2J814500 Bushing 23 AA2J810500 (Old) Guide Plate/4 23 AA2J810511 Guide Plate/4 24 A02E815200 BUSHING 25 A161819200 Gear 18T 26 A5C1825000 Bushing 27 A161825000 Bushing 28 A161826001 Cushion/B 29 A161813001 Actuator 30 A161813100 Torsion Coil spring 31 A161819500 Bushing/C 32 A5C1811901 Guide Plate/Rear 33 AA2JN10N00 Conveyance Wiring/3 |  |

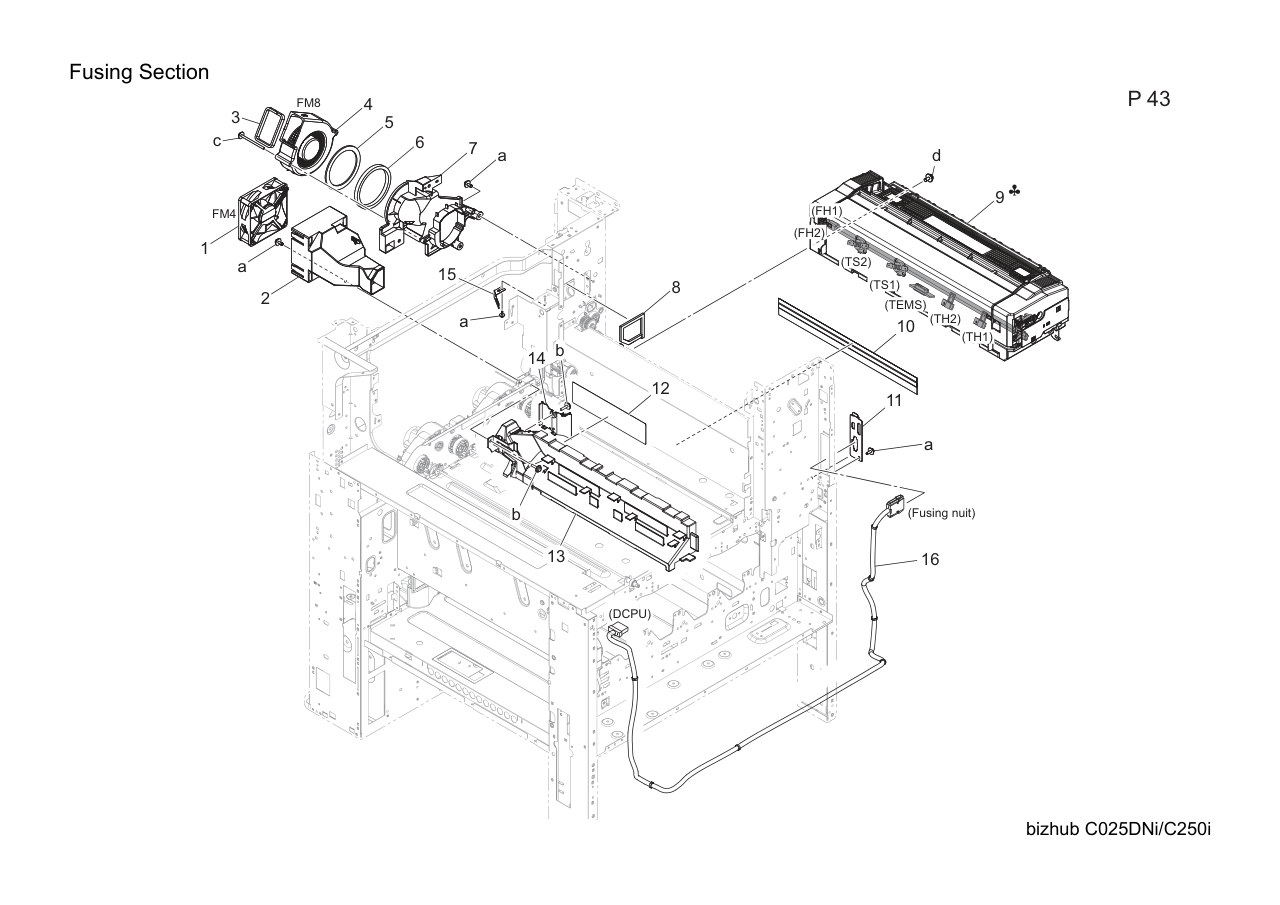

| Fusing Section 1 A93EM10000 Fan motor 2 AA2J140500 Duct 3 A7PU143300 Seal 4 A93EM10600 Fan motor 5 A02E117300 Seal 6 A7PU143400 Seal 7 AA2J142300 Duct/2 8 A161121401 Seal/Upper 9 AA2JR70211 Fusing Unit (100V) A 9 AA2JR70400 Fusing Unit (220-240V) C 9 AA2JR70311 Fusing Unit (120V) B,G2 9 AA2JR74100 Fusing Unit (110V) H 9 AA2JR70411 Fusing Unit (220-240V) D1,D3,E,F2,G1,I,K 10 A797102701 Seal 11 AA2J137201 Mounting Plate 12 AA2J140800 Seal 13 AA2J140101 Duct 14 AA2J140600 Duct 15 A161122500 Ground Plate 16 AA2JN10401 Heater Relay harness |  |

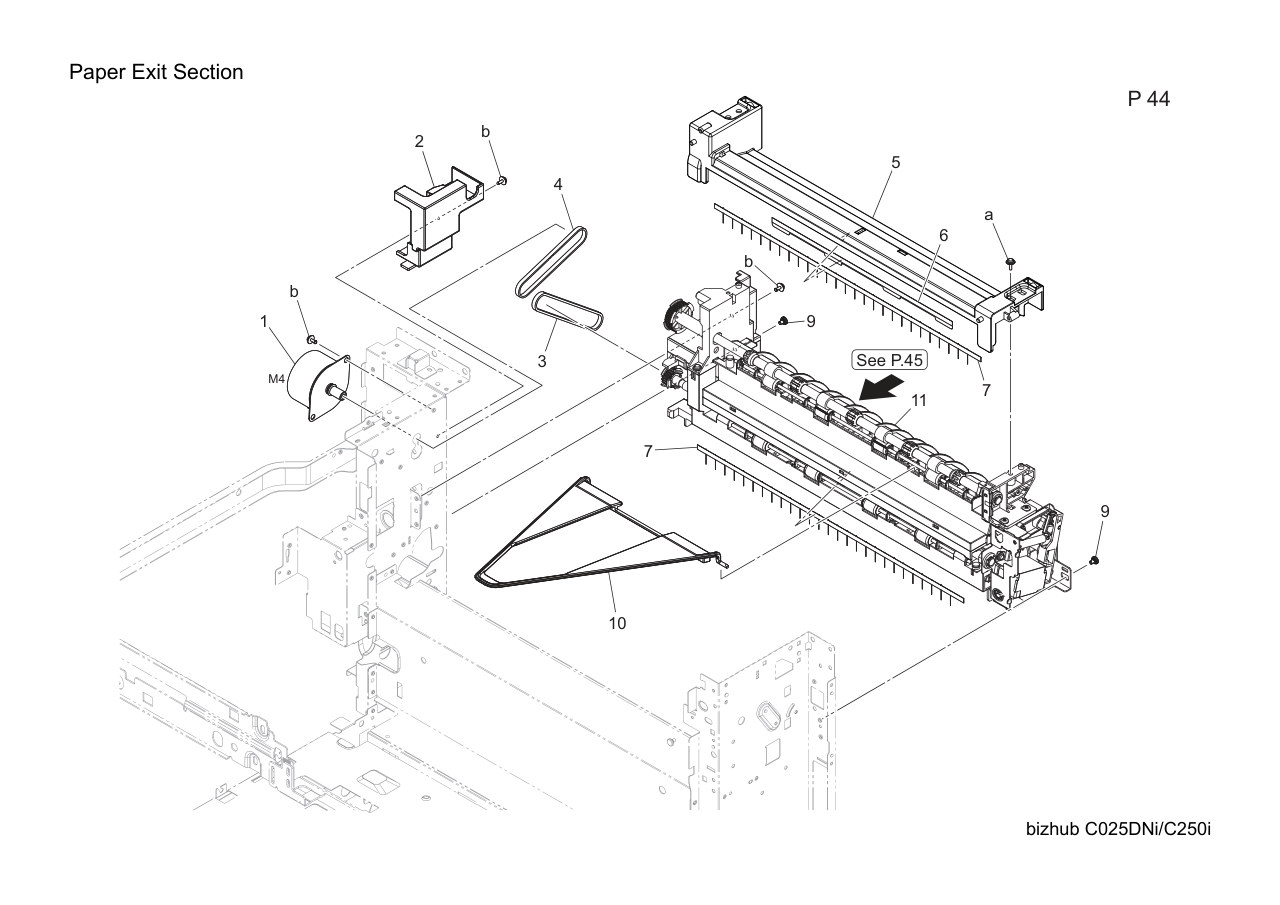

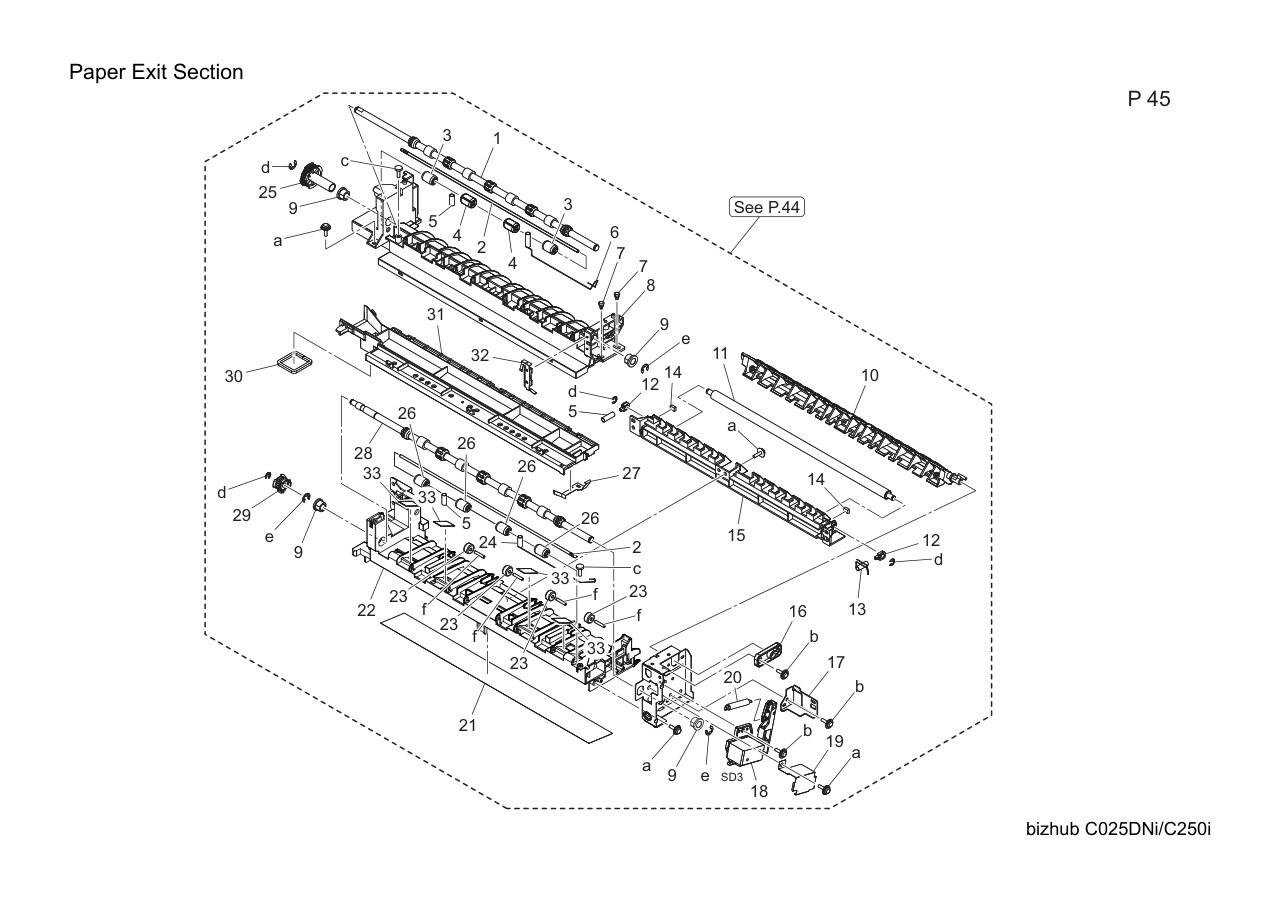

| Paper Exit Section 1 AA2JM10400 Stepping motor 2 AA2J162300 Cover/Right rear 3 A161891401 Timing belt 231L 4 4640392001 BELT 5 A79J895702 Paper exit Cover 6 A161894100 Sheet 7 A161894000 Neutralizing Brush 9 A0P0742300 Shoulder screw 10 A161897200 Guide Part 11 AA2JR72900 Paper Exit Assy |  |
| Paper Exit Section 1 A161895400 Roller 2 4025598401 SHAFT 3 4004590301 ROLL 4 A5C1891100 Roll 5 A161892400 Spring 6 A161900201 Ground Spring 7 1164202801 SHOULDER SCREW 8 AA2J896100 Paper exit Guide/Upper 9 A0ED891100 Bushing 10 AA2J890402 Guide Lever 11 AA2J901100 Roller 12 AA2J901200 Bushing 13 AA2J900300 Ground Spring 14 A161893601 Cushion 15 AA2J890201 Guide Part/Lower 16 A161891000 Bushing 17 A161892300 Mounting Plate 18 AA2JR73000 Solenoid Assy 19 A7PU890700 Cover 20 A161892000 Spring 21 AA2J900500 Seal 22 AA2J890103 Paper exit Main body 23 A0ED897700 Collar 24 AA2J900100 Ground Spring 25 A161895800 Pulley 44T 26 AA2J891100 Roll 27 A161895601 Ground Contact/Lower 28 AA2J890300 Roller 29 A161891301 Pulley 18T 30 AA2J900400 Seal 31 AA2J902000 Paper exit Guide/Lower 32 A161895503 Ground Contact/Upper 33 AA2J891500 Sheet |  |

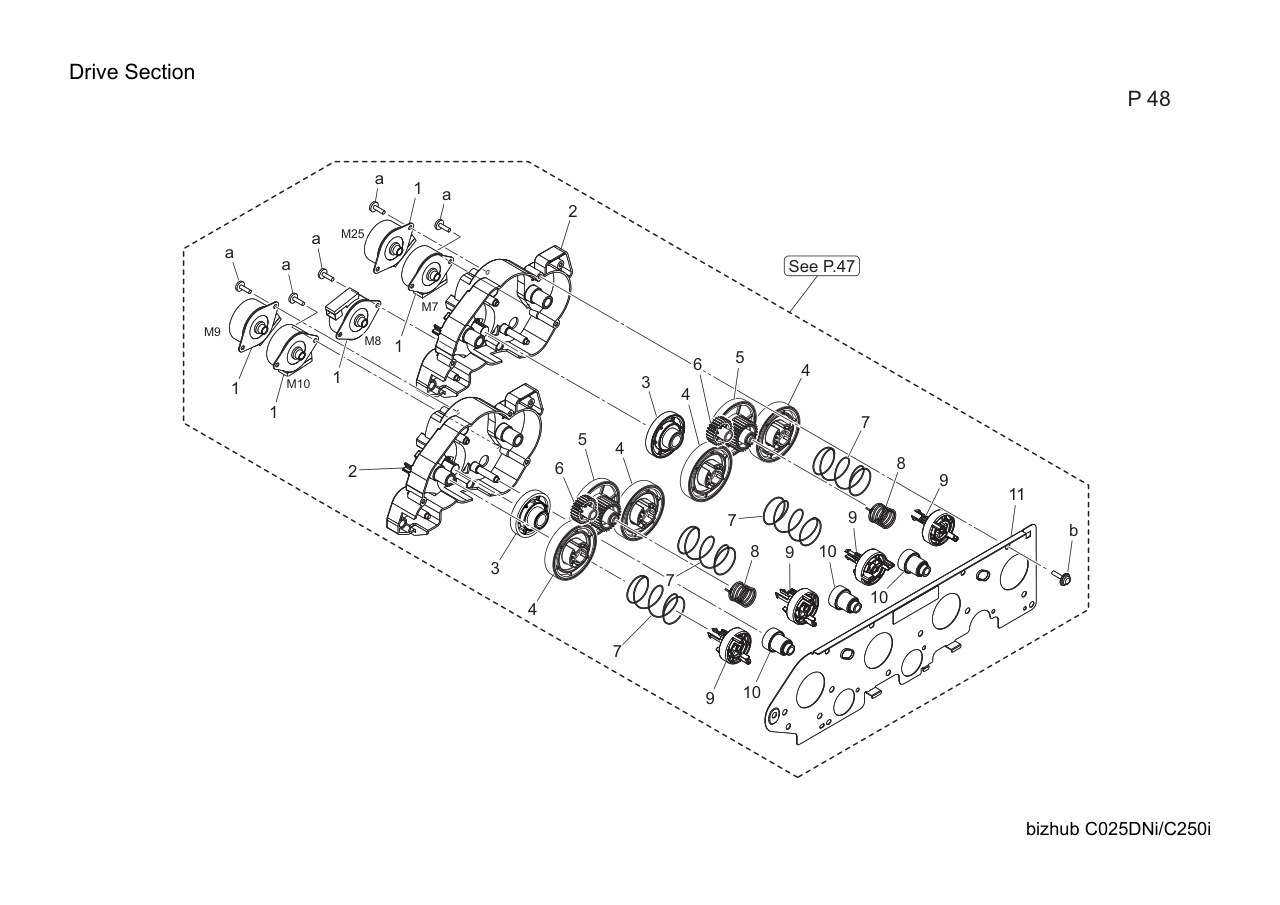

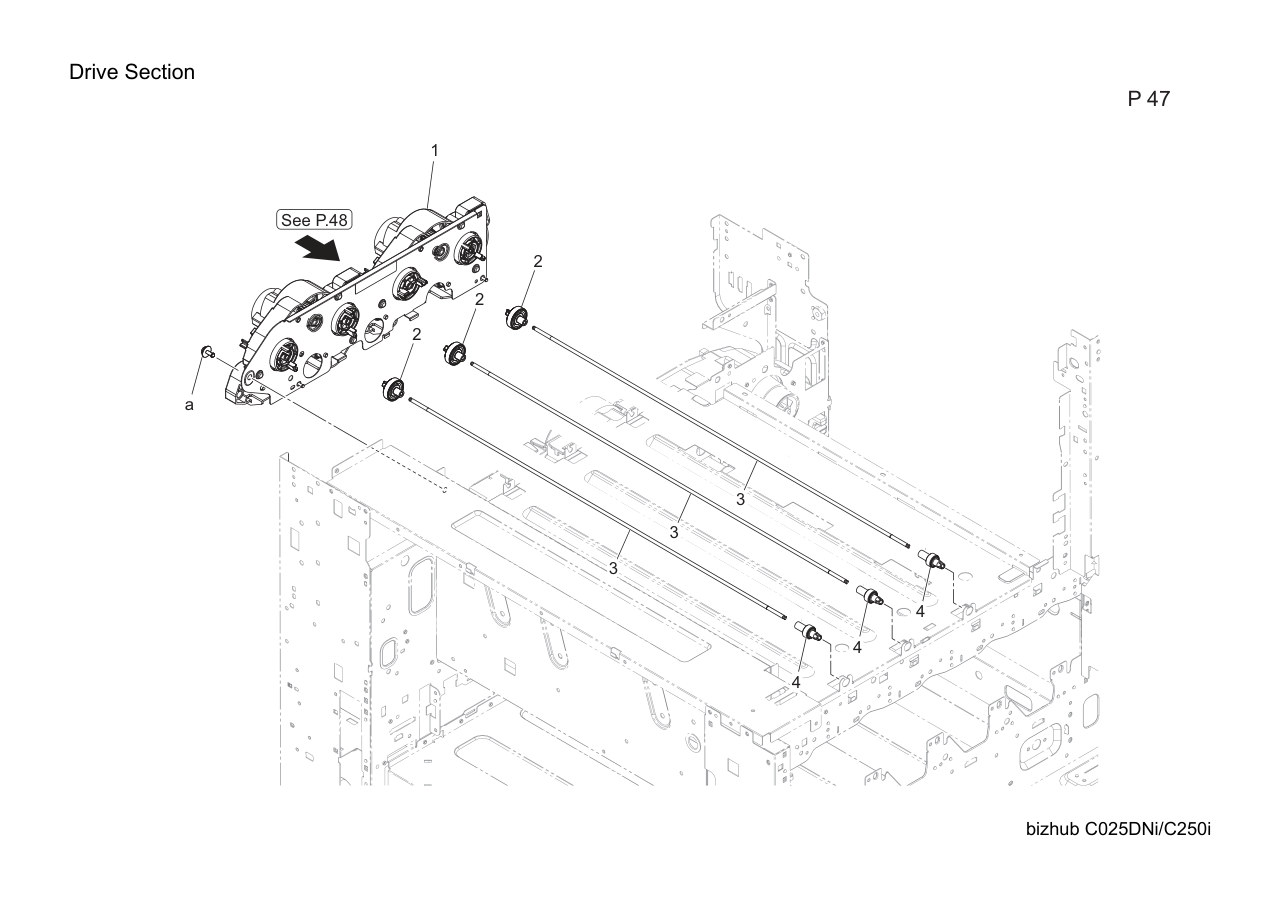

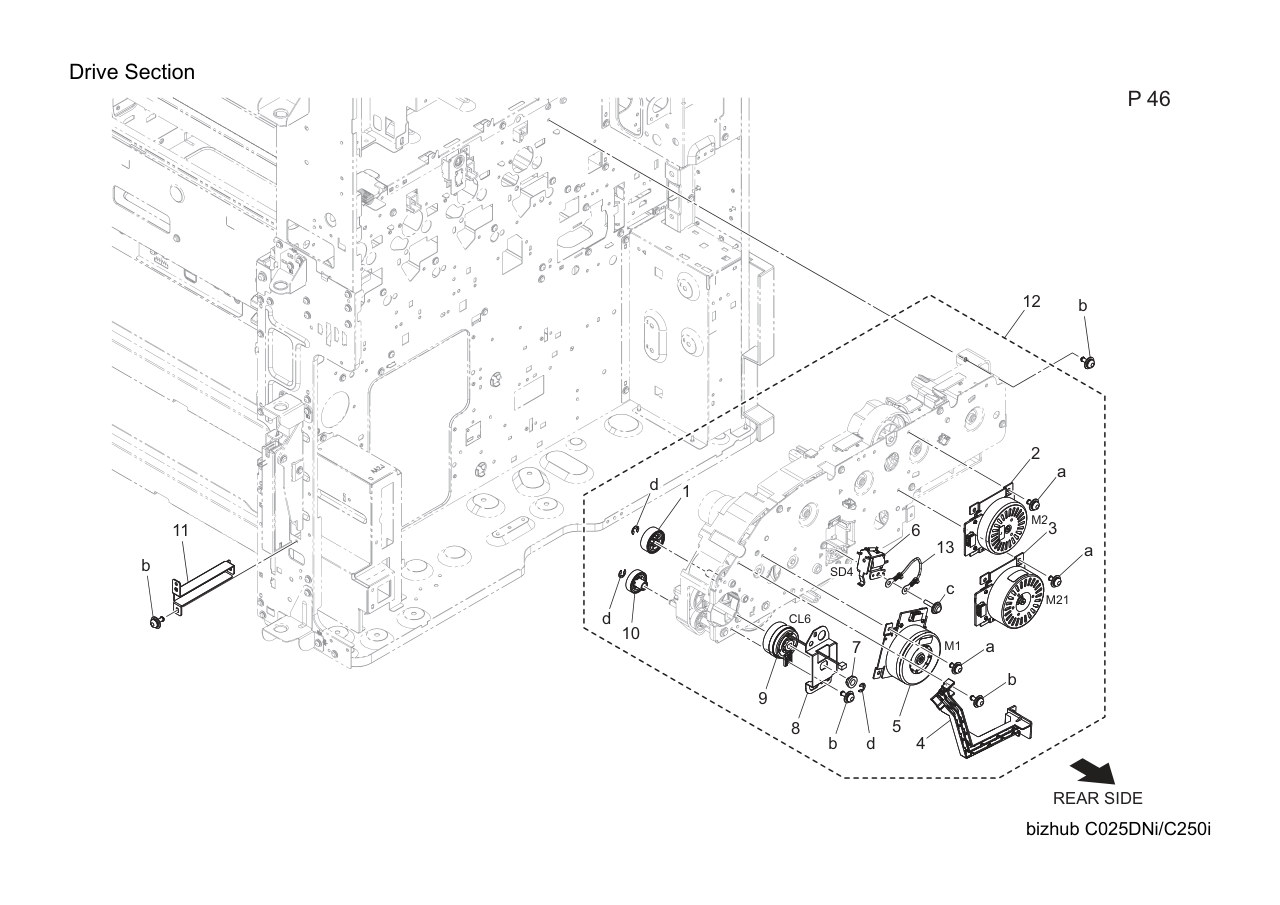

| Drive Section 1 A161254000 Gear 22T 2 AA2JM10200 Brushless motor/20 3 AA2JM11000 Brushless motor/30 4 A161134702 Guide 5 AA2JM11100 Brushless motor/40 6 A161M20300 Flapper solenoid 7 A161210200 Bushing 8 AA2J253900 Hold Plate 9 AA2JM20200 Clutch 10 A64J257800 Gear 20T 11 A161105500 Reinforce Plate 12 AA2JR70900 Main Drive Assy 13 A782N11800 ADF Wiring/19 |  |
| Drive Section 1 AA2JR71211 Toner Bottle Drive Assy 2 A161241000 Gear 31T 3 A7PU241200 Shaft 4 A161241400 Gear 17T |  |

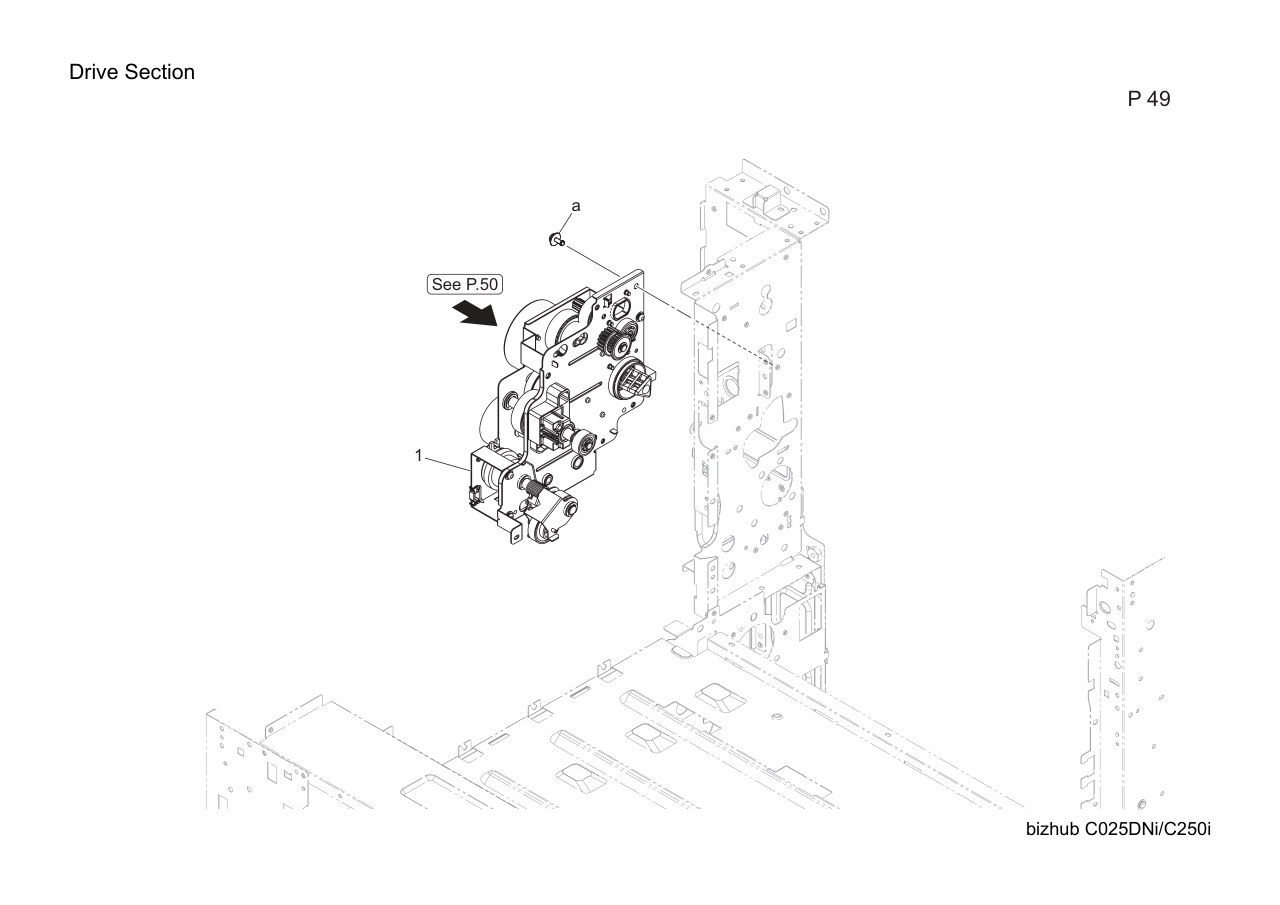

| Drive Section 1 A7PUM10700 Stepping motor 2 AA2J240101 Holder 3 A161240301 Gear 18/91T 4 AA2J240600 Gear 58T 5 AA2J240400 Gear 29/59T 6 A79J240500 Gear 25T 7 4038541202 PRESSURE SPRING 8 A79J241700 Spring 9 A161240700 Joint 10 A161240900 Gear 20/42T 11 AA2J241500 Mounting Plate |  |

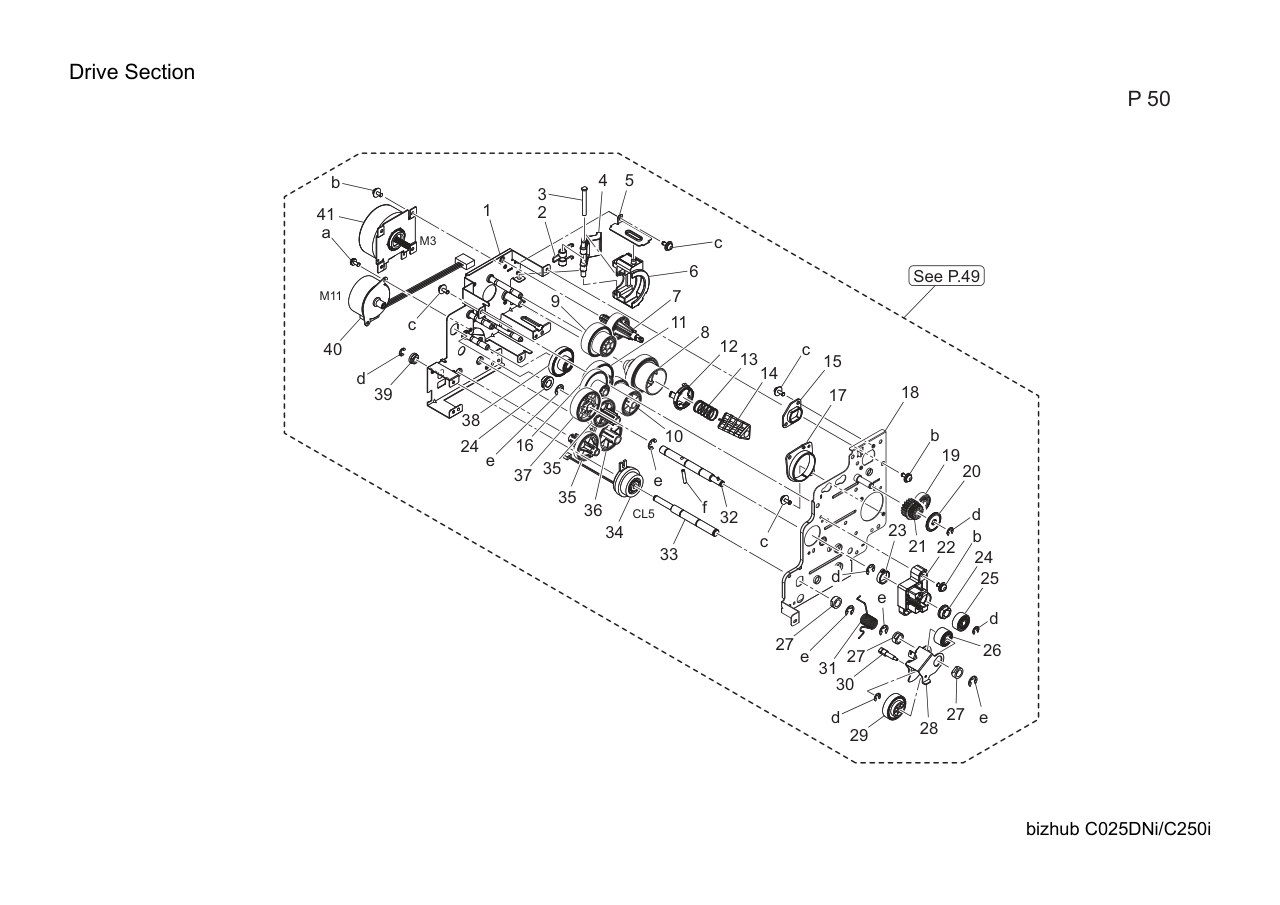

| Drive Section 1 AA2JR71311 Fusing Drive Assy |  |

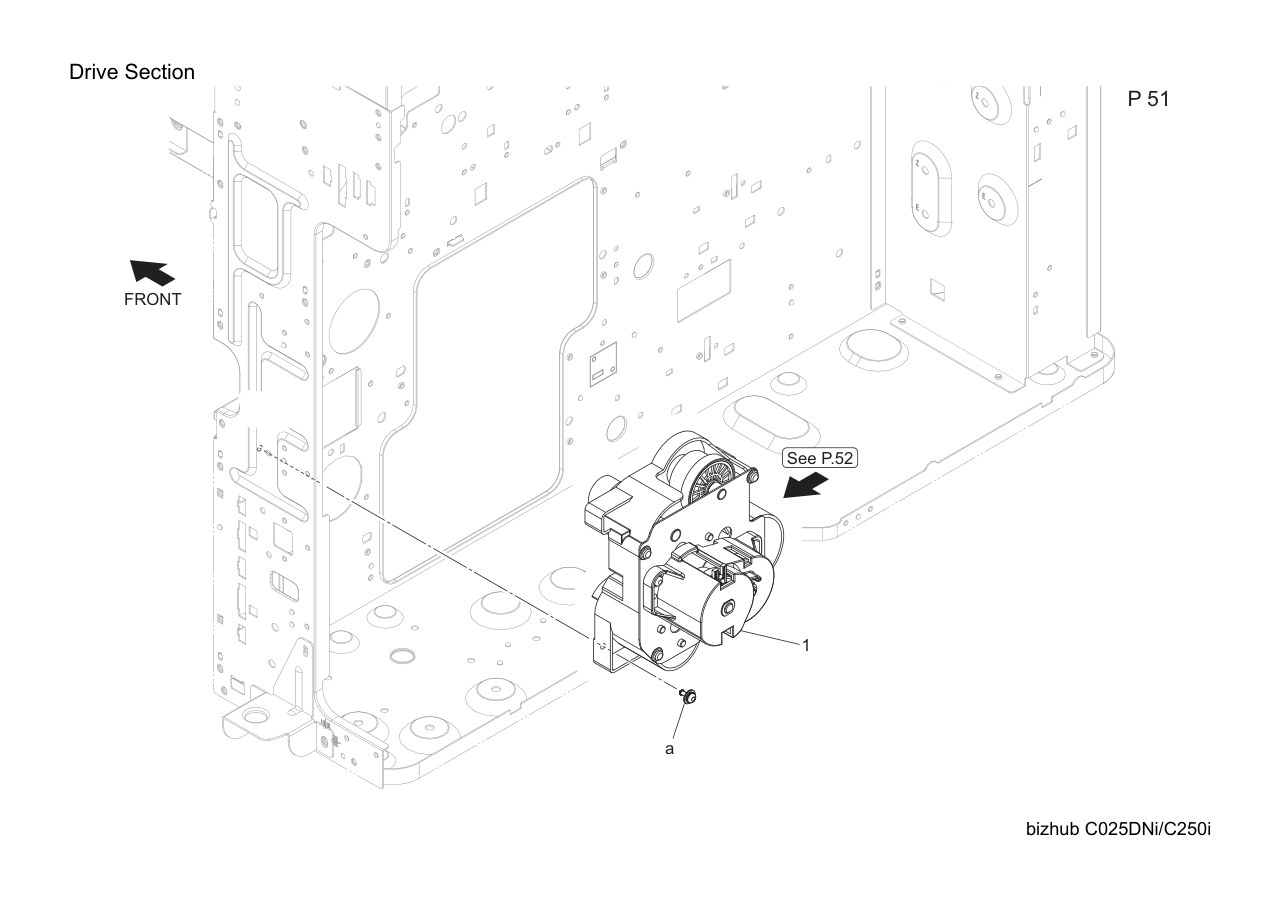

| Drive Section 1 AA2J255601 Frame/ASSY 2 AA2J258500 Spring 3 AA2J229700 Shaft 4 AA2J229500 Lever 5 AA2J255700 Reinforce Plate 6 AA2J229000 Holder 7 AA2J230600 Gear 25T 8 AA2J228100 Gear 39T 9 AA2J230500 Gear 22/64T 10 AA2J228200 Gear 27/40T 11 AA2J228000 Gear 22/74T 12 AA2J229300 Ring 13 AA2J229600 Compressing Coil spring 14 AA2J229201 Joint 15 A161232200 Bushing 16 AA2J254300 Gear 18/43T 17 AA2J229100 Bushing 18 AA2J231001 Frame/ASSY 19 A161230700 Gear 18T 20 A2XK224100 Collar 21 A5C1231300 Gear 18/18T 22 AA2J229400 Holder 23 AA2J232400 Collar 24 A03U812800 Slide Shaft Holder 25 A161254600 Gear 26 4038258001 GEAR 16T 27 A0ED259700 Bushing 28 A161258800 Mounting Plate 29 A0ED257500 Gear 26T 30 A161259400 Shaft 31 A161232501 Torsion Coil spring 32 AA2J256300 Shaft 33 AA2J258700 Shaft 34 AA2JM20100 Clutch 35 AA2J259100 Gear 30T 36 AA2J259200 Gear 20/34T 37 AA2J254400 Gear 42T 38 AA2J254200 Gear 18/80T 39 A161210200 Bushing 40 A161M10300 Stepping motor 41 AA2JM11000 Brushless motor/30 |  |

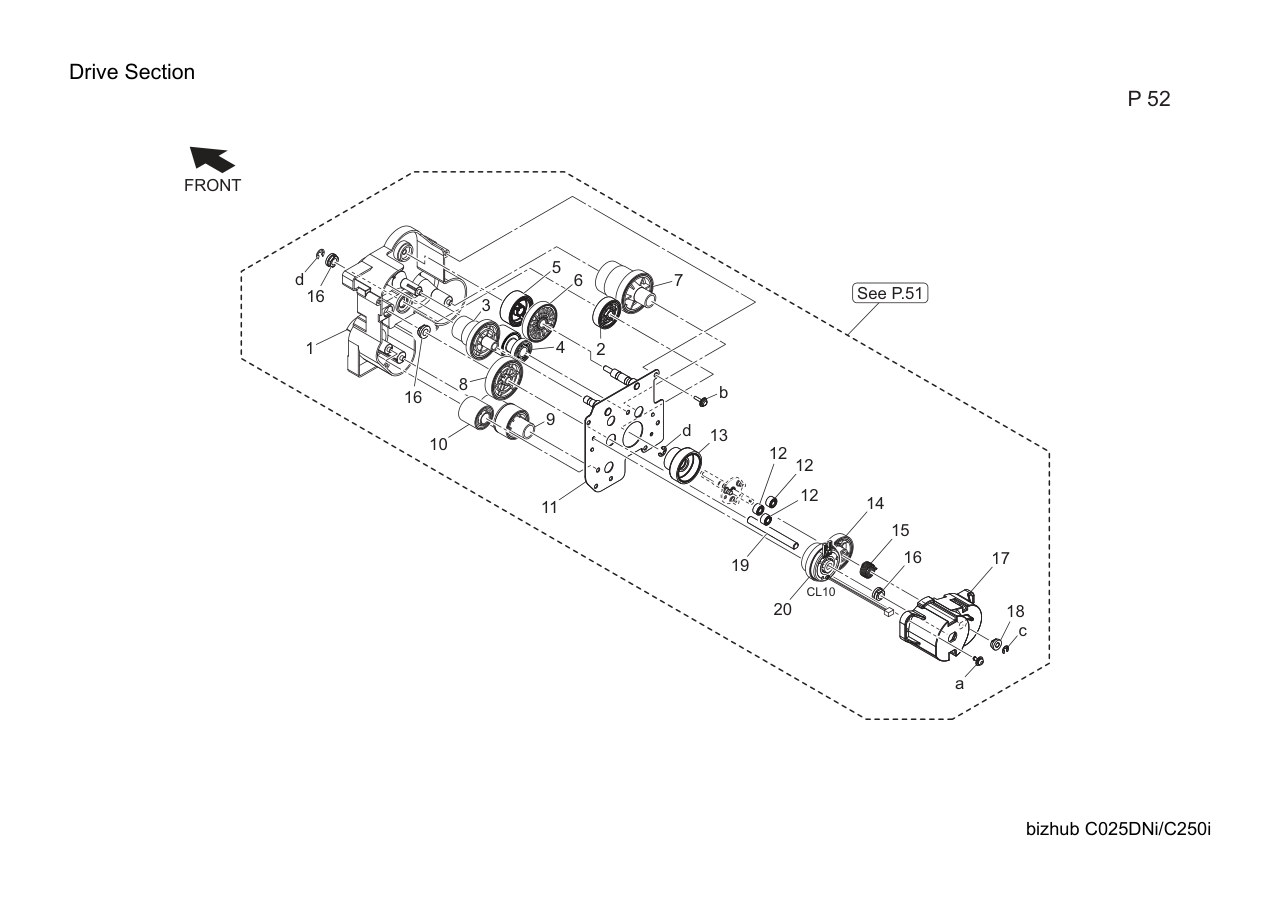

| Drive Section 1 AA2JR71100 Paper Feed Drive Assy |  |
| Drive Section 1 AA2J221000 Holder 2 AA2J220400 Gear 24T 3 AA2J259800 Gear 18/32T 4 AA2J220100 Gear 19/21T 5 A161253600 Gear 26T 6 A161253500 Gear 53T 7 AA2J222000 Gear 26/34T 8 AA2J220300 Gear 36T 9 AA2J222200 Gear 21/25T 10 AA2J222100 Gear 20T 11 AA2J221100 Mounting Plate 12 A161215100 Gear 16T 13 AA2J221700 Gear 18/52T 14 AA2J221800 Gear 20/30T 15 AA2J221500 Spring 16 A161210200 Bushing 17 AA2J220900 Holder 18 AA2J220500 Bushing 19 AA2J220700 Shaft 20 AA2JM20100 Clutch |  |

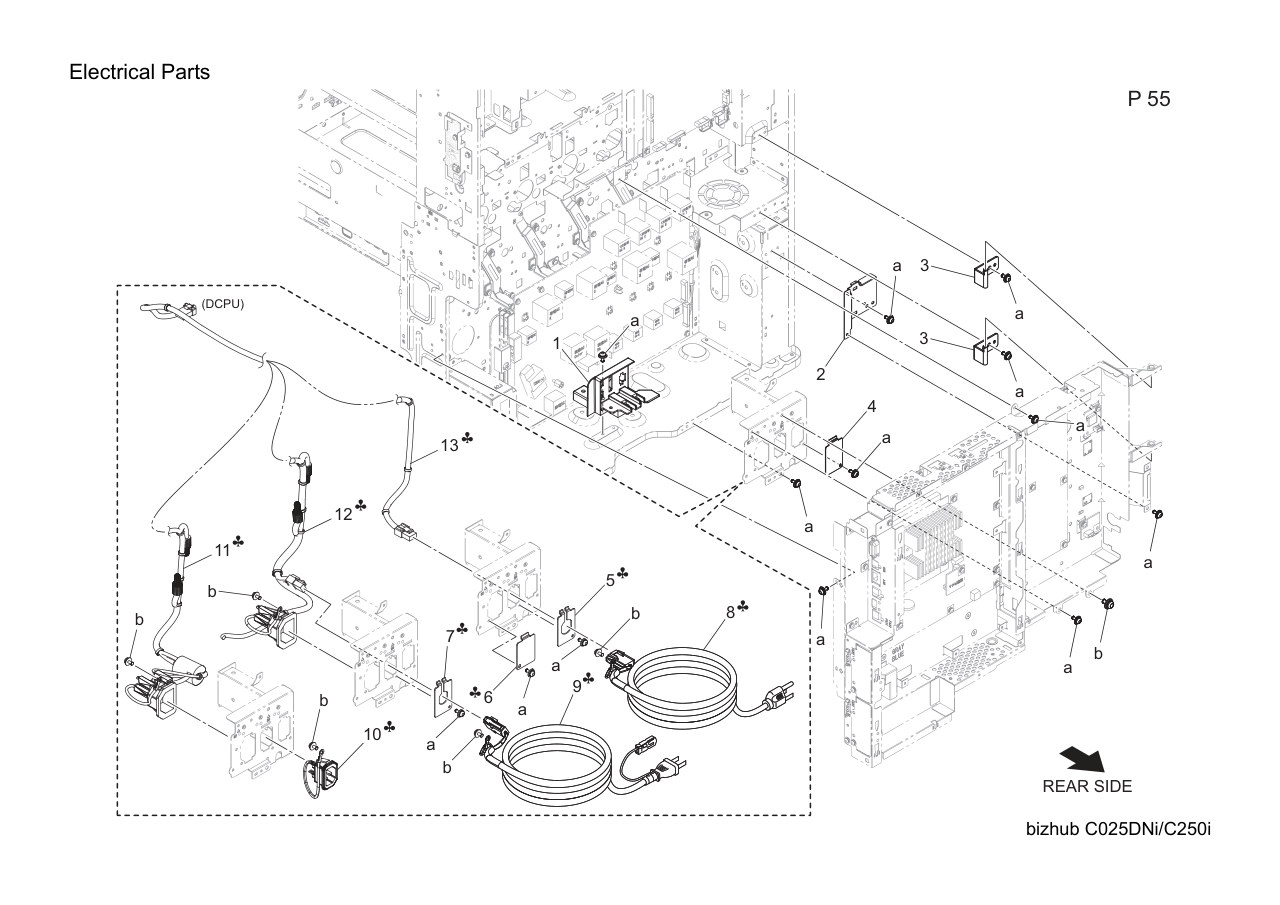

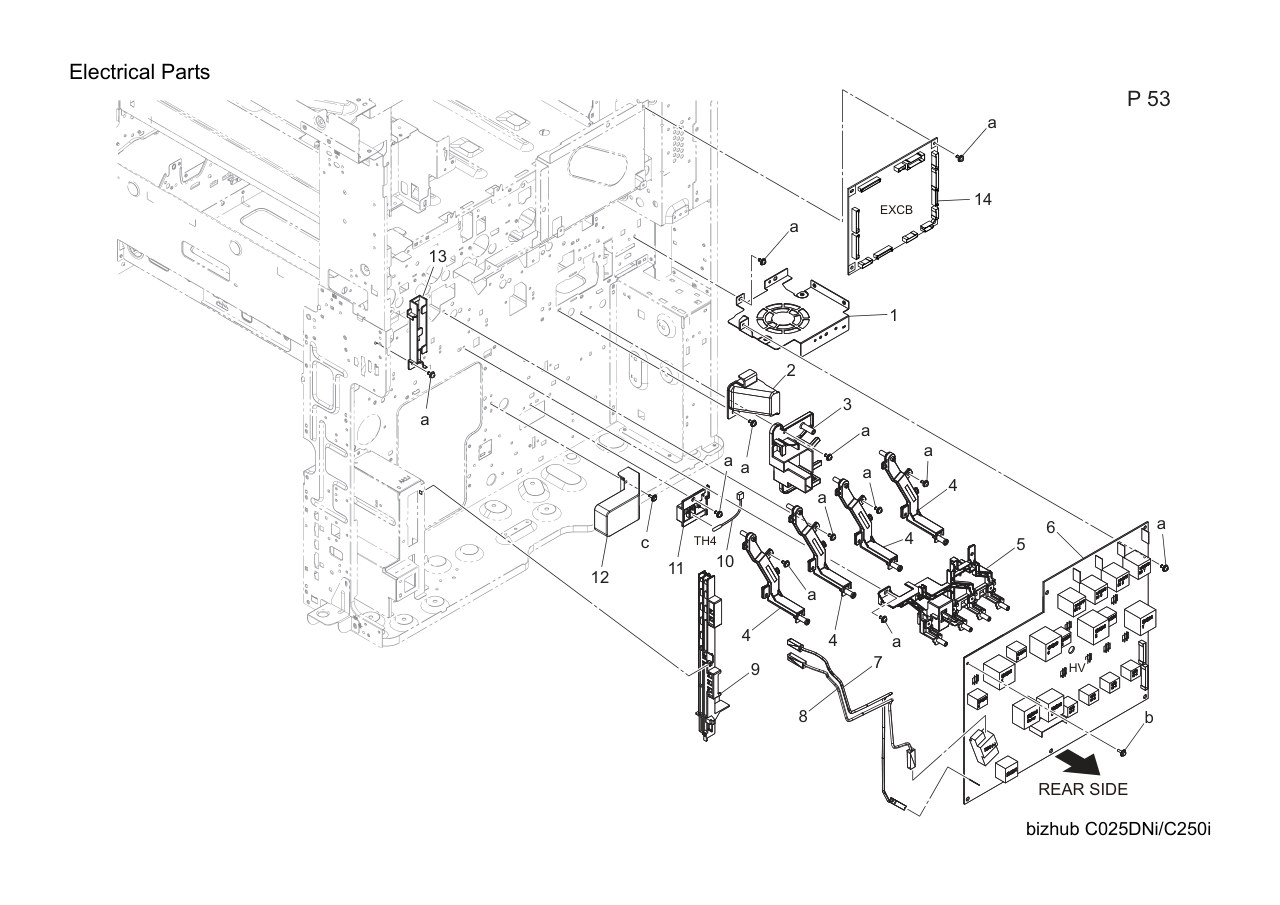

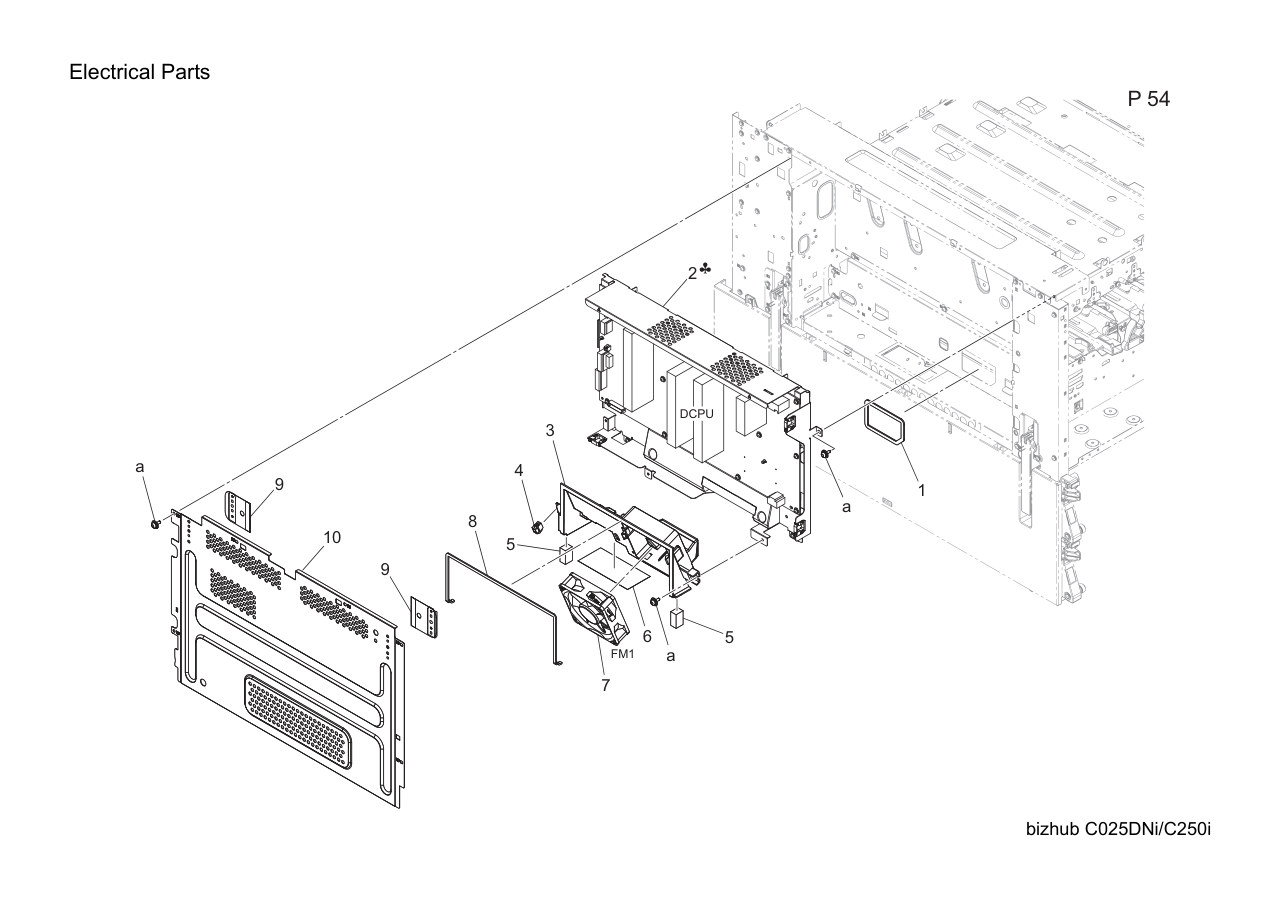

| Electrical Parts 1 AA2J142000 Mounting Plate 2 A161141500 Duct/2 3 A7PU141800 Holder 4 AA2JR70511 HV Contact Assy 5 A161R70322 DV Contact Assy 6 AA2JM40600 High voltage unit 7 A161N11300 Transfer Wiring/2 8 A161N11K00 Neutralizing Wiring 9 A5C1134800 Guide 10 A0P0M50300 Thermistor 11 A161137701 Holder 12 AA2J107500 Cover 13 AA2J133000 Guide 14 AA2JH00500 PWB Assembly(EXCB) |  |
| Electrical Parts 1 A161143601 Seal/3 2 AA2JR70700 Power supply Assy (200V) C,D1,D3,E,F2,G1,I,K 2 AA2JR70600 Power supply Assy (100V) A 2 AA2JR74000 Power supply Assy (120V) B,G2 2 AA2JR74200 Power supply Assy (110V) H 3 A161140800 Cooling Duct 4 V651010002 connector 5 A161144500 Seal/3 6 A161145000 Filter 7 A93EM10000 Fan motor 8 A161143400 Seal/1 9 A61F100600 Sheet 10 A79J100600 Cover |  |

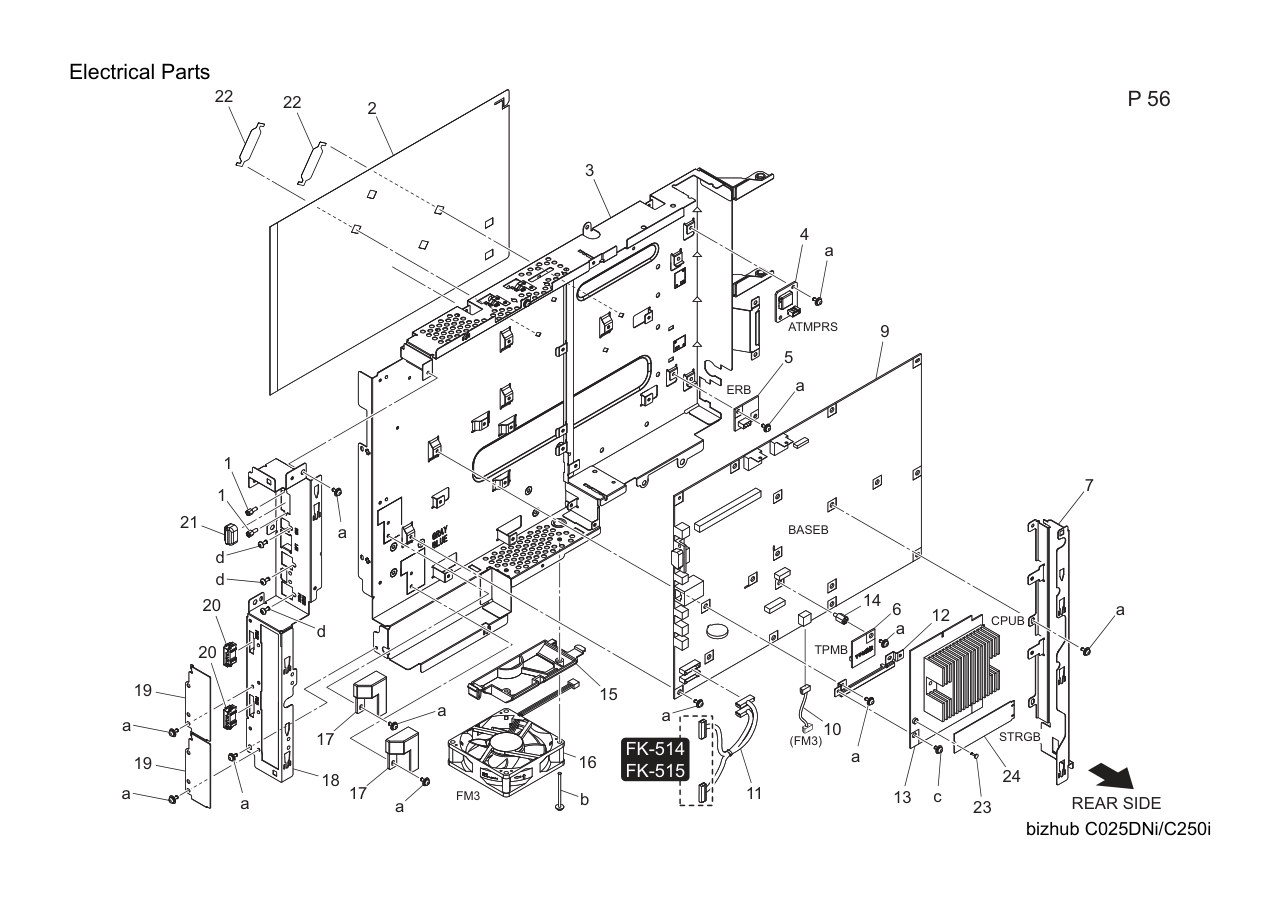

| Electrical Parts 1 AA2J131401 Holder 2 AA2J135301 Fixing Plate 3 AA2J130801 Hinge 4 A79J136000 Mounting Plate 5 A0ED135700 Mounting Plate B,G2 6 A79J139000 Cover B,G2,H 7 A7PU135700 Mounting Plate A,H 8 AA6RN30100 Power code (120V) B,G2 9 AA6RN30000 Power code (100V) A 9 A8JEN30200 Power code H 10 A02EN12513 Power supply Wiring C,D1,D3,E,F2,G1,I,K 11 AA2JN10201 AC Wiring/230V C,D1,D3,E,F2,G1,I,K 12 AA2JN10001 AC Wiring/100V A 13 AA2JN10100 AC Wiring/120V B,G2 |  |
| Electrical Parts 1 A161137900 Screw 2 AA2J137600 Sheet 3 AA2J131902 Mounting Plate 4 AA2JM50P00 Sensor Board 5 AA2JH00C00 ERB ASSY 6 AA2JH02T00 PWB Assembly(PWB-TPM) 7 AA2J131100 Mounting Plate 9 AA2JH02008 PWB Assembly(BASEB) 10 A7PUN10800 Harness/Relay 11 A7PUN10700 Harness/Fax relay 12 AA2J135101 Mounting Plate 13 AA2JH02N06 PWB Assembly(CPUB) 14 A161137600 Shoulder screw 15 A7PU140100 Duct 16 A0EDM10500 Fan motor 17 A7PU130400 Guide 18 AA2J131602 Mounting Plate 19 A7PU139800 Cover 20 V651010025 connector 21 V503010002 Connector Cover 22 AA2J137902 Fixing Plate 23 AA2J139800 Screw 24 AA2JM72700 Storage Board |  |

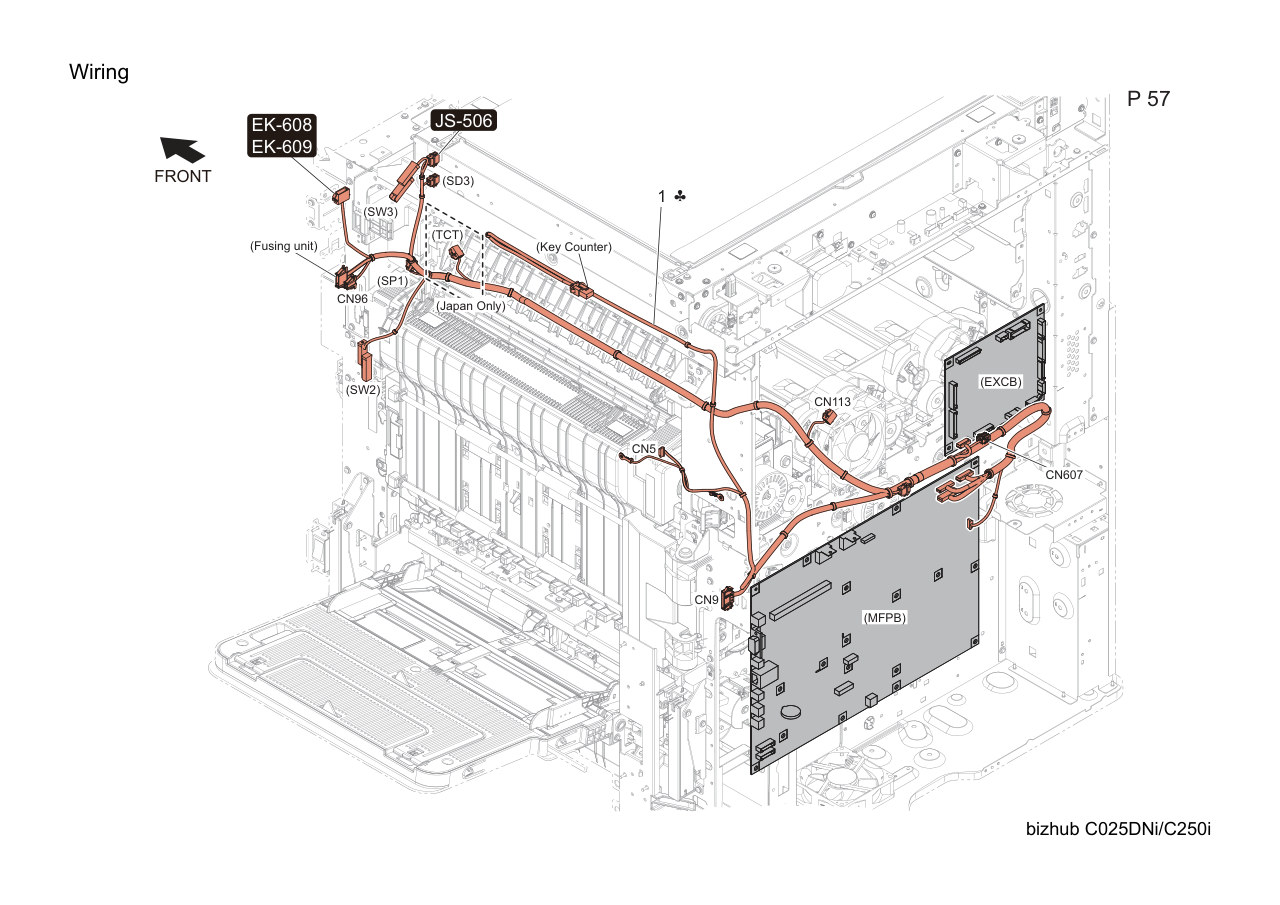

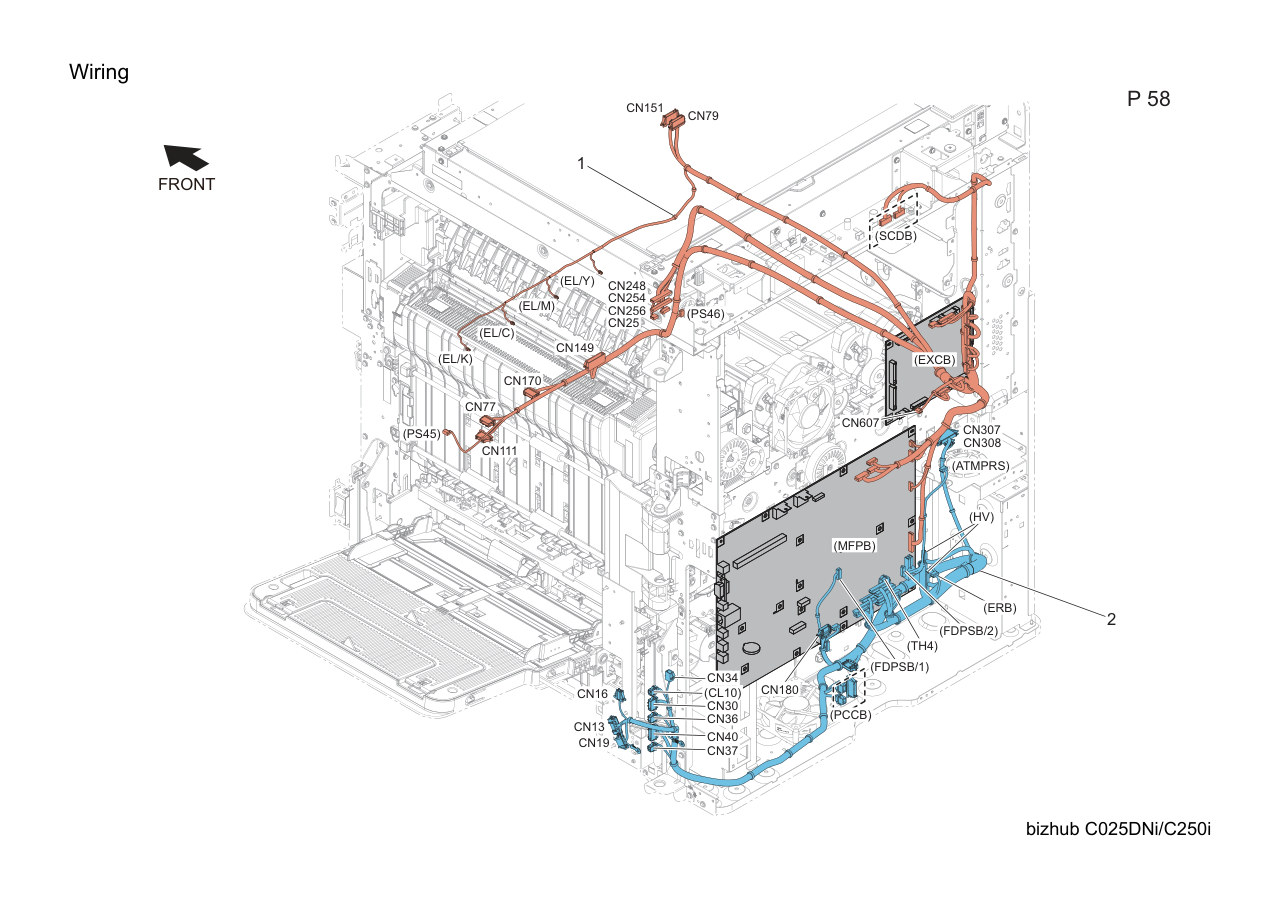

| Wiring 1 AA2JN10A01 Main body Wiring/1 A 1 AA2JN12A00 Main body Wiring/1 B,C,D1,D3,E,F2,G1,G |  |

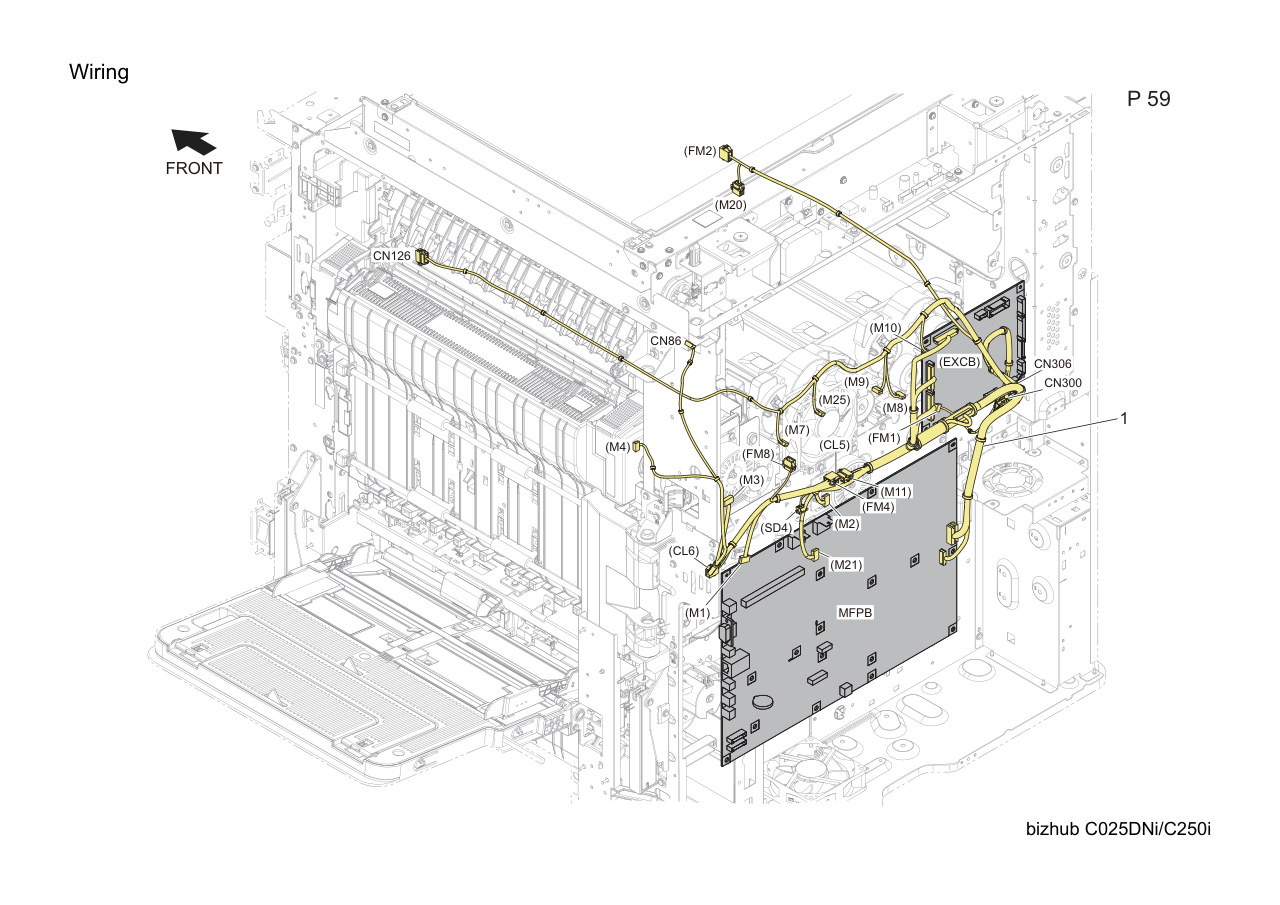

| Wiring 1 AA2JN10B00 Main body Wiring/2 2 AA2MN10C01 Main body Wiring/3 |  |
| Wiring 1 AA2JN10D02 Drive Wiring/1 |  |

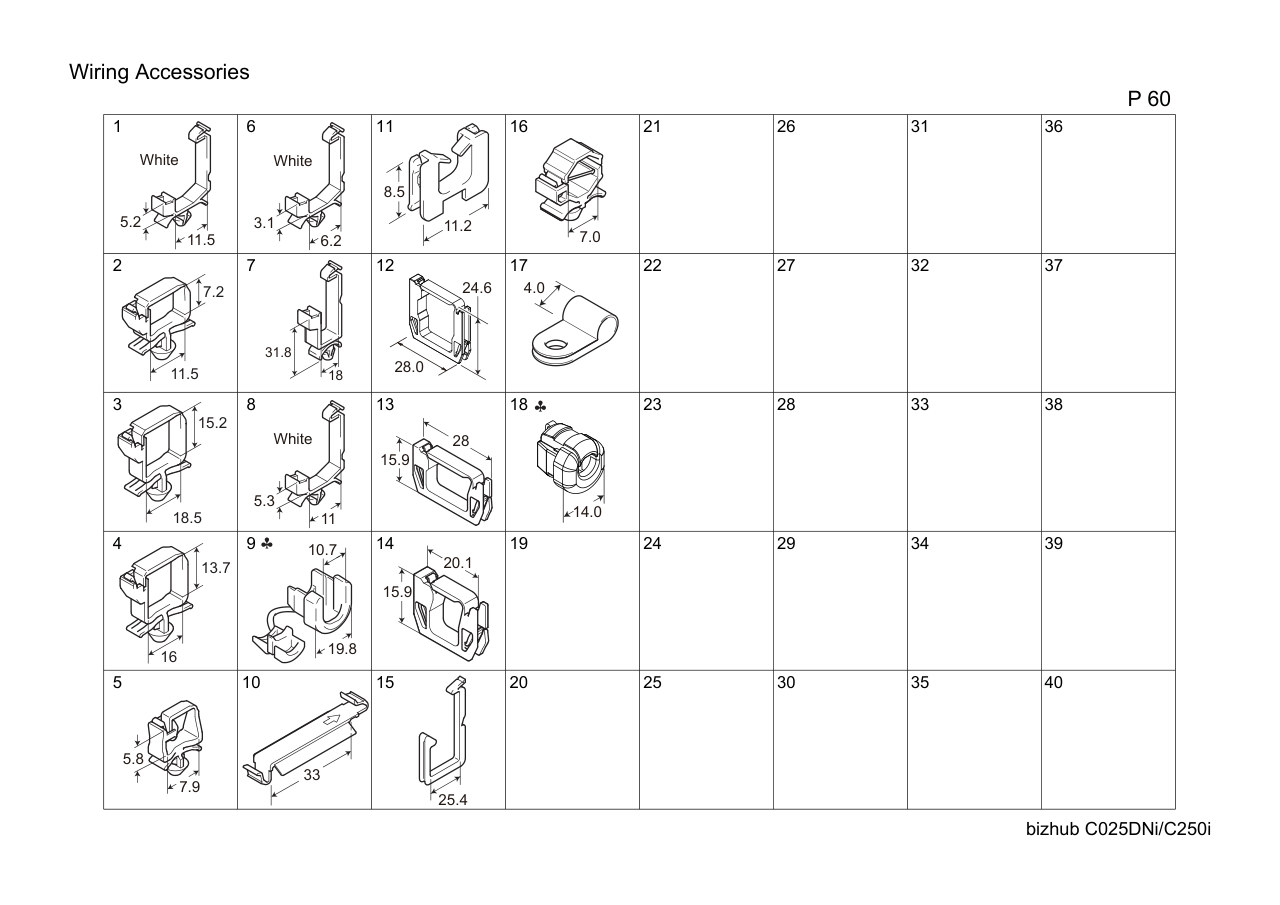

| Wiring Accessories 1 V500010081 Locking Wire Saddle 2 V500010082 Locking Wire Saddle 3 V500010083 Locking Wire Saddle 4 V500010084 Locking Wire Saddle 5 V500020098 Mini Locking wire saddle 6 V500020099 Mini Locking wire saddle 7 V500010085 Locking Wire Saddle 8 V500020100 Mini Locking wire saddle 9 V500020052 bushing B,G2 10 V500020082 Clamping for FFC 11 V570010021 Saddle 12 V570010057 Wing Edge Saddle 13 V570010059 Wing Edge Saddle 14 V570010060 Wing Edge Saddle 15 V570010048 SADDLE 16 V500020094 FG Clamp 17 V500020069 Clamp 18 V500020073 bushing A,H |  |

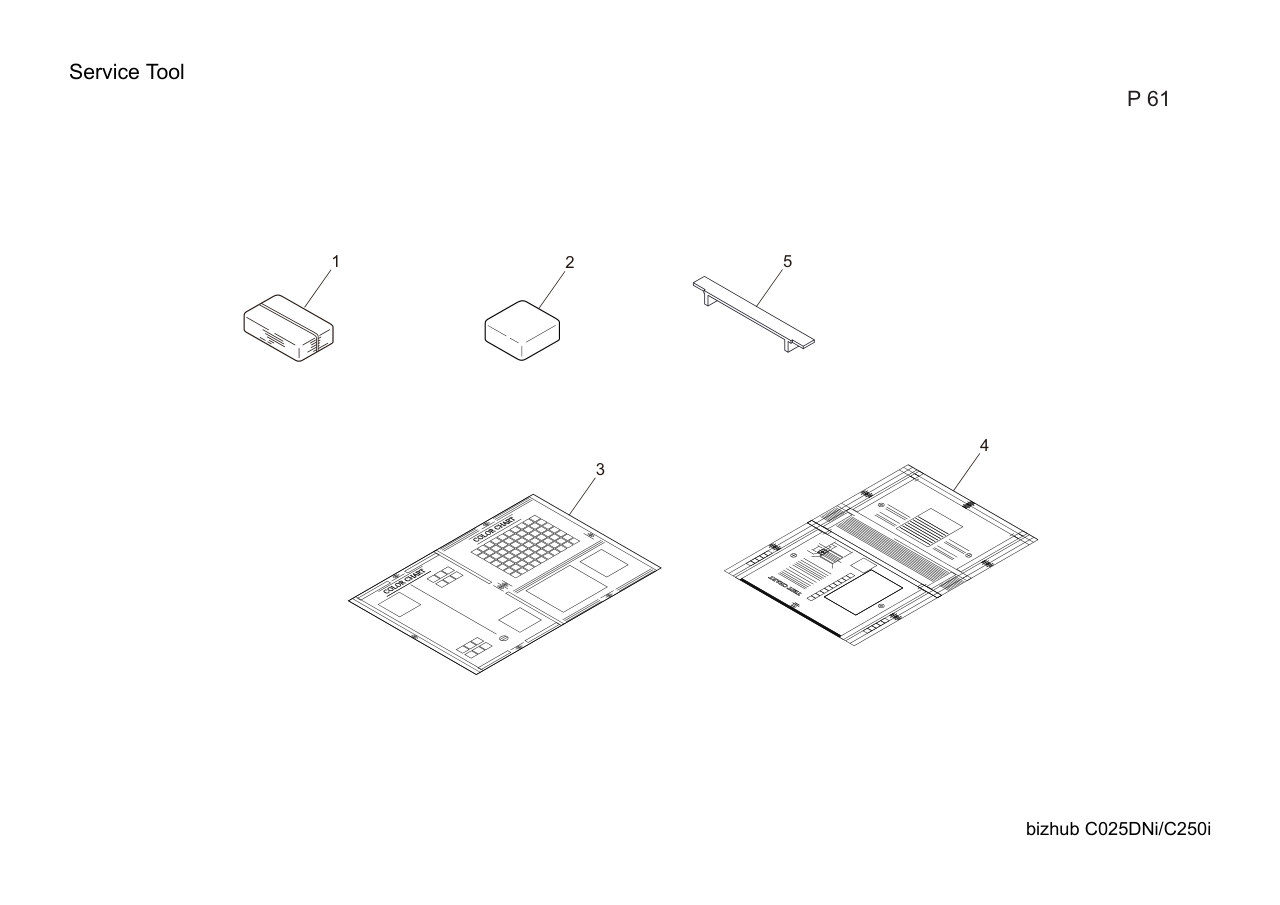

| Service Tool 1 A5AWP00100 Cleaning Pad 5 A79JPJG000 Jig |  |

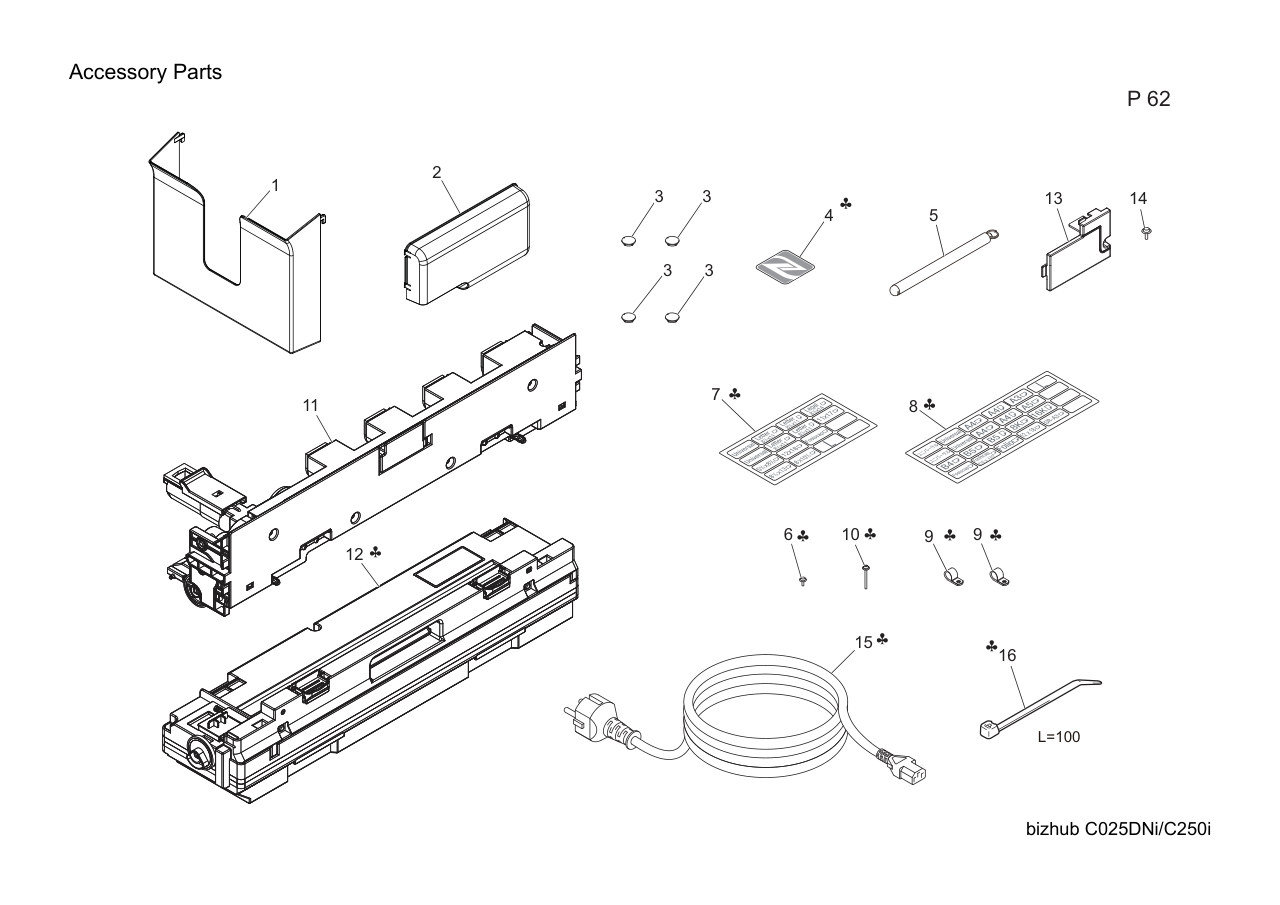

| Accessory Parts 1 A7PU169900 Holder 2 A7PU168201 Duct 3 A00J169100 Cover 4 AA2J948600 Label B,C,D1,D3,E,F2,G1,G 5 A5C1192100 Pen 6 V153031004 screw C,D1,D3,E,F2,G1,I,K 7 A161943400 Label Paper Size/Inch B,G2 8 A161943301 Label Paper Size/Metric A,C,D1,D3,E,F2,G1,I 9 V500020040 clamp C,D1,D3,E,F2,G1,I,K 10 V116033003 Screw C,D1,D3,E,F2,G1,I,K 11 AA2JR71600 Waste Toner Transport Assy 13 A7PU166101 Cover 14 V116030804 Screw 15 4136N30000 POWER CODE D1,G1,I,K(Korea, Pa 15 9381420021 POWER CORD D3(New Zealand) 15 A1UDN30200 Power cord/230V G1(Argentine) 15 A2UPN30100 Power code (220-240V) D1,F2,I(Saudi Arabi 15 A2UPN30300 Power code (220-240V) G1(Peru) 15 A2UPN30601 Power code (220-240V) G2(Brazil) 15 A7AHN30000 Power code/230V D1(India) 16 V501010002 band G2(Brazil) |  |
