Please call for parts assistance

Every part in the Konica Minolta FS-514 Finisher Parts Guide Manual (9J08615, March 2006), section by section with the exploded diagram. Call or email with the part number for price and availability.

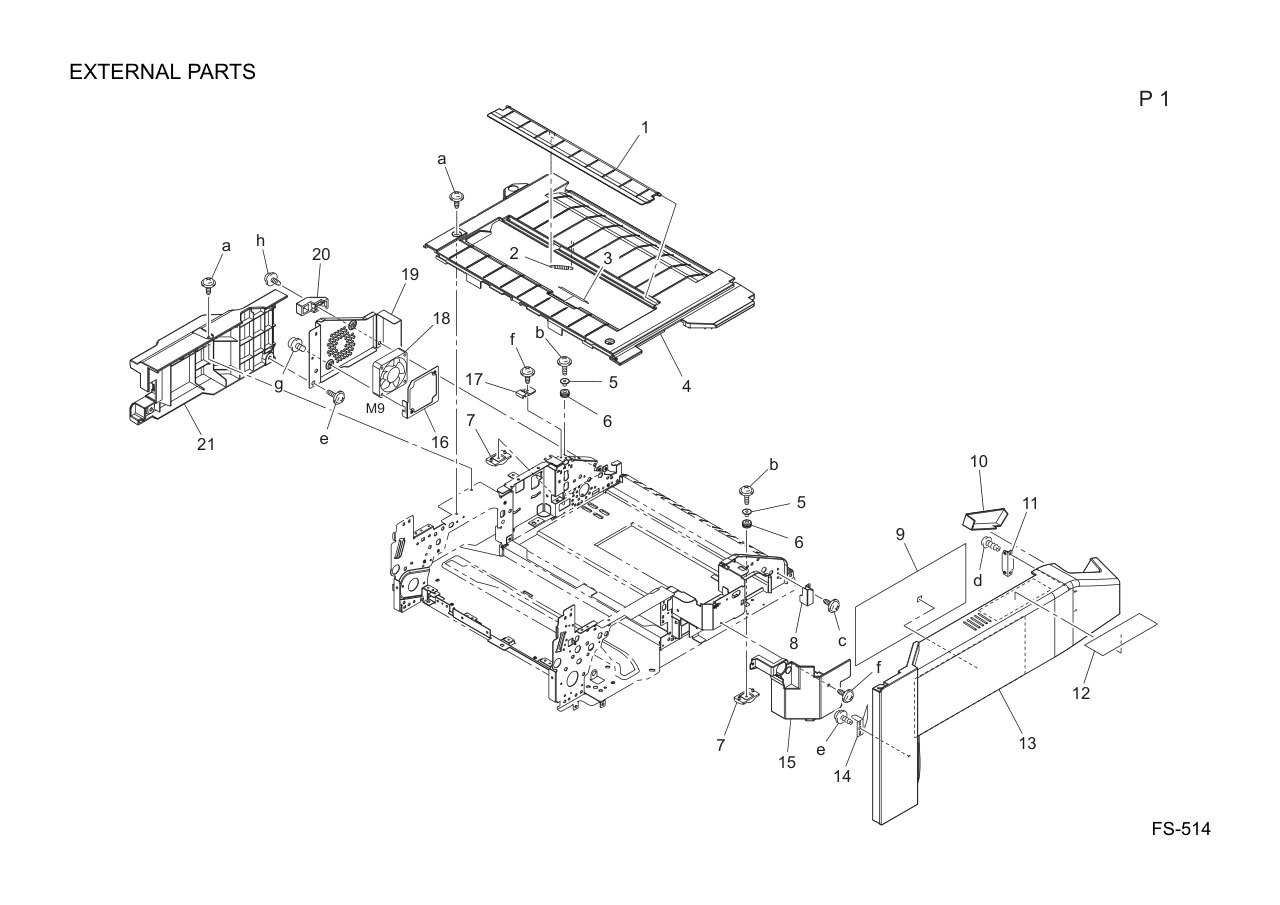

External Parts 1 9J08102201 COVER 2 9J08102301 TENSION SPRING 3 9J08730702 LABEL 4 9J08100701 TOP COVER 5 9J08112701 SPACER 6 9J08112601 CUSHION 7 9J08112001 GUIDE 8 9J08102001 BRACKET 9 9J08730102 LABEL OPERATION 10 9J08102501 COVER 11 4426260701 MAGNET CATCH 12 9J08730401 LABEL CAUTION 13 9J08100101 FRONT COVER 14 9J08101901 BRACKET 15 9J08101401 COVER 16 9J08102603 BRACKET 17 9J08130701 GUIDE 18 9313130041 FAN MOTOR 19 9J08101102 REAR COVER 20 9J08102702 SPACER 21 9J08100901 REAR COVER

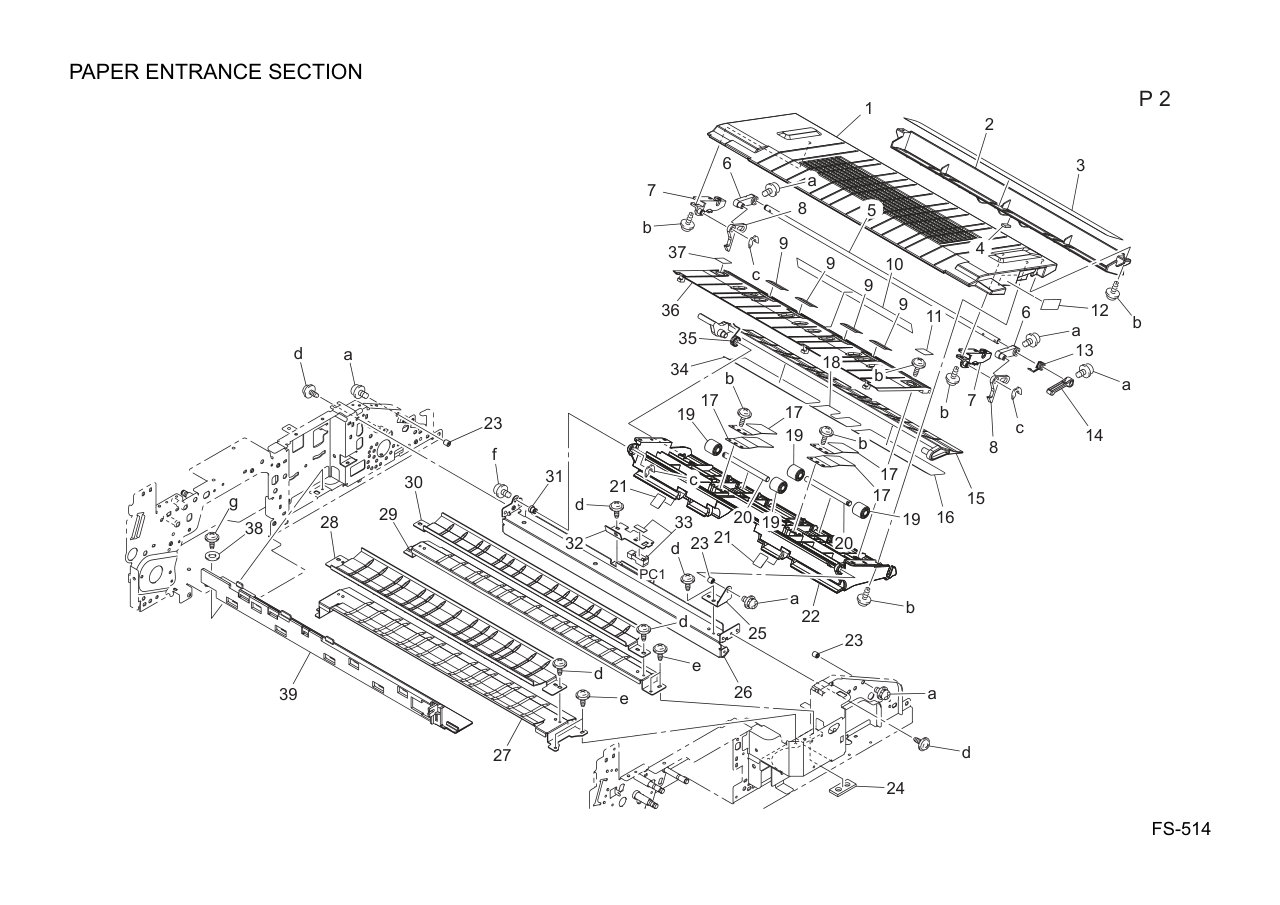

Paper Entrance Section 1 9J08136302 GUIDE 2 9J08142401 GUIDE 3 9J08142801 GUIDE 4 9J08140701 CUSHION 5 9J08136701 SHAFT 6 9J08139901 LEVER 7 9J08139201 BRACKET 8 9J08136601 PAWL 9 9J08139101 GUIDE 10 9J08143401 GUIDE 11 9J08134301 GUIDE 12 9J08730501 LABEL FN1 13 9J08139401 TORSION SPRING 14 9J08132601 LEVER 15 9J08140102 GUIDE 16 9J08142503 GUIDE 17 9J08133301 PLATE SPRING 18 9J08890400 GUIDE 19 9J08142101 ROLL 20 9J08142201 SHAFT 21 9J08134401 GUIDE 22 9J08130103 GUIDE 23 9J08139701 SHAFT 24 9J08910300 CUSHION 25 9J08143101 BRACKET 26 9J08130302 GUIDE 27 4349133602 GUIDE 28 4349130601 GUIDE 29 4349133502 GUIDE 30 4349130501 GUIDE 31 9J08143001 SHAFT 32 9J08134602 BRACKET 33 4037090201 PHOTO INTERRUPTER 34 9J08890500 GUIDE 35 9J08140402 TORSION SPRING 36 9J08136401 GUIDE 37 9J08134201 GUIDE 38 9J08890700 WASHER 39 9J08113401 BRACKET

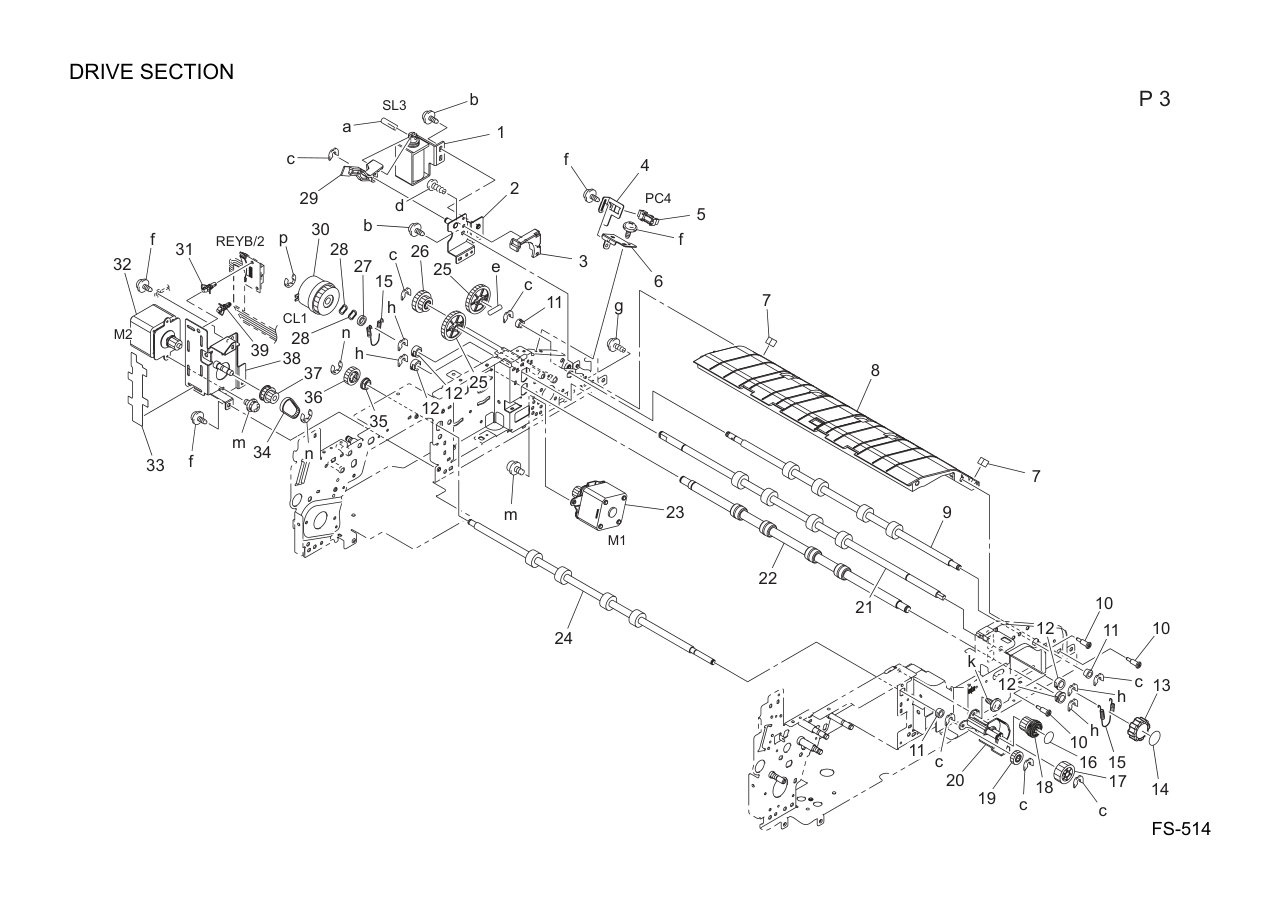

Drive Section 1 4683M20000 SOLENOID 2 9J08020702 BRACKET ASSY 3 9J08700000 Cover 4 9J08810000 BRACKET 5 9335130061 PHOTO INTERRUPTER 6 9J08140202 BRACKET 7 9J08810101 CUSHION 8 9J08130203 GUIDE 9 9J08131201 ROLLER 10 4643300701 SHOULDER SCREW 11 4131253701 BUSHING 12 1164350901 BUSHING 13 9J08700300 KNOB 14 9J08730801 LABEL FN2 15 4349133801 TENSION SPRING 16 9J08730601 LABEL FN4 17 9J08132201 GEAR 22T 18 9J08132101 KNOB 19 9J08132901 GEAR 14T 20 9J08132701 HOLDER 21 9J08131402 ROLLER 22 9J08133902 ROLLER 23 9J08M10200 MOTOR 24 9J08131902 ROLLER 25 9J08135301 GEAR 45T 26 9J08135601 GEAR 21/32T 27 9J08135902 COLLAR 28 4011302001 WASHER 29 9J08140303 LEVER 30 9322100081 CLUTCH 31 9384101031 PWB SUPPORT 11.11H 32 9J08M10000 MOTOR 33 9J08113301 GUIDE 34 9J08150201 TIMING BELT 88L 35 4131353202 BUSHING 36 9J08137801 GEAR 24T 37 9J08138002 PULLEY 15/27T 38 9J08138201 BRACKET 39 9384190056 PWB SUPPORT 6.35H

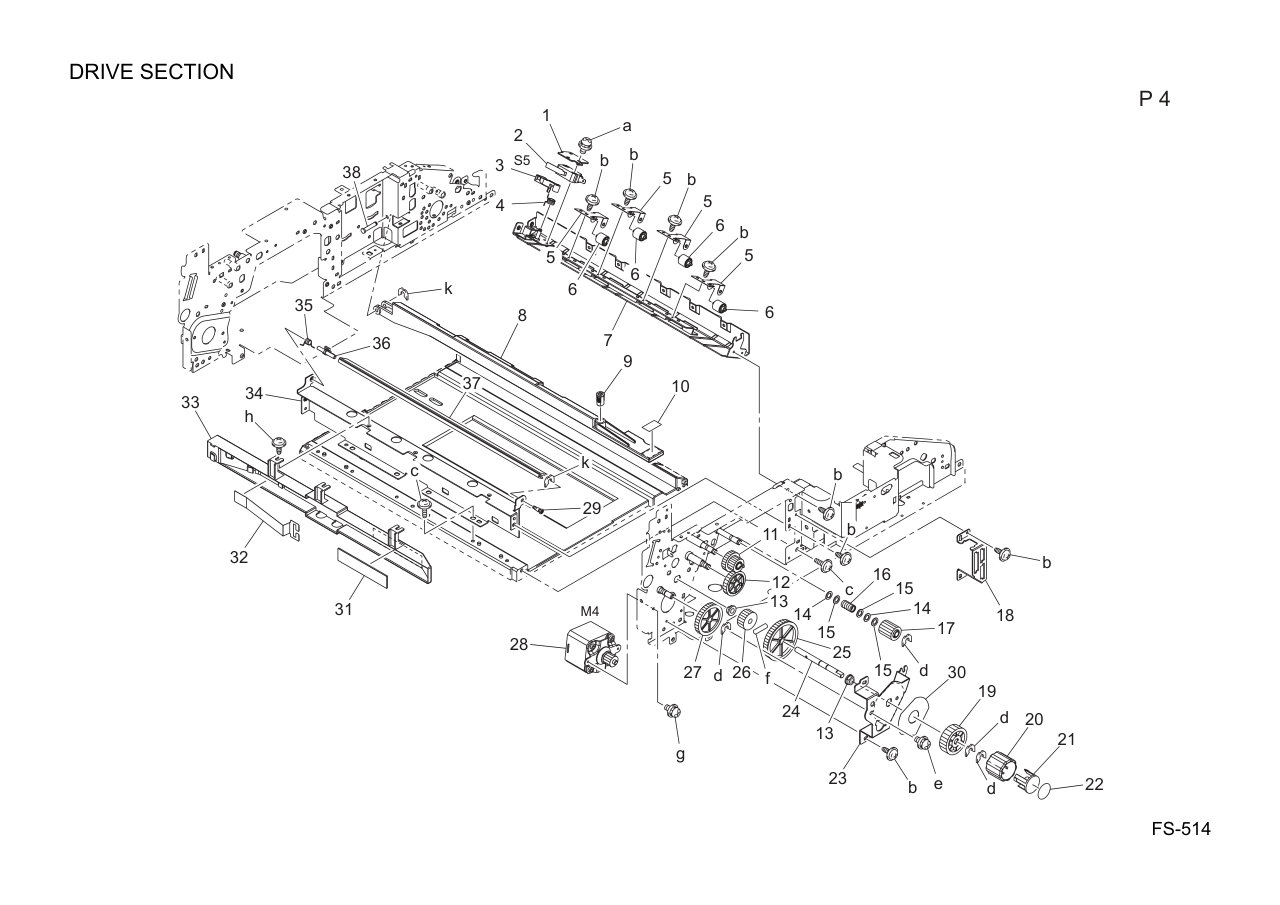

Drive Section 1 9J08143502 SET PLATE 2 9331220021 MICRO-SWITCH 3 9J08143202 Actuator 4 9J08143302 TORSION SPRING 5 4349132101 PLATE SPRING 6 4426441102 ROLL 7 9J08134901 GUIDE 8 9J08134101 GUIDE 9 4475360101 MAGNET 10 9J08731101 LABEL FN3 11 4349160101 GEAR 15/22T 12 4349160401 GEAR 29T 13 4131300301 BUSHING 14 4349164101 WASHER 15 4349164001 WASHER 16 4349163901 PRESSURE SPRING 17 4349161401 GEAR 15T 18 9J08113101 BRACKET 19 4349163301 GEAR 32T 20 4349163112 KNOB 21 4349163601 COLLAR 22 9J08731001 LABEL FN6 23 9J08162701 BRACKET 24 4349161013 SHAFT 25 4349161301 GEAR 63T 26 4349161101 GEAR 19T 27 4349171901 GEAR 35T 28 9J08M10200 MOTOR 29 4349184801 SHOULDER SCREW 30 9J08211000 GUIDE 31 9J08143600 GUIDE 32 9J08185901 GUIDE 33 9J08185701 GUIDE 34 9J08112102 BRACKET 35 4349184602 TORSION SPRING 36 9J08890100 MEMBER 37 4349184502 GUIDE 38 4349134201 SHAFT

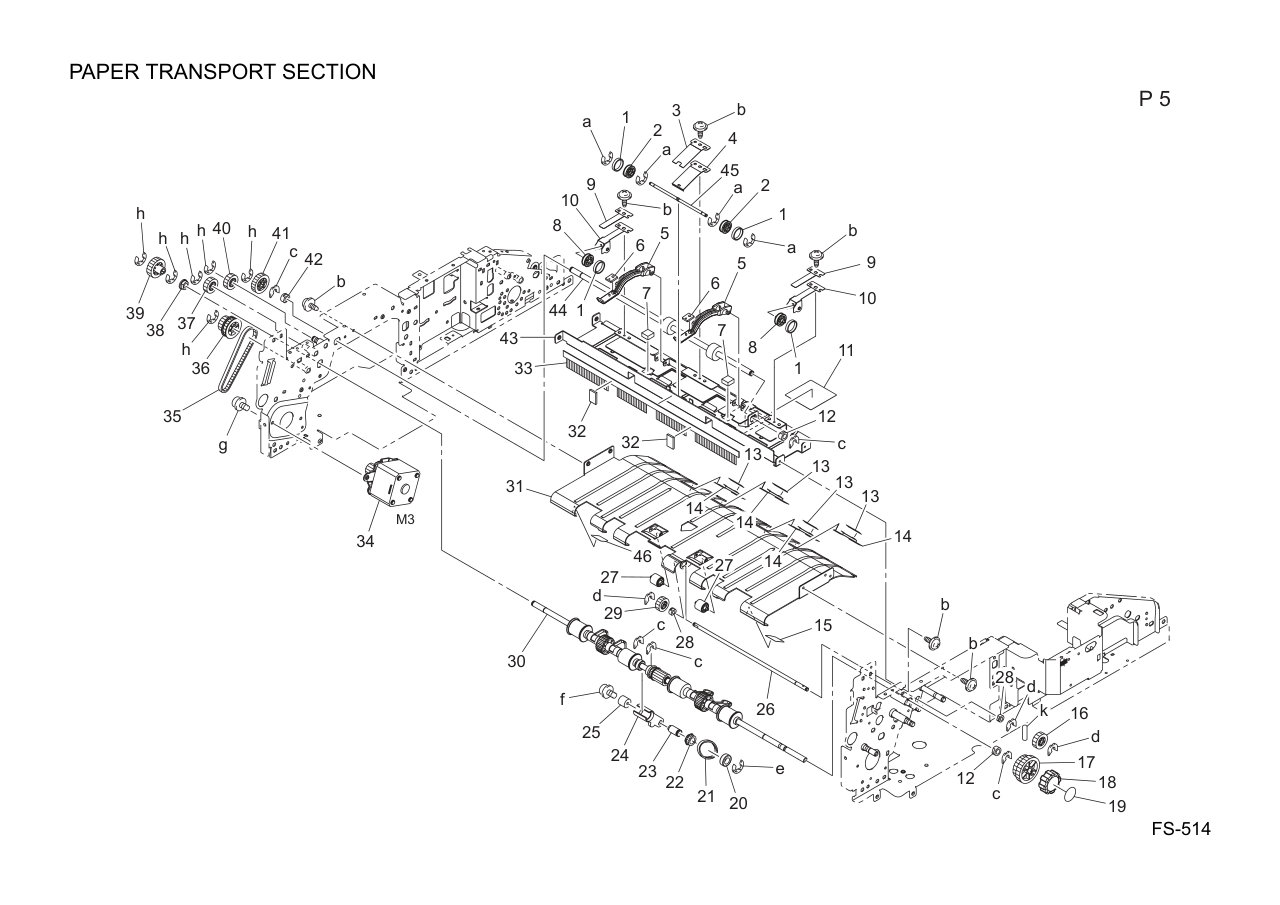

Paper Transport Section 1 9J08141701 BAND 2 9J08135501 ROLL 3 9J08141601 PLATE SPRING 4 9J08137401 PLATE SPRING 5 9J08132503 LEVER 6 9J08141402 Weight 7 4698108601 CUSHION 8 9J08130501 ROLL 9 9J08141501 PLATE SPRING 10 9J08137301 PLATE SPRING 11 9J08130901 GUIDE 12 4131253701 BUSHING 13 9J08135701 GUIDE 14 9J08135402 GUIDE 15 4349131601 GUIDE 16 4349162501 GEAR 17T 17 9J08161501 GEAR 26/31T 18 9J08700300 KNOB 19 9J08730901 LABEL FN5 20 9J08163401 COLLAR 21 4349163203 TIMING BELT 92L 22 9J08161802 PULLEY 20T 23 4349162101 SHAFT 24 9J08162001 ARM 25 9J08163501 WEIGHT 26 9J08161601 SHAFT 27 4426441102 ROLL 28 4004533901 BUSHING 29 9J08162602 GEAR 20T 30 9J08132003 ROLLER 31 9J08130802 GUIDE 32 4349139201 CUSHION 33 4349130901 NEUTRALIZING BRUSH 34 9J08M10100 MOTOR 35 9J08137601 TIMING BELT 186L 36 9J08137702 PULLEY 15/24T 37 9J08138501 GEAR 15T 38 4131300301 BUSHING 39 9J08137502 GEAR 20T 40 9J08137901 GEAR 15T 41 9J08138601 GEAR 20T 42 9J08210501 BUSHING 43 9J08135001 GUIDE 44 9J08132401 ROLLER 45 9J08136001 SHAFT 46 4349131301 GUIDE

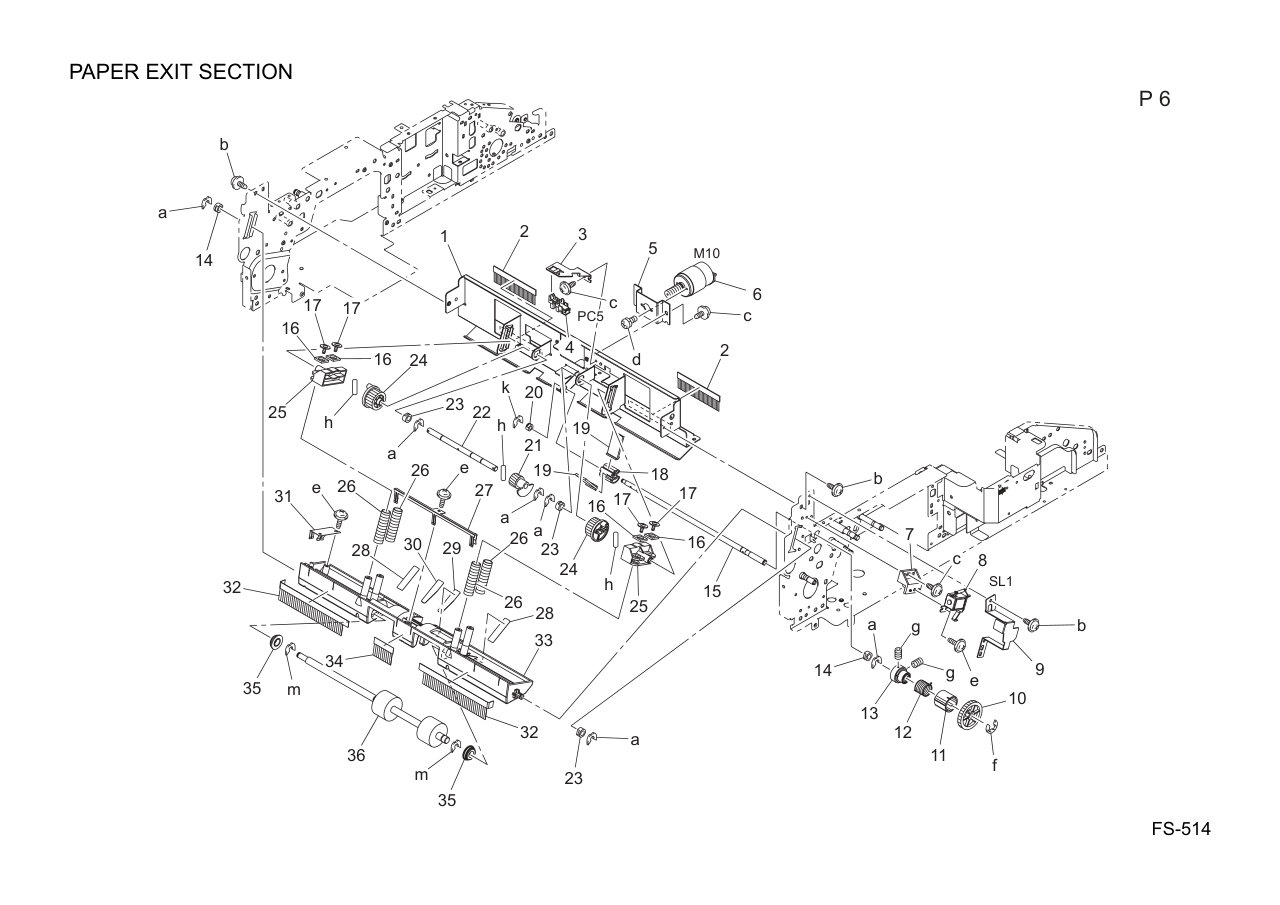

Paper Exit Section 1 9J08161701 BRACKET 2 4349139402 NEUTRALIZING BRUSH 3 9J08170101 BRACKET 4 9335130061 PHOTO INTERRUPTER 5 9J08173401 BRACKET 6 9J08031701 MOTOR 7 4349163701 SPACER 8 9321240061 SOLENOID 9 9J08163802 Cover 10 4349160201 GEAR 33T 11 4349211502 COLLAR 12 4643522001 TORSION SPRING 13 4643521903 DRUM 14 4131253701 BUSHING 15 9J08160101 SHAFT 16 4349174801 CUSHION 17 4163529301 SCREW 18 9J08160201 HOLDER 19 9J08160501 PADDLE 20 4004533901 BUSHING 21 9J08170501 GEAR 18T 22 9J08170801 SHAFT 23 9J08210501 BUSHING 24 4349171001 CAM 25 4349171101 ARM 26 9J08173201 PRESSURE SPRING 27 4349173601 EARTH GROUND 28 4349173901 GUIDE 29 9J08174601 GUIDE 30 9J08173901 GUIDE 31 4349173801 EARTH GROUND 32 4349171501 NEUTRALIZING BRUSH 33 9J08171403 GUIDE 34 4349174001 NEUTRALIZING BRUSH 35 4131260701 BALL BEARING 36 4349170324 ROLLER

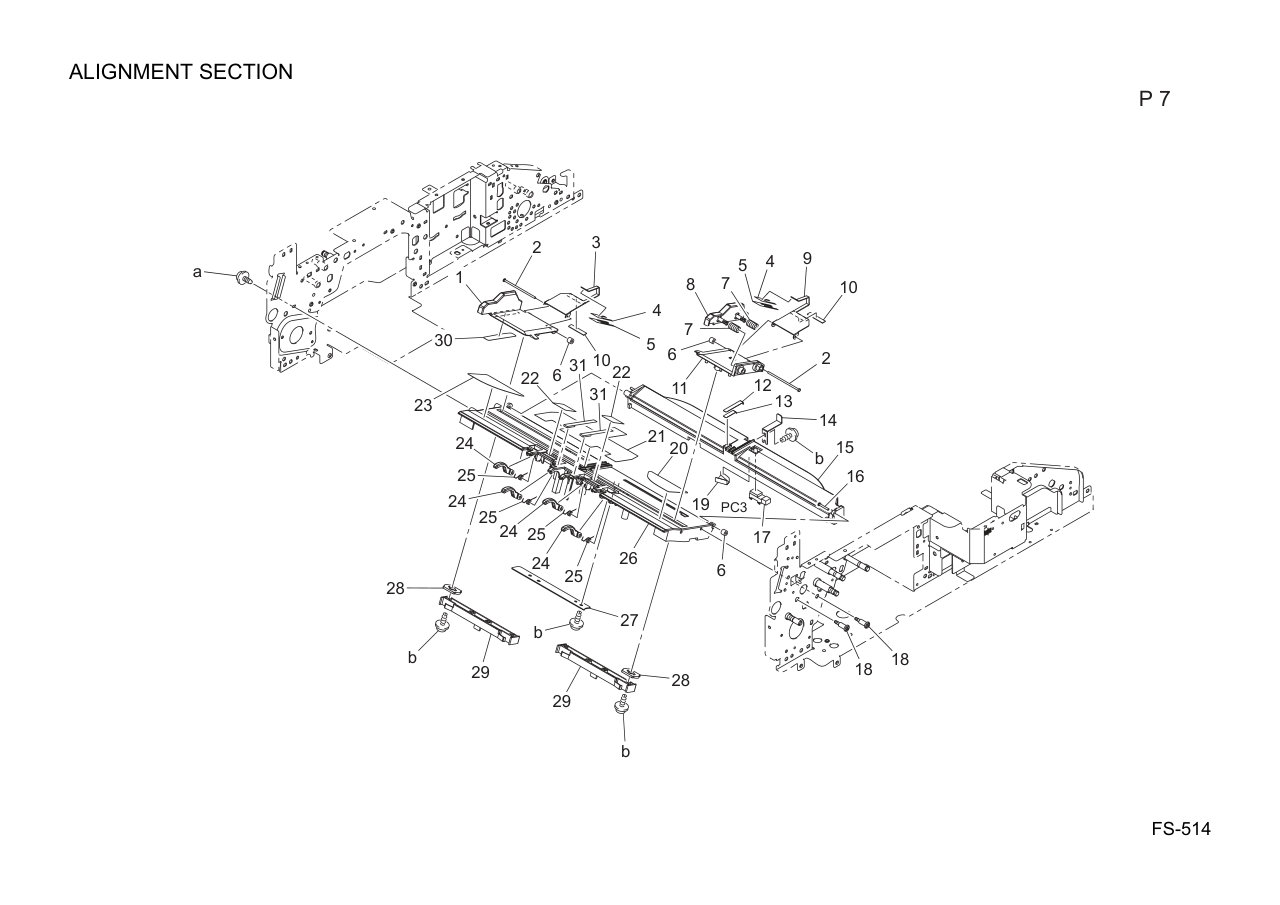

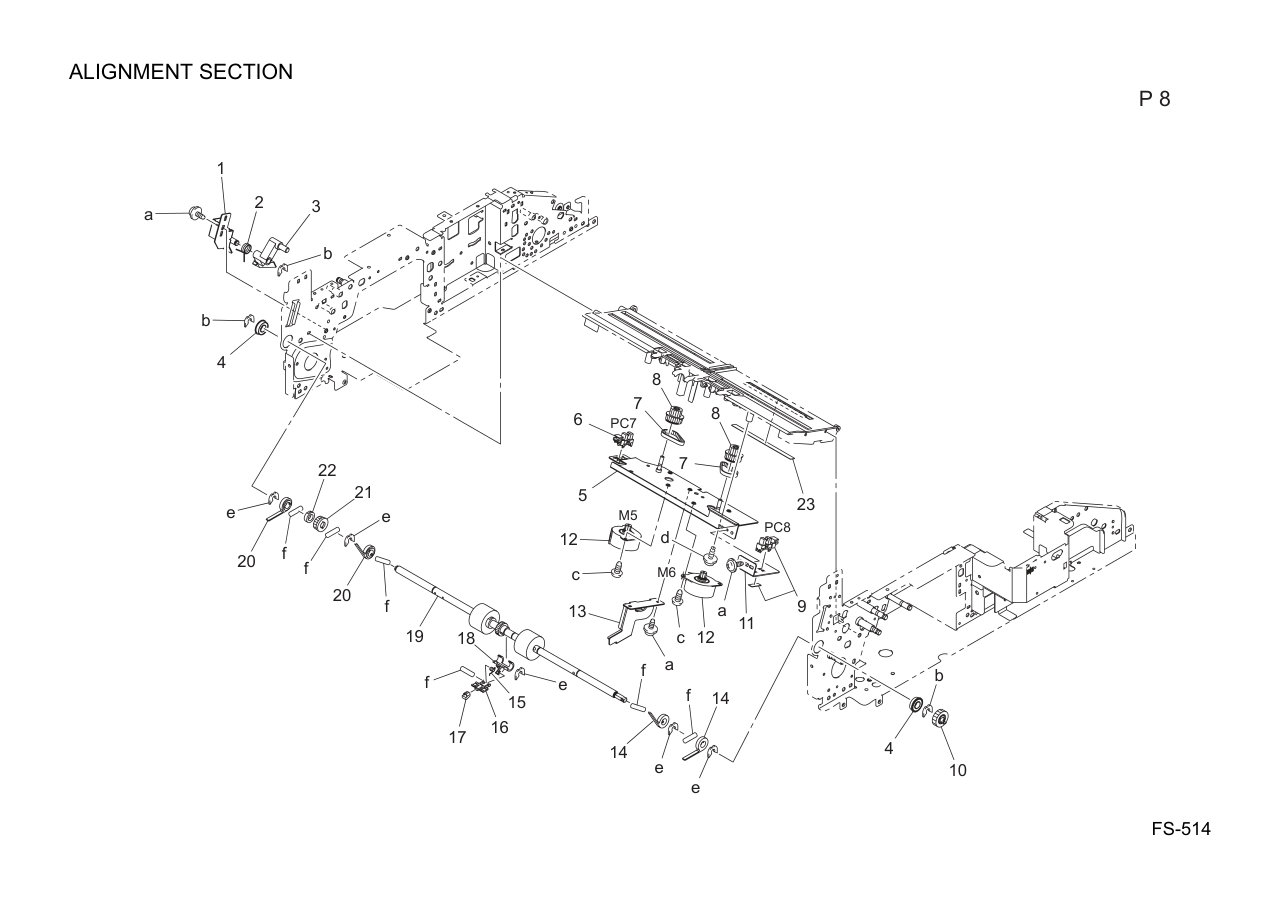

Alignment Section 1 9J08152001 PLATE 2 9J08210701 SHAFT 3 9J08151901 STOPPER 4 9J08910200 GUIDE 5 9J08910100 GUIDE 6 9J08210401 COLLAR 7 4643540402 PRESSURE SPRING 8 9J08150701 PLATE 9 9J08150602 STOPPER 10 4349152612 TAPE 11 9J08150902 PLATE 12 9J08164301 GUIDE 13 9J08164201 GUIDE 14 9J08152402 STOPPER 15 9J08150403 TRAY 16 9J08210601 SHAFT 17 9335140071 SOLID STATE SWITCH 18 4643300701 SHOULDER SCREW 19 9J08910000 COVER 20 4349153101 GUIDE 21 9J08152101 GUIDE 22 4349152401 GUIDE 23 4349153201 GUIDE 24 4349150401 GUIDE 25 4349150501 TORSION SPRING 26 9J08150103 TRAY 27 4349151101 SET PLATE 28 4349152501 SPACER 29 4349151001 RACK 30 9J08152701 GUIDE 31 9J08720000 GUIDE
Alignment Section 1 9J08021401 BRACKET ASSY 2 9J08150801 TORSION SPRING 3 9J08150501 LEVER 4 4004454001 BALL BEARING 5 9J08021303 BRACKET ASSY 6 9335130061 PHOTO INTERRUPTER 7 9J08150201 TIMING BELT 88L 8 9J08151601 GEAR 16/31T 9 4037090501 PHOTO INTERRUPTER 10 4349172002 GEAR 17T 11 4349152201 BRACKET 12 9J08M10300 MOTOR 13 9J08151801 BRACKET 14 4349174602 PADDLE 15 4349203802 TORSION SPRING 16 9J08890600 ARM 17 4349203601 SET PLATE 18 9J08890000 Arm 19 4349015113 ROLLER ASSY 20 4349174402 PADDLE 21 4349202401 GEAR 14T 22 4490344801 BUSHING 23 9J08700200 GUIDE

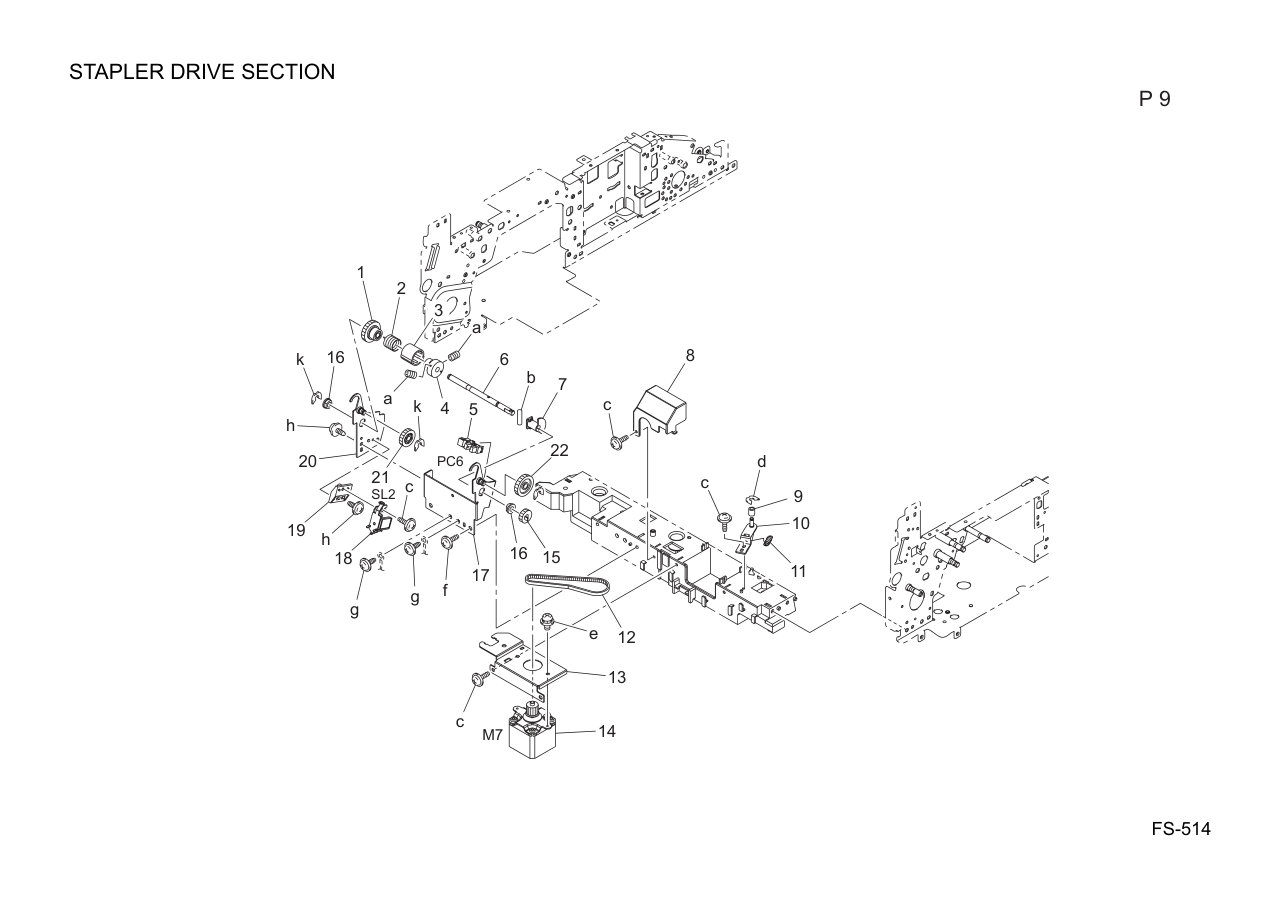

Stapler Drive Section 1 4643520801 GEAR 24T 2 4349201401 TORSION SPRING 3 4349201203 DRUM 4 4643521903 DRUM 5 9335130061 PHOTO INTERRUPTER 6 4349201502 SHAFT 7 4349201001 SHIELD PLATE 8 9J08186902 COVER 9 9J08186201 COLLAR 10 9J08186301 LEVER 11 9J08186401 TENSION SPRING 12 4349137601 TIMING BELT 222L 13 9J08185401 BRACKET 14 9J08M10100 MOTOR 15 4349203501 GEAR 14T 16 4131300301 BUSHING 17 9J08201302 BRACKET 18 9321240061 SOLENOID 19 4349209702 SPACER 20 9J08020501 BRACKET ASSY 21 4349202601 GEAR 19T 22 4156381801 GEAR 24T

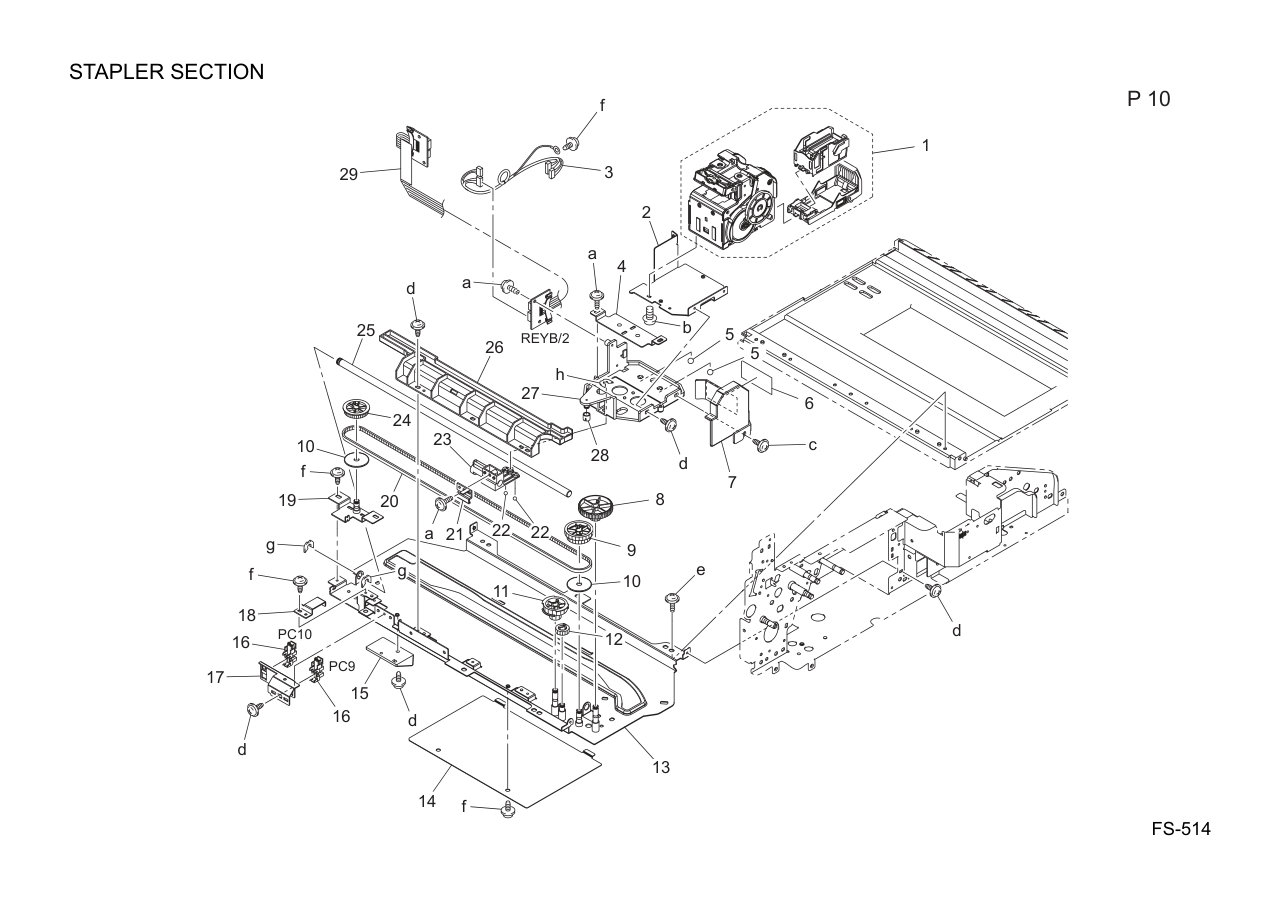

Stapler Section 1 9J08031301 STAPLER UNIT 2 9J08180401 BRACKET 3 9J08680601 WIRE HARNESS ASSY 4 9J08020201 ADJUSTING PLATE ASSY 5 9J08184201 ROLL 6 9J08730201 LABEL CAUTION 7 9J08180301 COVER 8 9J08180901 KNOB 9 4349181202 PULLEY ASSY 10 4349184901 FLANGE 11 9J08181801 GEAR 16/30T 12 9J08185501 GEAR 19T 13 9J08020301 BASE FRAME ASSY 14 9J08186001 COVER 15 9J08115401 STOPPER 16 9335130061 PHOTO INTERRUPTER 17 9J08182301 BRACKET 18 9J08186101 REINFORCE PLATE 19 9J08020101 BRACKET ASSY 20 9J08180601 TIMING BELT 825L 21 9J08180801 HOLDER 22 9J08185301 ROLL 23 9J08180701 HOLDER 24 4349181101 PULLEY 30T 25 9J08180201 SHAFT 26 9J08183601 RAIL 27 9J08180101 BASE FRAME 28 9J08182401 COLLAR 29 9J08605104 REYB/2

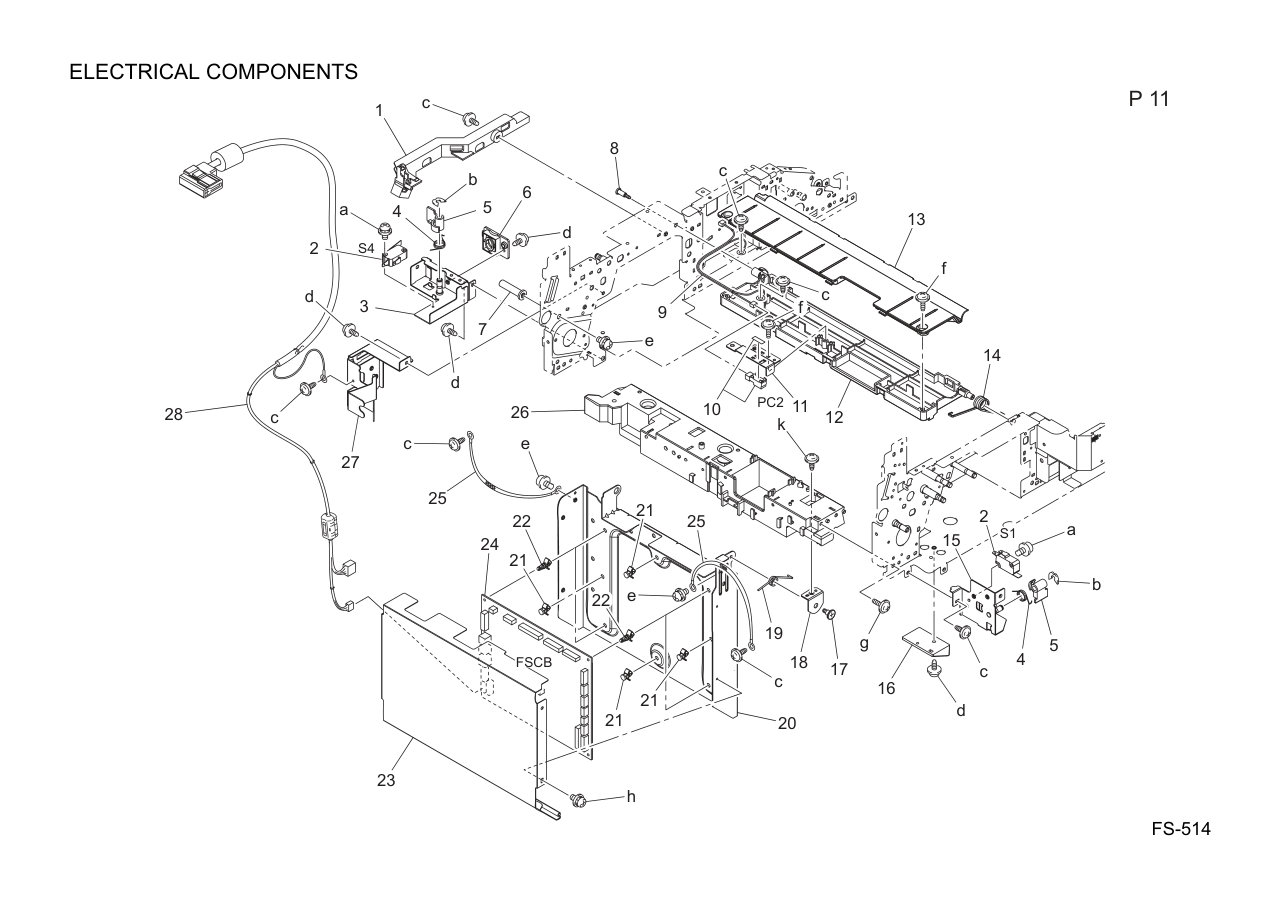

Electrical Components 1 9J08113001 BRACKET 2 9331220021 MICRO-SWITCH 3 9J08020801 BRACKET ASSY 4 9J08121301 TORSION SPRING 5 9J08121101 ACTUATOR 6 9J08121701 GUIDE 7 9J08112401 SHAFT 8 4643300701 SHOULDER SCREW 9 9J08681001 WIRE HARNESS ASSY 10 4037090201 PHOTO INTERRUPTER 11 9J08132301 BRACKET 12 9J08134001 GUIDE 13 9J08100801 TOP COVER 14 9J08136101 TORSION SPRING 15 9J08021702 BRACKET ASSY 16 9J08115401 STOPPER 17 1054260101 SHOULDER SCREW 18 9J08111701 BRACKET 19 9J08115801 TORSION SPRING 20 9J08111502 BRACKET 21 9384162121 PWB SUPPORT 6.4H 22 9384190056 PWB SUPPORT 6.35H 23 9J08111601 BRACKET 24 9J08010103 FSCB 25 4349681301 WIRE HARNESS ASSY 26 9J08111401 BASE FRAME 27 9J08113201 BRACKET 28 9J08680103 FNS WIRING

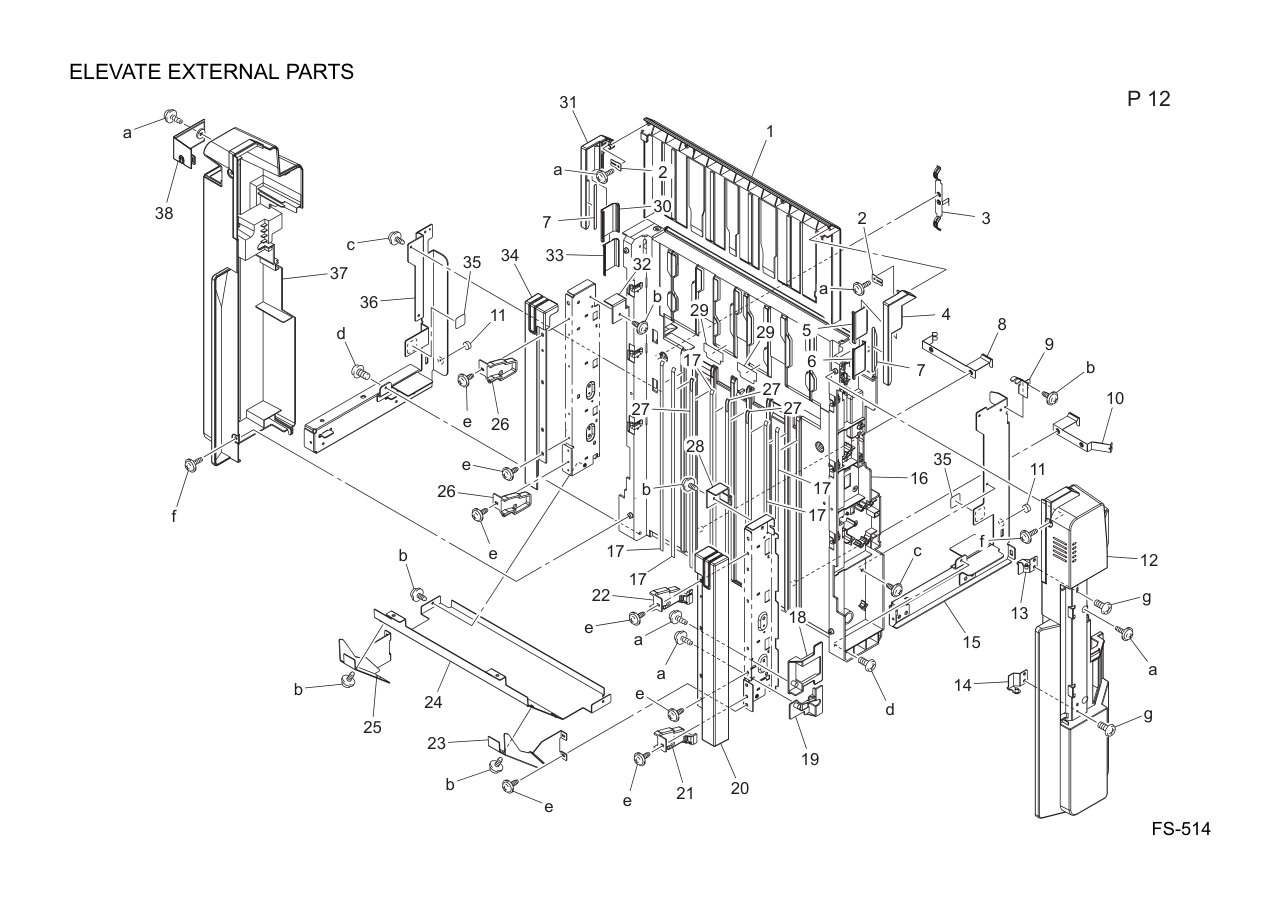

Elevate External Parts 1 4349201603 GUIDE 2 4349218501 BRACKET 3 9J08201701 EARTH GROUND 4 4349210104 COVER 5 4349210203 COVER 6 4349210301 COVER 7 4349211801 GUIDE 8 9J08115601 PLATE SPRING 9 9J08122401 PLATE SPRING 10 9J08115701 PLATE SPRING 11 4643100902 STOPPER 12 9J08100301 COVER 13 4349023302 BRACKET ASSY 14 4349023402 BRACKET ASSY 15 9J08110904 BRACKET 16 9J08200103 FRAME 17 4349211901 GUIDE 18 4349205901 BRACKET 19 4349205801 BRACKET 20 4349200203 COVER 21 4349202502 HOLDER 22 4349202301 HOLDER 23 4349210901 BRACKET 24 4349202201 BRACKET 25 4349211001 BRACKET 26 4349203201 HOLDER 27 4349212001 GUIDE 28 4349203301 COVER 29 4349213701 GUIDE 30 4349211203 COVER 31 4349210404 COVER 32 4349203401 COVER 33 4349211301 COVER 34 4349200303 COVER 35 9J08122600 SEAL 36 9J08111004 BRACKET 37 9J08100401 COVER 38 9J08101801 COVER

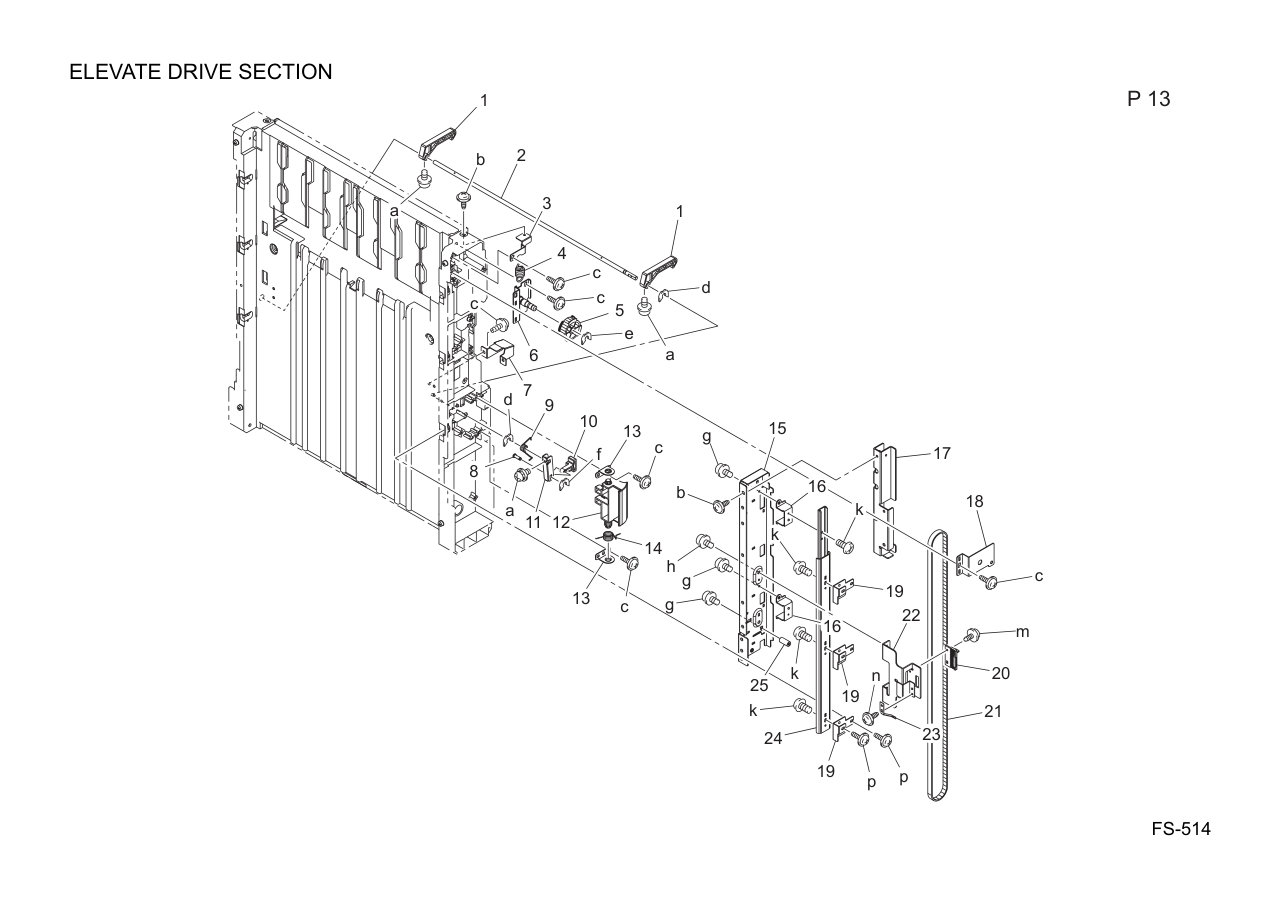

Elevate Drive Section 1 9J08120401 PAWL 2 9J08120601 SHAFT 3 9J08207501 BRACKET 4 4349206601 TENSION SPRING 5 4349205601 PULLEY 36T 6 9J08021501 BRACKET ASSY 7 9J08212601 BRACKET 8 9J08120201 SHAFT 9 9J08120902 TORSION SPRING 10 9J08120301 LEVER 11 9J08120701 ARM 12 9J08120102 LEVER 13 9J08121401 BRACKET 14 9J08122201 TORSION SPRING 15 4349201802 BRACKET 16 4349203001 BRACKET 17 4349202801 REINFORCE PLATE 18 9J08206801 BRACKET 19 9J08620000 BRACKET 20 4349204602 BRACKET 21 4349204901 TIMING BELT 1050L 22 4349209301 BRACKET 23 4349206501 PLATE SPRING 24 4349200401 RAIL 25 4349200602 SHAFT

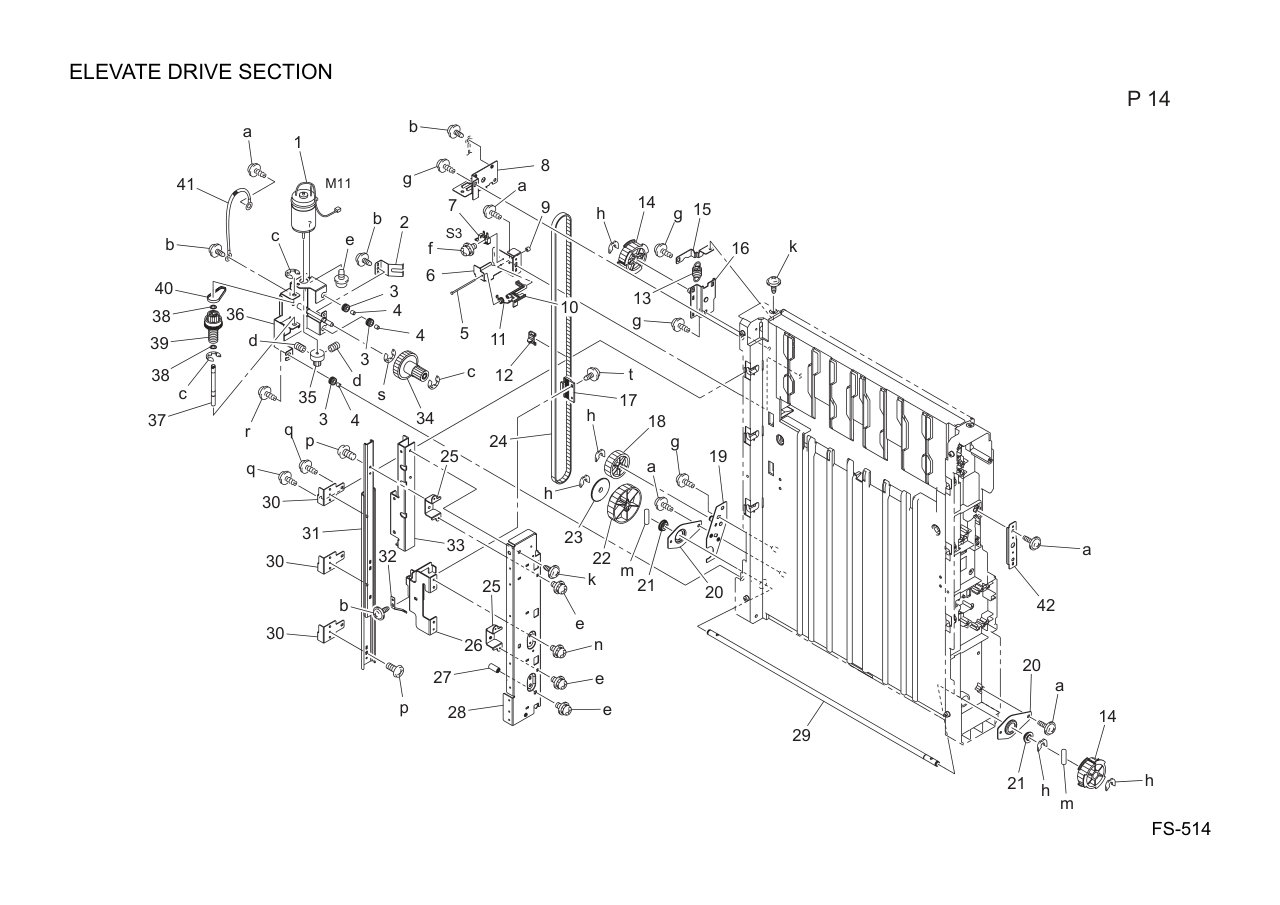

Elevate Drive Section 1 9J08036101 MOTOR 2 9J08207602 Plate spring 3 1139162001 RETAINING RING 4 1139162501 SLEEVE 5 9J08210701 SHAFT 6 9J08204401 BRACKET 7 9331220031 MICRO-SWITCH 8 9J08206901 BRACKET 9 9J08210401 COLLAR 10 4349206202 ACTUATOR 11 4349207201 TORSION SPRING 12 4349206701 LEVER 13 4349206601 TENSION SPRING 14 4349205601 PULLEY 36T 15 9J08207401 BRACKET 16 9J08021601 BRACKET ASSY 17 4349204602 BRACKET 18 4349205501 GEAR 40T 19 4349021704 BRACKET ASSY 20 9J08212701 REINFORCE PLATE 21 4131260701 BALL BEARING 22 4349205401 GEAR 36/59T 23 4643452701 FLANGE 24 4349204901 TIMING BELT 1050L 25 4349203101 BRACKET 26 9J08202001 BRACKET 27 4349200602 SHAFT 28 4349201901 BRACKET 29 4349205223 SHAFT 30 9J08620000 BRACKET 31 4349200401 RAIL 32 4349206501 PLATE SPRING 33 4349202901 REINFORCE PLATE 34 4349205301 GEAR 16/42T 35 4643451303 PULLEY 14T 36 9J08021201 BRACKET ASSY 37 4643451101 SHAFT 38 9J08210301 WASHER 39 4611460901 PULLEY 29T 40 4470434201 TIMING BELT 100L 41 4349681002 WIRE HARNESS ASSY 42 9J08212502 BRACKET

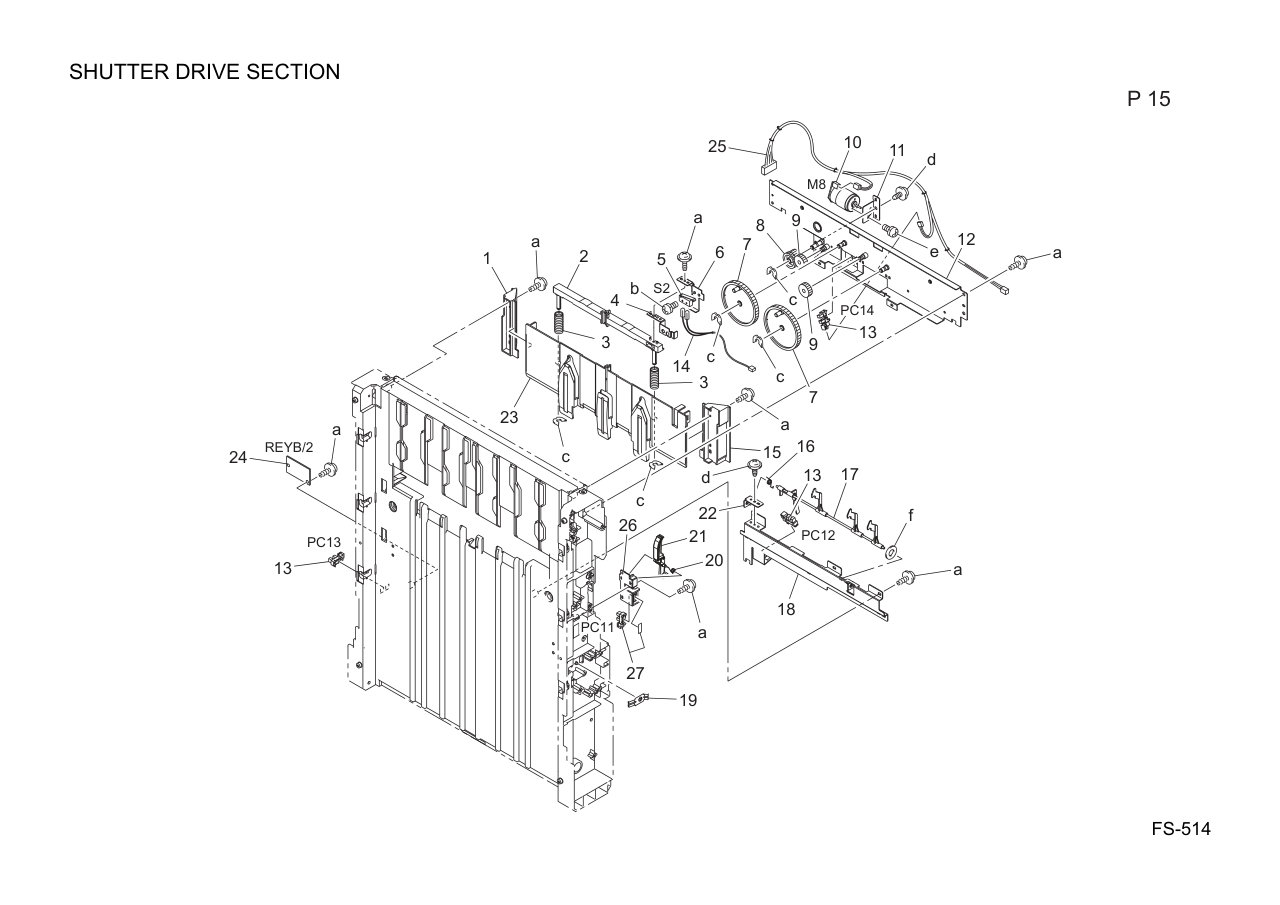

Shutter Drive Section 1 4349209001 RAIL 2 4349208302 BRACKET 3 4349209201 PRESSURE SPRING 4 4349209902 COVER 5 9331220031 MICRO-SWITCH 6 4349209802 BRACKET 7 9J08209101 GEAR 72T 8 4643520901 GEAR 24/30T 9 9J08212401 GEAR 20T 10 9J08031701 MOTOR 11 9J08210001 BRACKET 12 9J08021101 BRACKET ASSY 13 9335130061 PHOTO INTERRUPTER 14 4349681202 WIRE HARNESS ASSY 15 4349208202 RAIL 16 4349207003 TORSION SPRING 17 9J08206101 ACTUATOR 18 9J08204502 BRACKET 19 9J08121901 PLATE SPRING 20 4349207101 TORSION SPRING 21 9J08206001 ACTUATOR 22 4349210701 BRACKET 23 4349208104 SHUTTER 24 9J08H00100 REYB/1 25 9J08680801 WIRE HARNESS ASSY 26 9J08910400 BRACKET 27 4037090501 PHOTO INTERRUPTER

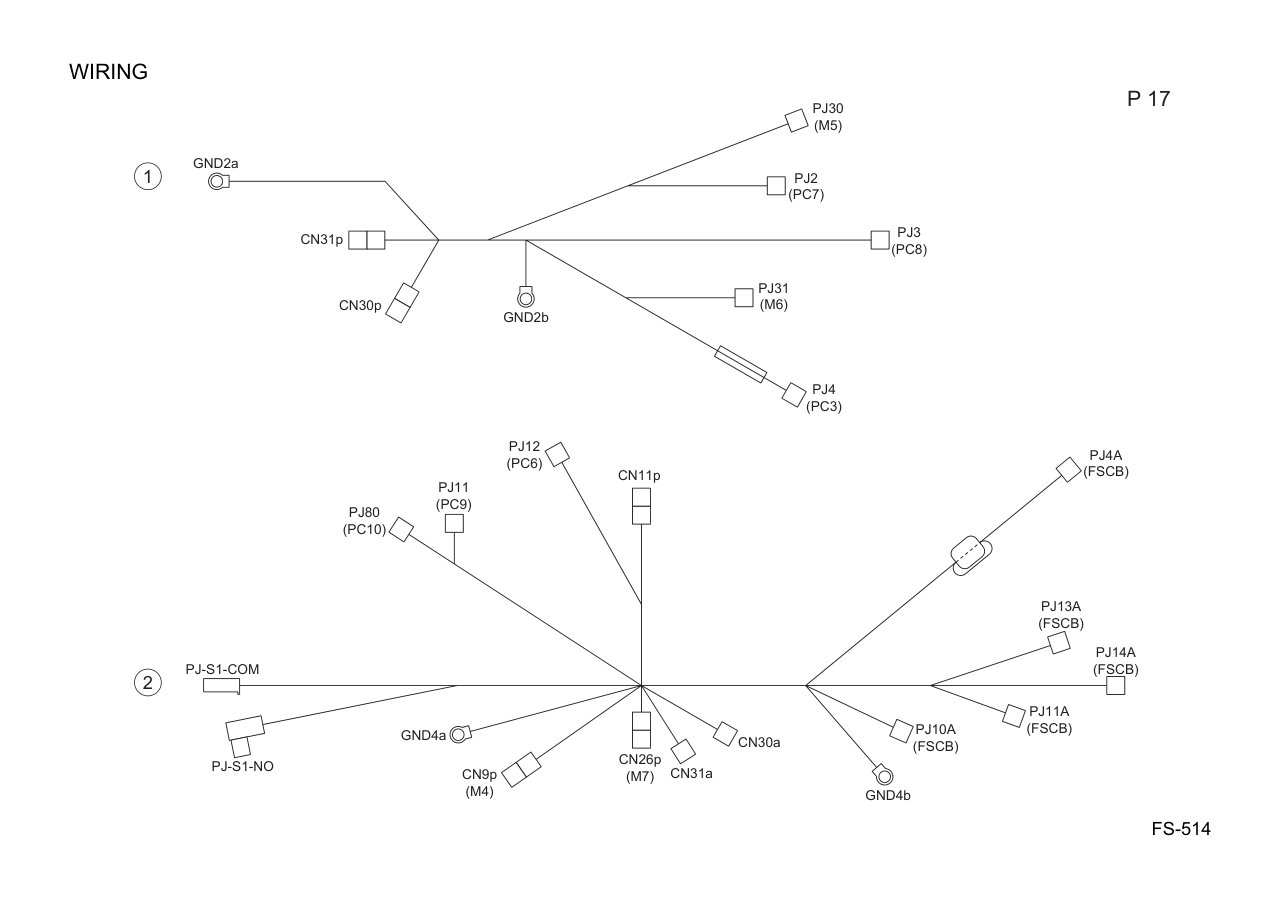

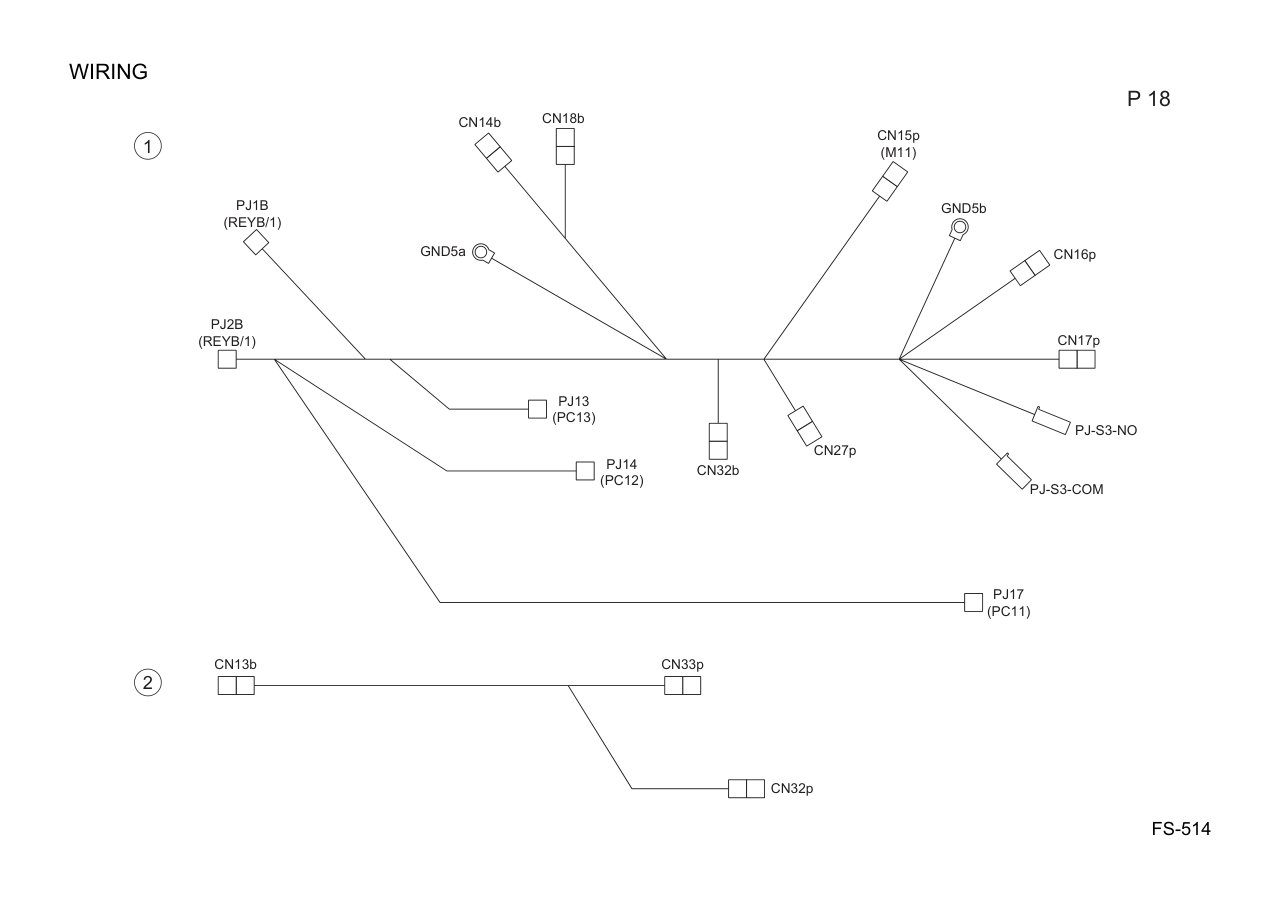

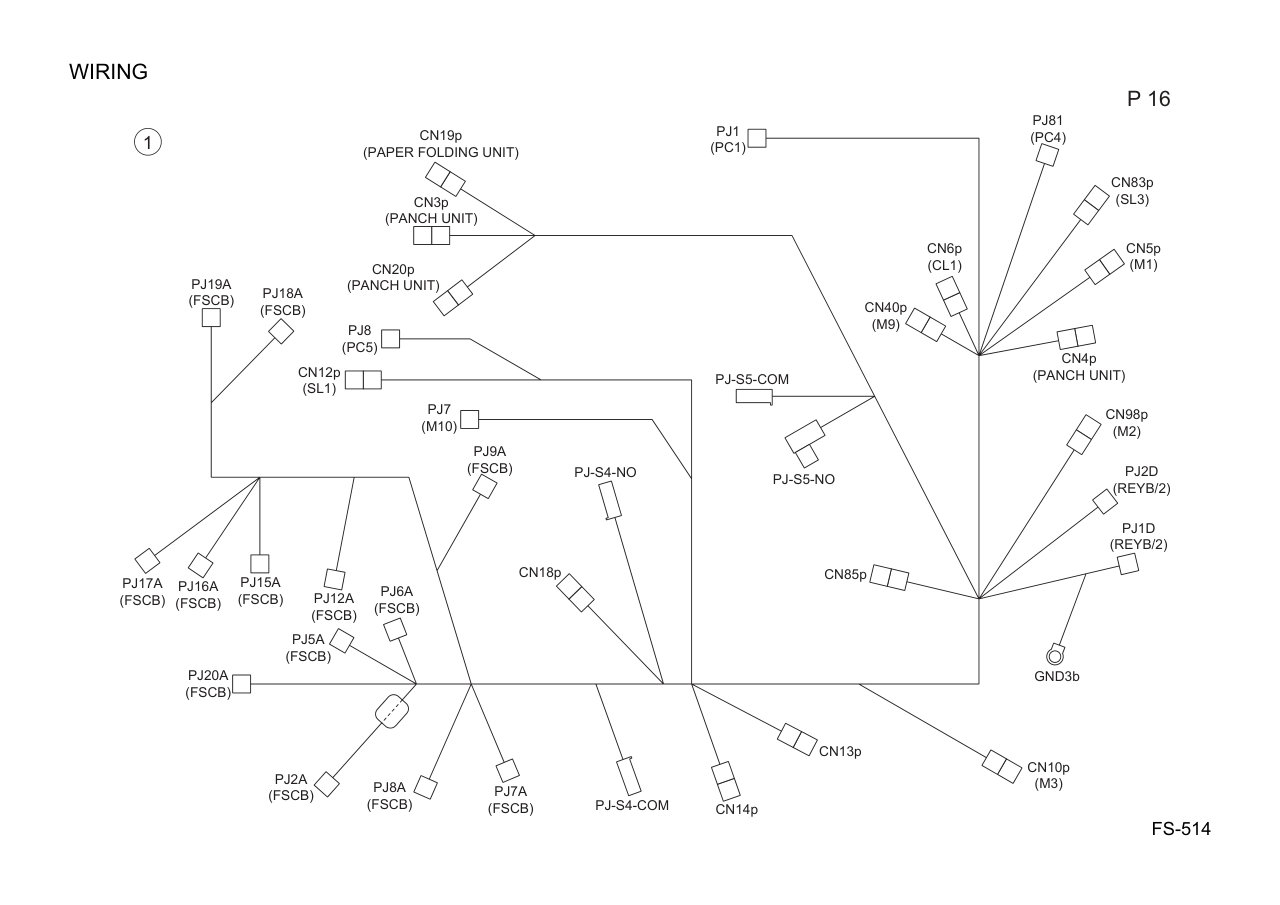

Wiring 1 9J08680202 WIRE HARNESS ASSY
Wiring 1 9J08680302 WIRE HARNESS ASSY 2 9J08680402 WIRE HARNESS ASSY
Wiring 1 9J08680701 WIRE HARNESS ASSY 2 9J08680902 FNS WIRING

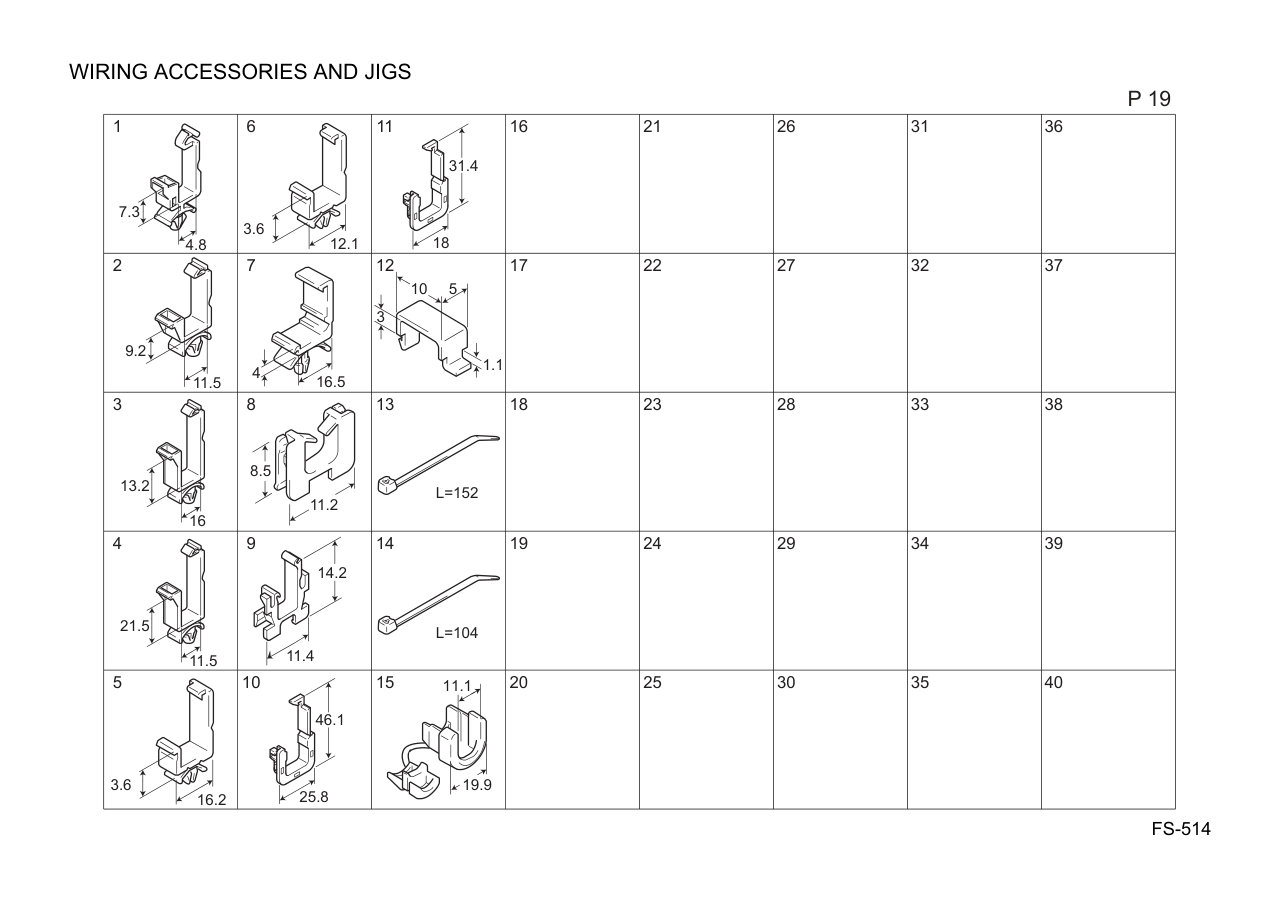

Wiring Accessories And Jigs 1 9384110091 WIRING SADDLE 2 9384192111 WIRING SADDLE 9.2H 3 9384192121 WIRING SADDLE 15.2H 4 9384192131 WIRING SADDLE 17.3H 5 9384131091 WIRING SADDLE 18.5H 6 9384131121 WIRING SADDLE 16.8H 7 9384190054 WIRING SADDLE 23.0H 8 9384201021 EDGE COVER 8.5H 9 9384271042 EDGE COVER 10 9384291021 EDGE COVER 11 9384291031 EDGE COVER 12 1053481201 CORD CLAMP 13 9384151021 CABLE TIE 14 9384131111 CABLE TIE 104L 15 9384152151 CORD BUSHING

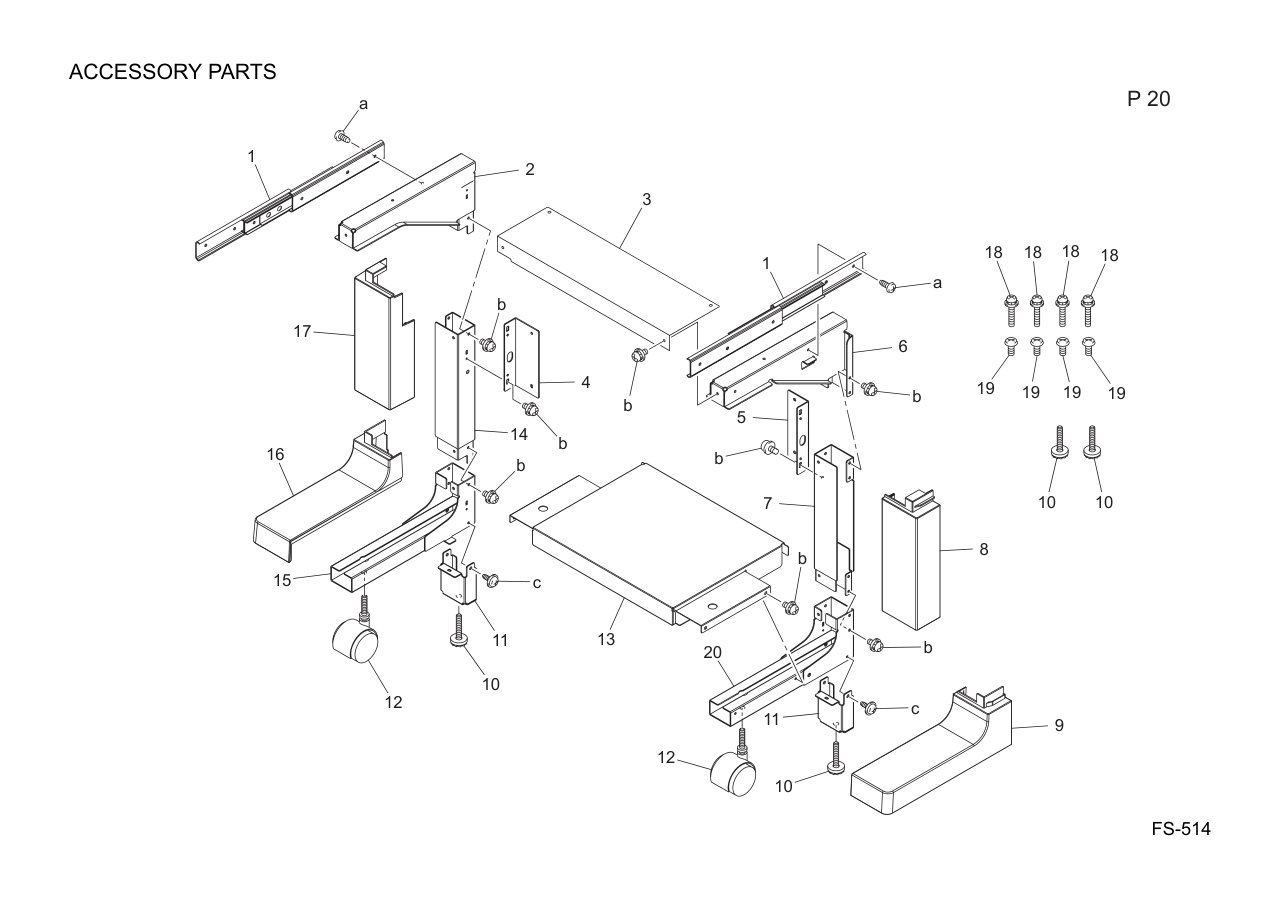

Accessory Parts 1 9J08110602 RAIL 2 9J08110502 FRAME 3 9J08115201 BRACKET 4 9J08111201 BRACKET 5 9J08111102 BRACKET 6 9J08110402 FRAME 7 9J08111801 JOINT 8 9J08103202 FRONT COVER 9 9J08103302 FRONT COVER 10 9J08115900 ADJUSTING PLATE 11 9J08115301 BRACKET 12 4643201101 CASTOR 13 9J08110801 BRACKET 14 9J08111901 JOINT 15 9J08115102 Frame 16 9J08103602 REAR COVER 17 9J08103502 REAR COVER 18 9646041814 SCREW 19 9654040814 SCREW 20 9J08115002 Frame

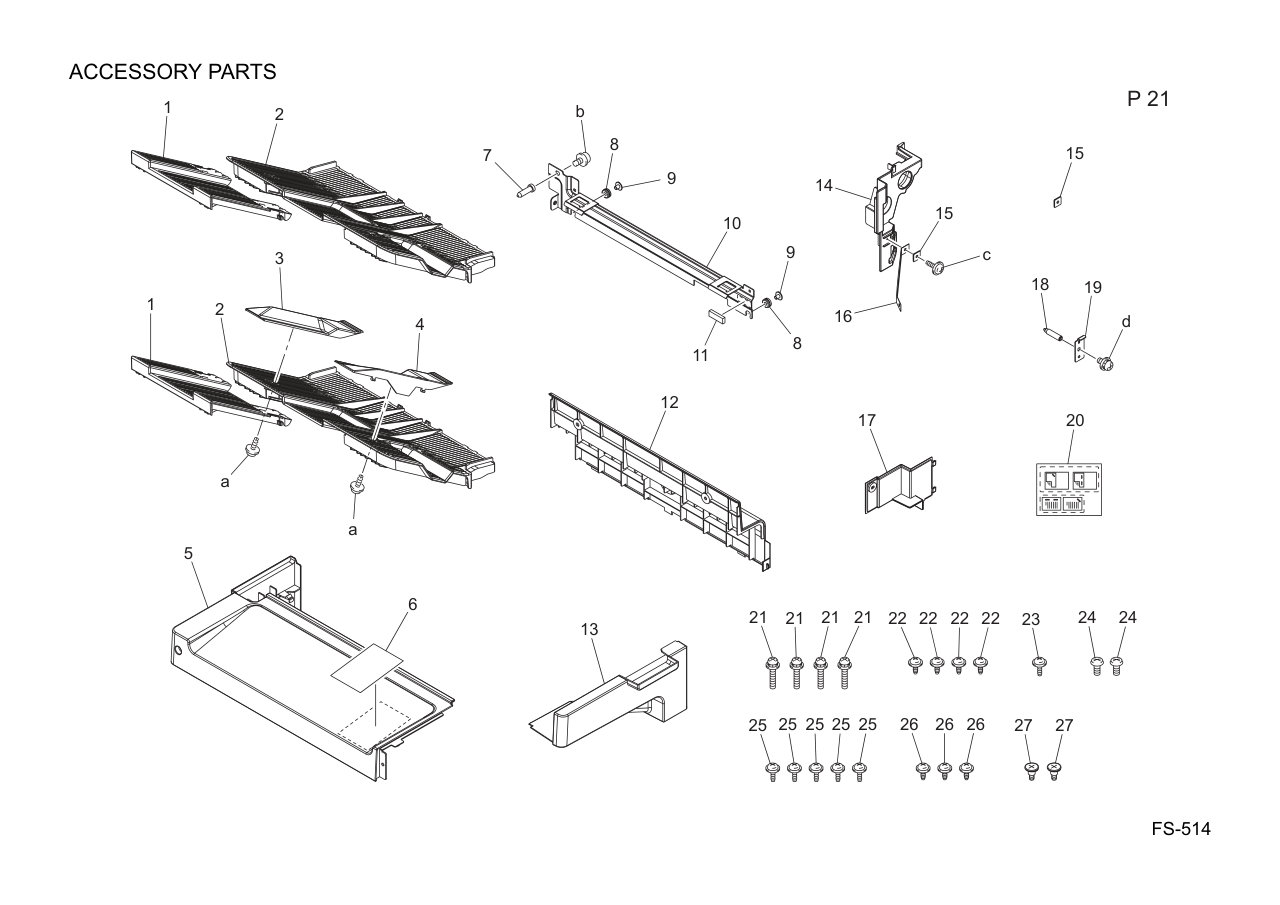

Accessory Parts 1 4349200902 TRAY 2 4349200803 TRAY 3 4349211701 GUIDE 4 4349211601 GUIDE 5 9J08103401 REAR COVER 6 9J08730301 LABEL CAUTION 7 9J08121202 PIN 8 9J08112601 CUSHION 9 9J08112701 SPACER 10 9J08120502 BRACKET 11 9384450021 ELECTRICALLY CONDUCTIVE MATERIAL 12 9J08100601 COVER 13 9J08103101 FRONT COVER 14 9J08100502 COVER 15 9J08210101 SET PLATE 16 4643102003 BAND 17 9J08101701 COVER 18 9J08112301 SHAFT 19 9J08112501 BRACKET 20 9J08940000 LABEL STAPLE POSITION 21 9646041814 SCREW 22 9735040814 TAPPING SCREW 23 9739040814 TAPPING SCREW 24 9654030814 SCREW 25 9739030814 TAPPING SCREW 26 9735030814 TAPPING SCREW 27 1054260101 SHOULDER SCREW
