Every part in the Konica Minolta FS-517 Finisher Parts Guide Manual (A07R120, March 2007), section by section with the exploded diagram. Call or email with the part number for price and availability.

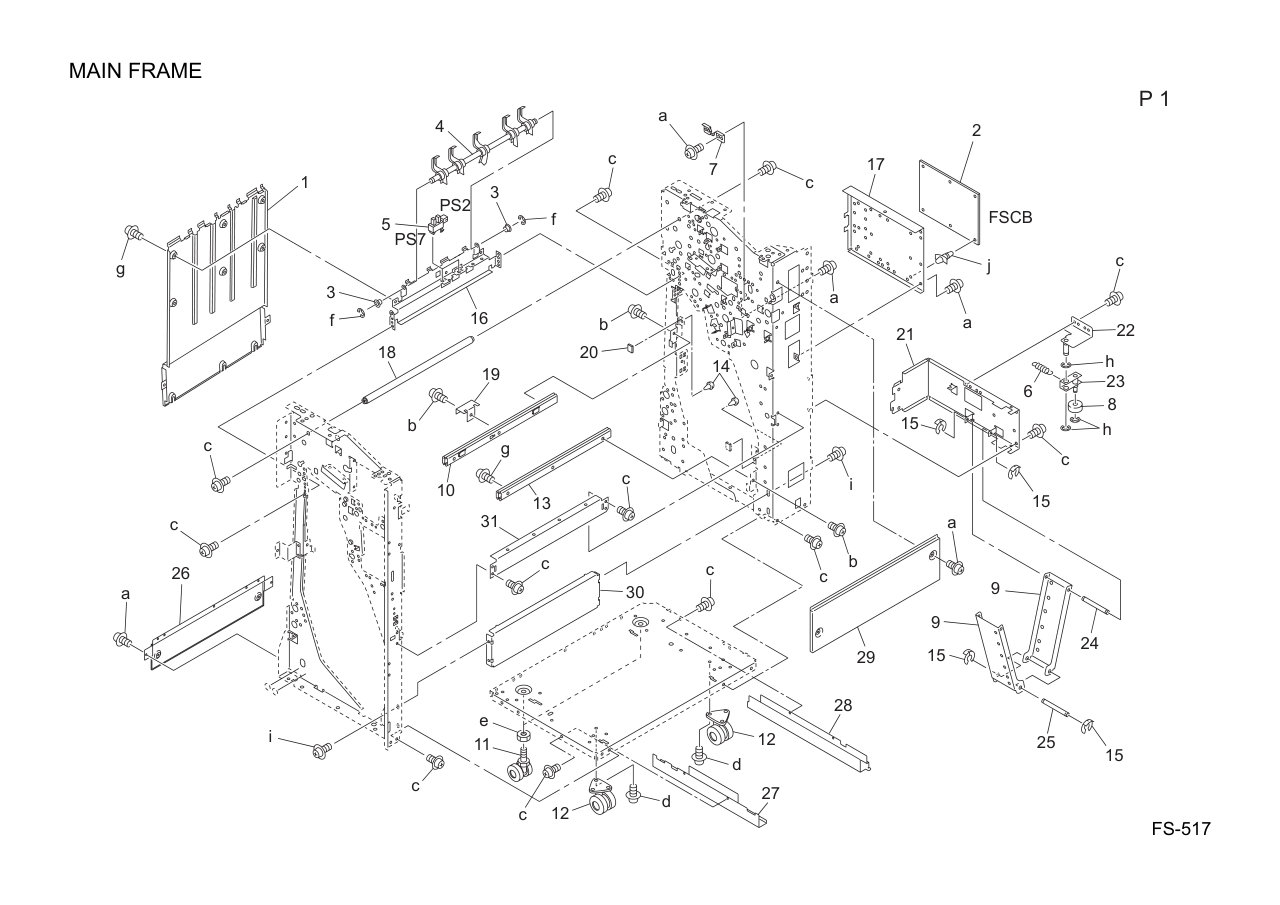

Main Frame 1 15JKR70200 PAPER EXIT STOPPER PLATE ASSY 2 A04DH01002 FNS CONTROL BOARD ASSY 3 12AA75560 DRIVEN SHAFT HOLDER 4 14JS49010 PAPER EXIT UP/DOWN ACTUATOR 5 08AA85512 PHOTO SENSOR 6 129U10300 LOCK SPRING 7 13QE10171 PUNCH GUIDE PLATE A 8 066031142 ROLLER 9 129U10151 WIRING GUIDE ARM 10 129U10322 SLIDERAIL LEFT 11 129U10350 CARRIAGE ROLLER 1 12 049810021 CARRIGE ROLLER R 13 129U10312 SLIDERAIL RIGHT 14 048645260 STOPPER RUBBER 15 396040681 STOPPER RING 16 15JK10071E PAPER EXIT REINFORCE STAY 17 15JK73011E BOARD MOUNTING PLATE /1 18 13QE10141 REGULATING SHAFT 19 15JK10080 FIXING PLATE 20 55VA12730 EARTH CUSHION C 21 15JK10090 REINFORCE STAY REAR 22 15JK-1120 LOCK PLATE CAULKING 23 13QE-1160 LOCKING LEVER CAULKING 24 15JK10200 SUPPORT SHAFT A 25 129U10180 SUPPORT SHAFT B 26 A07R160900 Cover Plate /Lower 27 A07R110200 Hold Plate /Lower 28 A07R110300 Cover Plate /Rear 29 A07R160300 Cover Plate /Right 30 13QE10041 REINFORCE STAY /1 31 13QE10061 REINFORCE STAY /3

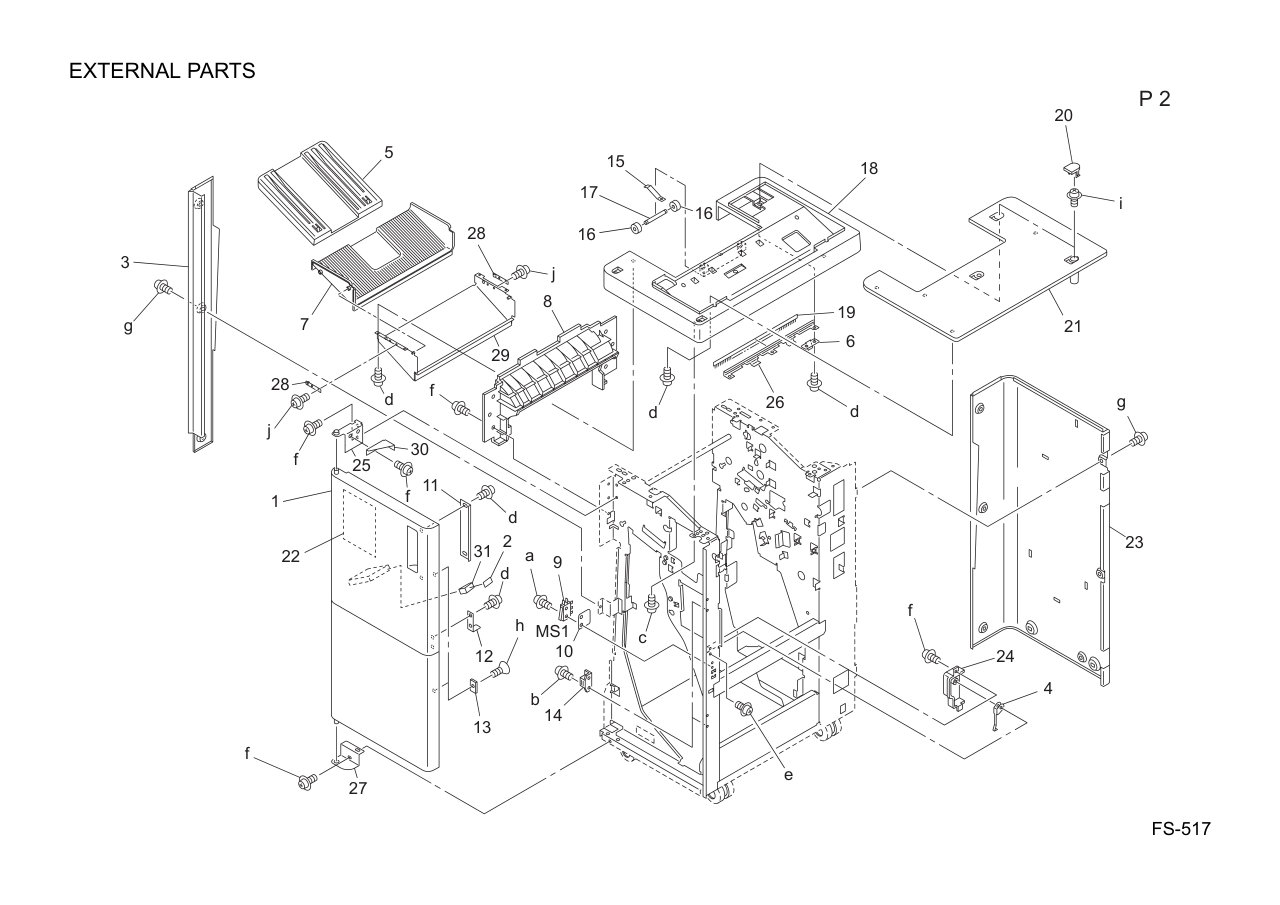

External Parts 1 A07R160001 OPEN/CLOSE DOOR /FRONT 2 A07R161100 GUIDE SHEET /FRONT 3 A07R160100 Cover Plate /Front 4 12AR45611 ACTUATOR 5 A07R890300 Paper exit Tray /3 6 13QE48060 EARTH PLATE 1 7 A07R890400 Paper exit Tray /4 8 A07R160801 PAPER EXIT PLATE /1 9 12QR86011 INTER LOCK SWITCH 10 12QR12260 SWITCH INSULATING SHEET 11 A07R160400 Operation Cover /Front 12 12AR12161E ACTUATOR 13 300011191 MAGNET HOLDER PLATE 14 07BA12352 MAGNETCATCH 15 A07R700800 Conveyance Spring /2 16 A07R890900 Idler Roller 17 12QR45780 SHAFT LOWER 18 A07R160601 COVER PLATE /1 19 14JS47210 NEUTRALIZING BRUSH 20 A07R160700 Screw Cover 21 A07R160500 Cover Plate /3 22 A07R940102 PROCESSING LABEL 23 A07R160200 Cover Plate /Rear 24 12QR12190 COVER 25 A07R110001 OPEN/CLOSE BEARING /UPPER 26 15JK48100 NEUTRALIZING PLATE 27 A07R110101 OPEN/CLOSE BEARING /LOWER 28 A07RA1630 HOLDING PLATE SPRING/1 COULKING 29 A07RA1620 PAPER EXIT PLATE/1 COULKING 30 A07R110400 AUXILIARY PLATE 31 A07R161000 AUXILIARY PART /FRONT

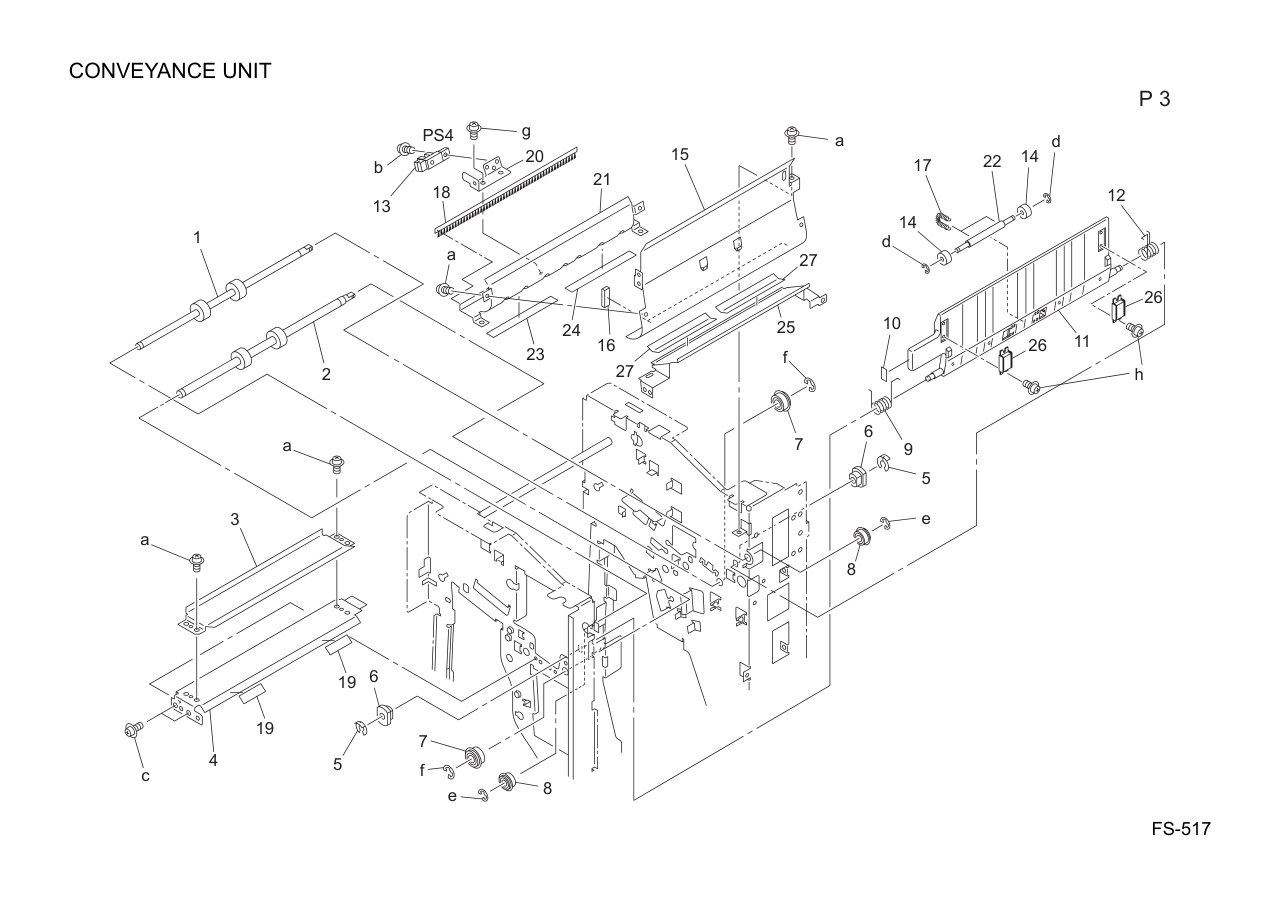

Conveyance Unit 1 14JS45110 CONVEYANCE ROLLER 1 2 A04D700501 CONVEYANCE ROLLER /4 3 13QE45410E CONVEYANCE GUIDE PLATE /B 4 13QE45400 CONVEYANCE GUIDE PLATE A 5 396040681 STOPPER RING 6 13GQ76020 SHAFT HOLDER A 7 540076050 BALL BEARING 8 55GA75031 BEARING 9 13QE45260 HINGE SPRING 1 10 A07R940300 RELEASE LABEL /A 11 A07R700400 Guide Plate /2 12 13QE45270 HINGE SPRING 2 13 13QA85521 SENSOR 2 14 15JK42840 ENTRANCE ROLLER 3 15 A07R700500 Guide Plate /3 16 20AK45950 STOPPER PART 17 13QE45390 PRESSING SPRING 2 18 14JS47210 NEUTRALIZING BRUSH 19 15JK45610 ENTRANCE GUIDE SHEET 20 A04D700300 MOUNTING PLATE /2 21 A04D700101 CONVEYANCE GUIDE PLATE /4 22 13QE45161 DRIVEN SHAFT/1 23 A04D700902 GUIDE SHEET /1 24 A04D701002 GUIDE SHEET /2 25 A04D700200 CONVEYANCE SIDE PLATE /A 26 12AA12100 MAGNET CATCH A 27 A07R701100 GUIDE SHEET /2

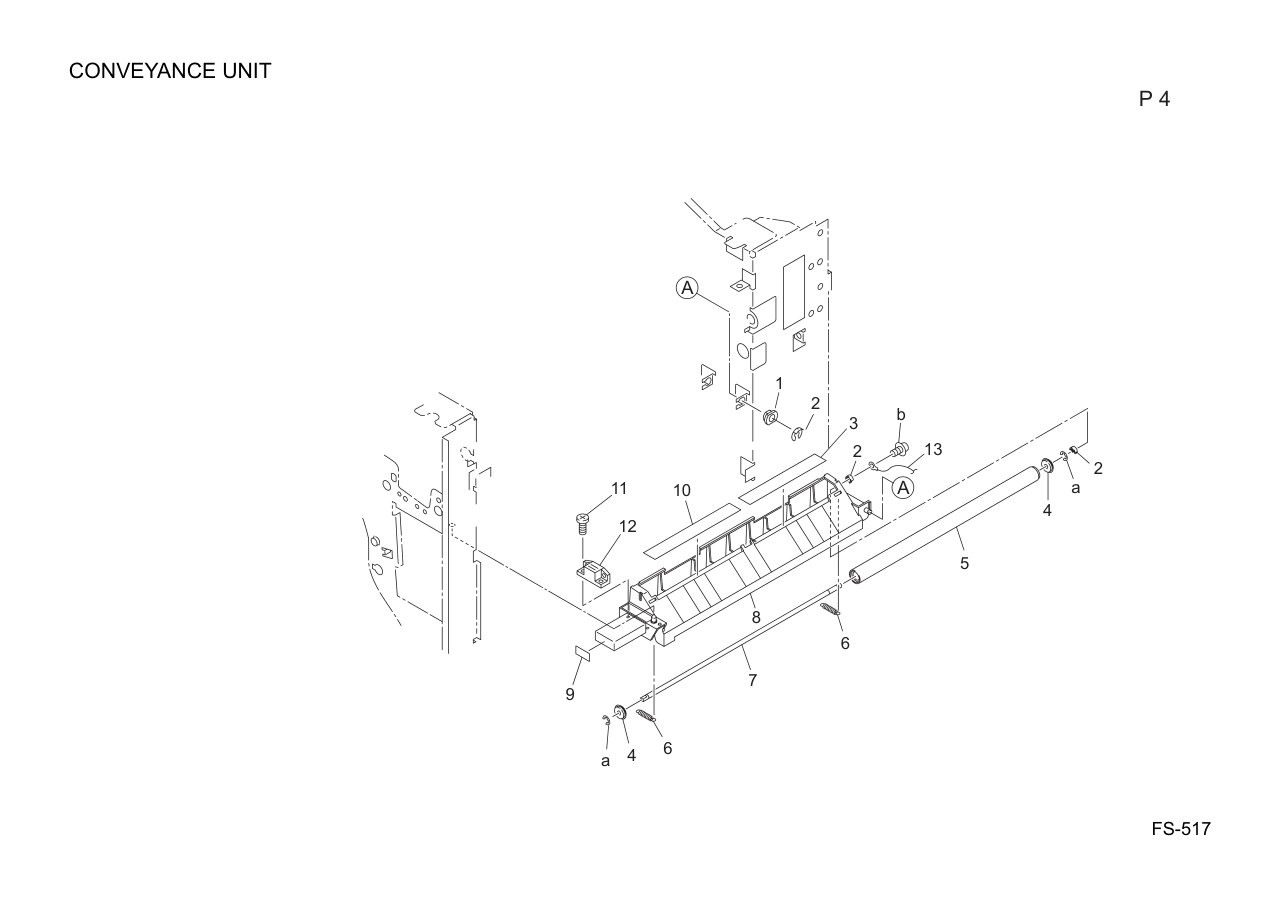

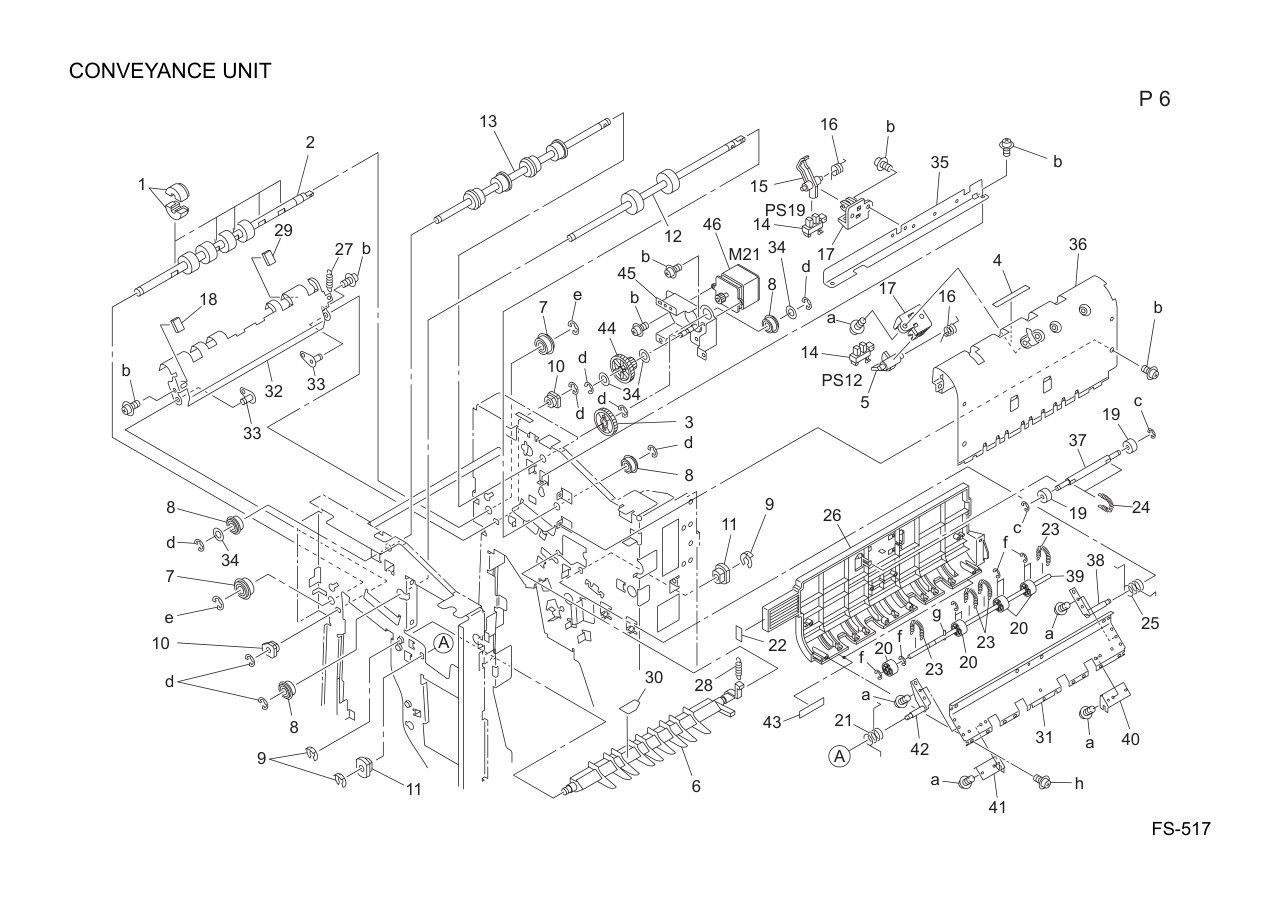

Conveyance Unit 1 13GQ76020 SHAFT HOLDER A 2 396040681 STOPPER RING 3 A04D701202 GUIDE SHEET /4 4 55GA75031 BEARING 5 A04D700701 ENTRANCE ROLL /4 6 A04D700800 PRESSING SPRING /2 7 A04D700601 ENTRANCE SHAFT 8 A04D700401 CONVEYANCE GUIDE PLATE /1 9 A07R940400 RELEASE LABEL /B 10 A04D701102 GUIDE SHEET /3 11 13QE45200 MAGNET MOUNTING SCREW 12 55FA12101 MAGNET CATCH X 13 13QE90182 EARTH WIRING A

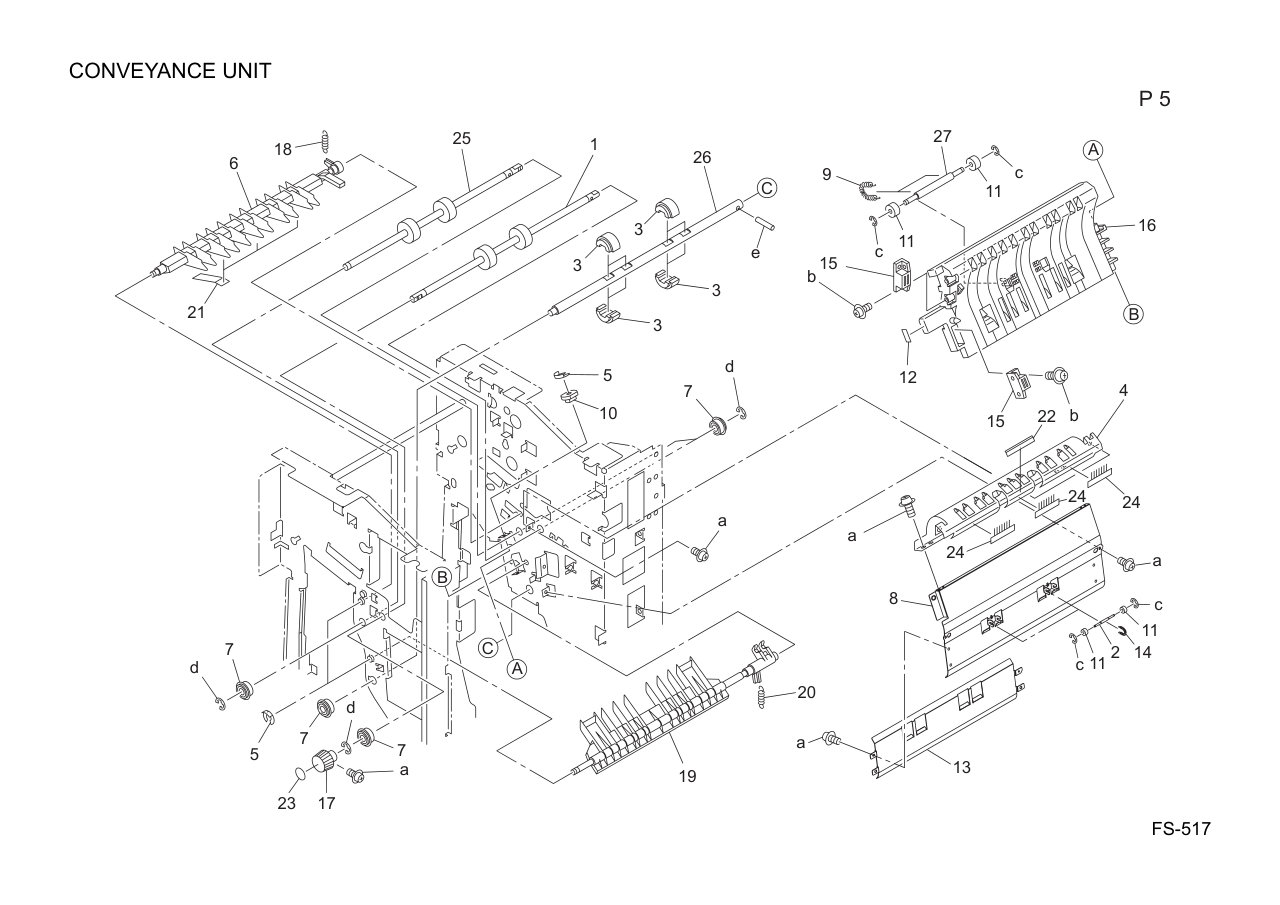

Conveyance Unit 1 13QE45132 CONVEYANCE ROLLER 3 2 A07R701900 Idler Shaft /2 3 13QE45310 CONVEYANCE ROLLER 4 4 13QE45071 CONVEYANCE GUIDE PLATE 7 5 396040681 STOPPER RING 6 13QE45170 PAPER GUIDE PART 1 7 55GA75031 BEARING 8 A07R702200 Guide Plate /A 9 13QE45250 PRESSING SPRING 4 10 13GQ76020 SHAFT HOLDER A 11 15JK42840 ENTRANCE ROLLER 3 12 A07R940700 RELEASE LABEL /E 13 A07R702100 Guide Plate /9 14 A07R702001 Conveyance Spring /1 15 07BA12352 MAGNETCATCH 16 15JK45081 CONVEYANCE GUIDE PLATE 8 17 14GE45470 ROTARY KNOB 18 13QE48650 SOLENOID SPRING 19 15JK45190 PAPER GUIDE PART 3 20 13QE48730 SOLENOID SPRING 2 21 A07R701000 Guide Sheet /1 22 20GA45590 SHEET A 23 A07R940500 RELEASE LABEL /C 24 15JL434200 Neutralizing Brush /B 25 14JS45120 CONVEYANCE ROLLER 2 26 A07R702300 Conveyance Shaft /4 27 13QE45161 DRIVEN SHAFT/1
Conveyance Unit 1 122H48251 PAPER EXIT ROLLER A 2 14JS45150 PAPER EXIT ROLLER 1 3 A04D909800 DRIVE GEAR /2 33T 4 20AK45980 CONVEYANCE PROTECTION SHEET 5 13QE48070 ACTUATOR 1 6 13QE45180 PAPER GUIDE PART 2 7 540076050 BALL BEARING 8 55GA75031 BEARING 9 396040681 STOPPER RING 10 15JK75530 SHAFT HOLDER A 11 13GQ76020 SHAFT HOLDER A 12 A04D701901 CONVEYANCE ROLLER /2 13 A04D890101 PAPER EXIT ROLLER 14 08AA85512 PHOTO SENSOR 15 20AK48090 ACTUATOR /2 16 20AK48080 SPRING /2 17 13QE48300 BLOCK 18 13QE45430 STOPPER PART 19 15JK42840 ENTRANCE ROLLER 3 20 15JK42760 ENTRANCE ROLLER 4 21 13QE45280 HINGE SPRING 3 22 A07R940600 RELEASE LABEL /D 23 13QE45240 PRESSING SPRING 1 24 13QE45450 PRESSING SPRING 3 25 13QE45290 HINGE SPRING 4 26 13QE45051 CONVEYANCE GUIDE PLATE 5 27 13QE48390 PAPER EXIT SPRING 28 13QE48650 SOLENOID SPRING 29 13QE45470 STOPPER PART 30 13QE45481E CONVEYANCE GUIDE SHEET 31 13QE45501 CONVEYANCE GUIDE STAY 5 32 15JK45101E Paper exit Guide Plate 33 13QE-3260 IDLER SHAFT 2 34 13QA17730 COLLAR 6 35 13QE48031 PAPER EXIT STAY 36 15JK45060E CONVEYANCE GUIDE PLATE /6 37 13QE45161 DRIVEN SHAFT/1 38 15JK-3690 FULCRUM PLATE REAR CAULKING 39 13QE45570 ROLLER IDLER SHAFT 40 13QE45521 ROLLER SUPPORT PLATE REAR 41 13QE45511 ROLLER SUPPORT PLATE FRONT 42 15JK-3680 FULCRUM PLATE FRONT CAULKING 43 A07R701200 COVER SHEET 44 A04D909900 IDLING GEAR /1 20T 38T 45 A04DA8940 SUBTRAY PAPER EXIT MOTOR CAULKING 46 9314130061 MOTOR

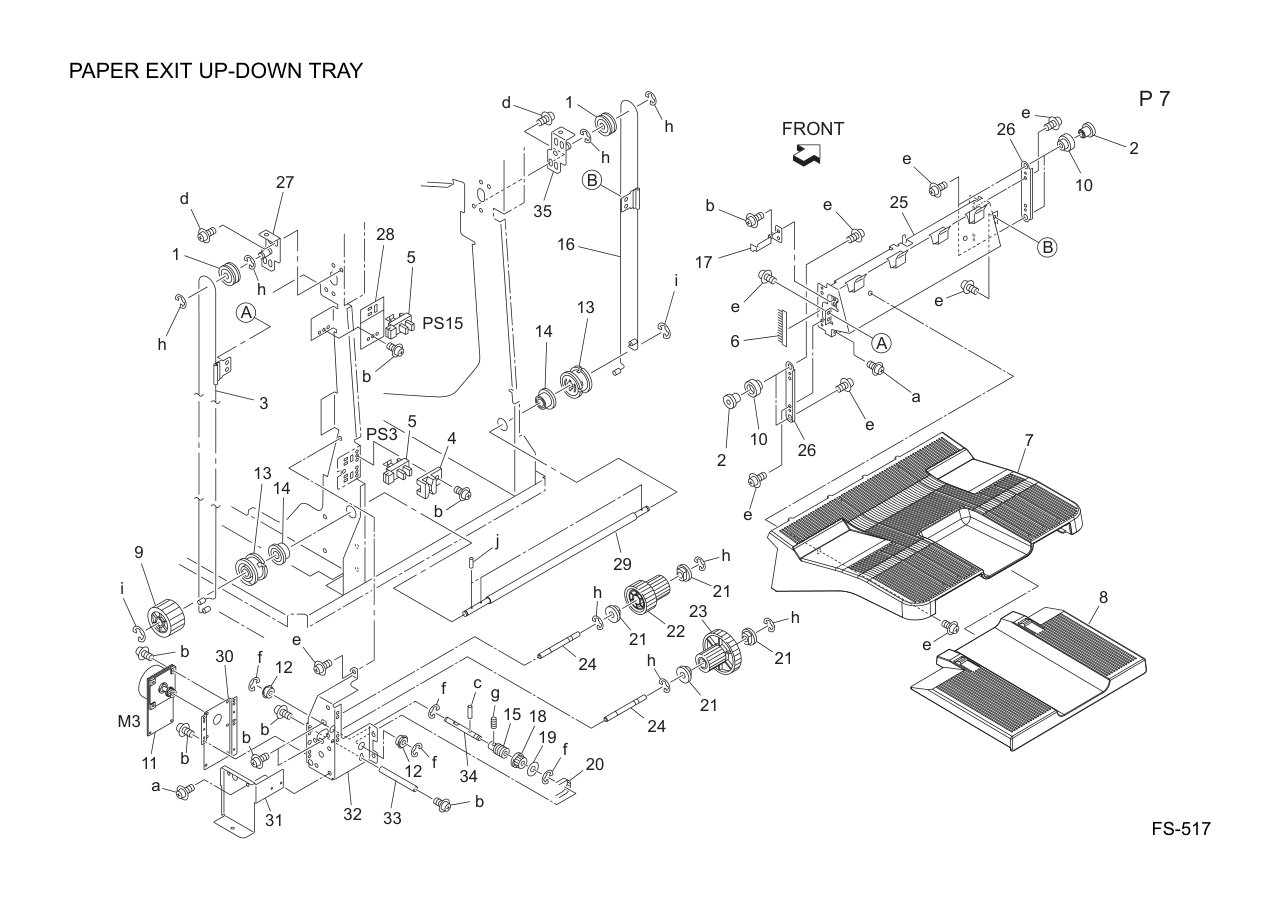

Paper Exit Up-down Tray 1 13QE49140 BALL BEARING 2 13QE49090 SLIDE SHAFT 3 13QE49070 UP DOWN WIRE R 4 13QE49150 PROTECTION PART 5 08AA85512 PHOTO SENSOR 6 14JS49040 NEUTRALIZING BRUSH 7 A07R890101 PAPER EXIT TRAY /1 8 A07R890001 PAPER EXIT TRAY /2 9 14JS77030 UP DOWN GEAR C 23T 10 13QE49160 GUIDE ROLLER 11 15JKR70400 CONVEYANCE MOTOR ASSY 12 55VA75030 BALL BEARING 13 12QR48070 UP DOWN PULLEY 14 13QE75010 BEARING/A 15 14JS77141F UP/DOWN WORM 16 13QE49060 UP DOWN WIRE F 17 13QE49131 ACTUATOR 1 18 14JS77520 DRIVE PULLEY 2 16T 19 40BA52390 BELT HOLDER 20 14JS77610 MOTOR DRIVE BELT 93L 21 14QH75530 SHAFT HOLDER G 22 14JS77010 UP DOWN GEAR A 40T 27T 23 14JS77020 UP DOWN GEAR B 59T 16T 24 14JS49030D IDLING SHAFT /A 25 15JK49083G UP/DOWN STAY 26 15JK491700 UP/DOWN PLATE /1 27 15JK-1140 TENSION PLATE / REAR CAULKING 28 13QE10211 MOUNTING PLATE A 29 14JS49051E UP/DOWN SHAFT 30 14JS49220 MOTOR FIXING PLATE 1 31 A07R100400 Fixing Plate 32 14JS49021 MOTOR MOUNTING PLATE 1 33 14JS49230 SUPPORT SHAFT 1 34 14JS49200 IDLING SHAFT 1 35 15JK-1130 TENSION PLATE FRONT CAULKING

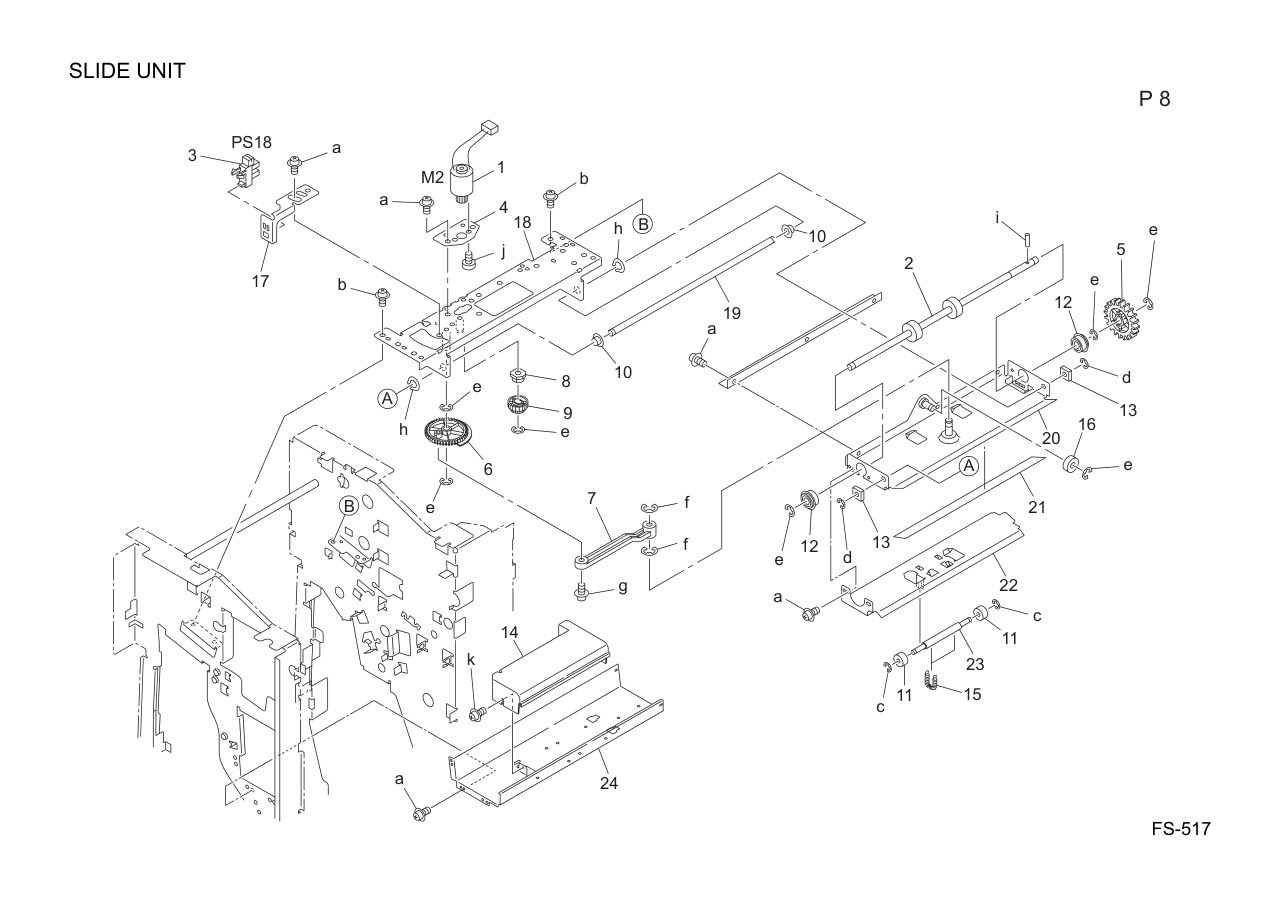

Slide Unit 1 12QR-3611 SHAFT MOTOR ASSY 2 14JS46040 CONVEYANCE ROLLER A 3 08AA85512 PHOTO SENSOR 4 12QR46281 MOTOR MOUNTING PLATE 5 13QE77040 DRIVE GEAR 1 32T 6 13QE77071 SLIDE GEAR 2 7 A07R700900 Slide Arm 8 15JK75510 SHAFT HOLDER 6 9 15JK77060 SLIDE GEAR 1 43/24T 10 12AR75510 SHAFT HOLDER A 11 15JK42840 ENTRANCE ROLLER 3 12 55GA75031 BEARING 13 25AA52090 STOPPER SHEET 14 13QE73030 BASE PLATE COVER 15 13QE45240 PRESSING SPRING 1 16 504045110 PRESSURE ROLLER 17 15JK46080 MOUNTING PLATE 18 15JK-3640 SRIDE STAY CAULKING 19 13QE46050 SLIDE SHAFT 20 15JK-3660 GUIDE PLATE UPPER CAULKING 21 20AK46120 CONVEYANCE GUIDE SHEET 3 22 15JK46030 GUIDE PLATE /LOWER 23 13QE46100 IDLER SHAFT A 24 13QE73022 BOARD MOUNTING PLATE/2

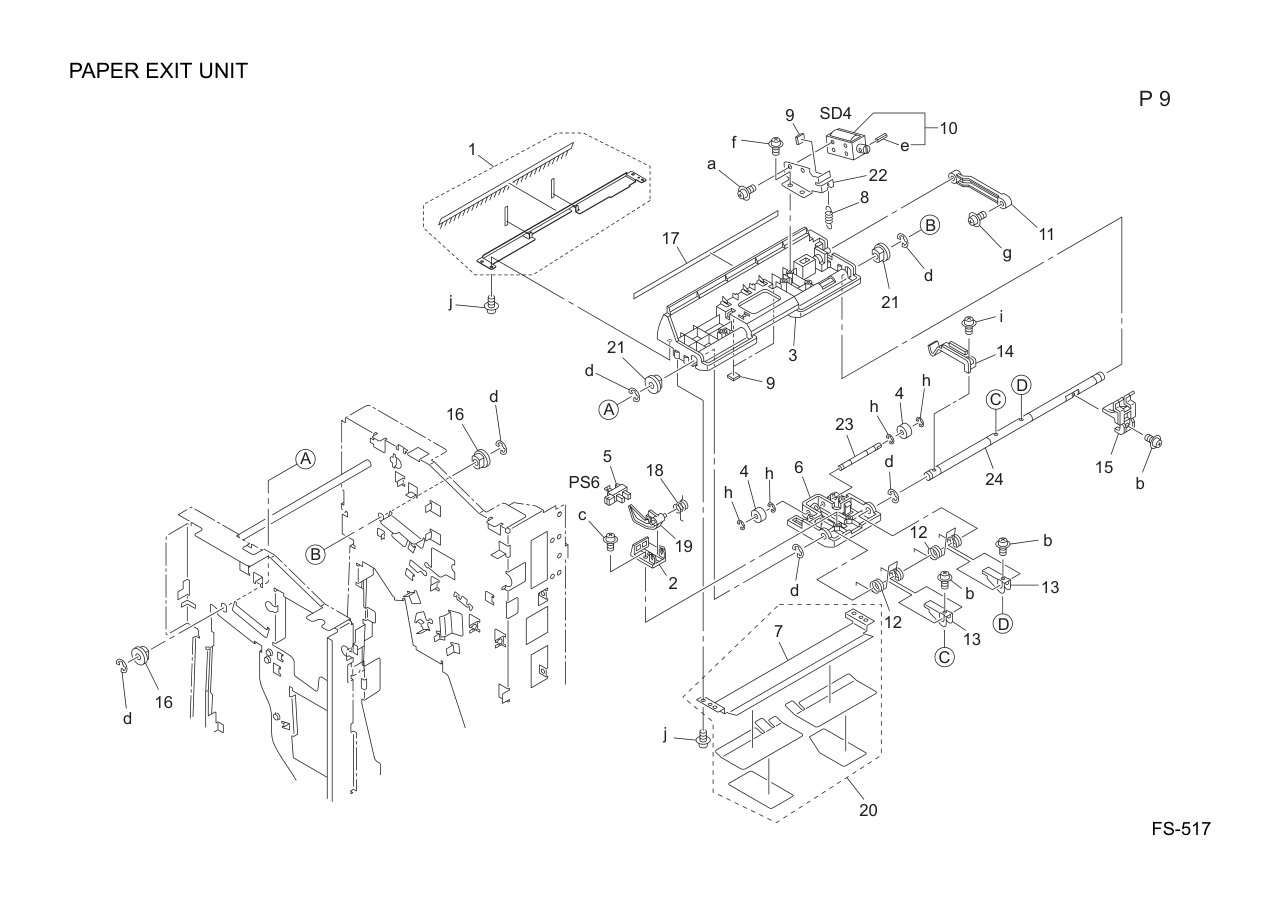

Paper Exit Unit 1 15SJR70200 NEUTRALIZING PLATE ASSY 2 2 13QE48300 BLOCK 3 A07R890800 Paper exit Slide Stay 4 15JK42840 ENTRANCE ROLLER 3 5 08AA85512 PHOTO SENSOR 6 A07R890700 Paper exit Guide Part 7 13QE48220 PAPER EXIT GUIDE PLATE LOWER 8 13QE48350 SOLENOID SPRING 9 12ER40350 STICKING PART 10 13QER70400 PAPER EXIT SOLENOID ASSY 11 13QE48401 SLIDE ARM 12 13QE48310 PRESSING SPRING 13 13QE48320 STOPPER PLATE 14 13QE48361 HOLDING PLATE 15 13QE48340 SOLENOID LEVER 16 14QH75530 SHAFT HOLDER G 17 13QE48460 SPACER A 18 13QE48080 SPRING 1 19 13QE48280 ACTUATOR 20 15SJR70100 PAPER EXIT GUIDE PLATE LOWER ASSY 21 13GQ76030 SHAFT HOLDER B 22 13QE48331 SOLENOID MOUNTING PLATE 23 13QE48240 DRIVEN SHAFT 24 13QE48231 PAPER EXIT SUPPORT SHAFT

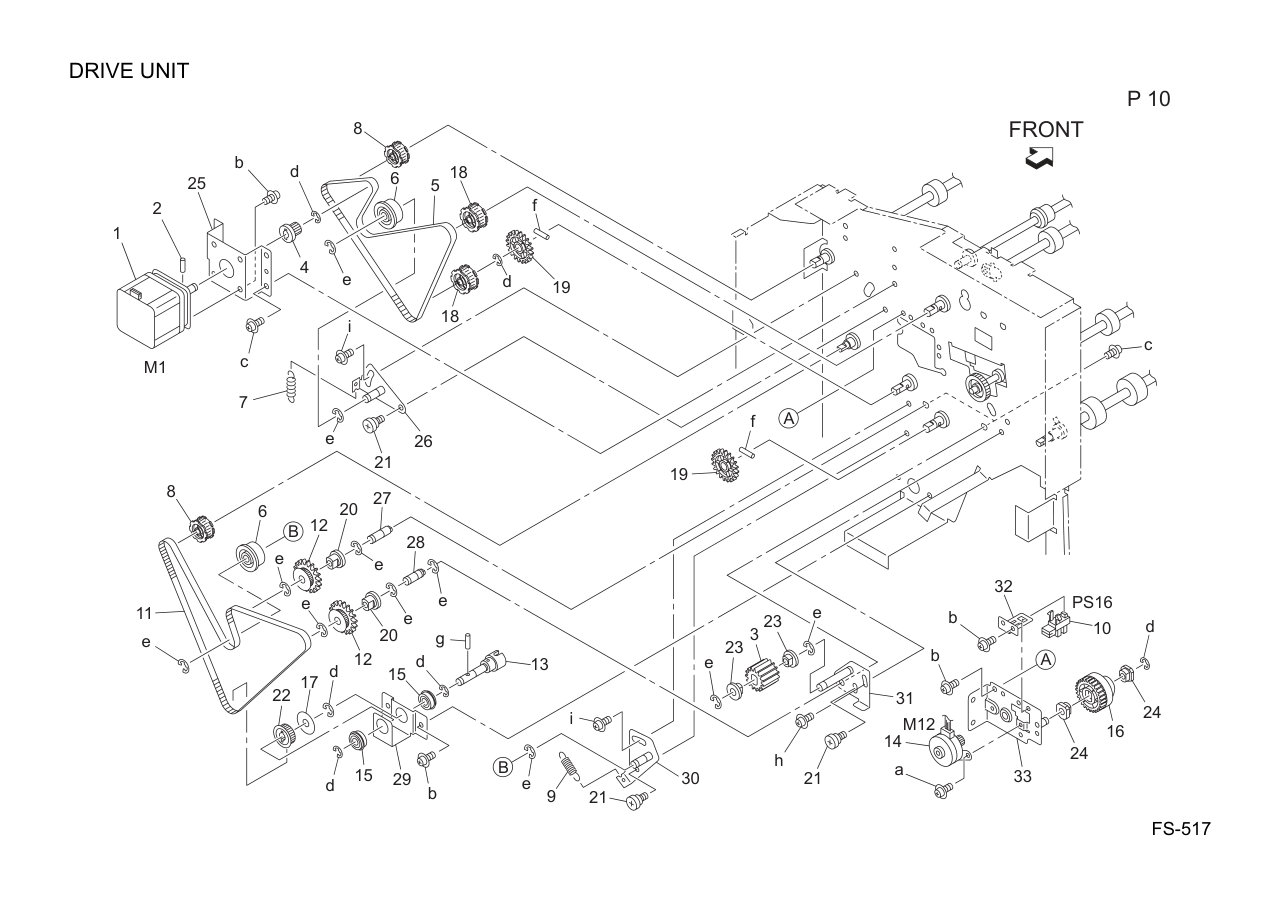

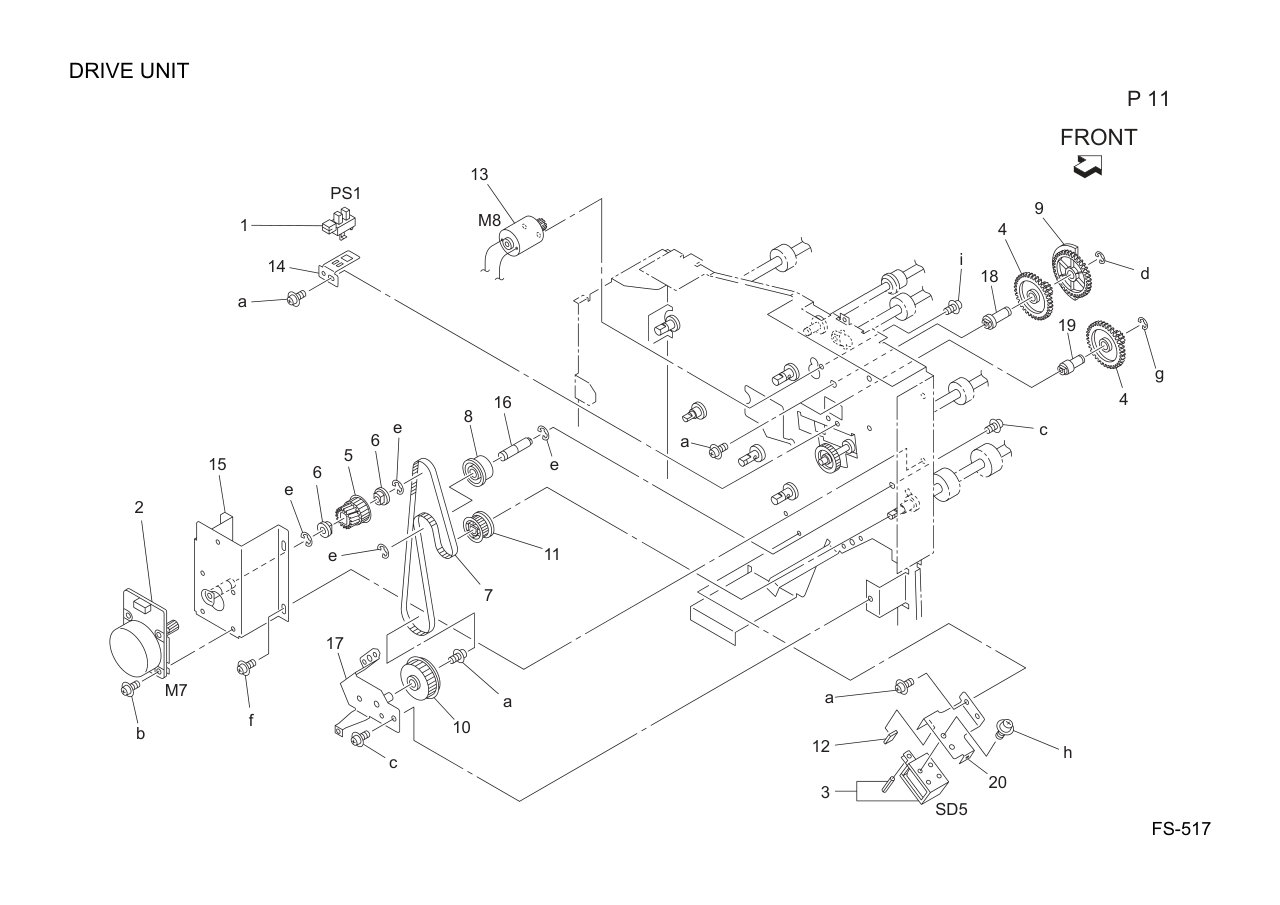

Drive Unit 1 56AA80112 PAPER EXIT DRIVE MOTOR 2 113620600D Pin /A 3 129R77160 IDLER GEAR 4 15JK76530 MOTOR PULLEY 20T 5 13QE77540 BELT 1 651L 6 122H15220 TENSION ROLLER 7 13QE48740 TENSION SPRING/1 8 15JK76630 DRIVE PULLEY 2 20T 9 13QE48640 TENSION SPRING 1 10 08AA85512 PHOTO SENSOR 11 13QE77550 BELT 2 741L 12 13QE76550 IDLING PULLEY 1 32T 13 13QER70200 COUPLING SHAFT ASSY 14 13GQ80012 FNS COMPENSATING MOTOR 15 55GA75031 BEARING 16 13QE77050 CAM GEAR 71T 17 25AA47930 COLLAR C 18 15JK76540 DRIVE PULLEY 1 25T 19 13QE77040 DRIVE GEAR 1 32T 20 326040330 SHAFT HOLDER A 21 25AA47670 GUIDE SCREW 22 A04D719900 DRIVE PULLEY /3 25T 23 14QH75530 SHAFT HOLDER G 24 15JK75530 SHAFT HOLDER A 25 13QE48511E MOTOR MOUNTING PLATE /1 26 15JK-1610 TENSION PLATE 1 CAULKING 27 13QE48670 TENSION SHAFT 3 28 13QE48620 IDLING SHAFT 2 29 13QE48691 FIXING PLATE 30 15JK-1620 TENSION PLATE 2 CAULKING 31 15JK-1630 TENSION PLATE 3 CAULKING 32 13QE45231 MOUNTING PLATE 1 33 13QE-3270 CAM MOTOR MOUNTING PLATE CAULKING
Drive Unit 1 08AA85512 PHOTO SENSOR 2 57AA80080 DC BRUSHLESS MOTOR 15 3 15JKR70300 FNS SOLENOID ASSY 4 12QR77110 PAPER EXIT GEAR 100T 20T 5 13QE76560 IDLING PULLEY 2 31T 24T 6 326040330 SHAFT HOLDER A 7 15JK77560 BELT 3 597L 8 122H15220 TENSION ROLLER 9 129U77010 SLIDE GEAR A 100T 10 15JK76560E PAPER EXIT PULLEY 56T 11 12QR76550 DRIVING PULLEY A 24T 12 12ER40350 STICKING PART 13 12QR-3611 SHAFT MOTOR ASSY 14 13QE48411 MOUNTING PLATE 15 13QE-1670 MOTOR MOUNTING PLATE 2 CAULKING 16 13QE48610 TENSION SHAFT 2 17 15JK-1680 PULLEY MOUNTING PLT / CAULK 18 13QE48260 IDLING SHAFT/1 19 13QE48270 IDLING SHAFT/2 20 13QE48533 SOLENOID MOUNTING PLATE

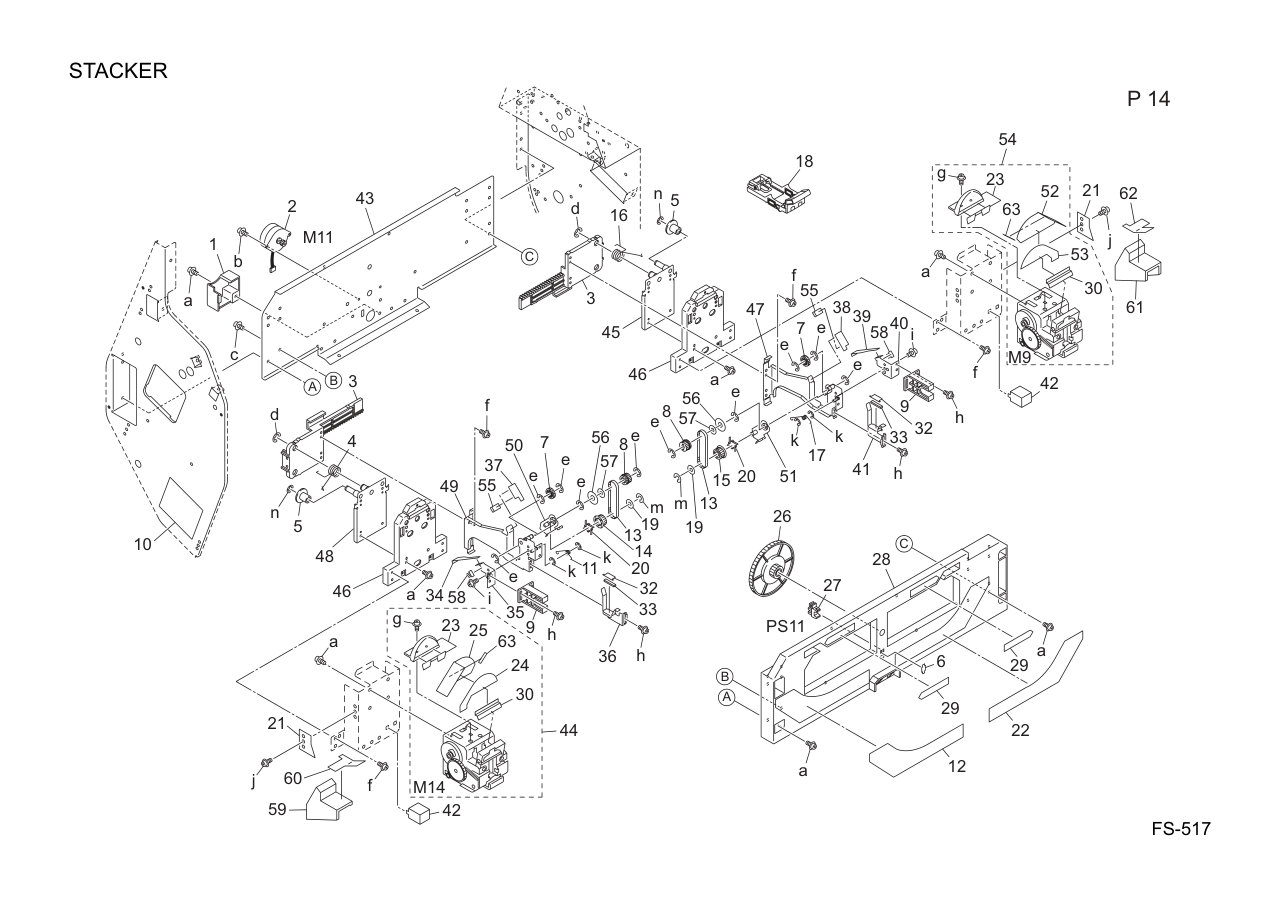

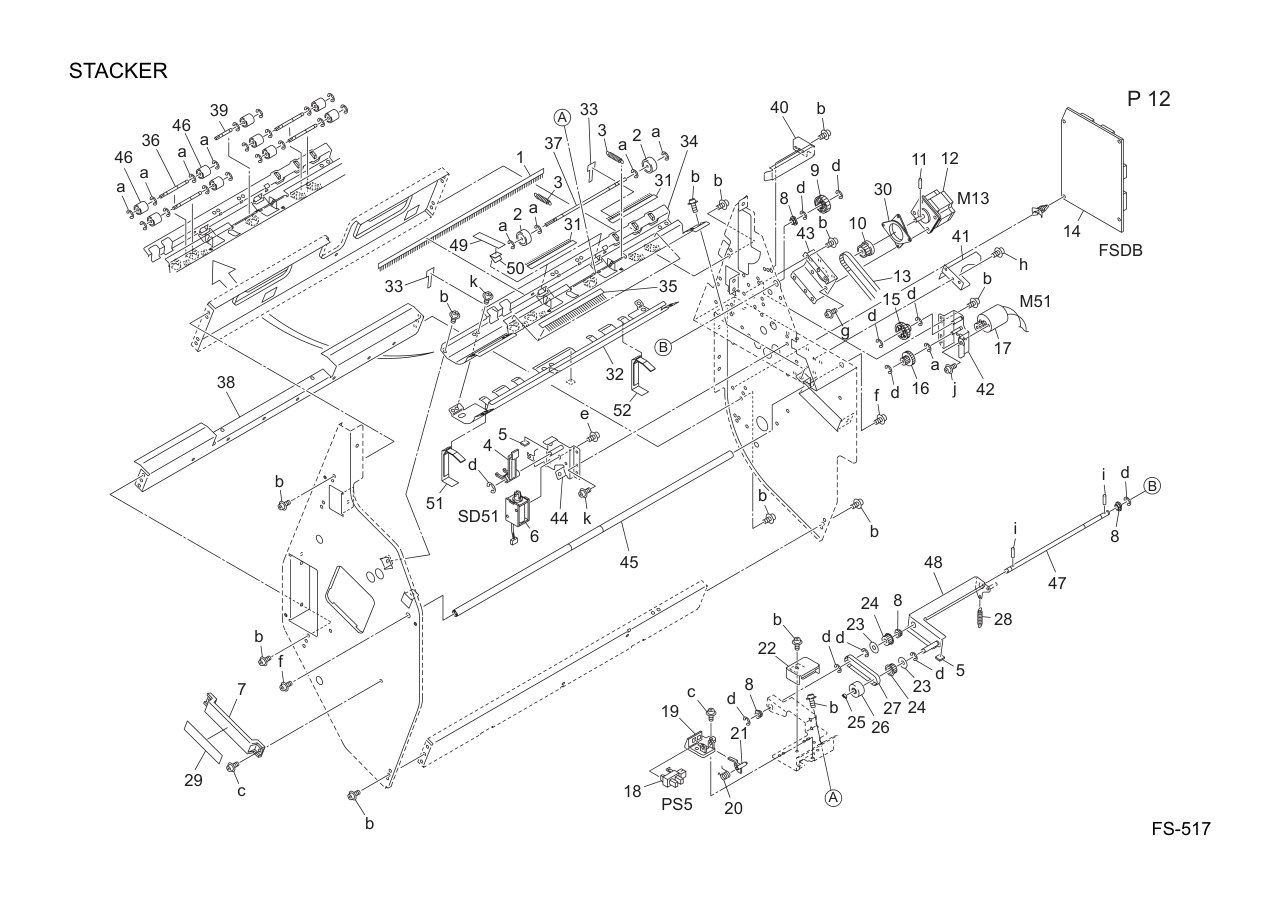

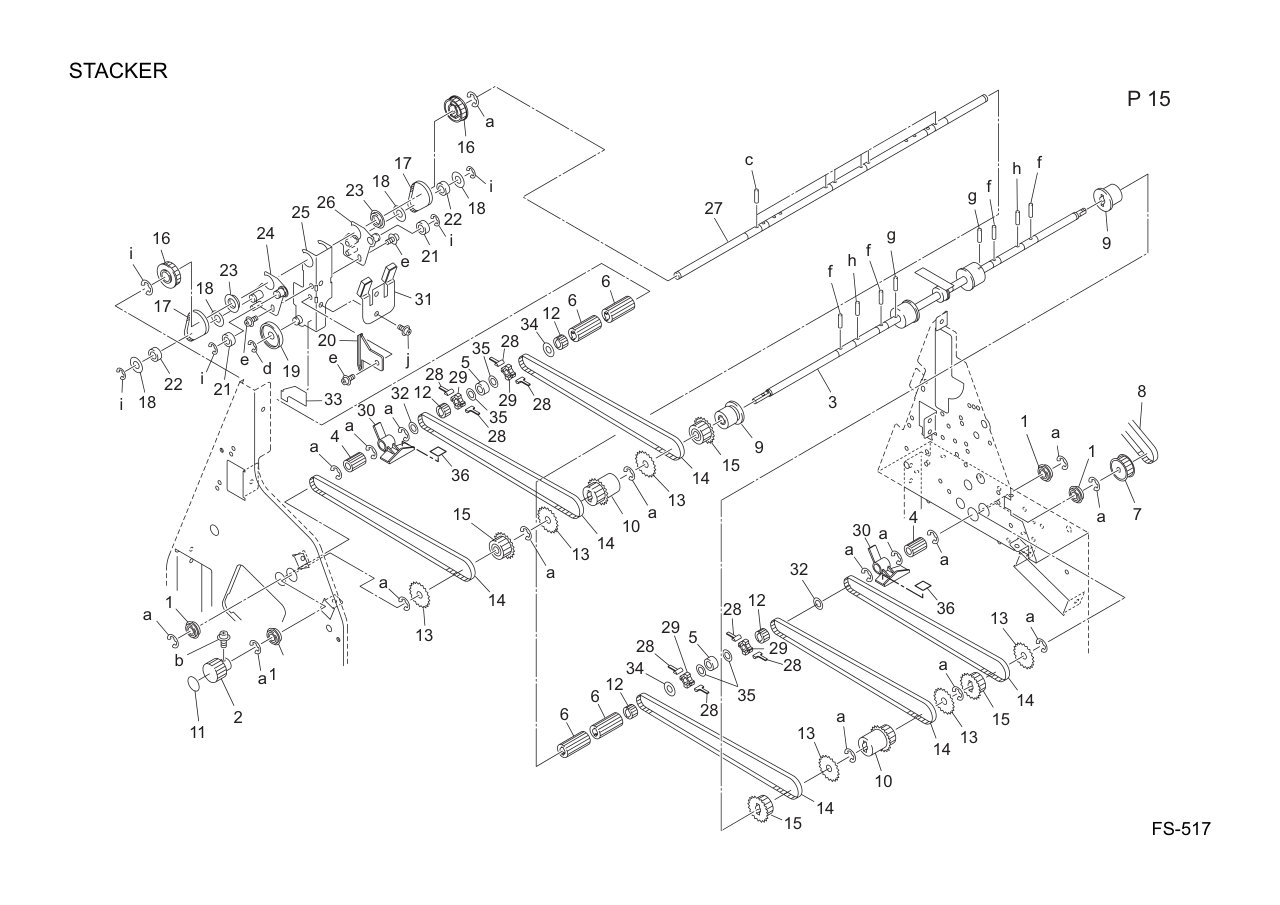

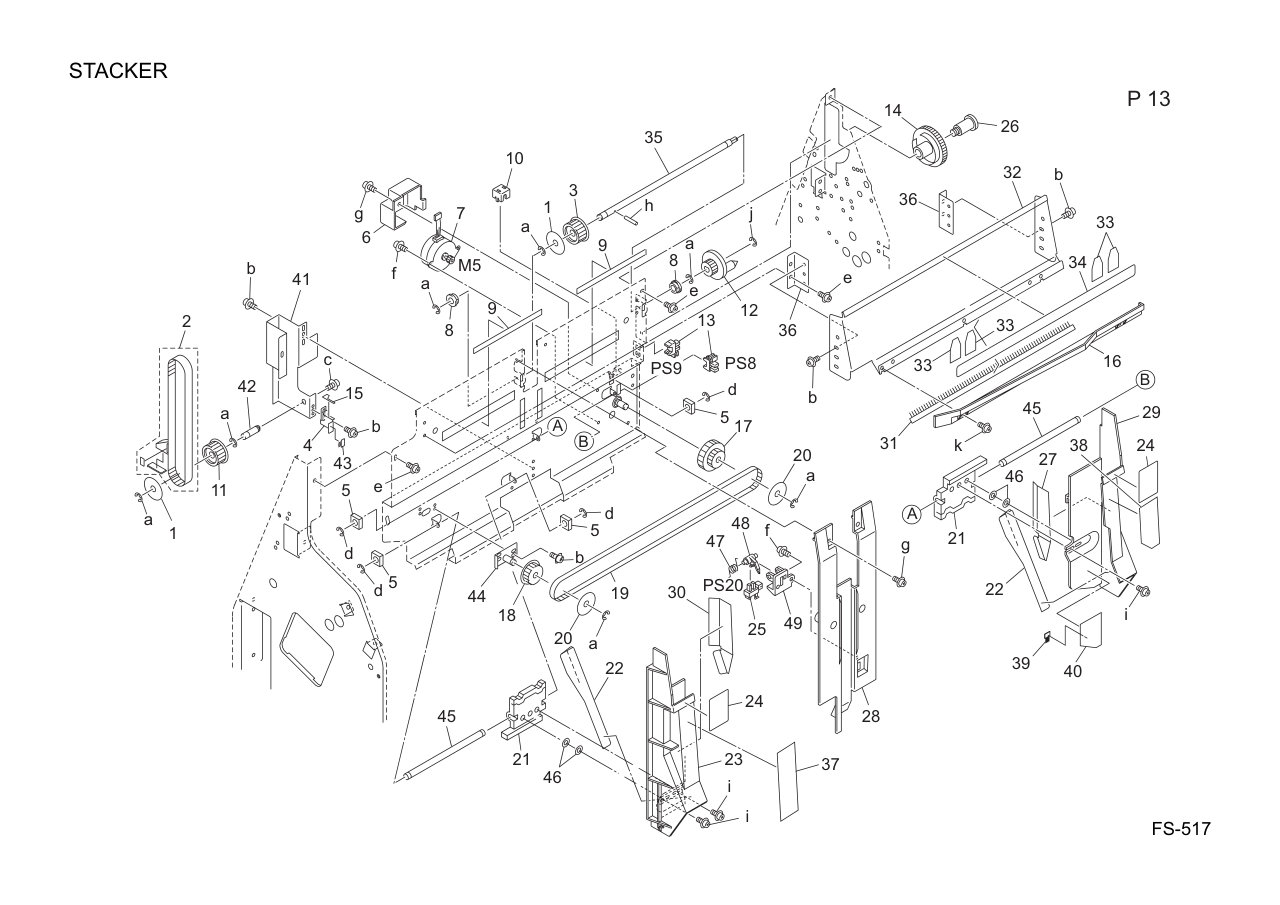

Stacker 1 15JK50260 NEUTRALIZING BRUSH 2 A07R702501 ENTRANCE ROLL /4 3 A07R700102 CONVEYANCE SPRING /1 4 15JK55061 SOLENOID LEVER 5 12ER40350 STICKING PART 6 15JKR70300 FNS SOLENOID ASSY 7 20AM42180 KNOB 8 322076010 PAPER LIFT UP LEVER SHAFT HOLDER 9 15JK77300 DRIVE GEAR A 48T 10 A04D809900 MOTOR PULLEY 18T 11 098030300 PIN D2X8 12 56GA80062 HB MOTOR 40 13 13QE77530 BELT E 189L 14 A07RH02011 FNS DRIVING BOARD ASSY 15 13GQ77080 ROCKING IDLER 2 20T 48T 16 13GQ77070 ROCKING IDLER 1 20T 40T 17 12QR-3611 SHAFT MOTOR ASSY 18 08AA85512 PHOTO SENSOR 19 13QE48300 BLOCK 20 13QE48080 SPRING 1 21 15JK48070 ACTUATOR 1 22 15JK42800 COVER 23 13GQ45490 COLLAR B 24 12VR76510 PAPER FEED PULLEY 25 396040681 STOPPER RING 26 20AK42100 PAPER CONVEYING ROLLER /A 27 20AK77510 DRIVING BELT 28 15JK55120 HOLDING SPRING 29 A07R940900 RELEASE LABEL /G 30 56GA73431 MOTOR FIXING PART /1 31 15JK43341 NEUTRALIZING BRUSH 32 A07R700001 Guide Plate /Lower 33 15JL434501 AUXILIARY SHEET 34 A07R702401 GUIDE PLATE /UPPER 35 15JL434100 Neutralizing Brush /A 36 A07R702700 Entrance Shaft /2 37 A07R721800 IDLER SHAFT /1 38 15JK42060 CARRIAGE MOUNTING STAY /MIDDLE 39 A07R702800 Entrance Shaft /3 40 15JK43260 GUIDE PART/2 41 13QE10111 LOCK CAM 42 15JK-5590 MOTOR MOUNTING PLATE CAULLKING 43 15JK42590 MOTOR MOUNTING PLATE 44 15JK-5560 SOLENOID M-PLATE CAULLKING 45 15JK42070 REGULATING SHAFT 46 A07R702600 Entrance Roll /5 47 15JK55070 DRIVE SHAFT 48 15JK-5520 ROTARY STAY CAULLKING 49 A07R722600 HOLDING SHEET 50 A07R722700 HOLDING PLATE 51 A07RA7440 Guide Part/F ASSY 52 A07RA7450 Guide Part/R ASSY
Stacker 1 12QR50610 BELT HOLDER 2 A07RA7400 PAPER EXIT BELT ASSY 3 15JK76580 BELT DRIVE PULLEY 18T 4 15JL432600 Fixing Stopper 5 25AA52090 STOPPER SHEET 6 15JK50170 MOTOR COVER 7 15AAR73600 MOTOR 2 ASSY 8 14QH75530 SHAFT HOLDER G 9 15JK43160 SLIDE SHEET 10 13QN40750 COVER 11 15JK76590 BELT IDLER PULLEY 18T 12 13TR77040 COUPLING GEAR 18T 13 08AA85512 PHOTO SENSOR 14 15JK77260 BELT DETECTION GEAR 123T 15 15JL524500 Stopper Sheet /D 16 15JK43231E GUIDE PART /1 17 25AA52510 REGULATION GEAR S 55T 28T 18 25AA52710 IDLER PULLEY 28T 19 12QR77510 BELT A 752L 20 25AA52140 BELT HOLDER B 21 15JK43360 SLIDE BLOCK A 22 A07R722800 PAPER EXIT REGULATING SHEET /2 23 15SF43030 REGURATING PLATE FRONT 24 15JK43060 PAPER EXIT REGULATING SHEET U 25 08AA85512 PHOTO SENSOR 26 12QR50530 BELT DETECTING SCREW 27 15JL431200 Regulating Sheet /Rear 28 15JK43020E REGULATING PLATE /MIDDLE 29 15SF43040 REGURATING PLATE REAR 30 15JL431100 Regulating Sheet /Front 31 15JK50260 NEUTRALIZING BRUSH 32 15JL432201 PAPER EXIT REGULATING PLATE 33 15JL434600 Paper exit Sheet /2 34 15JL434300 Paper exit Sheet /1 35 15JK43130 PAPER EXIT DRIVE SHAFT 36 15JK43240 SIDE FIXING PLATE 37 15SF43600 ELECTROSTATIC PROOF SHEET FRONT 38 15SF43610 ELECTROSTATIC PROOF SHEET REAR 39 15SF43620 BOTTOM PLATE NEUTRALIZING BRUS 40 15SF43630 ELECTROSTATIC PROOF SHEET LOWER 41 15JK43050 BELT TENSION PLATE 42 15JK43120 IDLING SHAFT /A 43 13NK50380 NEUTRALIZING BRUSH C 44 13QE-4380 TENSION SHAFT CAULKING 45 15JK42540 SLIDE SHAFT/1 46 15JK98010 SPACER/A 47 13QE48080 SPRING 1 48 13QE48280 ACTUATOR 49 13QE48300 BLOCK
Stacker 1 15JK50170 MOTOR COVER 2 15AAR73600 MOTOR 2 ASSY 3 15JK50123E STAPLE DRIVE RACK 4 15JK50130 STAPLE ROTATION SPRING FRONT 5 15JK50110 STAPLE SLIDE ROLLER 6 13GL46720 FIXING PLATE 7 15SF77090 SWING GEAR 14T 8 15JK77250 SWING PULLEY 2 14T 9 15JK52171 REGULATING BLOCK 10 A07R940201 REPLACEMENT LABEL 11 15JK52110 PAPER HOLDING SPRING FRONT 12 15JK50061E STAPLE SLIDE PART /FRONT 13 13TQ42720 ROCKING BELT 116L 14 15SF43170 SWING PULLEY A 15 15SF43180 SWING PULLEY B 16 15JK50140 STAPLE ROTATION SPRING REAR 17 15JK52120 PAPER HOLDING SPRING REAR 18 15JKP72100 STAPLE CASE FOR 50 SHEETS 19 15SF43200 SPACER A 20 15SF43190 REGURATING BELT 21 15JK50160 STOPPER PLATE/1 22 15JK50071E STAPLE SLIDE PART /REAR 23 15JKR70700 STAPLE GUIDE BLOCK ASSY 24 A07R720601 Guide Sheet /Front 25 A07R720903 GUIDE SHEET /FRONT 26 15JK77210 MOTOR DRIVE GEAR 192/20T 27 08AA85512 PHOTO SENSOR 28 15JK50012F STAPLE PEDESTAL 29 15JK50082F STAPLE SLIDE PART /UPPER 30 A07R720800 STAPLE GUIDE PLATE 32 15JL524100 Stopper Sheet /A 33 15JL524300 Stopper Part 34 15JL524700 Holding Sheet /Front 35 15JL523100 Stopper Plate /Front 36 15JL520300 Staple Stopper /Front 37 15JL524600 Guide Sheet /Front 38 15JL524900 Guide Sheet /Rear 39 15JL524800 Holding Sheet /Rear 40 15JL523200 Stopper Plate /Rear 41 15JL520400 Staple Stoppe /Rear 42 15JK50180 WIRING COVER S 43 15JK50051E MOTOR MOUNTING PLATE 44 A07RA7350 STAPLE/FRONT ASSY 45 15JK-5040 ROTARY PLATE CAULLKING /R 46 15JK50041 STAPLE ROTATION PLATE /UPPER 47 15SF-5240 SUPPORT PLATE CAULLKING/REAR 48 15JK-5020 ROTARY PLATE CAULLKING /F 49 15SF-5230 SUPPORT PLATE CAULLKING/FRONT 50 15SF-5290 SWING PLATE CAULLKING/FRONT 51 15SF-5300 SWING PLATE CAULLKING/REAR 52 A07R721003 GUIDE SHEET /REAR 53 A07R720701 Guide Sheet /Rear 54 A07RA7360 STAPLE/REAR ASSY 55 A07R722400 SPACER 56 15JK52340 SWING SHEET /A 57 13QA17730 COLLAR 6 58 13NK50380 NEUTRALIZING BRUSH C 59 15JK50150E STAPLE STOPPER /FRONT 60 A07R722201 GUIDE STOPPER /FRONT 61 15JK50190E STAPLE STOPPER /REAR 62 A07R722301 GUIDE STOPPER /REAR 63 A07R721900 SUPPORT PLATE
Stacker 1 56QA75070 BEARING/8 2 14GE45470 ROTARY KNOB 3 A07R700302 DRIVE ROLLER 4 13TQ42640 BELT DRIVEN PULLEY 1 22T 5 13TQ43410 SPACER 6 15JK77280 SWING GEAR 1 14T 7 12QR76550 DRIVING PULLEY A 24T 8 13QE77530 BELT E 189L 9 15SF43150 CONVEYANCE AUXILIARY COLLAR 10 A07R722100 ENTRANCE GUIDE PULLEY /G 34T 11 A07R940800 RELEASE LABEL /F 12 15SF42640 BELT IDLER PULLEY 1 13 12QR50700 BELT HOLDER B 14 13TQ42660 ENTRANCE DRIVEN BELT 102L 15 12QR76680 ENTRANCE GUIDE PULLEY A 34T 16 15JL426600 ENTRANCE ENTRANCE PULLEY 30T 17 15JL775400 GUIDE BELT 92L 18 15JL429400 COLLAR 19 15JL429800 Guide Collar 20 15JL429900 Slide Part 21 12QV75040 BEARING/D 22 12VG40640 BEARING 23 25AA75090 BALL BEARING 24 15JL-4540 SWING PLATE/B REAR CAULLKING 25 15JL-4420 SWING PLATE CAULLKING 26 15JL-4530 SWING PLATE/B FRONT CAULLKING 27 A07R721101 IDLER SHAFT 28 A07R721200 Regulating Belt /1 29 13TQ42670 BELT MOUNTING ROLLER 30 A07R721501 GUIDE PART /1 31 A07RA7410 CLEANING PLATE ASSY 32 A07R721700 SPACER 33 A07R721600 GUIDE PART 34 A07R722500 GUIDE COLLAR 35 13QA40610 GEAR SPACER 36 A07R723100 Guide Sheet /4

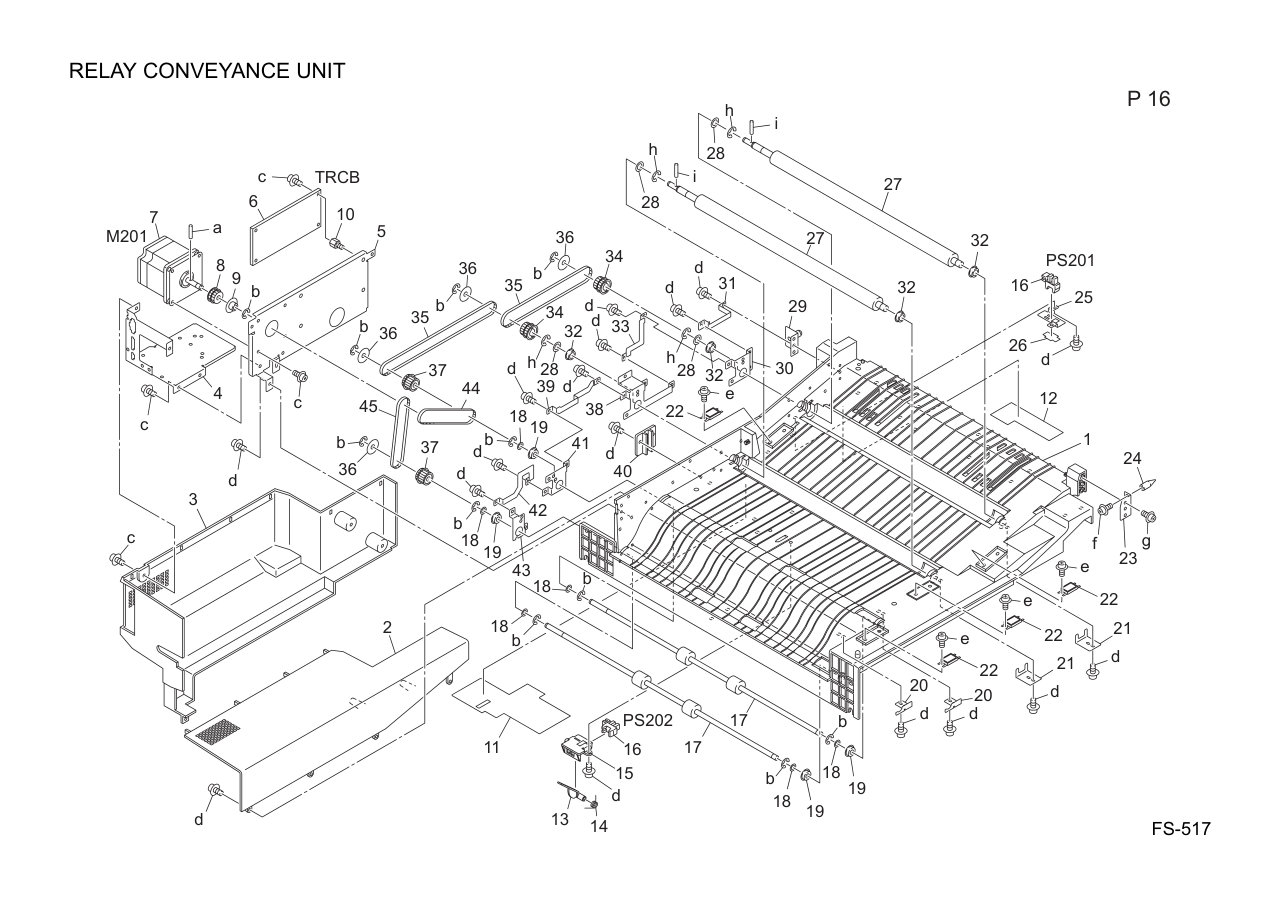

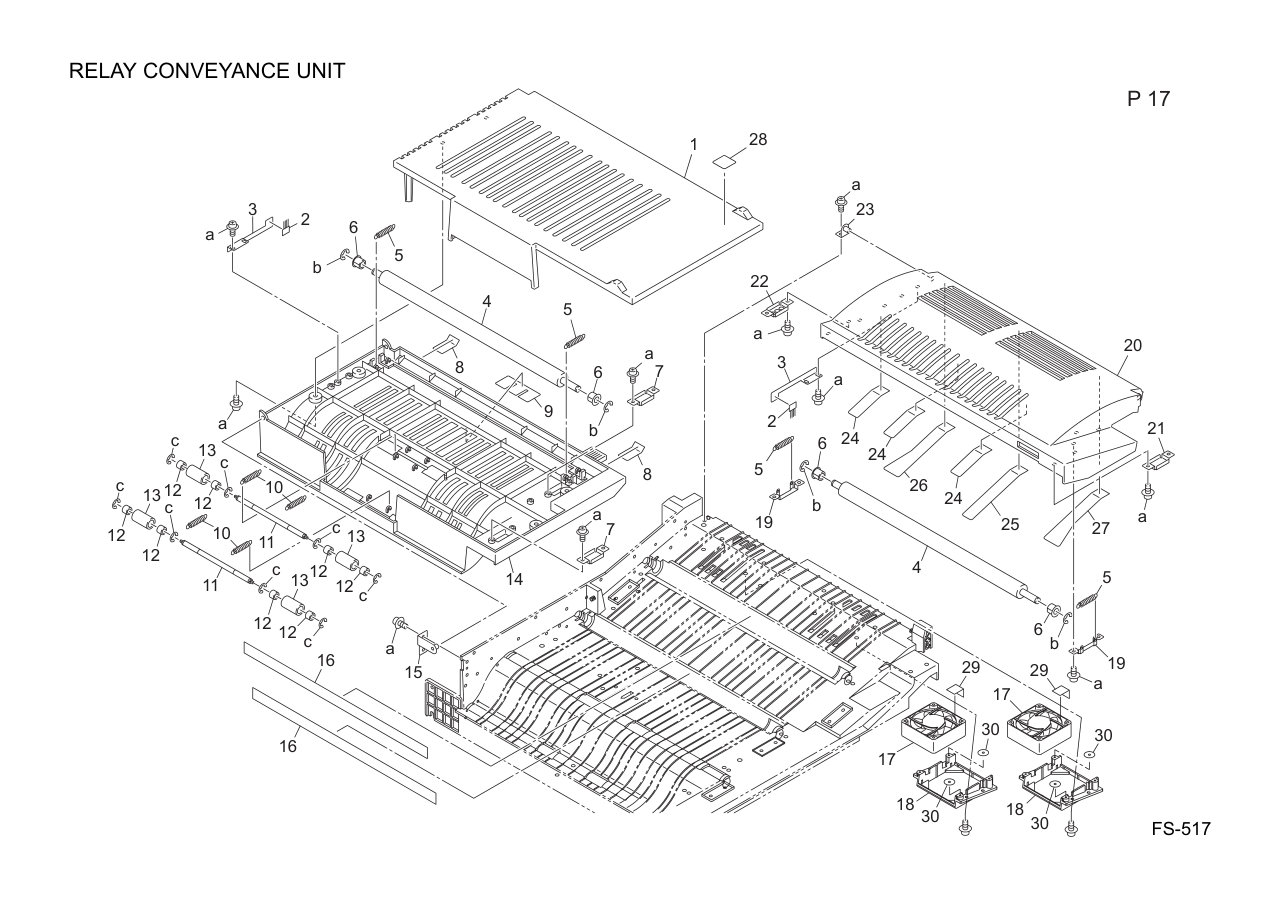

Relay Conveyance Unit 1 A07R810018 Guide Plate /Lower 2 A07R814802 COVER /2 3 A07R814702 COVER /1 4 A07R811402 WIRING PLATE 5 A07R810801 MOUNTING PLATE /A 6 A07RH09012 CONTROL BOARD ASSY 7 56AA80112 PAPER EXIT DRIVE MOTOR 8 A07R814400 DRIVE PULLEY /M 26T 9 A07R810700 Collar /M 10 A07R815400 Support Leg 11 A07R815302 HOLDING SHEET 12 A07R815800 HOLDING SHEET /2 13 13QE48070 ACTUATOR 1 14 13QE48080 SPRING 1 15 A07R812000 BLOCK 16 08AA85512 PHOTO SENSOR 17 A07R810512 DRIVE ROLLER /2 18 07BA15930 SPACER B 19 A07R813701 Roller Bearing /B 20 A07R816211 HOLD PLATE /2 21 A07R816111 HOLD PLATE /1 22 12AA12100 MAGNET CATCH A 23 A07R811701 POSITIONING PLATE /FRONT 24 A07R811900 Positioning Pin /Front 25 A07R812101 PLATE /RIGHT 26 13GL46720 FIXING PLATE 27 A07R810301 DRIVE ROLLER /1 28 13QA40610 GEAR SPACER 29 A07RA8180 POSITIONING PLATE/REAR ASSY 30 A07R811200 Fixing Plate /4 31 A07R812800 Ground Plate /1 32 A07R813801 Roller Bearing /A 33 A07R812900 Ground Plate /2 34 A07R814500 DRIVE PULLEY /1 28T 35 A07R814200 DRIVE BELT /1 300L 36 A07R810600 Collar /1 37 A07R814300 DRIVE PULLEY /3 28T 38 A07R811100 Fixing Plate /3 39 A07R813000 Ground Plate /3 40 A07R813200 Wiring Holder 41 A07R811000 Fixing Plate /2 42 A07R813100 Ground Plate /4 43 A07R810900 Fixing Plate /1 44 A07R814000 DRIVE BELT /3 202L 45 A07R814100 DRIVE BELT /2 274L
Relay Conveyance Unit 1 A07R814604 TOP PLATE 2 A07R815500 Neutralizing Brush 3 A07R813502 GROUND PLATE /UPPER 4 A07R810400 Idler Roller /1 5 A07R811500 Conveyance Spring /1 6 A07R813900 Slide Bearing /A 7 A07R812700 Suction Plate /1 8 A07R815203 Guide Sheet /5 9 A07R816000 CLEANING SHEET /MIDDLE 10 A07R811600 Conveyance Spring /2 11 A07R812200 Idler Shaft /2 12 56GA76030 SLIDE SHAFT HOLDER 13 15AG45560 CONVEYANCE IDLER ROLLER 2 14 A07R810204 GUIDE PLATE /LEFT 15 A07RA8200 SUPPORT PLATE/LEFT ASSY 16 A07R813400 Guide Sheet /1 17 56AA80551 FAN MOTOR 2 18 A07R815711 COOLING HOLDER 19 A07R811300 Support Plate /1 20 A07R810103 GUIDE PLATE /RIGHT 21 A07R813300 Suction Plate /2 22 A07R813600 Suction Plate /3 23 A07RA8190 SUPPORT PLATE/RIGHT ASSY 24 A07R815600 Guide Sheet /6 25 A07R814901 Guide Sheet /2 26 A07R815101 Guide Sheet /4 27 A07R815001 Guide Sheet /3 28 A07R941000 LABEL /1 29 A07R816300 HOLDING SHEET /3 30 A07R816400 FIXING PLATE /F

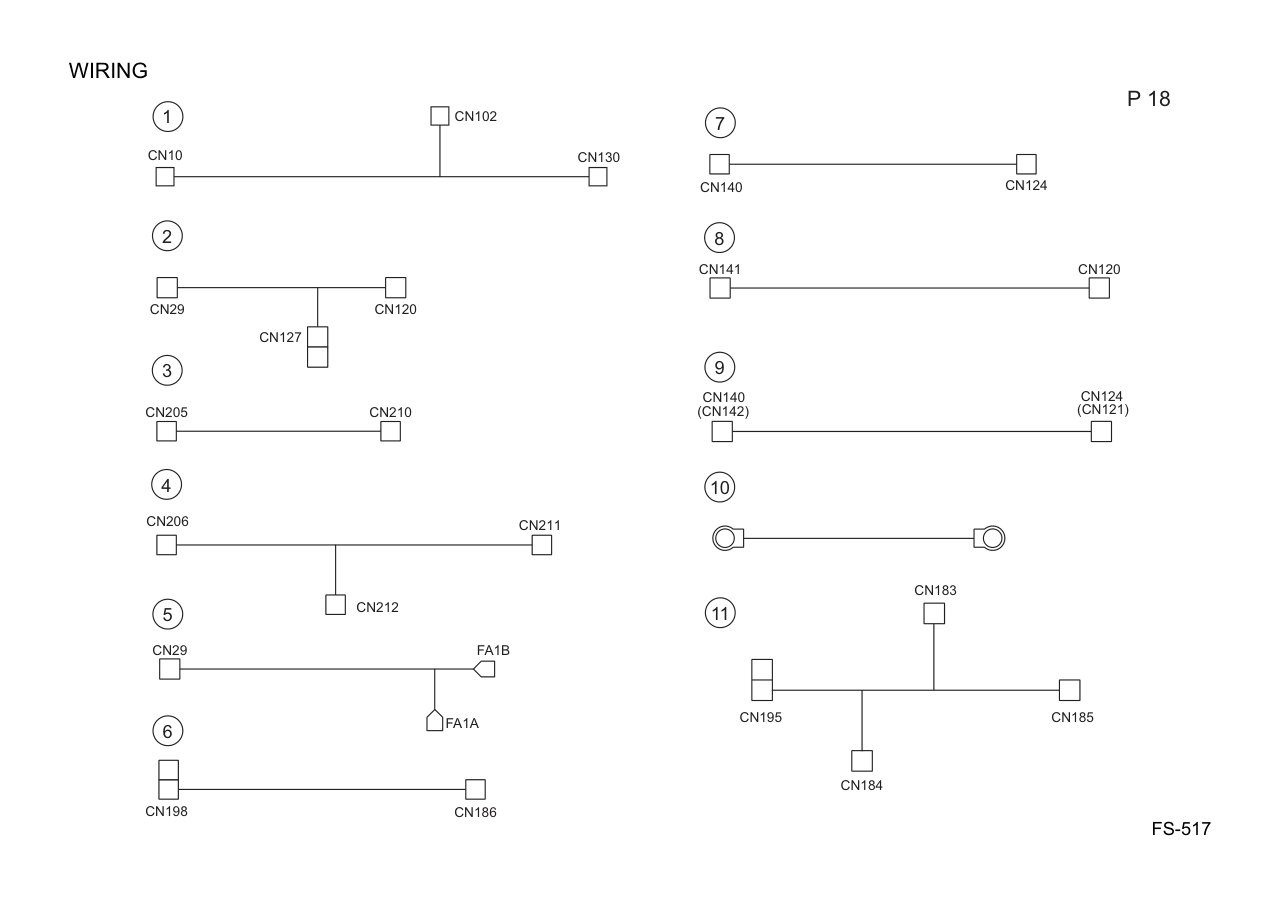

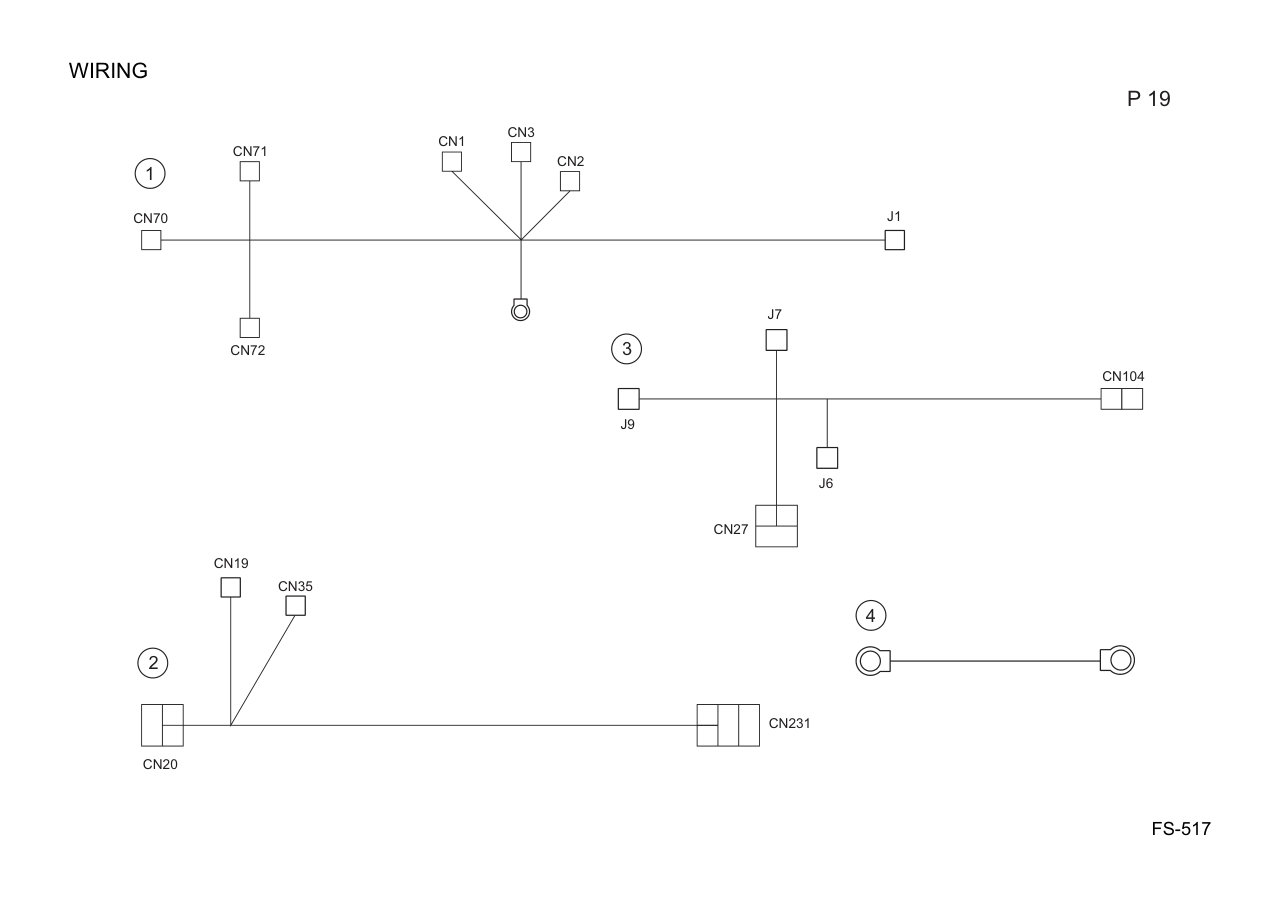

Wiring 1 A07RN10400 FNS Wiring /4 2 A07RN12200 Paper exit Compensating Wiring 3 A07RN19200 Conveyance Drive harness 4 A07RN19301 WIRING 5 13QE90070 FNS WIRING 7 6 13QE90170E RELAY WIRING /B 7 13QE90100 FNS WIRING 10 8 13QE90020 FNS WIRING 2 9 13QE90030 FNS WIRING 3 10 13QE90210 FNS WIRING 20 11 15JK90150 FNS WIRING E
Wiring 1 A07RN10601 I/F Wiring 2 A07RN10800 FNS Wiring /8 3 A07RN11400 FNS Wiring /D 4 13QE90182 EARTH WIRING A

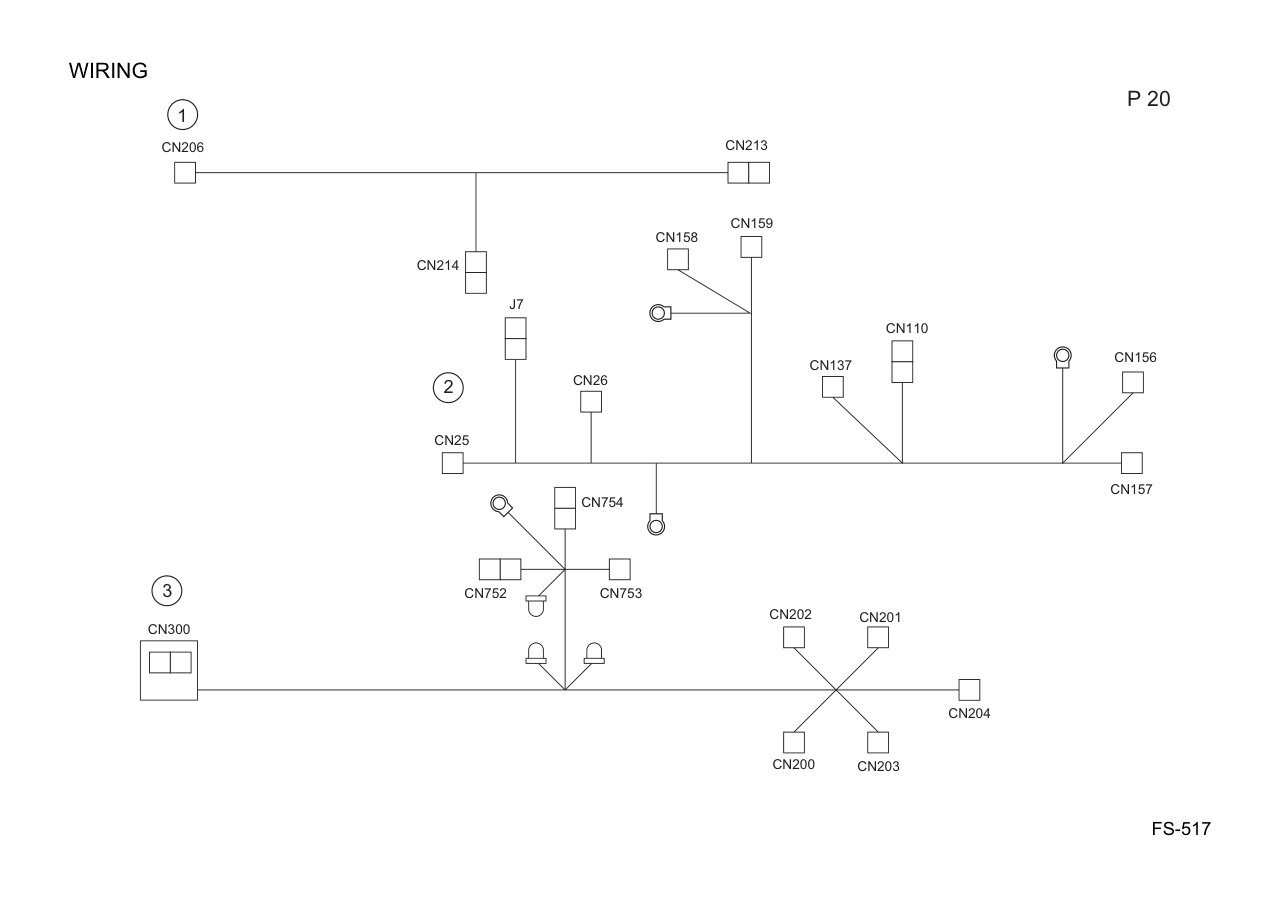

Wiring 1 A07RN19400 COOLING RELAY HARNESS 2 A07RN11301 FNS Wiring /C 3 A07RN19102 I/F WIRING /2

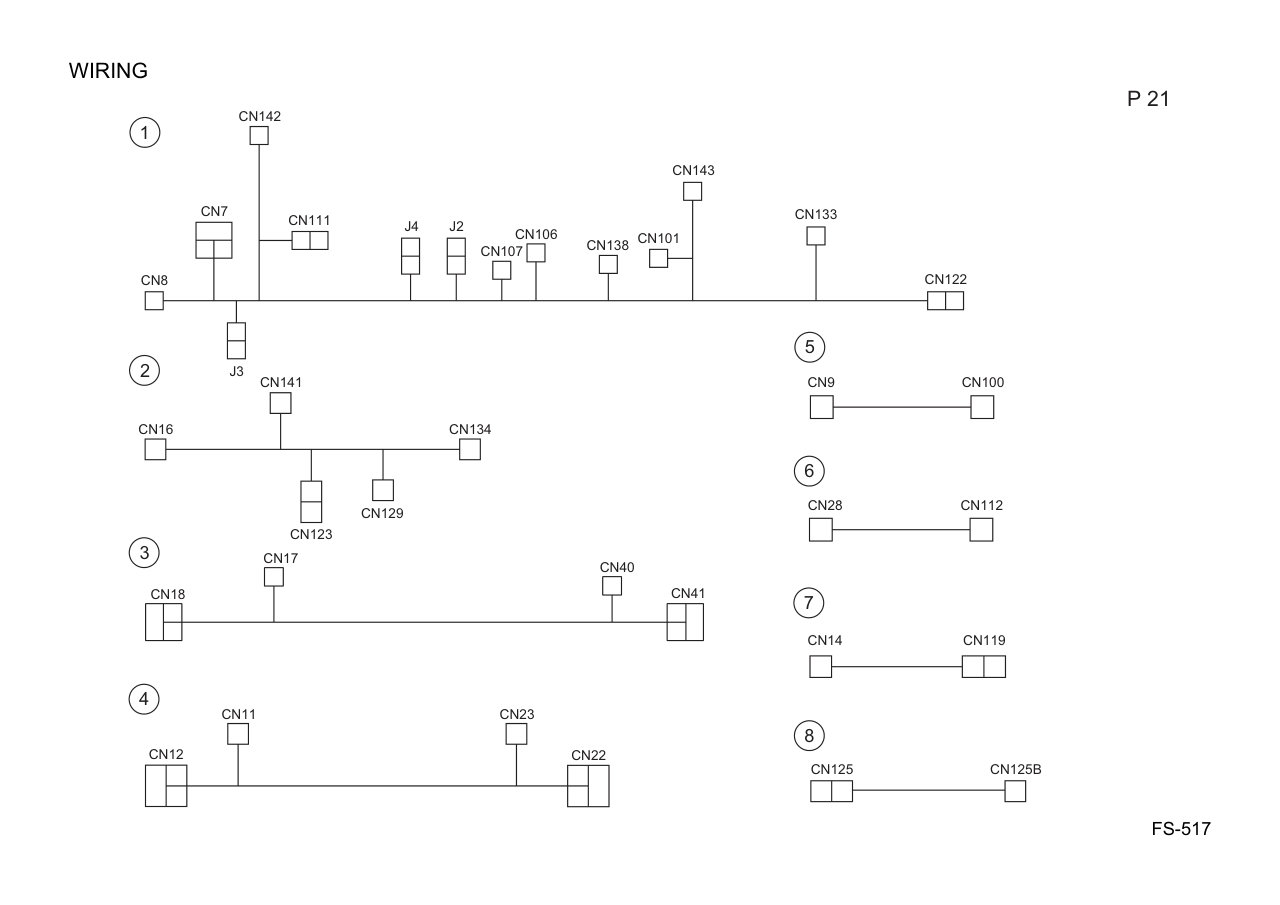

Wiring 1 A04DN10111 FNS WIRING /1 2 A04DN10500 FNS WIRING /5 3 A04DN10900 FNS WIRING /9 4 A04DN11100 FNS WIRING /A 5 A04DN11800 HB WIRING /1 6 A04DN11900 HB WIRING /2 7 A04DN12300 HB WIRING /5 8 15JKN12500 WIRING

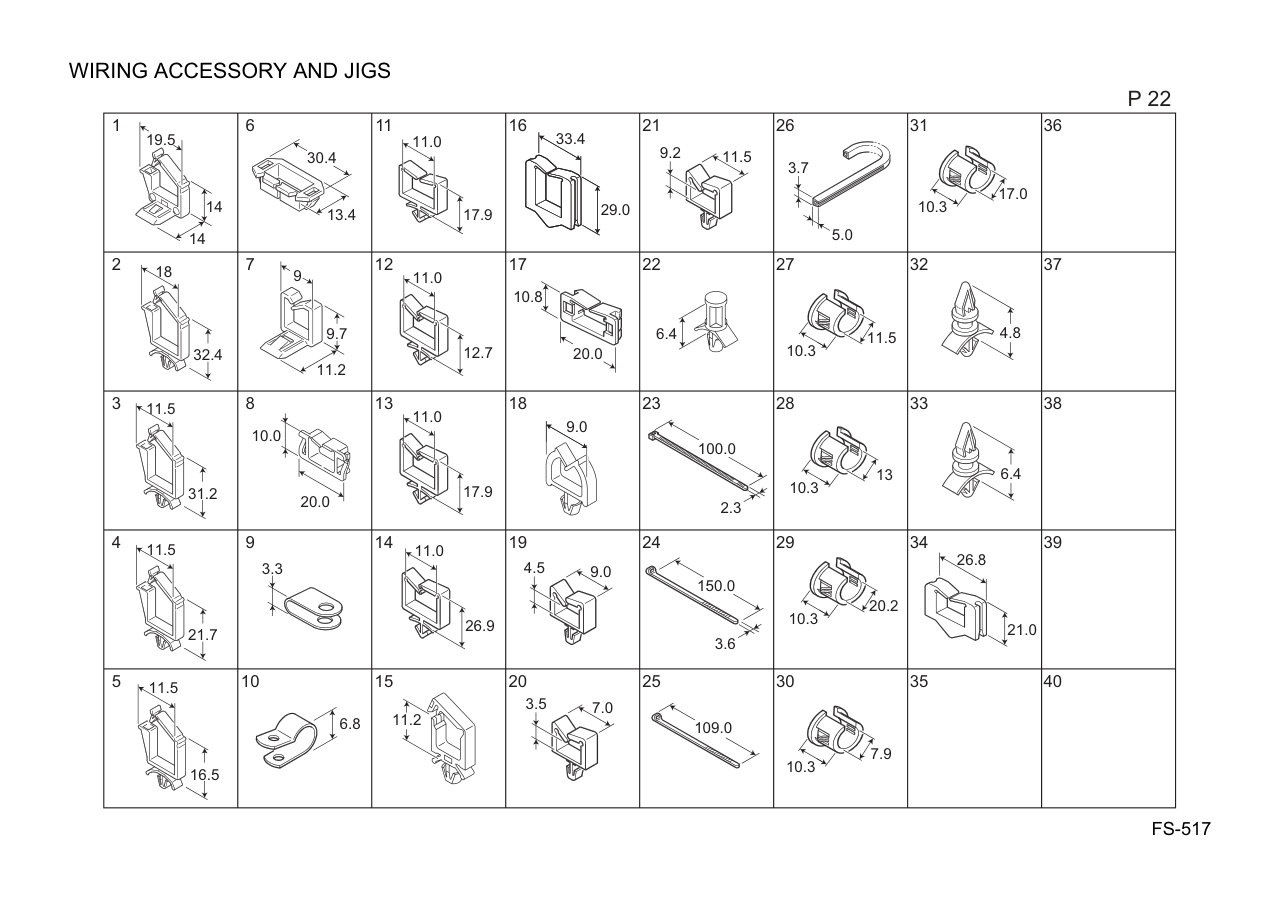

Wiring Accessory And Jigs 1 00Z920015 LOCKING WIRE SADDLE LWSS-1M 2 00Z920017 WIRE SADDLE LWS-2218D 10/1 3 00Z920018 WIRE SADDLE LWS-2111Z 10/1 4 00Z920020 WIRE SADDLE LWS-1211Z 10/1 5 00Z920021 WIRE SADDLE LWS-0711 10/1 6 00Z920027 BUSHING SB-1909 10/1 7 00Z920062 SADDLE MSBS-1207 8 00Z920091 EDDGE SADDLE 9 00Z921102 NYLON CLAMP 10 00Z921104 NYLON CLAMP 11 00Z921302 WIRE SADDLE 12 00Z921321 WIRE SADDLE LWS-1N 13 00Z921322 LOCKING WIRE SADDLE 10PC 14 00Z921323 LOCKING WIRE SADDLE 10PC 15 00Z921326 LOCKING WIRE SADDLE 16 00Z921335 EDGE SADDLE 17 00Z921370 EDGE SADDLE 10/1SET 18 00Z921902 MINI CLAMP S-10 10/SET 19 00Z921930 MINI CLAMP 20 00Z921931 MINI CLAMP MSB-1607 10/1SET 21 00Z921943 MINI CLAMP MSC-1613 22 00Z921951 PUSH SPACER 23 00Z922410 WIRING BAND 24 00Z922415 WIRING BAND 25 00Z922440 WIRING BAND CV-100 I 10/1SET 26 00Z924516 FLEXIBLE BUSH 27 00Z924690 OPEN-CLOSED BUSH 28 00Z924691 OPEN-CLOSED BUSHING 29 00Z924692 OPEN-CLOSE BUSH 30 00Z924694 OPEN-CLOSED BUSHING OCB-500 31 00Z924696 OPEN-CLOSE BUSHING OCB-875 32 00Z925103 LOCKING CIRCUIT BOARD SUPPORT 33 00Z925104 LOCKING CIRCUIT BOARD SUPPORT 34 00Z926257 EDGE SUDDLE EDS-1717U

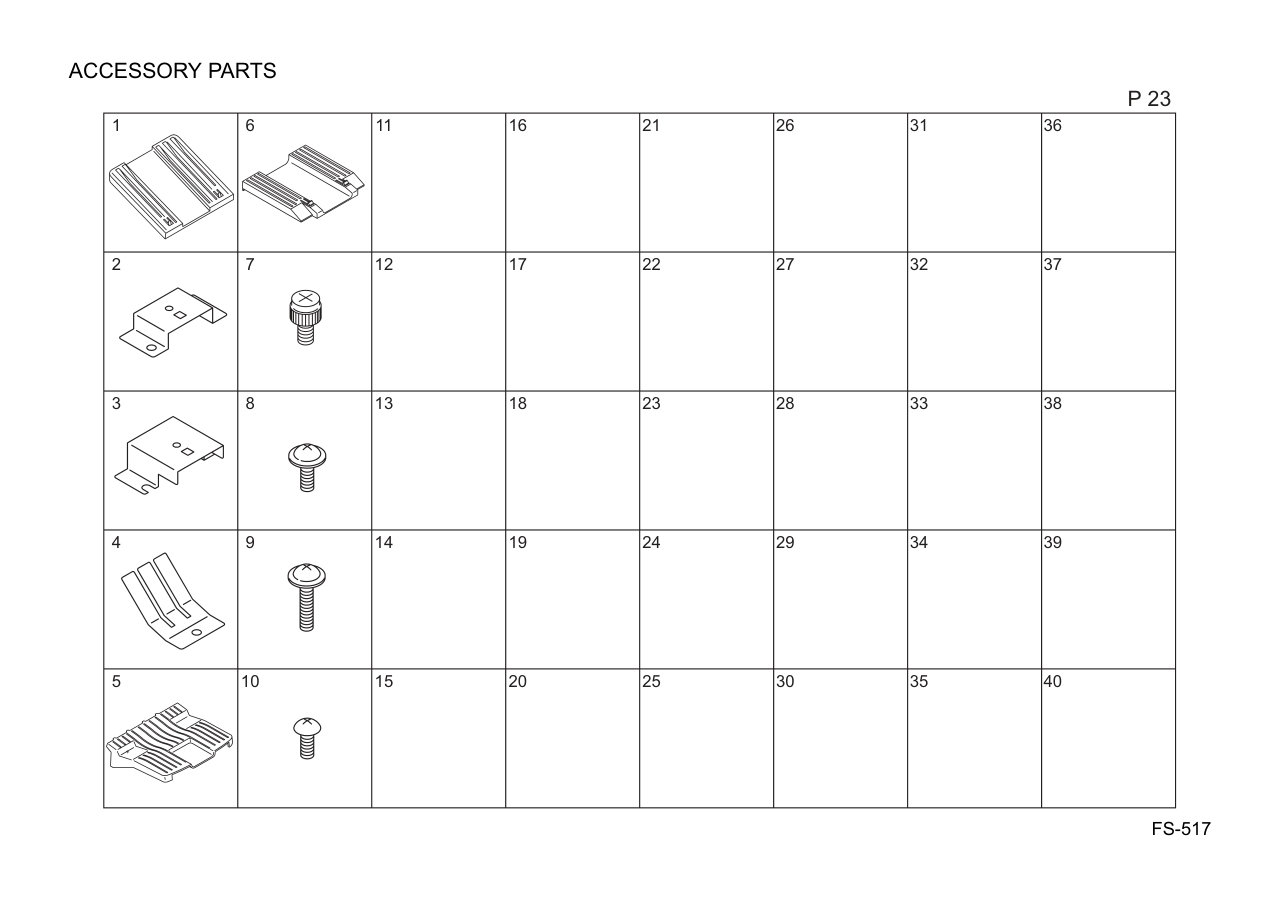

Accessory Parts 1 A07R890300 Paper exit Tray /3 2 A07R102100 Mounting Plate /1 3 A07R102200 Mounting Plate /2 4 129R10210 MAIN FIXED PLATE 1 5 A07R890101 PAPER EXIT TRAY /1 6 A07R890001 PAPER EXIT TRAY /2 7 12QV10101 ADF MOUNTING SCREW 8 00Z194061 C.R.P.H. SCREW 100/1SET M4X6 9 00Z194121 CROSS RECESSED PAN HEAD SCREW 10 00Z144082 C.R.P.H.TR.SCREW 100/1SET M4X8
